Rashmi Sehrawata,
Priya Vashishtha,
Neera Raghavb,
Anjaneyulu Bendic,
A. Jafar Ahamed
d,
N. Mujafarkani*d and
Bindu Mangla*a
aCorrosion Testing Research Lab, Department of Chemistry, J.C. Bose University of Science and Technology, YMCA Faridabad 121006, Haryana, India. E-mail: bindumangla@gmail.com
bDepartment of Chemistry, Kurukshetra University, Kurukshetra, 136118 Haryana, India
cInnovation and Translational Research Hub (iTRH) & Department of Chemistry, Presidency University, Rajanukunte, Itgalpura, Bangalore, 560064, Karnataka, India
dPG and Research Department of Chemistry, Jamal Mohamed College (Autonomous), (Affiliated to Bharathidasan University), Tiruchirapplli, 620020, Tamilnadu, India. E-mail: nm@jmc.edu
First published on 8th April 2025
Herein, a 4,4-diaminodiphenylmethane-melamine-formaldehyde (DMF) terpolymer was synthesized and characterized to investigate its anti-corrosion properties for mild steel in a 1 M hydrochloric acid electrolyte. The DMF terpolymer produced through condensation polymerization was characterized using FTIR, 1H NMR, 13C NMR, and gel permeation chromatography. Electrochemical tests showed that it achieved 94% inhibition efficiency at 100 ppm, functioning as a mixed-kind inhibitory agent. The adsorption phenomenon conformed to the paradigms delineated by the Langmuir adsorption isotherm, indicating strong binding through physical and chemical interactions. AFM confirmed the creation of a protective barrier on the steel substrate, while DFT studies supported its molecular adhesion. Additionally, the terpolymer exhibited antimicrobial activity against Staphylococcus aureus, Pseudomonas aeruginosa, and Bacillus subtilis.
The implementation of corrosion inhibiting substances is a very successful tactic in addressing the formerly described corrosion problem. The majority of these inhibitory agents are organic substances with heteroatoms made up of components including nitrogen, oxygen, and sulphur.8,9 Furthermore, efficient binding over the steel surface is enabled because of the inclusion of aromatic rings and multiple bonds.10,11 After being adsorbed, such inhibitors provide a strong shield that defends the surroundings from corrosive substances. In numerous industrial settings, efficient anti-corrosion agents increase the longevity of mild steel structures and improve their operating reliability and cost-effectiveness.12,13
Polymers are regarded as promising anti-corrosion agents owing to their favorable environmental and economic benefits, coupled with superior corrosion inhibition properties compared with basic organic substances.14,15 Polymers offer an extensive surface area coverage on metallic substances, developing a protective layer at the interface that shields the surface from corrosion. Recent studies have investigated the corrosion inhibition effects of various natural and synthetic polymers in different environments.16,17 The study demonstrates that the distinct molecular and electrical structures, chemical makeup, and macromolecular mass of polymers all affect their efficiency.18
B. A. Farzana et al. studied the anti-corrosive action of p-semidine-guanidine-formaldehyde terpolymer for mild steel using electrochemical and gravimetry techniques.19 It was found to exhibit 93.7% efficacy at 10−3 M in sulphuric acid medium. The adsorption behaviour was elucidated and found to follow the Langmuir isotherm. Additionally, density functional theory (DFT) analysis was conducted to further support and complement the experimental results. In another study, two polymers were used as anti-corrosive agents for mild steel using electrochemical measurements in 1 M HCl: poly(acrylonitrile) sodium salt (PANa) and poly(acrylic acid) (PAA).20 They were found to show 91.5% and 95.5% efficacy for PANa and PAA, respectively. Both polymers showed a mixed-kind of inhibition, and the Langmuir isotherm was followed in the adsorption process. The corrosion inhibition processes were elucidated using SEM and EDAX investigations, and the most reactive locations over the polymers were found through theoretical calculations, which further enhanced the comprehension of the polymer's efficacy as corrosion inhibitors. M. Abdallah et al. investigated the inhibiting potential of polymer compounds, poloxamer (PLX) and pectin (PEC), against the degradation of carbon steel in harsh environments using weight loss and electrochemical methods.21 Lower temperature (298 K) and greater polymer concentration (500 ppm) led to a spike in the inhibitory effectiveness, i.e., 84% and 91% for PLX and PEC, respectively. Both polymers created an adsorptive protective layer to keep the corrosive medium from interacting with the steel surface. Chemical and physical adsorption proceeded in accordance with the Freundlich isotherm. PEC demonstrated more inhibition than PLX, which can be explained by its better surface coverage owing to its larger molar mass. All techniques produced findings with consistent inhibition.
Earlier research shows that polymers exhibit excellent adsorption properties and strong interactions with metal surfaces. However, limited studies have focused on terpolymer resins, particularly in hydrochloric acid media. This study addresses this gap by exploring the anti-corrosive properties of 4,4-diaminodiphenylmethane-melamine-formaldehyde terpolymer (DMF), employing both experimental and computational approaches to provide a comprehensive understanding of its corrosion inhibition mechanism.
The novelty of this terpolymer lies in its cost-effectiveness, multifunctional properties, and ease of synthesis. It is derived from readily available and low-cost raw materials, making it a viable option for large-scale applications in biological evaluation, thermal degradation, ion-exchange, and anti-corrosive studies. Additionally, the condensation polymerization process only requires simple reaction conditions, eliminating the need for complex synthesis procedures. This not only enhances its practicality and scalability but also makes it an environmentally and economically favorable candidate for industrial applications.
In this study, a terpolymer (DMF) was synthesized through condensation polymerization of 4,4-diaminodiphenylmethane and melamine with formaldehyde. The synthesized DMF terpolymer was characterized using FTIR, 1H and 13C NMR techniques. The average molecular weight of the DMF polymer was ascertained through gel permeation chromatography. The polymer was then tested for anti-corrosion characteristics for mild steel in a 1 M HCl solution utilizing potentiodynamic polarization, linear polarization resistance, and electrochemical impedance spectroscopy. The adsorption capacity of the DMF terpolymer was further analysed through AFM surface studies. Additionally, DFT calculations were employed to explore the relationship between the DMF terpolymer's structure and its experimental effectiveness. Furthermore, the antimicrobial activity of the terpolymeric ligand was assessed through the disc diffusion method against Staphylococcus aureus, Pseudomonas aeruginosa, and B. subtilis.
The excitation signal's amplitude factor has been configured to 10 mV throughout the electrochemical impedance spectroscopy (EIS) examination, and the EIS's sweeping frequency band has been adjusted to 10−2–105 Hz. Using electrochemical variables (Rct), the inhibitory efficacy may be computed as follows:
Using polarization tests, the consequences of inhibition on mild steel dissolution were researched at 1 mV s−1 sweeping among a cathodic potential of −0.25 V and anodic potential of +0.25 V. The effectiveness of compound prevention was determined using the formula below:
The concentration range of DMF polymer was selected between 20–100 ppm, as there was no significant improvement in the inhibition efficiency beyond 100 ppm. This indicates that the polymer had reached its maximum inhibitory effect at 100 ppm, making further increases in concentration unnecessary.
ΔE = ELUMO − EHOMO |
IE = −EHOMO |
EA = ELUMO |
Fukui functions were implemented to determine the local reactivity of the inhibitory compounds under study. These functions aid in the identification of reactive regions involved in nucleophilic and electrophilic attacks by assessing shifts in the density of electrons.27 The Fukui indices of the polymers were computed using simple statistical approaches, providing an analytical foundation for identifying the most favourable places for molecular interactions. The Fukui function was computed using Hirshfeld population analysis for nucleophilic attack (fk+) and for electrophilic attack (fk−):
fk+ = qk(n + 1) − qk(n) |
fk− = qk(n) − qk(n − 1) |
The charges corresponding to the neutral, positive, and negative states are denoted as qk(n), qk(n + 1), and qk(n − 1), respectively.
Bacterial strains, including Staphylococcus aureus, Pseudomonas aeruginosa, and Bacillus subtilis, were obtained from Kirnd Institute of Research and Development, Tiruchirappalli. The strains were maintained on nutrient agar slants at 4 °C. For the antimicrobial assay, bacterial cultures were subcultured in nutrient broth at 37 °C for 8 h to achieve an inoculum concentration of 105–106 CFU mL−1. The nutrient broth was prepared using standard components peptone (5 g), beef extract (3 g), agar (15 g), sodium chloride (5 g), and yeast extract (1.5 g), excluding agar, and sterilized by autoclaving at 121 °C and 15 psi for 15 min.28
To assess antimicrobial activity, the Kirby–Bauer agar well diffusion method was employed. The nutrient agar medium was subjected to sterilization, subsequently aliquoted into aseptically prepared Petri dishes, and permitted to undergo solidification under controlled conditions (Fig. 1). Bacterial cultures were meticulously distributed across the agar plate surfaces via uniform swabbing employing sterilized cotton applicators. Wells were created in the agar using a sterile well cutter, and the prepared plant extracts were aseptically added to the wells. The plates were incubated at 37 °C for 24 h and the zones of inhibition around each well were assessed to determine the antimicrobial efficacy of the plant extracts against the test bacterial strains.29
Compound | Mw | Mn | Polydispersity index Mw/Mn |
---|---|---|---|
DMF | 1785 | 1715 | 1.041 |
Vibration mode | Frequency (cm−1) | |
---|---|---|
Theoretical | Observed | |
N–H bridge (stretching) | 3587 | 3399.11 |
Aromatic ring (C–H) stretching | 3151 | 3019.41 |
Aromatic C![]() |
1652 | 1661.44 |
C![]() |
1622 | 1513.49 |
Aliphatic CH2 stretching | 1480 | 1407.37 |
C–N stretching | 1192 | 1243.88 |

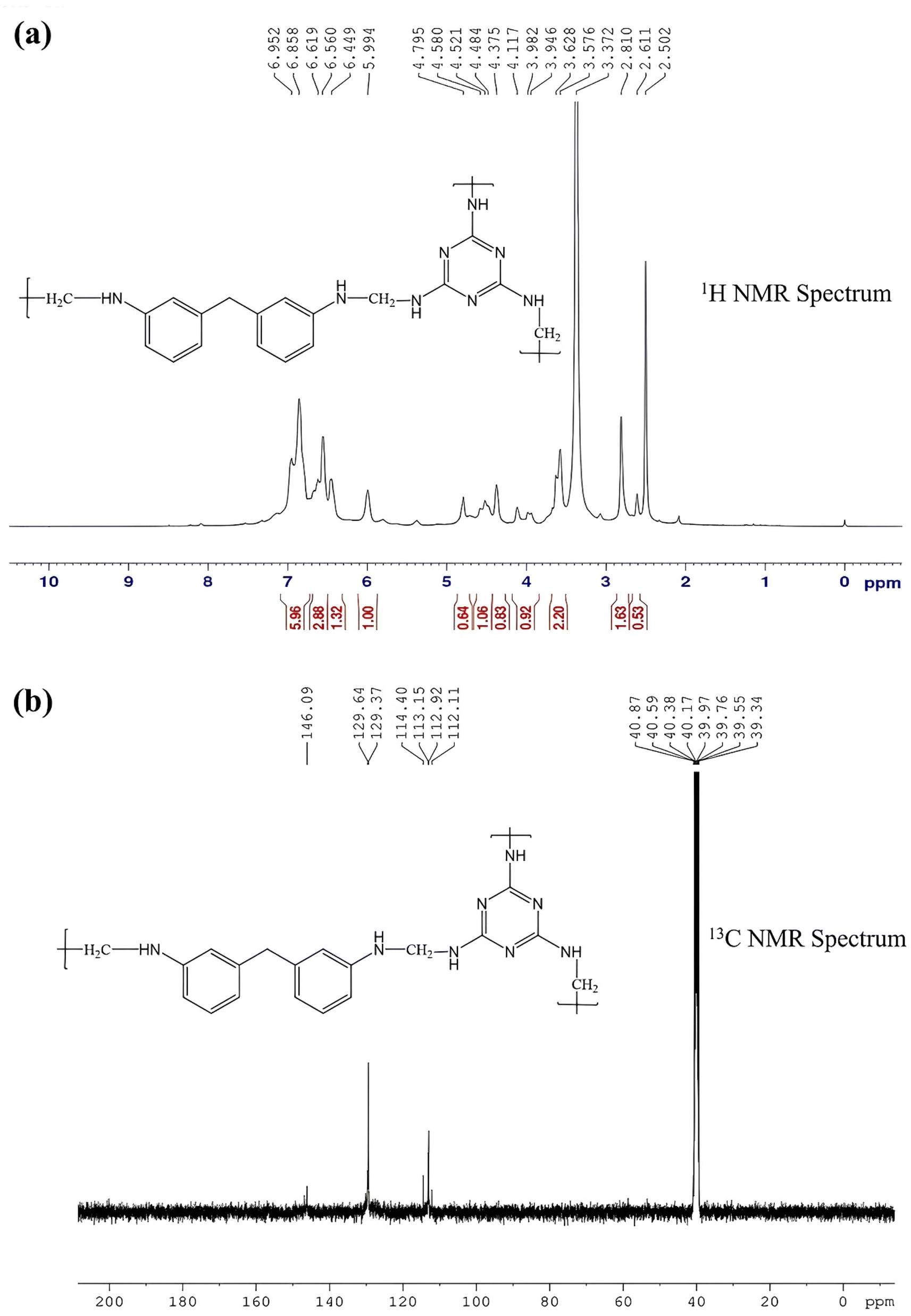

The 13C NMR spectrum of the DMF terpolymer is depicted in Fig. 3. In the spectrum, the signal at 146.09 (δ) ppm is assigned to the carbon of CN. The signals at 112.11, 112.92, 113.15, 114.4, 129.37 and 129.64 (δ) ppm were assigned to all the carbons of aromatic rings that are present in diaminodiphenylamine and pyrimidine groups. The signal observed at 59.87 (δ) ppm is assigned to the methylene group present in the terpolymer ligand.
Also, the theoretical 1H and 13C NMR chemical shifts were calculated using the GIAO method with B3LYP/6-31++G(d, p) in the gas phase. The 1H and 13C data for the polymer shown in Table 3 are in good agreement with the experimental values.
1H atom | δ theoretical | 13C atom | δ theoretical |
---|---|---|---|
28H | 3.63 | 1C | 163.05 |
29H | 3.47 | 2C | 117.87 |
30H | 3.37 | 3C | 141.49 |
31H | 3.44 | 4C | 129.76 |
32H | 7.14 | 5C | 157.89 |
33H | 8.08 | 6C | 126.68 |
34H | 6.94 | 7C | 54.93 |
35H | 7.57 | 8C | 158.72 |
36H | 4.47 | 9C | 131.65 |
37H | 4.59 | 10C | 142.29 |
38H | 7.39 | 11C | 117.73 |
39H | 7.39 | 12C | 160.65 |
40H | 8.06 | 13C | 129.44 |
41H | 7.40 | 14N | 4.03 |
42H | 5.59 | 15C | 39.07 |
43H | 5.88 | 16N | 30.74 |
44H | 5.32 | 17C | 59.43 |
45H | 6.10 | 18N | 46.40 |
46H | 4.66 | 19C | 178.84 |
47H | 4.65 | 20N | 130.98 |
48H | 4.58 | 21C | 178.22 |
49H | 3.27 | 22N | 132.87 |
50H | 3.27 | 23C | 177.46 |
51H | 4.32 | 24N | 125.66 |
52H | 3.48 | 25N | 18.34 |
— | — | 26N | 24.52 |
— | — | 27C | 36.17 |
![]() | ||

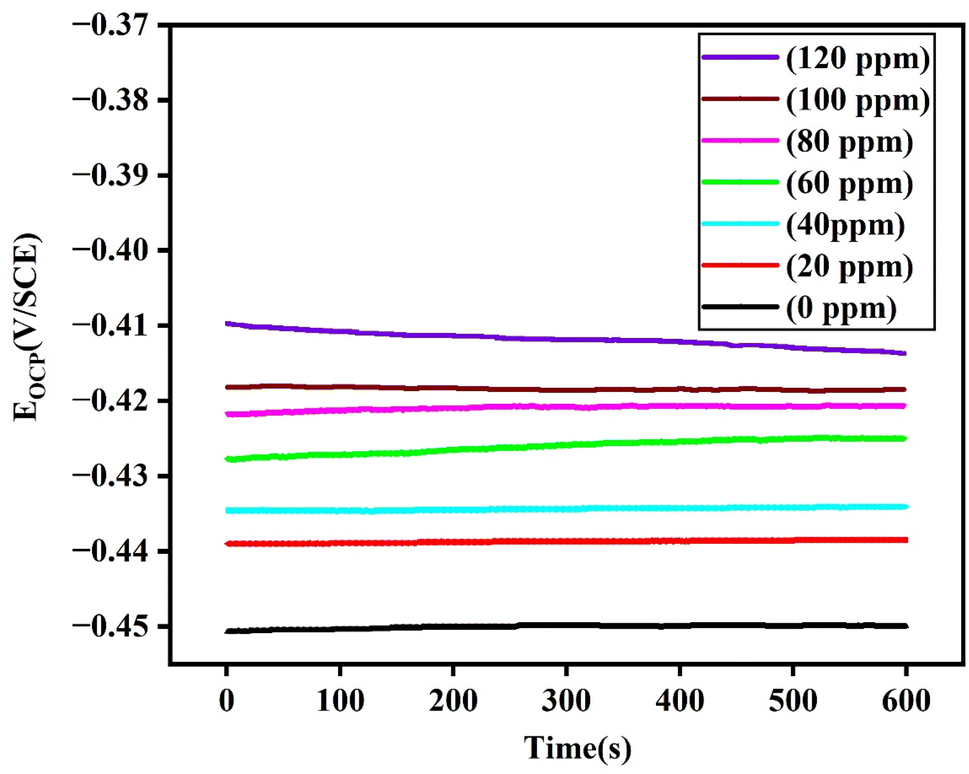

Fig. 4 OCP curves of mild steel immersed in 1 M acid, recorded with different concentrations of DMF. |
Conc. (ppm) | Ecorr (mV (SCE)) | Icorr (μA cm−2) | Rp (Ω cm2) | IE (%) |
---|---|---|---|---|
Blank | −449.2 | 754 | 30.14 | — |
20 | −426.9 | 428 | 53.4 | 43.56 |
40 | −404.7 | 300.1 | 84.6 | 64.37 |
60 | −425.1 | 211 | 115.4 | 73.88 |
80 | −422.1 | 115 | 256.2 | 88.24 |
100 | −417.5 | 52 | 386 | 92.19 |
120 | −429.11 | 46 | 436.2 | 93.09 |
In polarization methods, the cell's current is recorded as the sample potential is modified. In laboratory settings, potentiodynamic polarization (PDP) is widely used because it offers important insights into the processes of corrosion inhibition and the substrate's rate of dissolution in inhibitory situations. To monitor the progression and dynamics of cathode and anode procedures and for evaluating the effect of corrosion inhibiting agent doses upon such reactions, PDP investigations were conducted. The PDP curves of mild steel in 1 M hydrochloric acid, including and excluding distinct inhibitor amounts (20–120 ppm) at 308 K, are displayed in Fig. 5. Ecorr, Icorr, and the Tafel constants (βa and βc), which are obtained from the Tafel anodic and cathodic extrapolation area electrochemical elements were computed from the graph. Additionally, Table 5 presents an assessment and summary of the efficiency of the inhibiting agents.
Conc. (ppm) | βa (mV dec−1) | βc (mV dec−1) | Ecorr (mV (SCE)) | Icorr (μA cm−2) | IE (%) |
---|---|---|---|---|---|
Blank | 64 | 106.1 | −396 | 451 | — |
20 | 62.1 | 107.5 | −404 | 228.1 | 49.42 |
40 | 64 | 106.4 | −403 | 154.4 | 65.76 |
60 | 70.6 | 111.1 | −415 | 119.2 | 73.57 |
80 | 109 | 126 | −416 | 69.8 | 84.52 |
100 | 121 | 136 | −422 | 30.5 | 93.24 |
120 | 115 | 125 | −420 | 26.6 | 94.10 |

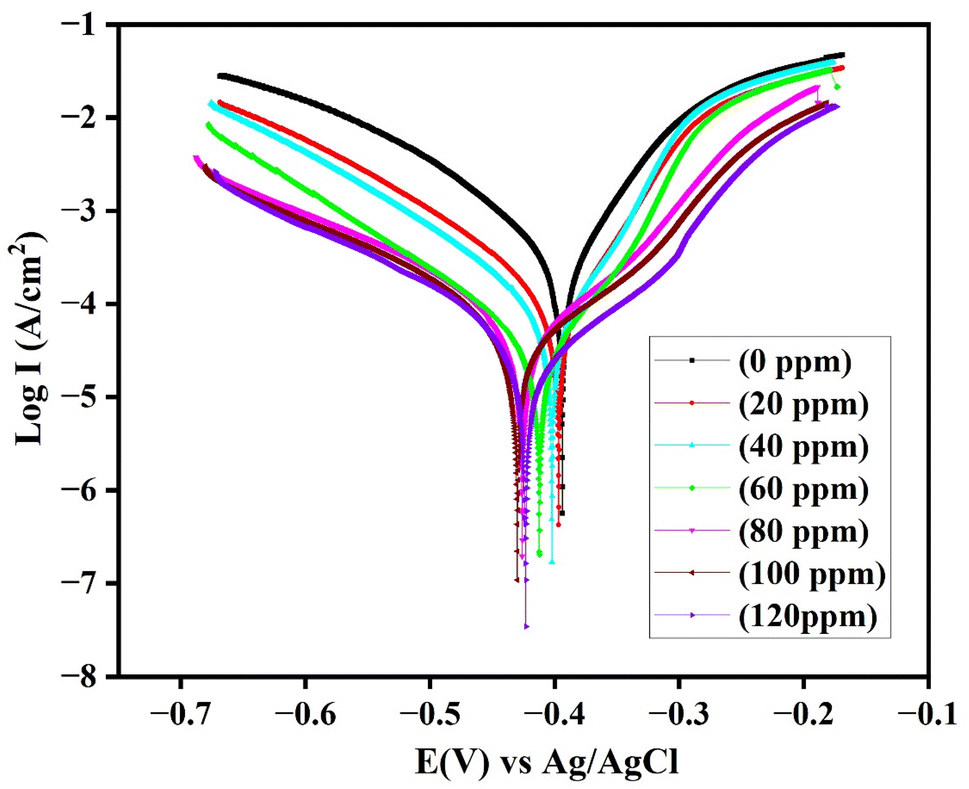

When the inhibitor DMF was incorporated, all of the graphs in Fig. 5 moved in the direction of lesser corrosion current densities (Icorr) in contrast to the PDP graph in the uninhibited settings. The comparatively unchanged Tafel slopes imply that the inhibitor influences the pace of corrosion instead of changing the basic electrochemical processes of deterioration, mainly by lowering the Icorr. The adhesion of inhibitory molecules over the metallic substrate and the emergence of an inhibitory barrier are responsible for these variations in the Icorr. Table 5 analysis shows that increasing inhibitor quantities slows down steel dissolution as the Icorr drops significantly as one boosts inhibitor dosage. This suggests that the inhibitor slowed down the speed of deterioration.
Earlier studies characterized inhibitory agents as cathodic or anodic based on a modification in corrosion potential (Ecorr) exceeding ± 85 mV and a mixed type when this modification is beneath ± 85 mV relative to the inhibitor-free settings.30 For the present investigation, the highest variation for inhibitor was below ± 85 mV. The data indicates that the action of the inhibitor while binding to metallic substrate is a mixed type, based on their constrained modifications over oxidative and reductive processes while maintaining an Ecorr value close to the inhibitor-free solutions.
![]() | ||
Fig. 6 (a) Nyquist and (b) Bode plots for mild steel dipped in 1 M HCl at different DMF terpolymer amounts. |
The findings from the Nyquist plot were further substantiated by the Bode curves. It was found that the inhibitor-containing solutions loop sizes were bigger than those of the blank solution, and that these sizes grew as the quantity of inhibitor increased. This is attributed to the surface coverage by adsorptive protecting groups from the inhibitors on the mild steel substrate.
Impedance behavior is typically interpreted utilizing a Randle circuit, as illustrated in Fig. 6. This system comprises solution resistance (Rs), a constant phase element (CPE), and charge transfer resistance (Rct). The CPE value, whose exponential factor n indicates distinct electrical characteristics, provides significant understanding into the creation of the double layer at the substrate contact.31 In particular, resistance, Warburg impedance, capacitance, and inductance are represented by the values of n′, which are 0, 0.5, 1, and −1, accordingly. The following formula was utilized to determine the CPE's impedance:
ZCPE = Yo−1(iω)−n |
Cdl = (YoRct1−n)1/n |
The findings unequivocally show that introducing inhibitor to 1 M hydrochloride enhances the Rct values while diminishing the Cdl readings compared to the inhibitor-free solution. The inhibitor's binding onto the steel interface subsequently triggers the decrease in Cdl. Furthermore, the drop in Cdl correlates with a spike in the electrical double layer's thickness and a decline in the local dielectric constant owing to the inhibitory compound's adsorption. Table 6 illustrates that the presence of inhibitor results in greater Rct values compared to the blank solution. Because of the inhibiting molecule adsorption, there are less unoccupied active locations on the steel substrate, as seen by an elevation in Rct values as the inhibitor concentration increases. This suggests that a protective coating has formed on the working steel electrode surface. This barrier lessens the possibility of metal interaction with chloride ions. Notably, the existence of the inhibitor causes the n value to rise, indicating a reduction in surface inconsistency as a result of the inhibiting agent's adsorption.
Conc. (ppm) | Rs (Ω cm2) | Rct (Ω cm2) | Yo (10−6 Ω−1 cm−2) | n | Cdl (μF cm−2) | IE (%) |
---|---|---|---|---|---|---|
0 | 5.04 | 30.71 | 287.70 | 0.853 | 1377.18 | — |
20 | 5.07 | 144.75 | 192.30 | 0.88 | 776.35 | 43.63 |
40 | 5.14 | 190.23 | 145.84 | 0.896 | 478.19 | 65.28 |
60 | 5.20 | 214.20 | 126.90 | 0.902 | 384.80 | 72.06 |
80 | 5.39 | 273.34 | 76.78 | 0.911 | 202.99 | 85.26 |
100 | 5.85 | 337.66 | 42.20 | 0.935 | 82.05 | 94.04 |
120 | 6.31 | 382.663 | 36.10 | 0.937 | 68.53 | 95.02 |
Bode graphs of metal samples submerged in corrosive settings in inhibitor-free solution and with inhibitor solution are shown in Fig. 6. The results reported here are consistently supported by Bode graphs, which show single maxima and illustrate that the phase angle increases with rising amounts of inhibitor and reaches peak values at lesser frequency levels. This rise in the phase angle raise suggests that the steel's surface has developed a stronger insulating coating, which adequately resists deterioration.
Additionally, the inverse of the intercept from the C/θ vs. C graph is utilized to ascertain the value of Kads. The ΔGads for inhibitor adhesion is then calculated employing this value in additional computations.
ΔGads = −2.303RT![]() |
The less than zero value of Gibbs free energy signifies spontaneous binding, which also enhances the stability of the formed layer over the metallic substrate. A greater capacity of the inhibitor to adhere onto metallic surfaces in the acidic atmosphere is shown by a larger ΔGads value. Gibbs free energy readings beyond −40 kJ mol−1 display chemical adsorption with a chemical connection among metallic substrate and inhibitory atoms, whereas readings approximately beneath −20 kJ mol−1 point to physical adsorption owing to electrostatic interactions.33 The inhibitor displays both physical and chemical adsorption. This pattern is confirmed by the negative ΔGads values (>−40 kJ mol−1 and <−20 kJ mol−1) in Table 7.
Slope | R2 | Kads | ΔGads (kJ mol−1) |
---|---|---|---|
0.78 | 0.99085 | 0.0319 | 26.56 |
The study looked at the inhibitor's capacity to take in protons in an acidic setting. It was discovered that the characteristics and actions of compounds were altered when hydrogen atoms were added to the compound's nitrogen heteroatom, specifically 52H over 16N of DMF polymer. According to Table 8, the protonated state of the inhibitor was more efficient. The active sites were changed by the addition of hydrogen atom (52H) over nitrogen (16 N) which affected the pattern of electron density displayed by the HOMO, LUMO, and ESP maps in Fig. 9.
Parameters | DMF | Protonated DMF |
---|---|---|
HOMO | −8.194 | −8.104 |
LUMO | −4.601 | −4.688 |
ΔE | 3.593 | 3.416 |
μ | −6.397 | −6.396 |
I | 8.194 | 8.104 |
A | 4.601 | 4.688 |
η | 1.796 | 1.708 |
σ | 0.557 | 0.585 |
χ | 6.397 | 6.396 |
ω | 36.759 | 34.939 |
ΔN | −1.417 | −1.346 |
Dipole moment | 3.096 | 8.009 |
![]() | ||
Fig. 9 Optimised structure (a and e); ESP distribution (b and f); HOMO (c and g) and LUMO (d and h) for DMF and protonated DMF terpolymer respectively. |
The characteristics linked to the LUMO and HOMO orbitals are the only ones needed for exploring the binding process. The HOMO and LUMO correspond to distinct places with differing propensities to donate or receive electrons with the metallic surface. The willingness to provide electrons is effectively represented by the HOMO energy (EHOMO); the larger the number, the stronger the ability to donate electrons. Conversely, the smaller the LUMO energy (ELUMO), the more efficient is the ability to acquire electrons. Additionally, a lower ΔE promotes inhibitor-metallic binding.36
It is evident that the chemical reactivity of the neutral species (DMF) is influenced by the protonation of the nitrogen atom. As per documented patterns of inhibitory efficacy, the research findings indicate that the protonated polymer appears more reactive than the neutral polymer molecule, as confirmed by a reduction in ΔE values following protonation, with the ΔE value observed in the order of DMF > protonated DMF.
The inverse relationship of hardness (η) and softness (σ) is an essential variable in chemical adherence to metallic substrates. Softer inhibitors are more potent, especially when used with iron, which is regarded as a soft acid, in accordance with the hard and soft acids and bases (HSAB) hypothesis. This idea is upheld by DMF and protonated DMF, which are distinguished by decreased hardness and increased softness on protonation. These outcomes demonstrate that the protonated form is more reactive than the neutral form of polymer and the polymer forms coordinated bonds with mild steel and forms a protective layer.
A molecule's inclination for attracting electrons is measured by the electrophilicity index (ω). An elevated ω indicates a greater propensity towards receiving electrons. From Table 8 statistics, it can be deduced that protonated DMF has a larger ω; therefore, it has higher interacting and inhibiting properties.
The dipole moment (μ) plays a key role in understanding how organic inhibitors work to prevent corrosion. According to Table 8, the high dipole moment of protonated DMF may enhance its adsorption onto the iron surface. Also, the higher dipole moment of the DMF molecule can strengthen its adsorption on steel and facilitate electron transfer from the protonated molecule to the metal.
These outcomes confirm the previously noted trends in the DFT parameters. The protonated state of the polymer was more efficient than the neutral state.
The molecular electrostatic potential (ESP) was calculated to assess local reactivity (active locations). The ESP often depicts sections with different electron densities like low-density positive zones (blue), high-density negative zones (red), and medium-density intermediate zones (many different hues).37 It is clearly seen that the highest negative potential, which is coloured in red, surrounds the heteroatom nitrogen and aromatic rings and is a good indicator of the amount of electrons present as well as possible locations where coordinate adhesion connections may occur. Additionally, a blue-shaded region is prominent at different locations in the studied compound, highlighting a lack of electrons and probable locations for physical adhesion involving electrostatic bonds. The chemical structure has a positive charge upon protonation, indicating the molecule's capacity for electrostatic interactions and for taking up electrons. The combination of these outcomes demonstrates that both DMF and protonated DMF compounds have reactive electron donor and acceptor regions, which are important in achieving powerful adhesion over the metallic surface.
The inhibiting molecule's binding point is identified by Mulliken atomic charges. A negative value suggests that there is a high probability of providing electrons towards the metallic surface's unoccupied orbital. An essential feature of a successful corrosion inhibitor is the inhibiting molecule's capacity to supply electrons to the metallic substrate, which is highlighted through its negative charge. A notable amount of negative charge has been observed in the atoms 24 N, 20 N, 22 N, 14 N, and 26 N for the DMF molecule and protonated DMF molecules (Table 9). The compounds preferred site for binding is represented through these atoms. It seems that the nitrogen atoms and aromatic rings gives the compounds under investigation their higher inhibitory efficiency.
Atoms | DMF | Protonated DMF |
---|---|---|
1C | 0.165745 | 0.092855 |
2C | −0.00849 | 0.029051 |
3C | −0.01538 | 0.022688 |
4C | −0.01825 | −0.03226 |
5C | −0.10932 | −0.11724 |
6C | 0.032686 | 0.042816 |
7C | 0.103892 | 0.163745 |
8C | −0.12399 | −0.12525 |
9C | 0.021434 | 0.172283 |
10C | −0.01309 | 0.032059 |
11C | −0.02006 | 0.024849 |
12C | 0.173079 | 0.065488 |
13C | −0.01323 | 0.072464 |
14N | −0.23696 | −0.19068 |
15C | 0.150302 | 0.15811 |
16N | −0.22021 | 0.239016 |
17C | 0.285694 | 0.203127 |
18N | −0.19781 | −0.10473 |
19C | 0.477307 | 0.46134 |
20N | −0.42965 | −0.37882 |
21C | 0.461826 | 0.427636 |
22N | −0.42406 | −0.36064 |
23C | 0.433582 | 0.43359 |
24N | −0.45485 | −0.43409 |
25N | −0.01097 | 0.042328 |
26N | −0.20288 | −0.13156 |
27C | 0.193657 | 0.191808 |

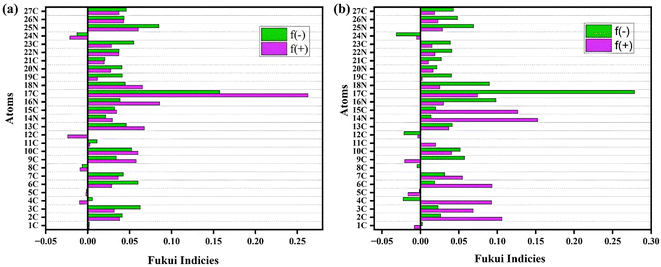

Additionally, the individualized nature and reactivity of inhibitor atoms can be assessed by employing Fukui functions which indicate the active atoms or locations for adsorption. Such possible places maintain inhibiting species close to the specimen's surface by facilitating connections among donors and acceptors.38 The electrophilic and nucleophilic inclinations of structural locations are represented by the indices fk− and fk+, respectively. Greater responsiveness is indicated by larger values for such indices. There areas are known as electrophilic sites and nucleophilic sites wherein electrons have a greater probability to be received or provided, respectively. The variables obtained through this investigation are compiled in Fig. 10. The findings indicate that the fk+ values for C (17), N (16), C (9), C (13), N (18), and N (14) atoms for neutral DMF and N (14), C (4), C (15), C (2), 6 (C) in protonated DMF are significantly greater compared to other DMF framework atoms. This suggests that these atoms are candidates for nucleophilic attacks. The atoms C (6), C (3), C (19), C (23), N (25), C (12) in the neutral DMF and C (17), C (9), N (16), N (25), C (19) in protonated DMF are the most favoured sites for an electrophilic attack because they have the largest value of fk−. The protonated form shows several electron-acceptor sites, while the electron-donor sites have notably diminished. Furthermore, most of the locations are distributed across the entire framework of the protonated molecule. The inhibiting agent DMF forms a thick deterioration-preventive barrier over the metallic surface by utilizing such electron exchanging capability based on the analysis of reactive sites.

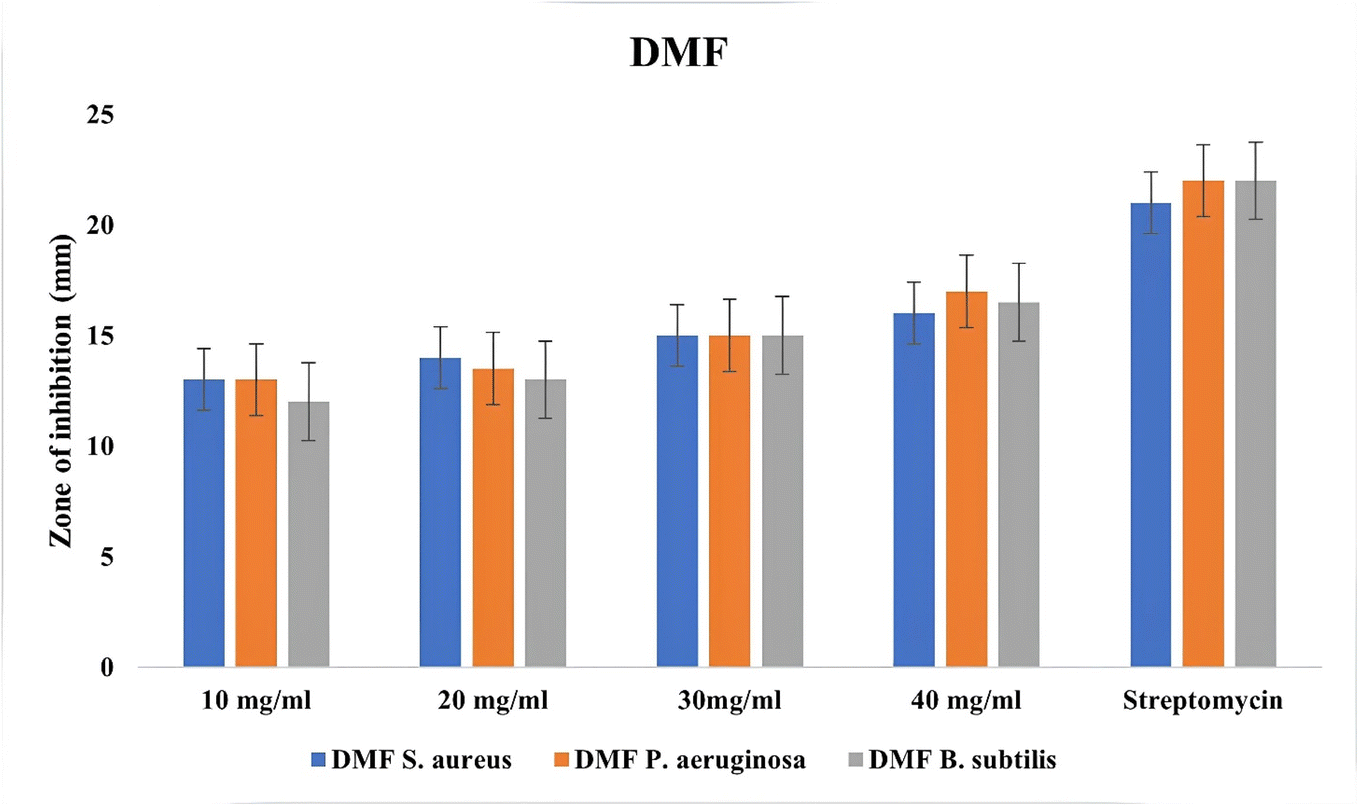

The test results, which are shown in Table 10, indicated that these bacteria were actively inhibited from growing by the DMF terpolymer, proving that the DMF terpolymer possess good antibacterial activity.
Sample | Organisms | 10 mg mL−1 | 20 mg mL−1 | 30 mg mL−1 | 40 mg mL−1 | Streptomycin |
---|---|---|---|---|---|---|
DMF | S. aureus | 13 | 14 | 15 | 16 | 21 |
P. aeruginosa | 13 | 13.5 | 15 | 17 | 22 | |
B. subtilis | 12 | 13 | 15 | 16.5 | 22 |
The human and ruminant gastrointestinal tracts harbor the Gram-positive, rod-shaped bacterium, S. aureus. DMF terpolymer demonstrated excellent activity against S. aureus and B. subtilis (Fig. 11). This is owing to DMF's lipophilic nature, favoring permeation through the bacterial membranes' lipid layers. It is thought that solubility, conductivity, dipole moment, and cell permeability may also be responsible for the DMF's increased activity. The antibacterial properties of the terpolymer were also attributable to the nitrogen donor group that was present in the polymer backbone.
Compound | Inhibition efficiency | Concentration and medium | Ref |
---|---|---|---|
(p-Semidine-guanidine-formaldehyde) terpolymer | 93.7% mild steel | 10−3 M in H2SO4 | 19 |
Acrylic acid (AA), oxalic acid-allypolyethoxy carboxylate (APEM)-phosphorous acid (H3PO3) terpolymer | 79.77% carbon steel | 30 mg L−1 in 1 M HCl | 39 |
Chitosan-acrylic acid-polysuccinimide terpolymer | 71.17% carbon steel | 500 mg L−1 in 3.5% NaCl | 40 |
Acrylamide/styrene/maleic anhydride terpolymers (ASM) and thermally aged acrylamide/styrene/maleic anhydride terpolymers (A/ASM) | ASM (52%), A/ASM (94%)Mild steel | 3000 ppm in 3.5% NaCl | 41 |
4,4-Diaminodiphenylmethane-melamine-formaldehyde terpolymer (DMF) | 94% mild steel | 100 ppm in 1 M HCl | Present work |
Chemically, the polymer molecules include heteroatoms (nitrogen) with lone pairs of electrons and π-electrons from aromatic rings are capable of interacting with the unoccupied d-orbitals of iron atoms on the steel substrate. Furthermore, the back-donation mechanism involves the transfer of electron density from the filled d-orbitals of Fe atoms to the vacant antibonding orbitals of the polymer π-conjugated system. This contact causes the polymer molecules to establish persistent coordination bonds, enabling them to stick tightly to the steel and create a protective layer. In an acidic hydrochloric acid surrounding, chloride ions (Cl−) deposited on the steel substrate create a negative charge on the metallic material. At the same time, the heteroatom N in polymer molecules are protonated, gaining a positive charge. This causes electrostatic interactions among the positively charged polymer molecules and the negatively charged steel substrate to enhance the adhesion mechanism. Together, these chemical and physical processes generate a long-lasting protective coating over the steel, prohibiting corrosive substances from accessing the surface and considerably reducing corrosion.
(1) Electrochemical tests including PDP and EIS demonstrated that the DMF terpolymer significantly reduced the deterioration rate of mild steel in 1 M HCl solution, with excellent inhibitory efficiency of 94% at 100 ppm.
(2) Potentiodynamic polarization examination revealed that the DMF terpolymer effectively functioned as a mixed-kind of inhibitory agent, influencing both anodic and cathodic reactions.
(3) The adsorption of the DMF terpolymer adhered to the Langmuir isotherm model, suggesting that a monolayer of DMF molecules forms on the mild steel surface.
(4) ΔGads values show that the DMF terpolymer displayed strong adsorption capability through both physical and chemical interaction and robust binding with the steel surface in an acidic environment.
(5) Atomic force microscopy (AFM) surface analysis confirmed the adhesion of the DMF terpolymer onto the mild steel substrate, forming a protective layer that reduced surface roughness from 267 nm to 65 nm and inhibited corrosion.
(6) Density functional theory (DFT) studies revealed that the terpolymer's molecular structure promotes significant adhesion onto the metal surface, which is consistent with the experimental findings and strengthens the terpolymer's efficiency as a corrosion inhibitor.
(7) The terpolymeric ligand had strong antimicrobial action, suppressing the development of S. aureus, P. aeruginosa, and B. subtilis, as proven through the disc diffusion technique.
