A 2,6-diamidopyridine-based macrocyclic aromatic amide receptor with cascade ion pair recognition

Abstract

Ion-pair receptors constitute an important class of synthetic receptors within the realm of host–guest and supramolecular chemistry. Their unique ability to simultaneously recognize and accommodate both cations and anions has rendered them invaluable across various applications. In this study, we have synthesized a cascade macrocyclic ion-pair receptor, composed of three 2,6-amidopyridine building blocks bridged by aromatic spacers. Notably, the diamide binding sites of this receptor exhibit a high degree of selectivity for fluoride ions. Furthermore, despite lacking any dedicated cation-binding sites within its macrocyclic structure, this receptor is capable of selectively binding tetraethylammonium cations through a series of cascade electrostatic interactions facilitated by the bound flouride ions.

---

Introduction

Artificial macrocyclic receptors stand as the cornerstone of supramolecular chemistry,¹ featuring pre-organized cyclic skeletons and central cavities. Typically, these receptors are constructed from fundamental building blocks, which serve as the basic structural units within a symmetric molecular host.² The intrinsic properties, recognition capabilities, and diverse applications^3,4 of these macrocycles are largely dictated by the composition of these building blocks. For instance, the electron-dense p-dimethoxybenzene constitutes the backbone of pillar[n]arenes (n = 5, 6), enabling their cavities to host electron-deficient guests like ammonium or pyridinium salts.^5–7 Conversely, the blue box, employing paraquat as its foundational unit, possesses an electron-deficient cavity tailored for recognizing electron-rich guests.⁸ Thanks to the variety of building blocks, a plenty of artificial macrocyclic receptors have been synthesized and investigated.^9–12

Traditionally, macrocycles have predominantly been designed as monotopic receptors, tailored to bind specific guest species. In contrast, ion-pair receptors^13–17 exhibit a unique ability to simultaneously capture both cations and anions. To date, two primary types of ion-pair receptors have been devised: heterotopic^18,19 and cascade¹³ receptors. Heterotopic receptors integrate anion and cationic recognition sites within a single macrocyclic skeleton, whereas cascade receptors could host ion pairs through relay interactions like the form of [H⋯A⁻⁽⁺⁾⋯B^+(–)], whereas H is the cascade macrocyclic receptor with only binding sites for A⁻⁽⁺⁾ guest, B⁺⁽⁻⁾ guest is attracted by encapsulated A⁻⁽⁺⁾ counterion through noncovalent interactions of them such as electrostatic interaction, rather than weak interactions with the macrocycle. The recognition mechanism endows ion-pair receptors with enhanced selectivity for separating specific cations and anions.^20,21 Consequently, ion-pair receptors, particularly heterotopic ones, are garnering significant attention due to their promising applications in salt extraction,²² membrane transport,^23,24 sensing,²⁵ and beyond.²⁶ Currently, there is a surge of research focusing on the design, synthesis, and functionality of these receptors. However, cascade ion-pair receptors, despite their advantages of straightforward design, easy synthesis and broader applicability, have received comparatively less attention.²⁷

Amide, a ubiquitous and versatile building block, finds extensive use not only in polypeptides and proteins but also in artificial macrocycles,²⁸ owing to its exceptional properties as a hydrogen bonding donor or acceptor. 2,6-Diamidopyridine, a distinctive diamide fragment, adopts a predominantly fixed V-shape conformation due to intramolecular hydrogen bonding between the pyridine ring's nitrogen atom and the amide group's hydrogen atoms.²⁹ This conformation enables it to function as a chelating hydrogen bond donor, capturing hydrogen bond acceptor molecules such as anions.³⁰ Furthermore, 2,6-diamidopyridine has been established as a ligand for certain transition metal complexes.^31,32 Leveraging its directional hydrogen bonding sites, derivatives of 2,6-diamidopyridine emerge as exceptional building blocks for constructing macrocyclic receptors capable of capturing anionic guests.^33,34

In this study, capitalizing on the 120° angle formed by the two amide groups in 2,6-diamidopyridine derivatives, we report herein the synthesis of a novel class of hexagonal macrocyclic aromatic amide (MAA, Fig. 1), interlinked by aromatic spacers. This macrocycle, equipped with three diamide binding sites, demonstrated remarkable selectivity for fluoride ions^35,36 and formed a cascade complex with tetraethylammonium cations upon fluoride binding, without requiring any cationic binding sites within the macrocyclic structure.

Fig. 1 Structure of the macrocyclic aromatic amide (MAA) receptor.

Results and discussion

Macrocycle synthesis

The synthetic route of macrocyclic aromatic amide receptor MAA was shown in Scheme 1. The intermediate meso-triphenylenediamine derivative 1 was first efficiently synthesized from 1,3-dibromo-5-methoxybenzene and 2 equivalents of 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl) aniline by a Suzuki–Miyaura coupling reaction (86% yield, typically 4.86 mmol scale). In this experiment, a mixed solvent system of 1,4-dioxane and H₂O was used to facilitate the complete dissolution of the reactants and the separation of the product. Next, MAA was prepared by the condensation reaction of intermediate 1 with equal equivalents of 2,6-pyridinedicarboxylic acid in THF using EDC and HOBT as condensation reagents (typical yield ca. 5% on 8 × 10⁻² mmol scale). In this study, the two molecules, 1 and 2,6-pyridinedicarboxylic acid, were chosen as the fragments for the synthesis of MAA because they had the precisely right bond angles to allow the 3 + 3 amide condensation to form an amide macrocycle with three pyridines and three diamides. Compared with some low polar solvents such as dichloromethane (DCM), the use of THF as the reaction solvent improved both the solubility of the reactants and the yield of MAA. Meanwhile, it should be noted that some precipitate was produced during the reaction, which likely was due to the formation of non-cyclic oligomers and polymers. After MAA was isolated using column chromatography, recrystallizations were performed to further improve the purity of the product. All products were characterized by ¹H NMR, ¹³C NMR and HRMS (Fig. S1 to S4†).

Scheme 1 Synthetic route towards MAA.

Recognition ability and selectivity to anions

In order to investigate the recognition properties of MAA, equal amounts (2.97 × 10⁻² M) of different species of Et₄N⁺X⁻ (X⁻ = F⁻, Cl⁻, Br⁻, I⁻, HSO₄⁻, CF₃SO₃⁻) were, in separate experiments, added to a DMSO-d₆ solution of acceptor MAA at 298 K, and the changes in the ¹H NMR spectrum observed (Fig. 2). Upon the addition of the F⁻ salt, the ¹H NMR spectra showed obvious chemical shifts. Most strongly, the amide –(C=O)N–H proton peak showed a large downfield shift from 11.2 to 14.8 ppm (more precisely: Δδ = 3.68 ppm). In addition, the ¹H peaks in the aromatic region also changed significantly, with partial overlapping of the A, B peaks shifted upfield (A: Δδ = −0.13 ppm; B: Δδ = −0.18 ppm and the D peak shifted to downfield (Δδ = 0.29 ppm). Smaller, but still significant changes were observed for the C, E, and F peaks, which also showed upfield shifts (Δδ = −0.15 ppm, −0.08 ppm, and −0.07 ppm, respectively). The results clearly demonstrated the formation of stable complexes of MAA with F⁻ in DMSO-d₆. In sharp contrast, the addition of anions such as Cl⁻, Br⁻, I⁻, HSO₄⁻, and CF₃SO₃⁻ hardly induced any significant chemical shifts in the ¹H NMR spectrum of MAA. This indicates the absence of any significant complex formation in DMSO-d₆ of MAA with these anions, and thus a remarkably strong and selective binding of fluoride to MAA. In addition, the binding ratio of MAA with F⁻ was detected to 1 : 2 (Fig. S5 and S6†).

Fig. 2 ¹H NMR (400 MHz, DMSO-d₆, 298 K) of (a) receptor MAA; (b) MAA + 5.0 equiv. of tetraethylammonium fluoride; (c) MAA + 5.0 equiv. of tetraethylammonium chloride; (d) MAA + 5.0 equiv. of tetraethylammonium bromide; (e) MAA + 5.0 equiv. of tetraethylammonium iodide; (f) MAA + 5.0 equiv. of tetraethylammonium trifluoromethanesulfonate; (g) MAA + 5.0 equiv. of tetraethylammonium hydrogensulfate.

In order to quantify the complexation ability of the receptor MAA to F⁻, ¹H NMR titration experiments were carried out (DMSO-d₆, 298 K; Fig. S7†), in which F⁻ was added to MAA and the step sized changes in the corresponding ¹H peaks observed. Based on these NMR titration data, the MAA and F⁻ binding constants could be calculated by the nonlinear curve fitting method (Fig. S8†), which were K_a1 = (1.47 ± 0.40) × 10⁴ M⁻¹ and K_a2 = (7.15 ± 0.51) × 10³ M⁻¹, respectively.

UV-vis spectrophotometric studies

During the study of recognition studies of receptor MAA with the tetraethylammonium salts of F⁻, Cl⁻, Br⁻, I⁻, HSO₄⁻ and CF₃SO₃⁻, it was found that after the addition of tetraethylammonium fluoride (Et₄NF) to the DMSO solution of MAA, a drastic color change from colorless to yellow could be observed by the naked eye. In contrast, the addition of several other anions did not result in any noticeable color change, as shown in Fig. 3. This distinct color change also reflected the highly selective recognition of F⁻ by receptor MAA, making it useful for rapid detection and recognition of F⁻.

Fig. 3 Visible color changes of MAA observed before and after addition of equal amounts of various tetraethylammonium salts to DMSO solution (1.0 × 10⁻⁴ M): from left to right, DMSO, free MAA, MAA + F⁻, MAA + Cl⁻, MAA + Br⁻, MAA + I⁻, MAA + HSO₄⁻, and MAA + CF₃SO₃⁻.

In order to further investigate the phenomenon of color change after the addition of F⁻, UV-vis spectrophotometric experiments were carried out in a DMSO solution of MAA (1.98 × 10⁻⁴ M). Fig. 4 shows the UV-vis absorption spectra after the addition of 5 equivalents of the selected anions, all of which resulted in an increase in the absorption intensity in the visible band due to the fact that the selected anions all carry lone pairs of electrons, which acted as a color-booster in the UV-vis spectrophotometric experiments. However, after the addition of F⁻, the UV-vis absorption spectrum of MAA not only showed an increase in absorbance, but also an obviously redshift maximum (Δλ = 8 nm) and a new shoulder peak formed at 367 nm which correspond to the deprotonation³⁷ of –NH– groups by F⁻ ions (Fig. S10†). Combined with the chemical shift changes of the –CONH– group and the peaks of the aromatic region upon the addition of F⁻ (Fig. 2), this further indicates the formation of a stable complex between MAA and F⁻ in DMSO solution.

Fig. 4 UV-vis absorption spectra of MAA (in DMSO) to which various salts was added.

Selective ion-pair recognition

As shown in Fig. 5, it was found from ¹H NMR that there were different binding patterns of MAA with different cations including smaller tetraethylammonium cation (Et₄N⁺) and larger tetrabutylammonium ion (n-Bu₄N⁺). The addition of the receptor MAA to the solution of Et₄NF resulted in a pronounced upfield shift (CH₂ peak: Δδ = 0.04 ppm; CH₃ peak: Δδ = 0.02 ppm) of Et₄N⁺ as shown in (b) and (c) in Fig. 5, implying that the small Et₄N⁺ has “fallen into” the cavity of the complex of MAA with F⁻ ions, and therefore the formation of ternary complex between MAA with two F⁻ ions and Et₄N⁺ counter cation. The cross peaks (Fig. S11†) between H atoms on the alkyl chains of Et₄N⁺ cations with aromatic rings of MAA in the ROESY spectrum of the host-guest mixture in DMSO-d₆ solution further confirmed the formation of the stable complex between MAA with F⁻ and Et₄N⁺ ion-pairs. In fact, the electrostatic interaction between tetraethylammonium cation with F⁻ ions is the main driving force to bind Et₄N⁺ ions in the cavity of the MAA receptor. In addition, the size matching effect of Et₄N⁺ with the cavity of MAA is another factor to allow the binding of the guest ions.

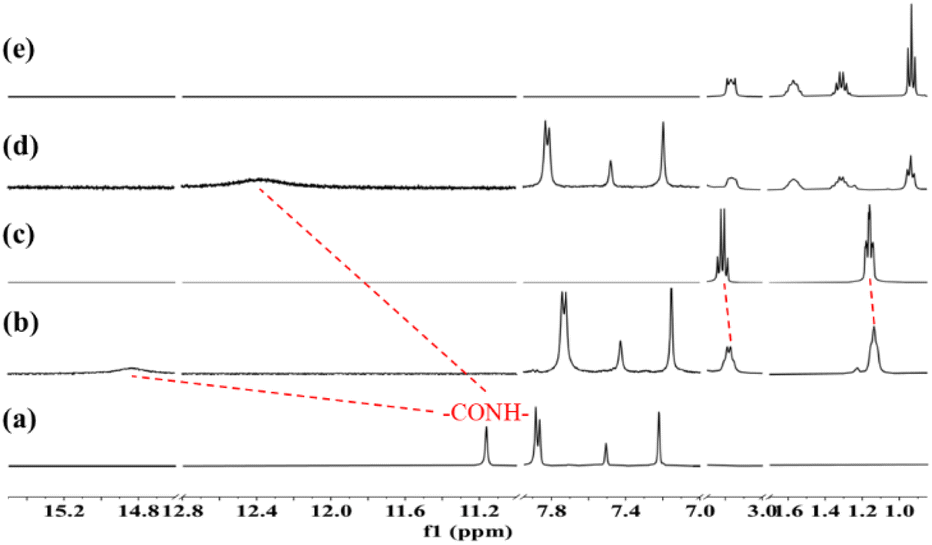

Fig. 5 ¹H NMR (400 MHz, DMSO-d₆, 298 K) of (a) receptor MAA; (b) MAA + 5.0 equiv. of tetraethylammonium fluoride; (c) tetraethylammonium fluoride; (d) MAA + 5.0 equiv. of tetrabutylammonium fluoride; and (e) tetrabutylammonium fluoride.

Compared with Et₄N⁺, the peaks of n-Bu₄N⁺ showed almost no chemical shifts after mixing with MAA as shown in Fig. 5(d) and (e). This indicates that the oversized n-Bu₄N⁺ is hard to bind into the macrocyclic cavity of MAA: it is much harder to fit into the cavity (and then only one can fit, with significant loss of entropy), and the C₄ alkyl chains does display their larger shielding of the positive charge on the central N atom, yields weaker interactions with the F⁻ anions (and thus with all proton's ¹H NMR shift is influenced by changes in the F⁻ binding). In addition, the smaller binding constants (K_a1 = 1.18 × 10³ M and K_a2 = 2.32 × 10² M) between F⁻ and MAA in the presence of larger cation indicated that the association of cation in the cavity could facilitate the binding of F⁻ with the macrocycle.

DFT calculations

To further understand the spatial configuration of MAA, the binding mode of MAA with F⁻ ions and Et₄N⁺ counter cation, and the source of its binding selectivity, we optimized the structures of MAA and its complexes with related ion-pairs by density functional theory (DFT) calculations at the B3LPY/6-31G level of theory using a PCM solvent model for DMSO. This yields the structures as shown in Fig. 6. From Fig. 6(a), it can be seen that macrocycle MAA presents a saddle-like planar structure in DMSO, which not only has a huge internal cavity (15.15 Å × 13.34 Å), but also displays three effective anion-binding sites due to the presence of the pyridine N atoms that made the hydrogen atoms of the two –(CO)NH− groups attached to it locked tightly inside the molecule, and thus tune these H atoms towards divalent binding of anions.

Fig. 6 The optimized structure of (a) MAA and (b) MAA + 2F⁻ + Et₄N⁺ in DMSO.

For the 2F⁻@MAA complex, the computationally optimized model was shown in Fig. S13,† the receptor MAA maintained a saddle-shaped steric structure upon binding to F⁻. Within the molecule of the receptor MAA, there were not only strong N–H⋯F hydrogen bonds of lengths from 1.65 Å to 1.69 Å formed by the two –(CO)NH− groups and F⁻, but also C–H⋯F weak hydrogen bonds of lengths from 2.14 Å to 2.36 Å formed by the benzene ring directly connected to the –(CO)NH− group and F⁻. As can be seen in the optimized structures, F⁻ really fits in the plane of the macrocyclic moiety that binds it, yielding strong interactions. In comparison, the complex of Cl⁻ with MAA was similarly yielding the structure shown in Fig. S14.† In this complex, Cl⁻ can only be bound above (or below) the plane of that moiety, and the H atoms of the –(CO)NH− groups have to bend outwards to interact optimally with the Cl⁻. This size effect (Cl⁻ too big to fit, all other anions under study even bigger) clarifies why there is such selectivity towards binding fluoride anions.

The calculation also revealed further binding behavior of 2F⁻@MAA with counter cation. As shown in Fig. 6(b), the complex 2F⁻@MAA still possess a huge cavity which could easily fit an Et₄N⁺. As expected, the cation bond into the cavity in a MAA–F⁻–Et₄N⁺ cascade form. In the optimized model, it is clearly that two or more Et₄N⁺ cations could not fit in the rest cavity of MAA after binding F⁻ ions not only due to the size effect but also the strong electrostatic repulsion. In fact, the saddle-shape allows all two of the F⁻ to simultaneously interact with an Et₄N⁺ cation, and thus form a relatively stable [2F⁻@MAA][Et₄N⁺] complex. In this complex, the main driven force is the electrostatic attraction between the positively charged N atom and F⁻. The model also showed that the multiple C–H⋯F hydrogen bonds (range from 2.14 to 2.19 Å) between the H atoms of alkyl chains in Et₄N⁺ with F⁻, and the C–H⋯π interactions between the alkyl chain H atoms with the aromatic rings (2.79 Å) of MAA play crucial roles to the formation of the quaternary complex. In this aspect, the formation of C–H⋯π interactions in the optimized model is in good agreement with the results of ROESY spectrum (Fig. S11†). According to these results, the binding of the counter cation Et₄N⁺ partially counteracts the electrostatic repulsion between the two bonded fluoride ions, which further increased the binding strength and recognition selectivity between MAA and fluoride ions.

This changes for the much bigger and much more shielded n-Bu₄N⁺ cation (Fig. S15†): to fit one n-Bu₄N⁺ cation, the macrocycle the macrocyclic skeleton needs to undergo a very large distortion, noting that this would require a significant entropic penalty, but the overall electrostatic interactions are, of course, much weaker. Positioning two of such bulky Bu₄N⁺ cations interacting with the 2F⁻@MAA structure requires them to move out considerably. As a result, the average electronic influence of n-Bu₄N⁺ is much smaller than that of Et₄N⁺, in line with experiment.

Conclusions

We designed and synthesized a 2,6-diamidopyridine-based macrocyclic aromatic amide receptor –– MAA, which combines a strong binding to fluoride anions with a high selectivity (very less binding to Cl⁻, no binding to Br⁻, I⁻, HSO₄⁻, and CF₃SO₃⁻), which was confirmed by the ¹H NMR and UV-vis spectra. NMR titration experiments showed that MAA acts as a receptor to form a 1 : 2 complex with F⁻ in a large polar solvent, with binding constants of K_a1 = (1.47 ± 0.4) × 10⁴ M⁻¹ and K_a2 = (7.15 ± 0.51) × 10³ M⁻¹, respectively. This complexation with F⁻ could be detected by the naked eye (color changes of DMSO solution from colorless to yellow). Importantly, MAA is also a cascade ion-pair recognition receptor without any cations binding sites in its macrocyclic structure. MAA could selectively host a Et₄N⁺ rather than a larger n-Bu₄N⁺ cation in the cavity after binding F⁻ ions in the amide sites by the cascade MAA–F⁻–Et₄N⁺ pattern. The strong binding selectivity of MAA to F⁻ and Et₄N⁺ rather than other studied ions was also explained through using DFT calculations upon B3LYP/6-31G level.

Experimental section

General information

Unless otherwise stated, all reagents were obtained from commercial sources and were used without further purification. The solvents used were dried over 4A molecular sieves except for H₂O. ¹H NMR and ¹³C NMR spectra were recorded on a Bruker DMX300 NMR and a Bruker® Avance III 400 MHz NMR spectrometer. HRMS was recorded on a Thermo Fisher. UV-vis absorption spectra were recorded on an Agilent Cary 7000 UV-vis-NIR spectrometer.

Synthesis

Synthesis of compound 1. 1,3-Dibromo-5-methoxybenzene (1.5 g, 5.64 mmol) and 4-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)aniline (2.6 g, 11.87 mmol) were dissolved in 180 ml of a 1,4-dioxane/H₂O (5 : 1, v/v) solution system, then K₂CO₃ (4.67 g, 33.84 mmol) was added and heated to 100 °C in an argon atmosphere and the catalyst Pd(PPh₃)₄ (0.10 g, 0.09 mmol) was added and reacted for 12 h. At the end of the reaction the pH of the mixture was adjusted to weak acidity, water was added, and the organic solvent was removed under vacuum, then the organic layer was extracted with water and DCM and collected and dried with anhydrous MgSO₄. Purification by silica gel column chromatography (eluent: DCM/MeOH = 100/1 to DCM/MeOH = 50/1) afforded a yellow oily product 1 (1.41 g, yield 86.11%). ¹H NMR (400 MHz, DMSO-d₆) δ 7.44–7.38 (m, 4H), 7.23 (t, J = 1.6 Hz, 1H), 6.90 (d, J = 1.5 Hz, 2H), 6.66–6.60 (m, 4H), 5.23 (s, 4H), 3.83 (s, 3H). ¹³C NMR (101 MHz, DMSO-d₆) δ 160.05, 148.37, 142.37, 127.62, 127.27, 115.27, 114.03, 108.44, 54.98. HRMS (ESI) for C₁₉H₁₈N₂O, m/z, [M + H]⁺, calculated: 290.3660, found: 291.1491.

Synthesis of compound MAA. 2,6-Pyridinedicarboxylic acid (0.81 g, 4.86 mmol) and 1 (1.41 g, 4.86 mmol) were dissolved in THF (150 ml), EDC (2.79 g, 14.55 mmol) and HOBT (1.97 g, 14.55 mmol) were added and the reaction was heated to 65 °C and stirred the reaction for 4 h until the reaction reached equilibrium, then THF was removed in vacuum. Purification by silica gel column chromatography (eluent: EA/PE = 2/1 to EA/PE = 3/1, and DCM/MeOH = 50/1), followed by several recrystallizations using DCM and PE for further purification, afforded the white solid product MAA (0.10 g, 4.9%). ¹H NMR (400 MHz, DMSO-d₆) δ 11.16 (s, 1H), 8.45 (d, J = 7.7 Hz, 1H), 8.34 (dd, J = 8.5, 6.9 Hz, 1H), 8.03 (d, J = 8.4 Hz, 2H), 7.88 (d, J = 8.3 Hz, 2H), 7.22 (d, J = 1.4 Hz, 1H), 3.92 (s, 1H). ¹³C NMR (101 MHz, DMSO-d₆) δ 161.90, 160.29, 148.97, 141.92, 137.65, 136.31, 134.17, 127.39, 125.36, 121.64, 118.74, 111.55, 55.46. HRMS (ESI) for C₇₈H₅₇N₉O₉Na, m/z, [M + Na]⁺, calculated: 1286.3572, found: 1286.4171.

Data availability

The data that support the findings of this study are available from the corresponding author, [Q. Shi], upon reasonable request.

Author contributions

X. Mao and Q. Shi did the synthesis work and the experiments of ¹H NMR, ¹³C NMR, UV-vis spectra. R. Zhang did the HRMS experiments. X. Mao, Q. Shi, Y. Sun, and Q. Li written the manuscript. H. Zuilhof calculated the structures of receptor and its complexes. H. Zuilhof, L. Wang and X. Wang checked and revised the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the Project for Shandong Provincial Natural Science Foundation (ZR2021QB196, ZR2021QE199), the Talent research project of Qilu University of Technology (Shandong Academy of Sciences) (2023RCKY022, 2023RCKY015) and the basic research projects in science, education and production of Qilu University of Technology (Shandong Academy of Sciences) (2023PX065, 2023PX040).
