A hollow nanozyme-based multifunctional platform enhances sonodynamic–chemodynamic-induced ferroptosis for cancer therapy

Abstract

Ferroptosis, a novel form of cell death driven by lipid peroxides (LPO) accumulation, holds promise for personalized cancer therapy. However, its efficacy is constrained by the tumor microenvironment (TME), which is characterized by hypoxia, insufficient endogenous hydrogen peroxide (H₂O₂), and glutathione (GSH) overabundance. To address these limitations, we developed a multifunctional nanoplatform, HMnO₂–VC@mPEG–Ce6 (HMVC), which integrates sono–chemodynamic strategies to induce synergistic ferroptosis in prostate cancer. The therapeutic superiority of HMVC stems from three coordinated mechanisms. Firstly, HMnO₂ catalyze H₂O₂ decomposition to generate oxygen (O₂), alleviating tumor hypoxia and amplifying the sonodynamic effect of chlorin e6 (Ce6). Secondly, vitamin C (VC) sustains H₂O₂ production via chemodynamic therapy (CDT), driving a burst of reactive oxygen species (ROS). Thirdly, GSH-triggered reduction of Mn⁴⁺ to Mn²⁺ depletes GSH reserves and suppresses glutathione peroxidase 4 (GPX4) activity. These cascading actions disrupt the ROS–GPX4 equilibrium, leading to irreversible LPO accumulation and subsequent ferroptosis. Our work establishes a generalizable nanotechnology paradigm to overcome TME barriers and achieve precise ferroptosis regulation, offering a transformative strategy for cancer treatment.

---

1. Introduction

Ferroptosis, an iron-dependent form of programmed cell death driven by lipid peroxidation, has emerged as a novel strategy for cancer treatment due to its ability to bypass traditional apoptosis resistance mechanisms.^1–3 Its core regulatory axis lies in the dynamic balance between reactive oxygen species (ROS) and glutathione peroxidase 4 (GPX4): ROS promote the accumulation of lipid peroxides (LPO), while GPX4 relies on glutathione (GSH) to eliminate LPO and maintain cell survival.^4,5 Therefore, ROS levels are critical, primarily including hydrogen peroxide (H₂O₂), singlet oxygen (¹O₂), superoxide anion (O₂⁻), hypochlorous acid (HClO), and hydroxyl radical (˙OH), which can kill tumor cells by damaging cellular lipids, proteins, DNA, and other biomolecules.^6–8 Based on this, sonodynamic therapy (SDT) and chemodynamic therapy (CDT) have become effective approaches for inducing ferroptosis by generating ¹O₂ and ˙OH to elevate ROS levels.^9–12 However, the therapeutic efficacy of these approaches is severely constrained by three major barriers in the tumor microenvironment (TME).^13–15 Firstly, hypoxia limits the activation efficiency of sonosensitizers in SDT;^16,17 secondly, insufficient endogenous H₂O₂ weakens the Fenton reaction in CDT; and thirdly, excessive GSH neutralizes ROS and sustains GPX4 activity,^18–21 thereby resisting ferroptosis. Consequently, developing synergistic strategies that simultaneously remodel the TME and achieve bidirectional regulation of ROS–GPX4 is key to overcoming the bottleneck in ferroptosis induction.

In recent years, manganese dioxide (MnO₂) has garnered significant attention due to its unique properties in modulating the tumor microenvironment (TME).^22,23 MnO₂ exhibits multiple enzyme-mimicking activities, including oxidase, peroxidase, catalase, and superoxide dismutase, making it an important manganese-based nanomaterial. Although hypoxia significantly suppresses the immune activity of natural killer cells, MnO₂ can effectively alleviate tumor hypoxia by converting endogenous H₂O₂ into O₂ through its catalase and peroxidase activities.^24–26 Additionally, the high concentration of GSH in the TME promotes the decomposition of MnO₂, releasing Mn²⁺ and making it a promising GSH-depleting agent.^27–30 The released Mn²⁺ can further enhance tumor-killing effects by catalyzing the generation of ˙OH from H₂O₂ via Fenton-like reactions.^31,32 Notably, manganese, as an essential trace element, has well-regulated uptake and excretion mechanisms in biological systems, which ensures the low toxicity and excellent biocompatibility of MnO₂-based nanomaterials. Compared to traditional MnO₂ nanoparticles, hollow mesoporous manganese dioxide (HMnO₂) nanoparticles not only inherit these advantages but also exhibit superior performance due to their unique structural characteristics. Specifically, HMnO₂ demonstrates faster degradation rates, larger specific surface areas, excellent colloidal dispersibility, and enhanced drug-loading capacity.³³ However, single-component HMnO₂ systems face significant limitations: (1) the endogenous H₂O₂ levels in tumors (100 μM to 1 mM)³⁴ are insufficient to sustain continuous O₂ supply and ˙OH generation; (2) after GSH depletion, the lack of direct inhibition on GPX4 activity prevents an increase in lipid peroxidation levels. These challenges highlight the urgent need to design a multi-mechanism synergistic nanoplatform that integrates H₂O₂ self-supply, dual blockade of the GSH–GPX4 pathway, and controlled ROS generation.

Based on this, we constructed a multifunctional nanosystem, HMnO₂–VC@mPEG–Ce6 (HMVC), and proposed a triple-interlocked ferroptosis induction mechanism of “TME remodeling-ROS storm-GPX4 silencing” (Fig. 1). The innovation of this system lies in the following aspects: firstly, vitamin C (VC) specifically generates H₂O₂ at the tumor site, which serves as both a substrate for the Fenton-like reaction in CDT and a source for O₂ production catalyzed by HMnO₂.³⁵ This dual function synergistically alleviates hypoxia and amplifies the sonodynamic effect of the sonosensitizer Ce6. Secondly, HMnO₂ continuously depletes GSH through the Mn⁴⁺/Mn²⁺ redox cycle while simultaneously suppressing GPX4 activity. Thirdly, The nanocarrier regulates the release kinetics of VC and Mn²⁺, preventing off-target toxicity caused by premature ROS bursts and ensuring the cascade amplification of ferroptosis signaling. This study not only demonstrates the potent antitumor efficacy of HMVC in prostate cancer models but also provides deeper insights into the molecular mechanisms by which TME-adaptive nanomaterials enhance ferroptosis through metabolic reprogramming. These findings highlight its significant potential for clinical translation.

Fig. 1 Preparation process and therapeutic mechanism of the HMnO₂–VC@mPEG–Ce6 nanoparticles (HMVC NPs). The acidic tumor microenvironment and US trigger the decomposition of HMVC NPs. HMnO₂ catalyzes the conversion of H₂O₂ into O₂ and releases Mn²⁺, synergizing with Ce6 to mediate SDT/CDT for ROS generation. Vit C releases H₂O₂ to enhance the Fenton-like reaction and SDT effects, while GSH depletion inhibits GPX4 activity, and the accumulation of ROS and LPO jointly promotes ferroptosis.

2. Experimental section

2.1. Materials and reagents

Tetraethyl orthosilicate (TEOS), N-(3-dimethylaminopropyl)-N′-ethylcarbodiimide hydro-chloride (EDC) and N-hydroxysuccinimide (NHS) were purchased from Sigma-Aldrich. N,N-Dimethylformamide (DMF) and dimethyl sulfoxide (DMSO) were purchased from Junsei Chemicals (Tokyo, Japan). Methoxy polyethylene glycol amine (mPEG-amine) with a molecular weight of 2000 Da was purchased from Sunbio (Orinda, CA, USA). Chlorin e6 (Ce6) was purchased from Frontier Scientific, Inc. (Salt Lake City, UT, USA). Potassium permanganate (KMnO₄), sodium carbonate (Na₂CO₃), hydrogen peroxide (H₂O₂), sodium bicarbonate (NaHCO₃), methylene blue (MB), manganese chloride (MnCl₂), and glutathione (GSH) were purchased from Sinopharm Chemical Reagent Co. Ltd. 5,5′-Dithiobis(2-nitrobenzoic acid) (DTNB) was purchased from Alad-din Chemical Co. Ltd. Singlet oxygen sensor green (SOSG), C11-BODIPY 581/591 and 2,7-dichlorodihydrofluorescein diacetate (DCFH-DA) were purchased from Beyotime (Shanghai, China). Calcein-AM/PI was purchased from Solarbio Science and Technology Co. Ltd (Beijing, China). Cell Counting Kit-8 (CCK-8) was purchased from Proteintech (Wuhan, China). Cyanine-5.5 (Cy5.5) was purchased from MedChemExpress. All other chemical reagents used in this experiment were analytically pure without further purification.

2.2. Cell lines and cell culture

PC-3 cells were obtained from Procell Life Science and Technology Co., Ltd. These cell lines were cultured in F-12K medium supplemented with 10% fetal bovine serum (FBS) and 1% penicillin–streptomycin solution at 37 °C under 5% carbon dioxide.

2.3. Animals

BALB/c mice (male, 4 weeks old) were purchased from Beijing Viton Lihua Laboratory Animal Technology Co. and were reared in an SPF-grade animal center. A tumor model was created by subcutaneously injecting 0.1 mL of PC-3 cells (1 × 10⁶ cells per mL) into the left side of the abdomen. When the tumors reached a magnitude of 100 mm³, the mice were randomly assigned to different treatment groups. All animal procedures were performed in accordance with the Guidelines for Care and Use of Laboratory Animals of Shandong Provincial Hospital and approved by the Animal Ethics Committee of Shandong Provincial Hospital (no. 2023-0012).

2.4. Synthesis of HMnO₂

Firstly, synthesis of SiO₂ core: in a mixed solution containing ethanol (25 mL), ultrapure water (0.5 mL), and ammonia (1.8 mL, 28%), 0.75 mL of TEOS was rapidly added. The mixture was placed in a constant-temperature water bath and reacted under magnetic stirring at 40 °C and 150 rpm for 12 hours. SiO₂ nanoparticles with a particle size of 80 ± 5 nm were obtained. Secondly, preparation of SiO₂@MnO₂: the synthesized SiO₂ nanoparticles were dispersed in 40 mL of ultrapure water. Under ultrasonic conditions (150 W, 40 kHz), 47 mL of KMnO₄ solution (0.02 mmol L⁻¹) was slowly added dropwise. After 6 hours of ultrasonic dispersion, the precipitate was collected by centrifugation (14 800 rpm, 10 minutes, 4 °C) and washed three times with ultrapure water and ethanol, respectively, to obtain SiO₂@MnO₂ nanoparticles. The chemical reaction equations is: 2KMnO₄ + 3SiO₂ + 2H₂O → 2MnO₂ + 3SiO₃²⁻ + 2KOH. Thirdly, synthesis of HMnO₂: the SiO₂@MnO₂ nanoparticles were mixed with 2 mmol per L Na₂CO₃ solution and reacted under magnetic stirring at 60 °C and 150 rpm for 12 hours to remove the SiO₂ template. After the reaction, the precipitate was collected by centrifugation (12 000 rpm, 10 minutes, 4 °C) and washed three times with ultrapure water. The final product was dispersed in 40 mL of ultrapure water to obtain HMnO₂ nanoparticles at a concentration of 2 mg mL⁻¹.

2.5. Synthesis of mPEG–Ce6

60 mg of Ce6 was dissolved in 10 mL of anhydrous DMF under vigorous stirring until complete dissolution. To the Ce6 solution, 19 mg of EDC (1-ethyl-3-(3-dimethylaminopropyl)carbodiimide) and 12 mg of NHS (N-hydroxysuccinimide) were added. The mixture was reacted at 25 °C under magnetic stirring at 500 rpm for 4 hours to activate the carboxyl groups of Ce6. 200 mg of mPEG-amine was dissolved in 10 mL of anhydrous DMF and set aside. The activated Ce6 solution was then slowly added dropwise to the mPEG-amine solution. The reaction was carried out under nitrogen protection (the reaction flask was purged with nitrogen for 10 minutes prior to the reaction, and a continuous nitrogen flow was maintained throughout the reaction) at 25 °C under magnetic stirring at 500 rpm for 24 hours. This allowed the terminal amino groups of mPEG-amine to react with the activated carboxyl groups of Ce6, forming the mPEG–Ce6 conjugate via an esterification reaction. After the reaction, the mixture was transferred into a dialysis bag and dialyzed against ultrapure water at 4 °C for 72 hours to remove unreacted Ce6, EDC, NHS, and other small-molecule byproducts. The purified product was then freeze-dried for 24 hours to obtain the mPEG–Ce6 conjugate as a solid powder.

2.6. Synthesis of HMnO₂–VC@mPEG–Ce6

0.5 mg of HMnO₂ nanoparticles was added to 5 mL of ultrapure water containing 10 mg of vitamin C (VC). The mixture was sonicated at 40 kHz and 100 W for 5 minutes, followed by magnetic stirring at 200 rpm in the dark for 2 hours to obtain the HMnO₂–VC dispersion. The prepared mPEG–Ce6 solution (5 mg mL⁻¹) was mixed with the HMnO₂–VC dispersion. The mixture was sonicated at 40 kHz and 100 W for 5 minutes, followed by magnetic stirring at 200 rpm in the dark for 24 hours. After the reaction, the supernatant was removed by centrifugation (10 000 rpm, 10 minutes, 4 °C), and the precipitate was collected. The final product was redispersed in 10 mL of ultrapure water to obtain the HMnO₂–VC@mPEG–Ce6 nanoparticle dispersion, which was stored at 4 °C in the dark. The concentration of free Ce6 was measured using a multifunctional microplate reader (Varioskan LUX, Thermo Scientific, USA) at a wavelength of 402 nm. The encapsulation efficiency (EE) was calculated using the following formula: EE (%) = (total Ce6 − free Ce6)/total Ce6 × 100%.

2.7. Characterization of HMnO₂–VC@mPEG–Ce6

Scanning electron microscopy (SEM, Zeiss Gemini 300, Carl Zeiss Co., Germany) was used to observe the dispersion of the nanoparticles. Transmission electron microscopy (TEM, FEI Talos F200X, FEI Co., USA), high-angle annular dark field scanning TEM (HAADF-STEM), and elemental mapping images were used to observe the morphology and elemental distribution of the nanoparticles. Fourier transform infrared spectroscopy (FTIR) were generated on a Thermo Scientific Nicolet iS 20 FTIR spectrum analyzer using a KBr disk in the range of 4000–400 cm⁻¹. Ultraviolet-visible-near infra-red spectrophotometry (UV-vis-NIR) was tested on a PerkinElmer Lambda 950 instrument. The hydrodynamic particle size distribution and ζ-potential of the synthesized nanoparticles were tested on a Malvern Zetasizer Nano ZS90 nanoparticle size and zeta potential analyzer. Specific surface area and pore size of the nanoparticles were studied by N₂ adsorption–desorption analysis and Brunauer–Emmett–Teller analysis.

2.8. Detection of O₂

Prior to use, the portable dissolved oxygen meter (WLDO-300, Shanghai Seawater Instrumentation Technology Co., Ltd) was calibrated using air-saturated water and zero-oxygen solution in a two-point calibration procedure to ensure measurement accuracy. Calibration was performed before each experiment. To assess oxygen production, HMnO₂–VC@mPEG–Ce6 solutions at different concentrations (100, 200, and 500 μg mL⁻¹) were mixed with H₂O₂ solution ([H₂O₂] = 100 μM, pH 7.4). The dissolved oxygen concentration was measured at time points of 0, 5, 10, 15, 20, and 30 minutes using the portable dissolved oxygen meter. Similarly, the oxygen production under different pH conditions (6.5 and 7.4) was evaluated by mixing HMnO₂–VC@mPEG–Ce6 solution (200 μg mL⁻¹) with H₂O₂ solution ([H₂O₂] = 100 μM) at the specified pH values.

2.9. Detection of ˙OH

Methylene blue (MB) was used as an assay reagent to verify the ˙OH production capacity of HMnO₂–VC@mPEG–Ce6. MB solution (10 mg L⁻¹) containing 0.5 mM MnCl₂ was mixed with different concentrations of H₂O₂ (1.25, 2.5, 5, and 10 mM) in NaHCO₃/CO₂ buffer and incubated for 30 minutes, and the change in absorbance of MB at 665 nm was observed to verify the production of ˙OH. In addition, the effect of GSH on ˙OH generation was verified by mixing an MB solution (10 mg L⁻¹) containing H₂O₂ and 0.5 mM MnCl₂ with a mixture of different concentrations of GSH (0, 2, 4, 6, 8, and 10 mM) in NaHCO₃/CO₂ buffer and by incubating for 30 minutes to measure the change in absorbance of MB at 665 nm.

2.10. Detection of ¹O₂

Singlet oxygen sensor green (SOSG) is a common ¹O₂ detection kit that is highly selective for ¹O₂ but not cell membrane permeable, and the change in the fluorescence density of SOSG endoperoxide (SOSG-EP) produced by the reaction of SOSG with ¹O₂ reflects the amount of ¹O₂ produced. The solutions of different experimental groups—(1) mPEG–Ce6; (2) mPEG–Ce6 + HMnO₂; and (3) mPEG–Ce6 + HMnO₂ + H₂O₂—were mixed with SOSG (2.5 μM) and exposed to low-frequency ultrasound (US) irradiation (1 W cm⁻², 10 minutes) using an ultrasonic therapeutic instrument (WED-100, China). At time points of 0, 1, 3, 6, and 10 minutes, 100 μL aliquots were sampled and transferred to a 96-well plate. The fluorescence intensity of SOSG was measured using a fluorescence spectrophotometer (PerkinElmer Lambda 950, USA) at an excitation wavelength of 488 nm and an emission wavelength of 525 nm.

2.11. GSH consumption

5,5′-Dithiobis(2-nitrobenzoic acid) (DTNB) was used to quantify GSH. Briefly, mixtures of DTNB (400 μM) was mixed with different concentrations of GSH (0.2, 0.4, 0.6, 0.8, 1, and 1.2 mM) in PBS buffer (pH 7.4) with a reaction volume of 1 mL. The mixtures were incubated in a constant-temperature water bath at 37 °C for 10 minutes, and the absorbance at 412 nm was measured using a spectrophotometer. A calibration curve was constructed using linear fitting. Different concentrations of HMVC (0, 50, 100, 200, 300, 400, and 500 μg mL⁻¹) were mixed with GSH (1 mM) in PBS buffer (pH 7.4) with a reaction volume of 1 mL. The mixtures were incubated in a constant-temperature water bath at 37 °C for 30 minutes, followed by the addition of DTNB (500 μM). The UV-vis-NIR absorption spectra were recorded. Similarly, different concentrations of GSH (0, 0.25, 0.5, 1, and 1.2 mM) were mixed with HMnO₂–VC@mPEG–Ce6 (100 μg mL⁻¹) in PBS buffer (pH 7.4) with a reaction volume of 1 mL. The mixtures were incubated in a constant-temperature water bath at 37 °C for 30 minutes, followed by the addition of DTNB (500 μM). The UV-vis-NIR absorption spectra were recorded using a spectrophotometer.

2.12. Cellular uptake of HMnO₂–VC@mPEG–Ce6

The cellular uptake of HMnO₂–VC@mPEG–Ce6 nanoparticles was observed using an inverted fluorescence microscope (Zeiss Axio Observer Z1, USA). HMnO₂–VC@mPEG–Ce6 was incubated with the fluorophore FITC overnight. Subsequently, the used medium was replaced with fresh medium containing HMnO₂–VC@mPEG–Ce6/FITC. The uptake of HMnO₂–VC@mPEG–Ce6/FITC nanoparticles by cells was assessed by observing the FITC (green fluorescence) and DAPI (blue fluorescence) signals using the inverted fluorescence microscope.

2.13. Live/dead cell staining assay

To analyze the in vitro antitumor efficacy of HMnO₂–VC@mPEG–Ce6 in combination with SDT/CDT, the survival and death of PC-3 cells were detected using a CAM/PI double-staining kit. PC-3 cells were seeded at a density of 1.5 × 10⁵ cells per well in a 6-well plate containing 1 mL of culture medium, when the cells reached approximately 70% confluence, the used medium was removed and replaced with fresh culture medium. The cells were then divided into the following experimental groups according to the planned design: (1) control group; (2) HMnO₂; (3) mPEG–Ce6 + US; (4) HMnO₂–VC@mPEG–Ce6; (5) HMnO₂–VC@mPEG–Ce6 + US. The cells were incubated in a 37 °C incubator for 4 hours, after which the groups requiring ultrasound irradiation were exposed to ultrasound at an intensity of 1 W cm⁻² for 10 minutes. Finally, the cells were stained with the CAM/PI double-staining kit for 15 minutes, and images were observed and captured using an inverted fluorescence microscope.

2.14. Quantitative determination of cytotoxicity

PC-3 cells were seeded at a density of 5000 cells per well in a 96-well plate containing 100 μL of culture medium. When the cells reached approximately 70% confluence, the used medium was removed and replaced with fresh culture medium. Then, the cells were treated according to the grouping described above. The cells were incubated in a 37 °C incubator for 4 hours, after which the groups requiring ultrasound irradiation were exposed to ultrasound at an intensity of 1 W cm⁻² for 10 minutes. Cell viability was measured using a CCK-8 assay kit, and the cell survival rate was calculated using the formula: cell survival rate (%) = (OD of the treatment group/OD of the control group) × 100%.

2.15. Cellular ROS generation assessment

PC-3 cells were seeded at a density of 1.5 × 10⁵ cells per well in a 6-well plate containing 1 mL of culture medium, when the cells reached approximately 70% confluence, the used medium was removed and replaced with fresh culture medium. Then, the cells were treated according to the grouping described above, stained with 2,7-dichlorodihydrofluorescein diacetate (DCFH-DA) probe, and images were taken using an inverted fluorescence microscope.

2.16. Cellular LPO generation assessment

Lipid peroxides (LPO) were assessed using C11-BODIPY 581/591, an oxidation-sensitive LPO-specific fluorescent probe that accumulates in the cell membrane. PC-3 cells were seeded at a density of 1.5 × 10⁵ cells per well in a 6-well plate containing 1 mL of culture medium, when the cells reached approximately 70% confluence, the used medium was removed and replaced with fresh culture medium. Then, the cells were treated according to the grouping described above. The treated cells were incubated with the C11-BODIPY 581/591 fluorescent probe in a 37 °C incubator for 30 minutes. Images were observed and captured using an inverted fluorescence microscope.

2.17. In vivo biodistribution of HMnO₂–VC@mPEG–Ce6

HMnO₂–VC@mPEG–Ce6 (5 mg kg⁻¹, labeled with cyanine-5.5) was intravenously injected into tumor-bearing BALB/c mice via the tail vein. At 0.5, 4, 12, and 24 hours post-injection, the mice were anesthetized (by intraperitoneal injection of 1.5% pentobarbital sodium solution, 50 mg kg⁻¹) and placed on the detection platform of a small animal in vivo imaging system. The imaging parameters were adjusted, and fluorescence signal distribution images within the mice were captured. At the 24 hour time point, the mice were euthanized (using carbon dioxide inhalation), and the heart, liver, spleen, lungs, kidneys, and tumor tissues were rapidly excised. The isolated tissues were placed in the small animal in vivo imaging system to capture fluorescence signal images.

2.18. In vivo antitumor therapeutic efficacy

PC-3 tumor-bearing mice with tumor volumes of approximately 100 mm³ were randomly divided into five groups (n ≥ 5/group): (1) control group; (2) HMnO₂; (3) mPEG–Ce6 + US; (4) HMnO₂–VC@mPEG–Ce6; (5) HMnO₂–VC@mPEG–Ce6 + US. Different formulations were administered via tail vein injection (5 mg kg⁻¹). For the groups receiving ultrasound, the tumors were irradiated with US (1 W cm⁻², 10 minutes) 12 hours after administration. The treatment was performed three times. Body weight and tumor size were recorded every other day after treatment. Tumor volume was calculated using the following formula: tumor volume = (width² × length)/2. All mice were euthanized and photographed 21 days post-injection, and the tumors were excised and photographed. The collected tumors were fixed in 4% paraformaldehyde solution for 24 hours. After fixation, the tissues were dehydrated, embedded in paraffin, and sectioned (5 μm thickness). Histological analyses, including ROS detection, H&E staining, and immunohistochemical staining for HIF-1α, PCNA, and GPX4, were performed on the tissue sections.

2.19. Data analysis

All quantitative data were analyzed using SPSS 25.0 software. All data were expressed as mean ± standard deviation (SD). Differences among groups were analyzed using one-way ANOVA. Statistical significance was set at *P < 0.05, **P < 0.01, and ***P < 0.001.

3. Results and discussion

3.1. Characterization of HMnO₂–VC@mPEG–Ce6

The HMnO₂–VC@mPEG–Ce6 nanoparticles were observed using SEM and TEM, and Fig. 2A–C clearly show the spherical morphology, porous structure, and well-dispersed nature. HAADF-STEM further confirmed the hollow structure of the nanoparticle shells and visualized the distribution of the major elements (Fig. 2D). Analyzed using the BET method, the specific surface area of HMnO₂ was 129.43 m² g⁻¹. An obvious hysteresis loop caused by capillary condensation could be observed in the desorption isotherm, indicating the presence of mesopores in the nanoparticles (Fig. S1†). By analyzing the desorption branching curve using the BJH method, the pore size was found to be concentrated around 3.9 nm (Fig. S2†). The HMnO₂ nanoparticles exhibited a large specific surface area and mesopore size, suggesting their potential for effective drug loading. FTIR analysis was performed on HMnO₂, VC, Ce6, and HMnO₂–VC@mPEG–Ce6. The infrared spectra of HMnO₂ changed after compounding with VC and Ce6. The relative intensities of the absorption peaks in the bands of 1711, 1434, and 1208 cm⁻¹ increased, which mainly originated from the structures of C=O, C=C, and C–O structures in Ce6 and VC. Notably, the typical characteristic peaks of the monosubstitution of the pyridinium ring in Ce6 appeared at 725 cm⁻¹, confirming the successful loading of Ce6 into the HMnO₂ matrix. Additionally, the significant increase in the relative intensity of the C–OH absorption peak at 1020 cm⁻¹ and the change in the peak shape at 3441 cm⁻¹ were attributed to the introduction of a large number of hydroxyl groups onto the surface of HMnO₂, indicating that VC was successfully loaded on the surface of HMnO₂ and affected intermolecular hydrogen bonding. These results confirm the successful loading of VC and Ce6 onto the surface of HMnO₂, demonstrating the successful synthesis of HMnO₂–VC@mPEG–Ce6 (Fig. 2E). Furthermore, the UV-vis-NIR absorption spectra were shown in Fig. 2F. In the spectrum of HMnO₂–VC@mPEG–Ce6, the characteristic absorption peaks of mPEG–Ce6 were observed at 401 and 656 nm, confirming its successful coupling. As shown in Fig. S3,† the regression equation of the mPEG–Ce6 concentration–absorbance standard curve is y = 0.0089x + 0.0034, R² = 0.9866. The linear relationship between mPEG–Ce6 concentration and absorbance is strong within the concentration range of 0–200 μg mL⁻¹, allowing for quantitative analysis. The entrapment efficiency was calculated as follows: entrapment efficiency = (total Ce6 − free Ce6)/total Ce6 × 100% = 15.17%. Additionally, the zeta potential of HMnO₂–VC@mPEG–Ce6 was −21.9 ± 0.68 mV (Fig. 2G), and the average hydrodynamic diameter of HMnO₂–VC@mPEG–Ce6 was approximately 189.3 nm (Fig. 2H).

Fig. 2 Schematic of the characterization of HMnO₂–VC@mPEG–Ce6 nanoparticles. (A) SEM image. (B and C) TEM images. (D) HAADF-STEM image and elemental mapping. (E) Fourier transform infrared spectra of the HMnO₂, VC, Ce6, and HMnO₂–VC@mPEG–Ce6 nanoparticles. (F) UV-vis-NIR absorption spectra of HMnO₂, mPEG–Ce6, HMnO₂–VC, and HMnO₂–VC@mPEG–Ce6. (G) Zeta potential of the HMnO₂, HMnO₂–VC, and HMnO₂–VC@mPEG–Ce6. (H) Particle size distribution map.

3.2. O₂ production of HMnO₂–VC@mPEG–Ce6

We evaluated the O₂-generating capacity of HMnO₂–VC@mPEG–Ce6 using a dissolved oxygen meter to assess its hypoxia-alleviating potential. Upon H₂O₂ addition, HMVC demonstrated concentration-dependent catalase-like activity, with dissolved O₂ levels rising proportionally to HMVC concentration (Fig. 3A). This confirms its ability to catalyze H₂O₂ decomposition into water-soluble O₂. Notably, at a fixed concentration (200 μg mL⁻¹), HMVC exhibited pH-responsive catalytic behavior, showing enhanced O₂ generation efficiency under acidic conditions (Fig. 3B). In the acidic and hypoxic environment within the tumor, the addition of HMnO₂–VC@mPEG–Ce6 significantly increased the O₂ yield. Compared with similar MnO₂-based nanomaterials, HMnO₂–VC@mPEG–Ce6 has an approximately 2-fold increase in O₂ yield in the acidic tumor microenvironment.³⁶ This advantage stems from the synergistic catalytic effect of its mesoporous structure and VC loading on H₂O₂ decomposition.

Fig. 3 Performance testing of HMnO₂–VC@mPEG–Ce6 nanoparticles. (A) The curves show the O₂ production of HMnO₂–VC@mPEG–Ce6 solutions at different concentrations (100, 200 and 500 μg mL⁻¹). (B) O₂ production of HMnO₂–VC@mPEG–Ce6 solution (200 μg mL⁻¹) at pH 6.5 and 7.4. (C) UV-vis-NIR absorption spectra of MB after degradation by Mn²⁺-mediated Fenton-like reaction in the presence of HCO₃⁻. (D) MB degradation with the addition of different concentrations of H₂O₂. (E) MB degradation by Mn²⁺-mediated Fenton-like reaction in the presence or absence of GSH. (F) MB degradation by H₂O₂ plus different concentrations of GSH. (G) Typical ESR signals of DMPO incubated with different groups in 25 mM NaHCO₃/CO₂ buffer. (H) Typical ESR signals of TEMP incubated with different groups. (I) Detection of GSH (1 mM) consumption by different concentrations of HMnO₂–VC@mPEG–Ce6 (0, 50, 100, 200, 300, 400 and 500 μg mL⁻¹) after 30 min of reaction.

3.3. In vitro CDT effects

To systematically evaluate the ˙OH generation in Mn²⁺-mediated Fenton-like reaction within physiological bicarbonate buffer (HCO₃⁻/CO₂), we employed MB degradation assays and electron spin resonance (ESR) spectroscopy. Significant MB absorbance reduction (Fig. 3C) confirmed efficient ˙OH production via Mn²⁺/H₂O₂ interactions in NaHCO₃/CO₂ buffer, with ˙OH yields showing H₂O₂ concentration dependence (Fig. 3D). Strikingly, the introduction of 10 mM glutathione (GSH) caused a five-fold increase in residual MB levels (Fig. 3E and F), demonstrating GSH's dual role as both a ˙OH scavenger and CDT efficacy suppressor through redox equilibrium modulation. ESR spectra with characteristic 1 : 2 : 2 : 1 quartet signals provided direct evidence of ˙OH generation (Fig. 3G). Notably, signal attenuation in the Mn²⁺ + H₂O₂ + GSH group versus the Mn²⁺ + H₂O₂ control visually corroborated GSH's radical quenching capacity.

3.4. In vitro SDT effects

The integration of mPEG–Ce6 endowed HMnO₂–VC@mPEG–Ce6 with US-responsive sonodynamic capability. Using SOSG fluorescence probes and ESR with TEMP trapping, we systematically evaluated ¹O₂ generation under US irradiation. Both assays revealed time-dependent ¹O₂ production across all test groups, with the H₂O₂-supplemented group showing the highest yield (Fig. S4–S6†). ESR spectra exhibited characteristic 1 : 1 : 1 triplet signals, confirming US-triggered ¹O₂ generation (Fig. 3H). Notably, H₂O₂ co-treatment amplified these signals, suggesting peroxide-enhanced sonodynamic activity. The H₂O₂-dependent ¹O₂ enhancement implies a self-reinforcing therapeutic mechanism. Tumor-associated H₂O₂ not only provides oxygen sources via HMVC's catalase-like activity but also amplifies SDT efficacy, creating a feedback loop for targeted ROS storm generation.

3.5. GSH consumption

We quantitatively characterized the GSH-depleting ability of HMnO₂–VC@mPEG–Ce6 through DTNB, which has a typical absorption peak at 325 nm (Fig. S7†) and a new absorption peak at 412 nm after reacting with GSH to form TNB (Fig. S8†). As shown in Fig. 3I, the intensity of the absorption peak at 412 nm decreased with increasing HMVC concentration. In addition, in the degradation experiments of HMVC with the addition of various concentrations of various concentrations of GSH (0, 0.25, 0.5, 1, 1.2 mM), the absorbance at 412 nm increased with increasing GSH concentration (Fig. S9†). Since the concentration of GSH in cancer cells (1–10 mM) is at least four times higher than that in normal cells,^37–39 HMnO₂ can be completely degraded by GSH in cancer cells. These results suggest that HMVC is able to act as a GSH-depleting agent that regulates intracellular redox homeostasis and provides large amounts of Mn²⁺ to CDT. Compared to Fe³⁺ or Cu²⁺-based GSH depleting agents,^40,41 HMnO₂–VC@mPEG–Ce6 rapidly degrades and depletes GSH at GSH concentrations (1–10 mM) in tumor cells through Mn²⁺-mediated redox reactions, while releasing Mn²⁺-enhancing CDT, resulting in a “self-reinforcing” effect.

3.6. Cellular uptake of HMnO₂–VC@mPEG–Ce6

The prerequisite for achieving a perfect therapeutic effect is that the nanoparticles can be effectively internalized by the tumor cells. As shown in Fig. 4A, green fluorescence was observed around the cells, and the fluorescence intensity was significantly enhanced with increasing incubation time, indicating the time-dependent internalization of HMVC nanoparticles by PC-3 cells.

Fig. 4 Cellular uptake and in vitro therapeutic efficacy of HMnO₂–VC@mPEG–Ce6 nanoparticles. (A) Images of PC-3 cells incubated with FITC-labeled HMnO₂–VC@mPEG–Ce6 for 0, 1, 2, and 4 h. Scale bar = 20 μm. (B) The relative viability of PC-3 cells after different treatments was quantitatively analyzed using CCK-8. (C) Fluorescence images stained with calcein-AM (green) and PI (red) after different treatments. Scale bar = 200 μm. (D) Fluorescence images of PC-3 cells stained with intracellular ROS probe DCFH-DA after different treatments. Scale bar = 200 μm. (E) Fluorescence images of PC-3 cells stained with C11-BODIPY 581/591 after different treatments. Scale bar = 200 μm.

3.7. In vitro cytotoxicity assay

The combinatorial therapeutic effect of HMVC was systematically evaluated using CAM/PI double-staining kit and CCK-8 assays in PC-3 prostate cancer cells. Fluorescence quantification revealed maximal red fluorescence intensity in the HMVC + US group (Fig. 4C), demonstrating superior tumor eradication capacity. Correspondingly, CCK-8 assays showed 76.4% cell death under HMVC + US treatment – a 1.2-fold enhancement over SDT therapy and 2.2-fold improvement versus CDT alone (Fig. 4B). This suggests that HMVC + US treatment has the strongest cell-killing effect on PC-3 cells. Different from the nanosystems of CDT or SDT alone,^42,43 HMnO₂–VC@mPEG–Ce6 alleviates hypoxia, ROS outburst, and GSH depletion through O₂, resulting in cell mortality of 76.4% in vitro, which is significantly higher than similar studies.

3.8. Intracellular ROS and LPO level

Intracellular ROS production and LPO accumulation were respectively monitored using DCFH-DA and C11-BODIPY 581/591 probes. As shown in Fig. 4D, PC-3 cells treated with HMnO₂, mPEG–Ce6 + US, and HMVC groups all showed some degree of green fluorescence due to the SDT or CDT effects. Notably, the HMVC + US group showed the strongest green fluorescence, which was attributed to the synergistic effect of SDT/CDT. LPO analysis demonstrated parallel enhancement, with the HMVC + US group exhibiting maximal green fluorescence ratio (Fig. 4E), confirming US-potentiated ferroptosis initiation. These results confirm that HMVC + US treatment efficiently generated large amounts of ROS and promoted LPO accumulation.

3.9. In vivo anticancer studies

Building upon the demonstrated tumor-targeting capability and synergistic in vitro efficacy, we evaluated the combined SDT/CDT performance in PC-3 tumor-bearing mice (tumor volume ≈ 100 mm³). Animals were randomized into five treatment groups (n ≥ 5/group): (a) PBS (control); (b) HMnO₂; (c) mPEG–Ce6 + US; (d) HMVC; (e) HMVC + US. Ultrasound irradiation (1 W cm⁻², 10 minutes) was applied 24 h post-injection to groups of mPEG–Ce6 + US and HMVC + US, ensuring optimal nanoparticle accumulation at tumor sites (Fig. 5A).

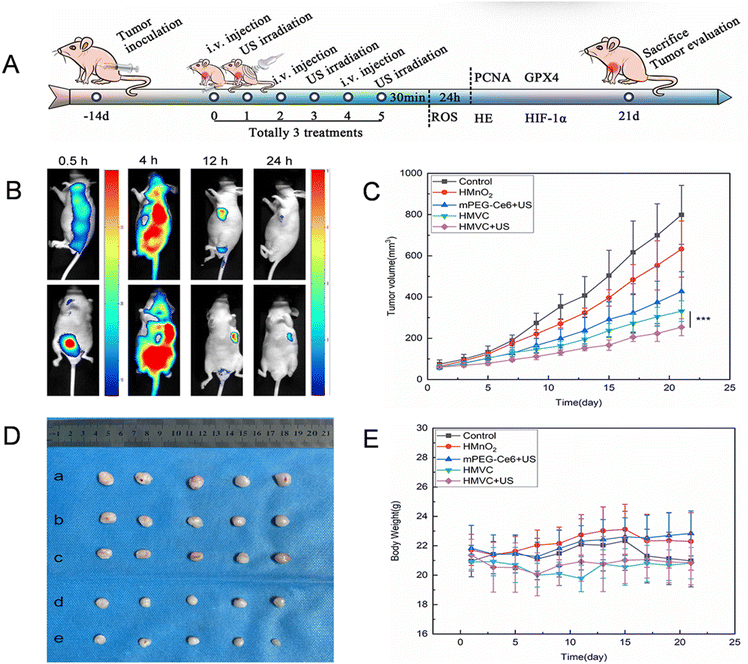

Fig. 5 In vivo therapeutic efficacy of HMnO₂–VC@mPEG–Ce6 nanoparticles. (A) Overview of the in vivo treatment process. (B) Fluorescence images of mice 24 hours after injection of Cy5.5-HMnO₂–VC@mPEG–Ce6 via tail vein. (C) Curves show the changes in tumor volume of mice in each group after different treatments. (D) Appearance of tumors isolated from mice: (a) the control, (b) HMnO₂, (c) mPEG–Ce6 + US, (d) HMVC, and (e) HMVC + US. (E) Curves show the changes in the body weight of the mice in each group after different treatments.

3.10. Biodistribution of HMnO₂–VC@mPEG–Ce6

To evaluate the in vivo biodistribution and tumor accumulation behavior of HMnO₂–VC@mPEG–Ce6, we injected HMVC labeled with Cy5.5 into PC-3 tumor-bearing mice via the tail vein and observed their biodistribution. As shown by in vivo fluorescence imaging, the fluorescence intensity of the tumor gradually increased over time, peaked at the tumor site at 12 h postinjection, and then decreased because of the in vivo metabolism (Fig. 5B) (a separate scale was used because of the high fluorescence intensity at 0.5 hours). This suggests that the distribution of HMnO₂–VC@mPEG–Ce6 is time-dependent, which may be due to the enhanced permeability and retention (EPR) effect of the tumor. We also excised tumors and major organs for in vitro imaging 24 h after injection. We found that tumors in mice showed the strongest Cy5.5 fluorescence signals, whereas resected organs no longer showed fluorescence, suggesting that HMnO₂–VC@mPEG–Ce6 nanoparticles were still heavily enriched at the tumor site 24 hours after injection (Fig. S10†).

3.11. In vivo anticancer efficacy of HMnO₂–VC@mPEG–Ce6

Mouse body weights and tumor volumes were monitored for 21 days after the administration of the different treatments. As shown in Fig. 5C, tumor growth was rapid in the control group and somewhat inhibited in the mPEG–Ce6 + US and HMVC treatment groups, with the best tumor suppression in the HMVC + US treatment group. As shown in Fig. 5D and S11,† tumor images from different treatment groups on day 21 further confirmed that HMVC + US treatment resulted in greater tumor growth inhibition. The favorable efficacy of the above treatments may be attributed to the SDT/CDT synergistic effect. At the end of the experiment, the body weights of the mice were relatively constant and showed no significant changes, and no statistical differences were observed between groups (Fig. 5E). This indicates that HMnO₂–VC@mPEG–Ce6 is biologically safe and has no significant toxic effects on animals.

3.12. Tissue analysis

To further evaluate the effects of different treatments on tumor tissues, dissected tumor tissues from each group were stained with antibodies against hematoxylin eosin (H&E), proliferating cell nuclear antigen (PCNA), GPX4, and ROS. The hypoxia-relieving capacity of HMnO₂–VC@mPEG–Ce6 was then explored by HIF-1α staining of the tumor site. Compared with the control group, HIF-1α expression was significantly decreased in the HMVC + US group, suggesting that HMnO₂–VC@mPEG–Ce6 can effectively alleviate tumor hypoxia (Fig. 6A). Dihydroethidium (DHE) staining was used to detect intracellular ROS, which produce red fluorescence in the presence of ROS. The ROS staining showed clear red fluorescence in the HMVC + US group, which suggested that it can synergize with SDT/CDT to produce ROS to kill tumor cells (Fig. 6B). In addition, H&E and PCNA staining also demonstrated the effects of the above treatments (Fig. 6C and D). GPX4 staining was used to further detect the expression of the GPX4 protein in tumor tissues after different treatments. We found that the expression of the GPX4 protein was downregulated in the HMVC + US group compared with the control group (Fig. 6E). Finally, major organs were harvested from each group of mice to evaluate the biosafety of HMnO₂–VC@mPEG–Ce6. No obvious inflammatory reaction was observed in the H&E sections of each major organ. And no abnormalities were detected in routine examinations and blood biochemical analyses in all groups of mice (Fig. S12 and S13†). Compared with some metal-based nanomaterials, the Mn²⁺ metabolites of HMnO₂ can be excreted through the kidney, and no significant hepatorenal toxicity has been observed, which has better clinical translation potential.

Fig. 6 Representative images of stained tumor tissue sections of nude mice after treatment in each experimental group. Each set of images was stained for HIF-1α (A), ROS (B), H&E (C), PCNA (D) and GPX4 (E). Scale bar = 50 μm.

4. Conclusion

We present a biodegradable HMnO₂-based nanoplatform (HMnO₂–VC@mPEG–Ce6) that synergizes SDT/CDT with ferroptosis induction, overcoming key limitations of conventional apoptosis-focused therapies. HMnO₂–VC@mPEG–Ce6 not only synergized with SDT and CDT effects to generate sufficient ROS, thereby inducing the accumulation of LPO in tumor cells, but also achieves GSH depletion via the HMnO₂–Mn²⁺ transition, leading to GPX4 inhibition to induce ferroptosis in cancer cells. Our HMnO₂-based therapeutic nanoplatforms hold great promise for clinical translation because of inherent biodegradability. Future work will focus on active targeting ligand conjugation to further enhance tumor specificity.

Data availability

The data supporting this article have been included as part of the ESI.†

Author contributions

Qi Shen: conceptualization, formal analysis, investigation, methodology, writing-original draft. Xi Zhu: conceptualization, methodology, investigation, data curation. Mengping Huo: conceptualization, methodology, supervision, resources. Yafei Lin: conceptualization, resources. Wenting Zhang: conceptualization, resources. Ming Yang: conceptualization, resources, supervision, writing-review and editing, funding acquisition, project administration. Yang Zhang: conceptualization, resources, supervision, writing-review and editing, funding acquisition, project administration. Long Zhang: conceptualization, resources, supervision, writing-review and editing, funding acquisition, project administration. Yonghao Gai: conceptualization, resources, supervision, writing-review and editing, project administration.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This study was supported by the National Natural Science Foundation of China (82102040), the Natural Science Foundation of Shandong Province (ZR2021QH228 and ZR2022MH251), the Taishan Scholars Program of Shandong Province (tsqnz20221171), Scientific Research Project of Weifang Health Commission (WFWSJK-2023-352).

Notes and references

1. S. Fan, Q. Yang, Q. Song, M. Hong, X. Liu, H. Chen, J. Wang, C. Li and S. Cheng, Chem. Commun., 2022, 58, 6486–6489.
2. W. S. Yang, R. SriRamaratnam, M. E. Welsch, K. Shimada, R. Skouta, V. S. Viswanathan, J. H. Cheah, P. A. Clemons, A. F. Shamji, C. B. Clish, L. M. Brown, A. W. Girotti, V. W. Cornish, S. L. Schreiber and B. R. Stockwell, Cell, 2014, 156, 317–331.
3. S. J. Dixon, K. M. Lemberg, M. R. Lamprecht, R. Skouta, E. M. Zaitsev, C. E. Gleason, D. N. Patel, A. J. Bauer, A. M. Cantley, W. S. Yang, B. Morrison and B. R. Stockwell, Cell, 2012, 149, 1060–1072.
4. A. Knickle, W. Fernando, A. L. Greenshields, H. P. V. Rupasinghe and D. W. Hoskin, Food Chem. Toxicol., 2018, 118, 154–167.
5. B. Wang, Y. Wang, J. Zhang, C. Hu, J. Jiang, Y. Li and Z. Peng, Arch. Toxicol., 2023, 97, 1439–1451.
6. C. Qian, P. Feng, J. Yu, Y. Chen, Q. Hu, W. Sun, X. Xiao, X. Hu, A. Bellotti, Q.-D. Shen and Z. Gu, Angew Chem. Int. Ed. Engl., 2017, 56, 2588–2593.
7. R. Stefanatos and A. Sanz, FEBS Lett., 2018, 592, 743–758.
8. Y. Chen, X. Luo, Z. Zou and Y. Liang, Curr. Drug Targets, 2020, 21, 477–498.
9. H. Shibaguchi, H. Tsuru, M. Kuroki and M. Kuroki, Anticancer Res., 2011, 31, 2425–2429.
10. K. Wei, Y. Wu, X. Zheng, L. Ouyang, G. Ma, C. Ji and M. Yin, Angew Chem. Int. Ed. Engl., 2024, 63, e202404395.
11. H. Gao, Z. Cao, H. Liu, L. Chen, Y. Bai, Q. Wu, X. Yu, W. Wei and M. Wang, Theranostics, 2023, 13, 1974–2014.
12. C. Jia, Y. Guo and F.-G. Wu, Small, 2022, 18, e2103868.
13. I. A. Khawar, J. H. Kim and H.-J. Kuh, J. Controlled Release, 2015, 201, 78–89.
14. Y. Xiao and D. Yu, Pharmacol. Ther., 2021, 221, 107753.
15. J. E. Bader, K. Voss and J. C. Rathmell, Mol. Cell, 2020, 78, 1019–1033.
16. S. Lu, W. Feng, C. Dong, X. Song, X. Gao, J. Guo, Y. Chen and Z. Hu, Adv. Healthcare Mater., 2022, 11, e2102135.
17. J. Li, Z. Yue, M. Tang, W. Wang, Y. Sun, T. Sun and C. Chen, Adv. Healthcare Mater., 2024, 13, e2302028.
18. Y. Liu, Y. Wan, Y. Jiang, L. Zhang and W. Cheng, Biochim. Biophys. Acta, Rev. Cancer, 2023, 1878, 188890.
19. B. Niu, K. Liao, Y. Zhou, T. Wen, G. Quan, X. Pan and C. Wu, Biomaterials, 2021, 277, 121110.
20. A. C. González-Garzón, J. P. Ramón-Ugalde, D. A. Ambríz-García, J. R. Vazquez-Avendaño, J. E. Hernández-Pichardo, J. L. Rodríguez-Suastegui, C. Cortez-Romero and M. D. C. Navarro-Maldonado, Animals, 2023, 13, 3602.
21. H. Wu, X. Gao, Y. Luo, J. Yu, G. Long, Z. Jiang and J. Zhou, Adv. Sci., 2022, 9, e2203894.
22. G. Yang, J. Ji and Z. Liu, Wiley Interdiscip. Rev.:Nanomed. Nanobiotechnol., 2021, 13, e1720.
23. Y. Chen, H. Cong, Y. Shen and B. Yu, Nanotechnology, 2020, 31, 202001.
24. J. Wang, S. Zhao, J. Chen, X. Liu, H. Chen, T. Lu, M. Xu, X. Guo, X. Shen, C. Liu and C. Li, ACS Appl. Mater. Interfaces, 2023, 15, 21904–21916.
25. Y. Liu, Y. Huang, P. Lu, Y. Ma, L. Xiong, X. Zhang, Z. Yin, H. Xu, Y. Nie, J. Luo, Z. Xiong and X. Liang, ACS Appl. Mater. Interfaces, 2023, 15, 54207–54220.
26. Z. Chen, Z. Liu, Q. Zhang, S. Huang, Z. Zhang, X. Feng, L. Zeng, D. Lin, L. Wang and H. Song, Front. Pharmacol, 2023, 14, 1133011.
27. L.-S. Lin, J. Song, L. Song, K. Ke, Y. Liu, Z. Zhou, Z. Shen, J. Li, Z. Yang, W. Tang, G. Niu, H.-H. Yang and X. Chen, Angew Chem. Int. Ed. Engl., 2018, 57, 4902–4906.
28. J. Ou, H. Tian, J. Wu, J. Gao, J. Jiang, K. Liu, S. Wang, F. Wang, F. Tong, Y. Ye, L. Liu, B. Chen, X. Ma, X. Chen, F. Peng and Y. Tu, ACS Appl. Mater. Interfaces, 2021, 13, 38050–38060.
29. S. Cheng, Y. Shi, C. Su, Y. Li and X. Zhang, Biosens. Bioelectron., 2022, 214, 114550.
30. B. Zhou, C. Yin, Q. Feng, Y. Wu, X. Pan, C. Liu, J. Tian, S. Geng, K. Wang, J. Xing, Y. Cao, P. Shou, Z. Yu and A. Wu, Nanoscale, 2021, 13, 19085–19097.
31. L. Feng, R. Xie, C. Wang, S. Gai, F. He, D. Yang, P. Yang and J. Lin, ACS Nano, 2018, 12, 11000–11012.
32. Y. Liu, W. Zhen, Y. Wang, J. Liu, L. Jin, T. Zhang, S. Zhang, Y. Zhao, S. Song, C. Li, J. Zhu, Y. Yang and H. Zhang, Angew Chem. Int. Ed. Engl., 2019, 58, 2407–2412.
33. L. Liang, M. Jia, M. Zhao, Y. Deng, J. Tang, X. He, Y. Liu, K. Yan, X. Yu, H. Yang, C. Li, Y. Li and T. Li, Int. J. Nanomed., 2024, 19, 8883–8900.
34. Y. Zhang, Y. Cao, T. Gao, Y. Kuang, Z. An, Z. Mao, Y. He, J. Yan, Z. Lu and R. Pei, ACS Appl. Bio Mater., 2020, 3, 3880–3893.
35. L. Deng, M. Liu, D. Sheng, Y. Luo, D. Wang, X. Yu, Z. Wang, H. Ran and P. Li, Biomaterials, 2021, 271, 120710.
36. T. Lin, X. Zhao, S. Zhao, H. Yu, W. Cao, W. Chen, H. Wei and H. Guo, Theranostics, 2018, 8, 990–1004.
37. C. Hwang, A. J. Sinskey and H. F. Lodish, Science, 1992, 257, 1496–1502.
38. M. P. Gamcsik, M. S. Kasibhatla, S. D. Teeter and O. M. Colvin, Biomarkers, 2012, 17, 671–691.
39. N. Traverso, R. Ricciarelli, M. Nitti, B. Marengo, A. L. Furfaro, M. A. Pronzato, U. M. Marinari and C. Domenicotti, Oxid. Med. Cell. Longevity, 2013, 2013, 972913.
40. J. Bonet-Aleta, M. Sancho-Albero, J. Calzada-Funes, S. Irusta, P. Martin-Duque, J. L. Hueso and J. Santamaria, J. Colloid Interface Sci., 2022, 617, 704–717.
41. J. Bai, X. Zhang, Z. Zhao, S. Sun, W. Cheng, H. Yu, X. Chang and B. Wang, Small, 2024, 20, e2400326.
42. Q. Chen, N. Li, X. Wang, Y. Yang, Y. Xiang, X. Long, J. Zhang, J. Huang, L. Chen and Q. Huang, Front. Pharmacol, 2022, 13, 847048.
43. F. He, W. Li, B. Liu, Y. Zhong, Q. Jin and X. Qin, ACS Biomater. Sci. Eng., 2024, 10, 298–312.

---

Footnotes

† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5ra00032g

‡ Co-first authors, contributed equally to this work.

---
