Utilizing red mud from industrial waste as catalysts for the hydrogenation of CO₂ into value added chemicals

Abstract

Finding environmentally acceptable and long-lasting catalysts that can convert carbon dioxide into compounds with additional value is of great interest. Using Red Mud (RM), a waste product from the aluminum industry, as a CO₂ reduction agent is also a great idea, given the current environmental problems. In this research, we developed, characterized, and evaluated a series of metal-promoted (M = Na, K, Cs, Ba, Mg, and Sr) RM catalysts for CO₂ hydrogenation to produce olefins and CO. In the beginning, we synthesized RM that had been treated with acid and base by employing hydrochloric acid (HCl) and potassium hydroxide (KOH), and then we examined the activity of these catalysts in CO₂ hydrogenation. Surprisingly, when tested at 375 °C and 30 bar pressure (CO₂ : H₂ = 1 : 3), pure RM converted 22% CO₂ compared to acid-and base-treated RM, which converted 16% of CO₂. Under identical reaction conditions, the 3%K-promoted RM (3%K@RM) catalyst achieved over 27% of CO₂ conversion activity compared to the other 3%M@RM catalysts (where M = Na, Cs, Ba, Mg, and Sr) in terms of conversion and selectivity for light olefins (C_2–4=).

---

1. Introduction

Environmental concerns that become apparent from the rising levels of CO₂ are mostly caused by human activities.¹ Numerous initiatives have been undertaken to prevent catastrophic environmental disasters due to greenhouse gas emissions, including the implementation of technologies and policies to mitigate the negative consequences of using fossil fuels.^2–4 Carbon capture, utilization, and storage (CCUS) technologies have become vital mitigation strategies for the sustainable development of nations.^1,5 Specifically, a workable solution to this urgent problem is utilizing captured CO₂ and converting it through photoreduction,^6–8 electroreduction,^9–11 photo-chemical,¹² thermo-chemical,^13–15 electrochemical,^13,16–20 or biological methods into value-added products. Among these, thermochemical processes are preferred for CO₂ conversion in many industrial applications due to the process flexibility, scalability, and economic and environmental advantages.

In this regard, catalytic hydrogenation is one well-established thermo-chemical strategy for converting CO₂ to a variety of high-value-added products, including CO, CH₄, methanol, dimethyl ether, olefins, etc. For instance, the bimetallic 40CuCe(rod) catalyst showed 36.5% to 41.1% conversion with 100% CO selectivity at 400 °C.²¹ Al-Fatesh et al., demonstrated, 2.5 wt% Ni and 2.5 wt% Co supported over ZrO₂/Al₂O₃ catalysts for CO₂ hydrogenation and produce 83.8% CO₂ converted product with 73.7% CH₄ selectivity.²² Chuan-Shu et al. reported a novel method using Ni–NP catalysts to hydrogenate CO₂ into formic acid.²³ Also, numerous catalytic systems for CO₂ hydrogenation including Zr₁₂-bpdc-CuCs,²⁴ Pd₂Cu NPs/P25,²⁵ CoMoC_x²⁶, Cu@Na-Beta,²⁷ Au/a-TiO₂ (ref. 28) are developed for CO₂ to ethanol. However, the production of olefins from CO₂ is an intensive research area. Because olefins are the primary raw material used in the industrial manufacturing of plastics and polymers,^29,30 lubricants,³¹ and detergents³² where lower-olefins (C₂₌–C₄₌), such as ethylene, propylene, and butylene are the major component.³³ Specifically, ethylene (C₂₌) is widely employed as a precursor in the synthesis of thermoplastic oligomers or polymers.³⁴ It is also employed in the synthesis of vinyl chloride, acetate, styrene, ethylene glycol, etc.^35,36 Today, lower olefins production is the few hundreds of billions dollar of industry.³⁷ However, very few studies are dedicated to CO₂ to lower olefin formation.³⁸

In this context, several low-cost metal-based catalysts, such as Fe₂O₃-CT600, Fe–Co(0.17)/K(1.0)/Al₂O₃, ZnZrO/SAPO-34, and Na–Fe₃O₄/HZSM-5, have demonstrated good CO₂ hydrogenation performance for the production of C₂₊ hydrocarbons through the modified Fischer–Tropsch (FT) process.³⁹ The reverse water-gas shift (RWGS) reaction (eqn (1)) transforms CO₂ to more reactive CO by the endothermic reaction. Further hydrogenation of CO can produce C₂₊ hydrocarbons followed by the reactions of eqn (2)–(4)

CO₂ + H₂ ⇌ CO + H₂O; ΔH = +41.2 kJ mol⁻¹ (1)

nCO + (2n + 1)H₂ ⇌ C_nH_2n+2 + nH₂O (2)

nCO + 2nH₂ ⇌ C_nH_2n + nH₂O (3)

nCO + 2nH₂ ⇌ C_nH_2n+1OH + (n − 1)H₂O (4)

Also, Fe–Co–K/Al₂O₃-400 catalysts showed 49% CO₂ conversion and 37% olefins selectivity at 340 °C.⁴⁰ The addition of Zr with K–Fe catalyst enhanced conversion (>54%) as well as olefins selectivity (>53%) at 320 °C and 2 MPa.⁴¹ Researchers fabricated a bulk Fe catalyst with a large surface area that is promoted by K and activated during the hydrogenation of CO₂ to C₂–C₄ olefins without the requirement for extra heteroatoms or structural stabilizers at 5 bar pressure and 300 °C. The catalysts K–FeX (X = 15, 30, 60) powdered catalyst have more activity than materials based on commercial composition, phase and structure of Fe₃O₄ and α-Fe₂O₃.³⁸ The K–Fe15 catalyst achieved a CO₂ conversion of approximately 38% at steady-state conditions whereas the selectivity to C₂–C₄ olefins reached about 40%.⁴² Additionally, a moderate chain growth probability and low secondary hydrogenation of olefins contribute to the high selectivity towards these olefins. A recent study found that the K–Fe–Al–O catalyst (prepared by electrospinning method) improved CO₂ conversion by 48% and selectivity to C₂–C₅ light olefins by 52%.⁴³

Transformation of CO₂ focuses on direct hydrogenation of CO₂ to lower olefins for a while. Some research on the mixed catalyst consisting of the ZnZrO solid solution and Zn-modified SAPO-34 zeolite mentioned this heterogeneous mixture allows for selective conversion of CO₂ into short-chain olefins instead of alkanes and selectivity to form these compounds is close to 80–90%.⁴⁴

The catalyst support has played a major role in the metal-support interaction and is essential in spreading the active metal.⁴⁵ Catalytic activity varies, for example, whether the active metal is uniformly immobilized on its surface chemical states and exposed crystal facet.⁴⁶ Metal oxides,^45,47,48 clays,^49,50 zeolites,^51–54 activated carbon,^55–58 porous silica,^59–62 and MOFs,^63–67 have all been used as supports for CO₂ hydrogenations. Because of their chemical, mechanical, and thermal stabilities, inorganic metal oxides are more advantageous than the others.

Recently, RM has attracted a lot of attention due to its toxic nature and, most importantly, abundant byproducts, generating hundreds of thousands of tons every year from the aluminum industry. Eliminating it from the earth's surface is an urgent priority.⁶⁸ It primarily consists of a diverse mixture of metal oxides and hydroxides of iron, aluminum, titanium, silicon, and calcium in the form of very fine particles <10 μm.⁶⁹ Although the actual composition varies globally, it is generalized as a mixture of metal oxides. However, the potential of red mud (RM) is less explored as catalyst as well as support for CO₂ hydrogenation reaction. All the active components, such as Fe₂O₃, Fe₃O₄ etc., are required to activate the CO₂ molecules and then transform them into high-value chemicals, such as lower olefins (C₂₌–C₄₌). Therefore, a combination of RM and a suitable promoter could be the best choice as a catalyst for CO₂ conversion in terms of economics with enhanced environmental credentials.

In this study, bifunctional catalysts were developed for CO₂ hydrogenation to lower olefins by inhibiting the production of CH₄, using a series of alkali and alkaline earth metal-promoted RM obtained from MA’ADEN, Saudi Arabia. We also intended to study the impact of monovalent (Na⁺ from NaCl, K⁺ from KNO₃, and Cs⁺ from CsOH) and divalent metal cations (Mg²⁺ from MgO, Ba²⁺ from BaO, and Sr²⁺ from SrCl₂) on the production of olefins through CO₂ hydrogenation reactions. The methodology we have adopted involves only two key processes: mixing and calcination. Both of these are well-established, efficient, and cost-effective operations commonly used in industry, making them highly favorable for large-scale implementation. Since these steps do not require complex equipment or conditions, the use of Red Mud in this process is not only technically feasible but also economically viable.

2. Experimental

2.1 Reagents and chemicals

In this study, the following materials and chemicals are used without further purification:¹ raw red mud (RM) from MA’ADEN Bauxite and Alumina Company (MBAC) of Saudi Arabia,² deionized water (DI-H₂O),³ different metal salts including sodium chloride (NaCl, Sigma Aldrich), potassium nitrate (KNO₃), cesium hydroxide (CsOH), magnesium oxide (MgO), barium oxide (BaO), and strontium chloride (SrCl₂),⁴ potassium hydroxide (KOH),⁵ hydrochloric acid (HCl).

2.2 Catalyst preparation

A schematic diagram for the steps involved in preparing the RM and K@RM catalyst is shown in Scheme 1. The raw RM was dried in an oven at 80 °C, grinded using mortar and pestle, and then sieved to a size of <200 μm. The powdered material was calcined at 500 °C for 5 hours and then divided into two portions. One was produced via acid treatment and the second by base treatment. The first one was produced by adding HCl (10 mL) to a well-dispersed suspension of the calcined RM catalyst (3 g) in deionized water (DI-H₂O) (50 mL) and continued stirring (250 rpm) overnight. The product of RM catalyst was then filtered, washed with DI-H₂O, and dried in the oven at 80 °C overnight. The acid-tread sample was named HCl-treated RM. The second treated sample was modified using potassium hydroxide. The sample was prepared by solid mixing method using mortar and pestle which was grinded for 30 minutes. The base-treated sample was named KOH treated RM.

Scheme 1 Steps of RM-based catalyst preparation.

2.2.1 Preparation of K@RM catalysts. A series of alkali and alkaline earth metal promoters, such as Na, K, Mg, Ba, Cs, and Sr each 3 wt% were mixed and grinded using mortar and pestle with the calcined RM catalyst for 30 minutes. The resulting solid mixtures were again calcined at 500 °C with a temperature gradient of 3 °C min⁻¹ with a holding time of 5 h. The catalysts are denoted as 3 wt%M@RM (where M = Na, K, Mg, Ba, Cs, and Sr). Thereafter, another series was produced by varying the concentration of KNO₃ to produce samples containing different concentrations of K. The selected concentrations were 1, 2,3, and 5 wt%. The samples were prepared using the same procedure as described above, and the catalysts were marked as 1 wt%K@RM, 2 wt%K@RM, 3 wt%K@RM, and 5 wt%K@RM.

2.3 Analytical techniques

2.3.1 Catalytic physiochemical properties. X-ray diffraction (XRD) of RM and metal-promoted RM catalysts was performed using Cu-K_α radiation with an instrument called Rigaku Ultima-IV diffractometer (at 40 kV and 25 mA). The XRD scan covered a range from 5 to 70° (2θ) with a step size of 0.02° at a scanning speed of 2° min⁻¹. Fourier transform infrared spectroscopy (FTIR) is a fingerprint technique to identify the surface functional group of the catalysts. Materials' response to infrared irradiation causes stretching and vibration in particular bonds. The existing bonds were analyzed using FTIR (FTIR Thermo Scientific, Nicolet 700, USA). KBr was employed with the catalysts as the IR transparent window material for FTIR analysis. The IR transmission spectra were collected for the wavenumber range of 500 to 4000 cm⁻¹.

Using Quantachrome Instruments (version 6.0), the N₂ adsorption–desorption isotherm was used to calculate the Brunauer–Emmett–Teller (BET) to evaluate the catalytic surface area, and the pore volume. The Non-linear Density Functional Theory (NLDFT) equilibrium model is used to calculate the micropore volume. The degassing of the sample should be performed at a temperature of 150 °C for 12 hours. Raman spectroscopy was used to analyze and measure the catalyst's surface before the reaction. A 455 nm DXR laser and a Thermo Scientific DXR Raman spectroscope were used to record the Raman spectra. Temperature-programmed-reduction (H₂-TPR, BELCAT II from MacrotracBEL) method was used to observe the reduction capability of catalysts by H₂. H₂-TPR was carried out by placing 50 mg of catalysts in a reactor tube and preheating it at 500 °C for 30 minutes with argon flow (50 mL min⁻¹). After cooling down to 50 °C, a mixture of H₂ and Ar gas (containing 10% of H₂ with a flow rate 5 mL min⁻¹ and 90% Ar with a flow rate 50 mL min⁻¹) was introduced into the reactor tube. The sample was then heated to 900 °C at a rate of 10 °C min⁻¹ while the TCD signal was captured concurrently.

2.3.2 Catalytic structure and morphology. Investigations were carried out using Field Electron Emission-Scanning Electron Microscope (FE-SEM, Lyra3, Tescan, Czech Republic) with 20 kV operating voltage for visual observation of particle size and surface morphology of the catalysts. The SEM samples were prepared by pipetting the ethanolic sample onto alumina stubs and then Au-coated the stubs using an automated Au-coater (Quorum, Q150T E). EDS-spectra, Elemental analysis, and mapping were carried out using an SEM Lyra 3 accessory. High-resolution Transmission Electron Microscopy (HRTEM) (JEM2100F from JEOL) was used to identify the size and shape of each element present in the catalysts. The structural characterizations such as crystallinity, and planner orientations of different metals, were studied with the use of the HRTEM model operating at 200 kV as an accelerating voltage. The ethanolic suspension containing the catalyst was poured onto the copper grid that was placed at room temperature.

2.4 Catalytic activity evaluation

The RM catalysts with different promoters were tested for CO₂ hydrogenation inside a fixed bed reactor (PID Microactivity-Effi reactor). Each time, 0.20 g of the catalyst was placed inside SS316 tube with an inner diameter of 9.11 mm in a particular location of the 300 mm long tube. The catalyst sample was heated at 500 °C for 50 min with 20 mL per min N₂ gas to eliminate moisture as moisture increases the reaction barrier for CO₂. The catalysts were reduced in the presence of H₂ gas (3 mL min⁻¹) for 30 min. The sample was cooled to 150 °C. Then, the reactor tube was pressurized to 30 bar with a CO₂/H₂ molar ratio of 1 : 3 and then heated to the reaction temperature of 375 °C. The required activation energy for the catalyst, which has a strong drive for the creation of hydrocarbons, was guaranteed by this reaction temperature. Catalyst deterioration and unwanted side reactions can result from extremely high temperatures. The pressure of 30 bar that we chose was in line with the working limitations of our experimental apparatus and was based on best practices in CO₂ hydrogenation investigations.⁷⁰ To provide a sufficient supply of hydrogen for the process while preventing excessive H₂, a CO₂ : H₂ ratio of 1 : 3 was used. Additionally, this ratio shows a compromise between the stoichiometric needs for olefin synthesis and industrial viability. The catalytic evaluation was investigated at gas hourly space velocity (GHSV) of 4500 mL g⁻¹ h⁻¹. The evaluation of catalysts was conducted using an online gas chromatography system (Shimadzu, GC-2014) equipped with two flammable ionization detectors (FIDs) and a thermal conductivity detector (TCD). The first FID tracked anticipated hydrocarbons, and aromatics, while the second FID monitored oxygenates and acidic products. The TCD detector was responsible for monitoring permanent gases and catalytic conversions. Eqn (5)–(7) reported by Peng Gao et al. were used to determine CO₂ conversion and hydrocarbon selectivity on a carbon atom basis.⁷¹where C_nH_m indicates moles of hydrocarbon created by outlet reaction with n carbons. CO₂ intake and outflow indicate moles of CO₂. CO outlet displays moles of CO.

3. Results and discussion

3.1 Characterization of the RM-supported catalysts

3.1.1 Synthesis of catalysts. In one of the samples, red mud was treated with hydrochloric acid, and its subsequent calcination was performed to enhance the physicochemical properties that directly affected its catalytic activity. In another sample, red mud was modified using potassium hydroxide solution. The catalytic performance was compared with the un-treated red mud (RM) catalyst. Generally, the major components of RM and the treated samples are Si, Fe, Al, Na, Ti, and Ca, and their elemental quantifications were measured using the XRF and EDS studies. It revealed that calcium and sodium contents decreased significantly in the acid-treated samples, leading to the generation of RM structure. Also, the loss of these certain elements can be explained by the higher dissolution of alkali and alkaline earth metal ions in an acidic solution.⁷² On the other hand, the KOH-treated red mud showed an increase in the concentration of potassium due to the addition of 3 wt% of K. The other elemental compositions were maintained, indicating that the KOH solution maintained the main elemental composition of the raw red mud with addition of K only.

3.1.2 Characterization of catalysts. The crystallinity and composition of pure RM and metal-promoted RM were examined using X-ray diffraction (XRD) technique, and the results are shown Fig. 1. The XRD pattern for RM reveals the existence of the primary mineral phases in the RM as Fe₂O₃, Al₂O₃, and TiO₂.^72–74 The main crystalline phases of α-Fe₂O₃ (hematite, JCPDS card number 89-0596, JCPDS card number 33-0664, JCPDS card number 85-098), AlO(OH) (boehemite: JCPDS card number 17-0940), Al(OH)₃ (gibbsite, JCPDS card number 33-0018, JCPDS card number 83-2256), FeO(OH) (lepidocrocite: JCPDS card number 74-187), CaCO₃ (calcite: JCPDS card number 01-086-2343), sodalite (JCPDS card number 00-037-0196) and TiO₂ (anatase titania, JCPDS card number 21-1272) were detected in XRD as shown in Fig. 1a. For instance, calcium carbonate as calcite (CaCO₃) is observed with the appearance of diffraction peaks at 2θ = 26, 27, 28, 48 and 59°. Similarly, the presence of Fe₂O₃ has diffraction peaks at 2θ = 34, 36, 42, 49.5, 54 and 63°.⁷⁵ The effect of K loading on XRD is also investigated. When the K content is increased from 1 to 5%, it is observed that the reflections related to all metal planes decreased, as depicted in Fig. 1a.

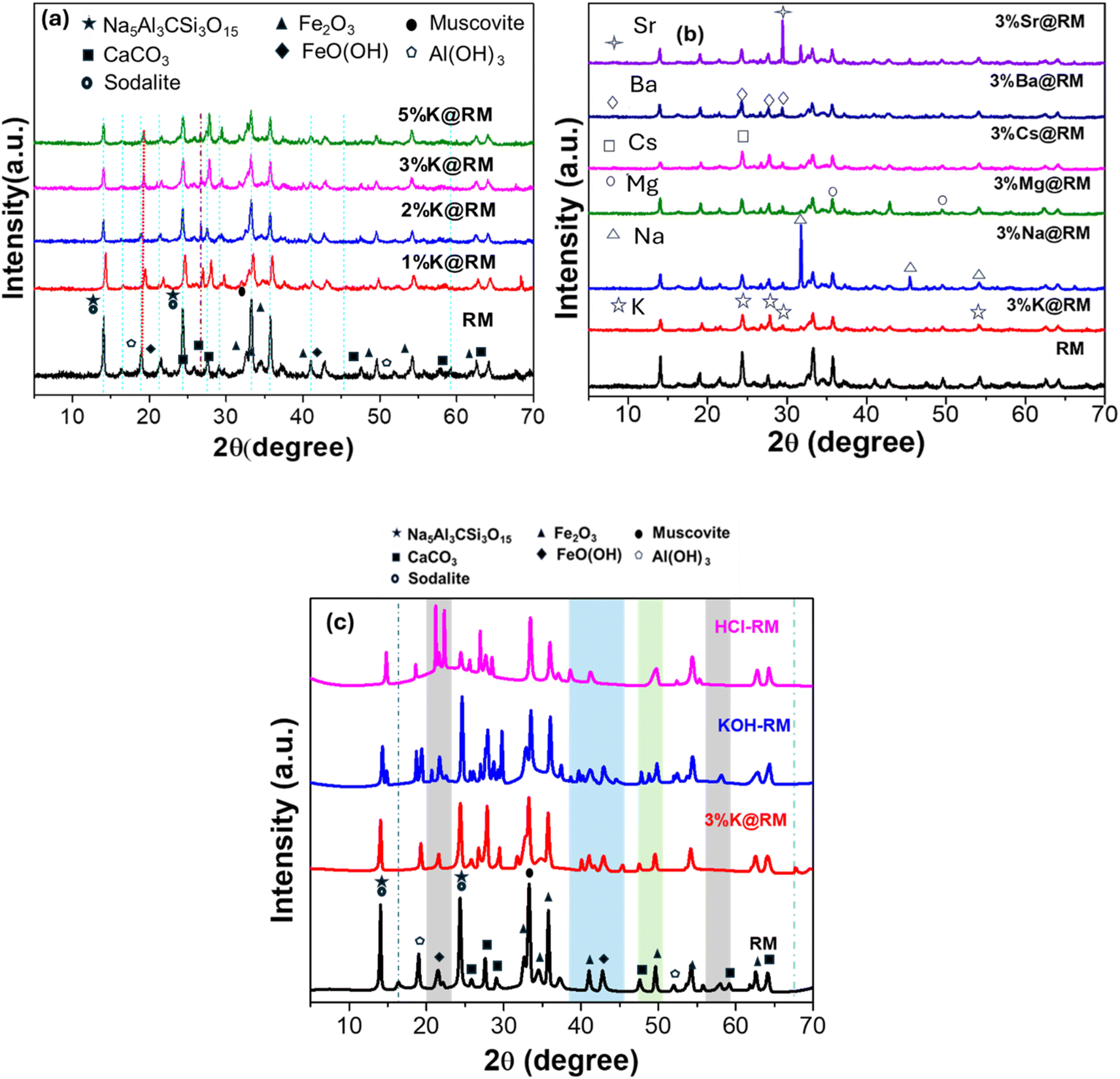

Fig. 1 XRD of (a) pure RM and different percent K-promoted RM, (b) pure RM and 3 wt% different metal-promoted RM, (c) pure RM and 3%K@RM, KOH-treated RM (KOH-RM), and HCl-treated RM (HCl-RM).

The peak at 19° for Al in RM has shown a little shift to the right with the increase of K loading which was observed as a maximum shift by 0.3° for the addition of 5%K in RM (Fig. 1a). This was due to the crystal lattice strain or lattice deformation resulting in smaller grain size, as evidenced in HRTEM the 5%K@RM (Fig. 5). However, the excess amount of K (5%K@RM) incorporates higher basicity, which breaks down larger crystals as supported by TEM data.⁷⁶

Then, different metal ions (3%) (X= Na, Mg, Cs, Ba, and Sr) in addition to the K are loaded into the RM, and its XRD signatures were evaluated, and the results are shown in Fig. 1b. The diffraction peaks of each individual metal ions were detected in XRD as shown in Fig. 1b. In Fig. 1c, the addition of KOH by wet method has showed the presence of many more microcrystalline structures in the catalyst. The XRD data that appeared for KOH-treated RM has many new reflection peaks (from 2θ = 20 to 2θ = 46°, shaded regions). These peaks were generated from different planes of the corresponding metal compounds (that were absent in RM). HCl-treated RM has mainly bigger ions as smaller ions were washed away such as Na, Al, and other composite materials Na₅Al₃CSi₃O₁₅. From the XRD data of HCl-treated RM (Fig. 1c), the diminished intensity of Na₅Al₃CSi₃O₁₅, CaCO₃, Fe₂O₃, FeO(OH), Al(OH)₃ established the proof of this hypothesis.

FTIR spectra of pure RM and K-promoted RM with comparable transmission bands are presented in Fig. 2(a and b) and the dominant bands are listed in Table 1. No noticeable change in the absorption band is observed when the concentration of K is increased from 1 to 5% (Fig. 2a). However, a broad peak at 3433 cm⁻¹ appeared in the stretching vibration of –OH groups due to adsorbed water molecules in the surface or the envelope formed by hydrogen-bonded surface –OH groups, when the data is compared with pure RM and 3%K@RM in Fig. 2b.⁷⁷ The bands at 555-565 cm⁻¹ were assigned to the Fe–O stretching vibration arising from the hematite present in the RM. Also, a prominent peak at 1435 cm⁻¹ appears due to CaCO₃ formed after calcination of RM at 500 °C.

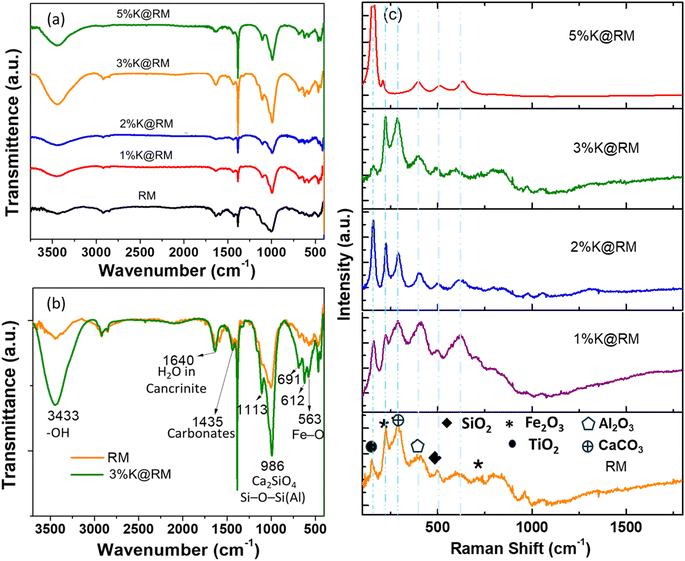

Fig. 2 FT-IR data of (a) K-promoted RM, (b) pure RM vs. 3wt% K-promoted RM (c) Raman spectroscopy of K-promoted RM.

Table 1 The main phases present in RM calcined at 500 °C for 5 h determined by FT-IR measurement

Wavenumbers (cm^−1)	Phases
3433	OH group, H-bond
1640	H2O in cancrinite
1435	CaCO3
1113	FeO(OH)
986	Ca2SiO4, Si–O–Si(Al)
612–695	Al–O
563	Fe2O3

---

Additionally, the peak at 1113 cm⁻¹ suggests asymmetric stretching of Si–O–Al framework in cancrinite and hibschite, as well as O–Fe–O in goethite. Furthermore, the peak at 986 cm⁻¹ signifies Si–O–Si(Al) bonds, corresponding to the anti-symmetric stretching vibrations (υ₃) in SiO₄ tetrahedra of Ca₂SiO₄. The peaks at 563 and below 500 cm⁻¹ in RM are attributed to the stretching vibration of Fe–O, some minor peaks at the range of 612-695 cm⁻¹ correspond to Al–O band, which are predominant in 3% and 5%K promoted RM (Fig. 2a).⁷⁷ This may be due to the phase changes during the activation process.

The presence of metal-oxides is further supplemented by Raman spectroscopy and the results are shown in Fig. 2c. The distinct Raman peaks at specific wavelengths in the analysis represent various metal oxides in RM. For example, five prominent peaks at 145, 211, 275, and 620 cm⁻¹, are associated with hematite (Fe₂O₃), which is one of the major components in RM. Additionally, the peaks at 145, 280, 400, and 508 cm⁻¹ could be attributed to the presence of anatase (TiO₂), calcium carbonate (CaCO₃), alumina (Al₂O₃), and quartz (SiO₂), respectively.^78–81 Also, the presence of Fe₂O₃ is more noticeable when 3% K was added to RM.

A scanning electron microscope (SEM) imaging study is performed to investigate the surface morphology of the pure RM and alkali and alkaline earth metal-promoted RM catalysts. As depicted in Fig. 3, the heterogeneous internal structure of RM is confirmed by the SEM imaging of pure RM, which is constituted by different sizes of particles and crystals with various shapes and morphology ranging from nanometer to a few microns sizes formed by agglomeration (Fig. 3). The higher agglomeration of particles was observed with the KOH-treated samples, thereby decreasing the surface area and leading to the loss of active sites.

Fig. 3 SEM image of pure RM, KOH- and HCl-treated RM, and different metal-promoted and different wt% K-promoted RM.

It is noticeable in SEM that the monovalent Na, K, and Cs metal-promoted RM contributed to an increase in the particle size than in di-valent Mg, Ba, and Sr metal-promoted RM with the fixed concentration of metal ions (3%) (Fig. 3a–i). Also, no significant effect in morphology is noted when the K content is increased from 1 to 3% (Fig. 3j–l). However, a higher amount of K (5%) in RM undoubtedly promotes further agglomeration, diminishing catalytic activity. X-ray dispersive spectroscopy (EDS) attached to SEM confirms the presence of constituent elements in the RM, its promoter metal elements, and their distribution. The detailed composition and contents of Si, Fe, Al, Na, Ti, and Ca of RM and other catalysts were found by EDS mapping data and from XRF normalized wt% (ESI, Fig. S1, S2, and Table S1†).

The transmission electron microscopy (TEM) images are depicted in Fig. 4. The particles present in the RM and RM-based catalysts exhibit diverse sizes and shapes with different crystal planner orientations due to the presence of different metal nanocrystals. KOH-treated RM showed irregularly shaped smaller particles, while HCl-treated RM exposed longer arrays of crystal planes, which resulted in TiO₂ rod-like structures.⁸² The introduction of K and other metals had an impact on the grain size and crystallinity of the constituent materials (ESI†). Pure RM crystallinity was enhanced by a slight addition of K. This trend leveled off to 3 wt% of K. However, the higher amount of K (5%) in RM starts to break the long-range order of the lattice. This claim has been justified by the XRD peak analysis presented in Fig. 1c. It caused smaller grains and a large amount of grain boundary. However, it did not bring significant changes in the morphology of the particles. Upon examination, it was noted that K-promoted RM resulted in the formation of particles with pores and rod-like structures, attributed to the contribution of quartz and rutile⁸² in RM. The unidirectional crystal growth, which gives the tubular shape, comes from the combined effect of Al substitution on hematite.⁸³ The effect of Na, Cs, Mg, and Sr on RM particle shape and size has shown a similar effect. However, 3%Ba@RM has produced bigger cubic particles due to the cubic nature of BaO.

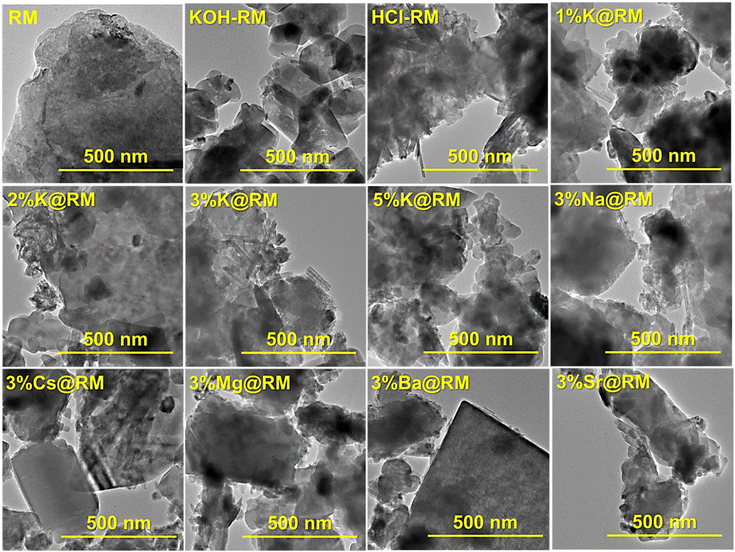

Fig. 4 TEM image of pure RM and different metal-promoted RM.

HRTEM picture has shown slip dislocation, or planar defect on the structure (Fig. 5). HRTEM of 3%K@RM revealed the clear and bright surface of the particle. As mentioned earlier, RM is a complex mixture of different metal oxides, HRTEM image clearly established the presence of Al₂O₃ with d₍₁₁₀₎ = spacing 0.24 nm,⁸⁴ hematite Fe₂O₃ with d₍₃₁₁₎ = 0.25 nm.⁸⁵ Also, the presence of hexagonal anatase TiO₂ nanoparticles with d₍₁₀₁₎ = 0.35 nm (ref. 82) and rutile phase TiO₂ nanorods with d₍₁₁₀₎ = 0.33 nm⁸² is confirmed by the matching of inter-planar distance (d).

Fig. 5 (a and b) TEM, (c) HRTEM and SAED image(inserted) of 3 wt%K-promoted red mud.

The hydrogen consumption-ability of pure and modified RM samples was assessed using temperature-programmed reducibility studies (H₂-TPR) and spectra, as shown in Fig. 6a. It demonstrated the well-defined reduction peak at 502 °C for the pure RM. Generally, hematite (α-Fe₂O₃) is reduced by H₂ in the range of 220 to 680 °C,⁸⁶ while magnetite reduces in the range of 600 to 800 °C.⁸⁷ The other metals available in the RM sample such as sodium, potassium, magnesium, calcium, and titanium are also reduced in the range of 250 to 850 °C, which concludes that the broad peak is composed of overlapping of a series of peaks of each constituent element. However, modifying the RM sample with different concentrations of potassium led to a reduction in H₂ consumption, as shown in Fig. 6a. It was observed that the total H₂ consumption for the parent RM catalyst was 502 μmol g⁻¹ at temperatures ranging between 200 to 850 °C. Moreover, as the concentration of the K increased to 5 wt%, a reduction in H₂ consumption (502 to 423 μmol g⁻¹) was observed. Additionally, it was observed that the first peak, centered around 600 °C, shifted to a lower temperature as the concentration of K increased in the sample. On the other hand, the second peak located after 800 °C was shifted toward higher temperatures, which confirms the contribution of K in changing the elemental phase of the RM.

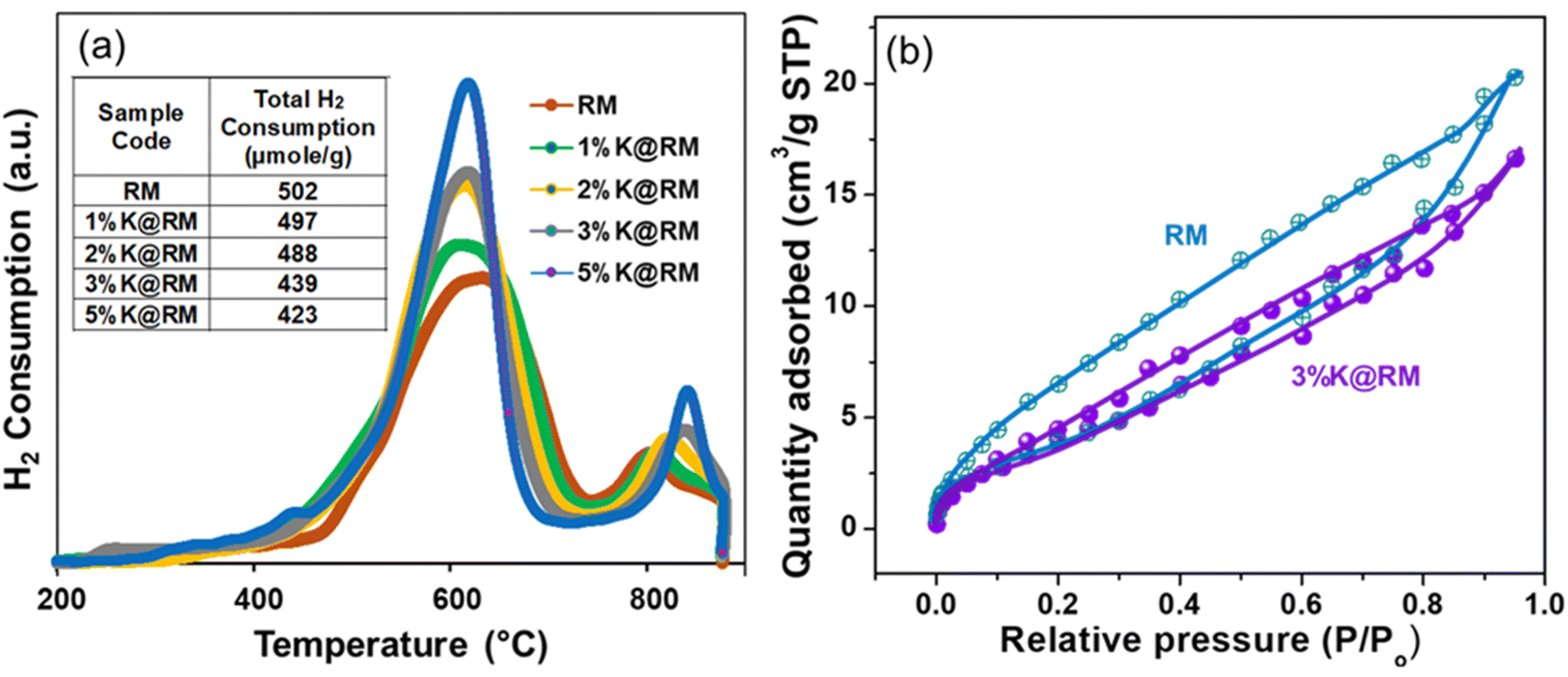

Fig. 6 (a) H₂-TPR profile, (b) N₂ adsorption–desorption isotherms of RM and K-promoted RM samples.

Fig. 6b illustrates the textural properties of the pure RM and 3% alkali or alkaline earth metal-loaded RM catalysts. In the curve of RM, it is evident that the adsorption and desorption curves diverged when the relative pressure was increased. A substantial hysteresis loop was observed between relative pressures of >0 and 1.0, indicating the presence of huge mesoporosity in the prepared catalysts. According to IUPAC isotherm data, type IV suggests the presence of numerous mesopores and macropores in RM with monolayer and multilayer adsorption.⁸⁸ In contrast, the 3%K@RM hysteresis loop demonstrated a significant decrease in adsorption capacity. When the relative pressure was below 0.2, the adsorption and desorption curves were nearly superimposed, indicating the existence of micropores. Noticeably, BET surface area decreased gradually from 20 m² g⁻¹ to 11.2 m² g⁻¹ as the K loading increased to 5%. The adsorption of gas was probably facilitated in RM instead of K loaded RM (Table 2).

Table 2 Pore volume and surface area of pure RM and different percent K-promoted RM obtained from BET measurement

Sample	Pore volume (cc g^−1)	Surface area (m^2 g^−1)
RM	0.029	20.36
1%K@RM	0.026	14.19
3%K@RM	0.023	15.26
5%K@RM	0.019	11.2

---

3.2 Catalytic evaluation

The catalytic performance for CO₂ hydrogenation process was performed in a fixed bed reactor with gas hourly space velocity (GHSV) of 4500 mL g⁻¹ h⁻¹. The catalytic process was performed at 375 °C and 30 bar using CO₂ : H₂ mixture (1 : 3). As shown in Fig. 7a, the catalytic conversion of CO₂ hydrogenation over pure RM promoted with different wt% of potassium was presented after 6 hours of reaction on stream. The conversion was found to have variation in catalytic activities. With pure RM acting as a control catalyst, 22% of CO₂ conversion was accomplished. However, treating the pure Red Mud catalysts with HCl resulted in the reduction of the catalytic conversion to 16%, due to the role of acid in removing some of the elements such as aluminum from the catalytic structure and, consequentially, a chance for enhancing the presence of oxygen vacancies required for the reduction of CO₂ to CO, but with less catalytic activity due to the limitation of metal active sites. By this treatment, it is proved that CO₂ hydrogenation process requires large metal active sites as well as oxygen vacancies for the process of reverse-water gas shift reaction. Similarly, treating the RM catalyst with 3% potassium driven from potassium hydroxide source led to a reduction of the catalytic conversion to around 16% due to the role of potassium hydroxide in disturbing the crystallinity structure of silicon atoms within the catalyst bed. Although the catalytic conversion dropped in these two samples from 22 to 16%, the catalytic selectivity toward CO was enhanced by acid treatment and the catalytic selectivity for CO increased from 91% to 97%. On the other hand, selectivity dropped significantly from 91% to 64% by base treatment. The aforementioned data suggest that acid and base have a significant role in influencing both the metallic composition of the catalyst and the existence of oxygen vacancies, which are necessary for the conversion of CO₂ to CO. Furthermore, acid and base treatment also had an impact on selectivity toward hydrocarbons. It was observed that the acid treatment led to a reduction in hydrocarbons from 9 to 3%, while base treatment led to an increase in the catalytic selectivity toward hydrocarbons from 9 to 36%, indicating that the base-treaded RM catalyst has enhanced the modified Fischer–Tropsch (FT) process. On the other hand, the selectivity of light olefins with the produced hydrocarbons was also affected by acid and base treatment. It was observed that the selectivity toward light olefins increased from 7 to 12% by acid treatment, while it decreased from 9% to 1% by base treatment. All the catalytic performance data has been summarized in Table 3 and comparative performance with conventional catalyst is presented in Table 4.

Fig. 7 CO₂ conversion and olefins selectivity data of (a) pure RM and different wt% K-promoted RM (b) 3wt% different metal-promoted RM.

Table 3 The catalytic performance data for RM and RM-based catalysts for CO₂ conversion, CO, hydrocarbon, olefin, and CH₄ selectivity^a

Sample	CO2 conversion	CO	Hydrocarbon	C2=4	CH4
a The converted CO2 was produced as CO hydrocarbons. The main products of those hydrocarbons were olefins and CH4.
RM	22	91	9	7	75
HCl treated RM	16	97	3	12	83
3%KOH@RM	16	64	36	1	92
1%K@RM	21	96	4	8	72
2%K@RM	21	95	5	11	70
3%K@RM	27	94	6	28	54
5%K@RM	27	93	7	21	53
3%Na@RM	26	92	8	3	82
3%Cs@RM	27	93	7	5	77
3%Ba@RM	26	91	9	3	80
3%Mg@RM	25	95	5	6	77
3%Sr@RM	25	90	10	3	84

---

Table 4 A comparative catalytic performance data table for conventional state of art catalysts and RM-based catalysts^a

Promoter	Catalyst support	Synthesis method	Conditions	Performance	Ref.
a XCO2 = CO2 conversion efficiency, SCO = selectivity of CO, SCH4 = selectivity of CH4, and SC2–C4 = Selectivity of light olefins (C2–C4).
16.5% K and Ba	1% Rh/Al2O3	Flame spray pyrolysis	GHSV = 6000 h^−1, H2/CO2 = 4/1	XCO2 = 25%, SCH4 = 0% at 375 °C (16.5% K on 1% Rh/Al2O3)	96
2% Pt	CeO2		WHSV, 300 L g ^−1 h^−1	XCO2 = 21.7%, SCO = 100% at 290 °C	97
Au@UIO-67	MOF	Wet method	GHSV = 12 000 mL h^−1 gcat^−1, CO2/H2 = 1 : 3, 2.0 Pa	XCO2 = 30.2%, SCO = 28.6% at 408 °C	98
Ni	Ce–Zr–O	Co-precipitation	GHSV = 6000 mL h^−1 gcat^−1, CO2/H2 = 1 : 1, 1.0 MPa	XCO2 = 34%, SCO = 19.7% at 550 °C	99
2%K	30%Fe3O4/ZrO2	Dry mixing	GHSV = 15 000 mL h^−1 gcat^−1, CO2/H2 = 1 : 4, 0.1 MPa	XCO2 = 22%, SCO = 77%, SCH4 = 49%, SC2–C4 = 35%, at 375 °C	100
K	Red mud	Wet method	GHSV = 9600 mL h^−1 gcat^−1, CO2/H2 = 1 : 3, 30 bar	XCO2 = 45%, SCO = 36% at 375 °C	70
	RM	Dry mixing	GHSV = 4500 mL h^−1 gcat^−1, CO2/H2 = 1 : 3, 30 bar	XCO2 = 22%, SCO = 91%, SCH4 = 75%, SC2–C4 = 7%, at 375 °C	This work
3%K (from KNO3)				XCO2 = 27%, SCO = 94%, SCH4 = 54%, SC2–C4 = 28%, at 375 °C
3% Na				XCO2 = 26%, SCO = 92%, SCH4 = 82%, SC2–C4 = 3%, at 375 °C
3% Cs				XCO2 = 27%, SCO = 93%, SCH4 = 77%, SC2–C4 = 5%, at 375 °C
3% Mg				XCO2 = 25%, SCO = 95%, SCH4 = 77%, SC2–C4 = 6%, at 375 °C
3% Ba				XCO2 = 26%, SCO = 91%, SCH4 = 80%, SC2–C4 = 3%, at 375 °C
3% Sr				XCO2 = 25%, SCO = 90%, SCH4 = 84%, SC2–C4 = 3%, at 375 °C

---

The higher olefins selectivity for HCl-treated RM and their subsequent DI-water washing may cause the removal of smaller metal cations from RM as shown in eqn (8) and enhanced the crystallinity of larger cations (as shown in HRTEM), which boosted the active sites of RM needed for the CO₂ hydrogenation for olefins selectivity.

Fe₂O₃ + 6 HCl → 2 FeCl₃ + 3 H₂O (8)

Heavy elements Sr and Ba favored methanation, but lighter elements Mg enhanced CO selectivity.⁸⁹ At the same time, Mg enhanced the absorption of CO₂ over the Mg-modified Iron based catalyst, resulting in increased methanation efficacy and highly active Fe carbides.⁹⁰ RM contains around 29% Fe₂O₃, based on Table S1†'s XRF data. For RM, the CO₂ conversion was 22%; for 3%Mg@RM, it was 25%. While the Na and K enhanced CO selectivity, they also increased the number of basic sites.⁹¹ CO₂ adsorption on the surface was enhanced by larger size for monovalent cations like Cs (absorption of Cs⁺ > Na⁺), which directly affects CO₂ conversion.⁹² That effect is clear from our observations presented in Table 3 as well.

The effect of varied concentrations of K (1, 2, 3, and 5 wt%) sourced from KNO₃ was found to have a vital effect on the catalytic conversion of CO₂ hydrogenation at high concentrations of K as shown in Fig. 7a. Though the addition of K can modify the electronic properties of RM support in a way that enhances the catalytic activity of transition metals (e.g., Fe, Al), the addition of 1% and 2% of K as a promoter (in dry mixing method) was found to have no role in improving the catalytic conversion. The interactions facilitate K⁺ production, which creates room for direct interactions of metal oxides present in RM. It increased the number of basic sites available on the RM surface for CO₂ adsorption and activation. It produced CO from CO₂ following the modified Fischer–Tropsch (FT) process³⁹ and the reverse water-gas shift (RWGS) reaction (eqn (9)) by the endothermic reaction. The hydrogenation of CO can yield C₂₊ hydrocarbons, which are then subjected to the processes described in eqn (10)–(12):

CO₂ + H₂ ⇌ CO + H₂O; ΔH = +41.2 kJ mol⁻¹ (9)

Besides the above-mentioned endothermic reaction can be turned into a spontaneous exothermic reaction by K impregnation as K → K⁺ + e⁻. These electrons will facilitate the production of CO as

CO₂ → CO* + O* (10)

nCO + (2n + 1)H₂ ⇌ C_nH_2n+1 + nH₂O (11)

nCO + 2nH₂ ⇌ C_nH_2n + nH₂O (12)

However, further increasing K concentration from 2% to 3 and 5% led to enhancing the catalytic conversion from 22% to 27%, indicating the role of potassium in enhancing the catalytic adsorption for CO₂ molecules. Selectivity was found to be affected by the concentration of K. The higher loading concentration leads to the high dispersion of K⁺ ions, which could lead to better access for CO₂ to interact with the K⁺ active sites. The catalysts with an appreciable amount of Fe, tend to form iron carbide after multiple reaction steps.

αFe₂O₃ → Fe₃O₄ → FeO → Fe⁰ → Fe₅C₂

According to recent research, the phase transitions of Fe₂O₃ → Fe₅C₂ due to catalyst activation and Fe₅C₂ → Fe₃O₄ due to catalyst deactivation.⁹³

Iron carbides (Fe₅C₂) on the catalyst surface improved CO activation and hydrocarbon chain development, leading to enhanced conversion and selectivity to olefins (Fig. 8). The carbides were more effective in CO hydrogenation, producing the required olefins.⁴² Hägg carbide (Fe₅C₂) improves CO₂ conversion and olefin selectivity in the K–Fe15 catalyst. This phase is very active for CO activation and creation of C₂–C₄ olefins while reducing the generation of methane and longer-chain hydrocarbons.

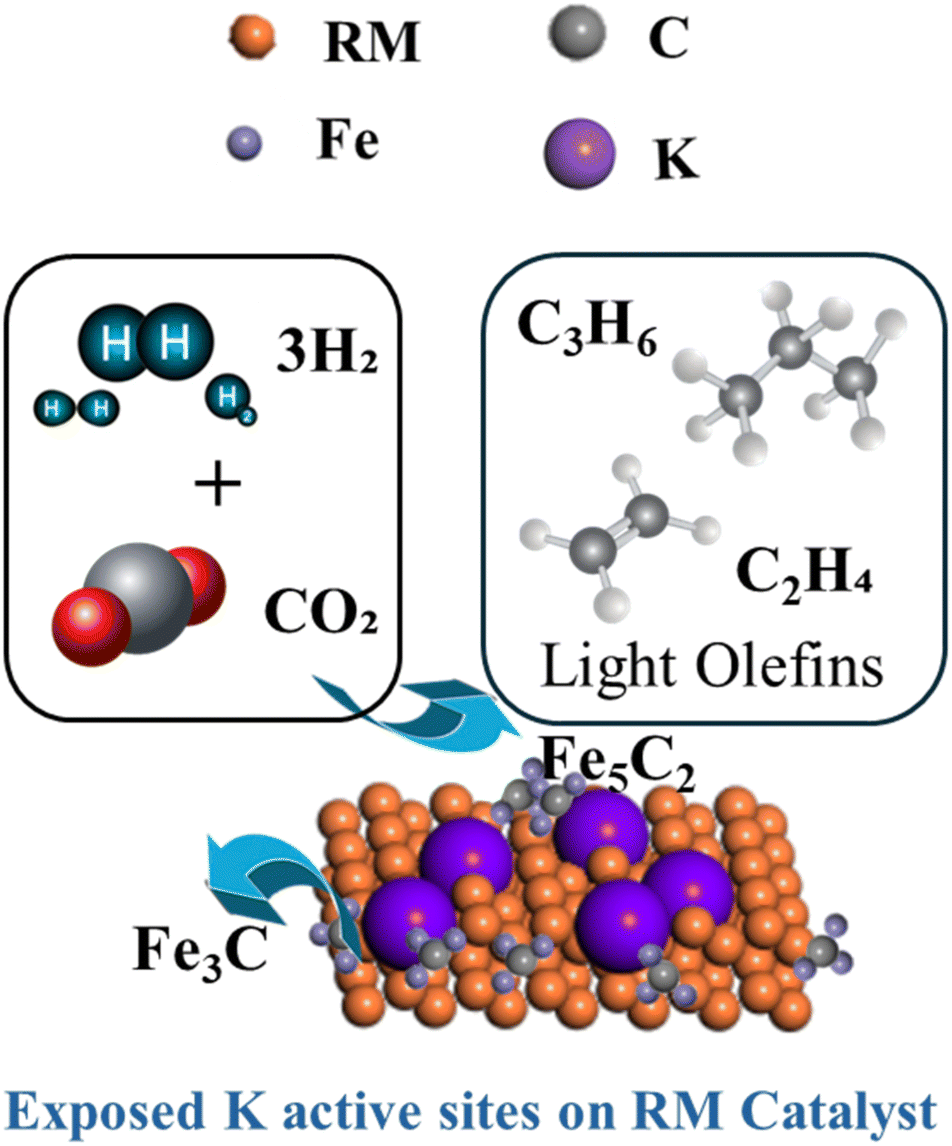

Fig. 8 CO₂ adsorption by the active sites on RM for higher conversion and olefins selectivity.

It was observed that the CO selectivity has increased from 91 to 96% by increasing the potassium concentration by 1%. Further increase in K concentration was found to have a negative effect on CO selectivity, and the selectivity toward CO was reduced stepwise from 96% to 93% and hydrocarbon selectivity increased from 4 to 7% by increasing K concentration from 1 to 5%. Within hydrocarbons, the selectivity toward light olefins was enhanced from 8% to 28% by increasing K concentration from 1 to 3%. This effect is attributed to its promotion of CO₂ adsorption and the suppression of further hydrogenation of produced olefins, which enhances selectivity.⁹⁴ Beyond 3% of K, the selectivity toward light olefins starts to drop slightly from 27 to 21%, indicating the optimum concentration was obtained at 3% of K, which probably anticipated to attenuate the hydrogenation activity of Fe, consequently fostering the propensity for olefin preference formation.⁹⁵ This, in turn, may facilitate the re-adsorption of olefins, thereby enabling extended chain growth.

A broader scope of the effect of alkali and alkaline earth metal promoters on CO₂ hydrogenation is investigated under the optimized reaction condition. In this regard, a series of alkali or alkaline earth metals, such as Na, Cs, Ba, Mg, and Sr were employed in a fixed concentration (3%) and impregnated into the RM for CO₂ hydrogenation. It was observed that the 3%Na loaded RM demonstrated comparable CO₂ conversion (26%) with a very low olefins selectivity (3%) as shown in Fig. 7b. However, the Cs promoted RM, and retained its reactivity towards CO₂ conversion as 3%K loaded RM. Notably, a trend in very low olefins selectivity (3–6%) was established with these alkali or alkaline earth metals with the RM.

The catalytic performance of red mud (RM) can be attributed to the synergistic roles of its key metal oxides, particularly Fe₂O₃ and TiO₂. Fe₂O₃ plays a critical role in CO₂ activation through its redox properties (Fe³⁺ ↔ Fe²⁺), enabling CO₂ adsorption and dissociation, while TiO₂ provides oxygen vacancies that act as additional active sites and enhances the dispersion of active phases. Together, these oxides create a unique catalytic environment that facilitates electron transfer and surface interactions essential for CO₂ hydrogenation. The calcination process at 500 °C improves the crystallinity and distribution of these oxides, further boosting their activity. Additionally, the inclusion of potassium as a promoter modifies the electronic properties of Fe₂O₃ and TiO₂, enhancing CO₂ adsorption and hydrogenation efficiency.

Some significant factors affect the interacting mechanisms for CO₂ hydrogenation. The catalyst preparation methods, the amount of loading of active metals, the source of support materials, and promoters including their precursor source play a vital role in this case. It is worth noting that the physical and chemical behavior of RM found in different geographical locations and other sources are different due to their different elemental composition. Besides optimal process conditions such as reaction temperature, pressure, and gas flow rate, reaction bed configuration, the relative ratio of CO₂ and H₂ mixture determines the olefin selectivity. The formation of iron carbides and its effect on catalytic inhibition and activation is also a major concern. The major challenge in the scientific community is to ensure higher CO₂ conversion and greater selectivity for light olefin. Furthermore, understanding the feasibility of RM to be used as catalysts in processes such as CO₂ hydrogenation is a smart approach to minimize the accumulation of this waste material produced due to the demands of mining and alumina production. This requires extensive studies to understand the relationship between the physiochemical properties of such kind of catalysts and reaction mechanisms. We understand from our studies that the presence of potassium over Red Mud can enhance the presence of light olefins. However, a limited amount of light olefins were obtained, which made room for us to further explore the possibilities of improving Red Mud in coming studies. Besides, to ensure higher CO₂ conversion with appreciable hydrocarbon product selectivity, there is a huge space for research with other metals, especially transition metals such as Fe, Co, Cu, and so on. From the extended part of our study, it was observed that iron concentration has a great influence in tuning the catalytic conversion in CO₂ hydrogenation and enhancing the catalytic selectivity for hydrocarbons. The investigation was observed for iron concentration ranging between 5 and 20 wt% over Red Mud (X%Fe@3%K@RM, X = 5, 10, or 20) as shown in ESI, Fig. S4.† The main finding was that these composites can lead to higher methane selectivity in the absence of light olefins, which is not the topic of interest here. This study is still in progress to find the desired product by tunable composition of metal active sites.

Our findings might be considered as a foundation of understanding the synergic effect of metals presence in natural materials.

4. Conclusion

In conclusion, RM-based catalysts, when paired with appropriately selected promoter materials, demonstrate a cost-effective solution for addressing the challenges posed by CO₂. A straightforward catalyst preparation technique enhances environmental sustainability by minimizing the direct exposure of RM and contributes significantly to CO₂ reduction efforts. RM calcined at 500 °C outperformed its HCl- and KOH-treated counterparts. Different effects on CO₂ hydrogenation were found when several monovalent and bivalent metal promoters were used. Among them, 3% K-promoted RM emerged as the most effective, achieving 27% CO₂ conversion and 28% olefin selectivity. Notably, the source of potassium played a crucial role, as 3% K in RM derived from NO₃⁻ and OH⁻ sources yielded varying outcomes. This finding highlights the potential for further research to optimize catalytic performance by exploring diverse sources of the same metal promoter. Furthermore, our research indicates that one crucial factor that may be changed to attain desired olefin yields is the weight percentage of promoters. These insights cover the way for future advancements in designing efficient catalysts for CO₂ hydrogenation.

Data availability

The related data have been provided in the form of ESI.†

Conflicts of interest

The authors declare no competing financial interests.

Acknowledgements

The authors gratefully acknowledge the support of Saudi Aramco for funding this work through grant number ORCP2390. The authors also thank the Saudi Arabian Mining Company (MAA’DEN) for providing the red mud.
