Preparation of high-strength ceramsite from coal gangue, fly ash, and steel slag

Abstract

Coal gangue (CG) and fly ash (FA) are generated in large quantities worldwide. In this study, high-strength and lightweight aggregate ceramsites were prepared from CG, FA, and steel slag (SS) without any additional chemical additives through high-temperature sintering. The study aimed at determine the sintering mechanism and optimal production process by evaluating the performance of ceramsites produced under various conditions. The results indicated that the ratio of CG, FA, and SS significantly influenced the ceramsites' properties. When the ratio of CG, FA, and SS was 3 : 1 : 1 and the sintering temperature was 1200 °C, the ceramsites demonstrated optimal performance. These ceramsites had a bulk density of 947 kg m⁻³, an apparent density of 1859 kg m⁻³, a high compressive strength of 21.17 MPa, and a 1 hour water absorption of 1.35%. The high-strength and lightweight aggregate ceramsites produced from CG, FA, and SS hold promise as construction materials, particularly due to the benefits of waste recycling. This study highlights the potential of utilizing these ceramsites as sustainable alternatives in various construction applications.

---

1 Introduction

With rapid industrial and economic development, the exploitation and utilization of resources have increased significantly, leading to the production of vast amounts of solid waste. This not only occupies valuable land resources but also poses potential risks to both human health and the environment, particularly due to the presence of hazardous waste.^1,2 Therefore, recycling and reusing solid waste as raw materials for the production of valuable products represents the most sustainable and environmentally friendly solution for managing the substantial waste generated each year.

Coal gangue, fly ash and steel slag are among typical solid waste. Coal gangue is waste residue discharged along with the coal mining process, accounting for about 15–20% of the output of raw coal.³ Coal gangue contains some heavy metal elements; a large number of piles will cause pollution to the land.^4–6 Therefore, large amounts of coal gangue need to be handled properly. The composition of coal gangue mainly includes Si, Al, Fe, Ca, and Mg oxides, and several rare metals.^7,8 Currently, coal gangue has been used in various applications such as recovery of valuable elements, land reclamation and production of building materials. Qin et al.⁹ used a low-temperature combined roasting-deionized water leaching method to extract valuable elements from coal gangue and prepare adsorbent materials. Wu et al.¹⁰ prepared an eco-friendly low-carbon coal gangue pervious concrete using coal gangue. Li et al.¹¹ successfully prepared an activated catalyst conducive to the remediation of organic pollution in groundwater and soil using coal gangue and other activators. Although the gangue is traceable in many fields, at present China's utilization rate of the gangue is only about 50%; a large amount of gangue has not been reutilized.⁴

Fly ash is the main solid waste discharged from coal-fired power plants, and steel slag is mainly derived from oxides formed by molten iron and waste slag as one of the by-products of steelmaking.^12,13 Fly ash deposited for a long period of time contains traces of toxic heavy metal elements (Pb, Cr, Cu, Hg, etc.), so there is an urgent need to utilize them. Rafieizonooz et al.¹⁴ conducted a feasibility study of fly ash as a cement substitute in concrete. Tabit et al.¹⁵ studied the mechanism and optimization of ceramic formation using fly ash and steel slag as raw materials, and obtained ceramics with a compressive strength of 80 MPa. Guo et al.¹⁶ prepared a ultra-high toughness fly ash/steel slag based geopolymer. Motz et al.¹⁷ used fly ash, red mud and bentonite to obtain high strength ceramic granules with a barrel compressive strength of 30 MPa by optimizing the ratio and sintering conditions etc.

Ceramsite is a man-made aggregate consisting of an aluminum silicate phase, a feldspar phase, and a liquid phase. Ceramsites are used in the construction industry and other fields because of their light weight, high strength and earthquake resistance.^18–21 Cheng et al.²² used fly ash as a raw material to prepare ceramic granules with a microporous structure, which showed excellent performance in treating phosphorus polluted wastewater. Yu et al.²³ prepared lightweight and high strength ceramic granules by using steel slag, fly ash, and clay as raw materials. Sun et al.²⁴ prepared lightweight ceramic granules by optimizing the experimental conditions by using red mud as the main material. Most of the raw materials for pottery formation contain large amounts of SiO₂, Al₂O₃ and other aluminosilicates as well as some fluxes (CaO, Fe₂O₃, NaO, K₂O, etc.);²⁵ the raw material composition of gangue, fly ash and steel slag make it possible to use them as raw materials for the preparation of ceramsite. Coal gangue, fly ash and steel slag instead of non-renewable resources for the preparation of lightweight aggregates not only solves the problem of solid waste occupying resources and polluting the environment, but also comprehensively utilize a variety of solid waste, turning waste into treasure to improve the added value of solid waste.

Research on lightweight and high-strength ceramsites^26–30 is listed in Table 1. Ceramsites prepared from solid waste were widely used in functional and sustainable modern materials such as lightweight high-strength concrete, for water treatment, and so on.^31–35 The use of solid waste especially effectively reduces the carbon footprint of the mixture, which is beneficial to the development of cleaner production technologies.³⁶ By utilizing industrial by-products such as coal gangue, fly ash, and steel slag, this approach promotes waste recycling and reduces the need for virgin raw materials. This helps minimize resource extraction, energy consumption, and associated greenhouse gas emissions. Additionally, the production of ceramsite as a lightweight aggregate can result in lower emissions in the manufacturing of concrete and other construction materials, thereby reducing the carbon footprint of the construction industry, which is one of the largest contributors to global carbon emissions. Thus, this innovative material aligns with the United Nations' Sustainable Development Goals (SDGs).

Table 1 The research on lightweight and high-strength ceramsite

Raw material	Sintering condition	Density/strength	Ref.
Red mud, coal fly ash	1200 °C – 5 min	≤0.93 g cm^−3/1.08 kN	26
River bottom silt, waste oil sludge, paint bucket slag, 1% SiC	1180 °C – 10 min	490 kg m^−3/2.15 MPa	27
Coal-based solid waste, industrial sludge	1175 °C – 15 min	998 kg m^−3/27.26 MPa	28
MSWI fly ash, kaolin	1150 °C – 15 min	—/24.8 MPa	29
Lightweight MSWI fly ash, granite sawing mud	1150 °C – 20 min	986 kg m^−3/16.97 MPa	30

---

In this study, in order to recycle and reuse the three materials coal gangue, fly ash and steel slag, a novel coal gangue-based high-strength ceramsite was firstly prepared with coal gangue as the main raw material, fly ash and steel slag as auxiliary materials without any admixture. The effects of preheating temperature, roasting temperature, sintering residence time and raw material ratio are investigated, and the compressive strength, water absorption, bulk density and apparent density of ceramsite were tested through the light aggregate test method in GTB/17431.2. The results enrich the Riley phase diagram and provide a simple and convenient method for the preparation of light and high strength ceramsite. The sintering mechanism, heavy metal leaching, the crystalline phase and micromorphology of the ceramsite are characterized and analyzed by DSC, FTIR, ICP-OES, XRD and SEM.

2 Experimental section

2.1 Material characteristics

The raw materials used in this study were coal gangue, fly ash and steel slag. Coal gangue (CG) (Fig. 1(a)) was obtained from Shenhuo Liangbei Mining Field, Yuzhou City, Henan Province, China, and FA (Fig. 1(b)) was obtained from Dengfeng Power Plant, Zhengzhou City, China. SS (Fig. 1(c)) was sourced from Wugang Industrial Company, Pingdingshan City, Henan Province, China.

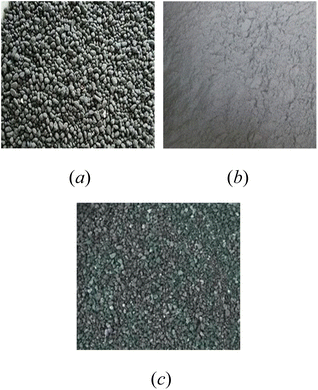

Fig. 1 Appearance of raw materials: CG (a), FA (b) and SS (c).

The chemical compositions of these materials were determined by X-ray fluorescence spectrometer (XRF) (ARL FORM'X).Table 2 lists the main chemical compositions of these materials. Fe₂O₃ content was the highest in steel slag, followed by CaO. The content of SiO₂ in gangue was the highest, followed by Al₂O₃.The mineral compositions of the raw materials (as shown in Fig. 2) were determined by X-ray diffractometer (XRD) (Bruke D8 Advance), scanning from 10° to 80° at a rate of 5° min⁻¹. The main mineral components of coal gangue were quartz (SiO₂), boggsite (NaCa₂Al₅S_i19O₄₈·17(H₂O)) and osumilite (2Al₂[Al₃Si₉O₃₀]·H₂O). The SS is black in color because of the existence of calcium iron oxide. The main mineral components of fly ash were quartz (SiO₂), wonesite ((Na,K)_0.5(Mg,Fe,Al)₃(Si,Al)₄O₁₀(OH, F)₂) and diopside (CaMg(SiO₃)₂).

Table 2 Chemical compositions of gangue, fly ash and steel slag

Components (wt%)	SiO2	Al2O3	Fe2O3	CaO	NaO	K2O	MgO	TiO2	Other
Coal gangue	58.48	31.73	1.96	1.89	1.19	2.34	0.55	1.14	0.72
Fly ash	63.05	13.67	6.74	3.91	3.10	4.15	2.15	1.01	2.22
Steel slag	15.68	4.67	32.34	34.23	0.12	0.05	3.66	0.98	8.27

---

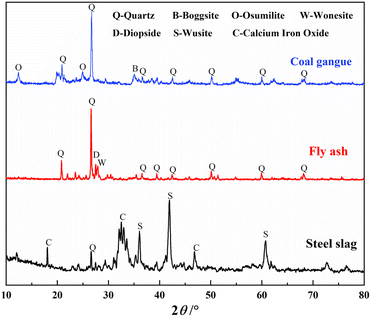

Fig. 2 XRD patterns of raw materials.

2.2 Preparation of aggregate ceramsites

Based on Riley phase as showed in Fig. 3, the three types of powder were proportioned according to Table 3 and mixed uniformly. Batch 1 samples were in comparison of different material proportion while batch 2 samples, all made with CG 60%–FA 20%–SS20%, were for comparing different calcination temperatures.

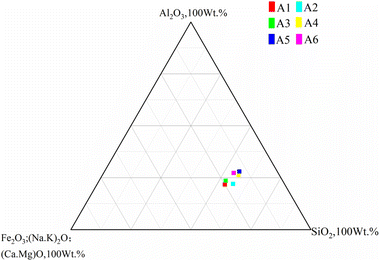

Fig. 3 Ternary phase diagram of ceramsite with different proportions.

Table 3 Summary of material proportions and sintering temperatures

Batch 1			Batch 2
Sintering at 1200 °C			CG 60%–FA 20%–SS 20%
Sample label	Material proportion	Chemical proportion	Sample label	Sintering temperature/°C
A1	CG 50%–FA 30%–SS 20%	SiO2 51.3%–Al2O3 20.9%–RO/R2O 24.0%	B1	1050 °C
A2	CG 50%–FA 40%–SS 10%	SiO2 56.0%–Al2O3 21.8%–RO/R2O 21.2%	B2	1100 °C
A3	CG 60%–FA 20%–SS 20%	SiO2 50.8%–Al2O3 25.4%–RO/R2O 22.8%	B3	1150 °C
A4	CG 70%–FA 20%–SS 10%	SiO2 55.1%–Al2O3 27.2%–RO/R2O 16.6%	B4	1200 °C
A5	CG 80%–FA 10%–SS 10%	SiO2 54.6%–Al2O3 27.2%–RO/R2O 15.4%	B5	1250 °C
A6	CG 80%–FA 20%	SiO2 53.1%–Al2O3 26.8%–RO/R2O 18.1%

---

Fig. 4 outlines the preparation process of ceramsites. Raw materials (i.e. CG, FA and SS) were crushed and grind through jaw crusher, and then passed through a 0.45 mm sieve. The three raw materials are uniformly mixed at 2800 rpm for 1 h by the mixer according to Table 3 with 20 wt% water. The stirred mixtures were put into a desktop granulator for mechanical extrusion molding, and then 7–8 mm diameter balls were obtained. Further shaping the particle shape to achieve a smooth edge, the balls were placed into a disc granulator with a speed of 40 rpm and a disc inclination angle of 60°. And then they were placed in an oven with temperature of 105 °C for drying to constant weight. The fresh pellets prepared by this method could meet the requirements of the graduation in standard (GB/T 17461.1-2010). The subsequent sintering process in a muffle furnace was divided into two stages, namely pre-calcination and calcination. The pellets were heated up at 10 °C min⁻¹, maintaining the temperature at 450 °C for 15 min and 1200 °C for 10 min. After completion of the sintering process, the pellets were taken out from the muffle furnace immediately for cooling at room temperature.

Fig. 4 Production process of ceramsite aggregates.

2.3 Test methods

The bulk density, apparent density, porosity and 1 hour water absorption of lightweight aggregates were tested in accordance with Chinese standards (GB/T 17431.1-2010 and GB/T 17431.2-2010).

2.3.1 Strength. In order to measure the strength of ceramsites accurately, a microcomputer controlled universal material testing machine (HDW-50A) was used. 30 samples were selected from each group. The calculation of strength (MPa) S was according to the following formula:
where P_c is the crushing load (N), and X is the distance between the upper and lower loading plates (mm).

2.3.2 1 Hour water absorption. The change in water absorption of ceramsites is an important factor affecting their porosity and strength. It is reported that the water absorption was inversely proportional to strength and directly proportional to the porosity in previous research. The calculation of 1 hour water absorption rate (%) w_a was according to the following formula:
where m₀ is the mass of the ceramsites soaked for 1 h (g), m₁ is the mass of the ceramsites after drying (g).

2.3.3 Apparent density and bulk density. Firstly dried ceramsites m (g) were soaked in water for 1 hour, then the surface moisture on the ceramsites was wiped off after filtration. Finally, the ceramsites were placed into a 1000 ml cylinder filled with 500 ml of water and the total volume V_t (mL) is recorded. The apparent density ρ_ap (kg m⁻³) was calculated using the following equation:

The ceramsites m (g) were evenly poured into a 1 L capacity cylinder up to 50 mm above the mouth. The excess ceramsites at the top of the cylinder were scraped away with a ruler, and any surface depressions were filled with fine particles. The bulk density ρ_b (kg m⁻³) was calculated using the following formula:

where m_t is the total mass of the sample and the cylinder (kg), m_v is the mass of the cylinder (kg), and V is the volume (L) of the cylinder.

3 Results and discussion

3.1 Characteristics of ceramsite

3.1.1 Physicochemical performance of ceramsite. The ceramsites made in the experiment are shown in Fig. 5. It can be observed that the ceramsites made from different proportions have visual differences. Too high Si/Al ratio will increase the sintering temperature, and less liquid phase production is not conducive to mass transfer and migration between particles, resulting in a loose surface; However, a low Si/Al ratio will result in a decrease in strength. The raw materials contain different proportions of alkali metal oxides such as Fe, K, Na, Ca, Mg, etc., which can form low melting point eutectic compounds with Si and Al, thereby producing a liquid phase and promoting mass transfer and migration between particles.

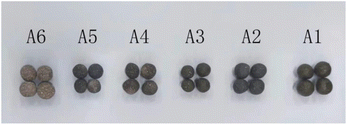

Fig. 5 Photos of sintered ceramsites made from CG, FA and SS with different proportions.

The results of density, porosity, compressive strength, and water absorption of the prepared ceramsite were shown in Fig. 6 and 7. With the increasing gangue content, the compressive strength gradually decreased, and the strength of ceramics was greater when the gangue content was 50% and 60%, which were 25.58 MPa, 15.81 MPa and 19.15 MPa, respectively. Although the increase of Al₂O₃ content has an effect on the strength of ceramsite, excessive Al₂O₃ and SiO₂ increase the eutectic temperature, resulting in incomplete sintering. On the other hand, the low supporting component is not conducive to the generation of liquid phase, and cannot better promote the sintering reaction. The higher strength of A3 than A2 is due to the increase in Fe and Ca content affecting the structure and composition of ceramsite. Water absorption first rises and then decreases, which is related to the enamel produced on the surface of the ceramic grain, as shown in Fig. 7. The lower water absorption ensures a more stable application performance of ceramic particles in concrete. With the increase of the solubility component, a dense enamel layer is formed on the surface of the ceramic grain, resulting in a decrease in water absorption and an increase in strength. The bulk density and apparent density of A1, A2 and A3 were 1170 kg m⁻³, 1102 kg m⁻³, 960 kg m⁻³ and 2020 kg m⁻³, 1990 kg m⁻³ and 1910 kg m⁻³, respectively. Considering the high compressive strength, low water absorption and relatively low density, the ceramsite with suitable properties could be obtained when the proportion of CG : FA : SS was 6 : 2 : 2.

Fig. 6 Compressive strength and water absorption of ceramsites produced from different mixtures.

Fig. 7 Bulk density and apparent density of ceramsites produced from different mixtures.

3.1.2 Mineralogical characterization of ceramsites. The XRD patterns of the ceramsite in different proportion of raw materials were presented in Fig. 8. The crystal phases of A1, A2, and A3 samples include calcium feldspar (CaAl₂Si₂O₈), sodium feldspar (NaAl₂Si₃O₈), hematite (Fe₂O₃), diopside (CaMgSi₂O₆), and mullite (Al₆Si₂O₁₃). For A4–A6, the crystal phases are primarily quartz (SiO₂), mullite, feldspar and hematite. As the coal gangue content increases,the diffraction peak of the feldspar phase weakens. This suggests that with the increasing SiO₂ content, the required sintering temperature rises, leading to incomplete sintering. Additionally, at 33.5°, the diffraction peak of the mullite phase (Al₆Si₂O₁₃) diminishes, further indicating that the higher intensities in A1–A3 are attributed to the greater formation of feldspar and mullite phases, which enhances the strength of the ceramic particles. Moreover, the diffraction peak of pyrite disappears, replaced by that of hematite. This is due to the oxidation of iron ore to hematite (Fe₂O₃) at high temperatures. As the steel slag content increases, the interaction of CaO, FeO, and SiO₂ forms a low-temperature eutectic feldspar, which remains in the liquid phase at around 1000 °C. With the increase of Fe and Ca content, the liquid phase content and viscosity in the multi-component system gradually decreased and the melting temperature range became wider.³⁷ This lowers the sintering temperature and promotes the formation of new phases. The dark black color of A1–A5, which contains steel slag, is due to the presence of goethite (FeO) in the raw materials, which oxidizes to Fe₂O₃ at high temperatures. In contrast, A6, which does not contain steel slag or goethite, exhibits a light yellow color.

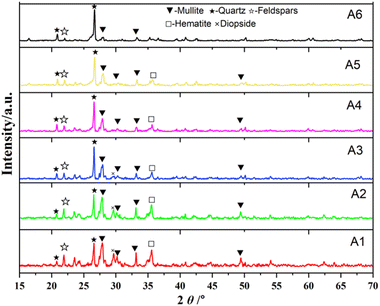

Fig. 8 XRD at different proportions.

It can be seen in Fig. 9 that the A1, A2, and A3 samples contain uniformly distributed closed pores, with a significant amount of liquid phase surrounding the pores, resulting in a relatively dense structure. The presence of the liquid phase facilitates the sintering process, which also indicates that the incorporation of steel slag and fly ash promotes the gas generation. During sintering, the gas produced is encapsulated by the liquid phase, forming closed pores, which helps to reduce the weight of the ceramsite. In contrast, with the increasing content of coal gangue, the A4, A5, and A6 samples exhibit interconnected open pores and noticeable unreacted substances. Incomplete reactions, as well as weak particle migration and mass transfer, hinder the formation of new phases and lead to incomplete sintering, resulting in a decrease in the strength of the ceramsite.

Fig. 9 SEM at different proportions.

3.2 Effect of calcination temperature on properties of ceramsites

The sintering temperature has a great influence on the performance of the ceramic grain, that is, insufficient sintering will cause the high strength of ceramsite, which excessive sintering will lead to the collapse of the ceramsite' structure, and the liquid phase will occur too much melting and bonding. The sintering temperature 1050 °C, 1100 °C, 1150 °C, 1200 °C and 1250 °C were settled to reveal the effect of sintering temperature on the properties of A3.

The intensity, water absorption, bulk density, apparent density, morphology,porosity and XRD of the samples are shown in Fig. 10–14, respectively. At sintering temperature 1050 °C to 1100 °C, the sample surface has obvious open pores and large particle gaps, and the ceramsite are light gray; the small amount of liquid phase was generated on the surface of the sample at 1150 °C, the pores of the surface opening were relatively reduced, and the sample was dark gray; a large amount of liquid phase is generated on the surface of the 1200 °C and 1250 °C samples, and the open pores are filled with the liquid phase, and the sample is brown. The strength and bulk density increase with the increase of sintering temperature before 1200 °C, and the water absorption rate and apparent density decrease. This is due to the fact that as the sintering temperature increases, the ceramic grain produces a large amount of liquid phase to fill the open pores of the surface, and the enamel is produced to make the ceramic grain dense.

Fig. 10 Strength and water absorption of ceramsite at different temperatures.

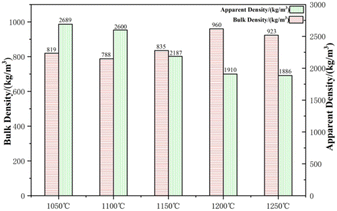

Fig. 11 Bulk density and apparent density of ceramsite at different sintering temperatures.

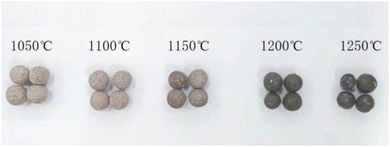

Fig. 12 Morphology of ceramsite at different sintering temperatures.

Fig. 13 Porosity of ceramsite at different sintering temperatures.

Fig. 14 XRD of samples at different temperatures.

The strength, water absorption, bulk density and apparent density of ceramsite at 1200 °C were 19.15 MPa, 1.68%, 960 kg m⁻³ and 1910 kg m⁻³, respectively. At this temperature, due to the formed surface tension, the gas inside the ceramic grain reaches a dynamic equilibrium to form a uniform pore structure, so the strength increases. As the sintering temperature increases to 1250 °C, the ceramsite melts bond, the bottom structure collapses, and the strength of the ceramsite drops sharply. This is due to the excessive sintering to produce a large number of liquid phases, and too many amorphous phases are formed under the action of K, Na, Fe and other soluble components, resulting in large structural deformation and therefore reduced strength. At lower sintering temperatures, the sintered pellets have not yet reached the sintering temperature, and the pellet bodies are relatively loose with many internal pores, resulting in a relatively low bulk density. At higher sintering temperatures, the sample reaches the sintering temperature range, and the fluxing effect of the steel slag becomes more significant. As the temperature increases, the liquid phase in the ternary eutectic system increases. As the density of the ceramic pellets increases, the liquid phase infiltrates the pores under the action of surface tension, causing a continuous reduction in the visible porosity and an increase in the closed porosity within the sample. This leads to a decrease in water absorption and a relative increase in bulk density. However, when the sintering temperature is further increased, excessively high temperatures will generate more liquid phase, resulting in an excessive formation of amorphous phase. During the cooling process of the ceramic pellets, most of the liquid phase solidifies into a glassy phase, which has lower strength and causes significant structural deformation, preventing the ceramic pellets from forming into spheres. In order to obtain ceramsite with excellent performance, a sintering temperature of 1200 °C was selected for subsequent experiments.

As the sintering temperature increases, the porosity also increases, reaching a maximum of 21.46% at 1200 °C. This can be attributed to the higher sintering temperature, which promotes the formation of a greater amount of glass phase within the ceramic particles and enhances the liquid-phase mass transfer. As a result, smaller pores coalesce into larger ones due to the effect of liquid-phase mass transfer.

The XRD pattern of the sample is significantly influenced by the calcination temperature. After high-temperature calcination, numerous dispersed peaks appear in the XRD pattern of the ceramic particles, indicating that the internal structure of the ceramic particles primarily consists of an amorphous glass phase. At sintering temperatures of 1050 °C, 1100 °C, and 1150 °C, the crystal phases identified in the sample include SiO₂ (quartz), Fe₂O₃ (hematite), 3Al₂O₃·2SiO₂ (mullite), and 4(Na,Ca)Al(Si, Al)₃O₈ (feldspar), with the same mineral phases observed at all these temperatures. When compared to the XRD pattern of the raw material, no phase changes are evident, suggesting that at these temperatures, the system is primarily in a surface mass transfer stage, with lower lattice activation energy and minimal chemical reactions. As the sintering temperature increases, the diffraction peaks of quartz gradually disappear or weaken, being replaced by the newly formed sillimanite. The intensity of the diffraction peaks corresponding to feldspar increases, and the crystal phases observed at this stage are feldspar (4(Na, Ca)Al(Si, Al)₃O₈), sillimanite (Al₂SiO₅), and hematite (Fe₂O₃). As the sintering temperature increases, the diffraction peak intensity of feldspar and mullite crystals increases, indicating that the increase in sintering temperature is beneficial to promote the formation of new phases. At sintering temperatures of 1050 °C, 1100 °C, and 1150 °C, some diffraction peaks of pyrite (FeO) disappear, while diffraction peaks of hematite (Fe₂O₃) emerge. This is due to the oxidation of FeO to Fe₂O₃ at high temperatures, which then reacts with CaO to form calcium iron garnet. Consequently, the ceramic particles maintain a light yellow color at these temperatures.

As the temperature increases, particularly at 1200 °C, the intensity of the diffraction peak for hematite strengthens, and the ceramic particles turn dark black. Additionally, the diffraction peak of quartz disappears. This change is attributed to the promotion of reactions between free quartz and alumina at the higher sintering temperature, leading to the formation of silicates. The diffraction peaks of feldspar and hematite also become more pronounced, due to the increased sensitivity of Ca²⁺ and Fe³⁺ ions at high temperatures. These ions exhibit strong nucleating abilities and serve as activation centers. The ionic radii of Ca²⁺ and Fe³⁺ are similar to that of Al³⁺, allowing them to form solid solutions with aluminosilicates. However, during sintering, Fe³⁺ undergoes a reduction reaction, which alters its ionic radius and induces lattice distortion in the aluminosilicate structure. This reduction in ionic radius lowers the sintering temperature and accelerates the sintering process.

Calcium feldspar and sodium feldspar are freely miscible, meaning there is no pure phase of either calcium feldspar or sodium feldspar. At a sintering temperature of 1250 °C, the diffraction peak of feldspar decreases compared to the intensity observed at 1200 °C. This is because, at higher temperatures, a greater amount of liquid phase forms in the system, dissolving some of the feldspar and transforming its lattice from crystalline to amorphous. The reaction process is as follows:

3C + 2O₂ → CO₂↑ + 2CO↑

2CaCO₃ → 2CaO + 2CO₂↑

Al₂O₃ + SiO₂ → Al₂SiO₅

CaO + Al₂O₃ + 2SiO₂ → Ca(Al₂Si₂O₈)

Na₂ + Al₂O₃ + 6SiO₂ → 2NaAlSi₃O₈

4NaAlSi₃O₈ + 4CaO + 10Al₂O₃ → 4(Na, Ca)Al(Si, Al)₃O₈ + 17O₂↑

nAl₂O₃ + nSiO₂ + K₂O + Na₂O + CaO + Fe₂O₃ → Feldspar

3.3 Effect of calcination time on properties of ceramsites

Sintering time is also the main factor affecting the performance of ceramics, too short or too much sintering time will change the performance of ceramics. Sintering time of 10 min, 15 min, 20 min, 25 min, and 30 min are selected respectively. Morphology of ceramsite synthesized at different sintering time was shown in Fig. 15. With the extension of the sintering time, the color of the enamel layer on the surface of the ceramic grain gradually deepens, but slight adhesion occurs at 30 min.

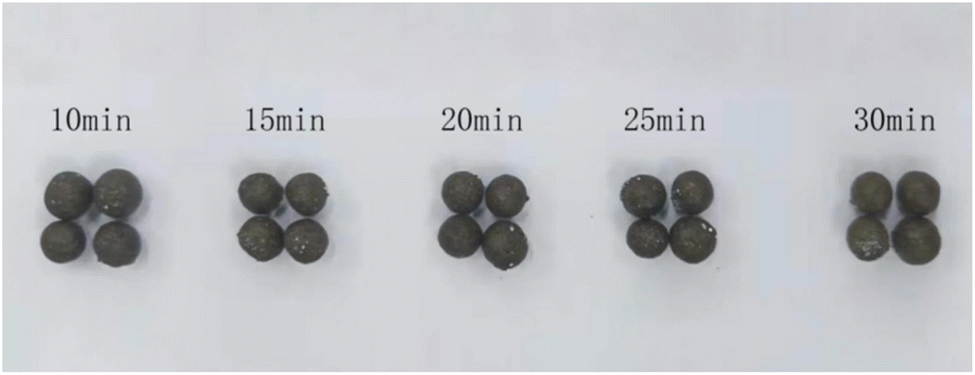

Fig. 15 Morphology of ceramsite at different sintering time.

The strength, water absorption, bulk density and apparent density of ceramics at different sintering times were shown in Fig. 16 and 17. With the increase of sintering time, intensity increased firstly and then decreased, the maximum was 21.17 MPa at 15 min, and the bulk density and apparent density gradually decreased. It was attributed to the increase of sintering time, more gas was generated inside the ceramic grain and was wrapped in the liquid phase in the ceramic grain, and the pores become more and form connected large pores, resulting in a decrease in density and strength; the strength of the ceramics grain is partly due to the provision of the newly generated mineral phase, and prolonged sintering can hinder the nucleation and growth of the internal feldspar and mullite phase crystals, reducing the strength. The water absorption rate is between 0.93% and 1.68%, and the change is not obvious. A large amount of liquid phase has been formed at the sub-sintering temperature, and the surface is densified after cooling, so it has little effect on water absorption. Considering lower density and high strength, the sintering time is selected to be 15 min.

Fig. 16 Strength and water absorption of ceramsite at different sintering time.

Fig. 17 Bulk density and apparent density of ceramsite at different sintering time.

3.4 Morphological characterization of ceramsite

SEM images of fracture surfaces and component analysis of ceramsite with CG/FA/SS 6 : 2 : 2 were shown in Fig. 18 and Table 4. Individual pores and new crystals could be observed clearly. The formation of the pores was due to the release of the internal gas and pore-making agent. Some of the fine micropores are filled with the liquid phase, which reduces the bulk density of the ceramsite. The rod-like feldspar crystals are interlaced with the flakyoxene crystals to form a grid, which improves the compressive strength of the ceramsite; at the same time, it prevents heavy metals from leaching from the pottery.

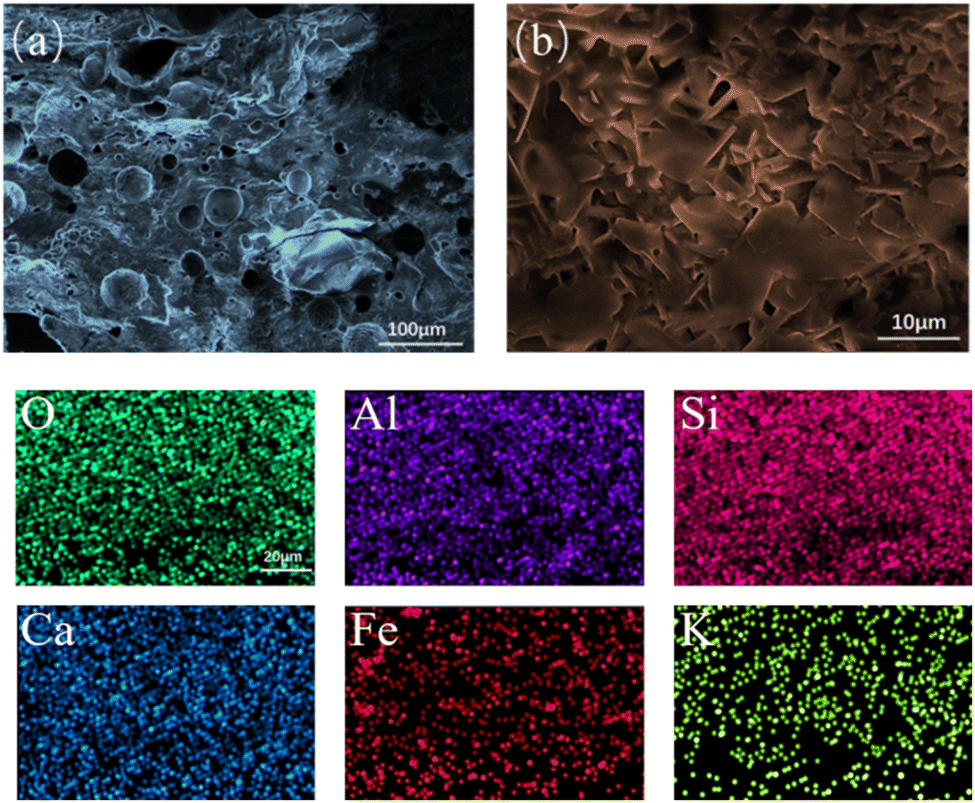

Fig. 18 Cross section of ceramsite at 1000 magnification (a) and cross section of ceramsite at 5000 magnification (b).

Table 4 Component analysis of ceramsite with CG/FA/SS 6 : 2 : 2 in SEM images

mol%	SiO2	Al2O3	CaO	Fe2O3	Na2O	MgO	K2O
	31.21	26.73	15.11	8.12	5.57	1.12	1.36

---

According to Table 4, the EDS analysis of the ceramsite indicated that the SiO₂ content is approximately 31.21%, Al₂O₃ is 26.73%, and CaO is 15.11%. The Si/Al ratio is determined to be about 1 : 1, and the (Ca, Na, K, Mg)/(Si, Al) ratio is also approximately 1 : 1, which falls within the elemental composition range typical of feldspar crystals. The presence of Fe³⁺ in the raw material is noteworthy, as its ionic radius is similar to that of Al³⁺, allowing it to undergo an infinite solid solution with aluminosilicates. At high temperatures, Fe³⁺ integrates into the oxygen tetrahedra of feldspar, resulting in a Fe₂O₃ content of 8.12% in the feldspar crystal.

3.5 Leaching concentrations of heavy metals in ceramsites

The compositions of the adsorbents were investigated using an ICP-MS apparatus. The heavy metal leaching toxicity analysis was conducted by GB 3838-2022 standard. The leaching concentrations of heavy metals in ceramsite did not exceed the limits for hazardous waste as showed in Table 5. Thus, the ceramsite could not be classified as hazardous waste. For the ceramsite, the leaching concentrations of heavy metals were much lower than the limits, it was because of the solidification effect of ceramsite on heavy metals. Indeed, the ceramsite got a stable characteristic after being sintered.

Table 5 The result of the TCLP of ceramsites

Items	Pb	Zn	Ba	Cr	Ni
GB 3838-2022 (mg L^−1)	0.01	1.0	0.7	0.05	0.02
Ceramsite (mg L^−1)	0.0027	ND	ND	0.0003	0.001

---

4 Conclusions

High-strength ceramsite was synthesized using gangue, fly ash, and steel slag through a two-stage sintering process. The influence of various factors, including the raw material weight ratio and sintering conditions (pre-heating temperature, sintering time, and sintering temperature), was systematically investigated. The effects of these parameters on the properties of the ceramsite were also determined. The mineral compositions, crystalline phases, microstructure, and hazardous substances solidification were determined by X-ray fluorescence spectrometry, X-ray diffraction analysis, Fourier transform infrared spectroscopy, scanning electron microscopy, and inductively coupled plasma optical emission spectroscopy. Under the optimal synthetic conditions (gangue : fly ash : steel slag = 60 : 20 : 20, preheating temperature of 450 °C, preheating time of 15 min, sintering temperature of 1200 °C, and sintering time of 15 min), the ceramsite demonstrated high compressive strength of 21.17 MPa, 1 h water absorption of 1.35%, and bulk density and apparent density were 947 and 1859 kg m⁻³, respectively. Furthermore, the concentrations of toxic substances leaching from the ceramsite were considerably lower than the Chinese national standard (GB 3838-2002), which implies that gangue-based ceramsite cannot cause secondary environmental pollution. The prepared ceramsite exhibiting a high compressive strength, low water absorption, and effective solidification of deleterious elements can be used to prepare building concrete and lightweight partition boards. Importantly, the reuse of gangue for the production of ceramsite is an effective approach for the disposal of harmful gangue.
