Innovative dissolving microneedles for enhanced delivery of alpha arbutin and ascorbic acid: a novel LC–MS quantification approach

Abstract

This study presents a novel dissolving microneedles (MN) formulation designed to deliver alpha arbutin (AA) and ascorbic acid for hyperpigmentation treatment. Utilizing hydroxypropyl methylcellulose (HPMC) and polyvinylpyrrolidone (PVP-K90), we successfully prepared and characterized MN arrays with high drug loading efficiencies of 89.01% for AA and 94.09% for ascorbic acid. A pioneering liquid chromatography–tandem mass spectrometry (LC–MS) technique was developed for simultaneous drug quantification, achieving precision and accuracy as per FDA guidelines. Our MN demonstrated excellent mechanical properties, with effective skin penetration and dissolution within 5 minutes and permeation rates of 4.28% h⁻¹ for AA and 3.61% h⁻¹ for ascorbic acid. This innovative approach offers a promising platform for the transdermal delivery of active compounds, highlighting significant advancements in drug delivery technology.

---

Introduction

Hyperpigmentation is a common issue that may cause social embarrassment and can be treated by laser, physical peeling, or using medications, for example, alpha arbutin (AA) and ascorbic acid.¹ In recent years, there has been a rise in innovative cosmetic products for skin whitening. These products utilize active ingredients designed to improve their performance. The stratum corneum (SC), which acts as a natural protective barrier, limits the passive penetration of active ingredients, limiting the performance of conventional methods.²

Microneedles (MN) arrays are promising drug delivery systems that require careful formulation to deliver the drug through the skin successfully. MNs are organized in an array pattern on a base patch and consist of MN tips with height ranging from 25 to 1000 μm.³ Upon administration, MNs create reversible micrometer-sized channels within the skin layers that enable the penetration of drugs into the skin, possessing sufficient length to effectively pierce the stratum corneum (SC) while not extending deep enough to access the nerve terminals underneath it.^3–5 Thereby, MNs enhance therapeutic efficacy through rapid onset of action, facilitate self-administration, improve bioavailability, and significantly enhance patient compliance, all while causing minimal pain to the patient.⁶ MNs are categorized into five distinct types based on their design and functional mechanisms: solid, hollow, coated, hydrogel-forming, and dissolving polymeric MNs.⁷ The fabrication of dissolving polymeric MNs involves using a centrifuge to concentrate drugs in the microtips of MNs. However, this method increases the manufacturing complexity due to the increased viscosity of the polymer blend.⁸ Various approaches have been used to improve the desirable characteristics of MNs, such as increasing polymer concentration during production.⁹ Different hydrophilic, biocompatible, and biodegradable polymers were used for MN fabrication that successfully encapsulate the drugs inside the matrix, for example, hydroxypropyl methylcellulose (HPMC) and polyvinylpyrrolidone (PVP-K90).¹ Developing an appropriate transdermal drug delivery system with exceptional permeability properties and facilitating efficient drug interaction with the skin has been achieved using the MNs.¹⁰

The selection of polymers in the fabrication of MNs is an area of special challenge where one should meet the art requirement in fabricating a robust 3-dimensional structure, and the designated structure is demanded to deliver the drug by penetrating the skin without triggering an enormous level of pain. These unique characteristics may require using a single polymer or more to adjust the designated properties.^11,12

PVP is a synthetic water-soluble polymer available in several grades and is characterized by various molecular weights and viscosities. PVP has excellent mechanical strength and biocompatibility, making it widely used in the fabrication of MNs.¹³ The hydroxypropyl methylcellulose (HPMC) synthetic polymer is derived from cellulose, a swelling, gelling, and thickening agent; the polymer exhibits solubility in water, biocompatibility, biodegradability, non-toxicity, and rheological characteristics.¹⁴

He et al. fabricated dissolving MNs loaded with propranolol hydrochloride for the treatment of infantile hemangioma, employing two water-soluble polymers, hyaluronic acid (HA) and PVP-K90 using a micro molding technique and two casting methods involving centrifuging at 4000 rpm.¹⁵

Wang and colleagues aimed to formulate dissolving MNs by combining AA and ascorbic acid and investigated their combined effect on dark brown guinea pigs, specifically assessing their impact on tyrosinase activity, melanin production, and mechanical properties of MNs where hyaluronic acid was used as a matrix.^16,17

Aung et al. aimed to improve skin lightening by fabricating AA MNs. The first MN formulation was created by incorporating the polymer Gantrez™ S-97, and another MN formulation was designed by using the combination polymers HPMC and 40% w/w PVP K-90 (HPMC/PVP) by centrifugation at 4500 rpm.¹⁸

Sawutdeechaikul et al. fabricated dissolvable MNs for treating post-acne hyperpigmentation pimples loaded with ascorbic acid and glutathione. Using the micro-molding process, the needle base material was created, which consisted of a combination of hyaluronic acid, polyvinyl alcohol (PVA), and sucrose in a weight ratio of 0.5 : 1 : 1.¹⁹

Xing et al. attempted to fabricate dissolving MNs loaded with azelaic acid and co-drug the alkaloid matrine for anti-acne treatment utilizing the polymers sodium carboxymethyl cellulose (CMC), PVP, and trehalose.²⁰

Yang et al. attempted to overcome the limitation associated with lidocaine cream by creating dissolving MNs using the HA polymer to create a solution; the mixture droplets were then centrifuged for 10 s at 5000 rpm.²¹

The novelty of this research revolves around the ability to produce MNs comprising AA and ascorbic acid without centrifugation. The MN molds were washed before casting with water. Water increases the hydrophilicity of the silicone mold that is anticipated to receive the hydrophilic polymers. The modified tested method was deemed successful upon evaluation of the MNs by Drelich et al.²² The wet molds would have a strong affinity for the polymer mixture. In addition, the structure of ascorbic acid, which incorporates multiple proton donor and acceptor oxygen groups, would enhance diverse intramolecular interactions during conformational changes.²³ This facilitates the manufacture of MNs and eliminates the need for centrifugation in the fabrication process.

Additionally, a vital property of MNs is the ability to penetrate the stratum corneum layer, where, in real life, it is anticipated that the patient would press the MN patches on the skin to obtain the mechanical force required to cause skin micro perforation. Nevertheless, the lack of appropriate MN guidelines would make the pressing time undetermined. Hence, an appropriate experiment addresses the time required for pressing. Herein, we propose an experiment where three layers of parafilm M® (PF) are exposed to MNs and subjected to pressing force for different two-time intervals: 30 seconds and 1 minute to investigate the proper advice given to the patient upon dispensing MNs as qualitative finding determine the optimal contact time required to achieve effective skin penetration and drug delivery. Quantifying combined medicines in a pharmaceutical formulation requires an accurate procedure to guarantee no interference of the medications and lead to false readings. Different techniques can quantify combined medications, where the technique selection depends mainly on the accuracy, precision, reproducibility, and rate of obtaining accurate results. The LC–MS method provides facile, accurate separation of AA and ascorbic acid. It could be employed in potential in vivo experiments where the possible interference from the biological matrix would raise a concern if the non-discriminative technique were used, as shown elsewhere.²⁴

Materials and instrumentation

Materials

Alpha arbutin, molecular weight (MW) = 272.25 Da, was purchased from TCI (Tokyo, Japan). L-Ascorbic acid (MW = 176.1 Da) and methylene blue (MW = 319.85 Da) were purchased from Sigma-Aldrich® (Dorset, UK). Hydroxypropyl methylcellulose (HPMC) was purchased from Acros Organics (New Jersey, USA), with an average molecular weight = 1261.45 Da. Polyvinylpyrrolidone K90 (PVP-K90) (MW = 360 000 Da) was obtained from TCI (Tokyo, Japan). Poly(vinyl alcohol) with a grade 40–88 was procured from Sigma Aldrich. Phosphate buffered saline (PBS) pH 7.4 tablets were purchased from Sigma Aldrich Co., USA. LC–MS grade water, methanol, ethanol, and chloroform were obtained from J.T. Baker®, UK. Ammonium formate was purchased from Honeywell Burdick and Jackson, USA. The internal standard vitamin B6 was obtained from Sigma-Aldrich®, UK.

Instrumentation

The adjustable LED digital microscope MX200-B with magnification up to 1000× was obtained from T TAKMLY (US) for imaging of the dissolvable MNs. Elmasonic S40(H) from Elma in Germany was utilized for sonication. Analytical balances Explorer® was obtained from OHAUS corporation in the United States. The laboratory Centrifuge Z326K from Hermle in Germany centrifugated the MNs. The TA-XTplus Texture Analyzer from Stable Micro Systems in the United Kingdom was used to evaluate MNs' mechanical properties. The estimation of pH was determined by the digital pH meter Jenway 3510, given by Antylia in the USA. Stirring Hot Plate from Antylia's SHP-200-S Stuart was used for heating and mixing. The Autovortex Blender SA1 from Antylia was purchased in the United States. Genlab™ Classic Oven obtained from Gallenkamp & Co. Ltd in England. For analysis, a UV-1800 spectrometer from Shimadzu in Japan was utilized. A Shimadzu LCMS-8030 Triple Quad MS system was obtained from Shimadzu, Japan. The vertical Franz diffusion cell system with 8 mL receptor volume and orifice diameter of 11.28 mm and with a volatile donor chamber that has a 7/25 Teflon stopper, flat ground (ground O-ring) joint, and a stainless-steel clamp and 1000 μL pipette tip assemblies were obtained from PermeGear, Inc, USA. The polydimethylsiloxane (PDMS) microneedles mold MPatch^TM composed of 225 (15 × 15) pyramidal-shaped arrays were acquired from Micropoint Technologies Pte Ltd, Singapore. The Fourier transform infrared (FTIR) spectrometer was obtained from PerkinElmer, USA. A nylon syringe filter of pore size one μm had a diameter of 25 mm.

Methods

Fabrication of the microneedles

To prepare the HPMC solution, 4 g of HPMC was added to 50 mL water and dissolved using a magnetic stirrer until a clear mixture was obtained; then 10 g of PVP-K90 was added to 50 mL water and stirred until a clear mixture was obtained. Then, an equal volume of the two polymers was prepared (5 mL from each and appropriately mixed until homogeneous). The PDMS MNs (15 × 15) pyramidal-shaped arrays were washed with water for 1 hour, and combination of drug AA: ascorbic acid was loaded in polymer solution in ratios of 2.5% : 2.5% : 95% w/w were used where 50 mg of AA and 50 mg of ascorbic acid were added to 1900 mg of a readily prepared mixture of HPMC (8% w/v) and PVP-K90 (20% w/v). The mixture was sonicated (Elmasonic S40 (H), Germany) for 10 min. The trapped air bubbles were removed by centrifugation at 1500 rpm for 10 min, and 50 μg was cast carefully in the MN mold. After weighing the designated volume, the procedure was repeated with every 50 μL (equivalent to 48.3 mg). After one hour, another volume of 100 μL was added, and the MNs were left to air-dry for 48 h.

Morphology

A digital microscope (MX200-B, T TAKMLY), was exploited to examine the tips and their height, and they were subsequently analyzed using ImageJ® software (US National Institutes of Health, Bethesda, Maryland, USA) for a precise measurement of the MNs after they were dried entirely and to ascertain that the tips were not altered during displacement from the molds.

Determining the pH of MNs

The pH was measured by dissolving the blank MNs, AA-loaded MNs, ascorbic acid-loaded MNs, and the designated AA and ascorbic acid-loaded MNs in 100 mL of deionized water, were then sonicated for 30 min. The pH was recorded by placing the electrode of the digital pH meter 3510 (Jenway, Cole-Parmer Ltd, Antylia, USA) on the surface (n = 3) and left for 30 min until equilibrium and the pH reading was recorded.²⁵

Fourier transform infrared (FTIR) analysis

Fourier transform infrared (FTIR) spectroscopy (PerkinElmer, Waltham, MA, USA) was utilized for analyzing the functional groups of the investigated polymers, drugs, and the MN formulation to detect any potential chemical interaction, including pure AA powder, ascorbic acid, PVP-K90, HPMC. FTIR was also conducted on the physical mixture of the components fabricating MNs and the drug-loaded MNs. Samples were prepared using cryogenic grinding and liquid nitrogen to attain powder. The FTIR spectra of the samples were obtained throughout the wavenumber range of 400 to 4000 cm⁻¹.²⁶

Mechanical properties of MNs (compression test)

Using the TA-XTplus Texture Analyzer (Stable Micro Systems, UK) in compression mode, the mechanical strength of the MNs was evaluated (the ability of the MNs to withstand compression). The MNs were attached to the movable cylinder probe (length 5 cm, cross-sectional area 1.5 cm²) with an adhesive double-face tap. The probe was assigned to move vertically downward at a test speed of 0.50 mm s⁻¹, while the pre-and post-test rates were one mm s⁻¹ against a flat aluminum block as described^27,28 with alterations. A force of 32 N per patch (the trigger force was 0.1422 N per needle) was investigated. Moreover, 32 N was reported as a person's mean force when applying an MN.²⁹ The tips and morphology of MNs were assessed using a digital microscope before and after the compression test and using the software ImageJ® (US National Institutes of Health, Bethesda, Maryland, USA). The percentage of the change in height of a set of needles was calculated (n = 3) using the following equation:³⁰

Height reduction percentage = (original height − new height)/original height × 100% (1)

Insertion properties into Parafilm M®

Parafilm M® (PF, Bemis Company Inc., Soignies, Belgium) was validated formally in previous work by ref. 31 and 32 as a model skin simulant for MN penetration studies. The tips of the MNs were applied against a five-sheet PF piercing through the layers using thumb pressure for two time intervals: 30 seconds and 1 minute. Before and after insertion, MN tips were visualized by the digital microscope for morphological changes, then each sheet of PF was delicately removed, and the number of punctures was counted relative to the thickness of the PF layers.³³ The thickness of each PF sheet was stated to be 130 μm.

Skin penetration assessment into total thickness rat skin

An excised full-thickness rat skin (IRB: 01/08/2022–2023) was employed to estimate the insertion depth of the MNs into the skin. The skin was cut with surgical blades, and the hair was shaved with an electric razor and a hair removal cream, then washed with PBS (pH 7.4) for 30 min. The excised skin was then encased in aluminum foil and stored at −20 °C until needed.³³

Methylene blue (MB) gel was fabricated by mixing two drops of methylene blue dye solution with 1 mL of the successfully formulated MN blank formulation using vortex (SA2 Vortex Mixer, Stuart Scientific, UK) and sonicating for 10 min until a homogenous gel was formed, then cast slowly in the molds. The molds were centrifuged twice at 1500 rpm, 25 °C for 10 min. A total volume of 250 μL was cast, and the molds were left to dry for 24 h in an ambient environment. The dried MB-MNs were then pressed manually into the edge of the skin for 30 s and fixated with forceps before employing the digital microscope to obtain the image and running the software ImageJ to measure the depth of the MNs arrays into the skin.²⁸ Moreover, to evaluate the ability of the formulated MNs to create micro-holes on rat skin, the successful MNs arrays loaded with AA and ascorbic acid were administered into the skin using thumb pressure for 30 seconds. Then, the MN array was detached, and the skin was stained with two drops of MB dye for 10 min. The leftover MB were gently cleaned using a tissue soaked in PBS. Afterward, the blue spots on the skin were observed using a digital microscope.³⁴ The thickness of the rat skin was estimated to be approximately 1.31 mm.

Dissolution evaluation of drug-loaded MNs

To determine the dissolution time of the MNs, which is the time required for the patch to dissolve upon contact with an aqueous medium, the pre-stored excised skin was defrosted and left to melt in a beaker, then washed with PBS (pH 7.4) for 15 min and placed on tissue paper to dry; the MN patch was then manually inserted into the skin with a firm thumb pressure.²⁶ The MNs were carefully detached at predetermined time intervals (0, 0.5, 1, 2, 4, and 5 min) and analyzed at each time interval using a digital microscope to visualize the MN arrays at those intervals.

Liquid chromatography–tandem mass spectrometry (LC–MS): Method development for the separation between AA and ascorbic acid

LC–MS instrumentation and chromatographic conditions. The liquid chromatography separation was performed using the Shimadzu LCMS-8030 system, which includes a column oven, control bus module, autosampler, and ESI source–detector. The Atlantis Premier BEH C18 AX Column (Atlantis Premier BEH C18 AX Column (2.1 mm × 100 mm, particle size 1.7 μm), no pre-column) was used for the separation. The column temperature was 40 °C, and the sample temperature was 10 °C. The injection flow rate was 0.4 mL min⁻¹ (the injection volume was five μL). The gradient elution method was described earlier with slight modifications.³⁵ Vitamin B6 was used as the internal standard at a 10 μg L⁻¹ concentration with a similar chemical structure to the analyte. The mobile phase was a mixture of mobile phase A (20 mM ammonium formate and mobile phase B 20 mM ammonium formate in methanol).
Preparation of the mobile phases. The concentration of 20 mM ammonium formate for mobile phases was obtained by dissolving 1.276 g of ammonium formate in 1 L of water and methanol. The solution was vortexed and sonicated for 5 min. A programmatic approach was used to vary solvent compositions with a 0.40 mL min⁻¹ flow rate, as shown in Table 1.

Table 1 Gradient elution composition of the mobile phase

Time (min)	Flow (mL min^−1)	% A	% B
0–2	0.40	95	5
2–2.5	0.40	25	75
2.5–4	0.40	5	95
4–6	0.40	95	5

---

Preparation of the stock solution. Stock solution (1 mg mL⁻¹) of AA and ascorbic acid was prepared individually by weighing 100 mg of each drug and placing it in 100 mL of LC–MS water grade inside a volumetric flask. Then, it was subjected to vortexing until it completely dissolved. Serial dilutions of the stock solution took place to give a concentration for AA 0.003, 0.01, 0.05, 0.08, 0.12, and 0.2 mg mL⁻¹ and for ascorbic acid 0.003, 0.009, 0.05, 0.09, 0.14, and 0.2 mg mL⁻¹.
Sample pretreatment preparation. To extract analytes from the drug release, skin deposition, and content uniformity samples for LC–MS analysis, a volume of 250 μL from the sample was added to a volume of 250 μL ethanol and 1500 μL chloroform, then vortexed for 30 s until a well-mixed solution was achieved. The sample was subjected to a two-step extraction process by centrifuging at 4000 rpm for 5 min; the supernatant was collected, and an additional 1500 μL of chloroform was added to the extract before subjecting it to another round of centrifugation at 4000 rpm for 5 min. The resultant supernatant was subjected to evaporation under a stream of nitrogen flow. The residue acquired through this process was mixed with a volume of 1500 μL of methanol and 10 μL of the IS before vortexing for 30 s. The sample was collected through a 1 μm nylon syringe filter, after which it was transferred into the 2 mL vials. Finally, a 5 μL aliquot from the resulting combination was injected into the LC system as described in ref. 35 with some changes.

Method validation.
Limit of detection and limit of quantification. The limit of detection (LOD) and limit of quantification (LOQ) were established as the minimum concentrations that produced signal-to-noise ratios of ≥3 and ≥10, respectively, while implementing the analytical procedure.³⁶ The LOD and LOQ were obtained experimentally.
Accuracy and precision and recovery. Accuracy and precision are crucial in analytical techniques, determining the degree of agreement among measurements.³⁶ Accuracy is determined by analyzing three quality control samples at different levels, with acceptance criteria for each level being ±15% of nominal concentrations. Precision is quantified by calculating the coefficient of variation (CV), with a value of lower or equal to 15% being considered acceptable. To evaluate the efficiency of the extraction technique, the extraction recovery (Rec%) was assessed for AA and ascorbic acid by comparing peak areas of the QC samples before adding to a blank and after spiking at the same concentrations.

The following equation was used for calculating the accuracy values:

Accuracy = Conc_calc/Conc_theo × 100 (2)

The following equation was used for calculating the precision values: SD is the standard deviation, and mean is the average of the three separate measurements.^35,36

% CV = SD/mean × 100 (3)

In vitro permeation studies and kinetics of drug permeation. The study investigated the diffusion of MNs using vertical Franz cells and the gel formulation loaded with the drugs AA and ascorbic acid. An entirely excised rat skin was used, which was cleaned and defrosted. The excised skin was precisely cut to fit the Franz cell donor chamber (11.28 mm, 8 mL receptor volume, surface area of 1 cm²), and MN arrays were applied to it using thumb pressure for 30 s. The receiver compartment was filled with 8 mL of PBS (pH 7.4), and the skin with the pressed MNs was attached to the top. The same MN formulation was placed in its gel form for in vitro permeation study as a control against the dried MN, where 144.9 mg of the gel has been added containing AA:ascorbic acid loaded in polymer solution in ratios of (2.5%: 2.5%: 95% w/w).³⁷ The donor compartment was positioned on the Franz cell and securely fastened. The Franz cell was stirred continuously at 600 rpm and maintained at 37 °C. A volume of 3 mL was withdrawn from the receptor chamber at 0.5, 1, 2, 3, 4, 6, and 24 h to assess the amount of AA and ascorbic acid released. An equivalent volume was immediately put back into the receptor compartment to maintain the sink condition.³⁸ AA and ascorbic acid were quantified using the validated LC–MS method. The flux (J_ss, μg cm⁻² h⁻¹) was estimated from the slope of the linear segment of the plot, showing the cumulative amount of AA or ascorbic acid permeated per unit area (Q/A) vs. the time plot A. Kinetic models are mathematical representations that describe the behavior and interactions of components or systems in motion.^34,39

Zero order: Q_t = Q₀ + K₀t (4)

First order: ln Q_t = ln Q₀ + K₁ (5)

Korsmeyer–Peppas: Q_t = K_tn (7)

Hixson–Crowell: Q₀^1/3 − Q_t^1/3 = K_st (8)

In vitro determination of drug accumulation in rat skin studies. This investigation was carried out after an in vitro permeation study to determine the accumulation of AA and ascorbic acid in rat skin. After 24 h, the excised rat skin with the attached MN was collected from the Franz cell. To extract the drugs from the skin, the sample was added to 20 mL of PBS (pH 7.4), vortexed for 1 min and sonicated for one h, and then filtered and collected for further analysis by using LC–MS as described with modification.⁴⁰
Drug loading determination and loading capacity. To quantify the AA and ascorbic acid drug content in the formulated MNs, the MNs were weighed, placed inside a beaker filled with 25 mL of PBS (pH 7.4), vortexed for 30 s, and sonicated for one h for complete dissolution and a clear solution was obtained.⁴¹ A volume of 3 mL of the solution was subjected to filtration and collected for further analysis using LC–MS; this procedure was repeated five times (n = 5). The calculation of the loading efficiency and loading capacity percentage was performed using the following equations:⁴²

% Loading efficiency = amount of drug (mg)/initial amount of drug (mg) × 100 (9)

% Loading capacity = amount of drug (mg)/amount of polymer (mg) × 100 (10)

Stability study of the MNs. To assess the stability of the drug content AA and ascorbic acid in the MNs, 10 MNs were stored inside a beaker separately, sealed with PF to minimize moisture and air exposure. The beaker was also wrapped with aluminum foil to protect it from light, reducing the photodegradation. The samples were placed inside a controlled environment at 2–8 °C and were stored for 30 days. After 30 days, the stability testing was conducted by dissolving 5 MN loaded with AA and ascorbic acid in 20 mL PBS (pH 7.4), and further analysis of the drug content took place using LC–MS. The mechanical strength of the MNs was also assessed. TA-texture analyzer was used in compression mode, where 5 MNs were subjected to a force of 32 N, and the height of the MN tips was measured before and after the compression test to assess the deformation and determine the structural integrity of the MNs.
Statistical methods. The study used GraphPad Prism software and Microsoft Excel for statistical analysis, employing t-tests, ANOVAs, and Tukey–Kramer tests to identify significant differences between groups. Data were presented as mean ± standard deviation (p < 0.05).

Results

Evaluation of drug-loaded MNs

The successful formulation containing AA and ascorbic acid showed robust and complete formation of the needle tips, as illustrated in Fig. 1. A digital microscope powered by the ImageJ software was employed to measure the dimensions and height of the MN tips. Micrographs in Fig. 1 showed excellent formation of the MN tips; the average height of the MNs was claimed to be 518.8 ± 10.2 μm. The weight of the dried MNs was measured (n = 5), and it was found that the average weight was 37.08 ± 1.49 mg.

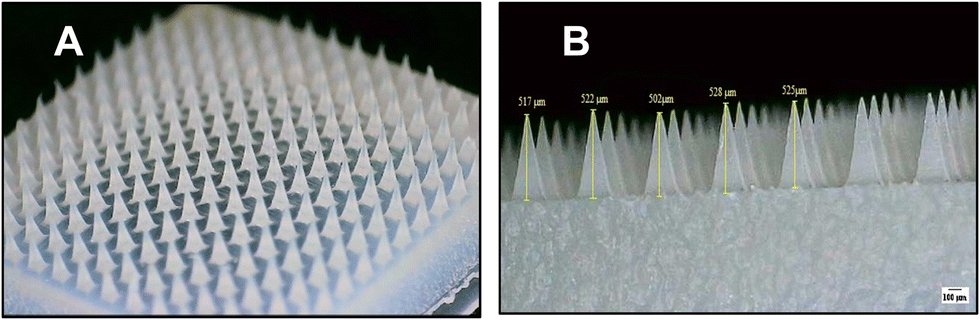

Fig. 1 (A) Digital microscope image of the fully formed MN tips and (B) digital microscope images of the prepared MNs, the height was measured using ImageJ where the height of the microtips was 518.8 ± 10.2 μm (US National Institutes of Health, Bethesda, Maryland, USA).

pH measurements

The pH of the blank polymers containing HPMC (8% w/v) and PVP-K90 (20% w/v), without including ascorbic acid and AA, was 8.53 ± 0.31. While the pH of the polymers with the addition of AA was 6.21 ± 0.19, the inclusion of ascorbic acid in the polymers showed a pH of 3.69 ± 0.34. However, the pH of the designated MNs, which includes the combination of AA and ascorbic acid to the polymers, was 4.78 ± 0.57. Fig. 2 summarizes the pH value of the blank polymer alone, with the addition of AA, ascorbic acid, and both drugs.

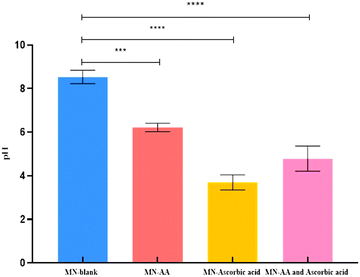

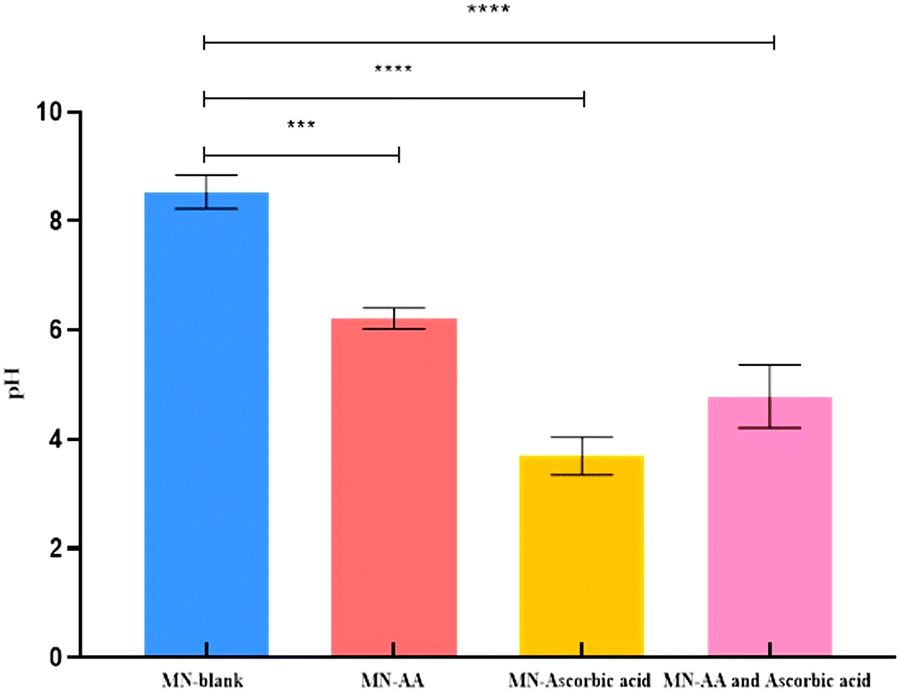

Fig. 2 pH value of MNs, which are composed of HPMC 8% (w/v) and PVP-K90 20% (w/v) blank, MN-loaded with AA, MN-loaded with ascorbic acid, and MN-loaded with AA and ascorbic acid. Data presented as mean ± SD (n = 3). ****p-value < 0.0001 significant differences between MN-blank and MN-ascorbic acid, MN-blank and MN-AA and ascorbic acid. ***p-value < 0.001 significant difference between MN-blank and MN-AA.

FTIR spectroscopy

The study examined the infrared transmission spectra of AA, ascorbic acid, HPMC, and PVP in powder and freeze-dried MN-loaded formulations to characterize intermolecular interactions.

Fig. 3A represents the FTIR spectra of pure AA showed distinct absorption peaks at 3406 cm⁻¹ and 3218 cm⁻¹, corresponding to the hydroxyl group. The aromatic nucleus C=C stretching vibrations were detected at 1607, 1513, 1455, and 1401 cm⁻¹. The wavenumber 2972 to 2898 cm⁻¹ corresponded to the CH functional group's aliphatic stretching vibrations. The presence of ether bonds in the AA was detected by bands from 1227 to 1033 cm⁻¹. The absorption peak at 1033 cm⁻¹ indicated a C–OH group stretching mode.

Fig. 3 FTIR spectra of the materials used in the MN formulation: (A) AA spectrum, (B) ascorbic acid, (C) HPMC, (D) PVP-K90, (E) MN loaded AA and ascorbic acid.

The FTIR spectrum of ascorbic acid in Fig. 3B shows four peaks, including four hydroxyl groups, at 3524, 3407, 3312, and 3212 cm⁻¹. CH band stretching is detected at 2988 and 2902 cm⁻¹, while the lactone C=O bond vibrational stretching at 1752 cm⁻¹, C=C bond vibrational stretching at 1658 cm⁻¹, and COC stretching at 1111 cm⁻¹ aligns with previous studies.

The FTIR analysis of HPMC revealed a characteristic peak at 3445 cm⁻¹, indicating O–H stretching, as shown in Fig. 3C. A distinct peak at 2982 cm⁻¹ corresponds to the vibration of the C–H group. A band at 1377 cm⁻¹ is due to the bending vibration of the hydroxyl group (OH). The broad spectrum at 1056 cm⁻¹ corresponds to vibrations from C–O stretches. These measured peaks were comparable to those of previous research.

The FTIR analysis of PVP-K90 reveals hydrophilic properties, with a sharp band at 3676 cm⁻¹ corresponding to O–H bond stretching vibration, as shown in Fig. 3D. Other peaks include 1659 cm⁻¹ for C=O stretching, 1409 cm⁻¹ for C–H bending of CH₂, and 1251 cm⁻¹ for C–N stretching. Significant peaks at 2988 cm⁻¹ were observed for C–H bond stretching, consistent with previous research.^43–45

Fig. 3E shows the IR spectrum of the formulated MNs, showing a shift in the C=O of PVP and the vibrational stretching of ascorbic acid to an intense peak at 1650 cm⁻¹. AA's aromatic nucleus C=C stretching was shifted to 1495, 1440, 1425, and 1422 cm⁻¹. Combination bands associated with the C–O stretching bond in HPMC were detected at 1057 cm⁻¹. Broadband around 3394 cm⁻¹ indicated hydrogen bonding between the polymers PVP and HPMC and the AA and ascorbic acid drugs. The presence of absorption bands suggests successful material integration.

Mechanical properties of MNs

Compression test. The mechanical properties of MNs were evaluated to assess their strength against skin puncture. The TA-XT plus Texture Analyzer was used to measure the needle's height. The MNs showed good physical attributes, with no indication of breakage at the baseplate (Fig. 4). The mean percentage height reduction for the blank MNs was 8.04 ± 0.13%, while the drug-loaded MNs showed a decrease of 8.481 ± 1.14%.

Fig. 4 Compression effect: presentation of images photographed by digital microscope before and after compression test at 32 N. (A) blank MN before compression, (B) blank MN after compression, (C) MN-loaded AA and ascorbic acid before compression, and (D) MN-loaded AA and ascorbic acid after compression.

Insertion properties into Parafilm M®. Five sheets of PF evaluated the insertion depth of the MN arrays, as it is often used in transdermal delivery system studies to mimic a full-thickness skin model. Two-time intervals (30 s and one minute) were compared using thumb pressure, assessing the number of PF sheets penetrated and holes created. In the 30 s time interval, it has been reported that all MNs punctured two PF layers, and approximately 48 needles reached the third PF layer, whereas, in the one-minute time interval, all MNs punctured three PF layers and pressed the fourth PF layer. Since the average thickness of PF was stated to be 130 μm, this suggested that the 30 s-time intervals could insert up to 260 μm of the MN stated average height, which was 510 ± 0.0307 μm, while for the one-minute time interval, 390 μm of the MN average height of which was 508 ± 0.0136 μm was inserted as shown in Fig. 5. This indicates that manufactured MNs possess the capability for effective penetration.

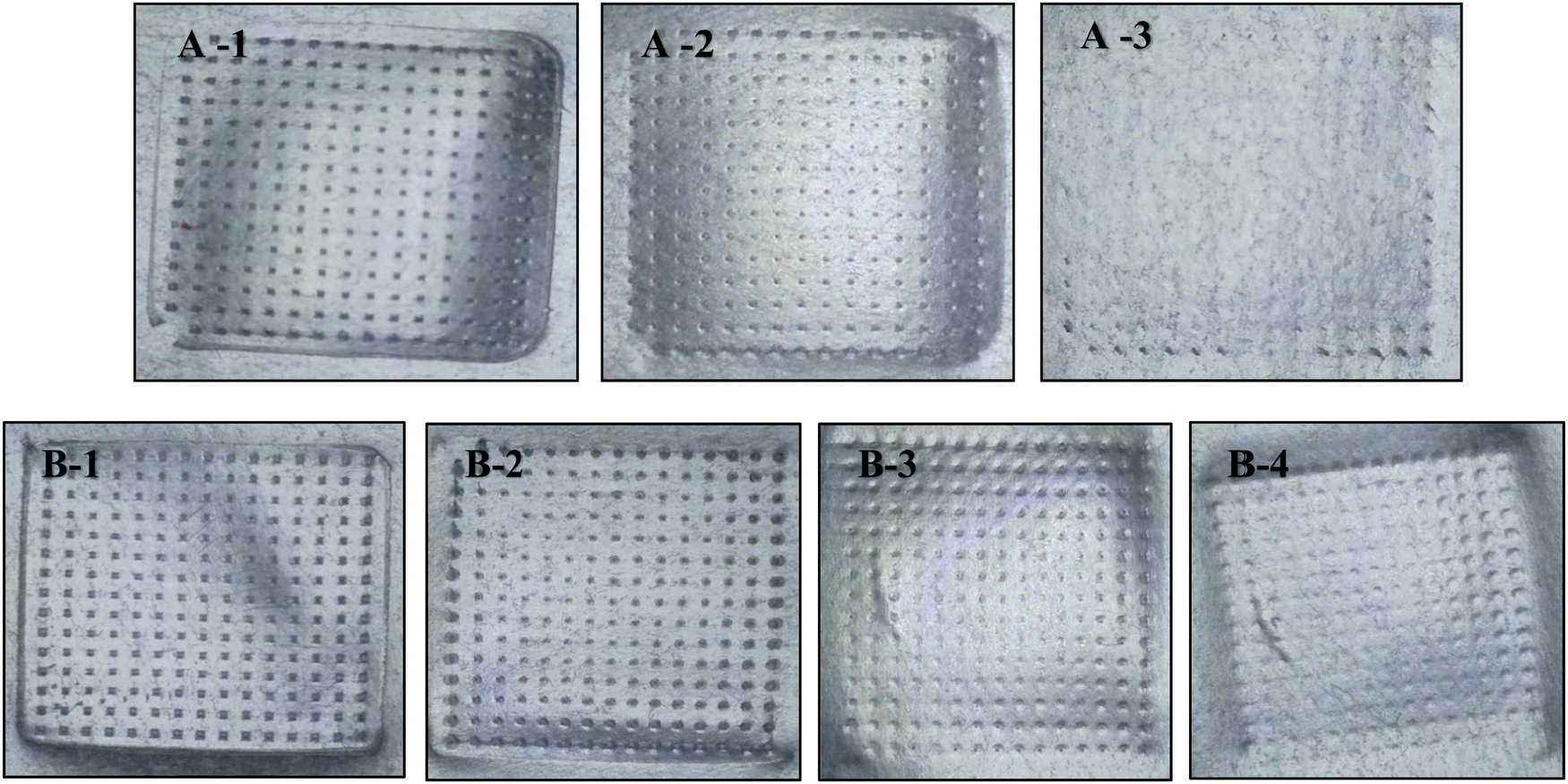

Fig. 5 Insertion depth on PF of the two-time intervals (A) 30 s-time intervals with the corresponding number of layers, (B) 1 min and the associated number of layers.

Skin penetration assessment into total thickness rat skin. The study assessed MNs penetration into full-thickness rat skin using visualized MB-MNs. The maximum length of MNs punctured was 217 ± 0.0246 μm, comparable to the 30 s PF two-layer insertion test. MN arrays loaded with AA and ascorbic acid generated micro-holes, demonstrating subcutaneous (SC) penetration, indicating drug targeting, Fig. 6B and C.

Fig. 6 (A) Image of the MB-MN arrays punctured into full-thickness rat skin, (B) image of the rat skin punctured by MN-loaded AA and ascorbic acid before immersing with the MB dye, (C) image of the rat skin punctured after immersing with two drops of MB dye.

Dissolution evaluation of drug loaded-MNs. The study investigated the dissolution of MNs on excised rat skin using digital microscopy images. The initial dissolution rate decreased over time (0, 0.5, 1, 2, 4, and 5 min), and the MNs' tips appeared curved and smooth. The complete dissolution was reported at 5 minutes, with gradual degradation of the MN tips from the 30 s interval, as shown in Fig. 7.

Fig. 7 Dissolution profile of the MN tips: 0, 0.5, 1, 2, 4 and 5 min.

LC–MS

Method development, optimizing chromatographic conditions. Optimization involved evaluating factors like separation column stationary phase, mobile phase composition, flow rate, injection time, injection volume, separation temperature, and detector settings. The MS spectrum was obtained using positive electrospray ionization mode and a gradient elution system. The separation time was 35 minutes, with m/z ratios for vitamin B6, ascorbic acid, and AA retention time was 2.1, 3.5, and 5.5 min, respectively, Fig. 8.

Fig. 8 LC–MS chromatogram of AA and ascorbic acid loaded MNs with IS (vitamin B6) at optimized chromatographic conditions. Column: Atlantis Premier BEH C18 AX Column (2.1 mm × 100 mm, particle size 1.7 μm); mobile phase (A) 20 mM ammonium formate in water, mobile phase (B) 20 mM ammonium formate in methanol with gradient elution. The flow rate is 0.40 mL min⁻¹.

Calibration curve and linearity. A range of six concentrations of AA and ascorbic acid were prepared to determine the linearity of calibration curves. The peak area (Y) was evaluated as the response. The calibration curve was made by plotting the peak area ratio (Y) versus the analyte concentration (X). The regression equation of AA was found to be y = 2 × 10⁷x and correlation coefficient R² = 0.9981, whereas for ascorbic acid, the regression equation was y = 7 × 10⁶x and the R² = 0.9987. The calibration curves exhibited good linearity in the 0.003–0.2 mg mL⁻¹ range for AA and ascorbic acid, as indicated by correlation coefficients R² over 0.99 (ref. 46) in both drugs. Fig. 8 represents the analyte AAs and ascorbic acid chromatogram with IS.

Limit of detection and limit of quantification. The limit of detection (LOD) of analytes AA and ascorbic acid was estimated to be 0.001 mg mL⁻¹, while the limit of quantification (LOQ) was 0.002 mg mL⁻¹, demonstrating the sensitivity of the validated procedure under specific experimental conditions.

Accuracy, precision, and recovery. To determine the accuracy and precision, three QC level concentrations were utilized for this study, which were L(QC) 0.004, M(QC) 0.08, and H(QC) 0.15 mg mL⁻¹; five replicants were used (n = 5) and were analyzed on the same day.⁴⁷ Based on the obtained accuracy and precision data, accuracy results were within ±15% of their nominal values, and the precision was less than or equal to 15%CV.⁴⁸ It was concluded that the proposed method was acceptable since the displayed accuracy and precision were within the limits of a single analytical run according to FDA guidelines. The results are listed in Table 2. The extraction recovery percentage of AA and ascorbic acid was reported to be 88% and 92%, respectively, as seen in Table 2.

Table 2 Intraday accuracy and precision results of AA and ascorbic acid

Parameters	AA			Ascorbic acid
	L (QC) 0.004 mg mL^−1	M (QC) 0.08 mg mL^−1	H (QC) 0.15 mg mL^−1	L (QC) 0.004 mg mL^−1	M (QC) 0.08 mg mL^−1	H (QC) 0.15 mg mL^−1
Mean	0.0040	0.0799	0.1499	0.0040	0.0802	0.150
SD	1.52 × 10^−6	4.42 × 10^−7	4.62 × 10^−7	9.59 × 10^−7	9.86 × 10^−7	1.07 × 10^−6
Accuracy	100.01 ± 0.0375	100 ± 0.0006	100 ± 0.0003	99.77 ± 0.0240	100.28 ± 0.0012	100 ± 0.0007
CV	0.0375	0.0006	0.0003	2.40 × 10^−2	1.23 × 10^−3	7.14 × 10^−4

---

In vitro permeation studies. This experiment evaluated the release of AA and ascorbic acid from the designated MN formulation administered into the rat skin in the donor compartment to the receptor compartment, representing human biological systemic circulation. This study determined the release at different time intervals over 24 hours. The samples are collected, treated, and subjected to analysis using the approved analytical technique, liquid chromatography–tandem mass spectrometry (LC–MS). The permeation profile is shown in Fig. 9. The ex vivo permeation percentage for AA and ascorbic acid in the formulated MNs was reported to be 102.94 ± 7.04% and 86.59 ± 5.51%, respectively. The cumulative amount over 24 h was reported to be 3.28 ± 0.13 mg for AA and 2.95 ± 0.11 mg for ascorbic acid, while in the gel-loaded AA and ascorbic acid, the ex vivo permeation percentage for AA and ascorbic acid was revealed to be 82.07 ± 4.73% and 72.44 ± 8.12%, respectively. The cumulative amount over 24 h for the gel-loaded AA and ascorbic acid was 2.45 ± 0.25 mg and 2.62 ± 0.03 mg, respectively, as shown in Fig. 9. The formulated MNs showed an initial burst release; based on eqn (5), the release of AA and ascorbic acid from the MNs followed the first-order kinetic model during the initial 6-hour period, after which it reached a state of stability for up to 24 h. Hence, the release profile corresponds to the observed dissolution of rat skin in Fig. 7, which commenced after 5 min and confirms the efficacy of the MNs in puncturing the SC to assist in the transdermal delivery of AA and ascorbic acid by the microchannel into the epidermis. The estimated flux values of AA and ascorbic acid are 120.48 μg cm⁻² h⁻¹ and 96.32 μg cm⁻² h⁻¹, respectively.

Fig. 9 The permeation profile of (A) AA and (B) ascorbic acid from the MNs and gel formulation means ± SD (n = 5).

In vitro determination of drug accumulation in rat skin studies. Following the permeation experiment, the drug accumulation of MN arrays in the skin was assessed. It was observed that after 24 h, the excised rat skin showed a deposition of 0.035 ± 0.033 mg cm⁻² AA (corresponding to 1.09% of the total amount, which is 3.21 mg). On the other hand, the excised skin contained 0.091 ± 0.016 mg cm⁻² of ascorbic acid (corresponding to 2.63% of the calculated drug in the MN present at 3.41 mg). The accumulation of AA and ascorbic acid in the skin was low. Alternatively, the drug accumulation in the gel-loaded AA and ascorbic acid was 0.756 ± 0.586 mg cm⁻² and 1.105 ± 0.831 mg cm⁻² respectively. Therefore, the results show that utilizing MN arrays significantly increased the transdermal delivery of AA and ascorbic acid, resulting in improved intradermal penetration, Fig. 10.

Fig. 10 Mechanical compression stability testing on MNs loaded AA and ascorbic acid after 30 days: presentation of images photographed by digital microscope before and after compression test at 32 N. (A) Before the compression, (B) after the compression.

Drug loading and loading capacity determination. The amount of the drugs incorporated into the MN array determines the quantity administered to the skin. The drug content of the formulated MNs for AA and ascorbic acid was analyzed using the validated LC–MS method. The AA and ascorbic acid drug content in one MN array was found to be 3.22 ± 0.07 mg and 3.41 ± 0.28 mg, respectively. While the loading efficiency for AA was estimated to be 89.01 ± 2.03%, and the loading efficiency of ascorbic acid was claimed to be 94.09 ± 7.67% based on eqn (9) (n = 5), and for loading capacity for AA and ascorbic acid is revealed to be 9.63% and 9.61% respectively based on eqn (10) (n = 5).

Stability study of the MNs. The chemical stability of AA and ascorbic acid incorporated in the MNs has been evaluated using the LC–MS. After 30 days of storage in the controlled environment, the residual amounts of AA and ascorbic acid in the MNs were estimated to be 88.13 ± 2.03% and 92.41 ± 3.06%, respectively, compared to their initial loading concentration. The results indicated that both drugs maintained stability in the polymer matrix during storage, limiting environmental exposure. The mechanical strength was also evaluated under the force of 32 N. The mean percentage height reduction for the MNs after 30 days was 9.91 ± 1.53%, as is shown in Fig. 10. These findings assure the effectiveness of the formulation and storage in preserving the chemical integrity and mechanical strength of the AA and ascorbic acid, which is vital for maintaining their therapeutic efficacy during storage.

Discussion

The employment of MNs in drug delivery attracts attention from healthcare providers, especially pharmacists, and the scientific community in multidisciplinary research. The proof of concept of the efficacy of that delivery system will be based on, firstly, evidence of the formation of the microtips, secondly, examination of the successful compatibility of the formulation, and finally, characterization of the unique properties of the formed microtips and their efficacy.

In this regard, the formulated MNs were composed of AA, ascorbic acid, PVP-K90, and HPMC and were successful with fully formulated microtips (Fig. 1). The designated MNs were based on trial and error in selecting proper ratios to avoid using a centrifuge and on ascorbic acid's ability to form the needed hydrogen bonding and strong MNs. FTIR studies revealed hydrogen bonding between the components of MNs, indicating the interaction between the OH functional groups. The FTIR spectrum of the formulated MNs closely matches the combined spectra of individual components, confirming the strength and compatibility of the MNs. The proton acceptor PVP and proton donor HPMC withstand forces due to hydrogen bonding formation, indicating an interaction between the materials.⁴⁹ The polymer's ability to create hydrogen bonding interactions with drugs promotes molecular stability, potentially reducing recrystallization tendency.⁵⁰ The functional group interaction indicates that the microtips in the MNs are strong and capable of resisting applied force, resulting in a compression mode, reflecting the rigidity and toughness of the MNs.

To prove the strength of MNs, a skin insertion experiment was conducted to examine rat skin. Employing PVP-K90 (MW of 360 kDa) exhibits appropriate compression strength, consistent with previous research.⁵¹ Adding the HPMC polymer enhances the strength of the MN formulation due to its rheology attributes, as previously reported.⁵² The combination of PVP-K90 and HPMC enhances the ability of microtips to resist the applied compression force. In addition, the investigated drugs to the polymeric matrix of MNs did not affect their mechanical properties (Fig. 4). The geometric features of the MNs, such as the rectangular pyramid shape, play a significant role in dictating their mechanical qualities. A study by Li et al. found that the rectangular pyramid shape provided greater mechanical strength than the cone cylinder design.⁵³

The skin is the targeted organ to deliver drugs and has to be penetrated as the principal concept of MNs as transdermal drug delivery. The proper simulated skin model is essential for developing insertion tests. Artificial membranes like PF can assess the depth of MNs.^5,54 Five PF sheets were used with two-time intervals (30 s and 1 min), puncturing approximately 260 μm and 390 μm, respectively.⁵⁵ Longer application times resulted in increased puncture depth, as shown in Fig. 5. This helps in understanding the challenges and properties of drug penetration in the skin.

Furthermore, it highlights the need to establish dispensing guidelines for patient education by different healthcare providers: pharmacists, physicians, and nurses. Cleaning the area where the MN patch is applied and pressing the time upon application is necessary. Based on our findings, we recommend 1 min based on our polymer type and our model. However, we highlight the need to establish proper experiments based on different combinations of ingredients and to consider the limited strength of specific populations, such as geriatric and rheumatoid patients whose trigger force is estimated to be lower than the average human force, estimated at 32 N.⁵⁶

The medical application of MNs requires their ability to be inserted into the skin without deformation. Understanding the mechanical properties and composition of the skin is crucial for improving MN insertion. The effectiveness of MNs in penetrating the skin depends on factors such as the viscoelastic nature of the skin, the physicochemical characteristics of the drugs, and the dimension of the MNs.^57,58 Full-thickness rat skin was used for this study. The maximum length of MNs punctured into rat skin was comparable to the 30 s PF two-layer insertion test, estimated at 260 μm. The needles penetrate the skin, reaching the basal layer of the epidermis, which is full of melanocytes.⁵ This allows the drugs to target the desired areas for skin depigmentation directly.⁵⁹ MNs are inserted into the dermis, where they are assumed to be in direct contact with the interstitial fluid and initiate a binding mechanism with water molecules; this results in the hydration of hydrophilic terminal groups on the polymers, causing swelling and exposing the hydrophobic backbone; this interaction with water is through van der Waals forces, resulting in more swelling.^60,61 The chosen polymers influence the dissolving rates of MNs. PVP-K90 and HPMC, due to their hydrophilicity, took 5 min to completely dissolve MN tips on full-thickness rat skin, a fast process as shown in Fig. 7.

The chromatographic technique was developed to achieve satisfactory compound separation and desirable peak shape while minimizing the fronting and tailing of peaks, which can disrupt the accurate and precise quantification of analytes.⁶² The reverse-phase C18 column was chosen for its compatibility and versatility for various analytes. The ionization mode for LC–MS detection was ESI, which is suitable for investigating polar and moderately polar substances due to its soft ionization nature.⁶³ The IS minimizes the impact of interfering matrix elements, such as other substances that are not the analyte of interest, decreases sample processing errors, and limits detection variability. Vitamin B6 was selected based on the structure of compounds AA and ascorbic acid. Linearity is crucial in determining the linear range of the technique.^6,64

The correlation coefficients R² for both drugs were over 0.99, which is acceptable since R² should be above 0.95.^65,66 To reduce matrix effects, specialized sample pretreatment is necessary. The liquid–liquid extraction (LLE) method, which involves separating components from a mixture using two immiscible liquids, was used for sample pretreatment with chloroform and methanol as organic solvents.⁶⁷ The method was accurate and precise for AA and ascorbic acid, with extraction recovery estimated at 88% and 92%, respectively. A study by Wang et al. employed an HPLC-UV method for separating nine skin whitening agents in one injection, using a reversed-phase C18 column and a mobile phase consisting of water and methanol, both containing 0.1% acetic acid.⁶⁸

The effectiveness of MNs in penetrating the skin depends on several factors, including the dense nature of the skin, which makes passive diffusion difficult unless a large amount of drug is supplied. The physicochemical characteristics of AA and ascorbic acid also affect drug departure and penetration. The type and dimension of MNs also affect drug penetration effectiveness. The continuous dissolution of polymers should ease drug transfer. The MN insertion into the skin can cause defects in skin integrity, leading to increased permeation due to hydration, swelling, and fluidization.⁶⁹ The full-thickness rat skin is often used as the primary model for in vitro percutaneous permeation studies due to its accessibility, cost-effectiveness, and similar structural features to human skin.⁷⁰

The study evaluated the release of AA and ascorbic acid from a designated MN formulation using Franz cells, representing human biological systemic circulation. The release was determined over 24 h, with the receptor chamber maintained at a sink condition to maintain drug concentration within 10–30% of the maximum solubility.

The initial burst release was attributed to the rapid dissolution of the drug from the dissolving polymers PVP-K90 and HPMC. This phenomenon is observed in most drug delivery systems and is influenced by a variety of factors,⁷¹ including the high solubility, and the physicochemical properties of AA and ascorbic acid also contribute to the drug's release from MNs and the initial burst, the partition coefficient where the skin's lipophilic membrane SC enhances drug permeation through the skin, with increased lipophilicity potentially enhancing drug permeation, the polymer and drug interaction as observed from the FTIR analysis revealing a broad hydrogen-bonding band around 3394 cm⁻¹, which is indicative of interactions between the hydroxyl groups of the polymers PVP and HPMC, and the functional groups of the AA and ascorbic acid. Furthermore, the polymer : solvent ratio and the drying and storage stages contribute to burst release through drug migration within the polymer matrix. These properties influence the driving forces behind drug release, impacting the rate and the extent of the initial burst AA permeated more than ascorbic acid, with a higher flux through the skin membranes. Franz cell studies often consider that drug diffusion occurs at a steady state under “the ideal sink” conditions.⁷² The permeation profile is shown in Fig. 9.

Aung et al. compared AA permeation in MNs loaded with PVP-K90 and HPMC, with AA permeating 1.260 mg within 12 h. The current study estimated AA delivery of 3.21 mg within six h, with a flux value of 120.48 μg cm⁻² h⁻¹. The increased viscosity of the MNs in the Aung et al.³⁴ investigation could explain the entrapped AA, indicating a lower AA content. The enhanced delivery of AA and ascorbic acid through the skin led to the low accumulation of AA and ascorbic acid in the skin. The hydrophilic characteristics of PVP-K90 and the moisture retention properties of HPMC resulted in the observed behavior. The results highlight the importance of using MN arrays for effective transdermal delivery of AA and ascorbic acid to ensure more effective penetration into the skin. The pH of the formulated MNs, which incorporate AA and ascorbic acid, aligns with the skin's natural pH range, ensuring their suitability for skin preparations. Wang et al. conducted a study on AA and ascorbic acid, focusing on their synergistic effects in pigmented brown guinea pigs while utilizing HPLC-UV to assess drug loading. Our study extends this work by incorporating thorough ex vivo permeation studies to investigate the behavior of the drugs during skin penetration. We employed the developed method of LC-MS, which allowed for a detailed assessment of the cumulative drug permeation over 24 hours.

Although the study successfully described the successful preparation and characterization of dissolving MN arrays, it had some limitations. First, polymer selection challenges: selecting appropriate polymers is critical and demanding. The polymers must be strong enough to form a three-dimensional structure that can penetrate the skin without causing severe pain. Second, ex vivo permeation studies demonstrated rapid and effective transport of AA and ascorbic acid, but these findings may only partially apply to in vivo conditions. Biological variability in live skin may have an impact on MN performance.

Conclusions

Herein, the development of commonly used whitening agents, AA, and ascorbic acid, was carried out in MN arrays, where this study successfully produced a formulation at a safe pH level for the skin. The drug-loaded AA and ascorbic acid MNs demonstrated sufficient mechanical properties at the force of 32 N, exhibiting an 8.481 ± 1.14% reduction of the tips, and could penetrate the third layer of the skin within one minute. The FTIR results provided strong evidence of the success of the formulation where broadband is observed around 3394 cm⁻¹, which signifies the presence of hydrogen bonding between the polymers PVP and HPMC, and the drugs AA and ascorbic acid. The assessment of MB-MNs loading was conducted through visual inspection to confirm that the MN met the design specifications required for effective skin penetration. A complete dissolution of the MNs on the rat skin was documented at 5 min, indicating rapid dissolving of the MN arrays. The LC–MS method used for assessment was precise and accurate, and the evaluation was precise, offering a more reliable approach than traditional methods. Ex vivo permeation studies confirmed the fast and effective transport of AA and ascorbic acid within 24 h, where the cumulative amount was estimated to be 3.28 ± 0.13 mg for AA and 2.95 ± 0.11 mg for ascorbic acid. Overall, the study confirmed the successful development of a properly designed MN formulation for skin whitening.
