Electrophoretically deposited artificial cathode electrolyte interphase for improved performance of NMC622 at high voltage operation†
Received
16th September 2024
, Accepted 21st November 2024
First published on 21st November 2024
Abstract
High-voltage Ni-rich active materials are widely used in cathodes of high-energy-density lithium-ion batteries (LIBs). However, the high charge cutoff voltages lead to significant degradation and capacity fading, caused by electrolyte decomposition, transition metal dissolution, structural distortion, and more. Herein, we present an artificial cathode electrolyte interphase (ART-CEI) as a protective coating on the surface of the LiNi0.6Mn0.2Co0.2O2 (NMC622) cathode. A composite film, prepared from argyrodite Li6PS5Cl (LPSC) ion conducting nanoparticles and a polymerized ionic liquid (PIL) as a binder, was electrophoretically deposited on the surface of the cathode. We found that capacity retention at high-voltage operation (4.3 and 4.5 V) is improved due to the coating. Besides the stability improvement, the electrochemical performance of the coated cathode shows an enhancement in rate performance and lower resistances of the anode solid electrolyte interphase (SEI), the cathode electrolyte interphase (CEI), and charge transfer processes during cycling.
Introduction
Over the recent decades, there has been growing interest in researching high-energy-density battery technologies, particularly for electric vehicles (EVs).1–4 High-voltage materials, such as Ni-rich lithium nickel manganese cobalt oxide (NMC) layered cathodes (Li[NixMnyCo1−x–y]O2, 0.6 ≤ x), are considered some of the most effective lithium-ion cathodes.5–8 These cathodes combine the high capacity of nickel oxide, the fast kinetics of cobalt oxide, and the structural stability of manganese oxide, offering high practical capacities (150–210 mA h g−1), a high operating voltage range (∼3.0–4.5 V), a relatively long lifespan, and low cost and toxicity compared to conventional Co-based cathodes.9–12 Hence, NMC cathodes are widely used in commercial applications.13–16 However, like other layered structure cathodes, Ni-rich cathodes are prone to degradation over time.17,18 The degradation mechanisms have been extensively studied and include electrolyte decomposition,19,20 structural changes and irreversible phase transitions in the cathode,21,22 dissolution of transition metal (TM) cations,23,24 Li/Ni cation-mixing,25,26 oxygen release,27 residual inactive lithium compounds (RLCs) on the surface,28,29 unstable cathode–electrolyte interphase (CEI),30–32 and growth of micro-cracks.33,34 Therefore, operating a battery at high voltages causes side reactions and structural collapse leading to severe capacity fading and safety risk.22,35 Similar to the anode solid electrolyte interphase (SEI), modeled by Peled et al.,36 the CEI forms spontaneously upon contact with the electrolyte, and its composition and structure can change during the charge/discharge process.
Various strategies have been proposed to mitigate these degradation mechanisms, with many focusing on controlling cathode–electrolyte interface chemistry. Approaches such as morphology tailoring, elemental doping, coating, core–shell and gradient-concentration structures, and electrolyte modification with additives have been explored.37–39 Among these, surface modification has proven to be a simple and effective strategy. Coating, in particular, is considered an important method for stabilizing cathodes during long-term cycling and enhancing performance.40 Various coating materials, including metal oxides,41–43 fluorides,44–46 phosphates,47–49 ionic conductors,50–52 polymers,53,54 and different electrode materials,55,56 have been shown to improve cathode performance. The effectiveness of the protective layer depends on the suitability of the coating material for the cathode, its chemical stability within the operating voltage range, its integrity and uniformity, and its thickness to allow for proper Li+ diffusion and electron transfer.57–60
While research has mainly focused on coating cathode active material (CAM) particles, applying a coating layer on top of the cathode surface has also been explored.61–63 Among methods for creating thin layer coating, gas-phase deposition techniques such as atomic layer deposition (ALD) and chemical vapor deposition (CVD) are commonly used due to their precise angstrom-level control, which enables the construction of conformal, pin-hole free layers without using solvents. However, these methods are expensive, involve complex equipment, high temperatures, and precursors that require special handling, and are characterized by low yield and long operation times. Moreover, these techniques may not be compatible with all ceramics due to specific process requirements.64,65 Conversely, liquid-phase thin-film coating techniques, including spray-, dip-, spin-, and drop-coating, offer a cost-effective and versatile alternative, though achieving consistent thickness control (from nanometers to micrometers) and uniformity, especially for ceramic coatings, remains challenging.66,67
In this study, we present the development of a high-performance composite artificial CEI using the electrophoretic deposition (EPD) method.68 In EPD, suspended charged particles, along with their lyosphere (counterions surrounding the particle), migrate under an applied electric field towards an oppositely charged electrode (electrophoresis). This is followed by the thinning of the lyosphere in the vicinity of the electrode and film formation.69–71 Our research is the first to use EPD for creating an artificial CEI (ART-CEI). EPD is a fast and simple approach that produces thin and uniform layers with good adhesion to the electrode surface. The thickness and composition of the resulting coatings at the micron scale can be controlled by straightforward adjustments to process parameters.71–74
Inasmuch as suspended particles have a small surface charge, additional charging agents, like polyelectrolytes, are used to facilitate migration and produce thin ceramic films in EPD. These polyelectrolytes adsorb onto the particle surface, integrate into the films, and act as binders.72,73 Herein we introduce the use of a polymerized ionic liquid (PIL), PDMS-g-MPA.Li+13/PEGMEMA27,75,76 as a charging agent for ceramic particle deposition on a commercial LiNi0.6Mn0.2Co0.2O2 cathode (NMC622), as shown in the schematic illustration of the process in Fig. 1. PILs are essentially single-ion conductors in which the counterion is attached to the polymer chain, known for their stability at high operating voltages in electrochemical devices.77 In the EPD coating of the NMC, the PIL was used as a binder for Li6PS5Cl (LPSC) nanoparticles, ion-conductive ceramics from the argyrodite family. LPSC is a low-cost material prepared by a simple synthesis with high ionic conductivity (σ ≈ 2.0 × 10−3 S cm−1 at room temperature).78,79 It was found that despite the relatively low electrochemical stability of LPSC, its reversible redox processes may contribute to capacity retention,80–82 as reported in all-solid-state batteries with LiNi0.85Mn0.05Co0.1 cathodes, where a sulfide-based ART-CEI was formed via a dry-coating approach.83 The thin composite coating deposited on the high-voltage cathode is expected to create an artificial interphase between the NMC cathode and the electrolyte, suppressing side reactions of the electrolyte, stabilizing the CEI layer, enhancing Li-ion diffusion, and ultimately improving cathode performance.40,60
 |

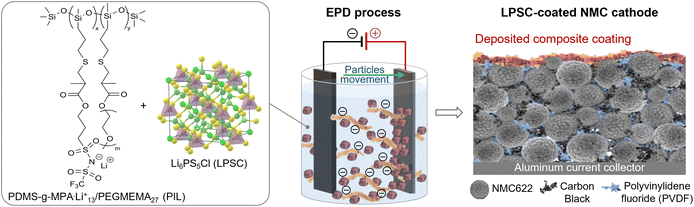

| Fig. 1 Schematic illustration of the EPD process and the resulting LPSC-coated NMC622 cathode. | |
Experimental
Coating technique by EPD
The Li6PS5Cl (LPSC)-based coating, synthesized by Zitoun's research group, was deposited on a LiNi0.6Mn0.2Co0.2O2 (NMC622, NEI Corporation, CAM loading: 11.4 ± 0.06 mg cm−2, 2.0 ± 0.1 mA h cm−2) cathode sheet by an anodic EPD process. The polymerized ionic liquid (PIL), a grafted copolymer of poly(dimethylsiloxane)–poly(lithium-1-[3-(methacryloyloxy)propylsulfonyl]-1-(trifluoromethanesulfonyl)imide/poly(ethylene glycol methyl ether methacrylate) (PDMS-g-MPA.Li+13/PEGMEMA27),71,72 was utilized as a charging agent in the deposition process and a binder in the resulting deposited coating. The PIL was synthesized by Sokolov's research group.71,72 The EPD bath was based on extra-dry acetonitrile solvent (AcroSeal™, Thermo Scientific Chemicals), and the entire protocol was conducted in a glovebox under an argon environment. The suspension contained LPSC and PIL in a ratio of 67
:
33 (W/W%), and 0.6% (W/V) TritonX-100 (Sigma Aldrich), with a total solid loading of 1.3 mg ml−1. Prior to the EPD process, the suspension was homogenized. A Keithley source meter (model 2400), interfaced with LabTracer software, was used to control the EPD process and monitor the current and voltage profiles. A constant voltage in the range of 50–125 V was applied between the NMC622 cathode sheet and the glassy-carbon electrode inside the EPD suspension. After coating, the LPSC-coated NMC samples were cut into 12 mm diameter circular discs and dried overnight under vacuum at 100 °C. Finally, the cut cathodes were transferred and stored in an argon-filled glovebox with less than 10 ppm water and oxygen.
Characterization of the cathodes
The structural characterization of pristine and LPSC-coated cathodes was performed by X-ray diffraction (XRD, Bruker D8 Discover) analysis. XRD patterns were recorded using Cu Kα radiation over a 2θ range of 10° to 80° and a step size of approximately 0.02°. These measurements were conducted by transferring the samples under an argon atmosphere in a specialized vessel to avoid ambient air exposure. Surface morphology was analyzed using a high-resolution field emission scanning electron microscope (HRSEM, Zeiss GeminiSEM 300). Energy-dispersive X-ray spectroscopy (EDX) measurements were taken with a Bruker X-Flash 6/60 detector and processed via ESPRIT software. Cross-section HRSEM images of the coated cathode were obtained for thickness measurements using a focused ion beam (Ga) and a scanning electron beam (Helios 5 UC DualBeam, Thermo Scientific™) following carbon coating. Coating porosity percentages were estimated from HRSEM images using ImageJ software. Time-of-flight secondary ion mass spectrometry (TOF-SIMS) analysis was performed on the coated cathode, with sample transferred under an inert gas environment to the Physical Electronics device (TRIFT97). X-ray photoelectron spectroscopy (XPS) measurements were conducted on pristine LPSC ceramic powder, pristine PIL, and LPSC-coated cathode samples. Samples were mounted under argon and transferred to the analysis device without air exposure. XPS tests were performed using a Thermo Scientific™ ESCALAB™ QXi XPS Microprobe, with an Al Kα excitation source, spot diameters of 200 μm for the PIL sample and 650 μm for the others, and a resolution of 0.1 eV. The carbon 1s peak at 284.8 eV was used as an energy reference. Raman spectra were recorded at room temperature using a Raman spectrometer consisting of a 532 nm laser (BWN-532-20E, B&W Tek), an optical microscope (BXFM-F and BMXFM-ILHS, Olympus), and a CCD camera (U-DP, Olympus). The beam was focused to a diameter of 1 μm using a 100× objective (M Plan Apo). Raman spectra were collected with a grating of 1800 grooves per millimeter and an acquisition time of 60 seconds from five different locations on the NMC samples. Analysis of cycled electrodes was performed after they were washed in dimethyl carbonate (DMC) solvent to remove excess salt and dried in a vacuum.
Cell assembly and electrochemical characterization
The cells were assembled in CR2032 coin cell compartment in an argon-filled glovebox with a NMC622 cathode (ø 12 mm), a Li metal electrode (MSE Supplies, ø 15.6 mm), a Celgard® 2400 separator, and 60 μl of a commercial electrolyte containing 0.95 M lithium hexafluorophosphate (LiPF6) and 0.05 M lithium bis(oxalato)borate (LiBOB) in ethyl methyl carbonate (EMC)
:
dimethyl carbonate (DMC)
:
fluoroethylene carbonate (FEC)
:
propylene carbonate (PC) 3
:
3
:
3
:
1 (E-Lyte innovations). All electrochemical examinations were carried out at 30 °C. Electrochemical impedance spectroscopy (EIS) measurements were performed using a BioLogic VMP3 potentiostat over a frequency range of 1 MHz to 10 mHz with a 20 mV amplitude. The resistances (R [Ω]), capacitance (C [F]), and Warburg impedance (W [Ω s−0.5]) were estimated using the BioLogic Zfit tool. Additionally, distribution of relaxation time (DRT) calculations were conducted with Python-based DRTtools (pyDRTtools).84,85 Galvanostatic cycling was carried out from 2.8 V to 4.3 V and 4.5 V cutoff voltages versus Li+/Li using a BioLogic BSC-800 battery cycler. Before cycling at charge–discharge rates of 0.5–1.0C, the cells underwent activation through three cycles at rates of C/15–C/15 in a CCCV charge profile, holding the cells in a charged state for 3 hours. For C-rate tests, the charge–discharge rates were varied every ten cycles from 0.1–0.1 to 0.2–0.2, 0.5–0.5, 0.5–1.0, 0.5–2.0, and 0.5–5.0C. Subsequently, the cell was cycled again for ten cycles at 0.1–0.1C, followed by 30 cycles at 0.5–1.0C.
Results and discussion
Creating LPSC coatings on the NMC622 cathode via the EPD method
Since the PIL is an anionic polymer, it was used as a charging agent for suspended argyrodite particles, enabling an anodic EPD process to form the composite coating on the NMC622 cathode (Fig. 1). The influence of the coating on the electrochemical performance of the cathode depends, among other factors, on the uniformity of the layer and its low thickness. These aspects are essential to providing effective protection while allowing lithium ion diffusion/migration.40 Therefore, various EPD process parameters were tested to determine the relationship of the applied voltage and deposition time to the resulting deposited mass (Fig. 2). The results indicated a nearly linear increase in the mass of the deposit with applied voltage. The initial examination showed that the most uniform coatings were obtained at a voltage of 100 V. A linear five-fold mass growth of the LPSC-based composite was observed as the EPD time increased from 30 to 120 sec, followed by a plateau at durations exceeding 150 sec. All further electrochemical tests described below were conducted on NMC622 cathodes coated with an LPSC-based composite that also contained the PIL polymer, deposited at 100 V for 60 s.
 |
| Fig. 2 (a) Average deposit mass for 1 min at different applied voltages, and (b) the deposit mass EPD rate at 100 V of LPSC + PIL on NMC622 cathode. | |
Structural and surface characterization of the cathodes
The morphology of the cathodes was characterized using high-resolution scanning electron microscopy (HRSEM) (Fig. 3a). At low magnification, both pristine and LPSC-coated cathodes displayed similar morphology. High-magnification images revealed a thin coating layer conformally covering the spherical secondary CAM particles. Cross-sectional images indicated that the composite coating varied in thickness (Fig. 3b), ranging from 0.5 to 2.2 micrometers, with an average thickness of 1.78 ± 0.52 μm (N = 30). Additionally, the coating displayed ∼32% porosity while maintaining good adhesion to the cathode's complex surface.
 |
| Fig. 3 (a) HRSEM images of pristine and LPSC-coated NMC622 after deposition at 100 V for 1 min. (b) FIB-HRSEM cross-sectional image of the LPSC + PIL coating layer over the NMC particles. (c) HRSEM and EDS mapping images of LPSC film electrophoretically deposited on NMC622 at 100 V for 1 min. | |
Element mapping using energy-dispersive X-ray spectroscopy (EDS) confirmed a homogeneous element distribution within the composite (Fig. 3c), and further indicated that the coating contained about 0.99 wt% of PIL. Time-of-flight secondary ion mass spectrometry (TOF-SIMS) chemical imaging and depth profiling validated uniform coverage across the cathode surface, with a consistent LPSC
:
PIL ratio (represented by the S
:
Si atomic ratio) throughout the depth profiling (Fig. S1, ESI†).
X-ray photoelectron spectroscopy (XPS) measurements of the LPSC ceramic powder and the LPSC-coated NMC cathode indicate that the pristine LPSC powder was partially oxidized and underwent further oxidation upon deposition (Fig. 4a).80,86 The S 2p spectrum of the pristine powder showed a main S 2p3/2 doublet at a binding energy (BE) of 161.6 eV, attributed to the sulfur atom in PS43− argyrodite structure (red component). Another weak component at 167.0 eV is explained by traces of sulfite (SO32−), likely due to partial sulfur oxidation (brown component). This oxidation occurred despite thorough processing in an argon-filled glovebox. Two additional spectral features appear in the LPSC coating at BEs of 162.3 and 163.5 eV (blue and green components respectively), consistent with the presence of lithium polysulfide (Li2Sn) and phosphorus sulfide (P2Sx) species, which are oxidation products of argyrodite. These components belong to the lithium thiophosphate Li2S–P2S5 binary system (LPS), a sulfide glass-ceramic electrolyte, whose conductivity depends on the component ratio and synthesis process.87 Our experimental data aligns with the initial oxidation of argyrodite in cells, which forms a mixed thiophosphate, LPS-like phase that undergoes a reversible redox reaction.80,82 This is consistent with findings from the wet chemistry synthesis of LPS in acetonitrile, where it was observed that an annealing-less synthesis process produces an amorphous solid electrolyte with a room temperature conductivity of 1.6 × 10−4 S cm−1.87–89 In the coating, XPS signatures of terminal sulfur (P
S groups, in blue) and bridging sulfur (P–[S]n–P groups, in green) were associated with lithium thiophosphate. The intensity of the bridging peaks was higher than expected relative to the terminal sulfur, likely due to the overlap with PIL peaks at 163.3 and 164.5 eV (C–S–C groups, in yellow), which could not be distinguished and separated (see the S 2p spectrum of the PIL in Fig. S2†). Likewise, the sulfoxide group (S
O, orange) at BEs of 168.6 and 169.6 eV may be associated with both the PIL and a high oxidation state of sulfate (SO42−, 169.3 eV). The P 2p spectra showed a characteristic bond of pristine argyrodite as a 2p3/2 doublet at a BE of 131.8 eV (red component). In the coating, the doublet at a BE of 133.5 eV (blue component) corresponded with the XPS signature of P2Sx and the S 2p spectrum. In addition, oxidation led to the release of lithium chloride, soluble in acetonitrile, and thus the intensity of the Cl 2p peak in the coating is relatively low. The calculated PIL content in the coating was 1.2% wt, matching the EDS analysis results.
 |

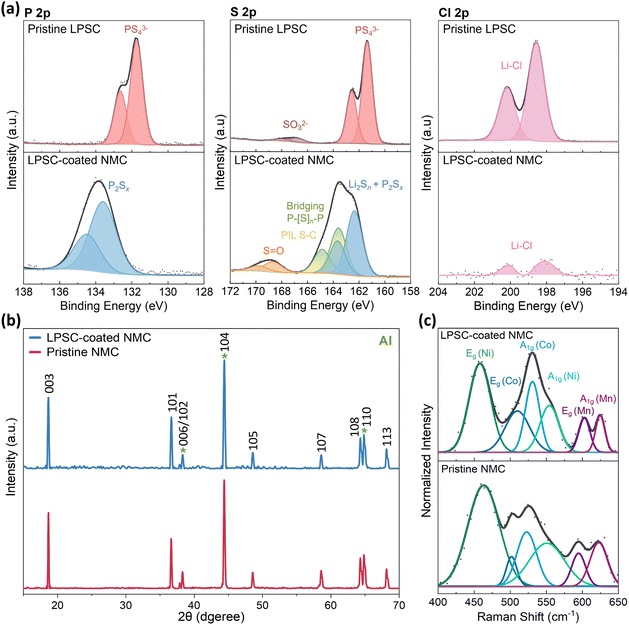

| Fig. 4 (a) P 2p, S 2p, and Cl 2p XPS spectra of pristine LPSC powder and LPSC-coated NMC622. (b) XRD patterns and (c) Raman spectra of pristine and LPSC-coated NMC622 cathodes. | |
X-ray diffraction (XRD) patterns of pristine and LPSC-coated NMC622 cathodes, along with the corresponding Miller indices (hkl) for the peak planes, are presented in Fig. 4b. These patterns reveal characteristic reflections of the NMC622 hexagonal space group R
m (powder diffraction file 66-0854).90 The splitting of the (006)/(102) and (108)/(110) peaks, indicative of the layered phase, was clearly distinguished, and no additional NMC phases were observed during the EPD process. Hence, the structural stability of the active NMC material and integrity of the cathode were preserved after the EPD process, and an amorphous LPS coating formed, as agreed with XPS analysis. To determine the lattice parameters a and c, the hexagonal d-spacing formula for the R
m crystal structure was used (eqn (1)), applying the Miller indices and interplanar spacing (dhkl) derived from Bragg's Law (eqn (2)). In this equation, n represents the diffraction order (typically 1), λ is the X-ray wavelength (Cu Kα 1.5418 Å), and θ is the Bragg angle.91
|
 | (1) |
|
 | (2) |
The calculated lattice parameters of the pristine and LPSC-coated cathodes indicated negligible changes in cell parameters (
Table 1), although the
c/
a value increased slightly following the coating. The lattice parameter
c represents the sum of the slab and interslab space thickness in the layered cell unit, where a larger
c value is generally correlated with improved diffusion within the cathode lattice and faster Li-ion insertion/extraction.
92,93
Table 1 Lattice parameters of the pristine and LPSC-coated NMC622 cathodes
Cell parameters |
a [Å] |
c [Å] |
c/a [Å] |
V [Å3] |
Pristine NMC |
2.8708 |
14.2381 |
4.9596 |
101.6242 |
LPSC-coated NMC |
2.8694 |
14.2419 |
4.9634 |
101.5849 |
The structure of the NMC622 cathodes was investigated by Raman spectroscopy as a complementary tool to substantiate the XRD results. Fig. 4c compares the deconvoluted Raman spectra of pristine and LPSC coated cathodes in the 400–650 cm−1 range, where the active modes are observed.94–96 Each transition metal ion has two Raman modes: A1g and Eg, associated with M–O symmetrical stretching and M–O–M bending mode vibrations, respectively. The positions of the bands in both the pristine and coated cathodes correspond well to the reported bands of the NMC layered structure (Table 2). An analysis of the Ni modes, the metal with the highest concentration, reveals negligible shift in the peak positions of A1g (Ni) and Eg (Ni) between the samples. The normalized band intensity for both samples was also similar, with a difference of less than 10%, indicating that the Ni2+/Li+ cation mixing did not change because of the EPD process. In terms of the peak width (FWHM), the pristine cathode exhibited broader A1g (Ni) and Eg (Ni) bands, implying shorter phonon lifetimes. This phenomenon was also observed in other A1g modes, in which oxygen atoms vibrate in a symmetrical stretch parallel to the c axis. The sharpness of the peaks in the coated cathode suggests more stable vibrational modes, as the energy levels are better defined and there is less broadening due to scattering processes. These results are consistent with the structural analysis from XRD, which showed an increase in the c/a cell parameter ratio in the coated cathode. A possible reason for this could be O-site doping by electronegative elements, such as chlorine or sulfur, which increases the interlayer electrostatic repulsion.97–99 This results in an expanded c cell parameter, potentially improving cathode performance as discussed below.
Table 2 The parameters of the six fitted Raman spectra bands for the pristine and LPSC-coated NMC622 cathodes
Band |
Mode |
Band position (cm−1) |
FWHM (cm−1) |
Pristine NMC |
LPSC-coated NMC |
Pristine NMC |
LPSC-coated NMC |
v
1
|
Eg (Ni) |
461 |
458 |
52 |
35 |
v
2
|
Eg (Co) |
503 |
511 |
17 |
40 |
v
3
|
A1g (Co) |
524 |
531 |
33 |
24 |
v
4
|
A1g (Ni) |
551 |
554 |
57 |
31 |
v
5
|
Eg (Mn) |
596 |
603 |
23 |
18 |
v
6
|
A1g (Mn) |
623 |
625 |
29 |
15 |
EIS analysis of symmetrical NMC/NMC cells
The ionic conductivity of the EPD composite coating was evaluated by electrochemical impedance spectroscopy (EIS). The data are presented as Nyquist plots, including their fit to equivalent circuit analogs (Fig. 5). The spectra of symmetrical NMC/NMC cells consist of one suppressed semicircle, which was fitted according to the equivalent circuit scheme shown in Fig. 5a. The broad semicircle, which can be fitted to the first group of RC elements, includes contributions from the resistance of the electrode's surface films (RSF) attributed to the cathode–electrolyte interphase layers, namely, native and ART-CEI, and the corresponding constant phase element (QSF). The second semicircle in the low-frequency RC domain reflects the charge transfer resistance of electrochemical reactions (RCT) and the corresponding constant phase element (QCT). Additionally, the high-frequency resistance, bulk resistance (RBulk), is assigned to the ohmic resistance of the electrolyte, and the Warburg impedance (W) in the low-frequency range reflects lithium diffusion in the electrodes and electrolyte.100 Since the diffusion of ions is much faster in the liquid electrolyte than in the solid electrodes, the major contribution to Warburg resistance comes from the latter.
 |
| Fig. 5 (a) The equivalent circuit model for fitting the EIS data. (b) Nyquist plots of EIS measurements and their fits at 30 °C of symmetrical cells comprising uncoated and LPSC-coated NMC622 cathodes. | |
The EIS data of symmetric cells assembled with two pristine or LPSC-coated cathodes and the table of calculated equivalent fit values are shown in Fig. 5b and Table 3. The conductivity of the coating on the cathode was estimated by using eqn (3):
|
 | (3) |
where
lcoating is the coating thickness,
A is the cathode area, and
RSF(coated) and
RSF(pristine) are the fitted surface film resistances of the corresponding symmetric cells. Based on the difference between the
RSF of the coated and pristine cathodes, the conductivity of the artificial CEI was calculated to be 0.12 mS cm
−1 at 30 °C, corresponding to the reported conductivity of amorphous LPS.
88
Table 3 Resistances fitted to impedance values of the symmetric cells that comprise NMC622/NMC622 cathodes
|
R
Bulk [Ω] |
R
SF [Ω] |
R
CT [Ω] |
Pristine NMC |
2.6 |
3.4 |
15.9 |
LPSC-coated NMC |
2.6 |
6.3 |
32.7 |
Electrochemical performance of NMC/Li half cells
The voltage profiles of the first two cycles at a C/15 rate and the corresponding differential capacity versus voltage plots of NMC/Li cells comprising pristine and LPSC-coated NMC622 cathodes are presented in Fig. 6. The electrochemical reactions during charging, from open circuit voltage (OCV) to 4.5 V, showed a slight difference in the trend of the curves. Starting at ∼3.7 V, the plateaus are related to the oxidation of nickel and cobalt (Ni2+/Ni4+, and Co3+/Co4+) with the extraction of Li-ions from the NMC. This process causes phase transformations from the Li(TM)O2 hexagonal (H1) phase to the monoclinic phase (M), then to another hexagonal phase (H2), and finally to the hexagonal phase (H3).11,12 The sharp dQ/dV peak in the first delithiation process at about 3.7 V is associated with the H1–M phase transition (Fig. 6a and b). Here, the cell with the coated cathode displays a shift to a higher potential with an increase in overpotential (by 50 mV) compared to the pristine cell, possibly due to a non-uniform coating layer. During consequent cycles, the oxidation peaks become more prominent (Fig. 6c and d). The sharp peak that appeared as two overlapping peaks during the first cycle is separated into two peaks: one for the transition from the H1 phase to a mixed state of M and H1, and another for the transition from the mixed state to the M phase. Additionally, the profiles show no shifts in the reduction processes following the coating, but an additional peak appeared at 3.46 V, which is more prominent in the second cycle. Furthermore, the cells with the coated cathode demonstrate higher discharge capacity values by 8–14 mA h g−1 compared to the pristine cells in the two activation cycles at a C/15 rate and cutoff voltage of 4.3 V and 4.5 V (Table S1, ESI†). Also, the first two cycles showed similar coulombic efficiency (CE) for both the pristine and coated cathodes, with ≈92% and ≈99% in the first and second cycles, respectively.
 |

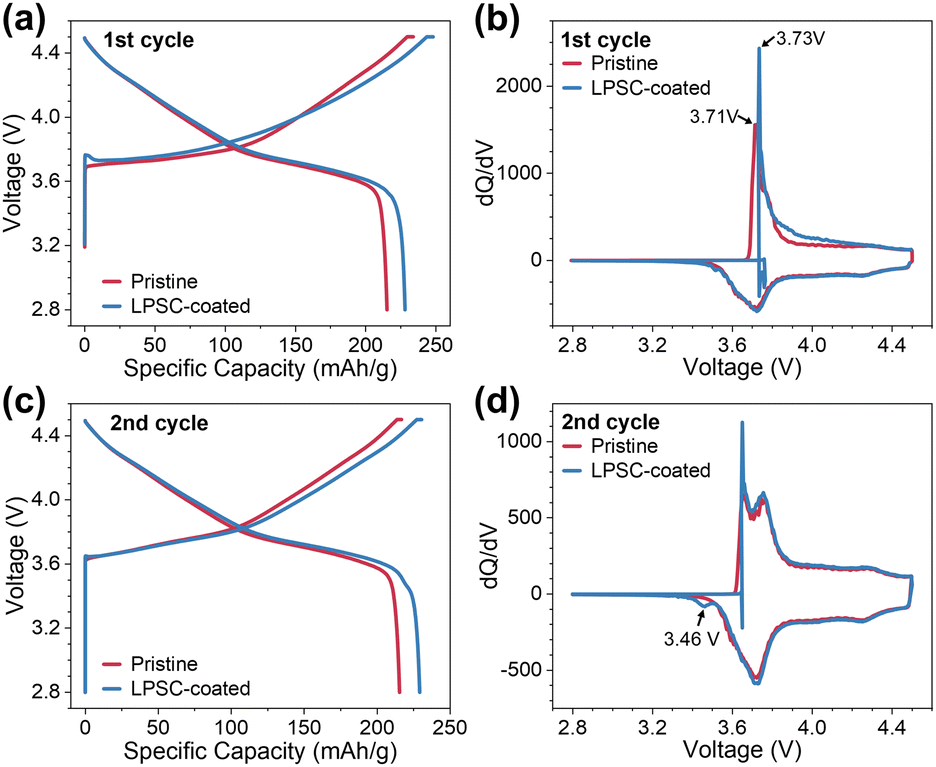

| Fig. 6 (a–d) Voltage profiles and corresponding differential capacity versus V plots of the pristine and LPSC-coated NMC622 cathodes versus Li electrode cells during two consecutive formation cycles between 2.8 and 4.5 V at a cycling rate of C/15. | |
A long-term cycling study at charge–discharge rates of 0.5–1.0C was performed at cutoff voltages of 4.3 V and 4.5 V after three activation cycles at a C/15 rate (Fig. 7a and b). In the first cycle at a 1.0C discharge rate (4th cycle), discharge capacity values of 162 mA h g−1 and 164 mA h g−1 at 4.3 V, and 186 mA h g−1 and 191 mA h g−1 at a cutoff voltage of 4.5 V were observed for pristine and LPSC-coated NMC622 cathodes, respectively. After 200 cycles, the LPSC-coated cathode provided significantly improved discharge capacity values and exhibited higher capacity retentions of 148 mA h g−1 (90%) and 159 mA h g−1 (83%) compared to 129 mA h g−1 (80%) and 136 mA h g−1 (73%) for the pristine cathode, at cutoff voltages of 4.3 V and 4.5 V, respectively.
 |
| Fig. 7 Long-term electrochemical cycling at 2.8–4.3 V (a), and 2.8–4.5 V (b), for the pristine and LPSC-coated NMC622 cells as indicated at charge–discharge rates of 0.5–1.0C and 30 °C after 3 cycles at C/15. (c) Average voltage profiles on charge and discharge, and (d) voltage hysteresis calculated as the difference between average charge (4.5 V cutoff) and discharge (2.8 V cutoff) voltages. (e) Rate performance at 2.8–4.3 V for the electrodes comprising pristine and LPSC-coated NMC622 as indicated, and (f) the corresponding dQ/dV curves of the 5th cycle discharge at each C-rate. | |
Fig. S3† and 7c and d show the average voltage and voltage hysteresis profiles for half-cells comprising pristine and LPSC-coated NMC622 cathodes at cutoff voltages of 4.3 V and 4.5 V. The voltage gap between charge and discharge shows that, while average charge voltages remain similar between the pristine and coated cathodes, after 200 cycles, the LPSC-coated cathode's average discharge voltage is 80 mV higher. This suggests that Li+ insertion into the pristine cathode is impeded, as reflected in the increasing potential gap, which is directly proportional to the internal resistance of the electrodes.101,102 The latter depends on the kinetics of redox processes, the activation energy of lithium insertion/extraction, and diffusion complicated by phase transitions. Voltage hysteresis, estimated by the voltage difference between charge and discharge curves at half capacities, increased with cycling. This may be due to degradation of the high-voltage cathode, a significant drawback that reduces battery efficiency and raises safety concerns.103–105 At a cutoff voltage of 4.3 V, the difference in hysteresis between the pristine and coated cells was not significant over 200 cycles. However, upon charging to a higher potential (4.5 V cutoff), the voltage hysteresis grew, with the LPSC-coated cathode exhibiting a 1.7-fold slower increase in voltage hysteresis (0.753 mV cycle−1) compared to the pristine cathode (1.23 mV per cycle). This electrochemical behavior can be attributed to the enhancement of the lithium intercalation/de-intercalation kinetics during cycling owing to the ART-CEI.
Fig. 7e displays the C-rate performance of the cells, demonstrating a preference for the LPSC-coated cathode across all discharge C-rates except at 5C. As shown in the dQ/dV discharge curves in Fig. 7f, increasing C-rates lead to greater cell overpotential due to electrode polarization effects, resulting in lower capacity.106 The reduced growth of the charge transfer and diffusion resistances in the LPSC-coated cathode also improve rate capability. However, as the C-rate increases, polarization at the coated cathode intensifies, narrowing the discharge capacity gap until a sharp drop at 5C. This drop can be explained by a high tortuosity that leads to a diffusion-rate limit at a high C-rate. Still, even at a 5C discharge rate, the coated cathode maintained higher stability and better recovery when the C-rate was reduced, with the capacity difference greater than at the corresponding previous rates.
To better understand the long-term cycling results, a comparison of the voltage profiles and corresponding dQ/dV versus V plots for the 5th, 50th, 100th, 150th, and 200th cycles at 4.3 V and 4.5 V cutoff voltages is presented in Fig. S4.†Fig. 8 provides a detailed analysis for the 5th and 50th cycles at a 4.5 V cutoff voltage, including the marking of the accompanied phase transitions (H1 ↔ M ↔ H2 ↔ H3) in the dQ/dV curves.10,101 The typical H2/H3 transformation peaks that appeared at ∼4.3 V indicate anisotropic shrinkage and expansion of the primary CAM particles, causing intergranular cracks.34 Hence, this phase transition likely contributes to the capacity retention gap between the examined cutoff voltages (Fig. 7a and b). During cycling, three main polarization regions, marked by squares in the plots (Fig. 8b and d), can be observed.106 The main oxidation peak of the H1/M phase transition at ∼3.7 V is shifted to a higher potential, with no effect of the ART-CEI on the potential shift (ΔV ≈ 14 mV) in the first 50 cycles at a 4.5 V cutoff voltage. The sharper peaks of the transition from the H1 phase to a mixed state of M and H1 and from the mixed state to the M phase in the pristine cathode indicate faster phase transformations. In contrast, the discharge peak in the pristine cathode at ∼3.6 V shifted to a lower potential, while the shift of the LPSC-coated cathode was slightly lower (ΔV = 16.0 mV compared to 19.9 mV). This significant difference between the cathodes was in the polarization between the end of charging and the beginning of discharging, which increased with prolonged cycling (ΔV = 45.9 mV compared to 74.7 mV). These changes generally indicate an increased internal resistance during cycling, caused by parasitic interfacial side reactions at the cathode–electrolyte interface.10 Also, the discharge capacity gain (∼3.2–3.5 V, marked in green area) was negligible compared to the lost capacity, which was smaller for the coated cathode (∼4.2–4.4 V and ∼3.6–3.8 V, marked in yellow area). The reduced polarization induced by the coating reflects the observed trend of capacity retention during prolonged cycling, demonstrating improvement at the cathode–electrolyte interface.
 |
| Fig. 8 Voltage profiles and corresponding differential capacity dQ/dV versus V plots for half cells comprising: (a and b) pristine and (c and d) LPSC-coated NMC622 cathodes, at cycles number 5th and 50th. | |
Investigation of aging cells by EIS and DRT method
EIS measurements were performed upon cycling, and the fitted resistance values and calculated diffusion coefficients from the Nyquist plots of the 3rd, 50th, 100th, 150th, and 200th cycles at a 4.5 V cutoff voltage are shown in Fig. 9a and b. The differences in the EIS data can be attributed to the ART-CEI. Nyquist plots of these impedance measurements and a summary table of the fitted values corresponding to the equivalent circuit are provided in Fig. S5† and Table S2.† It should be noted that in the third cycle, the values of the Warburg elements and resistances were relatively high, probably due to the incomplete formation of SEI and CEI layers. Therefore, these were excluded from the current comparison but are available in the ESI.†
 |

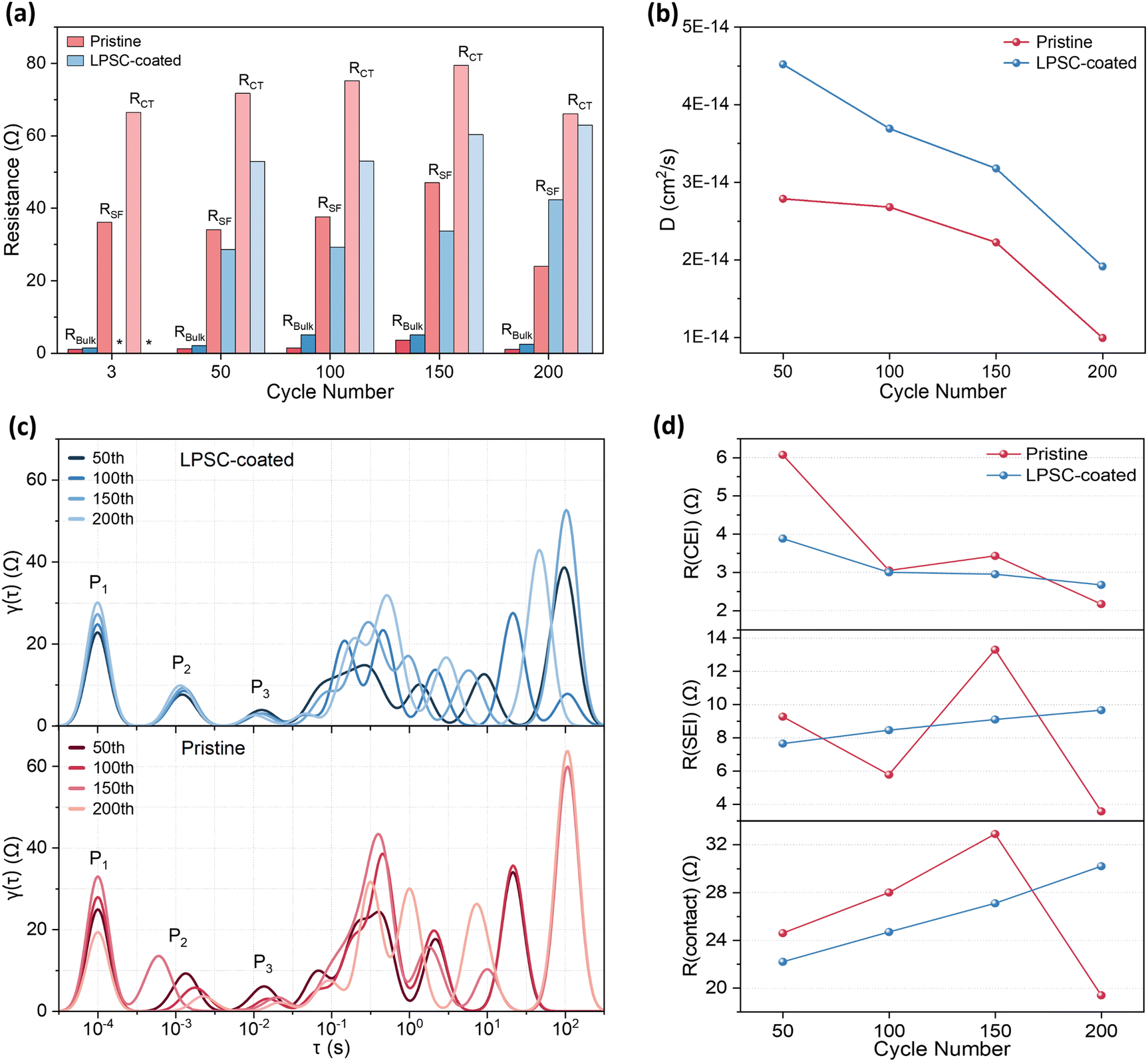

| Fig. 9 (a) The fitted resistance values of EIS measurements, (b) the calculated lithium-ion diffusion coefficients, (c) the DRT plots, and (d) the resistances in the intermediate frequency ranges from the DRT plots, during electrochemical cycling after the 50th, 100th, 150th, and 200th cycle at 2.8–4.5 V. | |
According to the Nyquist plots (Fig. 9a), after the electrochemical activation of the cells, in which the electrode–electrolyte interphases were formed, starting from the measurement of the 50th cycle, the coating significantly improved the RSF attributed to the SEI and CEI and the RCT reflecting the charge transfer resistance. The RBulk resistances of the cell with the pristine cathode were slightly lower than those of the LPSC-coated cathode. The observed increase in resistances during prolonged cycling can be attributed to various processes in the cell, such as electrolyte decomposition (increasing RBulk), SEI and CEI layer growth and decomposition (increasing RSF), and the subsequent slowing of charge transfer reactions (increasing RCT).
The positive effect of the LPSC coating on lithium-ion diffusion is evident from the diffusion coefficients calculated from the Warburg impedance of the EIS measurements (Fig. 9b). The diffusion coefficient (DLi) was estimated from the Warburg element according to the following equation:
|
 | (4) |
where
R is the gas constant,
T is the temperature,
S is the surface area of the cathode (0.20 m
2 g
−1 for the NMC622 commercial sheet),
n is the number of electrons involved in the intercalation step,
F is the Faraday constant,
C is the molar concentration of lithium ions in the cathode, and
σ is the fitted Warburg value. These calculations revealed that the diffusion coefficients for the LPSC-coated cathode are twice those of the pristine cathode in all cycles, confirming that the ART-CEI improves lithium-ion diffusion in the electrodes. As expected, the diffusion coefficients for both cathodes decreased with increasing cycle number due to aging of the CAM.
40,60 However, the decline rate of
DLi in the protected cathode was 15% lower between the 100th and 200th cycles.
In addition to AC impedance analysis based on the equivalent circuit model, the distribution of relaxation time (DRT) deconvolution method was used to investigate aged cells in the time domain and distinguish between overlapping polarization effects in the frequency domain (Fig. 9c). In the EIS measurements analyzed by DRT, split peaks representing different processes with a typical time constant (τ) are obtained, providing better insights into aging degradation mechanisms.107–109 The plots in Fig. 9c show the P1 peak at τ = 10−4 s, attributed to electrical and magnetic effects caused by the contacts between active material particles and the electrodes to current collectors. P2 in the range of τ ≈ 10−3 s and P3 in τ ≈ 10−2 s correspond to lithium ion migration through the SEI and CEI layers, respectively. The electrodes' charge transfer resistance is observed in the range of τ ≈ 10−2 − 101 s, while diffusion processes occur at τ > 101 s, both appearing as several peaks. The resistances calculated from the DRT analysis peaks align with the fitted values from the Nyquist plots, clearly showing that the coated cathode has lower resistance values. A noticeable difference between the cathodes is seen in the first three peaks (P1, P2, P3). The sum of Rcontact, RSEI, and RCEI values (Fig. 9d) closely matches the fitted RSF resistance excluded from the first semi-circle in the intermediate frequency ranges of the Nyquist plots. Changes in peak intensity and τ are expected during cycling, related to the growth and decomposition of the electrode–electrolyte interphases and the impact of degradation mechanisms such as HF attack, lithium plating, particle cracking, and structural disordering. The coated cathode exhibited less change in τ values of P2 and P3, with a slight shift towards lower time constants compared to the stronger shift to larger τ in the cell with the pristine cathode. DRT analysis reveals that the LPSC-based ART-CEI promotes the stability of the CEI and SEI in the NMC/Li cell. Furthermore, the coated cathode exhibited smaller changes in the Rcontact, RSEI, and RCEI values between 50 and 150 cycles compared to the uncoated cathode. Generally, microcracks in the CAM lead to increased resistance and reduced Li-ion diffusion, eventually resulting in significant cracks that cause a loss of electrochemically active material, followed by a sharp drop in RSF and RCT,95 as shown in the 200th cycle. The formation of an electrochemically inactive material also deteriorates discharge capacity. Thus, the capacity loss of the pristine cathode between 100–150 cycles and 150–200 cycles was 0.17 and 0.26 mA h g−1 per cycle, much higher than that of the LPSC-coated cathode, which exhibited losses of 0.12 and 0.14 mA h g−1 (Fig. 7b). Overall, the cells' behavior according to EIS is consistent with the long-term capacity loss presented above.
Electrode–electrolyte interphase characterization
To further understand the improved RSF and electrochemical performance of the coated cathode, the electrode–electrolyte interphases were investigated using XPS analysis of the electrodes after 20 cycles. The P 2p, O 1s, Li 1s, and S 2p spectra of the cycled NMC cathodes, along with the atomic concentration in the CEI, are presented in Fig. 10. As shown in Fig. 4a, LPSC decomposes into L2S–P2S5 (LPS) products before cycling. This sulfide glass-ceramic electrolyte was also detected in the CEI of the coated cathode after cycling (S 2p: 162.8 eV; P 2p: 134.8 eV; Li 1s: 58.1 eV). Despite the low sulfur content in the ART-CEI (1.2%), the fraction of sulfur species in the Li 1s spectrum was high, including LPS (44%) and Li2S (9%) at BEs of 58.1 and 55.0 eV, respectively.110 Additionally, sulfur species of the SOx type were observed (O 1s: 532.5 eV; C 1s: 287.4 eV Fig. S6†), which could be associated with the PIL in the coating or other LPSC decomposition products like SO42− and SO32−. Notably, the lattice metal-oxide bond of the NMC in the O 1s spectrum (528.3 eV) is evident in the pristine cathode but indistinguishable in the coated cathode, suggesting an increased surface layer thickness due to the EPD coating. The higher intensity of the C–C bond at 284.6 eV in the C 1s spectrum of the pristine cathode, related to the carbon black in the cathode, can be attributed to the absence of the coating (Fig. S5†). In addition, peaks assigned to ROLi, CO3/C
O, C–O, and ROCO2R species reflect electrolyte solvent decomposition, while the peaks of LixPOyFz and LiF indicate LiPF6 salt decomposition.30,31 The O 1s spectrum of the coated cathode contained additional compounds belonging to the coating. However, when cross-referenced with the Li 1s and P 2p spectra, it can be concluded that the ART-CEI contained fewer carbonates (Li2CO3/ROCOLi) and LixPOyFz. These findings suggest that the EPD-formed ART-CEI effectively inhibits decomposition reactions at the cathode–electrolyte interface.
 |

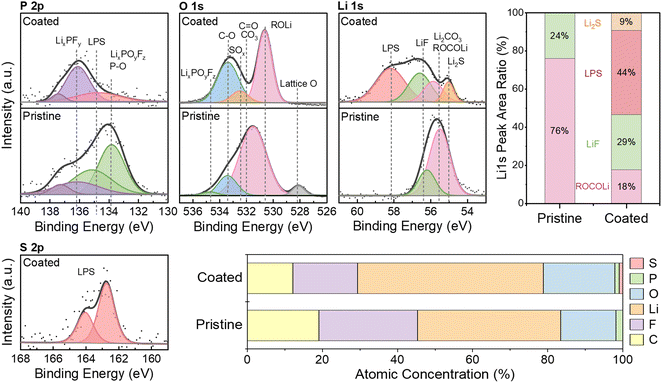

| Fig. 10 P 2p, O 1s, Li 1s, and S 2p XPS spectra and the atomic concentrations in the CEI of pristine and LPSC-coated NMC622 after 20 cycles (200 s sputtering); the area ratio of the lithium species components according to the corresponding Li 1s spectra. | |
The SEI composition on the Li anode in cells with pristine and coated NMC cathodes also differed (Fig. 11). XPS analysis revealed that LPS and PIL components of the coating were presented in the anode SEI as well. The S 2p spectrum indicated that the PIL (164.2 and 168.7 eV) appears in the outer SEI layer of the coated cathode cell, while LPS (162.3 eV) was also observed after sputtering. LPS in SEI is known to facilitate the formation of a homogenous layer, leading to stable lithium plating/stripping.111–113 The increased sulfur bond intensity in the inner SEI layer was also observed in the binding energy region associated with SOx species (C 1s: 287.8 eV; O 1s: 532.5 eV), which, apart from the PIL, can be attributed to a high oxidation state of sulfate (SO42−, S 2p: 169.3 eV). Additionally, based on the carbon content and deconvoluted C 1s and F 1s spectra, the SEI in the cell with the pristine cathode had a higher concentration of organic species than the coated-cathode cell, especially in the inner layer. In the C 1s spectrum, peaks of C–C/C–H (284.8 eV), C–O (286.7 eV), and C
O (288.8 eV) were attributed to organic components from electrolyte solvent decomposition and polymerization.114 The intensity of these decomposition product peaks was lower in the coated-cathode cell, as were the overlapping peaks of ROCO2R (291.3 eV) from fluoroethylene carbonate (FEC) decomposition and C–F (291.6 eV) attributed to polyvinylidene fluoride (PVDF). Furthermore, the decomposition of LiPF6 was confirmed by the presence of LiF and LixPOyFz peaks (685.1 eV) in the F 1s spectrum. The relatively low content of organic decomposition products and high content of LiF, likely also due to PIL decomposition, suggest the formation of an inorganic-rich SEI in the ART-CEI coated cathode cell. Such inorganic-rich SEI, with a high LiF content, is known to improve Li stripping/plating properties due to its high mechanical strength, leading to a stable SEI, dendrite-free morphology, and high efficiency.114,115 The Ni 2p spectra showed that the SEI contained metallic Ni and NiF2 at BEs of 850.1 and 857.8 eV, respectively (Fig. S7†). Transition-metal fluorides (TMF2), also observed in the F 1s spectrum, are formed through HF attack on the NMC surface, which diffuse into the electrolyte and deposit in the SEI.30 In addition, the depth profile of the SEI in the ART-CEI coated cell shows the formation of the NiSx peak, a by-product of LPSC oxidation.116
 |
| Fig. 11 C 1s, O 1s, F 1s, P 2p, and S 2p XPS spectra and the atomic concentrations in the SEI of Li metal anodes in pristine and LPSC-coated NMC622 cells after 20 cycles (surface and depth profiles after a 200 s sputtering). | |
Post-cycling morphological and structural analysis
HRSEM images of the uncoated and LPSC-coated cathodes after cycling reveal a notable morphological difference (Fig. 12a). The pristine cathode exhibited large cracks and partial disconnection of the spherical secondary CAM particles. These observations suggest that although the LPSC coating (also shown in the EDS images in Fig. S8†) was not uniformly maintained after prolonged cycling, the ART-CEI improved the adhesion of CAM particles to the current collector. Hence, the coating, which apparently suppressed parasitic reactions at the NMC/electrolyte interface, also enhanced the mechanical properties of the cathodes. This finding is consistent with electrochemical impedance data showing lower and more stable Rcontact during cycling for the coated cathode compared to the pristine one.
 |

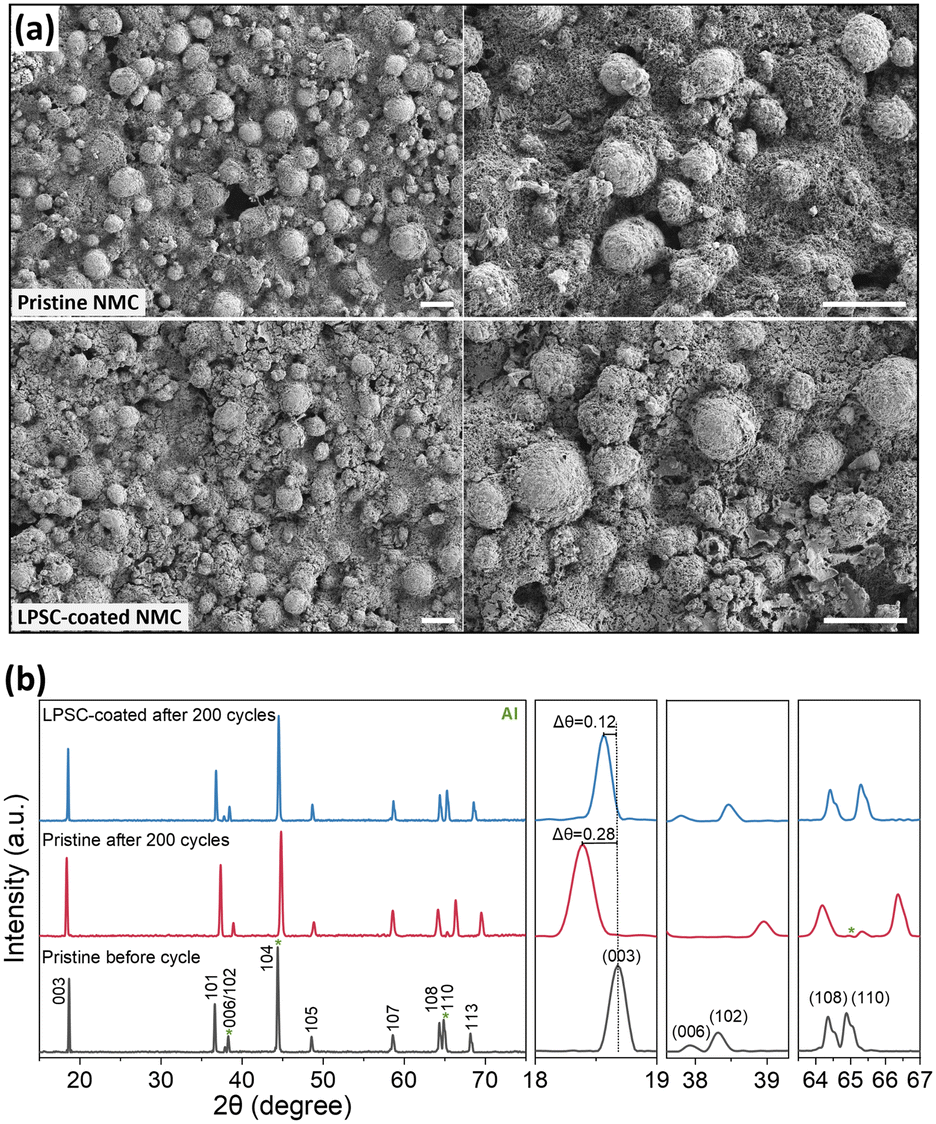

| Fig. 12 (a) HRSEM images of pristine and LPSC-coated NMC622 cathode surfaces after 200 cycles, scalebar: 20 μm. (b) XRD patterns of uncycled the pristine NMC622 cathode and pristine and LPSC-coated cathode after 200 cycles, and magnified view of the (003), (006)/(102), and (108)/(110) reflections. | |
The XRD patterns of pristine and LPSC-coated NMC622 cathodes after cycling, along with magnified regions of the (003), (006)/(102), and (108)/(110) peaks, are shown in Fig. 12b. The (003) peaks shift to a low angle after cycling, indicating expansion along the c-axis, as seen in the calculated lattice parameters in Table 4.90 The cycled pristine cathode exhibited a more pronounced (003) peak shift than the coated cathode compared to the fresh pristine cathode, leading to greater broadening of the c-axis. Besides, the (006)/(102) and (108)/(110) peaks corresponding to the layered phase changed in both cathodes after cycling due to the expansion along the c-axis, contraction along the a and b axes, and reduction in unit cell volume.26,34 As expected, the structural changes were more significant in the pristine cathode, where the (006)/(102) peaks merged into one, and the (108)/(110) peaks split further. The lower changes in lattice parameters (Δa, Δc, and ΔV) after cycling of the coated cathode indicate a higher structural order compared to the pristine NMC cathode. Furthermore, the smaller c/a ratio of the cycled coated cathode indicates a higher Li concentration in the crystal structure and lower mechanical stresses that may lead to lattice distortions and cracks.34,117 Lattice distortions are also demonstrated by anisotropic peak broadening that significantly affects the (003) reflection. According to the FWHM analysis, the (003) reflection in the XRD pattern of the coated cathode is characterized by a higher crystallite size and lower strain accumulation in the lattice,117,118 explaining the improved electrochemical properties of the ART-CEI cathode.
Table 4 Lattice parameters of the uncycled pristine and the cycled pristine and LPSC-coated NMC622 cathodes
|
a [Å] |
c [Å] |
V [Å3] |
c/a [Å] |
FWHM(003) |
Pristine NMC before cycling |
2.8708 |
14.2381 |
101.6242 |
4.9596 |
0.146 |
Pristine NMC after 200 cycles |
2.8239 (Δa = 0.0469) |
14.4751 (Δc = 0.2370) |
99.9621 (ΔV = 1.6621) |
5.1259 |
0.198 |
LPSC-coated NMC after 200 cycles |
2.8606 (Δa = 0.0102) |
14.2760 (Δc = 0.0379) |
101.1685 (ΔV = 0.4557) |
4.9906 |
0.134 |
Conclusions
In this study, we introduce a facile and fast EPD method to create an ART-CEI, composed of a sulfide electrolyte based on argyrodite (LPSC) and a polymerized ionic liquid, on a commercial NMC622 cathode. The EPD process is easily controlled, allowing precise manipulation of the coating by adjusting the suspension composition, applied voltage, and deposition time. The resulting porous coating adheres well to the cathode surface without requiring an additional calcination step. The amorphous sulfide electrolyte coating significantly enhances the electrochemical performance of NMC/Li cells compared to those with a pristine cathode. LPSC-coated cathode cells exhibit lower RSF and RCT impedance values, along with higher lithium-ion diffusion coefficients during cycling. These improvements lead to stable long-term cycling performance, higher capacity retention, reduced voltage hysteresis, and better rate capability. The cells were cycled for 200 cycles within a voltage range of 2.8–4.5 V, achieving a coulombic efficiency of 99.8% and a capacity loss of only 0.086% per cycle. The performance enhancement is attributed to the suppression of detrimental side reactions at the cathode–electrolyte interface while maintaining efficient diffusion of lithium ions through the ART-CEI. Our findings demonstrate that the sulfide electrolyte coating facilitates the formation of an artificial CEI, enhances the stability of the SEI on the lithium anode, reduces structural disorder in NMC622, mitigates crack formation typically observed during cycling of layered cathodes, and inhibits electrolyte decomposition. Moreover, the EPD coating process is versatile and not limited by the type of deposited particle or substrate, making this surface modification technique highly promising for application in high-voltage LIBs.
Data availability
The authors confirm that the data supporting the findings of this study are available within the article and its ESI.†
Conflicts of interest
There are no conflicts to declare.
Acknowledgements
This work was supported by the US–Israel Binational Industrial Research and Development (BIRD) Foundation. The authors express their sincere gratitude to Prof. David Zitoun (Bar Ilan University) and Prof. Alexei P Sokolov (University of Tennessee) for providing essential materials. Acknowledgment is also given to the Tel Aviv University Center for Nanoscience and Nanotechnology for providing instrument access and staff support. Special appreciation goes to Dr Alex Lahav for conducting the FIB-HRSEM, Dr Alexander Gladkikh for performing the TOF-SIMS analysis, Dr Davide Levy for the XRD analysis, and Dr Pini Shekhter the XPS measurements.
