Coarse-grained models for ionic liquids and applications to biological and electrochemical systems

Abstract

Ionic liquids (ILs) are a class of molten salts with a collection of exciting properties and have been employed for wide-ranging applications across chemistry, biology, and materials science. However, the high viscosity of ionic liquids challenges atomistic molecular dynamics (MD) simulations in studying their structure–property relationships on large spatiotemporal scales. Coarse-grained (CG) models provide insight into the microscopic structure and intermolecular interactions underlying various properties by eliminating unnecessary atomic details. The general protocol for proposing a new CG model is reviewed, including determination of CG representation and force field (FF) parameterization. Recent advances in polarizable CG models were discussed with the emphasis on Drude oscillators and QM-based polarizable models. An overview was given on some recent applications of machine learning (ML) techniques on development of CG potentials, including the utilization of an ML surrogate model for FF parameterization and the development of ML potentials. Applications and challenges of IL CG models in treating complex systems, including pure solvents, mixtures, biological systems, and electrochemically confined environments, were presented. Finally, prospects for the development of transferable IL CG models are highlighted to extend the applicability to more mesoscopic systems.

Keywords: Ionic liquids; Coarse-grained models; Polarization effect; Machine learning; Molecular dynamics simulation.

---

Yang Ge

Yang Ge received his M.S. degree in Physical Chemistry from East China University of Science and Technology (ECUST) in 2019 and his Ph.D. degree in Physical Chemistry from Nanjing University (NJU) in 2023. Then he worked as a postdoctoral researcher at the University of Maryland, Baltimore (UMB). His research interests are concentrated on leveraging machine learning techniques to develop multiscale force field models for drug discovery and materials design.

Jing Ma

Jing Ma received her Ph.D. degree in Theoretical Chemistry from Nanjing University, China in 1998. She was a JSPS fellow (1998–2000) at the Gifu University, Japan. Then she began working at Nanjing University as an associate professor (2000–2005) and a professor of Chemistry (since 2005). She has received the Outstanding Young Chemist Award of the Chinese Chemical Society and the Chinese Young Women in Science Award for theoretical simulations of oligomers and stimuli-responsive materials with unique optical, electrical, and catalysis properties. Her recent research is concentrated on material data sets and machine-learning models for data-driven materials design.

---

1 Introduction

Ionic liquids (ILs) are a class of molten salts composed entirely of organic cations and organic/inorganic anions, which retain the liquid state at room temperature.¹ Broad attention has been drawn due to their unique physicochemical properties, such as nonvolatility, nonflammability, high (thermal, chemical, and electrochemical) stability, and high ionic conductivity.^2,3 These properties make them promising ingredients involved in diverse industrial applications, such as energy storage,^4–10 electrotunable lubrication,^11–14 separation processes,^15–19 gas capture,^20,21 and protein stability.^22,23 These applications require an understanding of the microscopic origin underlying various thermophysical and transport properties. The molecular dynamics (MD) simulation method based on the classical force field (FF) is a powerful tool to obtain insights into the microscopic nanostructure and interactions and also an essential property prediction tool.²⁴ The accuracy of the prediction mainly relies on the quality of the FF. Many IL atomistic FFs have been developed over the years, including the APPLE&P,²⁵ AMOEBA-based,²⁶ CL&P,^27–29 GAFF-based,³⁰ SAPT-based,³¹ and OPLS-based^32–34 IL FFs.

The application of atomistic models to biological and electrochemical systems (systems with hundreds of thousands to millions of atoms for a long time of micro- to milliseconds) is often limited by the immense computational demands, especially for the viscous IL media. Coarse-grained (CG) models are attractive to extend the spatiotemporal scale with sufficient computational efficiency and chemical specificity.³⁵ A CG model simplifies a fine-grained atomistic representation by grouping related atoms into a single quasi-particle according to a predefined CG mapping scheme. This reduction smooths out high-frequency atomic vibrations and flattens the corresponding free-energy landscape, and such operation reduces the molecular friction, leading to a faster exploration of the underlying free-energy landscape.³⁶ CG models generally allow for a larger time step relative to AA models (1–2 fs). For example, a time step of 10–20 fs is often adopted for the MARTINI CG model.^37–39 Fig. 1a illustrates a coarse-graining process that simplifies an all-atom (AA) model of a typical 1-n-butyl-3-methylimidazolium cation ([C₄mim]) into different CG resolutions. The CG mapping should capture the essential features of a given system, while eliminating “unimportant” atomic details. Besides using chemical intuition, many studies have been conducted for designing CG mapping schemes with systematic methods, such as relative entropy theory,⁴⁰ autoencoder techniques,⁴¹ and graph neural networks.⁴²

Fig. 1 (a) Schematic illustration of coarse-graining an atomic model of a typical cation, [C₄mim], into different CG levels; (b) accessible ingredients for parametrization of the CG model, including microscopic properties obtained from electronic structure calculation and atomistic MD simulation, and macroscopic experimental properties. ML techniques can integrate these ingredients to facilitate the parametrization of the CG model.

In the context of classical MD simulations, molecular interactions are primarily described by empirical potential energy functions, which determine the energies of configurations and the forces acting on each interaction site.⁴³ The FF can be divided into two distinct parts, including bonded and nonbonded terms. The analytical functional form of both terms is typically predefined, with their parameters determined by fitting target properties across different scales, including quantum mechanism (QM) calculations, atomistic MD simulations, and experimental data (Fig. 1b). Once the CG representation is determined, different parameterization protocols are available for CG potentials. These protocols include a top-down strategy, where CG models are directly fitted to a set of macroscopic experimental properties, and bottom-up CG methods, where CG models utilize statistical mechanics principles to preserve the microscopic properties of the atomistic models. Examples of bottom-up CG methods include inverse Boltzmann inversion (IBI),^44,45 inverse Monte-Carlo (IMC),⁴⁶ multiscale CG methodology (MS-CG),^47–49 relative entropy (RE),^40,50,51 and extended conditional reversible work (ECRW).^52–54 Most IL CG models commonly adopt a hybrid strategy, where a bottom-up CG method is utilized for bonded terms, while nonbonded parameterization varies with each model.⁵⁵ Taking [C₄mim][BF₄] as an example, Table 1 compares the performance of CG models developed by different methods with that of AA models and experimental data.

Table 1 Comparison of [C₄MIM][BF₄] properties between different theoretical methods and experimental values^a

Resolutions	Models	Density (ρ, kg m^−3)	Diffusion (D^+/D^−, 10^−11 m^2 s^−1)	Conductivity (σ, S m^−1)	Heat of vaporization (ΔHvap, kJ mol^−1)	Ref.
a The temperature is noted in parentheses with the unit of K ignored.b The atomistic FF of 0.8*OPLS is a refined version of the original one,^34 which introduces a charge scaling factor of 0.8.c CL&Pol is the polarizable version of CL&P.^27
CG	MARTINI-based	1181 (300)	120/145 (293)	—	—	84
	Top-down	1209 (298)	1.12/0.59 (298)	—	—	85
	ECRW	1173 (300)	1.55/1.74 (313)	—	—	54
	Drude-based	—	5.8/7.3 (350)	17 (350)	114 (350)	86
	Electrostatic-variable CG model (VaCG)	1168 (303)	1.20/0.53 (303)	0.45 (303)	123.51 (303)	74
	ML potential	—	48.58/35.49 (300)	—	—	87
AA	OPLS	1178 (298)	7.3/6.6 (425)	—	125.52 (298)	34
	0.8*OPLS^b	1150 (298)	43.1/42.9 (425)	—	140.5 (298)	33
	SAPT-based	1180 (298)	1.1/0.8 (298)	0.29 (298)	126 (298)	31
	CL&P	1154 (343)	1.19/0.88 (343)	—	—	29
	CL&Pol^c	1134 (343)	9.3/13.5 (343)	—	—	29
	GAFF-Drude	1194 (300)	6.8/6.7(343)	—	—	30
	AMOEBA-IL	1229 (313)	2.9/0.67 (313)	—	135 (350)	26
	APPLE&P	1193 (298)	1.01/1.05 (298)	0.28 (298)	140.8 (298)	25
Exp.		1170 (343)^29	40.0/47.6 (425)^56	2.17 (350)^56	128.03 (303)^57
		1198 (303)^58	8.0/8.2 (343)^29	0.295 (303)^59
			1.44/2.89 (313)^56
			10.5/11(350)^56
			1.83/1.78 (303)^60

---

The nature of ILs lies in their composition of ions, which generate local electric fields that polarize the surrounding molecular environment. The quality of description of the electrostatic polarization effect in the FF is crucial for the prediction of properties, especially for dynamic ones.⁶¹ One route to consider this effect is to introduce higher-order multipole effects in the FF, such as a fluctuating charge model,^62,63 an induced point dipole model,^64–68 and a classical Drude oscillator model.^43,69 However, their self-consistency nature is computationally expensive and the additional degrees of freedom incurred by polarization make their parametrization more complex. By taking advantage of the fragment-based QM methods,⁷⁰ such as the generalized energy-based fragmentation (GEBF) approach,^71–73 polarization effects can be described at the QM level by using a large molecular cluster to mimic the bulk polarization environment.⁷⁴ In addition, the utilization of variable electrostatic parameters can further implicitly consider different polarization environments for a mixture of ILs with other polar molecules, enhancing the FF transferability.⁷⁴

FF parametrization is often a tedious and time-consuming process, particularly when bridging the relationship between desired physical properties and FF parameters. For example, optimization of nonbonded parameters against experimental data often requires running at least hundreds of MD trajectories. With more molecules included, the number of trial MD trajectories for optimization will sharply increase. Recently, increasing attention has been gained over data-driven ML techniques, which serve as efficient surrogate models to approximate the mapping between desired physical properties and FF parameters.^75–77 Various ML models have been utilized in the field of FF parametrization, such as the random forest model (RF),^75,78 Gaussian process regressor model (GPR),^79,80 deep neural network model (DNN),⁸¹ and automatic differentiation technique.⁸² In addition, various ML potentials (MLPs) are emerging as alternatives to traditional FFs. These MLPs eliminate traditional empirical function forms and directly predict the potential energy and forces with atomic coordinates.⁸³

In this review, we will summarize recent advances in CG modeling of ILs, including basic concepts of CG models, determination of CG representation, FF parametrization, polarizable IL CG models, integration of ML techniques into IL CG models, and various applications of IL CG models. We also discuss the capabilities and limitations of IL CG models in each context and provide an outlook on the development of transferable IL CG models for more complex systems.

2 Procedure for proposing a new CG model

When constructing a particle-based FF model for a specific system, one must first define the particles that represent the system and define the inter-/intra-molecular interactions between atoms (or collections of atoms). Compared to AA models, CG models require an additional AA-to-CG structural transformation, commonly referred to as CG mapping. This transformation treats a group of atoms into a certain CG particle based on predefined rules. The following FF parametrization is often informed by higher-resolution AA simulations and QM calculations. The detailed procedure for proposing a new CG model is depicted in Fig. 2. This section will detail these two steps, supplemented by literature examples, and highlight key considerations essential for IL CG models to accurately predict various properties.

Fig. 2 The workflow for proposing a new IL CG model.

2.1 Definition of the CG mapping

Most IL CG mappings rely on chemical intuition. The positions of CG particles are generally determined by the center of mass (COM) of a group of atoms. Some representative CG mappings can be seen in Fig. 3, including various cations (e.g., imidazolium,^54,84–105 pyrrolidinium,¹⁰⁶ ammonium¹⁰⁷) and anions (e.g., halides,^92,101 hexafluorophosphate ([PF₆]),^{86,93,94,97–99,101,104,108} tetrafluoroborate ([BF₄]),^{84,85,88,90,108} nitrate ([NO₃]),^54,102,105 bistriflimide ([TFSI]),^89,106 dicyanamide ([DCA])⁹⁵). For cations, polar and nonpolar groups are coarse-grained into separate CG particles, though the partitioning scheme for specific groups may vary. For anions of small size and symmetric structure (e.g., [BF₄], [PF₆], and halides), they are often coarse-grained into a single CG particle. However, for [TFSI] and [DCA], multiple CG particles are introduced to better capture their structural features.

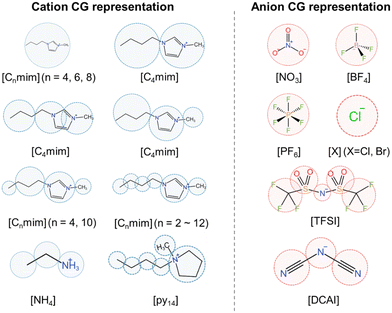

Fig. 3 Representative CG mappings for various cations, e.g., imidazolium, ammonium, and pyrrolidinium, and anions, e.g., nitrate ([NO₃]), tetrafluoroborate([BF₄]), hexafluorophosphate ([PF₆]), halides ([Cl], [Br]), bistriflimide ([TFSI]), and dicyanamide ([DCA]).

The widely used MARTINI model,^37–39 originally developed for biomolecules, has been extended to ILs, such as [C_nmim][BF₄] (n = 2, 4, 8, 12).⁸⁴ In this case, the anion [BF₄] with the T_d symmetry is represented by a single CG particle and the imidazolium ring with the attached methyl group is represented by three CG particles. This CG representation is essential for capturing the stacking interactions between the imidazolium cation and other aromatic compounds, which play a key role in simulating liquid–liquid extraction processes. The aforementioned is a special case. To achieve better transferability and balance between needed accuracy and computational efficiency, the MARTINI model categorizes different chemical fragments into a model library for CG mapping. While a four-to-one CG mapping is commonly employed, i.e., four heavy atoms are represented by a single CG particle, a three-to-one mapping is often adopted for the ring structure.³⁷ For molecules with more complex structures, some automatic topology builders have been developed in the context of the MARTINI model, such as autoMARTINI¹⁰⁹ and graph-based cg_param¹¹⁰ algorithms.

The CG representation can also be determined by systematic methods, such as the hierarchical graph-based framework,¹¹¹ relative entropy theory,¹¹² and variational autoencoder (VAE) technique.⁴¹ For example, the VAE technique, an unsupervised ML technique, simultaneously determines an encoder that maps complex data into a low-dimensional space, i.e., a CG mapping process, and a decoder that probabilistically infers the real data distribution via a generating process, i.e., a reconstruction from a CG representation to an atomistic representation. The VAE technique has been applied to the determination of CG representation for [C₄mim][BF₄], where an optimal CG representation is determined by training a VAE that is able to best reconstruct a given atomistic representation.⁸⁷ A limitation of this method is that the number of CG particles must be specified in advance rather than being automatically determined.

2.2 FF parametrization

In the context of classical MD simulation, molecular interactions are mainly described by additive empirical potential energy functions.⁴³ The total potential energy (U_total) is categorized into the intramolecular bonded term (U_bonded) and the intramolecular/intermolecular nonbonded term (U_non-bonded):

U_total = U_bonded + U_non-bonded (1)

where U_bonded mainly includes bond stretching (U_bond), angle bending (U_angle), and dihedral torsion terms (U_dihedral); U_nonbonded includes van der Waals (vdW) (U_vdW) and electrostatic interactions terms (U_ele) (Fig. 4). Polarizable FF models further introduce more sophisticated function forms to capture polarization effects, which will be discussed in section 3. Given the stiffer nature of bonded terms, bonded and nonbonded terms are commonly parameterized separately. For the bonded term parameterization, current IL CG models primarily focus on reproducing the bonded probability distribution from the all-atom trajectory. For the non-bonded parameterization, depending on the targeted properties, various strategies can be categorized into two schemes, i.e., top-down (Fig. 4a) and bottom-up (Fig. 4b) methods.

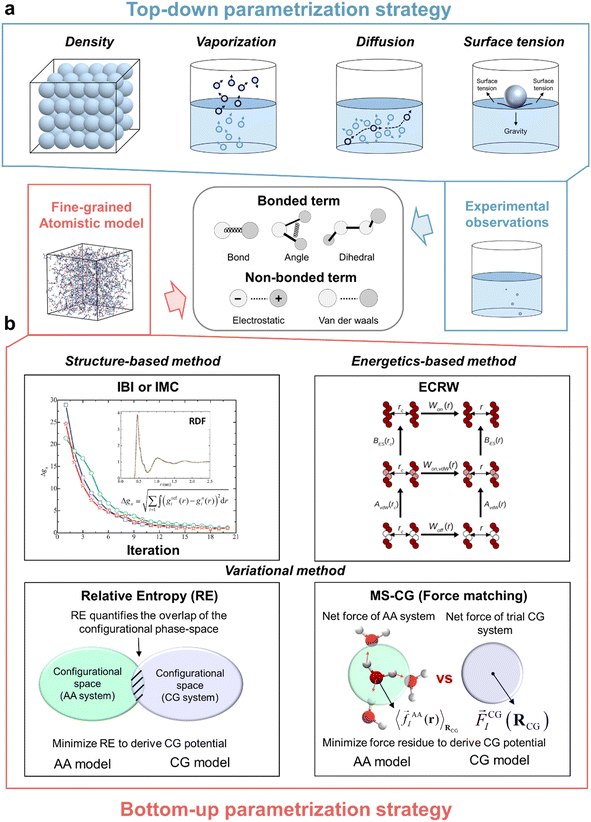

Fig. 4 (a) Representative experimental properties commonly utilized by the top-down strategy for parametrization of typical bonded and nonbonded terms in the CG model; (b) schematic illustration of the key thoughts behind some bottom-up CG strategy on the basis of structure-based (e.g. IBI^45,96 and IMC⁴⁶), energetics-based (e.g., ECRW⁵⁴), and variational methods (e.g., relative entropy^40,50,51 and MS-CG^47–49). The upper-left plot of (b) is reprinted with permission from ref. 96. Copyright 2013 The Royal Society of Chemistry. The upper-right plot of (b) is reprinted with permission from ref. 54. Copyright 2019 American Chemical Society.

2.2.1 Bonded parametrization. Similar to atomistic models, 2-, 3-, and 4-body interactions between covalently bonded CG particles are used to model bond stretching, angle bending and dihedral torsion potentials, respectively. The harmonic oscillator potential^{88,90,91,104,106} is mostly used for U_bond and U_angle, and the cosine potential^113,114 is commonly used for U_dihedral. For instance, the functional form of the bonded term in the MARTINI CG model³⁸ is as follows:where k_a/b/d is a force constant, r₀, φ₀, and θ₀ denote the equilibrium distance/angle/dihedral angle, and n is the multiplicity. The CG bonded term is typically parametrized to reproduce the reference probability distributions from atomistic MD simulations. Taking the parametrization of the bond-stretching term as an example, a prior reference AA trajectory is required for benchmarking. The AA trajectory is subsequently mapped into a CG one according to the CG mapping scheme. Subsequently, CG simulations are carried out, with bonded parameters optimized in an iterative manner to achieve satisfactory agreement between two resolutions. Recently, QM data have also been used to inform bonded parametrization.¹¹⁵ For example, in the context of the Martini3 model, an automated tool named Bartender utilizes semiempirical QM methods to parameterize the bonded terms for small drug molecules.¹¹⁵

Besides manual adjustment, the Boltzmann inversion (BI) method is one of the commonly used systematic methods for bonded parametrization.⁴⁴ The BI method holds the assumption that the CG potential of a specific bonded type can be approximated by Boltzmann-inverting the corresponding probability distribution obtained from a fine-grained atomistic model under a canonical ensemble, as follows:

U_dihedral(φ) = − k_BTln P(φ) + c_d (5)

where P is the probability distribution function regarding a specific bonded type, c_a, c_b, and c_d are constants, k_B is the Boltzmann constant, and T is the temperature. The implementation of the BI method requires the smoothing of the CG potential to generate continuous force, so the tabulated potential constructed from a series of spline functions is often adopted to extrapolate hardly-sampled regions with high potentials.¹¹⁶ The BI method has been applied to poly-(1-vinyl-3-ethylimidazolium) tetrafluoroborate ([PVEim][BF₄]) IL, and the structural characteristics were well reproduced.¹¹⁷

2.2.2 Nonbonded parametrization through top-down and bottom-up strategies. Nonbonded terms impact the strength of microscopic interactions, e.g., ionic, pi-stacking, and hydrogen bond (HB) interactions.¹¹⁸ Eqn (6) shows an example of a widely used nonbonded potential energy function, where vdW and electrostatic interactions are described by 12–6 Lennard-Jones (LJ) and Coulomb potentials, respectively.where ε_ij is the well depth of potential that reflects the interaction strength, σ_ij is the minimum collision distance that reflects the size of the particle, q_i is the point charge of the CG particle, ε is the relative dielectric constant, and r_ij denotes the distance between two interacting CG particles.

In the context of the top-down strategy, the initial guess for nonbonded parameters is often derived by summing the parameters from atomistic models within individual mapped atomic groups. Subsequently, the vdW and electrostatic parameters are adjusted to match experimental properties. For example, a 4-site CG model of [C₄mim][PF₆] was developed with its nonbonded parameters directly summed from a CHARMM-based AA model, which qualitatively reproduced the experimental results, though the dynamics are unrealistically slow.⁹⁸ With introduction of a new anion, [BF₄], the original 4-site CG model⁹⁸ was further refined by manually adjusting the vdW parameters of [BF₄] to match the experimental density and diffusion coefficient.⁸⁵ The parameter σ was found to play a more important role in the density and ε is more critical for the diffusion.⁸⁵ This CG model has been used to assess the impact of different MD simulation parameters on the performance of viscosity prediction.¹¹⁹ The vdW parameters of a CG model of [C₄mim][DCA]were also tuned to fit ionic conductivity.⁹⁵ Besides density and surface tension, a microstructural property, the radius distribution function (RDF), is also encompassed as a target property to optimize vdW parameters for a CG model of [C₇mim][Br], though no prior statistics mechanisms are known to guide this process.¹⁰⁴

As for the bottom-up strategy, it can be divided into three groups: structural-based, energetics-based, and variational-based methods.¹²⁰ The theoretical background of each method will be introduced, as well as their applications on IL CG models. Some more insightful reviews about this topic are recommended.^35,120–123 In addition, some automated programs have been developed to assist researchers in implementing the bottom-up CG strategy on their own systems, such as VOTCA,^116,124,125 OpenMSCG,¹²⁶ MagiC,¹²⁷ and BOCS.¹²⁸

Structural-based methods, e.g., iterative Boltzmann inversion (IBI)⁴⁵ and inverse Monte-Carlo (IMC),⁴⁶ determine nonbonded CG potentials from the microstructural distribution function, P(r), e.g., RDF. IBI adopts an iterative strategy to refine the BI-derived potentials, as follows:

where α is a scalar factor ranging from 0 to 1 to avoid large fluctuation, P_CG,k(r) is the CG distribution at the k-th iteration, and P_AA(r) is the target AA distribution. The IBI method does not include a cross-correlation term, which may result in a convergence problem for a multicomponent.¹¹⁶ IMC uses more rigorous thermodynamic arguments for parameterization of nonbonded CG potential and additionally includes cross-correlation of distributions. Within the IMC method, the pair potential and particle–particle distance are discretized into tabulated format, i.e., U = {U₁, U₂, …U_n}, and the potential update of the IMC method is calculated by solving a set of nonlinear multidimensional equations through the Newton–Raphson method:

U^k+1 = U^k + J⁻¹(〈S^CG〉 − S^AA) (8)

where 〈S〉 = {〈S₁〉, 〈S₂〉, …〈S_n〉} is the number of particle pairs in terms of interparticle distance r = {r₁, r₂, …r_n}, for example, 〈S_a〉 is shown as follows:where N is the number of CG particles, V is the volume of the system, Δr is the distance of grid spacing, and g(r_a) is the RDF between a certain pair of CG particles. J is a Jacobian matrix (n × n) given by:

For the inverse iterative procedure, the root-mean-square deviation (RMSD) of the target RDFs (Δg_n) is often selected as a metric to evaluate the convergence (eqn (11)), as follows:

where n is the iteration cycle, M is the number of target RDFs, and gⁿ_i(r) and g^ref_i(r) are the trial and reference RDFs.⁹⁶ The performance of a 4-site CG model of [C₄mim][PF₆], optimized using IBI and IMC methods, was compared. It was found that although the IMC method converges much faster than the IBI method, they both provide a consistent description of thermodynamic, scattering and dynamic properties as well as their temperature dependence.⁹⁶

The energetics-based method like extended conditional reversible work (ECRW) determines an optimal CG potential directly based on the AA potential between mapped molecular fragments.^52–54 The ECRW method defines this potential as the reversible work needed upon introducing nonbonded interactions between mapped molecular fragments. The ECRW method separates the effective pair potential into the effective vdW potential (A_vdW(r)) and electrostatic potential (B_ES(r)). They can be calculated through a thermodynamic cycle using the reversible work W of relocating mapped molecular fragments from a quasi-infinite cutoff distance, r_c, to a finite distance r:

A_vdW(r) = W_on,vdW(r) − W_off(r) + A_vdW(r_c) (12)

B_ES(r) = W_on(r) − W_on,vdW(r) + B_ES(r_c) (13)

where W_on, W_on,vdW, and W_off represent all nonbonded interactions present in the model, only vdW interactions present between mapped molecular fragments, and no interactions between mapped molecular fragments. The calculated A_vdW(r) and B_ES(r) are fitted using the analytical potential. The ECRW method has been applied to a 3-site CG model of [C₄mim][X] (X = [Cl], [BF₄], [PF₆]).⁵⁴ However, within the ECRW method, constrained gas-phase AA simulation of reference molecules is used to calculate the interaction free energy, poorly accounting for the polarization effect from the environment.¹²⁰

Variational-based methods minimize an objective function to determine an optimal CG potential, such as the relative entropy (RE) method and multiscale coarse-graining (MS-CG) method. Relative entropy, originating from information theory, is a convenient metric to quantify the extent of information lost upon coarse-graining.^40,50,51 The RE method determines an optimal CG potential by minimizing the RE metric, S_RE, which measures the difference between the trial CG model and the target AA model.

where i is the index of the configuration of the AA system, M is an AA-to-CG mapping operator which converts the i-th AA configuration into the I-th CG configuration, and p is the normalized probability of a certain configuration. 〈S_map〉_AA is mapping entropy that describes the average degeneracy of the AA-to-CG mapping, which is not dependent on the CG potential. An iterative optimization scheme based on the Newton–Raphson strategy is implemented to minimize the RE metric with respect to FF parameters (λ):¹²⁹

λ^k+1 = λ^k − αH⁻¹·∇_λS_RE (15)

Here, H is the Hessian matrix of S_RE, and ∇_λS_RE is the vector of the first derivatives of S_RE with respect to λ. The detailed formula of H and ∇_λS_RE can be found in the original paper.¹²⁹ The RE method has been applied to parametrization of a CG model of [C_nmim][PF₆] (n = 4–10), including optimization of LJ parameters, knot values for vdW tabulated potentials, and the charge scalar factor for Coulomb potentials.⁹³

The MS-CG method,^47–49 originating from the force-matching (FM) method,¹³⁰ maps mean forces at the AA level onto the simpler CG level by minimizing a force residue between trial CG and AA models using a linear least-squares technique:

where N_CG is the total number of CG particles, R_CG is the CG particle positions of a given CG configuration, F⃑^CG_I(R_CG) is the net force acting on CG particle I using the trial parameters, 〈f⃑_I^AA(r)〉_RCG is the projected net force on CG particle I from the target AA model subject to the constraint that the CG particle positions are fixed at R_CG, and the outer big bracket represents an average over all CG configurations of the system sampled in an AA simulation. The use of splines to describe the functional form of the forces is needed to guarantee a linear parametrization.¹³¹ The MS-CG method determines the CG potential directly from mapped AA simulation without requiring additional trial CG simulations. The MS-CG method has been used to determine the vdW parameters of a CG model of [C_nmim][NO₃] (n = 1–12).^102,105 It was demonstrated that the MS-CG-based CG model exhibited very good transferability over different systems at various temperatures and reproduced an experimentally observed mesoscopic heterogeneous structure for long-chain ILs.

3 Polarizable CG models

The presence of ions in pure ILs or their mixtures with polar solvents generates a strong local electric field, which polarizes neighboring ions or molecules. However, due to their limited ability to adapt to external environmental changes, non-polarizable fixed-charge force fields cannot accurately predict the dynamic properties of ILs, such as viscosity and the diffusion coefficient.⁶¹ Their electrostatic parameters are mostly based on a single ion, ignoring the polarization effects intrinsic to the densely packed liquid state. It often requires either explicit or implicit inclusion of polarization effects for the molecular FF to be more accurate and predictive. There mainly exist two categories of polarizable models, including physics-inspired and mean-field polarization models. This section will explore the applications of these two types of polarizable models in IL CG modeling. More comprehensive reviews on the polarizable FF are highly recommended.^{43,61,132–134}

In the context of atomistic models, physics-inspired polarization models explicitly incorporate contributions from induced dipole interactions, such as the fluctuating charge (FQ) model,^62,63 induced dipole (ID) model,^64–68 and Drude oscillator model.^43,69 Currently, only the Drude model has been applied to the IL CG modeling. After brief introduction of the FQ and ID models, we will discuss the Drude model in detail, with specific emphasis on the target data used for optimizing the nonbonded parameters. Atomic charges in the FQ model can be dynamically changed in response to the local electric field, generating a larger or smaller dipole moment of the target molecule. The ID model assigns explicit polarizability (α) at the center of atoms or virtual sites to describe anisotropy and spatial distribution response to the polarization. The Drude model introduces additional mass-charged particles, i.e., Drude particles (the yellow particles shown in Fig. 5a), attached to the nuclei of their core atomic particles via a harmonic spring, which mimics the induced dipole on each atom site. The polarizability α_i of a Drude oscillator is given by:

where q_i,D is the charge on the Drude particle i and k_D is the harmonic force constant of the corresponding Drude–CG particle harmonic bond. The polarizability of a given atom can be isotropic or anisotropic in the form of a tensor, where the Drude oscillator can deform differentially in different dimensions. The induced point dipole under an external electric field E⃑ can be calculated as:

Fig. 5 (a) Schematic illustration of the physics-inspired Drude-based polarizable CG model of [C₄mim][BF₄]; yellow particles represent the Drude particles attached to the nuclei of their core CG particles via a harmonic spring; the displacement of the spring under the influence of an electric field mimics the induced polarization effect; (b) schematic illustration of the QM-based polarizable VaCG model of [C₄mim][BF₄]; CG charges are derived from QM calculations on IL clusters containing up to 30 anion–cation pairs, using the GEBF method; these CG charges are further fused into the electrostatic terms of the VaCG model. The plot (a) is reprinted with permission from ref. 94. Copyright 2017 IOP Publishing. The plot (b) is reprinted with permission from ref. 74. Copyright 2022 Elsevier.

The Drude oscillator model has been implemented into polarizable CG models of [C_nmim][BF₄]⁸⁶ and [C_nmim][PF₆] (n = 2, 4, 6),⁹⁴ where Drude particles are attached to each CG particle, as shown in Fig. 5a. It has been demonstrated that there exists a semiquantitative relationship between isotropic molecular polarizability and molecular volume calculated by Bader's atoms-in-molecules (AIM) theory.^135,136 An isotropic polarizability is assumed in these polarizable CG models and the polarizability of CG particle i is determined according to the ratio of the volume of the corresponding molecular fragment V_i to the total molecule volume V_tot. To avoid the polarization catastrophe, i.e., the inducible dipoles diverge if they are spatially too close to each other, a screening function is adopted to calculate dipole–dipole interactions, as follows:

where t_ij is a semiempirical parameter named as the Thole factor and α_ij is the geometric average of the polarizabilities of each CG particle. The vdW parameters were further reparametrized to reproduce density. The resulting self-diffusion coefficients are well reproduced,^86,94 along with their trend concerning the varying alkyl-chain length of the cation.⁸⁶

The mean-field method is a more cost-effective approach that implicitly accounts for the polarization effect by directly reducing the value of electrostatic parameters. Many ab initio calculations of ion pairs or large-sized IL clusters suggest that the net ionic charge is reduced because of the polarization-induced charge transfer.^137–139 For example, the net partial charges of ions for a pair of [C₄mim][BF₄] calculated by density functional theory (DFT) at the level of M06-2X/6-31G** are ±0.92 e instead of ±1 e of an isolated ion.⁷⁴ An empirical charge scaling factor of around 0.8 was introduced by many IL CG models to compensate for the absence of electrostatic polarization.^{54,89,90,92,97,99,101,114,117,140} For example, the original 4-site CG model of [BMIM][PF₆]⁹⁸ was refined by reducing the CG charge to ± 0.78 e, achieving a better temperature dependence of diffusion coefficients.⁹⁹ Further validation also demonstrated the good ability of the refined model to predict the surface tension (39.4 mN m⁻¹ predicted at 400 K vs. experimental 40.8 mN m⁻¹ at 393 K).⁹⁷ For the aqueous IL solution, a smaller charge scalar is often used to compensate for the polarization effect. For instance, a charge scalar of 0.25 is adopted to simulate the phase behavior of an aqueous long-chain IL.^101,141,142

Alternatively, introduction of electrostatic parameters from QM calculations of large-sized IL clusters more explicitly treats the polarization effect of bulk ILs. It avoids the process of artificially specifying parameters. However, the computational cost of traditional QM methods increases nonlinearly with the size of the system, which limits their applicability. A linear-scale electronic structure method, generalized energy-based fragmentation (GEBF),^71–73 offers a practical solution to this challenge. The GEBF method calculates the ground-state energy (or properties) of a target system as a linear combination of the ground-state energies (or properties) of a series of small electrostatically embedded subsystems. It has been demonstrated that the GEBF method with an ion-pair-based fragmentation scheme provides satisfactory descriptions on ground-state energies, optimized structures, and vibrational spectra of various IL clusters.¹³⁹ The GEBF calculations of IL clusters, including ([EtNH₃][Cl])_n, ([EtNH₃][NO]₃)_n, and ([C₁mim][NO]₃)_n, at the M06-2X/6-31G** level, indicated that the average ionic charge exhibits transferability when n = 10.¹³⁹ Inspired by this, the electrostatic-variable coarse-grained (VaCG) model, a 3-site polarizable CG model for [C₄mim][BF₄], was developed. The VaCG model sets the molecular fragment charge derived from the GEBF calculation of IL clusters with 30 cation–anion pairs (Fig. 5b).⁷⁴

The polarization effect is highly susceptible to the surrounding environments and could be reflected by the dielectric permittivity (ε) in an average mean-field manner. The VaCG model introduces a concentration-dependent dielectric constant to consider the variable polarization environment under different water concentrations.⁷⁴ The electrostatic term of the VaCG model is shown in the following equation:

where q^ion and q^W are the effective charge of CG particles in the IL and water model, and ε_IL(x) and ε_W(x) are the concentration-dependent dielectric constants of water and IL, respectively. The electrostatic parameters of water molecules are based on the polarizable MARTINI water (PW) model.¹⁴³ The parametrization workflow of the VaCG model is as follows: firstly, the molecular fragment charges of IL are determined through GEBF calculations; secondly, at some representative water concentrations, i.e., x = 0, 20, 50, 80, and 100 mol%, dielectric constants were varied to predict various thermodynamic (density, heat of vaporization, surface tension), dynamic (self-diffusion coefficient, ionic conductivity), and dielectric properties (dielectric constant); finally, the optimal dielectric constants were fitted over the whole concentration range according to the selected dielectric constants that overall performed best at each point. It has been demonstrated that the final model has a good temperature transferability of density and diffusivity. The VaCG model has been further successfully applied to study the effect of the IL concentration on short peptide self-assembly.⁷⁵

4 ML techniques for the IL CG models

Thanks to advancements in computing power and the abundance of data, ML techniques have been widely used in IL modeling, such as the use of ML algorithms as property prediction tools and as integral components in the development of high-quality FFs for MD simulation. Extensive studies in IL research have focused on evaluating the predictive ability of different ML algorithms with respect to physicochemical properties. For example, a series of transformer-CNN models¹⁴⁴ have been trained to predict IL antibacterial activity, phase transition and decomposition temperature, melting temperature, electrical conductivity, viscosity, and density.^145–148 These well-trained ML models can be used to perform virtual screening of new ILs with desired properties. Some insightful reviews about this area are highly recommended.^149–152 Another important application is the development of interatomic potentials in MD simulations.^83,153,154 Their utilization primarily involves two aspects: the construction of ML potentials (MLPs) of small molecules and materials or functioning as an optimization tool in the context of classic FFs.¹⁵⁴ Unlike classic FFs, which treat the potential energy surface (PES) through separated interaction terms, ML potentials discard the empirical function forms by representing interatomic potentials as functions of descriptors that characterize the atoms within the system of interest. As shown in Fig. 6, the widely used Behler–Parrinello neural network (BPNN) potential¹⁵⁵ has been taken as an example to briefly explain their working principle.

Fig. 6 Architecture illustration of the Behler–Parrinello neural network potential;¹⁵⁵ the red region represents the chemical environments of the centered atoms within the cutoff sphere of radius R_c; the Cartesian coordinates of atom i is denoted as R_i, and they are transformed into a set of symmetry functions G_i to ensure translational, rotational, and permutational invariances of the PES; they are further used as input for the individual atomic neural networks (NNs) to predict each contribution (E_i) to the total energy; finally, these individual energy contributions are summed to obtain the total energy (E).

The potential energy (E) is divided into contributions from individual atoms (E_i) (eqn 21),

The E_i depends on the chemical environments of the atoms, which are defined by the positions of all neighbors within a specified cutoff radius R_c. However, Cartesian coordinates are not ideal features to represent the chemical environments of the atoms, often referred to as “atomic fingerprints”, because they cannot preserve the translational, rotational, and permutational invariances of the PES. A transformation of Cartesian coordinates into a set of symmetry functions is required.¹⁵⁶ These symmetry function values characterize the energetically relevant local environment of each atom and are subsequently used as input for each atomic neural network (NNs) to predict the energy contribution of each atom (E_i). Although the computational efficiency is significantly improved compared to the ab initio molecular dynamics (AIMD), construction of atomic fingerprints for PES predictions still limits their efficiency. Graph neural networks¹⁵⁷ automatically extract structural information of a material system, bypassing the requirement to design and compute the atomic fingerprints. For instance, the SchNet model¹⁵⁸ employs a series of continuous-filter convolutional layers to extract molecular structural features that can be used as input to predict the molecular PES.

The graph-based SchNet model¹⁵⁸ has been used to develop CG potentials for ILs.⁸⁷ Separated graph convolutional neural networks were employed to treat intramolecular and intermolecular interactions of a 5-site or 3-site CG model for the IL ([C₄mim][BF₄]]). Temperature was incorporated as an input to the neural network to parameterize a temperature-transferable CG potential. Moreover, a classical bond prior with fixed bond lengths between CG particles of the cation and an excluded volume prior were added to better describe intramolecular and intermolecular interactions. The neural network architecture for fitting the CG potential is shown in Fig. 7a. The ML model was trained with the MS-CG force metric as the loss function. There are some advantages for this metric: atomic forces can be calculated instantaneously from a given AA configuration; MS-CG is a non-iteration scheme which determines an optimal potential without additional trial simulation, while adequate sampling requires a large database of AA configurations.¹²⁰ The microstructural properties calculated using the CG model with the ML potential show good agreement with those from the AA model, and the Arrhenius relation for self-diffusivity was successfully reproduced. Although the temperature-dependent trend of the self-diffusion coefficient is captured, it exhibits faster dynamics. For instance, the computed self-diffusion coefficients (D⁺/D⁻) at room temperature are 48.58/35.49 × 10⁻¹¹ m² s⁻¹, approximately one order of magnitude higher than the experimental values (1.83/1.78 × 10⁻¹¹ m² s⁻¹), as shown in Table 1.

Fig. 7 (a) Overview of the neural network architecture to predict the CG potential,⁸⁷ where the local environment of CG particles was incorporated as input and two separate neural networks were employed to learn the intra- and inter-molecular potential; additionally, the temperature influence was considered as another input, alongside classical priors such as excluded volume and bond length; (b) the left side shows a general diagram of the mixed-resolution model that combines a united-atom model of diphenylalanine and a CG model of an aqueous IL solution ([C₄mim][BF₄]);⁷⁵ the right side illustrates the ML-guided parametrization protocol,⁷⁵ designed to optimize the coupling terms of the mixed-resolution model; this workflow includes prior MD simulations, parameter learning, and parameter selection. The plot (a) is reprinted with permission from ref. 87. Copyright 2020 American Institute of Physics. The plot (b) is reprinted with permission from ref. 75. Copyright 2023 American Chemical Society.

Some challenges remain for the application of the ML CG potential to ILs. For viscous ILs, large spatiotemporal MD simulations are often needed to ensure sufficient sampling. The main advantage of CG modeling lies in its high efficiency, but the ML potential suffers from poor efficiency relative to classic FFs.¹²⁰ Given the rare benchmark studies comparing efficiency between graph neural network (GNN)-based ML and classic CG FFs, we use an atomistic model to illustrate this point. As shown in Table 2, relative to other GNN-based ML FFs like MACE,¹⁵⁹ Allegro,¹⁶⁰ ViSNet,¹⁶¹ and BAMBOO,¹⁶² the classic atomistic FF, OpenFF2.0.0,¹⁶³ achieves a higher inference speed. Development of a more efficient ML CG potential would significantly enhance its practical applicability. Moreover, properly accounting for long-range electrostatic interactions in the ML potential for ILs remains a challenge.¹⁶⁴ One solution is to increase the cutoff radius to capture such an effect; however, this would substantially increase the cost of model training and prediction.¹⁶⁴ Another solution is to additionally embed physically interpretable quantities into the ML potential. For example, in the charge equilibration (Qeq) scheme,¹⁶⁵ the charge that incorporates a polarization effect can be determined by atomic electronegativities, which can be expressed as environment-dependent atomic properties learned by atomic neural networks.¹⁶⁶ Recently, such a method has been generalized into a GNN-based atomic ML potential and tested on the OE62 dataset.¹⁶⁷ However, such techniques haven't been extended to the ML potential of IL CG models.

Table 2 Comparison of the inference speed of GNN-based MLFFs and the classic FF

Index	FF	Natom	NGPU	Speed (million steps per day)
a The data of indices 1–4 were summarized from ref. 162. The model compound is 3-(benzyloxy)pyridin-2-amine. There are no direct speed data available for gas-phase MD simulations using the GNN-based ML FFs mentioned above. Only the inference speed for a single molecular structure has been reported. Therefore, the total number of simulation steps was estimated based on the total time of one day.b As for the data of index 5, condensed-phase MD simulation was performed. All the tests (indices 1–5) were run on an NVIDIA A100 GPU.c The data of index 6 were summarized from ref. 168. The model compound is an inhibitor bound to cyclin-dependent kinase (CDK8). Gas-phase MD simulation with a 1 fs time step was performed using OpenMM 8 (ref. 168) on an NVIDIA RTX 4080 GPU.
1^a	MACE^159	27	1	4.9
2^a	Allegro^160			6.6
3^a	VisNet^161			7.1
4^a	BAMBOO^162			12.5
5^b	BAMBOO^162	10 000		2
6^c	OpenFF2.0.0 (ref. 163)	53	1	140.5

---

Here, we focus on the applications of ML techniques to the optimization of classic FFs, with special emphasis on vdW optimization. In the context of the classic atomic FF, the atom types are first assigned based on the specific FF rules, and then the bonded and electrostatic parameters are calibrated against QM data followed by vdW parameter optimization targeting condensed-phase experimental data. A full description of classic FF parametrization is beyond the scope of this review. Some insightful reviews are highly recommended.^43,61 Optimization of vdW parameters has been a long standing challenge for the classic FF. Different from the atom-specific electrostatic parameters, different atoms share the same vdW parameters if they are in a similar chemical environment. To ensure parameter robustness, vdW optimization often requires simultaneously targeting multiple experimental properties. With the increase of parameter size, the computational cost of MD simulations will be more expensive. For such a muti-variable and multi-objective optimization task, it's expensive to evaluate the loss function and difficult to define the gradients with respect to parameters using a traditional optimization algorithm.^153,169 Development of optimization methods to explore high-dimensional parameter spaces with high efficiency remains a challenge.

ML techniques offer a solution by serving as computationally inexpensive surrogate model to assist vdW optimization. ML models approximate the mapping between the desired physical properties and vdW parameters, facilitating quick screening of potential parameters. Typically, ML-guided vdW optimization follows an iterative workflow, including three key steps: 1. prior MD simulations, 2. parameter learning, and 3. parameter selection. Throughout this process, the ML surrogate can be continuously updated, refining the search and enhancing predictive accuracy. In step 1, prior dispersed parameter sets are generated within reasonable parameter space. MD simulations are performed using these parameter sets, and then, the properties of interest are collected. In step 2, an ML model is trained to learn prior parameter sets to fit the target properties, which is then evaluated to predict the desired properties, for a large number of trial parameter sets. The bounds of trial parameter sets are determined by the parameter sets used to build the ML surrogate. In step 3, a subset of promising parameters is selected using some user-defined metrics, thus initializing the next cycle. Such an iteration continues until the MD simulations with the parameter set identified in this step yield a satisfactory performance.

Recently, such an ML-assisted FF parametrization strategy has been used to optimize coupling interaction terms in a mixed resolution model.⁷⁵ Fig. 7b shows this mixed model, which combines a GROMOS-based united-atom (UA) model of diphenylalanine (P) with a CG model of the aqueous IL ([C₄mim][BF₄]]) solution, i.e., the VaCG model.⁷⁴ Four coupling nonbonded parameters were selected for optimization, including three parameters (λ^P-A, λ^P-B, and λ^P-C) that impact vdW interaction strength between the P molecule and different molecular fragments of the IL (anion: A; methylimidazolium, and butyl unit of the cation: B and C) and a dielectric constant (ε_P) that regulates the electrostatic interaction strength between the P molecule and surrounding solvent molecules. As for target properties, similarity scores^170,171 that quantify the resemblance between the microstructural properties calculated by AA simulations and the mixed model were adopted. The random forest regressor model is utilized to carry out multi-output regression tasks. At the stage of parameter selection, the mean absolute error of similarity scores for each target is used to evaluate the performance of each potential parameter set. The whole ML-guided FF parametrization process requires 11 iterations to reach convergence, where a total of 327 UA/CG MD trajectories were performed. The optimized mixed model was used to study diphenylalanine self-assembly in an aqueous IL solution with various IL concentrations. The trend observed in MD simulations is consistent with that of experiments.

Here, some challenges of ML-assisted vdW optimization are highlighted. The ML-assisted vdW optimization protocol is built on the foundation of domain expertise. Its performance is strongly influenced by some key prior parameters, such as the initial guess for vdW parameters and the boundary of parameter space. These parameters necessitate prior careful evaluation. A good initial guess can improve efficiency by directing the optimization towards the region of interest without consuming too much computational cost. The general principle for selection of the initial guess is to assess the reliability of assigning existing parameters from similar chemical environments. If the existing parameters are very limited, it begins with assessing the initial guess based on analogy using some classic atomic FF sources, such as CGenFF,¹⁷² GAFF,¹⁷³ and OPLS.¹⁷⁴ The atomic vdW parameters are summed up based on CG mapping rules to derive the corresponding CG values. The initial guess can also be derived using QM methods.⁸⁶ The C₆ dispersion coefficient relates σ and ε through C₆ = 4εσ⁶, which can be determined by various QM methods.¹⁷⁵ The radius of the vdW parameter (σ) can be estimated from QM volume according to the assumption of the sphere volume of the interaction site.⁸⁶ Another key consideration is to ensure that the initial guesses well balance the conflicting objectives. With the concept of Pareto fronts in multi-objective optimization, the optimal solutions are those where improving one objective necessarily leads to the degradation of another. Spending more effort on determination of the optimal initial guess is often crucial and necessary.

While ML surrogate-level evaluation is much faster than simulation-level evaluation, it often requires a large number of real MD simulations to build accurate ML surrogates. The setup for the parameter sampling space should balance the trade-off between accuracy and efficiency. The space with too wide boundaries would cover some unphysical results, and the space with a too narrow region would miss some high-quality parameters. Currently, parameter bounds are primarily manually chosen.¹⁷⁶ It is necessary to develop a more automated method to achieve this goal with minor human intervention. In addition, with the increase of parameter dimensionality, the size of parameter space would exhibit exponential growth. For example, if there are two vdW parameters to be optimized, with 200 points sampled on each dimension, the total number of possible parameter sets will be 4 × 10⁴. However, if the number increases to 6, there will be 6.4 × 10¹³ points to be sampled using the brute force method. Construction of such ML surrogates heavily negates their speedup on prediction. One solution is to use advanced sampling techniques to reduce computational expenses. For example, Latin hypercube sampling (LHS)¹⁷⁷ has been in conjunction with ML surrogates to optimize vdW parameter sets of the Drude general FF (DGenFF),⁸¹ where 200 near-random distributed points were generated to represent 6.66 × 10¹⁷ possible parameter sets. Leveraging the power of Bayesian optimization, a comprehensive automated machine learning (AutoML) framework was proposed for simultaneously tuning vdW and electrostatic parameters of a three-center water model under the framework of the polarizable Gaussian model (pGM).¹⁷⁸ Although the parameter space extends to nine dimensions, great efficiency was achieved, and transferability was demonstrated among different thermodynamic properties across different temperatures. However, there are no studies systematically evaluating the impact of different sampling methods on the performance of ML-assisted FF optimization.

Another challenge lies in parameter correlation, where multiple distinct vdW parameter sets yield equally accurate thermodynamic properties. For example, when using an ML surrogate to optimize LJ parameters of alkenes in the context of Drude FFs, there are 10⁵ trial parameter sets with their objective function lower than the pre-defined threshold.⁸¹ Validation of the whole parameter sets at the simulation level becomes highly nontrivial. Even though some clustering algorithms like K-means can be used to reduce this number,⁷⁵ how to design an effective protocol to determine the final optimal parameter set remains a challenge. One solution is to introduce additional objective properties to assess the robustness of the potential parameter sets. For example, in the context of CHARMM-based atomic FFs, QM data have been used to screen reasonable vdW parameters after validation through condensed-phase simulations, such as ab initio interaction energies and distances with rare-gas elements.¹⁷⁹ Another solution is to evaluate the performance of the potential parameter using experimental properties not included in the optimization process. Such properties are often computationally expensive, so they are rarely selected as target properties for the ML surrogate, such as hydration free energies, the dielectric constant, and a series of dynamic properties.

5 Applications

5.1 Microscopic structure

Dissecting the microscopic structure of bulk ILs is essential for unraveling the mechanisms that underpin their unique physicochemical properties. It plays a pivotal role in the systematic design of ILs tailored to specific requirements.¹⁸⁰ ILs typically consist of small anions and bulky cations with polar headgroups and nonpolar alkyl side chains. Both experimental and computational studies have revealed that ILs with an intermediate side-chain length exhibit microstructural heterogeneity.^2,3 As shown in Fig. 8a, the chain length-dependent nanostructures of bulk ILs were first explored using a CG model of [C_nmim][NO₃] (n = 1–12).^180–183 The findings indicate that cations with a short side-chain length (n < 4) exhibit higher anisotropy. As the side-chain length increases, the tail groups aggregate to form non-polar domains, while the headgroups of both cations and anions retain their local structures. The non-polar domains, i.e., tail groups represented by white particles, are separated by the continuous polar network, i.e., headgroups of cations and anions represented by yellow and red particles. A Gaussian-like heterogeneity order parameter (HOP) revealed that the degree of heterogeneity becomes more pronounced with increasing alkyl side-chain length.¹⁸¹ The homogeneous distribution of polar moieties has been attributed to the strong electrostatic interactions, while the formation of heterogeneous domains is driven by the hydrophobic interaction between alkyl chains.¹⁸¹ This observation was later verified by X-ray diffraction experiments on pure [C_nmim][Cl] (n = 4–10) and [C_nmim][BF₄] (n = 4–8).¹⁸⁴ Other CG simulations of ILs with an intermediate side-chain length also captured the microphase segregation, such as [C_nmim][PF₆] (n = 4–10),^100,104 [C_nmim][BF₄] (n = 4–10),^90,91 and [C₁₀mim][TFSI].⁸⁹

Fig. 8 (a) The left side shows the IL CG model for the study of bulk heterogeneity; the right side shows a snapshot that illustrates the nanoscale segregation liquid, where red and yellow particles represent anions and cationic polar head groups; the regions circled by blue lines indicate the nonpolar tail domains composed of cationic nonpolar terminal groups (white particles); (b) the left side shows the IL CG model with a long side chain for the study of phase transition; the right side shows the snapshot of the structural transition from the isotropic to the SmA phase at 505 K and the SmA to the crystal phase at 480 K. The plot (a) is reprinted with permission from ref. 180. Copyright 2007 American Chemical Society. The plot (b) is reprinted with permission from ref. 183. Copyright 2015 American Chemical Society.

Experimental evidence reveals that when the alkyl side-chain length of the cation is sufficiently long, e.g., at least n > 11 for [C_nmim][BF₄],¹⁸⁵ ILs tend to form peculiar ionic liquid crystals (ILCs).¹⁸⁶ ILCs exhibit unique features that go beyond those of conventional liquid crystals (LCs), particularly in their high anisotropic ion conductivity.^186–188 These features make them widely employed as electrolytes for batteries^188,189 and dye-sensitized solar cells (DSSCs).^190–192 Through heating a solid or cooling an isotropic liquid (or another mesophase), a thermotropic mesophase (LC phase) can be induced.¹⁹³ CG simulations of [C₁₆mim][NO₃] were employed to study such behavior.^183,194,195 CG simulations successfully capture three distinct experimentally-observed phases, i.e., the crystal (Cr) phase, the smectic A (SmA) phase, and the isotropic liquid (Iso) phase.¹⁹⁴ Fig. 8b shows the isotropic-to-SmA transition and SmA-to-crystal phase structural transition. It has been demonstrated that a liquid crystalline-like structure emerges only when the side-chain length of cations is sufficiently long, typically n > 14 for [C_nmim][NO₃]. This finding qualitatively coincides well with experimental observations.^185,196 This structural transition has been attributed to the fact that the stronger hydrophobic interactions between nonpolar tails prevail over the continuous polar network and form a more ordered lamellar structure rather than separated tail domains.^183,195 Notably, the phase transition temperatures are still poorly reproduced with current IL CG models.^88,194 For example, the crystal-to-smectic transition temperature estimated by the CG model (550 K) exceeds the experimental results by approximately 225 K. For IL CG models, enhancing temperature transferability near the phase transition region is essential for better description of phase behaviors.¹⁹⁷

5.2 Biological system

Compared to simple electrolytes, ILs exhibit more sophisticated molecular interactions with biomolecules, including hydrogen bonding, pi–pi stacking, hydrophobic interactions, and ionic interactions (Fig. 9a). These interactions further underscore the diverse range of behaviors and properties exhibited by ILs. Research into the IL biological activity has garnered considerable interest, particularly for potential applications in pharmaceutics,¹⁹⁸ medicine,¹⁹⁹ and food science.²⁰⁰ An urgent need is required to gain a deeper understanding of their molecular interactions with diverse biomolecular species, including phospholipids, proteins and peptides, DNA and RNA, and carbohydrates.²⁰¹

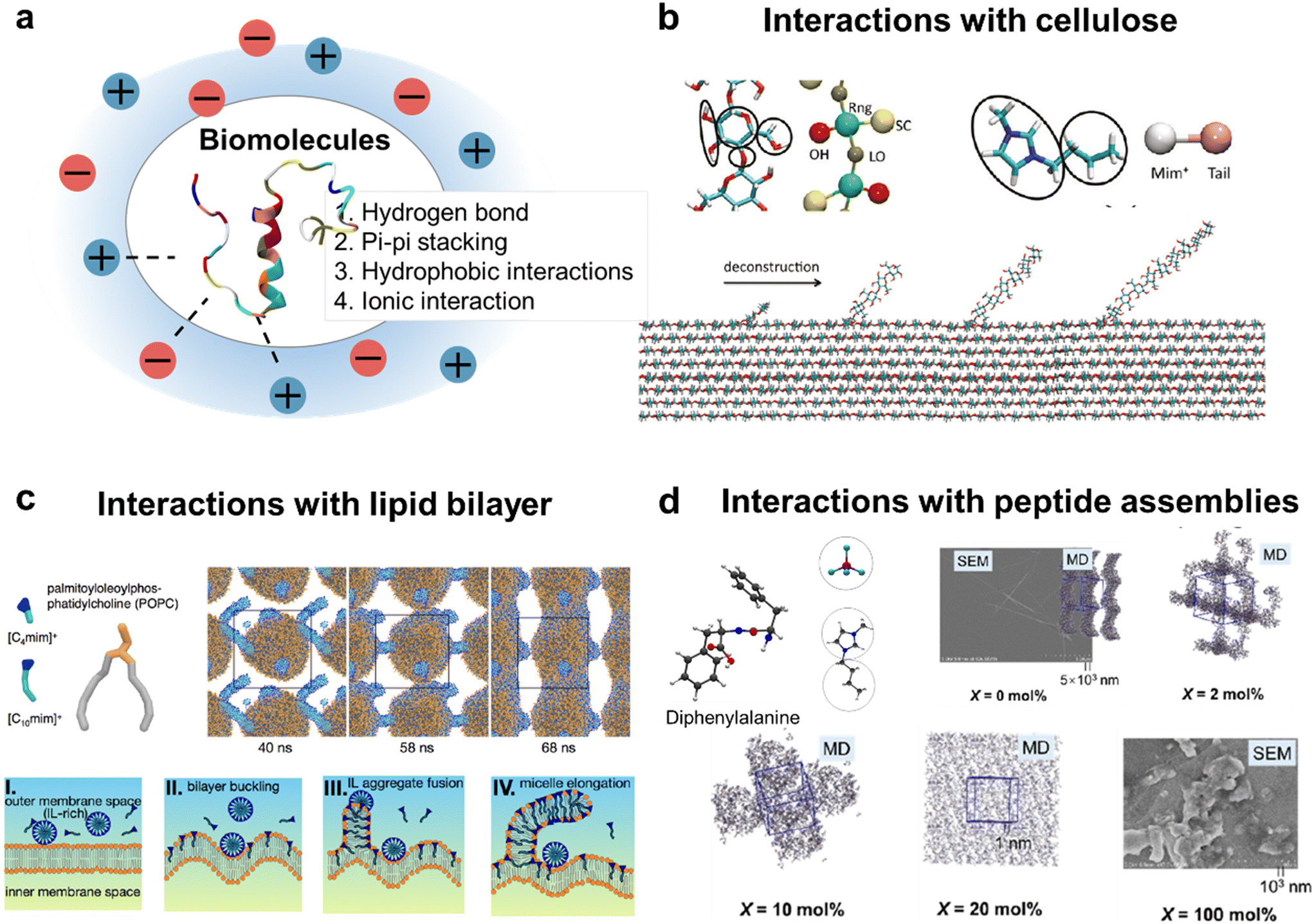

Fig. 9 (a) Typical interactions between biomolecules and ILs in the first solvation layer; (b) IL ([C₄mim][Cl]) facilitates cellulose deconstruction; (c) IL induces membrane disruption; (d) aqueous solution with a high IL concentration suppresses diphenylalanine self-assembly into ordered nanostructures. The plot (b) is reprinted with permission from ref. 202. Copyright 2011 American Chemical Society. The plot (c) is reprinted with permission from ref. 206. Copyright 2016 American Chemical Society. The plot (d) is reprinted with permission from ref. 75. Copyright 2023 American Chemical Society.

Cellulose, a natural polysaccharide, consists of linear chains ranging from several hundreds to tens of thousands of β(1 → 4)-glycosidic units. It is widely found in lignocellulosic biomass, an abundant renewable energy source in nature. Its biological functions, such as catalytic or enzymatic breakdown, rely on the exposure of buried glycosidic bonds. Cellulose is difficult to dissolve in water and most organic solvents, but it can be dissolved in certain classes of ILs. A pretreatment solvent is required to disrupt the strong interactions that arise from the coupling between the equatorial and axial moieties of glucose residues. Simulations of cellulose deconstruction have been conducted at the all-atom level by peeling off an 11-residue glucan chain from a cellulose microfibril (Fig. 9b). To dissect the force interactions, the AA trajectories were mapped into CG configurations, and a bottom-up force-matching strategy was utilized to derive radial mean forces between the solvent and glucan CG particles. The results indicate that ILs exhibit stronger interaction with glucan compared to water molecules, with anions interacting strongly with the hydroxyl groups and cations favorably interacting with side chains and linker oxygens.²⁰²

Some ILs exhibit stronger toxicity than traditional organic solvents. For example, a class of imidazolium-based ILs have been found to be chronically toxic to a variety of aquatic species^203,204 and can be used as antimicrobial agents.²⁰⁵ CG MD simulations were carried out to investigate the effects of imidazolium-based ILs ([C_nmim], n = 4–10) on the morphology of the 1-palmitoyl-2-oleoylphosphatidylcholin (POPC) lipid bilayer, a model system of the cell membrane.^206,207 The cross-interaction parameters between lipids and ILs were optimized by matching the potential of mean force (PMF) during the process of inserting a single cation into a lipid bilayer at the AA level. To quantitatively characterize the structural transitions, a parameter called the leaflet strain parameter (ε_c) is used. This parameter is defined as the difference in surface area between the upper and lower leaflets. This indicated that cations prefer to insert into the lipid bilayer, with their alkyl tails embedded within the bilayer. When a critical value (ε_c ≈ 0.2) is reached, this insertion triggers a morphological disruption in the bilayer (Fig. 9c).

Diphenylalanine (P) can self-assemble into well-ordered nanostructures, such as nanotubes,^208,209 nanofibrils,²¹⁰ and nanospheres,²¹¹ with potential applications in functional nanomaterials.^212,213 Experimental studies have shown that the introduction of water into [C₄mim][BF₄] induces diphenylalanine self-assembly into nanotubes, whereas no ordered structure is observed in the pure IL.²¹⁴ A mixed resolution model was proposed to study the impact of the aqueous IL solution on self-assembly of P molecules.⁷⁵ The mixed resolution model incorporates the united-atom (UA) model for diphenylalanine (P) and the polarizable VaCG model for the aqueous ionic liquid ([C₄mim][BF₄]) solution. The parameters of coupling IL–P interaction terms were parametrized by an adaptive ML-guided scheme, as detailed in section 4. It is found that at high IL concentrations, ILs suppress the self-assembly of P into ordered nanostructures through competitive P–An HB and Ca–π stacking interactions. The P–An HB and Ca–Ph π-stacking interactions gradually replace the P–P HB and Ph–Ph π-stacking interactions as the IL content increases. It is found that the ordered fibril structure appears in the pure water system, whereas it disappears in the pure IL system (Fig. 9d), in agreement with experimental observation.⁷⁵

5.3 Electrochemical system

5.3.1 IL electrolytes for supercapacitors. Supercapacitors are emerging as electrochemical energy storage devices, characterized by their high-power density and long-cycle life. Unlike traditional capacitors, supercapacitors replace the dielectric medium with an electrolyte solution, where the migration of ions from one electrode to the other facilitates the charge transport (Fig. 10a). ILs are widely used electrolytes due to their wider electrochemical stability compared to conventional solutions of inorganic salts in organic solvents.^215–217 Additionally, porous materials are commonly selected as electrode materials because of their large surface area, which maximizes contact with the electrolyte.²¹⁸ The electrical double layer (EDL) formed at the solid–liquid interface between the charged electrode and electrolytes is crucial for the overall performance of supercapacitors. CG models have been used to investigate EDL characteristics, such as ionic arrangement, ionic dynamic, and capacitive properties.

Fig. 10 (a) Schematic illustration of an electrical double layer capacitor (EDLC); three types of electrode models are employed to study the energy storage mechanism in the EDLC with the IL CG solvent model, including the ideal-geometry electrode model, realistic porous electrode model, and amorphous porous electrode model; the model system includes the (b) planar electrode surface, (c) slit-like pore model, and (d) cylindrical model; the ordered porous electrode model includes (e) zeolite-templated porous carbons (ZTCs), (f) metal–organic frameworks (MOFs), (g) hydrogen substituted graphdiynes (HsGDYs), and (h) MoS₂; (i) carbide-derived carbon is a typical amorphous porous electrode model. The plots (b–i) are reprinted with permission from ref. 228 (Copyright 2014 American Chemical Society), ref. 231 (Copyright 2020 American Chemical Society), ref. 234 (Copyright 2016 The Royal Society of Chemistry), ref. 237 (Copyright 2021 American Chemical Society), ref. 238 (Copyright 2020 Elsevier), ref. 239 (Copyright 2023 Wiley), ref. 241(Copyright 2022 American Chemical Society), and ref. 244 (Copyright 2014 American Chemical Society).

To simulate charged electrodes, two methods can be used in MD simulation, including the constant-charge model (CCM) and constant-potential model (CPM).²¹⁹ The CCM method assigns equal charge on equivalent sites of the electrode, which induces a uniform electric field between two electrodes, corresponding to a charged isolated capacitor. The CPM method assigns variable charges whose magnitudes are changed on-the-fly to maintain a constant potential difference between two electrodes. The computationally efficient CCM method can reasonably approximate planar electrodes but may be unsuitable for a complex realistic-morphology electrode, where the electrode polarization considerably impacts the dynamics of confined ions and capacitive properties.²²⁰ Some insightful reviews are recommended for detailed introduction of methodologies in MD simulations for electrochemical interfaces.^{6,218,220–224}

IL CG models have been incorporated with charged electrode models of varying different chemical complexity, such as the ideal-geometry electrode model (e.g., planar slab, slit-like pore, and cylindrical electrode model) and the realistic-morphology electrode model (e.g., ordered and amorphous porous electrode models). In the case of the planar electrode model (Fig. 10b), a generic 2-site IL CG model, not specified to any particular IL, was used to study the effects of ion size and valency on the differential capacitance. Their results qualitatively agreed with the trend predicted by the analytical model using mean-field theory.²²⁵ Asymmetry in the ion shape was further considered by replacing the spherical cation model with a triangular model that approximates the aromatic ring of the imidazole-based cation. It was found that the different preferred orientations of the cations adsorbed on the electrode induce a distinct feature in the differential capacitance.²²⁶ A 4-site IL CG model^85,97 of [C₄mim][PF₆] and an atomic three-layered graphite electrode model²²⁷ were used to study the influence of the electrode potential on the EDL structure.²²⁸ A potential-driven structural transition between the ordered (small electrode potential) and disordered phases (negative electrode potential) of the first adsorbed ion layer was observed. The anomalous dependence of differential capacitance on the applied electrical potential can be attributed to this structural transition.²²⁹ The solvent effect on the structural and capacitive properties of the EDL was also tested under the same system setup.²³⁰ Distinct interfacial characteristics between [C₄mim][PF₆] and [C₄mim][BF₄] were observed, but very similar characteristics emerged upon mixing with acetonitrile (1.5 M).

Electrode materials mainly employ porous materials that process good electronic conductivity and large surface area. The slit-like pore model (Fig. 10c) and cylindrical nanopore model (Fig. 10d) are simplistic models to approximate the pore effect. A 4-site model of [C₂mim][BF₄]^85,97 and a pair of slit pores were adopted to explore the pore size on charging dynamics.²³¹ A non-monotonic relationship between charging time and pore size is found, where some small pores (∼0.45 nm) are able to accelerate the charging process, contrary to the conventional view that only large pores facilitate charging. It is further demonstrated that the charging enhancement is related to the structural transition of the confined in-pore ions. The nanoconfinement effects on disjoining pressure was investigated by a four-site CG model of [C₂mim][BF₄] and a slit-like pore model.²³² The disjoining pressure exhibits damped oscillations at pore widths below 5 nm and this phenomenon diminishes with increasing pore size. A following AA MD simulation shows that the disjoining pressure at large pore widths can be approximated by an exponential function, which enables the estimation of the decay length that correlates with the electrostatic screening length.²³³ A fused CG model of [C_nmim][BF₄] (n = 2, 4, 6) and a three-layer carbon nanotube (CNT) model were used to study the effect of pore size on the structural and capacitive properties.²³⁴ It is found that the relationship between electric potential and surface charge densities is non-monotonic when the pore is narrow.

These slit-like and cylindrical nanopore models capture the pore size and curvature effects, but they fail to capture the complex microscopic structures of the porous electrode, where factors, such as the intricate pore size, elementary composition, and topological structure, impact ion transport.²²² The realistic porous electrode model is a good choice to mimic real conditions.⁵ There are two types of realistic porous electrodes: ordered porous electrodes, such as zeolite-templated carbons (ZTCs) (Fig. 10e),^235–237 metal–organic frameworks (MOFs) (Fig. 10f),²³⁸ hydrogen substituted graphdiynes (HsGDYs) (Fig. 10g),²³⁹ and MoS₂ (Fig. 10h),^240,241 and amorphous microporous carbons such as carbide-derived carbons (CDCs) (Fig. 10i).^242–244 For example, a series of CDC electrode models with different pore sizes were generated using the quenched MD procedure.^242,245 These electrode models have been used together with a 4-site CG model of [C₄mim][PF₆]^85,97 to study the capacitance enhancement mechanics induced by sub-nanometer pores.²⁴⁶ The enhanced capacity has been reproduced, which has been attributed to the separation of oppositely charged ions inside the disordered pores. In addition, two CDC materials with similar pore size distributions (CDS-950 and CDC-1200) exhibit distinctive capacities, indicating that the local structure has a profound effect on the capacitance values. More examples of MD simulations of supercapacitors with ILs and porous electrodes are overviewed in Mo′s review.^5,224

5.3.2 IL lubricants for electrotunable friction. ILs have emerged as ideal lubricants due to their unique properties, including high thermal-oxidative stability, nonflammability, negligible vapor pressure, and strong interaction with the solid surface.^247,248 ILs are able to generate a nanometer-thick protecting film at the sliding surfaces that sustain higher normal loads compared to other molecular lubricants.^249,250 A key challenge in tribology is how to real-time control friction in mechanical devices. Applying an external electric potential is a promising approach for electrotunable friction in IL lubricants, as the structural and dynamic properties of ions can be strongly manipulated by electric fields from the charged surface.²⁵¹ In MD simulations, the IL film is confined between a fixed substrate and a moveable plate/tip and subjected to a normal load and lateral shear. To mimic the friction experimental conditions, they are further immersed in a bulk environment. A schematic illustration of the aforementioned MD simulation setups can be seen in Fig. 11a. For this topic, an insightful review is highly recommended.¹²

Fig. 11 (a) Typical MD simulation setups for electrotunable friction with IL lubricants. Different factors that influence electrotunable friction with IL lubricants, including (b) cation chain length, (c) mixtures with other polar solvent molecules, and (d) surface roughness. The plots (a and b) are reprinted from ref. 254 (Copyright 2020 American Chemical Society); the plots (c and d) are reprinted from ref. 255 (Copyright 2020 American Chemical Society) and ref. 260 (Copyright 2017 The Royal Society of Chemistry).

The electric field can impact the structural characteristics of the confined IL film, such as ionic arrangement, layering, and orientation, which are responsible for the variation of friction force. A generic 2-site IL CG model was used to study the structural response of a nanoscale IL film to the surface charge.²⁵² A volcano-shaped nonmonotonic dependency between friction force and surface charge has been found. This phenomenon can be ascribed to the shift of the slippage plane, in which the maximum friction corresponds to the transition point from the solid–cation interface to the interior of the anion–cation interface. Further simulations using a 4-site CG model^99,253 revealed that the increase of surface charge induces anions to detach from the surface and cations to reorient from a tilted configuration to a flat one, facilitating the shift of the slippage plane.

The molecular structure is an important factor that affects friction. The effect of the alkyl chain length of the cation ([C_nmim][BF₄], n = 2, 4, 6) on the electrotunable friction in ILs (Fig. 11b) was investigated.^90,254 It reveals that cations with a short hydrocarbon chain length (n = 2) yield a lower friction force (∼40%) than cations with longer chains (n = 4). Structural analysis revealed that smaller cations are more compact and ordered, while cations with longer alkyl chains promote the segregation of charged polar and apolar regions. In this case, the hydrophobic domains tend to insert into the interior of the IL film, occupying the space available for anions.

The microscopic mechanisms of electrotunable lubrication in dilute IL solutions with other polar solvents have been studied using the IL CG model.^255–257 A 4-site CG model of [C₄mim][PF₆]⁹⁹ has been combined with the SPC/E water model²⁵⁸ to represent diluted IL–water mixtures with the coupling parameters parameterized against density and RDFs from AA simulations.²⁵⁷ It indicated that water adsorption screens the repulsive interactions between like-charged ions on the charged surface and makes the IL film softer. In the case of dilute IL solutions with acetonitrile (ACN), the nanoscale films formed in diluted mixtures of IL provide lower friction forces than the pure IL films, preserving a profound electrotunable response (Fig. 11c).^255,259

The inhomogeneity and asperity characteristics of real surfaces also influence the electrotunable friction. Periodic ridges were used to approximate the roughness on the surface and combined with a 4-site CG model of [C₄mim][PF₆] to inspect the role of surface roughness in electrotunable friction in ILs (Fig. 11d).²⁶⁰ It has been found that the variation of the friction coefficient strongly depends on the substrate structure and shear direction, such as smooth, transversal and longitudinal cases.²⁶¹ A similar volcano-shaped dependency between friction force and surface charge is also observed.

6 Challenges and future opportunities

In this section, we attempt to summarize key challenges for IL CG models and highlight some potential solutions, as complemented by recent studies. We refer readers to several insightful reviews on this topic.^{35,36,120,122,123,262}

The first challenge lies in how to improve the transferability of CG models. The transferability refers to the ability of a CG model to maintain similar predictive accuracy across a wider range of thermodynamic state points (e.g., temperature, pressure, and composition) beyond the ones for parameterization. One straightforward solution is to develop environment-dependent CG potentials. For top-down CG models, a concentration-dependent dielectric constant was introduced into the electrostatic term to improve the composition transferability for an aqueous IL solution.⁷⁴ The variable dielectric constants were optimized at some representative concentrations to match experimental properties. They are then fitted to an equation as a function of concentration. As for bottom-up CG models, a temperature scalar is added into an IBI-derived CG potential of ethylbenzene to reproduce the correct thermal expansion behaviors.²⁶³ Different functional forms for the temperature scaling factor were also evaluated using a CG model of hexane.²⁶⁴ The ML CG potential can also benefit from such a strategy. Environmental variables can be treated as input features to enable the CG potential to learn its effect.⁸⁷

Improving transferability can also be achieved by optimizing general CG potentials targeting properties across multiple thermodynamic state points. For example, the multi-state IBI (ms-IBI) method improves the original single point IBI method by additionally introducing a constraint to simultaneously match a series of target RDFs at different thermodynamic states.²⁶⁵ The ms-IBI method has been applied to octane–benzene mixtures, achieving high structural fidelity across the entire concentration range.²⁶⁶ The extended ensemble method uses a variational principle to identify the optimal CG potential that can best capture the structural correlations of an atomistic extended ensemble.²⁶⁷ The CG simulation of alkane–alcohol mixtures indicates that the extended ensemble potentials have improved transferability of structural properties compared to potentials parametrized in a single system. However, such a bottom-up CG method often focuses on reproduction of microstructural properties, with limited reliability in thermodynamic properties.¹²⁰ Some statistical mechanics theories that link microscopic molecular properties to macroscopic properties can inform the FF parametrization to address this problem. For mixture systems, the Kirkwood–Buff (KB) theory relates volume integrals over the radial distribution function, the so-called Kirkwood–Buff integrals (KBIs), to various macroscopic thermodynamic properties.²⁶⁸ This theory have been applied to parametrization of a CG model for aqueous urea, where a correction term is added into the IBI-derived CG potential to best reproduce the exact KBIs.²⁶⁹ Another important theory for the mixture system is the statistical associating fluid theory (SAFT).²⁷⁰ In particular, the SAFT-γ group contribution method has been used to develop a series of CG models,^271–274 where FF parameters are calibrated against a molecular-based equation of state derived from experimental data.

Parameterization of polarizable CG models using high-quality QM data often suffers from expensive computational cost. Larger molecular or condensed-phase systems are often desired for FF parametrization to better capture the polarization effect. For example, in the development of the Drude FF for monatomic ions, targeting the QM PES of larger ion–polar compound complexes yields parameters that better reproduce experimental properties. However, DFT scales as O(N^3–4) with the increasing number of electrons, N, so it is still expensive to construct a high-quality QM database for molecular systems involving large biomolecules or interfaces with different solids. Fragment-based QM methods provide a practical solution.⁷⁰ Their basic idea is to partition a large system into small subsystems according to some prior rules and then evaluate the total energy as the linear combination of energies of small subsystems, thus dramatically reducing computational cost and making calculations more feasible. Fragment-based QM methods can directly predict FF parameters based on predefined fragments. For example, the energy-based GEBF method^71–73 has been used to derive fragment charge⁷⁴ and dipoles^275,276 for polarizable IL and protein CG models. Besides, the energy information calculated by fragment-based QM methods can also guide optimization of the polarizable CG model, such as utilization of QM interaction energies between small molecules and large biomolecules to validate their nonbonded parameters.^72,139 Notably, the performance of fragment-based QM methods is highly dependent on fragmentation schemes. These fragmentation schemes are often user-defined and involve significant human intervention. Development of more automatic fragmentation schemes would enhance the applicability of such QM fragment-based methods for FF parametrization.

ILs feature flexible tunability due to the vast combination space between different ions and their diverse chemical modifications. However, general IL CG models that cover a wide range of ILs remain scarce, which limits the high-throughput screening of ILs for material design. Parametrization of a general CG model often requires the involvement of a broad range of model compounds, making the process increasingly time-consuming. Herein, the development of a fully automated protocol that integrates CG mapping and FF parametrization together with minor human intervention holds great promise. Given the fact that most toolkits^{116,124–128} primarily focus on parameter optimization, autoMARTINI¹⁰⁹ and AMOFMS²⁷⁷ further integrates automated CG mapping functionality. However, these toolkits currently lack the capability to parameterize polarizable models. Such toolkits have been reported for polarizable atomic FF models, like FFparam^278–280 for the Drude FF,⁴³ though fully end-to-end parametrization remains unattained. FFparam provides a graphical user interface to help users prepare and analyze necessary MM and QM files to streamline the optimization process. Besides manual adjustment, electrostatic parameters can also be optimized in an automated fashion using the Monte Carlo simulated annealing (MCSA) algorithm. Enhancing automated CG toolkits with polarizable model optimization will be a key direction for the development of high-precision general IL CG models.

7 Conclusions

By averaging over atomic details, CG models offer a significant computational advantage to study complex systems involving ILs across a larger spatiotemporal scale. Here, we have presented representative IL CG models developed by different top-down and bottom-up methods and summarized key challenges related to their accuracy, efficiency, and transferability. The integration of ML techniques into CG model development has been reviewed, including utilization of an ML surrogate to facilitate FF optimization and development of the ML potential. We expect that future studies will not only leverage these advances to develop more general and transferable IL CG models without the need for case-by-case parameterization but also make them more accessible and user-friendly for the computational community. Such efforts will broaden the applicability of IL CG models to more complicated systems, potentially leading to new discoveries.

Data availability

No primary research results, software or code have been included, and no new data were generated or analyzed as part of this review

Conflicts of interest

The authors declare no conflicts of interest.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (Grant No. 22033004, 22373049) and the Natural Science Foundation of Jiangsu Province (BK20232012).
