The conventional production of formic acid is energy-intensive, requiring methanol and carbon monoxide reactions followed by hydrolysis under high temperature and pressure. Methanol electrochemical refinery (e-refinery) offers a sustainable alternative but faces challenges like high overpotential and competing oxygen evolution reaction (OER). This study presents Pt-nanoparticle-decorated Ni(OH)2 as a breakthrough catalyst, achieving a significantly lower onset potential of 0.5 V vs. reversible hydrogen electrode (RHE) for methanol-to-formate conversion compared to previous reports (>1.35 V vs. RHE), while simultaneously generating hydrogen at the cathode. The platinum valence state is identified as an effective descriptor for formate faradaic efficiency, validated through experimental studies and density functional theory. Pt1.05@Ni(OH)2, featuring the highest platinum valence states among the catalysts studied, exhibits an exceptional formate faradaic efficiency of 78.8% and a high formate production rate of 1.3 mmol h−1 mgcat−1 at 0.8 V vs. RHE. This approach reduces overpotential, eliminates OER, and cuts carbon dioxide emissions by over 50% compared to traditional methods. Moreover, economic analysis shows profitability from the fourth year at 50 mA cm−2, supporting easier industrial adoption and low carbon dioxide emissions. These advancements offer a sustainable, energy-efficient, and economically viable method for formate production, advancing the commercialization of methanol e-refinery technology.
Broader contextA transition towards sustainable chemical production has driven a great interest into alternative methods that minimize environmental impact and energy consumption. Formic acid, a versatile chemical used in various industrial applications, is traditionally produced through energy-intensive processes involving methanol and carbon monoxide reactions. Such methods contribute significantly to carbon emissions and reliance on fossil fuels. Considering the future increase in green methanol production, the greener methods to produce formic acid from methanol is desired for a significant reduction in CO2 emission of its supply chain. Electrochemical refinery of methanol to formate meets such a need due to its high electron-to-product efficiency. However, the high overpotential and competing OER have hindered its potential for practical implementation. This paper introduces a Pt-decorated Ni(OH)2 catalyst that significantly achieves efficient and low-overpotential formate production with co-generation of hydrogen. It covers detailed studies on how the technique overcomes key technical barriers as well as the analysis of its economic and environmental benefits. The work marks a critical step toward the large-scale adoption of methanol e-refinery technology and its integration into a low-carbon economy. |
Methanol, characterized by its simplicity, ease of storage, and water solubility, can be industrially produced on a large scale from renewable bio-resources, making it a crucial industrial raw material for numerous chemicals. A significant portion, over 70%, of the global methanol production is allocated to chemical syntheses,15 including the production of formic acid, dimethyl ether, and formaldehyde. Among these, formic acid stands out as a valuable chemical and a potential energy carrier, finding wide-ranging applications in industries such as textiles, printing, oil & gas, and aviation. However, the conventional process of producing formic acid from methanol involves the combination of methanol and carbon monoxide, followed by the hydrolysis of the resulting methyl formate under high temperature and pressure. This energy-intensive process results in formic acid being approximately twice as expensive as methanol.16
Upgrading the conventional fossil-fuel-based process with the e-refinery concept is imperative from both economic and environmental standpoints. However, the practical application of methanol e-refinery towards formate is currently hindered by its high overpotential. Existing catalysts, such as Ni0.33Co0.67(OH)2,17 Co(OH)2,18 Ni0.75Fe0.25Se2,19 LaCo0.5Fe0.5O3,20 Ni(OH)2,21 NiS,22 and other transition metal catalysts,23–41 operate at potentials mostly over 1.35 V vs. reversible hydrogen electrode (RHE). This potential greatly surpasses the theoretical potential of −0.06 V vs. standard hydrogen electrode (SHE) for the conversion: CH3OH + H2O → HCOOH + 4H+ + 4e−. The theoretical potential is derived from two key equations: CO2 + 6H+ + 6e− → CH3OH(aq) + H2O, E0 = 0.016 V vs. SHE42 and CO2 + 2H+ + 2e− → HCOOH, E0 = −0.07 V vs. SHE.43 Although catalysts such as Pt44 and PtRu45 have succeeded in lowering the overpotential of methanol oxidation to around 0.6 V vs. RHE, their focus on fully oxidizing methanol to CO2/carbonate46–48 renders them unsuitable for the mild methanol-to-formate e-refinery process.
This study overcomes those limitations by significantly reducing the onset potential of the methanol e-refinery to approximately 0.5 V vs. RHE with Pt decorated Ni(OH)2. Methanol oxidation on platinum (Pt) is well-known to proceed via a dual-pathway mechanism, with the indirect COad pathway dominating below 0.65 V vs. RHE, while the direct HxCOad pathway becomes prominent above 0.7 V vs. RHE.49–52 This shift aligns well with the onset of OH adsorption peaks on Pt,53 after which the valence states of surface Pt atoms increase. In this study, Pt nanoparticles are combined with Ni(OH)2, where the heterojunction between Pt and Ni(OH)2 elevates Pt valence states, which, in turn, correlate positively with formate faradaic efficiency. This innovative discovery is substantiated through the examination of additional catalysts as well as theoretical computations. Among the catalysts scrutinized, Pt1.05@Ni(OH)2, characterized by the highest Pt valence states, showcases an outstanding formate faradaic efficiency of 78.8% and a notable formate production rate of 1.3 mmol h−1 mgcat−1 at 0.8 V vs. RHE. Importantly, the reduction in operating potential eliminates competing OER, thus enhancing formate production efficiency and significantly lowering energy consumption and carbon dioxide emissions. Since methanol plays critical roles in advanced chemical production and hydrogen storage/transportation, this work constitutes a substantial advancement in the methanol economy and decarbonization of chemical industry.
To elucidate the crystallographic properties of the catalysts, X-ray diffraction (XRD) analysis is performed, as depicted in Fig. 1a. The XRD pattern of commercial Ni(OH)2 and Pt nano matches Ni(OH)2Pm1 (164) and Pt Fm
m (225), respectively, with no impurity peaks detected. As the Pt decoration ratio increases, the Pt diffraction peak gradually rises, indicating an increase in Pt content in the catalyst. The local atomic and electronic structures of the catalysts are examined using X-ray absorption near-edge structure (XANES), extended X-ray absorption fine structure (EXAFS), and X-ray photoelectron spectroscopy (XPS) (refer to Fig. 1b–d and Fig. S1, S2, ESI†). According to the XANES figure, the Pt valence states in Ptx@Ni(OH)2 gradually increase with decreasing Pt content, though the majority of Pt nanoparticles remain metallic, as evidenced by the strong Pt–Pt bond and weak Pt–O bond in Fig. 1c. This observation is corroborated by the XPS plots, where the binding energy increases gradually with decreasing Pt content, indicating a corresponding increase in Pt valence states. The peaks observed at around 856.3 eV, 873.8 eV, 67.9 eV, 71.4 eV, 72.1 eV, 74.8 eV, 76.8 eV, 531.3 eV, and 532.3 eV are attributed to Ni 2p3/2, Ni 2p1/2, Ni 3p3/2, Pt0 4f7/2, Pt+2 4f7/2, Pt0 4f5/2, Pt+2 4f5/2, O in Ni–O, and O in adsorbed H2O, respectively.54–57 High-resolution transmission electron microscopy (HRTEM) images of the catalysts are shown in Fig. 1e and f and Fig. S3, S4 (ESI†). The images reveal that Pt nanocrystals (dark particles) exhibit a diameter of approximately 2–4 nm, and the particle density increases gradually with the Pt/Ni ratio. Fig. 1g presents the charge density difference of the Pt–Ni(OH)2 heterojunction calculated using density functional theory (DFT), where a heterojunction is established between the Ni(OH)2(101) face and Pt(111) face, as observed in the HRTEM figures in Fig. 1f and Fig. S4 (ESI†). Self-consistent calculations have confirmed the charge-deficient status of the Pt layer, thereby validating the experimental findings from a theoretical perspective.
![]() | ||
Fig. 2 Electrochemical performances of Ptx@Ni(OH)2 (x = 0.00, 1.05, 3.00, and 4.91) and Pt nano. (a) CV profiles in 1 M KOH + 1 M CH3OH in comparison with 1 M KOH on Ptx@Ni(OH)2 (x = 0.00, 1.05, 3.00, and 4.91) and Pt nano. (b) NMR spectra of the five catalysts. The positions for HCOO− and HCHO are around 8.3 ppm and 4.4 ppm,58,59 respectively. No peaks for HCHO are observed for all catalysts. (c) IC patterns of Pt nano. To counteract CO2 adsorption from open air, IC tests are conducted before and after the CA experiments. |

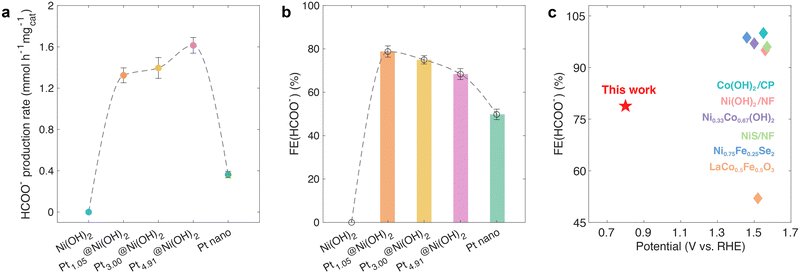

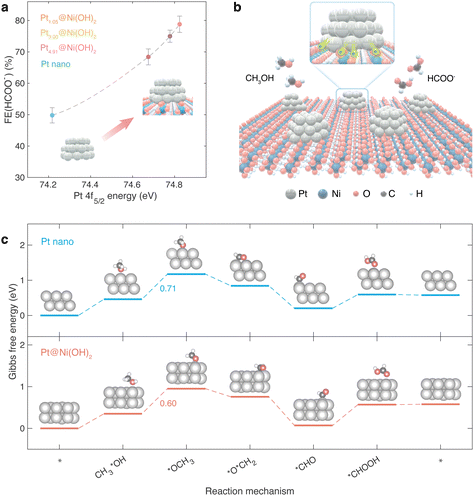

Fig. 3a and b provide a summary of the formate production rate and faradaic efficiency after 2-hour CA test at 0.8 V vs. RHE. Two notable observations emerge from these figures. Firstly, Ni(OH)2 fails to activate methanol at 0.8 V vs. RHE. Secondly, the formate production rate increases with the Pt ratio on Ptx@Ni(OH)2 (x = 1.05, 3.00, and 4.91), albeit with a gradual decrease in faradaic efficiency. The first observation aligns with the CV curves depicted in Fig. 2a, indicating Ni(OH)2's incapacity to convert methanol at 0.8 V vs. RHE. The slight enhancement in formate production rate in the second observation results from the increase in Pt content among Ptx@Ni(OH)2 (x = 1.05, 3.00, and 4.91). In contrast, the variation in formate faradaic efficiency is attributed to the heightened valence states of Ptx@Ni(OH)2 (x = 1.05, 3.00, and 4.91), as evidenced by the X-ray absorption spectroscopy (XAS) and XPS curves presented in Fig. 1b–d, indicating its potential capability as an efficient descriptor for methanol-to-formate faradaic efficiencies. Additionally, Fig. 3c compares the onset potential and formate faradaic efficiency of Pt1.05@Ni(OH)2 with other methanol e-refinery catalysts reported in the literature, highlighting the significantly lower operation potential of Pt1.05@Ni(OH)2 compared to previous findings.17–21
Moreover, to further substantiate the relationship between Pt valence states and formate production from methanol, a 5-minute methanol e-refinery reaction at 0.8 V vs. RHE is conducted on Pt1.05@Ni(OH)2 following a 5-minute HER in 1 M KOH at −0.1 V vs. RHE. This process is repeated 24 times successively, resulting in a total methanol e-refinery time of 2 hours. The formate faradaic efficiency exhibits a decrease to approximately 60.0% (Fig. S7, ESI†) compared to that of Pt1.05@Ni(OH)2 in Fig. 3b, thus reinforcing the correlation between Pt valence states and formate faradaic efficiency. Additionally, the formate faradaic efficiency is examined for Pt nanoparticles loaded on Co(OH)2 under identical CA conditions, as shown in Fig. S8 (ESI†). Pt@Co(OH)2 demonstrates a noteworthy formate faradaic efficiency of approximately 77.0%. The results from both experiments provide further evidence supporting the wide applicability and effectiveness of the Pt-valence-state descriptor for the methanol e-refinery process.
To assess the electrochemical performance of the catalyst, polarization results are generated by performing a 3-minute chronopotentiometry (CP) test for both 1 M KOH + 1 M CH3OH and 1 M KOH electrolytes at current densities of 10, 20, 30, 40, and 50 mA cm−2 (geometric area), a temperature of 80 °C, and an electrolyte flow rate of 2 ml min−1. Notably, the methanol e-refinery reaction exhibited a considerably lower potential compared to OER on Pt1.05@Ni(OH)2 at a fixed current density, as depicted in Fig. S9a (ESI†).

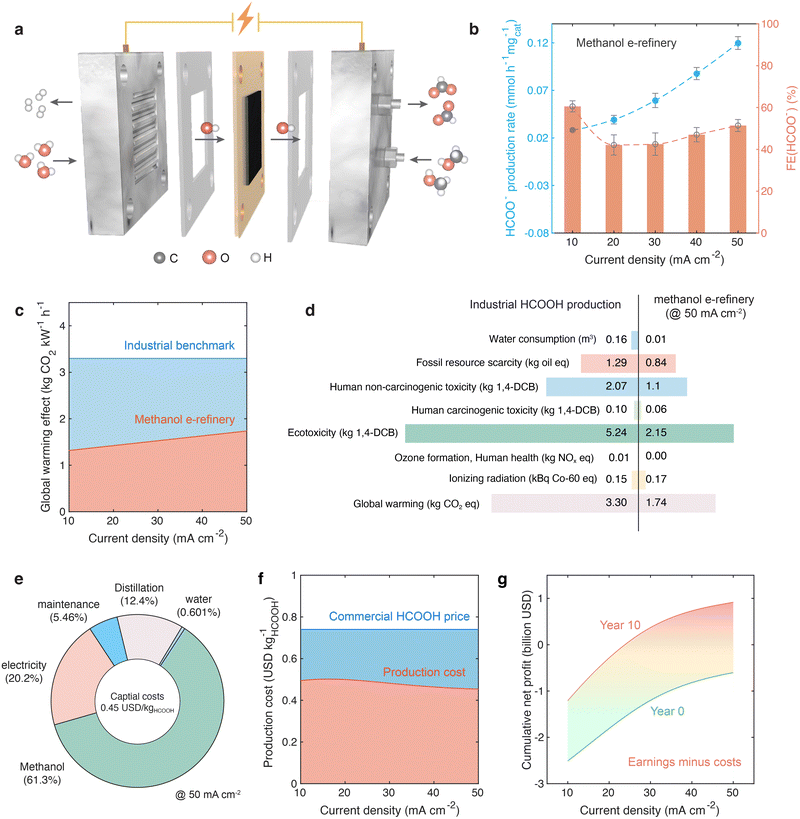

Following the polarization experiments, a 30-minute CP test is conducted at current densities of 10, 20, 30, 40, and 50 mA cm−2 (geometric area) in 1 M KOH + 1 M CH3OH, as presented in Fig. S9b (ESI†). The electrolytes are subsequently analyzed by IC to quantify the concentration of formate ions (HCOO−). Fig. 5b illustrates the production rate and faradaic efficiency of HCOO−. Notably, formate faradaic efficiency takes a considerable share at all current densities.
To comprehensively elucidate the advantages of the methanol e-refinery MEA design, both environmental impact and economic profit analyses are conducted. The environmental impact, quantified in terms of equivalent carbon dioxide emissions, of the MEA cell is evaluated through a life cycle assessment (LCA). This assessment is compared with the conventional method of formic acid production via the combination of methanol and carbon monoxide followed by methyl formate hydrolysis.61–64 The LCA is conducted in accordance with the ISO 14040 and 14044 frameworks (additional details are provided in the ESI†). During the calculations, all mass and energy inputs and outputs associated with formic acid production are considered, encompassing a cradle-to-gate approach. As illustrated in Fig. 5c, the carbon dioxide emissions of methanol e-refinery cell are less than half of the conventional industrial process at 10–40 mA cm−2 and approximately half at 50 mA cm−2. Beyond CO2 emissions, the methanol e-refinery cell demonstrates superior performance across all other environmental impact metrics compared to the conventional process at 50 mA cm−2, as shown in Fig. 5d. The economic assessment takes into account various factors, including reactant and electricity consumption, distillation costs, machine operation and maintenance expenses, and other practical considerations.65–67 The prices of H2,68 CH3OH,69 HCOOH,70 and electricity71 are set at 1.26 USD kg−1, 0.40 USD kg−1, 0.74 USD kg−1, and 0.03 USD kW−1 h−1, respectively. Fig. 5e systematically presents the formic acid production cost of the methanol e-refinery cell at 50 mA cm−2, and Fig. 5f compares the production cost to the commercial formic acid price. The formic acid produced by this method shows a significant cost advantage over the commercially available formic acid. However, when taking into account the practical factors required for establishing a new plant–such as the initial investments in plant construction, the installation of electrolyzer stacks, and the purchase of distillation equipment–the cumulative net profit (defined as total earnings minus total costs, as shown in Fig. 5g) is negative during the first year. Nevertheless, with continuous catalyst refreshment and equipment maintenance (costs of which are included in the calculation), the plant is projected to achieve positive cumulative net profits since the fourth year at a current density of 50 mA cm−2 (Fig. 5g). If the current density increases, with the concomitant increase of energy consumption and carbon dioxide emissions, the time required to attain positive cumulative net profits can be shortened to twenty-five months at 100 mA cm−2, thirteen months at 200 mA cm−2, and ten months at 300 mA cm−2 (Fig. S10, ESI†). However, a high current density is technically challenging to achieve in a MEA system, accompanied with higher capital investment, more carbon dioxide emissions, and lower energy efficiency. A low current density like 50 mA cm−2 can be readily achieved and managed by current MEA techniques. Detailed calculation methods for the cumulative net profit of the methanol e-refinery MEA cell are provided in the ESI.†
