Review of interface issues in Li–argyrodite-based solid-state Li–metal batteries

Abstract

Sulfide solid electrolyte-based all-solid-state Li-metal batteries (ASSLBs) offer increased safety, extended cycle life, reduced costs, and increased energy and power density. However, sulfide-based electrolytes exhibit poor interface stability when they are in contact with active materials (anodes or cathodes). Issues of low capacity, inefficient coulombic efficiency, huge polarization, and capacity decay in ASSLBs are primarily attributed to sluggish charge transfer kinetics at the interface caused by chemical interactions, electrochemical degradation, weakening interfacial mechanical integrity, etc. Identifying the factors that affect the interfaces, studying the properties of interfaces, and proposing a mechanism to solve the problem are very important, as these properties directly or indirectly impact battery performance. Although the precise mechanism underlying these interface issues remains incompletely understood, combining chemomechanical processes and physical and (electro)chemical properties regulates the charge transfer phenomena at the interfaces. In this review, we identify the factors that affect the interfacial phenomena and properties of Li–argyrodite-based ASSLBs. Meanwhile, we also summarize the strategies and propose future perspectives to advance Li–argyrodite-based ASSLBS.

---

Broader context

All-solid-state batteries have garnered increasing interest due to their significant potential for enhanced safety and energy density. However, the only batteries that can currently power electrochemical devices are those that use organic liquid electrolytes. To make solid-state batteries competitive with established technologies, there is a strong need for (electro)chemically stable and superionic solid electrolytes. Sulfide solid electrolytes are promising candidates for all-solid-state lithium metal batteries (ASSLBs) due to their high ductility, improved ionic conductivity, and versatile synthesis methods. Recently, Li–argyrodites Li₆PS₅X (X = Cl, Br, I) were recognized as one of the most promising sulfide electrolytes, thanks to their intrinsically outstanding structures and electrochemical stability, addressing existing limitations. However, their advancement is hindered by significant interfacial incompatibility and rapid dendritic growth. Identifying the factors that influence the interfaces, examining their properties, and proposing mechanisms to address any issues are crucial, as these aspects directly or indirectly affect battery performance. In this review, we explore the factors influencing interfacial phenomena and properties in Li–argyrodite-based ASSLBs while summarizing strategies and proposing future directions for developing these batteries.

1. Introduction

Because of their extended cycle life and greater energy density, lithium-ion batteries are currently highly desirable power sources for electronic equipment and car batteries. However, using an organic liquid electrolyte (LE) for some applications restricts working temperatures and poses safety concerns.^1,2 To alleviate these problems, ASSLBs with an inorganic solid electrolyte are a safer substitute that can store more energy than micro-batteries while also having good thermal stability.^3–6 The primary concerns with all-solid-state lithium batteries (ASSLBs) are increasing the ionic conductivity (σ) of solid electrolytes (SEs) and ensuring stability between the SE and electrodes.^6–8 Due to their relatively fast ion transport at ambient temperature and a moderate electrochemical stability window (ESW), sulfides have attracted much interest among various types of SEs.^8,9 Furthermore, sulfides offer an advantage over oxides in cell manufacturing because of their ability to be processed in solution and capacity to deform during cold pressing. The grain boundary resistance of sulfide SEs can be significantly lowered via cold pressing at ambient temperature, eliminating the need for elevated temperature sintering. In ASSLBs, the soft property of sulfide SEs helps to provide light contact at the electrode/SE interfaces, inducing a substantial enhancement in cycle performance. Li–argyrodites have favorable electrochemical characteristics for ASSLBs, including high σ.⁹ The electrolyte/electrode interface must be considered despite these various benefits. It was previously reported that Li–argyrodite Li₆PS₅X (X = Cl, Br, and I) SEs displayed interfacial reactivity toward layered oxide cathode materials during cycling. Li₆PS₅X can undergo oxidation to produce Li₂S_n, elemental sulfur, P₂S₅, phosphates, and LiX.^10–14 Moreover, when the sulfide SEs and layered oxide cathodes interact, space-charge layers (SCL) and elemental mutual diffusion occur. An unstable interface causes cell failure and capacity degradation within ASSLBs.^15,16 Parallel to this, Li₆PS₅X's incompatibility with Li metal causes an unstable anodic interface, resulting in high interfacial resistance. This leads to unmanageable lithium deposition and results in short circuits. By taking advantage of superior σ, outstanding electrochemical properties, and excellent machinability, it is crucial to boost the compatibility of Li₆PS₅X and electrodes to inhibit interfacial resistance growth and cell short circuits. Consequently, it has been claimed that developing novel SEs with a tendency to make self-limiting interfaces will improve the interfacial stability of the SE/electrode.¹⁷

Using Li–argyrodites in a solid-state system offers several interesting benefits over LEs in a liquid system.¹⁸ Firstly, Li–argyrodites can be twisted, punched, and perforated without worrying about safety issues. Secondly, Li–argyrodites have ultra-high σ (approximately 10⁻³ to 10⁻² S cm⁻¹),^19,20 which is comparable to that of organic LEs (typically around 10⁻² S cm⁻¹, 25 °C).^20,21 This suggests that SE materials have significant potential for next-generation batteries. Third, Li–argyrodites exhibit greater stability over a wider temperature range than organic LEs, allowing the ASSLBs to run effectively within a temperature interval of −30 to +160 °C.²² All these properties show that Li–argyrodites hold great promise for next-generation batteries. However, SE and electrode interfaces pose a significant scientific problem that will prevent the actual deployment of ASSLBs.

In this review, we assess interface issues of Li–argyrodite Li₆PS₅X (X = Cl, Br, and I) electrolytes for a range of essential aspects: the interface between Li–argyrodites and the anode, the interface between Li–argyrodites and the cathode, Li–argyrodite SE and electrode assembly issues, and Li–argyrodite and electrode contact issues. This review also summarizes several advanced interface measurement techniques. Finally, we introduce strategies to improve interface stability and provide our future perspectives.

2. Interface challenges

Argyrodite-type solid electrolytes, particularly those based on the Li₆PS₅X (X = Cl, Br, and I) family, are considered promising candidates for ASSLBs due to their high lithium-ion conductivity, ease of processability, and relatively low synthesis temperatures.²³ However, despite these advantages, their practical application is hindered by significant interface-related issues.

One of the primary challenges is chemical and electrochemical instability at the interfaces between the argyrodite electrolyte and electrode materials.^23,24 When in contact with high-voltage cathodes (e.g., NMC, LCO), argyrodites tend to undergo interfacial degradation, forming resistive interphases due to the decomposition of thiophosphate species.^25–27 This leads to increased interfacial impedance, reduced ion transport, and poor long-term cycling performance. In addition, at low potential, argyrodite SEs endure a reduction of phosphorus (around 1.08 V vs. Li/Li⁺) upon electrochemical lithiation and produce Li₂S, LiX and P as a by-product, making them incompatible with Li metal.^28–30 Argyrodite SEs also produce Li₂S, LiX and Li₃P as a by-product when in contact with Li metal (chemical decomposition).³¹

Furthermore, argyrodites often suffer from poor mechanical properties, which can result in interfacial contact loss during battery operation due to volume changes in active materials or insufficient densification during cell assembly. This mechanical mismatch contributes further to increased resistance and capacity fading.³²

Therefore, addressing chemical incompatibility and mechanical instability at the electrolyte–electrode interfaces is critical for unlocking the full potential of argyrodite-based ASSLBs.

In ASSLBs, undesirable physical and chemical interactions at corresponding electrolyte/electrode interfaces generate large gaps between expected and actual performances. The major issues of electrolyte/electrode interfaces in ASSLBs are depicted in Fig. 1a.

Fig. 1 (a) Challenges of SE and electrode interfaces in ASSLBs.⁵² (b) Scheme illustrating the oxidation and reduction of Li₆PS₅X (X = Cl, Br, I) argyrodite SEs when in contact with electrodes during cycling. Interpretation of EIS spectra. (c) Equivalent circuit used for fitting the EIS data along with a schematic describing the impedance contributions from the bulk (R_B), grain boundaries (R_GB), SEI (R_SEI) and charge transfer (R_CT) processes.^46,47 (d) Variation in interfacial resistance, R_int (R_SEI + R_CT), from fitted EIS data as a function of the amount of charge passed during Li plating at current densities, J_2.5 = 2.5 mA cm⁻², J_0.5 = 0.5 mA cm⁻², J_0.05 = 0.05 mA cm⁻² and J_0.01 = 0.01 mA cm⁻².^46,47 (e) Schematic representation of the likely mechanism of SEI formation and Li plating as a function of applied current density, at J_2.5 (J_High) and J_0.01 (J_Low).⁴⁵

Inadequate contact between the SE and the electrode can limit the effective interfacial area. For instance, many SEs are inherently lithiophobic due to their high interfacial energy with Li metal, often resulting in contact angles greater than 90° when in contact with Li. This poor wettability hinders intimate contact and reduces the area available for efficient Li-ion transport.³³ Additionally, designing hierarchically interconnected microstructures in non-Li-based electrodes is challenging, as it demands meticulous control over the shape, size, and spatial arrangement of the electrolyte, active materials, and electronic conductors. If these microstructures are not properly optimized, the contact area for charge transfer at the electrolyte–electrode interface can be substantially diminished.³⁴ Furthermore, the rigid nature of solid–solid interfaces prevents them from adapting to the volume changes of active materials during cycling, accumulating mechanical stress. Over time, this cycling stress can initiate and propagate cracks at the interface, progressively weakening the interfacial contact.³⁵

Sluggish charge transfer kinetics at the SE/electrode interface can raise the area-specific resistance. Side reactions often exacerbate this, which may occur when the electrode's operating potential lies outside the electrolyte's electrochemical stability window.³⁶ Such reactions irreversibly consume the SE and/or electrode materials, producing interphase layers that are electronically conductive but poorly conductive for Li-ions. These interphases may promote further parasitic reactions or serve as barriers that impede Li-ion transport across the interface.³⁷ Additionally, mismatches in Li-ion chemical potential between the electrolyte and the electrode material can lead to the formation of space charge layers at the interface. These regions, often characterized by local lithium depletion and reduced ion diffusion coefficients, further hinder effective Li-ion transport.³⁸

Li dendrite growth at the Li/SE interface or within the SE can lead to serious short circuits. Dendrite formation is driven by uneven electric fields, which are amplified near protrusions on the lithium surface due to the tip effect and non-uniform Li-ion flux.³⁹ The resistance to dendrite growth arises from the strain energy needed to deform the SE and the interfacial energy associated with expanding the contact area. Dendrite growth can occur spontaneously when the driving forces surpass these resistive barriers. Furthermore, although ideal SEs would conduct only Li-ions, most current materials exhibit some degree of electronic conductivity. In highly electron-conductive electrolytes, electrons can migrate from the lithium metal into the electrolyte, lowering its local electrochemical potential. During charging, this may reduce the electrolyte's potential below 0 V vs. Li/Li⁺, facilitating dendrite nucleation and propagation through microstructural defects.⁴⁰

In addition to the issues, the interfacial reactions induced by the thermodynamic instability between argyrodite SEs and the electrodes are also worth attention. Janek et al.³¹ used X-ray photoelectron spectroscopy (XPS) to confirm that Li₆PS₅X would decompose at the interface due to the strong reduction of lithium. Some of the Li₆PS₅X decomposed on the surface of lithium metal to form the SEI with the ingredients of decomposition products such as Li₃P, Li₂S, and LiX (Fig. 1b). The SEI leads to increased interfacial resistance and hindered the conduction of lithium ions. An additional study by Wagemaker et al.³⁰ revealed that the thermodynamic decomposition reaction of argyrodite SEs with the anode side was not instantaneous. Taking argyrodite Li₆PS₅Cl as an example, it was first reduced to unstable Li₁₁PS₅Cl, and then Li₁₁PS₅Cl was further reduced to Li₂S, LiCl, and Li₃P. In this process, the intermediate phases generated, such as S, Li₂S, and LiCl, not only produced a large volume expansion but also led to the destabilization of the kinetics. The continued decomposition of argyrodite SEs at the interface as the cycle proceeds is the main reason for the increased interfacial resistance. In the argyrodite SE and NCM interface, due to the affinity of oxygen to react with phosphorus and sulfur, phosphate (PO_x) and sulfite/sulfate (SO_x) and polysulfide (S_x) fragments are regarded as indicators for oxygen-involved degradation.^41–44

Narayanan et al.⁴⁵ studied how interfacial impedance changed depending on the applied current density. To analyze this behavior, they used Nyquist plots and fitted the data using an equivalent circuit model illustrated in Fig. 1c.⁴⁶ This circuit consists of a single resistor in series with three parallel circuits of a resistor and a constant-phase element (CPE) along with an additional Warburg diffusion (W_S) component. Schlenker et al.⁴⁷ attributed the inclusion of the latter to an impedance at low frequencies arising from a lithium vacancy diffusion gradient generated most likely at the interface between LiIn and LPSCl. In this equivalent circuit, one of the parallel circuits (R₂||CPE₂) in combination with the individual resistor R₁ can be assigned to the bulk and grain boundary resistance, which typically exhibits low effective capacitances (correlating to the term Q_CPE ∼ 10⁻⁶ F s^a−1, with a as the constant phase, as estimated from the CPE component of electrochemical impedance spectroscopy (EIS) spectral data fitting). The other circuit element pairs (R₃||CPE₃ and R₄||CPE₄) exhibiting relatively higher effective capacitances (Q_CPE ∼ 10⁻⁴–10⁻² F s^a−1) can be understood to represent the LPSCl–Li interface and charge transfer (CT) processes, respectively, as plating begins with the formation of an SEI.^46–48 The variations in impedance can thus be attributed largely to the interface, which comprises the SEI and CT components represented by the spectra's low-frequency segment.^46–48 The interfacial impedance (R_int) can then be approximated as R_int = R_SEI + R_CT,⁴⁶ where R_CT is related to the intrinsic kinetics of the system.^49–51 Indeed, a plot of combined resistances from SEI and CT contributions (Fig. 1d) suggests that at low current densities (in this study, J_0.5 and J_0.05), the interfacial resistance asymptotically reaches a minimum. In stark contrast, for Li plating conducted at a significantly higher current density (J_2.5), the interface attains the same minimum resistance almost as soon as Li begins plating. Notably, the differences in impedance evolution are most prominent over ∼50 μA h cm⁻² of charge passed, beyond which the effect diminishes as expected, while plating proceeds to form a metallic Li layer in both cases. Thus, a rapid drop in interfacial resistance, combined with the appearance of fully reduced reaction products (Li₃P in particular) and the presence of a greater fraction of metallic Li in XPS analyses, all observed within ∼10 μA h cm⁻² of charge passed during initial stages of plating, strongly suggest the formation of a more uniform and homogeneous SEI layer as well, for Li plated at high current densities (Fig. 1e).

As mentioned above, the increase in impedance at the interface between argyrodite SEs and electrodes is mainly due to interfacial reactions and the accumulation of electrically insulating byproducts.^31,53,54 These reactions, particularly at the anode, result in forming an SEI and possibly lithium dendrites, both disrupting lithium-ion movement and elevating resistance. The key mechanisms that lead to a continuous rise in impedance include:

i. Loss of effective contact area: The SEI layer, if not well-adhered and conductive, can reduce the effective contact area between the electrode and the SE, limiting ion transport.⁵⁵

ii. Insulating reaction products: The formation of insulating byproducts from interfacial reactions can directly block ion transport pathways, increasing the overall resistance.^53,54

iii. Dendrite growth and short circuits: As dendrites grow and penetrate the electrolyte, they create pathways for current to flow through a non-Faradaic process, significantly increasing impedance and potentially short circuits.⁵³

iv. Grain boundary contributions: In SEs, grain boundaries may impede ion flow, particularly if they are poorly connected or contain structural defects.^56,57

Furthermore, as particles within the electrode change volume during lithiation/delithiation, they can move and shift relative to each other, leading to loss of contact and increased resistance between particles.^58,59 This disrupts the flow of lithium ions within the electrode. Phase changes in the electrolyte, such as the formation of SEIs, can create barriers to ion transport.⁶⁰ These barriers increase the resistance within the electrolyte and impede lithium ion transfer between the electrode and the electrolyte. Phase transitions within the electrode material, such as the shift between different lithium intercalation stages, can introduce additional resistance.^58,59 These phase transitions often involve structural changes that hinder the smooth diffusion of lithium ions. Therefore, these dynamic changes within the battery system create additional interfaces and hinder the efficient movement of lithium ions, resulting in increased internal resistance, SEI/CEI growth and instability, microstructural changes, capacity fading, and reduced power density.

Generally, each interface in an ASSLB can be divided into one of three primary classes^61,62 based on stability (Fig. 2): Type I, a thermodynamically stable interface lacking a reaction driver. The interface between the solid electrolyte and the electrode is chemically stable under operating conditions, and there is no driving force (i.e., “reaction driver”) that would cause undesirable chemical reactions at the interface. This means the materials at the interface are stable and cannot undergo undesirable reactions that could degrade the battery's performance or safety. Type II, reacting to generate a mixed ionic–electronic conducting interphase (MCI), a non-passivating interphase exhibiting both ionic and electronic conductivity. An MCI can form through a reaction between the two materials in the interface between an SE and an electrode. This interphase is characterized by its ability to conduct both ions and electrons, and it is considered a non-passivating interphase. This means it does not block the flow of electrons or ions, potentially leading to undesirable side reactions and performance issues. Type III, reacting to produce stable SEI and negligible electronic conductivity, thereby preventing additional reactions. When the SE and electrode are not fully chemically or electrochemically compatible, leading to interfacial reactions that produce a new, passivating layer—the SEI. This SEI layer is a stable protective barrier that blocks electronic conductivity (acting as an insulator) and enables Li-ion transport. By preventing electronic conductivity, the SEI stops further reactions between the electrode and SE, contributing to battery stability and longevity. Only type I (stable) and type III (passivating) interfaces can be anticipated to provide long-range stable battery performances. In type III interfaces, σ of the SEI is essential for overall battery efficiency.⁶³ Although Li–argyrodite SEs have demonstrated impressive scientific and industrial advances, difficulties are still presented when sulfide SEs are incorporated into ASSLBs, particularly when used with high-voltage cathodes and lithium anodes.^63–65 The generalized concept of ASSLB cells is displayed in Fig. 3.

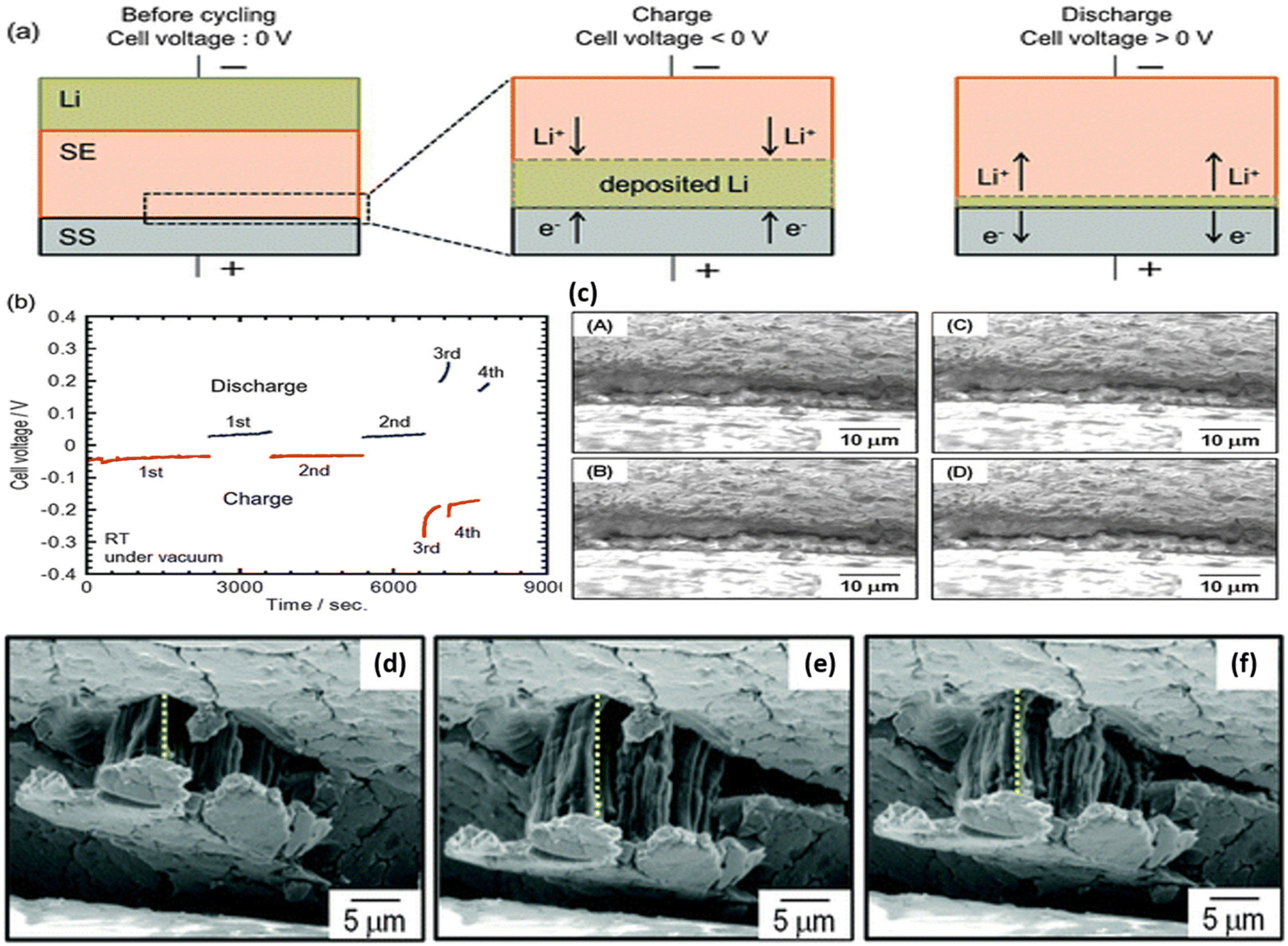

Fig. 2 Scheme illustrating the three possible types of interface between Li₆PS₅X (X = Cl, Br, I) and lithium.

Fig. 3 The generalized concept of the Li–argyrodite-based ASSLB cell.

Moreover, although SSBs perform well at room and moderate temperatures (5–20 °C),⁶⁶ their performance significantly declines at low temperatures (below 0 °C) due to reduced ionic conductivity in SEs and slower solid–solid interfacial reaction rates.^67–69 These limitations hinder overall battery efficiency, and their exact causes remain unclear.^70,71 To address this, Lu et al.⁷² introduced a systematic test and analysis framework, which identified the primary limiting factors at low temperatures as sluggish ion movement through the interfacial reaction layer and impaired charge transport at the degraded surface of the LCO cathode.

To explore the behavior of SSBs under low-temperature conditions, simulation methods provide crucial insights into their working mechanisms, aiding the advancement of the field. Shen et al.⁷³ built a two-dimensional model of SSBs using multi-physics simulation software and discovered that reducing the SE thickness could enhance the low-temperature rate performance. Specifically, with an electrolyte thickness of 0.6 μm, the battery retained 99.5% of its capacity even as the discharge rate increased from 3C to 8C. In interface analysis, Guan et al.⁷⁴ introduced an interfacial contact model and an electrochemical–mechanical coupling model accounting for curvature effects. They found that increasing curvature and the contact factor could delay the time required to reach the cutoff voltage, thereby improving battery capacity. Additionally, Yan et al.⁷⁵ developed a 2D model incorporating electrochemical–mechanical–thermal coupling to evaluate the multiplicative charging performance of SSBs at low temperatures, considering the impact of interfacial contact degradation. Their findings indicate that both poor interfacial contact and higher charging rates contribute significantly to capacity at low temperatures.

Similarly, exposing SSEs to elevated temperatures can also influence their performance. Shin et al.⁷⁶ conducted electrochemical tests on ASSLBs at around 60 °C, as the biphasic solid electrolyte exhibited insufficient ionic conductivity at room temperature, making normal battery operation difficult. Jiang et al.⁷⁷ observed that increasing the temperature from 25 °C to 65 °C significantly reduced the area-specific resistance, improving battery capacity. However, at even higher temperatures, three heat-related processes become closely interlinked. Typically, heat generation initiates the sequence that can lead to thermal failure. Over time, as the battery ages, the cumulative thermal side effects begin to negatively affect performance and compromise stability. This phenomenon is referred to as the aging effect. If heat generation surpasses the system's thermal tolerance and causes sufficient material degradation, it can eventually trigger thermal runaway.

2.1. Electrolyte–anode interface

Although much research is carried out to raise σ of lithium SEs, electronic transport is also crucial for ASSLB cycling stability, calendar life, and energy density. Only Li ions should be able to move between electrodes in an ideal SE, which would have minimal electronic conductivity and elevated σ. The outcome of electronic conduction in SEs would be the self-discharge of ASSLBs driven by electronic leakage.⁷⁸ Li kinetics are ultimately hindered by the interfacial resistance and electronic conductivity of SEs generated, which also lead to performance degradation and uncontrollably growing Li dendrites.^79,80 Interfacial resistance hinders Li-ion kinetics in batteries by impeding the transfer of Li⁺ ions across the interface between the electrode and the SE. This resistance arises from poor contact, an insulating SEI layer, and sluggish charge transfer reactions at the interface.⁸¹ In addition, if the SE conducts electrons, electrons can leak into regions where only ions should move. These electrons react with Li⁺ in the SE, causing electrolyte decomposition.⁵² The result is the formation of resistive interphases (e.g., Li₂S, Li₃P), which block or narrow Li⁺ pathways. If the SEs have high electronic conductivity, they can provide an easy pathway for electrons to reach the Li metal anode. This allows for rapid and potentially non-uniform Li ion reduction and deposition.^40,82 The rapid and non-uniform deposition of Li can lead to the formation of dendritic structures on the Li metal surface.⁴⁰ These dendrites can grow and penetrate the SE, potentially leading to short circuits within the battery.^40,83 Dendrites can propagate along grain boundaries due to the inherent structure of the SE.^84–86 As dendrites grow, they can cause mechanical stress and damage to the surrounding electrolyte, leading to crack propagation and further dendrite growth. SEs can form new phases with different ionic and electronic conductivities when decomposing. While some decomposition products might be more conductive than the original material, they are still likely to have a lower electronic conductivity compared to the ionic conductivity.^86–88 The results from our group and Wang's group indicated that the SE with the lowest electronic conductivity demonstrated enhanced capability to suppress lithium dendrite formation.^40,89

For many years, graphite has been commonly utilized as an anode material. With a specific capacity greater than 3500 mA h g⁻¹, silicon (Si) has become a viable substitute for the graphite anode with a specific capacity of about 370 mA h g⁻¹. This transition aims to boost energy densities for numerous energy-storage applications, including portable electronics and electric cars.^90,91 Despite its potential, the commercialization of the Si anode is hindered by issues related to cycling stability and shelf life. These limitations are aggravated by the significant volumetric expansion of silicon (over 300%) during lithiation. This expansion often leads to a decline in specific capacity upon cycling, which is linked to stress formation,⁹² mechanical fractures, and irreversible degradation reactions caused by the volume changes.⁹³ Lithium metal is widely considered the best alternative anode material with its exceptionally high theoretical specific capacity (3860 mA h g⁻¹) and a very low redox potential (−3.040 V versus SHE).^94,95 Due to this, there is considerable interest in utilizing lithium metal as an anode in ASSLB configurations.⁹⁶ In the following parts, the Li anode is generally referred to, although it is important to note that this analysis is also relevant to silicon and carbon anodes.

Metallic Li has been the main focus of most ASSLB studies to maximize cell energy densities.^97,98 A great obstacle to improving the efficiency of ASSLMBs is the interface between SE and electrodes. This interface is crucial for understanding battery electrochemistry, as it is the site where lithium ions and electrons interact and are deposited in the electrode through processes such as intercalation, alloying, or plating.^99–104 The interface is often complicated by the existence of passivation layers on the electrode. Characterization of this layer on negative electrodes started with Dey's findings for Li metal immersed in non-aqueous electrolytes.⁹⁹ In 1979, Peled announced the idea of the SEI as a passivation layer that was electronically insulating and ionically conductive, emerged between the electrode and electrolyte, and functioned as an SE.¹⁰⁰ Thus, it is called the SEI. This model was further enhanced with compositional information observed over two decades and summarized by Peled et al.¹⁰¹ in 1997 and Aurbach et al.¹⁰² in 1999. On one hand, a dense and undamaged SEI can hinder electron passage, thereby preventing further degradation of the SE, which is essential for the chemical and electrochemical stability of ASSLB. Conversely, the emergence and development of the SEI consume active Li and SE, leading to capacity loss, rising battery resistance, and reduced power density.¹⁰⁵ Meanwhile, the uneven SEI may cause Li dendrite growth and safety concerns upon charging.

The composition and growth rate of the SEI layer between lithium metal and argyrodite-type solid electrolytes (e.g., Li₆PS₅X, where X = Cl, Br, I) can vary significantly, impacting interfacial resistance and overall battery performance.^31,106 When lithium metal contacts argyrodite electrolytes, a chemical reaction occurs, leading to the formation of an SEI composed of Li₃P, Li₂S, and LiX. The rate at which interfacial resistance increases can differ among various argyrodite compositions. For example, Li₆PS₅Cl forms a protective interphase consisting of Li₃P, Li₂S, and LiCl when in contact with lithium metal. In contrast, Li₆PS₅I exhibits more reactive behavior, resulting in a different SEI composition and potentially higher interfacial resistance.^{12,31,106,107}

In general, the composition of the SEI layer and the rate at which interfacial resistance increases between lithium metal and argyrodite electrolytes are influenced by several factors, including the specific halide component of the argyrodite, the growth mechanism of the SEI, and the condition of the lithium anode surface. Understanding these variables is crucial for optimizing the performance and longevity of solid-state batteries utilizing lithium metal anodes.

Thus, there are still plenty of challenges to overcome before Li metal anodes can be used in ASSLMBs: (1) unmanageable lithium dendrite development due to electrochemical and mechanical instability at the SE/Li interface causes serious safety issues;¹⁰⁸ (2) the thermodynamic instability of lithium metal because of its high Fermi energy level can result in irreversible and continuous reaction between lithium and SE that produces a thick solid SEI layer on the lithium metal surface, consume lithium and SE, and elevate the internal resistance, thus shortening the cycling span; and (3) repeated plating and stripping operations can cause significant volumetric and morphological alterations to the lithium metal anode; however, the previously mentioned SEI coatings are very thin to inhibit such substantial alterations to the lithium metal anode completely.^109–113 These adverse effects may result in significant safety risks and a loss of efficiency. These harmful effects might be mitigated by SEs that are chemically stable towards the lithium anode. Nevertheless, several unanswered questions remain about the kinetics and nature of ion transport at Li/SE interfaces. To realize energy-dense ASSLBs, the Li metal morphology must be controlled during stripping/plating processes at the Li/SE interface.^46,114,115

At low potential, Li₆PS₅Cl undergoes a reduction of P (approximately 1.08 V vs. Li/Li⁺) during lithiation, resulting in the byproducts Li₂S, LiCl, and P (Fig. 4a), which renders it unstable towards the lithium anode.^28–30 Li₆PS₅Cl also produces Li₂S, LiCl, and Li₃P as byproducts when in contact with the lithium anode (chemical decomposition).³¹

Fig. 4 Decomposition pathway and XPS analysis. (a) Electrochemical/chemical degradation pathway of Li₆PS₅Cl.¹¹⁸ (b) The diagram illustrates the emergence of voids at the Li/Li–argyrodite SE interfaces.⁴⁶ Progression of core-level XPS spectra during the virtual electrode plating process at the Li₆PS₅Cl surface for (c) Li 1s, (e) S 2p and (g) P 2p. Quantification of XPS spectra as a function of different quantities of charge passed at various CDs, showing compositional fractions of (d) metallic Li (Li⁰) in Li 1s, (f) Li₂S in S 2p, and (h) Li₃P in P 2p. A higher fragment of Li⁰ (shown in panel d) and Li₃P (indicated by green area in panel h) at low charge levels and elevated CDs suggests that the reaction kinetics at the interface is more rapid, leading to a more immediate emergence and development of a metallic Li layer during plating.⁴⁵ (i) XPS spectra for S 2p, P 2p, O 1s, and Cl 2p of a Li₆PS₅Cl SE as the quantity of accumulated Li metal rises (progressing from bottom to top).³¹

Narayanan et al. studied the development of the SEI during virtual electrode plating at the Li₆PS₅Cl surface via XPS measurements.⁴⁵ In the left panel of Fig. 4c, the Li 1s spectra at an electron beam current (EBC) of 30 μA with j_eq ≈ 0.15 mA cm⁻² initially show the peak widening and then a gradual shift to lower binding energies. The observed peak broadening can be directly linked to the creation of Li₂S, Li_xP, LiCl, and other byproducts from contaminants such as Li₂O and Li₂CO₃.^31,116 In addition, the authors determined that Li deposited more rapidly at greater current densities compared to lower ones (Fig. 4d). As shown in Fig. 4e, for the S 2p signal, a doublet feature associated with Li₂S (with a 2p_3/2 binding energy of around 160 eV, highlighted in brown in Fig. 4e) quickly emerges as more lithium is plated. This component of the Li–Li₆PS₅Cl SEI is well-documented and forms even under conditions where Li is deficient.^31,116,117 A detailed analysis of the constitution from spectra collected at various EBCs (Fig. 4f) reveals that the reduction of Li₆PS₅Cl to Li₂S occurs significantly faster at 0.15 mA cm⁻² (greater CD). In contrast, at lower current densities (j_eq ≤ 0.05 mA cm⁻²), only about 70% of the S 2p spectrum consists of the reduced sulfide families. This suggests that the reaction kinetics is slower at low CDs due to multiple reduction reactions competing for available reactants, such as plated lithium. Furthermore, analyzing the P 2p spectra shows that at the highest current density (j_eq), for an equivalent charges passed value of less than 5 μA h cm⁻², there is a rapid reduction to a low binding energy doublet feature (2p_3/2 ≈ 126 eV), indicative of fully reduced Li₃P (Fig. 4g, left panel, green area). In comparison, at lower current densities (j_eq ≤ 0.05 mA cm⁻²) and the same extent of charge, more notably, the initial SEI consists of a broad spectral feature (126 eV < B.E. 2p_3/2 < 131 eV), which is indicative of partly reduced Li_xP. Over time, continued plating at these lower current densities also leads to the formation of Li₃P. However, this process is slower and followed by a notable reduction in the total P 2p spectral intensity, indicating the deposition of plated lithium metal. These findings indicate that a Li₃P-rich SEI forms more quickly in the early stages of plating via large CDs, even with a low value of equivalent charges passed. The fragmentation of Li₃P as a function of equivalent charges passed, especially for q_A < 10 μA h cm⁻² (Fig. 4h), supports this observation. Additionally, as seen in Fig. 4e and g, the XPS signal for pristine Li₆PS₅Cl components diminishes more rapidly at high current densities for the same value of equivalent charges passed (e.g., q_A = 12.8 μA h cm⁻²).

In our group's studies, we noted that the Li 1s spectra at the Li/Li₆PS₅Cl interface after cycling revealed the emergence of LiCl. Furthermore, the S 2p spectra of Li₆PS₅Cl after cycling showed an increase in the signal intensity for polysulfide, P₂S_n, accompanied by decomposition products, including lithium polysulfide (Li₂S_n) and Li₂S, resulting from sulfide decomposition.⁸⁹ According to Zeier's group, Li₆PS₅X disintegrates into an interphase made of Li₃P, Li₂S, and LiX when it comes into contact with Li metal.³¹ This interphase acts as an SEI and raises the interfacial resistance. For instance, according to this group, after contact with Li metal, Li₆PS₅Cl decomposes into Li₂S, Li₃P, and Li₂O (Fig. 4i). The degradation of SEs is prompted by increased interfacial resistance.

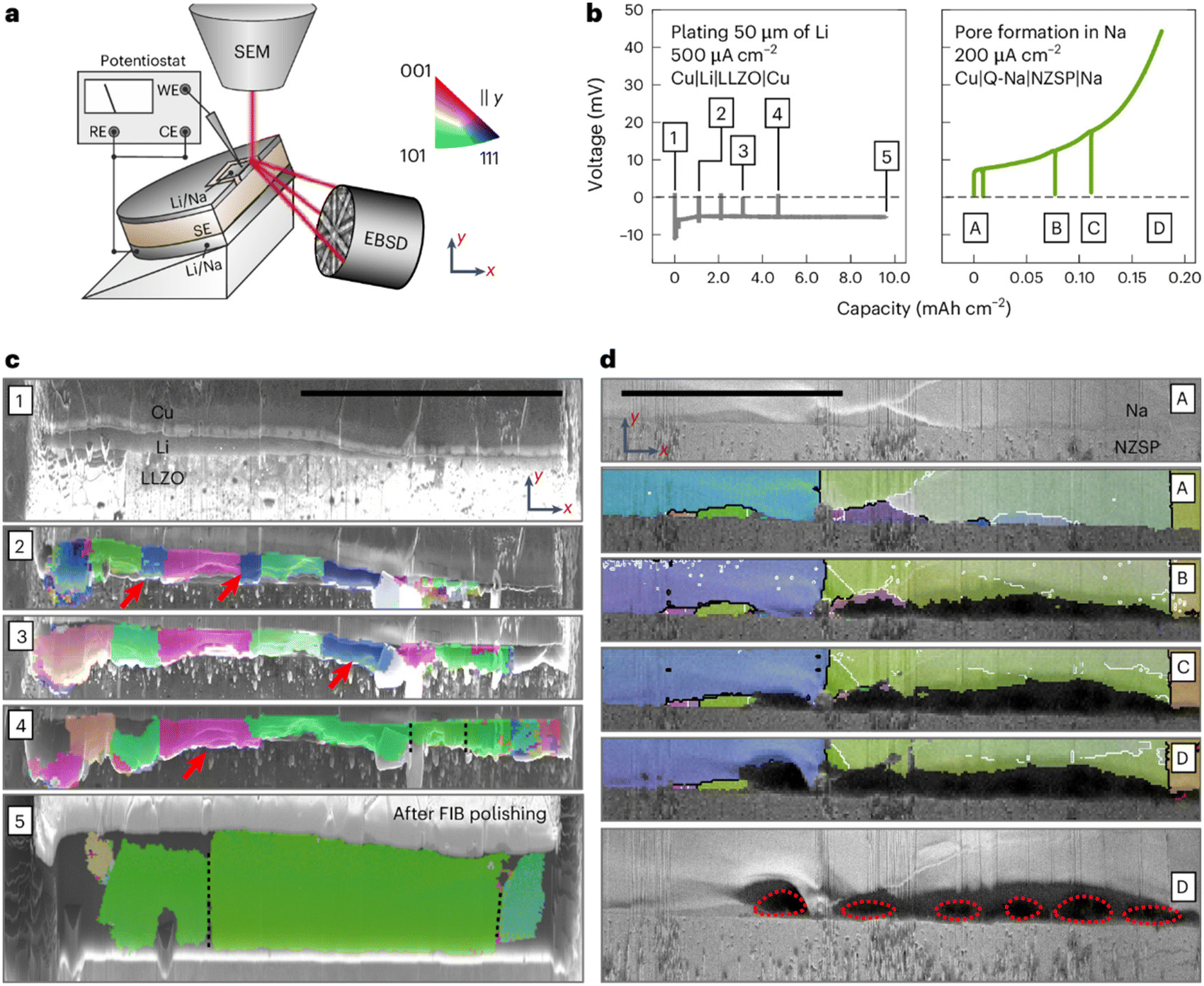

Another issue at the Li/Li argyrodite interface is the growth of Li dendrites.^119–122 Lithium dendrite is broadly seen in various types of SEs.¹²³ Dendrites typically expand in the direction of grain boundaries. Sulfide SEs exhibit apparent dendrites because of weaker adhesion between sulfide particles, which results in a lower resistance to dendrite formation than in oxide SEs.⁵⁰ Irregular lithium deposition at the anodic interface enables lithium dendrites to pass through the grain boundaries or voids within the bulk of Li argyrodite SEs, inducing battery degradation. Kasemchainan et al. recently showed that the critical current density (CCD) was essential for the lithium plating/stripping characteristics utilizing Li₆PS₅Cl SEs.⁴⁶ As seen in Fig. 4b, voids develop with lithium bulk around the interface with the SE when lithium is withdrawn from the interface at a CD that exceeds the rate of replenishment. These voids accumulate over the course of subsequent cycles. The margins of these voids concentrate greater CD than other areas, eventually causing the formation of Li dendrites.

The quantity of the CCD is crucial as it determines the power density of a cell. Small CCDs are typically attributed to uneven potential drops caused by SE/electrode interfacial impedance. This impedance is predominantly determined by chemical, electrochemical, and mechanical stability issues at the interface. Understanding these uneven loss mechanisms and interpreting CCD tests can be difficult since SEs may experience “soft shorts” that remain unnoticed in symmetric cell tests using thick Li metal (greater than 30 μm).¹¹⁵ Moreover, as the CCD depends on plating capacity and cell stack pressure, precise data interpretation requires the reporting of specific experimental conditions (such as Li–metal thickness and stack pressure).¹¹⁴

Critical stack pressure is a concept that was recently developed by Sakamoto and colleagues which emphasizes the dependence of CCD measurements on pressure.¹¹⁴ This measure is a crucial addition to the other metrics used to assess the characteristics of Li electrodes at SE interfaces. Dendrite nucleation may originate from pore formation in lithium metal during stripping and unequal lithium ion transport at the Li/SE interface.^124–126 A minimal stack pressure can help prevent pore evolution during Li stripping. Nonetheless, Li plating causes Li filament development and propagation. In Li–Li cells, when these happen at the same time, the pressure will have a big impact on the CCD. Nevertheless, it remains uncertain how these effects will manifest in full cells, where plating and stripping operate independently. More investigation is required to reconcile discrepancies between full-cell and symmetric measurements.

Currently, ASSLMB's performance is still far from that of its target. In general, CCD is a crucial criterion for assessing ASSLMBs. It offers opportunities to fully comprehend failure processes, interfacial behavior, and other electrochemical performance features.⁵⁰ The performance of Li/Li symmetric cell configurations utilizing Li–argyrodite SEs is summarized in Table 1. Apart from SE characteristics, the mechanical characteristics of Li metal also play a significant role in the existence of lithium filaments within SEs. Recent investigations on the bulk mechanical behavior of lithium metal have shown that power-law creep is the predominant deformation mechanism over a broad range of strain rates and temperatures.^127,128 These findings provide a viscous-flow perspective that helps to explain how mechanical stresses change as lithium plating takes place on the SE surface.

Table 1 Li/Li symmetric cell performance utilizing Li–argyrodite electrolytes

Cell configuration	Critical current density (mA cm^−2)	Cut-off capacity (mA h cm^−2)	Test temperature (°C)	Ref.
RT: room temperature.
Li6.3P0.9Cu0.1S4.9Cl1.1	3.0	3.0	50	89
Li6.25PS4.75ClN0.25	1.52	1.52	RT	146
Li6PS5Cl0.3F0.7	6.37	5.0	RT	79
Li6PS5Cl	0.55	0.55	RT	147
Li6PS4.7O0.3Br	0.90	0.90	RT	148
Li6PS5Br	0.45	—	RT	148
Li6.05P0.95Mo0.05S4.9O0.1Cl	0.55	—	RT	149
Li6.04P0.98Bi0.02S4.97O0.03Cl	1.1	0.1	RT	150

---

The linked interactions between CD and strain rate directly affect stress build-up at the solid–solid interface. This has considerable indications for the model of Porz et al.,¹²⁹ where the ejection of lithium metal from the heterogeneous surface of the SEs contributes to the CD-dependent mechanical failure of the SEs.

For the lithium metal anode to work in a reliable, reversible, and safe manner, we must resolve any problems driven by inherent morphological instability while plating and stripping Li metal at the SE interface.^49,130 Recent work has significantly advanced our understanding of both dendrite emergence and development and pore formation during stripping, as shown in Fig. 5a and b, respectively.^131,132 However, many of these studies operate under excessively high stack pressures, whereas the ideal pressure should be below 0.1 MPa to align with the stack pressures that are typical for lithium-ion batteries.

Fig. 5 Crucial concerns with the lithium metal anode. (a) Filament and dendrite development. (b) Pore and void development.¹⁴⁰ (c) Scheme illustrating the main factors affecting CCD.⁵⁰

The CCD in solid batteries is influenced by numerous internal and external factors, many of which are interrelated. Due to poor interfacial compatibility in solid-state systems, CCD is more sensitive to external influences than systems using LEs. The major issues are summarized in Fig. 5c. Establishing good physical contact is one of the most essential requirements for SSBs.¹³³ The interfacial contacts are directly related to the interfacial physical contacts and chemical stability. In SSBs, where liquid components are absent, Li-ion pathways rely solely on solid–solid contact.¹³⁴ Additionally, reactions between Li metal and SEs can cause volume changes and generate interfacial byproducts, further altering interfacial contact.¹³⁵

The intrinsic characteristics of SEs, such as relative and compacted densities, chemical composition, and mechanical strength, also significantly influence CCD.¹³⁶ Most SEs are polycrystalline, comprising multiple single crystals, grain boundaries, isolated particles, impurities, and inherent flaws. These structural features impact internal ionic flux and provide sites for Li filament nucleation and propagation. In ASSLB systems, increasing the areal capacity during Li stripping leads to significant contact loss. As reported, 1 mA h cm⁻² corresponds to a Li thickness of 4.9 μm.¹³⁷ For commercial viability, areal capacities above 4 mA h cm⁻² are needed, which could create void layers nearly 20 μm thick upon full discharge, severely impacting the interfacial contact and performance, especially at high current densities.¹³⁸ Additionally, large-scale Li cycling causes substantial volume expansion and worsening contact degradation. According to the terrace–ledge–kink model, it is difficult to recover lost active plating/stripping sites due to sluggish and uncontrollable surficial Li adatom diffusion according to the terrace–ledge–kink model. Li growth exhibits a complexity highly related to the initial morphology and current density, leading to poor CCD.

SSBs must also operate reliably across wide temperature ranges in real-world applications. Temperature affects CCD by altering both lithium's physical properties and electrochemical behavior, such as ionic conductivity and diffusion at the interface. Elevated temperatures improve CCD by enhancing Li⁺ mobility. In liquid systems, high current dendrite formation is often explained using diffusion-limited models; similar models are now applied to solid-state systems. According to Sakamoto et al., higher CCD reflects a higher Li⁺ flux across interface regions.¹³⁹

Pressure is another key external factor influencing CCD. Lithium metal's mechanical properties, such as elasticity, plasticity, and creep behavior, enable it to deform under applied stress. Li shows pronounced creep at higher temperatures, especially under operational stress levels. Accurately predicting lithium's deformation behavior is essential for enabling its use in SSBs. Masias et al. systematically measured the Young's modulus, shear modulus, time-dependent deformation (creep), and stress-dependent deformation.¹²⁸ The elastic and plastic properties are directly related to solid–solid contacts. Deformed Li gradually flows to the side boundary of batteries without a hydrostatic pressure, increasing the risk of short circuits. The pre-stressed system constrains the undesirable flow of Li metal. The deformation of Li metal also induces microstructural evolution, significantly reducing interfacial troubles and enhancing the CCD values. Pre-pressing Li also minimizes creep-induced shorting.¹²⁸ Li metal is softer than most inorganic solid-state electrolytes in Li metal-based SSBs. The deformation of Li metal dominates the deformation-dependent impedance reduction. Thus, increasing pressure helps to expand the true contact area at the interface and stabilizes the battery performance.

Kazyak et al. investigated that at elevated current densities and areal capacities, there was an uneven depletion of lithium and accumulation of voids.¹³⁸ It was demonstrated that the interfacial capacitances primarily stemmed from these voids at the interface. Microelectrodes were utilized to visualize void accumulation (Fig. 6a). Clear areas of lithium depletion were detected following lithium stripping at 1.07 and 1.47 mA h cm⁻² (Fig. 6b and c). These depleted regions signify areas of contact loss, resulting in increased polarization (Fig. 6d) and interfacial impedance (Fig. 6e). The loss of electrode-electrolyte contact primarily stems from the accumulation of vacancies at the interface and the volume changes occurring during the continuous stripping of lithium metal.¹⁴¹

Fig. 6 Contact loss at the anode in ASSLMBs. (a) Microelectrode arrangement for experimental use. Depletion regions of (b) 1.07 mA h cm⁻² stripping and (c) 1.47 mA h cm⁻². (d) Increase in polarization following contact losses. (e) Rise of impedance with continuous stripping.¹³⁸ Schematic illustrations demonstrate physical contact losses in ASSLBs (f) and dendrite evolution within ASSLMBs (g).¹⁴¹

Moreover, inadequate contacts present significant difficulties for ASSLBs and can stem from both physical and chemical factors. Contact loss typically manifests during battery fabrication and exacerbates over-cycling. Therefore, the electrochemically active contact area between the active materials and SE is a critical parameter in ASSLBs.⁸⁷ In the case of active materials in LIB electrodes, most of the surface area of active materials is fully in contact with the LE except for the area covered by the electric conductor and polymeric binder; hence, it can be considered as an electrochemically active contact area. However, the surface of active materials is not sufficiently covered with SEs due to their original shape and mechanical stiffness. Therefore, the real specific contact area (a_s = A_c/V_a),^143,144 which is defined as the contact area (A_c) between the active material and SE divided by the bulk volume (V_a) of the active material, is considered an important parameter to improve the design of ASSLBs. An adequate a_s is typically on the order of a_s ≥ 10⁵ cm² cm⁻³. For example, a high-performance ASSLB using a sulfide SE with nano-engineered composite cathodes might achieve a_s ≈ 10⁶–10⁷ cm² cm⁻³. This corresponds to well-distributed and conformal contact between electrolyte particles and the active material.⁸⁷ Physical contact issues predominantly affect bulk-type ASSLBs (Fig. 6f). Achieving atomic-scale and conformal contact is paramount for optimal performance. However, attaining these perfect contacts in practice is challenging due to particle–particle contact and the presence of pores.¹⁴¹

During the process of lithium stripping, the release of lithium atoms creates vacancy sites, contributing to vacancy accumulation. This accumulation results in the formation of pores and flaws at the operational interfaces. Over time, these flaws diminish the efficient interfacial areas, leading to a partially concentrated flux of lithium ions (Fig. 6g). Moreover, this concentrated lithium ion flux exacerbates the contact loss further. Additionally, during lithium plating, significant volume expansion leads to the formation of more cracks, thereby accelerating lithium pulverization.¹⁴² Recent research by Kasemchainan et al.⁴⁶ revealed that the buildup of voids at the Li/Li₆PS₅Cl (LPSCl) interface during continual plating/stripping processes triggered the evolution of Li-dendrites. After multiple cycles of stripping and plating, voids were observed at the LPSCl–Li interface compared to the pristine interface. The formation of interfacial voids may result when Li filaments are removed more quickly than they can be replenished. Li-dendrite initiation begins at the triple junction where lithium metal, voids, and SE coexist, eventually leading to short circuits and failure in ASSLBs. Additionally, pre-existing flaws and cracks can serve as pathways for the development and spreading of Li-dendrites through the SEs.¹⁴⁵ Understanding how micro-cracks influence Li-dendrite propagation through SEs is crucial, necessitating in situ operando prediction of microstructural alteration, particularly in micro-crack formation, during battery cycling.¹⁴⁵

2.2. Electrolyte–cathode interface

In contrast to metallic anodes, cathode components consist of active material (AM) particles like LiCoO₂ (LCO), LiMn₂O₄, LiNiMnCoO₂, LiNiCoAlO₂, and LiFePO₄. These particles combine with a suitable SE (ionic conductor), carbon (electron conductor), and/or binder to improve ion and electron transportation. In an LE battery, the LE fills the voids between cathode components and provides intimate contact with the electrodes. In contrast, solid–solid interfaces in ASSLBs rely on physical contact. To analyze the impacts of interfaces, Luntz et al.¹⁵¹ utilized a symmetrical cell to assess the internal resistance (IR) drop at both cathode/SE and anode/SE interfaces. Fig. 7a and b presents the evaluation method and findings. In their experimental work, an Au/SE/Au configuration was used as the reference for IR drop measurements. A negligible IR drop was observed when using a Li/SE/Li configuration, indicating interface resistance between Li and SE. However, combining SE with carbon electrodes (Fig. 7c and d) led to a significantly higher IR drop compared to Li, showing greater interfacial resistances. The IR drop at the Li/SE interface was ascribed to SEI generation and inadequate contact. In contrast, the electrochemical processes at the carbon–electrolyte interface are more complex. Although their findings highlight the distinct contributions of interface resistance at both electrodes, they focused solely on carbon electrodes when concluding that the greatest interfacial resistance happened at the carbon/SE interfaces.

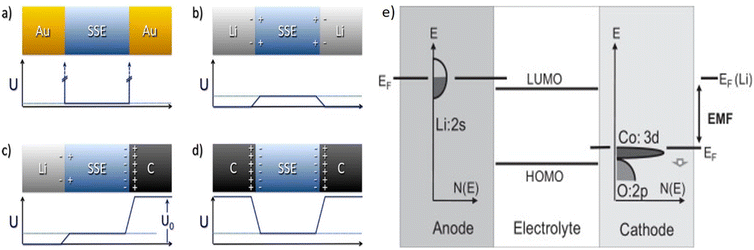

Fig. 7 Common cathode/SE interfaces in solid-state batteries. (a) Au/SE/Au. (b) Li/SE/Li. (c) Li/SE/C. (d) C|SE|C.¹⁵¹ Potential variation (U), carbon (C). (e) A schematic energy level diagram of a Li cell using LiCoO₂ as the cathode and Li metal as the anode shows how the electromotive force (EMF) originates. In this diagram, the Fermi level of the lithium anode lies above the electrolyte's LUMO, which explains the typical reduction of the electrolyte upon contact with Li. Additionally, during Li deintercalation from the cathode, the Fermi level of LiCoO₂ shifts downward, as indicated by a small arrow in the diagram.¹⁵⁷

When two materials with differing Fermi levels come into contact, electrons will flow from the material with higher Fermi energy to the one with lower Fermi energy until equilibrium is reached. This electron transfer causes band bending at the interface, forming space charge regions and potential barriers that can impede charge carrier movement.

When gold (Au) and an SE come into contact, their Fermi levels (E_F), representing the chemical potential for electrons, are typically not aligned initially. The electrons flow from one to the other and lead to electronic leakage, causing decomposition. This impacts charge transfer and interfacial stability.

In the case of carbon and SEs, the Fermi level of carbon may align differently with the conduction band of the SE. This misalignment can influence the charge transfer kinetics and the stability of the interface, potentially leading to issues such as interfacial resistance or degradation over time.

From a physical point of view, one may relate the cell voltage to the difference of the (electro-)chemical potential of the electrons between the cathode and anode as given by the position of their Fermi levels (see Fig. 7e). Note, however, that the chemical potential difference for lithium between the anode and cathode may be expressed as the sum of the chemical potential difference for both electrons (Δμ_e⁻) and lithium ions (Δμ_Li⁺), eqn (1):^152,153

−eV_OC = Δμ_e⁻ + Δμ_Li⁺ (1)

Therefore, considerations restricted to the Fermi level (electron chemical potential) of (single) electrode materials in discussing electrode potentials are approximate, albeit often resulting in reasonable accuracy.

Besides the active (intercalation) material, commercial Li-ion electrodes consist of a polymer binder and conductive additives, forming complex, often nano-sized, 2D or 3D composites. The performance of these composite electrodes is highly dependent on the distribution, ratio, and types of different constituents.^154,155 From an idealized point of view, the voltage and capacity of Li-ion batteries are only determined by the thermodynamic bulk properties of the active phases. However, contact potentials and kinetic effects in real batteries strongly influence the practically achieved voltages, capacities, and current densities. As a consequence, all practical performance data (e.g., energy and power density, lifetime) are influenced by kinetic factors, which are often dominated by interface effects and continually evolve over time due to side reactions and other degradation phenomena.¹⁵⁶

Nowadays, layered LiMO₂ materials (M = Ni, Co, Mn) are widely recognized as standard cathode active materials (CAMs) for high-energy-density batteries. Particularly, LiNi_aCo_bMn_cO₂ (a + b + c = 1; NCM-abc) and LiNi_xCo_yAl_1−x−yO₂ (NCA) are capable of achieving higher voltages and higher volumetric specific energies. As a result, they have established themselves as primary CAMs in electric vehicle applications.

For instance, Ni-rich NCM cathodes, such as LiNi_0.8Mn_0.1Co_0.1O₂ (NCM811), are highly attractive due to their competitive capacities and energy densities compared to advanced LIBs.^158–161 However, integrating sulfide-based ASSLMBs with Ni-rich oxide cathodes faces significant difficulties: (1) sulfide SE degradation occurs at high voltages due to their restricted ESW; (2) undesirable interfacial reactions between sulfide SEs and NCM811 result in the existence of ionic-insulating degradation products; (3) an SCL forms between sulfide SEs and oxide cathode materials because of mismatched chemical potentials, leading to highly resistant lithium depletion layers at the sulfide SE side; (4) structural deterioration at the surface and grain boundaries of Ni-rich oxide cathode particles leads to capacity and voltage decay issues.^52,162–165 Although raising the upper cutoff voltage can enhance the capacity of Ni-rich NCM811 cathode materials, it also risks material degradation due to issues such as cracking and oxygen loss. Grasping these degradation mechanisms is essential for facilitating high-voltage operation and enhancing the capacity of advanced materials.^166,167 Recently, studies have focused on single-crystal (SC) NCM-based cathodes for ASSLBs. These materials typically have a lower nickel content to reduce volume changes during cycling, although this approach does come with the trade-off of decreased discharge capacity.^168–170

Chemical decomposition of an SE can lead to contact loss between the cathode and SE due to the volume decrease associated with the chemical reaction, which can cause physical separation or cracking.^25,171,172 The decomposition process can form new interphase layers or degrade existing ones, hindering the ionic conductivity and leading to resistance increases. In addition, chemical and mechanical degradation at the solid electrolyte/cathode interface can interact synergistically, accelerating performance decline in solid-state batteries.^173–175 Chemical degradation, such as the formation of resistive reaction layers or the dissolution of cathode materials, can induce mechanical stresses at the interface, leading to cracking or delamination. Conversely, mechanical stress from cathode expansion/contraction during cycling can accelerate chemical degradation by exposing fresh reaction sites. This can lead to capacity loss, reduced rate capabilities, and a general decline in battery performance.

From a microstructural perspective, lattice mismatches present physical contact challenges. Such interfaces often arise around the contact area of solid materials with differing lattice parameters. This mismatch can happen around electrode/SE interfaces, inducing strain and the existence of super-lattices, consequently elevating interfacial resistance.¹⁴¹ In contrast, interfaces between materials with minimal lattice differences exhibit substantially lower interfacial resistances and higher σ compared to those with significant lattice deviations. It is important to note that lithium-ion transport throughout all ASSLBs is also affected by interface impedance and bulk σ. Indeed, weak Li⁺ transport may also manifest at the lattice-matched interface with inadequate bulk σ.

Theoretical calculations help to elucidate the electronic/atomic distributions around lattice mismatched interfaces. Utilizing DFT calculations, Jand and Kaghazchi investigated LiCoO₂/SE interface structures.¹⁷⁶ This investigation can be done by varying the biaxial compressive and tensile strain magnitudes. Their simulations identified three energetically favorable interfaces. Analysis of all three models revealed atomic rearrangements and a big strain at the interface due to lattice mismatch. While this model does not include ab initio molecular dynamics, it showcases the successful application of DFT methods in simulating and predicting interfacial characteristics in ASSLBs. Nevertheless, predicting interfacial behavior in ASSLBs remains complex. Therefore, a sophisticated computational technique employing an intelligent algorithm is necessary to find energetically favorable interface structures. This provides a comprehensive understanding of lattice-mismatch mechanisms.

Recently, Gao et al. introduced an estimation method to understand lattice-mismatched structures around interfaces using the particle swarm optimization (CALYPSO) method.¹⁷⁷ This approach considered both lateral and vertical displacements. By combining the CALYPSO approach and DFT calculations, they identified 6 kinds of LiCoO₂/Li₃PS₄ interface structures, as illustrated in Fig. 8a. Simulation results highlighted the existence of highly energetically favorable interfaces, such as cobalt sulfide and phosphorus oxide. Here, cation (cobalt/phosphorus) and anion (sulfur/oxygen) inter-diffusion occurs around interfaces. These theoretical findings align well with experimental observations.¹⁷⁸ Fig. 8b shows two different interfaces.¹⁴¹ On the left, two materials share the same crystal structure and similar lattice dimensions, creating a straightforward pathway for Li-ion migration. This leads to minimal interfacial resistance and high ionic conductivity. In contrast, the right-hand side illustrates a pairing with markedly mismatched lattice structures, which forms a convoluted Li-ion trajectory and significantly increases interfacial resistance. This issue is widespread in current ASSLBs, where interfaces typically exhibit considerable lattice mismatch. However, effective Li-ion transport within ASSLBs hinges on more than just interfacing crystal lattices. It also relies heavily on bulk ionic conductivity, grain boundary diffusion, and overall interface impedance. Even a well-aligned—i.e., lattice-matched—interface can suffer from sluggish Li-ion movement if the materials themselves possess inherently low ionic conductivity. A viable strategy to alleviate lattice variations is by employing materials with greater structural resemblance for both electrodes and SEs.

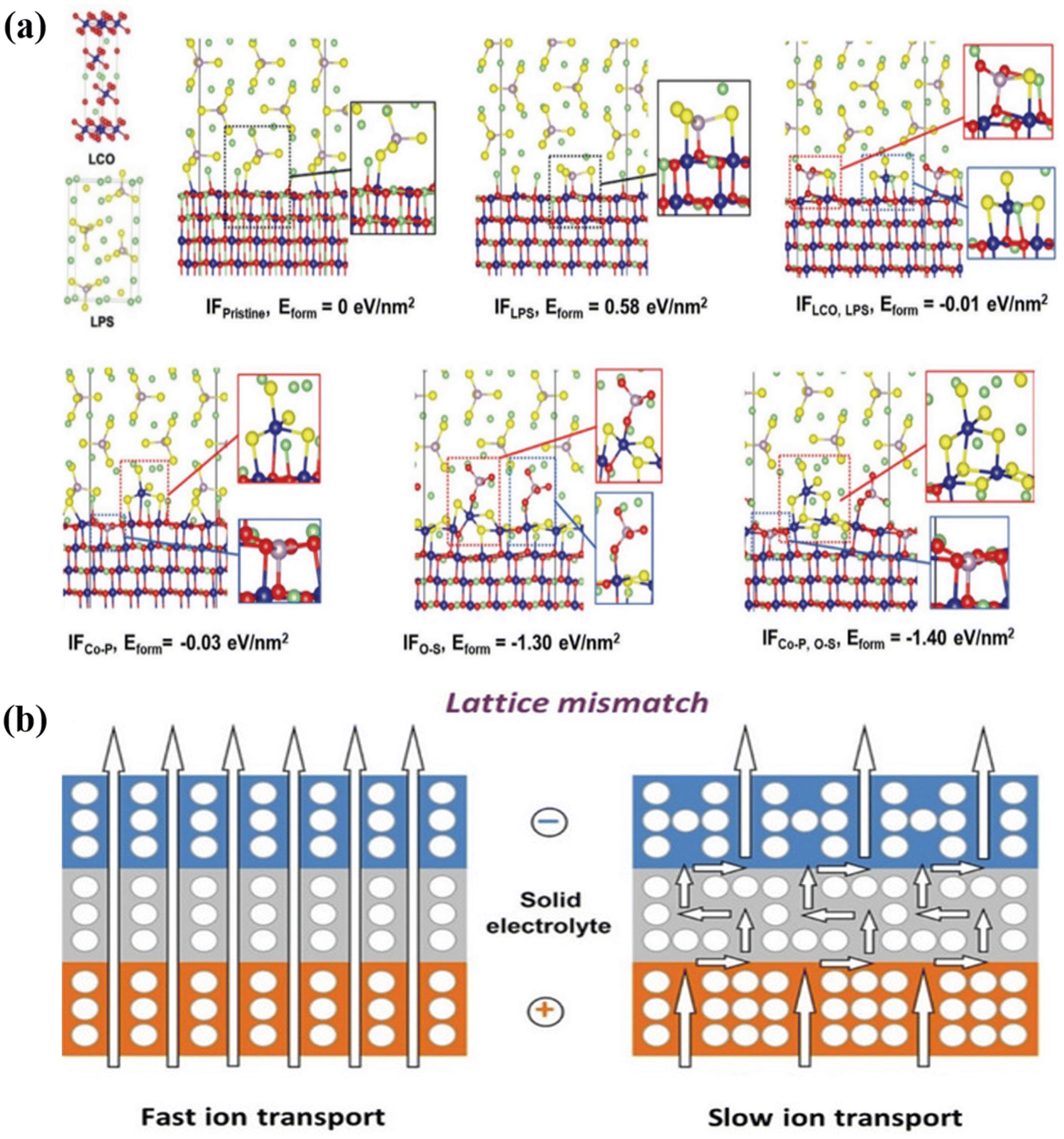

Fig. 8 (a) Predicted low-energy interface structures between LiCoO₂ and Li₃PS₄ for six different energy states.¹⁷⁷ (b) Lattice (mis)match.¹⁴¹

Generally, when a sulfide SE comes into contact with layered oxide cathode materials with a low lithium ion chemical potential (μ_Li) vs. S²⁻/S, the sulfide SEs undergo oxidation even under open circuit voltage (OCV) conditions. This oxidation process contributes to the degradation of both the SEs and the CAMs, leading to structural damage.

Even though ASSLBs have attracted significant attention owing to their potential increased energy density and high safety, the thermal runaway of batteries cannot be mitigated just by utilizing nonflammable SEs. The interface between the cathode material and the electrolyte is a critical area for safety concerns.^179–182 Safety issues in solid-state batteries, particularly with argyrodite SE and layered cathode materials, are often linked to interfacial phenomena like SO₂ gas formation during exothermic reactions.¹⁸³ These reactions can lead to heat buildup, decomposition of the SEI, and ultimately, thermal runaway. Safety hazards with exothermic behavior and combustion phenomena were demonstrated between sulfide SEs (glassy-ceramic and crystalline types) and the fully delithiated Ni-rich (LiNi_0.8Co_0.1Mn_0.1O₂, NCM) layer cathode. The heat generation of sulfide SEs + NCM was 900% larger than that of LE + NCM.¹⁸³ The interaction between the cathode and electrolyte can also reduce the decomposition temperature and exacerbate safety concerns. Compared with comprehensive investigations on the safety of LIBs,^184,185 it is imperative to reveal the comprehensive safety characteristics of ASSLBs with respect to multiple aspects, guiding the safety design of sulfide-based ASSLBs.

2.3. Mechanical properties

The mechanical characteristics of SEs represent a crucial aspect of the development of ASSLBs.³² For instance, SEs need to possess high processability to establish close solid–solid contact between electrode active materials (EAMs) and SEs.^186–188 Achieving intimate contacts between solid particles is vital for ensuring high-performance metrics such as increased capacity, extended cycle life, and enhanced rate capability. In ASSLBs, where both EAMs and electrolytes are solid, establishing close contact between the electrode and SE is challenging compared to traditional batteries employing LEs. Moreover, maintaining this contact throughout charging and discharging is essential despite the volume alterations experienced by the EAMs during these processes. The mechanical properties of both the electrode and SEs play a vital role in determining the integrity of the electrode/electrolyte contacts upon cycling. The elastic modulus serves as a crucial mechanical property for evaluating the electrode/SE contact.¹⁸⁹

In ASSLBs, EAMs undergo expansion and contraction during the charge/discharge process. For example, silicon electrodes boast high theoretical capacities (3579 mA h g⁻¹ for the Li₁₅Si₄ phase) but experience significant volume changes exceeding 400%.^190–192 SEs play a crucial role in maintaining electrode/electrolyte contacts despite these volume changes in the EAMs. However, when SEs with very high elastic moduli are employed, the EAMs endure substantial stresses due to the volume alterations. Consequently, they may fracture and lose contact with the SEs, resulting in capacity degradation. The elastic modulus of SEs influences this fragmentation of electrode materials; ideally, SEs should possess an average elastic modulus that is neither excessively high nor extremely low.¹⁹³ SEs with moderate elastic moduli can alleviate such large stresses, thereby enhancing the longevity of ASSLBs.

The physicochemical behavior of SEs differs significantly from that of LEs, especially in how they influence Li deposition. SEs are intrinsically inhomogeneous, containing grain boundaries and grains with distinct mechanical properties and carrier transport characteristics. Notably, the bulk electronic conductivity of SEs is higher than that of LEs, allowing Li ions to be reduced and deposited directly within the SE matrix. At the interface between SEs and electrodes, electrochemical reactions such as Li metal deposition occur at solid–solid contact points, enabling the transfer of charge carriers (either electrons or ions).^194–196 These reactions induce mechanical changes in the SE, often resulting in localized lattice deformation.¹⁹⁷ Typically, such deformations are confined to surface regions, creating localized stress fields. In most SEs, which typically exhibit linear elastic fracture behavior, the level of local stress directly influences the crack formation ability, as well as the dimensions, such as the length and width, of any cracks that develop.^198–200 The severity of the resulting mechanical damage depends on the intensity of the stress and the dimensions of the developing cracks. Various theoretical models have been proposed to explain how Li protrusions grow within SEs, and all of them emphasize the strong relationship between Li metal electrochemical deposition and the generation of local mechanical stress.¹²⁵

The different mechanical processes in SSBs, localized in different areas of the cell, are illustrated in Fig. 9a. Key processes include: losing contact at the electrode/electrolyte interfaces, detachment from current collectors (Cu or Al foils), void generation at interfaces, crack propagation inside SEs, and the application of external pressure. These processes are induced and influenced by many electrochemical, chemical, and external factors. First, the volume changes (expansion or shrinkage) in cathodes and anodes due to lithiation or de-lithiation have a profound effect on the solid/solid interface between the electrode and electrolyte. The second major factor is the external pressure applied to the packaged cell and/or module, which is inevitable in single-cell and large battery packs. Moreover, dendrites and byproducts generated at the interfaces can also add local pressure. These mechanical effects have a significant influence on further electrochemical processes, such as increasing impedance, uneven distribution of the lithium-ion flux and electrical field, fast decay in capacities, and short circuits. As a whole, the mechanical processes are intimately coupled with the electrochemical ones. The mechanical parameters for evaluating SSBs and corresponding characterization methods are summarized in Fig. 9b.

Fig. 9 (a) Schematic of mechanical processes and their causes in SSBs. (b) The mechanical parameters and corresponding characterization methods used in SSBs.²¹¹ (c) Schematic setups used to ensure ion-blocking and electron-blocking measurement conditions together with transmission line models (TLM) used to evaluate impedance data. (d) EIS data (circles) measured under ion- and electron-blocking conditions are exemplary for an NCM83–LPSCl composite with an NCM volume fraction of 40%. (e) Direct current (DC) polarization data measured under ion-blocking (circles) and electron-blocking (diamonds) conditions, as well as the corresponding fits (line) are exemplarily shown for an NCM83–LPSCl composite with a NCM volume fraction of 40%. (f) Resulting effective ionic and electronic conductivities as a function of NCM volume fraction. Effective electronic conductivities measured via DC polarization (circles) and EIS (squares) are shown in purple, whereas effective ionic conductivities are depicted in green. Each data point corresponds to a single measurement. Effective conductivities from simulations with the resistor network model are shown as dots connected with straight dashed lines as a guide to the eye.²⁰⁵

In addition, SSBs use composite electrodes made up of electrochemically active materials, SEs, and, when needed, additional components such as binders or conductive additives like vapor-grown carbon fibers (VGCFs). In these composite structures, achieving sufficiently high ionic conductivity (σ_ion) and electronic conductivity (σ_e) is essential, as both charge carriers must effectively reach the active material during charging and discharging. A significant mismatch between ionic and electronic conductivity can result in uneven reaction rates across the electrode's thickness. It is crucial to balance these transport properties to ensure efficient electrode utilization and prevent localized reaction fronts during operation.^201,202

The transport of charge carriers is strongly affected by the microstructure of the composite. For example, Froboese et al.²⁰³ showed how varying the size of inclusions impacts the composite's effective ionic conductivity. Additional research on NCM622-LPSCl²⁰¹ and Si-LPSCl-C²⁰² electrodes demonstrates that changes in active material particle size significantly influence battery performance, reinforcing the importance of microstructural control. Similarly, adjusting the SE particle size in LiNi_0.83Co_0.11Mn_0.06 (NCM83)–LPSCl²⁰⁴ composites leads to more uniform ion flow and better electrode utilization. These findings highlight that the particle sizes of both the active material and the solid electrolyte are critical factors for optimizing electrode design.

Ketter et al.²⁰⁵ measured the effective ionic and electronic conductivities in NCM83–LPSCl composite cathodes by varying the volume fractions of NCM83 (φ_NCM) and LPSCl (φ_LPSCl), using EIS. To analyze electronic and ionic conductivity separately, they applied ion-blocking contacts for electronic measurements and electron-blocking contacts for ionic measurements (as shown in Fig. 9c). The impedance data were interpreted using a transmission line model (TLM), previously developed for similar NCM622–LPSCl composite systems.²⁰⁶ This TLM acts as an equivalent circuit representing ion and electron transport through interconnected pathways in the composite cathode. Although the model simplifies the complex nature of charge transport in such composites, it captures key behaviors and enables the accurate determination of total effective conductivities from EIS data.²⁰⁶

Fig. 9d illustrates typical impedance results and their TLM fits for a composite cathode with 40% NCM83. To further validate the TLM, researchers used an alternative equivalent circuit commonly applied to mixed ionic–electronic conductors²⁰⁷ to assess the same data, demonstrating consistent results. In addition, DC polarization experiments were performed to evaluate ionic and electronic currents by applying different voltages and blocking contacts to isolate each charge carrier type. These measurements, interpreted using Ohm's law (eqn (2)), yielded effective conductivity values. An exemplary dataset for φ_NCM = 40% is shown in Fig. 9e.

An equivalent relationship for the movement of charge carriers (ions and electrons) as a response to an electric field is given by Ohm's law (eqn (2)):²⁰⁸

J = −σ∇ϕ (2)

where J, σ, and ∇ϕ are the electrical flux density, the electrical conductivity, and the potential gradient, respectively.

The measured and simulated effective electronic and ionic conductivities are in good agreement, as shown in Fig. 9f. Consistent with previous findings,²⁰⁶ the effective conductivities of both ions and electrons vary dramatically depending on the ratio of NCM83 to LPSCl. Specifically, electronic conductivity spans from about 10¹ mS cm⁻¹ to 10⁻² mS cm⁻¹, while ionic conductivity ranges from 10¹ mS cm⁻¹ to 10⁻⁵ mS cm⁻¹ across the compositions tested. The best ionic and electronic transport balance is observed at φ_NCM = 40%. However, as the content of either LPSCl or NCM83 becomes too low, both conductivities drop sharply due to a loss of percolation pathways. Since the percolation threshold is highly influenced by the material's microstructure, significant discrepancies between experimental and simulated conductivity values are more likely near the threshold as only simplified, virtual microstructures are assumed in the resistor network simulations.^209,210 Differences in the measured and simulated effective ionic conductivities for compositions with φ_NCM > 40% may be attributed to this effect.

Recently, researchers utilized first-principles calculations to predict the elastic moduli of different SEs.²¹² These efforts underscore the significance of identifying the optimal mechanical properties for ASSLBs and advancing the development of SEs with enhanced mechanical characteristics.¹⁹³ Key mechanical parameters to be taken into account for SEs are outlined in Table 2.

Table 2 First principles calculations for bulk modulus (B), shear modulus (G), Young's modulus (E), Poisson's ratio (ν), and Pugh's ratio (G/B) of Li–argyrodites Li₆PS₅X (X = Cl, Br, I) utilizing the PBEsol functional.²¹²

Electrolyte	B (GPa)	G (GPa)	E (GPa)	v	G/B
Li6PS5Cl	28.7	8.1	22.1	0.37	0.28
Li6PS5Br	29.0	9.3	25.3	0.35	0.32
Li6PS5I	29.9	11.3	30.0	0.33	0.38

---

Addressing interfacial resistance entails optimizing the contact between materials, a pursuit that has been investigated on a macro-scale through different synthesis and assembly methods.²¹³ Enhanced adhesion contributes to prolonged mechanical lifespan in ASSLBs by ensuring consistent interface contact during cycling. Experimental evidence supports this notion, as demonstrated by the application of pressure to cells, facilitating improved wetting or adhesion of interfaces.²¹⁴ In ASSLBs, expanding the contact area between materials is crucial for leveraging the bulk σ offered by Li–P–S systems.

3. Strategies to improve the interface stability

Because of Li metal's strong reactivity, limited materials are stable towards Li.^63,215 The critical factor for effectiveness in LIBs is the self-passivating SEI layer formed at the LE/electrode interfaces. This concept recently started to be explored in the ASSLB domain. Advancing the discovery of non-reactive SEs at interfaces is a critical step for the development of next-generation batteries. However, this focus does not address the operational voltage or interfacial resistance criteria.²¹⁶

The strategies proposed to improve the interfacial stabilities include coating, electrolyte modification by doping, wetting, and multilayered approaches.

3.1. Coating

Applying coating materials is the best approach for tackling the interfacial problems, and enabling a wider range of combinations of SE and electrodes to be used for the success of the battery. Coatings must possess electrochemical stability windows that sufficiently cover the entire operational voltage range of the electrodes. Nevertheless, even if two materials are chemically inert and show stability in similar voltage ranges, they can still encounter significant interfacial resistance.²¹⁷

Kimura et al.²¹⁸ systematically investigated how the thickness of a coating layer (CL) affected the protection of SEs, under fixed values for electronic conductivity (σ_ele) and other related parameters. They assumed σ_ele values of 1.0 × 10⁻¹¹ S cm⁻¹ for the SE and 1.0 × 10⁻¹⁴ S cm⁻¹ for the CL, with the lithium-ion conductivity (σ_Li⁺) of the CL set at 1.0 × 10⁻⁶ S cm⁻¹. Fig. 10a shows the lithium chemical potential (μ_Li) distribution within the SE and CL when the thickness of the CL is 10, 50, and 100 nm and the thickness of the SE is 100 μm. As the CL thickness increases, the μ_Li variation within the coating becomes larger, which raises μ_Li at the CL/SE interface. Notably, coatings thicker than 50 nm shift μ_Li above the SE's oxidation limit, making the SE thermodynamically stable. This supports the intuitive understanding that thicker coatings offer stronger protection, especially when ultra-low σ_ele materials are not available.

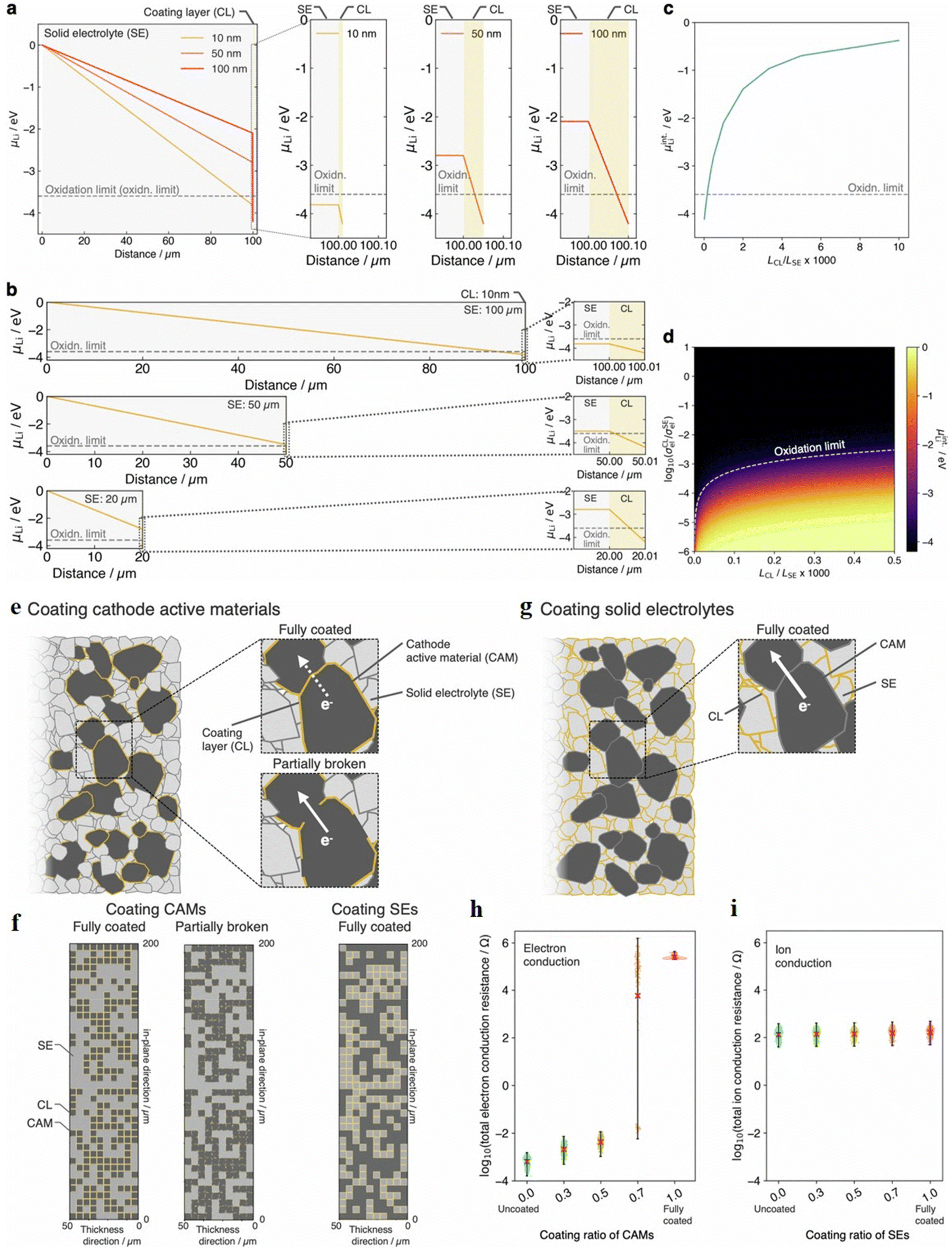

Fig. 10 Influence of the thickness of the CL and SE on the protective capability of the CL. (a) μ_Li distribution within the SE and CL for CL thicknesses of 10, 50, and 100 nm, with the thickness of the SE constant at 100 μm. (b) μ_Li distribution with SE thicknesses of 100, 50, and 20 μm, maintaining the thickness of the CL at 10 nm. (c) μ_Li at the interface as a function of the thickness ratio of CL to SE. (d) Heat map illustrating μ_Li at the interface between the SE and CL across varying thickness ratios and σ_ele ratios of CL to SE. Influence of the arrangement of the CL in composite electrodes on the ohmic resistance. (e) Schematic of a composite SSB electrode with CLs applied to CAMs. (f) 2D lattice model of the composite SSB electrode with CAMs either fully or partially covered by CLs (left) and SE-coated configuration (right). (g) Schematic of a composite SSB electrode with CLs applied to SEs. Violin plots of (h) the electron conduction resistance of the entire electrode under various CAM coating ratios and (i) the ion conduction resistance of the entire electrode under various SE coating ratios. The red cross in each plot represents the average resistance for each condition.²¹⁸

However, the thickness of a CL required to effectively protect an SE varies considerably based on the thickness of the SE. As shown in Fig. 10b, the protective effect changes when the CL remains 10 nm thick but the SE thickness is varied (100, 50, and 20 μm). For the 100 μm SE, μ_Li at the interface remains below the oxidation limit, indicating instability, while SEs 50 μm or thinner show interfacial μ_Li values within the stable electrochemical window. Hence, the thickness of the SE directly impacts on how well a given CL performs.

Fig. 10c plots the relationship between μ_Li at the interface and the thickness ratio (L_CL/L_SE). A sharp increase in interfacial μ_Li is observed until the CL reaches about 0.2% of the SE thickness, stabilizing around 0.02%. This means that, for a 100 μm-thick SE, a coating thickness below 200 nm is often sufficient for protection. Crucially, this shows that the relative thickness, not the absolute thickness, of the CL determines its effectiveness. Consequently, a CL that performs well in thin-film SSBs may not offer the same protection in bulk-type batteries, and vice versa. Any comparison of CL performance across systems must consider the SE geometry.

Moreover, the ideal CL thickness also depends on the relative σ_ele values of the CL and SE. Fig. 10d shows a heat map of μ_Li at the CL/SE interface under varying σ_ele and thickness ratios. A white dashed line marks the oxidation stability limit. For a CL to protect the SE thermodynamically, both its thickness and σ_ele must fall below this line. The map reveals that at very thin coatings (e.g., <10 nm for a 100 μm SE), small changes in thickness dramatically shift the required σ_ele. Therefore, in practical battery design, achieving effective SE protection requires carefully balancing both the thickness and electronic conductivity of the coating layer.

As previously outlined, the protective effect of a CL on an SE in SSBs is influenced by both σ_ele of CL and its thickness. While a lower σ_ele and greater thickness are generally favorable for SE protection, practical considerations in composite electrodes, especially those without conductive additives, complicate this relationship. In composite electrodes, especially those lacking conductive additives, CAMs serve as the primary electron conduction pathways. Applying a thick CL with low σ_ele, as illustrated in Fig. 10e, over the CAMs can significantly increase the electron conduction resistance across the entire electrode, potentially degrading SSB performance.^219,220 However, in real composite electrodes with the CL, such a substantial increase in resistance is often mitigated by partial fracturing of the CL during electrode fabrication processes, such as pressing (Fig. 10e). These fractures can restore electron conduction pathways, reducing the overall resistance. The impact of the proportion of CLs is shown in Fig. 10f. When 70% of the CAM surface is coated, the resistance shows significant variation depending on the arrangement of the AM and SE lattices, likely because of differences in the availability of current percolation pathways that enable current to flow solely through the CAM regions. When the CL coverage is reduced to 50% or less, the increase in electron conduction resistance remains within acceptable limits, suggesting that partial coverage can balance SE protection and electron conduction. However, this means that over half of the interface remains unshielded, underscoring the challenge of achieving solid electrolyte protection and low resistance in practical composite solid-state battery electrodes.

An alternative strategy involves coating the SE instead of the CAMs. This approach maintains direct contact between CAMs, preserving electron conduction pathways, and typically results in a less pronounced difference in σ_Li⁺ between the SE and CL compared to the σ_ele difference between CAMs and CL (Fig. 10g). Consequently, the overall ion conduction resistance of the electrode does not increase significantly, even with a fully coated SE. Fig. 10h presents violin plots illustrating the electron conduction resistance of the whole electrode under various CAM coating conditions. The total resistance in the case of fully coated CAMs is about 8 to 9 orders of magnitude higher than uncoated CAMs. This outcome clearly shows that even though the CL is much thinner than the CAM, a coating layer with low σ_ele can significantly increase the overall electron conduction resistance of the electrode, indicating the strong influence of the CL on electrode performance. Fig. 10i presents the total ionic resistance of the composite electrode when the SEs are coated with a 10 nm-thick CL. In this model, σ_Li⁺ of the SE and CL are set to 0.5 × 10⁻³ and 1.0 × 10⁻⁶ S cm⁻¹, respectively, with ion transport attributed solely to the SE and CL. Under these conditions, the increase in ionic resistance remains relatively minor, even with full coating of the SEs. This indicates that applying the coating to the SE rather than the CAM may be a promising approach for simultaneously protecting the SE and maintaining low internal resistance. However, some technical hurdles may need to be addressed.

These findings demonstrate the importance of considering not only the intrinsic properties of the CL but also its spatial arrangement within the composite electrode. The geometry and coverage of the CL relative to the SE and CAMs are critical design parameters that influence the performance and thermodynamic stability of SSBs.

3.1.1. Electrolyte coating. A coating layer protects the direct contact of SE and electrode. This layer helps as an artificial SEI, facilitating Li⁺ conductivity while inhibiting electron conduction. As a result, it extends the effective stability range of solid electrolytes. The thickness of the coatings can be adjusted to fall within the range of 1–10 nm,^178,221,222 typically thinner than an SEI formed in situ.^{178,223–225} The coating material must meet crucial criteria: it should be chemically stable towards the SE and the corresponding electrode and demonstrate stability across the operational voltage ranges of the electrodes. As a result, the constitution of cathode and anode coatings could be individually optimized based on the specific solid electrolyte–electrode combination.

Hood et al. examined the role of Al₂O₃ coating for Li₆PS₅Cl powders.²²⁶ To gain a comprehensive understanding of how atomic layer deposition (ALD) alumina coatings and their thickness influence the electrochemical performance of argyrodite, the authors assessed key properties such as ionic conductivity, Arrhenius activation energy, and electronic conductivity using pellets formed from coated powders. Prior research has shown that fine-tuning both bulk and surface chemistry is crucial for optimizing the electrochemical behavior of fast lithium-ion conducting electrolytes.^118,227,228 Using EIS, the authors measured the total ionic conductivity of both coated and uncoated argyrodite pellets (see Fig. 11a and b). The uncoated (pristine) argyrodite exhibited a Li⁺ conductivity of 0.9 ± 0.05 × 10⁻³ S cm⁻¹ at room temperature (25 °C), with an activation energy of 0.31 ± 0.03 eV. Interestingly, the materials coated with 1 and 10 cycles of ALD Al₂O₃ showed significantly improved ionic conductivities of 1.2 ± 0.05 × 10⁻³ S cm⁻¹ and 1.7 ± 0.05 × 10⁻³ S cm⁻¹, respectively. This enhancement was accompanied by a slight reduction in activation energy, to 0.30 ± 0.02 eV for 1 cycle and 0.28 ± 0.02 eV for 10 cycles, indicating that thin ALD coatings could enhance Li⁺ transport. However, when the coating thickness was increased to 100 ALD cycles, the ionic conductivity dropped sharply to 0.27 ± 0.05 × 10⁻³ S cm⁻¹ at 25 °C, while the activation energy remained relatively low at 0.29 ± 0.02 eV. This decline in conductivity is likely due to the thicker Al₂O₃ layer acting as a barrier to Li⁺ movement across grain boundaries, given the poor lithium-ion conductivity of Al₂O₃. These results suggest that the optimal ALD coating thickness lies around 1–2 nm, beyond which Li⁺ transport becomes impeded.

Fig. 11 (a) Arrhenius plots, (b) ionic conductivity at 25 °C, (c) current–time curves (DC polarization at 200 mV, 25 °C) and (d) electronic conductivity at 25 °C for Li₆PS₅Cl pellets pressed from powders coated with 1, 10, and 100 ALD alumina cycles in comparison with pellets pressed from uncoated powders.²²⁶

The authors hypothesize that the enhanced electrochemical performance, specifically the increase in room-temperature ionic conductivity and the reduction in activation energy, is likely due to a combination of matrix and grain boundary effects. These effects arise from the redistribution of vacancies and interstitial sites, such as space-charge regions, at the interface between the ALD alumina coating and the argyrodite electrolyte.^229–232 This behavior is similar to previously reported electrochemical results observed in β-Li₃PS₄ : Al₂O₃ composites.²³² While ball milling-based composite formation can introduce layers of electronic and ionic point defects, the close interfacial contact formed via ALD can similarly influence ion transport. However, when the ALD coating is too thick and non-conductive, it acts as a barrier to Li⁺ movement, significantly lowering ionic conductivity, as seen with 100 ALD alumina cycle coatings. Thus, precise control over both the coating thickness and its chemical properties is essential to properly manipulate space-charge effects and enhance ionic transport. Applying highly conductive ALD coatings to Li argyrodite materials could be a promising strategy for improving total ionic conductivity.

Besides aiding Li⁺ transport, ALD alumina coatings also reduce electronic conductivity in argyrodite powder-based pellets. Electronic conductivity was measured using symmetric cells under a 200 mV bias (Fig. 11c and d). For uncoated Li₆PS₅Cl, the electronic conductivity was 6.3 ± 0.05 × 10⁻⁹ S cm⁻¹ at 25 °C. After applying 1, 10, and 100 ALD Al₂O₃ cycles, the electronic conductivity dropped significantly, reaching as low as 1.7 ± 0.05 × 10⁻⁹ S cm⁻¹. These results show that carefully adjusting the ALD coating's thickness and composition enables control over both lithium-ion transport and undesirable electronic leakage in solid electrolyte membranes.

The authors concluded that coating improved the stability of argyrodites under humid and oxidizing conditions, effectively protecting them from reacting with Li metal. This improvement led to significantly enhanced overall electrochemical performance, enabling higher current densities, Li metal plating/stripping capacities, and extended cycle lifetimes.

Through computational work, Ransom et al. identified LiAl₅O₈ and LiAlSiO₄ as leading coating candidates for various electrolyte systems.²³³ Their flexible morphologies enable simpler synthesis approaches and offer versatile avenues for optimization, including adjusting the lithium content. These coatings exhibited good adhesion characteristics, along with E_rxn < 0.1 eV. The versatility in synthesizing LiAl₅O₈ material into nanowire composite sintered thin films and sol–gel coatings, each offering different electrochemical enhancements, provides ample opportunities for optimizing this compound.^234–236 Despite its individual Li-ion conductivity being around ∼10⁻⁶ S cm⁻¹, its capability to form films thinner than 10 nm can mitigate the effects of its low σ.²³⁷ LiAl₅O₈ also helps reduce electrochemical reaction and chemical decomposition of the cathode materials. Wang et al. further discovered that LiAl₅O₈ could inhibit lithium metal dendrite formation in ASSLBs.²³⁶ Its ability to optimize various electrochemical metrics makes LiAl₅O₈ highly promising for further development. LiAlSiO₄ is similarly feasible for further research, having demonstrated improved capacity retention and been experimentally confirmed for synthesis and assembly into a battery.²³⁸ The synthesis approaches leverage the glassy nature of this material, with its amorphous phase enhancing σ.²³⁹ LiAlSiO₄ may be produced and coated utilizing simpler solution and dry methods, making it an attractive option for further development. There is potential for optimizing lithium content, as studies have explored adjusting the weight ratios of the coatings and enhancing σ through thin film morphologies.^240,241 Li₄SiO₄ and Li₅GaSi₂O₈ share structural similarities with LiAlSiO₄, suggesting that exploring the glassy phases of these coatings could enhance σ.²⁴² Furthermore, Li₂B₆O₉F₂ has emerged as the most efficient coating specifically for sulfide SE systems and has been verified via computational investigations.²⁴³

3.1.2. Anode coating. As we have already mentioned, the theoretical capacity of lithium metal anodes (3860 mA h g⁻¹) is approximately ten times greater than that of graphite (372 mA h g⁻¹). This makes lithium metal a leading candidate for high-energy-density ASSLBs. It has been extensively researched for use in both LE-based and ASSLBs.²⁴⁴ However, the cycling life of batteries utilizing lithium metal anodes still requires enhancement for practical applications.

Failures in lithium metal batteries often originate from the lithium anode. The initially shiny metallic lithium foil becomes black after several cycles due to the formation of a microporous, mossy structure (Fig. 12a).²⁴⁵ This mossy lithium is covered by a passivation layer (SEI), and the emergence of “dead lithium” reduces anode capacity.²⁴⁶ Additionally, the porous nature of lithium metal with a high surface area encourages a degradation reaction and rapidly depletes the SE, which raises cell impedance. Therefore, various approaches are proposed for enhancing the cycling span of lithium anodes, mainly focusing on reducing the degradation reaction between Li and SE while ensuring electrical contact among the deposited Li particles (Fig. 12c). One of the best approaches for addressing this issue is applying protective coatings.

Fig. 12 (a) Porous surface of the electroplated lithium anode after extended cycling. (b) The dense surface of the lithium anode is electroplated underneath the protective coating. (c) Approaches for enhancing the cycling span of lithium metal anodes.

Protective coatings serve as ion-conductive layers that allow for the electrodeposition of lithium metal (Fig. 12b). As lithium ions move throughout coatings, the ion flux will be highly uniform around the electrode's surfaces, even promoting lithium deposition.^246,247 Protective layers also minimize the electrolyte/lithium contact areas, reducing side reactions. Unlike the SEI layer that forms from side reactions within batteries, protective coatings are considered artificial SEI layers. The constitution of these coatings can be adjusted to enhance σ and mechanical strength.^248,249

To stabilize the SE/Li interface, various kinds of materials, such as oxides and nitrides, have been employed. Compounds within the Li–Al–O chemical family have effectively protected different solid electrolytes from lithium metal.^33,250,251 The computed stability window of Li₅AlO₄ ranges from 0.06 to 3.07 V, indicating strong stability of Al³⁺ in contact with Li, which aligns with XPS measurements at the SE/Li interfaces.²⁵² Additionally, in situ-formed polyanionic compounds like Li₃PO₄ and LiH₂PO₄ have been utilized to stabilize SE/Li interfaces.^253,254 DFT calculations predict that Li₃PO₄ will generate Li₃P and Li₂O when in contact with lithium, while LiH₂PO₄ will yield LiH. These reaction products help to create a passivating layer that facilitates stable cycling in Li symmetric cells.²⁵³ Furthermore, while investigating alternative anion chemistries for stabilizing the solid electrolyte against reduction by lithium, nitrides have shown the lowest calculated reduction limits among various anion types, making them promising for protecting the SEs on the anode side.²⁵⁵ Notably, boron nitride (BN) was recently reported to effectively safeguard the SE/Li interface,²⁵⁶ and an SE showed excellent stability with lithium, as evidenced by a stable cycle life in a Li symmetrical cell.²⁵⁷

The coatings with the highest stability for the sulfide system demonstrate good adhesion towards the lithium anode (E_rxn of 0 eV). However, they exhibit less favorable adhesion towards the SEs. Recent studies have explored the combined use of LiCl and LiBr to enhance σ, as LiCl alone is found to have inadequate conductivity (approximately 10⁻⁶ S cm⁻¹).^258–260 Previously, Lutz et al. examined LiCl species as a coating material, although the potential of CsLiCl₂ was not thoroughly investigated.²⁶⁰ Additionally, Calpa et al. prepared an argyrodite type Li₆PS₅Cl-based SE-coated graphite (graphite : Li₆PS₅Cl, 64 : 36 weight ratio) using a dissolution–reprecipitation method and investigated its application as a negative electrode in ASSLBs. The half-cell assembled with argyrodite-coated graphite and a carbon additive in a 100 : 1 weight ratio showed discharge capacities of 335 and 372 mA h g⁻¹ at 8C at 25 °C and 100 °C, respectively.²⁶¹

Besides the above observations, Zheng et al. developed a dual-purpose functional material that both protected Li metal from air/water corrosion and acted as an SE.²⁶² As shown in Fig. 13a and b, bare lithium transforms from a smooth surface to a porous network after 30 min in a 60% humidity environment. In contrast, lithium protected by PVDC (Li@PVDC) retains its metallic shine and remains smooth and crack-free under the same conditions. Fig. 13c indicates that the Li/Li symmetric cell performance of Li@PVDC initially matches that of bare lithium, highlighting its effectiveness at facilitating lithium ion transport. However, after 30 min of air exposure, bare lithium significantly increases the plating/stripping overpotential, indicating diminished performance. In contrast, Li@PVDC maintains stable overpotential levels (Fig. 13d). The bare lithium cell experiences rapid polarization increases and short circuits around 155 h, while the Li@PVDC cell demonstrates consistent performance for over 250 h, underscoring the protective coating's role in enhancing stability and reducing dendrite formation during cycling.

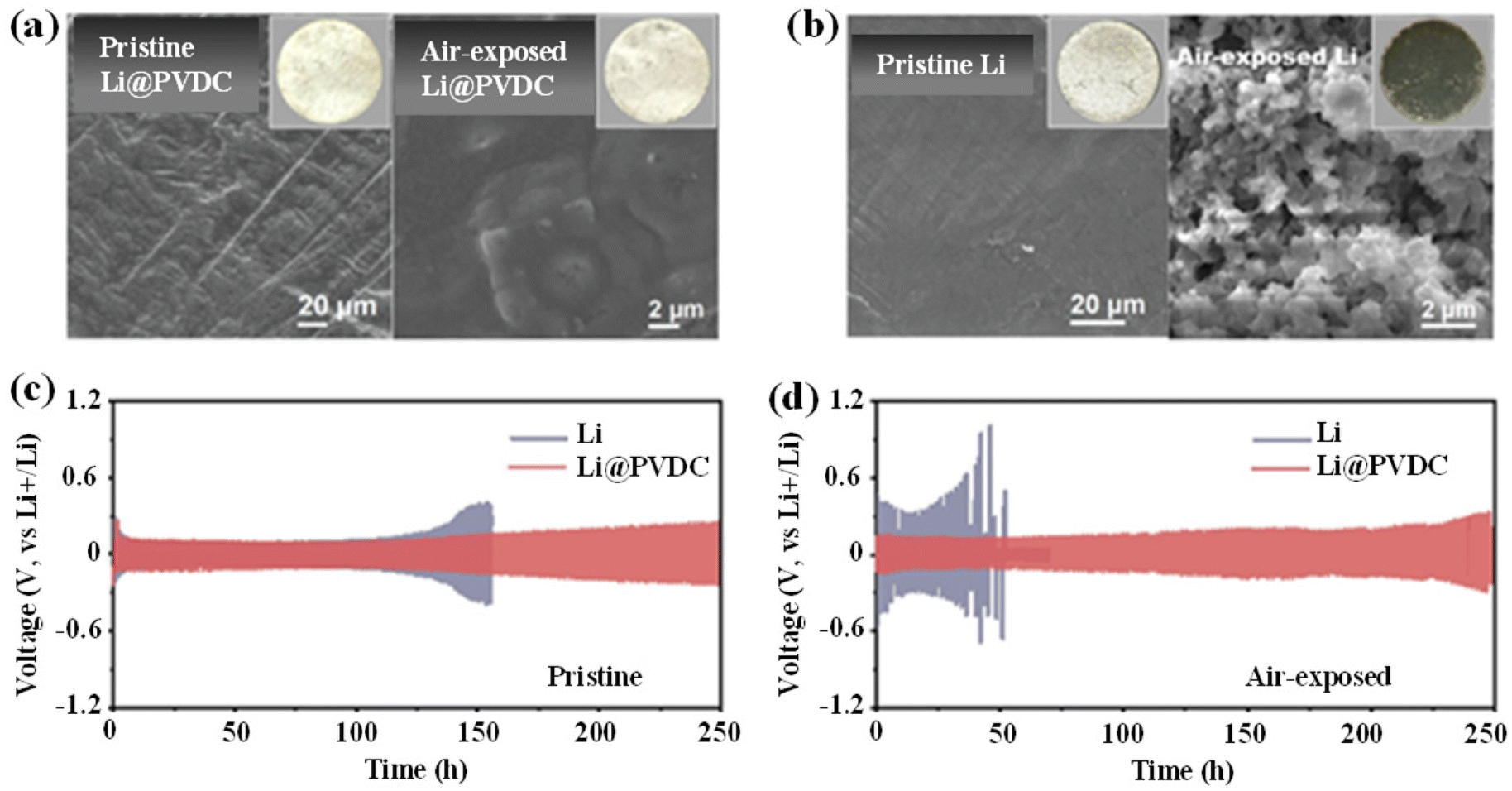

Fig. 13 The role of interlayers in suppressing air corrosion in the lithium metal anode. SEM images of (a) Li@PVDC and (b) bare lithium before and after exposure to ambient air for 30 min. Voltage profiles of bare lithium and Li@PVDC symmetric cells (c) without and (d) with 30 min air exposure at 1 mA cm⁻² and 1 mAh cm⁻².²⁶²

3.1.3. Cathode coating. Many studies concentrate on the cathode/SE interface because it is crucial to always ensure efficient ion transport across this interface. Maintaining thermodynamic stability here is difficult due to the limited ESW of various SEs and their significant chemical reactivity with cathodes. When the solid electrolyte is thermodynamically unstable at elevated voltages, it can degrade into phases that typically exhibit lower σ. For instance, sulfide electrolytes are expected to oxidize above approximately 2.5 V versus lithium metal^29,80,263 and may degrade into phases with diminished or negligible amounts of Li.⁸⁰ Moreover, the inter-diffusion of elements/chemical reactions at solid electrolyte/cathode interfaces can produce phases that hinder ionic transportation.^178,263

The main approach to address the strict stability requirements is to apply an electronically insulating but ionically conductive coating. This coating introduces coating/electrode material and additional coating/solid electrolyte interfaces. The coating acts like a secondary electrolyte, necessitating stability at the electrode voltages and resistance to chemical interactions towards electrode and solid electrolyte. But, if imperfections in the coatings leave portions of the electrode exposed to the SE, undesirable interfacial reactions may still take place within the coated electrode system. Conversely, these imperfections might be essential for facilitating electron transportation at coated electrodes/CC interfaces, creating a dilemma in currently used coating strategies.²¹⁹ LiAl₅O₈, used as a coating on nickel–manganese–cobalt cathodes, has been shown to enhance coulombic efficiency and capacity retention.²³⁴ In addition, ASSLBs using gradient Li₃P_1+xO₄S_4x coated NCM811 were reported to show an elevated reversible capacity of ∼160 mA h g⁻¹ at 0.089 mA cm⁻² at 25 ± 5 °C with excellent retention of 80% after 250 cycles when combined with the commercial sulfide SE.²⁶⁴ Fig. 14 provides a schematic representation of the diverse range of interfaces found in cathode composites.

Fig. 14 Interfaces within cathode composites. A schematic representation of the different cathode composite interfaces within ASSLBs, both with and without cathode coatings.⁶³

Furthermore, Jung et al. explored the distinct impact of cathode and sulfide SE chemical reactions in solid-state batteries.²⁵ Their findings revealed that the impedance of the composite electrodes, including bare NCM and LiNbO₃-coated NCM, exhibited two semicircles representing ionic and electronic pathways (Fig. 15a and b). Bare NCM showed an initial total impedance of approximately 100 Ω, lower than that of 300 Ω observed for the LiNbO₃-coated NCM, but it increased more rapidly over time, suggesting that the coating helped to prevent chemical degradation. Upon initial charging, the specific capacities for bare NCM and LiNbO₃-coated NCM were 247 mA h g⁻¹ and 222 mA h g⁻¹, respectively (Fig. 15c). However, after aging, bare NCM maintained 83% of its initial capacity, while the LiNbO₃-coated version only saw a 5% decrease (205 mA h g⁻¹), highlighting the coating's effectiveness at maintaining performance. Analysis indicated that the aged bare NCM experienced significant degradation, reducing active sites, even at a state of charge (SOC) of 0. In contrast, the coated NCM retained its capacity due to slower chemical reaction kinetics. Secondary ion mass spectrometry (SIMS) analysis confirmed the formation of a thick reaction layer in the bare NCM, primarily consisting of chlorine-based byproducts (Cl, LiCl, and LiCl₂), while the thickness of the interface for the LiNbO₃-coated NCM remained relatively unchanged (Fig. 15d and e).²⁵

Fig. 15 Chemical and electrochemical performance of bare and coated NCM. Chemical decomposition between the cathode and SE at steady state. (a and b) EIS spectra of uncoated bare NCM or LiNbO₃-coated NCM with the argyrodite SE. Impact of chemical instability at the cathode–SE interface on electrochemical performance. (c) Electrochemical performance of the first cycle for both a fresh cell (without rest) and an aged cell (with rest), with charge and discharge CDs of 16 and 7 mA g⁻¹, respectively. ToF-SIMS profiles as a function of sputtering time of fresh (left) and aged cells (right) of (d) bare NCM and (e) LiNbO₃-coated NCM composite pellet.²⁵

In general, coatings help mitigate surface-related degradation issues in layered transition metal oxides (LTMOs), while dopants are primarily used to enhance structural integrity by reducing irreversible phase changes during cycling. Additionally, they can improve rate capability by enhancing electronic conductivity and σ, which results from expanded lithium diffusion channels and defect formation that lowers polarization resistances.²⁶⁵ In certain instances, dopants within LTMOs containing greater amounts of Ni can further increase σ by decreasing the number of unwanted defects (like ). This suppresses oxygen release due to stronger M–O bonding energy.²⁶⁶ High-valence ions are commonly utilized to enhance the stability of nickel-rich LTMO cathodes.^267,268 These ions typically occupy transition metal sites and raise the repulsive forces between interlayers.²⁶⁹ Compared to smaller ions like Ni³⁺, Mn⁴⁺, and Co³⁺ (0.53–0.56 Å), high-valence dopants are generally larger, which can enhance Li layer spacing and lattice parameters, thereby improving Li diffusion. Moreover, they form stronger M–O bonds that contribute to the stability of the layered structures upon cycling.

For comparison, Xu et al. examined how coating and doping of NCM622 affected battery performance.²⁷⁰ The authors claimed that the coating significantly lowered electrochemical impedance and enhanced battery cycling performances. The doping ions minimize the mixing of Ni²⁺ and Li⁺ in the NCM622 cathode material, facilitating Li⁺ diffusion and thereby increasing the stability of the cathode while preventing structural damage to NCM622 during charging and discharging cycles.

3.2. Electrolyte modified by doping

3.2.1. Interfacial stability of cation-doped Li₆PS₅X (X = Cl, Br, I) for lithium anodes. Because of the strong reducing tendency of lithium metal, all sulfide-based SEs can be reduced by lithium metal during electrochemical cycling or even upon contact (as shown in Fig. 16a).^119,271 Zhu et al. conducted computational simulations that established the reduction potential of Li₆PS₅Cl SEs at 1.71 V (vs. Li/Li⁺) and identified the reduction products at the Li/Li₆PS₅Cl interface as P, Li₂S, and LiCl,²⁹ which was later confirmed experimentally by Wenzel et al. in 2018.³¹

Fig. 16 Scheme illustrating the role of cation-substituted Li₆PS₅X (X = Cl, Br, I) SEs. Anode side interface: (a) bare and (b) cation-doped SEs towards Li metal after cycling. Cathode side interface: (c) bare and (d) cation-doped electrolyte with layered oxide cathode materials after cycling.

Doping is a useful approach for improving the compatibility of electrolyte/electrode interfaces.^272–275 Recently, yttrium ions (Y³⁺) were introduced as dopants to replace phosphorus (P⁵⁺) in Li₆PS₅Cl, enhancing interfacial stability against lithium metal and inhibiting dendrite growth.²⁷⁶ Indium-doped Li₆PS₅I (Li_6.5In_0.25P_0.75S₅I) showed improved interfacial stability compared to its pristine form.²⁷⁷

The Sun group demonstrated that a Li//Li_6.2P_0.8Sn_0.2S₅I//Li symmetric cell could achieve ultra-stable lithium plating and stripping for over 700 h (350 cycles) at 0.1 mA cm⁻² and 0.1 mA h cm⁻² at ambient temperature. However, significant fluctuations and increasing overpotential suggested subpar kinetics at the Li/Li₆PS₅I interface.²⁶ Meanwhile, Nazar's group reported that Li_6.7Si_0.7Sb_0.3S₅I exhibited excellent stability with lithium metal, maintaining a steady voltage profile for 600 h at 0.3 mA cm⁻² and for 1000 h at a higher CD of 0.6 mA cm⁻². Their findings indicated that a stable interphase formed between lithium metal and Li_6.7Si_0.7Sb_0.3S₅I, which was promising for developing long-lasting ASSLMBs.²⁷⁸

Using cation-doped Li–argyrodites rather than undoped versions may be beneficial, as these substitutions can facilitate the formation of a lithium–metal alloy (Li–M) at the interface (see Fig. 16b).²³ The Li–M alloy could promote uniform lithium deposition and enhance cycling longevity. Additionally, cation substitution may influence these materials’ thermodynamic and kinetic stability, ultimately affecting the battery's long-term performance.

Furthermore, due to the rigid nature of SEs, voids and cracks are observed on the surface of solid electrolytes during pelletizing or battery assembly. This void and crack formation promotes the rapid development of dendrites, which reduces the lifetime of the battery (Fig. 17a). However, doping the SE with liquid metal wets the gaps between the electrolyte particles as well as the gaps between the electrode and electrolyte as physical contact is expected for solid–solid interfaces in ASSLBs. This avoids the formation of voids and cracks on the surface of the electrolyte and prevents dendrite formation (Fig. 17b). In addition, incorporating liquid metal as a dopant reduces the Young's modulus, helping to prevent early short-circuit formation in the battery. The presence of liquid dopant enables the formation of M–Li alloy, which is critical for facilitating uniform Li deposition at the interface and leads to outstanding long-term stable cycling (Fig. 17c). Furthermore, doping with liquid metal can boost the mechanical properties of SEs by enhancing wettability and sealing any voids and cracks (Fig. 17d).

Fig. 17 (a) Mechanism for the formation of a short circuit at the Li/Li–argyrodite interfaces. (b) A suggested pathway to prevent dendrite growth at the Li/Li–argyrodite interfaces via liquid metal dopant. The role of liquid metal dopant for cycling with (c) high capacity and (d) high current density.

Apart from this, due to its unique rheological and metallic properties, low-melting point liquid metal has seen growing applications in thermal control processes.^279–283

3.2.2. Interfacial stability of cation-doped Li₆PS₅X (X = Cl, Br, I) towards cathode materials. Sulfide-based SEs, as discussed above, play a crucial role in ASSLBs because of their high σ, intrinsic softness that facilitates good contact between the electrode and SE, and robust mechanical properties.^284,285 However, the interfacial stability between electrode materials and sulfide SEs is often poor, which adversely affects battery performance.^9,17,286 Degradation of the interfaces between cathodes and sulfide-based SEs has been identified as a significant contributor to battery failure, using various methods such as electrochemical impedance analysis,^{25,35,287–289} macroscopic measurements,^{31,42,290,291} and AIMD simulation.^{290,292–294} Our research team has also performed macroscopic and microscopic investigations that reveal degradation at the LiFePO₄ and Li₆PS₅Cl interface, resulting in products like FeS, Li₂FeP₂O₇, and LiCl. DFT calculations further confirmed these continuous decomposition reactions.²⁴ To tackle these challenges, researchers have proposed doping with Li–argyrodites to modify the composition of SEs and enhance interfacial stability.^{6,272,295–298}
3.2.2.1. Interfacial stability of cation-doped Li₆PS₅X (X = Cl, Br, I) towards the sulfur cathode. Jiang et al. conducted a study using a sulfur cathode to evaluate the effectiveness of the Li_5.6Cu_0.2PS_4.8Br_1.2 SE.²⁹⁹ They reported that this sulfur cathode achieved an impressive initial discharge capacity of 931 mA h g⁻¹ at a rate of 0.05C, along with strong cycling stability, retaining 83% of its capacity after 100 cycles at 0.1C. In contrast, a full-cell configuration using S/Li₆PS₅Br/Li exhibited a notable voltage polarization and a lower discharge capacity of 851 mA h g⁻¹ at the same rate. The researchers attributed the reduced discharge capacity of Li₆PS₅Br to its lower σ compared to Li_5.6Cu_0.2PS_4.8Br_1.2. Furthermore, the S/Li₆PS₅Br/Li setup experienced a soft short circuit during the 20th cycle, primarily due to poor interfacial compatibility with the sulfur cathode, which negatively affected its cycle performance. Li_5.6Cu_0.2PS_4.8Br_1.2 demonstrated an excellent rate capability, recovering to 810 mA h g⁻¹ when the CD was adjusted back to 0.1C. However, during rate capability testing, a short circuit was also observed in the S/Li₆PS₅Br/Li configuration. These results indicate that Li_5.6Cu_0.2PS_4.8Br_1.2 is highly stable when paired with the sulfur cathode, suggesting its potential for future applications in Li–S batteries.
3.2.2.2. Interfacial stability of cation-doped Li₆PS₅X (X = Cl, Br, I) towards layered oxide cathodes. Layered oxide cathodes are strong contenders for high-capacity, high-energy-density applications in advanced LIBs. However, integrating these cathodes with sulfide-based ASSLMBs presents challenges. Increasing the upper cutoff voltage for layered oxide cathodes can enhance their capacity but may lead to material degradation due to processes such as oxygen loss and cracking. This degradation can cause parasitic interactions at the interface with Li₆PS₅X (where X = Cl, Br, I), resulting in the formation of ion insulator byproducts like Li₂S, SO₄²⁻, and PO₄³⁻ (see Fig. 16c). Understanding these mechanisms is essential for enabling high-voltage operation and enhancing the performance of current materials. A promising solution is cation-substituted Li–argyrodite, which can bind strongly with sulfur and prevent oxygen from displacing it (Fig. 16d).

Liu et al. examined the cell performance of LNO@NCM/Li₆P_0.925Sb_0.075S₅Cl/Li, reporting an initial discharge capacity of 129.9 mA h g⁻¹, which stabilized at 107.4 mA h g⁻¹ after 60 cycles, achieving a magnificent capacity retention of 82.6%.²⁷ In contrast, the ASSLB configuration using Li₆PS₅Cl (LNO@NCM/Li₆PS₅Cl/Li) showed a significant capacity drop (116.2 → 31.3 mA h g⁻¹) after 60 cycles, resulting in only 26.3% retention. The authors attributed the better performance of Li₆P_0.925Sb_0.075S₅Cl to its superior σ and interfacial stability. EIS revealed that the impedance of LNO@NCM/Li₆PS₅Cl/Li increased sharply after cycling, while LNO@NCM/Li₆P_0.925Sb_0.075S₅Cl/Li showed a minimal change, indicating enhanced stability at the interface. Additionally, the rate capability of the Li₆P_0.925Sb_0.075S₅Cl configuration was evaluated, with a capacity recovery of 118.6 mA h g⁻¹ when the CD returned to 0.2C, demonstrating its excellent performance.

In addition, Zhao et al. reported on Sn-doped Li₆PS₅I solid electrolytes, achieving a remarkable first-cycle coulombic efficiency of 91% with a capacity of 123.7 mA h g⁻¹ in their Li/LPSI-20Sn//LGPS//LCO@LNO//LGPS setup. They attributed this high efficiency to the enhanced interfacial stability of LPSI-20Sn.²⁶

For practical solid-state battery applications, thick electrode designs are essential for maximizing energy density.^300–302 Zeier's group developed thick cathodes (160 μm) and anodes (160 μm) using Li_6.6P_0.4Ge_0.6S₅I solid electrolyte (450 μm).³⁰³ Their findings revealed that this configuration delivered an initial charging capacity of 120.8 mA h g⁻¹ and an initial discharge capacity of 88.8 mA h g⁻¹ at 0.25C at 60 °C.^35,288,304 Notably, the cell operated stably over 50 cycles without carbon additives,²⁸⁹ exhibiting minimal capacity fading and high coulombic efficiency even at 1C. The total resistance of the cell remained below 13 Ω cm⁻² at 60 °C; this was attributed to the outstanding interfacial compatibility between Li_6.6P_0.4Ge_0.6S₅I and NCM-622. The researchers concluded that employing excellent ionic conductor sulfide SEs combined with effective interphase formation resulted in superior battery performance.

3.2.3. Thermal stability of cation-doped Li₆PS₅X (X = Cl, Br, I). Otoyama et al. investigated the thermal stability of the sulfide SEs Li₃PS₄ and LiSnS₄ toward oxide-positive electrode materials.³⁰⁵ They assessed that the side reactions occurred at the electrolyte–electrode interfaces when the composite electrodes were heated in an accelerated aging test. Their findings indicated that the Sn-containing LiSnS₄ SE demonstrated superior thermal stability due to reduced substitution reactions between sulfur and oxygen (Fig. 18). Additionally, thermally stable sulfide SEs facilitate enhanced cell construction processes. The sintering of composite electrodes incorporating Li₄SnS₄ resulted in denser electrodes with improved σ, thus boosting battery performance. Therefore, similar benefits can be expected when using cation-doped Li–argyrodites to enhance the thermal stability of solid electrolytes.

Fig. 18 The role of cation dopant in thermal stability.³⁰⁵

3.3. Multi-layer electrolyte

Ye et al. developed a multilayer electrolyte system consisting of a less stable electrolyte positioned between two more stable SEs.³⁰⁶ This design effectively inhibits Li dendrite evolution through well-localized decomposition within the less stable layer. They conducted experiments using symmetric cells to evaluate the stability of Li₁₀Ge₁P₂S₁₂ (LGPS) and Li_5.5PS_4.5Cl_1.5 (LPSCl) electrolytes in contact with Li metal. The symmetric cell featuring pure Li metal electrodes and LGPS electrolyte demonstrated rapid failure, as indicated by a voltage spark (Fig. 19a). While most sulfide SEs experience some level of decomposition upon contact with lithium, Li–argyrodite Li_6−yPS_5−yCl_1+y exhibit greater stability in this context compared to LGPS.^{10,31,46,97,307} In tests, the LPSCl symmetric battery was able to operate for over 150 h (Fig. 19b) before ultimately experiencing a short circuit. Fig. 19a and b illustrates two common failure modes: electrolyte decomposition causing increased overpotential and a sudden voltage drop due to short-circuiting.^46,308 XPS analysis revealed significant decomposition of LGPS to reduced sulfur and germanium, while LPSCl showed minimal decomposition, indicating that short-circuiting in the LPSCl battery was likely to be due to lithium dendrite penetration. The multilayer electrolyte design provided impressive cycling performance, lasting 1800 h at a CD of 0.25 mA cm⁻² (Fig. 19c), significantly outperforming batteries using a single electrolyte type. Moreover, the multilayer symmetric battery demonstrated the ability to cycle at an exceptionally high CD of 20 mA cm⁻² with a low overpotential of approximately 0.5 V without noticeable short-circuiting at 55 °C (Fig. 19d).

Fig. 19 Designing multi-layer SE. (a and b) Li–Li symmetric cells comprising LGPS and LPSCl SEs, respectively. (c and d) Long-term cycling using multi-layer SEs.³⁰⁶ (e) Charge–discharge profile of LiCoO₂ : Li₃YCl₆|Li₆PS₅Cl|Li–In at 10C. (f) Capacity retention and (g) charge–discharge profile of LiCoO₂ : Li₃YCl₆|Li₃InCl₆|Li₆PS₅Cl|Li–In (red) and LiCoO₂ : Li₃YCl₆|Li₃YCl₆|Li₆PS₅Cl|Li–In (blue) at 10C. (h) Scheme illustrating the suggested properties of the electrolyte required to fulfill the multi-layer design system.³⁰⁹

Samanta et al. proposed a bilayer SE comprising Li argyrodite LPSCl and halide SEs, in which halide SEs face the cathode, and LPSCl faces the anode.³⁰⁹ When LPSCl is placed at the cathode side, it aggressively reacts with LCO (Fig. 19e). They noted that the oxidative stability of the halide electrolytes enabled their use alongside high-voltage cathodes, addressing the instability of LPSCl under such conditions (Fig. 19f and g). Fig. 19h outlines the desired properties of electrolytes used in a multilayer design.

4. Techniques for exploring interfaces

The type and characteristics of interfaces in ASSLBs are crucial because of the significant impact of the extent of contact and a large charge transfer impedance at these interfaces.^310–312 Therefore, to advance the development of next-generation ASSLBs that satisfy diverse industrial and consumer needs, it is vital to understand the phenomena of interfacial impedance, which can be studied through advanced characterization techniques that reveal morphological changes and electrochemical processes. While there are established methods for examining LE battery systems, investigating interfacial behavior in ASSLBs presents a significant challenge. The interfaces in ASSLBs are harder to isolate than those in LE systems. For instance, in LE systems, electrode materials can typically be extracted for post-experimental analysis without causing damage. In contrast, the fabrication of ASSLBs often involves techniques like hot-pressing and chemical or physical evaporation to achieve optimal interfacial contacts.³¹³ As a result, these tightly integrated interfaces are not easily accessible without harming their surface conditions, making it challenging to gather critical information regarding interfacial reactions and kinetics, particularly for Li/SE interfaces.⁶² Thus, a new approach, ideally involving in situ measurements, is necessary.³¹⁴ Traditional studies often rely on ex situ measurements conducted in coin cells. However, interfacial research can also be performed using hybrid cells,³¹³ symmetric cells,¹⁵¹ or a combination of ex situ and in situ methods.

The primary challenges in characterizing interfaces in ASSLBs include the limited exposed surface area and the sensitivity of these interfaces when extracted for analysis.⁶² As a result, many conventional techniques used for LE interfaces, such as infrared spectroscopy (IR), are not suitable for ASSLB interface characterization.³¹⁵ Therefore, characterization methods that offer high measurement accuracy in a narrow area and protect the properties of samples during analysis are available for characterizing the interfaces in ASSLBs.

In situ characterization is vital for examining interfacial phenomena in SSBs, as it enables the observation of real-time changes in materials and interfaces during actual operating conditions like charging, discharging, or temperature variations. Unlike ex situ methods, which assess the system after these changes have occurred, potentially missing or altering transient interfacial states, in situ techniques are ideal for dynamic processes. However, ex situ approaches still play a key role by offering detailed structural insights (e.g., via TEM, ToF-SIMS), analyzing surface chemistry under ultra-high vacuum conditions (e.g., with XPS), and evaluating bulk properties after extended cycling periods.

Here, we discuss various characterization techniques such as chemical/electrochemical, diffraction and images.

4.1. Coulometric titration time analysis (CTTA)

The CTTA method is effective at quantitatively analyzing decomposition reactions between Li and argyrodite electrolytes, offering valuable insights into electrolyte stability.³¹⁶ This versatile approach can also be applied to various electrodes and allows for the investigation of how key operational factors, such as temperature and CD, affect the characteristics of the SEI and cell degradation.

Aktekin et al.³¹⁶ developed the CCTA technique to quantify side reactions that occurred between redox-active electrode materials and SEs. Fig. 20 displays the results from a CTTA measurement. In an ideal scenario, where the electrolyte is stable, and no decomposition reactions occur, the cell potential would rapidly stabilize at E = 0 V after a period, as Li dictates the potential of both the working and counter electrodes, achieving a symmetric cell stage. This would result in an infinite potential at E = 0 V. However, if the SE is unstable and a decomposition reaction takes place, these unwanted reactions gradually consume the lithium metal that has been ‘titrated’. As long as some Li remains at the working electrode, the potential stays at E = 0 V. Eventually, once all the lithium metal is depleted, the potential at the working electrode becomes variable, leading to an increase in cell voltage. In LPSCl solid electrolyte, the rise in potential happens swiftly after the initial titration step (Fig. 20b). When the potential hits 0.05 V, an identical titration step is performed (marked in gray), resulting in the cell voltage dropping back below E = 0 V as fresh lithium is accumulated on the current collector. During the subsequent OCV period, it is observed that the time taken to consume all Li is greater than that during the preceding OCV period, indicating a reduced rate of side reactions following the second titration step. As illustrated in Fig. 20c, the consumption of a similar amount of Li metal takes progressively longer as the measurement continues, suggesting that side reaction products form a passivating SEI layer. Fig. 20d presents the total charge used for side reactions , where the total is the number of titrations multiplied by the step charge) in relation to the duration of the experiment, enabling precise quantification of SEI growth over time. Fig. 20e indicates that this growth exhibits a linear relationship with the square root of time. For LPSCl, a charge of 1 μA h cm⁻² (approximately 3.7 × 10⁻⁸ mol cm⁻² Li) leads to an SEI thickness of about 9 nm, supposing a compact mixture of Li₂S, LiCl, and Li₃P, without any gaseous byproducts.

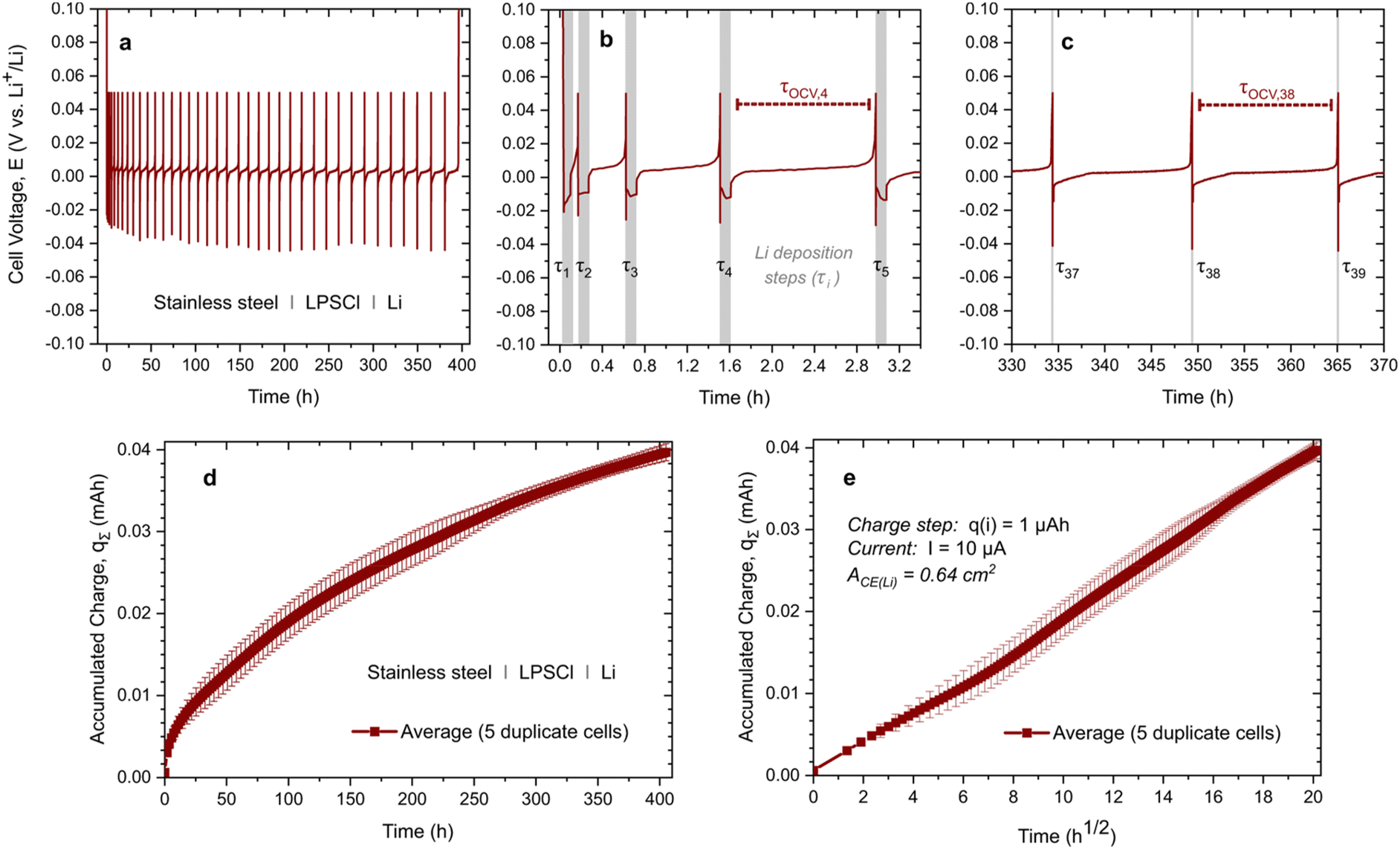

Fig. 20 CTTA measurements. (a) Output for the LPSCl SE in a stainless steel/LPSCl/Li assembly at a temperature of 25 °C and pressure of approximately 13 MPa. The potential profiles are depicted for two distinct time intervals: an early stage (b) and a later stage (c) of the measurement. The total stored capacity over time is illustrated in (d) as a function of time and (e) as a function of the square root of time.³¹⁶

4.2. X-ray photoelectron spectroscopy

XPS is a well-established method for chemical analysis,³¹⁷ particularly effective at examining the composition of interfaces in ASSLBs. It offers high sensitivity, accuracy, resolution, and the ability to test various elements across the periodic table. This makes XPS especially valuable for obtaining valence band spectra, which are crucial for analyzing the electronic structure of surfaces and interfaces in these systems. The SE/electrode interfaces are vital in ASSLBs, yet ex situ XPS fails to accurately capture these interfaces’ chemical and electronic properties. In situ measurements are possible by connecting an ultrahigh vacuum transfer system to the XPS chamber,³¹⁸ allowing for real-time analysis of interfacial properties during electrode deposition. Wood et al.¹¹⁷ utilized in situ XPS to investigate the interphase between lithium and sulfide solid electrolyte during electrochemical cycling, finding that a Li₃PO₄ phase formed initially through phase segregation of Li₃PO_xS_4−x and then evolved further (Li_3−xP and Li₂O₂) during discharge.

Aktekin et al.³¹⁹ conducted an operando hard X-ray photoelectron spectroscopy (HAXPES) study on a sulfide-based SE, Li₆PS₅Cl, to examine its reduction reactions during lithiation and the resulting development of the SEI. As illustrated in Fig. 21a–d, the surface of the solid electrolyte pellet is coated with a 6 nm layer of nickel, which serves as both a CC and a working electrode (WE). Li metal is pressed in place on the pellet's opposite side, functioning as a counter electrode (CE) and a reference electrode (RE). This setup is termed an “anode-free” configuration due to the absence of an initial lithium reservoir in a specialized holder connected to a potentiostat. This arrangement allows for the gradual polarization of the WE to specific potentials, eventually leading to the electrochemical plating of lithium metal below 0 V vs. Li⁺/Li. Utilizing the high photon energies from a synchrotron source enables the detection of higher kinetic energy electrons, essential for analyzing the Ni|LPSCl interface beneath the 6 nm nickel layer within a proper timeframe. This methodology permits the investigation of the SEI formed beneath a thin metal film, like 6 nm nickel, in an electrochemical cell incorporating the Li₆PS₅Cl SE. The electrolyte begins to undergo reduction reactions at 1.75 V (vs. Li⁺/Li), leading to the significant formation of Li₂S, particularly within the voltage range of 1.5–1.0 V. A heterogeneous and layered microstructure of the SEI is noted, with Li₂O and Li₂S deposits primarily found near the CC. Additionally, the study reveals the reversibility of decomposition products as Li₂O and Li₂S degrade within the 2–4 V potential range, producing oxidized sulfur species, sulfites, and sulfates.

Fig. 21 (a) Scheme illustrating the operando HAXPES experiment setup. (b) An enlarged view of the operando cell. (c) A confocal microscope image showing the Ni-coated stainless steel perforated CC support. (d) A top-down SEM image of the operando cell. Normalized HAXPES spectra, including peak fittings at various working electrode potentials, are presented for (e) S 1s, (f) Li 1s, and (g) O 1s core levels. Detailed normalized HAXPES spectral changes during polarization to elevated potentials, with peak fittings for (h) S 1s, (i) Li 1s, and (j) O 1s core levels.³¹⁹

Additionally, Zhang et al. employed complementary in situ approaches, including atomic force microscopy (AFM) and XPS, to directly observe the morphological and chemical changes, Li plating and stripping processes, and SEI dynamics at the Li and sulfide SE interface.³²⁰ The morphology at the open circuit potential (OCP) was first analyzed using AFM (Fig. 22a). At the same time, XPS was employed to identify the functional groups present in LPS (Fig. 22g). After applying a discharge overpotential (0.1 V) for approximately 240 s, small particles began to show on the Li metal surface, as designated by the white arrows in Fig. 22b. After 600 s of Li plating, a few isolated particles were observed on the Li metal surface (Fig. 22c). In addition to morphological alterations, chemical evolution at the Li–SE interface during the Li plating process was investigated using in situ XPS (Fig. 22g). The emergence and increased intensity of signals corresponding to Li₂S, Li_xP, and Li₃P reveal the formation of the SEI containing these components, which occurs concurrently with the Li plating process. An overpotential of 0.1 V was applied to investigate the Li stripping processes. As indicated in Fig. 22d and e, the Li spheres began to dissolve upon application of the stripping potential. After 600 s of stripping, most of the deposited Li spheres had dissolved, leaving wrinkles at the sites where dissolution occurred (Fig. 22f). Analysis of the primary XPS signals for Li₂S, Li_xP, and Li₃P (Fig. 22g) indicated that these residual wrinkles were primarily due to the SEI present at the interface. The detailed Li plating and stripping processes were elucidated through in situ AFM and in situ XPS analyses. This approach allowed for a detailed examination of the morphological/chemical changes of the SEI. The findings indicate that the presence of the SEI, characterized by limited electron-conducting properties, plays a vital role in sustaining the interfacial stability of LPS. The dynamics of lithium plating/stripping within the LPS system were analyzed by examining the Li volumes derived from in situ AFM images. Fig. 22h shows the changes in Li volume throughout the plating and stripping processes, with the Li plating rate in the LPS system determined to be 0.15 μm³ s⁻¹. Simultaneously, the evolution of species containing sulfur and phosphorus was investigated through quantitative analysis of in situ XPS spectra, as depicted in Fig. 22i and j, respectively. The authors concluded that the rate of lithium plating was not directly linked to the rate of SE decomposition or SEI formation.

Fig. 22 In situ studies of the morphological/chemical evolution and dynamics at the lithium and sulfide SE interface. In situ AFM images of the lithium and LPS interface captured at various potentials: (a) OCP, (b and c) cathodic −0.1 V, (d) 0 V, (e and f) anodic 0.1 V. (g) In situ XPS spectra of the lithium and LPS interface at different potentials. Each AFM image capture time and XPS spectrum collection time is 300 s. (h) The Li volume alterations during lithium plating/stripping. (i) Changes to the S-containing species during lithium plating/stripping. (j) Alterations to the P-containing species during Li plating and stripping.³²⁰

Despite the advantages of in situ XPS for monitoring electrochemical reactions at ASSLB interfaces, relevant studies remain limited. Integrating the charge/discharge testing apparatus with XPS equipment is a key challenge. Additionally, the electrode thickness required for in situ tests must be nanoscale, complicating the application of common coating methods.³²¹ Therefore, effectively designing ASSLBs compatible with XPS technology is essential for advancing in situ XPS applications.

4.3. Raman spectroscopy

The Raman technique is a valuable tool for investigating various organic and inorganic compounds at the interfaces of ASSLBs, thanks to its suitability, greater accuracy, and nondestructive nature.^322,323 Li et al.³²⁴ verified that decomposition reactions occurred at the interface between Ni-rich cathodes and sulfide SEs. At the same time, a Ni-poor coating layer can mitigate these reactions. Raman spectroscopy also illustrated structural alterations to the P₄S₁₆/C cathode during lithiation and delithiation, indicating the formation of Li_xPS₄ and PS₄³⁻ species during lithiation, while the P–S characteristic peak returned without the observation of P=S bonds after delithiation.³²⁵

Raman mapping, a derivative of Raman spectroscopy, offers an intuitive view of the phase composition at ASSLB interfaces. Luo et al. analyzed the surface of In foil after being in contact with Li₆PS₅Cl and compared it with fresh In foil without contact via Raman spectroscopy. The result obtained showed the formation of In₂S₃ after In foil was in contact with Li₆PS₅Cl.²⁹² Rui et al. examined the thermal stability of a mixture of Li₆PS₅Cl and LiNi_0.8Co_0.1Mn_0.1O₂ via Raman spectroscopy.¹⁸³ The result indicates the formation of PO₄³⁻, SO₄²⁻, and Li₂S_x decomposition products at 400–500 °C. Zhou et al. utilized in situ electrochemical Raman microscopy to analyze the interfacial degradation of Li₆PS₅Cl with lithium metal and LiCoO₂, detecting Li₂S during Li deposition and identifying polysulfides and P₂S_x species at the Li₆PS₅Cl/LiCoO₂ interface during charging (Fig. 23).³²⁶ Zeng et al. compared the stability of Li_6.4PS_5.4Cl_0.6 and Li_5.7PS_4.7Cl_1.3 towards Li metal via in situ Raman measurements.³²⁷ Their results showed that for the Li_6.4PS_5.4Cl_0.6 cell, new peaks associated with P₂S₅ and Li₂S_n emerged after charging to 3.6 V, with peak intensities increasing with voltage. In contrast, the Li_5.7PS_4.7Cl_1.3 cell did not show decomposition product peaks, and the PS₄³⁻ peak intensity only slightly decreased, indicating self-limiting interface characteristics for Li/Li_5.7PS_4.7Cl_1.3.

Fig. 23 (a) The diagram illustrates the in situ Raman cell setup. In situ Raman spectra of the Li₆PS₅Cl/Li interface in the Li/Li₆PS₅Cl/Cu configuration (b) under a constant potential of −0.1 V vs. Li⁺/Li; (c) under varying potential. In situ Raman spectra of the LiCoO₂/Li₆PS₅Cl interface during (d) charging to 4.2 V and (e) discharging to 2.5 V.³²⁶

4.4. Electrochemical impedance spectroscopy

EIS is a virtual approach for examining the interfacial behavior between electrodes and SEs, providing valuable insights into lithium-ion diffusion in ASSLMBs.³²⁸ It is observed that the interfacial stability and resistance during cycling can be assessed through changes to the semicircles observed in both the low- and high-frequency ranges.³²⁹ Thus, EIS is a valuable technique in electrochemical studies that is useful for analyzing materials, complete cell devices, and battery packs.³³⁰ Wei et al.³³¹ examined how σ affected the impedance changes in ASSLBs during cycling through in situ EIS measurements. As illustrated in Fig. 24a, the bulk impedance of the 3Li₂S–LiI/Li_5.5PS_4.5Cl_1.5/Li–In cell was elevated during the initial charging process, with the increment in interfacial resistance being attributed to the decomposition of the sulfide solid electrolyte throughout cycling.³³² In Fig. 24b, the 5Li₂S–LiI/Li_5.5PS_4.5Cl_1.5/Li–In cell exhibited similar changes in resistance at the interfaces of the AM and the SE. However, these resistances were noticeably greater than those observed in the 3Li₂S–LiI/Li_5.5PS_4.5Cl_1.5/Li–In cell during the first cycle, which could be ascribed to enhanced σ in the cathode mixture following the addition of LiI. Furthermore, Zhang et al. compared the interfacial stabilities of a single sulfide SE with the sandwiched sulfide SE in a Li–Li symmetric configuration via in situ EIS and associated DRT measurements (Fig. 24c and d). The results demonstrated the advantages of sandwich SEs, revealing reduced resistance and stable interfacial characteristics.³²⁰

Fig. 24 In situ EIS measurements. In situ EIS performed on Li_5.5PS_4.5Cl_1.5-based ASSLBs, utilizing cathode mixtures of 3Li₂S–LiI (a) and 5Li₂S–LiI (b) during the first cycle at a CD of 0.13 mA cm⁻², within a voltage range of 0.4 to 3 V vs. Li–In at ambient temperature.³³¹ (c) In situ EIS of Li|LPS-LGPS-LPS|Li cells operated at 0.1 mA cm⁻² and 0.1 mA h cm⁻². (d) DRT results from the in situ EIS of Li|LPS-LGPS-LPS|Li cells operated at 0.1 mA cm⁻² and 0.1 mA h cm⁻².³²⁰

4.5. Diffuse reflectance infrared Fourier-transform spectroscopy

In situ diffuse reflectance infrared Fourier-transform spectroscopy (in situ DRIFTS) is a method used to study the intricate changes in surface species of SEs.³³³ Our research team examined the behavior of functional groups and C–S bonding during CO₂ adsorption on Li₆PS₅Cl using in situ DRIFTS (Fig. 25).³³⁴ The adsorption of CO₂ was essential for enhancing both interfacial and electrochemical stability between Li and Li₆PS₅Cl. The emergence of the new S–CO₂ bond is critical for altering interfacial behavior, as it improves interfacial stability between Li and Li₆PS₅Cl while decreasing cell resistance. Furthermore, the Li|CO₂@ Li₆PS₅Cl|LTO configuration demonstrates an impressive performance, achieving 62% capacity retention and an extremely high coulombic efficiency of 99.91% after 1000 cycles.

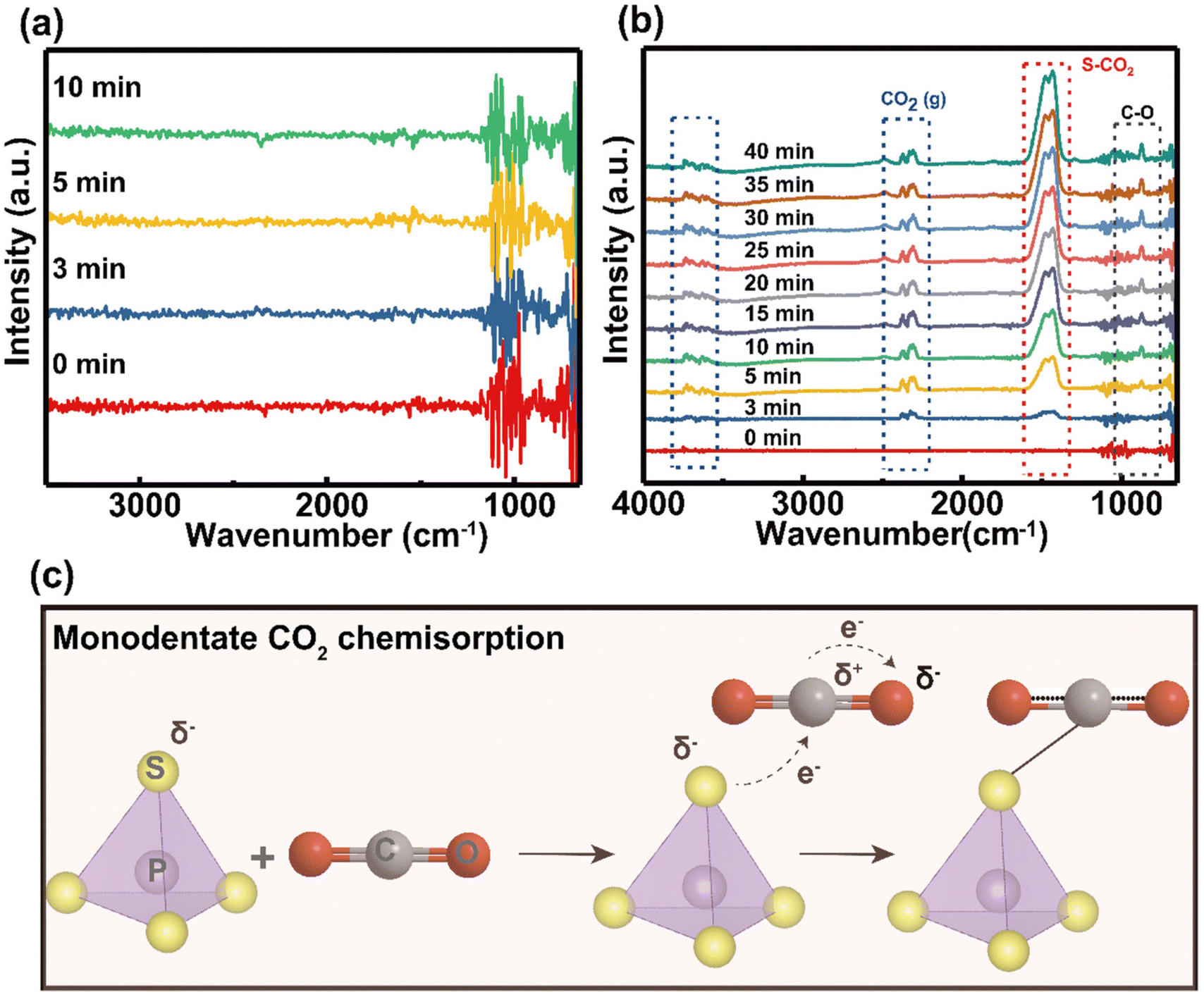

Fig. 25 In situ DRIFTS measurements. The in situ DRIFTS findings of CO₂ adsorption on Li₆PS₅Cl at 150 °C show: (a) the initial conditions under Ar purging and (b) the spectral alterations for Li₆PS₅Cl when CO₂ is purged at a rate of 30 c.c. min⁻¹. (c) A depiction of monodentate CO₂ chemisorption on Li₆PS₅Cl is also provided.³³⁴

4.6. Pressure measurements

Wu et al.³³⁵ conducted operando pressure measurements to monitor pressure changes in Li_1.2Ni_0.13Mn_0.54Co_0.13O₂-based ASSLBs during cycling, with the aim of systematically exploring the connection between internal stress and electrochemical performance. A zero-strain LTO anode was utilized as the CE, allowing the CAM to dominate the overall pressure changes. Both the polycrystal (PC)- and single crystal (SC)-Li_1.2Ni_0.13Mn_0.54Co_0.13O₂ cathodes displayed similar pressure profiles (Fig. 26). The pressure decreased during charging and increased during discharging, indicating high reversibility. This pressure variation primarily results from volume contraction and expansion upon lithium extraction and intercalation from/into Li_1.2Ni_0.13Mn_0.54Co_0.13O₂, respectively.³³⁶ However, it is noteworthy that the pressure fluctuations in PC-Li_1.2Ni_0.13Mn_0.54Co_0.13O₂ were less pronounced than those in SC-Li_1.2Ni_0.13Mn_0.54Co_0.13O₂. This difference can be attributed to two main factors: first, SC-Li_1.2Ni_0.13Mn_0.54Co_0.13O₂ provides higher capacities, leading to more significant changes in lithium content and, consequently, more noticeable pressure variations. Second, uneven stress distribution in the PC-Li_1.2Ni_0.13Mn_0.54Co_0.13O₂ cathode can cause structural collapse, forming gaps or voids that can partially accommodate the volume changes associated with electrode breathing.

Fig. 26 Operando pressure curves of (a) PC- and (b) SC-Li_1.2Ni_0.13Mn_0.54Co_0.13O₂ in Li₄Ti₅O₁₂|Li₆PS₅Cl|Li_1.2Ni_0.13Mn_0.54Co_0.13O₂ cells.³³⁵

4.7. X-ray diffraction

X-ray diffraction (XRD) is a method used to analyze the structure of crystals. In this technique, an X-ray beam is directed at a sample, which diffracts the rays in various directions due to its crystalline structure. By measuring the angles and intensities of these diffracted beams, a crystallographer can create a three-dimensional representation of the electron density within the crystal. This allows for the extraction of information about the crystalline structure, including chemical bonds, crystallographic defects, and atomic distances based on the positions of atoms. XRD is favored as an analytical tool due to its straightforward operation, minimal contamination during detection, and ease of data processing, making it the most widely used method for determining crystalline structures.³³⁷

Hau et al.³³⁸ explored the microstructure of manganese-based cathodes using in situ XRD measurements. They found that the nanoscale domain structure and short coherence length of partly disordered spinel-like domains are vital for the electrochemical performance of the δ-phase. These characteristics adequately mitigate the two-phase reaction typically seen in nanomaterials.³³⁹ Reducing the coherence length in a material can turn first-order phase transitions into second-order transitions or eliminate them.³⁴⁰ In the δ-phase, a short coherence length significantly impacts on the electrochemical performance by eliminating the 3 V plateau and converting the related phase change into a solid solution region (Fig. 27a). This attribute of the δ-phase removes phase change strain as a potential decomposition pathway, allowing manganese-based spinels to cycle across their entire theoretical capacity range. Furthermore, forming the δ-phase enhances rate performance, aligning with previous theoretical findings that spinel-like arrangements have a greater extensive low-barrier transition metal percolation network, facilitating lithium transport. In the δ-phase, a larger portion of the capacity is delivered at greater voltages, which is advantageous for power delivery in practical battery applications. The δ-phase exhibits spinel-like voltage profiles and rates while maintaining a sufficiently short coherence length to exist as a solid solution, thus inhibiting the two-phase reaction observed in ordered spinels (Fig. 27).

Fig. 27 In situ XRD measurements. In situ XRD measurements of Li_0.7Mn_0.65Ti_0.1O_1.9F_0.1 (L07M65-DH) and LiMn₂O₄ during their initial cycles. Voltage profile (left) and in situ XRD patterns (right) for (a) L07M65-DH and (b) LiMn₂O₄. The current rate was 20 mA g⁻¹, with X-ray scans performed every 30 min. Peaks corresponding to cubic spinel are highlighted in red, while those for tetragonal spinel are indicated in white.³³⁸

4.8. Electron backscatter diffraction

Electron backscatter diffraction (EBSD) is the most potent method for analyzing the microstructure of metals and tracking their evolution. This technique provides quantitative data on grain size, orientation, boundaries, and potential dislocations and strain within large single grains.^341–343 However, it necessitates a well-defined sample surface regarding flatness, crystallinity, and chemical composition. Thin decomposition layers, often less than 50 nm, that form on lithium^344,345 can obscure the electron diffraction pattern because EBSD has a limited probe depth of about 20 nm. Consequently, there are minimal studies utilizing EBSD on lithium foils.^{341,346–348}

Fuchs et al.³⁴⁹ developed a method to study metal growth and dissolution in anode-free solid-state batteries using in situ electron backscatter diffraction (EBSD). Their examination throughout cross-sectional deposition and dissolution provided insights into microstructural evolution (Fig. 28), revealing that small lithium grains undergo annealing akin to Ostwald ripening. They found that pore emergence during the discharge of the metal anode primarily happened at the interface between the grain bulk and the solid electrolyte. Notably, the areas where metal grain boundaries encounter the interface remain undamaged; this is because of the more rapid diffusion of metal and vacancies along these boundaries. The density of nucleation is impacted by factors like applied CD, temperature, and the surface characteristics of the SE.^131,350,351 Furthermore, their in situ EBSD findings indicate that both grain nucleation and the growth process are crucial for controlling the resulting microstructure. The applied CD may also affect grain development during electrodeposition, and applying stack pressure could be an effective method for managing the lateral extension of developing grains.³⁵² Overall, this analysis enhances the understanding of metal electrodes and their microstructural evolution.

Fig. 28 In situ EBSD approach for examining the microstructural changes occurring during the electrodeposition and electrodissolution of an alkali metal electrode in contact with a solid electrolyte. (a) A schematic representation of the in situ EBSD setup. (b) Voltage profiles for depositing 50 μm of Li at the Cu|Li|SE interface and for stripping Na until pore formation occurs at the Cu|Q-Na|SE interface. (c) Microstructural changes during Li plating. (1) shows an SEM image of the pristine cross-section of Cu|Li|SE. The lithium reservoir is not freshly deposited, and is also too thin to obtain EBSPs of sufficient quality to generate an IPF map. However, upon depositing around 10–15 μm of additional lithium, the IPF map depicted in (2) was obtained. Herein, several grains around 10–30 μm wide are visible. Surprisingly, after another ~5 μm of lithium deposition, fewer but wider grains are visible in the next IPF map in (3). Two small blue grains close to an <111> orientation from the previous map apparently fused into larger neighbouring grains close to an <101> orientation (green). After another deposition step, IPF map (4) shows even wider grains, with another blue grain from the previous map being fused to a neighbouring green grain. After another long deposition step resulting in around 20 μm of additional lithium, multiple grains have fused together forming a large grain with >100 μm width, again close to a <101> orientation as visible in (5). (d) Microstructural changes during Na stripping. Starting from an optimal interfacial contact between sodium and SE (A), a dark region close to the interface emerges (B) after the first stripping interval, attributed to pores. Interestingly, the pores formed mainly within the green grain, while the vertical grain boundaries on both sides remain intact (C). As stripping progresses, another pore nucleates within the large blue grain starting from a grain boundary, supporting the previous description. Moreover, the pores within the green grain further grow into its bulk (D).³⁴⁹

4.9. Cryo-electron microscopy

Cryo-electron microscopy (Cryo-EM), originally developed for structural biology, is increasingly attracting interest from materials scientists who seek to exploit its capabilities for studying beam-sensitive materials.^353,354 Battery materials, particularly after cycling, are often sensitive to air exposure, making cryogenic temperatures crucial for maintaining their native state and preserving inherent information. Cryo-EM enables the observation of battery materials with enhanced electron beam tolerance, minimizing radiation damage. For instance, Li et al. utilized cryo-EM to image the atomic structure of lithium metal dendrites formed through electrochemical deposition, as well as their interfaces with the SEI³⁵⁴ (Fig. 29a). They discovered variations depending on the electrolyte systems used, which aided in understanding the causes of failure within high-energy batteries. This approach can also be applied to other chemically reactive and beam-sensitive materials. Similarly, Wang et al.³⁵⁵ investigated the microstructure of electrochemically deposited lithium (EDLi) and its associated SEI at the atomic level (Fig. 29b), noting how different electrolyte additives impacted the surface properties of EDLi, thereby influencing coulombic efficiency. This demonstrates cryo-EM's effectiveness at examining micro-mechanisms related to lithium materials that affect battery efficiency. Zachman et al.³⁵⁵ also employed a novel cryo-FIB method to characterize and extract intact interfaces from coin cell batteries for cryo-STEM analysis. Cryo-STEM's structural/chemical mapping revealed insights into lithium dendrite formation mechanisms (Fig. 29c). These cryo-EM studies significantly enhance the perception of reaction intermediates and mechanisms in lithium-metal batteries. By merging cryo-STEM with cryo-FIB,³⁵⁵ new insights into interactions and causes of failure at the lithium/solid electrolyte interfaces may emerge, potentially leading to effective strategies for advancing lithium metal anode technology. A comprehensive review of cryo-EM applications in battery material research is available for further reference.³⁵⁶

Fig. 29 (a) Atomic-resolution transmission electron microscopy images showcasing Li metal and its interface with the SEI.³⁵⁷ (b) Cryogenic transmission electron microscopy images depicting EDLi.³⁵⁵ (c) High-angle annular dark field cryo-scanning transmission electron microscopy images along with corresponding electron energy loss spectroscopy elemental mapping for two distinct types of dendrite. HAADF cryo-STEM imaging reveals an extended SEI layer on the type I dendrite (marked-c), but not on the type II dendrite (marked-d). EELS elemental mapping shows that both SEIs are oxygen-rich, but that the type II SEI contains no carbon. The type I dendrite has an appreciable oxygen content (marked-e), whereas the type II dendrite does not (marked-f).³⁵⁸

4.10. Scanning electron microscopy (SEM)

In contrast to ex situ characterization methods, in situ and operando techniques, such as SEM, enable real-time observation of interfacial structural changes and phase transitions in non-equilibrium states during charging and discharging. These methods provide immediate insights into lithiation and delithiation processes, aiding in understanding structure–performance relationships and electrochemical mechanisms in ASSLMBs. Recent studies have employed in situ/operando techniques to examine interfacial challenges within solid-state systems. For instance, in situ SEM characterization has shown that achieving uniform Li deposition on the SE and preventing dendrite formation is essential for facilitating highly reversible Li deposition/dissolution reactions.³⁵⁹

Nagao et al.²⁰⁰ investigated the Li deposition/dissolution processes at varying CDs in sulfide-based ASSLMB using in situ SEM observations (Fig. 30). Fig. 30a presents schematics of the Li/SE/stainless steel cells before cycling, along with a magnified view of the SE and stainless steel interface during charging/discharging. As Li is deposited onto stainless steel during the charging process, the space between the SE and stainless steel enlarges due to the increasing thickness of accumulated Li. Conversely, during discharging, as Li ions dissolve in the SE, this space narrows. Fig. 30b illustrates the voltage curves for Li deposition/dissolution in Li/SE/stainless steel cells at 0.01 mA cm² during the first and second cycles and at 0.05 mA cm² during the third and fourth cycles. The cell maintains a relatively stable voltage of approximately +40 mV for only two cycles at 0.01 mA cm². Fig. 30c shows the morphological changes at the SE/CC interface (first → second cycle). Unlike the morphology observed during high CD electrochemical tests, no new crack or pillared deposit appears across the SE surface during charge/discharge processes at a lower CD of 0.01 mA cm².

Fig. 30 In situ SEM measurements at different CDs. (a) Schematic diagrams illustrating the Li/SE/SS cells before the cycle and a detailed view of the interface between the solid electrolyte and stainless steel during charging and discharging. (b) Li deposition and dissolution curves for Li/SE/SS are presented at a CD of 0.01 mA cm⁻² during the first and second cycles and at 0.05 mA cm⁻² during the third and fourth cycles. (c) SEM images of the interface show conditions (A) after the first charge, (B) after the first discharge, (C) after the second charge, and (D) after the second discharge. SEM images of the SE/stainless steel interface at a similar location within a similar configuration are shown (d) instantly following a short circuit, (e) during Li deposition via 5 mA cm⁻² for 10 min after the short circuit, and (f) during Li dissolution via 20 mA cm⁻² for 20 min shortly after (e).²⁰⁰

Fig. 30d–f displays SEM images of the interface morphology between the SE layer and stainless steel at the same location within the cell under different conditions: (d) immediately after a short circuit, (e) during Li deposition at 5 mA cm² for 10 min following the short circuit, and (f) during Li dissolution at 20 mA cm² for 20 min after (e). These images illustrate the morphological changes that occur when electrochemical measurements are conducted at high current densities after short circuits, indicating limited Li deposition and dissolution. In Fig. 30d, a pillared deposit is visible, emerging from big cracks in the SE layer's surface. This deposit differs from the SE layer's morphology, suggesting it is lithium. In Fig. 30e, lithium appears to grow slightly during the deposition process compared to Fig. 30d, with the dotted line measuring 6.6 mm in (d) and 12.8 mm in (e). A new big crack is observed on the right side of the pillared deposit, likely resulting from the elongation of Li deposits, demonstrating that lithium is extending from the inner part of the solid electrolyte layer. Fig. 30f reveals that the pillared deposit decreases following the Li dissolution reactions, with the dotted line in this image measuring 10.9 mm, which is smaller than the measurement in Fig. 30e, confirming lithium contraction.

In general, their findings visually demonstrated that the morphologies of Li deposition changed with CDs. When the CD exceeds 1 mA cm⁻², localized Li deposition causes significant cracking, which reduces the reversibility of deposition/dissolution processes. Conversely, at a low CD of 0.01 mA cm⁻², uniform deposition allows for reversible lithium processes and minimizes the formation of harmful cracks. These outcomes indicate that obtaining uniform Li deposition on the solid electrolyte and preventing Li metal development along grain boundaries within the solid electrolyte are crucial for facilitating repeated Li deposition/dissolution without compromising the integrity of the solid electrolyte.

4.11. Optical microscopy

Huang et al.³⁶⁰ examined lithium plating/stripping phenomena in argyrodite-based ASSLMBs using optical microscopy (OM). To explore the impact of current densities on the CE, they performed an in situ OM study to analyze lithium plating and stripping behaviors during the initial two cycles (Fig. 31a). As plating commences, small white spots appear on the surface of SE, indicating nucleation of metallic lithium. This nucleation is observed to be random and heterogeneous (Fig. 31b). As plating progresses, these white spots serve as seeds that enlarge. The central region becomes black during this growth while the surrounding area remains white. Ultimately, large white islands with a central black spot are randomly distributed across the SE surface (Fig. 31c). During the stripping phase, the white islands are anticipated to shrink. However, they unexpectedly expand even while lithium is being removed from them (Fig. 31d and e), likely due to internal pressure within the in situ cell. As plating continues, additional white spots appear beneath the existing islands (marked by blue circles in Fig. 31f and g). In the second stripping cycle, similar behavior was observed, as characterized by expansion of the outer white areas and shrinkage of the central dark regions (blue circles in Fig. 31h and i). Overall, lithium eventually forms isolated islands on the surface of the SE.³⁶¹ Additionally, a cell's plating and stripping processes upon cycling at 200 μA cm⁻² exhibited behavior similar to that observed at 10 μA cm⁻². The initial lithium plating remains non-uniform and localized. With higher CD, more lithium islands form, featuring larger central black spots, and these islands grow at an accelerated rate.

Fig. 31 In situ OM measurements. (A) Voltage profiles at 10 μA cm⁻² along with optical images taken at various time points, (B and C) during the first plating, (D and E) during the first stripping, (F and G) during the second plating, (H and I) during the second stripping.³⁶⁰

4.12. Time-of-flight secondary ion mass spectrometry (ToF-SIMS)

Huo et al. investigated the phenomena of particles in the Li₆PS₅Cl matrix before cycling and after 100 cycles via ToF-SIMS mass images (Fig. 32a and b).³⁶² Specifically, after cycling, a layer exhibiting increased intensity of sulfur fragments was observed around the silicon particles (Fig. 32b). This is interpreted as strong confirmation of the Li₂S-rich SEI at the Si|Li₆PS₅Cl interface.

Fig. 32 ToF-SIMS images of the Cl⁻ fracture and the product of the LiS⁻ and S⁻ fractures in Si/Li₆PS₅Cl composites before cycling (a) and after 100 cycles (b).³⁶²

4.13. Kelvin probe force microscopy (KPFM)

Recently, Wan et al. utilized in situ Kelvin probe force microscopy (KPFM), a robust technique for monitoring potential variations, to visualize the lithium ion behavior in LPS|LGPS|LPS sandwich electrolyte interfaces (Fig. 33a). The LPS|LGPS|LPS sandwich electrolyte will be a model system to examine the interfacial interactions between distinct SEs. Fig. 33b shows the KPFM image of the LGPS|LPS interface at OCP. Upon applying an overpotential of −0.5 V, the potential at the interface increased, as depicted in Fig. 33c. Both LGPS and LPS, as inorganic SEs, have transference numbers close to unity, indicating that Li ions are nearly the only mobile ions in these SEs.⁶⁴ Therefore, the increased interfacial potential was ascribed to the accumulation of Li ions at the interface. Amplification of the overpotential led to a further increase in interfacial potential (Fig. 33d), indicating a huge concentration of lithium ions at the interfaces. KPFM imaging successfully visualized the distribution of the lithium-ion field. Complementary COMSOL simulations (Fig. 33e–g) provided further insights into this phenomenon, confirming the results obtained from the in situ KPFM analysis.

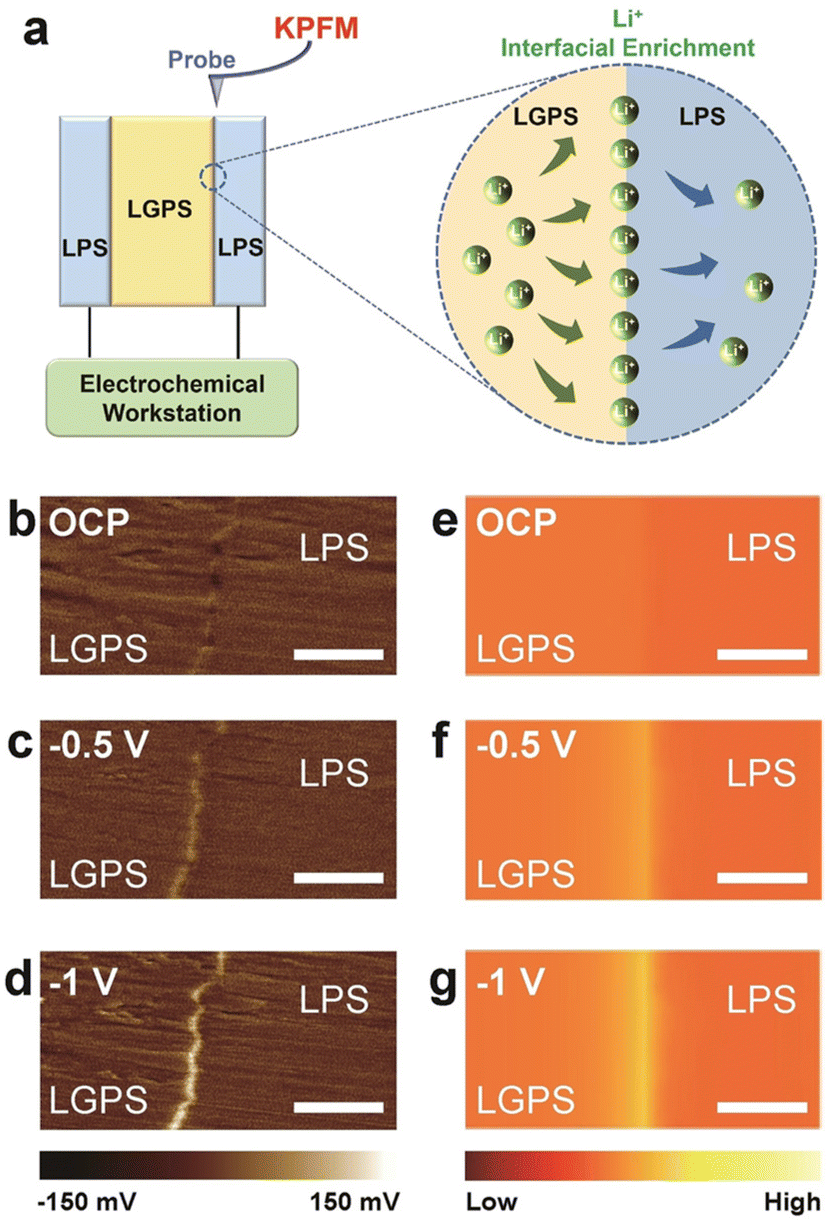

Fig. 33 Li-ion behavior at the interface between different SEs. (a) A schematic illustrating the in situ KPFM setup and Li-ion interfacial enrichment at the sandwiched SE. In situ KPFM images of the LGPS/LPS interface at various overpotentials of (b) OCP, (c) cathodic −0.5 V, (d) cathodic −1V. The scale bars are 5 μm, and the sweep direction is from bottom to top for (b–d). The COMSOL simulation images of the LGPS/LPS interface at different overpotentials of (e) OCP, (f) cathodic −0.5V, (g) cathodic −1 V.³²⁰

Advanced in situ and ex situ characterization techniques are crucial for understanding solid interfacial reactions, including structural evolution, phase transitions, and fundamental ion-transport mechanisms at interfaces. These methods can help to address interfacial challenges, such as compatibility, stability, and resistance in solid-state systems, thus revealing the kinetics of reactions and mechanisms of decay in ASSLBs. A combination of various in situ and ex situ methods is essential for investigating interface evolution further.

5. Perspectives

Improving the efficiency of ASSLBs hinges on integrating SEs that exhibit significant σ at ambient temperature and enhanced stability at interfaces. While Li–argyrodites stand out as the most promising electrolytes for ASSLBs, substantial challenges persist concerning the material itself, electrode materials, and their interfaces, despite notable advancements achieved thus far. To realize Li–argyrodite-based ASSLBs, these problems should be solved first as follows.

➢ Optimization of SEs based on interfacial stability: Despite the current focus in ASSLB research on developing high ionic conductivity SEs to match the conductivity of LEs, there is a notable lack of consideration for the electrode–SE charge transfer resistance in the design of these new SEs. While adding halides like I, Br, or Cl can enhance the ionic conductivity of Li argyrodites, they are incompatible with Li metal and high-voltage oxide cathode materials due to numerous anionic redox phenomena while charging. This leads to a thicker and unstable SEI and CEI layer with high interfacial resistance, making these electrolytes impractical. Hence, there is a need to prioritize and conduct the examination of SEs according to their interfacial characteristics with specific electrode materials. For instance, using a cation-doped argyrodite SE and optimizing the interface stability between lithium metal and the electrolyte through Li–M alloy formation leads to minimized interfacial resistance.

➢ Mechanical properties of SEs and electrodes: The mechanical characteristics of each component in ASSLBs are critical factors for ensuring successful cycle performance. This is particularly crucial for the soft lithium metal anode because the development of lithium metal dendrites and lithium plating/stripping kinetics are heavily influenced by mechanical integrity around the interface. Applying lithiophilic coatings on the lithium anode stabilizes the lithium and solid electrolyte interface, promoting non-dendritic lithium deposition but typically at small current densities. Nevertheless, questions remain regarding the long-term mechanical stabilities of these lithiophilic coating layers, especially with higher capacities of lithium depositions. For instance, a coating thickness of 1–2 nm is optimal for electronically insulating but chemically protective layers like Al₂O₃, while a thickness of 5–10 nm is more appropriate for lithium-ion conductive coatings. In addition, heat treatment (∼400–600 °C) generally increases the crystallinity of argyrodite SEs, leading to improved ionic conductivity. Pore size and distribution play crucial roles in shaping lithium-ion transport paths. They may act as stress concentration points, increasing the risk of fractures or lithium dendrite intrusion. Densification methods such as hot-pressing or sintering will be employed to reduce porosity and enhance mechanical integrity. Mechanical strain develops throughout battery cycling due to volumetric changes, requiring solid electrolytes to endure compressive and tensile stresses without fracturing. Incorporating dopants can enhance the ductility of solid electrolytes, helping to suppress crack initiation. At the interfaces between solid electrolytes and electrodes, lattice mismatch can cause interfacial strain and defects, compromising interfacial stability and elevating resistance. This challenge can be addressed through the use of interlayers or surface coatings. Additionally, interface defects such as cracks, voids, or delamination can obstruct ion transport and contribute to mechanical degradation. Optimization of microstructural design and the application of surface coatings can enhance interfacial contact and help prevent such degradation. Furthermore, the mechanical characteristics and structures of new interfaces toward battery performance require thorough investigation. Detailed mechanical and chemical modeling of interfaces under static and dynamic changes in electric fields is necessary. Additionally, mechanical stress in ASSLBs can extend over considerable distances. For instance, extensive lithium depositions (negative electrode side) can induce stress that propagates through the solid electrolyte toward cathodes. This impacts chemical and mechanical compatibility during cycling. Therefore, comprehensive stress characterization at the full cell level is essential, as it is more relevant than focusing solely on characterizing individual components in ASSLBs.

➢ Appropriate and optimized binders: Binders are commonly employed to address issues such as electrode or electrolyte disintegration and the disruption of conducting paths. These are essential for achieving thin film electrolytes with robust mechanical properties, which significantly impact on the battery performance. Traditional binders like PVDF, PTFE, or PEO are typically electrically insulating and ionically inactive, which can hinder lithium-ion transport, especially if they are unevenly distributed, potentially obstructing conductive pathways. To enhance overall transport performance, dual-conductive binders can support both ionic and electronic conduction. Additionally, binders may cause interfacial resistance or create voids at the electrode–electrolyte interface, impairing effective solid–solid contact that is essential for lithium-ion movement. Under cycling or thermal stress, some binders may swell or deform, disrupting interfacial pressure and stability. As a solution, hybrid inorganic/polymer binders will offer a good compromise by providing mechanical robustness and improved conductivity, thereby mitigating adverse effects on electrochemical transport. However, it is crucial to consider the interaction between Li argyrodites and binders as a design factor for ASSLB electrodes. Therefore, it is strongly advised that the adhesive properties of binders be thoroughly understood and the binder quantity optimized before cell assembly.

➢ Pressure: In ASSLB systems, the procedures related to external pressure during assembly are closely linked to the stabilities of materials at the atomistic/interface level. Applying external pressure on the cathode side enhances interfacial ion diffusion, decreases interfacial impedance, and boosts ion transport efficiency. Suitable pressure helps to eliminate interfacial voids on the anode side, preserving a continuous ion transport network. However, excessive pressure may lead to short circuits, as many anode materials exhibit creep behavior under high stress. Applying stack pressures in the range of 3–7 MPa can effectively minimize problems such as lithium metal deformation and improve the physical contact between the solid electrolyte and electrodes, lowering interfacial resistance and enhancing cycling performance. The concept of local mechanical constriction connects the macroscopic parameters of the device with the microscopic properties of materials. In such environments, degradation reactions with positive reaction strains, leading to volume extension during decomposition, may encounter a unique effect called constriction-induced meta-stability. This effect can cause a sudden change in the energy landscape related to these decomposition reactions. Therefore, understanding the local mechanical constriction effect and interfacial compatibility during cycling is crucial for exploring the potential to further design this effect for Li argyrodites. This understanding could lead to unlocking battery performance improvements beyond what is currently achieved in commercial batteries. Developing ductile electrodes, electrolytes, and interphases of a Li–argyrodite-based ASSLB is crucial for its practical application under reasonable pressure. For example, using a solid electrolyte with intrinsically ductile and low porosity can help lower both the fabrication pressure required during processing and the stack pressure needed during operation of the ASSLB.

➢ Artificial intelligence (AI) and machine learning (ML): Machine learning models are capable of forecasting key properties of solid electrolytes, such as ionic conductivity, chemical stability, and compatibility with electrode materials, based on their structural and compositional features. Moreover, ML can be utilized to simulate interfacial degradation phenomena, including the development of resistive interphase layers, by utilizing extensive molecular simulations supported by machine-learning-derived interatomic potentials. This approach enables the rapid evaluation of new material candidates before committing to time-intensive experimental testing. Additionally, AI techniques assist in interpreting intricate interfacial transport behavior, including lithium-ion diffusion and the dynamics of charged species.

AI and ML are poised to significantly enhance the development of battery technologies. To realize this potential, several challenges must be addressed.

i. Establishing standardized protocols: Developing widely accepted standards for data collection, processing, and reporting in battery research is essential. This includes defining data formats, measurement conditions, and performance metrics to ensure consistency and comparability across studies. Implementing systematic data disclosure practices will facilitate data sharing and collaboration within the research community.

ii. Identifying appropriate descriptors: Selecting the most relevant descriptors (features) for ML models is crucial. Descriptors should capture the underlying physics and chemistry of battery materials and interfaces to enable accurate predictions. Integrating domain-specific knowledge can aid in identifying these descriptors and improving model interpretability.

iii. Quantifying model uncertainty: Determining the associated error or uncertainty of ML models is vital for assessing their reliability and robustness. Implementing uncertainty quantification methods can help identify areas where models may be less confident and guide further data collection or model refinement.

Addressing these challenges will pave the way for AI and ML to play a transformative role in the advancement of battery technologies, leading to more efficient, durable, and sustainable energy storage solutions.

➢ Characterization techniques: While advanced characterization techniques have revealed crucial mechanisms related to interfaces, most of these methods are ex situ, providing limited real-time information. On the other hand, in situ/operando approaches are essential for understanding interface composition and structure, which are vital for ASSLB design. In situ characterization is essential for capturing the dynamic and coupled chemomechanical processes occurring at interfaces in SSBs. For example, in situ X-ray computed tomography (CT) facilitates the real-time observation of morphological changes within SSBs during cycling, such as the development of cracks and voids in the SE and at interfaces. These structural alterations can lead to capacity loss and failure. Identifying these changes is crucial for understanding failure modes and guiding design improvements. In addition, optical coherence tomography (OCT) is a non-invasive, high-resolution imaging technique that enables real-time, cross-sectional visualization of internal structures in SSBs. It has been effectively employed to monitor the morphology, growth, and evolution of lithium dendrites at the interfaces between electrodes and SEs during cycling under various conditions. This capability allows for the dynamic observation of dendrite formation and progression, providing valuable insights into the mechanisms affecting SSB performance and safety. At the same time, ex-situ methods serve as valuable complements by delivering high-resolution structural or compositional information after changes have occurred. However, ex-situ techniques offer only fixed, post-mortem views, which can miss short-lived or intermediate phenomena. Additionally, transferring samples to measurement setups can introduce artifacts, such as reactions with air or moisture, and these methods often struggle to accurately reflect the true interfacial chemistry, particularly in reactive materials like sulfide-based electrolytes. However, extracting solid–solid interfaces embedded in ASSLBs presents challenges. Moreover, due to the fragility of interfaces, solid electrolytes, and lithium metal, cryogenic protection is vital to reduce beam destruction and stabilize samples. Hence, developing and customizing new techniques with integrated functionalities is crucial for obtaining information on structure, composition, and kinetics. In general, computational modeling and experimental methods necessitate high-throughput screening, diagnosis, and interfacial engineering for ASSLBs.

Data availability

The data supporting this article have been included as part of the ESI.† Other data could be available upon kind request by contacting the corresponding authors.

Conflicts of interest

The authors have no conflicts to declare.

Acknowledgements

Financial support from the National Science and Technology Council of Taiwan (NSTC 113-2639-E-011-001-ASP, 113-2923-E-011-002, 113-2222-E-011-004; 112-2923-E-011-001, 112-2923-E-011-004-MY3; 112-2218-E-011-011) and the Ministry of Education of Taiwan (the Sustainable Electrochemical Energy Development Center (SEED Center) from the Featured Areas Research Center Program), and the supporting facilities from the National Taiwan University of Science and Technology (NTUST), the National Center for High Performance Computing (NCHC), and the National Synchrotron Radiation Research Centre (NSRRC), are all gratefully acknowledged.

References

1. S. Boulineau, M. Courty, J.-M. Tarascon and V. Viallet, Solid State Ionics, 2012, 221, 1–5.
2. B. Vinay, Y. Nikodimos, T. Agnihotri, S. A. Ahmed, T. M. Hagos, R. Hasan, E. B. Tamilarasan, W.-N. Su and B. J. Hwang, Energy Environ. Sci., 2025 10.1039/D4EE04820B.
3. P. Birke, F. Salam, S. Döring and W. Weppner, Solid State Ionics, 1999, 118, 149–157.
4. A. Aboulaich, R. Bouchet, G. Delaizir, V. Seznec, L. Tortet, M. Morcrette, P. Rozier, J. M. Tarascon, V. Viallet and M. Dollé, Adv. Energy Mater., 2011, 1, 179.
5. C. Masquelier, Nat. Mater., 2011, 10, 649–650.
6. T. Chen, L. Zhang, Z. Zhang, P. Li, H. Wang, C. Yu, X. Yan, L. Wang and B. Xu, ACS Appl. Mater. Interfaces, 2019, 11, 40808–40816.
7. Y. Cheng, X. Ke, Y. Chen, X. Huang, Z. Shi and Z. Guo, Nano Energy, 2019, 63, 103854.
8. X.-B. Cheng, C.-Z. Zhao, Y.-X. Yao, H. Liu and Q. Zhang, Chem, 2019, 5, 74–96.
9. R. Xu, X. Xia, S. Zhang, D. Xie, X. Wang and J. Tu, Electrochim. Acta, 2018, 284, 177–187.
10. J. Auvergniot, A. Cassel, J.-B. Ledeuil, V. Viallet, V. Seznec and R. Dedryvère, Chem. Mater., 2017, 29, 3883–3890.
11. J. Auvergniot, A. Cassel, D. Foix, V. Viallet, V. Seznec and R. Dedryvère, Solid State Ionics, 2017, 300, 78–85.
12. G. G. Serbessa, B. W. Taklu, Y. Nikodimos, N. T. Temesgen, Z. B. Muche, S. K. Merso, T.-I. Yeh, Y.-J. Liu, W.-S. Liao, C.-H. Wang, S.-H. Wu, W.-N. Su, C.-C. Yang and B. J. Hwang, ACS Appl. Mater. Interfaces, 2024, 16, 10832–10844.
13. Y. Nikodimos, C.-J. Huang, B. W. Taklu, W.-N. Su and B. J. Hwang, Energy Environ. Sci., 2022, 15, 991–1033.
14. N. T. Temesgen, H. K. Bezabh, M. A. Weret, K. N. Shitaw, Y. Nikodimos, B. W. Taklu, K. Lakshmanan, S.-C. Yang, S.-K. Jiang, C.-J. Huang, S.-H. Wu, W.-N. Su and B. J. Hwang, J. Power Sources, 2023, 556, 232462.
15. H. Lee, P. Oh, J. Kim, H. Cha, S. Chae, S. Lee and J. Cho, Adv. Mater., 2019, 31, 1900376.
16. J. Ma, B. Chen, L. Wang and G. Cui, J. Power Sources, 2018, 392, 94–115.
17. S. P. Culver, R. Koerver, T. Krauskopf and W. G. Zeier, Chem. Mater., 2018, 30, 4179–4192.
18. Y. Wang, W. D. Richards, S. P. Ong, L. J. Miara, J. C. Kim, Y. Mo and G. Ceder, Nat. Mater., 2015, 14, 1026–1031.
19. Y. Kato, S. Hori, T. Saito, K. Suzuki, M. Hirayama, A. Mitsui, M. Yonemura, H. Iba and R. Kanno, Nat. Energy, 2016, 1, 1–7.
20. N. Kamaya, K. Homma, Y. Yamakawa, M. Hirayama, R. Kanno, M. Yonemura, T. Kamiyama, Y. Kato, S. Hama, K. Kawamoto and A. Mitsui, Nat. Mater., 2011, 10, 682–686.
21. Y. Seino, T. Ota, K. Takada, A. Hayashi and M. Tatsumisago, Energy Environ. Sci., 2014, 7, 627–631.
22. M. Nagao, H. Kitaura, A. Hayashi and M. Tatsumisago, J. Electrochem. Soc., 2013, 160, A819–A823.
23. B. D. Dandena, D.-S. Tsai, S.-H. Wu, W.-N. Su and B. J. Hwang, Energy Storage Mater., 2024, 103305.
24. B.-Y. Tsai, S.-K. Jiang, Y.-T. Wu, J.-S. Yang, S.-H. Wu, P.-C. Tsai, W.-N. Su, C.-Y. Chiang and B. J. Hwang, J. Phys. Chem. C, 2023, 127, 14336–14343.
25. S.-K. Jung, H. Gwon, S.-S. Lee, H. Kim, J. C. Lee, J. G. Chung, S. Y. Park, Y. Aihara and D. Im, J. Mater. Chem. A, 2019, 7, 22967–22976.
26. F. Zhao, J. Liang, C. Yu, Q. Sun, X. Li, K. Adair, C. Wang, Y. Zhao, S. Zhang, W. Li, L. Zhang, S. Zhao, S. Lu and X. Sun, Adv. Energy Mater., 2020, 10, 1903422.
27. H. Liu, Q. Zhu, Y. Liang, C. Wang, D. Li, X. Zhao, L. Gao and L.-Z. Fan, Chem. Eng. J., 2023, 462, 142183.
28. D. H. Tan, E. A. Wu, H. Nguyen, Z. Chen, M. A. Marple, J.-M. Doux, X. Wang, H. Yang, A. Banerjee and Y. S. Meng, ACS Energy Lett., 2019, 4, 2418–2427.
29. Y. Zhu, X. He and Y. Mo, ACS Appl. Mater. Interfaces, 2015, 7, 23685–23693.
30. T. K. Schwietert, V. A. Arszelewska, C. Wang, C. Yu, A. Vasileiadis, N. J. de Klerk, J. Hageman, T. Hupfer, I. Kerkamm, Y. Xu, E. V. D. Maas, E. M. Kelder, S. Ganapathy and M. Wagemaker, Nat. Mater., 2020, 19, 428–435.
31. S. Wenzel, S. J. Sedlmaier, C. Dietrich, W. G. Zeier and J. Janek, Solid State Ionics, 2018, 318, 102–112.
32. B. D. Dandena, L.-T. Wu, T.-I. Yeh, C.-Y. Chang, J.-C. Jiang, D.-S. Tsai, M. Ihrig, G. G. Serbessa, S.-C. Yang, K. Lakshmanan, H.-S. Sheu, C.-H. Wang, S.-H. Wu, W.-N. Su and B. J. Hwang, Chem. Eng. J., 2025, 162450.
33. X. Han, Y. Gong, K. Fu, X. He, G. T. Hitz, J. Dai, A. Pearse, B. Liu, H. Wang, G. Rubloff, Y. Mo, V. Thangadurai, E. D. Wachsman and L. Hu, Nat. Mater., 2017, 16, 572–579.
34. S. Choi, M. Jeon, J. Ahn, W. D. Jung, S. M. Choi, J.-S. Kim, J. Lim, Y.-J. Jang, H.-G. Jung, J.-H. Lee, B.-I. Sang and H. Kim, ACS Appl. Mater. Interfaces, 2018, 10, 23740–23747.
35. R. Koerver, I. Aygün, T. Leichtweiß, C. Dietrich, W. Zhang, J. O. Binder, P. Hartmann, W. G. Zeier and J. Janek, Chem. Mater., 2017, 29, 5574–5582.
36. F. Han, Y. Zhu, X. He, Y. Mo and C. Wang, Adv. Energy Mater., 2016, 6, 1501590.
37. X. Fan, X. Ji, F. Han, J. Yue, J. Chen, L. Chen, T. Deng, J. Jiang and C. Wang, Sci. Adv., 2018, 4, eaau9245.
38. J. Haruyama, K. Sodeyama, L. Han, K. Takada and Y. Tateyama, Chem. Mater., 2014, 26, 4248–4255.
39. J. L. Barton and J. O. M. Bockris, Proc. R. Soc. London, Ser. A, 1962, 268, 485–505.
40. F. Han, A. S. Westover, J. Yue, X. Fan, F. Wang, M. Chi, D. N. Leonard, N. J. Dudney, H. Wang and C. Wang, Nat. Energy, 2019, 4, 187–196.
41. F. Walther, R. Koerver, T. Fuchs, S. Ohno, J. Sann, M. Rohnke, W. G. Zeier and J. Janek, Chem. Mater., 2019, 31, 3745–3755.
42. F. Walther, S. Randau, Y. Schneider, J. Sann, M. Rohnke, F. H. Richter, W. G. Zeier and J. Janek, Chem. Mater., 2020, 32, 6123–6136.
43. F. Walther, F. Strauss, X. Wu, B. Mogwitz, J. Hertle, J. Sann, M. Rohnke, T. Brezesinski and J. Janek, Chem. Mater., 2021, 33, 2110–2125.
44. Y. Yamagishi, H. Morita, Y. Nomura and E. Igaki, ACS Appl. Mater. Interfaces, 2020, 13, 580–586.
45. S. Narayanan, U. Ulissi, J. S. Gibson, Y. A. Chart, R. S. Weatherup and M. Pasta, Nat. Commun., 2022, 13, 7237.
46. J. Kasemchainan, S. Zekoll, D. S. Jolly, Z. Ning, G. O. Hartley, J. Marrow and P. G. Bruce, Nat. Mater., 2019, 18, 1105–1111.
47. R. Schlenker, D. Stepien, P. Koch, T. Hupfer, S. Indris, B. Roling, V. Miß, A. Fuchs, M. Wilhelmi and H. Ehrenberg, ACS Appl. Mater. Interfaces, 2020, 12, 20012–20025.
48. W. Jiang, X. Zhu, Y. Liu, S. Zhao, R. Huang, M. Ling, L. Wang and C. Liang, eTransportation, 2023, 17, 100246.
49. T. Krauskopf, B. Mogwitz, H. Hartmann, D. K. Singh, W. G. Zeier and J. Janek, Adv. Energy Mater., 2020, 10, 2000945.
50. Y. Lu, C. Z. Zhao, H. Yuan, X. B. Cheng, J. Q. Huang and Q. Zhang, Adv. Funct. Mater., 2021, 31, 2009925.
51. Y. Liu, X. Xu, M. Sadd, O. O. Kapitanova, V. A. Krivchenko, J. Ban, J. Wang, X. Jiao, Z. Song, J. Song, S. Xiong and A. Matic, Adv. Sci., 2021, 8, 2003301.
52. Y. Pang, J. Pan, J. Yang, S. Zheng and C. Wang, Electrochem. Energy Rev., 2021, 4, 169–193.
53. L. Mazzapioda, A. Tsurumaki, G. Di Donato, H. Adenusi, M. A. Navarra and S. Passerini, Energy Mater., 2023, 3, 1–3025.
54. T. Tao, Z. Zheng, Y. Gao, B. Yu, Y. Fan, Y. Chen, S. Huang and S. Lu, Energy Mater., 2022, 2, 200036.
55. T. Rahman and T. Alharbi, Batteries, 2024, 10, 220.
56. H. Sano, Y. Morino, A. Yabuki, S. Sato, N. Itayama, Y. Matsumura, M. Iwasaki, M. Takehara, T. Abe, Y. Ishiguro, T. Takahashi, N. Miyashita, A. Sakuda and A. Hayashi, Electrochemistry, 2022, 90, 037012–037012.
57. C. Yu, S. Ganapathy, E. R. van Eck, L. van Eijck, S. Basak, Y. Liu, L. Zhang, H. W. Zandbergen and M. Wagemaker, J. Mater. Chem. A, 2017, 5, 21178–21188.
58. S. Y. Han, C. Lee, J. A. Lewis, D. Yeh, Y. Liu, H.-W. Lee and M. T. McDowell, Joule, 2021, 5, 2450–2465.
59. S. Lou, Q. Liu, F. Zhang, Q. Liu, Z. Yu, T. Mu, Y. Zhao, J. Borovilas, Y. Chen, M. Ge, X. Xiao, W.-K. Lee, G. Yin, Y. Yang, X. Sun and J. Wang, Nat. Commun., 2020, 11, 5700.
60. S. Wang, A. La Monaca and G. P. Demopoulos, Energy Adv., 2025, 11–36.
61. S. Wenzel, S. Randau, T. Leichtweiß, D. A. Weber, J. Sann, W. G. Zeier and J. r. Janek, Chem. Mater., 2016, 28, 2400–2407.
62. S. Wenzel, T. Leichtweiss, D. Krüger, J. Sann and J. Janek, Solid State Ionics, 2015, 278, 98–105.
63. Y. Xiao, Y. Wang, S.-H. Bo, J. C. Kim, L. J. Miara and G. Ceder, Nat. Rev. Mater., 2020, 5, 105–126.
64. Q. Zhao, S. Stalin, C.-Z. Zhao and L. A. Archer, Nat. Rev. Mater., 2020, 5, 229–252.
65. T. Famprikis, P. Canepa, J. A. Dawson, M. S. Islam and C. Masquelier, Nat. Mater., 2019, 18, 1278–1291.
66. S. Wang, H. Song, X. Song, T. Zhu, Y. Ye, J. Chen, L. Yu, J. Xu and K. Chen, Energy Storage Mater., 2021, 39, 139–145.
67. Y. Xuan, Y. Wang, B. He, S. Bian, J. Liu, B. Xu and G. Zhang, Chem. Mater., 2022, 34, 9104–9110.
68. J. Tan, X. Ao, H. Zhuo, L. Zhuang, X. Huang, C. Su, W. Tang, X. Peng and B. Tian, Chem. Eng. J., 2021, 420, 127623.
69. J. Xu, K. Liu, M. A. Khan, H. Wang, T. He, H. Zhao, D. Ye, Y. Tang and J. Zhang, Chem. Eng. J., 2022, 443, 136637.
70. P. Lu, S. Gong, C. Wang, Z. Yu, Y. Huang, T. Ma, J. Lian, Z. Jiang, L. Chen, H. Li and F. Wu, ACS Nano, 2024, 18, 7334–7345.
71. S. Deng, M. Jiang, N. Chen, W. Li, M. Zheng, W. Chen, R. Li, H. Huang, J. Wang, C. V. Singh and X. Sun, Adv. Funct. Mater., 2022, 32, 2205594.
72. P. Lu, Y. Wu, D. Wu, F. Song, T. Ma, W. Yan, X. Zhu, F. Guo, J. Lu, J. Peng, L. Chen, H. Li and F. Wu, Energy Storage Mater., 2024, 67, 103316.
73. X. Shen, Y. Yang, X. Zhang and M. Chen, J. Energy Storage, 2023, 74, 109296.
74. L. Guan, Y. Shi, C. Gao, T. Wang, J. Zhou and R. Cai, Electrochim. Acta, 2023, 440, 141669.
75. J. Yan, J. Liu, Z. Liu, Q. Zhang, Y. Feng, W. Xia and J. Zhou, J. Power Sources, 2025, 631, 236186.
76. H. S. Shin, W. G. Ryu, M. S. Park, K. N. Jung, H. Kim and J. W. Lee, ChemSusChem, 2018, 11, 3184–3190.
77. Z. Jiang, H. Xie, S. Wang, X. Song, X. Yao and H. Wang, Adv. Energy Mater., 2018, 8, 1801433.
78. B. Shao, Y. Huang and F. Han, Adv. Energy Mater., 2023, 13, 2204098.
79. F. Zhao, Q. Sun, C. Yu, S. Zhang, K. Adair, S. Wang, Y. Liu, Y. Zhao, J. Liang, C. Wang, X. Li, X. Li, W. Xia, R. Li, H. Huang, L. Zhang, S. Zhao, S. Lu and X. Sun, ACS Energy Lett., 2020, 5, 1035–1043.
80. W. D. Richards, L. J. Miara, Y. Wang, J. C. Kim and G. Ceder, Chem. Mater., 2016, 28, 266–273.
81. C. Wang, J. Liang, S. Hwang, X. Li, Y. Zhao, K. Adair, C. Zhao, X. Li, S. Deng, X. Lin, X. Yang, R. Li, H. Huang, L. Zhang, S. Lu, D. Su and X. Sun, Nano Energy, 2020, 72, 104686.
82. Q. Lv, Y. Jiang, B. Wang, Y. Chen, F. Jin, B. Wu, H. Ren, N. Zhang, R. Xu, Y. Li, T. Zhang, Y. Zhou, D. Wang, H. Liu and S. Dou, Cell Rep. Phys. Sci., 2022, 3, 100706.
83. D. Avadanii, S. Ganschow, M. Stypa, S. Müller, S. Lang, D. Kramer, C. Kirchlechner and R. Mönig, ACS Energy Lett., 2025, 10, 2061–2067.
84. B. Zhang, B. Yuan, X. Yan, X. Han, J. Zhang, H. Tan, C. Wang, P. Yan, H. Gao and Y. Liu, Nat. Commun., 2025, 16, 1906.
85. C. Zhu, T. Fuchs, S. A. Weber, F. H. Richter, G. Glasser, F. Weber, H.-J. Butt, J. Janek and R. Berger, Nat. Commun., 2023, 14, 1300.
86. H. Liu, Y. Chen, P.-H. Chien, G. Amouzandeh, D. Hou, E. Truong, I. P. Oyekunle, J. Bhagu, S. W. Holder, H. Xiong, P. L. Gor’kov, J. T. Rosenberg, S. C. Grant and Y.-Y. Hu, Nat. Mater., 2025, 1–8.
87. N. Sarfraz, N. Kanwal, M. Ali, K. Ali, A. Hasnain, M. Ashraf, M. Ayaz, J. Ifthikar, S. Ali, A. Hendi, N. Baig, M. F. Ehsan, S. S. Shah, R. Khan and I. Khan, Energy Storage Mater., 2024, 103619.
88. M. K. Tufail, P. Zhai, W. Khokar, M. Jia, N. Zhao and X. Guo, Interdiscip. Mater., 2023, 2, 529–568.
89. B. W. Taklu, W.-N. Su, Y. Nikodimos, K. Lakshmanan, N. T. Temesgen, P.-X. Lin, S.-K. Jiang, C.-J. Huang, D.-Y. Wang, H.-S. Sheu, S.-H. Wu and B. J. Hwang, Nano Energy, 2021, 90, 106542.
90. Y. Jin, B. Zhu, Z. Lu, N. Liu and J. Zhu, Adv. Energy Mater., 2017, 7, 1700715.
91. A. F. Gonzalez, N.-H. Yang and R.-S. Liu, J. Phys. Chem. C, 2017, 121, 27775–27787.
92. V. A. Sethuraman, M. J. Chon, M. Shimshak, V. Srinivasan and P. R. Guduru, J. Power Sources, 2010, 195, 5062–5066.
93. X. Yuan, H. Liu and J. Zhang, Lithium-ion batteries: advanced materials and technologies, CRC Press, 2011.
94. W. Xu, J. Wang, F. Ding, X. Chen, E. Nasybulin, Y. Zhang and J.-G. Zhang, Energy Environ. Sci., 2014, 7, 513–537.
95. D. Lin, Y. Liu and Y. Cui, Nat. Nanotechnol., 2017, 12, 194–206.
96. K. N. Wood, M. Noked and N. P. Dasgupta, ACS Energy Lett., 2017, 2, 664–672.
97. Y.-G. Lee, S. Fujiki, C. Jung, N. Suzuki, N. Yashiro, R. Omoda, D.-S. Ko, T. Shiratsuchi, T. Sugimoto, S. Ryu, J. H. Ku, T. Watanabe, Y. Park, Y. Aihara, D. Im and I. T. Han, Nat. Energy, 2020, 5, 299–308.
98. R. Xu, J. Yue, S. Liu, J. Tu, F. Han, P. Liu and C. Wang, ACS Energy Lett., 2019, 4, 1073–1079.
99. A. N. Dey and B. P. Sulliva, J. Electrochem. Soc., 1970, 117, 222.
100. E. Peled, J. Electrochem. Soc., 1979, 126, 2047.
101. E. Peled, D. Golodnitsky and G. Ardel, J. Electrochem. Soc., 1997, 144, 8.
102. D. Aurbach, B. Markovsky, M. Levi, E. Levi, A. Schechter, M. Moshkovich and Y. Cohen, J. Power Sources, 1999, 81, 95–111.
103. M. Winter, Z. Phys. Chem., 2009, 223, 1395–1406.
104. P. Verma, P. Maire and P. Novák, Electrochim. Acta, 2010, 55, 6332–6341.
105. A. Wang, S. Kadam, H. Li, S. Shi and Y. Qi, npj Comput. Mater., 2018, 4, 15.
106. L. M. Riegger, S. Mittelsdorf, T. Fuchs, R. Rueß, F. H. Richter and J. Janek, Chem. Mater., 2023, 35, 5091–5099.
107. G. Chaney, A. Golov, A. van Roekeghem, J. Carrasco and N. Mingo, ACS Appl. Mater. Interfaces, 2024, 16, 24624–24630.
108. P. Albertus, V. Anandan, C. Ban, N. Balsara, I. Belharouak, J. Buettner-Garrett, Z. Chen, C. Daniel, M. Doeff, N. J. Dudney, D. Bruce, S. J. Harris, S. Herle, E. Herbert, S. Kalnaus, J. A. Libera, D. Lu, S. Martin, B. D. McCloskey, Y. S. Meng, J. Nanda, J. Sakamoto, E. C. Self, S. Tepavcevic, E. Wachsman, C. Wang, A. S. Westover, J. Xiao and T. Yersak, ACS Energy Lett., 2021, 6, 1399–1404.
109. Y. Lu, Z. Tu and L. A. Archer, Nat. Mater., 2014, 13, 961–969.
110. J.-G. Zhang, W. Xu and W. A. Henderson, Lithium metal anodes and rechargeable lithium metal batteries, Springer International Publishing Cham, 2017.
111. R. Cao, W. Xu, D. Lv, J. Xiao and J. Zhang, Adv. Energy Mater., 2015, 5, 1402273.
112. N. W. Li, Y. Shi, Y. X. Yin, X. X. Zeng, J. Y. Li, C. J. Li, L. J. Wan, R. Wen and Y. G. Guo, Angew. Chem., 2018, 130, 1521–1525.
113. S. H. Wang, Y. X. Yin, T. T. Zuo, W. Dong, J. Y. Li, J. L. Shi, C. H. Zhang, N. W. Li, C. J. Li and Y. G. Guo, Adv. Mater., 2017, 29, 1703729.
114. M. J. Wang, R. Choudhury and J. Sakamoto, Joule, 2019, 3, 2165–2178.
115. P. Albertus, S. Babinec, S. Litzelman and A. Newman, Nat. Energy, 2018, 3, 16–21.
116. K. N. Wood and G. Teeter, ACS Appl. Energy Mater., 2018, 1, 4493–4504.
117. K. N. Wood, K. X. Steirer, S. E. Hafner, C. Ban, S. Santhanagopalan, S.-H. Lee and G. Teeter, Nat. Commun., 2018, 9, 2490.
118. L. Zhou, N. Minafra, W. G. Zeier and L. F. Nazar, Acc. Chem. Res., 2021, 54, 2717–2728.
119. Q. Zhang, D. Cao, Y. Ma, A. Natan, P. Aurora and H. Zhu, Adv. Mater., 2019, 31, 1901131.
120. R. Chen, Q. Li, X. Yu, L. Chen and H. Li, Chem. Rev., 2019, 120, 6820–6877.
121. L. Xu, S. Tang, Y. Cheng, K. Wang, J. Liang, C. Liu, Y.-C. Cao, F. Wei and L. Mai, Joule, 2018, 2, 1991–2015.
122. S. Xin, Y. You, S. Wang, H.-C. Gao, Y.-X. Yin and Y.-G. Guo, ACS Energy Lett., 2017, 2, 1385–1394.
123. C.-Z. Zhao, H. Duan, J.-Q. Huang, J. Zhang, Q. Zhang, Y.-G. Guo and L.-J. Wan, Sci. China: Chem., 2019, 62, 1286–1299.
124. C. Monroe and J. Newman, J. Electrochem. Soc., 2004, 151, A880–A886.
125. C. Monroe and J. Newman, J. Electrochem. Soc., 2005, 152, A396–A404.
126. P. Barai, K. Higa and V. Srinivasan, Phys. Chem. Chem. Phys., 2017, 19, 20493–20505.
127. W. S. LePage, Y. Chen, E. Kazyak, K.-H. Chen, A. J. Sanchez, A. Poli, E. M. Arruda, M. Thouless and N. P. Dasgupta, J. Electrochem. Soc., 2019, 166, A89–A97.
128. A. Masias, N. Felten, R. Garcia-Mendez, J. Wolfenstine and J. Sakamoto, J. Mater. Sci., 2019, 54, 2585–2600.
129. L. Porz, T. Swamy, B. W. Sheldon, D. Rettenwander, T. Frömling, H. L. Thaman, S. Berendts, R. Uecker, W. C. Carter and Y. M. Chiang, Adv. Energy Mater., 2017, 7, 1701003.
130. X. Liu, R. Garcia-Mendez, A. R. Lupini, Y. Cheng, Z. D. Hood, F. Han, A. Sharafi, J. C. Idrobo, N. J. Dudney, C. Wang, C. Ma, J. Sakamoto and M. Chi, Nat. Mater., 2021, 20, 1485–1490.
131. T. Krauskopf, R. Dippel, H. Hartmann, K. Peppler, B. Mogwitz, F. H. Richter, W. G. Zeier and J. Janek, Joule, 2019, 3, 2030–2049.
132. Z. Ning, D. S. Jolly, G. Li, R. De Meyere, S. D. Pu, Y. Chen, J. Kasemchainan, J. Ihli, C. Gong, B. Liu, D. L. R. Melvin, A. Bonnin, O. Magdysyuk, P. Adamson, G. O. Hartley, C. W. Monroe, T. J. Marrow and P. G. Bruce, Nat. Mater., 2021, 20, 1121–1129.
133. A. Banerjee, X. Wang, C. Fang, E. A. Wu and Y. S. Meng, Chem. Rev., 2020, 120, 6878–6933.
134. R. Usiskin and J. Maier, Adv. Energy Mater., 2021, 11, 2001455.
135. H. Tang, Z. Deng, Z. Lin, Z. Wang, I.-H. Chu, C. Chen, Z. Zhu, C. Zheng and S. P. Ong, Chem. Mater., 2018, 30, 163–173.
136. C. Wang, W. Ping, Q. Bai, H. Cui, R. Hensleigh, R. Wang, A. H. Brozena, Z. Xu, J. Dai and Y. Pei, Science, 2020, 368, 521–526.
137. C. Yang, H. Xie, W. Ping, K. Fu, B. Liu, J. Rao, J. Dai, C. Wang, G. Pastel and L. Hu, Adv. Mater., 2019, 31, 1804815.
138. E. Kazyak, R. Garcia-Mendez, W. S. LePage, A. Sharafi, A. L. Davis, A. J. Sanchez, K.-H. Chen, C. Haslam, J. Sakamoto and N. P. Dasgupta, Matter, 2020, 2, 1025–1048.
139. M. Wang, J. B. Wolfenstine and J. Sakamoto, Electrochim. Acta, 2019, 296, 842–847.
140. J. Janek and W. G. Zeier, Nat. Energy, 2023, 8, 230–240.
141. C. Chen, M. Jiang, T. Zhou, L. Raijmakers, E. Vezhlev, B. Wu, T. U. Schülli, D. L. Danilov, Y. Wei, R. A. Eichel and P. H. L. Notten, Adv. Energy Mater., 2021, 11, 2003939.
142. S. Guo, Y. Sun and A. Cao, Chem. Res. Chin. Univ., 2020, 36, 329–342.
143. M. Hansen and E. Wallström, J. Adhes., 1983, 275–286.
144. R. M. Tiggelaar, V. Verdoold, H. Eghbali, G. Desmet and J. G. Gardeniers, Lab Chip, 2009, 9, 456–463.
145. G. Bucci, T. Swamy, Y.-M. Chiang and W. C. Carter, J. Mater. Chem. A, 2017, 5, 19422–19430.
146. Y. Liu, H. Su, M. Li, J. Xiang, X. Wu, Y. Zhong, X. Wang, X. Xia, C. Gu and J. Tu, J. Mater. Chem. A, 2021, 9, 13531–13539.
147. G. Liu, W. Weng, Z. Zhang, L. Wu, J. Yang and X. Yao, Nano Lett., 2020, 20, 6660–6665.
148. Z. Zhang, L. Zhang, X. Yan, H. Wang, Y. Liu, C. Yu, X. Cao, L. van Eijck and B. Wen, J. Power Sources, 2019, 410, 162–170.
149. Y. Subramanian, R. Rajagopal, S. Kang and K.-S. Ryu, J. Alloys Compd., 2022, 925, 166596.
150. H. Liu, Q. Zhu, C. Wang, G. Wang, Y. Liang, D. Li, L. Gao and L. Z. Fan, Adv. Funct. Mater., 2022, 32, 2203858.
151. A. C. Luntz, J. Voss and K. Reuter, J. Phys. Chem. Lett., 2015, 6, 4599–4604.
152. H. Gerischer, F. Decker and B. Scrosati, J. Electrochem. Soc., 1994, 141, 2297.
153. P. G. Bruce, Solid state electrochemistry, Cambridge University Press, 1997.
154. G. Liu, H. Zheng, A. Simens, A. Minor, X. Song and V. Battaglia, J. Electrochem. Soc., 2007, 154, A1129–A1134.
155. M. Manickam and M. Takata, Electrochim. Acta, 2003, 48, 957–963.
156. B. Stiaszny, J. C. Ziegler, E. E. Krauß, J. P. Schmidt and E. Ivers-Tiffée, J. Power Sources, 2014, 251, 439–450.
157. R. Hausbrand, G. Cherkashinin, H. Ehrenberg, M. Gröting, K. Albe, C. Hess and W. Jaegermann, J. Mater. Sci. Eng. B, 2015, 192, 3–25.
158. T. Liu, L. Yu, J. Liu, J. Lu, X. Bi, A. Dai, M. Li, M. Li, Z. Hu, L. Ma, D. Luo, J. Zheng, T. Wu, Y. Ren, J. Wen, F. Pan and K. Amine, Nat. Energy, 2021, 6, 277–286.
159. B. Xiao, H. Liu, N. Chen, M. N. Banis, H. Yu, J. Liang, Q. Sun, T. K. Sham, R. Li, M. Cai, G. A. Botton and X. Sun, Angew. Chem., Int. Ed., 2020, 59, 14313–14320.
160. Y. Zhang, X. Sun, D. Cao, G. Gao, Z. Yang, H. Zhu and Y. Wang, Energy Storage Mater., 2021, 41, 505–514.
161. T. Li, X.-Z. Yuan, L. Zhang, D. Song, K. Shi and C. Bock, Electrochem. Energy Rev., 2020, 3, 43–80.
162. S. P. Culver, R. Koerver, W. G. Zeier and J. Janek, Adv. Energy Mater., 2019, 9, 1900626.
163. A. M. Nolan, Y. Zhu, X. He, Q. Bai and Y. Mo, Joule, 2018, 2, 2016–2046.
164. D. H. Tan, A. Banerjee, Z. Chen and Y. S. Meng, Nat. Nanotechnol., 2020, 15, 170–180.
165. Q. Xie, Z. Cui and A. Manthiram, Adv. Mater., 2021, 33, 2100804.
166. V. Etacheri, R. Marom, R. Elazari, G. Salitra and D. Aurbach, Energy Environ. Sci., 2011, 4, 3243–3262.
167. Y. Mao, X. Wang, S. Xia, K. Zhang, C. Wei, S. Bak, Z. Shadike, X. Liu, Y. Yang, R. Xu, P. Pianetta, S. Ermon, E. Stavitski, K. Zhao, Z. Xu, F. Lin, X.-Q. Yang, E. Hu and Y. Liu, Adv. Funct. Mater., 2019, 29, 1900247.
168. C. Wang, R. Yu, S. Hwang, J. Liang, X. Li, C. Zhao, Y. Sun, J. Wang, N. Holmes, R. Li, H. Huang, S. Zhao, L. Zhang, S. Lu, D. Su and X. Sun, Energy Storage Mater., 2020, 30, 98–103.
169. X. Li, W. Peng, R. Tian, D. Song, Z. Wang, H. Zhang, L. Zhu and L. Zhang, Electrochim. Acta, 2020, 363, 137185.
170. R. Koerver, W. Zhang, L. de Biasi, S. Schweidler, A. O. Kondrakov, S. Kolling, T. Brezesinski, P. Hartmann, W. G. Zeier and J. Janek, Energy Environ. Sci., 2018, 11, 2142–2158.
171. C. Liu, F. Roters and D. Raabe, Nat. Commun., 2024, 15, 7970.
172. C. Park, J. Lee, S. Lee, Y. J. Han, J. Kim and S. K. Jung, Adv. Energy Mater., 2023, 13, 2203861.
173. T. Shi, Y.-Q. Zhang, Q. Tu, Y. Wang, M. Scott and G. Ceder, J. Mater. Chem. A, 2020, 8, 17399–17404.
174. M. Clausnitzer, M. Ihrig, L. Cressa, S. Hein, M. Finsterbusch, S. Eswara, L.-Y. Kuo, T. Danner, P. Kaghazchi, D. Fattakhova-Rohlfing, O. Guillon and A. Latz, Energy Storage Mater., 2024, 67, 103262.
175. H. Huo, Y. Bai, S. L. Benz, T. Weintraut, S. Wang, A. Henss, D. Raabe and J. Janek, Adv. Mater., 2025, 37, 2415006.
176. S. P. Jand and P. Kaghazchi, MRS Commun., 2018, 8, 591–596.
177. B. Gao, R. Jalem, Y. Ma and Y. Tateyama, Chem. Mater., 2019, 32, 85–96.
178. A. Sakuda, A. Hayashi and M. Tatsumisago, Chem. Mater., 2010, 22, 949–956.
179. S. Lee, Y. Kim, C. Park, J. Kim, J.-S. Kim, H. Jo, C. J. Lee, S. Choi, D.-H. Seo and S.-K. Jung, ACS Energy Lett., 2024, 9, 1369–1380.
180. P. Nzereogu, A. Oyesanya, S. Ogba, S. Ayanwunmi, M. Sobajo, V. Chimsunum, V. Ayanwunmi, M. Amoo, O. Adefemi and C. Chukwudi, Hybrid Adv., 2024, 100339.
181. S. J. Yang, J. K. Hu, F. N. Jiang, H. Yuan, H. S. Park and J. Q. Huang, InfoMat, 2024, 6, e12512.
182. T. Kim, K. Kim, S. Lee, G. Song, M. S. Jung and K. T. Lee, Chem. Mater., 2022, 34, 9159–9171.
183. X. Rui, D. Ren, X. Liu, X. Wang, K. Wang, Y. Lu, L. Li, P. Wang, G. Zhu, Y. Mao, X. Feng, L. Lu, H. Wang and M. Ouyang, Energy Environ. Sci., 2023, 16, 3552–3563.
184. Y. Wang, X. Feng, W. Huang, X. He, L. Wang and M. Ouyang, Adv. Energy Mater., 2023, 13, 2203841.
185. Y. Wang, X. Feng, Y. Peng, F. Zhang, D. Ren, X. Liu, L. Lu, Y. Nitta, L. Wang and M. Ouyang, Joule, 2022, 6, 2810–2820.
186. A. Sakuda, A. Hayashi, T. Ohtomo, S. Hama and M. Tatsumisago, Electrochem. Solid-State Lett., 2010, 13, A73–A75.
187. A. Sakuda, A. Hayashi, T. Ohtomo, S. Hama and M. Tatsumisago, J. Power Sources, 2011, 196, 6735–6741.
188. A. Hayashi, K. Noi, A. Sakuda and M. Tatsumisago, Nat. Commun., 2012, 3, 856.
189. A. Sakuda, A. Hayashi, Y. Takigawa, K. Higashi and M. Tatsumisago, J. Ceram. Soc. Jpn., 2013, 121, 946–949.
190. Y. Kubota, M. C. S. Escaño, H. Nakanishi and H. Kasai, J. Appl. Phys., 2007, 102, 053704.
191. M. Ashuri, Q. He and L. L. Shaw, Nanoscale, 2016, 8, 74–103.
192. M. Gu, Z. Wang, J. G. Connell, D. E. Perea, L. J. Lauhon, F. Gao and C. Wang, ACS Nano, 2013, 7, 6303–6309.
193. A. Sakuda, A. Hayashi and M. Tatsumisago, Sci. Rep., 2013, 3, 2261.
194. J. Wu, S. Liu, F. Han, X. Yao and C. Wang, Adv. Mater., 2021, 33, 2000751.
195. M. K. Tufail, P. Zhai, M. Jia, N. Zhao and X. Guo, Energy Mater. Adv., 2023, 4, 0015.
196. M. Jia, M. K. Tufail and X. Guo, ChemSusChem, 2023, 16, e202201801.
197. W. Qin, T. Nagase, Y. Umakoshi and J. Szpunar, Philos. Mag. Lett., 2008, 88, 169–179.
198. R. Sudo, Y. Nakata, K. Ishiguro, M. Matsui, A. Hirano, Y. Takeda, O. Yamamoto and N. Imanishi, Solid State Ionics, 2014, 262, 151–154.
199. Y. Ren, Y. Shen, Y. Lin and C.-W. Nan, Electrochem. Commun., 2015, 57, 27–30.
200. M. Nagao, A. Hayashi, M. Tatsumisago, T. Kanetsuku, T. Tsuda and S. Kuwabata, Phys. Chem. Chem. Phys., 2013, 15, 18600–18606.
201. R. Bradbury, G. F. Dewald, M. A. Kraft, T. Arlt, N. Kardjilov, J. Janek, I. Manke, W. G. Zeier and S. Ohno, Adv. Energy Mater., 2023, 13, 2203426.
202. Y. Kimura, M. Fakkao, T. Nakamura, T. Okumura, N. Ishiguro, O. Sekizawa, K. Nitta, T. Uruga, M. Tada, Y. Uchimoto and K. Amezawa, ACS Appl. Energy Mater., 2020, 3, 7782–7793.
203. L. Froboese, J. F. Van Der Sichel, T. Loellhoeffel, L. Helmers and A. Kwade, J. Electrochem. Soc., 2019, 166, A318–A328.
204. A. Bielefeld, D. A. Weber and J. Janek, J. Phys. Chem. C, 2018, 123, 1626–1634.
205. L. Ketter, N. Greb, T. Bernges and W. G. Zeier, Nat. Commun., 2025, 16, 1–9.
206. P. Minnmann, L. Quillman, S. Burkhardt, F. H. Richter and J. Janek, J. Electrochem. Soc., 2021, 168, 040537.
207. J. Zahnow, T. Bernges, A. Wagner, N. Bohn, J. R. Binder, W. G. Zeier, M. T. Elm and J. Janek, ACS Appl. Energy Mater., 2021, 4, 1335–1345.
208. D. K. Ferry, Science, 2012, 335, 45–46.
209. S. Kirkpatrick, Rev. Mod. Phys., 1973, 45, 574.
210. M. E. Frary and C. A. Schuh, Phys. Rev. E:Stat., Nonlinear, Soft Matter Phys., 2007, 76, 041108.
211. S. Hao, Q. Zhang, X. Kong, Z. Wang, X. P. Gao and P. R. Shearing, Adv. Energy Mater., 2025, 15, 2404384.
212. Z. Deng, Z. Wang, I.-H. Chu, J. Luo and S. P. Ong, J. Electrochem. Soc., 2015, 163, A67–A74.
213. Z. Jiang, Q. Han, S. Wang and H. Wang, ChemElectroChem, 2019, 6, 2970–2983.
214. R. Schlenker, D. Stępień, P. Koch, T. Hupfer, S. Indris, B. Roling, V. Miß, A. Fuchs, M. Wilhelmi and H. Ehrenberg, ACS Appl. Mater. Interfaces, 2020, 12, 20012–20025.
215. G. G. Serbessa, Y. Nikodimos, B. W. Taklu, S. K. Merso, Z. B. Muche, B. D. Dandena, S. A. Vallal, T.-I. Yeh, F. Valencia, Y.-F. Hung, J.-H. Hsu, C.-M. Lee, S.-H. Wu, W.-N. Su, C.-C. Yang and B. J. Hwang, Energy Storage Mater., 2025, 104103.
216. L. E. Camacho-Forero and P. B. Balbuena, J. Power Sources, 2018, 396, 782–790.
217. K. J. Kim and J. L. Rupp, Energy Environ. Sci., 2020, 13, 4930–4945.
218. Y. Kimura, T. Fujisaki, T. Shimizu, T. Nakamura, Y. Iriyama and K. Amezawa, Commun. Mater., 2024, 5, 125.
219. Y. Xiao, L. J. Miara, Y. Wang and G. Ceder, Joule, 2019, 3, 1252–1275.
220. H.-S. Kim, Y. Kim, S.-I. Kim and S. W. Martin, J. Power Sources, 2006, 161, 623–627.
221. N. Ohta, K. Takada, L. Zhang, R. Ma, M. Osada and T. Sasaki, Adv. Mater., 2006, 18, 2226–2229.
222. T. Kato, T. Hamanaka, K. Yamamoto, T. Hirayama, F. Sagane, M. Motoyama and Y. Iriyama, J. Power Sources, 2014, 260, 292–298.
223. K. H. Kim, Y. Iriyama, K. Yamamoto, S. Kumazaki, T. Asaka, K. Tanabe, C. A. Fisher, T. Hirayama, R. Murugan and Z. Ogumi, J. Power Sources, 2011, 196, 764–767.
224. D. Rettenwander, R. Wagner, A. Reyer, M. Bonta, L. Cheng, M. M. Doeff, A. Limbeck, M. Wilkening and G. Amthauer, J. Phys. Chem. C, 2018, 122, 3780–3785.
225. J. A. Lewis, F. J. Q. Cortes, M. G. Boebinger, J. Tippens, T. S. Marchese, N. Kondekar, X. Liu, M. Chi and M. T. McDowell, ACS Energy Lett., 2019, 4, 591–599.
226. Z. D. Hood, A. U. Mane, A. Sundar, S. Tepavcevic, P. Zapol, U. D. Eze, S. P. Adhikari, E. Lee, G. E. Sterbinsky, J. W. Elam and J. G. Connell, Adv. Mater., 2023, 35, 2300673.
227. M. Balaish, J. C. Gonzalez-Rosillo, K. J. Kim, Y. Zhu, Z. D. Hood and J. L. Rupp, Nat. Energy, 2021, 6, 227–239.
228. J. C. Bachman, S. Muy, A. Grimaud, H.-H. Chang, N. Pour, S. F. Lux, O. Paschos, F. Maglia, S. Lupart, P. Lamp, L. Giordano and Y. Shao-Horn, Chem. Rev., 2016, 116, 140–162.
229. J. Maier, J. Electrochem. Soc., 1987, 134, 1524.
230. J. Maier, Prog. Solid State Chem., 1995, 23, 171–263.
231. E. Rangasamy, G. Sahu, J. K. Keum, A. J. Rondinone, N. J. Dudney and C. Liang, J. Mater. Chem. A, 2014, 2, 4111–4116.
232. Z. D. Hood, H. Wang, Y. Li, A. S. Pandian, M. P. Paranthaman and C. Liang, Solid State Ionics, 2015, 283, 75–80.
233. B. Ransom, A. Ramdas, E. Lomeli, J. Fidawi, A. Sendek, T. Devereaux, E. J. Reed and P. Schindler, ACS Appl. Mater. Interfaces, 2023, 15, 44394–44403.
234. F. Yang, S. Lin, Z. Guo, Y. Shao, B. Zhang, X. Zhang, S. Yan and A. A. Volinsky, J. Alloys Compd., 2019, 805, 1034–1043.
235. E. Temeche, S. Indris and R. M. Laine, ACS Appl. Mater. Interfaces, 2020, 12, 46119–46131.
236. Y. Wu, D. Lei and C. Wang, Mater. Today Phys., 2021, 18, 100395.
237. S. Ito, S. Fujiki, T. Yamada, Y. Aihara, Y. Park, T. Y. Kim, S.-W. Baek, J.-M. Lee, S. Doo and N. Machida, J. Power Sources, 2014, 248, 943–950.
238. S. Miyakawa, S. Matsuda, N. Tanibata, H. Takeda, M. Nakayama, T. Saito and S. Fukuchi, Sci. Rep., 2022, 12, 16672.
239. R. Johnson Jr, B. Morosin, M. Knotek and R. Biefeld, Phys. Lett. A, 1975, 54, 403–404.
240. F. Shin-ichi, S. Satoshi, S. Kaduhiro and T. Hitoshi, Solid State Ionics, 2004, 167, 325–329.
241. Y. Sun, F. Li, Q. Qiao, J. Cao, Y. Wang and S. Ye, Electrochim. Acta, 2015, 176, 1464–1475.
242. P. Quintana, F. Velasco and A. West, Solid State Ionics, 1989, 34, 149–155.
243. C. Wang, K. Aoyagi, P. Wisesa and T. Mueller, Chem. Mater., 2020, 32, 3741–3752.
244. H. Zhou, S. Yu, H. Liu and P. Liu, J. Power Sources, 2020, 450, 227632.
245. C. Niu, H. Lee, S. Chen, Q. Li, J. Du, W. Xu, J.-G. Zhang, M. S. Whittingham, J. Xiao and J. Liu, Nat. Energy, 2019, 4, 551–559.
246. C. Fang, J. Li, M. Zhang, Y. Zhang, F. Yang, J. Z. Lee, M.-H. Lee, J. Alvarado, M. A. Schroeder, Y. Yang, B. Lu, N. Williams, M. Ceja, L. Yang, M. Cai, J. Gu, K. Xu, X. Wang and Y. S. Meng, Nature, 2019, 572, 511–515.
247. Q. Cheng, L. Wei, Z. Liu, N. Ni, Z. Sang, B. Zhu, W. Xu, M. Chen, Y. Miao, L.-Q. Chen, W. Min and Y. Yang, Nat. Commun., 2018, 9, 2942.
248. Z. Tu, S. Choudhury, M. J. Zachman, S. Wei, K. Zhang, L. F. Kourkoutis and L. A. Archer, Joule, 2017, 1, 394–406.
249. Y. Gao, Z. Yan, J. L. Gray, X. He, D. Wang, T. Chen, Q. Huang, Y. C. Li, H. Wang, S. H. Kim, T. E. Mallouk and D. Wang, Nat. Mater., 2019, 18, 384–389.
250. Y. Liu, Q. Sun, Y. Zhao, B. Wang, P. Kaghazchi, K. R. Adair, R. Li, C. Zhang, J. Liu, L.-Y. Kuo, Y. Hu, T.-K. Sham, L. Zhang, R. Yang, S. Lu, X. Song and X. Sun, ACS Appl. Mater. Interfaces, 2018, 10, 31240–31248.
251. L. Sang, K. L. Bassett, F. C. Castro, M. J. Young, L. Chen, R. T. Haasch, J. W. Elam, V. P. Dravid, R. G. Nuzzo and A. A. Gewirth, Chem. Mater., 2018, 30, 8747–8756.
252. P. Hartmann, T. Leichtweiss, M. R. Busche, M. Schneider, M. Reich, J. Sann, P. Adelhelm and J. Janek, J. Phys. Chem. C, 2013, 117, 21064–21074.
253. Y. Ruan, Y. Lu, X. Huang, J. Su, C. Sun, J. Jin and Z. Wen, J. Mater. Chem. A, 2019, 7, 14565–14574.
254. Z. Zhang, S. Chen, J. Yang, J. Wang, L. Yao, X. Yao, P. Cui and X. Xu, ACS Appl. Mater. Interfaces, 2018, 10, 2556–2565.
255. Y. Zhu, X. He and Y. Mo, Adv. Sci., 2017, 4, 1600517.
256. Q. Cheng, A. Li, N. Li, S. Li, A. Zangiabadi, T.-D. Li, W Huang, A. C. Li, T. Jin, Q. Song, W. Xu, N. Ni, H. Zhai, M. Dontigny, K. Zaghib, X. Chuan, D. Su, K. Yan and Y. Yang, Joule, 2019, 3, 1510–1522.
257. M. Shigeno, K. Nagao, M. Deguchi, C. Hotehama, H. Kowada, A. Sakuda, A. Hayashi and M. Tatsumisago, Solid State Ionics, 2019, 339, 114985.
258. R. Court-Castagnet, C. Kaps, C. Cros and P. Hagenmuller, Solid State Ionics, 1993, 61, 327–334.
259. T. Tsujimura, S. Ito, K. Yoshida, Y. Higashiyama, Y. Aihara, N. Machida, Y. Park and D. Im, Solid State Ionics, 2022, 383, 115970.
260. H. Lutz, W. Schmidt and H. Haeuseler, J. Phys. Chem. Solids, 1981, 42, 287–289.
261. M. Calpa, N. C. Rosero-Navarro, A. Miura and K. Tadanaga, J. Sol-Gel Sci. Technol., 2022, 1–8.
262. Y. Zheng, W. Zhang, J. Gui, Q. Cao, Y. Wang, Y. Xu, Y. Liu and Y. Liang, Energy Storage Mater., 2023, 61, 102884.
263. Y. Zhu, X. He and Y. Mo, J. Mater. Chem. A, 2016, 4, 3253–3266.
264. J. Liang, Y. Zhu, X. Li, J. Luo, S. Deng, Y. Zhao, Y. Sun, D. Wu, Y. Hu, W. Li, T.-K. Sham, R. Li, M. Gu and X. Sun, Nat. Commun., 2023, 14, 146.
265. J. Li, M. Zhang, D. Zhang, Y. Yan and Z. Li, Chem. Eng. J., 2020, 402, 126195.
266. Z. Ahaliabadeh, X. Kong, E. Fedorovskaya and T. Kallio, J. Power Sources, 2022, 540, 231633.
267. H. H. Sun, U.-H. Kim, J.-H. Park, S.-W. Park, D.-H. Seo, A. Heller, C. B. Mullins, C. S. Yoon and Y.-K. Sun, Nat. Commun., 2021, 12, 6552.
268. G.-T. Park, B. Namkoong, S.-B. Kim, J. Liu, C. S. Yoon and Y.-K. Sun, Nat. Energy, 2022, 7, 946–954.
269. D. Shumei, T. Dan, L. Ping, L. Huiqin, W. Fenyan and H. Zhang, J. Solid State Electrochem., 2023, 27, 1–23.
270. L. Xu, F. Zhou, B. Liu, H. Zhou, Q. Zhang, J. Kong and Q. Wang, Int. J. Electrochem., 2018, 2018, 1–12.
271. Q. Liu, Y. Zhang, J. Gao, Z. Zhou, H. Wang, K. Wang, X. Zhang, L. Li and J.-F. Li, Energy Environ. Sci., 2018, 11, 3531–3539.
272. F. Han, J. Yue, X. Zhu and C. Wang, Adv. Energy Mater., 2018, 8, 1703644.
273. G. Liu, D. Xie, X. Wang, X. Yao, S. Chen, R. Xiao, H. Li and X. Xu, Energy Storage Mater., 2019, 17, 266–274.
274. N. Wang, K. Yang, L. Zhang, X. Yan, L. Wang and B. Xu, J. Mater. Sci., 2018, 53, 1987–1994.
275. A. Kato, M. Nagao, A. Sakuda, A. Hayashi and M. Tatsumisago, J. Ceram. Soc. Jpn., 2014, 122, 552–555.
276. Y. Xia, J. Li, J. Zhang, X. Zhou, H. Huang, X. He, Y. Gan, Z. Xiao and W. Zhang, J. Power Sources, 2022, 543, 231846.
277. Z. Jiang, H. Peng, Y. Liu, Z. Li, Y. Zhong, X. Wang, X. Xia, C. Gu and J. Tu, Adv. Energy Mater., 2021, 11, 2101521.
278. L. Zhou, A. Assoud, Q. Zhang, X. Wu and L. F. Nazar, J. Am. Chem. Soc., 2019, 141, 19002–19013.
279. V. Y. Prokhorenko, V. V. Roshchupkin, M. A. Pokrasin, S. Prokhorenko and V. Kotov, High Temp., 2000, 38, 954–968.
280. H. Ge, H. Li, S. Mei and J. Liu, Renewable Sustainable Energy Rev., 2013, 21, 331–346.
281. J. Liu, Y.-X. Zhou, Y.-G. Lv and T. Li, IMECE, 2005, 501–510.
282. H. Ge and J. Liu, Front. Energy, 2012, 6, 207–209.
283. H. Ge and J. Liu, J. Heat Transfer, 2013, 135, 054503.
284. S. Chen, D. Xie, G. Liu, J. P. Mwizerwa, Q. Zhang, Y. Zhao, X. Xu and X. Yao, Energy Storage Mater., 2018, 14, 58–74.
285. J. Lau, R. H. DeBlock, D. M. Butts, D. S. Ashby, C. S. Choi and B. S. Dunn, Adv. Energy Mater., 2018, 8, 1800933.
286. Z. Gao, H. Sun, L. Fu, F. Ye, Y. Zhang, W. Luo and Y. Huang, Adv. Mater., 2018, 30, 1705702.
287. W. Zhang, F. H. Richter, S. P. Culver, T. Leichtweiss, J. G. Lozano, C. Dietrich, P. G. Bruce, W. G. Zeier and J. Janek, ACS Appl. Mater. Interfaces, 2018, 10, 22226–22236.
288. R. Koerver, F. Walther, I. Aygün, J. Sann, C. Dietrich, W. G. Zeier and J. Janek, J. Mater. Chem. A, 2017, 5, 22750–22760.
289. W. Zhang, T. Leichtweiß, S. P. Culver, R. Koerver, D. Das, D. A. Weber, W. G. Zeier and J. Janek, ACS Appl. Mater. Interfaces, 2017, 9, 35888–35896.
290. A. Banerjee, H. Tang, X. Wang, J.-H. Cheng, H. Nguyen, M. Zhang, D. H. Tan, T. A. Wynn, E. A. Wu, J.-M. Doux, T. Wu, L. Ma, G. E. Sterbinsky, M. S. D’Souza, S. P. Ong and Y. S. Meng, ACS Appl. Mater. Interfaces, 2019, 11, 43138–43145.
291. D. H. Tan, A. Banerjee, Z. Deng, E. A. Wu, H. Nguyen, J.-M. Doux, X. Wang, J.-h. Cheng, S. P. Ong, Y. S. Meng and Z. Chen, ACS Appl. Energy Mater., 2019, 2, 6542–6550.
292. S. Luo, Z. Wang, X. Li, X. Liu, H. Wang, W. Ma, L. Zhang, L. Zhu and X. Zhang, Nat. Commun., 2021, 12, 6968.
293. W. Fitzhugh, L. Ye and X. Li, J. Mater. Chem. A, 2019, 7, 23604–23627.
294. W. Hao, M. Lee and G. S. Hwang, J. Power Sources, 2023, 560, 232689.
295. Z. Jiang, T. Liang, Y. Liu, S. Zhang, Z. Li, D. Wang, X. Wang, X. Xia, C. Gu and J. Tu, ACS Appl. Mater. Interfaces, 2020, 12, 54662–54670.
296. T. Chen, D. Zeng, L. Zhang, M. Yang, D. Song, X. Yan and C. Yu, J. Energy Chem., 2021, 59, 530–537.
297. H. Xu, G. Cao, Y. Shen, Y. Yu, J. Hu, Z. Wang and G. Shao, Energy Environ. Mater., 2022, 5, 852–864.
298. Z. Wang, Y. Jiang, J. Wu, Y. Jiang, W. Ma, Y. Shi, X. Liu, B. Zhao, Y. Xu and J. Zhang, Nano Energy, 2021, 84, 105906.
299. Z. Jiang, Y. Liu, H. Peng, J. Li, X. Xu, H. Su, Y. Zhong, X. Wang, C. Gu and J. Tu, Energy Storage Mater., 2023, 56, 300–309.
300. Y. Kato, S. Shiotani, K. Morita, K. Suzuki, M. Hirayama and R. Kanno, J. Phys. Chem. Lett., 2018, 9, 607–613.
301. A. M. Stavola, X. Sun, D. P. Guida, A. M. Bruck, D. Cao, J. S. Okasinski, A. C. Chuang, H. Zhu and J. W. Gallaway, ACS Energy Lett., 2023, 8, 1273–1280.
302. D. Cao, Y. Zhao, X. Sun, A. Natan, Y. Wang, P. Xiang, W. Wang and H. Zhu, ACS Energy Lett., 2020, 5, 3468–3489.
303. M. A. Kraft, S. Ohno, T. Zinkevich, R. Koerver, S. P. Culver, T. Fuchs, A. Senyshyn, S. Indris, B. J. Morgan and W. G. Zeier, J. Am. Chem. Soc., 2018, 140, 16330–16339.
304. W. Zhang, D. A. Weber, H. Weigand, T. Arlt, I. Manke, D. Schröder, R. Koerver, T. Leichtweiss, P. Hartmann and W. G. Zeier, ACS Appl. Mater. Interfaces, 2017, 9, 17835–17845.
305. M. Otoyama, A. Sakuda, M. Tatsumisago and A. Hayashi, ACS Appl. Mater. Interfaces, 2020, 12, 29228–29234.
306. L. Ye and X. Li, Nature, 2021, 593, 218–222.
307. P. Adeli, J. D. Bazak, K. H. Park, I. Kochetkov, A. Huq, G. R. Goward and L. F. Nazar, Angew. Chem., Int. Ed., 2019, 58, 8681–8686.
308. T. Krauskopf, F. H. Richter, W. G. Zeier and J. Janek, Chem. Rev., 2020, 120, 7745–7794.
309. S. Samanta, S. Bera, R. K. Biswas, S. Mondal, L. Mandal and A. Banerjee, ACS Energy Lett., 2024, 9, 3683–3693.
310. M. Sakuma, K. Suzuki, M. Hirayama and R. Kanno, Solid State Ionics, 2016, 285, 101–105.
311. L. Yang, Z. Wang, Y. Feng, R. Tan, Y. Zuo, R. Gao, Y. Zhao, L. Han, Z. Wang and F. Pan, Adv. Energy Mater., 2017, 7, 1701437.
312. C. Yu, S. Ganapathy, E. R. v. Eck, H. Wang, S. Basak, Z. Li and M. Wagemaker, Nat. Commun., 2017, 8, 1086.
313. T. Kato, R. Yoshida, K. Yamamoto, T. Hirayama, M. Motoyama, W. C. West and Y. Iriyama, J. Power Sources, 2016, 325, 584–590.
314. L. Mai, M. Yan and Y. Zhao, Nature, 2017, 546, 469–470.
315. S. A. Pervez, M. A. Cambaz, V. Thangadurai and M. Fichtner, ACS Appl. Mater. Interfaces, 2019, 11, 22029–22050.
316. B. Aktekin, L. M. Riegger, S.-K. Otto, T. Fuchs, A. Henss and J. Janek, Nat. Commun., 2023, 14, 6946.
317. Y. Huang, X. Li, J. Wang, L. Miao, C. Li, J. Han and Y. Huang, Energy Storage Mater., 2018, 15, 108–115.
318. J. Yang, Z. Gao, T. Ferber, H. Zhang, C. Guhl, L. Yang, Y. Li, Z. Deng, P. Liu, C. Cheng, R. Che, W. Jaegermann, RenéHausbrand and Y. Huang, J. Mater. Chem. A, 2020, 8, 7828–7835.
319. B. Aktekin, E. Kataev, L. M. Riegger, R. Garcia-Diez, Z. Chalkley, J. Becker, R. G. Wilks, A. Henss, M. Bär and J. Janek, ACS Energy Lett., 2024, 9, 3492–3500.
320. X.-S. Zhang, J. Wan, Z.-Z. Shen, S.-Y. Lang, S. Xin, R. Wen, Y.-G. Guo and L.-J. Wan, Angew. Chem., Int. Ed., 2024, e202409435.
321. Y. Li, Z. Gao, F. Hu, X. Lin, Y. Wei, J. Peng, J. Yang, Z. Li, Y. Huang and H. Ding, Small Methods, 2020, 4, 2000111.
322. R.-J. Chen, Y.-B. Zhang, T. Liu, B.-Q. Xu, Y.-H. Lin, C.-W. Nan and Y. Shen, ACS Appl. Mater. Interfaces, 2017, 9, 9654–9661.
323. B. Liu, K. Fu, Y. Gong, C. Yang, Y. Yao, Y. Wang, C. Wang, Y. Kuang, G. Pastel, H. Xie, E. D. Wachsman and L. Hu, Nano Lett., 2017, 17, 4917–4923.
324. X. Li, Q. Sun, Z. Wang, D. Song, H. Zhang, X. Shi, C. Li, L. Zhang and L. Zhu, J. Power Sources, 2020, 456, 227997.
325. X. Li, J. Liang, M. N. Banis, J. Luo, C. Wang, W. Li, X. Li, Q. Sun, Y. Hu, Q. Xiao, T.-K. Sham, L. Zhang, S. Zhao, S. Lu, H. Huang, R. Li and X. Sun, Energy Storage Mater., 2020, 28, 325–333.
326. Y. Zhou, C. Doerrer, J. Kasemchainan, P. G. Bruce, M. Pasta and L. J. Hardwick, Batteries Supercaps, 2020, 3, 647–652.
327. D. Zeng, J. Yao, L. Zhang, R. Xu, S. Wang, X. Yan, C. Yu and L. Wang, Nat. Commun., 2022, 13, 1909.
328. J. Dai, C. Yang, C. Wang, G. Pastel and L. Hu, Adv. Mater., 2018, 30, 1802068.
329. P. Nellist, B. McCallum and J. M. Rodenburg, Nature, 1995, 374, 630–632.
330. P. Vadhva, J. Hu, M. J. Johnson, R. Stocker, M. Braglia, D. J. Brett and A. J. Rettie, ChemElectroChem, 2021, 8, 1930–1947.
331. C. Wei, C. Yu, L. Peng, Z. Zhang, R. Xu, Z. Wu, C. Liao, W. Zhang, L. Zhang, S. Cheng and J. Xie, Mater. Adv., 2022, 3, 1047–1054.
332. C. Yu, J. Hageman, S. Ganapathy, L. van Eijck, L. Zhang, K. R. Adair, X. Sun and M. Wagemaker, J. Mater. Chem. A, 2019, 7, 10412–10421.
333. L. H. Adem, B. N. Olana, B. W. Taklu, B. D. Dandena, G. G. Serbessa, B.-J. Hwang and S. D. Lin, Electrochim. Acta, 2024, 498, 144622.
334. S.-K. Jiang, S.-C. Yang, W.-H. Huang, H.-Y. Sung, R.-Y. Lin, J.-N. Li, B.-Y. Tsai, T. Agnihotri, Y. Nikodimos, C.-H. Wang, S. D. Lin, C.-C. Wang, S.-H. Wu, W.-N. Su and B. J. Hwang, J. Mater. Chem. A, 2023, 11, 2910–2919.
335. Y. Wu, C. Li, X. Zheng, W. Zhao, H. Wang, J. Gu, Y. Cheng, Y. Lin, Y. Su, F. Ren, D. Feng, J. Liu, J. Peng, Z. Lv, Z. Wang, T. Brezesinski, Z. Gong and Y. Yang, ACS Energy Lett., 2024, 9, 5156–5165.
336. Z. Xu, X. Guo, W. Song, J. Wang, T. Qin, Y. Yuan and J. Lu, Adv. Mater., 2024, 36, 2303612.
337. Q. Zhang, Y. Huang, Y. Liu, S. Sun, K. Wang, Y. Li, X. Li, J. Han and Y. Huang, Sci. China Mater., 2017, 60, 629–636.
338. H.-M. Hau, T. Mishra, C. Ophus, T.-Y. Huang, K. Bustilo, Y. Sun, X. Yang, T. Holstun, X. Zhao, S. Wang, Y. Ha, G.-H. Lee, C. Song, J. Turner, J. Bai, L. Ma, K. Chen, F. Wang, W. Yang, B. D. McCloskey, Z. Cai and G. Ceder, Nat. Nanotechnol., 2024, 1–9.
339. M. Okubo, Y. Mizuno, H. Yamada, J. Kim, E. Hosono, H. Zhou, T. Kudo and I. Honma, ACS Nano, 2010, 4, 741–752.
340. H. Ji, J. Wu, Z. Cai, J. Liu, D.-H. Kwon, H. Kim, A. Urban, J. K. Papp, E. Foley, Y. Tian, M. Balasubramanian, H. Kim, R. J. Clément, B. D. McCloskey, W. Yang and G. Ceder, Nat. Energy, 2020, 5, 213–221.
341. J. Aspinall, D. E. Armstrong and M. Pasta, Mater. Today Energy, 2022, 30, 101183.
342. N. Brodusch, K. Zaghib and R. Gauvin, Microsc. Res. Tech., 2015, 78, 30–39.
343. A. Bastos, S. Zaefferer and D. Raabe, J. Microsc., 2008, 230, 487–498.
344. S.-K. Otto, Y. Moryson, T. Krauskopf, K. Peppler, J. Sann, J. Janek and A. Henss, Chem. Mater., 2021, 33, 859–867.
345. S.-K. Otto, T. Fuchs, Y. Moryson, C. Lerch, B. Mogwitz, J. Sann, J. Janek and A. Henss, ACS Appl. Energy Mater., 2021, 4, 12798–12807.
346. S. Kaboli, P. Noel, D. Clément, H. Demers, A. Paolella, P. Bouchard, M. L. Trudeau, J. B. Goodenough and K. Zaghib, Sci. Adv., 2020, 6, eabd5708.
347. H. Somekawa, K. Nishikawa, T. Moronaga and T. Ohmura, J. Power Sources, 2023, 569, 233019.
348. E. Darnbrough, J. Aspinall, M. Pasta and D. E. Armstrong, Mater. Des., 2023, 233, 112200.
349. T. Fuchs, T. Ortmann, J. Becker, C. G. Haslam, M. Ziegler, V. K. Singh, M. Rohnke, B. Mogwitz, K. Peppler, L. F. Nazar, J. Sakamoto and J. Janek, Nat. Mater., 2024, 1–8.
350. M. Motoyama, M. Hirota, T. Yamamoto and Y. Iriyama, ACS Appl. Mater. Interfaces, 2020, 12, 38045–38053.
351. T. Fuchs, J. Becker, C. G. Haslam, C. Lerch, J. Sakamoto, F. H. Richter and J. Janek, Adv. Energy Mater., 2023, 13, 2203174.
352. M. J. Wang, E. Carmona, A. Gupta, P. Albertus and J. Sakamoto, Nat. Commun., 2020, 11, 5201.
353. Y. Li, Y. Li and Y. Cui, Chem, 2018, 4, 2250–2252.
354. Y. Li, W. Huang, Y. Li, A. Pei, D. T. Boyle and Y. Cui, Joule, 2018, 2, 2167–2177.
355. M. J. Zachman, Z. Tu, L. A. Archer and L. F. Kourkoutis, ACS Energy Lett., 2020, 5, 1224–1232.
356. X. Wang, Y. Li and Y. S. Meng, Joule, 2018, 2, 2225–2234.
357. Y. Li, Y. Li, A. Pei, K. Yan, Y. Sun, C.-L. Wu, L.-M. Joubert, R. Chin, A. L. Koh, Y. Yu, J. Perrino, B. Butz, S. Chu and Y. Cui, Science, 2017, 358, 506–510.
358. M. J. Zachman, Z. Tu, S. Choudhury, L. A. Archer and L. F. Kourkoutis, Nature, 2018, 560, 345–349.
359. A. Schwöbel, R. Hausbrand and W. Jaegermann, Solid State Ionics, 2015, 273, 51–54.
360. D. Huang, G. Liu and W. Tong, Small, 2024, 2406862.
361. M. Motoyama, M. Ejiri and Y. Iriyama, J. Electrochem. Soc., 2015, 162, A7067–A7071.
362. H. Huo, M. Jiang, Y. Bai, S. Ahmed, K. Volz, H. Hartmann, A. Henss, C. V. Singh, D. Raabe and J. Janek, Nat. Mater., 2024, 1–9.

---

Footnote

† Electronic supplementary information (ESI) available: Interfacial challenges: Assembly, additives, and space charge layer. Strategies to improve the interface stability: Li metal coating techniques, protection layers, appropriate additives, appropriate assembling techniques, and utilizing the appropriate ratio of materials. Figures: XPS spectra of the S 2p and P 2p signals for cycled and uncycled composite cathodes with and without VGCF after surface cleaning, the influence of carbon on SE degradation, Li coating techniques, schematic representation of how protective layers help prevent lithium dendrite formation in SEs, scheme illustrating the criteria that binders are expected to fulfill, plots of ionic conductivity versus pressure for samples with various binder materials, and the impact of pressure on the battery assembly. Tables: Comparison of the electrochemical performance of coated/doped cathodes with bare cathodes, solvents and binders used for wet-slurry preparation of ASSLB electrodes using Li–argyrodite SEs, properties of Li₆PS₅Cl film with different binders, the Hansen solubility parameters for the chosen polymer binders and p-xylene solvent, and the conductivity of the Li–argyrodites as documented in the literature along with the preparation pressure, stack pressure, and electrode material. See DOI: https://doi.org/10.1039/d5eb00101c

---
