The judicious selection of catalytic materials has emerged as a critical strategy for addressing the notorious lithium polysulfide (LiPS) shuttle effect and sluggish sulfur reduction reaction (SRR) kinetics in lithium sulfur batteries (LSBs). While traditional catalyst development has relied heavily on empirical trial-and-error approaches, recent advances in reactivity descriptor theory offer the potential to understand the mechanisms inherent in the SRR and to revolutionize the catalyst development paradigm, but a comprehensive understanding of the role and origins of descriptors in the SRR remains lacking. This review systematically examines validated descriptor-based research paradigms and their significant advances in LSBs. Firstly, we elucidate critical LiPS intermediates and rate-limiting steps in the SRR process, and present a summary of the role played by descriptors, establishing fundamental connections to descriptor functionality. Subsequently, we delineate the operational principles of three primary descriptor categories (electronic, structural, and energy descriptors) and the establishment of scaling relationships based on them. Moreover, advanced descriptor constructs are also explored, including comprehensive descriptors with multi-factor integration and other types of descriptors. In particular, we summarize how emerging artificial intelligence (AI) methodologies can facilitate the further development and application of descriptors. Ultimately, we envision great potential for clarifying the scope of applicability, developing universal descriptors, integrating with AI, and breaking the scaling relationships to accurately identify and design highly active catalysts.
![]() | ||

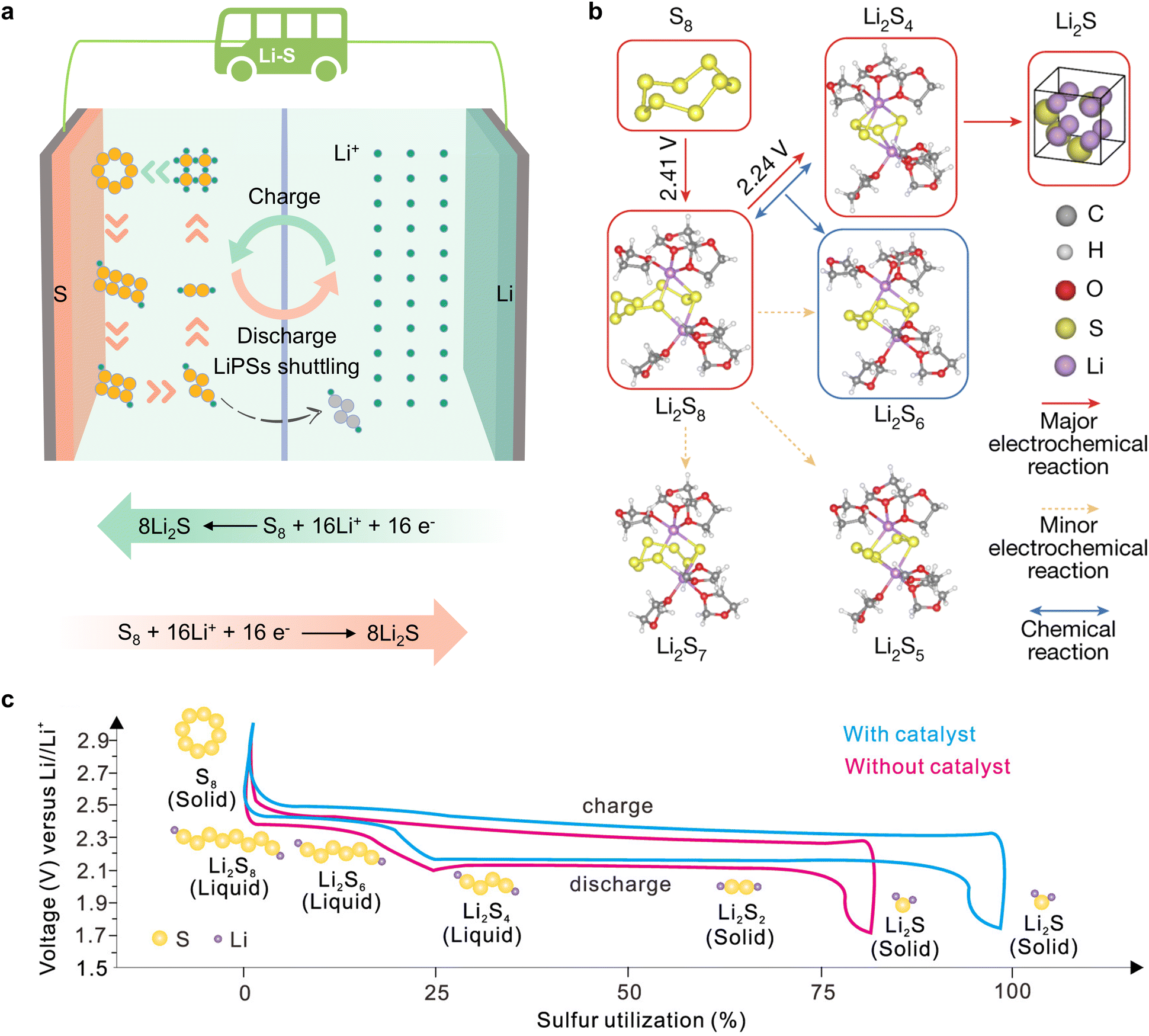

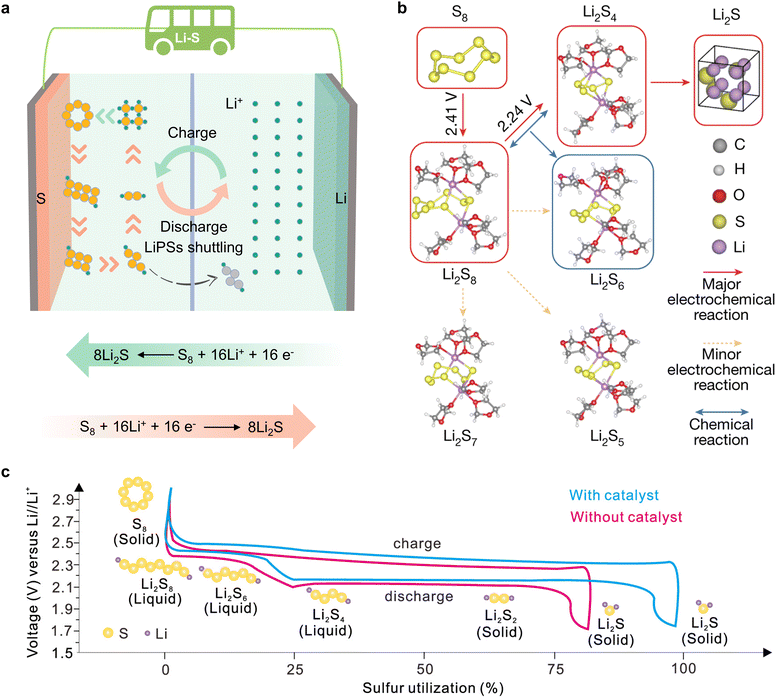

Fig. 1 (a) Schematic diagram of orbital interactions between polysulfides and various catalysts. (b) The dominant reaction mechanism suggested by DFT energetics: S8 → Li2S8 → 2Li2S4 → 8Li2S (Li2S8 + Li2S4 ⇌ 2Li2S6), in which the chemical disproportionation part is shown in parentheses. Solid red and dotted yellow lines indicate major and minor electrochemical reactions, respectively, and blue lines indicate chemical reactions. Major products are indicated by red and blue boxes, corresponding to electrochemical and chemical origin, respectively. Reproduced with permission. Copyright 2024, Springer Nature.9 (c) Schematic of the charge–discharge process of the sulfur cathode. Reproduced with permission. Copyright 2024, American Chemical Society.20 |
Following a period of research and development, there has been a notable increase in the variety of catalyst materials that can be applied in Li–S batteries, including mono-metals,22 (high-entropy) alloys,23–28 metal sulfides,29–32 metal oxides,33–35 metal nitrides,36–39 metal phosphides,40–42 metal borides,43 non-metals,44–46 heterojunctions,47–50 MXenes,51,52 and perovskites53 as well as single-atom54–56 and dual-atom catalysts.20,57–59 Most of these catalytic materials are heterogeneous catalysts, implying that the active sites are difficult to identify and understand, and, hence, it is challenging to develop and tailor catalyst functionality for Li–S batteries with a certain purpose. The intricate structure of catalysts for Li–S batteries and the paucity of in situ characterization techniques render traditional catalyst design methods reliant on trial-and-error experimentation. Fortunately, in the current era of artificial intelligence (AI), computer technology offers a powerful and direct approach to catalyst design, utilizing technologies such as high-throughput computing (HTC) and machine learning (ML).60–66 Nevertheless, the deployment of these sophisticated algorithms for the identification and prediction of catalysts for LSBs necessitates the establishment of suitable quantifiable criteria, termed descriptors, derived from the physical or chemical properties of the reaction system, also known as reactivity descriptors. Accurate descriptors can describe the energy conditions involved in the reaction network through the electronic and structural properties of the catalyst, thus describing the kinetics of the overall reaction. By mapping the high-dimensional parameter space of chemical reactions to a low-dimensional description space, it is feasible to reduce the computational resources consumed in the screening and prediction of ideal catalysts.
In other catalytic reactions, such as the oxygen evolution reaction (OER), hydrogen evolution reaction (HER), oxygen reduction reaction (ORR), nitrogen reduction reaction (NRR), etc., relatively mature scaling relationships have been established for heterogeneous catalytic reactions, that is, the mathematical relationship between the descriptor and the catalytic performance criterion, is usually linear or volcanic.67–77 However, the development of descriptors for the sulfur reduction reaction (SRR) in Li–S batteries remains in the nascent stage, and the establishment of scaling relationships is not yet systematic. As illustrated in Fig. 2, the quantity of pertinent literature has increased since this issue was initially identified in 2017, particularly over the past three years. Despite the explosive growth in research on SRR descriptors in recent years, a lack of summarization of existing results and scientific guidance has led to confusion regarding the range of catalysts to which descriptors are applicable, their functions, and the construction and subsequent development of new descriptors. It is thus evident that a systematic review of reactivity descriptors for Li–S battery catalysts is imperative for the advancement of efficient catalysts. Table 1 provides an overview of the types of catalysts studied in a portion of the research papers, accompanied by the corresponding descriptors, key criteria, etc. The various descriptors can be classified into three main categories according to differences in emphasis: electronic descriptors, structural descriptors and energetic descriptors, in addition to the reconciling binary descriptors (which incorporate two of the electronic, structural, or other properties). When examining the role of different descriptors in designing novel catalysts and understanding the origins of catalytic activity, we have summarized their functions into three categories: screening, prediction, and elucidation, as shown in the “Function” column of Table 1. “Screening” refers to selecting the most active catalysts from a limited set of candidates using descriptors; “prediction” involves designing ideal catalysts rationally; and “elucidation” means explaining the origin of catalyst activity through reactive descriptors.
![]() | ||

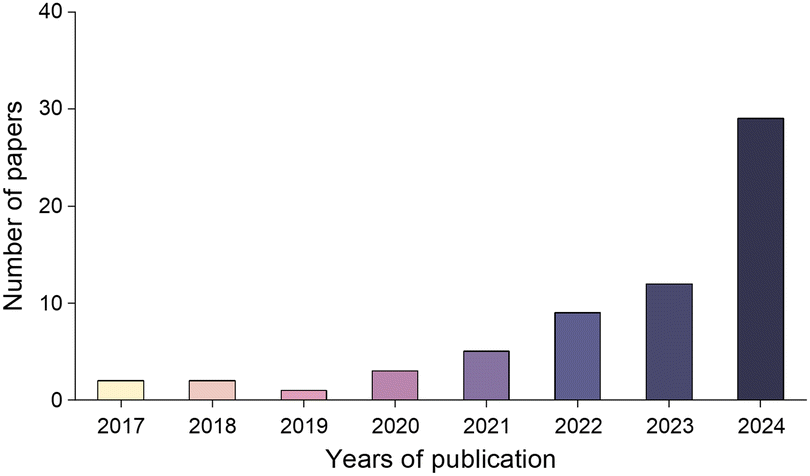

Fig. 2 Schematic representation of the number of publications in the field of descriptors for Li–S batteries. |

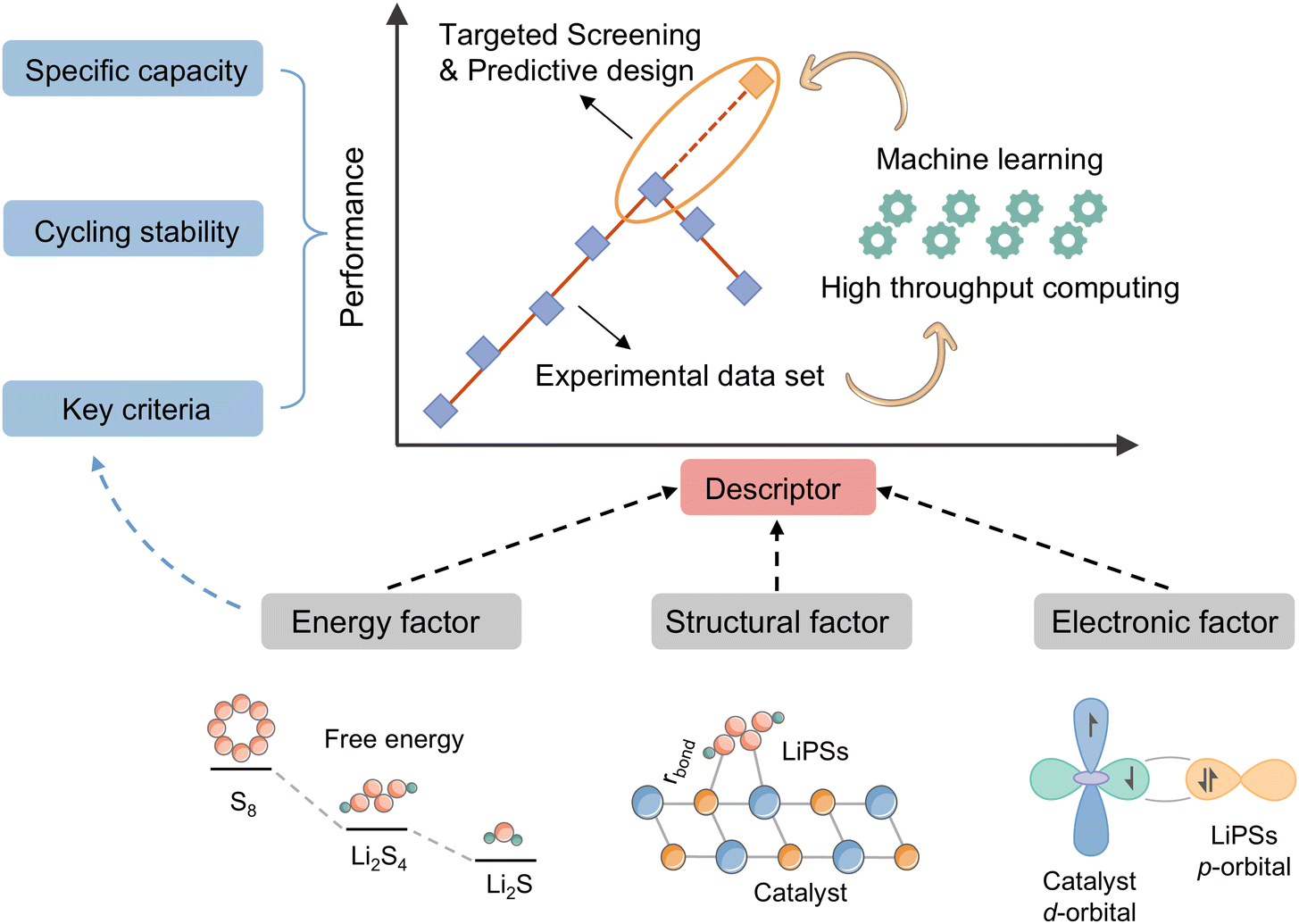

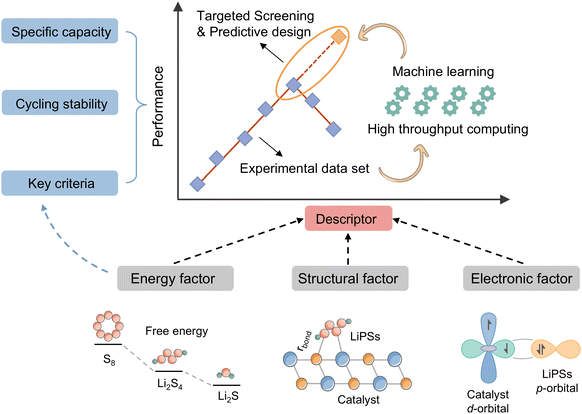

The choice of descriptors is contingent on the type of catalyst in question. For instance, the renowned d-band center can be effectively applied to metal compounds, but its use is not recommended for non-metal catalysts. Similarly, while adsorption energy (Ead) can directly describe the catalytic activity of a catalyst, its acquisition is not straightforward. Furthermore, the intricate catalytic process of a Li–S battery, which involves 16 electrons, presents a significant challenge in accurately assessing the catalytic activity using a single descriptor based on a specific intermediate. In light of the preceding discourse, the reactivity descriptor efficacy of Li–S batteries is hereby summarized and demonstrated in Fig. 3.

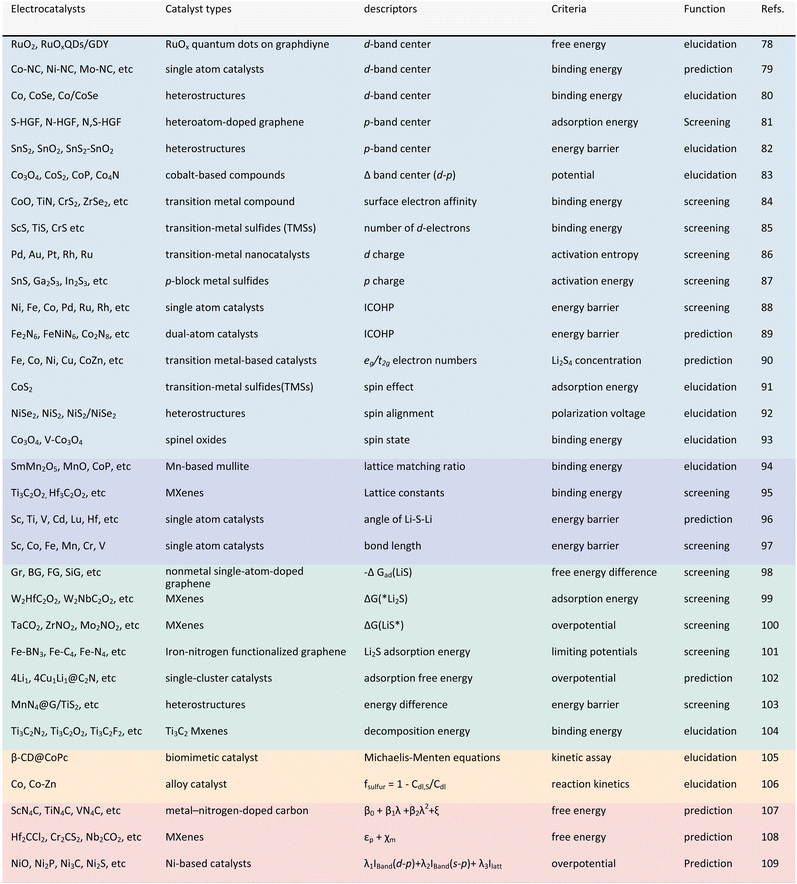

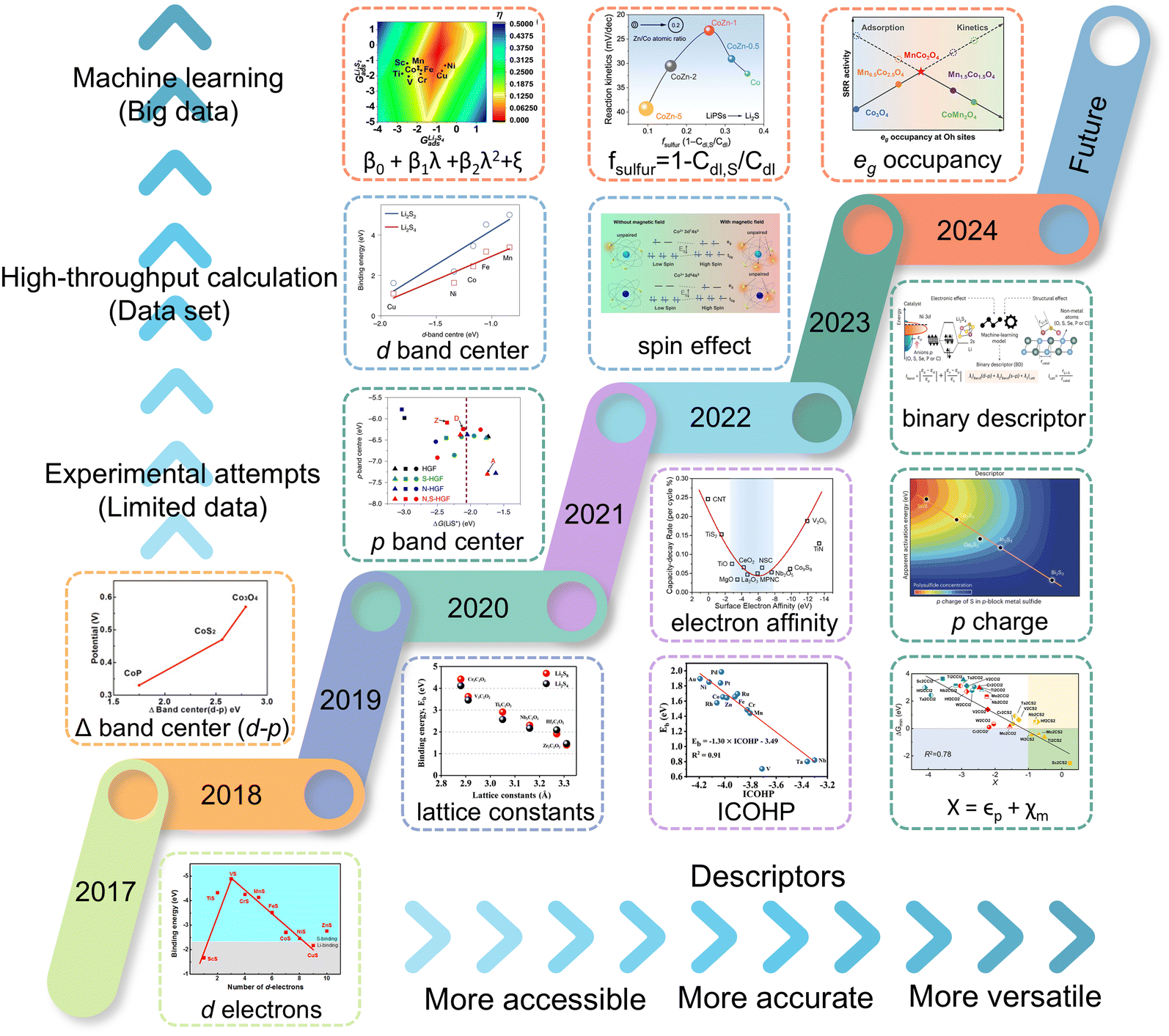

In this review, we comb through the reactivity descriptors and scaling relationships for sulfur-catalyzed conversion that have been studied in recent years (Fig. 4), aiming to provide the following insights: firstly, we comprehensively summarize the reactivity descriptors mapped in the high-dimensional feature space of the SRR reaction and form reasonable categories, systematically elucidate the origin of the catalytic activity in the adsorption and conversion process of LiPSs from the descriptor viewpoint, and meanwhile, study the proportionality between different reactivity descriptors and catalytic activity on this basis. Next, advanced generic descriptor development paradigms such as binary descriptors are then explored, and we also emphasize the importance of generic descriptors for establishing a unified activity standard for Li–S chemical catalysts. In addition, we summarize in detail the great advantages of the win–win fusion of descriptor engineering and machine learning, and propose a new research paradigm guide for the development of efficient lithium–sulfur catalysts in the age of artificial intelligence. Finally, we look at potential future directions for LSB descriptor research, emphasizing the attractive prospects of combining reactivity descriptors with artificial intelligence techniques for catalyst activity prediction and efficient development. Notably, this review will provide a guide for researchers involved in a wide range of metal–sulfur battery research, novel catalyst development, and machine learning applications in materials, as well as provide tremendous opportunities for disciplinary crossover and the establishment of new research paradigms for catalyst development.
![]() | ||

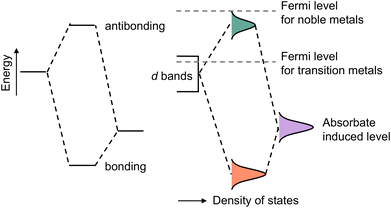

Fig. 5 Schematic illustration of the interaction between two electronic states. Adapted with permission. Copyright 1995, Springer Nature.110 |
In the case of transition metal (TM) catalysts, the d-band center is an ideal descriptor, but the intrinsic relationship between “d-band center – adsorption strength – catalytic activity” is not straightforward. Liu et al. elucidated the bonding mechanism between metal atoms in different d states and polysulfides using porous carbon nanofiber catalysts embedded with different transition metals (M-PCNF-3, M = Fe, Co, Ni, Cu) in Fig. 6a.111 The higher the energy of the d-band center with respect to the lower Fermi energy level (Ef), the less populated the antibonding orbitals formed by the 3d orbitals with the lowest unoccupied orbitals of the polysulfides, and the greater the metal active center adsorption of the polysulfides. The adsorption energies of Li2S2, Li2S4 and Li2S6, as obtained from DFT calculations, demonstrate a strictly proportional scaling relationship between the adsorption strength and the energy of the d-band center (Fig. 6b). Therefore, the d-band center provides an accurate description of the strength of adsorption.
![]() | ||

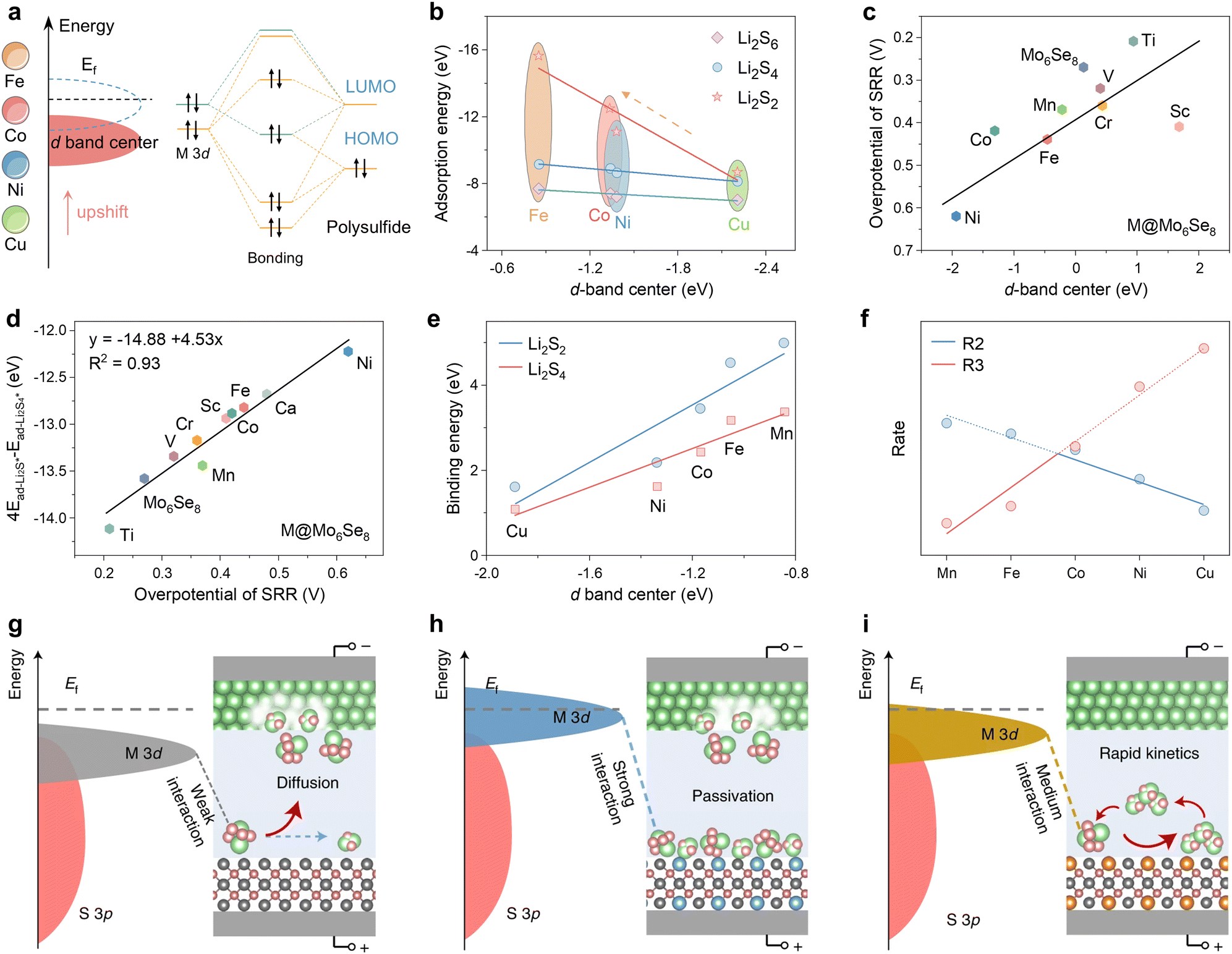

Fig. 6 (a) Schematic diagram of orbital interactions between polysulfides and various catalysts. (b) The correlation analysis between the d-band center and adsorption energy. Adapted with permission. Copyright 2024, Wiley-VCH.111 (c) Linear relationship between the overpotential of the SRR and 4Ead-Li2S*–Ead-Li2S4*. (d) Relationship between the overpotential of SRR and the d-band center of M@Mo6Se8 and Mo6Se8 systems. Adapted with permission. Copyright 2024, The Royal Society of Chemistry.112 (e) Relationship of binding energy to d-band center. (f) Volcano plots of rates with respect to different dopants (the blue and red lines represent reactions (2) or (3) as the rate-determining steps, respectively). (g)–(i) Schematic illustration of weak (g), strong (h) and medium (i) interactions of polysulfides with catalysts. Reproduced (adapted) with permission. Copyright 2022, Springer Nature.113 |
The Chevrel phase Mo6Se8 doped with different TM atoms can also employ the d-band center descriptor, a strategy that was identified as an effective means of reducing the overpotential of the sulfur reduction reaction by Duan et al.112 In this study, a linear scaling relationship was identified between the overpotential and the d-band center energy (Fig. 6c). Consequently, a linear relationship exists between the overpotential and 4Ead-Li2S*–Ead-Li2S4* with an R2 value of 0.93 (Fig. 6d). This energy can be employed as a criterion for catalytic activity, demonstrating that the d-band center can effectively describe complex reactions in catalysts doped with TM elements. The binding energies of polysulfide intermediates in different TM-doped zinc sulfide (M0.125Zn0.875S) catalysts, illustrated in Fig. 6e, depend proportionally on the d-band center of the active site as shown in Fig. 6b.113 The linear scaling observed for intermediate states typically gives rise to the Brønsted–Evans–Polanyi (BEP) relationship (Ea = αΔE + β), which allows for the correlation of activation energy (Ea) with reaction enthalpy (ΔE) with two scaling factors (α, β).114–116 The authors have devised an ingenious method for streamlining the pivotal liquid–solid conversion phase of Li2S4 to Li2S2:
Li2S4 + * → Li2S4* |
Li2S4* + 2Li+ + 2e− + * → 2Li2S2* |
2Li2S2* → 2Li2S2 + 2* |
This approach entails integrating the BEP relationship to establish a correlation between the rate constants R2 and R3 of the (2), (3) reaction and the reaction enthalpy and obtain a volcano plot of the reaction rate, as illustrated in Fig. 6f, which reveals that the reaction rate exhibits an initial increase before declining as the d-band center upshift from Cu to Mn. Yet the reaction rate attains its maximum reactivity at Co0.125Z0.875S. This phenomenon indicates that the d-band centers result in elevated transition state adsorption energies; however, the enhanced adsorption energies do not necessarily correlate with increased catalytic activity. The Sabatier principle, as it pertains to multiphase catalysis, posits that the interactions between the intermediate and the catalyst should be balanced, eschewing either overly strong or overly weak interactions.117,118 Furthermore, it asserts that only moderate adsorption is necessary to achieve maximum catalytic activity. Similarly, Shen et al. reached the conclusion that strong adsorption of Li2S2 reduces the exposure rate of the catalyst's free active sites, thereby causing the catalyst to become passivated (Fig. 6g–i).113 As a result, a volcano curve is formed.
The d-band center descriptor has been a highly successful model in the context of metal-based catalysts. Nevertheless, in the case of metal compounds, the overall electronic structure is not only shaped by the metal d-orbitals; the non-metal p-orbitals also exert a significant influence. Given this, p-charge related properties such as the p-band center theory and the d–p energy level difference (ΔEd–p) have been put forth as supplementary descriptors.
The p-band center is comparable to the d-band center in terms of both definition and expression, but the p-band has been considerably less investigated. While it is widely acknowledged that d-orbital partially filled metal centers are active sites for charge transfer and non-homogeneous catalysis, the considerable disparity in the activity of transition metal-based catalysts with different anions also necessitates theoretical elucidation. In light of the success of the d-band model and chemical bonding theory as a descriptor of transition metal surface activity, Hua et al. put forth the proposition that the p-charge of S in p-block metal sulfides (p-MSs) could serve as a reactivity descriptor for the catalytic conversion of LPSs.87 They proceeded to establish a linear scaling relationship between the p-electron gain and the activation entropy of adsorption (ΔS0*) and the apparent activation energy (Ea).119 It is demonstrated that Bi2S3 attains the greatest p-charge gain, which consequently results in the formation of the greatest number of thiosulfate intermediates, ultimately leading to a reduction in Ea and an enhancement in electrocatalytic activity for the SRR (Fig. 7a and b). Peng et al. investigated the optimal adsorption strength and catalytic activity of intermediates in heteroatom-doped holey graphene framework (HGF) systems, employing the p-band center as a descriptor (Fig. 7c and d).81 As illustrated in Fig. 7c, there is a definitive correlation between the overpotential and the adsorption energy (ΔG(LiS*)) of the critical precursor LiS* under the catalysis of various heteroatom-doped holey graphene framework (HGF), including N-HGF, S-HGF, and N, S-HGF. Furthermore, in Fig. 7d, the p-band centers of different HGF catalysts were used as electronic descriptors to investigate the relationship with ΔG(LiS*). It was found that N and S element doping can regulate the position of carbon atoms' p orbitals to an intermediate energy level, thereby manipulating the adsorption strength to a moderate level and enhancing catalytic activity. DFT calculations have demonstrated that a non-metallic catalyst plays a pivotal role in the process, with the key function being the bonding between the p orbitals of catalytic center and polysulfides.
![]() | ||

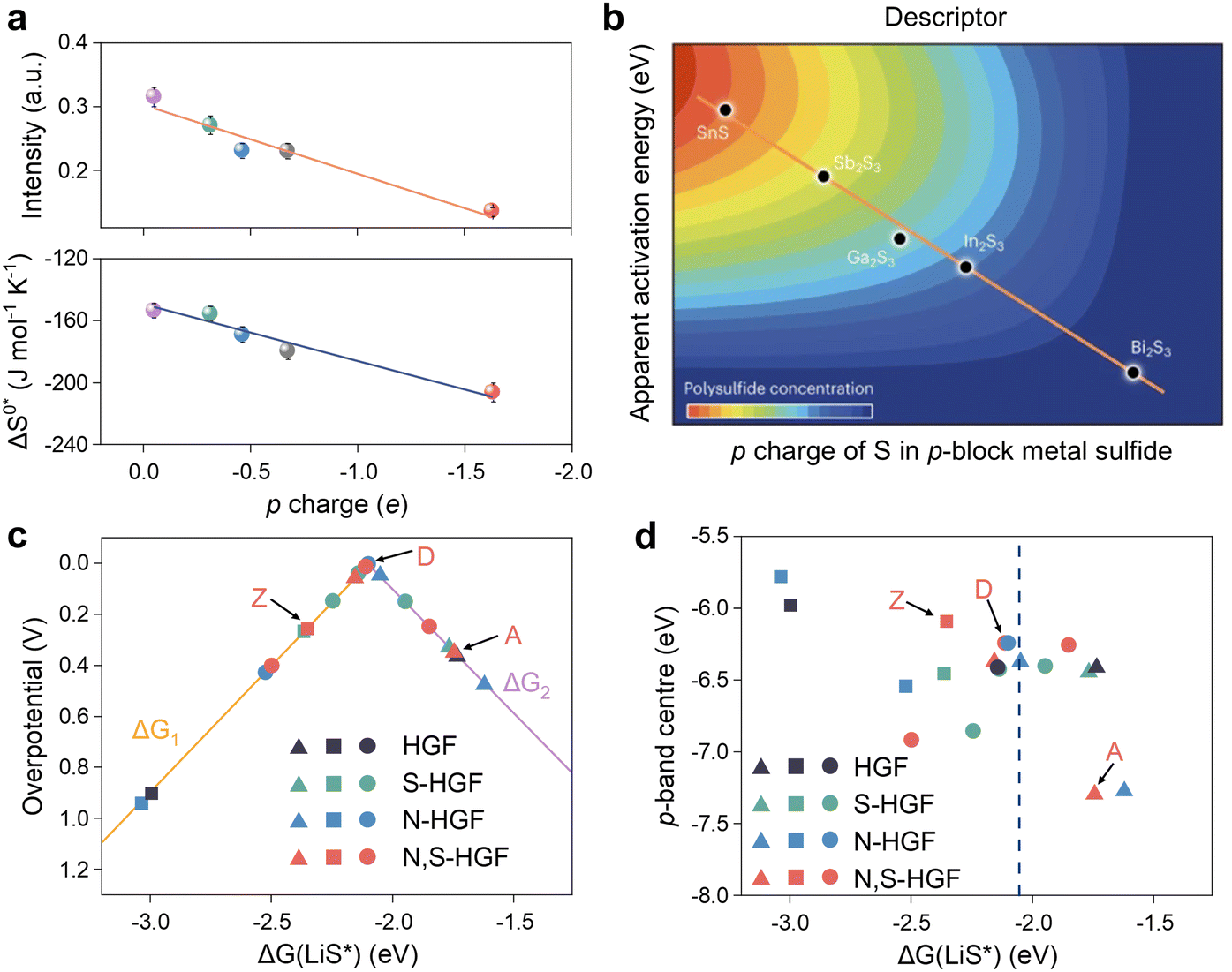

Fig. 7 (a) Relationship between the p charge of S in p-MS and ΔS0* and Ea for Li2Sn to Li2S conversion in the SRR. Error bars indicate the standard deviation of measurements from three independent coin cells. (b) The correlation analysis between the d-band center and adsorption energy. Reproduced (adapted) with permission. Copyright 2023, Springer Nature.87 (c) A volcano plot linking the overpotential for the final step to the adsorption energies of the LiS radical intermediate on different active sites. (d) The relationship between the p-band center and LiS* adsorption energy at different active carbons. The blue dashed line represents the adsorption energy associated with the top of the volcano in (c). Adapted with permission. Copyright 2020, Springer Nature.81 |
In addition to considering the p- and d-band properties as discrete entities, the energy difference between the two has also been investigated as a potential descriptor. Zhou et al. were the first to elucidate the nature of the modulation of the p-band contributions of different non-metallic elements in the study of the catalytic conversion of LiPSs by cobalt-based compounds, i.e., the higher the p-band center is with respect to the Fermi energy level, the smaller the energy gap between Co-3d and the anion-2p, which implies greater orbital hybridization and valence-band electronic contributions, thus driving the exchange of electrons for the liquid–solid conversion of LiPSs.83 Therefore, the scaling relationship in Fig. 8a depicts that the CoP with the lowest ΔEd–p has the lowest sulfur reduction potential. In a recent study, Dong et al. developed a concept of periodic expansion catalysis based on the analysis of a range of molecular catalysts with RuP2 configurations (RuP2, RuN2, FeP2, FeP2).120 Their findings ascertained the crucial role of ΔEd–p in this concept. In contrast, the smallest ΔEd–p (3.21 eV) of RuP2 suggests that the d-electrons of Ru are more likely to be delocalized and diffuse outward from a single Ru atom into a P–Ru–P polyatomic system as illustrated in Fig. 8b. Typically, the delocalized electrons are more reactive and more readily transferred to LiPSs, which ultimately improves the kinetics of the SRR process.121 In order to investigate 2D MXene materials with complex structures and compositions, Fang et al. employed an HTC method to screen extensive MXene databases.108 They then attempted to utilize the p-band center (Fig. 8c) and d–p energy band difference (Fig. 8d) descriptors in the exploration process. The linear fitting results demonstrate that the Gibbs free energy change (ΔG) between the initial and final states of the SRR process is proportional to the p-band center and inversely proportional to ΔEd–p, for the same reason previously described. Notably, the scaling relationship with ΔEd–p as the descriptor exhibits an R2 value of 0.66, which is higher than that of 0.59 for the p-band center, thereby rendering ΔEd–p a more reliable descriptor.
![]() | ||

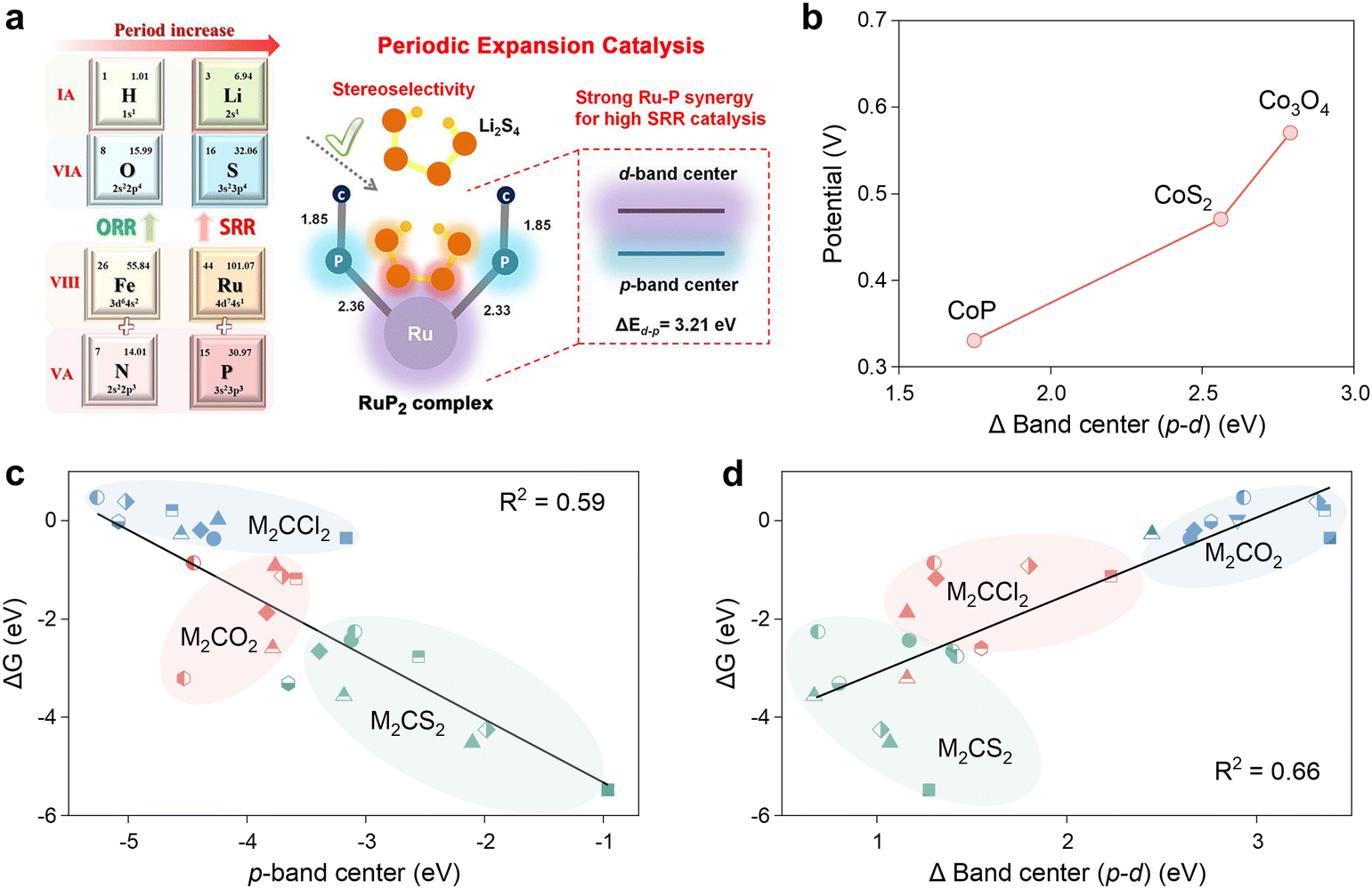

Fig. 8 (a) Schematic diagram of the effect of the p–d band gap (ΔEd–p) on the adsorption strength of lithium polysulfide. Reproduced with permission. Copyright 2022, American Chemical Society.120 (b) Scaling relationship between the the d band (d–p) center and Li–S redox potentials for CoP, CoS2, and Co3O4, respectively. Adapted with permission. Copyright 2018, Elseiver.83 (c) and (d) Relationships between ΔG and (c) the p-band center and (d) Δ(p–d) of different MXenes. Adapted with permission. Copyright 2023, American Chemical Society.108 |
It is regrettable that, despite the efficacy of these two single descriptors in studies with a limited number of samples, they fail to establish a satisfactory scaling relationship for the effective screening and prediction of MXene catalysts in a comprehensive library. Overall, the d-band center theory has been widely employed to elucidate the interactions between active sites and adsorbates in electrocatalysis, with considerable success in metal-based catalysts, including metal monomers and alloys, metal compounds, MXenes, and so forth. Moreover, p-band center and d–p energy level differences have been employed to elucidate the impact of non-metallic elements on the valence band electrons of the active center. Nevertheless, the prevailing approach in SRR currently entails the exclusive consideration of the position of the d-band center, with a paucity of investigation into the width and shape of the d-band, as well as the prospective applications of the position of the highest Hilbert peak, which indicates the potential for further development of the d-band center descriptor.122,123
![]() | ||

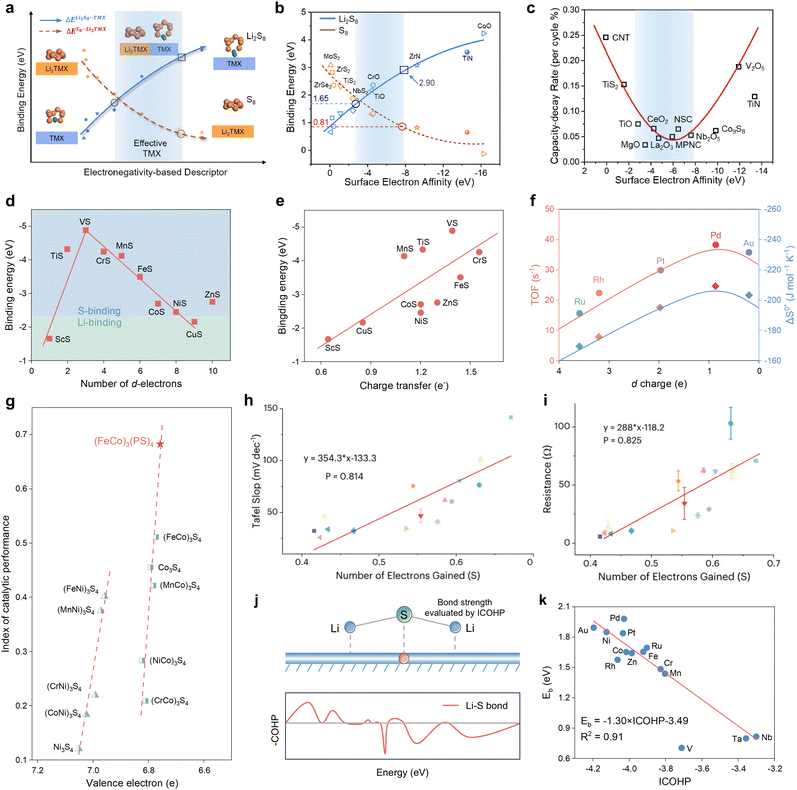

Fig. 9 (a) A schematic illustration of the correlation between adsorption strength with electronegativity descriptor between S8 (Li2S8) and the anchoring material TMX. (b) Correlation curve of the binding energy of Li2S8 and S8 on different anchoring materials with surface electron affinity, fitted by the polynomial method. (c) The relationship between capacity-decay rate (per cycle) and surface electron affinity obtained from previous reports and this work. Reproduced with permission. Copyright 2021, Elsevier.84 (d) Periodic law of binding energy. (e) Linear relationship of binding energy vs. charge transfer. Adapted with permission. Copyright 2017, American Chemical Society.85 (f) The relationship between the value of the d orbital vacancy and the turn-over frequency and the entropy of activation for the reduction of polysulfides to insoluble lithium sulfide.86 (g) Catalytic performance index plotted against the valence electron descriptor. Adapted with permission. Copyright 2025, Wiley-VCH.124 (h) Experimental relationship between the Tafel slopes determined from symmetric cells with M-MoS2 electrodes and the number of electrons gained by lattice sulfur. (i) Experimental relationship between the charge transfer resistance determined from symmetric cells with M-MoS2 electrodes and the number of electrons gained by lattice sulfur. Adapted with permission. Copyright 2025, American Chemical Society.125 (j) Schematic diagram for the mechanism of Li2S decomposition and COHP for VN4@G. (k) Scatter plots of Eb versus ICOHP of the Li–S interaction. The red line represents the corresponding linear relationships. Adapted with permission. Copyright 2021, Wiley-VCH.88 |
Surface electron affinity is an electronegativity-based descriptor, which is essentially an extension of the concept of atomic electronegativity and characterizes the electron attraction tendency of a specific atom.126 As illustrated in Fig. 9b, DFT calculations and experimental tests confirm that for transition metal compounds (TMX) with surface electron affinity potentials between −2.66 and −7.96 eV, there is an optimal binding energy between the catalyst and adsorbate. This not only prevents the dissolution of LiPSs, but also exhibits good electronic conductivity, a phenomenon that can be attributed to Sabatier theorem. The above prediction is corroborated by the volcano relationship between cycling performance and ΔVSEA for a series of TMXs in Fig. 9c, which demonstrates that surface electron affinity is a reliable descriptor that can be applied to establish quantitative criteria for the screening of catalysts and the optimization of performance.
The current studies posit that the anchoring of adsorbates on the catalyst surface is contingent upon the formation of chemical bonds, specifically in LSBs, the formation of chemical bonds between the catalyst and Li or S of LiPSs. In the case of TMXs, the number of d-electrons which exhibit high activity, affects the formation of bonds and determines the bonding object. In contrast to the Li bonding induced by dipole–dipole interactions, the transition metal bonding with S is of greater strength, due to the fact that it is the charge transfer that induces the formation of the bond.127,128 The determinants of the two anchoring effects were initially identified as being somewhat ambiguous by Chen et al. and subsequently subjected to a comprehensive investigation within the transition metal sulfide population.85 The Mulliken charge analysis results indicate that ScS and CuS exhibit Li-binding-dominated anchoring effects, whereas the remaining objects are in S-binding configurations. This is evidenced by a clear volcano shape of the binding energies versus the number of d electrons of the respective transition metal sulfides, as illustrated in Fig. 9d. The transitions occurring at VS are attributed to the equilibrium between the number of valence electrons and the number of d orbitals in the unoccupied orbitals. Moreover, the linear proportionality between the number of electrons transferred to the d orbitals of the catalytic material by lithium polysulfide and the binding energy presented in Fig. 9e, offers a potential means of predicting the adsorption energy by charge transfer, which in combination with the Sabatier principle then describes catalytic activity. Interestingly, Sun et al. subsequently proposed the use of vacancies in the TM d-orbital electrons, termed d-charges, to describe both the activation entropy (S) of LiPS adsorption and the inversion frequency (TOF) of Li2S2/Li2S precipitation as a reflection of the kinetic parameter of the SRR in their study of TM nano-catalysts loaded on ordered mesoporous carbon.86 The results illustrated in Fig. 9f show that the d-orbital vacancies are volcanic for both discriminants in the studied local space, where Pd exhibits the highest S and TOF, implying the success of the d-orbital electron vacancy descriptor.
In the third period of transition metals, the d-orbital electrons are known to be highly correlated with valence electrons, thereby influencing bonding activity with other atoms. Accordingly, Shen et al. attempted to use the electronic model as a reactivity descriptor to guide the design of cationic and anionic co-doped spinel sulfide catalysts, and established an accurate scaling relationship between the number of valence electrons and catalytic activity, which successfully predicted the design of (FeCo)3(PS)4 catalysts with the highest number of valence electrons (Fig. 9g).124
Moreover, this study demonstrates the unique role of the lattice sulfur sites in the catalyst in promoting the conversion process of lithium polysulfide. Zhang et al. investigated the interactions between metal sites and adjacent lattice sulfur atoms in a metal–MoS2 (M–MoS2) catalyst system and analyzed the scaling relationship between lattice sulfur electron density and sulfur species reduction activity using the number of electrons gained by lattice S as descriptors.125 As demonstrated in Fig. 9h and i, the quantity of lattice sulfur-acquired electrons exhibits a direct linear correlation with the Tafel slope of the symmetric cell CV curve, as well as the charge-transfer impedance. This provides a theoretical framework for the design and development of heteroatom-doped MoS2 catalysts.

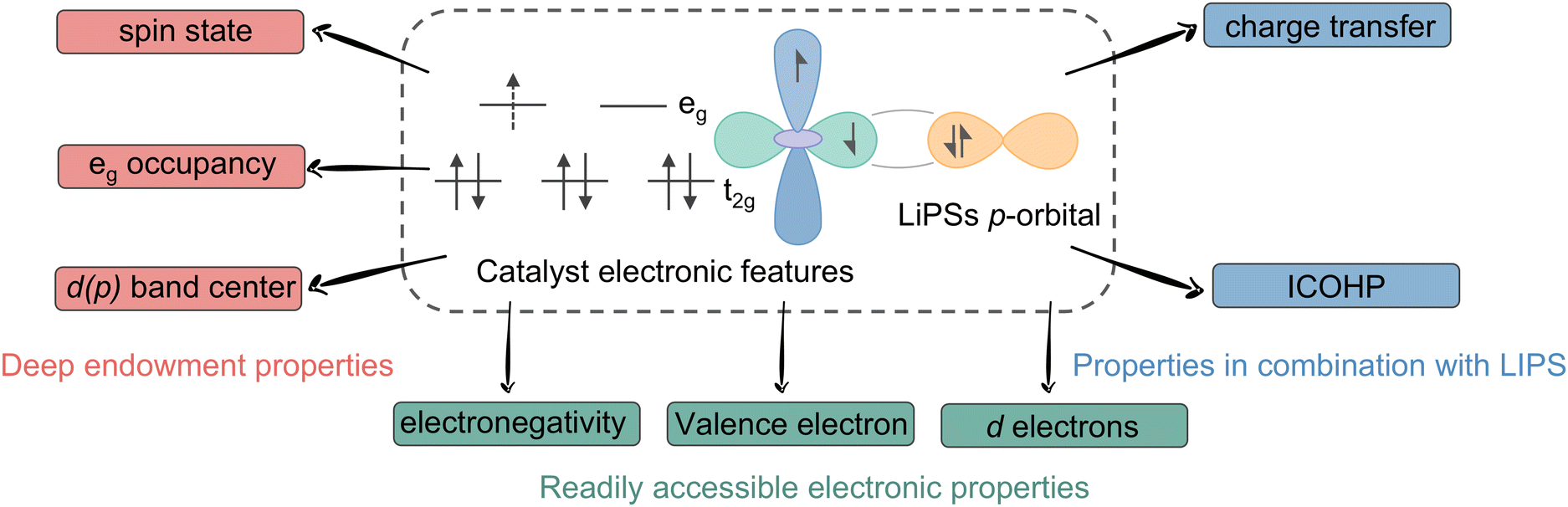

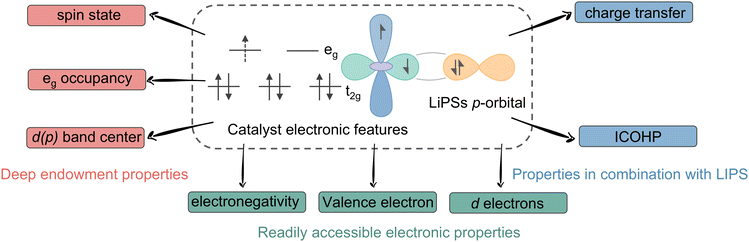

In addition to the readily accessible properties associated with the number of electrons, there is a crystal orbital Hamiltonian layout based on the electronic density of states and a corresponding energy integral value, which quantifies the strength of the catalyst's bonding to lithium polysulfide and thus shows potential as a reactivity descriptor. Specifically, Zeng et al. screened single metal atom catalysts embedded in graphene coordinated by four nitrogen atoms (MN4@G) for evaluation by quantifying the strength of Li–S binding bonds using ICOHP values. As illustrated in Fig. 9j and k, a strong linear correlation is evident between ICOHP and the Li2S decomposition energy barrier (Eb). A decrease in ICOHP value is indicative of an increase in the strength of the Li–S interaction, and vice versa. The robust scaling relationship provides a robust foundation for the prediction and screening of reaction descriptors.
In crystal field theory, the five orbitals of 3d typically split into t2g (dxy, dyz, dxz) and eg (dxy, dxy), which possess disparate energy levels in the octahedral field. Both are intimately associated with the formation of bonding and antibonding orbitals in the catalytic process. The concept of eg occupancy descriptors was initially proposed in 2011 by Suntivich et al. in the context of OER catalysis of perovskite oxides.131 Similarly, Bai et al. applied perovskite oxides to the catalytic conversion of LiPSs, demonstrating that the eg occupancy approach remained effective, as illustrated in Fig. 10a and b.129 In the case of Li2S, for example, during its adsorption on the surface of the perovskite oxide, the p orbitals of S and the d orbitals of the central metal atoms form σ and π hybridization orbitals, depending on whether or not the orientations are matched. Once the p–d hybridization is complete, the bonding orbitals σ and π, as well as the antibonding orbitals σ* and π*, are formed. According to the Hund's rule and the energy minimization principle, the electrons in the Li2S adsorption configuration initially occupy the bonding orbitals to reduce the energy of the system, then the non-bonding orbitals and finally the antibonding orbitals. Consequently, the occupancy of the σ* antibonding orbitals (eg) plays a pivotal role in determining the adsorption strength of polysulfide intermediates. Magnetic measurements indicate that the d-electron configurations of LaCrO3, LaFeO3, and LaCoO3 are t32ge0g, t32ge2g, and t32ge1.08g, respectively. Furthermore, distinct eg fillings result in disparate d-band center and d–p band gap. Notably, LaCoO3 demonstrates optimal adsorption strength and the most rapid lithium polysulfide conversion due to its moderate eg occupancy. Similarly, the intrinsic SRR activity exhibits a volcano-shaped distribution relative to the average eg occupancy of the octahedral (Oh) site in the different spinel-phase oxides shown in Fig. 10c.130 As with the perovskite oxides, this can be also attributed to the antibonding orbital occupancy. Specifically, low eg occupancy provides undue intermediate adsorption strength and induces active site passivation, which in turn leads to catalyst poisoning. Increasing the eg occupancy is beneficial in mitigating the poisoning effect, but an excessively high eg occupancy will result in the LiPSs drifting away, consequently triggering severe shuttle effects. Therefore, the apex of the volcano trend between SRR kinetics and eg occupancy of transition metals at the Oh site in Li–S batteries is situated at the midpoint of the range of 0.45, which is the consequence of a compromise between the adsorption and conversion of LiPSs. Due to the accurate description of the catalytic conversion of LiPSs by eg occupancy, it can also be further used to predict new catalyst types. In a recent study, Li et al. investigated the kinetic trends of Li–S batteries in conjunction with Le Chatelier's principle, established a proportionality between polysulfide concentration and antibonding orbital occupancy and identified the crucial role of eg in transition metal-based catalysts in determining polysulfide concentration as well as in the prediction of SRR kinetics.90 The researchers determined the eg/t2g ratios of the different metal monomers by DFT calculations and synchrotron-based near-edge X-ray adsorption fine structure (NEXAFS) of the metal L-edge, subsequently obtaining a correlation with the experimental Li2S4 concentration, as illustrated in Fig. 10d. Surprisingly, both curves exhibit a linear trend, which suggests that regulating the eg/t2g ratio may potentially regulate the concentration of LiPSs and the kinetics of SRR. Considering the balance of the Sabatier principle, the researchers devised CoZn binary clusters with an intermediate eg occupancy, with the eg/t2g ratio of Cu > Zn > Ni > Co > Fe as a guiding parameter (Fig. 10e). At last, the distinctive superiority of CoZn alloys was effectively validated. In general, the s-state of a metal is typically delocalized and exhibits consistency across different metals, whereas the d-state is localized and exhibits notable variations, which is why the d-electron correlation properties are effective descriptors for catalytic reactivity in the SRR.
![]() | ||

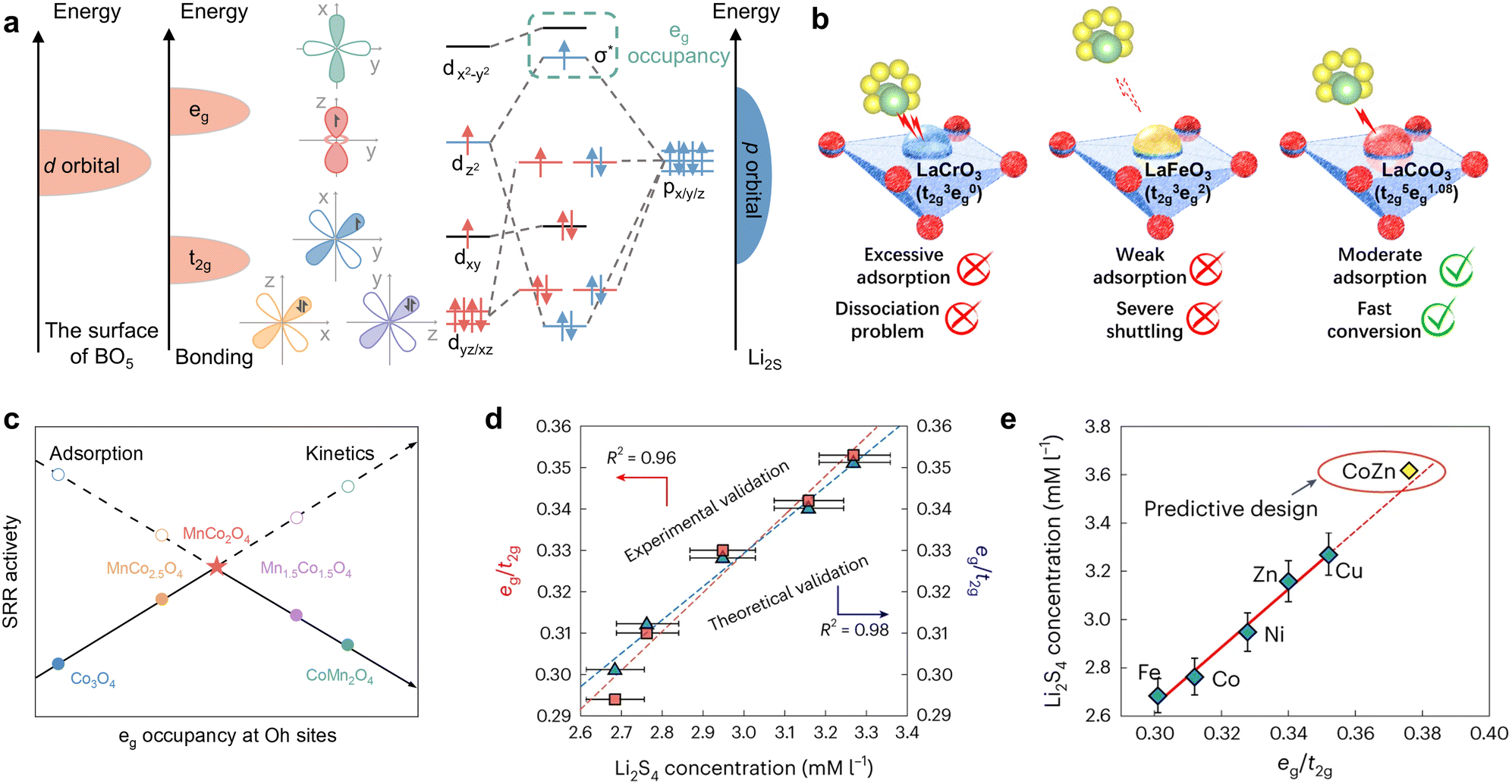

Fig. 10 (a) and (b) Schematic illustration of (a) d–p orbital hybridization of transition metal (dxy/xz/yz, dx2−y2, and dz2) and Li2S (px/y/z) during the adsorption process between perovskite oxide and polysulfides, and (b) polysulfide regulation with different eg occupation on the surface of perovskite oxides (LaCrO3, LaFeO3, and LaCoO3). Reproduced (adapted) with permission. Copyright 2024, Elsevier.129 (c) Correlation of SRR activity and average eg occupancy at Oh sites for MnxCo3−xO4. Adapted with permission. Copyright 2024, Wiley-VCH.130 (d) Theoretical and experimental confirmation of the SRR kinetic trend with DOS-based and NEXAFS-based eg/t2g ratios for the different catalysts. (e) Design for a CoZn binary cluster catalyst with a good balance of eg/t2g electron numbers. The solid red line is the linear fitting for Fe, Co, Ni, Cu and Zn catalysts, and CoZn catalyst can be predictably designed by extrapolating the solid line to obtain a higher eg/t2g number with higher polysulfide concentrations (as indicated by the dotted line). Reproduced with permission. Copyright 2024, Springer Nature.90 |
The theoretical basis for the use of spin states as SRR reactivity descriptors can be elucidated through an in-depth investigation of several key models. These include the MOT,135 a model underpinning chemical bonding theory, the LFT,136 an applied theoretical framework for transition metal compounds and complexes, and the CFT, an energy model for the spin states of transition metal elements. The spin pairing energy and the crystal field splitting energy, in conjunction, determine the spin state of the electron, which can be classified as low spin (LS), intermediate spin (IS) and high spin (HS). Given that systems typically exhibit low total energy, those with high crystal field splitting energy will predominantly tend to be LS characteristics, whereas systems with low crystal field splitting energy will predominantly manifest HS. Moreover, a larger magnetic moment is typically observed in HS metal atoms, while a smaller moment is characteristic of LS metal atoms.137–139 Although metal-based catalysts have intrinsic spin states, the application of external magnetic fields, crystal field, ligand field, stress field, and other stimuli can alter spin states through the spin injection effect and spin polarization.
The field of electrocatalysis has historically concentrated its research efforts on the aforementioned readily accessible characteristics, such as electronegativity, electron count, and energy band structure. However, there has been a paucity of attention directed towards spin-related properties. A number of recent studies have demonstrated that the presence of different spin states gives rise to alterations in the adsorption behavior and reaction rate between the catalyst and key intermediates, which in turn affects the catalytic activity, specifically the bonding and conversion rate of LiPSs in Li–S batteries. The underlying reason is that spin polarization has a significant impact on the bonding, hybridization ability and charge transport properties of catalytic materials. Optimizing the quantum spin exchange interactions of the catalytic system has the potential to increase the spin selection of the activation barriers, the spin correlation electron mobility and the spin potentials. This may result in a reduction of the electron repulsion in the catalyst orbitals and an improvement in the adsorption strength and kinetics of the conversion.
Zhang et al. significantly enhanced the adsorption capacity and SRR reaction kinetics of LiPSs in the presence of CoSx, a classical catalyst, by employing an external magnetic field generated by a permanent magnet.91 The calculations of spin density and density of states demonstrate that the augmentation of the magnetic moment of the ligand hole under the influence of an external magnetic field propels the Co electrons to leapfrog from LS to HS, consequently generating additional unpaired electrons in the Co 3d orbitals, as illustrated in Fig. 11a. The consequences of spin polarization are illustrated in Fig. 11a and b, which depicts the high-spin electronic sheet array, resulting in increased overlap between the Co 3d and S 2p orbitals and stronger ligand hole-associated d–p hybridization. This promotes charge transfer to the active site. Additionally, according to the principle of angular momentum conservation, the interaction between the catalyst and the adsorbate induces a slight electron repulsion effect, which enhances the conductivity and mitigates the reduction energy barrier of sulfur. It is not only the external magnetic field that has the capacity to alter the spin configuration of the metal center, the ligand field strategy is also capable of this effect. Du et al. implemented an F-ligand strategy to regulate the electron distribution and energy level arrangement of the Mg center by anchoring Mg phthalocyanine (MgPc) to a fluorinated carbon nanotube substrate (denoted as MgPc@FCNT), which significantly accelerated the conversion kinetics of LiPSs through manipulation of spin polarized electrons of MgPc (Fig. 11c).132 The researchers reported that MgPc@FCNT exhibits axially displaced single active Mg sites and optimized quantum spin-exchange interactions. Moreover, DFT theoretical calculations demonstrated that the spin polarization of the catalyst not only increases the adsorption energy of LiPS intermediates but also facilitates the electron tunneling process in LSBs. In a recent study, Li et al. used a combination of experimental and theoretical analyses to investigate the modulation of LiPS co-catalysis in spinel oxides.133 The findings suggest that the nature of this modulation is determined by the competition between the adsorption of intermediates at Co3+ tetrahedral (Td) and Mn3+ octahedral (Oh) sites on the MnOh3+–O–CoTd3+ backbone. As illustrated in Fig. 11d, the high spin active site CoTd3+ (t32ge3g) with stronger Co–S covalency, which is subject to super-exchange interactions of MnOh3+–O–CoTd3+, continuously immobilizes LiPSs. Meanwhile, spin-polarized electrons with spin upwards are observed near the Fermi energy level in Fig. 11e, which suggests that Mn Oh sites with Jahn–Teller activity can make 3d orbitals off-domain and exhibit semi-metallic properties. For Mn Oh and Co Td two-site catalysis of LiPSs, this acts as a polarization channel, facilitating electron transfer and elongating the dz2 orbitals, allowing for the emergence of suitable specific orbital catalytic activity. This work differs from previous studies on the intrinsic spin configuration that regulates the metal center of catalysis, as it investigates the structure–efficacy relationship between electronic structure changes triggered by different metal coordination structures and SRR kinetics and deciphers the spin code in the synergistic and efficient catalysis of high spin MnOh3+–O–CoTd3+ bimetallics, i.e., Mn facilitates the adsorption of LiPSs by Co through the bridging of O 2p electrons, thereby enhancing the adsorption of LiPSs by CoTd and promoting the conversion of LiPSs at the MnOh site (Fig. 11f).
![]() | ||

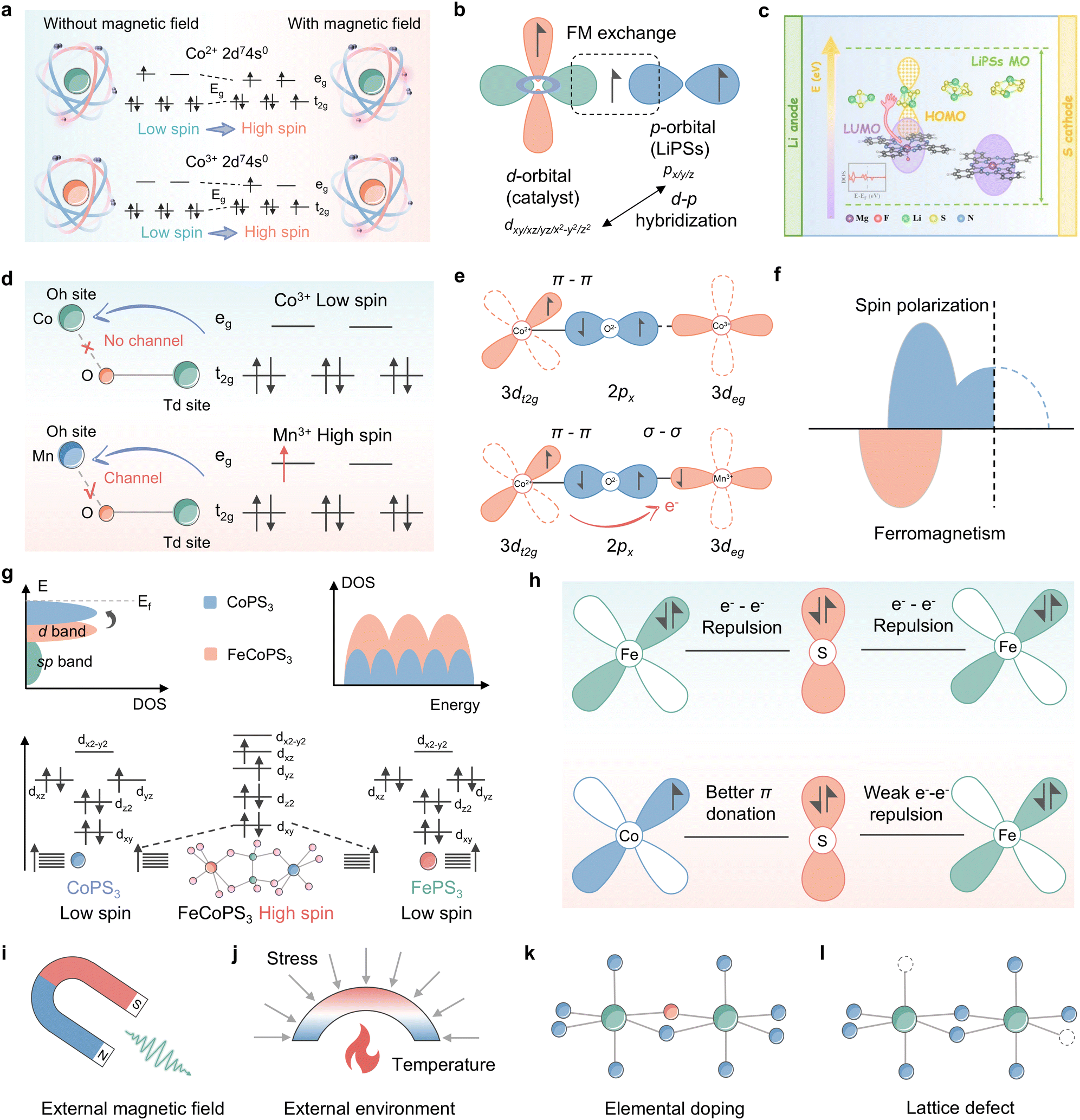

Fig. 11 (a) CNF/CoSx electrode under a magnetic field and no magnetic field for LiPS conversion: a scheme of the electron transition of Co from a low to a high spin state. (b) Schematic of spin-exchange mechanisms in LiPS conversion. Adapted with permission. Copyright 2022, Wiley-VCH.91 (c) Schematic illustration of the redox kinetics of lithium–sulfur batteries accelerated by quantum spin-exchange interactions. Reproduced with permission. Copyright 2024, Springer.132 (d) Illustration of the orbital splitting of CoOh3+, the corresponding CoOh–O–CoTd spin channel (top) and MnOh3+, corresponding MnOh–O–CoTd spin channel (bottom). (e) Schematic illustration of the spin polarization for MnOh-doped Co3O4. (f) CoOh3+–O–CoTd2+ (localized electronic structure) and MnOh3+–O–CoTd3+ (delocalized electronic structure). Adapted with permission. Copyright 2022, Wiley-VCH.133 (g) Electronic configurations of the 3d orbital for CoPS3, FePS3, and FeCoPS3. (h) Schematic representation of the electronic coupling between Fe and Co in FeCoPS3. Adapted with permission. Copyright 2023, American Chemical Society.134 (i)–(l) Schematic illustration of the spin state modulation mode: (i) external magnetic field; (j) external environment including stress, temperature and so on; (k) elemental doping and (l) lattice defect. |
Not coincidentally, bimetallic phosphorus trisulfide embedded in nitrogen-doped hollow carbon nanocubes derived from Prussian blue analogues (FeCoPS3/NCs) has been employed as a research object to elucidate the relationship between the catalytic activity and spin-state configuration of Li–S batteries.134 Fig. 11g illustrates how the orbital spin splitting in FeCoPS3 triggers a shift in the electronic structure from a low spin state to a high spin state, resulting in a greater number of unpaired electrons in the 3d orbitals compared to CoPS3 and FePS3. The presence of non-simplex orbitals elevates the d-band center and enhances the number of active electronic states. As with CoMn spinel oxide, the electron transfer process of FeCoPS3 is shown in Fig. 11h, where the enhancement of the π-donation effect between Co–S, resulting from the coupling of Fe2+ to Co2+, gives rise to a transfer of electrons from Fe to Co. The accelerated electron transport facilitated by the enhanced spin structure of FeCoPS3 is beneficial for SRR dynamics in comparison to the electron–electron repulsion with bridging S2−, which is induced by the fully occupied t2g orbitals in FePS3. A further consideration of the effect of spin configuration reveals that dxy and dyz become non-simplex energy levels in FeCoPS3 due to the presence of heterometallics. Moreover, the fillable energy levels near the Fermi energy level increase and the energy level spacing decreases, thereby creating a tendency for electrons to be filled with single electrons. This results in a shift from low spin to high spin. In the high-spin state, the number of free electrons increases, thereby facilitating interaction with LiPSs via orbital hybridization. This enhances the probability of orbital hybridization, improves the adsorption strength of LiPSs and provides potential reaction pathways. These studies provide insights into the scaling relationship between spin states and the adsorption and conversion of LiPSs in the active site, allowing spin states to be employed as reactivity descriptors to guide the design of ideal catalysts.
In conclusion, it can be stated that the spin state is an inherent property of the material system that determines electron transport capacity, significantly impacts the catalytic conversion process of LiPSs by the catalyst, and has the potential to be a leading candidate for the subsequent generation of accurate electronic descriptors. As illustrated in Fig. 11i–l, several well-established schemes for spin state modulation are provided, including external magnetic field, external environment for synthesis, elemental doping, and lattice defects.140–142 The selection of appropriate spin regulations for different systems, followed by the elucidation of the relationship between spin state and catalytic activity and the construction of a catalytic model will promote the development of spin descriptors for lithium–sulfur batteries.
![]() | ||

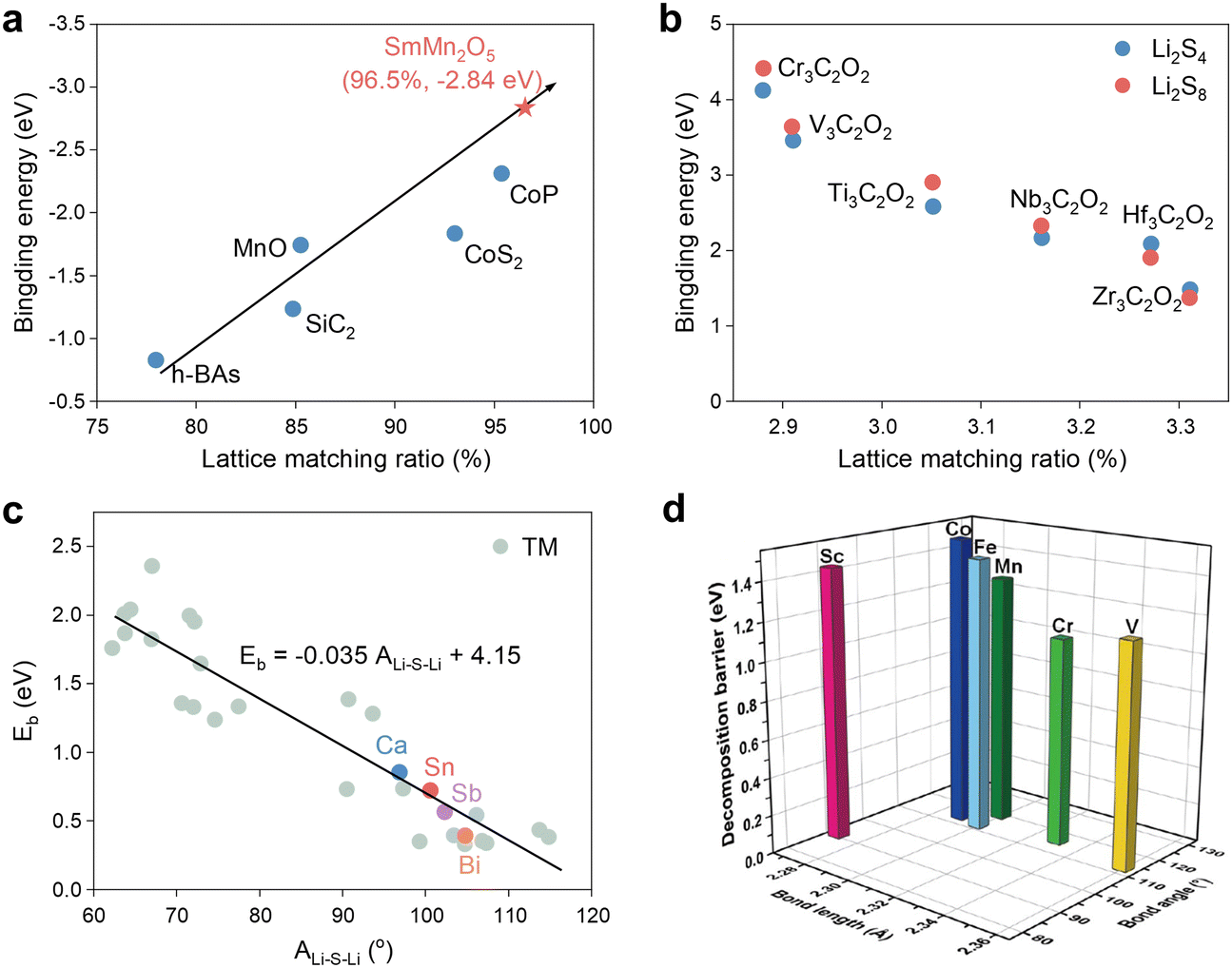

Fig. 13 (a) Relationship between the binding energies of Li2S6 on different SRR electrocatalysts and the corresponding lattice match percentage. Adapted with permission. Copyright 2022, Wiley-VCH.94 (b) The binding energies for Li2S8 and Li2S4 as a function of the lattice constants of M3C2O2 (M = Cr, V, Ti, Nb, Hf and Zr) MXenes. Adapted with permission. Copyright 2019, The Royal Society of Chemistry.95 (c) Comparison of Eb predicted by the Eb–ALi–S–Li linear relationship and calculated by the CI-NEB method (colored circles) for Ca@g-C3N4, Sn@g-C3N4, Sb@g-C3N4, and Bi@g-C3N4. Adapted with permission. Copyright 2024, Wiley-VCH.96 (d) Li–S bond lengths and Li–S-Li bond angles of the adsorbed Li2S and Li2S decomposition energy barriers on M–N3 (M = Sc, V, Cr, Mn, Fe, Co) centers. Reproduced with permission. Copyright 2023, Springer.97 |
Furthermore, following an investigation into a range of descriptors, including Bader charge transfer (ΔQM), ICOHPLi–N and distance between TM atoms above the substrate plane (dM_out), Wu et al. identified the Li–S–Li angle after Li2S adsorption (ALi–S–Li), as shown in Fig. 13c, as the most effective descriptor. Subsequently, ALi–S–Li was subsequently used to screen g-C3N4-loaded d- and p-block metal-center single atom catalysts with success. The specificity of ALi–S–Li was also acknowledged by Song et al., and the impact of Li–S bond length on the Li2S decomposition energy barrier was also examined in Fig. 13d.97 It is evident that longer Li–S and larger angles demonstrate, as in the preceding study, lower decomposition energy barriers and thus higher catalytic activity.
In regard to the aforementioned validated structure descriptors, it can be observed that they predominantly encompass the structural characteristics of the catalyst itself, in addition to those pertaining to the adsorption structure of LiPSs. Obviously, the former is more readily obtainable but has a more limited scope of applicability. In contrast, the latter is not directly accessible but provides a more precise characterization of the energy barriers governing the decomposition of Li2S. This is due to the fact that the core of SRR catalytic process is electron transfer within the active site, which poses a significant challenge to the comprehension of the reaction mechanism from a structural perspective. Hence, structural descriptors are rarely employed as reactivity descriptors in practical applications. Instead, they are usually integrated with electronic and energy descriptors to generate binary universal descriptors, which will be elaborated upon in the subsequent sections.
![]() | ||

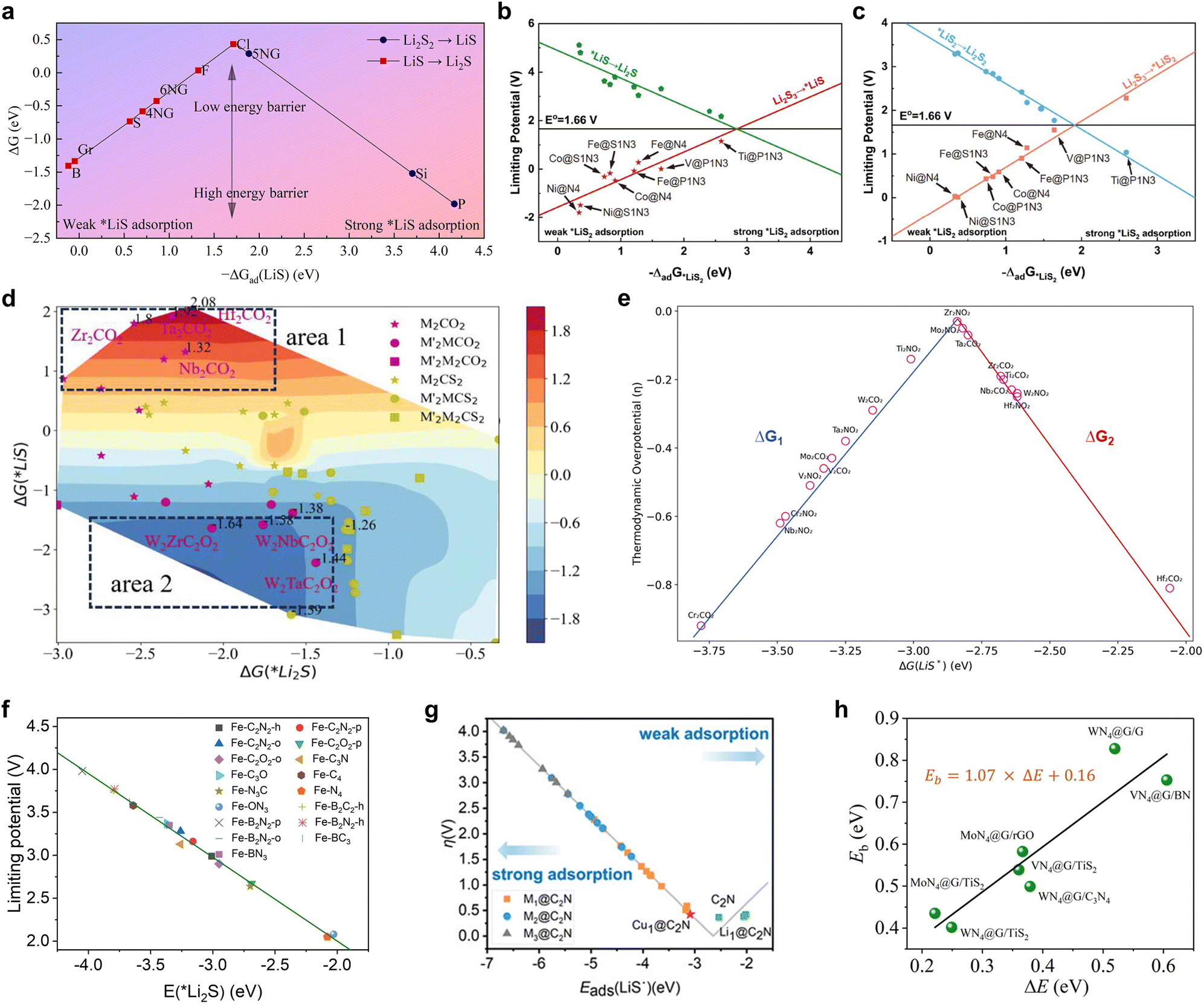

Fig. 14 (a) Catalytic performance volcano plot with respect to ΔGad(LiS). Reproduced with permission. Copyright 2024, American Chemical Society.98 (b) Limiting potentials for the *LiS associated reaction pathways in the Li2S3RR. (c) Limiting potentials for the *LiS2 associated reaction pathways in the Li2S3RR. Reproduced with permission. Copyright 2024, Springer.146 (d) Two-dimensional (quasi) activity volcano plot for the SRR process, shown with two independent descriptors: ΔG(*Li2S)and ΔG(*LiS). Reproduced with permission. Copyright 2024, American Chemical Society.99 (e) Volcano plot between the thermodynamic overpotential and the reaction Gibbs free energy. Reproduced with permission. Copyright 2024, American Chemical Society.100 (f) Linear relationship between Li2S adsorption energies and limiting potentials. Reproduced with permission. Copyright 2024, Wiley-VCH.101 (g) Volcano relationship between the overpotential in the SRR process and the adsorption energy of LiS˙ on various substrates (including C2N, Li1@C2N, Cu1@C2N, etc.). Reproduced with permission. Copyright 2024, American Chemical Society.102 (h) Calculated values of Eb using the CI-NEB method (green balls) for representative heterostructures as a function of ΔE. Reproduced with permission. Copyright 2024, The Royal Society of Chemistry.103 |
In addition to the Gibbs free energy, which is closely related to the reaction thermodynamics, the energy descriptors involved in the LiPS reduction process are the adsorption energies of the key intermediates. While the adsorption energy of LiPSs is typically combined with the BEP relationship as a key indicator of catalytic activity when using electronic descriptors, structural descriptors, and so forth, the adsorption energy itself is also a highly accurate descriptor of reactivity. For instance, Yuan et al. employed the adsorption energy of Li2S as a reactivity descriptor in their study of iron–nitrogen functional graphene catalysts with different coordination environments, which demonstrated a high correlation with the confinement potential in the SRR (Fig. 14f).101 Not only modifying the coordination environment, but altering the metal center represents an effective strategy for modulating catalytic activity. Chen et al. conducted a comprehensive investigation into the chemical mechanisms and catalytic dependence of single-, double- and even triple-atom catalysts loaded on C2N (Mn@C2N, where M is a transition metal atom and n = 1–3) as a model to investigate the pivotal stages of the SRR process.102 Fig. 14g illustrates the inverted volcano relationship between the adsorption energy of the intermediate LiS and the overpotential of the process, which unmistakably demonstrates the superiority of monoatomic catalysts. As a result, Cu1@C2N was selected due to the lowest overpotential of 0.426 V compared to other catalysts and this criterion provided guidance for the screening of SRR catalysts. Furthermore, Liang et al. defined the locally applicable energy descriptor ΔE = E(*Li + *LiS) − E(*Li2S), which was applied to several N4-coordinated monatomic catalysts.103 As shown in Fig. 14h, ΔE demonstrates a favorable linear scaling relationship with the Li2S decomposition energy barrier (Eb), thus offering a novel perspective on the emergence of new energy descriptors. Indeed, the activity of catalysts in multiphase catalysis is synergistically governed by a variety of electronic and structural factors, which are ultimately mapped onto the energy change of the process.
![]() | ||

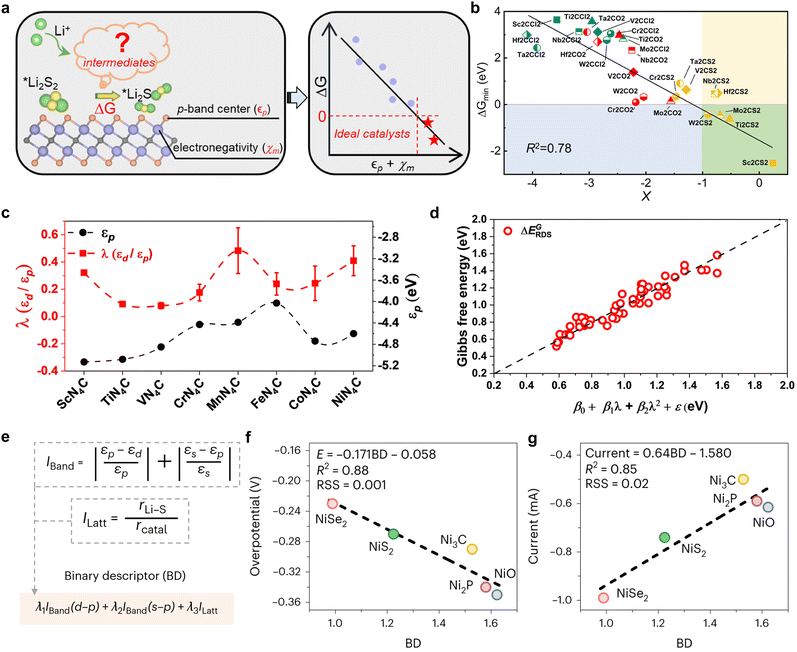

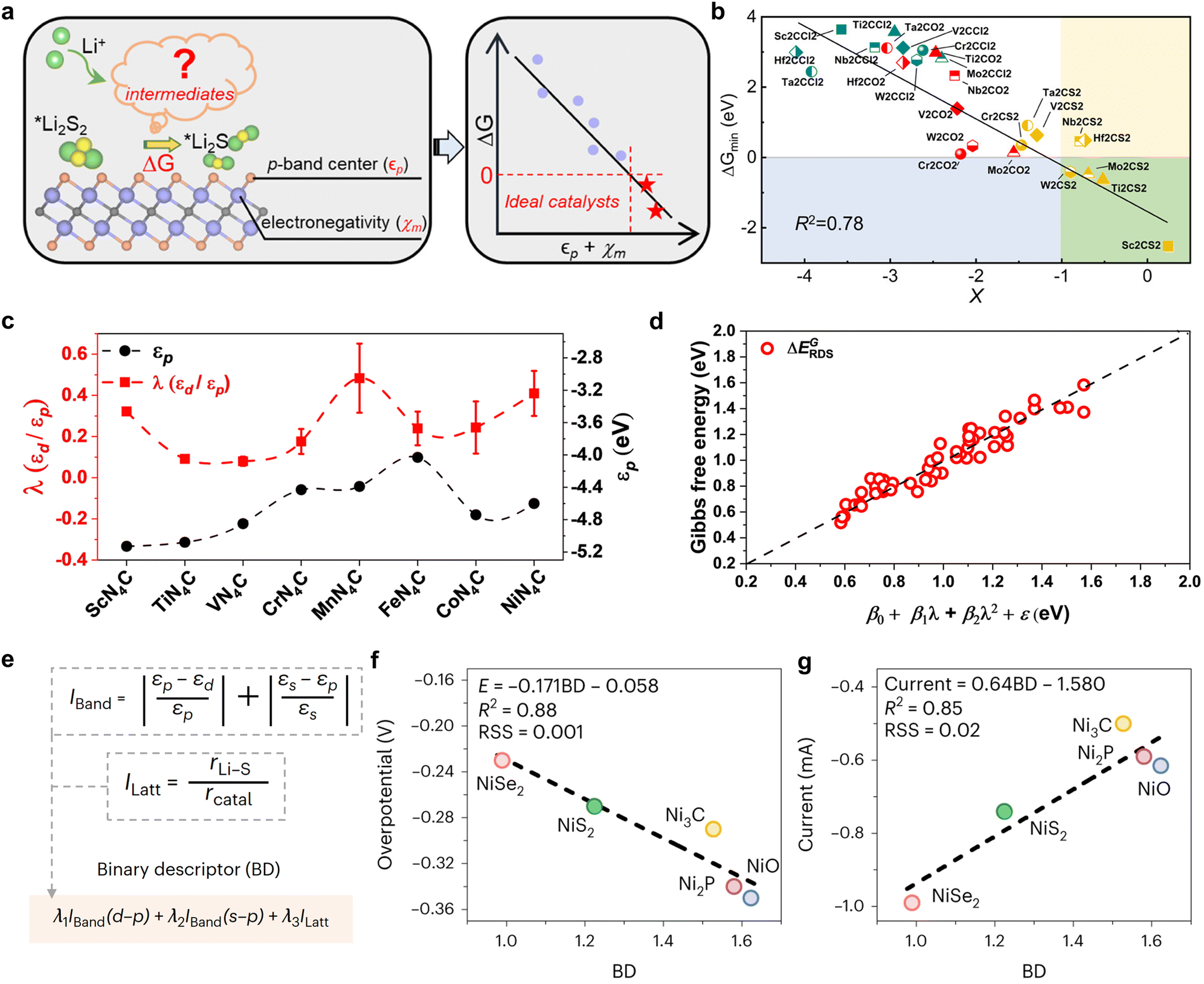

Fig. 15 (a) Relationship between descriptors based on p-band centers and electronegativity construction and the energy criteria for LiPS conversion. (b) Scaling relationship between ΔGmin and descriptor X. The MXenes in the green area are ideal electrocatalysts in the model. Reproduced with permission. Copyright 2023, American Chemical Society.108 (c) The calculated εp and the corresponding λ of the TMNCs system, which are approximately obtained from the DOS calculation. (d) The relationship curve fitting between descriptors obtained from the quadratic polynomial algorithm and Gibbs energy barriers l is a physical quantity associated with εd/εp, Δd, ΔEion, Mratio, and Rratio; β0, β1, β2 and ε are the coefficients corresponding to the quadratic polynomial fitting. Δd denotes the vertical nearest distance between metal and non-metal atoms; the electronic structural information of the metal is characterized by the metal's first ionization energy ΔEion; the mole mass ratio and atomic radius ratio between metal and non-metal atoms are represented by Mratio and Rratio, respectively. Reproduced with permission. Copyright 2024, The Royal Society of Chemistry.107 (e) Development of the BD simultaneously considering electronic and structural effects. Iband and Ilatt are dimensionless, and hence BD is also dimensionless. (f) and (g) Linear regression fitting between the overpotential (f) and peak current (g) and the BD. Reproduced with permission. Copyright 2023, Springer Nature.109 |
While the above binary descriptors based on electronic properties have demonstrated a high degree of accuracy in the study of MXene or single-atom catalyst materials, the incorporation of binary descriptors for structural properties is expected for catalyst species that are more structure-dependent, such as transition metal compounds. As illustrated in Fig. 15e, Han et al. captured the electronic and structural contributions of the Ni-based catalytic system and designed a binary descriptor for the catalytic transformation of polysulfides, comprising energy band matching (Iband) and lattice mismatch (Ilatt) indices, through the use of ML for the purpose of design assistance. The coefficients λ1, λ2 and λ3 of the linear combination in the binary descriptor expression indicate the relative weights of the electronic and structural effects, while the presence of the parameters ensures the accuracy and generality of the model. Following machine learning to solve the deterministic coefficients using genetic algorithms and Monte Carlo simulations on small samples of experimental values of overpotential iteratively, a potential solution is obtained as follows:
The optimal solution, as determined by the binary descriptor, yields R values of 0.88 and 0.85 in the linear scaling relationship with the overpotential and peak current, respectively. These values are significantly higher than the fitting accuracy of the electronic or structural parameters alone. Furthermore, the elevated coefficient of the structural feature identified by Ilatt underscores its significance for catalytic activity, as it correlates with the reaction energy barrier and diffusion resistance. Ultimately, an array of applicability tests on non-nickel-based catalysts substantiated the superior performance of binary descriptors in reorienting the design of catalysts for Li–S batteries.
In conclusion, the thoughtful consideration of factors affecting catalytic activity and the rigorous construction of binary descriptors render them more applicable than single-property descriptors. They are therefore competitive candidates for the design of universal descriptors for catalytic materials. In particular, binary descriptors are well suited to computer technology, and the two complement each other, thus accelerating the design of universal reactivity descriptors.
![]() | ||

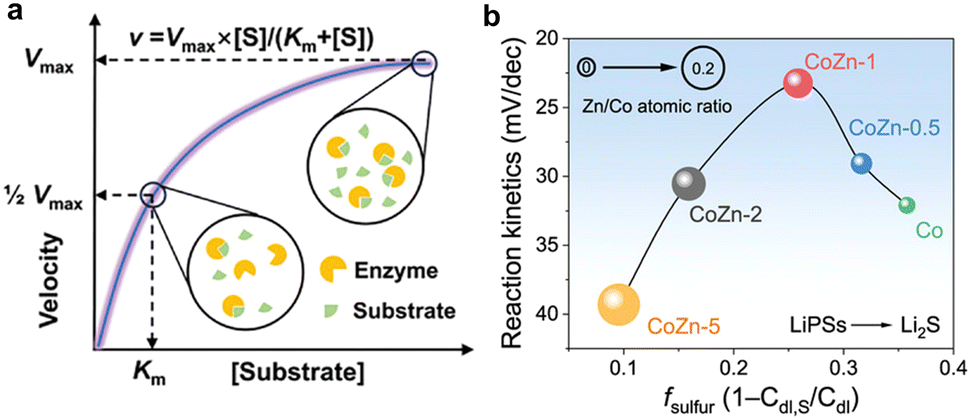

Fig. 16 (a) The rectangular hyperbola exemplified by the Michaelis–Menten equation. Km as the substrate concentration at which the curve attains half of the maximum rate. Reproduced with permission. Copyright 2024, Wiley-VCH.105 (b) The volcano-type relationship between sulfur and the kinetics of the LiPSs-to-Li2S reaction. Reproduced with permission. Copyright 2024, Wiley-VCH.106 |
![]() | ||

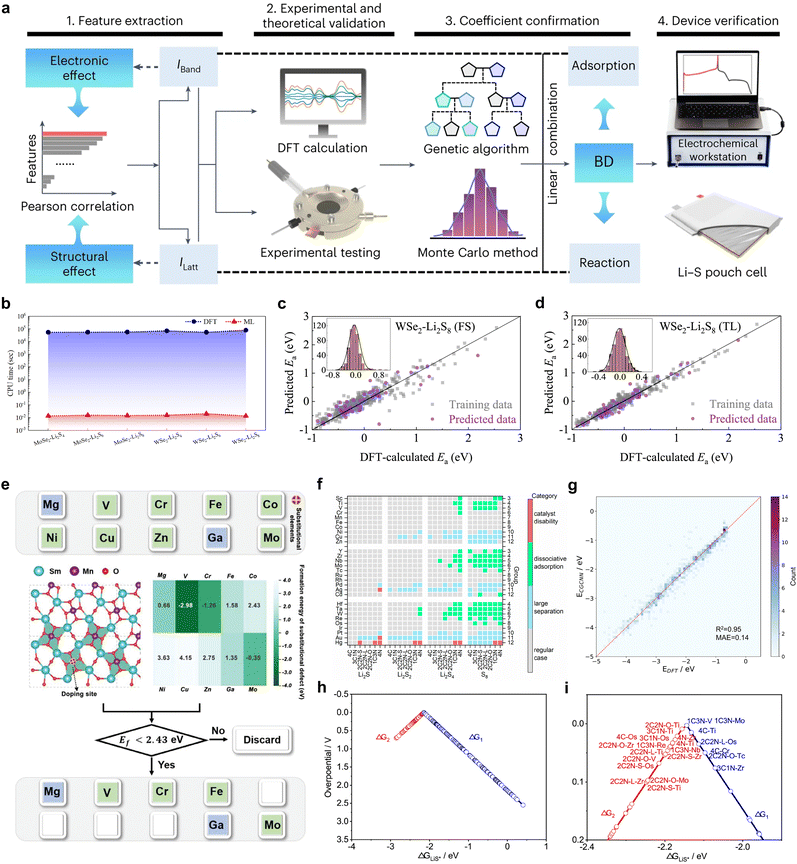

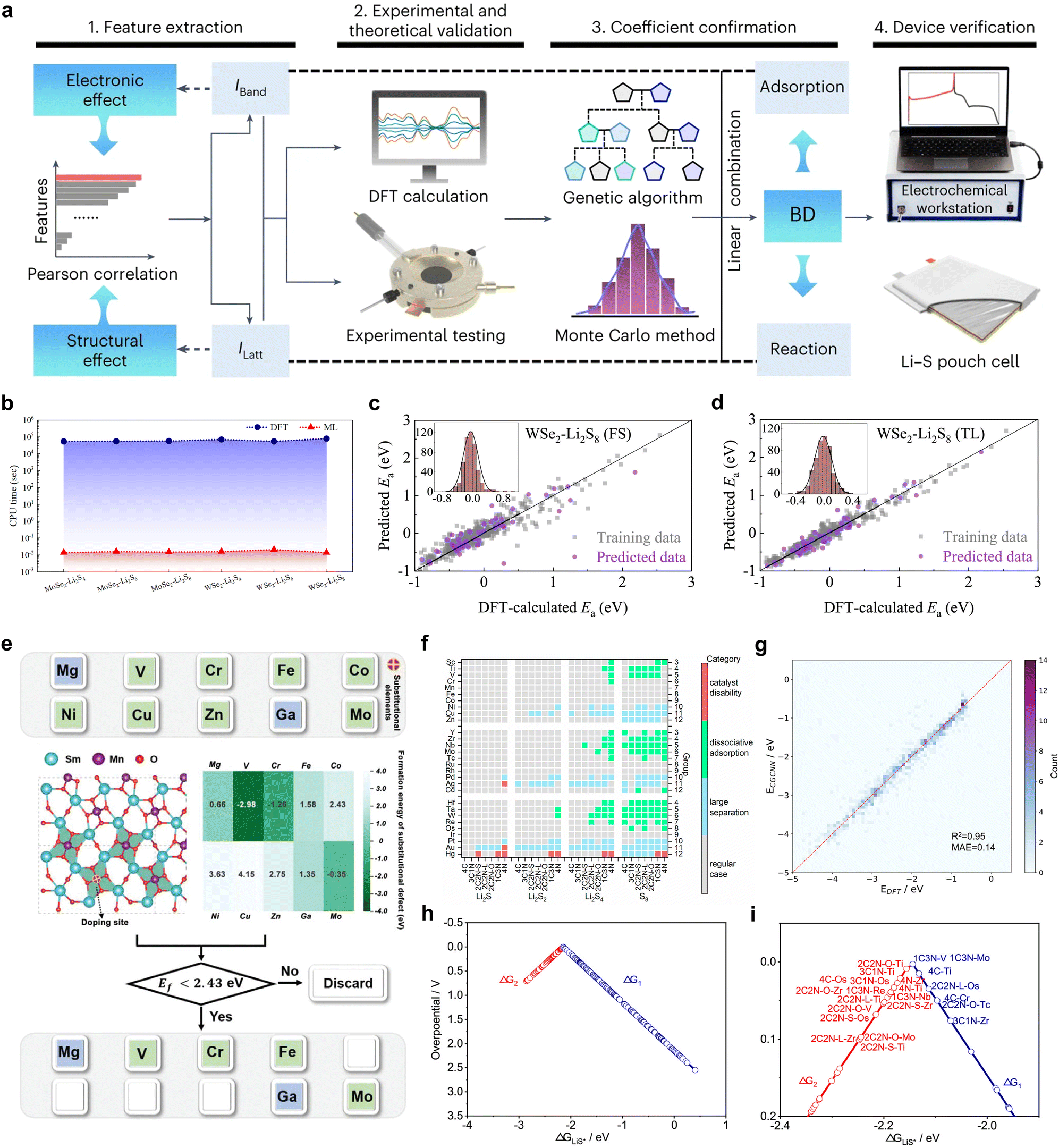

Fig. 18 (a) The overall workflow diagram, showing the steps of feature extraction, experimental and DFT analysis, coefficient confirmation and device verification. Reproduced with permission. Copyright 2023, Springer Nature.109 (b) Comparison of CPU computational time for MoSe2/WSe2 towards three lithium polysulfides. (c) and (d) Correlation plots of binding energy against DFT and ML, along with histograms of error distributions between DFT and ML. (c) was obtained by FS training, while (d) was obtained by TL training. Reproduced with permission. Copyright 2021, Elseiver.161 (e) The flowchart of screening the substitutional elements. Reproduced with permission. Copyright 2022, Wiley-VCH.162 (f) Categories of adsorption configurations based on 812 data points. The gray block represents the regular case (C1); the blue, the large separation (C2); the green, the dissociative adsorption (C3); and the red, catalyst disability (C4). (g) Two dimensional histograms of DFT calculated and ML predicted adsorption energy of LiPSs. The color scale is used to illustrate the magnitude of number in samples. (h) Volcano plots for all catalysts. (i) Volcano plots for catalysts with an overpotential lower than 0.1 V. Reproduced with permission. Copyright 2021, American Chemical Society.163 |
The efficiency of machine learning has been markedly enhanced in comparison to the third paradigm's direct utilization of computer simulation techniques. In a study conducted by Zhang et al., the use of machine learning to predict the binding energy upon uptake of LiPSs in MoSe2 as a sulfur host yielded results six orders of magnitude faster than those obtained through DFT (Fig. 18b).161 In detail, the from scratch (FS) training utilizing DFT to predict Li2S8 binding energy outcomes are contrasted with the results of the migration learning approach in conjunction with machine learning, as illustrated in Fig. 18c and d. In this AI-assisted binding energy prediction model, the researchers employ the local environment matrix from the DeePMD-kit program as a descriptor. This descriptor is then used as an input vector for the artificial neural network, which is operated to output the predicted value of the adsorption energy of LiPSs. The histograms of Gaussian distributions with a non-zero median in the inset demonstrate that the average absolute errors of the latter training and prediction data are merely 0.07 eV and 0.1 eV, which is only half of the error of the results of the FS approach. This serves to exemplify the unrivalled competitiveness of machine learning in the prediction and screening of Li–S battery catalysts.
Nevertheless, in the context of limited sample sizes, computational simulation techniques such as DFT continue to represent a valuable supplementary approach to ML, facilitating the generation of the datasets necessary for algorithmic operations. In the study of SmMn2O5-catalyzed SRR, Wang et al. employed DFT calculations in conjunction with interpretable machine learning to analyze descriptors related to electronic features and polysulfide binding energies with a view to identifying suitable doping elements in a process illustrated in Fig. 18e.162 Specifically, the non-linear operator applied in supervised learning algorithm sure independent screening and sparse Operator (SISSO) operates on a combination of multiple feature parameters to construct a doping element screening framework and predict the catalytic activity after doping. By establishing a defect formation energy threshold of no greater than 2.43 eV and utilizing an algorithm to evaluate the defect energies of disparate dopant elements calculated by DFT, six optimal metal elements, such as Mg and Ga, etc. were preliminary identified to substitute the Mn atoms within the octahedral ligand unit. Further SISSO studies show that charge transfer, electronegativity differences and the figure of merit jointly determine the binding strength of Li2S4, with Mg elemental doping exhibiting the optimal predicted value. The processing of limited data, such as that pertaining to defective mullite, can be efficiently conducted directly using DFT-assisted ML. In contrast, high-throughput-assisted machine learning is a necessary approach for the processing of candidate catalysts with a large space of structural variations. In the case of combinations of single-atom catalysts and elementally doped carbon materials, the conventional trial-and-error methods and conventional DFT calculations are no longer sufficient. Therefore, Lian et al. proposed a ML model based on high-throughput computing to screen loaded SACs on nitrogen-doped carbon.163 As demonstrated in Fig. 18f, the researchers categorized the adsorption configurations of the four polysulfide molecules (Li2S, Li2S2, Li2S4 and S8) on the 203 SAC catalysts into four distinct categories, comprising the conventional case (C1, 607), the large separation (C2, 100), the dissociative adsorption (C3, 94), and catalyst failure (C4, 11). These categories exhibited notable differences in terms of their bonding sites, bond lengths of the binding site, and other characteristics. Subsequently, the 812 data points from high throughput DFT calculations were employed as the training, validation, and test set for the machine learning algorithm, operating within the framework of the crystal graph convolutional neural networks (CGCNNs), for the purposes of classification and regression. The regression results presented in Fig. 18g demonstrate a mean absolute error (MAE) of 0.14 for the entire dataset, which evinces a high degree of robustness. The regression model generated through ML was employed to predict the adsorption energies of several LiPSs (e.g., LiS, Li2S3, Li2S5, Li2S7, etc.) that were initially excluded from the training set. The MAE of the model also remained consistent with the scaling relationship of the regression model, indicating reliable predictive ability. Ultimately, the potential-limiting step was identified as either G1 or G2, based on the substantial data predicted by the regression model and the adsorption energy of the pivotal intermediate LiS. This conclusion is supported by the volcano diagram, as illustrated in Fig. 18h. Furthermore, a scaling relationship between specific SAC and overpotential was prepared (Fig. 18i), which also exhibited a strictly volcanic character. Based on the Fig. 18i screening, V, Mo, Ti, Zr, and Os were identified as the most promising SACs, as they are located at the top of the volcano curve and produce very small overpotentials.
In recent years, there has been considerable success achieved with AI-assisted catalyst design models relying on reactive descriptors. However, it should be noted that descriptors are not the sole link between artificial intelligence and catalyst research. The efficacy of graph neural network (GNNs) algorithms for the analysis of generalized graph data, including recurrent graph neural networks (RecGNNs), convolutional graph neural networks (ConvGNNs), and graph autoencoders (GAEs), has been demonstrated in the context of accurately identifying active sites of catalysts and determining activity differences without reliance on descriptors.164–166 Consequently, the integration of diverse algorithms for processing graph data and descriptor-activity matrix data is anticipated to further propel the advancement of artificial intelligence-assisted catalyst design research paradigms, to promote SRR catalytic mechanism studies, and to drive the development of high-activity catalysts.
In a comprehensive investigation of 3d transition metal-embedded nitrogen-doped defective black scale carbide (TM@N4-CP) single-atom catalysts, Xia et al. proposed a virtual four-step screening strategy to evaluate the potential influence of finite candidate structures on SRR kinetics (Fig. 19a).167 Following the acquisition of the properties of Ea(LiPSs), ICOHP, and so forth, for a series of TM@N4-CP through DFT calculations, PCC was employed to analyze the correlation between the two features, and the PCC of the two variables (X, Y) is defined as , where cov denotes the covariance and σ represents the standard deviation. A P-value of 1 or −1 corresponds to a strong positive or negative correlation, respectively. As illustrated in Fig. 19b and c, the adsorption energies of the majority of intermediates at the catalytic site exhibited a robust linear correlation, with a particularly strong correlation between φ and Ea(*S) (P = 0.85). In addition, both rate-determining step (RDS) and Ebarrier demonstrated a positive correlation with ICOHPTM–S and Ea(*Li2S), with P-values of 0.86, 0.95, 0.94 and 0.86, respectively. Conversely, B(Li1–S) exhibited a negative correlation with RDS and Ebarrier, with P-values of −0.90 and −0.95, respectively. Ultimately, the ICOHP value of the TM–S bond and the adsorption energy of the intermediate *Li2S were established as descriptors of the SRR reaction kinetics through the heat map analysis of numerous key parameters, which provided a feasible strategy for the rational retrieval of the defining characteristics of the LSB active catalysts. More generally, Wu et al. also conducted a comprehensive examination of the capacity of the 16 potential descriptors to predict the Li2S decomposition energy Eb through the utilization of the PPC matrix heatmap illustrated in Fig. 19d within the SACs study.96 Their findings demonstrated that ALi–S–Li and ΔQTM exhibited the most pronounced negative and positive correlations, respectively, with Eb. In light of the pivotal role played by the adsorption energy of lithium polysulfide, Wang et al. posited Li2S4 as a benchmark and delved into the interrelationship between individual properties and the adsorption energy of Li2S4, calculating the PCCs of the eight features illustrated in Fig. 19e.162 Among the aforementioned properties, the d-band center (εd) and Bader charge (QM) of the elementally doped defective SmMn2O5 active metal site exhibited the lowest positive correlation coefficient (PCC) and the weakest correlation with the binding energy. Furthermore, radargram analysis (Fig. 19f) revealed a strong positive correlation between the Bader charges of Li atoms (QLi) and a strong negative correlation between the Bader charges of O atoms (QO) and the binding energy. The corresponding P-values were 0.77 and −0.77, respectively. The authors then employ a compressed stem-knowledge interpretable ML algorithm that identifies the sure independence screening and sparsifying operator, combines these strongly correlated parameters, and proposes novel physically meaningful mathematical models as descriptors:
Eb = k1 × (QLi + QO) + k2 × [(Qs + Δx) − WF] + k3 |
![]() | ||

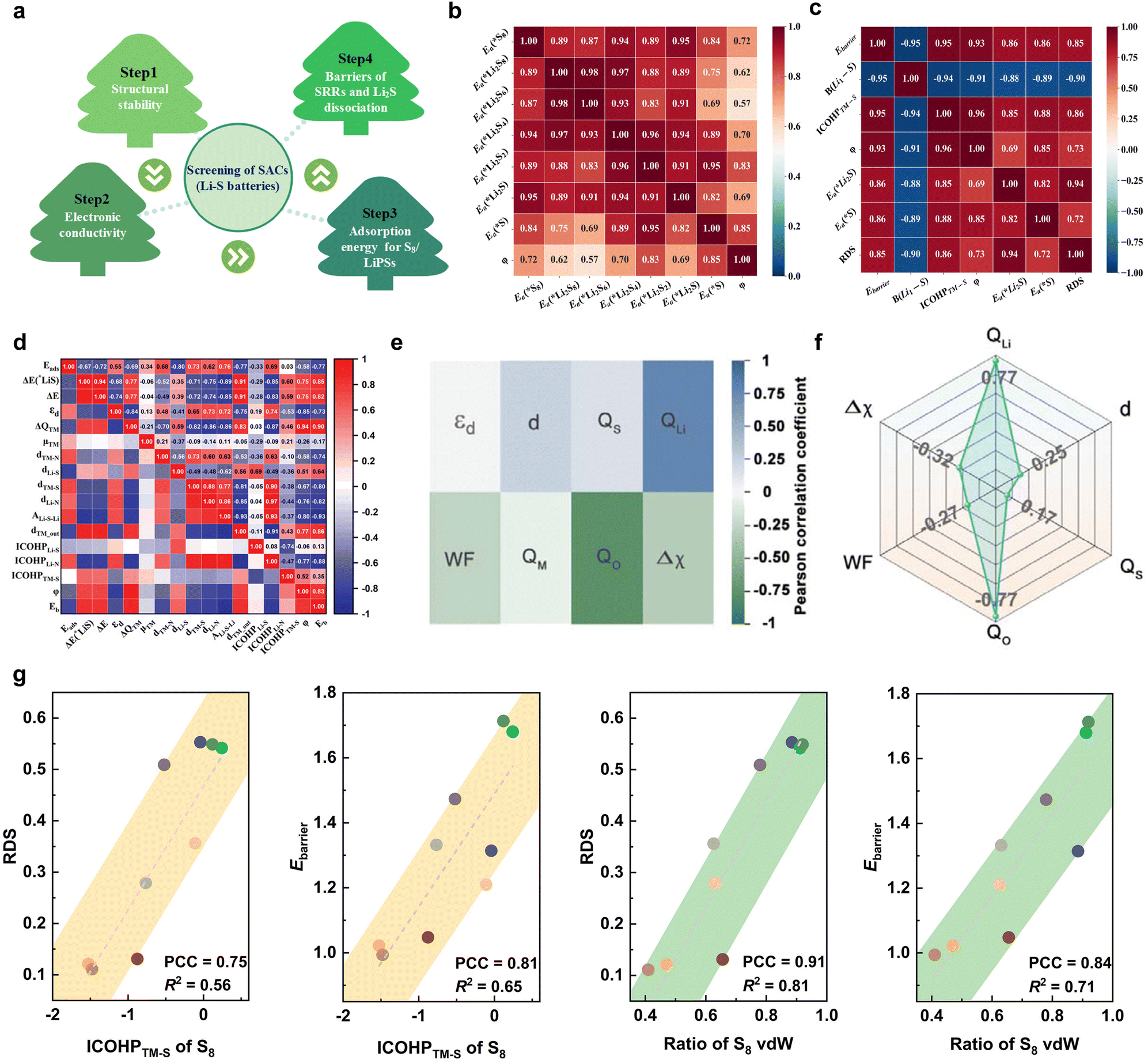

Fig. 19 (a) Schematic diagram of the virtual four-step strategy for SAC screening in LiSBs. (b) and (c) Heatmaps of the Pearson correlation coefficient matrix of the related descriptors with (b) the adsorption energy of S8/LiPSs, and (c) RDS and Ebarrier. Reproduced with permission. Copyright 2023, Elseiver.167 (d) Heatmaps of the Pearson correlation coefficient matrix. The values on the heatmap are the PCCs between the corresponding two parameters. Reproduced with permission. Copyright 2024, Wiley-VCH.96 (e) and (f) The correlation (Pearson correlation coefficient) between a single parameter and the binding energy of Li2S4. Reproduced with permission. Copyright 2022, Wiley-VCH.162 (g) Linear correlations of the RDS and Ebarrier with the ICOHP and the vdW ratio of S8. Reproduced with permission. Copyright 2023, Elseiver.168 |
In brief, the substantial quantity of data yielded by machine learning or high-throughput data, when integrated with statistical tools, enables the quantitative assessment of the precision of candidate descriptors, thereby accelerating the development of accurate and comprehensive generic SRR descriptors.
Despite the cross-disciplinary synergies between the SRR and related electrocatalytic processes (OER, ORR, NRR, and beyond), the identification of precise and comprehensive descriptors to elucidate the distinctions in catalytic properties and to inform the design of catalysts remains an open scientific challenge. On the one hand, reactive descriptors exhibit limited transferability due to their dependence on the specific atomic composition and spatial structure of the catalyst. Generating universal fusion descriptors iteratively using a single property requires advanced technologies such as reliable databases and machine learning. On the other hand, after establishing a linear or volcano-shaped scaling relationship between precise descriptors and catalytic activity, the challenge lies in experimentally realizing the prediction of highly active catalysts based on scaling relationships, even surpassing activity thresholds, to expand a more comprehensive catalytic perspective. Achieving these objectives necessitates a considerable investment of effort, with a particular focus on the following areas.
![]() | ||

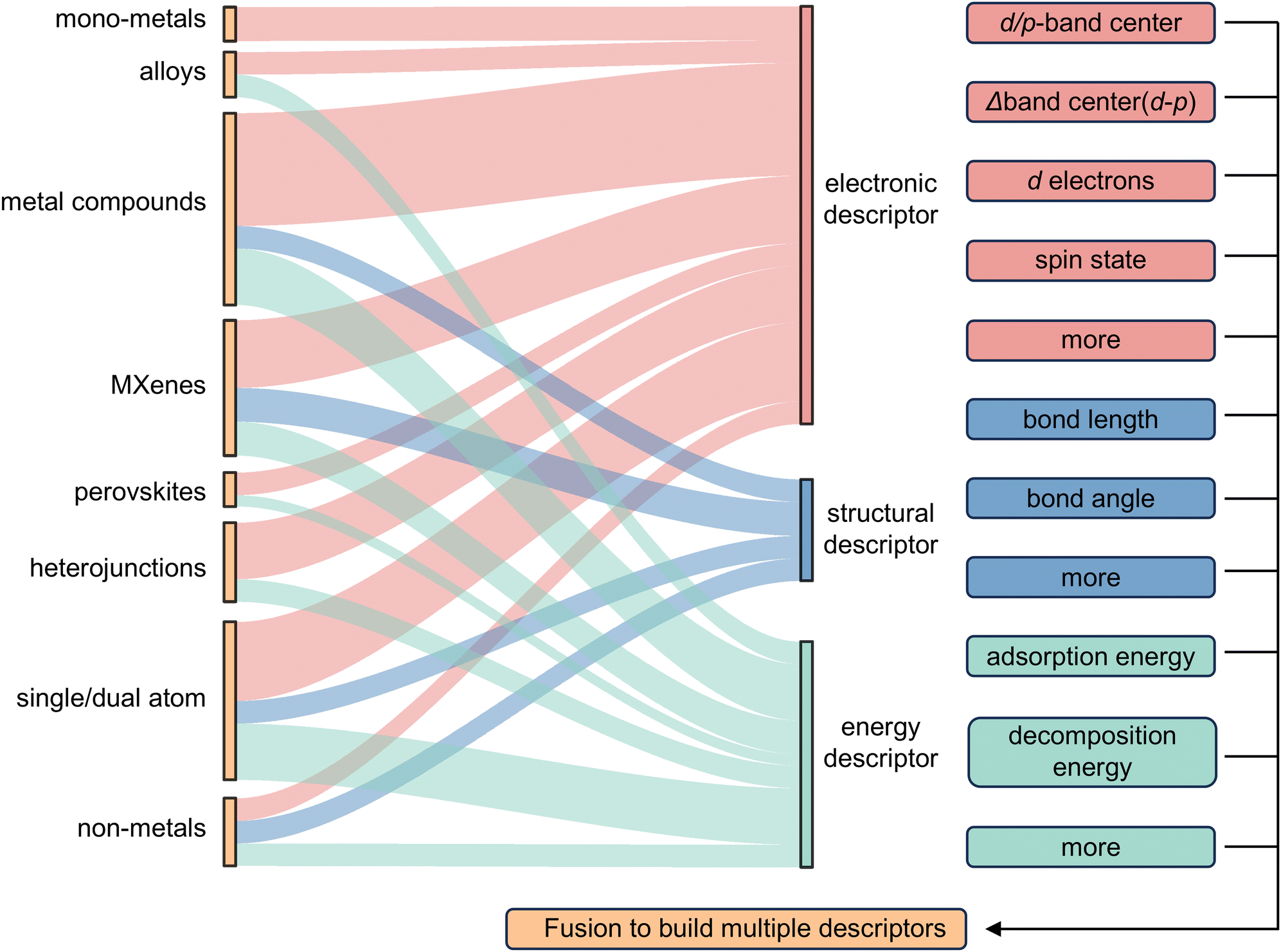

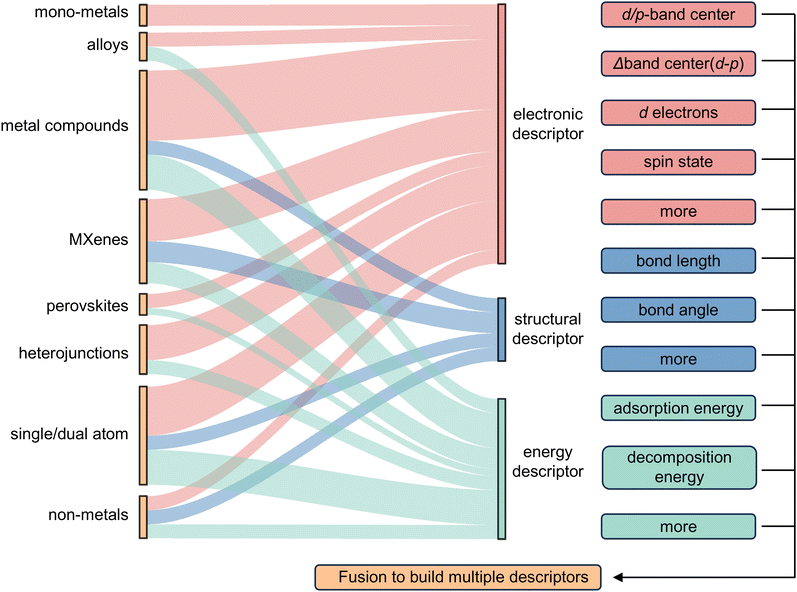

Fig. 20 Sankey diagram of correspondence between catalyst types and descriptors based on literatures. |
