Deep-blue thermally activated delayed fluorescence of a CF3-substituted carbene–metal–amide complex

Abstract

A gold-based carbene–metal–amides (CMA) complex, BICAuBGCF3, with a 2-(trifluoromethyl)-benzoguanidine amide (L) ligand was prepared in good yields and characterized. The CF₃-substituted amide donor ligand resulted in a 0.27 eV stabilization of the highest occupied molecular orbital (HOMO) and a wide energy gap of 2.97 eV. In fluid media, the complex experiences dynamic behavior between two isomeric forms, which reduces the blue luminescence quantum yield to 43%. In the solid state, the complex shows bright deep-blue thermally activated delayed fluorescence at 432 nm with 60% luminescence quantum yield owing to a small singlet triplet energy gap (ΔE_ST) down to 54 meV. Radiative rates (k_r) were calculated to be up to 1.4 × 10⁶ s⁻¹ in amorphous polystyrene media, demonstrating the BICAuBGCF3 complex as a p_romising material for optoelectronic applications.

---

Introduction

Bright and stable thermally activated delayed fluorescence (TADF) luminophores are highly sought after by the academic community and industry for optoelectronic applications, particularly as organic light-emitting diodes (OLEDs), photovoltaics and sensors.^1–3 This is because of their ability to harvest singlet and triplet excitons via reverse intersystem crossing (rISC) from the triplet (T₁) state to the singlet state (S₁).^4–9 Among the most high-performance TADF materials, carbene–metal–amide (CMA) materials have emerged as a promising class of organometallic TADF materials owing to their facile synthesis and spectacular performance in OLED devices.^10–12 Their common molecular design is based on a d¹⁰-coinage metal (Cu, Ag or Au) with a near-linear arrangement of a π-donor amide and a π-acceptor carbene ligand in trans-position to each other. Various CMA materials have demonstrated luminescence across the whole visible spectrum with submicrosecond emission lifetimes and near unity photoluminescence quantum yields (PLQYs).^13–16

Several orientations are possible because of the conformational flexibility of the donor and acceptor ligands of CMAs: fully-twisted, co-planar, tilted and twisted/tilted CMAs. Romanov et al. demonstrated that twisted and tilted geometry can achieve the highest radiative rates among CMAs with a similar molecular design.¹⁷ Such conformational flexibility between carbene and amide moieties enables the control of the frontier orbital overlap integral (S_HO) between the highest occupied molecular orbital (HOMO), located on the amide donor ligand, and the lowest unoccupied molecular orbital (LUMO), located over the M-carbene bond. High-performance CMA materials possess charge transfer (CT) characteristics for the first singlet (S₁) and triplet (T₁) excited states. Recent studies have highlighted the importance of the molecular design principle minimising the frontier orbital overlap integral to reduce the energy difference between ¹CT and ³CT excited states (ΔE_ST) and accelerate the radiative rates to above 10⁶ s⁻¹.^18,19

Recent works on CMA materials have highlighted the role of the energy difference between locally excited triplet (³LE) and CT emissive states in CMA materials (ΔE_(CT–3LE)),²⁰ where increasing the energy of the ³LE state relative to the manifold of CT states enables near unity photoluminescence quantum yields (PLQYs) and high radiative rates of TADF.²¹ CMA compounds are known for their high ground and excited state dipole moments, where emission energies are sensitive to their molecular environment; for example, this has allowed the “tuning” of electroluminescence from green to sky-blue using a suitable host media.^18b,20 Efficient blue emission from CMA complexes can be achieved by attaching electron-withdrawing CF₃ groups to the amide moiety to stabilize the HOMO energy and widen the energy gap (Scheme 1). This strategy achieved deep blue emission TADF for mono-CF₃-substituted CMA complexes; however, di-CF₃ substituted CMA complexes resulted in long-lived phosphorescent emission from the locally excited state of the carbazolide ligand, ³LE(Cz).^20–22 Such CF₃-substituted CMA complexes appeared highly suitable for the fabrication of the energy transfer OLEDs.²³

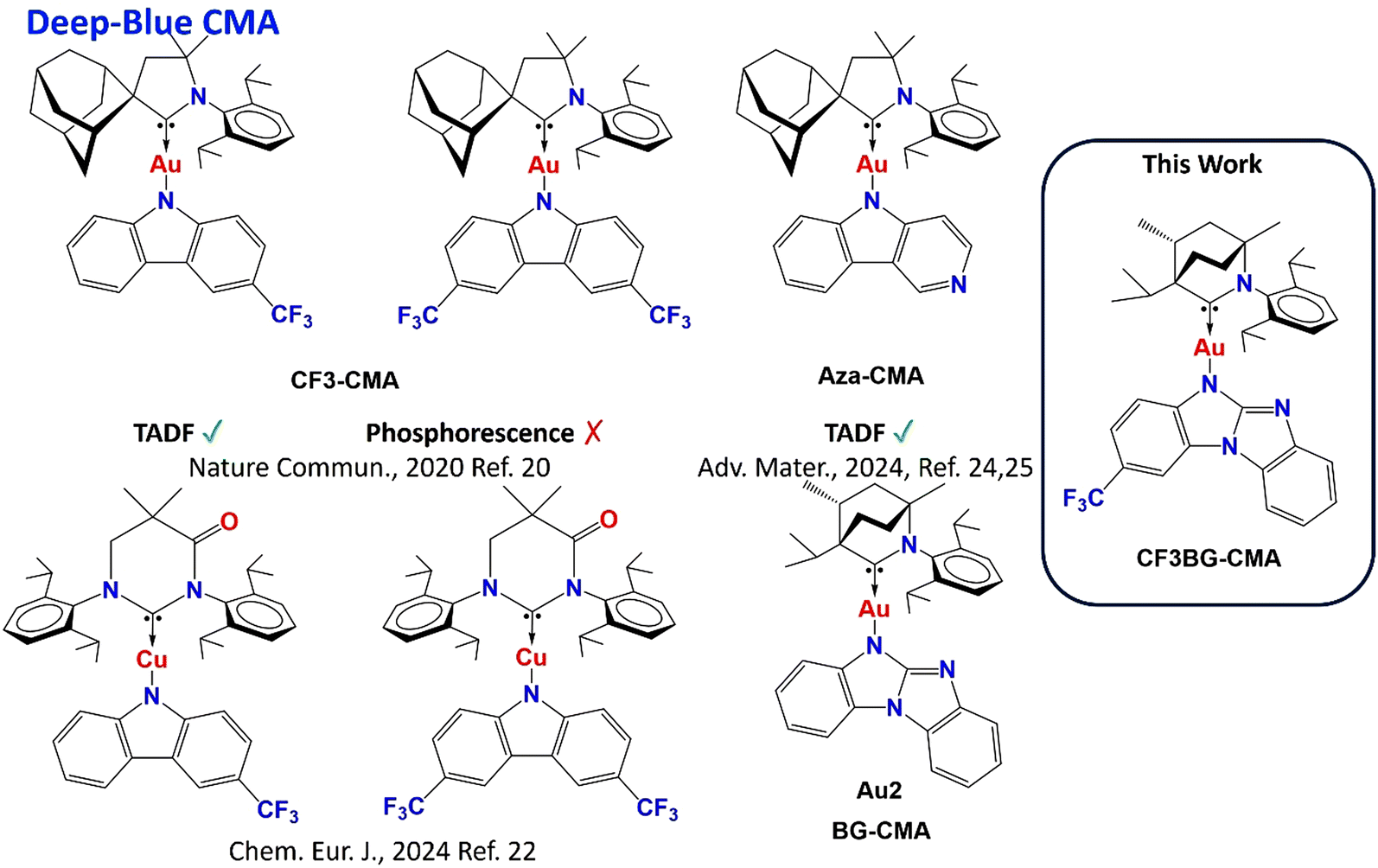

Scheme 1 Molecular structures of blue light-emitting CMA complexes.

Recently, it was found that the energy of the ³LE state can be increased for aza-CMA materials (Scheme 1), enabling faster and more efficient deep-blue TADF emission.²⁴ Electron-withdrawing aza-nitrogen substitution in para-position to the amide-N atom²⁴ have been further extended towards BG-CMA materials (Scheme 1).²⁵ The use of the benzoguanidine (BG) ligand with multiple aza-N atom substitutions in the donor ligand enabled the formation of champion BG-CMA materials exhibiting deep-blue TADF luminescence with high radiative rates of up to 4.69 × 10⁶ s⁻¹ due to a ΔE_(CT–3LE) of up to −0.5 eV and a reduced HOMO/LUMO overlap integral (S_H/L = 0.25).²⁵ This outstanding photophysical behaviour motivated the team to build on the synergy between the two molecular design strategies for deep-blue CMA materials (Scheme 1). Herein, we investigated the first example of a CMA material containing an electron-withdrawing CF₃ moiety in a BG-donor ligand to demonstrate deep-blue TADF and reveal the structure–property relationship.

Results and discussion

A carbene–metal–amide (CMA) complex, BICAuBGCF3, was prepared by reacting the halide complex BiCAACAuCl with 2-(trifluoromethyl)-5H-benzo[d]benzo[4,5]imidazo[1,2-a]imidazole (BGCF3) in the presence of the KO^tBu base in THF following our previously published protocol in high yield. The complex was found to be stable in air for several months.²⁵ This gold-based complex was characterized using ¹H, ¹⁹F and ¹³C{¹H} NMR spectroscopy (ESI†) and high-resolution mass spectrometry (HRMS). The product demonstrated high solubility in aromatic solvents (toluene, chlorobenzene, and 1,2-difluorobenzene), THF, and dichloromethane but was only sparingly soluble in hexane. On first inspection, the ¹H NMR spectrum of BICAuBGCF3 appeared complicated with more signals than expected in the aryl region. A more detailed analysis revealed that signals in the 5.9–8.0 ppm region appeared in a set of two, with an integration ratio of 0.6 : 0.4 per assigned proton, while the number of upfield-shifted signals appear as expected for the complex, with an integration of 1 per assigned proton. This phenomenon was also observed in ¹⁹F spectra, with two peaks appearing at −59.50 and −59.88 ppm, with a concurrent integration ratio of 0.6 : 0.4. The complementary integration between the down- and upfield-shifted protons suggests dynamic behavior in the solution of the complex, which is associated with the two possible isomers of the unsymmetrically substituted BGCF3 ligand (Fig. 1). The ligand has two available N-binding sites, which result in two possible regioisomers: A and B (Fig. 1).

Fig. 1 Molecular and crystal structures of the carbene metal amide BICAuBGCF3 (left) with key structural parameters. Ellipsoids are shown at 50% probability with hydrogen atoms omitted for clarity. Molecular structure of the two possible isomers (right).

A series of varied-temperature NMR experiments were performed for the title complex in acetone-d₆ (at 50 °C) or upon cooling DCM-d₂ solution to −40 °C (Fig. S3 and S4, ESI†). However, no change was observed in the NMR spectra; for instance, the signals shifted by the same degree on cooling for each set, but the integration ratio of 0.6 : 0.4 was maintained. To further verify this, we isolated the single crystals of the title complex with confirmed A geometry (Fig. 1) and dissolved them in DCM-d² again to run ¹H NMR spectra from the single crystals to confirm the presence of a single isomer. However, the NMR spectra demonstrated two sets of peaks with an integration ratio of 0.6 : 0.4, confirming the presence of isomerism in the fluid media. Our previous works demonstrated fluxional behaviour in the solution for copper-based CMA complexes with formamidinato and guanidinato ligands, where the (CAAC)Cu-fragment experienced a dynamic exchange between the two N-binding sites of the amido ligand.²⁶ Interestingly, BG-CMA complexes with the methoxy-substituted benzoguanidinato ligand have been reported as a single isomer, which is likely associated with the electron-donating nature of the methoxy substituent preferentially stabilising one isomeric form, A. The theoretically calculated energy difference between the two isomers A and B is 2.55 kJ mol⁻¹, where isomer A is energetically more favourable than isomer B.

The molecular structure of BICAuBGCF3 was confirmed using single crystal X-ray diffraction, as shown in Fig. 1. We checked multiple single crystals and found only a single isomer A. The gold complex shows a linear two-coordinate geometry around the central gold atom with the C–Au–N angle at nearly 180°. The torsion angle between BIC carbene (N1–C1) and amide ligands (N2–C25) is 18.4(6)°, which is similar to that of complex Au2. The Au–N bond length is the same as that for the unsubstituted complex Au2, while the Au–C bond length is approximately 0.04 Å longer for BICAuBGCF3 than that for Au2. This structural difference results in a 0.04-Å larger separation (C1⋯N2 distance) between donor and acceptor ligands for BICAuBGCF3, thus impacting its photophysical properties, vide infra.

Electrochemical properties

The redox behaviour of the title gold complex was analysed in THF solution using [ⁿBu₄N]PF₆ as the supporting electrolyte (Fig. 2); the electrochemical data are summarised in Table 1. The BICAuBGCF3 complex shows a quasi-reversible reduction process at −2.66 V, which is close to that of the analogous unsubstituted Au2 complex^25a (−2.78 V). This results in a 0.1-eV more stabilised LUMO energy level for the title complex (−2.83 eV) compared with Au2 (−2.69 eV). The BICAuBGCF3 complex shows an irreversible oxidation process at +0.59 V, which is 0.27 V anodically shifted compared with the analogous Au2 complex (Table 1). This suggests that the electron-withdrawing CF₃ group stabilises the HOMO energy level for the title complex (−5.8 eV) compared with Au2 (−5.53 eV), similar to the reported CF3–CMA complexes (Scheme 1).²⁰ Overall, the CF3 substituent results in a wide energy gap of 0.14 eV for the title complex, thus implying blue-shifted luminescent properties, vide infra.

Fig. 2 Full-range cyclic voltammogram for the gold complex BICAuBGCF3.

Table 1 Formal electrode potentials (peak position E_p for irreversible and E_1/2 for quasi-reversible processes (*), V, vs. FeCp₂), onset potentials (E, V, vs. FeCp₂), peak-to-peak separation in parentheses for quasi-reversible processes (ΔE_p in mV), E_HOMO/E_LUMO (eV) and band gap values (ΔE, eV) for the investigated BICAuBGCF3 complex and BICAuBG (Au2)^25a analogue^a

	Reduction		E LUMO, eV	Oxidation			E HOMO, eV	ΔE, eV
	E 1st	E onset red		E 1st	E onset ox	E 2nd
a In THF solution, recorded using a glassy carbon electrode, concentration = 1.4 mM, supporting electrolyte [^nBu4N][PF6] (0.13 M), measured at 0.1 V s^−1. b In THF solution, recorded using a glassy carbon electrode, concentration = 1.4 mM, supporting electrolyte [^nBu4N][PF6] (0.13 M), measured at 0.1 V s^−1. EHOMO = −(Eonset ox Fc/Fc+ + 5.39) eV; ELUMO = −(Eonset red  Fc/Fc+ + 5.39) eV.^27
BiCAuBG ^25a	−2.78 (161)	−2.70	−2.69	0.28	0.14	—	−5.53	2.83
BiCAuBGCF3	−2.66 (130)	−2.56	−2.83	0.59	0.41	1.00	−5.80	2.97

---

Photophysical properties and theoretical calculations

The UV-vis absorption spectra for BICAuBGCF3 were measured in cyclohexane, toluene, THF and dichloromethane solvents (Fig. 3). The complex shows high energy absorption bands in the range from 300 to 345 nm, ascribed to the intraligand π–π* (IL) transitions of the benzoguanidinato and carbene ligands. A broad low-energy band spanning over a wide range from 325 to 425 nm was assigned to a ligand-to-ligand charge transfer L(M)LCT (M = Au) transition from the benzoguanidinato ligand to the carbene ligand. The assignment is consistent with the analogous complex Au2 (Scheme 1), with the low-energy absorption bands being 25 nm blue-shifted for BICAuBGCF3, thereby reflecting the wider energy gap due to the electron-withdrawing nature of the CF₃ substituent and is in agreement with the electrochemistry results. The CT nature of the low-energy absorption band is supported using TD-DFT theoretical calculations, indicating 97% HOMO → LUMO transition (Fig. 3 and Table S1, ESI†), with 1.9% contribution of the gold orbitals to HOMO and 10.5% to LUMO. Increasing the solvent polarity from cyclohexane to dichloromethane results in a 20-nm blue-shift of the L(M)LCT band (Fig. 3), while the IL band shows little influence from solvent polarity. This is characteristic of CMA materials, which tend to show negative solvatochromism for the low-energy CT band.^18b There is a significant difference between the ground-state dipole moment of the title complex (15.8 D) and that of the unsubstituted complex Au2 (11.6 D). This is a result of the CF₃ electron withdrawing group polarizing the amide donor ligand. The dipole moment for the first singlet excited state for BICAuBGCF3 having an opposite direction is higher (−3.5 D) (Table S2, ESI†) than that for the Au2 complex (−6.0 D).^25a The increase in the transition dipole moment of the BICAuBGCF3 complex agrees with its higher oscillator strength coefficient (0.2001) (f, Table S4, ESI† and Fig. 3) compared with Au2 (0.1897). This can be explained by f being directly proportional to the squared value of the transition dipole moment (|μ_S1→S0|²).²⁸

Fig. 3 UV-vis spectra for the BICAuBGCF3 complex in various solvents at 295 K and pertinent frontier orbitals involved in the lowest energy absorption band.

Photoluminescence properties of the BICAuBGCF3 complex are presented in Fig. 4, and the data collected together with the analogous unsubstituted complex Au2 are presented in Table 2. The complex emits deep-blue light at 432 nm when doped in polystyrene (PS) matrices at 1 wt% doping concentration (Fig. 4). The emission profile is broad and unstructured, indicating that the emission originates from a CT excited state. The emission profile is 34 nm blue-shifted from λ_max at 466 nm for Au2. This fact is in line with the 0.15 eV larger band gap for BICAuBGCF3, as measured via electrochemistry and UV-vis and predicted through theoretical calculations, vide infra. The PLQY of BICAuBGCF3 is 60%, which is lower than 92% for the analogous Au2 complex. At 295 K, the BICAuBGCF3 complex shows a remarkably short sub-microsecond excited state lifetime (τ) with a monoexponential decay of 423 ns, which is similar to that for Au2 (406 ns). Therefore, the title complex possesses a high radiative rate of up to 1.4 × 10⁶ s⁻¹ in amorphous PS films.

Fig. 4 Excitation and emission spectra for the gold complex BICAuBGCF3 at 298 and 77 K in 1 wt% polystyrene (PS) films (a), toluene solution and frozen MeTHF glass (b); Arrhenius plot to estimate ΔE_ST (c); prompt and delayed (after 0.2 and 1 ms) luminescence profiles at 17 K for the 1 wt% PS film (d).

Table 2 Photophysical properties of the BiCAuBGCF3 and analogous unsubstituted Au2 complexes in various matrices

	λ em (nm)	τ (ns)	Φ (%)^a	k r (10^6 s^−1)^b	k nr (10^5 s^−1)^c	CT/LE (eV)^d	λ em (nm, 77 K)	τ (μs, 77 K)
a Quantum yields determined using an integrating sphere. b Radiative rate constant (kr) = Φ/τ. c Nonradiative constant (knr) = (1 – Φ)/τ. In case of two-component lifetime (τ), an average was used: τav = (B1/(B1 + B2))τ1 + (B2/(B1 + B2))τ2, where B1 and B2 are the relative amplitudes for τ1 and τ2, respectively. d CT/LE energies based on the onset values of the emission spectra blue edge at 77 K.
Toluene solution						MeTHF frozen solution
Au2	511	493	100	2.03	—	2.77/3.29	414	26.5 (95.16%)
								239 (4.84%)
BiCAuBGCF3	478	240	43	1.79	23.8	3.01/3.25	390	150 (9.81%)
								625 (45.16%)
								1960 (45.03%)
1 wt% PS film
Au2	466	406	92	2.27	1.97	2.99/—	456	23.5 (46.2%)
								41.2 (53.8%)
BiCAuBGCF3	432	423	60	1.42	9.46	3.17/3.23	432	23.9 (90.2%)
								258 (9.8%)

---

In toluene, the BICAuBGCF3 complex emits a blue light at 478 nm, which is 34 nm blue-shifted compared with Au2. However, the solution PLQY value drops to 43% for the title complex, while it drops to near unity for Au2. This is likely associated with the dynamic behaviour in the solution compared with in the solid state, vide supra. The lower PLQY values and shorter emissive lifetime in toluene at 240 ns result in a dominating non-radiative decay rate of 2.38 × 10⁶ s⁻¹, thus indicating energy losses for the title complex in the fluid media.

Theoretical calculations confirm the first CT nature for the S₁ state and the large energy difference of 0.82 eV to the second CT singlet S₂ state (Table S4, ESI†). This significant energy separation validates our focus on the S₁ state for understanding the photophysical behaviour of the title complex, which is in a good agreement with the experimental observations.²⁹ We previously established that faster TADF is observed for CMA complexes with a locally excited triplet (³LE) state being significantly higher in energy than the CT state.^25a This inhibits the parasitic, long-lived phosphoresce contribution from the ³LE state. At 77 K in MeTHF, the emission profile becomes highly vibronically resolved with an emissive lifetime in the millisecond regime at 1.18 ms (Table 2). This vibronically resolved profile is ascribed to the phosphorescence from the higher-lying ³LE state. TDDFT calculations demonstrate that ³LE state is localised on the BGCF3 ligand and originates from the HOMO → LUMO+3 (59%) and HOMO → LUMO+4 (20%) transitions. High-energy onsets at 298 K in toluene and frozen MeTHF glass at 77 K revealed an energy of 3.01 eV for CT and 3.25 eV for ³LE states with an energy difference of 0.24 eV for ΔE(CT–³LE). This is lower than the ΔE(CT–³LE) for the Au2 complex (0.52 eV); however, it is well above the CT manifold by 0.2 eV. The high energy of the ³LE state of the benzoguanidinato derivative, despite having electron withdrawing CF₃ substituents, allows the occurrence of efficient and fast TADF. This work demonstrates that electron-withdrawing substituents on the benzoguanidinato ligand core are an excellent strategy for tuning the luminescence of TADF CMA emitters to afford deep-blue emission. However, symmetric ligands should be used to avoid isomerism, which can likely lead to reduced PLQY values for the title complex compared with the Au2 compound.

Another prerequisite for highly efficient CMA TADF is a small exchange energy between the singlet and triplet excited states (ΔE_ST). We previously reported that the Au2 complex exhibits a very small reverse intersystem crossing (rISC) activation energy (ΔE_a) value of 56 meV. Herein, variable-temperature lifetime measurements were conducted to investigate the ΔE_a for the title complex BiCAuBGCF3. Upon cooling, the PL profile remains broad and unstructured (Fig. 4), while the emissive lifetime increases to the microsecond regime up to 46.8 μs, which is 100-fold longer compared with the room temperature value (Table 2). The ΔE_a for BiCAuBGCF3 was estimated using an Arrhenius plot at varied temperatures with ln k_RISCvs. 1/T to afford 54 meV, which is comparable with 56 meV for the Au2 complex, thus supporting the rapid radiative rate of TADF. Overall, the title complex possesses the required fast and deep-blue TADF luminescence regardless of the fact that it exists as a mixture of two isomers in fluid media. We were unable to isolate and characterize the isomer B for the BiCAuBGCF3 complex in the solid state; however, our theoretical calculations predict a very similar photoluminescence behavior compared with the isolated isomer A (Tables S1–S5, ESI†).

The PS film of the BiCAuBGCF3 complex exhibited a broad CT luminescence profile (Fig. 4d, black profile) even at 17 K, while the transient photoluminescence experiment revealed the presence of ³LE states (Fig. 4d, red profile after a delay of 0.2 ms) with a clear vibronic structure. This experiment enabled us to determine that the energy gap ΔE(CT–³LE) is −0.06 eV in the PS film, which is considerably smaller compared with that in the fluid media (−0.24 eV) (Table 2, see MeTHF data). Such a large difference reflects a highly polar nature of the CMA material, i.e. lower the polarity of the media, greater the destabilization of the CT state (blue-shift in luminescence).

Conclusion

We prepared and fully characterised a gold(I)-based CMA complex with BiCAAC-carbene and a novel benzoguanide ligand having electron-withdrawing CF₃ substituent. The asymmetric substitution of the ligand affords two possible isomers of the gold CMA material BICAuBGCF3 complex, which were observed using ¹H and ¹³F NMR spectroscopy. In the solid state, the complex exists in a form where (carbene)gold(I) and CF3 moieties are located on the opposite sites of the benzindole ring of the ligand L. Such a CF3-substituted BG-CMA material possesses a stabilised HOMO energy level shifted by 0.27 eV, leading to a wider HOMO–LUMO gap and deep-blue emission compared with the unsubstituted BG-CMA material. This isomerism leads to reduced quantum yields (43%) and a pronounced non-radiative decay process with a rate of up to 2 × 10⁻⁶ s⁻¹ in fluid media. The title complex avoids parasitic phosphorescence from the amide-based ³LE state, demonstrating that electron-withdrawing substitution at the benzoguanidinato amide ligand is a good strategy for achieving optimal deep-blue thermally activated delayed fluorescence at 432 nm in polystyrene films. The BICAuBGCF3 complex possesses bright PLQY values of up to 60% with rapid radiative rates of up to 1.42 × 10⁻⁶ s⁻¹. Future studies should use symmetric benzoguanidinato ligands to improve PLQY values up to unity by reducing non-radiative pathways to prevent dynamic isomerism processes.

Author contributions

A. B. performed the synthesis, steady-state photoluminescence and electrochemistry studies. A. S. R. performed X-ray crystallography. N. L. P. and M. L. carried out theoretical calculations and data analysis. A. S. R. and M. L. planned the project and designed the experiments. A. B. and A. S. R. co-wrote the manuscript. All the authors contributed to the discussion of the results, analysis of the data and review of the manuscript.

Conflicts of interest

The authors declare no competing interests.

Data availability

The data supporting this article have been included as part of the ESI.†

Acknowledgements

A. S. R. acknowledges the support from the Royal Society (grant no. URF\R1\180288, RGF\EA\181008, and URF\R\231014) and the EPSRC (grant code EP/K039547/1 and APP46952). M. L. acknowledges the Academy of Finland Flagship Programme, Photonics Research and Innovation (PREIN), decision 320166, the Finnish Grid and Cloud Infrastructure resources (urn:nbn:fi:research-infras-2016072533). N. L. P. acknowledges the Doctoral Programme in Science, Forestry and Technology (Lumeto, University of Eastern Finland). We thank Dr Louise Natrajan, EPSRC, and University of Manchester for access to the Centre for Radiochemistry Research National Nuclear User's Facility (NNUF, EP/T011289/1) to use the FLS-1000 fluorometer.

References

1. G. Hong, X. Gan, C. Leonhardt, Z. Zhang, J. Seibert, J. M. Busch and S. Bräse, A Brief History of OLEDs-Emitter Development and Industry Milestones, Adv. Mater., 2021, 33(9), e2005630.
2. S. Castelletto and A. Boretti, Luminescence solar concentrators: A technology update, Nano Energy, 2023, 109, 108269.
3. E. H. Onah, N. L. Lethole and P. Mukumba, Luminescent Materials for Dye-Sensitized Solar Cells: Advances and Directions, Appl. Sci., 2024, 14(20), 9202.
4. H. Uoyama, K. Goushi, K. Shizu, H. Nomura and C. Adachi, Highly efficient organic light-emitting diodes from delayed fluorescence, Nature, 2012, 492, 234–238.
5. A. Arjona-Esteban and D. Volz, Status and Next Steps of TADF Technology: An Industrial Perspective, Highly Effic. OLEDs, 2018, 543–572.
6. C.-Y. Chan, L.-S. Cui, J. U. Kim, H. Nakanotani and C. Adachi, Rational Molecular Design for Deep-Blue Thermally Activated Delayed Fluorescence Emitters, Adv. Funct. Mater., 2018, 28(11), 1706023.
7. J. Eng and T. J. Penfold, Understanding and Designing Thermally Activated Delayed Fluorescence Emitters: Beyond the Energy Gap Approximation, Chem. Rec., 2020, 20(8), 831–856.
8. V. Ferraro, C. Bizzarri and S. Bräse, Thermally Activated Delayed Fluorescence (TADF) Materials Based on Earth-Abundant Transition Metal Complexes: Synthesis, Design and Applications, Adv. Sci., 2024, 11(34), 2404866.
9. J. M. Dos Santos, D. Hall, B. Basumatary, M. Bryden, D. Chen, P. Choudhary, T. Comerford, E. Crovini, A. Danos and J. De, et al., The Golden Age of Thermally Activated Delayed Fluorescence Materials: Design and Exploitation, Chem. Rev., 2024, 124(24), 13736–14110.
10. D. Di, A. S. Romanov, L. Yang, J. M. Richter, J. P. Rivett, S. Jones, T. H. Thomas, M. Abdi Jalebi, R. H. Friend and M. Linnolahti, et al., High-performance light-emitting diodes based on carbene–metal–amides, Science, 2017, 356, 159–163.
11. M. Gernert, L. Balles-Wolf, F. Kerner, U. Müller, A. Schmiedel, M. Holzapfel, C. M. Marian, J. Pflaum, C. Lambert and A. Steffen, Cyclic (Amino)(aryl)carbenes Enter the Field of Chromophore Ligands: Expanded π System Leads to Unusually Deep Red Emitting CuI Compounds, J. Am. Chem. Soc., 2020, 142(19), 8897–8909.
12. A. Ying and S. Gong, A Rising Star: Luminescent carbene–metal–amides Complexes, Chem. – Eur. J., 2023, 29(59), e202301885.
13. A. S. Romanov, S. T. E. Jones, Q. Gu, P. J. Conaghan, B. H. Drummond, J. Feng, F. Chotard, L. Buizza, M. Foley and M. Linnolahti, et al., Carbene metal amide photoemitters: tailoring conformationally flexible amides for full color range emissions including white-emitting OLED, Chem. Sci., 2020, 11(2), 435–446.
14. A. Ruduss, B. Turovska, S. Belyakov, K. A. Stucere, A. Vembris, G. Baryshnikov, H. Ågren, J.-C. Lu, W.-H. Lin, C.-H. Chang and K. Traskovskis, Thiazoline Carbene–Cu(I)–Amide complexes: Efficient White Electroluminescence from Combined Monomer and Excimer Emission, ACS Appl. Mater. Interfaces, 2022, 14(13), 15478–15493.
15. R. Tang, S. Xu, L. Du, F.-F. Hung, T.-L. Lam, G. Cheng, K.-H. Low, Q. Wan, S. Wu, Y. Chen and C.-M. Che, Au(I)-TADF Emitters for High Efficiency Full-ColorVacuum-Deposited OLEDs and TADF-SensitizedFluorescent OLEDs with Ultrahigh Brightness and Prolonged Operational Lifetime, Adv. Opt. Mater., 2023, 11, 2300950.
16. L. Zhan, A. Ying, Y. Qi, K. Wu, Y. Tang, Y. Tan, Y. Zou, G. Xie, S. Gong and C. Yang, Copper(I) Complex as Sensitizer Enables High-Performance Organic Light-Emitting Diodes with Very Low Efficiency Roll-Off, Adv. Funct. Mater., 2021, 31, 2106345.
17. Q. Gu, F. Chotard, J. Eng, A. M. Reponen, I. J. Vitorica-Yrezabal, A. W. Woodward, T. J. Penfold, D. Credgington, M. Bochmann and A. S. Romanov, Excited-State Lifetime Modulation by Twisted and Tilted Molecular Design in carbene–metal–amides Photoemitters, Chem. Mater., 2022, 34(16), 7526–7542.
18. (a) A. S. Romanov, S. T. E. Jones, L. Yang, P. J. Conaghan, D. Di, M. Linnolahti and D. Credgington, M. Bochmann. Mononuclear Silver Complexes for Efficient Solution and Vacuum-Processed OLEDs, Adv. Opt. Mater., 2018, 1801347; (b) J. Feng, A.-P. M. Reponen, A. S. Romanov, M. Linnolahti, M. Bochmann, N. C. Greenham, T. Penfold and D. Credgington, Influence of Heavy Atom Effect on the Photophysics of Coinage Metal carbene–metal–amides Emitters. Adv, Funct. Mater., 2021, 31(1), 2005438; (c) R. Hamze, S. Shi, S. C. Kapper, D. S. Muthiah Ravinson, L. Estergreen, M.-C. Jung, A. C. Tadle, R. Haiges, P. I. Djurovich and J. L. Peltier, et al., “Quick-Silver” from a Systematic Study of Highly Luminescent, Two-Coordinate, d10 Coinage Metal Complexes, J. Am. Chem. Soc., 2019, 141(21), 8616–8626.
19. C. N. Muniz, J. Schaab, A. Razgoniaev, P. I. Djurovich and M. E. Thompson, π-Extended Ligands in Two-Coordinate Coinage Metal Complexes, J. Am. Chem. Soc., 2022, 144(39), 17916–17928.
20. P. J. Conaghan, C. S. B. Matthews, F. Chotard, S. T. E. Jones, N. C. Greenham, M. Bochmann, D. Credgington and A. S. Romanov, Highly efficient blue organic light-emitting diodes based on carbene–metal–amidess, Nat. Commun., 2020, 11(1), 1758.
21. J. Feng, E. J. Taffet, A.-P. M. Reponen, A. S. Romanov, Y. Olivier, V. Lemaur, L. Yang, M. Linnolahti, M. Bochmann, D. Beljonne and D. Credgington, Carbene–Metal–Amide Polycrystalline Materials Feature Blue Shifted Energy yet Unchanged Kinetics of Emission, Chem. Mater., 2020, 32(11), 4743–4753.
22. R. Li, A. Ying, Y. Tan, Y. Ai and S. Gong, Efficient Blue Photo- and Electroluminescence from CF3-Decorated Cu(I) Complexes, Chem. – Eur. J., 2024, 30, e202400817.
23. Q. Gu, S. Gorgon, A. S. Romanov, F. Li, R. H. Friend and E. Evans, Fast Transfer of Triplet to Doublet Excitons from Organometallic Host to Organic Radical Semiconductors, Adv. Mater., 2024, 2402790.
24. A.-P. M. Reponen, F. Chotard, A. Lempelto, V. Shekhovtsev, D. Credgington, M. Bochmann, M. Linnolahti, N. C. Greenham and A. S. Romanov, Donor N-Substitution as Design Principle for Fast and Blue Luminescence in carbene–metal–amidess, Adv. Opt. Mater., 2022, 10(15), 2200312.
25. (a) A. C. Brannan, H.-H. Cho, A.-P. M. Reponen, S. Gorgon, N. L. Phuoc, M. Linnolahti, N. C. Greenham and A. S. Romanov, Deep-Blue and Fast Delayed Fluorescence from Carbene–Metal–Amides for Highly Efficient and Stable Organic Light-Emitting Diodes, Adv. Mater., 2024, 36(30), 2404357; (b) C. Riley, H.-H. Cho, A. Brannan, N. L. Phuoc, M. Linnolahti, N. Greenham and A. S. Romanov, High Triplet Energy Host Material with a 1, 3, 5-Oxadiazine Core from a One-step Interrupted Fischer Indolization, Commun. Chem., 2024, 7, 298.
26. A. S. Romanov, F. Chotard, J. Rashid and M. Bochmann, Synthesis of copper(I) cyclic (alkyl)(amino)carbene complexes with potentially bidentate N,N and S,S ligands for efficient white photoluminescence, Dalton Trans., 2019, 48, 15445–15454.
27. C. M. Cardona, W. Li, A. E. Kaifer, D. Stockdale and G. C. Bazan, Electrochemical considerations for determining absolute frontier orbital energy levels of conjugated polymers for solar cell applications, Adv. Mater., 2011, 23(20), 2367–2371.
28. A. W. Kanzler, H. Sun and K. F. Freed, Dipole moments, transition moments, oscillator strengths, radiative lifetimes, and overtone intensities for CH and CH+ as computed by quasi-degenerate many-body perturbation theory, Int. J. Quantum Chem., 1991, 39, 269–286.
29. Note, the multireference configuration interaction (MRCI) method has been demonstrated to provide a more accurate description of the excited states and validated against spectroscopical data for various materials including CMA complexes, see (a) J. Föller and C. M. Marian, Rotationally Assisted Spin-State Inversion in carbene–metal–amides Is an Artifact, J. Phys. Chem. Lett., 2017, 8, 5643–5647; (b) T. J. Penfold, E. Gindensperger, C. Daniel and C. M. Marian, Spin-Vibronic Mechanism for Intersystem Crossing, Chem. Rev., 2018, 118(15), 6975–7025; (c) S. Thompson, J. Eng and T. J. Penfold, The Intersystem Crossing of a Cyclic (alkyl)(amino) carbene gold (I) complex, J. Chem. Phys., 2018, 149, 0143304; (d) C. M. Marian, A. Heil and M. Kleinschmidt, The DFT/MRCI method, WIREs Comput. Mol. Sci., 2019, 9, e1394; (e) A. Heil, M. Kleinschmidt and C. M. Marian, On the performance of DFT/MRCI Hamiltonians for electronic excitations in transition metal complexes: The role of the damping function, J. Chem. Phys., 2018, 149, 164106; (f) A. Liske, L. Wallbaum, T. Hölzel, J. Föller, M. Gernert, B. Hupp, C. Ganter, C. M. Marian and A. Steffen, Cu–F Interactions between Cationic Linear N-Heterocyclic Carbene Copper(I) Pyridine Complexes and Their Counterions Greatly Enhance Blue Luminescence Efficiency, Inorg. Chem., 2019, 58(9), 5433–5445; (g) J. Eng, S. Thompson, H. Goodwin, D. Credgington and T. J. Penfold, Competition between the heavy atom effect and vibronic coupling in donor–bridge–acceptor organometallics, Phys. Chem. Chem. Phys., 2020, 22, 4659–4667.

---

Footnote

† Electronic supplementary information (ESI) available. CCDC 2427966. For ESI and crystallographic data in CIF or other electronic format see DOI: https://doi.org/10.1039/d5cp00824g

---
