Colloidally stable Co3O4 nanoparticles with diameters of 5–16 nm and a concentration-dependent transition from cuboidal to cubic morphologies are synthesised in ambient atmosphere. Through systematic variation of reagent concentration, temperature, and growth time, controllable adjustments of the particle size along with narrow size distributions as low as 12% are achieved. The scalability of the synthesis and the remarkable stability during the growth regime ensure sufficient yield for technical applications.
We recently reported a facile and inexpensive synthetic route towards colloidally stable Co3O4 NPs with tuneable size.15 In this co-precipitation approach, cobalt hydroxide precursor particles are initially formed and subsequently thermally converted in situ into Co3O4. In order to further control NP size and shape and to achieve tailored size- and morphology-dependent properties, however, an in-depth understanding of nucleation and growth during the crystallization process is required.16,17 Therefore, we here expand on the previous promising results by systematically investigating the effects of concentration and temperature on the crystallization of Co3O4 NPs. Most importantly, the influence of the growth time is examined for several concentrations and particle development is monitored by aliquot extraction followed by transmission electron microscopy (TEM) image analysis. We further demonstrate the scalability of the synthesis.
An exemplary series of particles synthesized at T = 90 °C with variable reagent concentrations is displayed in Fig. 1 showing increasing size and regularity. X-ray diffraction analysis and selected area electron diffraction (SAED) confirm that phase-pure Co3O4 is formed as the product phase after thermal conversion at 180 °C (cf.Fig. 1 and S1–S3† for detailed graphs and analyses). The temperature- and concentration-dependent particle sizes and particle size distributions (PSD) are summarized in Table 1 and the full set of corresponding TEM micrographs is presented in the ESI† (SI; cf. Fig. S4). The PSD may be regarded as a quality criterion for the chosen synthetic conditions, as narrower NP size distributions are usually associated with more uniform physicochemical properties.18
T [°C] | 2 mmol [nm] | 4 mmol [nm] | 6 mmol [nm] | 8 mmol [nm] |
---|---|---|---|---|
60 | 5.38 ± 1.10 | 8.60 ± 2.88 | 8.10 ± 2.18 | — |
20.4% | 33% | 27% | ||
70 | 13.67 ± 2.52 | 13.65 ± 3.01 | 15.40 ± 2.88 | 13.75 ± 4.10 |
18.4% | 22.0% | 18.7% | 29.8% | |
80 | 12.52 ± 3.10 | 13.04 ± 2.10 | 14.61 ± 2.87 | 15.22 ± 3.66 |
24.7% | 16.1% | 19.7% | 24.0% | |
90 | 10.81 ± 2.03 | 10.77 ± 1.55 | 14.85 ± 2.93 | 15.66 ± 2.27 |
18.5% | 14.4% | 19.7% | 14.5% | |
100 | 8.65 ± 2.04 | 10.20 ± 1.82 | 10.61 ± 1.62 | 13.49 ± 1.63 |
23.6% | 17.8% | 15.2% | 12.04% |
At T = 100 °C, using an elevated reagent amount of 10 mmol Co(NO3)2·6H2O results in a conspicuously broad PSD (i.e. >25%). This observation suggests insufficient solubility of the Co(NO3)2·6H2O salt in OLA to support higher concentrations than the here considered range of 2–8 mmol in 20 mL OLA (cf. Fig. S5†). Similarly broad PSDs pertain to experiments of type 601h4mmol, 601h6mmol, and 701h8mmol. The literature-reported decomposition temperature of solid Co(NO3)2·6H2O is 100 °C, thus coinciding with the onset of water boiling.19 However, it is possible to synthesize Co3O4 NPs at elevated temperatures above 100 °C (cf. Fig. S6†), as the decomposition of Co(NO3)2·6H2O dissolved in OLA proceeds only at T >125 °C. Notably, at T = 100 °C, Co3O4 NPs may even be synthesized in the absence of NaOH as a precipitation agent, yet with a broad bi-modal PSD (cf. Fig. S7†).
Individual experiments (Table 1) systematically investigate the impact of the Co(II) salt concentration at temperatures between 60–100 °C, varying the parameters independently. Overall, the size decreases with increasing temperature.15 In the temperature range between 70–90 °C, enhancing the amount of Co(NO3)2·6H2O from 2 mmol to 4 mmol does not significantly alter the particle size. In general, the size increases with the monomer concentration with an outlier for sample 701h8mmol, where the concentration possibly exceeds the system's solubility limit. In terms of the PSD noticeable differences in solubility become apparent. At T = 100 °C, the PSD systematically decreases with the concentration. Similar trends are observed at lower temperatures, even though the differences in PSD are less pronounced in these cases. This leads to occasional data outliers where higher concentrations lead to a slightly broader PSD. Among those, sample 801h8mmol may be close to the solubility limit of the system at T = 80 °C, contributing to an increase in PSD. In comparison, the PSD is almost 10% narrower for sample 901h8mmol. While experiments at T = 60 °C are included for completeness, their applicability appears limited. Solely sample 601h2mmol achieves an acceptable PSD which, however, increases considerably at higher salt concentrations.
Morphologically, the particles tend to appear quasi-spherical or cuboidal at lower concentrations (2–4 mmol). The same phenomenon also applies to higher concentrations (6–8 mmol) at moderate temperatures of T = 70–80 °C. When the reaction temperature is increased to T = 90–100 °C, however, the particle morphology shifts to cubic for n(Co(NO3)2·6H2O) = 6–8 mmol. The changes in size and morphology are readily apparent at T = 90 °C where the largest particles (901h8mmol) of this work were achieved (Fig. 1).
The measured NP sizes are summarized in Tables S4–S7.† The total volume of 19 aliquots amounts to 3.8 mL. For a reaction with 20 mL of OLA, this represents ca. 19% of the full volume. Even in this case, no obvious negative effects of the extraction process on the particle growth were observed (based on a comparison of the final products with particles obtained in analogous reactions performed at constant volume). However, for recording the presented growth curves (Fig. 2), an up-scaled reaction mixture with 60 mL OLA was used, with aliquots amounting to ca. 6.3% of the full volume, ensuring minimal influence on the results due to the loss in reaction volume. Particle growth was allowed to proceed for 4 h after NaOH injection with n(Co(NO3)2·6H2O) set to 6, 12, 18, and 24 mmol, respectively. Accordingly, the sample types considered in the growth time-dependent evaluation are termed 1004h6mmol, 1004h12mmol, 1004h18mmol, and 1004h24mmol. A reaction temperature of T = 100 °C was chosen for the growth experiments in line with the narrowest received PSDs of the initially performed 1 h reactions displayed in Table 1. Since each aliquot represents a growth stage frozen in time and the specimens are prepared on a small copper grid for TEM analysis, minor data outliers are to be expected due to the mechanism of Ostwald ripening. Thus, there might be a slightly higher or lower fraction of larger particles (than the actual average) randomly found in individual samples.20
In the early minutes of the reaction progress, the particle count generally remains low, while the particle size increases relatively fast until t = 20 min. Slow growth during an onset period is not observable. Subsequently, the particle count steadily increases until ca. t = 60 min in all growth series. Conspicuously, however, the size increases more rapidly for higher concentrations (compare Fig. 2a vs. d). For sample 1004h6mmol prepared with the lowest reagent concentration, the size stabilizes around 8 nm past 60 min, indicating monomer pool depletion. The PSD begins to broaden at T = 80 min (cf. Table S4†). For this reason, we suggest terminating the synthesis after 60–80 min in this case. In the other three experiments operating at higher Co(II) concentrations, particle growth continues past 60 min with the smallest increase in size shown by sample 1004h12mmol. Although slow, but steady growth is observed even past 120 min, the PSD increases substantially (cf. Table S5†) and the experiment should therefore be terminated between 120–180 min for optimal results. Sample 1004h18mmol exhibits steady growth and may safely be terminated past 180 min to maximize particle yield (cf. Table S6†). Similar to sample 1004h6mmol (cf.Fig. 2), the morphology of the 1004h18mmol particles evolves from a cuboidal to a cubic shapes over time. The highest concentrated sample type 1004h24mmol provides the largest particles among the four considered growth experiments, displaying a well-developed cubic particle shape, while the PSD remains relatively narrow until t = 240 min, thus suggesting the experiment may be terminated between 180–240 min (cf. Table S7†). Notably, sample type 1004h18mmol produces the narrowest PSDs during 4 h of particle growth (cf. Table S8†). Although the observed PSD of 1004h24mmol is slightly broader, this reaction yields a larger size and a more pronounced, faceted cubic shape (cf. Fig. S12†). Hence, control over blunting of edges and corners can also be achieved by adjusting concentration and growth time, thereby potentially influencing the tendency for NP self-assembly and the geometry of the attainable superstructures.21 It should be kept in mind, though, that mature, purified particles (extracted from a batch synthesis without aliquot extraction) may be slightly larger than comparable NPs in the aliquots (deviation ca. 1 nm) since in the final stages of conversion and purification the particles can grow further during the removal of co-solvents and heating to 180 °C. For 1004h6mmol, this effect is less pronounced considering that the monomer pool is depleted.

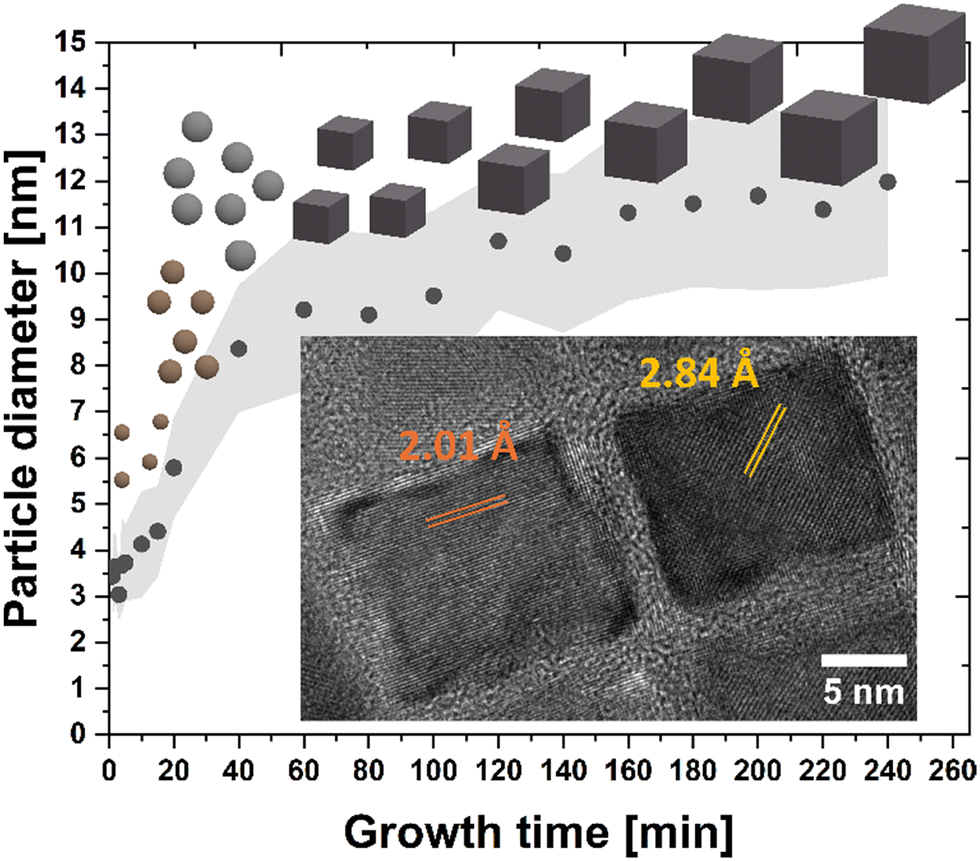

Overall the obtained growth curves (Fig. 2) align well with expected growth behaviour as compared to existing literature.22–25 Based on classical nucleation theory, a slow and continuous increase in particle size leading into a plateau is caused by adsorption-controlled growth limited by the surface growth reaction.26 However, the same observation may also be described by a (non-classical) two-step nucleation model,27 which appears more applicable to our data.28 A clear indicator in favour of this assumption is the rising particle count we observe throughout the experiment. As proposed by Finke and Watzky, NPs do not nucleate instantaneously but continuously as long as the required conditions for nucleation are fulfilled, in particular with respect to the supersaturation.29–31Fig. 3 schematically illustrates the proposed stages of the particle growth process based on the example of the 1004h18mmol growth curve (cf.Fig. 2c). The particles nucleate in a small, quasi-spherical shape and proceed to grow via a cuboidal morphology into their final clearly facetted cube-shaped appearance as evidenced by TEM micrographs (cf. insets in Fig. 2). This conspicuous morphological transition poses another indication for a non-classical crystallization mechanism where nucleation is described as the condensation of a dense (disordered) phase, which crystallizes during further growth.32–34 Such an initially isotropic phase would adopt a spherical or quasi-spherical appearance to minimize its surface energy.35–38 Therefore, we interpret the initial quasi-spherical shape of the particles in this work as a remnant of the nucleation process. With increasing size and crystallinity, the NPs then grow more and more into a cubic morphology, which represents the equilibrium shape of crystals with the Co3O4 spinel structure.39,40 The crystalline character of the nanocubes throughout their entire volume is exemplarily shown in the HRTEM micrograph presented in Fig. 3 (inset) where characteristic lattice fringes attributable to Co3O4 may be observed. The extracted lattice distances of d = 2.01 Å and d = 2.84 Å can be assigned to the {004} and {022} lattice planes of the spinel structure (cf. Fig. S2 and S3†). Following a non-classical growth model, the particles undergo fast autocatalytic growth between 1–40 min of reaction time, followed by a reduction of the growth rate. Newly nucleated, smaller particles grow faster than larger ones due to a steeper concentration gradient between the bulk solution and the particle surroundings.18,26,41 With a rising particle count, more monomer units are siphoned towards smaller particles which leads to an equilibration of the size in the NP ensemble. As a result, we are observing slow particle growth, approaching a plateau after t = 60 min, but no significant broadening of the PSD (depending on concentration and growth time). According to a model developed by Alexandrov and Makoveeva, two-step nucleation may involve a short diffusion-controlled growth regime prior to the adsorption-controlled growth.27 We indeed observe a slightly steeper rise in particle size between t = 0–20 min (cf.Fig. 2), where the particles are growing fast to approximately half of the later total size. Based on the limited time resolution of the presented data, however, conclusive evidence on the mechanism at very early stages of growth cannot be deduced.
In view of systematically tailoring NP size and PSD depending on the chosen reaction conditions, the established growth curves can give important insights into particle sizes and PSDs to be expected during the preparation of NPs with the applied synthetic strategy for specific growth times.
Narrow PSDs (as low as 12% for sample type 1001h8mmol) are achieved without the necessity for size-selective precipitation at reaction temperatures of T = 90 °C and T = 100 °C, where PSDs of ±15% or less have been previously described as narrow in the sense of near-monodispersed.28 Based on the solubility limit, the maximum loading of the reaction with Co(NO3)2·6H2O is estimated to be in the range between 8 mmol and 10 mmol (in 20 mL with 2 mL EtOH as phase mediator).
Most importantly, in view of practical applications, e.g. in heterogenous catalysis, the presented synthetic strategy is scalable, such that longer growth times along with up-scaling the reagent concentrations reliably increase the NP yield per experiment.
Based on the established growth curves obtained under systematic variation of reaction time and reagent concentrations, we can deduce optimal termination times for the individual experiments (1004h6mmol (t = 60–80 min), 1004h12mmol (t = 120–180 min), 1004h18mmol (t = 180–240 min), and 1004h24mmol (t = 180–240 min)) to achieve the most favourable results. For samples 1004h18mmol and 1004h24mmol narrow PSDs may still be achieved for growth times >180 min.
As the NP morphology and the degree of edge blunting can also be controlled via the reaction parameters, the presented synthetic strategy opens interesting perspectives for NP self-assembly into colloidal crystals with tuneable packing structures and potential emerging properties based on cooperative effects between the particles.
