Unveiling the significance of adduct formation between thiocarbonyl Lewis donors and diiodine for the structural organization of rhodanine-based small molecule semiconductors

Abstract

Rhodanine vinyl bithiophene (BTR) was synthesized and characterized both spectroscopically and structurally. The reaction of BTR with molecular iodine led to the 1 : 1 “spoke” adduct BTR·I₂, formed by interaction of the rhodanine thiocarbonyl group with a diiodine (I₂) molecule. The elongation of the I–I bond in the adduct with respect to solid-state I₂ and the Raman response in the low-energy region (ν = 150 cm⁻¹) clearly indicate BTR·I₂ to be a weak CT adduct. Hybrid-DFT calculations showed that the adduct formation narrowed the HOMO–LUMO gap in BTR·I₂ as compared to BTR, while the extended network of secondary interactions, including type-I halogen bonds (XB), results in the formation of an extended 3D network. As a consequence, the room temperature conductivity of BTR·I₂ increased with respect to BTR, testifying for a more efficient molecular packing for charge percolation, with the formation of charge carriers in the crystal being facilitated by the presence of I₂. It is worth noting that the single-crystal junction device operates at room temperature, in air, and no variation of conductivity over time was observed, indicating that no loss of diiodine occurred during measurements. These results clearly indicate the formation of thiocarbonyl–diiodine CT adducts and their potential as a solid additive for modulating the organization of small molecule semiconductors.

---

Introduction

The molecular organization of π-conjugated compounds in the solid-state plays a crucial role in organic electronics.^1–3 Intermolecular interactions, including π–π stacking, dipole–dipole, and charge transfer interactions, significantly influence the arrangement of molecules, thereby defining pathways for charge percolation.^4–7 Understanding and controlling these interactions is essential for improving the energy efficiency, stability, and overall performance of organic electronic devices. Over the past decade, there has been an increasing interest in the development of a class of π-conjugated compounds commonly referred to as “small molecules” (SMs).^8–10 These compounds are currently widely investigated for their potential in creating n-type semiconductor materials for highly efficient and sustainable organic solar cells (OSCs), among other applications.^9–13 The typical design of a SM consists of a polycyclic aromatic π-system arranged in a linear or fused fashion, along with solubilizing side chain and electron directing functionality (Fig. 1). Widespread research efforts have been devoted to enhancing the efficiency of OSCs by thoughtfully tuning the energy level of the π-conjugated compounds and carefully selecting solubilizing chains to control their arrangement in the solid state once they are processed from solution.^14–16 However, it is essential to note that an inappropriate choice of solubilizing groups can have a detrimental impact on the performance of an optoelectronic device. This occurs because the lateral side chains might promote molecular assemblies with good local charge mobility but an overall modest charge carrier percolation.^17–21 Exploring post-synthetic approaches for controlling molecular organization is of particular interest. Common strategies involve the use of processing additives in the solution of organic semiconductors during the drying process, and thermal post-treatment of the formed thin films. Based on their distinct properties and effects, additives can be categorized into two categories: solvent additives and solid additives. The first category typically consists of solvents that primarily impact the solution state and evaporation dynamics in the film formation process. These additives have a higher boiling point as compared to the main solvent, leading to a slower evaporation rate during the film preparation, thus allowing for fine-tuning of the film crystallinity, as well as the phase separation in the case of blends.^15,22–25

Fig. 1 Schematic representation of the molecular structure of small molecule semiconductors (top). Selected representative examples of the bridge–acceptor molecular structure segment (bottom). BTR = bithiophene vinyl rhodanine; BTMN = bithiophene vinyl rhodanine malonitrile.

The second category, solid additives, operates distinctively from their solvent counterparts, first because they alter the intermolecular interaction among π-conjugated compounds, and second because they are incorporated into the films, so in principle they do not require high temperature for their removal.^26–28 Such a scenario is particularly interesting as it avoids the risk of film degradation which inevitably leads to a reduction in device performance. Examples of solid additives include 7-dibromo-9,9-dimethyl fluorene (DBDMF), hydroxy-methylpyrimidine derivatives, 9-fluorenone-1-carboxylic acid (FCA), 2-benzylidene-1-indene-1,3-dione and its derivatives, and diiodine.^26–30 The latter additive is particularly intriguing because it is commonly employed also as a p-type chemical dopant for both small molecules and π-conjugated polymers, contributing to the enhancement of charge carriers in the semiconductor layer.^29,30 However, the optimal generation of charge carriers relies heavily on the homogeneous distribution of the dopant throughout the material. To achieve this objective, various parameters must be carefully tuned during the film deposition process. Studies have demonstrated that employing higher temperatures is advantageous for this purpose.²⁹ Consequently, the use of a solid dopant may prove to be less energy-effective if heat must be applied during the fabrication of optoelectronic devices. As a possible solution to this problem, our vision is to leverage the terminal functionality of semiconductors as coordination points for solid additives/dopants, so to reach a homogeneous distribution at the molecular level in the materials also at room temperature. In this context, intermolecular charge-transfer (CT)³¹ and σ-hole interactions,³² such as hydrogen, halogen, and chalcogen bonding interactions,³³ are very promising to establish directional secondary bonds between semiconducting compounds and solid additives. In particular, contrary to carbonyl groups (C=O), chalcocarbonyl functionality C=Ch (Ch = S, Se) is known to promote intermolecular CT with I₂.³¹ At the same time, the C=Ch unit is of common occurrence in the terminal unit of SMs as it is intrinsically included in the molecular architecture of rhodanine electron-directing groups.^9,11–13 To the best of our knowledge, no examples of C=Ch⋯I₂ interactions in the rhodanine functionality and in the presence of π-conjugated compounds have been reported in the past. Therefore, we have focused our attention on investigating C=Ch⋯I₂ bond formation in a model compound consisting of a π-conjugated segment directly connected to a rhodanine functionality. In this work, we report on the synthesis and structural and spectroscopic characterization of a bithiophene derivative featuring a N-ethylrhodanine (BTR, Fig. 1), and its CT adduct with molecular iodine. By utilizing a single crystal junction set-up, the effect of solid-state molecular organization on charge percolation through the crystals of the prepared compounds and adducts is investigated.

Results and discussion

Design and synthesis

We designed a bithiophene π-conjugated backbone decorated with a rhodanine electron-withdrawing group as a model of the bridge–acceptor segment of a SM semiconductor (Fig. 1). The bithiophenic segment was deliberately incorporated in the design to mimic the behaviour of the bridging linker between a hypothetical central core of a small molecule and the acceptor terminal group. Thus, the bithiophene moiety serves a dual purpose: first, it helps establish a reasonable electronic density in proximity to the electron-withdrawing group (rhodanine), and second, it functions as a means to verify the absence of side reactions, such as halogenation in positions 2 and 3, when the compounds undergo treatment with halogens. The synthetic pathway of the model compound bithiophene vinyl rhodanine (BTR) is depicted in Scheme 1. BTR was synthesized by Vilsmeier reaction³⁴ followed by Knoevenagel condensation.³⁵ Commercially available 2,2′-bithiophene (BT) underwent an initial reaction with phosphorus oxychloride (V), POCl₃, and dimethylformamide (DMF) in 1,2-dichloroethane (1,2-DCE), resulting in quantitative yield of 2,2′-bithiophene-5-carbaldehyde (BTA).

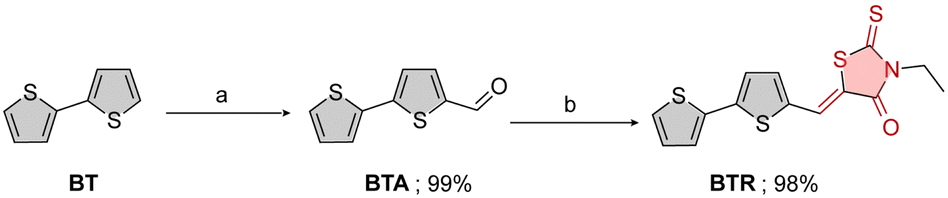

Scheme 1 (a) POCl₃ (i), DMF (ii), 1,2-DCE, reflux (83 °C), 24 h; (b) 3-ethyl-2-thioxo-1,3-thiazolidin-4-one, piperidine, ethanol, reflux (78 °C), 24 h.

Subsequently, the obtained acylated product was reacted with N-ethylrhodanine, in the presence of piperidine and ethanol, to give the desired product in quantitative yields. BTR was then treated with I₂ to form CT adducts through the interaction of the rhodanine C=S functionality and I₂.

X-ray diffraction analysis

The reactions between thiocarbonyl donors and I₂ allow for the formation of a variety of products, including simple CT “spoke” adducts C=S⋯I–I, “extended” CT adducts C=S⋯I–I–(I–I)_n, iodonium compounds C=S⋯I⁺⋯S=C, in addition to donor oxidation products such as [C–S–S–C]²⁺ dications.³¹ Cationic products can be counterbalanced by discrete or extended (poly)iodides with the general formula [I_2m+n]ⁿ⁻ (n, m > 0), such as [I₄]²⁻, [I₅]⁻, and [I₇]⁻, with the largest reported so far being the ferrocenium salt of [I₂₉]³⁻.^36,37 To investigate the potential scenarios involving rhodanine-containing thiophene derivatives, BTR and I₂ were made to react under various reaction conditions, systematically changing both the solvents and the molar ratios of reactants. Single crystals of BTR were grown by slow evaporation of an ethanol solution (Table S1, ESI†). The molecular unit is nearly planar except for the ethyl substituent at the rhodanine ring (Fig. 2a). Notably, the rhodanine ring shows the endocyclic sulfur atom periplanar with respect to the central thiophene ring, while the terminal thiophene is disordered over two positions, periplanar (64%) and antiperiplanar (36%) with respect to the central ring. Parallel BTR units (angle between the molecular planes 1.7°) are packed in a head-to-tail fashion based on π–π slipped stacking interactions between rhodanine and the terminal thiophene rings (intercentroid distance = 3.68 Å considering the major component) to form a pile developing along the [001] direction (Fig. 2b). Parallel piles pack along the [010] direction through interactions involving the ethyl substituents and the thiophene and the rhodanine rings. By either diffusion of diiodine vapors into a BTR hexane solution or direct mixing of hexane solutions of BTR and I₂, a single type of product was isolated, identified as BTR·I₂ by single-crystal X-ray diffraction analysis, and consisting of a CT “spoke” adduct showing a (C=)S⋯I–I linear moiety [S1⋯I1, 2.7576(5); I1–I2, 2.8067(4) Å; S1–I1–I2, 164.70(1)°; Fig. 2c]. Analogous to the crystal structure of BTR, the disorder of the terminal thiophene was modelled over two sites with atomic occupancies of 85 : 15 with the predominance of the antiperiplanar conformation. Interestingly, the planarity observed for the BRT units in its crystal structure is retained in the CT adduct with I₂. As typical of CT interactions, the transfer of electron density from the thiocarbonyl donor to I₂ results in a slight elongation of the C=S bond [C1–S1 = 1.632(2) and 1.666(1) Å in BTR and BTR·I₂, respectively]. Accordingly, the I–I bond in BTR·I₂ is elongated as compared to free I₂ [I1–I2 = 2.806(1) and 2.715(6) Å in BTR·I₂ and in the free I₂,³⁸ respectively], as a consequence of the CT to the I₂ antibonding σ* MO. Accordingly, the I–I bond length in BTR·I₂ corresponds to a Pauling bond order of 0.691.³⁹ The strength of the CT interaction in BTR·I₂ is weaker than the average of the related CT adducts deposited in the Cambridge Structural Database (CSD) between thiocarbonyl donors embedded in pentatomic rings and I₂ featuring a S⋯I–I moiety [angle larger than 170°, 44 hits; S⋯I and I–I average distances = 2.695(7) and 2.879(5) Å, respectively]. The weakness of the interaction can be attributed to the presence of the electron withdrawing carbonyl group in the rhodanine ring. The bond distances and angles in the >C=S⋯I–I fragment of BTR·I₂ strictly recall those observed in the adduct (mdth)·I₂ (mdth = 1,5,5-trimethyl-2-thiohydantoin) [S⋯I 2.818(2), I–I 2.795(1) Å, S⋯I–I 178.03(3)°].⁴⁰ It is worth noting that the S⋯I and I–I relative bond distances in the S⋯I–I moiety clearly fall within the correlation proposed by Devillanova for linear three-body systems A–B–C involving either halogens, X–X–X (X = Br, I), or halogen(s) and chalcogen(s) atoms, Ch–X–Y, X–Ch–Y, and Ch–X–Ch (Ch = S, Se; X = Y = Cl, Br, I; X = I, Y = Cl, Br, I), which correlates the relative elongations δ₁ and δ₂ of the two interatomic distances with respect to the sum of the relevant covalent radii (Fig. S1 in the ESI†). Pairs of planar adduct units show π–π stacking interactions between the rhodanine ring of one unit and the terminal thiophene ring of a symmetry related one (intercentroid distance 3.67 Å; Fig. 2d). Dimers formed by adjacent pairs interact through C–S⋯I and C–H⋯O weak contacts, the latter defining a R²₂(10) hydrogen bonding motif as the result of two interacting symmetry-related rhodanine groups [C11ⁱ–S4 = 1.721(2); S4Aⁱ⋯I1 = 3.660(1) Å; C11ⁱ–S4Aⁱ⋯I1 = 172.66(8); C1–S1 = 1.666(2); C6–H6 = 0.95 Å; H6ⁱⁱ⋯O1 = 2.34; C6ⁱⁱ⋯O1 = 3.210(3) Å; C6ⁱⁱ–H6ⁱⁱ ⋯O1 = 151°; ⁱ = 1 + x, 1 + y, +z; ⁱⁱ = 1 − x, 2 − y, 2 − z; Fig. 2e and S2 in the ESI†]. In addition, the terminal I₂ units show very weak I⋯I contacts, close to the sum of the relevant van der Waals radii, with a topology typical of bent type-I halogen bonds (XB) [I2⋯I2ⁱⁱⁱ = 4.1267(5) Å; I1–I2⋯I2ⁱⁱⁱ = 124.57(1)°; ⁱⁱⁱ = 1–x, 1–y, –z; Fig. 2e].

Fig. 2 (a) Ellipsoid plot and atom labelling scheme of compound BTR. The terminal thiophene ring is disordered over two positions with fractional occupancies 64 : 36. (b) Intermolecular interactions in the crystal packing of compound BTR (intercentroid distance of 3.68 Å). The minor component of the disordered moiety was omitted for clarity. (c) Ellipsoid plot and atom labelling scheme of compound BTR·I₂. The terminal thiophene ring is disordered over two positions with fractional occupancies 85 : 15. (d) π–π stacking interactions between pairs of BTR·I₂ units featuring an intercentroid distance of 3.67 Å when considering the most abundant position of the disordered terminal thiophenyl moiety. (e) View along the [101] direction of a portion of a ribbon motif found in the crystal structure of BTR·I₂ (see the text for a description of weak interactions). Ellipsoids were drawn at the 50% probability level. Hydrogen atoms were omitted for clarity in (b) and (d). Symmetry operations: ⁱ = 1 + x, 1 + y, +z; ⁱⁱ = 1 − x, 2 − y, 2 − z; ⁱⁱⁱ = 1 − x, 1 − y, −z. See Tables S2–S5 (ESI†) for selected bond angles (°) and distances (Å).

Raman spectroscopy

Raman spectroscopy is a sensitive technique providing structural information on dihalogens, interhalogens, and (inter)polyhalides.⁴¹ In particular, in “spoke” I₂-adducts the extent of the elongation of perturbed diiodine is reflected in the shifting of the Raman peak due to the I–I σ_g stretching vibration. Molecular iodine (bond order n_I–I = 1) shows a peculiar peak at 214.5 cm⁻¹ in the gas phase, due to the I–I stretching vibration.^42–45 The same vibration can be envisaged in the range 203–211 cm⁻¹ in low-polar organic solvents.⁴⁵ Accordingly, nearly monomeric I₂ trapped in solid Kr displayed a distinct Raman band at 210.8 cm⁻¹ at 32 K.⁴⁴ In crystalline I₂, two molecular units are present in the unit cell, and two vibrations can be envisaged, attributed to the in-phase (A_g, 180 cm⁻¹) and out-of-phase (B_3g, 189 cm⁻¹) stretching modes.^46,47 In solid state I₂ at room temperature, only the former band is often observed, so that I₂ is reported to feature a single Raman band.^45,48 In molecular systems containing perturbed diiodine (n_I–I < 1) the weakening of the I–I bond is reflected in a linearly dependent shift of the Raman A_g band toward lower wavenumbers. The Raman spectrum of BTR·I₂ shows a single peak at 150 cm⁻¹ (Fig. S3 in the ESI†), clearly absent in the Raman spectrum of BTR. The shift of this peak (about 30 cm⁻¹) with respect to the peak observed for solid I₂, together with the moderate elongation of the I–I bond, classifies BTR·I₂ as a weak CT adduct (n_I–I > 0.6).⁴⁹ In fact, the Raman shift recorded for BTR·I₂ falls within the linear correlation between the measured Raman frequency and the I–I bond distances reported for weak I₂ CT adducts.⁴⁹

Computational study

To better understand the reactivity of BTR towards diiiodine, a set of theoretical calculations were performed on both BTR and its 1 : 1 diiodine CT adduct. Based on comparative investigations reported previously,^50,51 the hybrid mPW1PW⁵² functional was paralleled by Schäfer, Horn and Ahlrichs split-valence basis sets including polarization functions (SVP),⁵³ in the formulation of Weigend (def2-SVP)⁵⁴ for all atoms except iodine, for which the LANL08(d)⁵⁵ basis set including relativistic effective core potentials (RECPs) was adopted. Over the past few decades, the interaction of chalcogen donors with diiodine has been described by using two apparently opposite descriptions. Traditionally, this interaction was interpreted on the basis of an orbital-mixing model as a charge-transfer (CT) interaction between the Lewis base L, featuring a lone pair of electrons (LP) on the donor atom, and the I₂ Lewis acid, featuring a σ* antibonding molecular orbital located along the I–I bond, so that the CT results in a lowering of the I–I bond order and an elongation of the bond as compared to that of unperturbed I₂.^31,43,48

More recently, the same type of interactions has been considered to be governed by the anisotropy of electrostatic potential on the interacting halogen atom, whose charge depletion sites (σ-holes),³² located opposite to the I–I bond in I₂ (Fig. 3b), would orient the halogen towards more nucleophilic sites in the organic molecule, i.e. those displaying a more negative electrostatic potential. In this context, the spoke adduct L·I₂ has been considered as the result of a halogen bond (XB)^56,57 interaction between the I₂ XB donor and the L acceptor.⁵⁸ Recent theoretical studies carried out often at the DFT level have agreed that σ-hole interactions result from different contributions. Energy decomposition analyses (EDAs) have shown that the energy of σ-hole interactions can be decomposed into an electrostatic term and an MO-mixing term,^59,60 in addition to dispersion.⁶¹ The relative weight of each contribution depends largely on the nature of the involved groups, so that the nature of the σ-hole interactions spans from almost purely ionic, especially at longer distances, to largely covalent, in which case a three-body system, featuring complementary bond orders, can be envisaged.

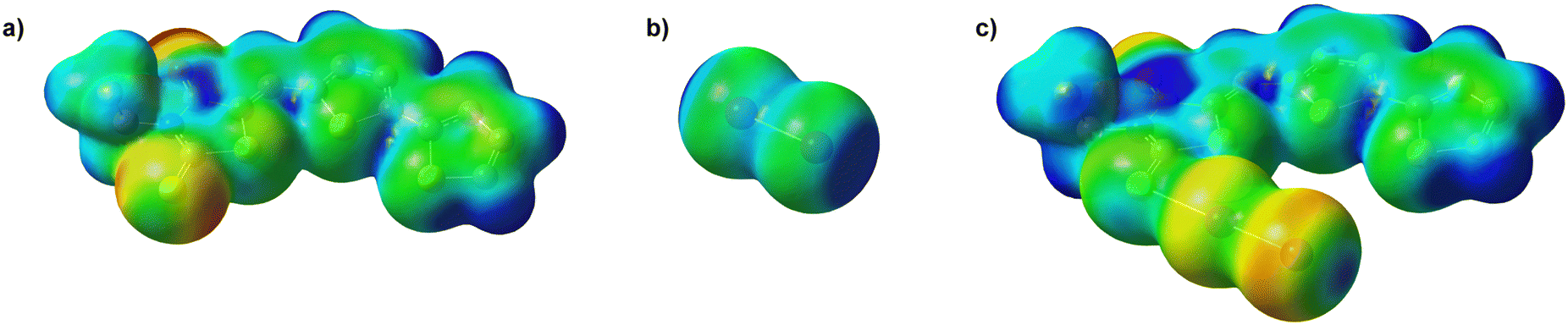

Fig. 3 Molecular electrostatic potential (MEP) mapped on the electron density surface (5 × 10⁻³ |e| bohr⁻³) in BTR (a; periplanar conformation), I₂ (b), and BTR·I₂ (c; periplanar conformer). MEP range −0.05 (red) – +0.05 (blue) a.u. Hydrogen atoms were omitted for clarity.

With the aim to get an insight into the interaction between BTR and I₂, DFT calculations were carried out on the isolated BTR and I₂ molecules, and the BTR·I₂ “spoke” adduct (see Tables S6–S8 in the ESI† for the orthogonal Cartesian coordinates in the optimized geometries). As described above, the crystal structure of BTR shows the terminal thiophene ring disordered over the two possible planar and antiperiplanar conformations. Both planar conformers were optimized in the gas phase showing a negligible total electronic energy difference (0.8 kcal mol⁻¹), thus justifying the presence of both conformers in the crystal structure. In Table 1, a selection of the natural charges^62–64Q calculated for BTR at the optimized geometry is reported (see Tables S9–S11 for a full list in the ESI†). While thiophene and the rhodanine endocyclic S-atoms are positively charged, the rhodanine thiocarboxylic sulfur atom features a small negative charge. The Kohn–Sham (KS) HOMO and HOMO-1 calculated for BTR (Fig. S4 in the ESI†), very close in energy to each other (ε = –6.344 and –6.542 eV, respectively), show a significant contribution from the exocyclic S-atom. In particular, HOMO-1 is a 3p lone pair of electrons lying on the molecular plane. Therefore, the frontier MO composition and the natural population analysis (NPA)^62–64 indicate the exocyclic sulfur atom of the rhodanine ring as the preferred donor site towards I₂ in a CT interaction. On the other hand, Fig. 3a shows the electrostatic potential calculated for BTR, mapped on the electron density, clearly showing that the most negative electrostatic potential regions on the sulfur electron density are located on the molecular plane, in accordance with the structural data collected for BTR·I₂. Thus, the two limit views of MO interpretation and electrostatic potential map converge to the same result. Indeed, the regions on the sulfur atom showing the largest negative electrostatic potential coincide with those where the lobes of KS-HOMO-1 isosurfaces are located (see Fig. S5 in the ESI†).

Table 1 Selected natural charges Q (|e|) calculated at the optimized geometry for BTR and BTR·I₂. Atom labelling scheme as in Fig. 2a and b. Values refer to the conformer with the thiophene rings in the periplanar conformation

Q	BTR	BTR·I2
O1	−0.591	−0.581
N1	−0.502	−0.491
S1	−0.064	−0.020
S2	0.374	0.417
S3	0.430	0.445
S4	0.430	0.439
I1	—	−0.028
I2	—	−0.183

---

The geometry of the 1 : 1 “spoke” adduct BTR·I₂ was successfully optimized (Fig. S6 in the ESI†), with the diiodine unit lying on the molecular plane, in agreement with the structural data discussed above. A very good agreement between calculated and experimental bond lengths and angles was found. In particular, the interaction between the thiocarbonyl rhodanine group and diiodine shows metric parameters (C=S, 1.661; S⋯I, 2.951; I–I, 2.780 Å; S⋯I–I, 173.2°), close to those determined by single crystal X-ray diffraction analysis (see above). This notwithstanding, the optimized I–I bond distance is slightly longer than the experimental value (by 0.027 Å), suggesting a modest underestimation of the CT interaction. The moderate elongation of the I–I bond distance d_I–I in the adduct as compared with that optimized at the same level of theory for I₂ (Δd_I–I = 0.114 Å) is in agreement with the weak nature of the interaction. The interaction energy in the “spoke” adduct associated with the orbital mixing and CT can be evaluated by means of a second order perturbation theory analysis of the Fock matrix in the Natural Bond Orbital basis at the optimized geometry. This is achieved by examining all possible interactions between occupied (donor) NBOs and virtual (acceptor) non-Lewis NBOs and evaluating their interaction energy by means of the second order perturbation theory.⁶⁴ For each donor NBO (i) and acceptor NBO (j), the associated stabilization energy E_CT can be estimated as

E_CT = q_i·F(i,j)/(ε_j − ε_i)

where q_i is the donor orbital occupancy, ε_j and ε_i are diagonal elements and F(i,j) is the off-diagonal NBO Fock matrix element. In the case of BTR·I₂, the donor orbital is represented almost entirely (96.2%) by the filled bonding NBO localized on the exocyclic sulfur (i = 6) and the acceptor orbital by the antibonding NBO (j = 350), localized on the atoms I1 and I2 (54.10% and 45.90%, respectively) and antibonding with respect to the I–I bond. This interaction is calculated to be relatively small [E_CT = 31.4 kcal mol⁻¹; F(6,350) = 7.2·10⁻² a.u.; Δε = 0.20 a.u.]. Accordingly, a NPA carried out on BTR·I₂ at the optimized geometry (Table 1) reveals that the interaction led to a charge-transfer ΔQ_CT = 0.192 |e| from the organic donor to the diiodine unit. The additional charge on I₂ is transferred in particular to the terminal iodine atom, which shows a remarkably negative natural charge (Q_I = –0.183 |e|).

As a consequence of the CT, the I–I Wiberg bond⁶⁵ index in the I₂ unit is lowered to 0.793, which is slightly larger than the value calculated from the structural data using Pauling's equation.

This is consistent with the weak adduct nature of the BTR·I₂ adduct, evidenced by the optimized metric parameters (see above) and experimentally confirmed by Raman spectroscopy (see above). The molecular electron density mapped on the density surface in BTR·I₂ clearly shows the most negative potential on the most electronegative oxygen atoms, in accordance with the NPA (Fig. 3c). It is worth noting that the terminal iodine atom in the adduct displays a distribution of the electrostatic potential pointing to a σ-hole topology, in perfect agreement with the long XB interactions connecting the stacks of BTR·I₂ in the solid state, responsible for the 3D lattice dimensionality.

Although Koopmans’ theorem cannot be applied to density functional theory, the Kohn–Sham eigenvalues can be considered as useful parameters⁶⁶ in evaluating the variations in the HOMO–LUMO energy gap induced by the interaction of BTR with I₂. In fact, the gas-phase Δε_HL HOMO–LUMO energy gap is in good agreement with the band gap of small π-conjugated compounds.^57,67 In the case of BTR and BTR·I₂ Δε_HL values of 3.26 and 3.16 eV are calculated (Fig. 4), falling within the range –2.5 ∼ –4.0 eV, typical of a small organic semiconductor.⁶⁷ It is noteworthy that the case of BTR clearly demonstrates how I₂-adduct formation can efficiently reduce the HOMO–LUMO energy gap in the resulting adducts compared to the pristine substrates. The case of study shows that this strategy holds not only when Lewis donors with a large Mulliken hardness are considered, as in the case of N-donors,⁵¹ but also when softer S-donors are considered, as in the case of BTR. Finally, a vibrational analysis carried out on BTR·I₂ confirms the attribution of the Raman peak at 150 cm⁻¹ as due to the stretching of the perturbed I₂ unit.

Fig. 4 Kohn–Sham frontier orbital energy levels for BTR (left) and BTR·I₂ (right). Color: carbon, gray; nitrogen, blue; oxygen, red; sulfur, yellow; hydrogen, white. Cutoff value = 0.05 |e|.

Single crystal electrical characterization

To investigate the impact of the molecular organization, induced by the thiocarbonyl–diiodine interactions, on the charge transport properties of the bulk material, we fabricated single crystal junction devices (see the ESI† for details). Single crystals of BTR and BTR·I₂ were carefully transferred to the top of a glass substrate grafted with two gold pads. Each crystal was disposed to bridge the two electrodes, and a droplet of silver paste was applied in each crystal–metal junction to obtain a more stable electrical contact (Fig. 5a). In order to evaluate the stability and the reproducibility of the measurements, the two devices were measured on two different days and each measuring run was cycled five times. The average results of the electrical characterization are reported in Fig. 5b. From the reported plots we clearly observe that the different runs of measurements are very reproducible, as demonstrated by the limited standard deviation (see error bars) and, most importantly, that the BTR·I₂ adduct is characterized by a much higher conductivity with respect to the crystals of the pristine BTR. It is worth noting that the distance between the two electrodes was kept constant in the two sets of devices, and that the crystals have been properly selected to have comparable geometrical dimensions, i.e. width and height. The enhanced electrical current of the adducts might suggest that molecules have adopted a more efficient packing for charge percolation, and at the same time diiodine may have facilitated the formation of charge carriers in the crystal. It is noteworthy to observe that diiodine was not displaced upon electric current application, as the value of conductivity is steady over time.

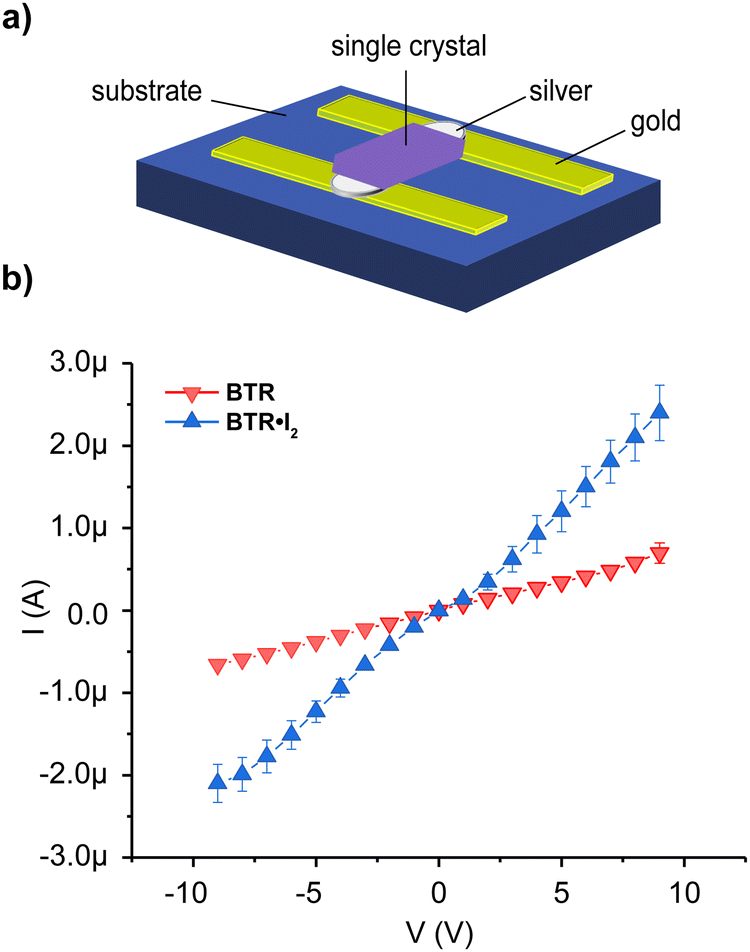

Fig. 5 (a) Device architecture for single-crystal electrical characterization. (b) Average current–voltage plots of BTR (red) and BTR·I₂ (blue).

Conclusions

In summary, we have presented a novel approach to regulate the molecular organization of rhodanine-containing π-conjugated compounds. Our study demonstrates that I₂ can interact at the molecular level, forming stable adducts through interaction with the rhodanine thiocarbonyl terminal groups. Furthermore, preliminary study on the electrical conductivity of single crystals suggests that the molecular arrangement in BTR·I₂ leads to an enhancement of the flow of electric current. Therefore, the following conclusions can be drawn:

(1) I₂ can be used as a solid additive to tailor the molecular organization of rhodanine-containing π-conjugated thiophene derivatives.

(2) The diiodine adduct undergoes a reduction in the HOMO–LUMO energy gap compared to the pristine compound.

(3) FT-Raman spectroscopy represents an effective and fast non-destructive approach to reveal the coordination of diiodine and can therefore be used in semiconductors to verify the adduct formation and its strength in the absence of a single crystal X-ray diffraction analysis, in particular when non-crystalline materials are considered.

(4) Finally, DFT calculations can model both the CT/σ-hole interaction between the Lewis donor and diiodine and the XB intermolecular interactions. In this context, neglecting dispersion effects, two concurrent interpretation models for σ-hole interactions have been proposed, i.e. a MO-mixing approach, consisting of a partial charge-transfer from a nucleophile (Lewis base) to an electrophile (Lewis acid), or a noncovalent σ-hole interpretation based on the topology of electrostatic potential. Energy decomposition schemes have shown that both aspects contribute to XB and ChB interactions. As previously shown for different systems showing XB and ChB interactions involving chalcogen donors interacting with dihalogens/interhalogens the two models converge to the same conclusions, with the depletion areas of electrostatic potential (σ-holes) being topologically related to the direction of antibonding natural orbitals.

The case study of BTR/BTR·I₂ shows for the first time the role played by the introduction of chalcocarbonyl groups in π-conjugated derivatives in the formation of supramolecular architectures based on XB/ChB interactions capable of extending the dimensionality of their lattice, reducing the HOMO–LUMO energy gap, and ultimately increasing their semiconducting behaviour.

These results pave the way for the development of novel processing methods that can be directly applied to SM semiconductors, facilitating the fabrication of optoelectronic devices, such as organic solar cells based on non-fullerene small-molecule acceptors, organic field-effect transistors (OFETs), and organic memory devices (OMDs).

Data availability

The authors confirm that the data supporting the findings of this study are available within the article and/or its ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

G. S. would like to thank PON Ricerca e Innovazione (annualità 2014-2020, grant no. DOT1304455-2), Fondazione di Sardegna (annualità 2020, FdS grant no. F75F21001250007) and the Italian Ministry of University and Research (MUR) (National Recovery and Resilience Plan (NRRP) funded by the European Union – Next Generation EU; annualità 2022, grant no. P2022ZHBZE) for the financial support. MA, MCA, VL, and AP acknowledge the Ministero per l’Ambiente e la Sicurezza Energetica (MASE; formerly Ministero della Transizione Ecologica, MITE) – Direzione generale Economia Circolare for funding (RAEE – Edizione 2021). M. A. acknowledges the CINECA award under the ISCRA initiative, for the availability of high-performance computing resources and support (project ChWEEE, HP10CDTEF0). We acknowledge the CeSAR (Centro Servizi di Ateneo per la Ricerca) of the University of Cagliari, Italy for providing access to the SC-XRD facility.
