A highly sensitive self-powered photodetector based on pinhole-free PEA_0.2FA_0.8SnI₃ films with aminopyrimidine

Abstract

Tin-based perovskite halides have emerged as promising lead-free perovskite photodetectors. However, achieving high performance is hampered by poor stability and a high density of intrinsic defects. In this study, we developed an efficient tin-based perovskite photodetector that is sensitive to visible and near-infrared light through the incorporation of 2-aminopyrimidine as an additive. Our results demonstrated that the inclusion of 2-aminopyrimidine significantly improves film morphology, reduces roughness, passivates defect states, and suppresses the oxidation of Sn²⁺. The PEA_0.2FA_0.8SnI₃ films with 2-aminopyrimidine exhibited a high responsivity of 0.4 A W⁻¹ and a detectivity of 1.16 × 10¹² Jones, a fast response time of 0.93 ms, and excellent operation stability after 10⁴ on/off cycles. The findings highlight the significant potential of tin-based perovskite in the development of advanced photodetectors.

---

Introduction

Photodetectors (PDs) are capable of sensing optical signals over a wide range of wavelengths, including ultraviolet, visible light, and near-infrared (NIR) light. NIR detection is particularly important for various optical–electrical applications, such as medical imaging, biometric identification, and image sensing.^1–3 However, current commercial NIR PDs based on inorganic compounds (silicon and III–V group materials) are costly and require high-temperature and vacuum processes.^4,5 The development of new materials, such as conjugated molecules, two-dimensional materials, and halide perovskites, has led to the creation of lighter and lower-cost PDs.^6–9 Organic–inorganic halide perovskites, in particular, are promising options as next-generation PDs due to their low cost, ease of fabrication, and excellent optoelectronic properties.^10–18 Although Pb-based perovskite PDs have demonstrated high responsivity, detectivity, and fast response time,^19–21 the toxicity of Pb limits their commercialization.^22,23 Substitution of Pb with a less toxic alternative is therefore necessary to ensure commercial viability.

Tin (Sn)-based perovskites have emerged as a possible solution that addresses the issue of toxicity in Pb-based perovskite PDs, offering the advantages of a narrow bandgap, high charge-carrier mobility, and low exciton binding energy.^24–26 Sn-based perovskites facilitate optical detection ranging from visible to NIR.^27,28 However, most of the previously reported Sn-based PDs are based on nanowire structures, all inorganic perovskites, or 2D perovskites with a device architecture of photoconductors or transistors.^29–36 Unfortunately, these Sn-based PDs exhibit unsatisfactory response times, where FASnI₃-based PDs have delivered a rise/fall response time of 8.7/50 s and BA₂FASn₂I₇-based PDs showed a rise/fall response time of 5.78/0.96 s.^27,36 Recently, Seong and co-workers reported PDs based on 2D PEA₂SnI₄ with a fast response speed of 0.56 ms, but the associated wavelength range was limited to 300–650 nm.³⁷ In order to achieve faster response times, devices with short charge transport channels are needed, such as a vertical photodiode with a transparent electrode on one side.^38,39 However, there are only a few reports of Sn-based photodiodes, and even fewer dealing with 3D Sn-based PDs.^29,30,40,41 This is mainly due to the challenge of fabricating high quality and dense Sn-based perovskite thin films. Moreover, Sn-based perovskite thin films undergo Sn²⁺ oxidation to Sn⁴⁺ and rapid crystallization,^42–45 making it critical to achieve high quality and dense active films with low defect density to realize Sn-based perovskite PDs. Additive engineering to passivate defects and suppress Sn²⁺ oxidation is an effective way to obtain high quality Sn-based perovskite films.⁴⁶

In this study, we have fabricated Pb-free perovskite PDs using a PEA_0.2FA_0.8SnI₃ thin film that incorporated 2-aminopyrimidine. The addition of 2-aminopyrimidine enabled controlled crystal growth, improved film morphology, passivated defect states, and prevented Sn²⁺ oxidation. The Sn-based PDs with 2-aminopyrimidine have exhibited a broad response range from 300 to 900 nm, a fast rise/fall response time of 0.93/1.74 ms, a high responsivity of 0.4 A W⁻¹ and a detectivity of 1.16 × 10¹² Jones, and a linear dynamic range (LDR) of 94.6 dB. Moreover, the PEA_0.2FA_0.8SnI₃-based PDs with 2-aminopyrimidine exhibited excellent operational stability after 10⁴ on/off cycles.

Results and discussion

Sn-based perovskite films were prepared by the antisolvent-assisted spin-coating of a PEA_0.2FA_0.8SnI₃ precursor solution with varying amounts of 2-aminopyrimidine dissolved in a mixture of N,N-dimethylformamide (DMF) and dimethyl sulfoxide (DMSO) solvents, following the methodology outlined in the Experimental section. The impact of 2-aminopyrimidine concentration on the crystallinity and optical properties of PEA_0.2FA_0.8SnI₃ films was evaluated using X-ray diffraction (XRD) and absorption spectroscopy. The amount of 2-aminopyrimidine was adjusted from 0 to 2 mg to investigate the impact on the optoelectronic properties of PEA_0.2FA_0.8SnI₃ films. The XRD patterns, shown in Fig. 1a, are consistent with the reported orthorhombic structure of the perovskite film, with peaks at 14.1°, 24.5°, 28.4°and 43.0° attributed to the (100), (102), (200) and (213) planes, respectively.⁴⁷ The peaks located at 24.5° and 43.0° are too weak to be visible, and the enlarged patterns are shown in Fig. S1.† Increasing the amount of 2-aminopyrimidine (0–1 mg) led to an increase in the intensity of the (100) and (200) peaks indicating that the addition of 2-aminopyrimidine could regulate the crystalline process of the PEA_0.2FA_0.8SnI₃ films. However, the intensity of the (100) plane decreased when the PEA_0.2FA_0.8SnI₃ film was accompanied by 2 mg of 2-aminopyrimidine, suggesting that an excessive amount of additive hampers the growth of high-quality crystals in the PEA_0.2FA_0.8SnI₃ film. The full width at half maximum (FWHM) of the (100) diffraction peak is presented as a function of 2-aminopyrimidine concentration in Fig. 1b. As the amount of 2-aminopyrimidine additive increased from 0 to 1.0 mg, the FWHM of the (100) peak decreased from 0.0824° to 0.0807°. However, it increased to 0.089° with the addition of 2 mg. The PEA_0.2FA_0.8SnI₃ films treated with 1 mg 2-aminopyrimidine exhibited the smallest FWHM, indicating that the well-growth and high crystallinity of the PEA_0.2FA_0.8SnI₃ film could be attributed to the optimized amount of 2-aminopyrimidine.

Fig. 1 (a) XRD diffraction patterns and (b) the FWHM of the (100) peak for PEA_0.2FA_0.8SnI₃ films with varying amounts of 2-aminopyrimidine (0–2 mg). (c) Absorption spectra (the inset shows the enlarged absorption edge) and (d) PL spectra of PEA_0.2FA_0.8SnI₃ films with varying amounts of 2-aminopyrimidine.

The absorption spectra of the PEA_0.2FA_0.8SnI₃ films with varying 2-aminopyrimidine concentrations are presented in Fig. 1c. All the films exhibited an absorption edge at approximately 900 nm, which remained unaffected by the increasing amount of 2-aminopyrimidine (inset of Fig. 1c). This suggests that the additive had no significant effect on the absorption properties of the film. Steady-state photoluminescence (PL) measurements were performed to evaluate the optical properties of the PEA_0.2FA_0.8SnI₃ films as a function of 2-aminopyrimidine concentration. As shown in Fig. 1d, the films exhibited an emission peak at approximately 880 nm. The PEA_0.2FA_0.8SnI₃ film with 1 mg 2-aminopyrimidine exhibited the highest PL intensity, suggesting that the additive effectively passivated defect states and reduced non-radiative recombination losses.

To investigate the effect of the amounts of 2-aminopyrimidine on the surface morphology and roughness of PEA_0.2FA_0.8SnI₃ films, we employed scanning electron microscopy (SEM) and atomic force microscopy (AFM). In Fig. 2a, the PEA_0.2FA_0.8SnI₃ film without 2-aminopyrimidine showed poor uniformity and numerous cracks, which can act as charge recombination centers and are detrimental to dark current. Furthermore, the pristine film exhibited a rough surface with a high roughness value of 31 nm (Fig. S2†). However, as the amount of 2-aminopyrimidine was increased from 0 to 1 mg (Fig. 2b and c), the film became denser and smoother. A more uniform morphology is crucial for efficient charge transport during photodetection. Additionally, the PEA_0.2FA_0.8SnI₃ film with 1 mg 2-aminopyrimidine displayed the lowest roughness value (13.2 nm). On the other hand, increasing the additive to 2 mg resulted in the appearance of numerous pinholes at the grain boundaries, leading to an increase in the roughness value (32 nm) (Fig. 2d and S2†). These results indicate that the use of excessive additives has a negative effect on the crystallization and leads to poor surface coverage. Therefore, adding 1 mg of 2-aminopyrimidine was found to be optimal, and the subsequent discussion will focus on the PEA_0.2FA_0.8SnI₃ film with 1 mg 2-aminopyrimidine and the pristine PEA_0.2FA_0.8SnI₃ film.

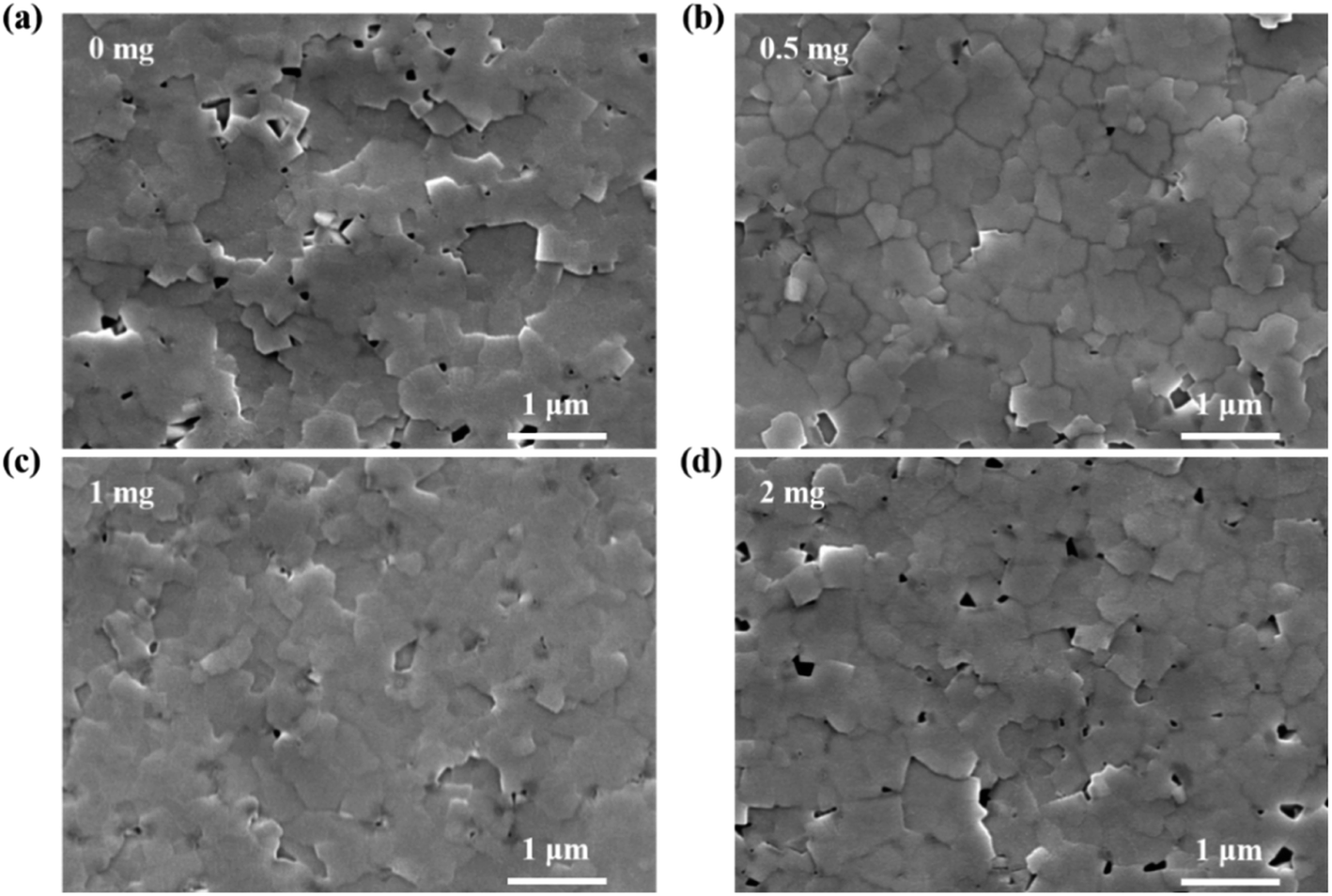

Fig. 2 Representative SEM images of PEA_0.2FA_0.8SnI₃ films with (a) 0 mg, (b) 0.5 mg, (c) 1 mg and (d) 2 mg 2-aminopyrimidine.

To explore the chemical interaction between the 2-aminopyrimidine additive and the PEA_0.2FA_0.8SnI₃ film, Fourier transform infrared (FTIR) spectroscopy was conducted. As shown in Fig. S3,† the FTIR spectra of neat 2-aminopyrimidine and the perovskite with 1 mg of 2-aminopyrimidine were compared. In neat 2-aminopyrimidine, the peak corresponding to the N–H bond in 2-aminopyrimidine was observed at 3400.2 cm⁻¹. However, in the perovskite with 2-aminopyrimidine, the peak corresponding to the N–H bond shifted to 3384.9 cm⁻¹, indicating an interaction between 2-aminopyrimidine and the perovskite. Furthermore, X-ray photoelectron spectroscopy (XPS) measurements were performed to examine the valence state of Sn and to assess the effect of the additive on the stability of the Sn-based perovskite. The Sn 3d core-level XPS spectra of the PEA_0.2FA_0.8SnI₃ films without and with 2-aminopyrimidine are presented in Fig. 3a and b, respectively. The peaks at 486.1 and 494.6 eV correspond to the energy levels of Sn 3d_5/2 and 3d_3/2 for Sn²⁺, while the peaks at 486.8 and 495.0 eV correspond to Sn⁴⁺.⁴⁸ Fitting analysis has revealed that the peak composition associated with Sn⁴⁺ decreased from 36.2 to 26.1% area following the introduction of 2-aminopyrimidine, indicating an effective inhibition of Sn²⁺ oxidation. Therefore, the introduction of the 2-aminopyrimidine additive can significantly enhance film quality through the N–H bond and improve stability by suppressing the oxidation of Sn²⁺ to Sn⁴⁺.

Fig. 3 (a and b) XPS spectra, and (c and d) J–V curves for the electron-only devices based on the PEA_0.2FA_0.8SnI₃ films without and with 1 mg 2-aminopyrimidine.

To validate the possible effect of 2-aminopyrimidine in reducing trap densities in PEA_0.2FA_0.8SnI₃ films, we fabricated electron-only devices with the structure of ITO/SnO₂/PEA_0.2FA_0.8SnI₃/PCBM/Ag. The corresponding current–voltage curves are plotted in Fig. 3c and d using the space charge limited current (SCLC) method. The trap density (N_t) can be calculated using the equation, N_t = 2ε₀ε_rV_TFL/eL², where ε_r represents the relative dielectric constant, ε₀ is the vacuum permittivity, V_TFL denotes the trap-filled voltage, e is the elementary charge, and L is the thickness of the PEA_0.2FA_0.8SnI₃ layer.⁴⁹ The V_TFL value of PEA_0.2FA_0.8SnI₃-based devices with and without 2-aminopyrimidine was 0.24 and 0.16 V, respectively. The incorporation of 2-aminopyrimidine resulted in a lower trap density (5.8 × 10¹⁵ cm⁻³) compared to the film without 2-aminopyrimidine (3.9 × 10¹⁵ cm⁻³), confirming that the additive can effectively reduce trap densities. This reduction in trap density can be attributed to the improved film quality and suppressed Sn²⁺ oxidation, leading to a decrease in dark current and an enhancement in PL intensity, which are beneficial features for high-performance photodetectors.

The schematic diagram in Fig. 4a illustrates the structural arrangement of the PEA_0.2FA_0.8SnI₃-based PDs. The PDs were fabricated with the structure of ITO/poly(3,4-ethylene dioxythiophene):polystyrene sulfonate (PEDOT:PSS)/PEA_0.2FA_0.8SnI₃/[6,6]-phenyl C₆₁-butyric acid methyl ester (PCBM)/Bathocuproine (BCP)/Ag. The effect of the 2-aminopyrimidine additive on the performance of the PDs was evaluated using current density–voltage (J–V) curves in the dark and under light illumination. The J–V curves of the PEA_0.2FA_0.8SnI₃-based perovskite PDs with and without 2-aminopyrimidine are shown in Fig. 4b. The current density of the PEA_0.2FA_0.8SnI₃-based PDs with 1 mg 2-aminopyrimidine was 3.69 × 10⁻⁷ A cm⁻² at −0.1 V, lower than that of the PDs without 2-aminopyrimidine (4.6 × 10⁻⁶ A cm⁻² at −0.1 V). The reduction in dark current can be attributed to the improved uniformity of the films and the lower trap densities resulting from the introduction of 2-aminopyrimidine. The dense and smooth morphology with enhanced crystallinity led to an increase in the photocurrent density for the PEA_0.2FA_0.8SnI₃-based PDs containing 2-aminopyrimidine, establishing efficient carrier transport in the device.

Fig. 4 (a) Structure schematic of the Sn perovskite PDs. (b) J–V curves under dark conditions and AM 1.5G solar illumination, (c) EQE spectra, (d) responsivity, and (e) specific detectivity of the Sn perovskite PDs with 0 mg (black circles) and 1 mg (red circles) 2-aminopyrimidine. (f) Representation of the specific detectivity of Sn-based perovskite PDs.

The external quantum efficiency (EQE) spectra of PDs with varying concentrations of 2-aminopyrimidine were measured, where all PDs exhibited a broadband light response from 300 to 900 nm (Fig. S4†). Notably, the PD with 1 mg 2-aminopyrimidine achieved a high EQE of over 60% at 400–810 nm (Fig. 4c), demonstrating high charge-carrier collection efficiency. Responsivity (R) is a key parameter for evaluating the performance of a PD, representing the response efficiency of the PD to the optical signal. The value of R can be calculated from the equation, R = EQE × e/hν, where e represents the elementary charge, h is Planck's constant, and ν denotes the frequency of the optical signal.⁵⁰ The dependence of responsivity on wavelength at zero voltage is presented in Fig. 4d. The PEA_0.2FA_0.8SnI₃-based PD with 1 mg 2-aminopyrimidine generated higher R values over the 300–900 nm range. The maximum R value was 0.4 A W⁻¹ at 810 nm, demonstrating the suitability of the PEA_0.2FA_0.8SnI₃-based PDs for broadband detection from visible to NIR. The enhanced photoresponse performance of the PEA_0.2FA_0.8SnI₃-based PDs incorporating 1 mg of 2-aminopyrimidine was superior to that of the PDs without 2-aminopyrimidine (Table 1).

Table 1 Photoresponse performance of the PEA_0.2FA_0.8SnI₃-based PDs with and without 2-aminopyrimidine

	J d (A cm^−2)	R (A W^−1)	D* (Jones)	T rise/fall (ms)	LDR (dB)
Control	4.60 × 10^−6	0.35	2.90 × 10^11	0.99/1.78	71.4
2-Aminopyrimidine	3.69 × 10^−7	0.40	1.16 × 10^12	0.93/1.74	94.6

---

The specific detectivity (D*) is a figure of merit used to quantify the capability of a photodetector to measure weak optical signals. The D* can be calculated using the formula, D* = R/(2q_eJ_d)^1/2, where J_d represents the dark current density. The detectivity profiles with respect to spectral wavelength are shown in Fig. 4e. The D* values for the PEA_0.2FA_0.8SnI₃-based PDs with 1 mg of 2-aminopyrimidine were appreciably higher, with a maximum detectivity of 1.16 × 10¹² Jones at 810 nm under a bias voltage of −0.1 V, four times higher than that of the pristine PEA_0.2FA_0.8SnI₃-based PDs (2.9 × 10¹¹ Jones). The results indicate that the lower trap density, which suppressed carrier recombination, resulted in the highest R and D* associated with the PDs containing 1 mg 2-aminopyrimidine. The range of D* values reported for Sn-based PDs with different structures and active layers is summarized in Fig. 4f and Table 2. Previously reported Sn-based perovskite PDs with high D* mostly employed two-dimensional or all-inorganic perovskites as photoactive layers, which resulted in a narrow device detection range. It should be noted that our fabricated PEA_0.2FA_0.8SnI₃-based PDs delivered the highest D* when compared with previously reported Sn-based PDs based on a photodiode device architecture.

Table 2 Comparison of the critical parameters associated with reported Sn-based PDs

Materials	D* (Jones)	R (A W^−1)	Response time	Structure type	Ref.
FASnI3	1.9 × 10^12	1.1 × 10^5 @ 0.5 V	8.7/57 s	Photoconductor	27
Cs2SnBr6	2.71 × 10^10		9.52/4.34 ms	Photoconductor	31
Cs2SnI6			100/100 ms	Photoconductor	32
(PEA)2SnI4	1.92 × 10^11	16	0.63/3.6 s	Photoconductor	33
BA2SnI4	1.46 × 10^13	2.65 @ 4 V	2.62/0.3 s	Photoconductor	34
BA2FASn2I7	6.3 × 10^12	1.55 @ 4 V	5.78/0.96 s	Photoconductor	34
CsSnBr3	4.27 × 10^11	0.0623 @ 3 V	50/51 ms	Photoconductor	35
(PEA)2SnI4	2.06 × 10^11	3.29 × 10^3	0.37/3.05 s	Photoconductor	36
PEA2SnI4	6.32 × 10^13	509	0.56/10.7 ms	Photoconductor	37
(PEA)2SnI4	8.09 × 10^9	0.121	34/38 ms	Photoconductor	42
MA0.7FA0.3SnBr3	6.7 × 10^10		45/420 ms	Photoconductor	44
(PEA)2SnI4	1.74 × 10^12	14.57 @ 10 V	50 ms/1.5 s	Photo transistor	43
MASnI3	8.8 × 10^10	0.47	1500/400 ms	Photodiode	29
				Nanowire array
CsSnI3	1.5 × 10^11	0.257	0.35/1.6 ms	Photodiode	30
PEA0.15FA0.85SnI3	8.29 × 10^11	0.39	0.78/1.31 μs	Photodiode	40
FA0.8PEA0.2SnI3	2.3 × 10^11	0.262	27.7/20.4 μs	Photodiode	41
PEA0.2FA0.8SnI3	1.16 × 10^12	0.4	0.93/1.74 ms	Photodiode	This work

---

The linear dynamic range (LDR) is a crucial parameter that characterizes the range of linear dependence on light intensity and is particularly significant in practical photodetection applications, specifically in imaging. It can be quantified using the formula, LDR = 20 log(I_max/I_min), where I_max represents the highest light intensity and I_min indicates the lowest light intensity within the linear range. As illustrated in Fig. 5a, the I_min of the PEA_0.2FA_0.8SnI₃-based PDs with 1 mg 2-aminopyrimidine is one order of magnitude lower than that of the reference PDs (Fig. 5b). Both the reference and Sn-based PEA_0.2FA_0.8SnI₃ PDs with 1 mg 2-aminopyrimidine exhibited comparable upper limits. The LDR of the PEA_0.2FA_0.8SnI₃-based PDs with 1 mg 2-aminopyrimidine was 94.6 dB, significantly larger than the LDR of the PD without 2-aminopyrimidine (71.4 dB). This finding demonstrates that the addition of 2-aminopyrimidine can promote more effective charge separation and collection, resulting in an enhanced response and detection over a wide range of light intensities, ranging from weak to intense.

Fig. 5 (a and b) Photocurrent as a function of incident light intensity. (c) Response time of the PEA_0.2FA_0.8SnI₃-based PD with 1 mg 2-aminopyrimidine. (d) Response times of previously reported PEA_0.2FA_0.8SnI₃-based PDs. (e) Long-term I–t curve for the PEA_0.2FA_0.8SnI₃-based PD with 1 mg 2-aminopyrimidine under 533 nm green light illumination. (f) Enlarged I–t curve.

The response time of PEA_0.2FA_0.8SnI₃-based PDs with 1 mg of 2-aminopyrimidine is shown in Fig. 5c, measured using an adjustable light source with current amplification. The rise and fall times were defined as the time required for the photocurrent to reach 10% and 90% of the maximum value, respectively. The PDs with 1 mg 2-aminopyrimidine exhibited a fast response speed, with a rise/fall time of 0.93/1.74 ms at 533 nm light illumination, appreciably faster than the pristine PDs (Fig. S5†). The fast response time of the PDs with 2-aminopyrimidine indicates that this additive effectively suppressed carrier recombination and minimized the dark current. Fig. 5d compares the response times of PDs using different Sn-based compounds, and it is evident that the PDs developed in this study showed a faster response time than other Sn-based perovskite PDs. Furthermore, when comparing response in terms of device structure (photodiode or photoconductor), our study delivers a similar response speed to the fastest response time Sn-based PDs reported previously. Additionally, the stability of the PEA_0.2FA_0.8SnI₃-based PDs with 1 mg 2-aminopyrimidine was superior to that of pristine PDs. Fig. 5 shows the device stability under green light with a pulse width of 50 Hz. The photocurrent did not exhibit any appreciable degradation after 10⁴ on/off cycles, demonstrating excellent operation stability and repeatability. The stability was further illustrated by the enlarged I–t curve during testing in air that is presented in Fig. 5f. In contrast, the PEA_0.2FA_0.8SnI₃-based PD without 2-aminopyrimidine displayed noticeable degradation, as shown in Fig. S6,† indicating that the addition of 2-aminopyrimidine effectively improved the stability of Sn-based PDs.

Conclusions

In summary, we developed lead-free and environmentally friendly PEA_0.2FA_0.8SnI₃-based PDs by incorporating 2-aminopyrimidine as an additive. The addition of 2-aminopyrimidine not only regulated crystal quality, improved surface morphology, and decreased roughness of the PEA_0.2FA_0.8SnI₃ thin film, but also suppressed oxidation of Sn²⁺ and passivated defects. As a direct consequence, devices based on PDs with the 2-aminopyrimidine additive exhibited a lower defect density and dark current. The PEA_0.2FA_0.8SnI₃-based PDs achieved a high responsivity (0.4 A W⁻¹) and detectivity (1.16 × 10¹² Jones) and fast response speed (0.93 ms). Additionally, the unencapsulated PDs exhibited excellent operation stability and repeatability after 10⁴ on/off cycles. Our study demonstrates that the use of 2-aminopyrimidine as an additive is an effective means of producing high-performance Sn-based perovskite PDs.

Experimental section

Materials

Tin iodide (SnI₂, 99.999%), tin fluoride (SnF₂, 99.8%), dimethyl sulfoxide (DMSO, 99.8%), N,N-dimethylformamide (DMF, 99.8%), chlorobenzene (CB, 99.8%), and bathocuproine (BCP, 99.5%) were purchased from Sigma-Aldrich. Phenyl-ethylammonium iodide (PEAI, 99.5%) and formamidinium iodide (FAI, 99.5%) were purchased from Xi'an P-OLED Co. All materials and reagents were used as received without further purification.

Fabrication of perovskite photodetectors

The glass substrate with ITO was ultrasonically cleaned using acetone, ethyl alcohol, and deionized water and then treated with UV-ozone. The PEDOT:PSS (Clevios P VP Al 4083) layer was spin-coated onto the substrates at 4000 rpm for 30 s, followed by thermal annealing at 150 °C for 15 min in air. The Sn-based perovskite precursors were prepared by dissolving FAI : PEAI : SnI₂ : SnF₂ with a molar ratio of 0.8 : 0.2 : 1 : 0.1 in a 1 mL solution of DMF and DMSO (4 : 1 volume). In the case of the perovskite films with additives, a known amount of 2-aminopyridine was added to the precursor solution. In the fabrication of the Sn-based perovskite film, the precursor solution was filtered using a 0.22 μm PTFE filter and subjected to spin-coating at 1000 rpm for 10 s and then at 5000 rpm for 30 s. The antisolvent (CB) was dripped for 12 s in a high speed step. Then, the film was annealed at 70 °C for 10 min. PCBM (20 mg mL⁻¹ in CB) was spun on the perovskite film at 1000 rpm for 20 s, followed by BCP (0.5 mg mL⁻¹ in isopropyl alcohol) which was spun at 3000 rpm for 30 s. Finally, 100 nm thick Ag electrodes were deposited by thermal evaporation under a pressure of 5 × 10⁻⁴ Pa.

Film characterization

SEM images were obtained using a JSM-7001F scanning electron microscope. Sample roughness was determined with a Bruker Multimode 8 instrument. XRD analysis was conducted using Cu Kα radiation (Bruker D8 Advance). UV-visible absorption spectroscopy was performed using a UH4150 spectrophotometer. The PL spectra were measured using a fluorescence spectrometer (PerkinElmer LS 55), and XPS spectra were collected using a K-ALPHA+ XPS.

Device characterization

Current density as a function of voltage was recorded using a Keithley 2400 instrument under dark conditions and simulated AM1.5G sunlight generated using a solar simulator (SS-F5-3A, Enli Technology Co., Ltd). The light intensity was calibrated using a certified reference silicon cell. EQE measurements were conducted with a QE tester (Enlitech, QE-R 3018). A linear dynamic range test was performed at different white light intensities using ThorLabs metallic-coated neutral density filters. The on/off PD response was measured using a galvanostatic instrument (Metrohm Autolab PGSTAT204) with a light emitting diode (Ocean Optics (LSM)) at a wavelength of 533 nm. The LED pulse was generated using an LED controller (Ocean Optics, LDC-1).
