Uncovering the critical function of lanthanum in CH₄ production from CO₂ using exsolved LaNiO₃ perovskite catalysts

Abstract

CO₂ methanation, also known as the Sabatier reaction, is of great environmental interest as a sustainable process for energy production and storage. Herein, we report the development of a Ni–La₂O₃ catalyst for CO₂ methanation prepared upon reduction of a LaNiO₃ perovskite precursor. The perovskite-based catalyst exhibits enhanced activity, high methane selectivity and improved stability when compared to Ni–La₂O₃ prepared through conventional impregnation methods. The transformation of the LaNiO₃ perovskite precursor upon thermal activation in H₂ was found to have a profound impact on the catalytic properties of the resulting material. The size and stability of exsolved Ni nanoparticles after prolonged reaction were investigated using ex situ electron microscopy. Synchrotron-based X-ray absorption fine structure (XAFS) spectroscopy, as well as soft and tender X-ray photoelectron spectroscopies (AP-XPS/HAXPES), provides detailed insights into the evolution of bulk and surface phases during the transition of the perovskite to its active catalytic state. Our findings indicate that processes beyond the well-established exsolution of nanoparticles, such as lanthana spillover onto nickel, may occur during H₂ activation. More importantly, in situ spectroscopy under CO₂ methanation conditions revealed that the surface's affinity for La-hydroxide or La-carbonate formation significantly influences the reactivity. Specifically, we found that La-hydroxide acts as a precursor for the formation of La-oxycarbonate (hexagonal La₂O₂CO₃ phase), a crucial element of the active exsolved catalyst. In contrast, in the absence of La-hydroxide, La-carbonates (La₂(CO₃)₃) formed on the surface, blocking the active sites of the supported catalyst. Our research examines hitherto unrecognized processes affecting the reactivity of exsolved perovskites, highlighting LaNiO₃ as a promising catalyst for CO₂ methanation.

---

1. Introduction

Global warming caused by the emission of greenhouse gases has attracted a lot of attention during the last few decades. In this context, CO₂, a major component of the anthropogenic emissions (estimated to 35 Gt in 2021 (ref. 1 and 2)), can be captured and used as a carbon source to produce value added chemicals and fuels such as methanol, CO or CH₄.^3,4 Among the most viable strategies, CO₂ methanation (CO₂ + 4H₂ → CH₄ + 2H₂O) is gaining increasing interest^5,6 as a promising route to recycle CO₂ emissions using H₂ produced from renewable energies (known as power-to-gas). Highly active CO₂ methanation catalysts are required to overcome the chemical inertness of the CO₂ molecule. Among them Ni,^7–9 Co^10–12 or Ru-based^13,14 supported catalysts have been reported as active and selective for the production of CH₄ from CO or CO₂. Notably, Ni-based catalysts are mostly envisaged for the reaction because of their low price and high CH₄ selectivity therefore they are more favorable for industrial applications.⁶ However, Ni exhibits relatively poor activity at low temperature in comparison to Ru-based catalysts and is often subject to deactivation mainly caused by Ni particle sintering and/or poisoning.^15,16 Consequently, an improvement in the catalyst formulation is needed to elevate CO₂ methanation as one of the major green industrial processes.

Typically, nickel-based methanation catalysts are composed of nanosized Ni particles fixed on high surface area oxide supports, such as Al₂O₃, SiO₂ or CeO₂.¹⁷ The support controls the dispersion, morphology and/or structure of nickel particles via metal–support interactions.^18,19 It might also have significant influence on the reactivity by structure-sensitivity effects²⁰ or by directly participating in the reaction offering sites for CO₂ adsorption and activation.^7,21 Basic elements such as La and Pr have been used as promoters to increase Ni dispersion and help limit deactivation over CeO₂- or Al₂O₃-based materials.^22,23 While poorly studied, Ni supported over La₂O₃ (lanthana) was found to be a promising methanation catalyst mainly due to the stabilization of Ni nanoparticles and limited sintering.²⁴ However, lanthanum-supported catalysts still suffer from relatively poor activity compared for instance to ceria-based materials.²⁵

Stabilization of nickel nanoparticles on a support is not trivial, as nickel undergoes agglomeration easily, which ends up degrading the catalyst performance. In this context, exsolution has received a lot of attention over the last decade as a promising approach to synthesize supported metallic catalysts with specific characteristics.^26–28 Exsolution, also known as solid phase crystallization, is a process by which a homogeneous phase is separated into two or more solid phases typically upon annealing at high temperature.^29–31 In the case of mixed oxides under reductive conditions, one or more elements will move outwards forming metallic nanoparticles at the oxide surface leading to a morphology resembling that of supported metal catalysts. Exsolution, as opposed to traditional deposition procedures, may offer better control of the metal–support interface.^26,27,29 Additionally, exsolved metal nanoparticles usually show strong anchoring to the host oxide (also called socketing) enhancing in this way metal–support interaction and stability.^26,27,29,32

Perovskite-based materials (ABO₃) containing Ni in the B-site are frequently used as precursors which after a thermal reduction treatment will release Ni from the oxide lattice to the surface in the form of metallic nanoparticles leaving behind the host lattice as the support. So far, numerous combinations of stoichiometric, but mostly A or B-site deficient, perovskite systems have been studied with the main aim of favoring the exsolution of Ni and controlling the nature of the “support” phase. Among all, the stoichiometric LaNiO₃ perovskite is the archetype of exsolved materials because it is easy to synthesize, has a relatively simple chemistry upon reduction and above all represents an excellent catalyst for CO₂ conversion.³¹ It is therefore not surprising that LaNiO₃ is probably the most studied exsolved catalyst in the literature, both in terms of physicochemical and catalytic properties. However, the great majority of these studies focus on CO₂ conversion via dry methane reforming³³ and it is hard to find reports on the performance and chemistry of LaNiO₃ in the CO₂ methanation reaction. This is even more intriguing if one considers the radically different operation conditions between dry reforming and methanation of CO₂ dictated by the thermodynamics of the reaction: high temperature (ca. 800 °C) and pressure for reforming, medium temperature (ca. 350 °C) and atmospheric pressure for methanation. Considering that the active catalytic state is dynamic and is formed only under the operation conditions,³⁴ significant differences in the chemistry of the catalysts should be anticipated in the two cases.

Rare studies over A-deficient perovskites have shown that exsolved Ni catalysts can also be very promising for CO₂ hydrogenation. Suk Lim et al. evaluated Ni-exsolved La_1−xCa_xNiO₃ perovskites as methanation catalysts after reduction pretreatment at 600 °C.³⁵ The resulting material showed nearly 100% CH₄ selectivity and the yield improved by 45% in comparison to the conventional Ni/Al₂O₃ catalyst with similar Ni loading. Steiger et al. prepared LaFe_0.8Ni_0.2O₃ perovskite modified in the A-site by Sr doping for CO₂ hydrogenation.³⁶ They found by in situ XRD that La substitution with Sr promoted the segregation of Ni after exsolution at 600 °C and therefore the catalytic activity of the material in comparison to undoped LaFe_0.8Ni_0.2O₃. However, the highest yield of CH₄ was limited to 20% and could only be achieved at high temperature (around 470 °C). Nevertheless, despite few studies dedicated to dry reforming reaction,³⁷in situ surface-specific characterization of the exsolved perovskite catalysts upon formation of the active phase is missing. In situ studies are of particular importance for this system because La-based perovskites are known to be highly reactive towards water/humidity and CO₂, which hinders any attempt for ex situ/post mortem surface characterization.

In light of the above aspects, this study explores the use of the stoichiometric LaNiO₃ perovskite as a precursor of highly active and stable Ni-supported catalysts towards CO₂ methanation. We used a conventional supported Ni/La₂O₃ material with similar Ni loading as a benchmark catalyst, to demonstrate the superior CO₂ methanation performance of the LaNiO₃ exsolved catalyst. We also employed several ex situ and in situ synchrotron-based characterization techniques to examine the exsolution process and the dynamics of surface evolution of the catalyst during H₂-activation and reaction conditions. The correlation between the surface state and the catalytic performance of exsolved and supported benchmark catalysts offers valuable insights beyond the commonly observed effect of stabilizing Ni nanoparticles. It also provides crucial information regarding surface transformations that govern the reactivity of CO₂ methanation.

2. Experimental part

2.1. Catalyst preparation

2.1.1 Synthesis of LaNiO₃ perovskite and reference Ni/La₂O₃ catalysts. The synthesis of LaNiO₃ was carried out using the Pechini sol gel method.³⁸ A precursor solution was prepared by dissolving an equimolar ratio of metallic salts with two equivalents of citric acid. In particular, La(NO₃)₃·6H₂O (11.2 mmol, 4.85 g), Ni(NO₃)₂·6H₂O (11.2 mmol, 3.26 g) and citric acid (22.4 mmol, 4.31 g) were dissolved in ethanol (60 mL). Then, the solution was heated at 60 °C for 4 h under continuous stirring until a green gel was obtained. The gel was then dried at 100 °C overnight and crushed into a powder. Finally, the mixture was calcined at 700 °C for 6 h at a heating rate of 2 °C min⁻¹ and an intermediate dwell time of 6 h at 500 °C, resulting in a black powder.

The synthesis of Ni/La₂O₃ was realized by wet impregnation. To this end, La₂O₃ was first prepared via calcination of La(NO₃)₃·6H₂O at 800 °C for 2 h so as to get a surface area comparable to that of the perovskite.³⁹ Then, Ni(NO₃)₂·6H₂O (8.5 mmol, 2.48 g) was added to 1.5 g of La₂O₃ dispersed in 30 mL of distilled water, so as to attain similar Ni/La ratio (Ni/La = 1, 25 wt% Ni) to that in the perovskite based-materials. The mixture was stirred for 4 h at 60 °C. The solvent was then evaporated in a rotary evaporator and dried overnight. For comparison purpose, the powder was then calcined at 700 °C for 6 h using a similar protocol to the one described for the perovskite material and finally treated at 600 °C under H₂ for 30 minutes prior to the catalytic test.

2.1.2 Transformation of the perovskite-based catalysts by reduction pretreatments. The LaNiO₃ catalyst was treated under a H₂ atmosphere at selected temperatures to evaluate the CO₂ methanation performance. To this end, a 200 mg sample was loaded in a U-shaped tubular quartz reactor and subsequently reduced at 400, 500 or 600 °C with a heating ramp of 10 °C min⁻¹ under 50 mL min⁻¹ of H₂ for 30 minutes. Materials after hydrogen treatments were designated with a number indicating the temperature of the treatment, for instance LaNiO₃-400, for LaNiO₃ treated at 400 °C. These temperatures were specifically chosen to investigate the effects of the gradual transformation of LaNiO₃ under a reducing atmosphere on the size and morphology of Ni particles. For all the temperatures studied, the duration of the reduction treatment was intentionally kept relatively short (i.e., 30 minutes) to prevent the nucleation of large Ni particles. As previously demonstrated,⁴⁰ temperature has a notable impact on the overall exsolution mechanism, including the density of nuclei, while the treatment duration primarily influences the final step of the process, which is related to the growth of the particles.

2.2. Catalytic evaluation at 1 bar

CO₂ methanation tests were performed in a fixed-bed flow reactor using a U-shaped quartz micro-reactor (i.d. 6 mm). In a typical catalytic test, 100 mg catalyst was diluted with 100 mg SiC, both sieved between 150 and 250 μm and deposited on a quartz wool bed. The quartz reactor was then introduced in a tubular oven with the catalyst bed located in the isothermal zone. The gases were introduced via calibrated mass flow controllers (Bronkhorst) for a total flow rate of 20 mL min⁻¹ (GHSV = 12 000 h⁻¹). The temperature was controlled by a K-type thermocouple attached to the quartz reactor in intimate contact with the catalytic bed location. Prior to the tests, the samples were first reduced at temperatures ranging between 400 and 600 °C, as already detailed in Section 2.1.2. Then, all catalytic tests were performed at atmospheric pressure in a CO₂ : H₂ gas mixture with a 1 : 4 molar ratio. Catalytic runs were performed stepwise starting from 150 to 400 °C using a 10 °C min⁻¹ ramp and a dwell time of 30 min at each selected temperature. Long-term stability tests were also conducted at 300 °C for 65 h after H₂ pretreatment at 600 °C. The outlet gas was analyzed using a gas chromatograph Agilent 5975C VL MSD equipped with a Molecular Sieve 5A column, a PoraPLOT U GC column and an OV-1 capillary column and TCD for CO, CH₄, CO₂ and H₂O detection. The detection and quantification of H₂ was not possible due to the similar retention time to that of the carrier gas (He). The formation of CH₄ and CO are due to CO₂ methanation and reverse water-gas shift reactions respectively (eqn (1) and (2)):

CO₂ methanation reaction: CO₂ + 4H₂ → CH₄ + 2H₂O (1)

Reverse water-gas shift reaction: CO₂ + H₂ → CO + H₂O (2)

The CO₂ conversion (X_CO2) and CH₄ selectivity (S_CH4) were calculated as follows:

where CO_2,out/in, CH_4,out and CO_out are the concentrations at the inlet and outlet of the reactor at each reaction temperature. The concentration of each gas was quantified by the corresponding GC peak areas and the response factor of each gas determined by calibration. Regarding the outlet concentrations, a correction factor based on the carbon balance was integrated into the calculation to take into account the flow variation during the test.

2.3. Characterization techniques

2.3.1 Standard characterization. Ex situ X-ray diffraction (XRD) measurements were carried out on a Bruker D8 advance diffractometer equipped with a LynxEye PSD detector using Cu Kα_1,2 radiation (λ = 1.5418 Å) operating at 40 kV and 40 mA. The XRD patterns were recorded in the 20–85° (2θ) range at a scan rate of 0.032° s⁻¹. Crystallite sizes were estimated according to the Scherrer equation and based on the line broadening of the most intense and isolated reflection (i.e., the (024) reflection at 2θ = 47.3° for LaNiO₃ crystallizing in a hexagonal system and the (111) reflection at 2θ = 44.8° for fcc Ni).

N₂ physisorption measurements were performed on a Micromeritics Tristar 3000 apparatus. The surface area was determined by a multiple-point Brunauer–Emmett–Teller (BET) approach with relative pressures (p/p₀) ranging between 0.05 and 0.35. Prior to the adsorption–desorption of N₂ realized at −196 °C, 100 mg sample was first degassed at 200 °C under primary vacuum for a minimum of 6 h.

H₂ Temperature Programmed Reduction (H₂-TPR) experiments were carried out using a Micromeritics Autochem 2920 device equipped with a thermal conductivity detector (TCD). The profiles were obtained after loading 100 mg of sample in a U-shaped quartz reactor and reduction under 10% H₂ in Ar with a flow rate of 20 mL min⁻¹ up to 900 °C, with a heating rate of 10 °C min⁻¹. A cold trap was installed at the outlet of the reactor to remove the moisture produced during reduction.

Transmission Electron Microscopy (TEM) was performed using an FEI Talos F200X microscope operating at 200 kV in scanning transmission electron microscopy (STEM) mode using high-angle annular dark-field (HAADF) imaging. Energy-dispersive X-ray spectroscopy (EDX) using a Super-X system with four silicon drift detectors (SDDs) was applied to the detection of differences in local chemical composition.

2.3.2 Ambient pressure photoemission characterization. Synchrotron-based photoemission experiments (Ambient-Pressure X-ray Photoelectron Spectroscopy, (AP-XPS) and Ambient-Pressure Hard X-ray Photoemission Spectroscopy (AP-HAXPES)) were performed during 3 separate beamtimes in two different instruments. Both apparatuses were equipped with the same electron energy analyser (Phoibos 150NAP by SPECS™) which operated at the same pass energy, while the same soft X-ray excitation photon energies were used for recording. Unless otherwise stated the photon energy was selected so as to provide photoelectrons with two kinetic energies (200 and 460 eV) for each of the core level of the elements analyzed (O 1s, C 1s, La 3d and Ni 2p). The information depth is estimated as 3 times the photoelectron inelastic mean free path retrieved from ref. 41. Quantification of the elements was performed after normalization of the intensities by taking into account the photon flux and the atomic subshell photoionization cross-sections using the SESSA (Simulation of Electron Spectra for Surface Analysis) software.⁴¹ The binding energy (BE) of the core level peaks was referenced to the Fermi level cut-off defined in a separate measurement of the Ni 3d states of metallic nickel (“0” in the BE scale),⁴² assuming that the Fermi edge of the samples is in electrical contact with the spectrometer. This procedure was repeated for each photoelectron peak and found to give a BE for the C 1s of hydrocarbon species at 284.7 ± 0.1 eV. Unless otherwise stated, the error in the reported BEs is ±0.1 eV. The XPS spectra were analyzed using CasaXPS software.

In all cases, 20 mg of catalyst was pelletized and fixed on the sample holder, while a 1 : 1 CO₂ : H₂ mixture was employed. It is important to note that, according to the balanced chemical equation for the Sabatier reaction, a CO₂ : H₂ molar ratio of 1 : 4 is required, and this ratio was indeed used in the 1 bar catalytic tests. However, under the specific low-pressure conditions of the in situ AP-XPS experiments, this ratio might not be optimal for the reaction. In this context, we investigated the effect of the CO₂ to H₂ ratio at 5 mbar overall pressure and temperatures between 200 and 300 °C, in a reactor attached to a laboratory XPS setup described previously.⁴³ According to the online gas phase analysis, a CO₂ : H₂ ratio of 1 : 1 resulted in about 25% higher CH₄ and H₂O signals compared to 1 : 4. This increase could be attributed to an extended contact time between CO₂ and the catalyst. Therefore, selecting a CO₂ : H₂ ratio of 1 : 1 is a good compromise to maximize CH₄ production in the low-pressure range under AP-XPS testing conditions. Below follows a description of the two AP-XPS instruments used in this study.

2.3.2.1 AP-XPS at the tempo beamline. The AP-XPS instrument of Sorbonne University attached to the TEMPO beamline of the SOLEIL Synchrotron radiation facility (France)⁴⁴ was used to characterize the LaNiO₃ catalyst under O₂, H₂ (sample treated at 600 °C) and CO₂ : H₂ (1 : 1) methanation reaction conditions. The gas feeds (O₂, H₂, CO₂) were regulated by leak valves and their purity was monitored using a quadrupole mass spectrometer. The catalyst was fixed on a sample holder with an integrated resistive heater and the temperature was monitored by a K-type thermocouple in contact with the sample surface.
2.3.2.2 AP-XPS and AP-HAXPES at the EMIL beamline. Combined AP-XPS and AP-HAXPES measurements were performed at the new CAT branch of the EMIL beamline at the synchrotron radiation facility BESSY II of the Helmholtz Zentrum Berlin.^45,46 The reported measurements of LaNiO₃ catalyst in H₂ (sample treated at 400 °C) as well as of the supported Ni/La₂O₃ catalyst under H₂ (sample treated at 600 °C) and CO₂ : H₂ (1 : 1) methanation reaction conditions were performed using this instrument. The catalyst was mounted on a sample stage heated from the rear with an IR laser irradiating the plate placed under the pellet. Gases (H₂, O₂, CO₂) were introduced into the sample chamber via calibrated mass flow controllers (Bronkhorst). The gas phase composition was monitored using a differentially pumped quadrupole mass spectrometer (QMS, Pfeiffer PrismaPro) connected to the sample chamber through a leak valve. A significant feature of the CAT@EMIL beamline is the possibility to use soft and tender X-ray radiation in one single experiment, allowing depth profiling from the extreme surface to the subsurface. The AP-XPS spectra were measured with a 60 μm exit slit, while for AP-HAXPES a double crystal monochromator (DCM) that works without an exit slit was used. In the AP-HAXPES two fixed photon energies were used (hv = 3005 and 4900 eV) (maximum analysis depth around 21 nm).

2.3.3 X-ray absorption fine structure. All the presented Ni K-edge X-ray Absorption Fine Structure (XAFS) spectra were measured at the BM23 beamline⁴⁷ of the European Synchrotron Radiation Facility. The monochromatic beam was obtained with the Double Crystal Monochromator and harmonics were rejected by a Si(111) double mirror. Spectra were collected in transmission mode using three ion chambers (30 cm) filled with 1.248 mbar of N₂ (I₀) or 0.271 mbar of Ar (I₁/I₂) and topped up to 2 bar with He. The sample, in the form of 13 mm² pellet diluted in BN, was located between the first (I₀) and the second (I₁) ion chambers while Ni metal foil (for energy calibration and alignment) was placed between I₁ and the last chamber (I₂). For ex situ spectra the sample was held in a conventional sample holder while in situ measurements were performed by placing the sample in a Microtomo cell.⁴⁸ The in situ experiment was performed by flowing 50 mL min⁻¹ of 20% H₂ : He gas mixture during the temperature ramp protocol reported in Fig. S1.† X-ray Absorption Near Edge Structure (XANES) spectra reported in Fig. 5a in the text concern the regions of the protocol indicated with a red line while the magnitude component of FT-EXAFS spectra reported in Fig. 5d and S9† was collected during steady states indicated by the triangle. Spectra of ex situ samples and steady states of in situ experiment were collected with the step scan mode in the 8.19–9.31 keV energy range. A constant acquisition time of 0.5 s per point was employed throughout the measured energy range. Energy resolution was set to 5 eV per point for the pre-edge (8.19–8.3 keV) and 0.3 eV per point for the XANES (8.31–8.34 keV) while a constant k-spacing of 0.035 k per point was used in the EXAFS region (8.34–9.31 keV). Spectra collected during heating/cooling steps of the in situ experiment were measured in continuous mode in the 8.2–9.2 keV energy range with 0.3 eV per point energy resolution and 0.05 s per point time resolution for a total of 3 minutes per scan. Energy calibration and alignment together with background subtraction and edge jump normalization were conducted with a dedicated Python script based on the Larch library.⁴⁹ Linear Combination Analysis was done using Larch-based Python scripts. The weight of the single component (w_i) was constrained to be 0 < w_i < 1 while the sum of the component weights was not forced to 1. The closeness of to 1 was used as an additional qualitative indicator of the goodness of the fit. All the presented FT-EXAFS spectra were obtained using a Hanning window in the 2.5–13.3 Å⁻¹k-range. The k-range of FT-EXAFS extraction and R-range of FT-EXAFS fit are reported in Table S1.† FT-EXAFS fit was conducted using the Artemis software from the Demeter package.⁵⁰ The passive amplitude reduction factor S₀² was evaluated from the fit of reference Ni⁰ spectra (see Fig. S9 and Table S1†) and fixed for the fit of the other spectra. EXAFS Wavelet Transform (WT) was calculated with the Cauchy wavelet function fixing η to 6.4.⁵¹

3. Results

3.1. CO₂ methanation performance

Fig. 1a displays the CO₂ conversion (X_CO2) and CH₄ selectivity (S_CH4) profiles of the methanation light-off tests over perovskite LaNiO₃ catalyst activated by reduction in H₂ at 400, 500 and 600 °C, hereafter abbreviated as LaNiO₃-400, LaNiO₃-500, LaNiO₃-600. The X_CO2 and S_CH4 curves of supported Ni/La₂O₃ pre-reduced at 600 °C are included for comparison. The X_CO2 increases rapidly above 200 °C, while at 400 °C it attains CO₂ conversion values close to thermodynamic equilibrium indicated by the dashed-brown line in Fig. 1a. The CO₂ conversion curves of LaNiO₃ are shifted towards lower temperatures compared to Ni/La₂O₃. The shift becomes more pronounced as the activation temperature of LaNiO₃ increases from 400 °C to 600 °C, indicating improvement of the catalytic activity with the increase of the activation temperature. This can be quantified by the light-off temperatures corresponding to 50% conversion (T₅₀) determined from Fig. 1a and listed in Table 1. It is evident that in the case of LaNiO₃ the T₅₀ shifts up to 100 °C compared to Ni/La₂O₃, which represents an enormous difference in the catalytic performance. Note that the X_CO2 and S_CH4 of Ni/La₂O₃ is comparable to those of similar La₂O₃ supported Ni catalysts.²⁵ In addition, the LaNiO₃ is more selective than Ni/La₂O₃ in the production of CH₄ (top part of Fig. 1a), while S_CH4 further improves with H₂-activation temperature. For example, S_CH4 of LaNiO₃-600 remains above 97% throughout the experiment and reaches 99.7% at 350 °C while that of Ni/La₂O₃ rests around 92%. The apparent activation energies (E_app) determined from Arrhenius plots (Fig. S2†) are listed in Table 1. In all cases the E_app is between 87 and 99 kJ mol⁻¹, which is in the range typically reported for CO₂ methanation over Ni-based catalysts.⁵²

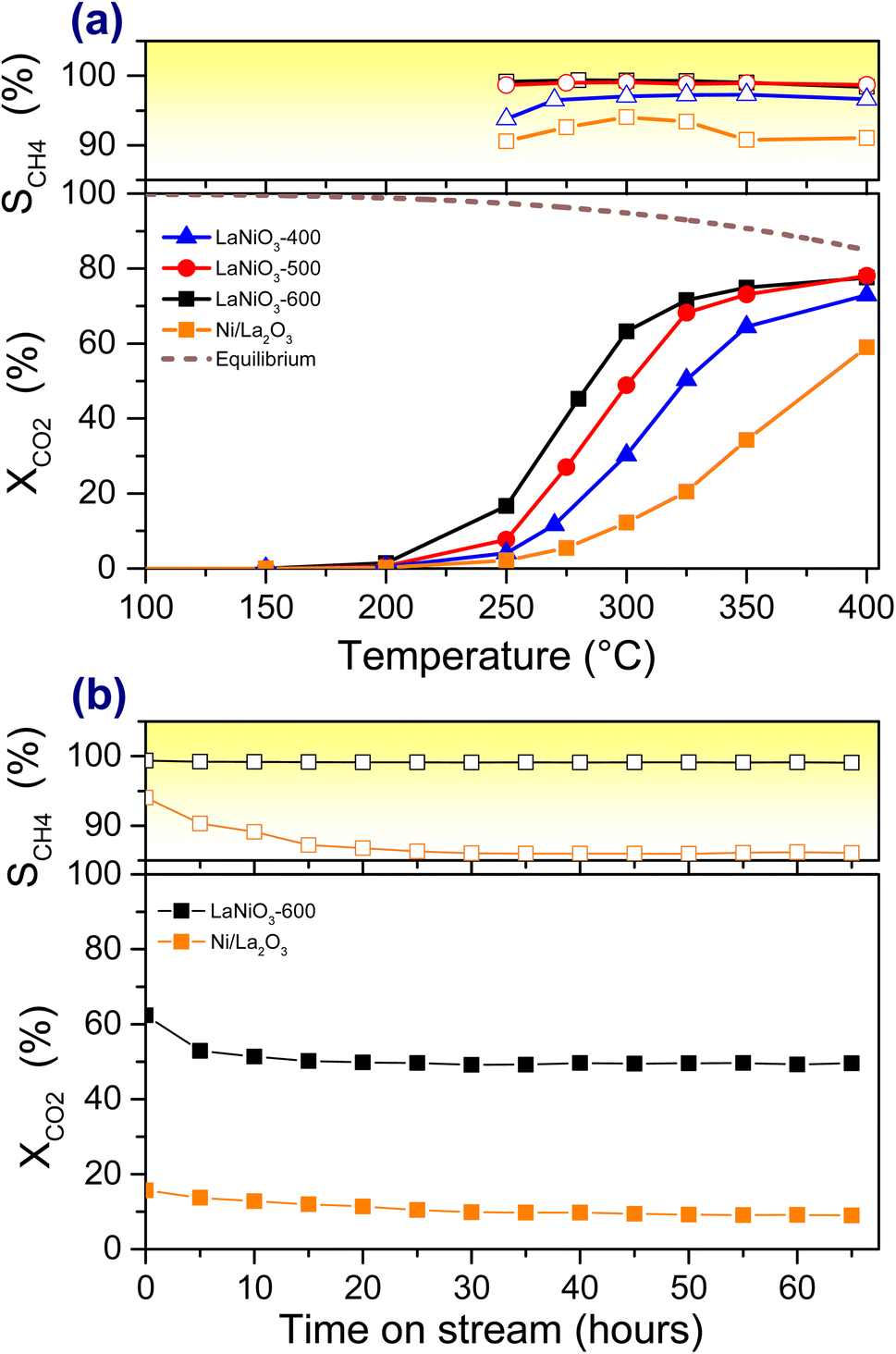

Fig. 1 CO₂ methanation performance of LaNiO₃ and Ni/La₂O₃ catalysts: (a) CO₂ conversion and CH₄ selectivity as a function of the reaction temperature. The thermodynamic limit of CO₂ conversion is included as a dashed-line. (b) Long-term stability tests at 300 °C for catalysts pre-reduced at 600 °C. All catalytic tests were performed in 20% CO₂/H₂ at 1 bar (100 mg mixed in 100 mg of SiC, GHSV ∼12 000 h⁻¹).

Table 1 The light-off temperatures corresponding to 50% conversion (T₅₀) determined from Fig. 1a and the apparent activation energies (E_app) determined from Arrhenius plots (Fig. S1)

Catalyst	T 50 °C	E app kJ mol^−1
LaNiO3-400	325	99
LaNiO3-500	300	96
LaNiO3-600	285	87
Ni/La2O3	381	93

---

The durability tests of LaNiO₃-600 and Ni/La₂O₃ catalysts (Fig. 1b) reveal that the perovskite catalyst is not only more active and selective, but also far more stable than the supported one. In particular, after a decrease in the relative CO₂ conversion of about 20% observed within the first 10 h, LaNiO₃ does not present any sign of further deactivation up to 65 h. In addition, throughout these tests, the CH₄ selectivity remains always above 99%. This performance clearly outperforms that of the Ni/La₂O₃ catalyst, which has lower CO₂ conversion and CH₄ selectivity also being less stable.

Overall, the catalytic tests show that the LaNiO₃ perovskite catalyst outperforms the conventional supported Ni/La₂O₃, while higher H₂ activation temperatures seem to promote both CO₂ conversion and CH₄ selectivity of LaNiO₃.

3.2. Ex situ structural and morphological characterization

3.2.1 XRD, H₂-TPR and N₂-BET. The XRD patterns (Fig. 2a) of the fresh calcined LaNiO₃ is characteristic of the monophasic hexagonal perovskite structure (JCPDS no. 34-1181) without any evident NiO, La₂NiO₄ or La₂O₃ impurities. The diffraction peaks of hexagonal LaNiO₃ are still visible after H₂-activation at 400 °C (LaNiO₃-400), but vanish at 500 and 600 °C. Instead, new Bragg reflections appeared due to metallic nickel (Ni⁰) and h-La₂O₃ phases (see Table 2). The Ni⁰ crystallite size calculated by XRD (Table 2) is about 4 nm at 400 °C and increases to 6 nm at 600 °C. The XRD pattern of the spent catalyst, after the methanation reaction (LaNiO₃-sp), is clearly modified as compared to that of the prior H₂-activated state. A new hexagonal lanthanum oxycarbonate phase (II-La₂O₂CO₃, JCPDS 37-0804) was found,^53,54 together with the h-La₂O₃ and metallic Ni phases already existing on the reduced sample. The diffractogram of reduced Ni/La₂O₃ is dominated by the diffraction lines of Ni⁰ and h-La₂O₃ phases and remains identical after the methanation reaction (Fig. 2b).

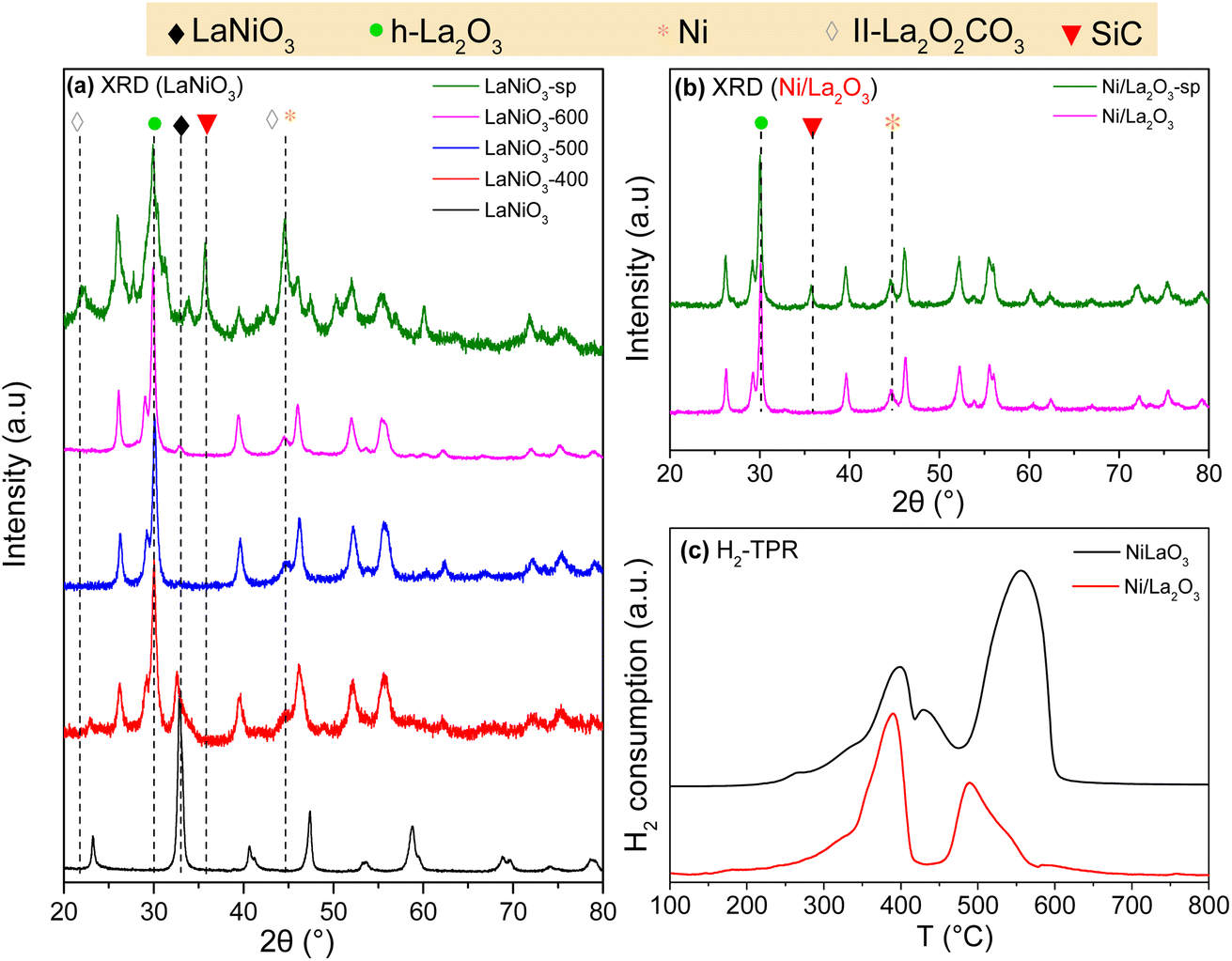

Fig. 2 XRD patterns of (a) LaNiO₃ catalysts measured after calcination, H₂-activation at 400, 500 and 600 °C (LaNiO₃-400, LaNiO₃-500 and LaNiO₃-600) and after long-term stability methanation test (LaNiO₃-sp), (b) Ni/La₂O₃ catalysts measured after H₂-activation at 600 °C (Ni/La₂O₃) and after long-term stability methanation test (Ni/La₂O₃-sp). The SiC-related peaks appear in the diffractograms of the spent catalysts, (c) H₂-TPR profile of LaNiO₃ and Ni/La₂O₃ catalysts.

Table 2 Physico-structural properties of calcined, H₂-activated and spent LaNiO₃ and Ni/La₂O₃ catalysts

Sample	S BET (m^2.g^−1)	D Ni (nm)	La-based crystalline phases detected	D LaOx (nm)	dNi^b (nm)
a Average crystallite size estimated by XRD using the Scherrer equation. b Average particle size determined by TEM.
LaNiO3	3	—	LaNiO3	—	—
LaNiO3-400	2	6	LaNiO3, h-La2O3	12.9 (h-La2O3)	4.2 ± 0.5
LaNiO3-500	<1	8	h-La2O3	14.5 (h-La2O3)	N/A
LaNiO3-600	<1	8	h-La2O3	17.5 (h-La2O3)	6.4 ± 0.2
LaNiO3-sp	N/A	N/A	h-La2O2CO3, h-La2O3	17.3 (h-La2O3)	6.4 ± 0.2
Ni/La2O3-600	<1	11	h-La2O3	18.9 (h-La2O3)	N/A
Ni/La2O3-sp	N/A	11	h-La2O3	19.5 (h-La2O3)	N/A

---

The H₂-TPR profile of LaNiO₃ calcined at 700 °C (Fig. 2c) is dominated by two main and several smaller H₂ consumption peaks. This shows that the reduction of LaNiO₃ occurs in two steps at approximately 400 and 550 °C. The H₂ consumption ratio between the two main reduction peaks is about 1.5. The H₂-TPR profile of Fig. 2c is in fair agreement with previous reports.^37,55,56 Usually, the low temperature peak is attributed to the Ni³⁺ → Ni²⁺ reduction and the one at higher temperature to Ni²⁺ → Ni⁰.³⁷ Although formation of Ni⁰ in the second reduction step is related to the transformation of the perovskite to La₂O₃, both La₂Ni₂O₅ (ref. 37) and La₂NiO₄ (ref. 57 and 58) have been proposed as the intermediate lanthanum phase of the first reduction step. The in situ XANES spectra (see infra) provide more insight on LaNiO₃ reduction. The profile of Ni/La₂O₃ shows two main peaks around 400 and 500 °C. According to previous reports⁵⁹ the one at 400 °C is due to the reduction of Ni²⁺ species with possible contribution of Ni³⁺. The smaller peak around 500 °C has been ascribed to the reduction of Ni–La₂O₃ solid solution probably formed during calcination at the interface of the two elements.

The specific surface areas deduced from N₂ physisorption measurements are included in Table 2. The surface area of the calcined catalyst is low and, as might be expected, decreases more with the increase of the reduction temperature and remains below the detection limit of conventional N₂-BET measurements. Nevertheless, the surface areas of the perovskite and supported catalyst after reduction are similar, which essentially rules out the possibility that the observed differences in the reactivity are related to the surface area of the catalysts.

3.2.2 HR-TEM and TEM/EDX mapping. The morphology of activated and spent LaNiO₃ catalysts is examined by High Resolution Transmission Electron Microscopy HR-TEM combined with Energy Dispersive X-ray elemental mapping (TEM-EDX). Fig. 3 shows representative images of perovskite catalysts after reduction at 400 and 600 °C, as well as those of the spent catalyst. Lower magnification TEM and TEM-EDX images can be found in Fig. S3.† The HR-TEM images display rounded dark-contrast particles within a lighter matrix. The corresponding EDX mapping reveals that these features correspond to Ni-rich particles laid into a lanthanum oxide matrix, evidencing the Ni exsolution during the H₂-activation treatment. In several cases the Ni particles seem to be cast into lanthanum rather than being simply supported on it. A closer look at the TEM and EDX mapping images indicates that in the case of LaNiO₃-400 some particles are covered by a nanometer thick layer containing lanthanum. This can be better observed in the La map of this sample (indicated by an arrow), where La looks to have a ring-type, instead of socket-type, morphology. In addition, in some areas of LaNiO₃-400 the distribution of Ni and La signals seems quite homogeneous basically revealing mixed Ni–La perovskite areas. This is a sign of a transient state where Ni particles start to nucleate but not yet completely exsolved on the surface, in accordance with the XRD results of Fig. 2a.

Fig. 3 HR-TEM and TEM/EDX elemental mapping images of (a) LaNiO₃-400, (b) LaNiO₃-600, and (c) LaNiO₃-sp catalysts. The Ni particle-size distribution histogram for each catalyst is included at the bottom of the figure. Between 120 and 200 particles were analyzed depending on the sample. Isolated O, Ni and La elemental mapping of the selected regions are depicted in Fig. S4.†

The La overlayer and the mixed Ni–La areas disappear in LaNiO₃-600 but the Ni particles still look cast into lanthanum (see areas marked with arrows). This morphology resembles the classical exsolution process involving socking of metal nanoparticles into the support.⁶⁰ The HR-TEM and TEM/EDX images after the long-term stability tests (LaNiO₃-sp) show that the morphology generated during the activation process, comprising homogeneously distributed nano-sized Ni particles, is largely preserved. In addition, there is no evidence of filamentous carbon deposition after the reaction.

The Ni particle size distribution is included in the form of histograms at the bottom of Fig. 3. It is estimated by measuring the size of at least 120 Ni particles identified in the TEM images. Accordingly, the average Ni particle size increases slightly from around 4 to 6 nm when the reduction temperature rises from 400 to 600 °C, in fair agreement with the crystallite sizes estimated from XRD measurements (Table 2). The histograms of the spent catalyst show that the long-term reaction does not affect the Ni particle size and distribution. The stability of highly dispersed metal nanoparticles formed through exsolution from the perovskite matrix is consistent with previous reports.²⁶ What is of particular interest here is that XRD and TEM results confirm that there is practically no sintering of Ni particles even after 65 hours under the reaction conditions which is a key feature that explains the long-term stability found in Fig. 1b.

3.2.3 Ex situ XANES analysis. Ex situ Ni K-edge XANES measurements of LaNiO₃ and Ni/La₂O₃ catalysts, together with the spectra of reference compounds are shown in Fig. 4a. The XANES measurements confirm the formation of metallic Ni after H₂-activation and catalytic tests, as explained in detail in the ESI.† In order to quantify the various Ni phases, Linear Combination Analysis (LCA) was conducted on the Ni K-edge using reference spectra from NiO, Ni, LaNiO₄ and LaNiO₃ samples (see Fig. S6†). The LCA results (Fig. 4b) suggest that LaNiO₃ is the dominant phase in the fresh perovskite catalyst (≈84%) with minor contribution of La₂NiO₄ (≈12%) and NiO (2%) phases. Notably, the LaNiO₃-phase does not resist the H₂ activation process, in contrast to the La₂NiO₄-phase which is maintained in H₂ but disappears after the reaction. This indicates that the transformation of LaNiO₃ catalyst does not conclude during H₂-activation, but it still continues under the reaction conditions. Apart from the expected metallic Ni⁰, LCA also suggests a considerable amount of NiO-phase which decreases gradually going from the activated to spent LaNiO₃ catalysts. A similar trend in the NiO-phase evolution is also observed in the case of Ni/La₂O₃. At this stage it is not clear if NiO formation is part of the LaNiO₃ reduction mechanism as proposed earlier,⁶⁰ or it is the consequence of Ni⁰ oxidation due to air exposure (ex situ measurements). More details about the reduction mechanism will be provided by the in situ XAFS measurements in H₂ (vide infra).

Fig. 4 (a) Ex situ Ni K-edge XANES spectra collected on LaNiO₃ and Ni/La₂O₃ catalysts and reference materials. Details of pre-edge transitions is reported in the inset. (b) Results of LCA analysis conducted on the Ni K-edge of LaNiO₃ and Ni/La₂O₃. The experimental spectra and the best fit curves are reported in Fig. S6.†

Aiming to confirm LCA results and to eventually estimate NiO and Ni⁰ particle dimensions, FT-EXAFS spectra were fitted considering the components evaluated by the LCA procedure (Fig. S7a and b†). The results (Table S1†) show that for both LaNiO₃ and Ni/La₂O₃ catalysts metallic and oxidized Ni particles possess bulk-like coordination numbers (CNs) obtained for average particle dimension larger than 3 nm. This finding is complementary to the TEM/EDX analysis since particles smaller than 3 nm fall within the detection limit of the TEM/EDX.

3.3. In situ spectroscopy of LaNiO₃ during H₂-activation treatment

The results of Fig. 1 showed a critical effect of the H₂-activation temperature on the catalytic performance, while ex situ analysis reveals major transformations of the perovskite catalyst after the activation and methanation reaction. For a better assessment, the fresh LaNiO₃ catalyst was studied during H₂-activation by in situ XAFS and AP-XPS. Hard, tender and soft X-rays were employed in these measurements providing complementary information in a broad analysis depth range.

3.3.1 In situ XANES analysis in 1 bar 20% H₂/He flow. X-ray absorption spectra of LaNiO₃ were collected at 1 bar 20% H₂/He both during stepwise temperature ramping (10 °C min⁻¹) and consequent steady state measurements at 100 °C (see Fig. S1†). The evolution of Ni K-edge with temperature is shown in Fig. 5a, while steady state spectra after annealing at 400 °C, 500 °C and 600 °C, together with spectra of reference samples are compared in Fig. 5b. The evolution of Ni K-edge (Fig. 5a) between 250 °C and 500 °C shows a gradual decrease of the white-line peak intensity with parallel increase at the rising edge, while above 500 °C the Ni K-edge remains practically stable. Comparison of steady state EXAFS spectra with reference curves (Fig. 5b) indicate that the calcined catalyst contains mainly the LaNiO₃-phase, while this phase is fully transformed into Ni⁰ upon annealing in H₂ at 500 °C, in line with the ex situ XANES measurements discussed above. The FT-EXAFS (Fig. 5c) supports the drastic changes of Ni local structure during reduction treatment. Comparison of the relative intensity of the Ni–Ni (metal) path of LaNiO₃-500 and LaNiO₃-600 with that of the Ni⁰ reference suggests that Ni–Ni CN is lower than the bulk value (CN = 12) implying that Ni metal particles are smaller than 3 nm.^61,62

Fig. 5 (a) Ni K edge evolution from RT to 600 °C, (b) separate graph of references and spectra recorded under steady state conditions, (c) magnitude component of phase uncorrected FT-EXAFS and (d) phase evolution as a function of temperature according to LCF. Experimental EXAFS spectra together with LCA results on the whole thermal treatment and LCA best/worst fit are reported in Fig. S10.†

LCA of the Ni K-edge by four reference line shapes was performed to quantify the evolution of the different Ni phases during LaNiO₃ reduction. As displayed in Fig. 5d the fresh/calcined catalyst is a mixture of 82% LaNiO₃, 12% La₂NiO₄ phases and 3% NiO. At 400 °C the LaNiO₃ phase is converted to 33% Ni⁰–66% La₂NiO₄ mixture following reaction (1). Above this temperature La₂NiO₄ reduces fast to Ni⁰, most likely leading to the production of La₂O₃ by reaction (2). At 500 °C the LaNiO₃ reduction is completed and at higher temperatures, the Ni K-edge shows no further changes.

2LaNiO₃ + 2H₂ → La₂NiO₄ + Ni + 2H₂O (100–400 °C) (1)

La₂NiO₄ + H₂ → Ni + La₂O₃ + H₂O (400–500 °C) (2)

The gradual decomposition of LaNiO₃ into La₂NiO₄ and presumably to La₂O₃ in the final reduction step, along with the appearance of metallic Ni deduced by our XAFS results agrees with the findings of a recent TEM and XRD study of LaNiO₃ treated under vacuum and inner gas (i.e. He).⁶⁰ However, in our case the addition of H₂ changes the process suggested in ref. 60 in two ways. The first is related to the NiO formation clearly evident under inert or vacuum conditions due to oxygen diffusion from the perovskite lattice towards exsolved Ni. In our case, NiO does not appear in the absorption spectra because, if it forms, it is quickly reduced by gas phase H₂ to Ni⁰. The second difference is the temperature of the perovskite transformation. We found that the LaNiO₃-phase in H₂ decomposes between 200 and 500 °C, while under an inert atmosphere this window shifts to considerably higher temperatures (ca. 550–800 °C). Interestingly, a small quantity of NiO was observed above 500 °C which would imply La₂NiO₄ decomposition to La₂O₃ and NiO. Since at T > 500 °C under H₂ the latter should be directly reduced to Ni, this spectral feature should be more reasonably ascribed to a not fully reduced Ni-oxidic phase.

Finally, comparison of the Ni K-edge LCA results between ex situ (Fig. 4b) and in situ (Fig. 5d) treated LaNiO₃ catalyst shows many similarities but also some differences. In particular, both set of measurements agree on the decomposition of the LaNiO₃-phase to La₂NiO₄ up to 400 °C and its full conversion to Ni⁰ at 600 °C. However, in situ measurements show relatively more La₂NiO₄ at 400 °C and considerably less NiO as compared to the ex situ results. In addition, ex situ FT-EXAFS analysis suggested Ni clusters with a bulk-like electronic structure while in situ results anticipated the CN to be lower than the bulk value. These differences can be rationalized by the milder reduction conditions applied in the in situ XAFS measurements (diluted H₂ in the Microtomo cell instead of pure H₂ in the quartz tube for the ex situ treatment). It is therefore possible that in situ spectra depict the formation of atomically dispersed Ni at the early stages of the exsolution process, before their agglomeration into nanoparticles with a bulk-like electronic structure shown in the ex situ results. Besides, the small amount of NiO during in situ measurements suggests that the NiO observed during ex situ analysis was the result of sample oxidation in air. Based on that, one can also speculate that the reason behind the differences in the relative NiO amount among the catalysts shown in Fig. 4b is due to differences in Ni particle size. The NiO upon exposure in air forms a passivation layer around Ni⁰ particles. The bigger the particles the lower the NiO contribution in the Ni K-edge (bulk sensitive method) since they have a lower surface to volume ratio. If this assumption is valid, one can conclude that LCA results of Fig. 4b indirectly show that the Ni particle size on our perovskite catalyst is in the order LaNiO₃-400 < LaNiO₃-600 < LaNiO₃-sp. In addition, the size of Ni particles for Ni/La₂O₃ catalysts is in similar order to that of LaNiO₃ after reduction, but probably becomes much bigger after the reaction.

3.3.2 X-ray photoemission spectroscopy. The adjustment of LaNiO₃ surface upon H₂ activation was followed in situ by synchrotron-based AP-XPS/HAXPES. Fig. 6a presents the La 3d and Ni 2p spectra of the fresh/calcined catalysts initially collected in 2 mbar O₂ and consequently in H₂ at 400 and 600 °C. The shape of the La 3d and Ni 2p curves is complex due to Ni 2p_3/2 and La 3d_3/2 peak overlap and the presence of multiple satellite and plasmon loss features associated with the different oxidation states of Ni and La.⁶³ Nevertheless, the contribution of Ni⁰ in the spectrum can be identified by the sharp Ni 2p_3/2 feature at 852.6 eV. As displayed in Fig. 6a, this feature is absent in the calcined catalyst, but appears in the LaNiO₃-400 spectrum and is further amplified for LaNiO₃-600, suggesting that Ni⁰ concentration is enhanced at higher reduction temperatures. Clear modifications between oxidizing and reducing conditions are also observed in the La 3d_5/2 doublet around 837 eV. These modifications are consistent with the expected transformation of LaNiO₃ into Ni⁰ + La₂O₃ upon reduction indicated in the in situ XAFS measurements.

Fig. 6 (a) In situ La 3d and Ni 2p AP-XPS spectra of the fresh/oxidized LaNiO₃ catalyst (2 mbar O₂ at 400 °C), H₂-activated catalyst (2 mbar H₂ at 400 °C and 600 °C) and Ni/La₂O₃ catalyst (2 mbar H₂ at 600 °C), (b) depth-dependent La 3d and Ni 2p spectra of LaNiO₃-600 (left panel) Ni/La₂O₃ catalysts (left panel) measured at 400 °C in 2 mbar H₂ at three different photon energies. For the La 3d & Ni 2p curve fitting peak line-shapes derived from reference materials and synthetic line-shapes derived by a mathematical formula were used. For clarity only the La 3d_5/2 and Ni 2p fitting components are shown. (c) Bar graph showing the %Ni⁰ atomic concentration of different samples calculated by the Ni 2p and La 3d peak areas (spectra measured at 400 °C in 2 mbar H₂ with photons of hv = 1320 eV giving an estimated analysis depth of approx. 3.9 nm). (d) The evolution of %Ni⁰ as a function of the excitation energy for the two catalysts measured at 400 °C in 2 mbar H₂. The information depth in each photon energy is estimated as 3 times the photoelectron inelastic mean free path.

To quantify the evident differences in the curve shape, the Ni 2p and La 3d spectra in Fig. 6a were fitted by a linear combination of synthetic peaks and spectra of reference compounds (details are presented in Fig. S11†). The spectrum of the reduced Ni/La₂O₃ catalyst was fitted using the same approach and is included at the bottom of Fig. 6 for comparison. The curve fitting reveals the coexistence of 2 Ni and 2 La components. In particular, ionic Ni (likely Ni³⁺ of LaNiO₃) dominates the calcined sample and upon H₂ annealing it is gradually replaced by Ni⁰. Likewise, La from the perovskite lattice (La³⁺ of LaNiO₃) is stepwise transformed into La³⁺ of La₂O₃ (vide infra). The %Ni, determined by the La 3d and Ni 2p areas (Fig. 6c), reveals a net enhancement of nickel surface concentration for the LaNiO₃-600 sample. This ratio is about 4 times higher than that of Ni/La₂O₃, despite the fact that both catalysts have the same nominal Ni loading and were treated under identical conditions. The enhancement of Ni concentration at the surface of the perovskite catalyst is a direct consequence of nickel exsolution upon H₂-activation. The greater surface Ni⁰ content of LaNiO₃-600 can also be linked to its better CO₂ conversion (Fig. 1).

To further elaborate these findings, photoemission spectra with varied photon energies, thus different analysis depths, were collected in order to distinguish surface from subsurface species. As shown in Fig. 6b and d, the Ni⁰ fraction relative to La³⁺ (La₂O₃) decreases in deeper analysis depths for LaNiO₃. As it is clearly evident in the HAXPES spectrum for deeper analysis depths (ca. 12 nm), Ni³⁺ and La³⁺ components of LaNiO₃ are required to properly fit the Ni 2p and La 3d regions. This shows that under the employed conditions, reduction is limited to the outer 2–3 nm and the unreduced perovskite structure is still preserved in the subsurface.

The inverse Ni and La arrangement is noticed for the supported Ni/La₂O₃ catalyst (Fig. 6b and d) with Ni⁰ fraction being low at the outer surface and increasing in deeper layers (up to 20 nm). This trend suggests total or partial Ni encapsulation by lanthana alluding strong metal support interaction (SMSI) phenomena.^64,65 Assuming that the reactivity is proportional to the amount of accessible Ni sites on the surface, increase of Ni surface concentration in the case of LaNiO₃ might explain its greater CO₂ methanation activity when compared to Ni/La₂O₃.

3.4. In situ AP-XPS/HAXPES investigation under CO₂ hydrogenation conditions

Ex situ TEM/EDX and XAFS analyses of the spent LaNiO₃ catalyst do not show any considerable difference with the earlier activated state (Fig. 3 and 4), while XRD indicates that La₂O₂CO₃ oxycarbonates are built after long term CO₂ methanation tests (Fig. 2). The surface chemical state, under conditions relevant to CO₂ methanation, was analyzed by AP-XPS. Fig. 7a compares the Ni 2p and La 3d spectra of LaNiO₃-600 and Ni/La₂O₃ catalysts measured at 400 °C in 2 mbar CO₂ : H₂ (1 : 1). The sharp feature at 855.6 eV suggests that Ni remains metallic in both catalysts similar to the finding in H₂. In contrast, the La 3d_5/2 peak under the reaction conditions is modified as compared to the prior state in H₂ (Fig. S12†). A fitting attempt by the linear combination of La³⁺(LaNiO₃) and La³⁺(La₂O₃) reference peak profiles failed to reproduce La 3d_5/2, excluding the possibility that the La³⁺(LaNiO₃) phase is partially restored during the reaction. The quality of the fitting (i.e., lower STD value) is considerably improved when a synthetic La 3d curve combining 2 pairs of main and satellite peaks is used. More details about this peak, hereafter abbreviated as s.La 3d, are given in Table S2.† The fraction of s.La 3d is more pronounced in LaNiO₃ than Ni/La₂O₃ sample. The fit's optimal s.La 3d peak profile exhibited a somewhat different main to satellite peak BE splitting (abbreviated as ΔLa 3d) for the two catalysts. Specifically, ΔLa 3d for LaNiO₃ (hereafter s.La 3d(LaNiO₃)) was 3.6 eV while for Ni/La₂O₃ (hereafter s.La 3d(Ni/La₂O₃)) was 3.4 eV. The ΔLa 3d is very sensitive to the lanthanum chemical state and has been used to distinguish between various lanthanum compounds (Table 3). Accordingly, the ΔLa 3d of s.La 3d(LaNiO₃) corresponds to hydroxide or carbonate lanthanum species, while s.La 3d(Ni/La₂O₃) primarily to carbonate (vide infra). Depth-dependent La 3d measurements (Fig. S13†) reveal possible differences in the location of syn.La 3d between the two catalysts. In particular, for the LaNiO₃ catalyst the s.La 3d(LaNiO₃) fraction is independent of the analysis depth suggesting homogeneous distribution within the outer 4 nm. In contrast, the s.La 3d(Ni/La₂O₃) fraction increases at the surface indicating its preferential location at the outermost surface.

Fig. 7 (a) In situ La 3d and Ni 2p AP-XPS spectra of LaNiO₃ and Ni/La₂O₃ catalysts under CO₂ methanation conditions (2 mbar CO₂ : H₂ (1 : 1) at 400 °C). Prior to the AP-XPS measurements both catalysts were pre-activated in H₂ at 600 °C. Peak line-shapes derived from reference materials and synthetic line-shapes derived by a mathematical formula are used to fit the La 3d & Ni 2p curves. For clarity only the La 3d_5/2 and Ni 2p fitting components are shown. The corresponding (b) O 1s spectra fitted by three O 1s symmetric peaks and (c) C 1s spectra fitted with asymmetric and symmetric peaks. The estimated information depth (three times the photoelectron inelastic mean free path) is about 4 for La 3d & Ni 2p and O 1s spectra, and 2 nm for C 1s.

Table 3 The La 3d_5/2 component splitting (ΔLa 3d) for various lanthanum compounds. The standard deviation of the values collected from the cited literature is included in parenthesis

Name	ΔLa 3d (STD) (eV)	Reference
Lanthanum oxide (lanthana) La2O3	4.6(±0.3)	63 and 66–68
Lanthanum oxycarbonate La2O2CO3	4.3(±0.2)	66, 68 and 69
Lanthanum hydroxide La(OH)3	3.7(±0.3)	63, 66–68, 70 and 71
Lanthanum carbonate La2(CO3)3	3.5(±0.1)	70–72
LaNiO3	3.8	This work
La2O3	4.7	This work
s.La 3d(LaNiO3)	3.6	This work
s.La 3d(Ni/La2O3)	3.4	This work

---

The O 1s and C 1s peaks corroborate the proposed arrangement and provide further details on the chemical nature of the species behind the s.La 3d peaks. The O 1s spectra shown in Fig. 7b are fitted with three O 1s components with BE at 529.2, 530.7 and 532.2 eV (±0.2 eV). The peak at 529.2 eV is typical of La₂O₃ lattice oxygen (abbreviated as O_lat),^63,68 while the broad peak at 532.2 eV is probably the convolution of OH⁻ groups (OH) and carbonates (CO₃²⁻) both appearing within this energy region.⁶⁸ The one at 530.7 eV is more difficult to assign since its BE is relatively low for OH and high for O_lat species. Its presence is also clearly manifested in the spectrum measured in an H₂ atmosphere (Fig. S14†). Based on the evolution of the three oxygen species observed in the depth-dependent O 1s measurements (Fig. S15†) their distribution within the outer layers of the catalyst can be determined. Accordingly, the peak at 529.2 eV is located subsurface, while the peak at 532.2 eV is predominantly on the surface. Additionally, the peak at 530.7 eV seems to be distributed rather homogeneously with the analysis depth. The analysis of the Ni/La₂O₃ catalyst gives very similar results, the only difference is that the fraction of O_lat on this sample is relatively less.

The C 1s spectrum of LaNiO₃ (Fig. 7c) is composed by a main C 1s peak at 284.4 eV typical of C–C and C–H bonds (for simplicity noted as C–C hereafter) and two smaller peaks at 287.3 eV and 289.8 eV assigned to C–O or C=O (C–O hereafter) and carbonate (CO₃²⁻) species, respectively.^37,63,73 The lack of peaks around 283 eV excludes the presence of Ni-carbides.³⁷ The C–C peak was present during the H₂ reduction step (Fig. S14†), therefore it is attributed to residual carbon preexisting under the reaction conditions. Depth-dependent C 1s spectra (Fig. S16a†) suggest that CO₃²⁻ is in contact with lanthana beneath a C–C layer. The CO₃²⁻/s.La 3d(LaNiO₃) stoichiometry calculated from the corresponding photoemission peaks was 0.1, far below any known La carbonate species. Since extensive La carbonate formation is excluded, La(OH)₃ species formation remains the most credible scenario for the origin of s.La 3d(LaNiO₃). The s.La 3d(LaNiO₃) value of 3.6 eV discussed above further supports this argument. The evident reason for the formation of La(OH)₃ under the reaction conditions and not in H₂, is the presence of H₂O which is produced by the methanation reaction.

The C 1s of Ni/La₂O₃ catalyst is dominated by the CO₃²⁻ peak at 290.1 eV, while the signal from other components falls to the background level. Depth-dependent C 1s measurements (Fig. S16b†) suggest that CO₃²⁻ is mainly located at the outer surface, which differs from LaNiO₃. The CO₃²⁻/s.La 3d(Ni/La₂O₃) stoichiometry calculated by XPS is around 1.6, in fair agreement with the La₂(CO₃)₃ stoichiometry. The above two experimental findings, in addition to ΔLa 3d = 3.4, are sound evidence for La₂(CO₃)₃ formation on Ni/La₂O₃ in sharp contrast with La(OH)₃ found for LaNiO₃.

To summarize, operando NAP-XPS showed that under the reaction conditions Ni is maintained in the metallic state, while new types of lanthanum species are formed. Analysis of the surface sensitive spectroscopic results suggest that the perovskite LaNiO₃ catalyst turns into La-hydroxide (probably La(OH)₃) while La₂(CO₃)₃ is the main species on supported Ni/La₂O₃. The presence of oxycarbonates (i.e., La₂O₂CO₃) on Ni/La₂O₃ is unlikely since it is incompatible with both the s.La 3d(Ni/La₂O₃) and the expected compound stoichiometry (0.5 rather than 1.6).

4. Discussion

Catalytic tests of perovskite and supported Ni–La₂O₃ catalysts show that the CO₂ methanation performance is critically affected by the starting material. This might seem surprising since both catalysts have similar Ni loading and surface area, and after activation in H₂ they also show largely similar XRD patterns. One explanation of the superior perovskite-derived Ni–La₂O₃ catalyst performance frequently suggested in the literature^26,31,33 is the creation of highly dispersed nanoparticles socketing into the oxide matrix. Actually, this morphology was also identified in our exsolved perovskite catalyst by TEM/EDX showing the formation of 6 nm Ni particles that resist sintering under the reaction conditions. Although particle size fixation may be a crucial factor in explaining the exsolved LaNiO₃ catalyst's long-term stability (Fig. 1b), thorough in situ characterization points to significant differences in the surface chemistry of perovskite and supported catalysts that may be responsible for their distinct performances.

In particular, AP-XPS shows that the amount of Ni exposed to the surface might be up to 4 times higher on LaNiO₃ than Ni/La₂O₃ (Fig. 6c). Although this can be partly explained by the dispersion of Ni in the two catalysts, depth-dependent AP-XPS and HAXPES measurements revealed an additional clue, the encapsulation of Ni by lanthana, on the line of the well-known SMSI effect. Indeed, the two catalysts have a very different profile of Ni distribution in the outer 10–20 nm (Fig. 6d). This was found during the H₂-activation step but it is also conserved under the reaction conditions as illustrated in Fig. 8. A similar phenomenon has already been observed when Ni/CeO₂ is exposed under reducing conditions and attributed to Ce₂O₃ migration of the reduced oxide to the metal surface.⁷⁴ In another example, closer to the materials investigated in this study, a different mechanism was given to explain the covering of Rh particles by La₂O₃.^75,76 As lanthana is much less prone to reduction, a combination of sintering and phase transformation of the support was proposed to explain the encapsulation of Rh during sample preparation, clearly observed by HRTEM measurements. Although we cannot exclude partial lanthana reduction at the extreme surface of Ni/La₂O₃, if it exists it should be very local according to La 3d peak analysis.

Fig. 8 Illustration of the proposed surface arrangement of LaNiO₃ and Ni/La₂O₃ catalysts under calcination, activation and CO₂ methanation (initial and steady state reaction stages) conditions. The proposed surface reactions when the catalysts pass from one condition to the next are shown in boxes.

However, the configuration of Ni and lanthana at the outer surface is most probably not the only difference between the two catalysts that contributes to their distinct catalytic performance. By careful analysis of photoemission spectra we identify also crucial differences in their surface chemistry. As displayed in Fig. 8, La(OH)₃ species can be easily formed at the early reaction stage on the surface of the exsolved LaNiO₃ catalyst. In contrast, on supported Ni/La₂O₃ a thin La₂(CO₃)₃ layer is evidenced. The latter, being quite stable and inert towards CO₂, can block surface sites with a detrimental effect on the catalytic performance.

It now remains to correlate AP-XPS finding with ex situ XRD of the spent catalysts which at a first glance seems quite contradictory. According to AP-XPS, La(OH)₃ species are formed on the LaNiO₃ catalyst under the reaction conditions, but XRD of the spent LaNiO₃ show crystalline II-La₂O₂CO₃ and not La(OH)₃ at all. This might seem even more confusing when one considers results on Ni/La₂O₃ where XRD did not show any additional species after reaction (neither carbonates nor oxycarbonates) despite the fact that the presence of La₂(CO₃)₃ was clearly evident in AP-XPS. To explain this, we have to recall first the difference in catalytic reaction conditions between the two experiments. XRD is recorded after 65 hours of reaction at 1 bar, while AP-XPS during 1 hour reaction at 2 mbar total pressure. Evidently, one can anticipate that due to considerably “milder” reaction conditions AP-XPS data represent the initial stages of the catalyst transformation while ex situ XRD gives the steady state picture of the catalyst (see Fig. 8). Nevertheless, despite its limitation, AP-XPS remains the best available option to understand the surface chemistry since any ex situ XPS analysis will be dubious considering the affinity of lanthana to form carbonates and hydroxides upon exposure to air.

To explain the XRD finding we should extrapolate the AP-XPS data toward the long-term steady state. Indeed, the La(OH)₃ species might function as a precursor for La₂O₂CO₃. It has been shown that La(OH)₃ can be converted to La₂O₂CO₃ even after 2 h annealing at 400 °C in air (CO₂ < 0.04% or 0.4 mbar).^77,78 The initial stage of La₂O₂CO₃ formation is most probably already observed in the C 1s spectra of LaNiO₃ catalyst under the reaction conditions, showing a C 1s peak around 290 eV (Fig. 7c). One can assume that at significantly higher CO₂ concentrations, like in the 1 bar reaction mixture, the La₂O₂CO₃ formation rate is enhanced giving rise to the formation of the bulk crystalline La₂O₂CO₃ observed in the XRD patterns of Fig. 2a.

The above analysis can also be used to explain the poor catalytic activity of Ni/La₂O₃. In this case La(OH)₃, the La₂O₂CO₃ precursor, is not readily formed therefore even after hours of reaction oxycarbonates are not observed by XRD. Of course, carbonates may be generated directly by carbonizing La₂O₃ in CO₂ gas, but this requires significantly higher temperatures (e.g. 850 °C) than the methanation reaction conditions (350–400 °C).⁵³ This might suggest that the active state of the exsolved LaNiO₃ perovskite catalyst under reforming and methanation conditions could be quite different.

At this stage it is unclear whether the lower CO₂ conversion of Ni/La₂O₃ and the resulting lower production of H₂O is due to the absence of La(OH)₃, or if it is an intrinsic characteristic related to the La₂O₃ surface microstructure. As shown earlier, the surface termination plays an important role in lanthana's reactivity with H₂O,⁷⁹ suggesting that the surface structure of La₂O₃ is critical in determining whether La(OH)₃ forms or not.

The oxycarbonate phases seen in the spent NiLaO₃ catalyst have already been observed before on lanthana-based catalysts but were correlated with catalyst deactivation.^80–82 Recently, the presence of La₂O₂CO₃ has been claimed to benefit methanation acting as a CO₂ reservoir available for hydrogenation.⁸³ Our results agree with the latter assessment since the most active and stable sample contained oxycarbonate crystalline phases whereas Ni/La₂O₃ did not. However, the influence of morphological parameters (crystallite size, surface area, Ni dispersion) that could possibly have a role in the reactivity should not be overlooked.⁸⁴

5. Conclusions

LaNiO₃ perovskite was synthesized by the Pechini sol gel method and tested in CO₂ methanation after activation by a reductive treatment. The catalytic tests show a net enhancement of the CO₂ conversion with reduction temperature, and superior catalytic performance and stability compared to a Ni/La₂O₃ benchmark catalyst synthesized by conventional wet impregnation. The transformation of the LaNiO₃ precursor into the active phase during the thermal reduction treatment was monitored by multiple ex situ and in situ techniques. Electron microscopy displays the formation of 6 nm Ni particles with narrow size distribution anchored into the La₂O₃ matrix, while in situ XAFS detects the intermediate phases of this transition. Although the XRD crystal structures of reduced, exsolved and supported Ni/La₂O₃ seem identical, combined surface/subsurface analysis by in situ AP-XPS/HAXPES identified critical differences in the arrangement between La and Ni. Furthermore, it is shown that the active phase is formed during the catalytic cycle and it is quite different from the H₂-activated state. Specifically, although the Ni particle size and oxidation state are maintained, lanthana reacts with the gas phase during the reaction to form new compounds. This information was used to rationalize the differences in the catalytic performance. Notably, encapsulation of Ni by lanthana and the affinity of the latter towards hydroxide or carbonate species formation are proposed to critically affect the catalytic performance. We present strong evidence that the nature of carbon species formed under the reaction conditions is a crucial element of the reactivity, which is promoted by oxycarbonates but suppressed by carbonates. This work highlights the distinct surface chemistry of metal oxide catalysts derived from perovskite precursors in comparison to conventional supported catalysts and extends our understanding on their unique catalytic properties. Differences in the surface chemistry are usually disregarded in the relevant literature, where the high activity and stability of exsolved perovskite catalysts in thermo- or electrochemical reactions are primarily attributed to the socketing of Ni nanoparticles.
