Coupled dynamics in binary mixtures of model colloidal Yukawa systems

Abstract

The dynamical behavior of binary mixtures consisting of highly charged colloidal particles is studied by means of Brownian dynamics simulations. We investigate differently sized, but identically charged particles with nearly identical interactions between all species in highly dilute suspensions. Different short-time self-diffusion coefficients induce, mediated by electrostatic interactions, a coupling of both self and collective dynamics of differently sized particles: the long-time self-diffusion coefficients of a larger species are increased by the presence of a more mobile, smaller species and vice versa. Similar coupling effects are observed in collective dynamics where both time constant and functional form of intermediate scattering functions' initial decay are influenced by the presence of a differently sized species. We provide a systematic analysis of coupling effects in dependence on the ratio of sizes, number densities, and the strength of electrostatic interactions.

---

1 Introduction

Dynamical processes in strongly interacting systems and their relation to the time-averaged structure are since decades in the focus of scientific interest. Understanding of freezing processes, where correlations covering orders of magnitude in time are crucial, is still a challenge both from the viewpoint of experiment and theory. With evolving photon correlation spectroscopy¹ as a quasielastic scattering method accessing timescales from microseconds to hours, colloidal suspensions gained interest as model systems on, compared to atomic or molecular systems, enlarged scales of lengths and times: the availability of highly defined particles with tailored interactions establishes a fruitful combination of experiment and theory to investigate structure–dynamics relations in interacting systems self-organizing to analogues of imperfect gases, liquids, glasses and even colloidal crystals.^2,3 Colloidal suspensions have become relevant model systems for an experimental test of mode coupling theory describing slow dynamic processes such as, e.g., the glass transition.^4–8

Opposite to model hard-sphere colloids interacting via their mutual excluded volume, highly charged colloidal particles interact via the long-range electrostatic repulsion of equally charged macroions. Hence, these systems form at volume fractions as low as φ = 10⁻³ colloidal crystals.⁹ According to DLVO theory,¹⁰ charged colloids interact via a screened Coulomb- or Yukawa-potential while the mutual excluded volume and van der Waals interactions are not relevant in dilute systems.

Binary mixtures of charged colloidal particles have previously been studied in two dimensions.^11–15 In three dimensions, studies are so far limited to hard-sphere systems^16–22 while only few works investigate mixtures of charged particles.^23–28 The vast majority of existing studies focuses on the self-dynamics of identical particles employing both, theoretical^29–35 and experimental^36–38 methods. Collective dynamics are up to now only rarely analyzed.^39–45 Investigations of self- and collective diffusion processes in binary mixtures are up to now reported using systems with hard-sphere interactions.^46–49

We demonstrate that employing highly parallelized code it is feasible to calculate distinct, time-dependent van Hove functions from trajectories of comparatively large systems consisting of 16 000 particles. By spatial Fourier transform, finally, dynamic structure factors are obtained. These quantities can, in principle be obtained via quasielastic scattering experiments in the time domain, e.g., photon correlation spectroscopy. In multi-component systems of differently sized particles consisting of the same material, an average dynamic structure factor as a weighted sum of the partial structure factors is obtained by these experiments. Partial structure factors are experimentally accessible with index-matching experiments, if particles with different refractive indices are available. Even if such particles are available, for charged colloids, however, tuning the suspending medium's refractive index affects the protolysis of functional groups and thus their number of effective charges and interactions.⁵⁰ Typically, assuming a constant surface charge density, the number of effective charges is proportional to the particle surface. A possible experimental access to differently sized, but equally charged particles is the combination of particles stabilized via differently acidic functional groups: small particles with highly acidic functional groups and large particles with less acidic groups can, controlled by the suspending medium's pH provide equal number of effective charges. Since the preparation of such a system is highly challenging, we investigate in a first approach using computer experiments possible dynamic coupling effects in such binary mixtures.

We investigate, how different mobilities of equally charged particles with identical time-averaged interactions influence the non-Gaussian diffusion of interacting systems. The wave-vector resolved, distinct partial correlation functions can be a valuable test for theoretical predictions of structure–dynamics relations in charged multi-component systems.

In this paper, we investigate structure–dynamics relations in dilute, binary mixtures of equally charged but differently sized particles by means of Brownian dynamics simulations. Since the strength of electrostatic interactions essentially depends on the number of effective charges, the interactions in such systems are practically identical between all species. Different particle sizes, however, lead to different Stokes–Einstein diffusion coefficients as short-time self-diffusion coefficients with impact both on long-time self and collective diffusion coefficients: mediated by electrostatic interactions, the long-time dynamics of a larger species is influenced by the presence of a smaller, more mobile species. We investigate long-time self-diffusion coefficients and, to quantify collective diffusion in mixtures of highly charged colloids, partial intermediate scattering functions where the influence of both size- and number density ratios is systematically assessed.

For metastable, supercooled liquids, we compare different static and dynamic freezing criteria such as the Hansen–Verlet criterion⁵¹ based on the maximum total structure factor, the dynamic Löwen criterion⁵² based on the ratio of long- to short-time self-diffusion coefficient and the Debye–Waller factor as long-time limit of the dynamic structure factor. We demonstrate using Brownian dynamics that the long-time dynamics in binary mixtures is significantly influenced by different short-time mobilities of its constituents.

2 Theoretical background

2.1 Charged colloidal particles

The interaction between charged colloidal macroions can, according to the DLVO theory,¹⁰ at relevant distances r_ij be written aswith the thermal energy k_BT, the macroions' number of effective charges Z_eff, and their diameter σ. λ_B = e₀²/(4πε_rε₀k_BT) is the Bjerrum length depending on the electron charge e₀ and the permittivity ε_rε₀ of the suspending medium. Due to counterions present for reason of electroneutrality, the colloidal macroions interact via a screened Coulomb- or Yukawa-potential with the inverse Debye lengthwhere ¹ρ_l is the number density of counter ions carrying z_l electron charges. Extending the single species Yukawa potential to multiple species, the pair potential reads as

Suspensions consisting of highly charged colloidal particles, due to the long-range electrostatic repulsion, self-organize to liquid-like ordered and even crystalline structures at extremely low densities⁹ with particle distances as large as ten times the particle diameter. For such highly dilute systems, the pairwise additive approximation of the interactions is an adequate assumption⁵³ neglecting hydrodynamic interactions as a consequence of their extremely small volume fraction. Typical pair correlation functions g(r) show, that distances comparable to the particle size do not occur: collisions of these electrostatically interacting particles are not observed and the mutual excluded volume, unlike in hard-sphere systems, does not play a role for the self-organization.

2.2 Brownian dynamics simulation

Relevant time scales for the Brownian motion of colloidal macroions are orders of magnitude larger than those of the suspending medium particles. The rapidly varying degrees of freedom of the suspending medium can be eliminated employing a projection operator formalism^54–57 leading to a generalized Fokker–Planck equation. Restricting to times larger than momentum relaxation times with typically τ_p ≈ 10⁻⁸ s, such particles' equation of motion can be described asemploying Ermak's algorithm.^58–60 Here, r_i(t) is the position of particle i at time t, β = (k _BT)⁻¹ the inverse thermal energy, and D_ij the diffusion tensor. The force acting on particle j is denoted as f_j and R_i is a random displacement caused by the rapidly fluctuating interactions between the suspending medium and the colloidal macroions with the properties

〈R_i(τ)〉 = 0 (5)

and

〈R_i(τ)·R_i(τ + Δt)〉 = 6D₀Δt (6)

neglecting hydrodynamic interactions. In pairwise additive approximation, the force f_j acting on particle j reads aswith V(r_ij) being the potential of two macroions with distance vector r_ij. Neglecting hydrodynamic interactions in highly dilute suspensions, the diffusion tensor D_ij is approximated as D_ij = D_0,iI with I denoting matrix identity andthe Stokes–Einstein diffusion coefficient of particle i depending on the viscosity η of the suspending medium and the particle diameter σ_i. In absence of hydrodynamic interactions, the derivative ∇_rjD_ij = 0 vanishes.

2.3 Dynamic properties

The time-dependent self-diffusion coefficient D_S,i(t) of a particle i is accessible via its mean-square displacement asBoth, the short-time limit D₀ and the long-time limit D^(L)_S are time-independent. The short-time self-diffusion coefficient is the Stokes–Einstein diffusion coefficient. The reduced self-diffusion coefficientas a size-independent quantity allows to analyze the time-dependence of the self-diffusion in mixtures.

In an alternative way, the time-dependent self-diffusion of particle i is accessible from the van Hove function⁶¹

= G_S(r_ii, t) + G_D(r_ij, t) (12)

with G_S denoting its self and G_D its collective part.

In a mixture of N_C species for each species α a self correlation function G_S,α(r_ii, t) exists which obeys the differential equation

with the solutionwhere in the limit t → ∞ the long-time self-diffusion coefficient D_S,α(t → ∞) = D^(L)_S,α results.

In such a mixture, N_C(N_C + 1)/2 different, distinct van Hove functions G_D,αβ(r_jβ − r_iα, t)

exist and are accessible from the trajectories.

Analogously to eqn (13), the distinct part of the van Hove function obeys the differential equation

which reads asin reciprocal space. The van Hove function G_D,αβ(Q, t) is related to the intermediate scattering function S_αβ(Q, t) as

S_αβ(Q, t) = G_D,αβ(Q, t) + δ_αβ (18)

with δ_αβ denoting the Kronecker symbol.

In a binary mixture, three partial intermediate scattering functions are accessible from the trajectories. Normalizing by the static structure factors S_αβ(Q, 0) = S_αβ(Q, t = 0), reduced intermediate scattering functions

are obtained. Due to spherical symmetry, for liquid like structures, these quantities depend only on the modulus Q = ‖Q‖ of the wave vector.

To identify a freezing transition in interacting systems, different criteria are described in the literature. The Hansen–Verlet criterion⁵¹ is based on the maximum of the static structure factor and identifies a frozen state for systems with max[S(Q)] ≳ 2.85. Löwen et al. suggest a dynamical freezing criterion based on the reduced long-time self-diffusion coefficient, to identify a frozen state when D^(L)_S/D₀ ≲ 0.098.^52,62 A frequently used criterion to characterize the glass transition is a non-zero Debye–Waller factor S(Q, t → ∞)/S(Q, 0) indicating a frustrated α-process.^5,63–66

2.4 Computational details

We performed Brownian dynamics simulations employing the previously described and well known Ermak–McCammon algorithm,⁶⁰ neglecting hydrodynamic interactions in three dimensional space employing a cubic box with periodic boundary conditions. The mean-square displacement 〈Δr_i²(t)〉 and partial distinct van Hove functions are calculated from the simulation trajectories. By Fourier transform, from the latter quantities intermediate scattering functions S(Q,t) are obtained. The parameters used for Brownian dynamics simulations are compiled in Tables 1 and 2.

Table 1 Simulation parameters and properties of the suspending medium (water) used in Brownian dynamics simulations of binary colloidal Yukawa systems

Parameter	SI units
Temperature	T = 298.15 K
Box length	L B = 2.52 × 10^−5 m
Total number density	^1 ρ tot = 1 × 10^18 m^−3
Time base	τ = 1 × 10^−3 s
Time step	Δt = 2.0 × 10^−6 s
Viscosity	η = 8.9 × 10^−4 Pa s
Relative permittivity	ε r = 78.3
Bjerrum length	λ B = 7.160 × 10^−10 m
Particle number	N P = 16 000

---

Table 2 Particle-dependend parameters used for Brownian dynamics simulations of binary mixtures, compiled for particles with diameter σ_A = 100 nm and σ_B = 50 nm with identical number of effective charges Z_eff,A = Z_eff,B = 400 and identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³

SI units	Reduced units
L B = 2.52 × 10^−5 m	L* = LB/σA = 252.0
^1 ρ tot = 1 × 10^18 m^−3
Δt = 2 × 10^−6 s	Δt* = Δt/τ = 0.002
κ = 1.897 × 10^5 m^−1	κ* = κσA = 0.1897
D 0,A = 4.908 × 10^−12 m^2 s^−1
D 0,B = 9.815 × 10^−12 m^2 s^−1
A AA = 1.155 × 10^−4 m
A AB = 1.151 × 10^−4 m
A BA = AAB
A BB = 1.148 × 10^−4 m

---

The diameter σ_A = 100 nm is kept constant during all simulations, while σ_B is varied from 100 nm to 20 nm to obtain binary mixtures including a virtually binary mixture with σ_A = σ_B = 100 nm. The number of effective charges of both species is varied in the range of Z_eff,A = Z_eff,B = 300–600. To investigate the influence of relative particle number densities ¹ρ_B/¹ρ_A, three different ratios ¹ρ_B/¹ρ_A = {1, 2, 4} are simulated. Additionally, in Table 2 the reduced interaction parameters

are compiled for σ_A = 100 nm and σ_B = 50 nm with Z_eff,A = Z_eff,B = 400. The interaction parameters differ by less than one percent at identical number of effective charges for all simulated particle sizes. Depending on the particle sizes, the volume fractions of the investigated systems are in the range of 4.2 × 10⁻⁶ ≤ φ ≤ 5.2 × 10⁻⁴. We investigate colloidal macroions with monovalent counter ions in absence of additional stray ions.

Starting from a bcc structure, in ten successive simulations, each with 10⁴ time steps, with drastically reduced number of effective charges of Z_eff,A = Z_eff,B = 50, a gaseous configuration is prepared. Using this disordered configuration, in ten successive simulation runs of each 10⁴ time steps liquid-like ordered systems consisting of particles with the respective number of effective charges are prepared. The convergence of equilibration is monitored by comparison of static pair correlation functions and the time-dependence of self-diffusion coefficients computed in each run. After equilibration, a production run of 2 × 10⁶ time steps is performed.

From its trajectory, the mean-square displacement and the distinct van Hove functions are computed. To estimate uncertainties of the results, twelve independent production runs are evaluated for each system. The uncertainties are given as triple standard deviations of the results.

3 Results and discussion

In the present work, we investigate binary colloidal suspensions of equally charged, but differently sized particles, interacting via a repulsive, screened electrostatic or Yukawa-potential. The interaction is primarily governed by the number of effective charges of the particles, the permittivity of the suspending medium, the temperature, and the mean interparticle distance depending on the total number density. Therefore, the interaction only slightly depends on the particles' size and is neglectable. Due to practically identical interactions between all species in time average, as visible in Fig. 1, the partial pair correlation functions g_AA(r), g_AB(r), and g_BB(r) are identical.

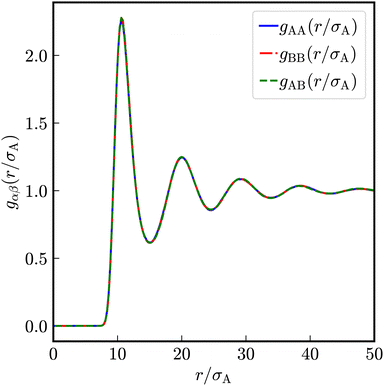

Fig. 1 Partial pair correlation functions g_αβ(r/σ_A) of a binary suspension of Yukawa particles. The suspension consists of a large species with the diameter σ_A = 100 nm and a smaller species with the diameter σ_B = 50 nm. The number of effective charges of both species is Z_eff,A = Z_eff,B = 400 at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³.

3.1 Self dynamics

In Fig. 2, the reduced time-dependent self-diffusion coefficients in a virtually binary mixture of identical particles (lhs) and differently sized, but equally charged particles (rhs) are displayed. In the virtually binary mixture of identical particles, the time-dependence of the self-diffusion coefficients is identical. Opposite, in presence of a differently sized, smaller species, the reduced long-time self-diffusion coefficient D^(L)_S,A/D_0,A is enhanced while that D^(L)_S,B/D_0,B is reduced. In the short-time limit, consistently, the respective Stokes–Einstein diffusion coefficients are approached. For intermediate times, a subdiffusive motion leading to formal time-dependent self-diffusion coefficients is observed.

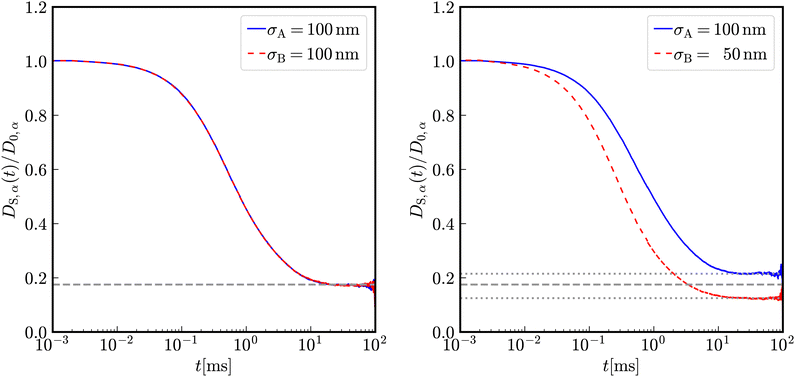

Fig. 2 Reduced time-dependent self-diffusion coefficients D_S,α(t)/D_0,α of a virtually binary suspension of identically sized species with diameters σ_A = σ_B = 100 nm, identical number of effective charges Z_eff,A = Z_eff,B = 400 and number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³ (left). Corresponding reduced time-dependent self-diffusion coefficients of a binary colloidal mixture consisting of differently sized species with σ_A = 100 nm and σ_B = 50 nm, but still identical number of effective charges Z_eff,A = Z_eff,B = 400 and number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³ (right). The corresponding long-time limits are indicated as a dashed line for the virtually binary mixture and as dotted lines for the binary mixture.

In contrast to the effective one-component system, different Stokes–Einstein diffusion coefficients of a mixture's constituents lead to a different time-dependence of their self-diffusion coefficients: in the short-time limit, both self-diffusion coefficients approach the respective Stokes–Einstein diffusion coefficient, while in the long-time limit different reduced long-time self-diffusion coefficients D^(L),red_S,α are observed. The influence of the identical number of effective charges Z_eff,A = Z_eff,B is visible in Fig. 3 for a binary suspension consisting of particles with diameter σ_A = 100 nm and σ_B = 50 nm at identical particle number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³. For comparison, the self-diffusion coefficients in a virtually binary mixture of identical particles, i.e., an effective one-component system, is depicted as well. With increasing number of effective charges and therewith increasing interactions, the long-time self-diffusion coefficient non-linearly decreases.

Fig. 3 Reduced long-time self-diffusion coefficients of a binary mixture in dependence on the number of effective charges Z_eff. Those of the large species are depicted as open upper triangles while those of the small species are represented by open lower triangles. For comparison, the values for one-component systems of both species with the same total number density are displayed as open circles and crosses. The dashed lines are cubic splines as a guide to the eye.

Generally, the long-time self-diffusion coefficients of a larger species with smaller Stokes–Einstein diffusion coefficient are enhanced by the presence of a smaller species with correspondingly larger Stokes–Einstein diffusion coefficients and vice versa. The differences of long-time self-diffusion coefficients decrease at identical ratios of sizes and number densities with increasing strength of electrostatic interaction.

As visible in Fig. 4, with increasing particle-size ratio, the enhancement and reduction of reduced long-time self-diffusion coefficients increases, too. In suspensions with different number densities ¹ρ_A ≠ ¹ρ_B, reduced long-time self-diffusion coefficients of the minority component change more than those of the majority component. The numerical values of reduced long-time self-diffusion coefficients in virtually binary, as well as binary mixtures are compiled in Tables S1 and S2 of the ESI.†

Fig. 4 Reduced long-time self-diffusion coefficients D^(L)_S,α/D_0,α for a binary suspension with number of effective charges Z_eff = 400 in dependence on the diameter ratio σ_A/σ_B and the ratio of their number densities ¹ρ_B/¹ρ_A at constant total number density ¹ρ_tot = 1 × 10¹⁸ m⁻³. Circles denote the large species A and triangles the small species B. The dashed lines are cubic splines as a guide to the eye.

Let us define a reduced excess long-time self-diffusion coefficient

as difference of the reduced long-time self-diffusion coefficient of species α in a mixture with total number density ¹ρ_tot to that of species α in a one-component system with ¹ρ_α = ¹ρ_tot. As visible in Fig. 5, for sufficiently large electrostatic interaction, a nearly linear dependence of the modulus of this reduced excess long-time self-diffusion coefficients on the ratio (σ_A¹ρ_tot)/(σ_B¹ρ_α) is observed. The slope of this nearly linear dependence can be considered as a dynamic coupling constant ζ. As visible from Fig. 6, the dynamic coupling constant linearly depends on the number of effective charges (Table S7 of the ESI†).

Fig. 5 Modulus of the reduced excess long-time self-diffusion coefficient in dependence on the ratio (σ_A¹ρ_tot)/(σ_B¹ρ_α). The dashed lines are linear fits to the data.

Fig. 6 Dependency of the coupling constant ζ on the number of effective charges Z_eff. The dashed line is a linear fit to the data.

3.2 Collective dynamics

In addition to the self-dynamics, we investigate the collective dynamics employing intermediate scattering functions obtained by Fourier transform of distinct van Hove functions. The partial, distinct time-dependent pair correlation functions are calculated from simulation trajectories employing eqn (15). In Fig. 7, distinct, time-dependent partial pair correlation functions G_αβ(r/σ_A, t) and the corresponding partial dynamic structure factors S_αβ(Qσ_A, t) for t = 0, t = 10.0 ms and t = 25.0 ms are displayed for a binary mixture with Z_eff,A = Z_eff,B = 400, diameters σ_A = 100 nm and σ_B = 50 nm at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³.

Fig. 7 Partial, distinct pair correlation functions G_αβ(r/σ_A, t) displayed for t = 0, t = 10.0 ms, and t = 25.0 ms (upper row). The correlation functions result from a system with Z_eff,A = Z_eff,B = 400 with diameters σ_A = 100 nm and σ_B = 50 nm at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³. In the lower row, the corresponding partial intermediate scattering functions S_αβ(Qσ_A, t) obtained as spatial Fourier transforms are shown.

In the here investigated liquid-like systems, all partial time-dependent structure factors decay to zero in the long-time limit. We quantify the collective short-time behavior by stretched exponentials exp(−at)^b as a heuristic approach at the wave-vector Q_max at the maximum of the static structure factor.

Let us first consider a virtually binary suspension consisting of identical particles. In Fig. 8, the reduced partial, distinct intermediate scattering functions S^red_D,αβ(Q_max, t) are shown for a suspension of colloidal macroions with diameter σ_A = σ_B = 100 nm, Z_eff,A = Z_eff,B = 400 effective charges at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³. Here, the functional form of decay is identical for all partial intermediate scattering functions.

Fig. 8 Reduced time-dependent, partial distinct structure factors S^red_D,αβ(Q_max, t) of a virtually binary suspension of identical particles with diameter σ = 100 nm at identical number density ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³ with Z_eff = 400 effective charges. The stretched exponentials are displayed as dashed grey lines.

The relaxation rates a and stretching exponents b of stretched exponentials of virtually binary mixtures are extracted from fits covering correlation times until S_αβ(Q_max, t) = S_αβ(Q_max, 0)/2 is reached.

In Fig. 9, the relaxation rates a in effective one-component systems are displayed in dependence on the number of effective charges Z_eff for different diameters. Normalized to the respective Stokes–Einstein diffusion coefficients D_0,α a universal reduced relaxation rate, decreasing with the number of effective charges Z_eff is obtained. The exponent b decreases in first approximation linearly with increasing number of effective charges and is independent of the particle size.

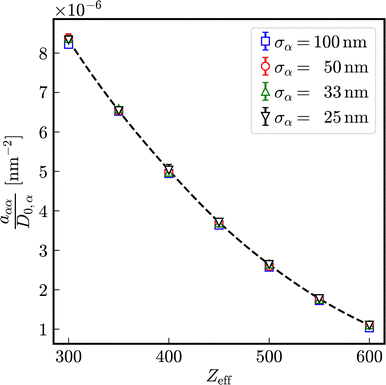

Fig. 9 Relaxation rates a_αα normalized to the respective Stokes–Einstein diffusion coefficient D_0,α at Q_max in virtually binary mixtures of identical particles in dependence on their number of effective charges Z_eff for different particle sizes σ_α. The dashed line is a cubic spline as a guide to the eye.

In a binary mixture of differently sized but still equally charged particles, the time-dependence of partial intermediate scattering functions differs as shown in Fig. 10 for particles with diameters σ_A = 100 nm and σ_B = 33 nm with Z_eff,A = Z_eff,B = 400 effective charges at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³. As expected, the decay of S_AA(Q, t) is the slowest and that of S_BB(Q, t) the fastest. The relaxation of the correlation between both species S_AB(Q, t) is in between S_AA(Q, t) and S_BB(Q, t).

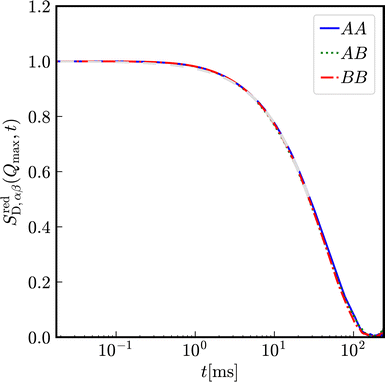

Fig. 10 Partial intermediate scattering functions S^red_D,αβ(Q_max, t) of a binary colloidal suspension of particles with diameters σ_A = 100 nm and σ_B = 33 nm with identical number of effective charges Z_eff,A = Z_eff,B = 400 at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³. The dashed grey lines are stretched exponential fits of the data.

The relaxation rates a_αβ in binary mixtures of particles with σ_A = 100 nm and σ_B = 33 nm at the same number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³ in dependence on the number of effective charges Z_eff = Z_eff,A = Z_eff,B is displayed in Fig. 11. For comparison, those of effective one-component systems consisting of particles with diameters σ_A = 100 nm and σ_B = 33 nm, respectively, are depicted as well. The values of the relaxation rates and the stretching exponents are compiled in the Tables S3–S6 of the ESI.† In analogy to self-diffusion, also the decay of intermediate scattering functions is influenced by the presence of a differently sized species: the relaxation rates of the correlation between the larger particles are enhanced in the presence of more mobile smaller particles and vice versa. As expected, the relaxation rates of correlations between different species a_AB are in between the relaxation rates a_AA and a_BB of correlations between identical particles. With increasing number of effective charges Z_eff = Z_eff,A = Z_eff,B, a nonlinear decay of relaxation rates is observed, approaching a common limit in the case of very strong electrostatic interactions.

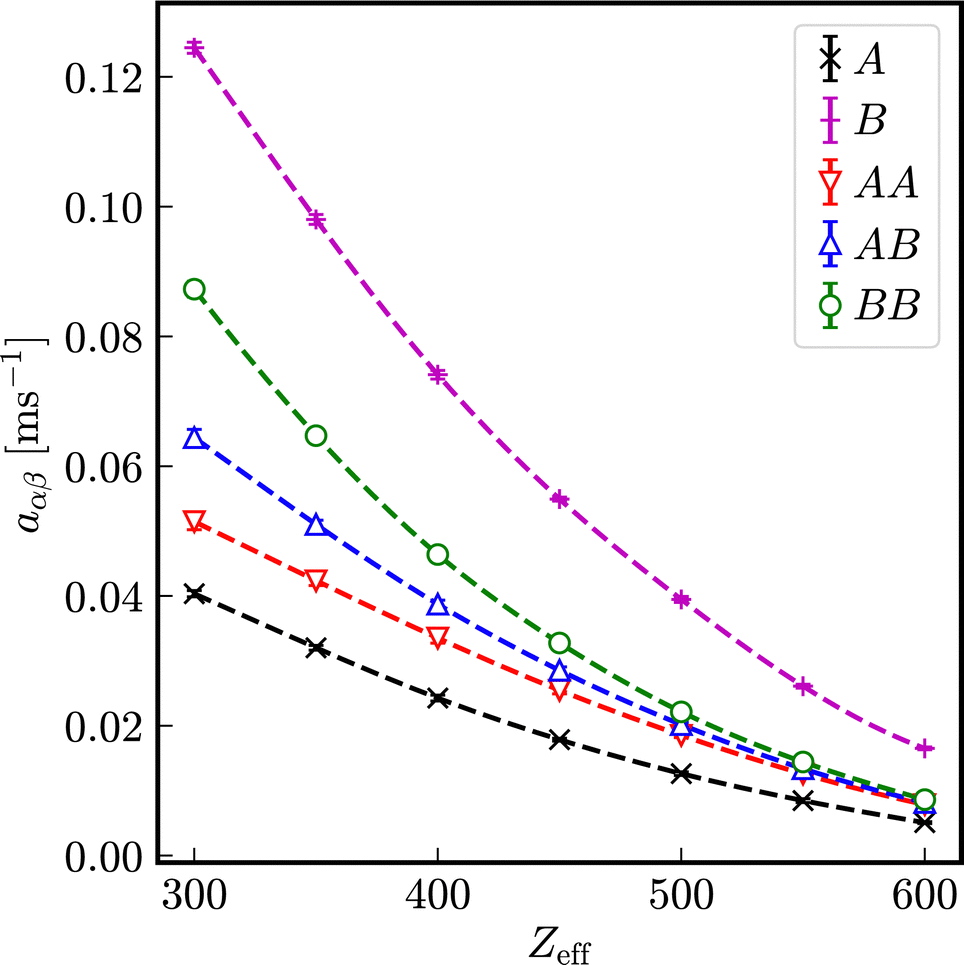

Fig. 11 Relaxation rates a_αβ in a binary mixture of particles with diameters σ_A = 100 nm and σ_B = 33 nm in dependence on the number of effective charges Z_eff = Z_eff,A = Z_eff,B at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³. For comparison, the corresponding relaxation rates for one-component systems consisting of particles with σ_A = 100 nm (×) and σ_B = 33 nm (+) are displayed as well. The dashed lines are cubic splines as a guide to the eye.

Defining an excess relaxation rate as

with denoting the relaxation rate in a one-component system and a_αα that in a binary mixture at identical total number densities. Analogously to self-diffusion, the modulus of excess relaxation rates of correlations between identical particles depend in first approximation linearly on the ratio (σ_A¹ρ_tot)/(σ_B¹ρ_α) for sufficiently strong electrostatic interaction as visible in Fig. 12.

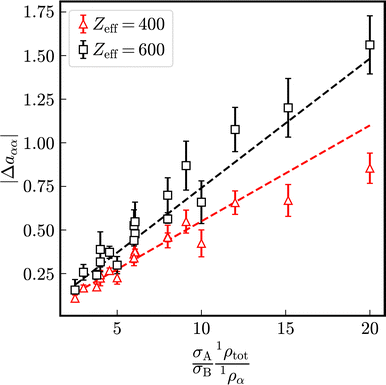

Fig. 12 Dependence of the modulus |Δa_αα| of excess relaxation rates on the ratio (σ_A¹ρ_tot)/(σ_B¹ρ_α). The dashed lines are linear fits indicating deviations from linearity at large ratios (σ_A¹ρ_tot)/(σ_B¹ρ_α).

Opposite to one-component systems, the stretching exponents b_αβ differ in binary mixtures of equally charged particles with different sizes as shown in Fig. 13 for a mixture of particles with σ_A = 100 nm and σ_B = 33 nm at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³. The stretching exponents b_AB of the partial intermediate scattering functions S^red_D,AB(Q_max, t) are for all investigated numbers of effective charges practically identical to one-component systems consisting either of the larger species A or the smaller species B at the same total number density. In presence of a smaller species B, the stretching exponent b_AA is larger than b_AB indicating a more compressed relaxation. The stretching exponent b_BB of the intermediate scattering function S_BB(Q_max, t) is reduced by the presence of a larger species A indicating a more stretched relaxation.

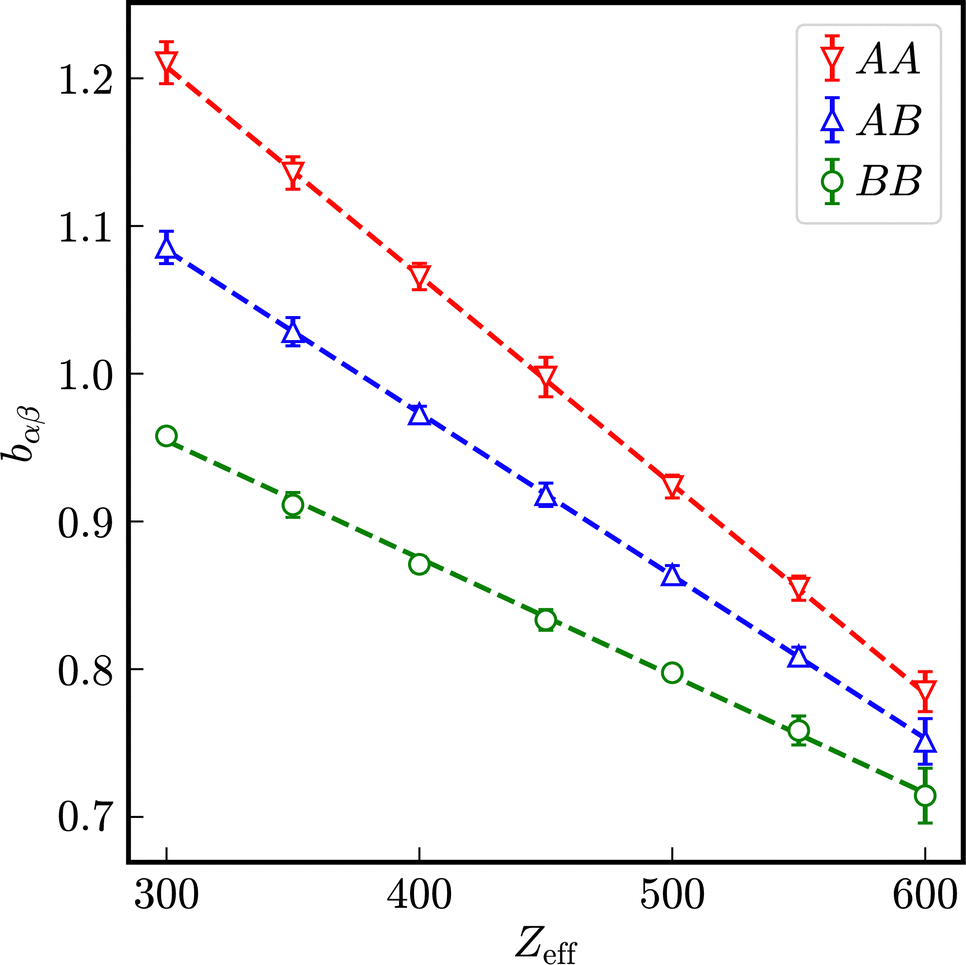

Fig. 13 Stretching exponents b_αβ of a binary mixture of differently sized but identically charged colloidal macroions in dependence on their number of effective charges Z_eff. The large species' diameter is σ_A = 100 nm and that of the small is σ_B = 33 nm at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³. The dashed lines are linear fits.

With increasing number of effective charges and thus electrostatic repulsion, a linear decrease of all stretching exponents b_αβ is observed, where the differences b_AA–b_BB also decrease with Z_eff.

Let us analogously to the excess relaxation rate Δa_αα define an excess stretching exponent

with indicating the stretching exponent in a one-component system with the same total number density. For sufficiently strong electrostatic interaction, similar as for the reduced excess long-time self-diffusion coefficient, a nearly linear dependence on the ratio (σ_A¹ρ_tot)/(σ_B¹ρ_α) (Fig. 14) is observed where the slope decreases with the number of effective charges Z_eff.

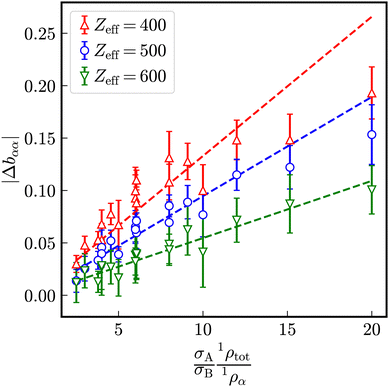

Fig. 14 Modulus |Δb_αα| of the excess stretching exponent in binary mixtures of differently sized but identically charged particles in dependence on the ratio (σ_A¹ρ_tot)/(σ_B¹ρ_α). The dashed lines are linear fits to the data.

3.3 Comparison of freezing criteria

The Hansen–Verlet criterion⁵¹ uses the mean structure factor as freezing criterion. Since in our case all partial structure factors are identical, also the mean structure factor 〈S_αβ(Q)〉_αβ is identical to the partial ones. We found that with a number of effective charges larger than Z_eff ≳ 450 the Hansen–Verlet criterion max[〈S_αβ(Q)〉_αβ] ≳ 2.85 is exceeded, predicting a frozen state for the entire binary mixture (Table 3).

Table 3 Maximum max[〈S_αβ(Q)〉_αβ] of the mean static structure factor in dependence on the number of effective charges Z_eff of identically charged particles with diameters σ_A = 100 nm and σ_B = 50 nm at identical number densities ¹ρ_A = ¹ρ_B = 5 × 10¹⁷ m⁻³

Z eff	max[〈Sαβ(Q)〉αβ]
300	2.107(23)
350	2.363(24)
400	2.65(4)
450	2.885(25)
500	3.14(4)
550	3.38(4)
600	3.57(5)

---

Löwen et al.⁵² proposed a reduced long-time self-diffusion coefficient D^(L)_S,a/D_0,α ≲ 0.098 as a dynamic freezing criterion for species α. For an effective one-component system with Z_eff = 450, opposite to the Hansen–Verlet criterion, the dynamic freezing criterion predicts a non-frozen state. Due to the reduced long-time self-diffusion coefficient of particles with σ_B = 50 nm in presence of particles with σ_A = 100 nm at identical number densities ¹ρ_A = ¹ρ_B, this dynamic freezing criterion predicts a selectively frozen state of the more mobile subsystem B and a non-frozen state of the less mobile species A in a binary mixture. (cf. Tables S1 and S2 in the ESI.†)

Both for one-component systems and binary mixtures, the long-time limits of reduced partial intermediate scattering functions S^red_αβ(Q, t → ∞) decay to zero indicating a liquid-like state for all here investigated systems. At a total number density of ¹ρ_tot = 1 × 10¹⁸ m⁻³, systems with Z_eff ≳ 450 effective charges do not melt starting from a bcc-structure. Hence, liquid-like ordered systems with Z_eff ≳ 450 are metastable, supercooled liquids. Also for these systems, the Debye–Waller factors vanish, indicating a non-arrested state with still complete structural relaxation. Comparing the here discussed freezing criteria, only the Debye–Waller factor reliably distinguishes between a supercooled liquid and a colloidal glass.

4 Conclusion

In this paper, we investigate structure and dynamics of binary Yukawa systems. Preserving the strength of electrostatical interaction, i.e., the number of effective charges, we study the influence of different mobilities quantified by Stokes–Einstein short-time diffusion coefficients of differently sized particles. Due to practically identical interactions between all species, also the partial correlation functions are identical. Mediated by the electrostatic interaction, however, coupling effects both in long-time self-diffusion and collective diffusion are observed.

The long-time self-diffusion coefficients of a less mobile species are enhanced by the presence of a more mobile, smaller species and vice versa. A dynamic coupling is also visible in collective dynamics in the relaxation rates as well as the functional form of the correlation decay in partial intermediate scattering functions calculated from time-dependent, partial correlation functions. These coupling effects are quantified by respective excess quantities using pure systems with the same interactions and total number densities as reference systems. For sufficiently strong electrostatic interactions, in first approximation a linear dependence of excess quantities on the ratio (σ_A¹ρ_tot)/(σ_B¹ρ_α) is identified.

Furthermore, we compare different freezing criteria for metastable liquid-like structures. Despite for systems with Z_eff ≳ 450 effective charges at a total number density of ¹ρ = 1 × 10¹⁸ m⁻³ the static Hansen–Verlet criterion indicates a completely frozen state and the dynamic Löwen criterion a selectively frozen state, all intermediate scattering functions asymptotically decay to zero in the long-time limit. Hence, a structural arrest is not observed in the here investigated systems.

We have demonstrated the feasability to calculate distinct van Hove functions for considerably large systems including mixtures giving access to partial, time-dependent pair correlation functions using massive parallel computing either on CPUs or GPUs. Due to correlation functions up to large correlation lengths intermediate scattering functions as spatial Fourier transforms are accessible with high accuracy as well. Intermediate scattering functions are valuable data for comparison either with experimental data resulting from quasielastic scattering experiments in the time domain or theoretical approaches such as mode coupling theory.

Including hydrodynamic interactions is a remaining task especially at higher volume fractions where a glass transition is expected. Using the available partial static structure factors as an input, multi-component mode coupling theory is capable to predict time-dependent processes such as self- and collective diffusion. The comparison of the here provided simulation data with multi-component mode coupling theory is a promising test for the latter approach.
