Role of ancillary ligands in S-nitrosothiol and NO generation from nitrite–thiol interactions at mononuclear zinc(II) sites

Abstract

Generation of S-nitrosothiol (RSNO) and nitric oxide (NO) mediated by zinc(II) coordination motifs is of prime importance for understanding the role of zinc(II)-based cofactors in redox-signalling pathways. This study uniquely employs a set of mononuclear [L₂Zn^II]²⁺ cores (where L = Me₄PzPz/Me₂PzPy/Me₂PzQu) for introducing subtle alterations of the primary coordination sphere and investigates the role of ligand tuning in the transformation of NO₂⁻ in the presence of thiols. Single crystal X-ray diffraction (SCXRD) analyses on [L₂Zn^II–X](X) (where X = perchlorate/triflate) illustrate consistent changes in the bond distances, thereby showing variations of the metal–ligand interactions depending on the nature of the heterocyclic donor arms (pyrazole/pyridine/quinoline). Moreover, such tuning of the ligands affects the Lewis-acidity of the [L₂Zn^II]²⁺ cores as evaluated by ³¹P NMR and SCXRD studies on the 1 : 1 acid–base adducts [L₂Zn^II(OPEt₃)]²⁺. Crystallographic and ¹⁵N NMR spectroscopic analyses on the nitrite complexes [L₂Zn^II(κ²-nitrite)](ClO₄) reveal that the chemical environments of the nitrite anions in these complexes are nearly identical, despite the dissimilarity in the Lewis-acidity of the [L₂Zn^II]²⁺ cores. Interestingly, RSNO and NO generation from the reactions of [L₂Zn^II(κ²-nitrite)](ClO₄) with 4-tert-butylbenzylthiol (^tBuBnSH) exhibits that the [(Me₂PzQu)₂Zn^II]²⁺ core is the most efficient in promoting nitrite–thiol interactions due to the ease of available hemilabile coordination sites at the Lewis acidic [Zn^II]. Detailed UV-vis studies in tandem with computational investigation, for the first time, provide an unambiguous demonstration of the nitrous acid (HNO₂) intermediate generated through an intramolecular proton-transfer from thiol to nitrite at zinc(II).

---

Introduction

S-Nitrosothiol (RSNO) is an incredibly important functional group in nitric oxide (NO) signalling events encompassing neurotransmission, vasodilation, immune response and many more.^1,2 While the nitric oxide synthase (NOS) activity of heme-Fe sites primarily serves as the NO-source through an oxidative transformation of L-arginine in the presence of dioxygen,³ the NOS activity is inhibited under hypoxia. Hence, the NOS-independent generation of NO is critical for the NO-bioactivities under hypoxic conditions. It is noteworthy that nitrite (NO₂⁻) and S-nitrosothiol (RSNO) serve as circulators and sources of NO under hypoxic conditions, while both can also act as sinks for NO at a higher flux.^4,5 One-electron reductive transformation of nitrite-to-NO, known as nitrite reductase activity (NiR) (Fig. 1A), is mediated by the reduced state of various heme-Fe sites (in deoxymyoglobin, deoxyhemoglobin, cytochrome c oxidase), Cu-containing nitrite reductase, and Mo-site of xanthine oxidoreductase.⁶ Surprisingly, a redox-inactive His₃Zn^II active site of carbonic anhydrase (CA) has been reported to bind the nitrite anion and transform to NO through nitrite anhydrase activity (Fig. 1B).⁷ However, a number of later studies suggest that an external reductant, such as thiol, is essential for the conversion of nitrite-to-NO at the redox-inactive zinc(II) site.⁸

Fig. 1 (A and B) Transformations of the nitrite anion relevant to NO generation. (C) Mechanisms for the reactions of thiol with zinc(II)–nitrite leading to RSNO. (D) Schematic representations of the zinc(II)–nitrite complexes employed in this study.

Modelling of Fe/Cu mediated NiR activities in the presence of H⁺/e⁻ has been demonstrated by utilizing a number of Fe– and Cu–nitrite complexes in the previous literature.^9–11 In contrast, the examples of nitrite reduction involving zinc(II)–nitrite are limited. As the redox-active Fe/Cu-based active sites often engage in complex reactions with NO gas,^11,12 insights into the NiR process at a redox-inactive metal site may serve critical for designing synthetic catalysts and understanding the role of zinc-containing enzymes in NO signalling. A prior study by Caulton and co-workers uniquely demonstrated nitrite-to-NO transformation utilizing a mononuclear zinc(II) core [(btzp)Zn]²⁺ featuring tetrazene-based redox-active moieties capable of managing up to 4 equivalents of protons and electrons through the btzp ⇄ H₄btzp equilibrium (where H₄btzp = bisdihydro-tetrazenepyridine).¹³ Warren and co-workers reported the first example of thiol reaction with a tris(pyrazolyl)borate supported tripodal [Zn^II](κ²-nitrite) complex where 4-methylbenzenethiol (ArSH) smoothly reacts to provide the corresponding thiolate complex [Zn^II]–SAr, disulfide (ArSSAr) and NO, via S-nitrosothiol (ArSNO). In contrast, an alkyl thiol, namely benzylthiol (BnSH), has been demonstrated to react sluggishly with the [Zn^II]–nitrite complex.¹⁴ The differential reactivity of aromatic versus aliphatic thiols towards [Zn^II]–nitrite suggests that the pK_a of thiol plays an important role in these reactions. Two mechanistic possibilities for the reactions of thiol (RSH) and nitrite at [Zn^II] have been considered (Fig. 1C): (a) a proton-transfer assisted concerted transnitrosation involving RSH and the nitrite anion in [Zn^II](κ²-nitrite) resulting in zinc(II)-hydroxide and directly formed S-nitrosothiol (RSNO); (b) an acid–base exchange reaction between thiol and zinc-bound nitrite leading to the formation of zinc(II)-thiolate and nitrous acid (HNO₂), a potent nitrosating agent. Some of our previous studies show that persulfidation of thiol in the presence of elemental sulfur enhances the efficiency of NO generation from a mononuclear [Zn^II](κ²-nitrite).¹⁵ Moreover, the reactivity of thiol and nitrite in the presence of zinc(II) salts has been illustrated to provide good yields of NO via RSNO, while the nature of the coordination environment of the zinc(II) site is not clear. On the other hand, a phenolate bridged dinuclear {[Zn^II](κ¹-ONO)}₂ core has been demonstrated to efficiently react with alkyl thiol, such as 4-tert-butylbenzylthiol (^tBuBnSH), in comparison to the reactions of the previously reported mononuclear [Zn^II](κ²-nitrite) complexes.^14–16 It has been speculated earlier that the Lewis acidity of the zinc(II) site is the key factor for the activation of nitrite by rendering it more electrophilic.¹⁶ However, an experimental validation of the underlying mechanism and the factors influencing the thiol reactivity of mononuclear zinc(II)–nitrite remained poorly understood.

Herein, we employ a number of crystallographically characterized mononuclear complexes [L₂Zn^II(ClO₄)](ClO₄) (1-Pz/1-Py) and [L₂Zn^II(OTf)](OTf) (3-Pz/3-Py/3-Qu) to understand the role of heterocyclic ligand donors, such as pyrazole (Pz), pyridine (Py), quinoline (Qu), in modulating the properties of the zinc(II) sites (Fig. 2). Subsequently, the objective of this work is to provide experimental demonstration along with theoretical support for pinpointing the underlying mechanism and factors controlling interactions between thiol and nitrite at zinc(II) prior to the generation of RSNO/NO. Spectroscopic demonstration of the reactive intermediate such as nitrous acid (HNO₂) and comparison of the rate of RSNO formation during the reactions of [L₂Zn^II(κ²-nitrite)](ClO₄) complexes (5-Pz/5-Py/5-Qu) with less acidic alkyl thiol ^tBuBnSH¹⁷ have been investigated for the first time (Fig. 1D and 2). A combination of experimental and computational studies imply that both the hemilability of the ancillary ligand and the Lewis acidity of the [L₂Zn^II]²⁺ cores influence the generation of HNO₂ through an intramolecular proton-transfer, thereby discerning the mechanistic insights into the thiol reactivity of zinc(II)–nitrite complexes 5-Pz/5-Py/5-Qu.

Fig. 2 Synthesis of zinc(II) complexes. The dashed circle represents the variable heterocycle dimethylpyrazole/pyridine/quinoline. Inset shows the X-ray crystal structures of the cationic parts of complexes 1-Pz and 1-Py. The crystal structures of all isolated complexes at the 30% probability level of thermal ellipsoids are shown in the ESI.†

Results and discussion

Synthesis and characterization of zinc(II) complexes

Reactions of the bidentate ligand Me₄PzPz/Me₂PzPy (2.0 equiv.) and Zn(ClO₄)₂·6H₂O (1.0 equiv.) in methanol provide the corresponding complexes [L₂Zn^II(ClO₄)](ClO₄) (1-Pz in 90% yield) and (1-Py in 78% yield) (Fig. 2 and S1–S8†). Single crystal X-ray diffraction (SCXRD) analysis on 1-Pz depicts a hexa-coordinated zinc site coordinating to two bidentate Me₄PzPz ligands and one perchlorate anion bound in a κ²-O,O′ fashion (Zn1–O1 2.474(3) and Zn1–O4 2.548(4) Å). SCXRD analysis on 1-Py shows a distorted square pyramidal (τ₅ = 0.30)¹⁸ zinc site bound to two Me₂PzPy ligands and one κ¹-OClO₃ anion (Zn1–O1 2.450(2) Å). While the X-ray structures of the previously reported isoelectronic copper(I) complexes of the comparable ligands [(ⁱPr₄PzPz)₂Cu^I](CuCl₂) and [(Me₂PzPy)₂Cu^I](ClO₄) show tetrahedral geometry of the copper(I) sites,^12,19 the deviation from the tetrahedral geometric preference of the d¹⁰ system at the expense of interacting with the weakly coordinating perchlorate anion in the present zinc(II) complexes 1-Pz/1-Py may be attributed to the Lewis acidic nature of the [L₂Zn^II]²⁺ core (vide infra).

Unlike the metalation of Me₄PzPz/Me₂PzPy ligands, the quinoline substituted ligand Me₂PzQu (2.0 equiv.) reacts with Zn(ClO₄)₂·6H₂O (1.0 equiv.) in methanol to provide an off-white solid of [{(Me₂PzQu)₂Zn^II}₂(μ-OH)](ClO₄)₃ (2-Qu) in 62% yield (Fig. 2, S9 and S10†). The FTIR spectrum of complex 2-Qu exhibits a distinct feature for ν(OH) at 3645 cm⁻¹ (Fig. S11†), consistent with the ν(OH) reported for the bridging hydroxide complexes in the previous literature.²⁰ The molecular structure of complex 2-Qu obtained from SCXRD analysis portrays a dinuclear {[Zn^II]–(μ-OH)–[Zn^II]}³⁺ core (Fig. 3 and S12†). In contrast to the geometric deviations observed for the zinc(II) sites in 1-Pz/1-Py, the zinc(II) sites in complex 2-Qu exhibit a tetrahedral geometry (Zn1–O1 1.889(2), Zn1–N1 1.964(4), Zn1–N4 2.062(5), Zn1–N6 2.212(9) Å) with a geometry index τ₄ = 0.81.²¹ A relatively longer interatomic distance Zn1⋯N3 2.720(9) Å renders one of the quinoline arms hemilabile. This may be attributed to the fact that a relatively strong interaction between the zinc site and the highly basic hydroxide ligand weakens the interaction with the less basic heterocyclic ligand Qu. We hypothesize that the hydroxide ligand in 2-Qu originates from the deprotonation of a coordinated water molecule at the Lewis acidic zinc(II) site of the transient complex [(Me₂PzQu)₂Zn^II(OH₂)](ClO₄)₂ (Fig. 2).

Fig. 3 X-ray crystal structure of the cationic part [{(Me₂PzQu)₂Zn^II}₂(μ-OH)]³⁺ in complex 2-Qu. The atom sites labelled with prime are symmetry generated.

Aiming to understand the nature of the [L₂Zn^II]²⁺ core, we turned to isolate a comparable set of zinc(II) complexes of Me₄PzPz/Me₂PzPy/Me₂PzQu ligands from the metalation reactions using anhydrous zinc(II)–triflate salt. Graciously, 2 : 1 reactions of ligand L (where L = Me₄PzPz/Me₂PzPy/Me₂PzQu) and Zn(OTf)₂ in acetonitrile resulted in the corresponding zinc(II)–triflate complexes [L₂Zn^II(OTf)](OTf) (3-Pz/3-Py/3-Qu) in good yields (Fig. 2 and S13–S24†). SCXRD analyses on 3-Pz/3-Py/3-Qu show the presence of two bidentate ligands L along with one triflate anion in the first coordination sphere of zinc. The geometry indices (τ₅) are calculated as 0.27 (for 3-Pz), 0.01 (for 3-Py) and 0.46 (for 3-Qu) (Fig. 4).¹⁸ Notably, Zn–N(pyrazole) bond distances in all three complexes are comparable and range between 2.025(2) Å and 2.096(5) Å. Zn–N(pyridine) distances in 3-Py (Zn1–N3 2.069(2) and Zn1–N6 2.056(2) Å) are also comparable with the Zn–N(pyrazole) distances. In contrast, Zn–N(quinoline) distances in 3-Qu (Zn1–N3 2.245(2) and Zn1–N6 2.212(2) Å) are significantly longer relative to the Zn–N(pyrazole) distances (Zn1–N1 2.039(2) and Zn1–N4 2.025(2) Å). Interestingly, the Zn–O(triflate) bond distance of 2.098(2) Å in 3-Qu is the shortest in comparison to Zn1–O1 2.178(4) Å (in 3-Pz) and Zn1–O1/O2 2.542(2)/2.621(2) Å (in 3-Py) (Fig. 4). This trend of the Zn–O distances between the Lewis acidic zinc(II) site and weakly coordinating triflate anion perhaps suggests that the [(Me₂PzQu)₂Zn^II]²⁺ core is the most Lewis acidic in nature as compared to [(Me₄PzPz)₂Zn^II]²⁺ and [(Me₂PzPy)₂Zn^II]²⁺.

Fig. 4 X-ray crystal structures of the mono-cationic parts of complexes 3-Pz (A), 3-Py (B), and 3-Qu (C). The bond distances tabulated in Å.

Probing the Lewis acidity of zinc(II) sites

Equimolar reactions of [L₂Zn^II(ClO₄)](ClO₄) (where L = Me₄PzPz/Me₂PzPy) (1-Pz/1-Py) with triethyl phosphine oxide (Et₃PO) in acetonitrile provide the corresponding Lewis acid–base adduct complexes [L₂Zn^II(OPEt₃)](ClO₄)₂ (4-Pz/4-Py) (Fig. S25–S29†). SCXRD analyses on the single crystals of 4-Pz/4-Py confirm the formation of 1 : 1 adduct complexes (Fig. 5, S27 and S30†). X-ray structures of both the complexes 4-Pz/4-Py exhibit distorted penta-coordinated geometry halfway between square-pyramidal and trigonal bipyramidal with (τ₅) 0.61 (for 4-Pz) and 0.74 (for 4-Py).¹⁸ The Zn1–O1 and O1–P1 distances associated with the [Zn^II]–O=PEt₃ moieties in 4-Pz/4-Py are comparable to that of the previously reported 1 : 1 Lewis acid–base adduct.²² As several attempts to isolate the analogous adduct complex [(Me₂PzQu)₂Zn^II(OPEt₃)]²⁺ were unsuccessful, [(Me₂PzQu)₂Zn^II(OPEt₃)](OTf)₂ (4-Qu) was generated in situ by adding Et₃PO (1 equiv.) to 3-Qu (Fig. S31 and S32†). We then probed the Lewis acidity of the [L₂Zn^II]²⁺ cores experimentally by monitoring the shifts in the ³¹P NMR resonances for these adduct complexes.²³ The ³¹P NMR spectrum of in situ generated 4-Qu in CD₃CN shows a resonance at 72.68 ppm, while the peak for an authentic sample of Et₃PO in CD₃CN appears at 49.78 ppm (Fig. 5B).¹⁵³¹P NMR spectra of the isolated samples of 4-Pz and 4-Py exhibit chemical shifts at 69.88 and 67.12 ppm, respectively. These ³¹P chemical shifts correspond to the acceptor numbers as 63.8 (for 4-Pz), 57.7 (for 4-Py), and 70.0 (for 4-Qu).^22,23 These findings are comparable to those of the previously reported cationic zinc complexes.²² The acceptor numbers not only indicate the significant Lewis acidic nature of the [L₂Zn^II]²⁺ cores but also establish a trend of the Lewis acidity on varying the nature of the heterocyclic ligands: [(Me₂PzQu)₂Zn^II]²⁺ > [(Me₄PzPz)₂Zn^II]²⁺ > [(Me₂PzPy)₂Zn^II]²⁺.

Fig. 5 (A) X-ray crystal structure of [(Me₂PzPy)₂Zn^II(OPEt₃)]²⁺ in complex 4-Py. (B) ³¹P{¹H} NMR spectra of 4-Py, 4-Pz, and an in situ generated sample of 4-Qu in CD₃CN at room temperature.

Synthesis and characterization of zinc(II)–nitrite complexes

We then turned to understand the structure and properties of the nitrite anion coordinated to the electronically tuned [L₂Zn^II]²⁺ sites. 2 : 1 stoichiometric reactions of the ligands L (where L =Me₄PzPz/Me₂PzPy/Me₂PzQu) and Zn(ClO₄)₂·6H₂O in the presence of NaNO₂ in methanol result in [L₂Zn^II(κ²-nitrite)](ClO₄) complexes (5-Pz/5-Py/5-Qu) (Fig. 2). Single crystal X-ray diffraction analyses on each of these complexes reveal the presence of the hexa-coordinated zinc site with two ancillary ligands and one κ²-O,O-nitrite anion (Fig. 6). While the Zn–N(Pz/Py/Qu) bond distances in 5-Pz/5-Py/5-Qu vary as described for 3-Pz/3-Py/3-Qu (Fig. 6), Zn–O(nitrite) distances and metric parameters associated with nitrite (N–O distances and O–N–O angles) are comparable for all these complexes. Utilization of ¹⁵N-enriched Na¹⁵NO₂ for the syntheses of the zinc–nitrite complexes affords corresponding isotopologues 5-Pz-¹⁵N/5-Py-¹⁵N/5-Qu-¹⁵N. FTIR analyses on 5-Pz (5-Pz-¹⁵N), 5-Py (5-Py-¹⁵N), 5-Qu (5-Qu-¹⁵N) show isotope sensitive bands at 1203 (1180), 1273 (1244), and 1269 (1240) cm⁻¹, respectively (Fig. S37, S43 and S49†). These observed vibrational features associated with the nitrite anion in [L₂Zn^II(κ²-nitrite)](ClO₄) are consistent with those of the previously reported analogous nickel(II)–/copper(II)–nitrite complexes supported by the respective ligands.^12,2415N NMR spectra of 5-Pz-¹⁵N, 5-Py-¹⁵N, and 5-Qu-¹⁵N in dimethylsulfoxide-d₆ show chemical shifts δ(¹⁵N) at 589.66, 590.71, and 589.57 ppm (Fig. S35, S41 and S47†), respectively, with reference to liquid ammonia. Notably, δ(¹⁵N) for Na¹⁵NO₂ appears around 609.50 ppm.²⁵ Thus, these comparable upfield shifts of δ(¹⁵N) for 5-Pz-¹⁵N, 5-Py-¹⁵N, and 5-Qu-¹⁵N (relative to Na¹⁵NO₂) suggest similar chemical environments of the nitrogen site in the nitrite moieties. Although some of our prior report hypothesize that the Lewis acidic [Zn^II] perturbs the nature of the coordinated nitrite anion,¹⁵ the present X-ray crystallographic and ¹⁵N NMR data strongly suggest that the Lewis acidity of the [L₂Zn^II]²⁺ core does not significantly influence structural and electronic environments of the κ²-nitrite moiety coordinated at the zinc(II) centres.

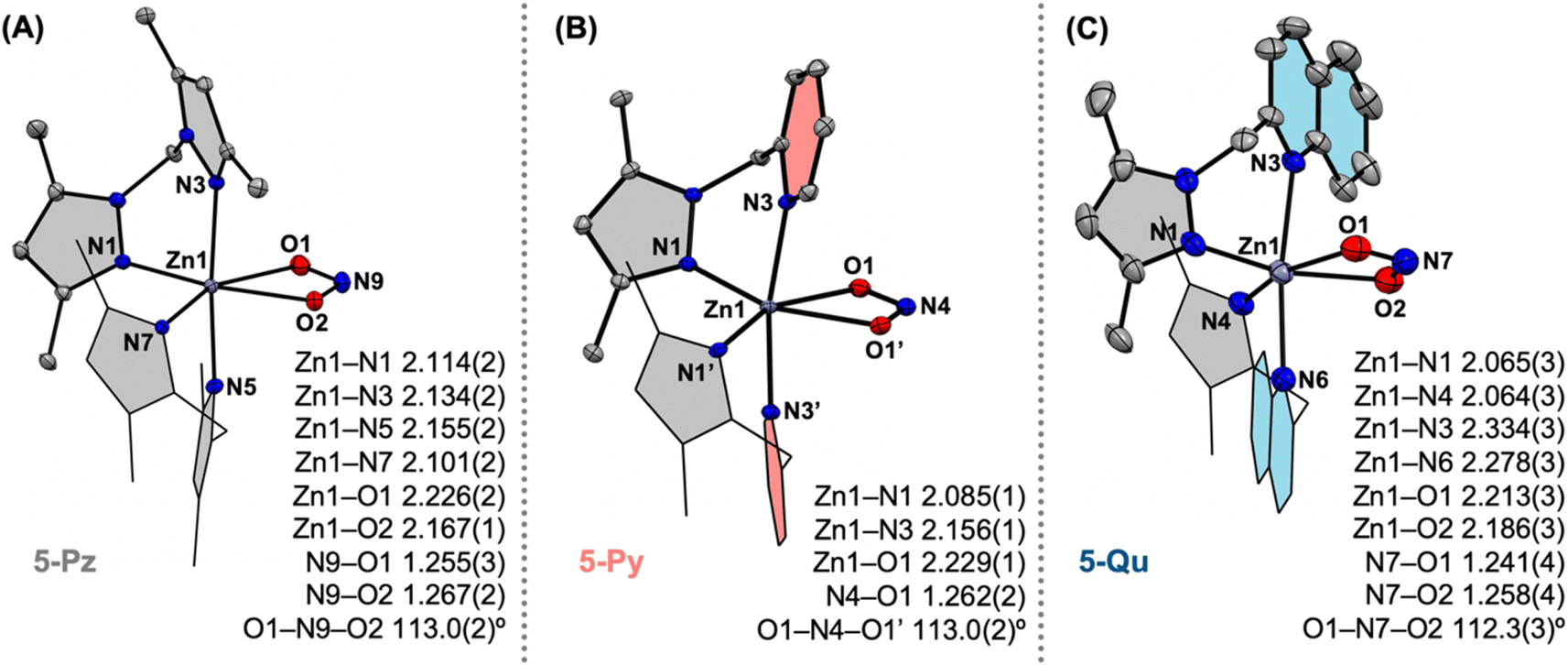

Fig. 6 X-ray crystal structures of the mono-cationic parts of complexes 5-Pz (A), 5-Py (B), and 5-Qu (C). The bond distances tabulated in Å.

Reactivity of zinc(II)–nitrite complexes with thiols

Reactions of the zinc(II)–nitrite complex 5-Qu with 4-tert-butylbenzylthiol (^tBuBnSH) (1 equiv.) in acetonitrile at room temperature provide S-nitrosothiol in 40% yield as assessed by ¹H NMR analysis on the organic end product. Analysis of the head space using (TPP)Co (where TPP = tetraphenyl porphyrin) as the NO-trap provides 49% yield of NO gas, which generates from the decomposition of RSNO to disulfide RSSR and NO gas. Consistent with the near quantitative (89%) yield of NO-equivalents (i.e. combined yields of RSNO 40% and NO gas 49%) from the reaction of 5-Qu and ^tBuBnSH (Fig. 7A and Table S1†), FTIR analysis on the resultant crude shows a near complete disappearance of the nitrite vibrational band at 1269 cm⁻¹ (Fig. S53†). In contrast, the reactions of 5-Pz/5-Py with ^tBuBnSH (1 equiv.) show lower yields of NO-equivalents 61% and 49%, respectively (Table S1†). Moreover, FTIR analyses on the crude reaction mixture indicate the presence of unreacted nitrite (Fig. S53†). Attempts to improve the efficiency of the reactions of 5-Pz/5-Py and ^tBuBnSH in the presence of two equivalents of thiol do not improve the yields of NO-equivalents 62% and 57%, respectively. Recrystallizations of the crude inorganic products obtained from the 1 : 2 stoichiometric reactions of 5-Pz/5-Py and ^tBuBnSH provide unreacted zinc(II)–nitrite along with the corresponding [L₂Zn^II(ClO₄)](ClO₄) complex 1-Pz/1-Py as assessed through unit cell analyses. In contrast, recrystallization of the inorganic end-product from the 1 : 1 stoichiometric reaction of 5-Qu and ^tBuBnSH results in [{(Me₂PzQu)₂Zn^II}₂(μ-OH)](ClO₄)₃ (2-Qu) in 88% yield (Fig. 7). It is noteworthy that the reactions of 5-Pz/5-Py/5-Qu with thiophenol derivative 4-methylbenzenethiol (ArSH) (2 equiv.) in acetonitrile at room temperature show 82%, 74%, and 99% yields of NO gas, respectively (Table S1†). Hence, these results with more reactive ArSH (pK_a = 6.8 in H₂O and 19.5 in MeCN), as compared to benzyl thiol (pK_a = 9.4 in H₂O, 22.1 in MeCN),^17,26 show consistently higher yields of NO gas and the demarcation in the ArSH reactivity of 5-Qu is less notable in comparison to that of 5-Pz/5-Py.

Fig. 7 (A) Schematic representation for the reaction of 5-Qu and ^tBuBnSH. (B) Changes in the UV-vis absorption spectrum of 5-Qu (black trace) upon addition of ^tBuBnSH (2 equiv.) in acetonitrile at room temperature. Red trace shows the spectrum recorded immediately after the thiol addition, whereas the green and blue traces represent the spectra of the same solution collected after 1 minute and 30 minutes, respectively. (C) Time trace (absorbance at 550 nm versus time) plots for the 1 : 2 reactions of 5-Pz/5-Py/5-Qu and ^tBuBnSH at room temperature.

UV-vis monitoring of the reaction of the zinc(II)–nitrite complexes 5-Pz/5-Py/5-Qu with two equivalents of ^tBuBnSH in acetonitrile at 25 °C shows development of a distinct band at 550 nm, which is congruent with the formation of ^tBuBnSNO (Fig. S67†).¹⁵ A comparison of absorbance at 550 nm (A₅₅₀) versus time plot for the above-mentioned reactions clearly depicts that the rate of formation of ^tBuBnSNO follows the order 5-Qu ≫ 5-Py ≈ 5-Pz (Fig. 7C and S68†). Thus, the rate of RSNO formation and the relative yield of NO-equivalents suggest that the reactions of ^tBuBnSH with 5-Qu are distinctly efficient in comparison to that of 5-Pz/5-Py. A careful inspection of the UV-vis spectrum obtained immediately upon addition of thiol to the solution of zinc(II)–nitrite shows the formation of sharp features at 358, 372, and 388 nm prior to the generation of S-nitrosothiol (Fig. 7B). It is noteworthy that such finger-like distinct features at 336, 347, 358, 372, and 388 nm originate from nitrous acid (HNO₂) as observed from the UV-vis analysis on an authentic sample of HNO₂ (Fig. S69†).²⁷ This finding indicates that HNO₂, generated in situ from the interaction of zinc(II)–nitrite and ^tBuBnSH, serves as the obligatory intermediate in the transformation of nitrite to S-nitrosothiol/NO (Fig. 7). Moreover, based on the UV-vis monitoring of the reactions between ^tBuBnSH and 5-Pz/5-Py/5-Qu, the NO/RSNO generation proceeds through the same mechanism involving HNO₂ (Fig. S68†). Notably, a control reaction between n-tetrabutylammonium nitrite [TBA⁺][NO₂⁻] and ^tBuBnSH under analogous reaction conditions does not yield S-nitrosothiol as assessed by UV-vis spectroscopic analysis (Fig. S67†), thereby highlighting the importance of the zinc(II) site.

Understanding of the alkyl thiol reactivity of zinc(II)–nitrite prompted us to investigate the efficiency of such zinc sites in catalysing the transformations of the nitrite to RSNO/NO. Interestingly, a 1 : 2 reaction of [TBA⁺][NO₂⁻] and ^tBuBnSH in the presence of 10 mol% of [(Me₂PzQu)₂Zn^II(OTf)](OTf) (3-Qu) in acetonitrile at room temperature provides NO gas and RSNO in 54% and 46% yields, respectively, with respect to the nitrite anion as the limiting reagent. Notably, screening of [{(Me₂PzQu)₂Zn^II}₂(μ-OH)](ClO₄)₃ (2-Qu) in the analogous catalytic transformation shows 72% and 26% yields of NO gas and RSNO, respectively. As expected from the stoichiometric reactions, the catalytic efficiency of 3-Pz/3-Py is poorer in comparison to 3-Qu (Table S1†). Thus, this report illustrates a proof-of-concept catalytic transformation of nitrite-to-RSNO/NO utilizing Lewis-acidic activation of alkyl thiol ^tBuBnSH in the presence of a catalytic amount of zinc(II).

Theoretical insights into the metal–ligand coordination

Aiming to understand the origin of the more efficient interaction of thiol and nitrite at [(Me₂PzQu)₂Zn^II]²⁺, we turned to density functional theory (DFT) calculations at the B3LYP level of theory.²⁸ The metrical parameters obtained from the DFT optimized structures of the cationic moieties [L₂Zn^II(κ²-nitrite)]⁺ in 5-Pz/5-Py/5-Qu agree well with those of the SCXRD analyses (Table S2†), thereby verifying the reliability of the employed computational method. The second-order perturbation energy (E₂) obtained through natural bond orbital (NBO) analyses on [L₂Zn^II(κ²-nitrite)]⁺ provided the extent of the electron donation ability of the ligand. The overall stabilization of the zinc(II) sites due to the donation of the nitrogen lone pairs of L to the lone vacant (LV) orbitals of zinc(II) ion has been estimated as 139.3, 127.5, and 119.4 kcal mol⁻¹ for [(Me₄PzPz)₂Zn^II(κ²-nitrite)]⁺, [(Me₂PzPy)₂Zn^II(κ²-nitrite)]⁺, and [(Me₂PzQu)₂Zn^II(κ²-nitrite)]⁺ complexes, respectively (Fig. S74†). These lone vacant (LV) orbitals of the zinc(II) metal ion can be assigned as the vacant 4s orbital. Thus, this result suggests that the sigma donation ability of the ligands follows the trend as Me₄PzPz > Me₂PzPy > Me₂PzQu. It is noteworthy that the second-order perturbation energy (E₂) calculated for the donation of the oxygen lone pairs of the nitrite anion to the LV orbital of zinc(II) is comparable regardless of the nature of the ancillary ligand (Fig. S74†). Hence, these findings correlate well with the nearly identical binding of the nitrite anion as observed from the X-ray crystal structures of 5-Pz/5-Py/5-Qu (Fig. 6).

Mechanism of thiol–nitrite interactions at zinc(II)

Following the formation of the initial reactant complex (RC) involving zinc(II)–nitrite and ^tBuBnSH, two mechanistic routes have been computationally assessed for the generation of S-nitrosothiol (Fig. 8 and S75–S77†). The transition state (TS) for the direct formation of ^tBuBnSNO through an intermolecular proton-transfer assisted S-nitrosation is considered as a four-membered concerted transition state (TS-1) with a Gibbs free energy barrier (ΔG1^‡) of 29.6 kcal mol⁻¹ for 5-Qu (Fig. 8). Alternatively, the reactant complex RC is proposed to proceed through an interaction of thiol at the zinc(II) site followed by an intramolecular proton-transfer from the coordinated thiol to nitrite (Int-1 → Int-2) via a transition state TS-2 with an overall barrier (ΔG2^‡) of 17.7 kcal mol⁻¹ (Fig. 8). Consistent with the difference in the transition state barriers (ΔG2^‡ < ΔG1^‡) and UV-vis spectroscopic observation of HNO₂ species during the course of the reaction (Fig. 7 and 8), the acid–base exchange route viaTS-2 appears to be the preferred route. Moreover, ^tBuBnSH (pK_a = 9.4 in H₂O, 22.1 in MeCN)^17,26 is not sufficiently acidic in comparison to the free nitrite anion (pK_a = 3.4 in H₂O, 16.1 in MeCN),^17,26 and thus a possibility of an intermolecular proton-transfer can be ruled out. Polarization of the RS–H bond upon interacting with the Lewis-acidic zinc(II)-site is deemed to be essential for the facile intramolecular proton-transfer. As the initial zinc(II)–nitrite complex 5-Qu is coordinatively saturated, the hemilability of the quinoline arm of the ligand Me₂PzQu is important for the formation of Int-1. Subsequent to the formation of the transient species Int-2, free HNO₂ and [Zn^II]–thiolate complex Int-3 are proposed to be generated prior to the S-nitrosation resulting in ^tBuBnSNO and a mono-nuclear zinc(II)-hydroxo intermediate (Int-4). Finally, Int-4 rapidly transforms to a highly thermodynamically favoured dinuclear [{(Me₂PzQu)₂Zn^II}₂(μ-OH)]³⁺ complex 2-Qu with a net driving force of 14.6 kcal mol⁻¹. It is noteworthy that both the transition state barriers corresponding to TS-1 and TS-2 for the reaction of 5-Pz and 5-Py are higher as compared to that of 5-Qu (Fig. S75†), thereby rationalizing the slower reactivity of 5-Pz/5-Py. While the Lewis acidity follows the trend as [(Me₄PzPz)₂Zn^II]²⁺ > [(Me₂PzPy)₂Zn^II]²⁺, the rates of RSNO formation from the thiol reactivity of 5-Pz and 5-Py are comparable perhaps due to the fact that both the Zn–N(pyrazole) and Zn–N(pyridine) bonds are kinetically inert in comparison to the Zn–N(quinoline) bonds in 5-Qu. Thus, the initial interactions of the thiol at the coordinatively saturated zinc sites in 5-Pz and 5-Py are hindered.

Fig. 8 (A) DFT calculated Gibbs free energy profile for the concerted transnitrosation and acid–base exchange routes for the reaction of [(Me₂PzQu)₂Zn^II(κ²-nitrite)]⁺ and ^tBuBnSH at 298.15 K utilizing the B3LYP-D3BJ/[6-311++G(d,p)+LANL2TZ]/SMD(acetonitrile)//B3LYP-D3BJ[6-31G(d)+LANL2DZ] level of theory. (B) Schematic representations of the key intermediates and the transition state proposed for the acid–base exchange route. See ESI† for the optimized structures.

Conclusion

Systematic tuning of the structural and electronic properties of a set of zinc(II) complexes has been achieved by employing combinations of pyrazole, pyridine, and quinoline based ligand donors. The metrical parameters obtained from the X-ray crystallographic analyses on the [L₂Zn^II]²⁺ cores (where L = Me₄PzPz/Me₂PzPy/Me₂PzQu) coordinated to the weakly coordinating anions (e.g. perchlorate and triflate) suggest the Lewis-acidic nature of the zinc(II) site. X-ray crystallographic and ³¹P NMR investigations on the 1 : 1 acid–base adduct complexes [L₂Zn^II(OPEt₃)]²⁺ validate the trend of Lewis acidity as [(Me₂PzQu)₂Zn^II]²⁺ > [(Me₄PzPz)₂Zn^II]²⁺ > [(Me₂PzPy)₂Zn^II]²⁺. In-depth characterization (SCXRD, FTIR, ¹⁵N NMR) of the isolated [L₂Zn^II(κ²-nitrite)](ClO₄) complexes (5-Pz/5-Py/5-Qu) supported by the set of systematically tuned ligands unambiguously suggests that the nature of the ancillary ligand neither affects binding of the nitrite anion at the zinc(II) site nor alters the chemical environment of the nitrite anion, even though the [L₂Zn^II]²⁺ cores feature Lewis acidity variation. However, the distinct roles of ancillary ligands in the transformation of nitrite to RSNO/NO at the zinc(II) coordination sites in the presence of alkyl thiol have been demonstrated for the first time. Utilization of the relatively less acidic alkyl thiol ^tBuBnSH rather than aromatic thiol ArSH in the present study closely models biological thiols such as cysteine and glutathione. Furthermore, UV-vis spectroscopic monitoring of these thiol reactions of [L₂Zn^II(κ²-nitrite)]⁺ cores allows the experimental validation of the nitrous acid (HNO₂) intermediate as the in situ generated active nitrosating agent. The comparison of the experimentally established trends in the rate of RSNO formation (5-Qu ≫ 5-Py ≈ 5-Pz) and the Lewis-acidity order of [L₂Zn^II]²⁺ cores unfolds the importance of an available hemilabile coordination site for the interaction of thiol at zinc(II) and subsequent Lewis acidic polarization of the RS–H bond. The relatively poorer reactivity of alkyl thiol with 5-Py/5-Pz in comparison to 5-Qu is attributed to the less facile interaction of thiol with the zinc(II) sites in 5-Py/5-Pz due to the presence of stronger σ-donor Py/Pz moieties, while the role of such Lewis acidic polarization of the ArS–H bond is less prominent for the reactions of aromatic thiol and 5-Pz/5-Py/5-Qu due to the inherent more acidic nature of the aromatic thiol relative to the alkyl thiol. Computational studies complement the experimental evidence and elucidate the stepwise mechanism for the thiol–nitrite interaction at zinc(II). Taken together, this present study demonstrates the potential role of zinc(II) based metalloenzymes (such as carbonic anhydrase) in influencing the cross-talk between thiol and nitrite through the intermediacy of reactive species like HNO₂. In addition, HNO₂ generation from the interaction between [Zn^II]–nitrite and the weakly acidic substrate could represent a new way for the HNO₂-mediated oxidative modifications (e.g. nitration of amino acid residues) under physiological pH conditions.²⁹ Thus, this work underscores that the interactions between biological thiols and redox-inactive zinc(II) sites are capable of regulating complex redox-signalling pathways.³⁰

Data availability

The data supporting this article have been included in the ESI. CCDC depositions 2355797 (for 1-Py), 2355798 (for 1-Pz), 2355799 (for 2-Qu), 2355800 (for 3-Py), 2355801 (for 3-Pz), 2355802 (for 3-Qu), 2355803 (for 4-Py), 2355804 (for 4-Pz), 2355805 (for 5-Py), 2355806 (for 5-Pz), and 2355807 (for 5-Qu) can be accessed free of charge from The Cambridge Crystallographic Data Centre.†

Author contributions

SK and BSA conceived the project. BSA and NRN performed the experiments. JR performed the computational analysis. JAB carried out the analysis of crystallographic data. SK and BM supervised the experimental and computational studies, respectively. SK, BSA, and BM contributed to the manuscript preparation. All authors have given approval to the final version of the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

SK gratefully acknowledges the Core Research Grant (CRG/2021/001174) from SERB. JR thanks the Ministry of Education, Govt. of India for the research fellowship. The High-Performance Computing (HPC) and PARAM Himalaya computing facility at IIT Mandi are acknowledged for providing high-end computational resources. Support from Ms Nandha K during the initial synthesis of some of the complexes is appreciated.

Notes and references

1. C. Zhang, T. D. Biggs, N. O. Devarie-Baez, S. Shuang, C. Dong and M. Xian, Chem. Commun., 2017, 53, 11266–11277.
2. E. Culotta and D. E. J. Koshland, Science, 1992, 258, 1862–1865.
3. U. Förstermann and W. C. Sessa, Eur. Heart J., 2012, 33, 829–837.
4. (a) J. S. Stamler, O. Jaraki, J. Osborne, D. I. Simon, J. Keaney, J. Vita, D. Singel, C. R. Valeri and J. Loscalzo, Proc. Natl. Acad. Sci. U. S. A., 1992, 89, 7674–7677; (b) Y. Zhang and N. Hogg, Free Radical Biol. Med., 2005, 38, 831–838.
5. (a) J. O. Lundberg, E. Weitzberg and M. T. Gladwin, Nat. Rev. Drug Discovery, 2008, 7, 156–167; (b) S. Shiva, X. Wang, L. a Ringwood, X. Xu, S. Yuditskaya, V. Annavajjhala, H. Miyajima, N. Hogg, Z. L. Harris and M. T. Gladwin, Nat. Chem. Biol., 2006, 2, 486–493.
6. L. B. Maia and J. J. G. Moura, Chem. Rev., 2014, 114, 5273–5357.
7. R. Aamand, T. Dalsgaard, F. B. Jensen, U. Simonsen, A. Roepstorff and A. Fago, Am. J. Physiol.: Heart Circ. Physiol., 2009, 297, 2068–2074.
8. L. Wang, C. E. Sparacino-Watkins, J. Wang, N. Wajih, P. Varano, Q. Xu, E. Cecco, J. Tejero, M. Soleimani, D. B. Kim-Shapiro and M. T. Gladwin, Br. J. Pharmacol., 2020, 177, 898–911.
9. (a) B. C. Sanders, S. M. Hassan and T. C. Harrop, J. Am. Chem. Soc., 2014, 136, 10230–10233; (b) C.-C. Tsou, W.-L. Yang and W.-F. Liaw, J. Am. Chem. Soc., 2013, 135, 18758–18761.
10. (a) A. Mondal, K. P. Reddy, J. A. Bertke and S. Kundu, J. Am. Chem. Soc., 2020, 142, 1726–1730; (b) M. Kumar, N. A. Dixon, A. C. Merkle, M. Zeller, N. Lehnert and E. T. Papish, Inorg. Chem., 2012, 51, 7004–7006; (c) Y. L. Chang, Y. F. Lin, W. J. Chuang, C. L. Kao, M. Narwane, H. Y. Chen, M. Y. Chiang and S. C. N. Hsu, Dalton Trans., 2018, 47, 5335–5341.
11. (a) A. J. Timmons and M. D. Symes, Chem. Soc. Rev., 2015, 44, 6708–6722; (b) N. Lehnert, E. Kim, H. T. Dong, J. B. Harland, A. P. Hunt, E. C. Manickas, K. M. Oakley, J. Pham, G. C. Reed and V. S. Alfaro, Chem. Rev., 2021, 121, 14682–14905.
12. B. S. Anju, N. R. Nair and S. Kundu, Angew. Chem., Int. Ed., 2023, e202311523.
13. D. M. Beagan, N. A. Maciulis, M. Pink, V. Carta, I. J. Huerfano, C. H. Chen and K. G. Caulton, Chem.–Eur. J., 2021, 27, 11676–11681.
14. A. J. P. Cardenas, R. Abelman and T. H. Warren, Chem. Commun., 2014, 50, 168–170.
15. T. Sahana, A. K. Valappil, A. S. P. R. Amma and S. Kundu, ACS Org. Inorg. Au, 2023, 3, 246–253.
16. G. Kolliyedath, T. Chattopadhyay, A. Mondal, A. Panangattu, G. Muralikrishnan and S. Kundu, Chem.–Eur. J., 2023, e202301409.
17. M. M. Kreevoy, E. T. Harper, R. E. Duvall, S. Wilgus III and L. T. Ditsch, J. Am. Chem. Soc., 1960, 82, 4899–4902.
18. The limiting values of the τ₅ index as 0 and 1 for penta-coordinated metal sites refer to the perfect square pyramidal and trigonal bipyramidal geometries, respectively. A. G. Blackman, E. B. Schenk, R. E. Jelley, E. H. Krenske and L. R. Gahan, Dalton Trans., 2020, 49, 14798–14806.
19. (a) K. Fujisawa, Y. Noguchi, Y. Miyashita, K. I. Okamoto and N. Lehnert, Inorg. Chem., 2007, 46, 10607–10623; (b) B. Herzigkeit, B. M. Flöser, T. A. Engesser, C. Näther and F. Tuczek, Eur. J. Inorg. Chem., 2018, 3058–3069.
20. A. Saju, A. Mondal, T. Chattopadhyay, G. Kolliyedath and S. Kundu, Inorg. Chem., 2020, 59, 16154–16159.
21. The geometry index values (τ⁴) = 0 and 1 for tetra-coordinate metal sites correspond to square planar and tetrahedral geometries, respectively. See L. Yang, D. R. Powell and R. P. Houser, Dalton Trans., 2007, 955–964.
22. K. Huse, C. Wölper and S. Schulz, Organometallics, 2021, 40, 1907–1913.
23. V. Gutmann, Coord. Chem. Rev., 1976, 18, 225–255.
24. K. Fujisawa, T. Kataoka, K. Terashima, H. Kurihara, F. de Santis Gonçalves and N. Lehnert, Molecules, 2023, 28, 6206.
25. S. Kundu, W. Y. Kim, J. A. Bertke and T. H. Warren, J. Am. Chem. Soc., 2017, 139, 1045–1048.
26. The pK_a values in the MeCN solvent system have been calculated empirically as described elsewhere. See E. Rossini, A. D. Bochevarov and E. W. Knapp, ACS Omega, 2018, 3, 1653–1662.
27. J. Stutz, E. S. Kim, U. Platt, P. Bruno, C. Perrino and A. Febo, J. Geophys. Res.: Atmos., 2000, 105, 14585–14592.
28. See ESI† for the details of computational methods.
29. G. Ferrer-Sueta, N. Campolo, M. Trujillo, S. Bartesaghi, S. Carballal, N. Romero, B. Alvarez and R. Radi, Chem. Rev., 2018, 118, 1338–1408.
30. C. Hübner and H. Haase, Redox Biol., 2021, 41, 101916.

---

Footnote

† Electronic supplementary information (ESI) available. CCDC 2355797–2355807. For ESI and crystallographic data in CIF or other electronic format see DOI: https://doi.org/10.1039/d4sc04853a

---
