Han
Wang
ab,
Shan-Shan
Xun
b,
Chang-Bin
Yu
*b and
Yong-Gui
Zhou
*b
aSchool of Chemistry, Dalian University of Technology, Dalian 116033, P. R. China
bState Key Laboratory of Catalysis, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian 116023, P. R. China. E-mail: ygzhou@dicp.ac.cn
First published on 12th June 2024
Asymmetric hydrogenation of esters through homogeneous catalysis is a significantly important transformation in organic synthesis. The systems developed so far mainly focused on chiral iridium and ruthenium catalysts, which required a base to facilitate the activity. Herein, we present a palladium-catalyzed asymmetric hydrogenation of lactones under base-free conditions through dynamic kinetic resolution and kinetic resolution. The reaction exhibits high enantioselectivity and excellent functional group tolerance. Remarkably, the hydrogenation proceeds smoothly at the gram scale, and the products can be transformed into several chiral potential building blocks without loss of optical purity. This work provides a new strategy for asymmetric hydrogenation of esters under base-free conditions.
In 2011, Ikariya's group disclosed a well-defined Cp*Ru catalyst with chiral modification in the ligand sphere, providing a practical pathway for asymmetric hydrogenation of racemic lactones via dynamic kinetic resolution.18 Then, Zhou's group introduced an efficient method for kinetic resolution (KR) of racemic hydroxy esters through catalytic hydrogenation of hydroxyl esters, employing an Ir-SpiroPAP catalyst, and achieved a high stereoselectivity factor with an exceptionally low catalyst loading (0.001 mol%).19 Based on this achievement, Zhou's group developed a protocol for the Ir-SpiroPAP-catalyzed hydrogenative dynamic kinetic resolution (DKR) of racemic α-substituted lactones,20 demonstrating high reactivities and enantioselectivities. In 2018, Zhang's group disclosed an iridium-catalyzed DKR of Bringmann's lactones via asymmetric hydrogenation, providing an atom-economic and straightforward approach to valuable axially chiral biaryls.21 In 2019, another Ir-SpiroPAP catalyst featuring site-specific modification was developed by Zhou's group to enable asymmetric hydrogenation of both α-arylamino γ-lactones and α-arylamino δ-lactones.22 In the same year, Bergens and coworkers unveiled a novel ruthenium catalyst, pioneering the development of the first highly active and enantioselective hydrogenation of acyclic esters with impressive turnover numbers.23 In 2022, Zhou's group realized an iridium-catalyzed highly enantioselective hydrogenation of racemic α-aryloxy lactones via dynamic kinetic resolution. This achievement was made possible by the rational design of the first chiral ligands containing a C5-substituted chiral oxazoline unit.24 In 2023, Ohkuma's group accomplished asymmetric hydrogenation of racemic α-substituted α-amino esters resulting in the production of chiral β-amino alcohols through dynamic kinetic resolution with chiral ruthenabicyclic complexes.25 The following mechanistic studies revealed that the reaction proceeded via 1,2-hydride migration of the α-amino acetate intermediate into the α-hydroxy imine. Very recently, Xie and Zhou disclosed a novel hydroxy-assisted strategy enabling asymmetric hydrogenation of racemic esters with remote stereocenters via kinetic resolution, facilitated by chiral Ir-SpiroPAP catalysts.26 This approach demonstrates remarkable efficacy in synthesizing chiral primary alcohols and recovering valuable chiral pharmaceuticals. To the best of our knowledge, all these reported methods could be conducted in the presence of bases. Notably, asymmetric hydrogenation of esters under base-free conditions is rare.
Building on our extensive experience with homogeneous palladium-catalyzed asymmetric hydrogenation,27–32 very recently, our group developed a highly enantioselective palladium-catalyzed hydrogenation of α,β-unsaturated lactones via auto-tandem catalysis (Scheme 1B), affording chiral alcohols.33 It is noteworthy that the enantioselectivity of the product mainly originates from asymmetric hydrogenation of the CC bond rather than the hydrogenation of the ester group. This is a rare example of hydrogenation of an ester under base-free conditions. Inspired by the above results, we wondered whether palladium-catalyzed asymmetric hydrogenation of the ester group was possible. In this report, we present our latest research on the hydrogenative dynamic kinetic resolution and kinetic resolution of racemic lactones using a chiral palladium catalyst under base-free conditions (Scheme 1C).
Entry | Solvent | Ligand | T (°C) | 2a (%) | eec (%) |
---|---|---|---|---|---|
a Lactone 1a (0.2 mmol), 5 mol% palladium catalyst, H2 (400 psi), solvent (1 mL), 48 h. b Determined by NMR using CH2Br2 as an internal standard. c The enantiomeric excess of 2a was determined by HPLC. d Isolated yield. | |||||
1 | TFE | L1 | 40 | 13 | 85 |
2 | DCM | L1 | 40 | <5 | — |
3 | HFIP | L1 | 40 | 87 | 77 |
4 | Toluene | L1 | 40 | <5 | — |
5 | HFIP/TFE (5/1) | L1 | 40 | 70 | 82 |
6 | HFIP/DCM (5/1) | L1 | 40 | >95 | 85 |
7 | HFIP/THF (5/1) | L1 | 40 | >95 | 84 |
8 | HFIP/toluene (5/1) | L1 | 40 | 90 | 87 |
9 | HFIP/toluene (5/1) | L1 | 30 | 67 | 88 |
10 | HFIP/toluene (5/1) | L2 | 30 | >95 | 78 |
11 | HFIP/toluene (5/1) | L3 | 30 | 83 | 84 |
12 | HFIP/toluene (5/1) | L4 | 30 | >95 | 58 |
13 | HFIP/toluene (5/1) | L5 | 30 | 98 | 91 |
14 | HFIP/toluene (5/1) | L6 | 30 | <5 | — |

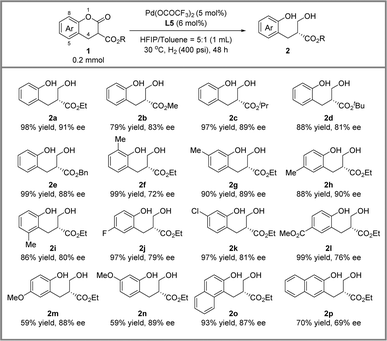

With the optimized conditions in hand, we conducted the hydrogenative DKR of lactones and the results are presented in Scheme 2. Firstly, we investigated the effect of different R groups. The ethyl (2a), isopropyl (2c) and benzyl (2e) groups achieved good yield and approximately 90% ee. When the R group was smaller, such as methyl (2b), or larger, such as tert-butyl (2d), the reaction could only achieve over 80% enantioselectivity. Subsequently, we examined the steric effect of the benzene ring of the lactones. Substrates 1f and 1i bearing a substituent on C8 and C5 smoothly provided the reductive products in moderate ee. Products 2g and 2h with methyl substituents on C7 and C6 positions were obtained with 89% ee and 90% ee, respectively. Furthermore, the electronic effect of the substituents on the benzene ring on reactivity and enantioselectivity was significant. The electron-withdrawing group on the benzene ring had a positive effect on reactivities (2j–2l). Meanwhile, 2m and 2n with electron-donating groups were afforded in moderate yield and with 88 to 89% ee. Finally, we investigated substrates 1o and 1p containing a naphthalene ring, and 2o was obtained with 93% yield and 87% ee and 2p was obtained with 70% yield and 69% ee.
Encouraged by the success of hydrogenative DKR of lactones, we further developed a palladium-catalyzed hydrogenative KR reaction of lactones with a quaternary stereogenic center. After parameter investigation (see ESI Table S1†), the optimal conditions were identified as shown in Scheme 3: 3a (0.3 mmol), palladium trifluoroacetate (5 mol%), ligand L5 (6 mol%), H2 (400 psi), HFIP (1 mL), 40 °C, 48 h, providing a stereoselectivity factor of 19.3. It should be noted that a small amount of hemiacetal intermediate Int-1 could be observed, leading to a deviation in the calculation of the stereoselectivity factor. According to our previous research, the conversion of 3a to Int-1 is the enantio-determining step.14 Therefore, the in situ addition of a reductant to facilitate the transformation of the Int-1 into final product 4a has no impact on the reaction's stereoselectivity factor. After a series of screenings, the sodium cyanoborohydride was chosen as the reductant.

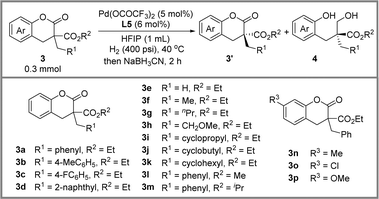

Next, we began an exploration of the scope of lactones under optimal conditions (Table 2). Firstly, reactions proceeded smoothly with good stereoselectivity factors, when a methyl group (3b) and a fluorine atom (3c) were attached to the aromatic group of R1. However, the introduction of a large steric effect group, such as the 2-naphthyl group (3d), resulted in lower reactivity and stereoselectivity factor. Remarkably, a broad range of alkyls were well tolerated. Interestingly, a positive correlation was observed between the length of the alkyl chain and the stereo-selectivity factor of the reaction (3e–3h). Furthermore, when the R2 group consisted of different-sized cyclic alkanes, such as cyclopropyl (3i), cyclobutyl (3j), and cyclohexyl (3k), the reaction achieved similar stereoselectivity factors. The substrates (3l, 3m) with a methyl ester or isopropyl ester were also investigated, and a slight erosion of the stereoselectivity factor was observed. Finally, substituents including methyl (3n), chlorine (3o), and methoxy (3p) in the benzene ring were investigated. Among them, a slight decrease in the stereoselectivity factor (s = 9.6) was observed for 3o with the electron-withdrawing chlorine atom.
Entry | 3 | Time (h) | Conv.b (%) | 4 (%) | eed (%) | S | |
---|---|---|---|---|---|---|---|
3′ | 4 | ||||||
a Lactones 3 (0.3 mmol), Pd(OCOCF3)2 (5 mol%), (R,R)-TMS-QuinoxP* (6 mol%), H2 (400 psi), HFIP (1 mL), 40 °C. b Determined by NMR, using CH2Br2 as an internal standard. c Isolated yields. d The enantiomeric excess of compound 3′ and 4 was determined by HPLC. e Calculated selectivity factors: C = ee of 3′/(ee of 3′ + ee of 4), s = ln[(1 − C)(1 − ee of 3′)]/ln[(1 − C)(1 + ee of 3′)]. | |||||||
1 | 3a | 48 | 53 | 52 | 93.0 | 70.8 | 19.3 |
2 | 3b | 55 | 56 | 54 | 84.1 | 61.6 | 10.7 |
3 | 3c | 72 | 62 | 61 | 98.3 | 60.1 | 17.7 |
4 | 3d | 120 | 45 | 45 | 59.7 | 67.1 | 9.2 |
5 | 3e | 72 | 65 | 64 | 98.4 | 53.8 | 14.6 |
6 | 3f | 60 | 53 | 49 | 88.6 | 80.5 | 27.0 |
7 | 3g | 72 | 57 | 57 | 99.0 | 75.0 | 35.5 |
8 | 3h | 66 | 47 | 46 | 66.4 | 84.4 | 23.5 |
9 | 3i | 72 | 68 | 68 | 98.8 | 39.8 | 10.1 |
10 | 3j | 55 | 67 | 67 | 95.6 | 48.0 | 9.9 |
11 | 3k | 72 | 64 | 64 | 97.0 | 55.0 | 13.4 |
12 | 3l | 50 | 52 | 51 | 72.0 | 58.6 | 8.0 |
13 | 3m | 72 | 54 | 53 | 80.8 | 71.2 | 14.6 |
14 | 3n | 56 | 50 | 50 | 88.1 | 78.1 | 23.4 |
15 | 3o | 72 | 51 | 50 | 82.1 | 59.3 | 9.6 |
16 | 3p | 72 | 65 | 65 | 97.9 | 49.5 | 12.1 |
To demonstrated the utility of the above methodology, the palladium-catalyzed asymmetric hydrogenation of ester 1a was conducted at the gram scale (Scheme 4a). As a result, 1.032 g of product 2a could be obtained in 92% isolated yield and 90% ee maintaining both reactivity and enantioselectivity. Then, four product elaborations were performed, and the results are presented in Scheme 4b. In the presence of 4-toluenesulfonic acid monohydrate, transesterification proceeded smoothly at 60 °C, giving the chiral lactone 5 with 84% yield and 89% ee. Additionally, an Appel reaction was carried out to afford the brominated product 6 with 98% yield and 90% ee. Finally, single or double acyl protected products were achieved by employing the different bases. Using potassium carbonate as the base, product 7 with only phenolic hydroxyl group protection was obtained in 85% yield and 88% ee. Simultaneously, product 8 with the protection of both phenolic and alcoholic hydroxyl groups was obtained without any loss of optical purity using triethylamine as base.
Footnote |
† Electronic supplementary information (ESI) available. CCDC 2247354 and 2247355. For ESI and crystallographic data in CIF or other electronic format see DOI: https://doi.org/10.1039/d4sc01890g |
