James I.
Bowen‡
a,
Xiaotong
Zhong‡
b,
Kaining
Gao‡
bc,
Benjamin
Reed
a,
Matthew P.
Crump
a,
Luoyi
Wang
*b and
Christine L.
Willis
*a
aSchool of Chemistry, University of Bristol, Bristol, BS8 1TS, UK. E-mail: chris.Willis@bristol.ac.uk
bInstitute of Microbiology, Chinese Academy of Sciences, No. 1 Beichen West Road, Chaoyang District, Beijing 100101, China. E-mail: wangluoyi@im.ac.cn
cSchool of Life Sciences, Yunnan University, Kunming 650500, China
First published on 12th March 2024
The ambruticins are a family of potent antifungal polyketide derived natural products isolated from the myxobacterium Sorangium cellulosum. Their unusual structures include a trisubstituted cyclopropyl group and two oxygen heterocycles, a tetrahydropyran (THP) and dihydropyran (DHP). Herein we report a flexible modular approach for the total synthesis of ambruticins which is used to prepare ambruticins F and S as well as in the first total synthesis of 20,21-dihydroambruticin F. The flexible strategy unites 3 fragments via Julia–Kocienski olefinations and provides important standards for investigation of dihydropyran formation in ambruticin biosynthesis. Cultures of wild-type S. cellulosum So ce10 produce mainly ambruticin S and the VS series of metabolites. An efficient electroporation method enabled gene knockout experiments which revealed that the ΔambP-S mutant of S. cellulosum accumulated the bisTHP polyketide 20,21-dihydroambruticin F. In contrast, the ΔambN-S mutant gave ambruticin F with the 20,21-alkene as the major metabolite confirming that AmbP and AmbO (a Rieske enzyme and flavin-dependent monooxygenase respectively) are implicated in 20,21-alkene formation. The results of feeding studies to a Sorangium strain containing only ambP and ambO are in accord with formation of the 20,21-alkene occurring prior to generation of the C3 to C7 dihydroxylated tetrahydropyran in ambruticin biosynthesis.
![]() | ||

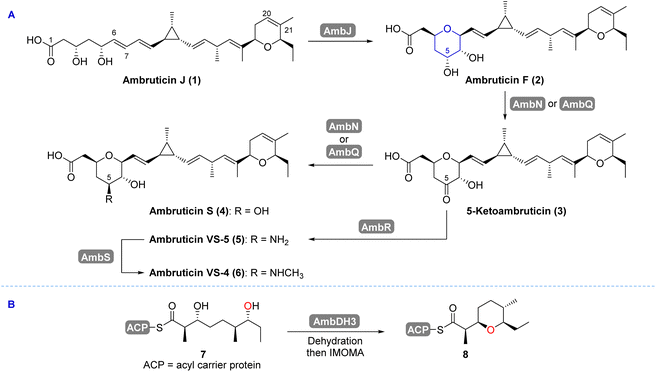

Scheme 1 (A) Proposed late stage transformations in ambruticin biosynthesis.22 (B) Dehydration and intramolecular oxa-Michael addition (IMOMA) generates an intermediate in the biosynthesis of the DHP.22,23 |
The ambruticins share several key structural features including a tetrahydropyran (THP) and dihydropyran (DHP) with a hydrocarbon linker incorporating an unusual trisubstituted cyclopropyl ring and 4 olefinic bonds. The structures of the major metabolites from S. cellulosum differ at C-5 and include an alcohol (ambruticin S) or amines such as ambruticins VS-5 and VS-4 (Scheme 1A). Ambruticin F (2), the C-5 epimer of ambruticin S (4), has been isolated as a minor metabolite, however, spectral data were not recorded.14 Total syntheses of just two members of this family of natural products, ambruticin S and ambruticin J, have been described.15–21
In 2006, Reeves reported analysis of the ambruticin biosynthetic gene cluster (BGC) and proposed several unusual features of the modular biosynthetic pathway based on the results from isotopic labelling studies alongside gene knockout experiments.22 In the tailoring phase of the polyketide pathway, the THP ring is proposed to be formed by the AmbJ catalysed 6,7-epoxidation of ambruticin J (1), followed by selective intramolecular attack on the oxirane ring to afford ambruticin F (2) (Scheme 1A).22,24 AmbQ and AmbN are implicated in oxidation of 2 to 5-ketoambruticin (3), and subsequent reduction to ambruticin S (4). In a parallel pathway reductive amination of ketone 3 (by AmbR) was proposed to give ambruticin VS-5 (5), which undergoes N-methylation (by AmbS) to deliver ambruticin VS-4 (6).
The biosynthetic origin of the DHP ring of the ambruticins is unusual. Hahn and co-workers revealed that the oxygen heterocycle is initially formed from linear polyketide 7 by AmbDH3 catalysed dehydration and subsequent intramolecular oxa-Michael addition (IMOMA) giving THP 8 (Scheme 1B).23 AmbDH3 has broad substrate specificity as demonstrated in its use in the chemoenzymatic synthesis of the diarylheptanoid centrolobine.25 The results of gene knockout experiments led Reeves to propose that dehydrogenation of the THP to a DHP occurs later in the biosynthetic pathway, catalysed by the Rieske oxygenase AmbP and the NAD(P)/FAD-dependent oxidoreductase AmbO.22 LC-MS analysis of culture extracts of mutants of S. cellulosum where ambP or ambO were disrupted indicated that a series of 20,21-dihydroambruticins was produced at similar relative levels to each of the corresponding ambruticins (with the 20,21-alkene) found in the wild-type strain.22 Hence selective desaturation may occur at various points in the biosynthetic pathway. However, no NMR spectral data for the bisTHP products were reported. Herein we describe the total syntheses of both 20,21-dihydroambruticin F (9) and ambruticin F (2) alongside the results of gene knockout experiments, giving the first definitive experimental evidence for desaturation catalysed by AmbP and AmbO in ambruticin biosynthesis.
The C1–C8 fragment (12) was prepared via a bioinspired epoxidation–cyclisation cascade based on the proposed selective THP formation in the AmbJ catalysed conversion of ambruticin J to ambruticin F (Scheme 1A).20 Asymmetric aldol condensation between E,E-hexadienal and acetylthiazolidinethione 15, followed by a decarboxylative Claisen condensation gave β-hydroxy ketone 17 (Scheme 3A).27 Stereoselective Narasaka–Prasad reduction of 17 yielded syn-diol 18 in 69% yield over the three steps. The syn-diol relationship was confirmed by Rychnovsky analysis of the corresponding acetonide (see ESI†).28–30 Conversion of 3,5-dihydroxy ester 18 to THP 19 was achieved via Sharpless asymmetric epoxidation, with the intermediate epoxide undergoing selective spontaneous cyclisation, providing THP 19 in 81% yield.24,31 These reactions could be readily conducted on >23 mmol scale. Protection of the syn-diol as silyl ethers followed by oxidative cleavage of the alkene afforded the desired aldehyde fragment 12 in 45% yield over 6 steps from 15.
For the C9–C13 fragment (13), reduction of the known aldehyde 20 (ref. 20) with DIBAL-H followed by a Mitsunobu reaction and oxidation with mCPBA provided the phenyl tetrazole sulfone 13 (Scheme 3B).17 Oxidation of the intermediate sulfide was also achieved using molybdate and H2O2 in ethanol giving similar yields of sulfone 13, but the reaction proved less amenable to scale up.32 Julia–Kocienski reaction of aldehyde 12 with sulfone 13 afforded the desired E-olefin 22 in 70% yield. LiHMDS in a mixture of DMF and HMPA was required to achieve the required trans-selectivity in the reaction, which was conducted successfully on >7.5 mmol scale.17 Selective deprotection of the primary alcohol with TBAF and acetic acid in THF followed by oxidation with Dess–Martin periodinane (DMP) furnished aldehyde 10 in 73% yield over the two steps.33

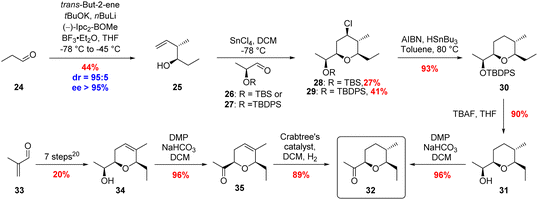

The final building block required for the total synthesis of 20,21-dihydroambruticin F (9) was tetrahydropyran 11. Prins cyclisations have been widely used in natural product synthesis and we investigated the use of a SnCl4 mediated Prins cyclisation for the stereoselective construction of the THP ring.34,35 Reaction of homoallylic alcohol 25 with 2-tert-butyldimethylsilyloxypropanal 26, gave THP 28 with all four substituents in the required equatorial position but in a disappointing 27% yield due to in situ deprotection of the silyl ether (Scheme 4). Using the more robust TBDPS protecting group gave 29 in 41% yield. Radical dechlorination of 29 followed by deprotection of the silyl ether and subsequent oxidation of the resultant alcohol gave ketone 32 in 80% yield over the 3 steps from 29.35
An alternative approach to ketone 32 began with the known DHP 34 prepared in 7 steps and 20% overall yield from 33.20,36 Following oxidation of 34, hydrogenation of 35 with Crabtree's catalyst afforded the desired THP fragment 32 in 89% yield as a single diastereomer (Scheme 4).37 The observed selectivity was rationalised by hydrogenation being directed to the top face of the alkene by the ketone.
Ketone 32 was coupled with known phosphorus diamide 36 under conditions developed by Hanessian in the total synthesis of ambruticin S (Scheme 5).19 The olefination provided a 15:
1 mixture of alkene isomers which, after silyl deprotection, were separated to afford the desired E-alkene 38 in 39% yield over the two steps. Finally, conversion of alcohol 38 to the corresponding phenyl tetrazole sulfone 11 (fragment 3) proceeded smoothly through a sequence of Mitsunobu coupling and subsequent oxidation of the intermediate sulfide. The total synthesis of 20,21-dihydroambruticin F (9) was completed as shown in Scheme 5. Deprotonation of sulfone 11 with 1.2 equivalents of KHMDS in DME, followed by treatment with 1.2 equivalents of aldehyde 10 gave an inseparable mixture of alkene isomers (E/Z = 10
:
1) in 40% yield. The use of NaHMDS in a mixture of THF and HMPA resulted in an improved yield of 78% for the required coupling but reduced the stereoselectivity (E/Z = 3
:
1). A screen of further solvents and bases failed to improve either the yield or selectivity. Silyl deprotection of 39 with TBAF followed by hydrolysis of the ethyl ester gave the target, 20,21-dihydroambruticin F (9).
![]() | ||
Scheme 5 Synthesis of sulfone 11 and completing the total synthesis of 20,21-dihydroambruticin F (9). |

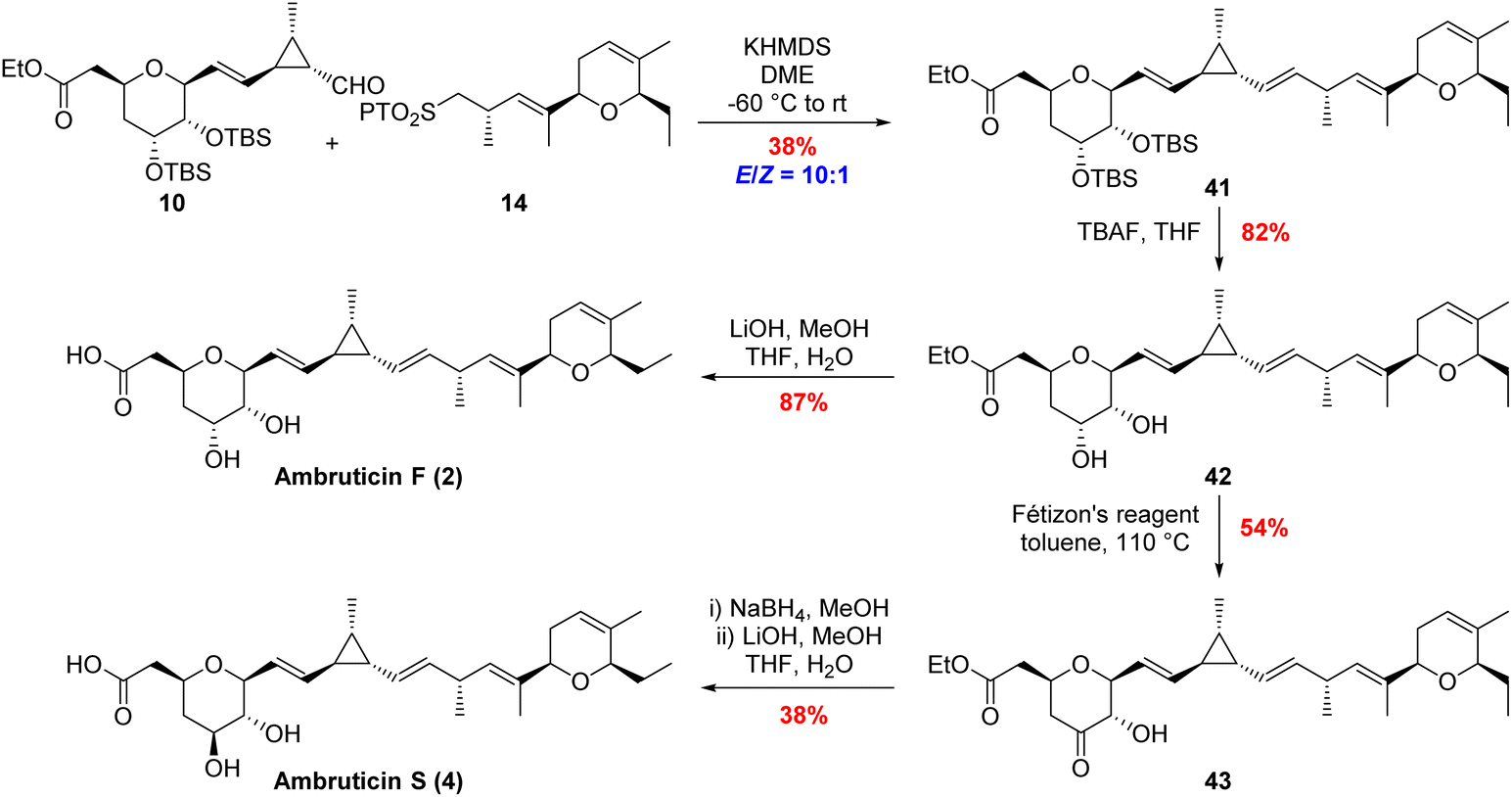

The same modular strategy was used for the synthesis of ambruticin F (2). In this case the known sulfone 14 (ref. 20) was coupled to aldehyde 10 to afford alkene 41 in 38% yield as a 10:
1 mixture of inseparable E/Z isomers (Scheme 6). Again, it was found that use of NaHMDS in a mixture of THF and HMPA in the coupling reaction gave an improved yield (80%) but the selectivity was 3
:
1 in favour of the E-alkene. Deprotection of bissilyl ether 41 with TBAF in THF followed by ester hydrolysis completed the first total synthesis of ambruticin F (2). As NMR data of the natural product 2 were not available for comparison with the synthetic material, we aimed to convert 2 to a fully characterised metabolite.
Further variations in the structures of the ambruticins arise from the presence of different groups at C-5, for example ambruticin S (4) has a 5β-alcohol rather than the 5α-alcohol proposed to be present in ambruticin F (2). Spectral data have been reported for the natural product ambruticin S (4) and it has been a target for total synthesis.15–19 To correlate our synthetic ambruticin F with ambruticin S, a biomimetic oxidation/reduction sequence was undertaken (Scheme 6).22 Reaction of dihydroxy ester 42 with Fétizon's reagent (Ag2CO3 on Celite) led to selective oxidation of the 5-axial alcohol to ketone 43 in 54% yield, whereas with DMP in DCM the ketone was isolated in only 33% yield.14,38 Reduction of ketone 43 with NaBH4 in MeOH gave a separable mixture of 1,2-syn-diol (ambruticin F ethyl ester 42) in 35% yield and 1,2-anti-diol (ambruticin S ethyl ester) in 47% yield. Finally, hydrolysis of the ethyl ester of ambruticin S completed the total synthesis of ambruticin S (4), and all spectral data were consistent with those reported for the natural product as well as products from previous total syntheses (ESI, Fig. S5 and S6†).17,19,38
![]() | ||

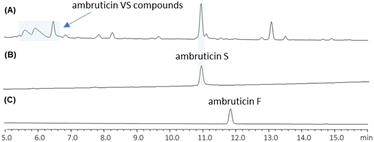

Fig. 1 HPLC traces of (A) wild-type S. cellulosum So ce10, (B) synthetic standard of ambruticin S (4) and (C) synthetic standard of ambruticin F (2). |
Strains of the genus Sorangium are, however, very slow growing, notoriously difficult to ferment and challenging to genetically engineer. Gene disruption of So ce10 has only been successfully achieved by Reeves and co-workers in 2006 and since then no further genetic engineering of this strain has been reported.22 In their study, target genes were disrupted through conjugation of a plasmid that could insert into the middle of the gene by a single recombination event. Mutants generated by this method could potentially undergo a second homologous recombination event and revert to the wild-type. To circumvent the challenges of conjugation and lability of mutants obtained, we developed an efficient electroporation method for transferring DNA into So ce10 cells and introduced a plasmid that contains an antibiotic selection marker flanked by upstream and downstream fragments of the target gene. This superior approach led to far more stable mutant strains generated via a double crossover recombination event.
Previous studies had shown that disrupting ambQ from the ambruticin biosynthetic gene cluster led to accumulation of ambruticin F but along with ambruticin S and the VS series of compounds found in the wild-type strain, potentially due to the function of AmbQ being complemented by AmbN.22 This led us to propose that disruption of both ambQ and ambN, as well as other downstream genes, would afford ambruticin F as the major metabolite. Therefore, the ΔambN-S mutant strain of S. cellulosum So ce10 was constructed by replacing the continuous region of ambN, ambQ, ambR and ambS genes with a hygromycin selection marker (Fig. 2A). Fermentation of the ΔambN-S mutant gave ambruticin F as the major product which was isolated and characterised (Fig. 2B). The NMR data of the purified natural ambruticin F matched perfectly with those of the synthetic sample confirming the structure of the natural product (ESI, Fig. S3 and S4†).
Reeves proposed that 20,21-dehydrogenation of THPs to DHPs in the ambruticins is catalysed by the two-component enzyme system including the Rieske oxygenase AmbP and the NAD(P)/FAD-dependent oxidoreductase AmbO and indicated that this intriguing selective desaturation may occur at various points in the biosynthetic pathway.22 To investigate whether these enzymes could indeed be implicated in the conversion of 20,21-dihydroambruticin F to ambruticin F, cultures of S. cellulosum So ce10 were grown in which the continuous region of ambP, ambO, ambN, ambQ, ambR and ambS genes (designated as the ΔambP-S mutant) were disrupted. Analysis of the crude extract by HPLC (Fig. 2C) revealed one major product which was isolated and NMR analysis and comparison with synthetic material confirmed that 20,21-dihydroambruticin F (9) had accumulated. Similar to the ΔambP-S mutant in which the ambP and ambO genes were deleted together, deletions of ambP and ambO individually from the ΔambN-S mutant, designated as ΔambN-S/ΔambP and ΔambO-S respectively, also yielded 9 as the major metabolite (ESI, Fig. S1 and S2†). These studies fully support the important role of AmbP and AmbO as the key enzymes involved in desaturation of tetrahydropyrans leading to 20,21-alkenes in ambruticin biosynthesis.
In a parallel experiment, deletions of the jerP and jerO genes were carried out in the closely related jerangolid biosynthetic pathway in S. cellulosum So ce307 (Fig. 3A). Both JerP and JerO share 78% sequence identity to AmbP and AmbO.22 Compared with the production of jerangolid A (44) by wild-type S. cellulosum So ce307, both the ΔjerP and ΔjerO mutants produced jerangolid H (45) lacking the 13,14-double bond as the major compound (Fig. 3B).
![]() | ||

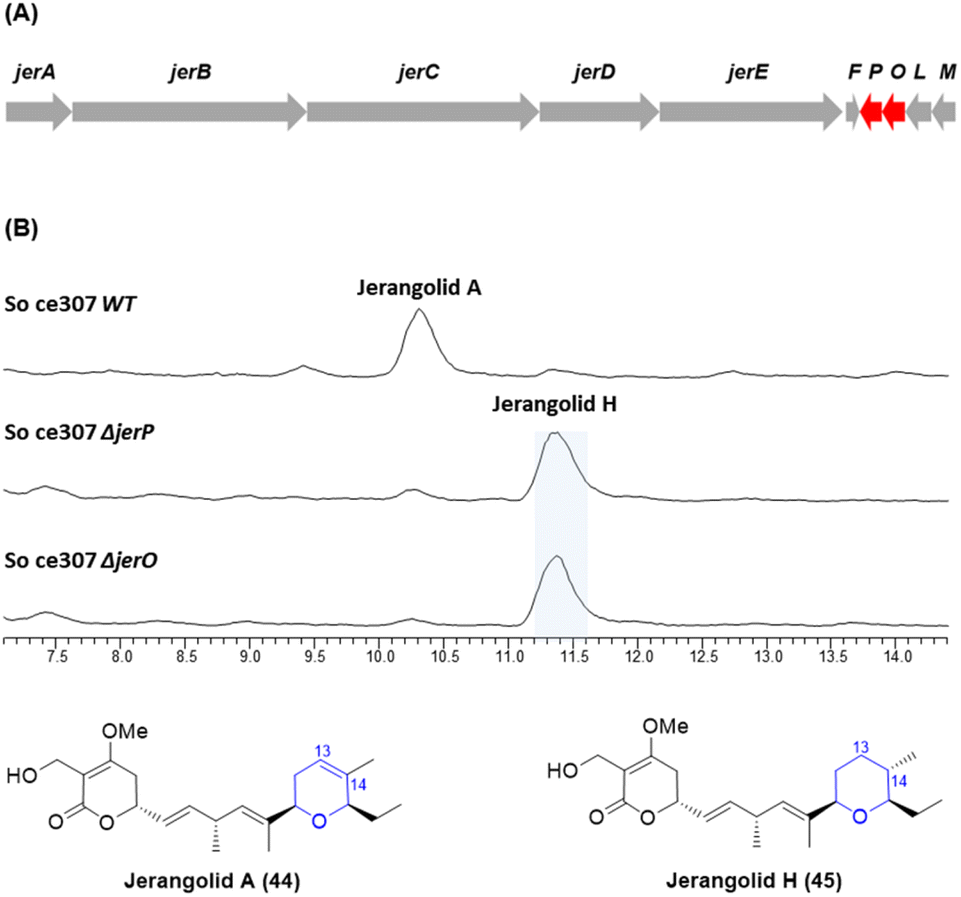

Fig. 3 (A) Organisation of the jerangolid biosynthetic gene cluster. (B) HPLC traces of the wild-type, ΔjerP and ΔjerO mutants of S. cellulosum So ce307. |
With trisubstituted tetrahydropyrans 20,21-dihydroambruticin F (9) and jerangolid H (45) in hand, we next turned to biotransformation assays with AmbP and AmbO. Despite various attempts, no clear turnover was observed with either purified enzymes of AmbP and AmbO or their expressing E. coli whole cells. We therefore further engineered the ΔambN-S mutant strain and deleted all other ambruticin biosynthetic genes except ambP and ambO, thus generating a Sorangium strain that only contains ambP and ambO at the amb BGC region (designated as So ce10-AmbPO). Interestingly, feeding jerangolid H to this Sorangium strain showed conversion to jerangolid A (Fig. 4A), whereas 20,21-dihydroambruticin F (9) was recovered unchanged in an analogous feeding experiment with So ce10-AmbPO (Fig. 4B). These results are inconsistent with the original proposal that the desaturation step may occur late in the biosynthetic pathway.22 Bearing in mind that ambruticin J (1) with the 20,21-alkene has been isolated from the ΔambJ mutant,22 desaturation is now proposed to happen at an earlier stage of the biosynthetic pathway, most likely before the western THP ring is formed.
![]() | ||

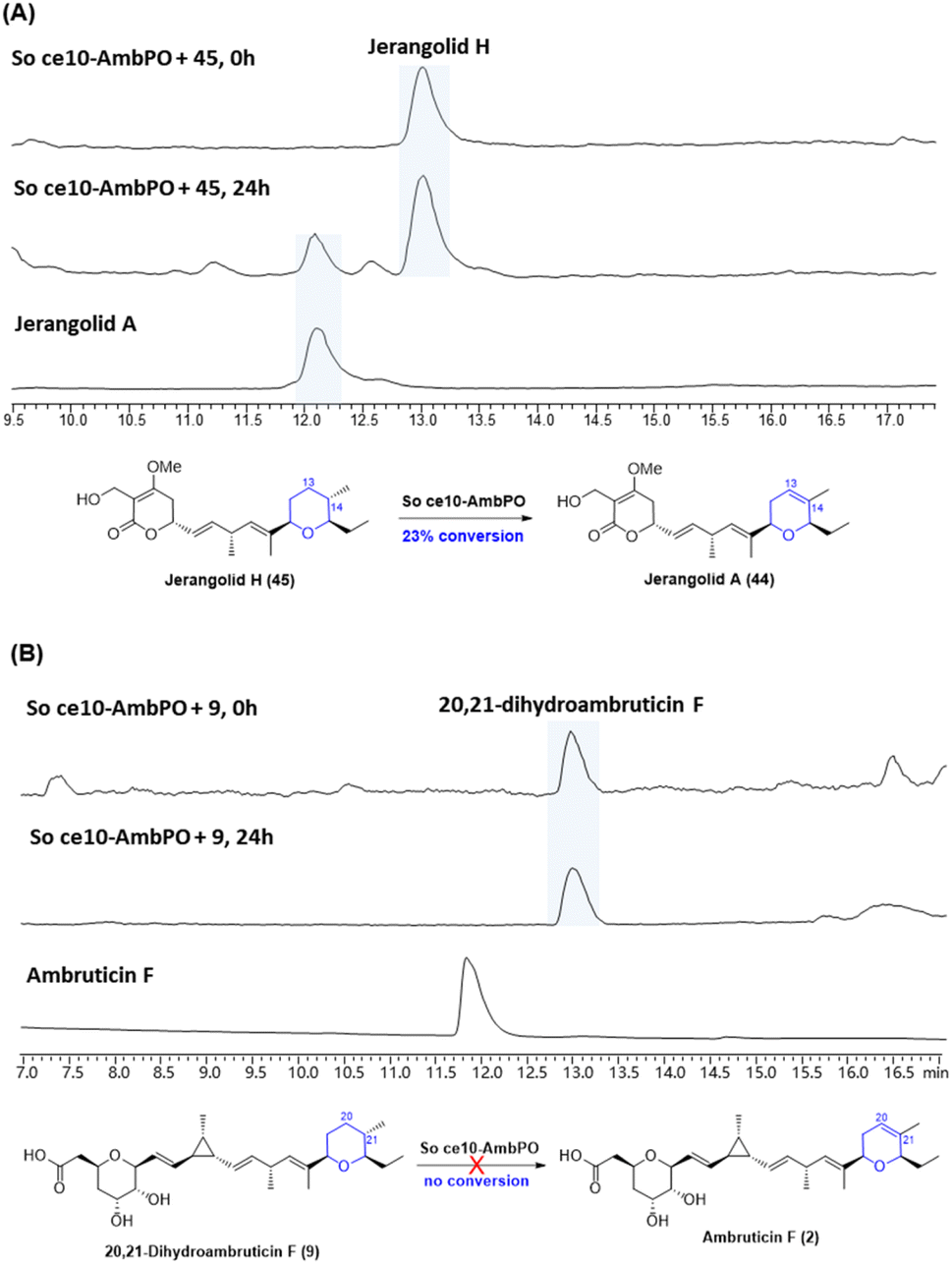

Fig. 4 (A) Biotransformation of jerangolid H (45) by So ce10-AmbPO. (B) Biotransformation of 20,21-dihydroambruticin F (9) by So ce10-AmbPO. |
Note: During the review process of this manuscript, Guth et al. reported reconstitution of the activity of JerP and JerO by extensive optimisation of the whole-cell biotransformation conditions in E. coli, similar conversion of jerangolid H to jerangolid A was observed.39
Footnotes |
† Electronic supplementary information (ESI) available: Gene knockout procedures, synthetic procedures and NMR spectra. See DOI: https://doi.org/10.1039/d4sc00720d |
‡ These authors contributed equally |
