Molecular imine cages with π-basic Au₃(pyrazolate) faces

Abstract

One tetrahedral and two trigonal prismatic cages with π-basic Au₃(pyrazolate)₃ faces were obtained by connection of pre-formed gold complexes via dynamic covalent imine chemistry. The parallel arrangement of the Au₃(pyrazolate)₃ complexes in the prismatic cages augments the interaction with π-acids, as demonstrated by the encapsulation of polyhalogenated aromatic compounds. The tetrahedral cage was found to act as a potent receptor for fullerenes. The structures of the three cages, as well as the structures of adducts with C₆₀ and C₇₀, could be established by X-ray crystallography.

---

Introduction

Trinuclear gold complexes of the general formula Au₃(pyrazolate)₃ (Fig. 1a) were first described by Bonati and co-workers in 1974.¹ Following this initial report, Au₃(pyrazolate)₃ complexes were studied by numerous other groups.² These investigations have shown that Au₃(pyrazolate)₃ complexes display high chemical and thermal stability.^2,3 Similar to other Au(I) complexes, Au₃(pyrazolate)₃ trimers are prone to form Au⋯Au contacts in the solid state, and the presence of these aurophilic interactions is often associated with solid-state luminescence.^2,4 Luminescence can also be induced by the confinement of multiple Au₃(pyrazolate)₃ complexes in supramolecular hosts.⁵ An important feature of Au₃(pyrazolate)₃ complexes is their variable π-acidity/basicity.^2c,6 Most Au₃(pyrazolate)₃ complexes behave as π-bases.^2c,7 However, the trimer Au₃[(3,5-CF₃)₂pz]₃ was found to be π-acidic due to the presence of electron-withdrawing CF₃ groups.⁸

Fig. 1 The general structure of trinuclear gold pyrazolate complexes (a), and previously reported hexanuclear gold pyrazolate complexes with binaphthyl or ferrocenyl linkers (b).

Au₃(pyrazolate)₃ complexes have found different applications.² For example, they were used to form mesogens,⁹ stimuli-responsive organogels,¹⁰ or conductive thin films.¹¹ Furthermore, a Au₃(pyrazolate)₃ complex was employed as a chemosensor for the selective detection of Ag⁺ ions,¹² and materials based on 2-dimensional nanosheets containing Au₃(pyrazolate)₃ complexes were used for photocatalytic hydrogen evolution.¹³

So far, there are few reports about cage-like structures with multiple Au₃(pyrazolate)₃ units. Thiel and co-workers have synthesized a hexanuclear Au complex, in which two Au₃(pyrazolate)₃ complexes are connected by three binaphthyl spacers (Fig. 1b).¹⁴ The complex was found to display poor solubility, preventing a solution-based characterization. Structurally related complexes with ferrocenyl linkers were described by Meyer and co-workers.¹⁵ Again, poor solubility was encountered, hampering a more comprehensive characterization. The limited success in preparing defined complexes with multiple Au₃(pyrazolate)₃ units is in contrast to what was found for analogous Cu₃(pyrazolate)₃ and Ag₃(pyrazolate)₃ complexes. Cu₃(pyrazolate)₃ and Ag₃(pyrazolate)₃ complexes have been incorporated into prismatic and antiprismatic cages,¹⁶ and some of these cages were found to encapsulate small molecules.^16a–c Furthermore, there is a report about an octahedral cage containing four Cu₃(pyrazolate)₃ complexes,¹⁷ and studies about bridged¹⁸ or interlocked systems¹⁹ with two Cu₃(pyrazolate)₃-based prisms.

The difficulty in preparing more complex molecular structures with multiple Au₃(pyrazolate)₃ units is likely related to two features of Au₃(pyrazolate)₃ complexes. First, metallophilic interactions are stronger for Au₃(pyrazolate)₃ complexes than for analog Cu₃(pyrazolate)₃ and Ag₃(pyrazolate)₃ complexes.² Stronger intermolecular interaction can lead to reduced solubility. Second, Au₃(pyrazolate)₃ complexes are rather inert.²⁰ As a result, error correction processes are less efficient during metallosupramolecular syntheses. Notwithstanding these difficulties, we think that molecularly defined nanostructures with multiple Au₃(pyrazolate)₃ units are worthwhile synthetic targets, because the pronounced π-basicity of Au₃(pyrazolate)₃ complexes is expected to lead to interesting host properties.

Below, we describe examples of well-soluble molecular cages containing two or four Au₃(pyrazolate)₃ faces. The cages were obtained by connection of pre-formed gold complexes via dynamic covalent imine chemistry. The presence of the Au complexes enables the molecular recognition of different guest molecules. Notably, a tetrahedral cage was found to be a potent receptor for C₆₀ and C₇₀.

Results and discussion

The substituted pyrazoles 1 and 2 (Scheme 1) were obtained by Suzuki cross-coupling reactions of 4-bromo-3,5-diisopropyl-1-tosyl-1H-pyrazole with the corresponding formylphenylboronic acids, followed by base-induced deprotection (for details, see the ESI†). Subsequent reactions with AuCl(SMe₂) in the presence of triethylamine in THF gave the Au₃(pyrazolate)₃ complexes 3 and 4 (Scheme 1). Both complexes are soluble in chloroform, but they display very poor solubility in acetonitrile and diethyl ether.

Scheme 1 Synthesis of the complexes 3 and 4.

The trinuclear complexes 3 and 4 were characterized by NMR spectroscopy and single-crystal X-ray diffraction (XRD). The XRD analyses (Fig. 2) confirm that trinuclear complexes have formed.²¹ In the solid state, 3 and 4 display a co-planar arrangement of the pyrazolate heterocycles, and the Au–N bond distances are within the expected range (1.98 to 2.02 Å). Close intermolecular Au⋯Au contacts are not observed.

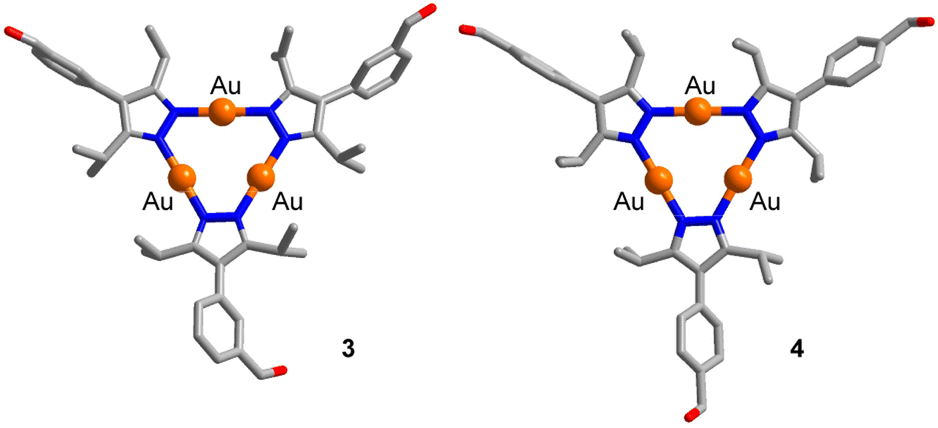

Fig. 2 Graphic representation of the molecular structures of 3 and 4 as determined by single-crystal XRD. Hydrogen atoms are not shown.

Organic cages with imine linkages can be obtained in condensation reaction of di/poly-amines with di/poly-aldehydes.²² The trinuclear complexes 3 and 4 appeared to be potentially well-suited for such condensation reactions.²³ However, the clean formation of imine cages is often not straightforward, even if the building blocks seem to have an appropriate geometry. Frequently encountered problems include incomplete condensation reactions, the formation of side products (insoluble polymers or mixtures of cages), and structural rearrangements during isolation.²⁴ In the following, we focus on reactions that resulted in the clean formation of a structurally defined cage. A brief discussion of reaction with other amines can be found in the ESI.†

The reaction of complex 3 (2 equiv.) with 1,3-diaminopropane (3 equiv.) in a mixture of dichloromethane and methanol (3 : 2) gave the [2 + 3] condensation product 5 in high yield (Scheme 2). In solution, cage 5 displays high apparent symmetry, with only one set of NMR signals for the six bridging pyrazolate groups.

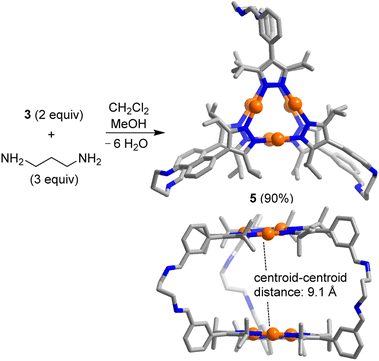

Scheme 2 Synthesis of the prismatic cage 5. The graphic representation of the product is based on a crystallographic analysis (view from the top and from the side; hydrogen atoms are not shown).

Single crystals of 5, suitable for an XRD analysis, were obtained by layering of acetonitrile onto a solution of 5 in dichloromethane. The two Au₃(pyrazolate)₃ complexes in the trigonal prismatic cage 5 are arranged in a parallel fashion, with a distance between the planes of ∼9 Å and a distance between the centroids of 9.1 Å. This spacing suggests that 5 is potentially well-suited to bind ‘flat’ aromatic π-systems.^2b The two Au trimers are roughly eclipsed with an angle of ∼6° between them.

The trigonal prismatic cage 6 was obtained in high yield by combining the Au trimer 4 with m-xylylenediamine in a ratio of 2 : 3 in C₂H₂Cl₄ (Scheme 3). An XRD analysis of 6 revealed that the height of the prismatic cage, as defined by the distance between the planes of the Au trimers, is ∼7 Å. The overall size of prismatic 6 is significantly larger than that of 5, with a maximum C⋯C distance of 26.8 Å (5: 20.4 Å). In contrast to what was found for 5, one can observe short intermolecular Au⋯Au contacts in crystalline 6 (for details, see the ESI†). The deviation of the Au trimers from a staggered arrangement is ∼25°.

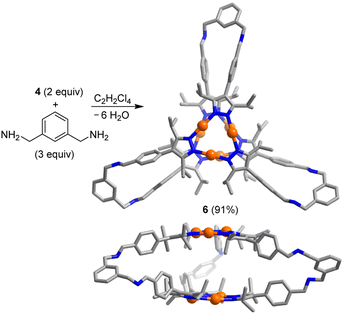

Scheme 3 Synthesis of the prismatic cage 6. The graphic representation of the product is based on a crystallographic analysis (view from the top and from the side; hydrogen atoms are not shown).

Tris(2-aminoethyl)amine (TREN) is frequently employed as a building block for the synthesis of imine-based organic cages.^22a A mixture of TREN and the Au trimer 4 (ratio: 1 : 1) in CDCl₃ gave the [4 + 4] cage 7 (Scheme 4) in nearly quantitative yield as revealed by in situ NMR spectroscopy and ESI mass spectrometry analysis of the reaction mixture. Isolation of 7 was possible by precipitation with acetonitrile (yield: 91%).

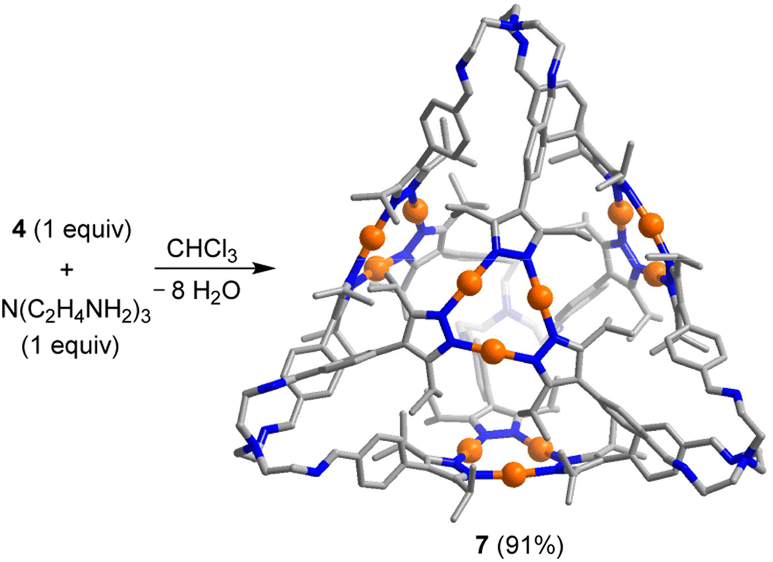

Scheme 4 Synthesis of the tetrahedral cage 7. The graphic representation of the product is based on a crystallographic analysis. Hydrogen atoms are not shown.

At room temperature, the ¹H NMR spectrum of 7 in CDCl₃ showed very broad peaks for the CH signals of the phenylene groups. When cooling the solution to 273 K, four defined signals for the aromatic CH protons were observed. The underlying dynamic phenomenon is likely a hindered rotation of the tightly packed phenylene groups.²⁵ Another noteworthy spectroscopic feature is the presence of two sets of NMR signals for iso-propyl substituents at the pyrazolate ligands. The appearance of two sets of signals is a consequence of the chirality of the TREN-based vertices,²⁶ rending the iso-propyl groups diastereotopic.

A crystallographic analysis of 7 confirmed the tetrahedral shape of the cage (Scheme 4). The edge length of 7 is 24.8 Å (maximum C⋯C distance), making it one of the largest TREN-based imine cages described so far.^22a The Au₃(pyrazolate)₃ complexes panel the four faces of the tetrahedron. As deduced by NMR spectroscopy, the TREN-based vertices show a propeller-like conformation, with the same helical orientation for all four vertices. Residual electron density pointed to the presence of disordered solvent molecules. A solvent mask was calculated, and 2010 electrons were found in a volume of 7652 ų in two voids per unit cell.²⁷ The solvent molecules, too disordered to be located in the electron density map, were taken into account using the Olex2 solvent-mask procedure.²⁸

In crystalline 7, close Au⋯Au contacts between the cages are observed (Fig. 3a). The corresponding Au⋯Au distances range from 3.268 to 3.393 Å. These aurophilic interactions are present for three out of the four Au₃(pyrazolate)₃ complexes in cage 7. To accommodate the Au⋯Au contacts, the Au₃(pyrazolate)₃ complexes adopt a bent geometry (Fig. 3b), resulting in tetrahedral cages with slightly convex faces. A similar bending of the Au₃(pyrazolate)₃ complexes was observed for the prismatic cage 6 (Scheme 3, graphic on the bottom). As discussed, this cage shows likewise intermolecular Au⋯Au contacts in the solid state.

Fig. 3 Aurophilic interactions between cages in crystalline 7 (a), and zoom-in on two Au₃(pyrazolate)₃ complexes in 7, highlighting the bent geometry of the trimers (b). Hydrogen atoms are not shown.

The arrangement of the π-basic Au₃(pyrazolate)₃ complexes in 5 and 6 suggested that the prismatic cages might be able to act as hosts for π-acidic aromatic compounds. This proposition could be corroborated by NMR studies. The addition of increasing amounts of octafluoronaphthalene to a solution of cage 5 in CD₂Cl₂ resulted in complexation-induced shifts (CIS) of the ¹H NMR signals (for details, see the ESI†). The CIS vs. concentration data could be fitted to a 1 : 1 binding model resulting in an apparent association constant of K_a = 3.0 ± 0.1 × 10² M⁻¹ (Fig. S54†) (Scheme 5).

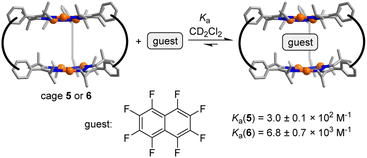

Scheme 5 Molecular recognition of octafluoronaphthalene.

For cage 6, the complexation of octafluoronaphthalene was found to be slow on the ¹⁹F NMR time scale, and separate signals for the ‘free’ and the ‘bound’ guest were observed. By integration of the ¹⁹F NMR signals, we were able to derive a binding constant of K_a = 6.8 ± 0.7 × 10³ M⁻¹ (Fig. S50†). A similar value was derived from ¹H NMR data (for details, see the ESI, Fig. S48 and S49†). The tighter binding of octafluoronaphthalene by cage 6 is possibly related to the reduced flexibility of the m-xylylene linkers when compared to the propylene linkers in cage 5. Hexabromobenzene and hexachlorobenzene are likewise bound by 5 and 6, as evidenced by NMR experiments (for details, see the ESI†). The parallel arrangement of the two Au₃(pyrazolate)₃ complexes in 5 and 6 is of key importance for the complexation of polyhalogenated compounds. In control experiments with the simple Au₃(pyrazolate)₃ complexes 3 and 4, we were not able to detect an interaction with polyhalogenated compounds.²⁹ Likewise, we were not able to observe a complexation of octafluoronaphthalene by cage 7.

Coinage metal pyrazolate complexes of the general formula [M{3,5-(CF₃)₂pz}]₃ (M = Cu, Ag, Au) were reported to form co-crystals with C₆₀, with four [M{3,5-(CF₃)₂pz}]₃ complexes surrounding C₆₀ in a tetrahedral fashion.³⁰ This finding inspired us to examine if cage 7 would be able to bind fullerenes.³¹

When C₆₀ (2 equiv.) was added to a solution of cage 7 (1.7 mM) in C₂D₂Cl₄, the formation of the host–guest complex C₆₀⊂7 was detected by mass spectrometry. The complexation of C₆₀ was found to be slow on the NMR time scale, and it could be monitored by ¹H NMR spectroscopy. Quantitative formation of C₆₀⊂7 was observed within 12 h. Similar results were obtained with C₇₀. Upon mixing C₇₀ and cage 7 in C₂D₂Cl₄, the adduct C₇₀⊂7 formed in quantitative yield as evidenced by ¹H NMR spectroscopy and mass spectrometry. In competition experiments with equal amounts of C₆₀ and C₇₀, we observed the formation of the adducts C₆₀⊂7 and C₇₀⊂7 in nearly equal amounts (∼10 : 8).

The structures of C₆₀⊂7 and C₇₀⊂7 in the solid state were analyzed by single-crystal XRD. As expected, the fullerenes are bound in the central cavity of cage 7 (Fig. 4). The distance between the fullerenes and the Au₃(pyrazolate)₃ complexes, as defined by the closest Au⋯C contacts, is ∼3.4 Å. The average distance between the centroids of the four Au trimers in C₆₀⊂7 is 10.7 Å. For C₇₀⊂7, the corresponding value is 11.3 Å and for 7 it is 11.8 Å. Intermolecular Au⋯Au contacts, as observed for the ‘empty’ cage 7, are observed for C₇₀⊂7 but not for C₆₀⊂7 (for details, see the ESI†).

Fig. 4 Molecular structure of C₆₀⊂7 and C₆₀⊂7 as determined by single-crystal XRD. Hydrogen atoms are not shown.

Conclusions

Molecular cages containing Au₃(pyrazolate)₃ complexes were obtained by connection of pre-formed gold complexes via dynamic covalent imine chemistry. In contrast to previously described cages with Au₃(pyrazolate)₃ faces,^14,15 the imine cages are soluble in chlorinated organic solvents. It was therefore possible to perform solution-based analyses and to grow single crystals for XRD measurements. The parallel arrangement of the two Au₃(pyrazolate)₃ complexes in the trigonal prismatic cages 5 and 6 enabled the complexation of polyhalogenated aromatic compounds. Notably, we observed tight encapsulation of octafluoronaphthalene by cage 6 with an apparent binding constant of K_a = 6.8 ± 0.7 × 10³ M⁻¹. The tetrahedral cage 7 is able to form adducts with C₆₀ and C₇₀ in a competitive solvent such as tetrachloroethane. Overall, our results provide evidence that the incorporation of Au₃(pyrazolate)₃ complexes in molecularly defined nanostructures can give compounds with interesting host–guest chemistry.

Data availability

The data that support the findings of this study are available in the ESI† of this article.

Author contributions

N. E. and K. S. initiated the study, N. E. performed the experiments and analyzed the data, F. F.-T. and R. S. collected and processed the X-ray data, and N. E. and K. S. co-wrote the manuscript. All authors discussed the results and commented on the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The work was supported by the École Polytechnique Fédérale de Lausanne (EPFL).
