Redox stabilization of Am(V) in a biphasic extraction system boosts americium/lanthanides separation efficiency

Abstract

Americium (Am) is a key radioactive element in consideration in nuclear waste treatment. Separation of Am from the fission products, lanthanides, is a prerequisite to minimize the hazardous impact of Am and make utilization of rare Am isotopes, but it represents a great challenge due to the chemical similarity between the two groups of elements. Herein, we realize the separation by first oxidizing Am(III) to high valent Am(VI) and then converting it to Am(V) in situ in a biphasic extraction system with Bi(V) oxidant incorporated in an organic phase. Am(V) is highly stabilized during the separation process and this leads to record high Ln/Am separation factors (>10⁵) in a single contact over a wide range of acidities.

---

The development of nuclear energy generates a large amount of used nuclear fuel containing U, Np, Pu, Am, Cm and a variety of fission products. This highly radioactive and chemically diverse mixture represents about one third of the elements in the periodic table and must be properly managed and processed to reduce its hazardous impact as well as to recover the useful resources. Americium, a long-lived α-emitter and one of the greatest contributors to the radiotoxicity in used nuclear fuel waste, is suggested to be recovered from the waste and then undergo transmutation to minimize its long-term radiotoxicity in advanced nuclear fuel cycles.^1–3 Unfortunately, the coexistence of lanthanides (Ln), which represent about 40% of the mass of all fission products, has proven to be problematic for Am recovery and transmutation because these lanthanides bear high neutron capture cross-sections and would compete with Am for neutrons in the transmutation process. Separation of Am from lanthanides is thus a prerequisite for Am transmutation. However, this separation task remains a great challenge due to the chemical similarity between Am and lanthanides.^4–6

Previous efforts to separate Am from lanthanides have relied mainly on the design and use of ligands bearing softer N and S donor atoms, which exhibit higher chemical affinity to relatively softer Am(III) than to harder Ln(III) in solvent extraction.^5–13 This separation approach has been widely demonstrated but it still encounters obstacles such as slow kinetics, ligand instability, and narrow operation acidities.^5,6,14 Another less-explored approach to realize the separation is to take advantage of the different redox properties between Am and lanthanides. While Am(III) in aqueous solution can be oxidized to high valent americyl forms Am(V) and Am(VI) under highly oxidizing conditions, the lanthanides remain as spherical Ln(III) or Ln(VI) ions. The significant difference between the linear americyl ion and the spherical Ln ion in terms of both steric configuration and charge density offers a great opportunity for efficient separation.^15–20 The greatest challenge here is how to stabilize the high valent Am during the separation process. In most previous studies, the contact of americyl ions with organic reagents used for separation led to fast reduction of these high valent Am ions, causing significant deterioration in Am/Ln separation efficiency.^21–26

Recently, we proved that the incorporation of oxidative Bi(V) species in an organic solvent containing TODGA (N,N,N′,N′-tetraoctyl diglycolamide) would greatly overcome the reduction issue by oxidizing Am(III) to Am(V) in the organic solvent and result in efficient separation of Am from lanthanides and curium (Cm).^27,28 High Ln/Am separation factors have been maintained for a few hours during the extraction and then decreased gradually. We attribute the decrease in Ln/Am separation factors to the persistent consumption of Bi(V) by Am(III) and other reducing products in the solution. The consumption of Bi(V) and decrease of Ln/Am separation factors become more significant when relatively high concentrations of Am are present, and this might be problematic when dealing with real waste containing Am at the mM level.²⁷ To slow down the consumption rate of Bi(V) and the reducing rate of Am(V) and thus to improve the applicability of this separation method in dealing with high concentrations of Am, herein we demonstrated a new strategy for more efficient generation and stabilization of Am(V) in a biphasic system by first oxidizing Am(III) to Am(VI) in an aqueous solution and then contacting it with a Bi(V)-incorporating organic solvent. Accordingly, record high Ln/Am separation efficiency was achieved over a wide range of acidities.

To prove the feasibility of the proposed strategy, we prepared an Am(VI)/HNO₃ solution by the well-known NaBiO₃ oxidation method^24–26 and then contacted this solution with the Bi(V)-incorporating TODGA/n-dodecane organic solution (Fig. 1a). The variation of absorption spectra of the aqueous phase at different time intervals was monitored to probe the Am speciation change (Fig. 1b). As can be seen, Am(VI) ions (666.0 nm) in the initial HNO₃ solution were quickly reduced to Am(V) (513.6 nm) in 10 s and negligible Am(III) could be observed at 1 min after the biphasic contact. Am(V) accounts for over 99.5% of the total Am in the aqueous phase in 10 s of contact and remains as the dominant Am species over a long time duration (>98% after 3 hours and ∼95% after 5 hours of contact, Fig. 1c). Meanwhile, a comparative test following the strategy in our previous work by mixing Am(III)/HNO₃ solution with Bi(V)-incorporating organic solvent was also performed (Fig. 1d).²⁷ The results suggest ∼95% of Am(III) was converted to Am(V) in 10 s of contact and this portion value dropped to ∼92% and <70% after 3 and 5 hours of contact, respectively (Fig. 1e and f). Obviously, the new strategy is much more efficient in generating and stabilizing Am(V) than the previous one.

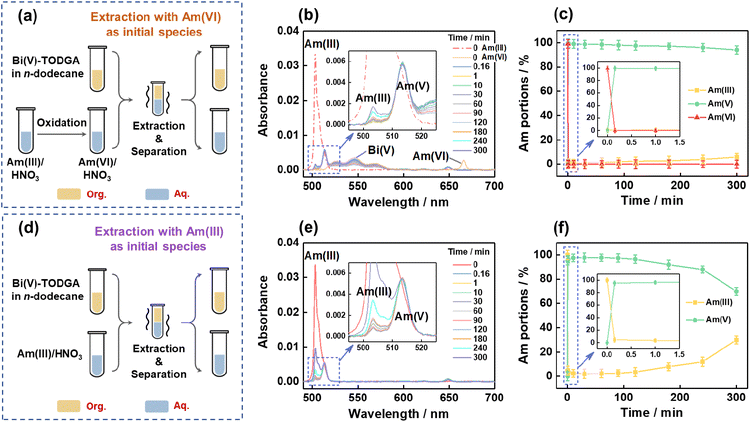

Fig. 1 Comparison of Am(V) formation through two different paths. (a) The scheme for generation of Am(V) in a biphasic system with Am(VI) as the initial Am species. (b) Variation of absorption spectra and (c) time-dependent change of portions of Am in different oxidation states in the nitric acid aqueous solution after mixing Am(VI)/HNO₃ with the Bi(V)-incorporating TODGA/n-dodecane organic solution. (d–f) Corresponding scheme and results with Am(III) as the initial Am species. The portions were estimated and calculated from the absorbance of characteristic absorption bands of Am(III), Am(V) and Am(VI). TODGA concentration in the organic solution (Org.): 0.1 M. Initial aqueous solution contained 0.1 mM ²⁴¹Am and 3.0 M HNO₃.

The highly efficient generation and stabilization of Am(V) in this system can be explained by examining the reduction process of Am(VI) and the oxidation process of Am(III). First, Am(VI) is very unstable in the case of contacting with organic reagents.^24–26,29 When we contacted an Am(VI)/HNO₃ aqueous solution with a TODGA/n-dodecane organic solution, the absorption bands of Am(VI) at 666.0 nm disappeared rapidly and the absorption bands of Am(V) at 513.4 nm emerged concurrently in the aqueous phase, meanwhile the absorption bands of Am(III) at 506.6 nm appeared gradually in the organic phase (Fig. S1†). This observation suggests Am(V) can be generated from the reduction of Am(VI). On the other hand, in our previous work we have demonstrated that Am(III) in the aqueous phase can be oxidized efficiently to Am(V) by contacting with a Bi(V)-incorporating TODGA/n-dodecane organic solution.²⁷ Furthermore, when we contact an Am(VI)/HNO₃ aqueous solution with a Bi(V)-incorporating TODGA/n-dodecane organic solution, the interplay of Am(VI) reduction and Am(III) oxidization leads to fast and quantitative generation of Am(V) and this can be illustrated by Scheme 1. In brief, Am(VI) will be reduced to Am(V) and Am(III) in the biphasic system, but any Am(III) will be extracted by TODGA and oxidized to Am(V) by Bi(V) in the organic phase immediately and then Am(V) will transfer back to the aqueous phase. Apparently, much less Bi(V) will be consumed by starting with Am(VI) solution than with Am(III) solution, thereby enhancing the stability of Am(V) over a long duration.

Scheme 1 (a) The dynamic Am^VI/Am^V/Am^III conversion for the generation and stabilization of Am(V) with Am(VI) as initial species in the biphasic system. (b) The reactions of Ln in the same system (note: only Ce could be oxidized from state III to IV in this system). The organic phase was pre-loaded with Bi(V). The species in the thick dashed frame represent the final species in the system after equilibrium.

On the basis of quantitative generation and superior stabilization of Am(V) using Am(VI) as the starting species, highly efficient separation of Am from the lanthanides has been achieved through biphasic extraction. As shown in Fig. 2, when we contacted an aqueous solution containing ²⁴¹Am(VI) and ^152,154Eu(III) with a Bi(V)-incorporating TODGA/n-dodecane organic solution, ²⁴¹Am stayed exclusively in the aqueous phase while ^152,154Eu were extracted into the organic phase. Record high separation factors of Eu and Am (SF_Eu/Am) of >10⁵ can be well maintained for over 4 hours and the value is more than 10³ even after 12 hours (Fig. 2a). In contrast, if we started the extraction with Am(III) using our previous strategy, both the separation factors and stability are apparently less superior (Fig. 2b). These results are well consistent with the observations in spectral analysis (Fig. 1). Moreover, high SF_Eu/Am values (>10⁴) could be obtained over a wide range of acidity from 1.0 to 14.0 M HNO₃ (Fig. 2c), proving the ability of this separation strategy to deal with real nuclear waste usually of high acidity.³⁰ To further assess the applicability of the present separation strategy in practical radioactive waste treatment, we performed a test for the separation of simulated Am/Ln waste containing 1.0 mM ²⁴¹Am that is comparable to the concentration of Am in real waste and a variety of lanthanides (La, Ce, Pr, Nd, Sm, Eu and Gd). As shown in Fig. 2d, all the lanthanides were well separated from Am, and an unprecedented SF_Eu/Am value of 2.59 × 10⁵ and SF_Ce/Am value over 1.0 × 10⁶ through a single contact were obtained. It should be noted that during the reviewing of this work two anonymous reviewers raised an issue on the final purification of Am, since quite a portion of Bi will coexist in the aqueous phase with Am after Am/Ln separation. Considering both Am and Bi will eventually exist in the thermodynamically stable trivalent states, we expect Am(III)/Bi(III) separation can be well achieved by selective extraction using ligands such as tributyl phosphate (TBP) or NTAamide, both of which show much higher affinity to Bi(III) than to Am(III).^31–33

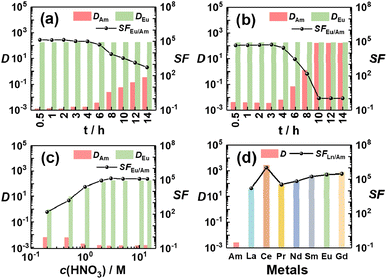

Fig. 2 Separation results of ²⁴¹Am and Ln. Effect of contact time with (a) Am(VI) or (b) Am(III) as the starting species. (c) Effect of HNO₃ concentration. (d) Separation of simulated Am/Ln waste. Initial organic phase: (a–c) 0.1 M TODGA in Bi(V)-incorporating n-dodecane; (d) 0.5 M TODGA in Bi(V)-incorporating n-dodecane. Initial aqueous phase: trace amount of pre-oxidized ²⁴¹Am (∼10⁻⁸ M) and ^152,154Eu (∼10⁻⁹ M) in (a) 3.0 M HNO₃ or (c) different concentrations of HNO₃; (b) trace amount of ²⁴¹Am (∼10⁻⁸ M) and ^152,154Eu (∼10⁻⁹ M) in 3.0 M HNO₃; (d) pre-oxidized simulated Am/Ln waste solution containing 1.0 mM ²⁴¹Am and ∼mM level of Ln (Ln = La, Ce, Pr, Nd, Sm, Eu, Gd) in 3.0 M HNO₃ (see Table S1† for detailed composition). Contact time for (c) and (d) is 1 min.

In conclusion, by exploiting the unique properties of Am(VI) reduction and Am(III) oxidation in a deliberately designed biphasic extraction system with Bi(V) incorporated in the organic phase, Am(V) was efficiently generated, stabilized, and separated from lanthanides with record high efficiency. The findings from this work not only provide an extremely efficient Am/Ln separation method to support the advanced nuclear fuel cycle, but also enrich our understanding of the less-explored redox chemistry of the highly radioactive element Am.

Data availability

Additional data supporting this article have been uploaded as part of the ESI.†
