Aqueous zinc-ion batteries are highly praised for their cost-effectiveness, environmental friendliness, and high safety, making them an ideal choice for next-generation energy storage systems. However, the practical application of Zn metal anodes is constrained by well-known challenges such as dendrite growth and significant interfacial side reactions. This study introduces a trace amount of taurine (TAU) as a leveling additive into the electrolyte to optimize the microstructure of the electrolyte and the anode interface chemistry. On one hand, the preferential adsorption of TAU on the Zn surface promotes the in situ formation of a stable, protective molecular interfacial layer on the anode, which helps to refine the deposited grains and guide the uniform deposition of Zn2+. On the other hand, the introduction of TAU can regulate the hydrogen bond structure in the electrolyte, reduce the activity of water, thereby significantly inhibiting the occurrence of side reactions such as hydrogen evolution. Consequently, the Zn//Zn symmetric cell system demonstrates an extended cycle life of over 1150 cycles at a current density of 1 mA cm−2 and maintains stable cycling performance for over 600 cycles at 10 mA cm−2. Moreover, the Zn//Cu asymmetric cell system achieves over 1400 cycles of reversible deposition/dissolution at a current density of 1 mA cm−2, with a coulombic efficiency of 99.4%. The incorporation of TAU further enhances the cycle stability of the Zn//MnO2 full cell. These innovative achievements have laid a solid foundation for the broader industrial adoption of aqueous zinc-ion batteries.
Electrolyte engineering, a straightforward and pragmatic approach, has been demonstrated to effectively tailor the solvation structure and the interface between the electrolyte and the anode.13 The scholarly literature documents a variety of additives, including chelating ligands, organic solvents, polymers, metal salts, and quaternary ammonium salts, which have been shown to potently mitigate hydrogen evolution side reactions and control the deposition of zinc, thereby augmenting electrochemical performance.14 Nonetheless, the reported concentrations of these additives in electrolytic solutions remain comparatively elevated, with a minimum of 1 g L−1.15,16 For instance, Zhang et al. introduced organic dimethyl-carbonate 560 g L−1 DMC additive to form the 2 mol kg−1 Zn(OTf)2 + 4H2O + 1DMC (molar ratio) electrolytes, which successfully prolonged the lifetime of Zn//Zn half-cell to 1000 h at 1 mA cm−2 with 0.5 mA h cm−2.17 Wang et al. reported diethyl ether (142.3 g L−1) as the additive of electrolyte, which can inhibit further deposition of zinc ions on the tip surface and resulted in stable operation for 250 h at current density of 0.2 mA cm−2 with 0.5 mA h cm−2.18 Cao et al. introduced erythritol (6.1 g L−1) as the functional additive for alters the coordination sphere of Zn2+ and modifies the local molecular architecture of the electrolyte. This modification serves to diminish the reactivity of water molecules, thereby efficaciously suppressing dendrite formation and deleterious ancillary reactions on the zinc powder anode surfaces, which successfully prolonged the lifetime of Zn//Zn half-cell to 850 h at 0.288 mA cm−2 with 0.144 mA h cm−2.19
This study proposes a novel strategy for stabilizing the Zn anode in electrolytes by selecting levelers based on the molecular highest occupied molecular orbital (HOMO) energy levels. By adding an extremely low concentration of taurine (TAU) as an electrolyte additive (0.5 g L−1), the stable and reversible deposition/dissolution of the Zn metal anode has been successfully achieved, providing key progress in the development of high-performance aqueous zinc-ion batteries. The study comprehensively employs in situ optical microscopy observations, density functional theory (DFT) calculations, and electrochemical experiments to delve into the underlying mechanism. The results indicate that TAU, due to its high HOMO energy level, exhibits significant adsorption capabilities, effectively adsorbing onto the Zn surface and regulating the nucleation and diffusion processes of interfacial Zn2+, thereby achieving grain refinement and effectively inhibiting the growth of Zn dendrites. Concurrently, TAU can modulate the hydrogen bond network of the electrolyte, thereby effectively inhibiting hydrogen evolution side reactions. Based on this, the electrolyte system developed in this study has demonstrated outstanding stability, with the achieving over 1100 cycles of long-term cycle stability at a current density of 1 mA cm−2 and a capacity of 0.5 mA h cm−2 and over 240 cycles at 10 mA cm−2 and 2 mA h cm−2, as well as high reversibility, as evidenced by an average coulombic efficiency of 99.4% for the Zn//Cu asymmetric cell. The Zn–Mn full cell fabricated in this study cycled more than 1000 times, exhibiting a capacity retention rate of approximately 73.8%. This research offers a directional framework for investigating cost-effective electrolyte additive engineering strategies aimed at achieving reversible and stable Zn anodes in high-performance Zn-based energy storage devices.
The impact of the TAU additive on the Zn electrodeposition process was visualized and documented through an in situ optical microscopy setup, focusing on a commercial Zn plate. As depicted in Fig. 2a–j, without the TAU additive, the deposition layer on the Zn surface was observed to be uneven, with pronounced protrusions emerging after 5 minutes of electrodeposition at a current density of 10 mA cm−2 (Fig. 2b). These protrusions displayed touch-off and growth behaviors over time, a phenomenon known as the “tip effect” (Fig. 2e). In contrast, the addition of TAU led to a uniform Zn deposition process, effectively mitigating the formation of protrusions (Fig. 2f–j). Consequently, TAU significantly contributed to the attainment of a uniform and smooth Zn deposition (Fig. 2j). Furthermore, scanning electron microscopy (SEM) analysis revealed the micro morphology of the Zn surface following 0.5 h of electrodeposition at a current density of 10 mA cm−2. Without TAU, the Zn coating displayed uneven growth with protrusions (Fig. 2k and l), whereas with TAU, the size of the Zn dendrite during the deposition process was significantly refined, and the resulting deposition layer exhibited a uniform and dense structural characteristic (Fig. 2m and n). This SEM test result is consistent with the observation results of the in situ optical microscope, confirming the results of the in situ optical microscope test.
To assess the corrosion resistance of the Zn electrode in the presence of TAU, Tafel polarization tests were conducted. As illustrated in Fig. 3a, the self-corrosion current densities were ascertained by extrapolating the linear portion of the polarization curves, with the potential at the minimum current density being designated as the corrosion potential (Ecorr). The Zn electrode immersed in pure 2 M ZnSO4 displayed an Ecorr of −0.975 V, whereas in the electrolyte augmented with TAU, the Ecorr was slightly higher at −0.981 V, suggesting a negligible disparity. The self-corrosion current density (Jcorr) of the Zn electrode in the pure 2 M ZnSO4 electrolyte was measured at 3.30 mA cm−2, whereas in the TAU-enriched electrolyte, it was reduced to 1.75 mA cm−2. To further examine the anti-corrosion properties for different electrolyte, the Zn foils were immersed into electrolytes with and without 4 mM TAU for 5 days. X-ray Diffraction (XRD) patterns results revealed that the diffraction peak of basic zinc sulfate (Fig. S2†) pentahydrate (Zn4SO4(OH)6·5H2O PDF# 39-0688) appeared for the Zn in the normal electrolyte,24 indicating that there was a certain amount of alkali pentahydrate formed on the surface of Zn sulfate. In contrast, in the TAU electrolyte, there was no appearance of the diffraction peak for basic Zn sulfate pentahydrate, indicating that TAU can effectively inhibit the corrosion of Zn. These findings indicate that TAU effectively mitigates the self-corrosion rate of the Zn electrode within the electrolyte.25 The linear sweep voltammetry (LSV) curves (Fig. 3b) demonstrated that at a current density of 1 mA cm−2, the hydrogen evolution potential was −1.39 V in the 1 M Na2SO4 + 0 mM TAU electrolyte, and −1.48 V in the 1 M Na2SO4 + 4 mM TAU electrolyte. This discrepancy is likely attributed to TAU adsorbing onto the Zn electrode surface and suppressing side reactions.26
![]() | ||

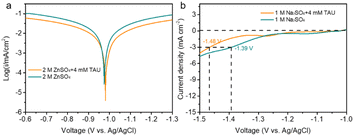

Fig. 3 (a) Tafel plots for the Zn anode in ZnSO4 and ZnSO4 + 4 mM TAU electrolytes; (b) linear sweep voltammetry curves for the anode in Na2SO4 and Na2SO4 + 4 mM TAU electrolytes. |

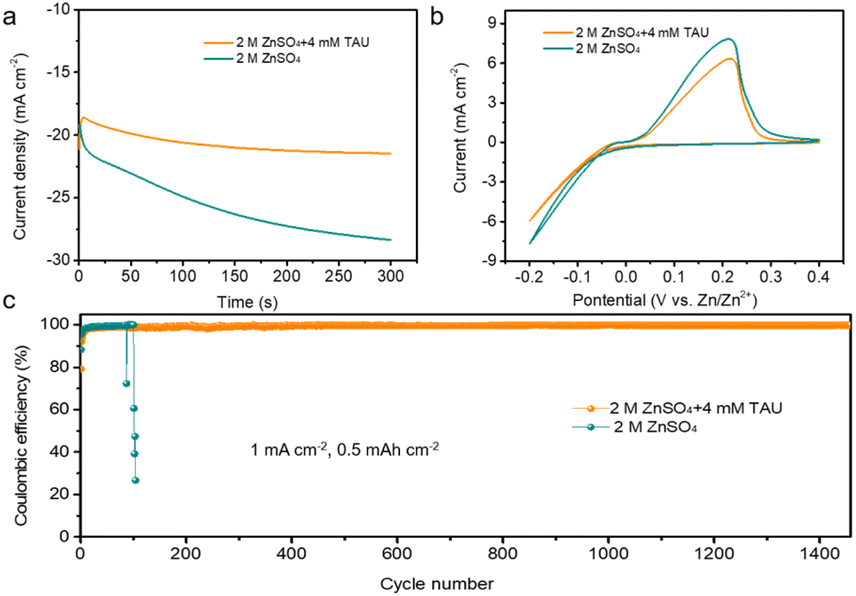

To elucidate the Zn deposition behavior within diverse electrolytes, chronopotentiometric studies were conducted. At an overpotential of −0.15 V, the current–time profile delineated nucleation and surface alterations. Over a 300 s interval, in a pristine ZnSO4 electrolyte, the current progressively escalated, implying a two-dimensional (2D) diffusion mechanism and the formation of uneven dendrites on the Zn anode surface (Fig. 4a). Within the 2D diffusion phase, adsorbed Zn2+ ions diffuse laterally along the electrode surface, aggregate at the tips, and subsequently morph into Zn dendrites. Conversely, in a ZnSO4 electrolyte supplemented with TAU, the zinc electrode displayed a stable current density following a transient 2D diffusion phase, indicating a steady 3D diffusion process subsequent to nucleation. The 3D diffusion suggests that adsorbed Zn2+ ions are locally reduced to Zn, with 2D surface diffusion being constrained. This behavior can be ascribed to the inhibitory effect of adsorbed TAU on Zn2+ diffusion.27 Concurrently, the cyclic voltammetry (CV) curve of a pure 2 M ZnSO4 electrolyte exhibited a pronounced oxidation peak, whereas the oxidation peak attenuated upon the incorporation of TAU, indicative of enhanced reversibility in the deposition and dissolution of Zn (Fig. 4b).28 Coulombic efficiency is pivotal for the stability of reversible Zn deposition/dissolution processes. Reversible deposition/dissolution tests were carried out using Zn//Cu asymmetric cells. Fig. 4c juxtaposes the cycle stability of Zn//Cu asymmetric cells in electrolytes with and without 4 mM TAU. In the pristine ZnSO4 electrolyte, at a current density of 1 mA cm−2 and a surface capacity of 0.5 mA h cm−2, the Zn//Cu asymmetric cell exhibited a rapid decline after approximately 100 deposition/dissolution cycles, attributed to localized short-circuiting resulting from Zn dendrite growth during cycling. At the 100th cycle, the battery displayed fluctuating voltage profiles and short-circuiting, with an average coulombic efficiency of 96.7%. Notably, the initial-cycle coulombic efficiency of the Zn//Cu asymmetric cell in a 4 mM TAU-enriched ZnSO4 electrolyte is 79.2%. With the progression of cycles, the coulombic efficiency improves. By the 50th cycle, the efficiency surpasses 99%. Furthermore, the Zn//Cu asymmetric cell demonstrates exceptional stability, lasting for 1459 cycles, with an average coulombic efficiency of 99.4%. This performance exceeds the levels previously reported in the studies.28–32 Meanwhile, Fig. S3† shows the voltage distribution diagrams of Zn//Cu asymmetric cells over different cycles. In the electrolyte with the TAU additive, the voltage distribution curves of the Zn//Cu asymmetric cell remain unchanged during the 1st–5th cycles, the 600th–800th cycles, and the 1400th–1460th cycles. In contrast, in the ZnSO4 electrolyte, a short circuit occurs at the 100th cycle. Furthermore, at a higher current density of 10 mA cm−2 and a higher areal capacity of 2 mA h cm−2, the Zn//Cu asymmetric cell with the TAU additive electrolyte also cycles stably for more than 120 cycles (Fig. S4a†). In the ZnSO4 electrolyte, after 75 cycles, the polarization increases (Fig. S4b†), and the cell fails after 90 cycles. These results further indicate that TAU can effectively improve the stability of the cell.
In order to study the plating/stripping kinetics of Zn anodes in different electrolytes, cyclic voltammetry (CV) tests were conducted. Fig. S5a† shows the CV cycle curves of Zn//Zn symmetric cells in different electrolytes at 0.1 mV s−1. Compared to the normal electrolyte, the Zn anode exhibits a larger peak area and a slightly reduced current due to adsorption, which is related to the faster plating/stripping kinetics caused by the addition of TAU additive.31 Moreover, the electrochemical kinetics of Zn2+ at the electrode interface were further explored through electrochemical impedance spectroscopy (EIS) measurements. Fig. S5b† shows the Nyquist plots of Zn//Zn symmetric cells in different electrolytes, where the semicircles in high and medium frequencies correspond to the charge transfer resistance. The introduction of the TAU additive significantly reduces the charge transfer resistance of the Zn//Zn symmetric cell, indicating its superior charge transfer performance.14

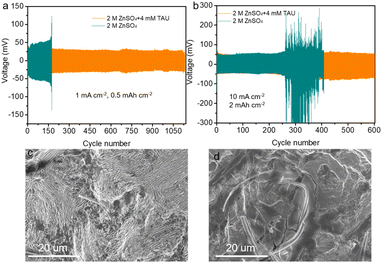

To corroborate the influence of TAU on the performance of the Zn anode, the electrochemical behavior of Zn//Zn symmetric cells was scrutinized in both a pure ZnSO4 electrolyte and an electrolyte fortified with TAU. As illustrated in Fig. 5a, under the 1 mA cm−2 current density and 0.5 mA h cm−2 surface capacity, the Zn//Zn symmetric cell employing TAU as an additive exhibited sustained cycling for over 1150 cycles, substantially exceeding the duration of 200 cycles for the control without TAU, also exceeds the levels reported in previous studies.33,34 At an elevated current density of 10 mA cm−2 and surface capacity of 2 mA h cm−2, the TAU-containing Zn//Zn symmetric cell sustained stable cycling for over 600 cycles, whereas the cell relying on the pure ZnSO4 electrolyte deteriorated after only 250 cycles, underscoring the effectiveness of TAU in bolstering the stability of Zn//Zn symmetric cells (Fig. 5b). The rate performance of symmetric cell is shown on Fig. S5,† where the current density gradually increased from 1 mA cm−2 to 10 mA cm−2. Obviously, the hysteresis voltage of the Zn//Zn symmetric cell with TAU-added electrolyte is smaller than that of the Zn//Zn symmetric cell with normal electrolyte due to TAU exhibits a greater propensity to donate electrons and is thus more likely to adsorb onto the Zn surface by donating electrons to the vacant d-orbitals of the metal. In addition, as the current density increases, the Zn//Zn symmetric cell with normal electrolyte rapidly polarization increases and fails at 10.0 mA cm−2. Oppositely, the Zn//Zn symmetric cell with the TAU-added electrolyte maintained the stable deposition/stripping process and remained functional even after the current density returned to 1 mA cm−2. The Zn//Zn symmetric cell could still run steadily even at an ultrahigh current density of 20 mA cm−2 and areal capacity of 5 mA h cm−2 (Fig. S7†). The Zn//Zn symmetric cell with the TAU electrolyte could sustain steadily plating/stripping processes over 300 cycles, whereas the Zn//Zn symmetric cell in the normal electrolyte undergoes severe polarization after 14 cycles, which signifies that TAU additive can fulfill the demands of actual devices. Furthermore, following 100 stripping/plating cycles at 1 mA cm−2, SEM images depicted that the morphology of the Zn anode with TAU as an additive was characterized by a flat and protrusion-free surface (Fig. 5c), in stark contrast to the original electrolyte electrode, which was encrusted with a multitude of vertical protrusions and voids (Fig. 5d), thereby indicating that TAU effectively curtails dendrite formation. XPS analysis of the Zn foil surface after symmetric cell cycling to determine the adsorption during cycling. To confirm the mechanism of action of TAU, based on the Zn anode surface after symmetric cell cycling in the TAU electrolyte using XPS and Energy Dispersive Spectrometer (EDS) mapping, the Zn, O, N, C and S signals can be observed (Fig. S8a and b†). The C 1s core-level XPS spectra is displayed in Fig. S8c.† The C 1s spectra of the non-sputtered anode exhibited peaks at 288.2, 286.2, and 284.8 eV, attributable to C–S, C–O/C–N, and C–C/C–H.13 The S 2p and Zn 2p core-level XPS spectrum remained almost unchanged, demonstrating that TAU is not subject to decomposition (Fig. S8d and S9†).6 As demonstrated in Fig. S9,† EDS mapping images prove that the Zn, O, N, C and S elements are uniformly distributed in Zn anode surface. These analysis results indicate that TAU can be adsorbed on the Zn anode surface.

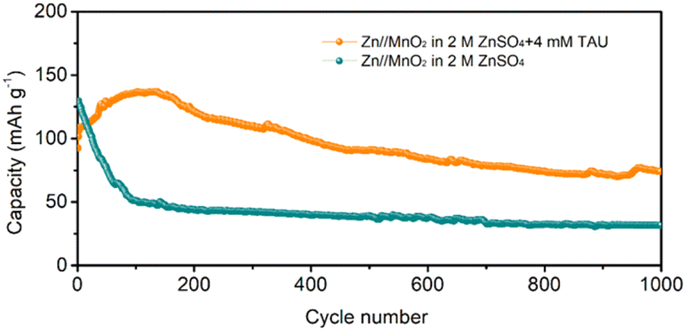

To delineate the impact of TAU additive on the full battery cycling performance, we synthesized pure α-MnO2@CNT nanowires through hydrothermal processing. Initial characterization of the α-MnO2@CNT positive electrode was performed using SEM, as depicted in Fig. S2a,† which revealed the formation of MnO2 nanowires in a homogeneously dispersed matrix with carbon nanotubes (CNTs). The X-ray diffraction (XRD) pattern in Fig. S2b† confirmed the formation of α-phase MnO2 (PDF No. 44-0141) without any discernible impurity peaks.35 To ascertain the carbon content within the MnO2@CNT composite, thermal gravimetric analysis (TGA) was conducted, which yielded a carbon content of 24.3% for α-MnO2@CNT (Fig. S2c†). As depicted in Fig. 6, the Zn//MnO2 full battery utilizing TAU-containing electrolyte exhibited a superior capacity retention rate of 73.8% after 1000 cycles. In stark contrast, the Zn//MnO2 full battery employing the original electrolyte retained only 24.4% of its initial capacity. The gravimetric charge discharge curve (GCD) of the Zn//MnO2 full cell using different electrolytes are shown in Fig. S11a and b.† The full cell with TAU electrolyte has significantly higher capacity and more stable discharge plateau at the 100th cycle. These findings underscore the efficacy of the electrolyte additive in bolstering the cycling performance of full batteries.
Based on the above experimental results and theoretical calculations, we propose a possible mechanism by which the TAU additive inhibits the formation of Zn dendrites in normal electrolyte systems. As shown in the schematic diagram in Fig. 7, during the nucleation stage, in order to minimize surface energy and the exposed area of the electrode, Zn2+ adsorbed on the electrode surface tend to diffuse laterally along the surface and aggregate, forming a large number of dispersed crystal nuclei. In the subsequent deposition process, continuous lateral diffusion and the tip effect cause the crystal nuclei to grow rapidly, forming Zn dendrites, which leads to a vicious cycle resulting in the formation of a large number of Zn dendrites on the electrode surface. However, when an appropriate concentration of TAU additive is present in the electrolyte, TAU not only participates in the solvation of Zn2+ but also adsorbs on the surface of the Zn anode, regulating the lateral diffusion and aggregation of Zn2+ during the nucleation stage, and promoting the formation of uniform crystal nuclei. In the subsequent deposition process, the tip effect causes TAU to preferentially aggregate at the tips or protrusions of the electrode surface, forming an effective zinc-repelling barrier layer that effectively inhibits the adsorption and deposition of Zn2+ in these areas, thereby promoting the uniform adsorption and deposition of Zn2+ on the electrode surface.
![]() | ||

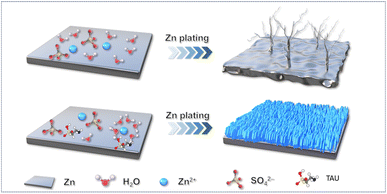

Fig. 7 Schematic diagram of the deposition behavior of Zn2+ in electrolytes without and with additives. |
