Novel polycyclic “turn-on” and “turn-off” pyrazoline and pyrazole fluorescent sensors for selective real-world monitoring of Fe³⁺/Fe²⁺ in aqueous environments

Abstract

Seven novel polycyclic pyrazoline and pyrazole sensors were synthesised and screened for useful photophysical properties with pyrazoline 2 and pyrazole 7, displaying an Fe³⁺ “turn-off” response in aqueous environments with Fe³⁺ limits of detection (LoD) of 2.12 μM and 3.41 μM, respectively. Both 2 and 7 sensors functioned in aqueous environments with real-world examples of Fe³⁺ detection in tap water and mineral water samples. 2 and 7 are suitable for the detection of Fe³⁺ at concentrations below the maximum iron limits for drinking water set by the Environmental Protection Agency (EPA) and European Union (EU).

---

Introduction

Iron is the most abundant transition metal in the human body¹ and is vital for a range of biological functions, including oxygen transport via haemoglobin,² catalytic activity of iron oxygenases,³ and DNA synthesis and repair.⁴ Ferric (Fe³⁺) iron and ferrous (Fe²⁺) iron are the two predominant forms of iron in the human body with the redox cycling between oxidation states being pivotal to their biological functions.^1,5 Excess iron is linked to numerous medical problems,⁶ including hemochromatosis,⁷ Alzheimer's disease, and Parkinson's disease.^8,9 Therefore, regular monitoring of iron intake is of paramount importance. The Environmental Protection Agency (EPA) in the USA has set the iron limit in drinking water at 5.4 μM,¹⁰ whereas the European Union (EU) has set it at 3.5 μM.¹¹ Fluorescence spectroscopy offers many advantages in monitoring iron levels in drinking water, including a low limit of detection, high specificity and the ability to fine-tune the fluorescence emission wavelength (λ_em).^12,13 Pyrazoline,¹⁴ a five-membered heterocycle with two adjacent nitrogen atoms (blue in Scheme 1 and Fig. 1), has well-established fluorescent properties with sensors reported for Zn²⁺,¹⁸ Al³⁺,¹⁹ and Fe³⁺.²⁰ Pyrazole²¹ (red in Scheme 1 and Fig. 1) is closely related to pyrazolines and displays useful fluorescent properties.^16,17 Chalcones^22,23 are versatile precursors enabling the generation of large libraries of pyrazolines and pyrazoles via short (2–3 step) syntheses (Scheme 1) from commercially available starting materials.

Scheme 1 Synthesis of pyrazoline and pyrazoles from chalcone precursors.

Fig. 1 Recently reported pyrazoline and pyrazole fluorescent sensors; images are reproduced from ref. 15–17.

“Turn-on” sensors display an increased λ_em in the presence of an analyte, for example, A with Zn²⁺ and Cd²⁺ (Fig. 1).¹⁵ “Turn-off” sensors display reductions in the λ_em with an analyte; for example, B demonstrates a minor reduction in the λ_em with Zn²⁺ and Cd²⁺. Recent studies highlighted that the addition of an acetyl side group adjacent to the chelation site greatly enhanced analyte selectivity, for example, Zn²⁺/Cd²⁺ for C and Fe³⁺/Fe²⁺ for D.^16,17 A variety of mechanistic pathways can account for an increased λ_em, including blocking of photoinduced electron transfer (PET)²⁴ and the chelation enhanced fluorescence effect (CHEF).²⁵ A decreased λ_em can result from the chelation enhancement quenching effect (CHEQ)²⁶ or fluorescence resonance energy transfer (FRET).²⁷

While sensors A–D confirm that structural complexity is not a prerequisite for complex functionality, their potential as fluorescent sensors to date has been limited to organic solvents.^15–17 A key requirement for real-world monitoring is a fluorescent response in aqueous solutions. To address this research need and further investigate how to fine-tune the photophysical properties of these sensors, we developed seven novel sensors incorporating phenyl, naphthalene and anthracene units. Incorporation of one or more polycyclic component into sensor design has been shown to confer favourable fluorescent properties.^18a,28 The two lead sensors (2 and 7) were analysed in aqueous solution, confirming that pyrazoline A and pyrazole B can transition from purely organic solvent sensors to sensors that are functional in mixed organic and aqueous solutions with minor modifications. The lead sensors displayed excellent selectivity for Fe³⁺/Fe²⁺, with the Fe³⁺ limit of detections below the USA and EU iron drinking water limit, validating their application in real-world monitoring of iron concentrations in drinking water.

Results and discussion

Chalcone precursors C1 with naphthalene (X = Nap) and C2 with anthracene (X = An) units were prepared (ESI S1†) via literature methods^29,30 in excellent yield (75–93%) (Scheme 2). The pyrazoline series 1–4 was synthesised by adapting previously used methods^15,17 in acceptable yields. The pyrazole series 5–7 were synthesised using a direct chalcone-to-pyrazole one-pot method.¹⁶ With seven novel sensors in hand, we investigated their photophysical properties initially in MeCN. MeCN was selected to allow direct comparison with three previous studies on the structurally related sensors A–D, which was also performed in MeCN. The lead sensors were then investigated in a mixed organic aqueous solution of 7 : 3 MeCN : H₂O. Well established protocols for screening fluorescent sensors in organic solvents were followed throughout the study.²⁸

Scheme 2 Synthesis of seven novel sensors from shared chalcone precursors: (i) 2.0 equivalent hydrazine (H₂NNHMe or H₂NNHPhe), MeOH, 60 °C, and 24 h (ref. 15) (ii) is the same as (i) + 1.0 equivalent CuCl₂.¹⁶

UV/vis spectroscopy was used to confirm that 1–7 undergo chelation. We initially used the group 12 metals (Zn²⁺, Cd²⁺ and Hg²⁺), as structurally similar sensors A and B are known to chelate this metal group (Fig. 2 for 1 + Zn²⁺, and ESI S4† for 2–7). Upon increasing equivalents of Zn²⁺, the initial absorbance band at 315 nm decreased with the formation of a new absorbance band at 350 nm up to 5.0 equivalents of Zn²⁺ (Fig. 2). Further additions resulted in a plateau at 350 nm. A similar trend was observed with the pyrazole series (see ESI S4† for 2–7).

Fig. 2 UV/vis study for 1 (20 μM, MeCN) with 0–20 equivalents of Zn²⁺.

¹H NMR studies with and without Zn²⁺ were performed to confirm that 1–4 underwent chelation, with the results from 1 representative of all pyrazolines (Fig. 3 for 1, ESI S3† for 2–4). Upon addition of 2.0 equivalents of Zn²⁺, the pyridine protons demonstrated broadening and downfield movement in the chemical shift; for example, H^a from 8.57 ppm to 8.63 ppm, H^d from 7.97 ppm to 8.02 ppm, and H^c from 7.70 ppm to 7.90 ppm (Fig. 3A and B). This is characteristic of chelation, and has been reported previously for A (ref. 15) and other sensors.^{20,28a,e,31a,d,e}

Fig. 3 Partial ¹H NMR spectra: (A) is 1 (20 μM, CDCl₃) and (B) is 1 + 2.0 equivalents of Zn²⁺.

A further ¹H NMR study was conducted for pyrazole 7 with a similar trend upon the addition of 2.0 equivalents of Zn²⁺ (Fig. 4). The chemical shift of pyridine protons H^a increased from 8.73 ppm to 8.77 ppm, while that of the anthracene singlet H^e increased from 8.55 ppm to 8.68 ppm and pyridine H^b from 7.31 ppm to 7.45 ppm. Broadening of all signals was also observed upon the addition of Zn²⁺, confirming chelation and agrees with a similar study conducted on C.¹⁷ These results indicate that the chelate site is centred about the pyridine ring, and chelation occurs with either a pyrazoline or pyrazole heterocycle, or a naphthalene or anthracene side unit.

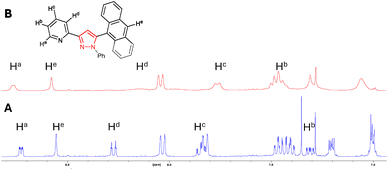

Fig. 4 Partial ¹H NMR spectra: (A) is 7 (15 μM, CDCl₃) and (B) is 7 + 2.0 equivalents Zn²⁺.

The fluorescence response of pyrazoline 1 with a range of metals was investigated in MeCN with increased λ_em 460 nm with Cd²⁺ and Zn²⁺ (Fig. 5A), analogous to that of pyrazoline A, which was previously reported. A linear response of up to 5.0 equivalents of both Cd²⁺ and Zn²⁺, reaching a plateau on further addition, was observed (Fig. 5B and C). An unexpected “turn-on” response for Fe³⁺ at λ_em 535 nm suggested that 1 could function as a multi-analyte sensor, as observed in previous studies.³² This response was not observed in sensor A, suggesting that the naphthalene unit was responsible for this additional feature. The increase at λ_em 535 nm upon addition of Fe³⁺ peaked at 5.0 equivalents of Fe³⁺, with further addition reducing the fluorescence, which may be possibly due to paramagnetic quenching of the excited state (Fig. 5D).

Fig. 5 Photophysical properties of 1 (20 μM, MeCN). (Panel A) Metal screen at λ_ex 280 nm with 5.0 equivalents of the indicated metal. (Panels B–D) Titration studies for Cd²⁺, Zn²⁺ and Fe³⁺, respectively; cps is counts per second. Cuvette images were taken under the irradiation of a 100 W λ_ex 365 nm lamp.

Repeating the Cd²⁺ titration study for pyrazoline 1 in a 7 : 3 MeCN : H₂O solution resulted in an approx. 90% reduction in the “turn-on” response (see ESI S5†), greatly hindering the potential of 1 in aqueous environments. Previous sensors A–D and pyrazoline 1 all had a methyl substituent on the nitrogen ring. In pyrazoline 2, this was replaced by a phenyl unit and unexpectedly reversed the fluorescence response from “turn-on” to “turn-off”, which was most noticeable for Fe³⁺ (Fig. 6A). The λ_em at 470 nm for 2 only (φ_f 0.74) decreased with up to 5.0 equivalents Fe³⁺ (φ_f < 0.01), and further addition resulted in complete quenching of the fluorescence (Fig. 6B). A Fe²⁺ titration study demonstrated no significant change in λ_em 470 nm with up to 20.0 equivalents (Fig. 5C), suggesting that pyrazoline 2 could selectively detect iron in the +3 oxidation state over iron in the +2 oxidation state (Fe³⁺/Fe²⁺). A Fe³⁺ titration study in 7 : 3 MeCN : H₂O was conducted to determine if this “turn-off” response remained in aqueous samples (see Fig. 6D for Fe³⁺, and ESI S5† for the full metal screen). The presence of water reduced λ_em by approximately 30% (φ_f 0.83), but retained a linear (R² = 0.984) reduction in λ_em (φ_f 0.07) in the concentration range between 20–100 μM Fe³⁺, suggesting that pyrazoline 2 could be utilised for the selective quantification of Fe³⁺ in aqueous samples (Fig. 6D). A slight increase of 20 nm in λ_em from 470 nm in 100% MeCN to 490 nm in 7 : 3 MeCN : H₂O was observed (Fig. 5D).

Fig. 6 Photophysical properties of 2 (20 μM, MeCN). (Panel A) is the metal screen at λ_ex 280 nm with 5.0 equivalents of the indicated metal. (Panels B and C) are titration studies for Fe³⁺ and Fe²⁺ in MeCN, respectively. (Panel D) is the Fe³⁺ titration in 7 : 3 MeCN : H₂O; cps is counts per second. Cuvette images were taken under the irradiation of a 100 W λ_ex 365 nm lamp.

Our focus shifted to the anthracene pyrazolines 3–4 to determine if a third aromatic ring would confer beneficial properties. Pyrazoline 3 displayed a “turn-off” response for Fe³⁺/Fe²⁺ at 420 nm. However, several other metals produced a “turn-off” response that was equal to or greater than that of Fe³⁺; for example, Co²⁺ and Cu²⁺ (Fig. 7A). The λ_em of 3 only was significantly less than that of 2, further limiting the application of this pyrazoline as a sensor.

Fig. 7 Photophysical properties of 3 (20 μM, MeCN) (Panel A) and 4 (Panel B) metal screen at λ_ex 250 nm with 5.0 equivalents of the indicated metal; cps is counts per second. Cuvette images were taken under the irradiation of a 100 W λ_ex 365 nm lamp.

Pyrazoline 4 contained a phenyl instead of a methyl group. This change significantly altered the photophysical properties of 1 and 2. Pyrazoline 4 was also analysed, and displayed very weak fluorescence at 420 nm with insignificant differences observed on addition of a range of metals (Fig. 7B). The λ_em of 4 was approximately a third of the value for 3, suggesting that 4 was also unsuitable for sensing. In summary, the two anthracene pyrazolines did not display improved fluorescence properties over the naphthalene sensors. A summary of the pyrazoline series is displayed in Fig. 8.

Fig. 8 Summary of the pyrazoline series. 2 (inset) was selected for further investigation.

With the initial studies on the pyrazoline series complete and pyrazoline 2 selected for further investigation, we performed a similar analysis on the pyrazole series 5–7. To our surprise, pyrazole 5 displayed a “turn-on” response at 310 nm (Fig. 9A), whereas pyrazole 6 with an additional aryl ring displayed a “turn-off” response to a variety of metals (Fig. 7B). Unfortunately, no selectively to Fe³⁺ was observed. Therefore, these pyrazoles were not selected for further investigation.

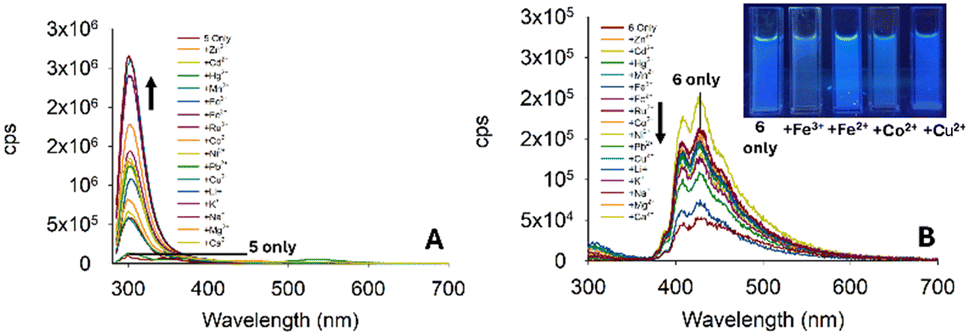

Fig. 9 (Panel A) Metal screen for 5 (20 μM, MeCN) at λ_ex 280 nm with 5.0 equivalents of the indicated metal. (Panel B) Metal screen for 6 at λ_ex 250 nm in MeCN; cps is counts per second. Cuvette images were taken under the irradiation of a 100 W λ_ex 365 nm lamp.

Pyrazole 7 with a phenyl unit on the pyrazole nitrogen displayed significant λ_em intensity at 420 nm in the absence of metals (φ_f 0.33), and this was diminished only in the presence of a small number of metals, most noticeably Fe³⁺, Co²⁺ and Cu²⁺ (Fig. 10A). Significant reduction in λ_em at 420 nm was observed upon the addition of 4.0 equivalents of Fe³⁺ (φ_f < 0.01). Further addition of Fe³⁺ resulted in complete quenching of the fluorescence intensity (Fig. 10B). A similar study with Fe²⁺ demonstrated no reduction, showing excellent Fe³⁺/Fe²⁺ selectivity (Fig. 10C). Repeating the Fe³⁺ titration in a 7 : 3 MeCN : H₂O solution demonstrated an excellent “turn-off” response with a linear reduction in λ_em (R² = 0.978) (φ_f 0.43 to φ_f 0.18), suggesting this would be a suitable sensor for Fe³⁺ in aqueous environments (see Fig. 10D for Fe³⁺, and ESI† for the full metal screen). A summary of the pyrazole series is displayed in Fig. 11 and pyrazole 7 was selected for further investigation.

Fig. 10 Photophysical properties of 7 (20 μM, MeCN). (Panel A) Metal screen at λ_ex 280 nm with 5.0 equivalents of the indicated metal. (Panels B and C) Titration studies for Fe³⁺ and Fe²⁺ in MeCN, respectively. (Panel D) Fe³⁺ titration in 7 : 3 MeCN : H₂O; cps is counts per second. Cuvette images were taken under the irradiation of a 100 W λ_ex 365 nm lamp.

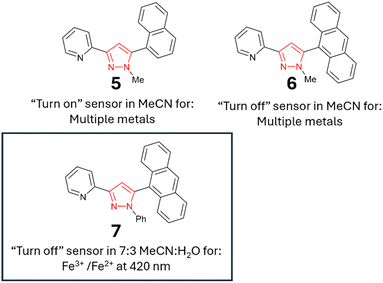

Fig. 11 Summary of the pyrazole series; 7 (inset) was selected for further investigation.

With two lead sensors selected, one pyrazoline and one pyrazole, we performed a range of competition assays to determine if the Fe³⁺-triggered fluorescence “turn-off” response is retained in the presence of competing cations. Pyrazoline 2 was the most affected by competition across the range of cations screened, except for Ru³⁺ (Fig. 12A). Pyrazole 7 was similarly impacted by the presence of competing cations, except for Ru³⁺ and Cu²⁺ (Fig. 12B). This result suggests that neither naphthalene or anthracene, nor pyrazoline or pyrazole, are responsible for the high competition observed. It is highly possible that the large open chelation site, as demonstrated from a previous X-ray crystal structure for the pyrazole analogue of A,¹⁵ is responsible. Restricting the chelation site (for example, by the addition of an acetyl group) should be further explored in future analogues of 2 and 7, as this was shown to be highly effective for C and D.¹⁷

Fig. 12 Competition assays for 2 (Panel A) and 7 (Panel B). The white bar represents the sensor (20 μM, MeCN) with 5.0 equivalents of the indicated cation; the black bars is the same with 5.0 equivalents Fe³⁺ after equilibrating for 3 min. 2 λ_ex 280 nm with λ_em 490 nm; 7 λ_ex 250 nm with λ_em 420 nm.

A study was conducted to determine the real-world potential for 2 and 7 at detecting Fe³⁺ in two types of samples: tap water and mineral water. Both 2 and 7 demonstrated measurable reductions in λ_em at 420 nm in the presence of 50 μM and 100 μM Fe³⁺ (Fig. 13 for 7 and ESI S6† for 2).

Fig. 13 Fe³⁺-triggered “turn-off” response for 7 in tap water (Panel A). Fe³⁺-triggered “turn-off” response for 7 in mineral water (Panel B), λ_ex 250 nm. Solvent was 7 : 3 MeCN : H₂O; cps is counts per second.

This study indicated that despite the reduction in the “turn-off” response observed in the competition assays (Fig. 12), the “turn-off” response was detectable in real world samples. Limit of detection (LoD) studies were performed in a 7 : 3 MeCN : H₂O solution, and confirmed that 2 and 7 had LoD values of 2.12 μM and 3.41 μM, respectively (see ESI S8†). This confirmed that both pyrazoline 2 and pyrazole 7 can detect Fe³⁺ below the iron drinking water limit of the EPA and EU, and validates their application in real-world monitoring. These LoD are comparable with other Fe³⁺-specific fluorescence sensors. For example, Chattopadhyay et al. reported on a Fe³⁺-specific “turn-off” sensor with a LoD value of 3.5 μM,³³ Goswami et al. reported on a Fe³⁺ “turn-on” sensor with a LoD of 2.9 μM,³⁴ and Wang et al. reported on a Fe³⁺-specific colorimetric sensor with a LoD value of 1.0 μM³⁵ (see ESI S8† for further Fe³⁺ LoD examples). An additional study was conducted with 7 using pond (Fig. 14A) and river (Fig. 14B) water samples with a measurable “turn-off” response with 50 μM and 100 μM Fe³⁺, respectively (see ESI S7† for similar study with 2). This confirmed that both 2 and 7 can operate in external water sources containing a range of interferences beyond the cations screened in the competition studies (Fig. 12), such as sediment and bacteria present in natural water sources.

Fig. 14 Fe³⁺-triggered “turn-off” response for 7 in pond water (Panel A). Fe³⁺-triggered “turn-off” response for 7 in river water (Panel B), λ_ex 250 nm. Solvent composition was 7 : 3 MeCN : H₂O; cps is counts per second.

A reversibility study was conducted with 2 and 7 in the presence of several cycles of Fe³⁺, followed by EDTA, confirming that both sensors can be used multiple times for Fe³⁺ detection (Fig. 15A for 2 and Fig. 15B for 7).

Fig. 15 Repeatability study of the addition of 5.0 equivalents of Fe³⁺, followed by 5.0 equivalents of EDTA, repeated for 5 cycles in a 7 : 3 MeCN : H₂O solution. (Panel A) is 2 λ_ex 280 nm and (Panel B) is 7 λ_ex 250 nm; cps is counts per second.

A proposed 1 : 1 binding mechanism of Fe³⁺ with sensors 2 and 7 is shown in Fig. 16, and agrees with the Job plot for 7 with Fe³⁺ (see ESI S11†) and the previously reported X-ray crystal structure complex of the pyrazole A analogue with Zn²⁺.¹⁵

Fig. 16 Proposed 1 : 1 binding mechanism of 2 and 7 with Fe³⁺ with the calculated limit of detection for Fe³⁺ in 7 : 3 MeCN : H₂O solution. Pyrazoline 2 was selected as the lead compound from this study.

Conclusions

Seven novel polycyclic pyrazoline and pyrazoles were synthesised to determine how phenyl, naphthalene and anthracene units influence photophysical properties. Small modifications (for example, substitution of a methyl in 1 for a phenyl in 2) reversed the photophysical properties from “turn-on” to “turn-off”. 2 retained a good “turn-off” response in 7 : 3 MeCN : H₂O solutions, and was selected for further analysis. The addition of a third aromatic ring to 2, resulting in 3, significantly disrupted λ_em and was detrimental to sensing. Pyrazoline 4 displayed minimum λ_em and was unsuitable for sensing applications. For the pyrazole series, 5 demonstrated a “turn-on” response at λ_em 310 nm to a variety of metals, whereas 6 displayed a “turn-off” response at λ_em 420 nm to a range of metals. Neither showed selectively to Fe³⁺, and were not suitable for sensing. 7 was the most useful pyrazole with complete quenching of λ_em at 420 nm on addition of 4.0 equivalents of Fe³⁺ in organic solutions. Lead sensors 2 and 7 were confirmed to display a Fe³⁺-triggered “turn-off” response in aqueous samples with the Fe³⁺ limit of detection values of 2.12 μM and 3.41 μM, respectively. Real-world analysis confirmed that 2 and 7 could detect Fe³⁺ in both tap water and mineral waters, and be useful for the industrial scale monitoring of Fe³⁺ in drinking water. 2 and 7 were also confirmed to display a “turn-off” response in pond and river waters, suggesting these sensors could be used for environmental monitoring of Fe³⁺ in external water sources. Further work is required to mitigate competing cations from influencing the fluorescence response. The introduction of additional chelation groups around the pyridine is a promising solution, as it has been shown to be highly beneficial for C and D.¹⁷ These results set a firm foundation for the development of future generations of improved phenyl substituted pyrazoline and pyrazole Fe³⁺-specific “turn-off” sensors that are purposely designed to operate in aqueous environments.

Data availability

The data supporting this article have been included as part of the ESI.†

Author contributions

Alexander Ciupa designed, synthesized, characterised, performed all spectroscopy studies, and authored the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The author acknowledges Steven Robinson for assistance with time-of-flight high resolution mass spectrometry and Krzysztof Pawlak with fluorescence spectroscopy. This work used shared equipment located at the Materials Innovation Factory, created as part of the UK Research Partnership Innovation Fund (Research England) and co-funded by the Sir Henry Royce Institute.

References

1. Selected examples: (a) L. Silvestri, M. Pettinato, V. Furiosi, L. Bavuso Volpe, A. Nai and A. Pagani, J. Mol. Sci., 2023, 24, 3995; (b) N. Abbaspour, R. Hurrell and R. Kelishadi, Res. J. Med. Med. Sci., 2014, 19, 164; (c) A. Yiannikourides and G. O. Latunde-Dada, Medicines, 2019, 6, 85.
2. A.-C. S. Vogt, T. Arsiwala, M. Mohsen, M. Vogel, V. Manolova and M. F. Bachmann, Int. J. Mol. Sci., 2021, 22, 4591.
3. P. C. A. Bruijnicx, G. Van Koten and R. J. M. Klein Gebbink, Chem. Soc. Rev., 2008, 37, 2716.
4. S. Puig, L. Ramos-Alonso, A. M. Romero and M. T. Martínez-Pastor, Metallomics, 2017, 9, 1483.
5. P. A. Frey and G. H. Reed, ACS Chem. Biol., 2012, 7, 1477.
6. G. J. Brewer, Chem. Res. Toxicol., 2010, 23, 319.
7. A. Piperno, S. Pelucchi and R. Mariani, Transl. Gastroenterol. Hepatol., 2020, 5, 25.
8. J.-L. Liu, Z.-Y. Wang and C. Guo, Front. Neurosci., 2018, 12, 411985.
9. K. Wojtunik-Kulesza, A. Oniszczuk and M. Waksmundzka-Hajnos, Biomed. Pharmacother., 2019, 111, 1277.
10. Environmental Protection Agency, Secondary drinking water regulations: Guidance for nuisance chemicals, 2013. https://www.epa.gov/sdwa/secondary-drinking-water-standards-guidance-nuisance-chemicals.
11. Directive (EU) 2020/2184 Of The European Parliament And Of The Council of 16 December 2020, on the quality of water intended for human consumption, 2015, http://data.europa.eu/eli/dir/2020/2184/oj.
12. H. N. Kim, W. X. Ren, J. S. Kim and J. Yoon, Chem. Soc. Rev., 2012, 41, 1130.
13. Y. Chen, Y. Bai, Z. Han, W. He and Z. Guo, Chem. Soc. Rev., 2015, 44, 4517.
14. B. Varghese, S. N. Al-Busa, F. O. Suliman and S. M. Z. Al-Kindy, RSC Adv., 2017, 7, 46999.
15. A. Ciupa, M. F. Mahon, P. A. De Bank and L. Caggiano, Org. Biomol. Chem., 2012, 10, 8753.
16. A. Ciupa, New J. Chem., 2024, 48, 13900.
17. A. Ciupa, RSC Adv., 2024, 14, 3519.
18. Selected examples (a) T. T. Zhang, X. P. Chen, J. T. Liu, L. Z. Zhang, J. M. Chu, L. Su and B. X. Zhao, RSC Adv., 2014, 4, 16973; (b) Z. L. Gong, F. Ge and B.-X. Zhao, Sens. Actuators, B, 2011, 159, 148; (c) M. M. Li, F. Wu, X. Y. Wang, T. T. Zhang, Y. Wu, Y. Xiao, J. Y. Miao and B.-X. Zhao, Anal. Chim. Acta, 2014, 826, 77; (d) T.-T. Zhang, F.-W. Wang, M.-M. Li, J. T. Liu, J. Y. Miao and B.-X. Zhao, Sens. Actuators, B, 2013, 186, 755.
19. Selected examples: R. Manjunath and K. Palaninathan, New J. Chem., 2018, 42, 10891.
20. Selected examples (a) P. Sharma, S. Bhogal, I. Mohiuddin, M. Yusuf and A. K. Malik, J. Fluoresc., 2022, 32, 2319; (b) Y.-P. Zhang, Q. Teng, Y.-S. Yang, H.-C. Guo and J.-J. Xue, Inorg. Chim. Acta, 2021, 525, 120469; (c) A. M. Asiri, N. S. M. Al-Ghamdi, H. Dzudzevic-Cancar, P. Kumar and S. A. Khan, J. Mol. Struct., 2019, 1195, 670; (d) Y. P. Zhang, X. F. Li, Y. S. Yang, J. L. Wang, Y. C. Zhao and J. J. Xue, J. Fluoresc., 2021, 31, 29; (e) S. Maity, A. Kundu and A. Pramanik, RSC Adv., 2015, 5, 52852.
21. Selected examples (a) A. Tigreros and J. Portilla, RSC Adv., 2020, 10, 19693; (b) M.-C. Ríos and J. Portilla, Chemistry, 2022, 4, 940; (c) J.-C. Castillo and J. Portilla, Targets Heterocycl. Syst., 2018, 22, 194; (d) S. Fustero, M. Sánchez-Roselló, P. Barrio and A. Simón-Fuentes, Chem. Rev., 2011, 111(11), 6984.
22. A. A. Singh and V. Kumar, Eur. J. Med. Chem., 2014, 85, 758.
23. A. Ciupa, N. J. Griffiths, S. K. Light, P. J. Wood and L. Caggiano, Med. Chem. Commun., 2011, 2, 1011.
24. H. Nui, J. Liu, H. M. O'Connor, T. Gunnlaugsson, T. D. James and H. Zhang, Chem. Soc. Rev., 2023, 52, 2322.
25. J. W. Nugent, H. Lee, H.-S. Lee, J. H. Reibenspies and R. D. Hancock, Chem. Commun., 2013, 49, 9749.
26. L. G. T. A. Duarte, F. L. Coelho, J. C. Germino, G. G. da Costa, J. F. Berbigier, F. S. Rodembusch and T. D. Z. Atvars, Dyes Pigm., 2020, 181, 108566.
27. L. Wu, C. Huang, B. P. Emery, A. C. Sedgwick, S. D. Bull, X. P. He, H. Tian, J. Yoon, J. L. Sessler and T. D. James, Chem. Soc. Rev., 2020, 49, 5110.
28. Selected examples (a) A. Sahana, A. Banerjee, S. Das, S. Lohar, D. Karak, B. Sarkar, S. K. Mukhopadhyay, A. K. Mukherjee and D. Das, Org. Biomol. Chem., 2011, 9, 5523; (b) S. Santhoshkumar, K. Velmurugan, J. Prabhu, G. Radhakrishnan and R. Nandhakumar, Inorg. Chim. Acta, 2016, 439, 1; (c) N. Bhuvanesh, S. Suresh, K. Kannan, V. R. Kannan, N. Maroli, P. Kolandaivel and R. Nandhakumar, New J. Chem., 2019, 43, 2519; (d) Y. Mise, K. Imato, T. Ogi, N. Tsunoji and Y. Ooyama, New J. Chem., 2021, 45, 4161; (e) D. Karak, S. Das, S. Lohar, A. Banerjee, A. Sahana, I. Hauli, S. K. Mukhopadhyay, D. A. Safin, M. G. Babashkina, M. Bolte, Y. Garcia and D. Das, Dalton Trans., 2013, 42, 6708; (f) G. Mun, S. H. Jung, A. Ahn, S. S. Lee, M. Y. Choi, D. H. Kim, J.-Y. Kim and J. H. Jung, RSC Adv., 2016, 6, 53912.
29. Z. Abbas, S. Dasari and A. K. Patra, RSC Adv., 2017, 7, 44272.
30. H. G. El-Attar, M. A. Salem, S. A. Ibrahim and E. A. Bakr, Res. Chem. Intermed., 2023, 49, 469.
31. Selected examples (a) X. Wu, Z. Zhang, H. Liu and S. Pu, RSC Adv., 2020, 10, 15547; (b) S. Lohar, S. Pal, M. Mukherjee, A. Maji, N. Demitri and P. Chattopadhyay, RSC Adv., 2017, 7, 25528; (c) M. Akula, P. Z. El-Khoury, A. Nag and A. Bhattacharya, RSC Adv., 2014, 4, 25605; (d) Y. Zhang, H. Lui, W. Gao and S. Pu, RSC Adv., 2019, 9, 27476; (e) W. Luo, Z. Yuwen, H. Li and S. Pu, New J. Chem., 2022, 46, 2411.
32. Selected examples (a) D. Li, A. Liu, Y. Xing, Z. Li, Y. Luo, S. Zhao and J. Li, Dyes Pigm., 2023, 213, 111180; (b) P. Kaur and D. Sareen, Dyes Pigm., 2011, 88, 296.
33. S. Sen, S. Sarkar, B. Chattopadhyay, A. Moirangthem, A. Basu, K. Dhara and P. Chattopadhyay, Analyst, 2012, 137, 3335.
34. S. Paul, A. Manna and S. Goswami, Dalton Trans., 2015, 44, 11805.
35. X. Lui, N. Li, M.-M. Xu, J. Wang, C. Jiang, G. Song and Y. Wang, RSC Adv., 2018, 8, 34860.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d4ra06457g

---
