As one of the most promising types of label-free nanopores has great potential for DNA sequencing via fast detection of different DNA bases. As one of the most promising types of label-free nanopores, two-dimensional nanopore materials have been developed over the past two decades. However, how to detect different DNA bases efficiently and accurately is still a challenging problem. In the present work, the translocation of four homogeneous DNA strands (i.e., poly(A)20, poly(C)20, poly(G)20, and poly(T)20) through two-dimensional transition-metal carbide (MXene) membrane nanopores with different surface terminal groups is investigated via all-atom molecular dynamics simulations. Interestingly, it is found that the four types of bases can be distinguished by different ion currents and dwell times when they are transported through the Ti3C2(OH)2 nanopore. This is mainly attributed to the different orientation and position distributions of the bases, the hydrogen bonding inside the MXene nanopore, and the interaction of the ssDNA with the nanopore. The present study enhances the understanding of the interaction between DNA strands and MXene nanopores with different functional groups, which may provide useful guidelines for the design of MXene-based devices for DNA sequencing in the future.
Graphene, with a sub-nanometer thickness (comparable to the spacing between neighboring DNA nucleotides), shows high-resolution DNA detection in theory and has been extensively investigated in simulations and experiments.28–33 However, a ssDNA molecule adsorbed on graphene cannot be energetically desorbed and traverse the pore, limiting its practical applications.34 Moreover, great attention has also been paid to nanopores formed by compound two-dimensional (2D) materials (e.g., molybdenum disulfide (MoS2), boron nitride (BN), tungsten disulfide (WS2), HfO2, etc.) owing to their higher hydrophilicity compared to graphene.35 For example, Aluru et al.36 demonstrated that a MoS2 nanopore shows four distinct ion current signals for single-base discrimination with low noise. Zhou et al.37 showed that it is possible to detect different dsDNAs from the recording of ion current during translocation of the DNA through BN nanopores. With more 2D materials being discovered and their physical properties elucidated, the natural progression is to appraise their performances in nanopore-based DNA sequencing.38
Recently, MXenes (a new family of 2D materials), consisting of transition-metal carbides and nitrides, have attracted great attention. Their general formula is Mn+1XnTx (n = 1, 2, or 3), where M and X represent a transition metal, and a carbon and/or nitrogen, respectively. Tx indicates different functional groups on the MXene surfaces, and it can be –O, –OH and –F. Generally, MXenes are produced by liquid exfoliation techniques and through selective etching of A-group elements.39 Due to their multi-element contents and tunable compositions, MXenes have shown great promise in various fields, such as gas sensing,40,41 water purification,42,43 energy storage, and so on. For example, Gogotsi et al.41 reported that lamellar stacked MXene membranes exhibit excellent gas separation performance with H2/CO2 selectivity >160. Wang et al.44 demonstrated that MXene membranes exhibit high oil rejection without compromising water permeance.
Very recently, MXenes have been proved to be a promising tool for molecular detection, due to their biocompatibility, hydrophilicity and near-infrared adsorption.41 For example, Wanunu et al.45 demonstrated the feasibility of MXene nanopores for DNA sequencing, and also found that MXene membranes exhibit low ion current leakage and noise characteristics comparable to other two-dimensional membranes. Pumera et al.46 probed the interaction of ssDNA and dsDNA with Ti3C2Tx via fluorescence spectroscopy and molecular dynamics (MD) simulations, and found that the MXene showed some potential for biosensing with unequivocal detection at picomole levels and single-base discrimination. Farimani et al.38 found that this nanopore material was able to detect different types of DNA bases, with base A having the longest residence time due to the strong physisorption and deflection. Notably, the surface terminal groups of the MXene can have great impacts on its physicochemical properties, which in turn may affect its DNA detection ability. However, to the best of our knowledge, there are no systematic studies that investigate the effect of surface decoration of the MXene nanopore on DNA sequencing.

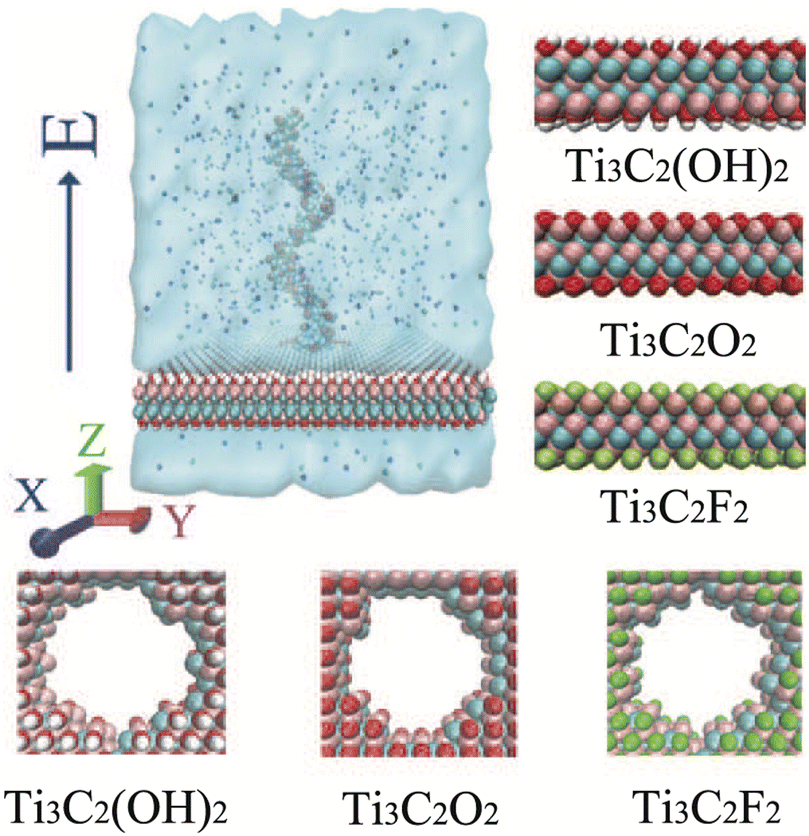

In this work, we mainly focus on the effect of different surface terminal groups of MXenes (Ti3C2(OH)2, Ti3C2O2 and Ti3C2F2) on DNA sequencing by using all-atom molecular dynamics simulations, i.e., comparing the ionic current and dwell time produced by poly(A)20, poly(C)20, poly(G)20, and poly(T)20 in the case of three types of MXene nanopores. As we show below, the four types of DNA bases can be effectively identified by using Ti3C2(OH)2. Moreover, the underlying mechanism for why the ionic current and dwell time are different in different cases will be investigated in detail.
In this work, all-atom MD simulations were performed using the Gromacs 2020.4 package54 with the CHARMM27 force field, while the simulation trajectories were analyzed using Gromacs utilities and home-written codes. The TIP3P water model was chosen. The force-field parameters for the MXene membrane were taken from the work by Xu et al.46,55 The particle mesh Ewald method was used when calculating the electrostatic interactions, and the Lennard-Jones (LJ) interactions were cut off at a distance of 1.2 nm. Periodic boundary conditions were adopted in all three directions. The systems were firstly energy-minimized for 10000 steps. Then 1.0 ns NVT equilibrations were performed, where the DNA was harmonically restrained in the nanopore.56 Finally the translocation process of ssDNA through nanopores under an electric field of E = 0.2 V nm−1 was performed in the NVT ensemble, where the DNA was not restrained. The atoms of the MXene were frozen in all the simulations, since the nanosheets are rather rigid.41 The Nosé–Hoover method was used to keep the temperature at 300 K.57 There is no pore-surface functionalization and no special treatments are applied to the charges of the pore-surface atoms. Each system was repeated fifteen times by changing the random seed of the velocity.
The integration time step was 2 fs. Ionic current was calculated using the following equation from ref. 58:
![]() | (1) |
We then investigated the ion current and the dwell time for each homogeneous ssDNA through the three types of MXene nanopore (Fig. 3). Notably, the ion current and the dwell time are typical parameters for distinguishing different DNA types.38,62 For the Ti3C2(OH)2 nanopore, the difference in ion current with bases A, C and G was not significant (about 4.6 nA), but the ion current of base T was the smallest (about 4.2 nA) (see Fig. 3a). Additionally, the ion current of the Ti3C2(OH)2 nanopore for ssDNA translocation was the largest, which was in agreement with the case in the absence of DNA. The order of the dwell time for this nanopore was A > G > C ≈ T (see Fig. 3b). This indicates that the translocation of pyrimidines is faster than that of purines; moreover, base A exhibits remarkably slow translocation, probably due to the strong resistance force (see detailed discussion below).
For the Ti3C2O2 nanopore, base G had the largest value for the ion current (about 3.1 nA) and base C had the smallest one (about 2.6 nA), while the ion currents of bases A and T showed little difference (see Fig. 3c). The order of the dwell time was not very obvious (see Fig. 3d). For the Ti3C2F2 nanopore, pyrimidines (bases C and T) had the same values for the ion current and dwell time, while those of purines (base A and G) were almost the same (see Fig. 3e and f). Additionally, the dwell time and ion current of pyrimidines was smaller than those of purines. This indicated that the transport velocity of pyrimidines was greater than that of purines.
We also computed the contribution of Na+ and Cl− ions to the total ion current (Fig. 3a, c and e). It was found that Cl− ion current was larger than Na+ ion current, no matter which base translocated into these three types of nanopore, indicating that the contribution of Cl− ions was larger than that of Na+ ions. Specifically, Na+ ion current was only about 18% of the total ion current for Ti3C2O2 and Ti3C2F2 nanopores, and about 23% for Ti3C2(OH)2. This was mainly attributed to the following reasons. First and as mentioned above, there was some repulsion between the MXene nanopore and the Na+ ion, which can decrease the Na+ ion current. Second, some salt bridges may exist between the ssDNA and Na+ ion, which results in a reverse Na+ ion current. In general, the Cl− ion played an important role in DNA sequencing using MXene nanopores.

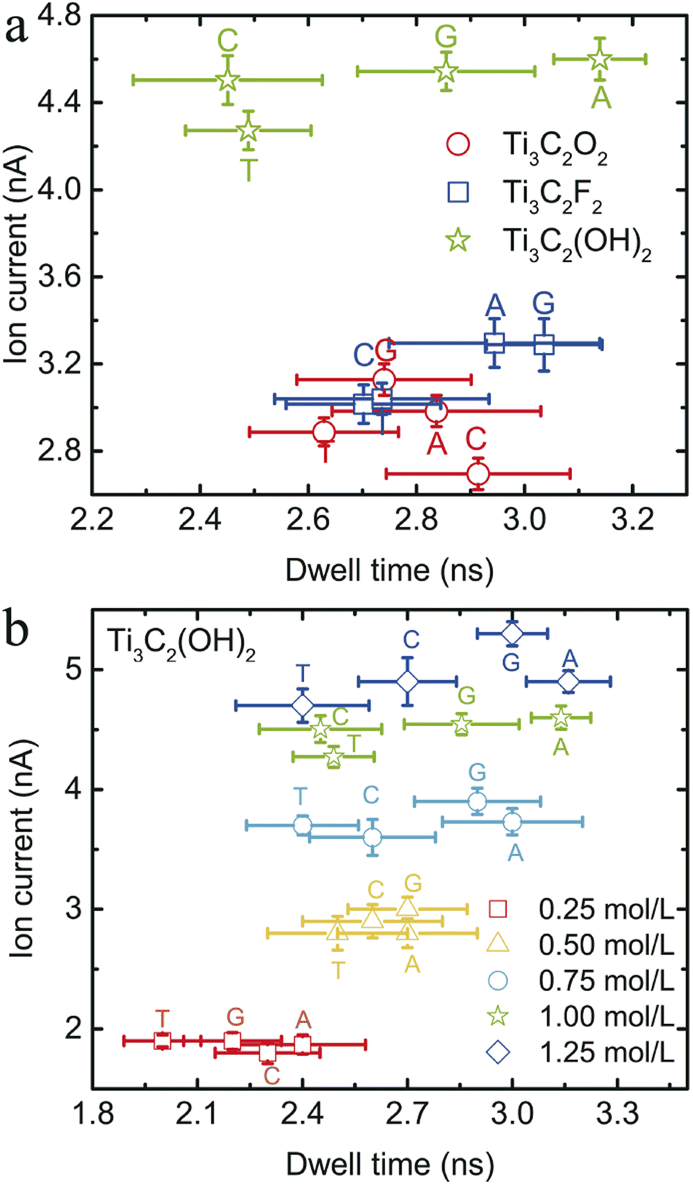

To intuitively compare the ability of DNA sequencing among the three MXene nanopores, the ion current and the dwell time for the four types of DNA bases were plotted in Fig. 4a. It was found that the Ti3C2O2 nanopore can distinguish bases C and G, but it can not distinctly discriminate bases A and T. For the Ti3C2F2 nanopore, it can distinguish the purines and pyrimidines, but it can not further recognize bases C and T in the pyrimidines, or bases A and G in the purines. Importantly, the four types of bases can be distinguished by the Ti3C2(OH)2 nanopore. Additionally, only about one single base per frame was in the nanopore when the DNA was transported through the Ti3C2(OH)2 nanopore (see Table 1), which can further improve the ability for DNA detection. On the basis of the above discussion, the Ti3C2(OH)2 nanopore could be the most appropriate one for real applications. The presence of cations significantly affects hydrogen bonding in DNA structures, which stabilizes the double-helical structure and is specific to the DNA sequence.63 Also, the ions (especially divalent ions) interact strongly with single-stranded DNA, such that the double-helix stability decreases at very high salt concentrations (>1 M).64,65 Hence, we further investigated the effect of ion concentration on ion current and dwell time for the Ti3C2(OH)2 nanopore. It is found that the resolution of DNA-base detection increases as the ion concentration increases for the Ti3C2(OH)2 nanopore (see Fig. 4b).
MXene nanopore | Base A | Base C | Base G | Base T |
---|---|---|---|---|
Ti3C2(OH)2 | 1.02 ± 0.17 | 1.31 ± 0.32 | 1.17 ± 0.18 | 0.97 ± 0.15 |
Ti3C2O2 | 1.28 ± 0.17 | 1.63 ± 0.35 | 1.29 ± 0.19 | 1.03 ± 0.22 |
Ti3C2F2 | 1.23 ± 0.19 | 1.65 ± 0.19 | 1.32 ± 0.12 | 1.00 ± 0.23 |
To provide some possible explanation for the above phenomena, we first calculated the probability distributions for the orientation and position of each nucleobase in the three types of MXene nanopore (Fig. 5). The orientation was characterized by the angle β (between the normal direction of the base and the normal direction of the MXene surface) and r, which denoted the distance between the central axis of the MXene nanopore and the mass center of the base inside the nanopore. All the distribution centers of β for the four types of bases through these three types of MXene nanopore were less than 90°, indicating that the four bases translocated through the MXene nanopore in a slanted manner.
For the Ti3C2(OH)2 nanopore, the distribution regions of bases A and G were smaller than those of the other two bases (Fig. 5a), meaning that these two bases had a stronger interaction with this MXene nanopore. These small regions led to an increment in ion movement through the nanopore due to a decrement in the blockage effect. Hence, bases A and G showed large ion currents when they were transported through the Ti3C2(OH)2 nanopore. Notably, base C had a large distribution region, but its probability appeared at about β < 30°, which was smaller than that for base T. Thus, base C had a small probability of the base plane being approximately parallel to the MXene surface and the ability of base C to block anions was reduced (because the anions are mainly distributed in the region of high electric potential). These phenomena led to an increment in the ion current for base C. As a result, the ion currents of bases A, C and G were nearly the same and much larger than that of base T.
Meanwhile, for the Ti3C2O2 nanopore, base C had the largest orientation and position distribution region, while base G had the smallest one (Fig. 5b). The larger the distribution region, the greater the fluctuation, which further shows that the blockage effect is stronger. Hence, base C had the smallest ion current, and base G had the largest one. Moreover, as shown in Fig. 5c, the distribution region for base G translocating through the Ti3C2F2 nanopore was small, meaning that base G inside the nanopore had a small blockage effect. Thus, its ion current was the largest. Although base C showed almost the same distribution region as base A, there were nearly two bases of C inside the nanopore (see Table 1), which could also lead to a decrement in the ion current. Thus, base C had a smaller ion current.

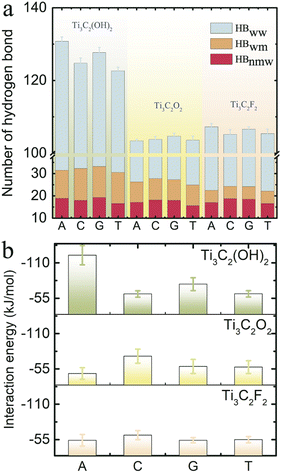

To analyze the mechanism for the different dwell times of ssDNA translocating through the MXene nanopore, we further calculated the number of hydrogen bonds in the hydrogen-bond “network” inside the MXene nanopore as ssDNA translocates through it and the interaction energy between the ssDNA and the MXene nanopore. These two parameters were used to describe the resistance of ssDNA translocation through the MXene nanopore (Fig. 6). The number of hydrogen bonds inside the nanopore mainly represents the hydration force around the ssDNA, where a greater number of hydrogen bonds corresponds to a stronger resistance for ssDNA to pass through the nanopore. The interaction energy describes the interaction between the ssDNA and the MXene nanopore, where a greater interaction energy indicates a stronger resistance. The hydrogen-bond network mainly consists of three parts: (1) the hydrogen bonding between the ssDNA and water molecules as well as the MXene nanopore (HBnmw), (2) the hydrogen bonding between the water molecules inside the nanopore (HBww), and (3) the hydrogen bonding between the water molecules and the MXene nanopore (HBwm). It is found that the number of hydrogen bonds as base A translocates through the Ti3C2(OH)2 nanopore had the largest value, which originates from the maximum hydrogen bonding between water molecules (HBww). It also indicates a decrease in the blockage effect. Meanwhile, base A had the largest interaction energy among these four bases. Hence, base A had the largest dwell time. For the pyrimidines (base C and T), the number of hydrogen bonds and interaction energy were both small compared with the case of the purines (base A and G), meaning that their resistances were small. Therefore, they had a small dwell time. Furthermore, the number of hydrogen bonds (HBnmw) for base C passing through the MXene nanopore was slightly larger than that for base T passing through it, mainly due to the fact that more C bases reside in the nanopore. Additionally, the values of HBnmw were large as the purines translocated through the MXene nanopore compared with those for the pyrimidines passing through the MXene nanopore.
Meanwhile, for the Ti3C2O2 nanopore, the number of hydrogen bonds as the four types of bases translocated through the nanopore showed a tiny difference. However, base C had the largest interaction energy with the MXene nanopore among these four bases, attributed to there being more C bases inside the nanopore. Therefore, the dwell time of base C was the longest. Moreover, the numbers of hydrogen bonds as the purines translocated through the Ti3C2F2 nanopore were larger than those for the pyrimidines, while there was little difference in the interaction energies between the purines and pyrimidines. This meant that the purines translocating through the Ti3C2F2 nanopore exhibited a stronger resistance, so the dwell times of the purines were larger than those of the pyrimidines. Base C had a small hydrogen bonding value between water molecules (HBww), which is attributed to there being more bases inside the nanopore; this is also the reason for the large hydrogen bonding value between the ssDNA and water molecules (HBnmw). Additionally, the number of hydrogen bonds (HBwm) between the water molecules and the nanopore was larger for Ti3C2(OH)2 than for the other two nanopores, mainly attributed to the fact that the terminal groups (–OH) are both donors and acceptors.
