Post-synthetic modification of bis-iron(III)-μ-oxo-porphyrin prisms to enhance oxygen reduction electrocatalysis

Abstract

Bis-iron(III)-μ-oxo porphyrins are known electrocatalysts for Oxygen Reduction Reaction (ORR) that favor four-electron four-proton chemistry. The facile formation of the μ-oxo motif makes forming cofacial structures straightforward unlike for other metalloporphyrins where the face-to-face geometry must be enforced by tethering groups. We have pioneered the use of coordination chemistry to obtain cofacial porphyrin ORR catalysts containing Co(II) ions. Here, we adapt our use of molecular clips for the post-synthetic modification of μ-oxo porphyrin dimers rather than as self-assembly building blocks. Although the cofacial geometry is inherent to the μ-oxo core, under ORR catalysis conditions, the dimer is rapidly cleaved, resulting in reactivity differences between traditional unclipped bis-iron(III)-μ-oxo porphyrins and our post-synthetically tethered architectures. We demonstrate our approach using two molecular clips that differ in length. The bis-iron(III)-μ-oxo precatalysts were characterized by ¹H NMR, ESI-MS, and molecular modeling to support the formation of cofacial prisms. Catalytic activity was studied electrochemically using cyclic voltammetry and hydrodynamic voltammetry. Whereas untethered bis-iron(III)-μ-oxo porphyrins are limited to heterogenous catalysis so that the dimeric structure is not lost upon the removal of the oxo bridge, our clipped architectures show significant catalytic current response under homogeneous conditions. Furthermore, when a shorter molecular clip is used as a post-synthetic tether, the selectivity under heterogeneous conditions is significantly enhanced: monomeric Fe(III) tetraphenylporphyrin (TPhP) generates 64.3% H₂O₂. When this same porphyrin is templated into a cofacial environment (Fe₂O TPhP) the selectivity improves to 15.8% H₂O₂. When a tetrapyridyl porphyrin analogue is post-synthetically tethered through a oxalate-bridged Rh₂ molecular clip, the selectivity improves further to 7.2% H₂O₂. In contrast, when a longer bis-hydroxybenzoquinato bridge is used in the clip, the selectivity drops back to 14.5% H₂O₂. Our most selective system also shows the highest current response and therefore our post-synthetic modification provides a kinetic enhancement as well. These results establish that straightforward coordination chemistry can be used for post-synthetic tuning of molecular ORR catalysts and when proper molecular clips are selected, marked enhancements to both selectivity and activity may be realized.

---

Introduction

Many metal enzymes feature Fe-containing sites as critical functional elements, such as the heme/Cu-His active site of cytochrome c oxidase;¹ the Ni–Fe sulfur cluster in carbon monoxide dehydrogenase;² the Fe–Mo cluster cofactor in nitrogenase³ and the heme active sites of cytochrome P450s that often act as monooxygenases.⁴ A common factor between all those enzymes is that they are highly active and selective for small molecule activations and furthermore, many invoke the involvement of two or more metals during catalysis. Biomimetic inspiration from these enzymes has long been the basis for the design of small molecule catalysts as structural and/or functional models.^5,6

Iron porphyrins have been well-studied for their ability to catalytically activate small molecules such as H₂,^7,8 O₂,^9–13 and CO₂.^14–19 Iron(III) porphyrins typically possess an axial anionic ligand or a μ-oxo bridging two metal sites, as shown in Fig. 1.^9,20–23 Fe porphyrins have been extensively studied for the Oxygen Reduction Reaction (ORR). Homogeneous ORR catalyzed by monomeric species has shown wildly different selectivities that vary by condition and research group. For example, Fe(II) 5,10,15,20-tetrakis(4-N-methylpyridyl)porphyrin has been reported to quantitatively form H₂O₂, though other studies report 100% H₂O. This inconsistent selectivity in aqueous conditions can be explained by a 2 + 2 mechanism, where a second catalytic cycle reduces the hydrogen peroxide further. Alternatively, an H₂O₂ dismutase mechanism may be active. In DMF, Mayer and coworkers have provided a detailed mechanistic analysis of ORR by Fe tetraphenyl porphyrin in which the first proton transfer is rate-limiting and selectivity for H₂O is high as a result.²⁴ In contrast, when a cofacial environment is present, molecular oxygen can undergo authentic four-electron four-proton chemistry and as such, existing bis-iron(III)-μ-oxo porphyrins are most commonly studied as heterogeneous catalysts in aqueous conditions. In solution, these dimers dissociate to monomeric species during turnover but in the solid-state, hindered molecular motion maintains the necessary cofacial clefts.

Fig. 1 Select examples of dinuclear iron porphyrins.

One strategy to maintain a cofacial cleft independent of a μ-oxo bridge or heterogeneous conditions is to formally tether the two porphyrins. This approach has been most extensively used to increase the selectivity and activity of Co-based ORR catalysts, for example Co FTF₄, which contains four amide-based covalent linkers.^25–27 We have used coordination-driven self-assembly for the synthesis and systematic tuning of multi-porphyrin architectures based on pioneering designs by Guo-Xin Jin,^28,29 Bruno Therrien,^30,31 and Jonathan Nitschke,^32,33 adapting them for ORR catalysis using Co(II) while controlling the length of the tethers,^34–36 nuclearity,³⁷ symmetry and stoichiometry,³⁸ and rigidity.³⁹

Studies of analogous diiron architectures are underdeveloped. Nocera and coworkers investigated O-atom transfer chemistry using so-called Pacman porphyrins where a reactive Fe(IV)-oxo could be exposed upon photolysis of the μ-oxo bridge,^{21,22,40–43} building upon Balch's work on untethered μ-oxo dimers that established this reactivity.^42,43 Naruta and coworkers explored CO₂ reduction electrocatalysis using a similar Pacman structure.²³ To the best of our knowledge, there are no reports of tethered cofacial iron porphyrins as ORR catalysts despite the high selectivity of untethered Fe(III) μ-oxo dimers under heterogeneous conditions. In 2017, Tanaka and coworkers reported a cofacial porphyrin/phthalocyanine architecture that was ∼98% selective for H₂O as an electrocatalyst for ORR.⁴⁴

Herein, we adapt our coordination-driven self-assembly approach as a method to post-synthetically modify bis-iron(III)-μ-oxo-porphyrin prisms. There is a growing interest in externally controlling catalysis via post-synthetic coordination that does not alter the primary environment of active metal sites. For example, binding cations to crown ethers can promote phase transfer,^45,46 can gate substrate access,⁴⁷ and can impart conformation control.⁴⁸ We now show how dinuclear molecular clips can be used for conformational control of tetrapyridylporphyrins to enforce cofacial geometries independent of μ-oxo bridges. We have fully characterized these novel architectures and established their ORR reactivity against monomeric and unclipped μ-oxo analogues under homogenous (acetonitrile) and heterogeneous (aqueous) conditions. The selectivities and kinetics of ORR were sensitive to the lengths of the molecular clips. Notably, when an oxalate-bridged molecular clip was used, four-electron four-proton chemistry was favored (92.8% H₂O). This work establishes that diiron porphyrin ORR catalysts may be tuned and enhanced using straightforward post-synthetic modifications via coordination chemistry, enforcing well-defined cofacial cavities both in solution and in the solid state that are highly active and selective.

Experimental

Materials

Chemicals were purchased from commercial sources and used as received unless otherwise noted. The porphyrins were prepared following a literature procedure.^21,24,49,50 Solvents were purified using a solvent-drying system (Pure Process Technology). ¹H NMR spectra were acquired on a Varian Inova 500 MHz spectrometer. Chemical shifts (δ) are reported in parts per million (ppm) and referenced against the residual proton resonances of the deuterated solvent. Mass spectra were recorded on an electrospray ionization (ESI) linear ion trap (LTQ)-Orbitrap XL mass spectrometer (Thermo Fisher Scientific) or by electrospray ionization using a home-built sprayer into a Bruker SolariX 12 T FT ion cyclotron resonance mass spectrometer (12 T FT-ICR) equipped with a dual source. No precautions were taken to exclude air (O₂ or water) from self-assembly reactions. UV-vis spectroelectrochemistry experiments were measured using a Pine Research WaveDriver 40 and an Avantes AvaSpec UV-vis spectrophotometer. A Pine honeycomb UV-vis spectrochemical cell consisting of a built-in platinum honeycomb working electrode and a platinum counter electrode was used. Homogeneous CV experiments were carried out in dry acetonitrile solution with 100 mM TBAPF₆ as the supporting electrolyte. During the electrochemistry measurements, Ag/AgNO₃ was used as a pseudo-reference electrode. At the end of measurements, a spatula tip of ferrocene was added to the solution to convert the potentials to the ferrocene/ferrocenium couple (FcH/FcH⁺). Heterogeneous electrochemistry experiments were carried out in DI water on catalyst inks with 0.5 M H₂SO₄ as the electrolyte and proton source. Ag/AgCl was used as a reference electrode. Catalyst ink film preparation: in a 2-dram vial, 1.0 μmol of dimer (Fe₂O Rhoxo, Fe₂O Rh-benzo, (FeTPhP)₂O) or 2.0 μmol of monomer (FeTPhPCl), 5.0 mg of carbon black, 100 μL of ethanol, and 500 μL methanol were sonicated for 1 hour. The solvent was then evaporated in vacuo, followed by the addition of a 70 μL Nafion solution (5% w/w in isopropanol) and 600 μL of ethanol. The resulting suspension was sonicated for 1 hour. The Nafion catalyst ink was then pipetted onto the working electrode. When CV were acquired using a 3 mm working electrode, 2 μL was drop-cast onto the surface and allowed to stand in air until dry. In the case of the larger glassy carbon disk for the ring-disk electrode, 3 μL were used to completely cover the surface. UV-vis spectroelectrochemistry experiments were carried out in dry DMF solution with 100 mM TBABF₄ as electrolyte. Ag/AgNO₃ was used as a reference electrode.^51,52

Synthetic procedures

Iron(III) tetraphenylporphyrin chloride. The molecule was prepared by following literature procedure with slight modification.^21,24 A solution of tetraphenylporphyrin (200 mg, 0.33 mmol) in DMF (50 mL) was stirred in a round bottom flask and brought to reflux. FeCl₂·4H₂O (320 mg, 1.6 mmol, 5 equivalents) was then added to the reaction flask as a solid. The reflux was continued overnight. The crude mixture was then cooled, and the solvent was removed under reduced pressure, resulting in a dark solid. The dark solid was suspended in chloroform (∼50 mL), washed with brine (3 × 50 mL), and dried over Na₂SO₄. The solution was filtered and concentrated under reduced pressure to ∼10 mL. Excess hexane (∼20 mL) was added to precipitate a solid that was collected by centrifugation and washed with hexane to yield the product as a dark brown solid (yield: 177 mg, 76.3%). In ¹H NMR spectra, the appearance of the paramagnetically shifted pyrrolic CH peak at ∼82 ppm and disappearance of the pyrrolic NH peak at ∼−2.9 ppm indicate the successful metalation of the free base porphyrin.

Iron(III) tetrapyridylporphyrin chloride. The compound was obtained using the same procedure as iron(III) tetraphenylporphyrin chloride. The product was obtained as a dark brown solid (yield: 126 mg, 53.9%).

Bis-iron(III) tetraphenylporphyrin μ-oxo. A literature procedure was adapted for the synthesis of this molecule.^21,24 A solution of iron(III) tetraphenylporphyrin chloride (50 mg, 0.71 mmol) in DCM (10 mL) was added to an aqueous NaOH solution (10 mL, 1.0 M) in a 20 mL vial. The solution was stirred overnight at room temperature. Afterwards, the organic layer was diluted to 50 mL with DCM, washed with water (3 × 50 mL), and then dried over Na₂SO₄. The solution was filtered and concentrated under reduced pressure to ∼5 mL. Excess hexane (∼15 mL) was added to precipitate a solid. The solid was collected by centrifugation and washed with hexane to yield the product (43.8 mg, 91.3%) as a dark green solid. In ¹H NMR spectra, the appearance of the pyrrolic peak at ∼13.5 ppm and disappearance of the paramagnetically shifted pyrrolic peak at 82.5 ppm indicate the successful formation of the antiferromagnetically coupled Fe₂O species.

Bis-iron(III) tetrapyridylporphyrin μ-oxo ((FeTPyP)₂O). The compound was obtained by using the same procedure as iron(III) tetraphenylporphyrin chloride. The product formed as a dark green solid (42.9 mg, 89.7%).

Fe₂O Rhoxo. Rhoxo clip (20 mg, 0.0319 mmol. 4 equiv.) was combined with AgOTf (17.7 mg, 0.69 mmol. 8.8 equivalents) in 10 mL of methanol with the exclusion of light. This solution was stirred for 3 h, prompting the formation of AgCl which was removed via filtration through a pipet plugged with glass fiber. The filtrate was added directly to a suspension of the Fe₂O TPyP (10.7 mg, 0.0079 mmol, 1 equivalent) in 5 mL of methanol. This final mixture was refluxed for 48 h after which it was cooled and filtered once more through a pipet plugged with glass fiber to remove any insoluble byproducts. The remaining solvent was removed by rotary evaporation. The crude product was recrystallized by dissolution in methanol followed by the addition of diethyl ether. The solid was collected by centrifugation to yield the product (30.2 mg, 78.9%) as a dark green solid.

Fe₂O Rh-benzo. Rh-benzo clip (5 mg, 0.0073 mmol. 4 equiv.) was combined with AgOTf (4.1 mg, 0.016 mmol. 8.8 equivalents) in 5 mL of methanol with the exclusion of light. This solution was stirred for 3 h, prompting the formation of AgCl which was removed via filtration through a pipet plugged with glass fiber. The filtrate was added directly to a suspension of Fe₂O TPyP (2.50 mg, 0.0018 mmol, 1 equivalent) in 2 mL of methanol. This final mixture was refluxed for 48 h upon which it was cooled and filtered once more through a pipet plugged with glass fiber to remove any insoluble byproducts. The remaining solvent was removed by rotary evaporation. The crude product was recrystallized by dissolution in methanol followed by the addition of diethyl ether. The solid was collected by centrifuge to yield the product (7.6 mg, 82.7%) as a brownish green solid.

Results and discussion

Synthesis and characterization

The iron(III) tetrapyridyl porphyrin (FeTPyPCl) was synthesized by refluxing FeCl₂ with tetrapyridyl porphyrin in DMF; the dimerization occurred within a biphasic mixture of FeTPyPCl in DCM and 1 M NaOH in H₂O that was stirred at room temperature to form (FeTPyP)₂O. A post-assembly modification of the dimer core with rhodium-based molecular clips prepared by following a literature procedure⁵³ (Rhoxo clip or Rh-benzo clip) produced clipped Fe₂O prisms (Scheme 1). No precautions were taken to exclude air (O₂ or water) from the post-assembly reactions.

Scheme 1

NMR analysis

Monomeric Fe(III) porphyrins are paramagnetic and their ¹H NMR spectra often have broad features and significant downfield shifts relative to diamagnetic species. Metallated tetrapyridyl porphyrins have three types of proton resonances arising from the pyrrolic protons, and the α- and β-pyridyl protons. The pyrrolic signal for FeTPyPCl is found at 83 ppm, as shown in Fig. S3 and S4.† Once a dimer is formed with a μ-oxo bridge, the chemical shifts are more straightforward as the paramagnetic effects are lessened due to coupling between the two Fe(III) centers. For Fe₂O Rhoxo, the pyrrolic peaks shift back to ∼14 ppm and appear as a broad singlet (Fig. 2). The resonances corresponding to protons on the Cp* occur at ∼2 ppm. The resonances of the pyridyl protons occur between 7.5 and 9.5 ppm. The resonances associated with pyrrolic protons occur around ∼14.5 ppm and are broadened due to proximity to the iron(III) center. The more distant α-protons of the pyridyl moiety occur between 8.5 and 9.5 ppm and are significantly sharper than that of the β-protons at 7.5–8.5 ppm (Fig. 2). The integrations of these peaks match the expectation of 120 protons for the Cp* groups, 32 total pyridyl protons, and 16 pyrrolic protons (Fig. 2) for our proposed structures containing two porphyrins and four molecular clips.

Fig. 2 ¹H NMR (CD₃OD, 500 MHz) of Fe₂O Rhoxo Prism (top) and Fe₂O Rh-benzo Prism (bottom). Pyridyl protons are shown in purple and blue in the insets. Pyrrolic protons are shown in green in the insets. Cp* protons are shown in orange in the full spectra.

Although many of the features of Fe₂O Rh-benzo are like its shorter-clipped counterpart, there are a few important distinctions. In this prism, the three types of protons on the porphyrin all split into six resolvable peaks. There are two pyrrolic proton environments, two α-proton environments, and two β-proton environments, in contrast to monomeric metalated tetrapyridyl porphyrin where these features would collapse to three total signals. This splitting to six peaks is consistent with our previous studies of a diamagnetic Zn Rhoxo prism,³⁸ and is rationalized by a twisting of the porphyrin faces that breaks the D_4h symmetry. This twisting occurs across all our family of clipped cofacial porphyrin prisms,^35,36,38 however in the case of these Fe prisms, the porphyrin–porphyrin separation is strongly enforced because of the μ-oxo bridge.

Crystal structures of unclipped Fe₂O dimers show metal–metal separations of ∼3.5 Å.⁵⁴ Since this distance is shorter than the metal–metal separation in the molecular clips, the porphyrins must twist so that the pyridyl groups properly match the Rh–Rh separation. For Fe₂O Rhoxo the twist is small and the pyrrolic proton environment is similar, resulting in a single broad feature that corresponds to both protons; however, for Fe₂O Rh-benzo this twist is significant and results in one of the pyrrolic protons being oriented towards the clipped cleft where it can be shielded by the π-cloud of the bridging 2,5-dihydroxy-1,4-benzoquinato group, while the other is directed to a clip-free cleft (see H and H′ Fig. 3). Because the environments are so different, the two unique peaks are easily resolved, with one shifting upfield due to the shielding.

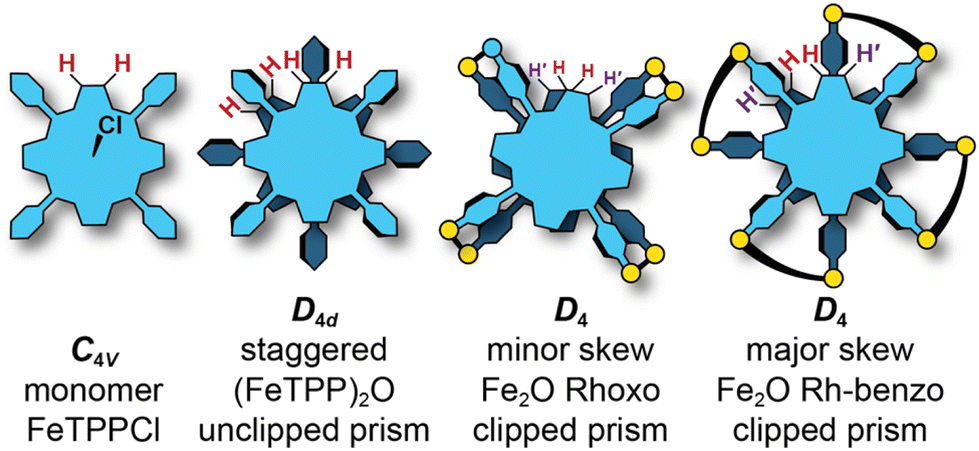

Fig. 3 Examples of different symmetries for porphyrin architectures depending on the extent of twisting. (a) Monomeric FeTPhPCl. (b) Unclipped Fe₂O porphyrin dimer. (c) Fe₂O Rhoxo. (d) Fe₂O Rh-benzo.

The structures of both clipped prisms were optimized using ORCA 5.0.3 at the r²SCAN-3c level of theory with the def2-mTZVPP basis set and are consistent with the conclusions drawn from the NMR data that the twisting of the porphyrin faces in Fe₂O Rh-benzo is greater than that of Fe₂O Rhoxo (Fig. 4).^55,56

Fig. 4 Optimized structures of Fe₂O Rh-benzo and Fe₂O Rhoxo.

Mass spectrometry

High-resolution mass spectrometry (HR-MS) was used to verify the stoichiometry and elemental composition of the self-assembled cofacial structures. As shown in Fig. 5, the top red of the Fe₂O Rhoxo contains a 3+ peak at 1453.7 and a 4+ peak at 1053.1, arising from fully intact cores (iron porphyrin dimer clipped by four Rhoxo clips) that were ionized by the loss of three or four outer sphere triflate counterions, respectively. A few other peaks can be assigned that result from further fragmentation. For instance, a 3+ peak at 1166.419 is consistent with the loss of a single Rhoxo clip as well as three triflates. The bottom green trace in Fig. 5 is the HR-MS of Fe₂O Rh-benzo, with a 3+ peak at 1521.1 and a 4+ peak at 1103.6 due to fully intact cores (two porphyrins, four molecular clips) that have lost three and four triflate counterions, respectively. The dominant peaks for both prisms consistent with two porphyrins and four molecular clips, along with the high symmetry NMR that show distinct pyrrolic environments strongly support our structural assignment of bis-iron(III)-μ-oxo porphyrins where the molecular clips span both macrocycles. It is possible for clipped porphyrins to form bow-tie structures where the bridge spans two pyridyl groups of the same macrocycle.⁵⁷ In our prisms, the molecular clips are too rigid and short to accommodate the severe distortions that would be required for bowtie structures (see Fig. S29† for a simple molecular model showing). Examples where these clips can bridge two pyridyl sites on the same molecule have N–N separations of ∼6.7 Å.⁵⁸ In TPyP, the separation is 10.9 Å.

Fig. 5 High resolution mass spectra of Fe₂O Rhoxo (top) and Fe₂O Rh-benzo (bottom). “Prism” accounts for the mass of two porphyrins and four molecular clips. The number of counterions remaining are listed for each peak. Bolded labels correspond to peaks for intact prisms while non-bolded labels refer to fragments peaks that have lost molecular clips in addition to counterions.

Paramagnetic DOSY NMR were acquired (Fig. S5 and S6†) to further support the formation of singular species. Although some broadened peaks could not be resolved, all signals for Fe₂O Rhoxo and Fe₂O Rh-benzo appear with the same diffusion coefficients that also line up well with the signal from the Cp*, supporting that the porphyrin and clip are found in a single molecular species. The diffusion coefficients associated with these prisms is similar to what was observed for our diamagnetic Zn Rhoxo prism,³⁸ as expected for structurally related cofacial porphyrins.

Electrochemical analysis

ORR catalyzed by metallated porphyrins or related complexes often proceed by one of two pathways: a four-proton/four-electron route to generate H₂O, or a two-proton/two-electron path to form H₂O₂. To investigate the catalytic activities of these iron complexes, we conducted homogenous cyclic voltammetry experiments under four different conditions as summarized by different color traces in Fig. 6: blue (N₂, catalyst), red (O₂, catalyst), purple (N₂, trifluoroacetic acid (TFA), catalyst), and green (O₂, TFA, catalyst). Under N₂ atmosphere, there was no catalytic response. Under O₂, a reversible superoxide formation at the glassy carbon working electrode was observed with an E_1/2 value of −1.2 V versus FcH⁺/FcH. With N₂ and TFA present as proton source, a catalytic wave was seen with an onset of −1 V vs. FcH⁺/FcH that we ascribe to the hydrogen evolution reaction (HER). Finally, under O₂ atmosphere with TFA present, an appreciable current response was observed with an onset far more positive than that for HER, which we attributed to the oxygen reduction reaction, consistent with other cofacial porphyrins we have studied.^35,36

Fig. 6 CVs of Fe catalysts under homogeneous conditions. Blue: 0.2 mM monomeric porphyrin, or 0.1 mM of iron dimer (0.2 mM iron sites) under N₂ atmosphere. Red: 0.2 mM iron sites, O₂ atmosphere. Purple: 0.2 mM iron sites, N₂ atmosphere, 100 mM TFA. Green: 0.2 mM iron sites, O₂ atmosphere, 100 mM TFA. In all cases, dry acetonitrile with 100 mM TBAPF₆ was used. Scan rate: 100 mV s⁻¹, scan direction: reduction first. Ag/AgNO₃ pseudo reference electrode, data later referenced to FcH⁺/FcH upon addition of ferrocene.

By comparing the current responses of monomer, unclipped dimer, and clipped dimers, we can gain some insight about the influence that post-assembly modification can have on the ORR chemistry of bis-iron(III)-μ-oxo porphyrins. The (FeTPhP)₂O, Fe₂O Rhoxo and Fe₂O Rh-benzo all have onset potentials that are more positive than that of monomeric FeTPhPCl; the onset potentials of all three bis-iron(III)-μ-oxo porphyrins (unclipped and two clipped dimers) are similar, suggesting that the monomer proceeds through a different mechanism than the dimers. Compared to our previously reported Co-based cofacial porphyrins, these prisms have a ∼200 mV higher overpotential for ORR under identical conditions, as shown in Fig. S19.† Other metrics for ORR catalysis by the Fe systems studied here and the analogous Co₂ Rhoxo are summarized in Table 1.

Table 1 Parameters of iron(III) catalysts inks determined by electrochemical analyses

Catalyst	E onset	N app	%H2O2^a	%H2O
a Determined based on the following equation: . b Determined based on the following equation: .
FeTPhPCl	0.25 V	2.7	64.3%	35.7
(FeTPhP)2O	0.31 V	3.7	15.8%	84.2%
Fe2O Rhoxo	0.32 V	3.9	7.2%	92.8%
Fe2O Rh-benzo	0.32 V	3.7	14.5%	85.5%
Co2 Rhoxo	0.40 V	3.7	14.5%	85.5%

---

To further interrogate ORR reactivity, faradaic efficiencies, numbers of electrons transferred, and kinetic rate constants were determined under heterogeneous conditions wherein the catalysts were immobilized along with carbon black and Nafion. The catalyst inks were cast on the surface of glassy carbon electrodes (GC), either for three-electrode measurements or hydrodynamic voltammetry using a ring disk electrode (RDE, GC disk, platinum ring). A detailed procedure is described in the ESI.† Cyclic voltammograms in 0.5 M H₂SO₄ were collected under both N₂ and O₂ atmospheres. Under the potential window of interest, no background HER was observed and all current response was attributed to ORR (Fig. S11–S14†).

Linear sweep voltammetry (LSV) was carried out with catalyst inks immobilized on the disk of an RRDE (Fig. 7). For FeTPhPCl, (FeTPhP)₂O, and Fe₂O Rh-benzo, over the potential window of interest, catalysis was kinetically limited, and no plateaus were observed to signal mass-transfer limitations. In contrast, over the same potential window Fe₂O Rhoxo began to exhibit a plateau in current, consistent with a depletion of O₂ at the electrode, serving as a qualitative indicator that this catalyst promotes faster ORR than the other species. By comparing disk and ring current responses, where H₂O₂ generated at the disk was oxidized at the ring, we extracted selectivity information. The monomeric FeTPhPCl was the least selective system for H₂O, favoring H₂O₂. All three bis-iron(III)-μ-oxo structures were significantly more selective. However, the impact of post-assembly modification with a properly selected clip is significant. For the unclipped (FeTPhP)₂O, the selectivity improved to 15.8% H₂O₂. Clipping with the larger benzo-spaced bridge showed only a modest improvement to 14.5%, which matched the selectivity of our previously studied Co₂ Rhoxo. When the shorter clip was used for post-assembly modification, the selectivity was greatly enhanced, with only 7.2% H₂O₂ generated.

Fig. 7 RRDE voltammograms at scan rates of 20 mV s⁻¹. In all cases, the catalysts were immobilized in Nafion inks with carbon black and immersed in 0.5 M H₂SO₄. The ring potential was held at 1 V. Scan direction: reducing. (a) FeTPhPCl, (b) (FeTPhP)₂O, (c) Fe₂O Rhoxo, (d) Fe₂O Rh-benzo.

A Koutecký–Levich (KL) analysis was carried out for the Fe₂O Rhoxo (Fig. S20–S25†). Since a plateau region is needed for this analysis, kinetic parameters were not extracted for FeTPhPCl, (FeTPhP)₂O, and Fe₂O Rh-benzo as scanning more negative would introduce current response from HER. The standard rate constant measured for Fe₂O Rhoxo was 2.3 × 10² M⁻¹ s⁻¹, which is on the same order as that measured for Co₂ Rhoxo (2.6 × 10² M⁻¹ s⁻¹).³⁸

UV-vis spectroelectrochemistry

To probe the mechanism of catalysis by Fe₂O Rhoxo, spectroelectrochemical experiments were performed. Fig. 8 shows the UV-vis spectra recorded at different applied potentials to a honeycomb electrode placed in a solution of the cofacial porphyrin in DMF with 100 mM TBABF₄. The inset of Fig. 8 shows the spectral response when the Fe₂O Rhoxo is placed in the acidic DMF solution without any applied potential. The well-defined Soret band splits into two peaks, which is consistent with the reactivity of Fe₂O cores with acid wherein the oxo is protonated to yield an Fe(III)–OH and a solvated second Fe(III) center; thus, two distinct porphyrin absorptions are observed.⁹ Upon reduction, the two Soret bands at 416 nm and 398 nm collapse back to a single peak at 426 nm while maintaining an isosbestic point, indicative of a clean transformation of the Fe(III)–OH and Fe(III)-solvated porphyrins to identical Fe(II) centers.

Fig. 8 Spectroelectrochemical measurements of 0.016 mM of Fe₂O Rhoxo, 100 mM TBABF₄, 100 mM TFA, DMF. Initial potential: −100 mV vs. Ag/Ag⁺, final potential: −0.500 V vs. Ag/AgNO₃. Step amplitude: 0.050 V, step period: 30 seconds. Inset: Absorbance spectra of Fe₂O Rhoxo in DMF (green dashed) and with 100 mM TFA (black solid).

Proposed mechanism

Prior descriptions of the mechanism of Fe₂O dimers as ORR catalysts conclude that the oxo-bridge templates a cofacial cleft that is maintained under heterogeneous conditions where the porphyrin sites are largely immobile. In other words, even though the oxo bridge is lost upon acidification and there is no intramolecular bridge between the two porphyrin sites, the porphyrin–porphyrin separation is already fixed. Fe₂O dimers are overwhelmingly studied in the solid state because the loss of the oxo bridge under homogenous conditions means that under the conditions of catalysis (i.e. acid present) only monomers will persist.

When the cofacial arrangement is maintained either by immobilization or, in our case, by post-assembly clipping the two porphyrins, a subsequent reduction will provide a bis-iron(II) cavity poised for ORR. This Fe(II)₂ state represents an entry into the catalytic cycle shown in Scheme 2, which favors four proton/four electron chemistry. The Fe(II)₂ binds O₂ to give a μ-peroxo Fe(III)₂ species and both iron centers can be converted to Fe(III)–OH upon the addition of two more protons and electrons. A second two-proton two-electron step releases water and restores the Fe(II)₂ active species. In contrast, mononuclear iron porphyrins favor two proton/two electron chemistry because O₂ binds to furnish an Fe(III)-superoxo with no second metal to assist in breaking the O–O bond.

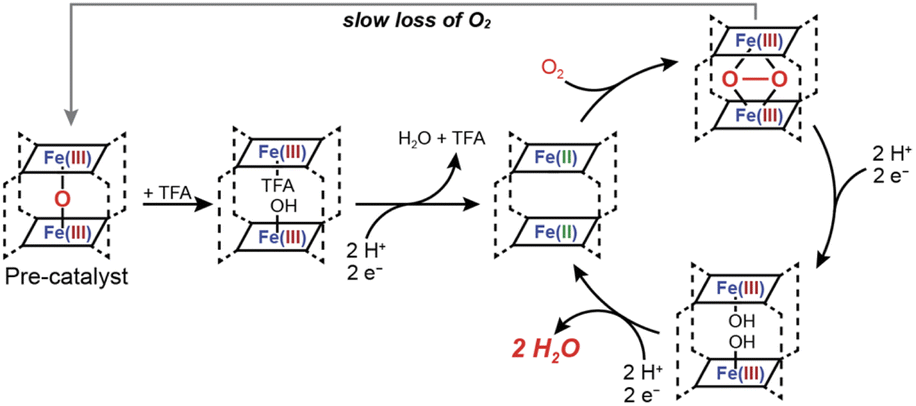

Scheme 2 Proposed mechanism of Oxygen Reduction Reaction catalyzed by Fe₂O prism.

This mechanism is operative in the solid state for (FeTPhP)₂O, Fe₂O Rhoxo, and Fe₂O Rh-benzo, yet all three systems do not display the same kinetics and selectivity. From our NMR data and computational results, the Fe₂O Rh-benzo exhibits a more significant twist that will impact orbital overlap associated with interactions with substrate and metal–metal electronic communication. Furthermore, once the μ-oxo is removed under acidic conditions, the dynamics of the two clipped prisms will differ. As with our Co₂ prisms, when shorter molecular clips are used, selectivities and kinetics are enhanced.³⁸ In addition, since both Fe₂O Rhoxo, and Fe₂O Rh-benzo preserve a cofacial arrangement in solution under acidic conditions despite the loss of the μ-oxo, our prisms are a rare example of dimeric ORR electrocatalysts that operate in homogenous conditions, which results in markedly different current responses. The selective and highly active Fe₂O Rhoxo operates in the “K region” of homogenous electrocatalysis wherein substrate is depleted.⁵¹ The current response for Fe₂O Rhoxo does show evidence for some substrate depletion but more closely resembles the KS region prior to the onset of the plateau. The current response for (FeTPhP)₂O is actually due to monomeric FeTPhP that is generated by the acidic conditions and thus its curve is significantly different.

Conclusions

We have repurposed dinuclear molecular clips that have previously been used to drive coordination-driven self-assembly reactions to instead enable the post-assembly modification of cofacial porphyrins. Although bis-iron(III)-μ-oxo porphyrins already adopt a cofacial geometry, the use of molecular clips can have a significant impact on the reactivity of such species. Under acidic conditions, the μ-oxo bridge is rapidly severed and unclipped architectures quickly transform into two monomeric porphyrins. Our post-assembly modification preserves the cofacial arrangement under such conditions. A dinuclear cavity can be maintained via solid-state immobilization, yet even here the selectivity and activity of such species as electrocatalysts for ORR is still impacted by the introduction of molecular clips. We demonstrate that these effects are dependent on the length of the molecular clips. Our catalyst containing the shortest bridge, Fe₂O Rhoxo, cuts down the production of H₂O₂ by half relative to the longer Fe₂O Rh-benzo and unclipped (FeTPhP)₂O (7.2% versus ∼15%). Thus, the design principles used for coordination self-assembly, where metal–ligand bond formation is the basis for the construction of complex polynuclear architectures, can readily be applied to tuning catalytic centers to enhance stability and reactivity.

Data availability

The data supporting this article have been included as part of the ESI.†

Author contributions

DZ spearheaded experimental work including synthesis, characterization, and reactivity studies and wrote the paper. LER conducted spectroelectrochemistry measurements. MRC carried out the calculations. TRC designed the research and wrote the paper. The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors thank Dr Alan Friedman for helpful discussions in collecting ESI-MS data. This work was supported by NSF CAREER Award #1847950 (TRC). Characterization work was performed in part in the Chemistry Instrument Center (CIC), University at Buffalo, SUNY, Buffalo, NY. This work used the 12T Bruker SolariXR 12 Hybrid FTMS with Imaging MALDI and Nano-LC supported by NSF S10RR029517.
