Understanding the structure and arrangement of organic inorganic hybrid metal halides and their contribution to physical properties remains a challenging topic. In particular, materials involving d8 metal halides incorporating organo-halogen components are still largely unexplored. In this study, we have used precise reagents to design and synthesize a low dimensional semiconductor material, [(CH3)3N(CH2)3Br]2PdBr4. Crystals were prepared through slow evaporation. Through the reactions of (3-bromopropyl)trimethylammonium bromide with PdBr2 in an aqueous HBr solution, we successfully obtained a 0D organic–inorganic hybrid material, [(CH3)3N(CH2)3Br]2PdBr4. This compound exhibits two reversible phase transitions, at 363 K and 393 K, assigned to an order/disorder change and a rare congruent melting. These transitions are confirmed through DSC analysis, temperature dependent Raman studies and electrical measurements. The crystals remained stable up to 520 K. Furthermore, we measured the UV-visible absorption spectrum of the polycrystalline sample to estimate the band gap, which was found to be approximately 2 eV. The halogen atom in the organic spacer has a considerable impact on the structure, high-temperature phase transition, and semiconducting characteristics, as revealed in this work.
Aliphatic or aromatic alkylammonium cations, serving as templating agents, are either intercalated between layered metal-halide structures or positioned within cavities surrounded by polyhedral anionic groups, allowing for significant freedom of motion.6,7 Their incorporation into inorganic frameworks can result in substantial polarizability and remarkable structural flexibility, leading to the creation of novel materials with enhanced properties and applications.8–10
However, despite the chemical and structural diversity of hybrid halide compounds, covering the underlying mechanism that governs the high Tc (critical temperature) remains a challenge. As a result, the majority of halogenometallate hybrids used in the crucial systems. Consequently, there is a long way to go in improving the constructive approach to enhance Tc.1 Fortunately, the ability to manipulate fundamental material properties by modulating the molecular structure offers a robust platform for the design of high-temperature phase transition.
For instance, [(CH3)2NH2]PbX3 (X = Cl−, Br−, I−) belong to the ABX3 perovskite family, and exhibit a first-order phase transition. The phase transition of the chloride compound occurs at 320 K, while that of the bromide and iodide compounds occurs at 250 K. These phase transitions are associated with the movement of the organic cations.11,12 Within the crystals, [(CH3)2NH2]+ cations and [PbX6]4− anion chains are linked through hydrogen bond interactions. Both components have the potential to reorient with temperature. These three hybrid compounds are semiconductors with band gap values of 3.5 eV (X: Cl−), 3.0 eV (X: Br−) and 2.59 eV (X: I−).
Meanwhile, the hybrid compound [(C6H14)NH2]2CuBr4, influenced by order–disorder phenomena in [CuBr4]2− anions and n-butyl–ethyl ammonium cations [(C6H14)NH2]+, demonstrates a dielectric anomaly around 194 K. However, the low temperature phase transitions have somewhat limited its applications, which are expected at higher temperatures.13 The approach of halogen substitution, particularly by incorporating fluorine atoms into organic molecules, has been shown to enhance optoelectronic and ferroelectric performances in hybrid halide materials.14–16 By employing the concept of H/F substitution within hybrid halide compounds, scientist can precisely engineer their target materials by modulating the structure and designing high-Tc (Curie temperature) molecular ferroelectrics.17–20 For instance, the notion of introducing electronegative species into organic cations has proven inspiring in the context of compounds like (R)- and (S)-3-(fluoropyrrolidinium)MnCl3.21 The substitution in the (pyrrolidinium)MnCl322 compound induces structural changes that preserve ferroelectric polarization. As anticipated, this H/F substitution results in a successful increase in the Curie temperature Tc of up to 333 K in both compounds representing a remarkable enhancement of 38 K.
Furthermore, the introduction of a single fluorine atom at different positions on the benzene ring structure induces subtle modification in crystal structures and offers significant opportunities for tuning the electrical and optical properties of [2, 3 or 4-fluorobenzylammonium]2PbCl4 hybrid halides.23 For example, the compound [2-fluorobenzylammonium]2PbCl423 clearly demonstrates the impact of positional isomerism on crystal symmetries, ferroelectric performance, and semiconductor characteristics (with an energy gap Eg of 3.62 eV). Notably, this compound exhibits a high phase transition temperature of 448 K. Moreover, the incorporation of NH3+cations such as [X-(CH2)2–NH3]+ (X = Br, Cl, I) into halides MX4 (M = Pb, Cu; X = Cl, Br, I) introduces structural flexibility, making it possible to explore their properties in optoelectronic devices.24–26 These structural features involve a significantly reduced band gap as in hybrid halides: [Cl/Br–(CH2)2–NH3]PbI4 (Eg = 2.2 eV),24 [I–(CH2)2–NH3]PbI4 (Eg = 2.45 eV),24 [C–(CH2)2–NH3]CuCl4 (Eg = 2.17 eV)25 and [Cl–(CH2)2–NH3]CuBr4 (Eg = 2.04 eV).26 These results underscore the impact of hydrogen and halogen bonding at the organic–inorganic interface, which influences the distortions of the MX4 inorganic layers of the structures,27 ultimately resulting in a reduced band gap.24 Similarly, halogen substitutions, such as chlorine or bromine substitution within organic species, affect the thermochromism in layered hybrid halides like [Cl–(CH2)2–NH3]CuCl4 and [Br–(CH2)2–NH3]CuCl4.28 Monitoring the thermochromism through absorption spectroscopy of thin films heated from 323 K to 393 K for these compounds reveals a gradual shift toward the red spectrum, indicating a reduction in the band gap energy.29
More recently, the halogen substitution strategy has been extended to modifying the [(CH3)4N]+ cation by replacing one methyl group, leading to the creation of high-Tc ferroelectric materials such as [(CH3)3NCH2Cl]MCl3 (M = Mn and Cd)30 and [((CH3)3NCH2Cl)FeBr4].31 The remarkable ferroelectric properties of these materials stem from the order–disorder of the (CH3)3NCH2Cl organic cation. These outcomes further demonstrate the potency of organo-halogen cations in conjunction with metal halide anions as powerful tools for tailoring crystal symmetries and influencing physical properties.32
Currently, a novel family of hybrid ferroelectric compounds has emerged through the selective bromination of the alkylammonium salts into hybrid metal–halide materials.33–35 A spherical tetramethylammonium cation has been subject to modification by substituting one of its hydrogen atoms with a CH2Br group. This innovation has led to the creation of innovative hybrid halide compounds, namely [Br(CH2)2N(CH3)3]2CuBr434 and [Br(CH2)2N(CH3)3]2CdBr4,35 in which the (2-bromoethyl)trimethylammonium cation occupies the space enclosed by the [CuBr4]2− or [CdBr4]2− anions. Both compounds undergo high Tc reversible phase transitions around 342 K and 390 K and exhibit properties such as ferroelectricity behavior, and switchable dielectric and semiconducting characteristics.
More recently, the bromination strategy has been effectively applied to synthesize new hybrid halide semiconductors, including compounds such as [Br(CH2)2N(CH3)3]2CoBr436 and [Br(CH2)2N(CH3)3]2MIIBr4 (MII = Cu2+, Zn2+).37 It is noteworthy that the brominated [Br(CH2)3N(CH3)3]2Pd2Cl6 has excellent thermal stability, a high Tc phase transition up to 428 K and a narrow optical band gap of approximately 2.2 eV.38 In the present manuscript, we present and investigate another new hybrid metal halide compound [Br(CH2)3N(CH3)3]2PdBr4 characterized by a remarkable reversible phase transition temperature of 363 K. Herein, we detail the crystal structure, phase transition behavior, Raman spectroscopy results, electric performance and optical properties of this compound.
Empirical formula | C12H30N2PdBr6 |
Formula weight (g mol−1) | 788.18 |
Temperature (K) | 150 |
Crystal system | Orthorhombic |
Space group | Pbca |
a (Å) | 9.0670 (12) |
b (Å) | 14.456 (2) |
c (Å) | 17.232 (2) |
α = β = γ (°) | 90 |
V (Å3) | 2258.6 (5) |
Z | 4 |
λ (MoKα) (Å) | 0.71073 |
ρ cal (g cm−3) | 2.318 |
Absorption correction | Multi-scan |
Transmission factors | T min = 0.055, Tmax = 0.102 |
μ (mm−1) | 11.43 |
Crystal size (mm3) | 0.32 × 0.25 × 0.20 |
Crystal color/shape | Brown/prism |
hkl range | −11≤ h ≤10; −18 ≤ k ≤ 18; −20 ≤ l ≤ 22 |
θ range for data collection (°) | 2.818 to 27.499 |
Refinement method | Full-matrix least-squares on F2 |
No. of collected reflections | 14501 |
No. of independent reflections | 2595 |
Observed reflections/restrains/parameters/refined parameters | 2097/0/100 |
R int | 0.061 |
F(000) | 1488 |
GOF on F2 | 1.06 |
R indices | R1 = 0.029, wR2 = 0.057 |
Min/Max (ρ/e Å−3) | 0.64/−1.45 |
CCDC no. | 2116091 |
For DSC measurement, a PerkinElmer instrument was employed to heat and cool the sample in an air atmosphere at atmospheric pressure. The heating rate was set to 5 K min−1 with a temperature range of 293–450 K.
Fig. 1 The asymmetric unit of [(CH3)3N(CH2)3Br]2PdBr4. Hydrogen bonds are shown using red dotted lines. Symmetry codes: (i) −x + 2, −y, −z. |
In the [PdBr4]2− anion, Pd2+ ions adopt a square planar coordination geometry, formed by four bromide ions, with Pd–Br lengths ranging from 2.4358 (4) to 2.4415 (4) Å. The Br–Pd–Br angles vary within the range of 89.805 (15)–90.195 (15)°for the cis configuration and are exactly 180° for the trans configuration (Table S1, ESI†). These values are consistent with those observed in related Pd(II) complexes.47,48 The coordination geometry near the Pd(II) center can be determined by calculating the parameter τ4 [τ4 = 360° − (α + β)/141°], where α and β are the two largest angles in the four-coordinate metal ion species, from 360°, then dividing by 141°.49 For a perfect square-planar geometry, τ = 0, whereas for an ideal tetrahedral geometry, τ = 1 in the title compound. τ4 is zero, indicating a coordination geometry in an ideal square-planar orientation. The packing of the compound reveals an alternating arrangement of two organic cations [Br(CH2)3N(CH3)3]+ and one [PdBr4]2− anions (Fig. S2, ESI†). These entities are alternated forming infinite zigzag chains that run parallel to the c-axis (Fig. 2).
Fig. 2 The packing structure of [(CH3)3N(CH2)3Br]2PdBr4 viewed along the a-axis. Hydrogen bonds are depicted as red dashed lines. |
Likewise, [Br(CH2)3N(CH3)3]+ and [PdBr4]2− ions are interconnected by intermolecular hydrogen bonds formed between the –N(CH3)3 and –Br groups creating a supramolecular architecture with C–H⋯Br distances ranging from 3.705 (4) to 3.979 (4) Å. This structure motif bears resemblances to well-studied A2MX4 organically templated metal halides,31,34–36 where “A” represents protonated organo-halogen molecules, “M” denotes a metal (Fe, Cu, Cd, and Co) and “X” is a halogen atom (Cl, Br or I). The shortest Pd⋯Pd distances in [Br(CH2)3N(CH3)3]2PdBr4 are equal to 8.532 Å which is longer than those found in [(R)/(S)-2-methylpiperazinediium]PdCl448 (6.937 Å) and [2,4,6-trimethyl-m-phenyl-enediaminediium]PdBr450 (5.692 Å). These can be explained by the difference in sizes and shapes of the incorporated organic cations, highlighting structural diversity and adjustability. Geometrical characteristics of the organic cation are detailed in Table S1 (ESI†). The Br–C distance is 1.963 (4), C–C and C–N distances range, respectively, from 1.508 (5) to 1.517 (5) Å and from 1.489 (5) to 1.520 (4) Å. Each organic cation through hydrogen atoms is bonded to C atoms in C–H⋯Br hydrogen bonds, either in a monodentate or bidentate manner, leading to an extended supramolecular architecture (see Fig. S3, ESI†). Simultaneously, each [PdBr4]2− anion is surrounded by six [Br(CH2)3N(CH3)3]+ cations connected through C–H⋯Br hydrogen-bonding interactions (Fig. S4, ESI†). The geometric detail of these hydrogen bonds is provided in Table S2 (ESI†). It is important to note that no typical halogen⋯halogen bond interactions under 4 Å were found for terminal Br atoms in the material. Indeed, two weak halogen bonds are observed: the C–Br⋯Br–C bonds of 5.018(2) Å between two organic cations and halogen bonding interaction among cation and anion (C–Br⋯Br–Pd) measure 4.087(2) Å.
This band gap (Eg) was calculated to be 2 eV using the Tauc equation in conjunction with the Kubelka–Munk relation.51 This band gap value is relatively small compared to that of other materials. For instance, in [(CH3)2NH2]2PdBr4, the band gap Eg = 2.5 eV,52 [(CH3)3N(CH2)2Br]2CoBr4 exhibits an Eg = 3.7 eV36 and [(CH3)3N(CH2)3Br]2Pd2Cl6 has an Eg = 2.2 eV.38
Fig. 4 Differential scanning calorimetric curves on heating and cooling and the TGA curve of [(CH3)3N(CH2)3Br]2PdBr4. |
The DSC results measured at heating/cooling rates of 5 K min−1 and 10 K min−1 show two reversible phase transitions at T1 = 363 K/333 K and T2 = 393 K/353 K with the rate of 5 K min−1 and at T1 = 358 K/336 K and T2 = 403 K/355 K with the rate of 10 K min−1 (Fig. 4). The later temperature transition can be attributed to a congruent melting of the organic component, similar to observation in other hybrid halide materials.53,54 The calculated entropy of the first peak aids in determining the type of transition which is equal to 5.64 J mol−1 K−1 and 5.82 J mol−1 K−1 with heating rates of 10 K min−1 and 5 K min−1, respectively. These values exceed 2 J mol−1 K−1 which it is usually considered as an indication of an order–disorder type transition.55 The order of this transition can be determined from the variation of the transition temperature versus the heating/cooling rate (Fig. 5).
Fig. 5 Dependence of temperature hysteresis on the scanning rates 5 °C min−1 and 10 °C min−1 at DSC measurements of [(CH3)3N(CH2)3Br]2PdBr4. |
The extrapolation of the heating and cooling curves shows that the linear fits of the heating and cooling transitions had different values at zero rate which indicates that this phase transition is considered as a first order type.56
In greater detail, the recorded Raman spectrum of the orthorhombic phase reveals vibrational signals at 117, 172, 187 and 226 cm−1, which are attributed to the internal vibration stretching modes of PdBr4.56 The second region encompasses all internal vibration deformation and stretching modes of the C–C, C–Br and N–C bonds.56 The third region features peaks assigned to symmetric and asymmetric deformation involving the molecules CH3 and CH2. The final region at higher wave number corresponds to the symmetric and asymmetric stretching internal vibration modes of C–H bonds.56 The details of the attribution are provided in Table 2.
σ (cm−1) | Assignements |
---|---|
89 | External modes |
117 | v 4 (PdBr4) |
172 | v 2 (PdBr4) |
187 | v 1 (PdBr4) |
226 | v 3 (PdBr4) |
359 | δ (CC) |
374 | |
391 | |
455 | |
525 | v (C–Br) |
562 | |
745 | v (N–C) |
793 | |
850 | |
924 | v (C–C) |
948 | |
968 | |
994 | |
948 | |
968 | |
994 | |
1036 | |
1076 | |
1117 | δ as (CH3) and δas (CH2) |
1137 | |
1178 | |
1208 | |
1243 | |
1294 | |
1348 | |
1395 | |
1416 | |
1434 | |
1467 | |
1491 | |
2781 | δ s (C–H) and δas (C–H) |
2823 | |
2850 | |
2923 | |
2953 | |
2964 | |
2972 | |
3012 | |
3026 |

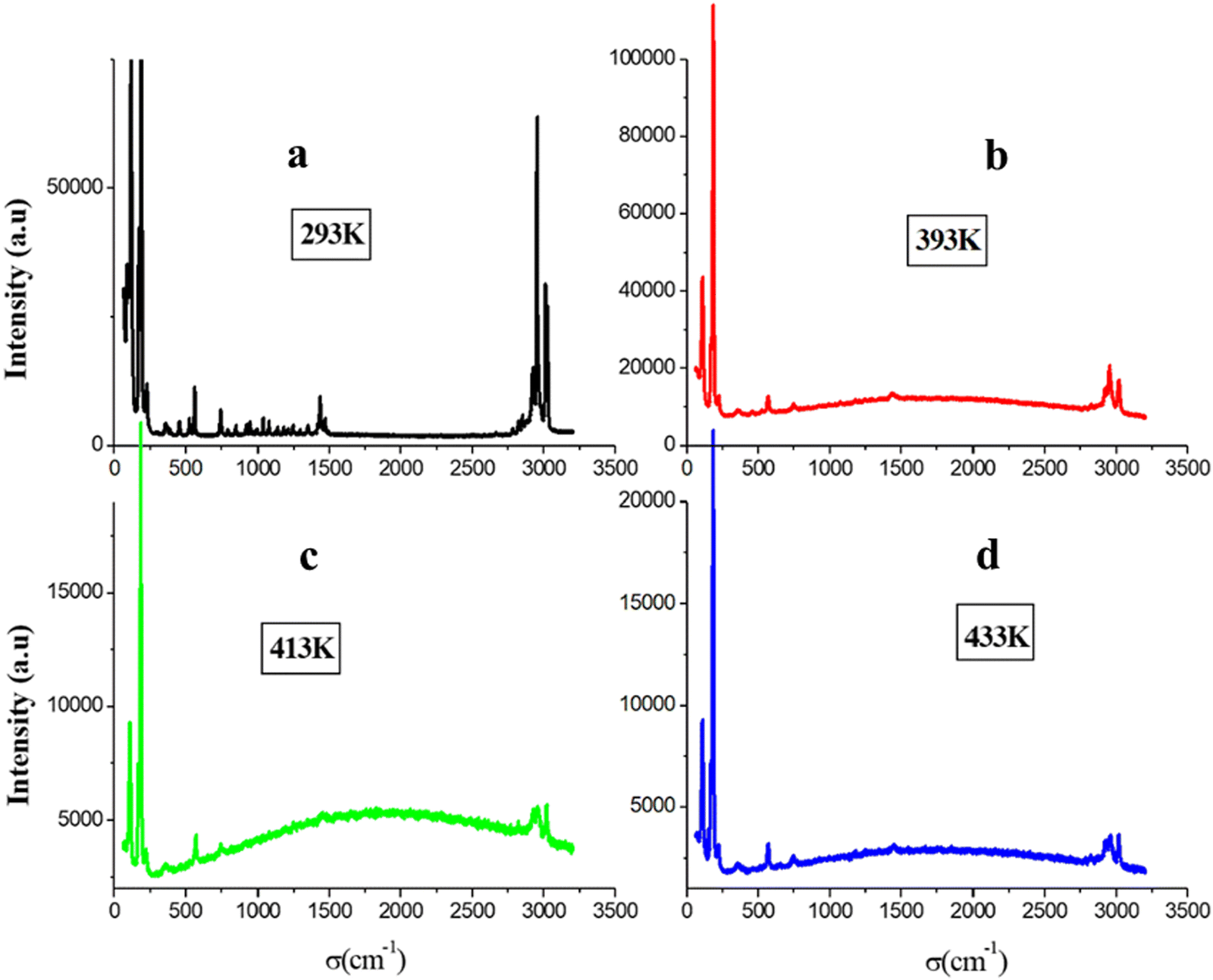

The presence of all these vibration modes validates the structural analysis and confirms the existence of both organic cation and inorganic anion entities. The additional Raman spectra (Fig. 6(b)–(d)) were recorded at 393 K, 413 K and 433 K, where some peaks associated with the organic cation are absent. This observation indicates the onset of the congruent melting of the organic part at 393 K thereby confirming the second peak observed in the DSC curve. We recorded the two Raman spectra at ambient before heating and after cooling with the Raman spectrum after the fusion to prove the DSC result and the reversibility of the fusion (Fig. S5, ESI†). When these spectra are compared, it is shown that the fusion phase is reversible because the two ambient spectra are the same and distinct from those obtained after the fusion. Furthermore, the breaking of the N–C–H link between the organic cation and the inorganic anion following the congruent melting of the cations part is responsible for the change in the wave number for the inorganic entity and the alteration of the C–H bonds after reaching 393 K (Fig. 7).
Fig. 7 The position of Pd–Br and C–H vibration modes before and after the melting temperature of [(CH3)3N(CH2)3Br]2PdBr4. |
The evolution of the Raman spectra as a function of temperature provides valuable insights into changes in molecular bonds, the phase-transition mechanism and the interactions between the organic cations and the inorganic framework. The thermal evolution is depicted in Fig. S6 (ESI†) and the variation in the position of vibration modes is shown in Fig. S7 (ESI†). Near the temperature of 360 K, these spectra show no temperature-dependent changes, proving that this transition is not of a structural character. At 390 K, we notice a sudden change in the position of the Pd–Br modes which confirms the beginning of the fusion of the organic part. The mechanism of the transition at 360 K can be depicted by a multiwell potential energy surface governing the rotator rotational motion of the molecules where, below the phase transition temperature, the rotating component of the CH3 molecule vibrates around the potential minima of one of the wells. Above this temperature (360 K), it possesses enough thermal energy to overcome the rotational energy barrier, leading to a rotational motion as the atoms jump between equivalent lattice sites (referred to as the disorder mechanism) represented at the bottom of each well.57–59 The significant changes at 360 K in the linewidth (FWHM) of CH3 vibration modes during the transition indicate that the cation plays a crucial role in the phase transition (Fig. 8(a) and (b)).

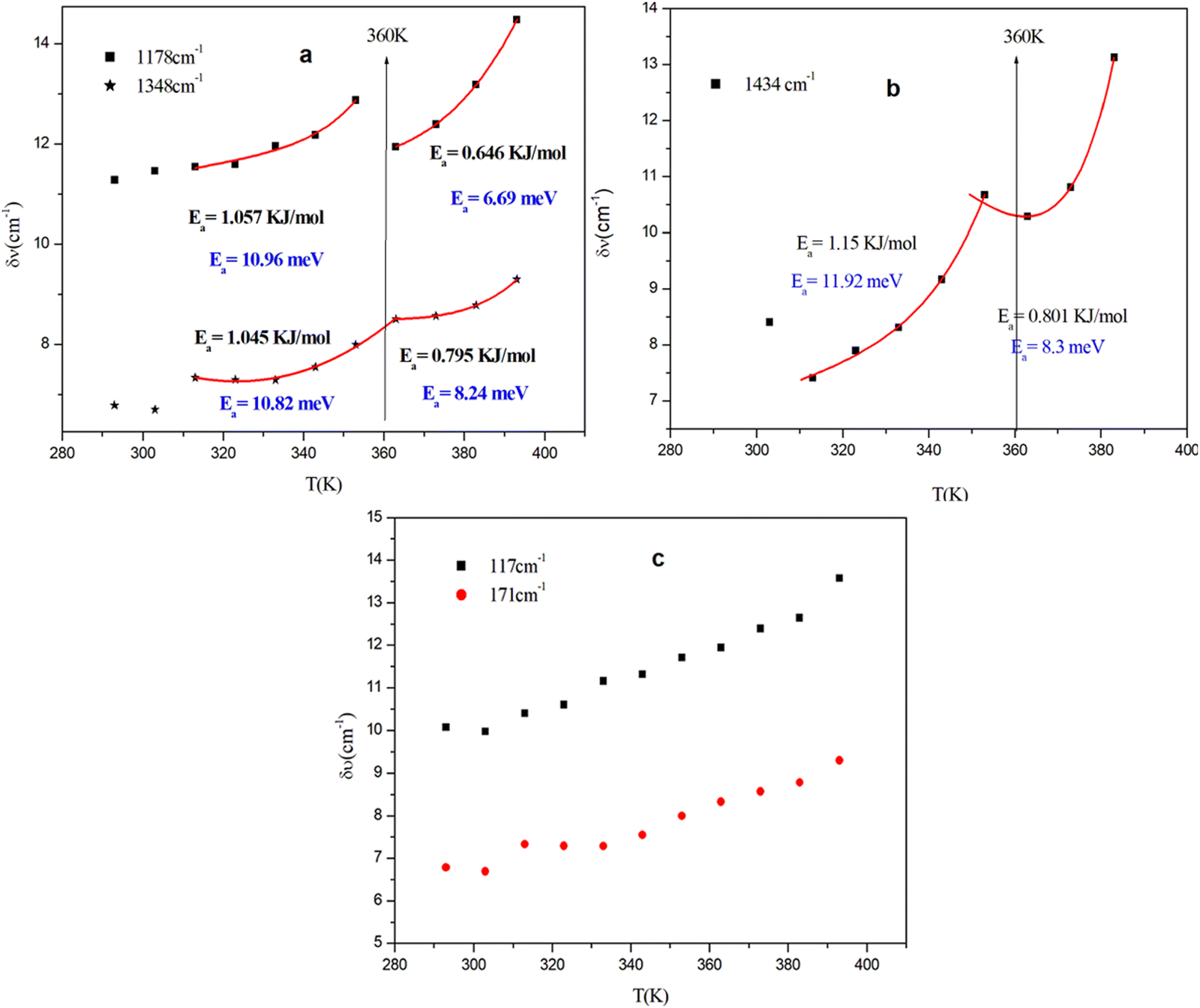

Fig. 8 Temperature dependence of the Raman vibrational frequency and FWHM of the CH3 (a) and (b) and Pd–Br (c) Raman modes; solid lines correspond to the fitting results according to eqn (1). |
This change is not observed for other vibration modes of the inorganic entity (Fig. 8(c)). This demonstrates that only an intermediate strength of interaction governs the dynamics and phase transitions of the order–disorder type. The potential barrier for the reorientation of the CH3 molecule can be extracted from the broadening of the modes (eqn (1)), as the orientational correlation time represents the mean reorientational time of the atoms jumping from one potential well to another.60,61 The activation energy (Ea) can be calculated using the linewidth for vibrational and reorientation relaxation using eqn (1):
(1) |
The activation energies extracted from fitting the FWHM experimental data of several CH3 vibration modes (Fig. 8(a) and (b)) are reported in Table 3.
T = 393 K | ||
---|---|---|
Frequencies (cm−1) | Activation energies: phase I | Activation energies: phase II |
1178 | 10.96 meV | 6.69 meV |
1348 | 10.82 meV | 8.24 meV |
1434 | 11.92 meV | 8.3 meV |
The higher reorientation activation energy of the CH3 vibration modes in the first phase (low temperature) indicates that roto-translational motion is relatively restricted.62 In the second phase (high temperature) the activation energies for most of the vibrational modes are smaller. Consequently, we can conclude that the activation energy significantly decreases in the higher-temperature phase which is consistent with a diminished cation ordering.

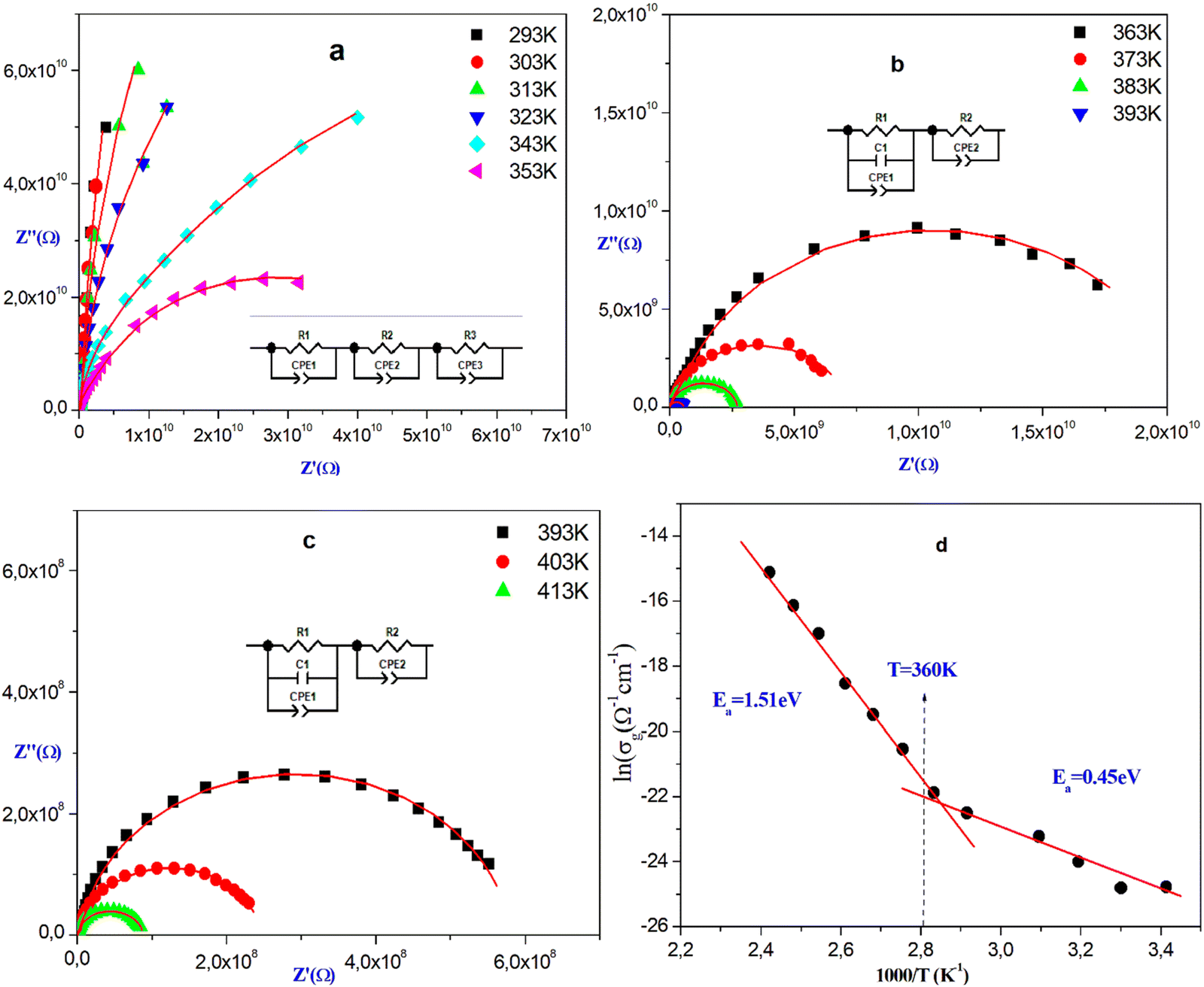

Fig. 9 (a)–(c) Nyquist diagrams and equivalent circuit, and (d) variation of the conductivity of grain vs. 1000/T. |
The data reveal a semicircle at all temperatures, with their centers shifted toward the real axis indicating a non-Debye type of relaxation. The choosen equivalent circuit shows two semi-circles where the experimental and theoretical curves are superposed. The semicircular arc at higher frequencies corresponds to the grains, and at lower frequencies corresponds to the grain boundaries. The resistance shown in the Nyquist diagrams decreases with increasing temperature, likely due to the increasing conductivity. This confirms that the conduction process is thermally activated, supporting the semiconducting nature of this material.63
At higher temperatures (T > 363 K), all Nyquist diagrams are modeled by the same equivalent circuit consisting of two cells in series (Fig. 9(b) and (c)). The first cell comprises a parallel combination of resistance (Rg), capacitor (C) and a constant phase element (CPE), while the second cell is described by a parallel combination of resistance (Rjg) and a constant phase element (CPE) attributed to the grain and grain boundary effects, respectively. At low temperatures (T ≤ 363 K), the equivalent circuit consists of three cells connected in series, with a pure resistor in parallel with a fractal capacity (R//CPE) (Fig. 9(a)). The good agreement between the calculated lines and the experimental data confirms that the suggested equivalent circuit accurately describes the electrical behavior of this material. Based on the values extracted from the equivalent circuit using Z-view software, the direct conductivities for the different relaxations are determined at each temperature using the following expression:
(2) |
Fig. 9(d) shows the grain conductivity vs. 103/T plot of [Br(CH2)3N(CH3)3]2PdBr4 material. It is evident that the increases of the conductivity with rising temperature, suggesting the thermally activated process in this material.64 This behavior follows the Arrhenius law. Notably, there is a change in the slope observed at T = 360 K corresponding to the transition detected by the calorimetric study. This change indicates a shift in the activation energies. The activation energies have been evaluated, EaII = 1.51 eV and EaI = 0.45 eV. These values imply that the charge transport mechanism undergoes a change at this temperature, providing evidence for the order–disorder nature of this transition.
