A two-step chromatographic purification method for Ni for its isotopic analysis by MC-ICP-MS

Abstract

Stable nickel (Ni) isotopes have shown great potential for investigating planetary accretion processes, mantle–crust magmatism, and paleo-marine evolution. The development of an economical and time-efficient separation method for Ni isotope analysis holds significant value within the realm of Ni isotope research. Previous purification methods for Ni isotope analysis have typically relied on either multi-column procedures or the utilization of significant quantities of organic reagents, such as acetic acid, acetone, and dimethylglyoxime. In this study, a novel two-column chromatographic separation procedure was presented for the determination of Ni isotope compositions in geological materials. A cation resin (AG50W-X8) was utilized in conjunction with diluted HCl and HF to effectively remove a substantial portion of matrix elements. Subsequently, trace amounts (100–200 μL) of Ni-spec resin were used for further purification of Ni. This relatively simple purification scheme for Ni isotope analysis effectively reduces the use of organic reagents and the amount of Ni-spec resin compared to previous methods that relied on multi-column separation and organic reagent extraction. Ni isotopic compositions were analyzed using multi-collector inductively coupled plasma mass spectrometry (MC-ICP-MS). The instrumental mass discrimination of Ni isotopic ratios was corrected for using the double spike (DS) combined with the sample–standard bracketing (SSB) method. The Ni isotope compositions (δ⁶⁰Ni) of in-house standards (SCP and CUG) were −0.06 ± 0.05‰ (2 SD, n = 104) and 0.36 ± 0.06‰ (2 SD, n = 97), respectively. Furthermore, the measured δ⁶⁰Ni values of various geological reference materials (BCR-2, BHVO-2, BIR-1, DTS-1, DTS-2b, SDO-1, GSP-2, and W-2a from the USGS; JB-1b from the GSJ; GSR-2, GSR-3, GSR-4, GSR-5, and GSR-10 from the NRCGA) were consistent with previous studies within measurement error. Additionally, the δ⁶⁰Ni values of AGV-1 from the USGS, as well as those of GSR-10, GSR-12, GSR-15, GSR-17, GSR-18, and GSR-19 from the NRCGA are reported here for the first time. Based on repeated measurements of pure solutions and reference materials, the long-term reproducibility of δ⁶⁰Ni values was better than ± 0.06‰ (2 SD). Consequently, our study presents a relatively straightforward purification method for Ni for its isotopic analysis using only trace amounts of organic reagents and Ni-spec resin.

---

1. Introduction

Nickel (Ni) is a first-row transition element and is categorized as a siderophile element. It displays moderately compatible behavior during mantle melting. Nickel has five stable isotopes whose natural abundances vary widely: ⁵⁸Ni (68.08%), ⁶⁰Ni (26.22%), ⁶¹Ni (1.11%), ⁶²Ni (3.64%), and ⁶⁴Ni (0.93%).¹ Nickel isotopes were initially employed in studies of cosmochemical processes, serving as the daughter isotope of ⁶⁰Fe and a tracer for nucleosynthetic anomalies.² Recent investigations have begun to focus on elucidating mass-dependent variations in Ni isotopes in terrestrial samples. Ni isotope compositions are generally reported as δ⁶⁰Ni values: δ⁶⁰Ni (‰) = [(⁶⁰Ni/⁵⁸Ni_sample)/(⁶⁰Ni/⁵⁸Ni_{SRM 986}) − 1] × 1000. Variable Ni isotope fractionation is observed during high-temperature processes, including core–mantle differentiation, mantle partial melting, and magmatic differentiation.^3–5 The sub-chondritic Ni isotopic signature of the bulk silicate Earth is suggested to have been established during Earth's late-stage accretion, originating from highly reduced sulfide-rich impactors.⁶ Additionally, Ni isotopes show potential applications in ore deposit mineralization⁷ and weathering processes.^8,9 Experimental studies and natural observations indicate significant isotope fractionation of Ni during biological processes such as those in methanogens, suggesting the potential application of Ni isotopes in identifying paleo-methane release events and better understanding changes in marine environments through Earth's history.^8,10 Nickel isotopes also show promise in environmental sciences.^11–14

Chemical purification protocols for Ni isotope analysis via MC-ICP-MS have been developed in several studies. Dimethylglyoxime (DMG) serves as a prevalent agent for isolation of Ni from geological materials, owing to its capacity to form a highly selective organic chelate with Ni under alkaline conditions.¹⁵ The purification of Ni using Ni-specific resin is also accomplished through the presence of attached DMG functional groups on the resin beads.^16,17 During MC-ICP-MS measurements, the quantitative removal of matrix elements is imperative for high-precision Ni isotope analysis. However, due to Ni being a trace element in natural samples, the direct utilization of DMG during chemical purification necessitates a substantial amount of DMG.^2,15,18 To attain optimal precision in instrumental measurements, oxidizing agents such as HClO₄, H₂O₂, and aqua regia are also required for complete degradation of residual DMG ligands in the solution or leaching from the resin. This task becomes challenging with excessive DMG quantities.^16,19,20

To address these challenges, alternative purification strategies have been explored. These strategies include the utilization of multiple sequential ion exchange chromatography columns, or the application of significant quantities of diverse organic reagents. For instance, in earlier methodologies, more than 50 mL of concentrated (90 to 100% v/v) acetone¹⁸ or acetic acid²¹ was employed to remove matrix elements such as Cu, Mg, K, Na, and Ca. However, the employment of organic reagents may introduce elevated Ni blanks, and the further purification of organic reagents requires a specific operational environment thus incurring relatively high costs. To reduce the utilization of organic reagents, Wu et al.¹⁹ devised a separation process employing five columns to isolate Ni from the matrix elements. However, this procedure is relatively time-consuming. Consequently, the development of relatively simple purification protocols that do not rely on large quantities of DMG and organic reagents remains imperative for various terrestrial samples.

Here, our work presents a simplified purification procedure for the purification of nickel in geological materials, achieved through two successive chromatographic steps with minimal utilization of organic reagents. The proposed protocol first employs a cation exchange resin column to effectively remove a substantial portion of matrix elements. Subsequently, a mini-column with a minute quantity of Ni-spec resin (100–200 μL) is utilized to quantitatively separate the remaining matrix elements and obtain high-purity Ni. Rigorous assessments of interferences and matrix effects during instrumental analysis demonstrate the suitability of our purification procedure for high-precision Ni stable isotopic analysis via MC-ICP-MS. To validate the methodology and enhance the existing database of rock standards, a collection of 20 igneous geological reference materials, encompassing both new and well-documented samples with a wide range of Ni content, were also purified and measured for their Ni isotope compositions to contribute to the augmentation of the preexisting database of rock standards.

2. Materials and methods

2.1 Chemical reagents and materials

All operations were conducted in accordance with the standards of a Class 1000 clean room at the State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Wuhan, China. High-purity grades of HNO₃, HCl and HF were double distilled using individual sub-boiling distillation systems (Savillex, Eden Prairie, USA). Analytical-grade ammonia (25–28%, w/w) was purchased from Aladdin (Shanghai, China). The citric acid was prepared by dissolving ACS grade anhydrous crystalline particles (≥99.5% (T), Aladdin, Shanghai, China). The guaranteed reagent H₂O₂ was purchased from LIAN SHI NEW MATERIAL CORP., LTD (LSNM, China). Milli-Q (MQ) water with a resistivity of 18.2 MΩ cm, produced by a Millipore-grade system (Millipore, Bedford, MA, USA), was utilized consistently throughout all procedures.

Pure Ni isotope standard solution NIST SRM 986 (National Institute of Standards and Technology) and two in-house standards SCP-Ni (single element standard, lot S120723019; SCP SCIENCE, Spec-pure) and CUG-Ni (single element standard; GSB G 62022-90, Electronic grade) were utilized to evaluate the reliability of instrument measurements. Various geological reference materials (GRMs) purchased from the United States Geological Survey (USGS), National Research Center of Geoanalysis (NRCGA), and Geological Survey of Japan (GSJ) were employed to assess the robustness of our new purification procedure. These GRMs encompassed a variety of rock types, including basalts, andesites, peridotites, sandstone, shales, dolomite, amphibolite, gabbro, granulite, diabase, and granodiorite.

2.2 Sample preparation

The rock sample powders were weighed between 5 and 150 mg to ensure a minimum of 0.3 μg Ni content. Sample powders were firstly digested using a 2 mL mixture of concentrated HF and HNO₃ (1 : 3). The ⁶¹Ni–⁶²Ni double spike (DS) was added based on the optimized sample/spike ratio of 1 : 1 (see discussions below). The samples were heated on a hotplate at 120 °C for at least 48 hours and were observed to ensure that all silicate materials were destroyed before being evaporated to dryness. Aqua regia (HCl : HNO₃ = 3 : 1) was then added to ensure thorough digestion and to assist in removing fluoride from the solution. Following approximately 12 hours of reflux, the samples were evaporated to dryness. Subsequently, the samples were treated with 1 mL of 6 mol L⁻¹ HCl at 110 °C for 12 hours at least twice until the solutions became clear without any precipitation. Finally, the solution was dried and dissolved in 1 mL of 1 mol L⁻¹ HCl in preparation for the chromatographic purification of Ni.

2.3 Chemical purification of Ni

In this study, a two-step ion exchange scheme was developed for the separation of Ni. The detailed procedures are outlined in Table 1. The first step involved the utilization of a cation exchange resin column (AG50W-X8, chloride form, Bio-Rad 200–400 mesh) to remove a substantial portion of matrix elements, as shown in the elution curves (Fig. 1). 2 mL of AG50W-X8 cation resin was loaded into a column with an inner diameter of 6 mm. The loaded cation exchange resins were pre-cleaned with 10 mL of 3.5 mol L⁻¹ HNO₃, 10 mL of 6 mol L⁻¹ HCl and 5 mL of MQ water successively. After preconditioning with 5 mL of 1 mol L⁻¹ HCl, 1 mL sample solutions were loaded onto the column. Elution of major matrix elements including Al, Fe, Cr, Na, K, and Ti was done using 8 mL of 0.4 mol L⁻¹ HCl + 0.5 mol L⁻¹ HF mixtures, followed by 13 mL of 1 mol L⁻¹ HCl. Nickel was subsequently collected with 13 mL of 1 mol L⁻¹ HCl, while certain matrix elements (e.g., Ca) remained retained on the cation exchange resin. The collected fractions were then dried down for further purification.

Table 1 Two-step purification scheme for Ni

Separation stage	Reagents	Volume/mL	Major collected elements
Column 1: AG50W-X8, 200 to 400 mesh, 2 mL; 9 cm H × 6 mm ID column
Clean resin	3.5 mol L^−1 HNO3	5 + 5
Clean resin	6.0 mol L^−1 HCl	5 + 5
Clean resin	MQ water	5
Condition	1.0 mol L^−1 HCl	2 + 3
Load sample	1.0 mol L^−1 HCl	1
Elute matrix	0.4 mol L^−1 HCl + 0.5 mol L^−1 HF	2 + 6	Al, Fe, Cr, V, Ti, Sn
Elute matrix	1.0 mol L^−1 HCl	1 + 2 + 10	Na, K, V, Cr, Cu, Zn, Mg
Collect Ni	1.0 mol L^−1 HCl	1 + 2 + 10	Ni, Mg, Mn, Co, Zn, Cu
Clean resin	3.5 mol L^−1 HNO3	6	Ca
Clean resin	MQ water	5
Column 2: Ni-spec resin, 100 to 200 μL; 7 cm H × 3 mm ID column
Clean resin	MQ water	1
Clean resin	0.2 mol L^−1 ammonium citrate	1
Condition	0.2 mol L^−1 ammonium citrate + ammonia (pH = 9–10)	2
Load sample	1 mol L^−1 HCl mixed with 1 mol L^−1 ammonium citrate + ammonia buffer solution (pH = 9–10)	∼2
Elute matrix	0.2 mol L^−1 ammonium citrate + ammonia (pH = 9–10)	3	Residue matrices
Elute matrix	MQ water	4
Collect Ni	3.5 mol L^−1 HNO3	2	Ni

---

Fig. 1 Elution curve for Ni purification in the first column with 2 mL AG50W-X8 (200–400 mesh) cation resin. The igneous reference material BHVO-2 was utilized with 2.6 μg of Ni loaded to generate the elution curve. The shaded area denotes the collection Ni elution part.

To further separate Ni from residual matrices, a second purification step was undertaken using a mini-column containing 100 to 200 μL of Ni-spec resins (TrisKem International). The Ni-spec resins were initially washed with MQ water and 0.2 mol L⁻¹ ammonium citrate, and subsequently conditioned using a mixture of ammonium citrate and ammonia with pH of 9–10. The samples were dissolved in 1 mL of 1 mol L⁻¹ HCl, and prior to loading onto the column, the mixture of ammonium citrate and ammonia was added to adjust the pH to 9–10. The matrix was then eluted with 3 mL of mixed ammonium citrate and ammonia solution (pH = 9–10), followed by 4 mL of MQ water, and Ni was collected using 2 mL of 3.5 mol L⁻¹ HNO₃. The eluted Ni solution was evaporated to dryness and refluxed with 0.4 mL of a mixture of 15.6 mol L⁻¹ HNO₃ and 30% H₂O₂ (1 : 1 v/v) to oxidize and remove any potential organic compounds leached from the resin. The solution was evaporated to dryness again and re-dissolved in 2% HNO₃ (v/v) for MC-ICP-MS measurements.

2.4 Mass spectrometry

Nickle isotopes were analyzed using MC-ICP-MS (Neptune Plus, Thermo-Fisher Scientific®, Bremen, Germany) at the State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Wuhan. The “Jet” sample cone and “H” skimmer cone made of nickel were employed, with no observed impact on Ni isotope measurements resulting from the use of nickel cones. Medium resolution (MR) mode (m/Δm > 5500) was applied to distinguish molecular interference such as ⁴⁰Ar¹⁸O⁺. The signals were monitored in static mode using Faraday cups with feedback amplifiers corresponding 10¹¹ Ω resistors. As shown in Table 2, Faraday cups L4, L2, C, H2, H3 and H4 were applied to collect ⁵⁶Fe, ⁵⁷Fe, ⁵⁸Ni, ⁶⁰Ni, ⁶¹Ni and ⁶²Ni, respectively. Sample solutions were introduced into the instrument under either “dry” plasma conditions using an Aridus III desolvator (CETAC Technologies®) or under “wet” plasma conditions using a quartz dual cyclonic-spray chamber. The typical sensitivity of ⁵⁸Ni was approximately 0.1 V ppb⁻¹ under “dry” plasma conditions with a desolvation system and 0.02 V ppb⁻¹ under “wet” plasma conditions with a quartz dual cyclonic-spray chamber, following optimization of tuning parameters (Table 2).

Table 2 Summary of Thermo Scientific™ Neptune™ MC-ICP-MS instrument settings, data acquisition parameters and multi-collector detector configuration

Instrument settings
RF power, W	1200
Sampler cone	Jet
Skimmer cone	H
Cooling gas flow rate, L min^−1	16
Sample gas flow rate, L min^−1	∼0.655
Auxiliary gas flow rate, L min^−1	∼1.25
Nebulizer, mL min^−1	0.1

---

Sample introduction systems	Aridus III desolvator (dry plasma)	Quartz dual cyclonic-spray chamber (wet plasma)
Typical sensitivity	20–25 V of ^58Ni for 200 ng g^−1 Ni solution	4–5 V of ^58Ni for 200 ng g^−1 Ni solution
Resolution mode	Medium resolution

---

Data acquisition
Mode	Static, multi-collection
Integration time, s	4.194
Number of cycles per block	40
Number of blocks per analysis	1
Instrumental mass fractionation correction	Double spike + sample standard bracketing

---

Cup configuration for Ni isotope ratio measurements
Cup	L4	L2	C	H2	H3	H4
Amplifier	10^11 Ω	10^11 Ω	10^11 Ω	10^11 Ω	10^11 Ω	10^11 Ω
Nuclide	^56Fe	^57Fe	^58Ni	^60Ni	^61Ni	^62Ni

---

Standard–sample bracketing (SSB) and double spike (DS) techniques were employed to effectively correct for instrumental mass discrimination. Each measurement for both the sample and standard consisted of 40 cycles with an integration time of 4.194 seconds. To prevent cross-contamination and eliminate memory effects between the standard solution and the sample solution, an extended rinse protocol was employed, including rinsing with 5% HNO₃ (v/v) for 90 s and 2% HNO₃ (v/v) for 90 s between each analysis. Additionally, to further minimize background interference, isotopic signals were measured in 2% HNO₃ (v/v) before each sample analysis and subtracted from the analyzed signal (i.e., the on-peak zero method).

3. Results and discussion

3.1 Optimization of the column separation method for Ni isotope measurement

The use of DMG or Ni-specific resin has been demonstrated as an effective method for the enrichment and purification of nickel.^15,20 The formation of the Ni–DMG complex occurs under alkaline conditions (pH = 8–10), leading to strong adsorption onto the ion exchange resin, with subsequent elution of matrix elements. Following this, oxidation reagents such as HNO₃ are employed to disrupt the complex, facilitating Ni elution from the resin. However, as Ni is a trace element, fully dissolving a sufficient amount of material in alkaline solutions to attain the necessary amount of Ni for isotope analysis presents challenges. Additionally, substantial quantities of DMG reagent or Ni-specific resin are required to achieve Ni purification in geological samples.¹⁶ Implementing pretreatment steps to remove a certain amount of matrix from samples before employing DMG or Ni-specific resin could overcome these shortcomings.

In this study, we propose a two-step chromatography strategy for Ni separation from various geological materials for isotope analysis, without the need for large quantities of DMG or other organic reagents (Table 1). In the first ion exchange stage, the cation resin is used with HCl and a small amount of HF to remove a substantial portion of matrix elements. As shown in the elution curve (Fig. 1), after loading samples onto the preconditioned column, Al, Ti, Fe and several other matrix elements were initially eluted using a solution comprising 0.4 mol L⁻¹ HCl + 0.5 mol L⁻¹ HF. These elements form anionic fluorides with low affinity for the cation resin in the presence of fluorion. Conversely, the addition of a trace amount of HF to the HCl solution did not significantly alter the distribution coefficients (K_d) of other elements, including Ni, between the cation resin and the solution.²¹ Subsequently, 1 mol L⁻¹ HCl was utilized to separate Ni from some major matrix elements such as Na, K, and Ca, as the K_d of these elements differs markedly from that of Ni on the cation resin under these conditions (Fig. 1). Through the utilization of this cation resin procedure, a significant fraction of matrix elements was successfully separated from Ni, leaving residual matrix elements such as Co, Mn, and some Mg, Cu, and Zn (Fig. 2).

Fig. 2 The residual matrix element contents relative to Ni content (i.e., [element]/[Ni] ratios before the purification (horizontal lines), after the first column (hollow circle points) and the whole scheme (hollow triangular points)). Y = 0.001 indicates [element]/[Ni] ratios ≤0.001. The horizontal title element * refers to the corresponding matrix element.

To remove the remaining matrix elements, we utilize Ni-spec resin, adapted from previous studies.¹⁶ An ammonium citrate + ammonia mixture solution with a pH of 9–10 is used to separate the matrix elements from Ni. The Ni–DMG complex remains stable and strongly bound to the resin, while other matrix elements exist as metal ions, citrate complexes, or ammonia complexes and are eluted from the resin. Subsequent treatment with 3.5 mol L⁻¹ HNO₃ destroys the Ni–DMG complex, allowing Ni to be eluted from the resin. Since a substantial portion of matrix elements has already been removed by the first column, only a trace amount of Ni-spec resin (∼100 μL) is needed in this step.

The elution curves of cations may exhibit drift with varying amounts of elements loaded onto the cation resin columns.^22,23 In addition, the efficiency of matrix element removal may fluctuate depending on the ratios of the matrices to nickel, which can vary significantly among different types of samples. To verify the recovery rate and purification efficiency of Ni with our method, the element concentrations of GRM solutions were measured after each column. As shown in Fig. 2, despite variations in Ni and matrix element contents among different types of reference materials, only trace amounts of matrix elements remained in the solution after Ni-spec resin purification. A batch of reference materials was analyzed for their Ni content both before and after the column procedure to calculate the yield of Ni through the two-column separation. The yields exceeded 85% across a range of Ni loading amounts from 0.3 to 15 μg. The blank sample was processed alongside natural samples and measured for Ni content to quantify the total blank. The total blank of our separation scheme was found to be less than 3 ng, which is considered negligible compared to the total amount of Ni loaded onto the columns.

3.2 Double spike optimization

The precision of the double spike correction relies on selecting appropriate double-spike compositions and determining the mixed ratios of samples to double spike. In this study, the ⁶¹Ni–⁶²Ni double spike was selected to correct for isotope fractionation similar to previous studies.^19,24 Single spikes of ⁶¹Ni (99.39%) and ⁶²Ni (99.34%) were purchased from ISOFLEX (USA). In this study, we assessed the optimal combination of double-spike mixtures and appropriate sample/spike ratios based on the methodologies outlined by a previous study.²⁵ The results indicated the optimal double-spike composition was approximately ⁶¹Ni/⁶²Ni ≈ 0.8. We employed a ⁵⁸Ni–⁶⁰Ni–⁶¹Ni–⁶²Ni inversion to minimize the potential for isobaric interferences. The chosen combination of ⁶¹Ni–⁶²Ni mixtures exhibited robustness, as evidenced by a flat error surface, indicating accuracy over a broad range of sample–spike mixing ratios (Fig. 3A). Furthermore, the accuracy of the double spike was checked by analyzing spike–sample mixtures with various proportions.²⁶ These tests demonstrated that the double-spike corrected values yielded δ⁶⁰Ni within typical reproducibility (i.e., 0.06‰, 2 SD) and minimum internal errors across spike proportions ranging from 0.2 to 0.7 (Fig. 3B).

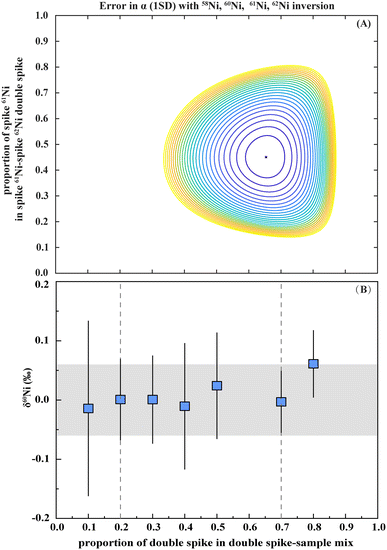

Fig. 3 (A) Simulation of the influence of isotopic composition of DS and proportion of DS in the DS–sample mix. The vertical axis gives the proportion of ⁶¹Ni in the ⁶¹Ni–⁶²Ni double spike, and the horizontal axis gives the proportion of double spike in the double spike–sample mixture. (B) δ⁶⁰Ni values measured for various mixture ratios between the NIST SRM986 solution and the double spike. The double spike consists of 45% ⁶¹Ni and 55% ⁶²Ni near the calculated optimum composition as shown in (A). The selected proportion of double spike in the double spike–sample mix in this study is 0.5, which was used in all isotope measurements. Also depicted is the theoretical error curve for the DS with varying proportions in DS–sample mixtures.

3.3 Evaluation of interferences and matrix effects

In this study, we examined the residual levels of matrix elements in variable geological reference materials both in the initial and final purification steps (see Fig. 2). During the two-column procedure, most matrix elements were effectively eliminated, leading to residual matrix levels below the threshold of significance ([X]/[Ni] < 0.1). However, a small amount of residual matrix elements still has the potential to introduce significant spectrum (e.g., polyatomic, double-charged ion and isobaric interferences) and non-spectrum interferences (e.g., matrix effects) in Ni isotope analyses. To ensure the accurate measurement of Ni isotopes, rigorous testing and correction procedures are essential.

Isobaric interferences from Fe cannot be eliminated and require correction by monitoring ⁵⁷Fe. After the two-column purification, the ion beam intensity of ⁵⁷Fe is substantially lower relative to that of ⁵⁸Ni, with [Fe]/[Ni] ratios below 0.01 (Fig. 2). A doping test demonstrated that when the ratio of [Fe]/[Ni] is <1, its effects on the measurement of δ⁶⁰Ni can be well corrected for (Fig. 4). Thus, as described above, isobaric interferences from Fe can be effectively reduced and corrected for.

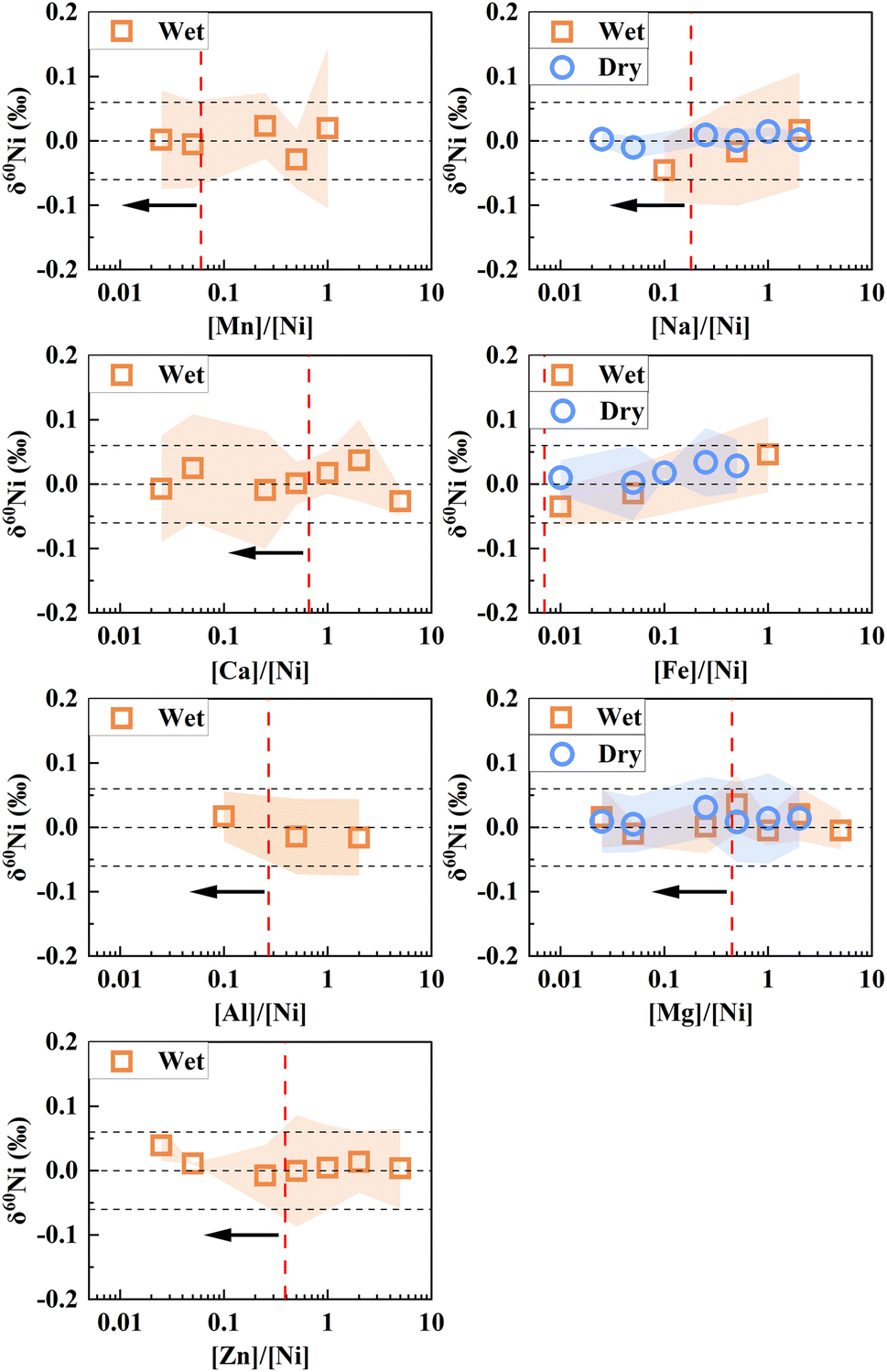

Fig. 4 Doping experiments to test the matrix effect of different elements on δ⁶⁰Ni analyses. The vertical dotted line denotes the upper limit of the residue matrix elements after the two-step purification process for various types of reference materials.

Regarding double-charged ions such as Sn (¹¹⁶Sn⁺⁺, ¹²⁰Sn⁺⁺, ¹²²Sn⁺⁺, ¹²⁴Sn⁺⁺), Cd (¹¹⁶Cd⁺⁺), Xe (¹²⁴Xe⁺⁺) and Te (¹²⁰Te⁺⁺, ¹²²Te⁺⁺, ¹²⁴Te⁺⁺),²⁴ they were undetectable due to their relatively low initial contents and effective removal (e.g., [Sn]/[Ni] < 0.01) during purification. Argon, the main component of the carrier gas, can potentially interfere with Ni isotope measurements by generating polyatomic interferences (e.g., ⁴⁰Ar¹⁸O⁺, ⁴⁰Ar¹⁷OH⁺). These interferences can be distinguished by MC-ICP-MS in medium-resolution mode, and they can be further avoided by employing the on-peak-zero method. Other matrix elements, such as Mg, Ca, and Ti, can also form polyatomic molecules (e.g., ⁴⁰Ca¹⁸O⁺, ²⁴Mg³⁶Ar⁺, ⁴⁶Ti¹⁶O⁺). However, these matrix elements were sufficiently separated and their relative contents were low ([Mg]/[Ni] < 0.5, [Ca]/[Ni] < 0.6 and [Ti]/[Ni] is below the detection limit) after the two-column purification. The doping test further showed that the influence of Ca and Mg can be negligible when the ratios of [Ca]/[Ni] and [Mg]/[Ni] are less than 5 (Fig. 4). Moreover, some residual elements (e.g., Ti) were present in negligible amounts.

Some matrix elements with a small amount of residue ([X]/[Ni] > 0.1) after the whole procedure were further investigated. Although the mechanism by which residual matrix elements cause isotope measurement drifts is not yet fully understood, they may impact ionization efficiency and transmission of Ni, and interfere with isotopic ratio measurements. To assess the effects of residual matrix elements on Ni isotope analysis, various proportions of Na, Al, Mn, and Zn relative to Ni were also quantitatively added to spiked Ni standard solutions. As shown in Fig. 4, the measurements of δ⁶⁰Ni exhibit negligible influence within measurement error when the ratios of [Na]/[Ni] and [Al]/[Ni] are <2. Similarly, the effects on δ⁶⁰Ni are negligible for [Zn]/[Ni] < 5 and [Mn]/[Ni] < 1. In conclusion, the results of these tests demonstrate that following purification using our scheme, the residual matrix elements within the geological materials have no discernible impact on Ni isotope analysis within measurement error.

3.4 Reproducibility and accuracy of measurements

To assess the reproducibility and accuracy of our method, two different approaches were employed: in-house standards (SCP and CUG) not subjected to chemical purification, and rock samples treated with chemical purification (Fig. 5 and Table 3). The Ni isotope ratios (δ⁶⁰Ni) of standard in-house standards (SCP and CUG) were measured to be −0.06 ± 0.05‰ (2 SD, n = 104) and 0.36 ± 0.06‰ (2 SD, n = 97), respectively. We also analyzed various rock samples including basalts (BCR-2, BHVO-2, BIR-1, GSR-3, GSR-18, JB-1b), andesites (AGV-1, GSR-2), peridotites (DTS-1, DTS-2b, GSR-19), one sandstone (GSR-4), shales (SDO-1, GSR-5), one dolomite (GSR-12), one amphibolite (GSR-15), one gabbro (GSR-10), one granulite (GSR-17), one diabase (W-2a) and one granodiorite (GSP-2). The δ⁶⁰Ni data of select rock samples (BCR-2, BHVO-2, BIR-1, DTS-1, DTS-2b, GSP-2, GSR-2, GSR-3, GSR-4, GSR-5, JB-1b, SDO-1, W-2a) were consistent with values reported in previous research, within measurement error (Table 3). Other rock samples (AGV-1, GSR-10, GSR-12, GSR-15, GSR-17, GSR-18, GSR-19) are reported here for the first time. The external precisions are ±0.06‰ (2 SD) over a year, indicating that our scheme can be applied to a wide range of samples with different matrix elements and variable Ni content to discern the natural mass-dependent fractionation of Ni isotopes.

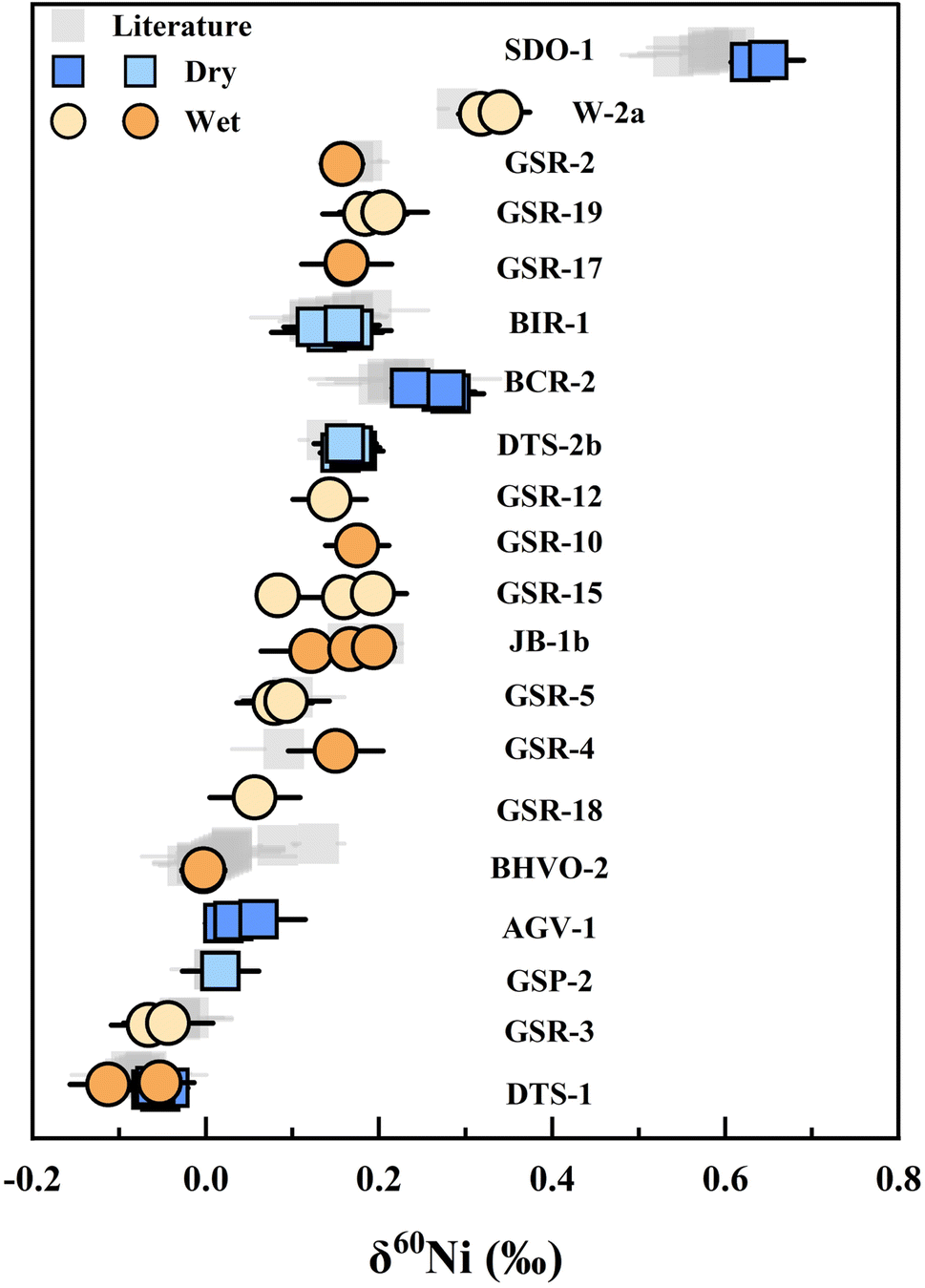

Fig. 5 Summary of δ⁶⁰Ni of the geological reference materials analyzed in this study. The colored square points were measured in the dry plasma, and the colored circle points were measured in the wet plasma. The gray squares represent measurement results from previous studies. The average value of each standard is listed in Table 3.

Table 3 Summary of the δ⁶⁰Ni composition (‰) of the geological reference materials analyzed in this study

Sample name	Rock type	Ni (μg g^−1)	n	δ ^60Ni (‰)	2 SD (‰)	References
AGV-1	Andesite	16	11	0.04	0.04	This study
BCR-2	Basalt	9.5	14	0.27	0.05	This study
				0.20	0.07	Cameron et al.^27
			5	0.21	0.06	Wu et al.^19
			3	0.23	0.04	Li et al.^28
				0.24	0.10	Sun et al.^29
BHVO-2	Basalt	112	3	0.00	0.03	This study
				0.13	0.03	Cameron et al.^27
			11	0.006	0.041	Gueguen et al.^16
			4	0.01	0.02	Ratié et al.^30
				−0.01	0.05	Estrade et al.^31
			5	0.083	0.019	Chernonozhkin et al.^18
			5	0.015	0.089	Pasava et al.^32
			6	0.03	0.06	Wu et al.^19
				0.03	0.06	Sorensen et al.^12
			36	0.026	0.059	Saunders et al.^5
			3	0.02	0.04	Li et al.^28
			2	−0.021	0.032	Beunon et al.^33
				−0.01	0.05	Sun et al.^29
			36	0.03	0.06	Saunders et al.^4
BIR-1	Basalt	166	17	0.15	0.05	This study
			68	0.13	0.078	Gall et al.^24
				0.17	0.02	Li et al.^34
			3	0.12	0.035	Gueguen et al.^16
			2	0.191	0.066	Chernonozhkin et al.^18
			5	0.12	0.03	Wang et al.^8
			2	0.169	0.032	Beunon et al.^33
			20	0.15	0.06	Saunders et al.^4
DTS-1	Dunite	2360	20	−0.06	0.05	This study
			4	−0.071	0.053	Gueguen et al.^16
			2	−0.069	0.006	Chernonozhkin et al.^18
			32	−0.077	0.078	Gall et al.^35
			8	−0.082	0.009	Klaver et al.^3
			3	−0.093	0.032	Beunon et al.^33
DTS-2b	Dunite	3780	25	0.17	0.03	This study
			3	0.14	0.032	Beunon et al.^33
GSP-2	Granodiorite	17.1	3	0.02	0.04	This study
			1	0.01	0.05	Wu et al.^19
GSR-10	Gabbro	64.5	3	0.17	0.04	This study
GSR-12	Dolomite	235	6	0.14	0.04	This study
GSR-15	Amphibolite	130	9	0.15	0.10	This study
GSR-17	Granulite	44.8	6	0.16	0.04	This study
GSR-18	Basalt	69.7	6	0.06	0.05	This study
GSR-19	Peridotite	1269	6	0.19	0.05	This study
GSR-2	Andesite	16.9	3	0.16	0.01	This study
			3	0.18	0.02	Wu et al.^19
			3	0.17	0.04	Li et al.^28
GSR-3	Basalt	139	12	−0.05	0.05	This study
			3	−0.03	0.06	Wu et al.^19
			2	−0.03	0.06	Li et al.^28
GSR-4	Sandstone	16.6	6	0.15	0.05	This study
			2	0.09	0.06	Li et al.^28
GSR-5	Shale	37	13	0.09	0.05	This study
			2	0.10	0.06	Li et al.^28
JB-1b	Basalt	144.7	9	0.16	0.07	This study
			1	0.205	0.017	Chernonozhkin et al.^18
SDO-1	Shale	101	6	0.64	0.04	This study
			5	0.585	0.025	Gueguen et al.^16
				0.58	0.08	Ventura et al.^36
				0.54	0.05	Estrade et al.^31
			9	0.57	0.09	Wang and Wasylenki^37
			3	0.61	0.06	Wu et al.^19
			4	0.6	0.05	Wang et al.^8
W-2a	Diabase	66.1	6	0.33	0.04	This study
			3	0.29	0.01	Wu et al.^19

---

4. Conclusions

In this study, we developed a straightforward Ni purification procedure for determining Ni isotopes in various samples. A substantial portion of matrix elements was effectively removed using a cation resin in the first column, followed by further separation of Ni using 100–200 μL of Ni-spec resin in the second step. The two-step purification strategy presented in this study simplifies the purification process for different types of geological samples and reduces the need for DMG and organic reagents. The isotopic fractionation during chemical purification and instrument analysis was calibrated using a double-spike combined with sample–standard bracketing approach. The δ⁶⁰Ni values of various GRMs including basalts (BCR-2, BHVO-2, BIR-1, GSR-3, GSR-18, JB-1b), andesites (AGV-1, GSR-2), peridotites (DTS-1, DTS-2b, GSR-19), one sandstone (GSR-4), shales (SDO-1, GSR-5), one dolomite (GSR-12), one amphibolite (GSR-15), one gabbro (GSR-10), one granulite (GSR-17), one diabase (W-2a) and one granodiorite (GSP-2) were determined using MC-ICP-MS. The δ⁶⁰Ni values obtained were in agreement with reference values. The long-term precision of the procedure is better than ±0.06‰ (2 SD) for δ⁶⁰Ni over a year. Thus, this study offers an alternative method to efficiently obtain Ni isotope compositions from various geological and environmental samples, enabling investigation into Ni isotope variations in different geological processes.
