Co-recovery of spent LiCoO₂ and LiFePO₄ by paired electrolysis

Abstract

Recycling critical elements from spent batteries has always placed an emphasis on green chemistry. However, the reduction or minimization of the input of chemicals, secondary waste and energy consumption still needs to explore new technologies. In this work, we propose a paired electrolysis process to concurrently treat lithium cobalt oxide (LiCoO₂, as a cathode) and lithium iron phosphorate (LiFePO₄, as an anode) in sulfuric acid solution. In this process, LiCoO₂ is reduced to release Co²⁺ and Li⁺ into the electrolyte through a surface chemical reaction control process. The activation energies of Li and Co are 23.38 and 28.70 kJ mol⁻¹. LiFePO₄ is oxidized to FePO₄ while releasing Li⁺ through a surface chemical reaction control process with an activation energy of 14.95 kJ mol⁻¹. Through this approach, both leaching efficiencies of Li and Co reach above 98%. Since two electrode reactions simultaneously proceed in one electrolytic cell, the paired electrolysis has the benefit of maximizing energy efficiency, as well as reducing the amount of chemicals and secondary waste.

---

1. Introduction

Lithium-ion batteries (LIBs) have been widely used in the energy storage market due to their excellent electrochemical properties such as high energy density and voltage, long cycle life, low self-discharge, no memory effect, etc.^1–3 The soaring demand for energy in modern society has led to the gradual expansion of the market, as well as the consequent surge in spent LIBs.^4,5 From the viewpoint of environmental consideration, the toxic electrolytes and electrode materials of spent batteries can cause irreversible damage to the air, water, soil and human beings.^6,7 From the perspective of resources, the recovery of critical metals such as Li and Co from the spent batteries should be implemented to reduce shortages of resources and develop a circular battery economy.^8,9 For typical LIBs, there are three types of cathode materials: layered oxides (e.g., LiCoO₂ (LCO) and LiNi_xCo_yMn_1−x−yO₂ (NCM)),¹⁰ spinel-type (e.g., LiMn₂O₄ (LMO))³ and olivine-type (e.g., LiFePO₄ (LFP)).¹¹ However, the recycling efficiency of spent LIBs lags far behind their generation.¹² Therefore, it is critical to develop efficient recycling processes for meeting the production demands of LIBs and greatly reducing the pollution of the environment.^13,14

There are three typical methods for the recovery of spent batteries. The pyrometallurgy process of using high-temperature calcination benefits from the simplicity of the process and can be used on a large scale, but this method consumes a lot of energy and produces a large amount of greenhouse gases (GHGs).^15–18 The hydrometallurgy process uses chemicals such as mineral acids to selectively leach metal elements from the positive electrode material of LIBs and recover various elements through fractional precipitation. It is widely prevalent because of the high-purity products, but the hydrometallurgy process needs to consume a large amount of chemical reagents and water.^19–21 The third is a cheap biohydrometallurgy process, but it takes a long time to cultivate microorganisms and needs a more rigorous environment.^22–24 As an adjustable and eco-friendly technique, electrochemical technologies have recently been researched.^25–28 However, different electrochemical methods for recycling LIBs have different emphases.²⁹ Several types of lithium battery cathode materials have been recovered by electric field-driven de-lithium in NaCl solution.³⁰ There is a recycling strategy of LiNi_1/3Co_1/3Mn_1/3O₂ by an electrochemical oxidation method in (NH₄)₂SO₄ solution.³¹ Meng et al. used the electrochemical reduction method to leach Li and Co by using 1.25 mol L⁻¹ of malic acid at 8 V.³² Recently, research has demonstrated that the spent cathode and anode materials can be recovered in a low energy consumption method through the strategy of electrochemical oxidation.²⁷ However, the strategy only uses a half-reaction in one electrolytic cell, while the other half-reaction produces by-products.^14,33–35 The simultaneous utilization of electrochemical reactions at both the cathode and anode in one electrolytic cell is beneficial for saving chemicals and reducing energy consumption, which is of great interest to explore.

In this paper, we propose a process of paired electrolysis of LCO and LFP in a low-concentration H₂SO₄ solution. In a two-electrode system, LCO was used as the cathode, and LFP was used as the anode. When a voltage was applied, both Li⁺ and Co²⁺ from LCO and Li⁺ from LFP were leached into the H₂SO₄ solution, and FePO₄ was obtained on the anode. By controlling the concentration of the H₂SO₄ solution, the dissolution of Fe was inhibited. The effects of different factors (e.g., the electrolyte concentration, electrolytic voltage, temperature, the mass ratio of the anode and cathode, etc.) on the leaching efficiency of Li⁺, Co²⁺ and Fe³⁺ were investigated. Moreover, the leaching kinetics of the anode and cathode were studied. To assess the feasibility of the paired electrolysis process, a primary economic and environmental analysis was conducted.

2. Experimental section

2.1. Pretreatment

The spent LFP batteries were bought from Taobao Marketplace, a Chinese website for online shopping, and the spent LCO batteries were obtained from the local second-hand cell phone market in Wuhan. Fig. 1 illustrates the full flow of the process, which mainly consists of three sections: pretreatment, paired electrolysis and precipitation. First, the remaining energy contained in the spent LCO and LFP batteries was fully discharged. The process involved soaking the spent batteries in a saturated sodium chloride (NaCl) solution for 24 h. Then, the completely discharged batteries were disassembled in a fume hood. After disassembly, we obtained the cathode, the anode, the diaphragm, the case, etc. Both LCO and LFP were operated in the same way. Then, the LCO cathode and LFP cathode were vacuum pyrolyzed in a tube furnace at 450 °C for 2 h to separate the active materials from the aluminum (Al) foils. Finally, the cathode powders of LCO and LFP were coated on a titanium (Ti) mesh by adding polyvinylidene fluoride (PVDF) and N-methyl-2-pyrrolidone (NMP) solvent to make the working electrodes, respectively. The digital images of the homemade LCO and LFP electrodes are shown in Fig. S1.†

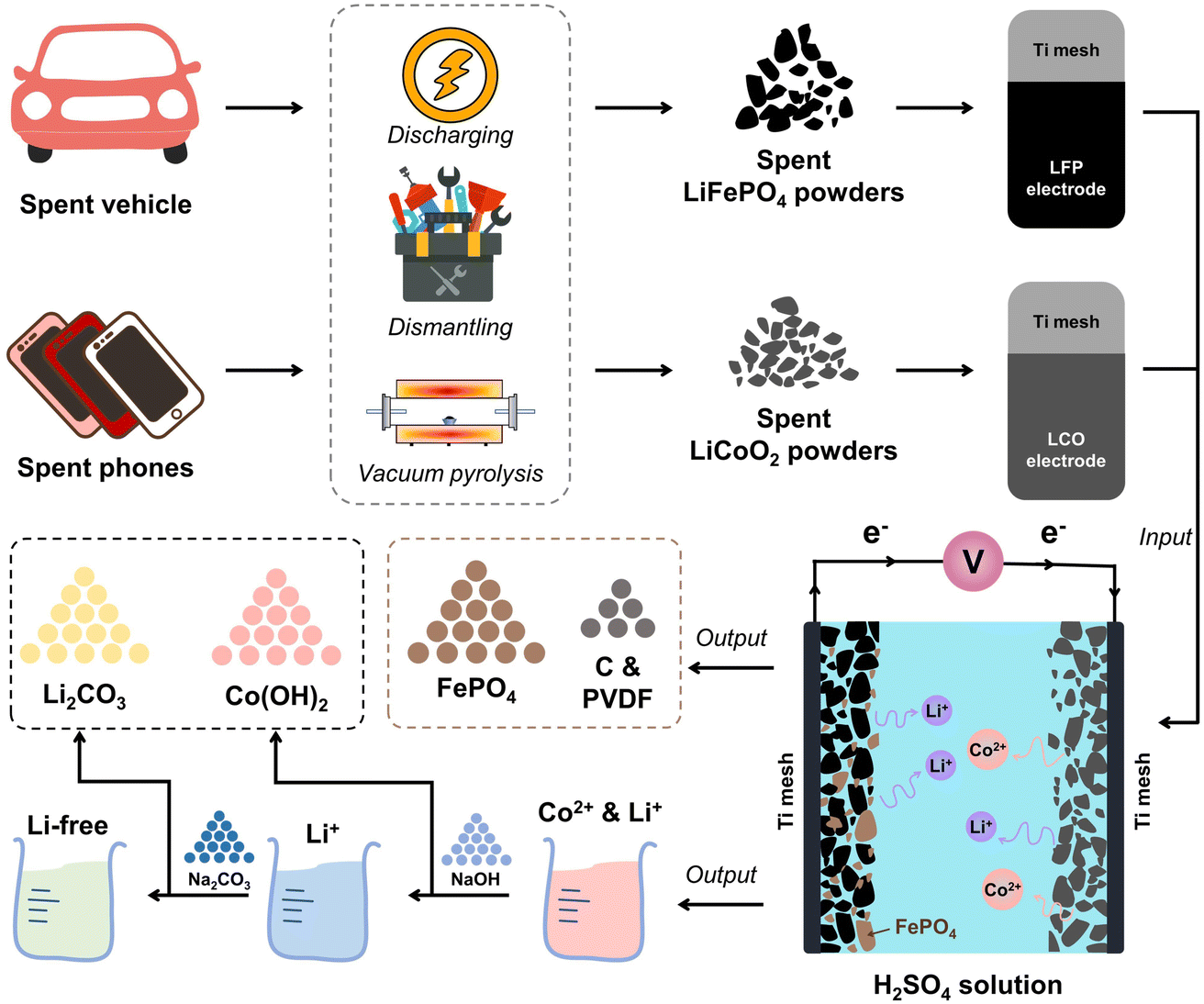

Fig. 1 Schematic diagram of the process of the pre-treatment and the paired electrochemical recovery.

2.2. Electrochemical behaviors of LCO and LFP

To investigate the electrochemical behavior of LCO and LFP in 0.03 M H₂SO₄, we employed linear sweep voltammetry (LSV) tests of LCO and LFP on an electrochemical workstation (ShanghaiChenhua, CHI760E), respectively. The information about the experimental setup, parameters, and procedures is shown in Fig. S2–6.† The working electrodes needed to be prepared before performing the electrochemical tests. Firstly, the titanium (Ti) mesh was thoroughly washed and then dried for 30 min. Secondly, a mixed slurry of LCO, conductive carbon and NMP (the mass ratio is 20 : 1 : 1) was coated on the Ti mesh (the payload mass is ∼2.0 mg cm⁻²) and then dried in an oven. The same treatment was applied to the LFP materials. The LSV tests of LCO and LFP were completed in a three-electrode-type cell, with the homemade LCO electrode and LFP electrode as the working electrodes. The reference electrode was Hg/HgSO₄, while the counter electrode was a platinum (Pt) plate. The electrochemical behaviors of LCO and LFP were monitored in 0.03 M H₂SO₄ solution.

2.3. Paired electrolysis leaching of LCO and LFP

The paired electrolysis experiments of LCO and LFP were performed in a low-concentration sulfuric acid solution. A dual electrolysis system was used for constant voltage electrolysis, with LCO as the cathode and LFP as the anode, accompanied by magnetic stirring (240 rpm, model LC-MAS-HD, LICHEN). The effects of temperature, the mass ratio of LCO and LFP, the sulfuric acid concentration and electrolysis time on the leaching efficiency of Li and Co in LCO and Li and Fe in LFP were investigated.

We used an atomic absorption spectrophotometer to monitor the content of Li, Co and Fe in the sampled solutions under different conditions. The leaching efficiencies of Li, Co and Fe were quantified using eqn (1):

where μ (%) is the leaching efficiency of Li, Co and Fe, C_t (mol L⁻¹) is the content of Li, Co and Fe in the electrolyte, t (min) is the leaching time, V (L) is the volume of the electrolyte, and n_total (g) is the total content of Li, Co and Fe.

2.4. Analysis

The structures of the sample before and after paired electrolysis were characterized by X-ray diffraction (XRD, Shimadzu 6000 X-ray Diffraction Protocol) and X-ray photoelectron spectroscopy (XPS, Al Kα radiation, Thermo Scientific K-Alpha). The content of Co, Li and Fe of the electrolyte was detected by atomic absorption spectrophotometry (AAS3800). Morphologies of the products before and after paired electrolysis were analyzed by scanning electron microscopy (SEM, MIRA3 LMH), and the mapping of the elements was characterized by using an Aztec Energy X-Max 20 energy dispersive spectrometer (EDS).

3. Results and discussion

3.1. Electrochemical measurements

The electrochemical reduction behaviors of LCO and the electrochemical oxidation behaviors of LFP in 0.03 M H₂SO₄ solution were revealed by using the LSV test. The LSV curves of LCO in 0.03 M H₂SO₄ solution (vs. Hg/HgSO₄, all potentials refer to Hg/HgSO₄ hereafter) are shown in Fig. 2a. The peak at ∼0.72 V matches the transformation of Co³⁺ to Co²⁺ in LCO. The LSV curve of the blank control electrode without coating LCO power has no reduction peak. Compared with the blank electrode without LFP coating, the oxidation peak of the LSV curve of the LFP coating (Fig. 2b) at ∼0.2 V corresponds to the conversion process of LFP to FePO₄.³⁶

Fig. 2 LSV curves of a Ti mesh with/without coating LCO (a) and a Ti mesh without coating LFP (b) at a scan rate of 1 mV s⁻¹ in 0.03 M H₂SO₄ solution at room temperature.

Therefore, the cathodic reaction of the paired electrolysis process of LCO can be expressed as eqn (2).

LiCoO₂ + 4H⁺ + e⁻ → Li⁺ + Co²⁺ + 2H₂O (2)

The anodic reaction of the paired electrolysis process of LFP can be expressed as eqn (3).

LiFePO₄ − e⁻ → Li⁺ + FePO₄ (3)

The overall reaction of the paired electrolysis can be expressed as eqn (4).

3.2. Paired electrolysis of LCO and LFP

The effects of the mass ratio of LCO and LFP. As shown in Fig. S1,† the paired electrolysis experiments were performed in an H-type electrolyzer, in which the two chambers were separated by an anionic exchange membrane (AMI-7001S). LCO and LFP were placed in separate chambers and immersed in a 0.03 M H₂SO₄ solution. An anionic exchange membrane was placed at the intersection of each chamber to stop the transport of metal cations, and the leaching patterns of LCO and LFP were studied in the respective chambers. Fig. S7† shows the mass ratio of Li (LFP : LCO) over 1 : 1, which does not match the result in eqn (4). Fig. S8† shows that the current of the LFP system is higher than LCO in two independent systems under the same conditions, and Fig. S9† shows that the electroresistance of the LCO electrode is smaller than LFP using a multimeter (DT9205A). Compared with the LCO electrode, the high current of the LFP electrode is attributed to the oxidation of LFP occurring more easily than the reduction of LCO. It is consistent with the delithiation process of LFP, which had a smaller activation energy (Fig. 8). This resulted in the dissolution of LCO accompanied by hydrogen evolution at the cathode, which increased the pH of the solution and inhibited the dissolution of FePO₄.

The effects of H₂SO₄ concentration. As the concentration of H₂SO₄ solution increased from 0.01 mol L⁻¹ to 0.1 mol L⁻¹, the leaching efficiency of Li, Co and Fe gradually increased (Fig. 3a). In 0.03 M H₂SO₄ solution, the leaching efficiency of Li and Co reached 98.3% and 93%, respectively. However, the leaching efficiency of Fe was 15.8%, which was out of our ideal comfort zone. It is necessary to take measures to reduce the leaching efficiency of Fe. In the upcoming experiment (Fig. 3c), some measures are being taken to achieve this result (e.g., increasing electrolysis time).

Fig. 3 Effect of different parameters on leaching Li, Co and Fe from the spent LCO and LFP: (a) H₂SO₄ solution concentration (at 80 °C, at 2.4 V), (b) temperature (at 2.4 V, in 0.03 M H₂SO₄ solution), (c) time (at 2.4 V, in 0.03 M H₂SO₄ solution), and (d) voltage (at 80 °C, in 0.03 M H₂SO₄ solution, for 240 min).

The effects of the temperature. The leaching efficiency of Li and Co are positively correlated with the temperature in the range of 40–80 °C (Fig. 3b). Increasing the temperature facilitated mass transfer. The leaching efficiencies of Li and Co were 98.3% and 97%, respectively, while the leaching efficiency of Fe was limited to 5% at 80 °C. Therefore, 80 °C was chosen as the leaching temperature for the paired electrolysis experiments. After the paired electrolysis, Li and Co were released into the electrolyte, while Fe as FePO₄ remained on the anode. After washing and drying the remnant electrode, the mixtures of FePO₄ with conductive carbon and binders could be obtained by ultrasonic shaking.

The effects of electrolysis time. It is beyond the shadow of a doubt that the leaching effects of Li and Co increased with time (Fig. 3c). However, the leaching efficiency of Fe was reduced with increasing electrolysis time. The reason for this phenomenon is that hydrogen evolution increased the alkalinity of the electrolyte.

The effects of voltage. As shown in Fig. 3d, with increasing voltage, the leaching efficiency of Li and Co continued to increase, while the leaching efficiency of Fe showed the opposite trend. XRD patterns of the spent LFP and LCO cathodes before, during, and after electrolysis are shown in Fig. 4. After electrolysis, LFP was completely transformed into FePO₄ and released Li⁺ into the solution. Li⁺ and Co²⁺ of LCO dissolved into the electrolyte, leaving the conductive carbon and PVDF on the cathode. By adjusting the pH value of leachate and adding Na₂CO₃, Co(OH)₂ and Li₂CO₃ could be obtained.

Fig. 4 XRD patterns of LCO (a) and LFP (b) of the paired electrolysis processes.

SEM images of the LFP material of paired electrolysis are shown in Fig. 5. After electrolysis, FePO₄ had a similar morphology to that of LFP, but the particles became smaller (Fig. 5a and b). The pulverization of LFP particles was performed by using the mechanical stress of the de-lithium process. As shown in Fig. 5e–h, Fe, P, and O elements are evenly distributed in the whole structure of electrolysis products. The results of elemental analysis further confirm that the product is FePO₄ (Fig. 5d), which is consistent with the previous XRD patterns of the product after electrolysis. Precipitation emerged in the same electrolyte with the cumulative electrolysis. The XRD patterns (Fig. S10†), SEM image (Fig. 5c) and the EDS mapping (Fig. 5i–l) signaled that the precipitate was PePO₄, which is consistent with the result shown in Fig. 5d. This also indicated that Fe dissolved in solution can be separated by precipitation, so the concentration of Fe in the electrolyte was reduced.

Fig. 5 (a and b) SEM images of LFP before and after electrolysis, (c) the SEM image of precipitation, (d) elemental content analyses of LFP after electrolysis and precipitation, and the elemental mapping images of LFP after electrolysis (e–h) and precipitation (i–l).

The SEM images of LCO before, during and after electrolysis are shown in Fig. 6a–c. After electrolysis, the LCO particles completely leached out. Holes (Fig. 6d) were generated by the dissolution of LCO. Only the conductive carbon and binder remained on the electrode after electrolysis. No distribution of Li and Co was detected in the elemental mapping images (Fig. 6e–h) and elemental content analysis (Fig. 6i) of the electrolyzed materials due to the complete dissolution of LCO after electrolysis.

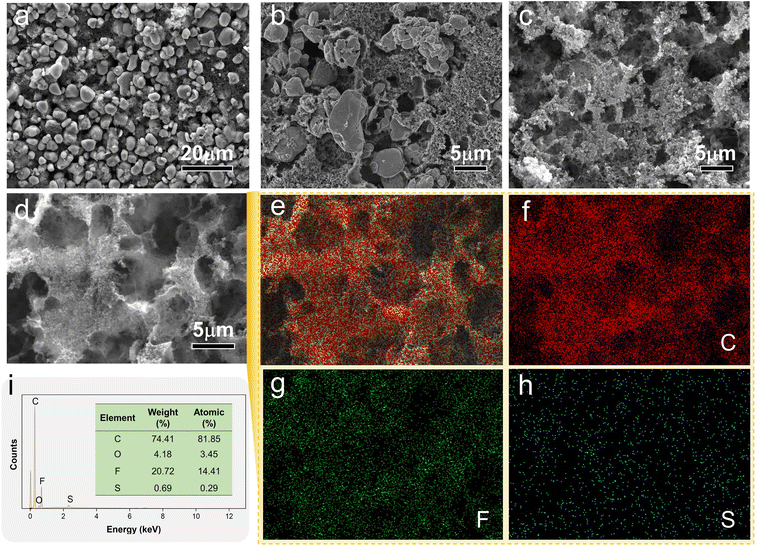

Fig. 6 (a–c) SEM images of LCO before, during and after electrolysis, and the elemental mapping images of LCO after electrolysis (d–h) and elemental content analyses (i).

XPS measurements were applied to reveal the chemical states of LFP before and after paired electrolysis. As shown in Fig. 7a, the full spectrum of spent LFP materials demonstrates the presence of Li, Fe, O, P, and C elements. After electrolysis, the peak of Li was significantly reduced. Fig. 7b shows the Fe 2p spectra of LFP before and after electrolysis. The XPS fine spectrum of Fe 2p shows that the main peak is split into two components and two satellite peaks through spin–orbit coupling, which is consistent with previous reports.³⁷ The binding energy position of the main peak in Fe 2p reveals the oxidation state of Fe. The shift of the spectrum peak can clarify the change of binding energy before and after, which compares the valence state transition of Fe. The Fe 2p fine spectrum of LFP before the electrolysis reaction showed that the maximum values of Fe 2p_3/2 and Fe 2p_1/2 peaks were at 710.5 eV and 724 eV. After electrolysis was completed, the Fe 2p fine spectrum of FePO₄ showed that the maximum values of Fe 2p_3/2 and Fe 2p_1/2 peaks were 712.5 eV and 726 eV. Fig. 7b shows that Fe²⁺ is almost totally transformed into Fe³⁺ at the end of electrolysis. LCO was completely dissolved in the electrolyte, and it was not discussed in the context of XPS measurements.

Fig. 7 (a) XPS spectra of total survey for the spent LFP materials before and after electrolysis. (b) Fe 2p core peaks of LFP before and after electrolysis.

3.3. Leaching kinetics

Leaching kinetics is the science of studying the rate and mechanism of the leaching process. The study of the kinetics of the paired electrolysis process allows for the identification of the control steps of the leaching process.^38–40 The leaching kinetic processes of Li and Co for LCO and Li for LFP were explored in 0.03 M H₂SO₄ solution, at 2.4 V of different temperatures (40–80 °C). For solid–liquid reactions, the leaching process generally involves a surface chemical reaction control model (eqn (5)) and a residue layer diffusion control model (eqn (6)).⁴¹

1 − (1 − x)^1/3 = k₁t, (5)

1 − 3(1 − x)^2/3 + 2(1 − x) = k₂t, (6)

where x is the leaching rate, k₁ and k₂ are the slopes of the fitting lines, and t is the reaction time (min).

We explored the leaching processes of Li (Fig. 8a) and Co (Fig. 8b) of LCO and Li (Fig. 8c) of LFP at different temperatures at 2.4 V in a 0.03 M H₂SO₄ solution. The fitting of the experimental results showed that the leaching kinetics processes of Li (Fig. 8d) and Co (Fig. 8e) for LCO and Li for LFP (Fig. 8f) fit well to the surface chemical reaction control model, and the values of R² of Li and Co of LCO were higher than 0.99 (Tables S1 and S2†). As for Li of LFP, the value of R² was higher than 0.975 (Table S3†). The Arrhenius equation (eqn (7)) reflects the dependence of the rate constant on the temperature. The higher the activation energy (E_a), the faster the increase in the rate of reaction with increasing temperature.^15,32,42 By applying a mathematical transformation to eqn (7), it can be equivalently transformed into eqn (8), and the E_a value of the reaction process can be calculated by mathematical fitting:

ln k = ln A − E_a/RT, (8)

where R (8.314 J mol⁻¹ K⁻¹) is the ideal gas constant, A (1 min⁻¹) is the pre-exponential factor, E_a (J mol⁻¹) is the activation energy, and T (K) is the absolute temperature.

Fig. 8 Leaching kinetics of LCO and LFP. Kinetic analysis of the leaching processes of Li (a) and Co (b) of LCO and (c) Li of LFP in 0.03 M H₂SO₄ solution at 2.4 V. Kinetic fit of the leaching processes of Li (d) and Co (e) of LCO and Li (f) of LFP in H₂SO₄ solution. Arrhenius fitting lines of ln K as a function of 1/RT for Li (g) and Co (h) of LCO and Li (i) of LFP.

After mathematical fitting and calculations, the E_a values were 23.38 and 28.70 kJ mol⁻¹ for Li (Fig. 8g) and Co (Fig. 8h) of LCO, and 14.95 kJ mol⁻¹ for Li of LFP (Fig. 8i). Based on the results of the fitting curves of LCO and LFP, the E_a value of the leaching reaction of LFP was smaller than that of LCO in the paired electrolysis process. This indicates that the leaching of LFP is theoretically easier than LCO. The results are consistent with the experimental results mentioned in the previous section, with regard to the molar ratio of LFP and LCO being higher than 1 : 1.

3.4. Economic and environmental evaluation of paired electrolysis

To quantify the environmental and economic advantages, we utilized the EverBatt model to evaluate the paired electrolysis process. The model consists of three primary modules: battery manufacture with virgin materials, battery recycling, and battery manufacture with recycled materials. In this process, we used the battery recycling module to evaluate the corresponding recycling process. The model comes with details for the commercial pyrometallurgy and commercial hydrometallurgy modules.^43,44 Environmental impacts include process emissions (excluding emissions from fuel combustion) and environmental impacts of battery recycling. Cost includes revenue generated from the sales of recycled materials and the cost of the battery recycling plant operation (Fig. S11–13 and Tables S4 and 5†).^45–47

As shown in Fig. 9a, the energy consumption of commercial pyrometallurgy is mainly concentrated on the energy input (10.56 MJ kg⁻¹ cell), while commercial hydrometallurgy is mainly concentrated on the material input (38.01 MJ kg⁻¹ cell). The energy consumption of the paired electrolysis process is much lower than commercial hydrometallurgy, which is attributed to the lower material input (12.65 MJ kg⁻¹ cell). As shown in Fig. 9b, the high-temperature process emissions of commercial pyrometallurgy dominate its greenhouse gas (GHG) emissions (4.32 kg kg⁻¹ cell). The high chemical input of commercial hydrometallurgy dominates its GHG emissions (3.31 kg kg⁻¹ cell), while the paired electrolysis process significantly reduces its GHG emissions (1.65 kg kg⁻¹ cell) by its lower chemical and energy inputs. The products of the paired electrolysis process are Li₂CO₃, Co(OH)₂ and FePO₄, which can be used to directly regenerate LCO and LFP cells. As shown in Fig. 9c, the paired electrolysis process will yield the highest potential profit ($25.8 per kg per cell) compared to commercial pyrometallurgical and hydrometallurgical processes. However, the economic assessment of paired electrolysis recycling LCO and LFP based on the EverBatt model is only a reference for its prospective feasibility. The results are not precise because the paired electrolysis process has not been applied in industry. The paired electrolysis process requires neither high temperatures nor excessive chemical reagents. Combined with environmental and economic aspects, the paired electrolysis process is superior to pyrometallurgy and hydrometallurgy (Fig. 9d). Fig. 9e shows a schematic of the paired electrolysis process of LCO and LFP. It shows the process of dissolution of LCO on the cathode and the process of delithiation of LFP on the anode.

Fig. 9 Economic and environment analyses of pyrometallurgical (Pyro), hydrometallurgical (Hydro), and paired electrochemical (P-ele) recycling methods. (a) Energy consumption, (b) GHG emissions, (c) revenue, and (d) a spider chart comparing various features of Pyro, Hydro, and P-ele recycling processes. (e) Schematic of the paired electrolysis of LCO and LFP in H₂SO₄ solution.

4. Conclusions

We demonstrated a paired electrolysis leaching method for repurposing Li, Co and FePO₄ from LCO and LFP in a 0.03 M H₂SO₄ solution. When using a low concentration of H₂SO₄, the leaching efficiencies of Li and Co were above 98%, while the dissolution of Fe was limited to below 5% under the optimal conditions of 2.4 V, 80 °C and 0.03 M H₂SO₄ for 240 min. The utilization of H₂SO₄ was 83.3% and the current efficiency was 89.87%. According to the kinetic analysis, the E_a values were 23.38 and 28.70 kJ mol⁻¹ for leaching Li and Co from LCO, and 14.95 kJ mol⁻¹ for leaching Li from LFP. Apart from that, the electrons drive and act as reducing agents to dissolve LCO and enable the delithiation of LFP with minimized chemical agents. Economic and environmental evaluation illustrates this potential green technology in terms of energy efficiency, emissions, and safety of paired electrolysis.
