Magnetocaloric effect in 1D-polymers bearing 15-metallacrown-5 {GdCu5}3+ units and anionic oxalate complexes†

Anna V. Pavlishchuk *ab, Sergey V. Kolotilov a, Matthias Zeller b, Vitaly V. Pavlishchuk a, Fabrice Pointillart *c and Anthony W. Addison *d
aL.V. Pisarzhevskii Institute of Physical Chemistry of the National Academy of Sciences of Ukraine, Prospect Nauki 31, Kyiv 03028, Ukraine. E-mail: annpavlis@ukr.net; s.v.kolotilov@gmail.com; shchuk@inphyschem-nas.com.ua
bDepartment of Chemistry, Purdue University, 560 Oval Drive, West Lafayette, IN 47907-2084, USA. E-mail: zeller4@purdue.edu
cUniv Rennes, CNRS, ISCR (Institut des Sciences Chimiques de Rennes) – UMR 6226, 35000 Rennes, France. E-mail: fabrice.pointillart@univ-rennes1.fr
dDepartment of Chemistry, Drexel University, Philadelphia, PA 19104-2816, USA. E-mail: addisona@drexel.edu

Received 25th August 2024 , Accepted 2nd September 2024

First published on 4th September 2024

Abstract

Two complexes {[GdCu5(GlyHA)5(H2O)7Cr(C2O4)3]·11.02H2O}n (1) and {{[GdCu5(GlyHA)5(H2O)6]μ2-[Cu(C2O4)2(H2O)]}2μ4-[Cu(C2O4)2]·15.8H2O}n (2), were obtained as outcomes of the reactions between the cationic hexanuclear {GdCu5(GlyHA)5}3+ 15-metallacrown-5 complex (where GlyHA2− = glycinehydroxamate) and the anionic oxalate complexes K3[Cr(C2O4)3] or K2[Cu(C2O4)2]. Both 1 and 2 possess polymeric 1D-chain structures according to X-ray structural analysis. As a consequence of the geometric orientations of the donor atoms in the oxalates from [Cr(C2O4)3]3−, the Cu5 mean planes of neighboring 15-metallacrown-5 units {GdCu5(GlyHA)5}3+ are angled at 75.5° to each other, which leads to formation of a zig-zag motif in the 1D-chains of complex 1. The centrosymmetric complex 2 contains two structurally different bis(oxalato)cuprate anions μ2-[Cu(C2O4)2(H2O)]2−, for one of which, coordination to two adjacent {GdCu5(GlyHA)5}3+ units leads to formation of linear 1D-chains in 2, while the second type, μ4-[Cu(C2O4)2]2−, is coordinated to four {GdCu5(GlyHA)5}3+ units, causing the cross-linking of single 1D-chains into a double-chain 1D coordination polymer. Studies of χMT vs. T data for 1 and 2 in a 2–300 K temperature range revealed the presence of both ferromagnetic and antiferromagnetic interactions amongst paramagnetic centres. The experimental χMT vs. T data for 1 were fitted using a model which takes into account exchange interactions between adjacent copper(II) ions, the Gd–Cu exchange interactions within {GdCu5(GlyHA)5}3+ units and additionally Gd–Cr exchange interactions. Fitting of the χMT vs. T data for 2 was not possible, since coordination of μ4-[Cu(C2O4)2]2− to {GdCu5(GlyHA)5}3+ led to the non-equivalence of several Cu–Cu exchange interactions within the metallacrown units and hence a superfluity of fittable parameters. Complexes 1 and 2 are the first examples of 15-metallacrown-5 complexes demonstrating a magnetocaloric effect (−ΔSM at 13 T reaches 24.26 J K−1 kg−1 at 5 K and 19.14 J K−1 kg−1 at 4 K for 1 and 2, respectively).

Introduction

Polynuclear clusters constructed from paramagnetic ions can exhibit a change of their isothermal magnetic entropy upon a change in applied magnetic field, known as the magnetocaloric effect (MCE).1,2 The interest in this phenomenon results from its potential application as paramagnetic molecular cryogenerators for the achievement of ultra-low temperatures, potentially providing an alternative to the use of scarce 3He.3 The magnetocaloric effect is usually characterised by an isothermal magnetic entropy change −ΔSM or an adiabatic temperature change ΔTad.4 The magnetic entropy change is quite often derived indirectly from magnetisation studies.4 Significant magnetic entropy changes can be achieved in compounds possessing a high spin value for their ground state, since the maximum possible entropy change is defined as −ΔSM = R[thin space (1/6-em)]ln(2S + 1), without any magnetic anisotropy.5 Complexes with high nuclearity obtained solely with 3d metal ions rarely demonstrate a significant magnetocaloric effect,4 usually because of antiferromagnetic exchange interactions between the paramagnetic ions and, in the case of many 3d metal ions, noticeable magnetic anisotropy.4,6

Recent studies of Gd(III) clusters demonstrate that introduction of S = 7/2 Gd(III) ions with their seven unpaired electrons, negligible magnetic anisotropy and small exchange interactions due to the effective shielding of the 4f subshell has allowed the observation of record-high −ΔSM values for molecular systems, comparable with that of commercially available garnet Gd3Ga5O12.7,8

Heteronuclear 3d–4f clusters containing Gd(III) ions often demonstrate a significant magnetocaloric effect, since weak ferromagnetic exchange interactions provide low-lying excited states potentially favorable for substantial magnetic cryogeneration.9 Introduction of Cu(II) ions into such polynuclear clusters is usually favorable for achieving significant −ΔSM values, due to the weakly ferromagnetic Gd(III)–Cu(II) exchange interactions and negligible magnetic anisotropy of the Cu(II) ions.10 Polynuclear 15-metallacrown-5 complexes can serve as building blocks towards isolation of discrete polynuclear clusters or coordination polymers and in case of Gd(III)–Cu(II) metallamacrocycles, are known to demonstrate ferromagnetic exchange interactions.11–13 Despite such metallamacrocyclic systems being promising magnetic cryogenerants, magnetocaloric effects for 15-metallacrowns-5 have not yet been investigated. Previously, a heteronuclear GdFe4 12-metallacrown-4 was investigated as a potential magnetic coolant. The achieved −ΔSM = 7.3 J K−1 kg−1 at 3 K was however comparably small due to antiferromagnetic exchange interactions leading to a ground state with S = 7/2, a low density of low-lying excited spin states and the comparatively high molecular weight of this complex.14

Since the magnetic entropy change is usually given in gravimetric units, it is important to combine a high magnetic density with a small molecular weight, which can be best achieved by using small polydentate ligands.15 In this respect, since 15-metallacrown-5 complexes are usually obtained using α-substituted hydroxamic acids, glycinehydroxamic acid is a promising candidate for observing high gravimetric −ΔSM values.

Numerous studies show that utilisation of diamagnetic linkers is unfavorable for significant MCE, however only diamagnetic linkers have so far been used for the design of polynuclear assemblies and coordination polymers with 15-metallacrown-5 building blocks.16–21 In this work we use 15-metallacrown-5 {GdCu5(GlyHA)5}3+ building blocks and for the first time combine them with paramagnetic linkers – anionic oxalate complexes [Cr(C2O4)3]3− and [Cu(C2O4)2]2−, with the aim of creating products with higher magnetic density and investigating the magnetocaloric properties of these systems.

Results and discussion

Synthesis

The complexes {[GdCu5(GlyHA)5(H2O)7Cr(C2O4)3]·11.02H2O}n (1) and {{[GdCu5(GlyHA)5(H2O)6]μ2-[Cu(C2O4)2(H2O)]}2μ4-[Cu(C2O4)2]·15.8H2O}n (2) were obtained as the result of the reactions between previously reported heteropolynuclear Ln(III)–Cu(II) 15-metallacrown-5 [GdCu5(GlyHA)5(CO3)(NO3)(H2O)5]·3.5H2O22 and the anionic oxalate complexes K3[Cr(C2O4)3] or K2[Cu(C2O4)2], respectively, in DMF–water mixtures. The complexes 1 and 2 formed as the result of complete anion metathesis in the initial 15-metallacrown-5 complex, in contrast to some previously described discrete assemblies based on 15-metallacrown-5 units and polycarboxylates.11–13,16–21 The complexes 1 and 2 possess electroneutral polymeric chains in their crystal structures. However, while in case of complex 1, a zig-zag 1D-chain structure is observed, the centrosymmetric complex 2 also entails orthogonally cross-linking (themselves linear) 1D-chains.

The formation of dimeric12,17,18–20 or tetrameric16,19 discrete assemblies and coordination polymers11,16,18,20 utilising 15-metallacrown-5 building blocks was previously observed with a variety of anionic linkers, such as polycarboxylates11,16–20 or disulfonates.12 To the best of our knowledge, there is only a single example described in the literature using diamagnetic ([Fe(CN)5(NO)]2−) complex anions as linkers for 15-metallacrown-5 units, which led to the formation of a series of 2D-coordination polymers.23 However, multiple examples of formation of discrete supramolecular assemblies or coordination polymers were reported utilising 9-metallacrown-3 and pentacopper(II) 12-metallacrown-4 building blocks with coordination complex anions acting as linkers.13,24,25

Anionic oxalate complexes are among the most typical inorganic linkers for the construction of polynuclear discrete assemblies and coordination polymers with different dimensionalities.26 Due to the rigidity of such paramagnetic linkers, they have successfully been employed in the rational construction of complexes with porous lattices27 and compounds demonstrating interesting magnetic properties, such as molecular magnetism28 or the magnetocaloric effect.29

In this study we demonstrate that these anionic oxalate complexes lead to the formation of two different types of 1D-coordination polymers with heteropolynuclear 15-metallacrown-5 building blocks, the observed complexes being the first examples of 15-metallacrowns-5 displaying a magnetocaloric effect.

X-ray structures

{[GdCu5(GlyHA)5(H2O)7Cr(C2O4)3]·11.02H2O}n complex (1). Reaction of the 15-metallacrown-5 complex [GdCu5(GlyHA)5(CO3)(NO3)(H2O)5]·3.5H2O22 with K3[Cr(C2O4)3] in DMF–water solution resulted in the formation of the 1D zig-zag coordination polymer {[GdCu5(GlyHA)5(H2O)7Cr(C2O4)3]·11.02H2O}n (1) (Fig. 1).
image file: d4dt02413c-f1.tif

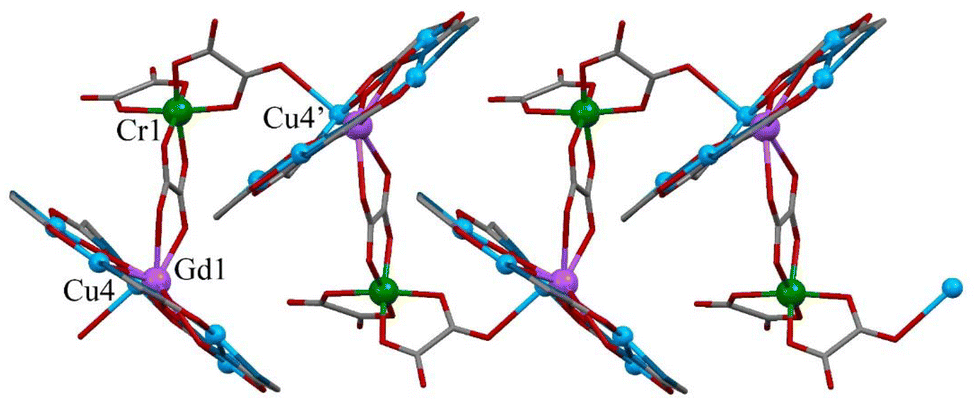

Fig. 1 Fragment of the crystal structure of complex 1. In this and subsequent figures, water molecules and hydrogen atoms are omitted for clarity of presentation.

The polymeric 1D-chain of complex 1 contains 15-metallacrown-5 {GdCu5(GlyHA)5(H2O)7}3+ building blocks, connected by tris(oxalato)chromate(III) anions [Cr(C2O4)3]3−, which coordinatively bridge two neighbouring metallamacrocyclic units (Fig. 1).

The structural features of the metallamacrocyclic unit {GdCu5(GlyHA)5}3+ in 1 are typical of 3d–4f 15-metallacrown-5 complexes and have been described in detail previously.11,12,16–22,30–32 The {GdCu5(GlyHA)5}3+ units are built from five GlyHA2− anions, which link five Cu(II) ions, forming metallamacrocyclic [Cu5(GlyHA)5] cores with Gd(III) ions located in the centre of the cyclic moiety (Fig. 1 and 2). The copper(II) ions in the {GdCu5(GlyHA)5}3+ units are located in a planar N2O2 coordination environment (nitrogen atoms are from hydroxamate and amino groups and oxygen atoms are from carbonyl and hydroxamate groups), while the Gd(III) ions are coplanarly coordinated by five hydroxamate oxygen atoms from within the Cu5 unit.


image file: d4dt02413c-f2.tif

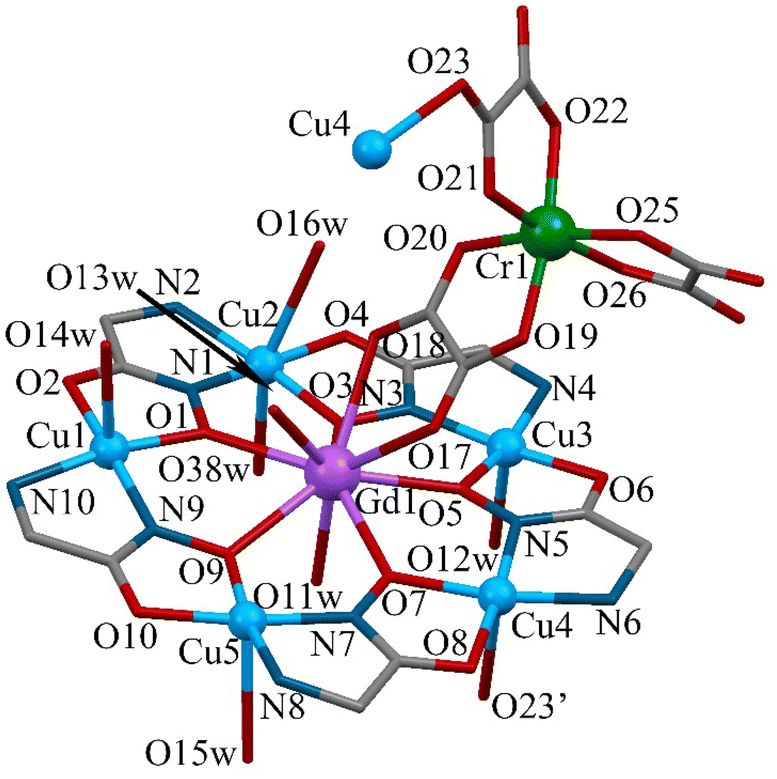

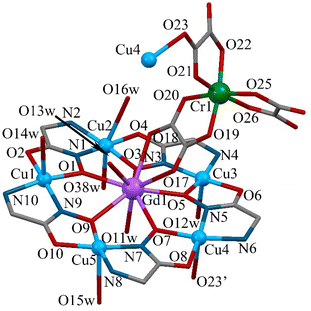

Fig. 2 Fragment of the crystal structure of complex 1 with the [GdCu5(GlyHA)5(H2O)7Cr(C2O4)3] moiety.

According to calculations with the Shape 2.133 software, the ions Cu2 in 1 have distorted octahedral coordination environments, as a result of coordination of two water molecules in the apical positions of the Cu2 ions. The geometries of the copper(II) ions Cu1, Cu3 and Cu5 are completed to square pyramidal by coordination of water molecules in one of their apical positions. Similarly, ion Cu4 has a square pyramidal coordination geometry, with one of its apical positions occupied by oxygen atom O23 (Cu4–O23 = 2.587(5) Å), from a monodentate oxalate group from [Cr(C2O4)3]3− (Fig. 1 and 2, Tables S1–S3, ESI†).

A second oxalate group from the [Cr(C2O4)3]3− anion in 1 acts as a bidentate ligand to Gd(III) in an apical position through oxygen atoms O17 and O18 ((Gd1–O17 = 2.691(3) Å) and (Gd1–O18 = 2.535(3) Å)), though the third [Cr(C2O4)3]3− oxalate group remains non-coordinated to Cu(II) or Gd(III) ions. The Gd(III) ions in 1 are nine-coordinate, their coordination environments additionally involving oxygen atoms O11w and O13w ((Gd1–O11w = 2.393(3) Å) and (Gd1–O13w = 2.402(3) Å)) from two apically coordinated water molecules. The Gd1 ions in 1 have a coordination best described as CSAPR-9 – spherical capped square antiprismatic (C4v) (Fig. S1, Table S4†).33 All the bond lengths and angles in the metallamacrocyclic building block {GdCu5(GlyHA)5}3+ are typical of 15-metallacrown-5 complexes;11,12,16–22,30–32 selected structural parameters are given in Tables S1 and S2.†

The metallacrown units {GdCu5(GlyHA)5}3+ in 1 are slightly distorted from planarity, as is evident from the values of the average and largest deviations from the non-hydrogen atoms’ Cu5 mean planes, which are presented in Table S2.† The Cu5 mean planes of adjacent metallacrown units are angled at 75.5(1)° to one another, which leads to the formation of a zig-zag chain, in contrast to the previously reported linear polymeric assemblies with 15-metallacrown-5 units, where the mean planes of the adjacent metallamacrocyclic cores are oriented in a close to parallel manner.11,16,17

Due to the peculiarities of the crystal lattice, there are voids between the 1D zigzag chains in 1, which are filled by solvent water molecules. The total volume of solvent-accessible voids in 1 is 33.4% according to PLATON34 calculations with a probe molecule of r = 1.4 Å (Fig. 3).


image file: d4dt02413c-f3.tif
Fig. 3 Fragment of the crystal structure of 1, viewed along the c-direction. The 15-metallacrown-5 cations {GdCu5(GlyHA)5}3+ are presented in purple and [Cr(C2O4)3]3− anions are shown in green.
{{[GdCu5(GlyHA)5(H2O)6]μ2-[Cu(C2O4)2(H2O)]}2μ4-[Cu(C2O4)2]·15.8H2O}n complex (2). The metathesis of [GdCu5(GlyHA)5(CO3)(NO3)(H2O)5]·3.5H2O22 with K2[Cu(C2O4)2] in DMF–water solution resulted in formation of the double 1D-chain {{[GdCu5(GlyHA)5(H2O)6]μ2-[Cu(C2O4)2(H2O)]}2μ4-[Cu(C2O4)2]·15.8H2O}n (2) (Fig. 4).
image file: d4dt02413c-f4.tif
Fig. 4 Fragment of the crystal structure of complex 2 showing orthogonally cross-linked chains of {GdCu5}3+ units.

The polymeric 1D chain in complex 2 contains 15-metallacrown-5 {GdCu5(GlyHA)5(H2O)6}3+ building blocks and two structurally different bis(oxalato)cuprate anions: the first type, μ2-[Cu(C2O4)2(H2O)]2− is coordinated apically to two adjacent metallacrowns leading to the formation of linear 1D {[GdCu5(GlyHA)5(H2O)6]μ2-[Cu(C2O4)2(H2O)]}+ chains, while the second μ4-[Cu(C2O4)2]2− structural type is bound to two adjacent {[GdCu5(GlyHA)5(H2O)6]μ2-[Cu(C2O4)2(H2O)]}+ 1D-chains by coordinating to four metallacrown building blocks (two from each 1D-chain). As a result, the two single 1-D chains are linked pairwise into a double 1-D chain.

The structure of the metallacrown units {GdCu5(GlyHA)5}3+ in 2 is generally similar to the one in 1 in the equatorial coordination sphere (Fig. 5). All Cu(II) ions in the metallamacrocyclic cores {GdCu5(GlyHA)5}3+ are distorted square-pyramidal pentacoordinate (Table S7†). Outside the equatorial coordination sphere, the apical positions of copper ions Cu1–Cu3 and Cu5 are occupied by coordinated water molecules, while the apical position of Cu4 is occupied by the oxalate oxygen atom O21 (Cu4–O21 = 2.512(3) Å) from the apically coordinated μ2-[Cu(C2O4)2(H2O)]2−. The second oxalate group of the first type of bis(oxalato)cuprate anion in 2 remains uncoordinated. The μ2-bridging mode of μ2-[Cu(C2O4)2(H2O)]2−, which leads to the formation of 1D-chains, is observed due to the coordination of the Cu7 ions in the bis(oxalato)cuprate by the carbonyl oxygen atom O8′ from an adjacent metallacrown cation (Cu7–O8′ = 2.731(2) Å).


image file: d4dt02413c-f5.tif

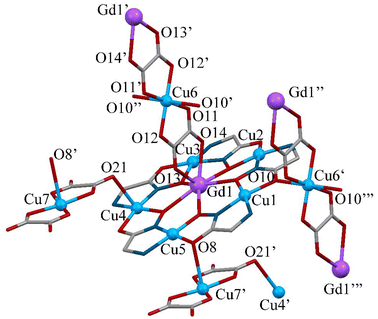

Fig. 5 Fragment of the crystal structure of complex 2 demonstrating the coordination of the [Cu(C2O4)2]2− anions to the {GdCu5(GlyHA)5}3+ moiety.

The Gd(III) ions in 2 are nine-coordinate and similarly to 1, their coordination environments correspond to a spherically-capped square antiprism (CSAPR-9, C4v) (Fig. S3, Table S4†). The second type of bis(oxalato)cuprate anion μ4-[Cu(C2O4)2]2− links two adjacent 1D-chains {[GdCu5(GlyHA)5(H2O)6]μ2-[Cu(C2O4)2(H2O)]}+ due to the bidentate coordination of each oxalate anion to Gd1 ions through oxygen atoms O13 and O14 (Gd1–O13 = 2.517(5) Å and (Gd1–O14) = 2.458(2) Å). The coordination sphere of Gd1 is completed to nonacoordinate by two apically coordinated water molecules O15w and O29w (Gd1–O15w = 2.375(2) Å and Gd1–O29w = 2.737(4) Å) (Table S6†).

The second structural type of bis(oxalato)cuprate μ4-[Cu(C2O4)2]2− in complex 2 is centrosymmetric and displays coordination to four metallacrown units from two adjacent 1D-chains, causing formation of the double 1D-chains in 2. In addition to bidentate coordination of each oxalate anion in μ4-[Cu(C2O4)2]2− to Gd1 ions, the Cu6 ions in this bis(oxalato)cuprate are coordinated to two carbonyl oxygen atoms O10′ from two {GdCu5(GlyHA)5}3+ units (Cu6–O10′ = 2.341(2) Å).

Thus, the first structural type of bis(oxalato)cuprate μ2-[Cu(C2O4)2(H2O)]2− acts as a bridge between two adjacent metallacrown cations. The copper(II) ions Cu7 are hexacoordinate, with one apical position of Cu7 occupied by coordinated water molecule O26w and the other involved in formation of a 1D-chain due to the coordination of carbonyl oxygen atom O8′ from {GdCu5(GlyHA)5}3+ units. The copper(II) ions in the second structural type of bis(oxalato)cuprate μ4-[Cu(C2O4)2]2−, are also hexacoordinate. Two apical positions of Cu7 ions contain two carbonyl oxygen atoms O10′ from two metallacrown moieties. The centrosymmetric anion μ4-[Cu(C2O4)2]2− binds four metallacrown cations leading to formation of the double 1D-chain.

The observed bond lengths and angles in the {GdCu5(GlyHA)5}3+ metallacrown unit are typical of 15-metallacrown-5 complexes;11,12,16–22,30–32 selected structural parameters are listed in Tables S2 and S6 (ESI).†

Similarly to complex 1, the metallacrown unit {GdCu5(GlyHA)5}3+ in 2 is also almost planar (Table S2). The total volume of solvent-accessible voids in complex 2 is 22.0% (r = 1.4 Å probe radius)34 (Fig. 6).


image file: d4dt02413c-f6.tif
Fig. 6 Fragment of the crystal structure of 2, viewed along the b (left) and a (right) directions. Hydrogen atoms and both coordinated and lattice water molecules are omitted for clarity of presentation. The 15-metallacrown-5 cations {GdCu5(GlyHA)5}3+ are in purple, while μ4-[Cu(C2O4)2]2− and μ2-[Cu(C2O4)2]2− are shown in pink and yellow, respectively.

Stability of the crystalline assemblies

Crystal structures were obtained at 100 K, from crystals freshly taken from mother liquor. The high degree of solvation indicated a possibility of desolvation of the crystalline assemblies, i.e. a loss of solvating water molecules upon removal of the crystals from the mother liquor that they had been grown in. To test for a possible change of structure upon warming to room temperature, powder XRD data were collected for thoroughly ground and air-dried samples for both compounds at room temperature.

For complex 1, the room temperature powder pattern provided a close match for the 100 K structural data. A Rietveld refinement plot is given in Fig. S6,† and additional refinement details are given in the ESI.† Unit cell parameters changed slightly to ca. a = 13.62, b = 25.44, c = 14.91(8) Å and β = 106.2°. The volume of the unit cell expanded very slightly by less than 0.5%, from 4939 to 4962 Å3. The overall good fit, and the very similar cell volume indicate that the structure of the air-dried sample is very little changed from the 100 K single crystal structure.

For complex 2, the observations were different. Powder patterns for a well-ground sample dried at room temperature had very little resemblance to a pattern simulated from the 100 K single crystal data, even after allowances for unit cell expansion or other slight structural changes. Crystals of complex 2 were thus investigated in more detail by single crystal XRD. A crystal from a fresh crystallization batch was taken from the crystallization mother liquor and the structure at 100 K was confirmed for this crystal. The crystal was then gradually warmed at a rate of 6° C per minute to room temperature (298 K). Re-determination of the unit cell parameters indicated a substantial change to unit cell axes and angles (Table S9†). The unit determination was repeated several times, until no change in unit cell parameters was observed anymore (ca. 1 h at 298 K), and then the crystal structure was redetermined at 298 K.

The structures were similar enough to allow a structure solution from the 100 K dataset by isomorphous replacement. The arrangement of the 15-metallacrown-5 units and bridging μ4-[Cu(C2O4)2]2− anions were largely unchanged. However, ca. 9 of the 24 previously present water molecules were not observable anymore and could also not be accounted for as diffuse highly disordered solvent content (12 water molecules could be refined and a Platon Squeeze procedure accounted for 3 more water molecules in a 4% pore volume). The μ2-[Cu(C2O4)2]2− anion was found to be highly dynamic, with one of the oxalates swinging by nearly the entire length of the ligands (>2 Å). Additional structural details for complex 2 collected at room temperature are given in the ESI (Table S10, Fig. S8–S10†). Thus, this crystal lost about one-third of its water content (ca. 37.5%) when warmed to room temperature, or ca. 5.4% of its original molecular weight. The volume of the unit cell shrank from 2139.3(5) to 1901.3(9) Å3, ca. 11% of the original volume.

The loss of the water molecules upon warming to room temperature makes the structural change from the 100 K to the partially desolvated structure irreversible. Attempts to cool partially desolvated crystals back to 150 or 100 K to obtain better quality structural data resulted in strain buildup and fragmentation of the crystal.

To verify the purity of the original material, powder XRD data for complex 2 were obtained for freshly prepared non-ground sample soaked in water. Data collected in this manner closely resemble those for the expected structure from the 100 K single crystal structure. A Rietveld refinement plot is given in Fig. S7, and additional refinement details are given in the ESI.†

Magnetic properties

The magnetic properties of complexes 1 and 2 were studied in a dc magnetic field in the temperature range 2–300 K. The room temperature value of χMT for complex 1 (12.07 cm3 mol−1 K) is somewhat higher than the expected spin-only value (11.63 cm3 mol−1 K for five non-interacting Cu(II) ions (SCu = 1/2), one Gd(III) ion (SGd = 7/2) and one Cr(III) ion (S = 3/2) with gCu = gGd = gCr = 2.00) (Fig. 7). A temperature decrease to 36 K leads the χMT value to fall to 10.74 cm3 mol−1 K, which indicates the presence of the usual antiferromagnetic exchange interactions in the metallamacrocyclic core. With further temperature decrease, the χMT value grows to a maximum value of 11.24 cm3 mol−1 K at 5 K, which can be attributed to ferromagnetic exchange interactions between paramagnetic centres. A further temperature decrease to 2.0 K leads to the χMT value for 1 dropping to 10.90 cm3 mol−1 K at 2.0 K (Fig. 7).
image file: d4dt02413c-f7.tif
Fig. 7 Thermal dependence of the molar magnetic susceptibility for 1, presented per {GdCu5}Cr moiety (open black circles). The red line represents the best fit with parameters obtained with a theoretical model based on Hamiltonian (1) (see main text).

The magnetic properties of the 1D-coordination polymer 1 can be described using a {GdCu5(GlyHA)5(Cr(C2O4)3} fragment, in which the [Cr(C2O4)3]3− anion is bidentately linked to Gd(III) (Fig. 2 and S4†). The possible exchange interaction between Cr1 ion and Cu4′ from adjacent 15-metallacrown-5 fragment in 1 was neglected, since coordination of [Cr(C2O4)3]3− anions in apical positions of Cu(II) ions usually results only in small exchange interactions between Cr(III) and Cu(II) ions.35–37

The observed χMT vs. T data were fitted using a model based on the three-J spin Hamiltonian (1), which takes into account both Gd–Cu and Cu–Cu exchange interactions in the {GdCu5}3+ metallacrown core and, in addition, exchange interactions between the Gd(III) and Cr(III) ions from the coordinated [Cr(C2O4)3]3− anion (Fig. S4†):


image file: d4dt02413c-t1.tif(1)
where JGd–Cu is the exchange integral between Gd(III) and Cu(II) ions, JCu–Cu between adjacent Cu(II) ions in the metallamacrocycle, JGd–Cr is the exchange integral between Gd(III) and Cr(III) ions; Ŝi are spin operators for the Cu(II) ions, while ŜGd and ŜCr are spin operators for the Gd(III) and Cr(III) ions, respectively. The χMT vs. T data for 1 were fitted using the PHI software.38 The best correspondence between experimental and fitted data was observed with the following parameter values (Fig. 9): JCu–Cu = −59.6(3) cm−1, JGd–Cu = +0.380(7) cm−1, JGd–Cr = +0.074(2) cm−1, gGd = 2.050(1), gCu = 2.344(5), gCr = 1.98 (fixed) and zJ′ = −0.0120(1) cm−1, with R2 = 3.12 × 10−5.39

Complex 1 is the third example of a 15-metallacrown-5 utilizing the {GdCu5}3+ fragment with values reported for exchange interactions between paramagnetic centers. The values of Cu(II)–Cu(II) exchange interactions obtained for 1 are comparable to previously reported ones of −54(4) and −61.0(5) cm−1 for Gd(III)–Cu(II) 15-metallacrowns-5,11,12 and are typical for {LnCu5}3+ fragments with different Ln(III) ions, with JCu–Cu ranging from −44.1(2) to −68(4) cm−1.16,17,40,41 The JGd–Cu values in 1 are also comparable to previously observed values (+0.60(2) and +0.85(1) cm−1) for 15-metallacrowns-5 bearing a {GdCu5}3+ unit.11,12 Weak ferromagnetic Gd(III)–Cu(II) exchange interactions, which usually vary from a tenth of a wavenumber to a few wavenumbers, have been reported for various classes of coordination compounds with different nuclearities of complexes and different bridging groups between Gd(III) and Cu(II) ions.42–45

To the best of our knowledge, there are no reported ferromagnetic exchange interactions between Gd(III) and Cr(III) ions which exceed 0.3 cm−1,46 whereas examples of weak antiferromagnetic exchange interactions for Gd(III) and Cr(III) ions, especially in cases of single atom bridges, are more common in comparison with Gd(III)–Cu(II) exchange interactions.46a,47

The χMT value at 300 K for complex 2 (20.00 cm3 mol−1 K) is slightly lower compared to a theoretically calculated spin-only value (20.63 cm3 mol−1 K for thirteen non-interacting Cu(II) ions (SCu = 1/2) and two Gd(III) ions (SGd = 7/2) with gCu = gGd = 2.00) (Fig. 8). With decreasing temperature, the value of χMT gradually falls, reaching a minimum of 17.86 cm3 mol−1 K at 40 K, evidencing the existence of antiferromagnetic exchanges between paramagnetic centres in complex 2. Further temperature decrease leads to the growth of the χMT value, with it reaching a maximum of 20.12 cm3 mol−1 K at 2 K, which, again, can be attributed to ferromagnetic exchange interactions between Gd(III) and Cu(II) ions in the metallamacrocyclic cores (Fig. 8).


image file: d4dt02413c-f8.tif

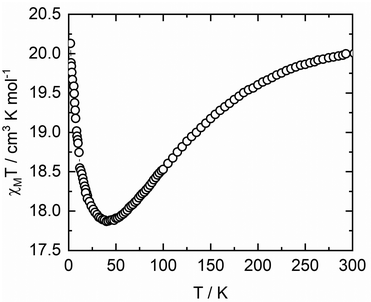

Fig. 8 Thermal dependence of the molar magnetic susceptibility for 2, presented per {(GdCu5)Cu}2Cu moiety.

The observed χMT vs. T data for complex 2 cannot be fitted using the 2J-model,11,12 which includes equivalent exchange interactions between adjacent Cu(II) ions in the metallamacrocyclic core. The equatorial coordination of μ4-[Cu(C2O4)2]2− leads to close contacts between the Cu6 ion from μ4-[Cu(C2O4)2]2− and two copper(II) ions Cu1 in two 15-metallacrown-5 cores connected by a bridging bis(oxalato)cuprate. The Cu6 and Cu1 ions are separated only by the bridging carbonyl oxygen atom O8, which leads to a Cu6–Cu1 = 3.7695(5) Å contact, which is shorter than for the adjacent Cu–Cu in the metallamacrocyclic core, which range from 4.5594(7) to 4.6170(7) Å. The ions Cu6 and Cu2 are connected through a triatomic –O–C–N– bridge, which leads to a longer Cu6–Cu2 contact (6.0464(6) Å). The existence of short Cu6–Cu1 contacts creates the necessity of taking into account the J3Cu–Cu exchange interactions between copper ion Cu6 from μ4-[Cu(C2O4)2]2− and Cu1 from the metallamacrocyclic core; this makes exchange interactions between adjacent Cu–Cu core ions non-equivalent, leading to at least two different JCu–Cu exchange interactions inside the 15-metallacrown-5, due to the symmetry lowering of the metallamacrocycle (Fig. 9). The large attendant matrices defeated our attempts to fit the data for complex 2 with the PHI software.


image file: d4dt02413c-f9.tif
Fig. 9 The scheme for exchange interactions amongst paramagnetic centres in complex 2.

Magnetocaloric effect

The evaluation of a possible magnetocaloric effect in complexes 1 and 2 was performed from magnetisation data in the temperature range 2 to 15 K, measured in magnetic fields up to 13 T (Fig. 10 and 11). The magnetisation for complexes 1 and 2 reaches values of 12.04 and 18.77Nβ at 13 T, which is below saturation magnetisation (15 and 27Nβ, respectively). The observed magnetisation values are close to the theoretically calculated ones, which accounts for antiferromagnetically coupled Cu(II) ions in the metallamacrocycle leading to an S = 1/2 state for the Cu5 cores (11 and 19Nβ, respectively). The lower magnetisation value in high field evidences the presence of low-lying excited states with low magnetic moments. Due to the large magnetisation values for complexes 1 and 2 combined with a high metal/ligand mass ratio, these compounds can be considered as possible candidates for magnetic refrigeration. To evaluate the Magnetocaloric Effect (MCE), the magnetisation data were measured between 2 and 15 K up to a magnetic field of 13 T for both compounds 1 and 2. The magnetic entropy changes (−ΔSm) for complexes 1 and 2 were derived from M vs. H data using the Maxwell eqn (2) and (3):5,48

image file: d4dt02413c-t2.tif(2)

image file: d4dt02413c-t3.tif(3)
image file: d4dt02413c-f10.tif

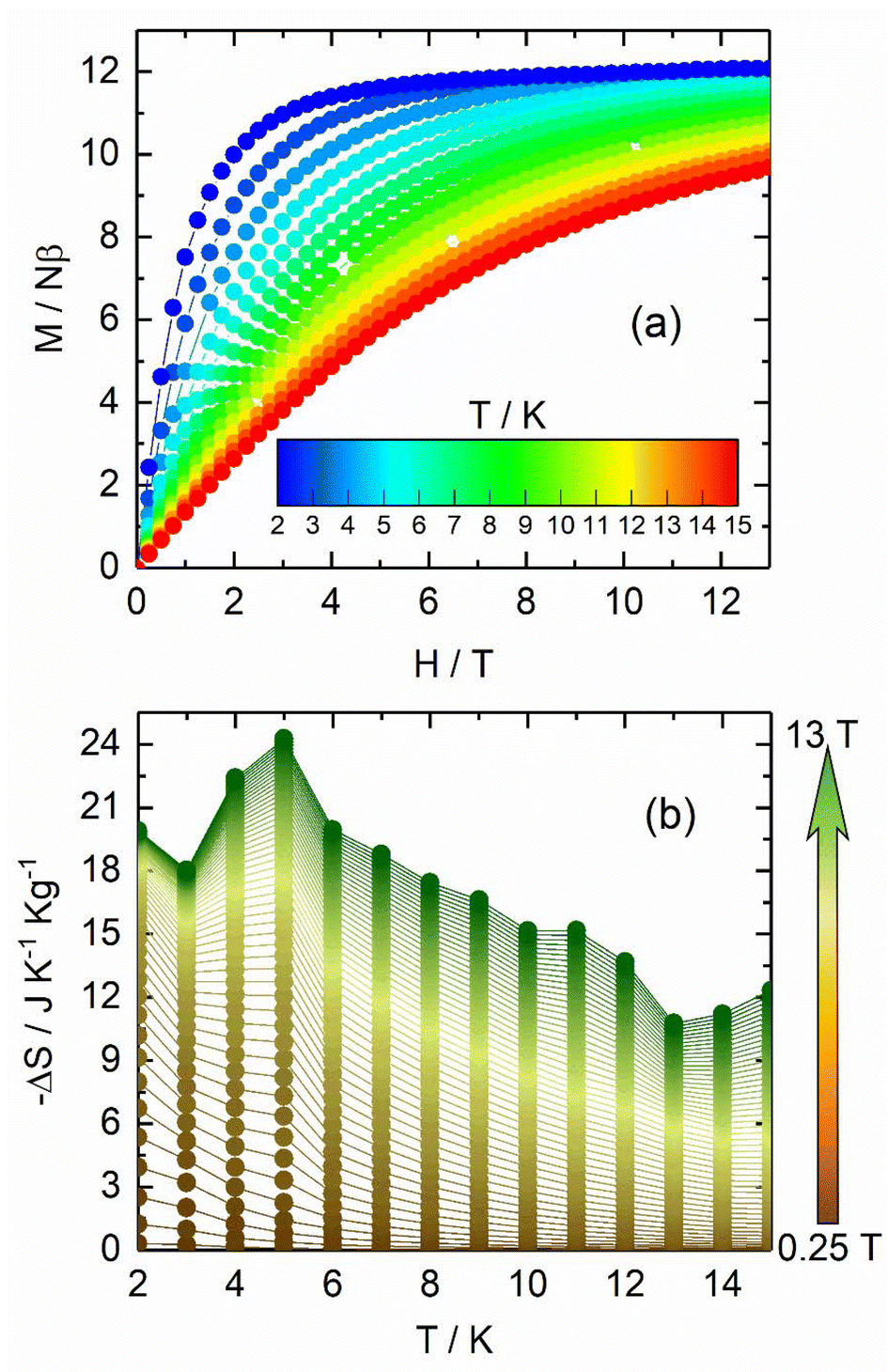

Fig. 10 (a) Field dependence of the magnetisation from 2 to 15 K for 1. (b) Calculated temperature dependence of magnetic entropy −ΔSm obtained from the magnetisation using the Maxwell equations at various fields of 0.25–13 T for 1.

image file: d4dt02413c-f11.tif
Fig. 11 (a) Field dependence of the magnetisation from 2 to 15 K for 2. (b) Calculated temperature dependence of magnetic entropy −ΔSm obtained from the magnetisation using the Maxwell equations at various fields of 0.25–13 T for 2.

The dependence of −ΔSm on temperature for complexes 1 and 2 is depicted in Fig. 10 and 11, and corresponds to a gradual growth with decreasing temperature and increasing field. The entropy changes for complexes 1 and 2 at 2 K (13 T) are 19.91 J K−1 kg−1 and 10.48 J K−1 kg−1 respectively. The maximum −ΔSm experimentally observed correspond to 24.26 J K−1 kg−1 at 5 K (13 T) for 1 and 19.14 J K−1 kg−1 at 4 K (13 T) for 2. The observed values for 1 and 2 are lower than the theoretically calculated maximum entropy for non-interacting paramagnetic ions and were determined from the expression ΔS = nRLn(2S + 1)/Mw (where R is the gas constant, n the number of non-interacting spins and Mw is the molar mass) (for complex 1 the theoretical value of −ΔSM is R[ln(2SGd + 1) + 5ln(2SCu + 1) + ln(2SCr + 1)]/Mw = 6.93R/Mw = 37.06 J K−1 kg−1; for 2: R[2ln(2SGd + 1) + 13ln(2SCu + 1)] = 13.17R/Mw = 39.46 J K−1 kg−1). For complexes 1 and 2, the observed −ΔSm values are comparable with the theoretical ones, when five antiferromagnetically coupled Cu(II) ions leading to S = 1/2 in a Cu5 cyclic core (R[ln(2SGd + 1) + ln(2SCu + 1) + ln(2SCr + 1)] = 4.16R/Mw = 22.21 J K−1 kg−1 in 1 and R[2ln(2SGd + 1) + 2ln(2SCu + 1) + 3ln(2SCu + 1)] = 7.625R/Mw = 21.83 J K−1 kg−1 in 2) are taken into account. The presence of significant antiferromagnetic interaction between the metal centres is generally the origin of the deviation between the maximum calculated and experimental values of −ΔSm.8,49–54 Similar effects on the −ΔSm values were observed for Gd(III)–Cu(II) exchange clusters with Cu(II)–Cu(II) exchange interactions as low as −110 cm−1, which led to the stabilization of ground states with lower multiplicities.55,56

Complexes 1 and 2 are the first examples of 15-metallacrown-5 compounds demonstrating a magnetocaloric effect. The selection of glycinehydroxamic acid, possessing the lowest molecular weight among α-substituted hydroxamic acids needed for the construction of 15-metallacrown-5 cores allows one to obtain polynuclear clusters with high magnetic density, which is favourable for the observation of a significant magnetocaloric effect. The observed values of entropy change for 1 and 2 are comparable with those for 3d–4f polynuclear clusters with similar nuclearity.

Conclusions

Reactions between hexanuclear Gd(III)–Cu(II) 15-metallacrown-5 complexes with anionic oxalate complexes [Cr(C2O4)3]3− and [Cu(C2O4)2]2− led to formation of 1D-polymeric complexes. Studies of magnetic properties in a dc field for the obtained complexes reveal presence of antiferromagnetic exchange interactions between copper(II) ions in the metallamacrocyclic cores and ferromagnetic exchange interactions between Gd(III) and Cu(II) ions. The molecular system 1 allowed us to quantify such magnetic interactions with JCu–Cu = −59.6 cm−1 and JCu–Gd = 0.38 cm−1 as well as the additional magnetic interaction between the Gd(III) and Cr(III) with JGd–Cr = 0.07 cm−1. The isotropic nature of Gd(III) ions and the favorable metal/organic ratio led to the observation of a significant magnetocaloric effect with maximum values of 24.26 J K−1 kg−1 at 5 K (13 T) for 1 and 19.14 J K−1 kg−1 at 4 K (13 T) for 2. The obtained complexes are the first examples of 15-metallacrowns-5 possessing a magnetocaloric effect. The observed values of −ΔSM are lower than theoretically estimated for non-coupled paramagnetic centres due to the presence of antiferromagnetic exchange interactions between the paramagnetic centres.

Experimental section

Materials and measurements

Commercially available reagents and solvents (Merck and Aldrich) were used without further purification. The starting complex [GdCu5(GlyHA)5(CO3)(NO3)(H2O)5]·3.5H2O was synthesised as described previously.22 C, H, N microanalyses were carried out on a Carlo Erba 1106 instrument. Single-crystal X-ray diffraction was performed at 100 K on a Bruker AXS SMART APEX CCD diffractometer using graphite-monochromated Mo-Kα radiation (0.71073 Å). Crystals suitable for X-ray data collection were taken directly from the mother liquor. See the ESI for details on single crystal structure analyses (CCDC 2367413 and 2367414; Table S1†).

The direct current (dc) magnetic susceptibility measurements were performed on solid polycrystalline samples using a Quantum Design MPMS-XL SQUID magnetometer between 2 and 300 K in an applied magnetic field of 0.02 T for temperatures of 2–20 K, 0.2 T for temperatures of 20–80 K and 1 T for temperatures of 80–300 K. Magnetisation data were collected between 2 and 15 K and magnetic fields up to 13 Tesla using a Quantum Design PPMS magnetometers. The sample was immobilised in a pellet made with Teflon tape. Experimental susceptibility data were corrected for diamagnetic contributions using Pascal's constants.57

Synthesis of complex 1. A hot solution of K3[Cr(C2O4)3]·3.5H2O (14.6 mg, 0.03 mmol) in 1 mL H2O was added to a hot (∼90 °C) solution of [GdCu5(GlyHA)5(CO3)(NO3)(H2O)5]·3.5H2O (25.0 mg, 0.02 mmol) in 2 mL H2O, followed by addition of 1.5 mL of DMF to the reaction mixture. The solution obtained was stirred for 30 min at ∼90 °C. A small amount of green precipitate was filtered off and the filtrate was left for slow cooling. X-Ray-suitable crystals were obtained after a day. Anal. for GdCu5CrC16H56N10O40 exp. (theor.): C: 11.98 (12.35); H: 3.72 (3.63); N: 9.07 (9.01). Yield: 25.8 mg (83%).
Synthesis of complex 2. To a hot (∼90 °C) solution of [GdCu5(GlyHA)5(CO3)(NO3)(H2O)5]·3.5H2O (25.0 mg, 0.02 mmol) in 2 mL distilled H2O, a hot solution of K2[Cu(C2O4)2]·2H2O (14.4 mg, 0.045 mmol) in 1 mL distilled H2O was added, followed by addition of 1.5 mL of DMF to the reaction mixture. The resulting solution was stirred for 30 min at ∼90 °C. A small amount of green precipitate was filtered off and the filtrate was left for slow cooling. X-Ray-suitable crystals were obtained after one day. Anal. for Gd2Cu13C32H87.60N20O67.80 exp. (theor.): C: 12.75 (12.97); H: 2.68 (2.92); N: 9.54 (9.45). Yield: 21 mg (71%).

Data availability

Electronic supplementary information (ESI) available: X-ray crystal structure refinement data, analysis of symmetry of coordination environment of metal ions with Shape 2.1 software, IR spectra. Crystallographic data for this paper have been deposited with the CCDC as record 2367413, 2367414 and 2379203.

Conflicts of interest

There are no conflicts to declare.
