Nitroiminotriazole (NIT) based potential solid propellants: synthesis, characterization, and applications

Abstract

Nitroimino (R = N-NO₂) energetic material is a unique class of high energy density materials (HEDM). Synthesis and characterization of insensitive nitroimino compounds are a major challenge. Here triazole-based nitroimino compounds and their high-nitrogen green energetic salts in excellent yields are described. These materials exhibit high positive heats of formation (7.84 to 735.29 kJ mol⁻¹), good densities (1.66 to 1.98 g cm⁻³), suitable detonation properties (P = 22.02 to 31.88 GPa; D = 7472 to 8936 ms⁻¹) and high ballistic properties (I_sp 205.66 to 295.35 s; C* = 1065 to 1832 ms⁻¹) with good thermal (T_d = 136–378 °C) and mechanical stabilities (IS = 10–40 J and FS = 120–360 N).

---

Developing new energetic materials with balanced performance which involves design, synthesis, characterization, and testing is a major challenge for the scientific community.^1–4Ab initio-based calculations demonstrate energetic performance of the materials, which helps in the design of novel materials with emergent properties.⁵ Choosing a suitable ring system (backbone) with appropriate explosophoric group substituents results in potential energetic materials. Ideal energetic materials exhibit high density, high energetic performance and excellent thermal stability while concomitantly generating gaseous products of low toxicity during the combustion process.⁶ High nitrogen five-membered heterocycles are an attractive choice in designing potential high energy density materials (HEDM) because of their high positive heats of formation. The design, synthesis, and applications of nitroimino-containing materials as important explosophoric groups are receiving more and more attention.⁷ Some interesting examples such as (3E,5E)-3,5-dinitramide-ylidene-1,2,4-triazolidine (1, DNAT),⁸ (E)-N-(3-amino-1,2,4-oxadiazol-5(4H)-ylidene)-nitramide (2, AODANA),⁹N-(1,4-dihydro-5H-tetrazol-5-ylidene)-nitramide (3, DHTzNA),¹⁰ and (E)-N-(1-(nitroamino)-1,4-dihydro-5H-tetrazol-5-ylidene)-nitramide (4, DHTNANA)¹¹ are known (Fig. 1). Now, the synthesis and characterization of versatile high nitrogen energetic salts of triazole, namely (E)-N-(2,4-dihydro-3H-1,2,4-triazol-3-ylidene)-nitramide (5, DHTNA) and (4-(nitroamino)-4H-1λ⁴,2,4-triazole-3,5-diyl) bis(ethane-2,1-diyl) dinitrate (6, BEDNINAT), are described.

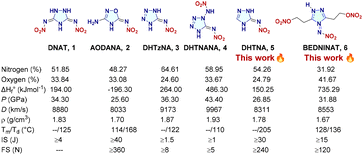

Fig. 1 Triazole, tetrazole and oxadiazole-containing nitroimino energetic materials.^8–11

Commercially available 4H-1,2,4-triazol-3-amine 7 was treated with mixed acid (100% HNO₃ and 98% H₂SO₄) to give 2,4-dihydro-3H-1,2,4-triazol-3-ylidene-nitramine (5, DHTNA)¹² in excellent yield (Scheme 1).

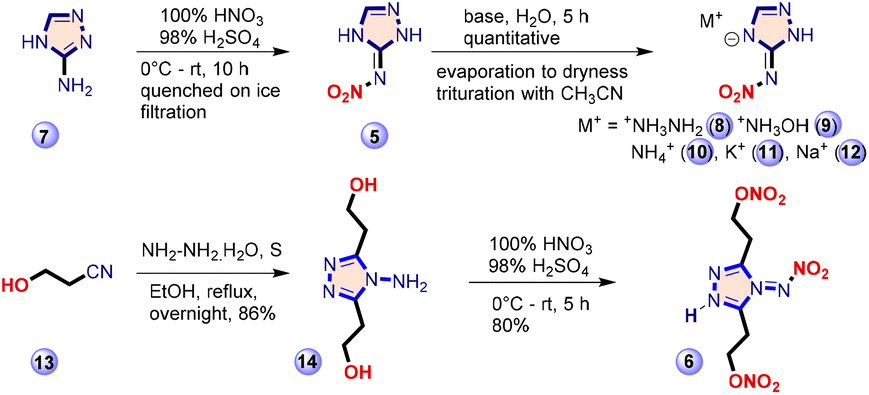

Scheme 1 Synthesis of the title compounds.

Subsequently, 5 was treated with different bases (NH₂NH₂·H₂O, NH₂OH·H₂O, aqueous NH₃, KOH, NaOH) in aqueous solution to form the corresponding energetic salts in quantitative yield. When 3-hydroxypropanenitrile 13 was treated with hydrazine monohydrate in the presence of sulfur powder, 2,2′-(4-amino-4H-1,2,4-triazole-3,5-diyl)-bis(ethan-1-ol) (14, ATBE-ol) resulted in good yield. Compound 14 was further nitrated to form (4-(nitroamino)-4H-1λ⁴,2,4-triazole-3,5-diyl)-bis(ethane-2,1-diyl) dinitrate (6, BEDNINAT).

All new compounds are solids at room temperature. Their thermal stabilities were determined using differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) at the heating rate of 5 °C min⁻¹, respectively (ESI, Fig. S49–S64†). Notably, all new compounds exhibit good thermal stabilities (T_d = 205–378 °C), except compound 6 (T_d = 136 °C), enhancing their possible utility for solid rocket propulsion.

Compound 5·H₂O recrystallized by the slow evaporation of an aqueous solution in the monoclinic space group P2₁ with a density of 1.740 g cm⁻³ at 100 K with a half molecule in the asymmetric unit, which is characterized by the sum formula, Z is 1, and Z′ is 0.5 (Fig. 2 and ESI, Tables S4–S9†). Compound 6 was recrystallized by the slow evaporation of methanol. It crystallizes in the orthorhombic space group Pbca with a density of 1.699 g cm⁻³ at 100 K with one molecule in the asymmetric unit, which is characterized by the sum formula, Z is 8, and Z′ is 1. The relatively high density is supported by various types of interactions such as intermolecular H-bonds and π–π-interactions. The H-bonding interplay has a maximum D–D distance of 3.1 Å and a minimum angle of 110° are present in 6: N1–O1_1: 2.685 Å.

Fig. 2 Single crystal X-ray structure (thermal ellipsoid plot (50%)) of 5·H₂O, 6, 11 and 14.

Compound 11 was crystallized by the slow evaporation of water in the monoclinic space group P21/c and has an excellent density of 2.009 g cm⁻³ (at 100 K) and 1.983 g cm⁻³ (at 25 °C), which are supported by the intermolecular H-bonds and metal organic framework (MOF) formed in the molecule. The H-bonding interplay has a maximum D–D distance of 3.1 Å and a minimum angle of 110° are present in 11: N1–O2: 2.624 Å, N1–N3_1: 2.924 Å. (Fig. 2 and ESI, Tables S15–S19†). Compound 14 was recrystallized by the slow evaporation of methanol. It crystallizes in the monoclinic space group P21/n with a density of 1.428 g cm⁻³ at 100 K with one molecule in the asymmetric unit, which is characterized by the sum formula, Z is 4, and Z′ is 1. (Fig. 2 and ESI, Tables S20–S24†).

The measurement of available oxygen after all hydrogen atoms are converted to H₂O and all carbon atoms into CO or CO₂ [oxygen balance (OB, Ω)], plays an important role in the combustion process. The new compounds have negative oxygen balances (OB^co₂ = −54.75% to −9.57%), which are superior to TNT (OB^co₂ = −73.97%). These materials have a high density (1.66 g cm⁻³ to 1.98 g cm⁻³) superior to TNT (ρ = 1.65 g cm⁻³) and RDX (ρ = 1.80 g cm⁻³). The potassium salt (11) has the highest density (1.98 g cm⁻³) which is comparable to CL-20 (ρ = 2.04 g cm⁻³) (Table 1).

Table 1 Comparison of physicochemical properties of 5–12 with AP, TNT and TKX-50

Compound	5	6	8	9	10	11	12·H2O	AP^a	TNT ^b	TKX-50 ^b
a  Ref. 1 and 14. b  Ref. 6 and 14. c Melting point and decomposition temperature (onset) under nitrogen gas (DSC, 5 °C min^−1). d Measured densities, gas pycnometer at room temperature. e Calculated heat of formation. f Oxygen balance based on CO. g Oxygen balance based on CO2. h Nitrogen content in %. i N + O contents in %. j Calculated detonation velocity. k Calculated detonation pressure. l Heat of detonation. m Measured impact sensitivity. n Measured friction sensitivity. o Specific impulse of neat compound (monopropellant). p Density specific impulse of neat compound (monopropellant). q Characteristic velocity. r Specific impulse at 88% compound and 12% Al. s Specific impulse at 78% compound, 12% Al (fuel additive) and 10% binder (HTPB). t Specific impulse calculated at an isobaric pressure of 70 bar and initial temperature of 3300 K using EXPLO5 V 7.01.
T m/Td ^c [°C]	—/205	128/136	—/211	—/213	—/218	—/260	—/378	—/200	—/300	—/221
ρ ^d [g cm^−3]	1.78	1.67	1.69	1.69	1.66	1.98	1.96	1.95	1.65	1.88
ΔHf ^e [kJ mol^−1 kJ^−1 g^−1]	150.25/1.16	735.29/2.39	297.69/1.85	198.07/1.22	142.38/0.97	7.84/0.05	80.83/0.54	−295.80/-2.51	−59.30/−0.26	213.40/0.90
OB^CO ^f (%)	−18.85	−13.02	−34.76	−19.74	−32.85	−28.71	−31.77	34.04	−24.66	−13.60
OB^CO2 ^g (%)	−43.38	−44.27	−54.62	−39.48	−54.75	−9.57	−10.59	34.04	−73.97	−27.10
N ^h [%]	54.26	31.92	60.85	51.84	57.72	41.89	46.36	54.47	18.50	59.31
N + O ^i [%]	79.05	73.59	80.71	81.45	79.62	61.03	67.54	66.39	60.76	86.41
P ^j [GPa]	26.85	31.88	29.52	29.05	25.26	22.02	27.34	18.43	18.56	36.74
D ^k [ms^−1]	8311	8553	8936	8674	8359	7472	8359	6858	6817	9592
−Q ^l [kJ kg^−1]	4263	7256	4838	5256	4154	4076	4775	1433	4363	4744
IS ^m [J]	30	10	40	40	40	10	10	15	15	20
FS ^n [N]	240	120	360	360	360	120	120	360	353	120
I sp ^o^,^t [s]	218.46	294.49	234.49	250.46	216.34	176.77	194.85	156.63	206.49	243.64
rI sp ^p^,^t [s]	388.86	491.80	396.29	423.28	359.12	357.07	381.91	306.15	341.54	457.32
C* ^q^,^t [ms^−1]	1372.20	1832.5	1467.7	1578.1	1334.0	1065.3	1165.4	976.8	1283.5	1531.2
I sp ^r^,^t [s]	239.65	295.35	255.63	270.23	244.63	205.66	213.24	232.00	235.53	267.83
I sp ^s^,^t [s]	228.62	248.37	243.31	249.19	234.99	197.48	192.85	262.11	225.11	244.44

---

The heats of formation () of the new compounds were calculated with the Gaussian 03 suite of programs¹³ using the isodesmic method (Fig. S1†). Corresponding ballistic and detonation properties were calculated using () and experimental densities with the help of EXPLO5 V7.01 software.¹⁴ Compounds 6, 8 and 9 exhibit high positive enthalpies of formation (), 735.29 kJ mol⁻¹, 297.69 kJ mol⁻¹ and 198.07 kJ mol⁻¹, respectively, whereas compound 11 has the lowest (, 7.84 kJ mol⁻¹) (Table 1).

A comprehensive comparison of the ballistic properties of the new materials shows that compounds 6, 8 and 9 have excellent potential as solid rocket propellants. Composite propellants (with AP/Al/HTPB) performed better than those of individual neat mono-propellant compounds. Compounds 11 and 12·H₂O exhibit promising explosive properties, as given in Table 1. Additionally, the ballistic properties (I_sp and C*) of compound 6 were estimated at different compositions of ADN and AP (Fig. S67†).

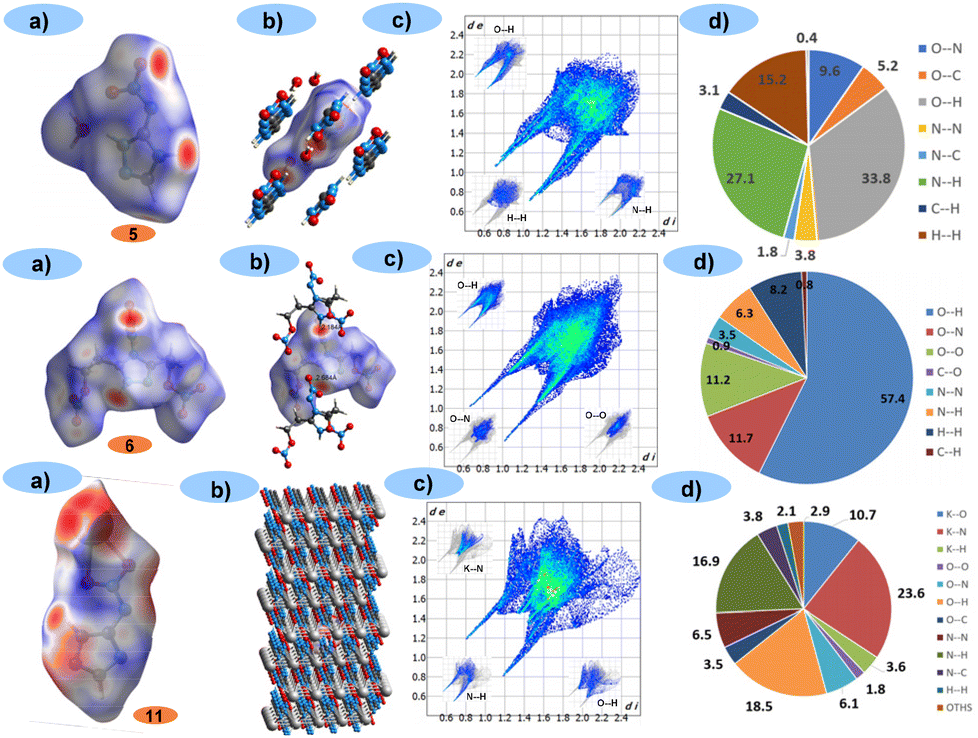

The physicochemical properties of materials are directly allied with their molecular structures. Hirshfeld surfaces and 2D-fingerprints were calculated and visualized with CrystalExplorer 21.5 software,¹⁵ which show that compounds 6 and 11 are rigidly packed and their high densities are governed by numerous types of interactions as shown in Fig. 3. In Hirshfeld surface analysis, red and blue dots on the compound surfaces illustrate high and low close contacts, respectively Fig. 3a. Fingerprint plots suggest that O–H contacts for compounds 6 (∼57.4%), 11 (∼18.5%) and N–H contacts for compounds 6 (∼6.3%), 11 (∼16.9%), are contributing to the high stability of compound 11. On the other hand, the high number of various close interactions such as N–N, O–O and O–N contacts in the molecules, result in high-impact sensitivity.¹⁶ Their measured impact sensitivities also support this result, and the stability order is RDX < 6 < 11 (Table 1). The electrostatic potentials (ESP) of compounds 6 and 11 were predicted with Multiwfn and VMD software,¹⁷ The positive fraction (red) and a negative fraction (blue) represent the less and more active sites on the molecule surface, respectively (Fig. 4).

Fig. 3 (a) Hirshfeld surfaces in crystal stacking for 5, 6, and 11 (b) Arrangement in crystal packing. (c and d) 2D- fingerprint and individual contribution of close contacts.

Fig. 4 Molecular surface (ESP map) of compounds 5 (a), 6 (b) and 11 (c).

The potassium cation of compound 11 and the hydrocarbon chain in compound 6 are present under red surfaces, showing that they provide additional stability to the material. ESP minima and maxima for compounds 5, 6, and 11 are −34.00, −41.69, −75.17 kcal mol⁻¹ and +55.12, +83.32, 90.46 kcal mol⁻¹, respectively.

Numerous non-covalent interactions and reduced density gradients were determined in compounds 5, 6, and 11 using B3LYP/6-311++G(d,p) level of theory as illustrated in Fig. 5. It is clear that compound 11 has high numbers of interactions and fewer steric effects compared to 5 and 6, resulting in high thermal stability.

Fig. 5 (a) Non-covalent interactions (NCI).  (b)  Reduced density gradients (RDG) and scatter diagrams of 5, 6 and 11.

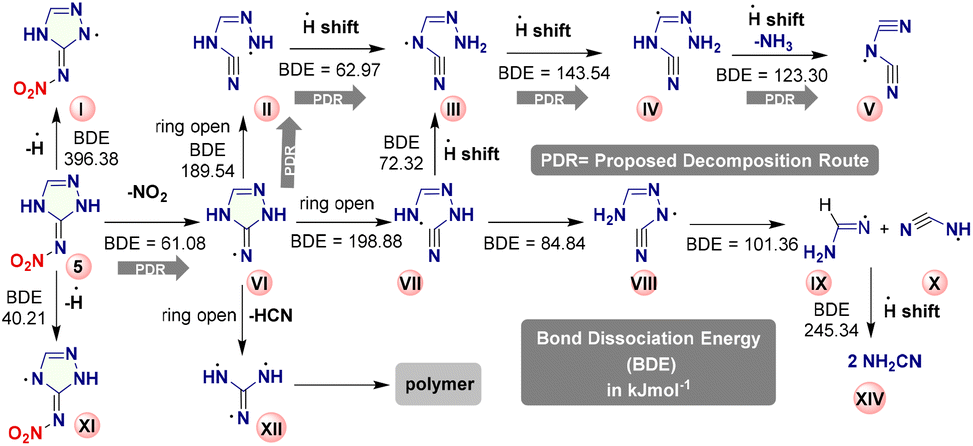

Additionally, to better understand the decomposition of 5 during the combustion process, the bond dissociation energy (BDE, gas-phase) of homolytic cleavage of various bonds was calculated at B3LYP/6-311++G(d,p) level of theory (Fig. 6).

Fig. 6 Proposed thermal decomposition route for 5.

Based on BDEs, compound 5 would decompose according to PDR (see Fig. 6), path will follow 5 to intermediate VI–II–III–IV and V. The charge distribution on the molecule is determined in terms of Mulliken's charges, as shown in Fig. 7. C1 and N2 in compound 5 and C9 and N6 in compound 6 are the most positively charged carbon and nitrogen atoms in the molecules. Overall, charges are delocalized on the whole molecule, supporting their high stability.

Fig. 7 Mulliken charges on compounds 5 and 6.

The detonation properties of the new compounds were calculated using EXPLO5 V 7.01 program^14b and their solid-phase heats of formation and experimental densities, and results are given in Table 1. Compounds 5 (P = 26.85 GPa, D = 8311 ms⁻¹, Q = 4263 kJ kg⁻¹), 6 (P = 31.88 GPa, D = 8553 ms⁻¹, Q = 7256 kJ kg⁻¹), 8 (P = 29.52 GPa, D = 8936 ms⁻¹, Q = 4838 kJ kg⁻¹) and 9 (P = 29.05 GPa, D = 8674 ms⁻¹, Q = 5256 kJ kg⁻¹), which are comparable to those of RDX (D = 8801 ms⁻¹, P = 33.60 GPa, Q = 5728 kJ kg⁻¹), TNT (D = 6817 ms⁻¹, P = 18.56 GPa, Q = 4363 kJ kg⁻¹) and AP (D = 6858 ms⁻¹, P = 18.43 GPa, Q = 1413 kJ kg⁻¹).

Compounds 6, 10, and 11 have low sensitivities¹⁸ (IS = 10 J, FS = 120 N), which make them potential secondary explosives. Whereas compounds 6 (I_sp = 295.35 s, C* = 1832 ms⁻¹), and 9 (I_sp = 270.23 s, C* = 1578 ms⁻¹) show superior specific impulse (I_sp) and characteristic velocity (C*) than the TNT (I_sp = 235.53 s, C* = 1283 ms⁻¹) and TKX-50 (I_sp = 267.83 s, C* = 1531 ms⁻¹), making them potential solid fuels for rocket propulsion. Additionally, more insights to design a laser ignition setup for the new compounds, their UV-visible spectra of compounds 5 and 6 were predicted at B3LYP/6-311++G(d,p) level, (see, ESI, Fig. S65 and S66†).

In summary, a facile synthesis of DHTNA and its energetic salts from commercially available 3-nitro-1H-1,2,4-triazole was developed. The new compounds were fully characterized by FTIR, NMR, and elemental analyses. The structures of 5·H₂O, 6, 11, and 14 were also confirmed by single-crystal X-ray analysis. A comprehensive study of the energetic properties and thermal behaviour of the new compounds was also carried out. Compounds 5–12 possess excellent thermal stabilities (T_d, 136–378 °C) and low sensitivities to impact (10–40 J) and friction (120–360 N). Compound 6 melts (T_m, 128 °C) before decomposition (T_d, 136 °C) and exhibits detonation properties (P = 31.88 GPa, D = 8553 ms⁻¹), which makes it a promising candidate as a green explosive. Compounds 6 (P = 31.88 GPa, D = 8553 ms⁻¹, I_sp = 295.35 s, C* = 1832.5 ms⁻¹), 8 (P = 29.52 GPa, D = 8936 ms⁻¹, I_sp = 255.63s, C* = 1467.7 ms⁻¹) and 9 (P = 29.05 GPa, D = 8674 ms⁻¹, I_sp = 270.23s, C* = 1578.1 ms⁻¹) have excellent potential as solid propellants in rocket propulsion.
