Understanding deNO_x mechanisms in transition metal exchanged zeolites

Abstract

Transition-metal-containing zeolites have wide-ranging applications in several catalytic processes including the selective catalytic reduction (SCR) of NO_x species. To understand how transition metal ions (TMIs) can effect NO_x reduction chemistry, both structural and mechanistic aspects at the atomic level are needed. In this review, we discuss the coordination chemistry of TMIs and their mobility within the zeolite framework, the reactivity of active sites, and the mechanisms and intermediates in the NH₃-SCR reaction. We emphasise the key relationship between TMI coordination and structure and mechanism and discuss approaches to enhancing catalytic activity via structural modifications.

---

Jamal Abdul Nasir

Jamal Abdul Nasir received his MSc and MPhil degree in Inorganic Chemistry from Quaid-i-Azam University Pakistan in 2014 and 2016 respectively. He joined the same institute as a PhD student in September 2016. He then started a 2nd PhD in computational chemistry under Prof. Richard Catlow's group at UCL and is now a postdoctoral research fellow at UCL. He has a strong interest in the both experimental and computational chemistry e.g. MM, DFT and hybrid QM/MM methodologies. He is currently working on Quantum Computing applications for Catalysis; and on Machine learning Interatomic Potentials for inorganic-based materials.

Andrew M. Beale

Andrew (Andy) Beale was awarded a BSc from the University of Sussex followed by a PhD at the Royal Institution of Great Britain. He then worked as a Postdoctoral researcher, VENI Research Fellow and Assistant Professor in the Department of Inorganic Chemistry and Catalysis, at Utrecht University in the Netherlands. He returned to the UK in 2013 as an EPSRC Early career fellow. He is currently a Professor of Inorganic Chemistry at UCL Group Leader at the Research Complex@Harwell and Chief Scientific Officer of Finden Ltd. Current research interests concern the study of functional materials with in situ and operando methods.

C. Richard A. Catlow

C. Richard A. Catlow obtained his doctorate from the University of Oxford and subsequently held academic appointments at University College London, Keele University, the Daresbury Laboratory, and the Royal Institution. He was a Vice-President and Foreign Secretary of the Royal Society from 2016–2021. He currently has a joint professorial position with UCL and Cardiff University. His research interests are in the field of the chemistry of complex materials, including those for applications in catalytic and energy applications, investigated by a combination of computational and experimental techniques. He has published over 1200 research articles in this field.

---

Introduction

The development of catalysts for removing nitrogen oxides (NO_x) from the emissions of power plants and internal combustion engines is amongst the most intensively studied fields of environmental catalysis. Zeolites containing transition metal ions (TMIs) are effective for these key catalytic processes, but despite extensive study, there remain uncertainties concerning structural and mechanistic aspects. This review will discuss the status of the field, emphasising the complementary nature of experiments with computationally based theory and with a strong focus on the ammonia-assisted reduction reaction.

As will be discussed in greater detail below, zeolites are tecto-aluminosilicate nano-porous materials, which possess exceptional physicochemical properties that are useful in a wide range of applications including ion-exchange, gas separation, and catalysis;¹ an analogous class of nano-porous alumino-phosphate (ALPO) and related materials can also show useful catalytic functionality. To modify their adsorption properties and to incorporate new functionality into zeolites, ion-exchange with transition metal ions (TMI) is a widely used strategy.^2,3 TMIs, which may also be introduced into framework sites through isomorphous substitution or annealing, play a key role in zeolite catalytic chemistry because of their variable oxidation and coordination states, which are essential in many catalytic reactions. The study of their properties is facilitated by characterisation techniques such as diffraction and spectroscopy including X-ray absorption fine structure (XAFS), electron paramagnetic resonance (EPR), UV-visible, and mid-infrared (MIR) spectroscopy. Computational techniques can also be effectively applied to model structural and mechanistic properties of TMI centres in zeolites.

TMI-zeolites are highly active in a variety of key redox reactions including hydroxylation of benzene⁴ and methane⁵ to phenol and methanol, respectively. The use of TMI-containing zeolites for the remediation of NO_x from combustion engines has attracted particular attention and is the focus of this review. The selective catalytic reduction (SCR) of NO_x to N₂ in the presence of ammonia plays an important role in mitigating the emission of NO_x from power plants and combustion engines.^6–8 According to the California Air Resources Board (CARB) Emission Factors 2021 inventory model, heavy-duty diesel vehicles (HDDVs) were expected to account for about 70% of on-road mobile source NO_x emissions in 2021.⁹ Industrial processes commonly generate flue gases at relatively low temperatures, often around 300 °C. Consequently, SCR catalysts must exhibit activity within a temperature range of 100–300 °C. Whereas the V₂O₅–WO₃(MoO₃)/TiO₂ (VTW) catalyst is a well-known and efficient choice for NH₃-SCR in medium-temperature (100–400 °C) processes,¹⁰ it does possess some inherent limitations including a relatively narrow and high working temperature window (functioning optimally within the range of 300–500 °C), and reduced selectivity for converting NO_x to N₂ in the high-temperature range.^11,12 SCR on stationary emissions (i.e. nitric acid plants) often operates at stable temperatures of 300–400 °C and uses a variety of reductants, including H₂ and hydrocarbons. With mobile emissions, the catalyst temperature varies with the drive cycle and hence the advantage of NH₃-SCR is that it can work at lower temperatures (onset of activity is ∼130–150 °C with metal-containing zeolites) [178]. VTW catalysts show the same sorts of limitations as Cu-zeolites with ammonia combustion being the main problem at high temperatures. The main reason VTW are not more widely used, outside Europe, concerns the limitations with using V5+ containing formulations in the US as it is classified as a carcinogen. Various transition metal-based zeolite catalysts have been extensively explored for the low-temperature NH₃-SCR reaction owing to their redox properties, cost-effectiveness, and high hydrothermal stability.^13–15

The NH₃-SCR reaction either involves oxygen (standard SCR) (eqn (1) or NO₂ (Fast SCR) (eqn (2) to generate nitrogen and water from NH₃ and NO.¹⁶ In addition, there is the NO-activation pathway (eqn (3), where the rate does not depend on the concentration of NO₂ in contrast to Fast SCR.¹⁷ Several other reactions can occur in this mixture of NO_x, NH₃, O₂, and H₂O, including the oxidation of ammonia or the formation of N₂O. These side reactions influence the selectivity to N₂, and therefore, can affect the overall catalytic performance.

4NO + 4NH₃ + O₂ → 4N₂ + 6H₂O (1)

NO + 2NH₃ + NO₂ → 4N₂ + 3H₂O (2)

3NO + 2NH₃ + O₂ → 2N₂ + 3H₂O + NO₂ (3)

Following the breakthrough discovery of Cu/ZSM-5 as an effective catalyst for nitrogen oxide (NO_x) removal in 1986 by Iwamoto et al.,¹⁸ several zeolite-based catalysts have undergone thorough investigation in the field of NH₃-SCR. This interest stems, as noted, mainly from their broad operational temperature range (200–600 °C), elevated catalytic efficiency and selectivity towards N₂, as well as good hydrothermal stability.¹⁹ The stable and ordered framework structure of zeolite catalysts, along with their high specific surface area, not only contributes to their exceptional hydrothermal stability but also facilitates the effective dispersion of active metals. This enhanced dispersion enables the diffusion of both reacting and stable product species, thereby enhancing the overall reactivity. Additionally, the concentration and distribution of active metals in zeolites can be controlled by adjusting the aluminium content (in aluminosilicate zeolites) and matching it with the desired metal loadings, which may be achieved through the electrostatic stabilisation effects,^20,21 leading to improved hydrothermal stability and catalytic activity of the catalysts in NH₃-SCR.

In this review, we first discuss the industrial importance and applications of these catalysts which we follow by discussing the relevant basics of zeolite science and then describe the key aspects of TMI chemistry: their distribution and location within the pores of the zeolite framework, the possible coordination to the lattice, and especially the formation of amine and metal oxo-complexes. We review in detail the structural complexity of TMI-based-zeolites and their reactivity in activated materials in NH₃-SCR. We describe the state-of-the-art characterisation practices employed to study the structural and chemical identity of metals in the zeolite framework. We then focus on the role of TMIs in the NH₃-SCR reaction, where we provide a summary of the mobility and restructuring of TMI-active sites and their ultimate effect on the NH₃-SCR reactivity. We discuss the chemistry of the intermediate species and their formation. Finally, we briefly consider the stability of TMI-zeolites, in particular the ageing impact of materials in NH₃-SCR activity, and the potentially interesting possibilities of designing ideal zeolite-based heterogeneous catalysts for NH₃-SCR. We conclude by considering future perspectives.

NH₃-SCR process and its industrial importance

SCR technology is primarily employed to reduce NO_x emissions, which contribute to air pollution, and smog formation, and have adverse health effects. NH₃-SCR, in particular, has gained widespread industrial importance due to its efficiency, versatility, and environmental benefits.²² One of the key motives for the practical significance of the NH₃-SCR is its ability to reduce effectively NO_x emissions across a wide range of industrial sectors. Power plants, chemical manufacturing plants, refineries, and other industrial facilities are major sources of NO_x emissions,²³ and more than 1000 SCR plants have been implemented in the United States alone to mitigate the emissions of NO_x from industrial boilers, steel mills and process heaters.²⁴ Mobile sources have seen a rapid upsurge in the utilisation of SCR systems in diesel vehicles, owing to the inherent inadequacy of three-way catalysts (TWC) in tackling the reduction of NO_x emissions in lean-burning gasoline and diesel engines.²⁵ TWCs, designed for gasoline engines, struggle with the higher NO_x emissions characteristic of the higher temperatures encountered in diesel combustion. SCR systems offer a more effective solution by injecting urea into the exhaust stream to convert NO_x into harmless nitrogen and water vapour, thus meeting emissions regulations and improving air quality.²⁶

Diesel engines are widely used in worldwide road transport owing to their efficiency and durability. European studies show that 40% of atmospheric NO_x comes from road transport, with 75% attributed to diesel engines.^27,28 Stringent measures since 1993 have reduced NO_x emissions by approximately 95% from heavy-duty diesel engines.²⁸ Catalytic materials are now employed to reduce further emissions in line with EU legislation. Upcoming Euro VII standards will require optimising new catalytic technologies, crucial for the automotive industry.²⁹ By implementing NH₃-SCR technology, these industries can achieve further reductions in NO_x emissions, thereby complying with these new environmental regulations and improving air quality. Furthermore, the NH₃-SCR process offers advantages in terms of its efficiency and cost-effectiveness.^30,31 The use of a catalytic converter ensures high conversion rates of NO_x, even at low temperatures, making it appropriate for a wide range of industrial applications.

The NH₃-SCR process also offers flexibility in terms of integration into existing infrastructure without requiring major modifications, making it an attractive option for industries seeking to retrofit their facilities for emissions reduction. For example, it typically requires the addition of a urea dosing unit, the urea decomposing to yield 2 moles of NH₃ and one mole of CO₂.³² Additionally, the technology can be customised to suit specific industrial needs and accommodate variations in operating conditions, including gas composition and temperature. This adaptability enables the NH₃-SCR process to be implemented in several industries.

Zeolites: fundamentals and challenges

Zeolites are crystalline alumino-silicate or silica nanoporous materials with large specific surface areas (typically 100's of m² g⁻¹); their framework architectures lead to porosity in the form of channels and or cages of molecular dimensions in 1, 2 and 3D. They have adjustable acidity and basicity and are widely used in industrial applications owing to their excellent catalytic activity and product selectivities.^33,34 The materials occur naturally as minerals, but there is also an extensive range of synthetic materials.³⁵ Their production, topology, and behaviour raise fascinating basic questions, and their extensive industrial usage has stimulated both the improvement of current zeolitic materials and the exploration of new ones with novel functionalities.

More than 200 zeolite topologies have been reported so far. The topology of the channel/cage system is crucially important as are the dimensions of the rings which control access to the cages.³⁶ Different rings are symbolised with the notation n-MR (8-MR, 6-MR, and 4-MRs where n signifies the number of tetrahedral (T) atoms); but zeolites are flexible frameworks and molecules whose size might be considered to preclude their passage through a window may be able to “squeeze” through at higher temperatures. Indeed, the actual window diameter is a dynamic property owing to the breathing motion of the framework.³⁷

A key, basic feature of zeolite chemistry is the isomorphous replacement of Si⁴⁺ with Al³⁺ which has two consequences: first, as the distance between Al–O bonds is longer than Si–O bonds, the tetrahedrally coordinated Al³⁺ with four lattice oxygen influences the shape and free diameter of the rings within the framework. Second, the incorporation of Al³⁺ creates a locally negative charge, which must be charge-neutralised by the introduction of cationic species which can include protons, as discussed further below. These cations are exchangeable with the other cations including TMI. The location of these exchanged cations depends on several aspects including the Si/Al ratio, the charge and concentration of the TMI, the preparation method, and the activation conditions.³⁸

Related to zeolites are zeotypes: other classes of nano-porous materials possessing often similar but sometimes unique frameworks of which the most extensive are AlPOs (aluminophosphates) and SAPOs (silicoaluminophosphate) which offer distinctive characteristics and properties.³⁹ MgAlPOs, synthesised using aluminium and phosphorus precursors, exhibit acid-catalytic activity due to the presence of framework magnesium. SAPOs, which incorporate silicon, aluminium, and phosphorus, have the potential for enhanced structural flexibility, allowing for a broader range of pore sizes and shapes depending on their specific composition and synthesis conditions.^40,41 The range of nano-porous materials has also in recent decades been greatly extended by the development of nano-porous materials including metal–organic frameworks (MOFs) which have been very extensively studied,⁴² for example, ZIF-8,⁴³ MOF-74,⁴⁴ Cu-BDC (HKUST-1),⁴⁵ but they generally have larger pores than zeolites.

The distribution of Al³⁺ over tetrahedral sites has been widely studied and debated. Al³⁺ tetrahedra are not located in direct neighbouring sites in the framework (no Al–O–Al linkage) according to Lowenstein's rule,^46,47 which appears to be widely obeyed in zeolites. Computational investigations have shown that small clusters of zeolites have lower energy for “Lowensteinian” aluminium distributions,⁴⁶ suggesting that the origin of the rule may be in the energetics of the small clusters from which zeolites nucleate. The rule results in an upper limit of isomorphous substitution of Si by Al, of 1. There are further rules to describe the distribution of Al³⁺: Dempsey's rule proposes that the Al³⁺ substitution follows, as far as possible, an evenly dispersed Al distribution.⁴⁸ However, deviations from Dempsey's rule occur in synthetic zeolites.⁴⁹ The experimental analysis shows that Al³⁺ substituents may be in close proximity rather than in a dispersed distribution, but Lowenstein's rule still holds⁵⁰ and the possible aluminium configurations in different ring structures with 5 > Si/Al > 1 for the 4-, 5-, 6-, 8-, and 10-MR of zeolites are shown in Fig. 1.⁵¹ However, Fletcher et al.⁴⁷ predict deviations from Löwenstein's rule in both protonated and sodium-containing forms of the zeolite, SSZ-13 which could lead to new catalytic routes and materials, enhancing existing zeolite catalysts. Additional rules include that of Takaishi and Kato⁵² which states that within 5-membered ring (5-MR) containing zeolites only one Al³⁺ substitution is allowed.

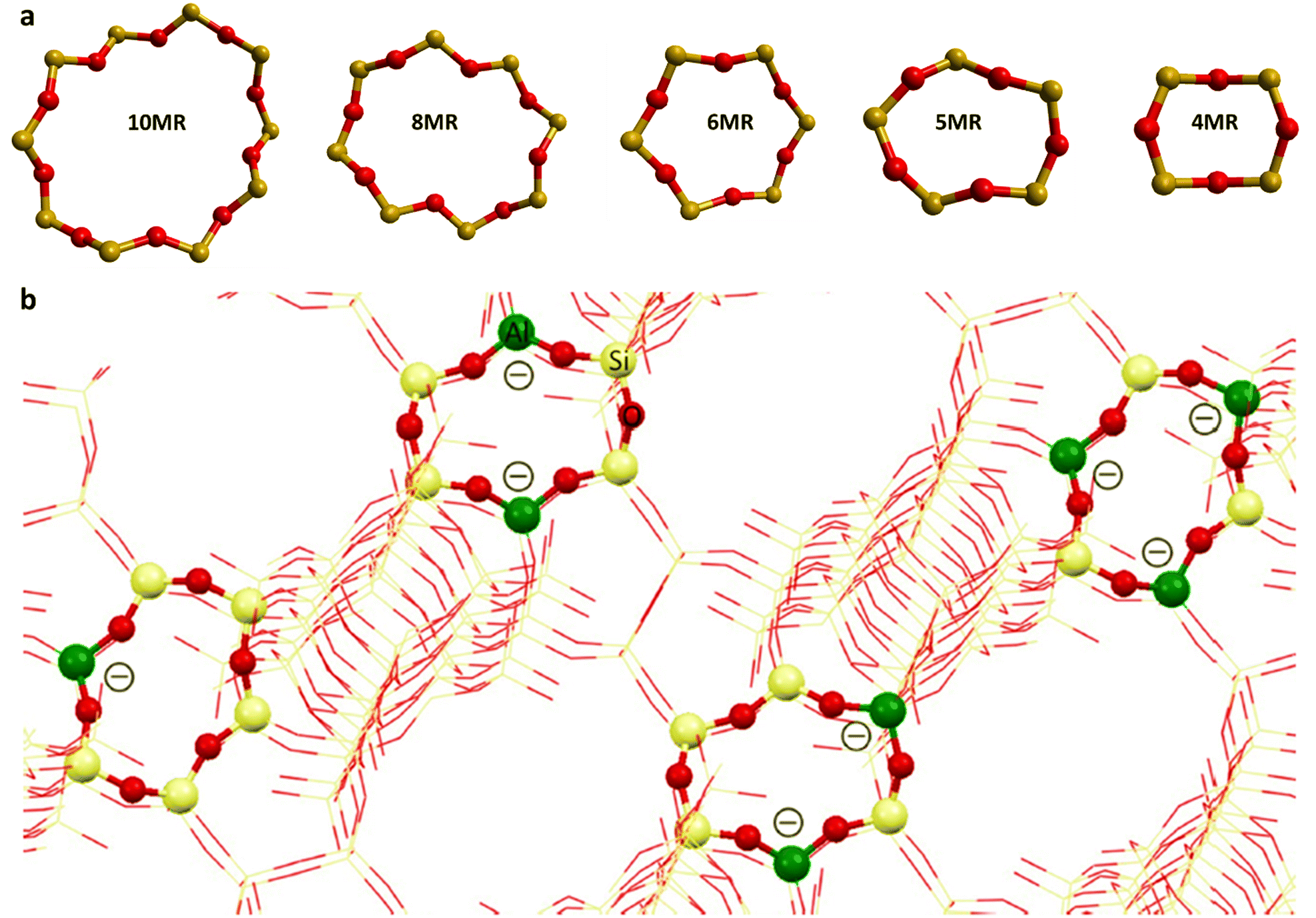

Fig. 1 (a) The representative rings (10-MR, 8-MR, 6-MR, 5-MR, and 4-MR) of CHA and ZSM-5 zeolites, and (b) examples of allowed Al distributions in β-6-MR sites, Al distributions in zeolites allow for one, two, or three Al T-sites as per qualitative rules. Colour code: O, red; Si, grey; Al, green. Reproduced from ref. 51 with permission from American Chemical Society, copyright 2018.

Several experimental findings indicate that the Al distribution in zeolites is non-random and does not adhere to straightforward statistical principles.^53–55 Daniel et al. determined quantitatively the spatial distribution of Al using atomic-scale analysis (e.g. Atom Probe Tomography).⁵⁵ They observed a very non-random distribution of Al within highly crystalline zeolites. Upon steaming, the non-random, Al distribution involves clustering. This pronounced clustering appears to occur at the regions near diffusion barriers supposed to separate the zeolite subunits and hence, behave as a route for the transportation of Al towards the outer surface of zeolites. In addition, Li et al.⁵⁶ reported a steady transition of Al towards the crystal surface during crystallization. Sometimes, Si enrichment of the crystal surface is also detected.⁵⁷ The incorporation of high-aluminium-containing precursor species to existing crystals, especially when occurring in the late synthesis stages, leads to an uneven Al distribution within zeolite ZSM-5 crystals, observed using focused ion beam (FIB), energy dispersive X-ray spectroscopy (EDX), and scanning transmission electron microscopy (STEM).⁵⁶ FIB milling enabled the analysis of precise middle sections of crystals, facilitating the quantification of Si/Al ratios in different crystal regions.

The siting and distribution of Al are also closely coupled with the location of charge compensating cations. The Si/Al ratio and the distribution of Al in the zeolite framework are key factors in influencing catalytic reactions, and the nature and siting of the charge-compensating cation have a major impact on zeolite catalytic activity. Zeolites as a host facilitate high levels of cation dispersion across multiple sites and environments. Differences in coordination surrounding the cations in extra framework sites may result in cation-zeolite combinations with distinctive acid–base characteristics and can, therefore, affect redox chemistry.^58,59 The Si/Al ratio and the Al location can influence the nuclearity of the TMI species and in some circumstances, it has been observed that binuclear species similar to those seen in enzymes i.e. methane monooxygenase (MMO)⁶⁰ have been identified.

Brønsted acid sites are created when protons balance the negative charge in aluminosilicate zeolites,⁶¹ with the protons binding to the lone pairs of the bridging oxygen atoms. The phenomenon of Brønsted acidity is normally used to describe both acid density and acid strength. While acid density is relatively straightforward, acid strength needs more extensive discussion.⁶² Intrinsic acid strength is determined by the proton affinity at acid sites, which is affected by charge dispersion within the zeolite framework and correlates with the local electric field. The Brønsted acid sites of different zeolites have significantly different strengths⁶³ which are mainly linked to the ring structures that make up the zeolite rather than the bulk topology. In addition, the acid strength shows a dependency also on the location of the Al³⁺ in particular topologies.⁶⁴ Both Brønsted acid sites and TMI play a significant role in SCR catalysis. TMI exhibit the necessary redox functionality and the Brønsted sites seem to be important in terms of NH₃ storage/activation.^65,66

Lewis acid Al³⁺ in zeolites is more versatile,⁶⁷ but understanding Lewis acid structures remains uncertain due to diverse potential sites arising from aluminium's structural versatility^68,69 with Al being identified with 3, 4, 5 and 6 coordination.⁷⁰ Lewis acidic aluminium can be produced via post-synthesis procedures including steaming and calcination, forming extra-framework aluminium species^71,72 which could be considered as a catalytic site for NH₃-SCR reaction as reported by Lezcano-Gonzalez et al.⁷³ Furthermore, Lewis acidic Al³⁺ can also be an inherent characteristic of the zeolite framework, and there are therefore, several proposals for Lewis acid site structures, originating from the framework, framework-associated, and extra-framework aluminium,^74–76 and identification of Lewis acid structures and properties will remain challenging.^77,78

The influence of the Al distribution within zeolite frameworks has a significant effect on the structure, properties, and catalytic activity of TMIs e.g., Cu, Fe, and Co ion species.^79,80 The local negative framework charge, determined by isolated Al substitutions or pairs, critically influences the structure and activity of metal ion species. Dědeček et al.⁸¹ investigated how Al, either paired as Al–O–(Si–O)₂–Al sequences within a single ring or isolated as Al–O–(Si–O)_n>2–Al sequences across separate rings, affect the performance of metal ion species in SCR-NO_x. They selected BEA, MFI, and FER structures, each with a similar overall composition but different Al distributions. The concentrations of Al pairs and isolated Al atoms were determined using ²⁹Si MAS NMR and visible spectra analysis of dehydrated Co–zeolites with maximally exchanged Co²⁺ ions. The structure and reactivity of the metal sites were characterised using UV-Vis spectroscopy, FTIR, and TPR-H₂. Co²⁺, Cu²⁺, and Fe²⁺ ions are stabilised by Al pairs, while Co-oxo and Cu-oxo or Cu⁺ species are associated with isolated Al atoms. Cu⁺ ions near isolated Al atoms in Cu-MFI zeolites show the highest activity in NO decomposition. Krishna et al.⁸² studied the influence of Al on NH₃-SCR of NO_x activity and showed that higher Al densities enhance the mobility and reactivity of Cu ions, crucial for the formation of active binuclear Cu²⁺ complexes necessary for NO_x reduction. As the Al density increases, the rate of Cu⁺ oxidation rises significantly, improving SCR performance, particularly in low-oxygen conditions. However, Cu²⁺ reduction rates exhibit a non-linear relationship with Al density, peaking at intermediate levels, suggesting a balance between active site availability and potential inhibition by co-cations like NH₄⁺. These findings highlight the importance of optimizing the Al distribution in CHA zeolites to maximize NO_x conversion efficiency. More details on zeolites in deNO_x catalysis including Al distribution effects on metal ion catalysis in zeolites, can be found in other reviews.^12,13,83,84

Following this introductory account of zeolite's structural and chemical properties, in the next section, we will focus on the NH₃-SCR of NO_x reaction on metal-exchanged zeolite.

NH₃-SCR of NO_x in zeolites

In the “NH₃-SCR” reaction, NO_x gases, (mainly NO) are treated in the presence of O₂ and NH₃ to generate N₂ and H₂O.⁸⁵ The primary exhaust gases emitted from industrial and diesel engines consist predominantly of NO (>90%), instead of NO₂, hence the reaction of NH₃-SCR is generally recognized as the “Standard SCR”.⁸⁶ As noted earlier, in the 1980s, Iwamoto et al.⁸⁷ showed that Cu-exchanged zeolites had high activity and stability for deNO_x catalysis.⁸⁴ Since then, zeolites have been widely investigated for this key catalytic reaction.^88,89 The term de-NO_x is often used for the remediation of both NO and NO_x, present in exhaust gases. Considering the availability and activity, a small number of TMIs (Cu, Fe, Ag,) have been developed as viable catalysts for NH₃-SCR unlike other TMIs (Mn, Cr, Co, Zn, Ni, La).^90–98 Ion-exchanged zeolites including Fe or Cu-exchanged ZSM-5,⁹⁹ SSZ-13,¹⁰⁰ SAPO-34,¹⁰¹ FAU,¹⁰² Beta,¹⁰³ USY,¹⁰⁴ and MOR,¹⁰⁵ offer the potential for NH₃-SCR applications with broad temperature windows (150–450 °C) and unique active sites. However, challenges remain, including hydrothermal stability, SO₂ tolerance, and hydrocarbon coking.^13,106 It is important to note that the Si/Al for NH₃-SCR catalysts is generally >15  since this represents a balance in terms of enabling a sufficient number of metal active sites and hydrothermal stability.^85,107

Despite the efficacy of TMI-exchanged zeolites, for stationary NH₃-SCR, the preferred catalyst is still vanadium oxide-based catalysts owing to their low cost, lower oxidation activity for the conversion of SO₂ to SO₃, and excellent thermal stability.¹⁰⁸ However, mobile applications have highly dynamic reaction conditions, with the gas flow rate of the lean-burned exhaust gases, and varying temperature demands. They, therefore, require catalysts that will not only be able to show high activity at low temperatures (<300 °C) but also have better hydrothermal stability at high temperatures (>500–600 °C).^86,109 Several zeolites including mordenite (MOR), zeolite Y (FAU), ZSM-5 (MFI), and BETA (BEA) have received significant interest owing to their applications in catalysis and stability under different temperature conditions.

Some important and widely studied zeolite structures in NH₃-SCR of NO_x are shown in Fig. 2. Medium-pore size zeolites including ZSM-5 and mordenite were thought to be more active than larger pore sizes (e.g. BETA, USY, and Y); and, in recent years most focus has been on smaller pore size zeolites mainly with the CHA topology.^28,110 Although many other TMIs, as mentioned earlier, have also been explored, to date, Cu and Fe have been the main focus of research.

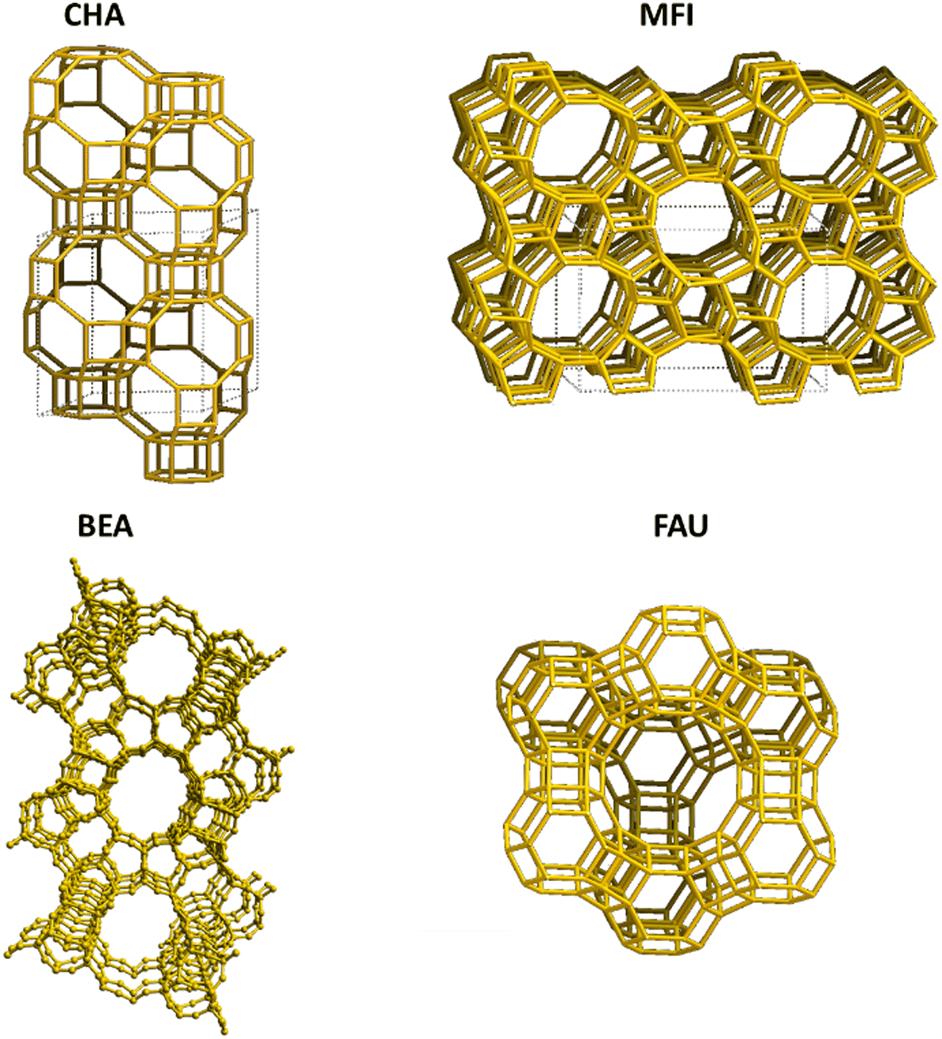

Fig. 2 The important zeolite framework structures used in NH₃-SCR reaction.

Several studies^111,112 consistently demonstrate that zeolites containing Cu or Fe display enhanced efficiency in NH₃-SCR compared to catalysts based on other transition metals. This superiority stems from the effective activation of NO over a wide temperature spectrum. The Cu-exchanged zeolites are optimized for SCR within the range of 150–300 °C. Beyond 300 °C, undesirable side reactions such as ammonia oxidation become pronounced over Cu-based zeolites, leading to a decline in NO_x conversion.^113,114 In contrast, zeolites containing Fe require higher reaction temperatures.

Several highly effective catalysts based on Cu or Fe-exchanged zeolites for NH₃-SCR have been recognized including Cu/SSZ-13, Cu/LTA, Fe/Beta, Cu/SAPO-34, and Fe/SSZ-13, which, with fine-tuning of metal content and zeolite carrier types, demonstrate promising industrial applications; and as noted, the small pore Cu/SSZ-13 (SSZ indicating a small-pore, siliceous framework zeolites), which has been effectively deployed in the exhaust deNO_x of diesel vehicles.^110,115 The zeolite, SSZ-13 (CHA) is an exception because of its unique structure and relatively small pore size (0.37 × 0.42 nm).¹¹⁶ NH₃-SCR is thought to be effective in SSZ-13 firstly because of the metal speciation, secondly, as the small pore restricts poisons such as carbon-based molecules and thirdly, the small pore zeolites have high hydrothermal stability. In addition, its catalytic efficacy is assisted by the presence of double 6-MRs serving as preferred Cu sites and the inherent stability of its framework structure.^117–119 Indeed, Cu-zeolites were found to provide the highest performance at lower temperatures (i.e., <200 °C) whereas Fe exhibited the maximum activity above ∼350 °C.¹²⁰

In MFI the sites which contribute to the catalytic reactions are the 10-MR rings with a diameter of ∼0.55 nm (e.g. in CHA it is 0.38 nm) where the TMI is located either in straight or zigzag channels so that a smaller pore size makes it difficult for the reacting molecules to access the active sites. Noting the importance of the pore size, the same approach can be made for other zeolites. The advantage of larger pore sizes is that they not only allow rapid diffusion of reactants to gain access to the active sites but also make the desorption process more favourable.⁶¹ On the other hand, larger pore zeolites allow a greater number of poisons to enter the pores. Moreover, it is often considered that zeolites, by confinement effects (transition state/product shape), can positively influence product distribution, which will be less effective in large pore zeolites.

Several theoretical and experimental investigations have been performed to elucidate the Standard SCR mechanism. These mechanisms are increasingly well understood, with both mononuclear and dynamic binuclear Cu species identified as the primary active sites.^111,121 NH₃-bonded to the zeolite was investigated by Giordanino et al.¹²² using NH₃-temperature programmed desorption (TPD). They identified three types of adsorbed ammonia species, which can participate in SCR reactions. At low temperatures (T < 400 °C), NH₃ linked to the Cu-site appears to be more stable, whereas, at temperature (T > 400 °C), NH₃ preferentially bonded to Brønsted sites. In addition, NH₃ can bind with ammonium ions giving rise to NH₄⁺·nNH₃ associations. Lezcano-Gonzalez et al.⁷³ identified a fourth species, namely ammonia species coordinating to extra-framework Al and that these played a positive role in promoting NO_x reduction.

High-temperature SCR activity is an important aspect, particularly owing to the significant heating of NO_x emissions during engine acceleration. Above 450 °C, a decrease in NO_x conversion is noted on the Cu-SSZ-13 catalyst, ascribed to the strong oxidizing nature of the Cu species, which facilitates the oxidation of NH₃ by oxygen.^123–125 To address this issue, various transition metal-modified Cu zeolite catalysts have been widely investigated, including Fe–Cu/SZM-5,¹²⁴ CeO_x–Cu-SAPO-34,¹²⁶ MnCe/Cu-SSZ-13,¹²⁷ which demonstrated excellent high-temperature SCR catalytic activity, providing potential solutions to enhance the performance and overcome the limitations of Cu-SSZ-13 catalysts in high-temperature conditions. On the other hand, cold start conditions pose challenges for catalytic converters, where lower temperatures hinder catalyst performance until optimal operating temperatures are reached.

The concentration of NO₂ present in the gas mixture can affect the performance of Fe-ZSM-5, and therefore, oxidation of NO to NO₂ is considered the rate-limiting step in NH₃-SCR.^120,128,129 It is also found that Fe-based catalysts are more prone to the NH₃ inhibition effect.^130,131 The experimental data strongly indicate that an excess of NH₃, whether in the gas phase or on the catalyst surface, inhibits NO conversion at low temperatures,¹³² which suggests an optimal NH₃ surface concentration for effective conversion. Further comparison between Cu and Fe zeolites showed that Cu is less sensitive to NO₂^133,134 and is, therefore, under standard SCR conditions expected to exhibit better activity than Fe at a lower temperature. Recently, the investigation of Fe and Cu has moved one step further combining both metal ions, using monoliths made up of different sequential compositions.¹³⁵

For, Fe-exchanged zeolites, the Fe in pentasil ring zeolites is notable for its stability for NO_x conversion in the presence of a high content of water.¹³⁶ Fe-ZSM-5 is also active in the SCR of NO_x with olefins¹³⁷ or paraffins (C₃–C₄)¹³⁸ but in the presence of methane, it is not so efficient.¹³⁵ Kucherov et al. also tested the Fe-Beta catalyst with the introduction of different Cu loadings^128,139 to test their impact on the catalytic activity of NO_x reduction. Catalysts with Cu content above 1.25 wt% showed decreased high-temperature activity, indicating the critical role of Cu loading.

Even though, both Cu and Fe are widely investigated systems for NH₃-SCR, other TM metals including Ce and Mn have also been investigated owing to their redox properties.^140–144 Ce-modified Cu/SSZ-13 increases the reducibility of the catalyst and increases the NH₃ and NO_x adsorption capacity, which in turn improves the NH₃-SCR activity.¹⁴⁵ Furthermore, the presence of Ce promotes the formation of nitrate species, which play an important role as prominent intermediates at low temperatures.^145,146 Ce doping has been found to boost the stability of active Cu ions and avoid the dealumination of the framework during hydrothermal ageing which is a promising strategy to enhance the performance and stability of Cu-SSZ-13 catalysts for NH₃-SCR applications.¹⁴⁵

Mn-doped zeolites have displayed excellent activity as explored by Nam et al.^143,144 They developed Mn(20 wt%)/ZSM-5 and Mn(20 wt%)–Fe(10 wt%)/ZSM-5, and tested them for the NH₃-SCR de-NO_x reaction. The presence of 10 wt% of Fe boosts the catalytic activity impressively and surpasses the mono counterpart Fe(10)/ZSM-5 and Mn(20)-/ZSM-5 under low-temperature treatment (below 250 °C). Furthermore, it achieved 80% conversion of NO into N₂ at 160 °C while the Cu/ZSM-5 and Cu/zeolites-based commercial catalysts convert only 40% and 30% at 160 °C (NO/NH₃ = 500/500 ppm; O₂ = 5 vol%). Although at high-temperature treatment (above 350 °C) the deNO_x ability of Mn-doped zeolite was comparatively lower than that of Cu and Co-doped zeolites, the increased content of Mn enhances the hydrothermal stability.¹⁴⁷

In addition, the N₂O decomposition over TMI-exchanged zeolites has been also widely studied.^148–151 Like NO, N₂O is also an environmentally undesired product in NH₃-SCR, and its conversion is a possible route for the generation of N₂. The decomposition of N₂O on a single Fe site and binuclear O bridged Fe site both in the presence and absence of NO and water has been investigated by Heyden et al.¹⁵² Their findings indicate that NO-assisted N₂O decomposition occurs more favourably when compared to NH₃-SCR owing to the absence of H₂O poisoning effect on the active sites, as opposed to NO. In line with this finding, Bruggemann et al.¹⁴⁹ deemed it a crucial aspect of the SCR pathways in exhaust streams abundant in NO₂. It is interesting that N₂O is sometimes observed as a by-product of the SCR reaction and that there has been some investigation into the decomposition of this using zeolite-based catalysts.^153–155 Often though N₂O decomposition is performed in the absence of ammonia and oxygen.

Detailed characterisation of TMIs is essential for an understanding of zeolite-based catalytic processes. Next, we will discuss the mode of attachment and coordination of TMI in zeolites. We will focus on the TMI distribution and location within the zeolite framework and their role in de-NO_x catalysis. We then turn to the key aspect of the activation of O₂ and oxo complexes of TMI in zeolites and their role in NH₃-SCR catalysis.

TMI location, speciation and coordination state

The location and distribution of TMIs in zeolite are crucial as they directly impact the zeolite's catalytic abilities, influencing its overall reactivity and performance in NH₃-SCR of NO_x reaction. The role of TMI speciation, in particular, their formation and transformation in the zeolite framework, the activation procedure, and initial chemical composition are of particular interest.^156–158

Cu-based zeolitic systems

Early diffraction data from the mineral chabazite identified only one cationic ion-exchange site in the CHA topology although for Cu-SSZ-13 X-ray powder diffraction data (XRPD) has shown that there are two crystallographically distinct sites in the 6-MR and the 8-MR that Cu²⁺ occupies when CHA is dehydrated and measurements are made at room temperature.¹⁵⁹ When fully hydrated (i.e. forming a hexa-aqua complex) this amalgamates to one site in the centre of the cage.^159,160 It has been proposed that Cu in both sites after dehydration is off-centre and in the 8-MR is hydroxylated (Cu–OH) as determined by IR spectroscopy and computational methods whilst the location of Cu²⁺ in the 6-MR and its properties show a dependency on whether they are close to 1 or 2 Al³⁺ species.¹⁶¹ Operando spectroscopy and scattering data have shown that Cu is typically in the 2⁺ oxidation state at temperatures above 200 °C.¹¹⁹ A similar finding was reported by Uzunova et al.⁶¹ who performed extensive calculations using DFT with periodic models.

The proposal for isolated Cu²⁺ species in Cu-CHA during NH₃-SCR originated from the work of Fickel et al.¹⁶² and Korhonen et al.¹⁶³ who proposed a formation of single Cu²⁺ ions within the plane of the 6-MR of Cu-SSZ-13 during dehydration using XRD & X-ray absorption (XAS) spectroscopy. Work followed by Deka et al.¹⁶⁴ using XAFS/XRD showed that mononuclear Cu²⁺ ions are seen under operando NH₃-SCR conditions, largely reside in the plane of the 6-MR of SSZ-13 at temperatures above 473 K. They also performed PXRD analysis on Cu-SAPO-34 and correlated the excellent SCR activity to the active sites of isolated Cu²⁺ species located in the 6-MR of Cu-SAPO-34.¹⁶⁵ Utilizing XAFS/XRD, the study provides insights into the local copper environment under operando NH₃-SCR conditions. Confirming the presence of mononuclear Cu²⁺ species in Cu-SSZ-13, the study emphasizes the significance of the local copper environment for the catalyst's catalytic activity. Recent studies suggested that CHA possesses several active sites for both Cu⁺ and Cu²⁺ ions as discussed before.^{85,119,156,166}

McEwen and coworkers¹⁶⁷ examined Cu-SSZ-13 and Cu-SAPO-34 performing periodic DFT calculations confirming that it is the 6-MR of CHA that hosts the isolated Cu⁺ species. This finding is similar to that reported in ref. 168. In addition, Göltl et al.¹⁶⁹ introduced a new theoretical method that integrates DFT calculations and statistical approaches to predict the placement of Cu²⁺ ions within Cu-CHA, adjusting the exchange level of Cu. Furthermore, they show the allocation of the cations amongst the various active sites for a range of exchange levels (ELs) or proportion of charge balancing cations. EL represents the proportion of occupied Cu²⁺ sites in the catalyst. At an EL of 1.0, there is a single Cu ion for every two Al ions. When the EL is set at 0.2, configurations (a), (b), and (f) depicted in Fig. 3a will be filled. At this low EL, configurations (a) and (b) are already fully occupied, while configuration (f) rises with increasing EL values. Site (c) is only occupied just before reaching full exchange. Fig. 3b illustrates the graphical representation of active site distribution across EL values ranging from 0.2 to 1.0. By integrating this information with experimental findings provided by Kwak et al.,¹⁷⁰ it becomes possible to discern configurations (a) and/or (b) as the active sites involved in the SCR of NO_x reduction.

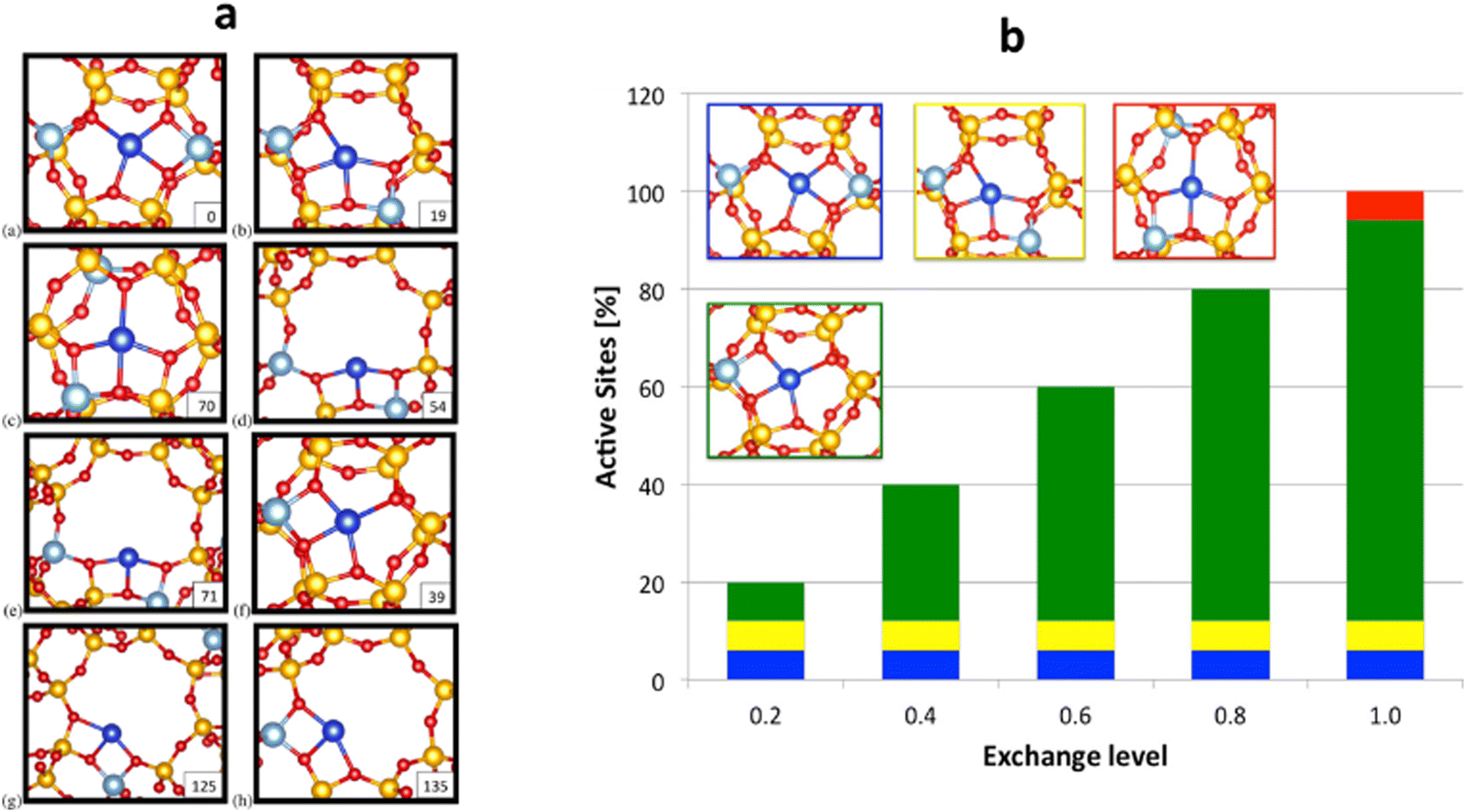

Fig. 3 (a) shows eight distinct cation locations for Cu²⁺ in SSZ-13. Each Cu cation, along with a proton, must be linked with two Al ions. For example, for sites (a)–(e), both Al ions are situated within the same unit cell, whereas sites (f)–(h) represent scenarios with significant Al separation. Si is depicted in yellow, Al in silver, O in red, and cations in blue. The stability energy (ΔE^Cu(II)_exc [kJ mol⁻¹]) of these sites is presented in the lower right-hand corner, and (b) displays the distribution of metal ions within Cu²⁺-SSZ-13 at various ELs, as determined by total energy calculations. (a) (blue), (b) (yellow), and (f) (green) are the most stable sites occupied at an EL of 0.2. As EL increases, the occupancy of site (f) also increases, and site (c) is only occupied at the highest EL. These findings are then compared with experimental data (see ref. 170) showing the stable sites whereas (a) and (b) are the active centres. Reproduced from ref. 169 with permission from American Chemical Society, copyright 2013.

Low-temperature (below 250 °C) studies claimed Cu dimer formation in Cu-SSZ-13.^{85,111,171,172} For example, through a combination of several experimental modelling techniques such as XAS, steady-state and transient kinetic measurements, and first-principles calculations through DFT and ab initio molecular dynamics (AIMD), Paolucci and coworkers⁸⁵ have found that at low-temperature, mobilized Cu⁺ ions can move through zeolite 'windows' and generate transient ion pairs. These ion pairs are actively involved in an oxygen (O₂)-mediated Cu⁺ → Cu²⁺ redox step crucial to the SCR process. The emergence of these dynamic multinuclear sites, originating from mobilized single atoms, is a distinct and important feature of NH₃-SCR zeolite catalysis.

Lomachenko et al.,¹⁷³ studied the dynamic behaviour of the Cu-SSZ-13 catalyst in NH₃-assisted SCR of NO_x across different temperatures. They employed advanced operando X-ray spectroscopies, including XAS and X-ray emission spectroscopy (XES). The investigation uncovered two distinctive regimes dictating the atomic-scale conduct of Cu active sites. At lower temperatures, up to around 200 °C, a balanced distribution of both Cu⁺ and Cu²⁺ active sites is observed, with mobile ammonia-solvated Cu-species predominating. However, with an increase in temperature, specifically from 250 °C onwards, there is a notable shift, showing the prevalence of framework-coordinated Cu²⁺ sites. These findings suggest that the framework-coordinated Cu²⁺ sites probably represent the active sites for high-temperature SCR which helps to provide a detailed overview of the temperature-dependent evolution of Cu active sites within the Cu-CHA zeolite catalyst.

Izquierdo et al.¹⁷⁴ and Morpurgo and coworkers¹⁷⁵ employed DFT- our own N-layered integrated molecular orbital and molecular mechanics (ONIOM) and cluster methods to calculate the isolated and the dimer species of Cu in Cu-ZSM-5. Their study showed that both species can catalyse NO decomposition but the process has a higher activation energy for a dimeric Cu⁺ species.¹⁷⁶

The nuclearity of ion-exchanged Cu is influenced by the structural and compositional characteristics of the zeolite host. Paolucci and coworkers demonstrate differences in Cu species near 1 or 2 Al in SSZ-13's 6-MR and the significance of binuclear species as active sites.¹⁷⁷ The nature of these binuclear species, specifically whether they are bridged by one or two oxygen ions as shown in Fig. 4, is a crucial aspect influencing their catalytic behaviour and electronic structure. Understanding this configuration aids in enhancing heterogeneous catalyst design and elucidating catalytic mechanisms.

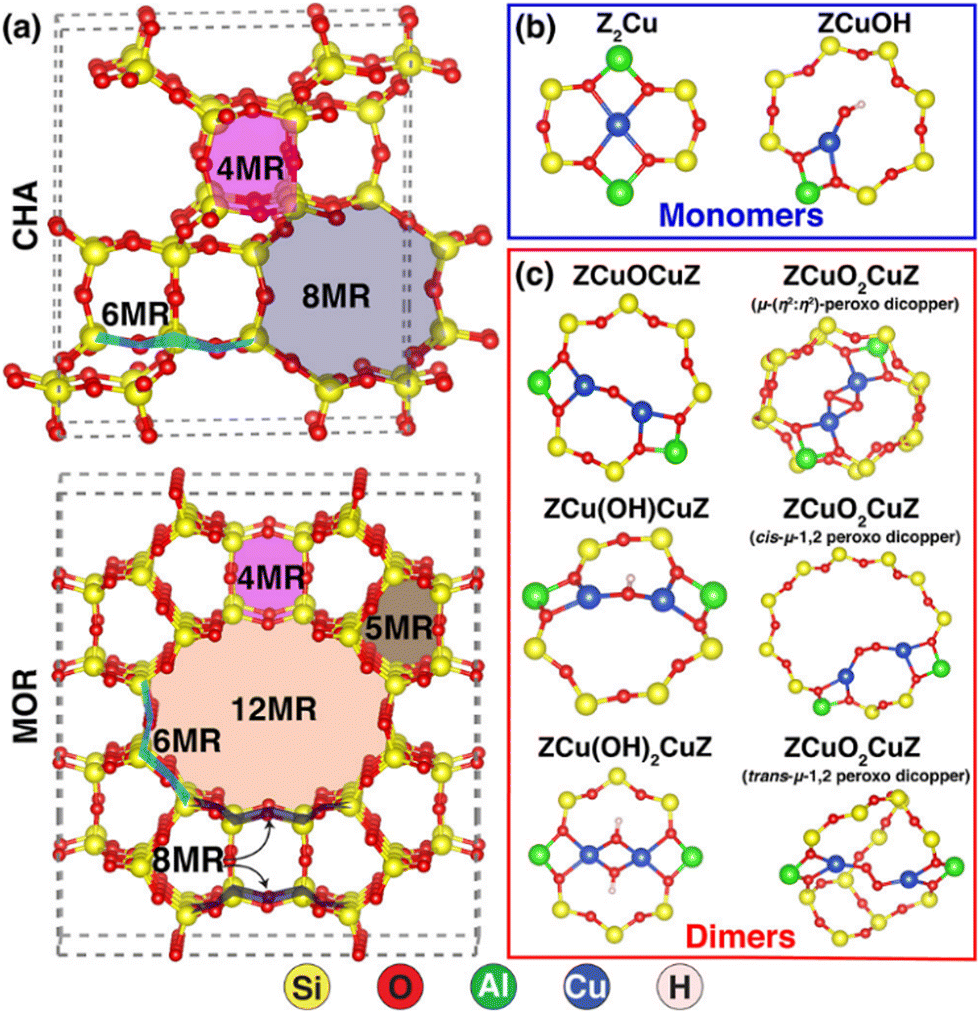

Fig. 4 Depicts various ring structures and additional framework Cu ions in zeolites, showcasing the CHA framework (top) and the MOR framework (bottom), along with Cu-monomer species and Cu-dimer species. Reproduced from ref. 177 with permission from American Chemical Society, copyright 2024.

Pierloot et al.¹⁷⁸ investigated the local environment of Cu²⁺ in zeolites Y (FAU), A (LTA), and ZK-4 (LTA) and provided insight into coordination environments in 6-MR. They showed that Cu is coordinated with the four framework oxygen ions. For the low Si/Al ratio, the distance of Cu to the four neighbouring oxygen ions was reported as 1.9, 2, and 2.2 Å for the first two, third, and fourth respectively. However, with increasing Si/Al ratio the interactions of Cu with neighbouring oxygen also changed with three oxygen ions at ∼1.95–2.0 Å and with the fourth one at ∼2.4 Å. Their calculations were based on geometry optimisations on non-rigid frameworks, and in experimental studies using EXAFS, three and not four Cu–O bonds are seen. The fourth oxygen is likely to be closer to 2.8 Å, where the Al/Si contributions lie. A single-crystal study conducted on Cu–Y also supported this observation showing that Cu (at site II, see Fig. 5) coordinated with three oxygens at 1.85–2.0 Å and the fourth one at 2.5 Å.¹⁷⁹ The resulting geometry of Cu, in this case, corresponds to the distorted square-planar Cu²⁺ located at one side of the 6-MR. In FAU, the TMI preferably resides in the hexagonal prisms after dehydration. At higher dosages, TMI occupies the most accessible sites (sites II and III) as shown in Fig. 5. In this case, sites I and II are important as both belong to 6-MR. The nonequivalent oxygen atoms are labeled as 1 through 4. This study does not provide evidence for any specific ordering of silicon and aluminum ions at the tetrahedral sites, though it is anticipated that Loewenstein's^46,47 and Dempsey's⁴⁸ rules would still apply.

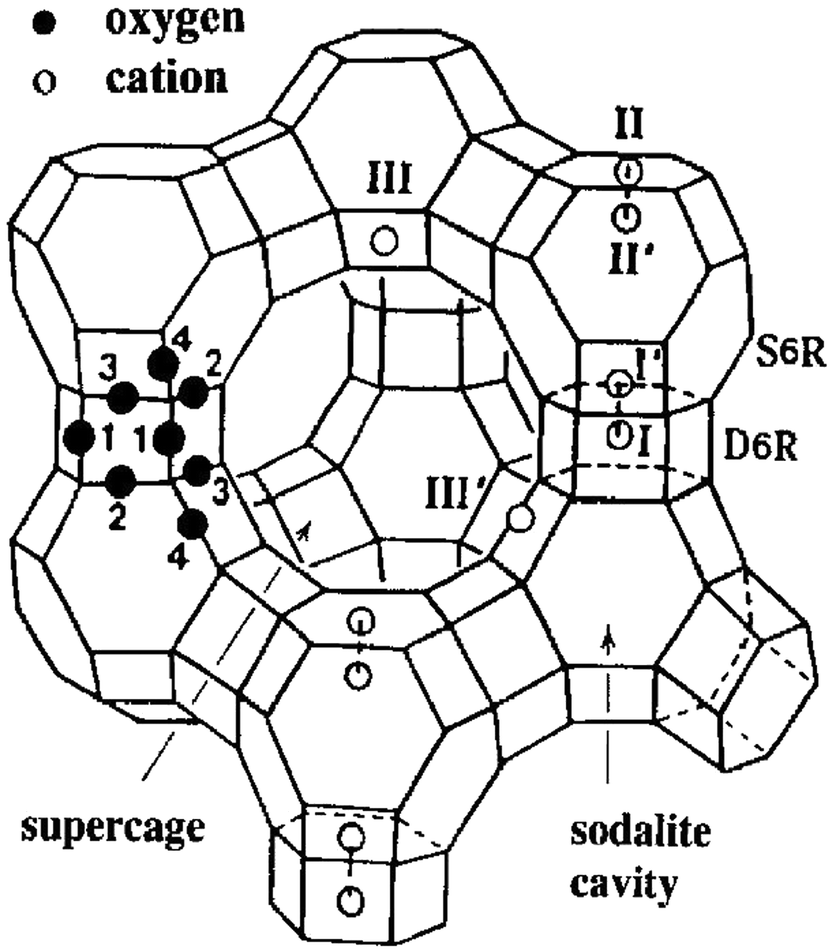

Fig. 5 Stylized drawing of the framework structure of zeolite Y. Near the centre of each line segment is an oxygen atom. Extraframework cation positions are labelled with Roman numerals. Reproduced from ref. 179 with permission from American Chemical Society, copyright 2012.

UV/Vis., and IR spectroscopies can be employed to gain further insight into the structural features of cations, hydroxyl groups and other extra framework species under operando or in situ conditions.¹⁸⁰ The presence of isolated Cu²⁺ species in Cu-SSZ-13 during NH₃-SCR has been demonstrated by Korhonen and coworkers employing the UV/Vis technique, alongside XAFS.¹⁶³ Mid-IR vibrational frequencies to detect adsorbed molecules (e.g. CO, NO, and NH₃) are used to confirm the chemical environment of cation sites in zeolites.^181–183 Kwak et al.¹⁸⁴ utilized H₂-temperature-programmed reduction (TPR) and FTIR techniques to characterize the Cu ion composition within Cu-CHA across various ion exchange levels (Fig. 6a). They collected findings from both H₂-TPR and FT-IR data to determine the position of Cu²⁺ ions under different ion ELs; their data suggest that Cu²⁺ ions located in 6-MR of CHA at the low exchange level and occupy the large cage when the level of exchange increases. Further, DRIFTS is extensively used to explore the reaction mechanism.^185,186 Wang et al.¹⁸⁷ performed DRIFTS and showed that under low-temperature NH₃-SCR NH₄NO₃ intermediates are first generated followed by their subsequent reduction by NO.

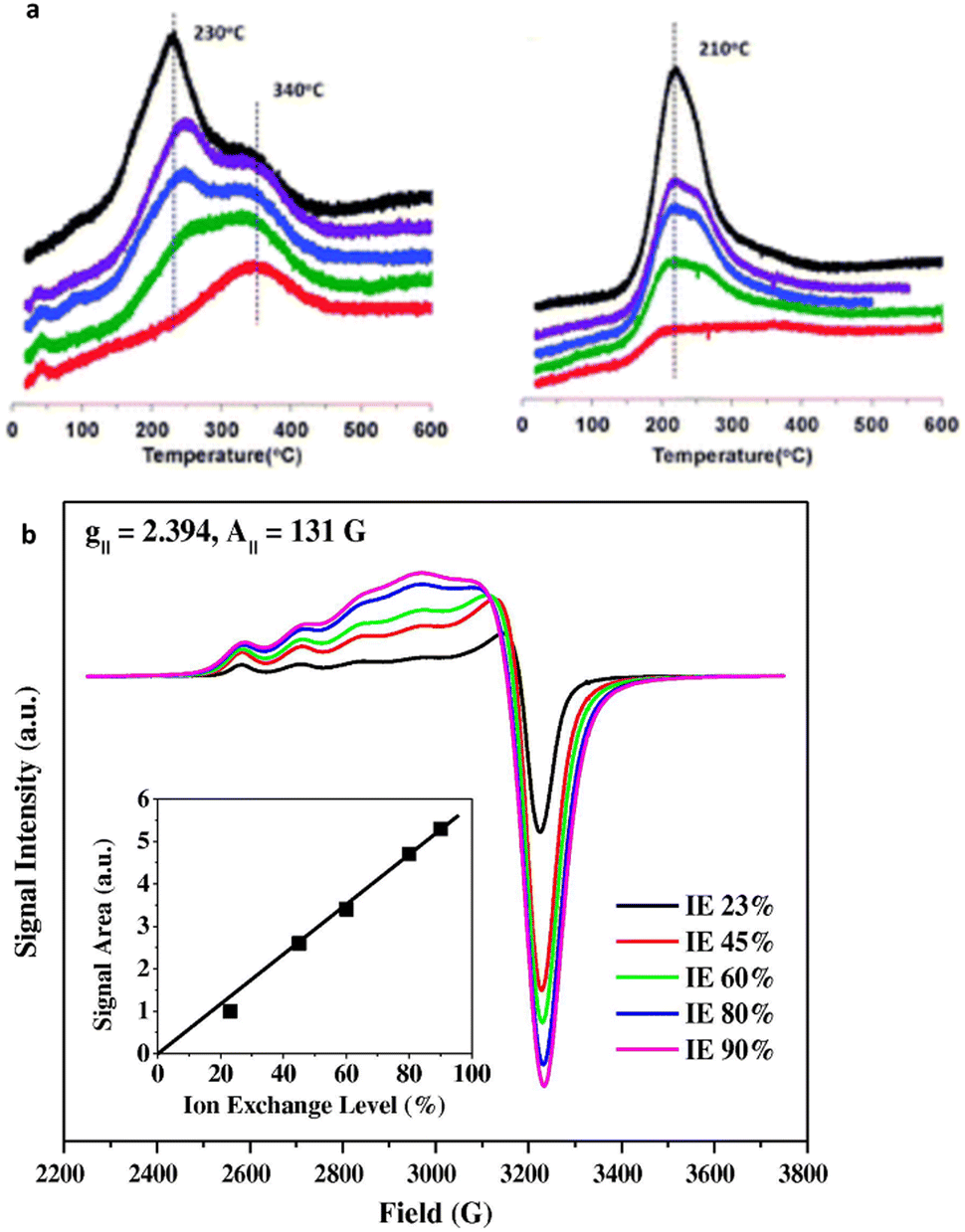

Fig. 6 Characterization techniques for the isolated Cu²⁺ active sites (a) the consumption profiles of hydrogen (H₂) during hydrogen temperature-programmed reduction (H₂-TPR) on Cu-SSZ-13 are depicted. Reproduced from ref. 184 with permission from The Royal Society of Chemistry, copyright 2012, and (a) hydrated Cu-SSZ-13 EPR spectra at 155 K. The colours indicating different Cu ion exchange levels are as follows: red (20%), green (40%), blue (60%), purple (80%), and black (100%), arranged from bottom to top. Reproduced from ref. 188 with permission from The Royal Society of Chemistry, copyright 2012.

EPR is a useful technique for investigating the cation environment and can determine the concentration, location, oxidation state, symmetry, and coordination number of TMI.^180,189,190 Gao et al. reported a detailed study quantifying the isolated Cu²⁺ ions employing the EPR technique.^189,191 EPR also offers insights into TMI magnetic properties and catalytic potential. The Cu²⁺ ion ESR exhibits an axially symmetrical and split signal characterized by parameters of the parallel component, where g_II = 2.33 and A_II = 140—160 G.^103,192 It is evident from Fig. 6b that increasing Cu loadings results in increasing signal intensity alongside the broadening of the EPR features. This broadening is attributed to distance-dependent dipole–dipole interactions among Cu²⁺ ions. The line width observed in the IE 23% sample closely resembles that of a sample with low Cu loading (approximately 2%), where dipolar interactions are negligible, suggesting that even within the IE 23% sample, Cu–Cu distances are sufficiently large to weaken dipolar interactions, thereby preventing significant line broadening. Following the in situ EPR analysis, Yu et al.¹⁹³ identified the chemical state of Cu species under the SCR operating conditions using Cu-SAPO-34 as a catalyst. They showed using EPR that during NH₃-SCR catalysis, Cu²⁺ ions are converted to Cu⁺ when exposed to NH₃, and then re-oxidised to Cu²⁺ when the adsorbed NH₃ is consumed by the purging NO_x environment. TPD and TPR are also helpful techniques. For example, NH₃-TPD can determine the poisoning of acidity by metals including Pt, Zn, and the effect of hydrothermal ageing on acidity.^186,194

Previous findings have demonstrated that NH₃-SCR involves the reduction of Cu²⁺ to Cu⁺.^111,180,195 Subsequently, Cu⁺ is re-oxidised by O₂ (or NO + O₂) to regenerate Cu²⁺ and complete the cycle. If a catalyst containing a transition metal, apart from the widely recognized Fe- and Cu-based catalysts, demonstrates similar characteristics, it could be assessed as a possible alternative catalyst for NH₃-SCR.^90,196,197 The existence of multiple sites of Cu may arise from the location of Cu-species depending strongly on the physio-chemical environment, the composition of the sample, and the Si/Al or Cu/Al ratio in the framework.

We now discuss active sites and metal speciation to understand the detailed chemistry of the TMI in zeolite under SCR conditions. Some studies have reported that there are at least two types of Cu species in CHA zeolites, and the presence of such species within the cage depends on the Cu loading; some reports suggested that the Cu²⁺/Cu⁺ occurs mainly at lower loading (i.e. 0.5–1 wt%), whereas CuO occupies the CHA framework at higher loading (i.e. 2–3 wt%),^185,198,199 Cu speciation in Cu-CHA depends on temperature, gas composition, catalyst activation, and composition. Therefore, the structure, coordination, and positions of active Cu sites in SCR catalysts may differ in different catalytic reaction conditions and are likely to change during SCR of NO_x reaction.

The activation of zeolites is a key step for both sorption and catalysis because it is necessary to evacuate water and other molecules to make active sites accessible for reactant species. Residual H₂O or hydrocarbons (due to incomplete activation) may block the active sites or modify their activity.²⁰⁰ In ion-exchanged zeolites under aqueous conditions, copper is present as a hydrated Cu²⁺ species. However, upon dehydration, hydrated Cu²⁺ species undergo progressive reduction to Cu⁺ species under an inert atmosphere and at increasingly elevated temperatures.¹⁵⁷

Several important species generated during SCR reaction play significant roles in defining the reaction pathway. For example, the activation of NO in the presence of oxygen results in the formation of nitrate intermediates which have been detected and characterized using various analytical techniques, including XAS, EPR, and FTIR;^168,187 and surface bidentate nitrates have been suggested to play a crucial role in Fast SCR.²⁰¹ The subsequent reduction of these nitrates by NO to form nitrites is considered the rate-limiting step, whereas the reoxidation of nitrates is fast, even at very low temperatures. However, NH₃ acts as an inhibitor in this redox step, probably by obstructing the surface nitrates.^202,203

In computational modelling work, discussed in more detail later, we observed that nitrate species tend to be more stable on physisorbed ammonia/water-occupied sites than on bare sites. This suggests that solvents such as ammonia and water could potentially enhance the re-oxidation phase of the NH₃-SCR cycle.^195,204 This phenomenon is more pronounced in the presence of H₂O compared to NH₃. In addition, there have been limited studies indicating that NO₂ can improve the efficiency of NH₃-SCR over Cu-CHA catalytic systems. In contrast, NO₂ has been also found to inhibit NO conversion over aluminium-rich Cu-SSZ-13 catalysts owing to the production of NH₄NO₃, a phenomenon known as the “abnormal fast NH₃-SCR reaction”.²⁰⁵ Additionally, previous research demonstrated the reaction between NO and NH₄NO₃ at Brønsted acid sites over the H-SSZ-13 catalyst.²⁰⁶

Gao et al. addressed the impact of Si/Al ratios on the redox behaviour of Cu-SSZ-13 catalysts and for this reason, they collected the H₂ TPR data for a set of samples.¹⁰⁷ They analysed the redox mediation of Cu-ions, which can be systematically tuned by changing the composition of the materials. The results showed that an increase in the Si/Al ratio leads to alterations in multiple Cu species, influencing the Cu redox barriers, which in turn, enhances the reaction rates for NO oxidation. Intriguingly, Brønsted acidity was found to be insignificant in influencing this reaction. Moreover, the work demonstrated that residual Brønsted acidity positively influences both low and high-temperature conditions in typical ammonia-assisted SCR. Nevertheless, regarding NH₃ oxidation, no definitive pattern emerged, indicating a complex interaction among the Cu ion centre, redox properties, and Brønsted acidity.

The presence of divalent [Cu(H₂O)_n]²⁺ complexes and their stabilization is favoured where two framework Al ions are in close proximity. In this case, dehydration may dissociate water molecules into [Cu(H₂O)_n]⁺ and H⁺ (eqn (4)) and the two adjacent frameworks of Al atoms are balanced by these two cationic species, as has been confirmed from the DFT-supported XES and XAS studies performed by Borfecchia et al.²⁰⁷ They showed that [Cu(H₂O)_n]²⁺ species can be stabilized at higher temperatures in an oxidative environment; otherwise, as a consequence of extra ligand loss they undergo “self-reduction”. Alternatively, bare Cu²⁺ cations can be generated due to the dehydration of [Cu(H₂O)_n]²⁺ complex (eqn (5)). However, in those sites where there is only one Al in the proximity (1Al Z sites), the aqueous ion exchange leads to the formation of monovalent [Cu(H₂O)_n(OH)]⁺ which do not require any water dissociation upon dehydration (eqn (6)). In addition, several Raman vibrational features appeared, after O₂ activation on Cu²⁺, correspond to the O₂ activated Cu²⁺²⁰⁸ species as shown in Fig. 7. [CuO₂˙]⁺ end-on uperoxol species, within the 1000–1200 cm⁻¹ spectral range for Cu–O, with two strong peaks appearing at 1100 and 1155 cm⁻¹. These features signify the presence of this species in equilibrium with the side-on species, as can be seen in Fig. 7b. While the [Cu(trans-μ-1,2-O₂)Cu]²⁺ vibrational feature appeared at 510, 580, and 830 cm⁻¹, species shown in Fig. 7c for a pictorial representation of this complex. These distinctive spectral components represent the spectroscopic fingerprints of these Cu²⁺ species following O₂ activation.

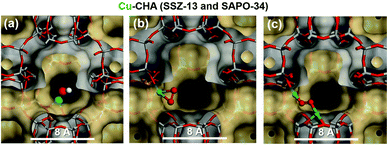

Fig. 7 Proposed local sites of the copper species in the cage of the CHA at high temperature and under oxygen treatment (a) [CuOH]⁺ (b) [CuO₂˙]⁺ superoxide species (c) [Cu(trans-μ-1,2-O₂)Cu]²⁺. Colour code: Si grey, Al gold, Cu green, O red, H, white. Reproduced from ref. 208 with permission from The Royal Society of Chemistry, copyright 2018.

Borfecchia et al.²⁰⁷ also investigated the tri-coordinated [CuOH]⁺ as a site for O₂-activation while the bare bi-coordinated Cu⁺ ions were found to be the most dominant species in the 8-MR. The presence of dimeric oxo-Cu species appears to be unlikely which shows that monomeric [CuOH]⁺ species are mostly found in the Cu-CHA, and may play an important role in the SCR mechanism.

[Cu(H₂O)_n]²⁺ → [Cu(H₂O)_n)²⁺ + (n − 1)(H₂O)↑ → [Cu(OH)]⁺ + H⁺ → Cu⁺ + (OH)↑ + H⁺ (4)

[Cu(H₂O)_n]²⁺ → Cu²⁺ + n(H₂O)↑ (5)

[Cu(H₂O)_n(OH)]⁺ → [Cu(OH)]⁺ + n(H₂O)↑ → Cu⁺ + (OH)↑ (6)

From synchrotron-XRD analysis, cation exchange sites were identified for TMI divalent cations such as Cu²⁺²⁰⁹ and Ni²⁺²¹⁰ in zeolites. For Cu, it has been proposed that there may be six sites in Cu-MFI (Cu-ZSM-5) as reported by Mentzen et al.²¹¹ Cu-ZSM-5 were synthesized via the reaction of H-MFI samples with 0.1 M Cu²⁺ acetate solutions. Analysis using the Rietveld method of PXRD profiles of dehydrated Cu-MFI found the presence of multiple independent extra framework Cu centres in Fig. 8. In the compositions H_1.04Cu(I)_1.19Cu(II)_0.51MFI and H_1.99Cu(I)_2.37Cu(II)_0.00MFI, four and five Cu cations were identified, respectively. Within these phases, the Cu1/Cu2/Cu2′/Cu3/Cu3′ populations per unit cell were determined as 0.0/1.07/0.02/0.17/0.45 and 0.18/1.12/0.44/0.20/0.50, respectively. Cu2 was the most prevalent. The shortest distances observed between framework oxygen atoms and copper sites were associated with the Cu1, Cu2, and Cu2′ sites, falling within the range of 1.99–2.32 Å. Additionally, Cu1, Cu3, and Cu3′ sites were found to be situated within secondary 5 and 6-MR channel sections of the MFI framework. In contrast, Cu2 and Cu2′ were close to the 10-MR of the straight channel. Given their immediate accessibility to guest molecules, one or both of these cations, namely Cu2 and Cu2′, emerge as the principal contenders for the catalytically active sites within Cu-MFI materials.

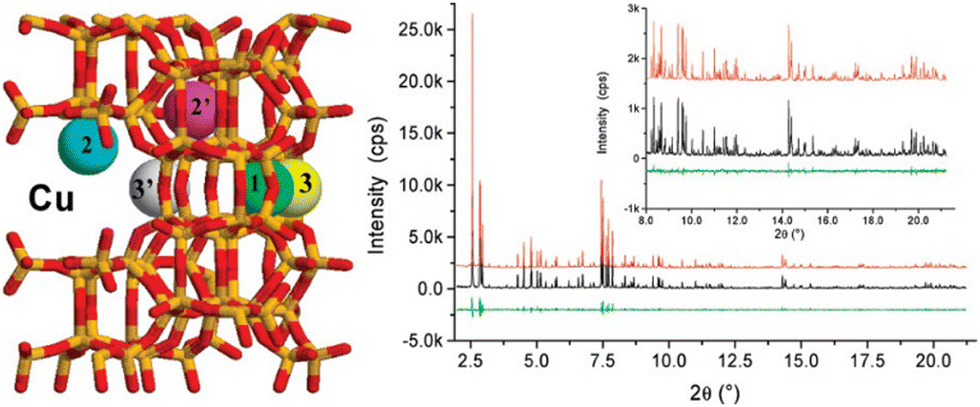

Fig. 8 Rietveld refinement plots illustrating the dehydrated H_1.99Cu(I)_2.37Cu(II)_0.00MFI phase at room temperature (25 °C) are presented. The plots include observed profiles (in the middle, shown in black), calculated profiles (above, depicted in red), and difference profiles (below, represented in green). These plots were generated using X-ray synchrotron radiation with a wavelength of λ = 0.50013 Å. The fitting parameters R_p/R_wp/R_exp/R_I = 7.3/8.4/5.8/6.2%. The populations of Cu1/Cu2/Cu2′/Cu3/Cu3′ within a unit cell are 0.0/1.07/0.02/0.17/0.45 and 0.18/1.12/0.44/0.20/0.50, respectively. Reproduced from ref. 211 with permission from American Chemical Society, copyright 2007.

Fluorescence spectroscopy of Cu-ZSM-5 suggests that there are two types of Cu species: (i) Cu ions located in close proximity to a single framework Al ion (540 nm emission), and (ii) Cu ions neighbouring two framework Al ions with the 480 nm emission which linked to Cu ions (Cuα sites) (as can be seen in Fig. 11) adjacent to two framework Al ions.²¹² The 540 nm emission is thought to correspond to Cu ions (Cuβ sites) located in a less densely packed environment near one framework Al ion. However, this site has not yet been identified unequivocally. As discussed earlier the Cu²⁺ ESR spectrum displays axial symmetry, causing a signal split. The parameters for the parallel component are g_II = 2.33 and A_II = 140–160 G, denoted as Cuα while for the Cuβ sites, they are g_II = 2.27 and A_II = 170–180 G, and are associated with a monovalent state of copper. The Cuα sites possess more tightly packed coordination environments, shorter-wavelength emissions, and higher positive charges on the copper cation.

Lobo et al.^13,213 conducted nuclear magnetic resonance (NMR) experiments within a Li⁺-exchanged zeolite Beta to delineate cation exchange sites, drawing insights from interactions (or their absence) with oxygen molecules. Initially, they postulated sites denoted as Cu1, Cu2, and Cu3, located within pentasil or 6-MR of the structure (refer to Fig. 9a). However, their NMR analysis revealed that only a fraction of these sites were accessible to oxygen. Considering the known activity of Cu-Beta in the deNO_x reaction, it was inferred that structurally accessible sites must be present. Hence, a revised depiction in Fig. 9b presents Cu cations positioned slightly differently. Cu1 and Cu2 maintain their locations in structurally analogous 6-MR, with Cu1 now facing the 12-MR channel. However, Cu3, close to two framework O ions with a bond distance between Cu and O is 1.3 Å, was relocated to an alternate site within a different 5-MR, facing the 12-MR channel. This adjustment ensures the availability of Cu in the most accessible sites conducive to catalytic processes. Notably, both Cu1 and Cu3 in the revised model occupy positions akin to the planar position within 6-MR of the SSZ-13 structure, suggesting their potential activity in the SCR reaction.

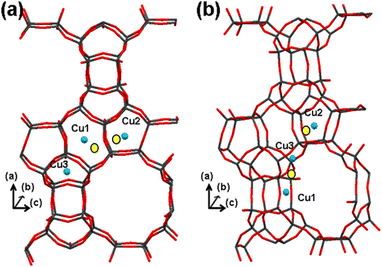

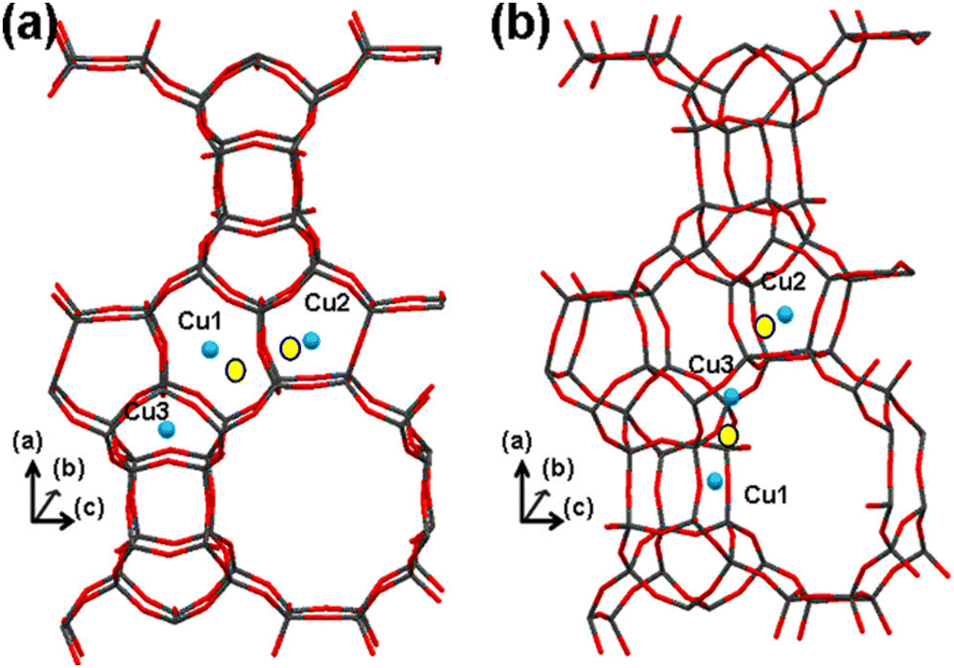

Fig. 9 Illustrates the positioning of Cu cations within Beta zeolite. Structure (a) is derived from NMR experiments conducted with Li⁺ as a cation,²¹³ whereas structure (b) offers an alternative configuration related to structure (a). In the diagram, blue spheres indicate the positions of the Cu cations, and yellow circles represent adjusted positions, allowing for close coordination (approximately 2 Å) with at least three oxygen atoms. Reproduced from ref. 28 with permission from American Chemical Society, copyright 2013.

Fe-based zeolitic systems

Fe speciation tends to be more varied than with other TMIs in zeolites, with techniques including UV/Vis and DRIFTS used to identify the presence of single ions (both Oh and Td in nature), clusters and polymeric species.^{120,214–217} Generally, it has been shown that all species can perform NH₃-SCR but the monomeric species²¹⁸ are usually active at lower temperatures below 250 °C,²¹⁸ particularly those species located in the 8-MR of MFI zeolites (often termed the Beta site). Li et al.²¹⁹ employed ab initio thermodynamic techniques to assess the stability of various Fe complexes within ZSM-5 with Si/Al ratio of 47, and concluded that mononuclear Fe site-local (FeO)⁺ is unaffected by the local environment, whereas binuclear sites tend to predominantly occupy the larger eight-membered ring (8-MR) γ site in the sinusoidal channel. In the coordination of Fe ions to the framework under low loading (≤1.2 wt% Fe), most of the species are present as a monomer at the ion-exchange positions while at higher loading (2.5–5.1 wt% Fe), oligomers of Fe are formed which mainly reside inside the micro-pores of zeolites.²²⁰ Consequently, at high loading, the lower coordination of the TMI to the lattice O occurs which is difficult to verify as they are masked by other Fe–O species at high loading. The increased loading of TMI creates more heterogeneous sites which need extra-lattice ligands such as H₂O, and OH. The removal of these ligands under high-temperature pretreatment induces the reduction of TMI.

Considering monomeric species (FeO)⁺ as an active site, various reaction pathways were explored and the energy for several species was described by Li et al.²²¹ and Bruggeman et al.¹⁴⁹ However, some experimental studies suggest that in the presence of two closely exchanged Fe species, the dimer of Fe (i.e. bridging Fe–O–Fe dimers) species is readily generated which is evident from several investigations.^222–224 These dimer species are extensively studied by DFT and are considered to be active species in the NH₃-SCR reaction and for N₂O and NO decomposition.^{150,216,225,226} In addition, site occupancy of the Fe ions in zeolites varies with the sample preparation method, while the loading of the metal, which is only partially determined by the Al content, can also affect the coordination of TMI to the lattice O.

Brandenberger et al.²²⁷ utilised a Poisson distribution, a method employed for the prediction of rare but significant events in a fixed interval to compute the fraction of content of several Fe species in zeolites. The results obtained show the correlation between the degree of Fe-exchanged species and the presence of particular active sites. In particular, they modelled the distribution of several Fe species including Fe–O–Fe bridged and higher nuclear Fe-species within Fe-ZSM-5 zeolite. These findings have sufficient accuracy to show the correlation of the degree of Fe-exchanged species with active sites. Furthermore, the calculated probabilities are compared with experimental data obtained from DR-UV/Vis and DRIFTS which offers insights into the proportions of various iron species and helps validate the analytical findings. Consistent with the observation, there is further agreement that more than one site can be present in the zeolite Fig. 10, and the monomeric Fe ions will predominate only for low levels of exchange.²²⁷ Moreover, their investigation showed that the formation of the monomer represents the rate-limiting stage in the SCR which could stem from the re-oxidation of Fe species, resulting in the subsequent conversion (oxidation) of NO to NO₂. However, the discussion regarding the nature of Fe species (e.g. monomer and dimer) may be an oversimplification since the nature of the monomeric and dimeric species could be more complicated than what is shown in Fig. 8 for example, undercoordinated Fe monomers or else di-oxo bridged dimeric species.

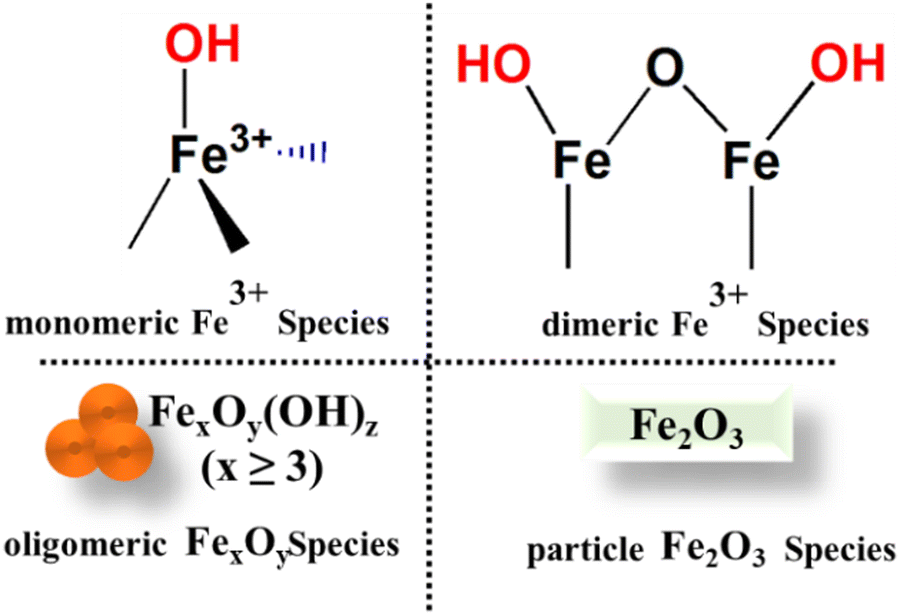

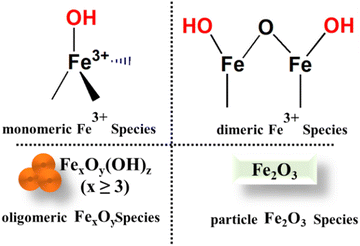

Fig. 10 Schematic illustration of four possible Fe species in Fe-zeolites.

We reported that Fe³⁺ species have demonstrated varying levels of activity under different conditions.²²⁸ Isolated octahedral Fe³⁺ entities hosted on H-ZSM-5 zeolite surfaces have exhibited high reactivity. These octahedral sites displayed a propensity for reduction upon exposure to ammonia under SCR conditions. Conversely, isolated tetrahedral Fe³⁺ sites demonstrated comparatively lower redox properties, resulting in diminished NO conversion rates. Furthermore, clusters and Fe_xO_y particles observed on H-SSZ-13 zeolite surfaces showed subdued SCR performance although this improves at higher temperatures, all of which suggested a critical role of Fe³⁺ speciation.

The self-reduction of metal ions during the reaction has a major impact on the coordination of the metal to the zeolite framework. Under high temperatures and an inert atmosphere, TMI-Zeolites (Co³⁺, Fe³⁺, Cu²⁺) can undergo auto reduction.^180,229,230 The auto reduction of Fe³⁺ to Fe²⁺ under He treatment has been characterised by in situ XAS.^231,232 The switching of Fe³⁺ to Fe²⁺ is attributed to the desorption and dehydration of Fe³⁺(OH)₂ to liberate O₂ and form two Fe²⁺(OH) species.²³³ It is also argued that bare Fe³⁺ only coordinates with oxygen and will be unstable in high silica zeolites due to the inadequate negative charge within the zeolite lattice to counterbalance the trivalent ions.²³⁴ The characterisation of such trivalent ions especially Fe³⁺ is challenging. The identification and the chemistry of the Fe ions in an aqueous solution are, of course, well defined from the existence of various mono-, di, and poly- complexes bearing different species including oxygen, water molecules, and OH groups (depending on the reaction media, especially pH).^235,236 Fe ions (Fe²⁺ and Fe³⁺ ions) can be incorporated into the framework of high silica zeolites; subsequent high-temperature treatment of these ferrisilicates leads to the ejection of Fe from the framework and can be considered another approach for the generation of extra-framework species.²³⁴

Other TMI-systems

Besides Cu and Fe, other TMI^196,237 within zeolite frameworks are also studied for their coordination, stability, and catalytic properties, employing techniques like DFT, XAS, and IR spectroscopy. Sklenak et al.²³⁸ studied the cationic sites of ferrierite exchanged with Co²⁺ and Cu²⁺ and the impact of Al placement within six-membered rings on the structure and binding energies of Me²⁺ ions (Me = Co and Cu) using periodic DFT molecular dynamics. They demonstrated that the binding of both cations to these sites prompts substantial rearrangement of the local structure within the zeolite framework, particularly for the α and β-2 sites, yet minimal for the β-1 site (see Fig. 9).

Rice and co-workers^239,240 examined several divalent transition metal cations including Zn, Pt, Cu, Ni, and Co in ZSM-5, and investigated the coordination, location, stability, and structural properties using the gradient-corrected DFT technique. They modelled the coordination of these ions at isolated charge-exchange sites and pairs at adjacent exchange sites. The data obtained indicate that Fe²⁺, Cu²⁺, Ni²⁺ and Co²⁺ are coordinated to 5-MR containing 2Al, whereas Rh²⁺, Pd²⁺, Pt²⁺, Zn²⁺ and Ru²⁺ are preferentially coordinated to 6-MR of ZSM-5.

The detailed analysis of Co-doped zeolites by Bellman et al.²⁴¹ prepared Co-ZSM-5 via wet ion-exchange (IE) with various Co contents (0.32, 0.34, 1.96, 2.44 and 3.19 wt%) and found that not only Co³⁺ but also Co²⁺ were present in oxide-like clusters (i.e. Co₃O₄) and at ion exchange position(s). The UV-Vis spectra show isolated Co²⁺ species, and the triple band is from both γ-, β-, and α-type Co²⁺ sites in the zeolite and those dispersed on different oxide supports’ surfaces. Co³⁺ species, present in the oxide layer oxidized NO and itself reduced to Co²⁺ which is subsequently reoxidized to Co³⁺ upon exposure to O₂, therefore, establishing an active Co³⁺/Co²⁺ redox pair. In contrast, the Co²⁺ located at the exchange position assists the chemisorption of NO and hence acts as a storage material for NO. The diffuse reflectance spectra of Co²⁺ ions in the Co–zeolites, including BEA and ZSM-5 indicate the presence of three sites denoted as α, β, and γ.^242–244 The positions and the structure of these sites in the local framework of ZSM-5 are shown in Fig. 11.

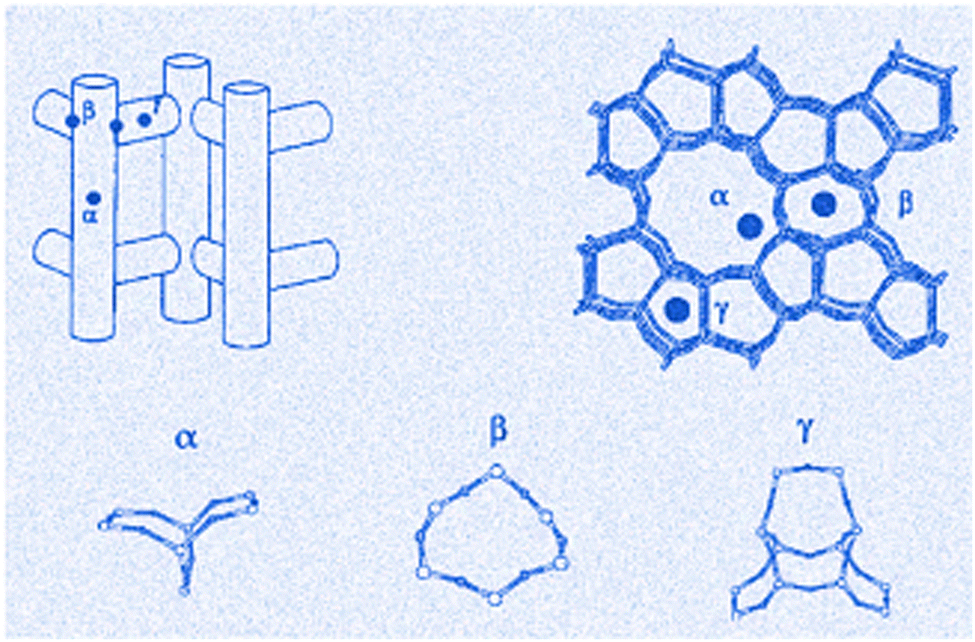

Fig. 11 Illustration showing Co siting in ZSM-5 structure. Local framework structures of the a-, b-, and c-sites. Reproduced from ref. 245 with permission from Elsevier, copyright 2000.

Dooryhee et al.²⁴⁶ studied Ni²⁺ exchanged Y zeolite (Si/Al = 2.25) by X-ray absorption and diffraction at room temperature and suggest that there is a significant distortion in the shape of the d6-MR cavity when occupied by Ni²⁺ ions, signifying that the framework of the zeolite adjusts in response to the migration of Ni ions during the process of dehydration. There are several reasons (i) first, are the electrostatic contacts between the cations and the framework; and second, TMIs where possible expand their coordination number to gain a stable configuration within the zeolite framework.

Similarly, coordination of TMI to specific exchange sites leads to a strong distortion in the framework of zeolites, as shown by detailed ab initio quantum-chemical analysis.^247–249 However, other reports indicate that Ni ions reside within the 6-MR, specifically at a corner position. It has been suggested that XRD, when subject to position averaging, may not have the capability to discern any distortion as reported by Pierloot et al.,¹⁷⁸ and indeed the work of Dooryhee et al.²⁴⁶ proposed distortion based on the combination of XRD and EXAFS data.

Smeets and coworkers²⁵⁰ and Vanelderen et al.²⁵¹ have examined the coordination chemistry of TMI (Cu, Fe, Co) in zeolites in particular, to investigate the coordination chemistry of the activated species and demonstrated their ability to activate O₂ and oxo-complexes. They explore two aspects of TMIs (Cu, Co, and Fe) in zeolites: their coordination within the lattice and the presence of activated oxygen species. TMIs tend to occupy 6-MR exchange sites, coordinating with Al tetrahedra at low loading. High loading results in diverse TMI species on the zeolite surface. The activated O₂ species are suggested to oxidize (i) NO into NO₂ and (ii) reoxidize the TMI to its appropriate oxidation state.^85,252

Modelling mobility and restructuring of TMI

One of the key aspects of TMI zeolite catalysts is their location and their migration. According to AIMD and DFT studies, the migration of metal ions is limited by their electrostatic tethering to the zeolite framework.²⁵³ The presence of extra-framework cations and coordinating molecules changes the coordination environment of the TMI sites which ultimately enables their migration.

Paolucci et al.⁸⁵ conducted both computational and experimental analyses on coordinated Cu speciation under operando SCR, in situ and ex situ conditions as a function of the catalyst composition. They demonstrated that the number, type, and nature of Cu sites depend on the bulk composition of the zeolites as well as on the environmental conditions. In a notable addition, they demonstrated that the Cu speciation, mobility, and siting are strongly influenced by environmental conditions and are not dependent on the initial cation sites and framework of zeolites. Using molecular dynamics, the mobility of [Cu(NH₃)₂]⁺ inside the CHA framework employing ab initio metadynamics was predicted. They calculated the free energy (using Cu–Al coordination distance as a collective variable) (Fig. 12a) in a CHA supercell of 72 sites. The free energy minimum is located at a distance of ∼4.7 Å which increases to a Cu–Al distance of 8 Å when Cu ions move through 8-MR between two cages as can be seen in Fig. 12b. However, the free energy decreases again as the Cu ion enters the adjacent cage (product state) until the distance is greater than 9 Å.

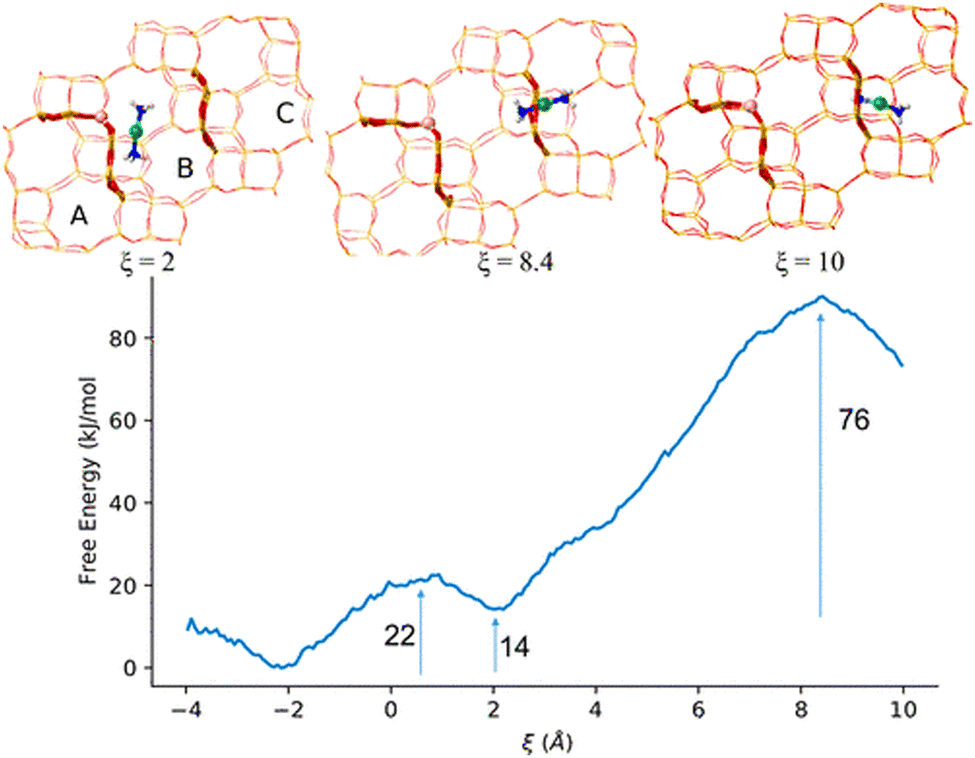

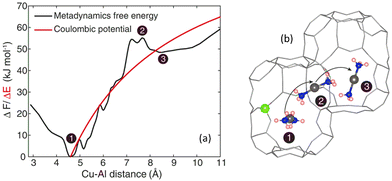

Fig. 12 (a) The free energy profile – varies with the Cu–Al distance, involving the mobility of [Cu(NH₃)₂]⁺ species and Al ions within the CHA framework to maintain charge balance. The first stage involves the reactant [Cu(NH₃)₂]⁺. (2) Transition state [Cu(NH₃)₂]⁺ (3) product state [Cu(NH₃)₂]⁺. For comparison, the computed point-charge model has also been reported as a red line.¹⁶ (b) [Cu(NH₃)₂]⁺ configuration. Cu; grey, Al; green N; blue, and H; reddish. Reproduced from ref. 85 with permission from The American Association for the Advancement of Science, copyright 2017.

The window of CHA is sufficiently large for the diffusion of SCR gases and Cu species to lead to a potential interaction between species within and cluster or dimer formation.⁸⁵ As illustrated previously, the isolated Cu ions are mostly present in the 6-MR and the [Cu–O–Cu]²⁺ dimer is generated as a result of two proximal Cu species.^254,255 This species was thought to be located inside the cage; however, migration of Cu ions can occur which affects the SCR deactivation reaction.

In zeolite Y the sites SI, SII, and SIII for Cu²⁺, or Cu⁺ ions are considered to be more predominant locations for the Cu species^178,256,257 where site I is located in the hexagonal prisms connecting sodalite cages, site II positioned in front of the 6-MR inside the super-cages, and sites III found in the super-cages near the 12-MR or 4-MR windows.^257,258 In accord with the above argument, site SII, located in the 6-MR is considered to be the active site at low temperatures. Deka et al.²⁸ show, that Cu ions move from SI to SII sites under reaction conditions and the gases can reach these Cu ions via the cage. The Cu ions are highly mobile and can easily migrate to the supercages, changing their coordination with the oxygen ions within them. They started in the supercages when the Cu ions were first introduced since the hexa-aqua species will not be stable elsewhere. Similarly, at the SIII site, a dimeric species [Cu–O–Cu] could be formed as a result of interaction with the Cu of the SII site, demonstrating that mobility leads to the generation of multiple species.²⁵⁹

Krishna et al.⁸² elucidated the complex behaviour of Cu cations within a zeolite framework during the NH₃-SCR of NO_xFig. 13. They proposed that initially, NH₃ coordinates to Cu cations, which remain connected to charge-balancing framework Al centres through two O ions. This dynamic system involves the conversion between mononuclear Cu⁺ and binuclear Cu²⁺ sites during the oxidation half-cycle. This conversion is assisted by the movement of NH₃-solvated Cu⁺ complexes within CHA cages and their migration through 8-MR windows into neighbouring cages. Migration into nearby cages is suggested to have lower energy barriers, as shown in Fig. 13a, with an activation energy of 20 kJ mol⁻¹ at 423 K for empty cages and approximately 35 kJ mol⁻¹ when the cage is occupied. Fig. 13b indicates higher free-energy barriers of 60–80 kJ mol⁻¹ at 473 K for migration into CHA cages that are farther from the charge-balancing Al centre. Such migration dynamics affect steady-state SCR rates, which depend on Cu density at two different sites.

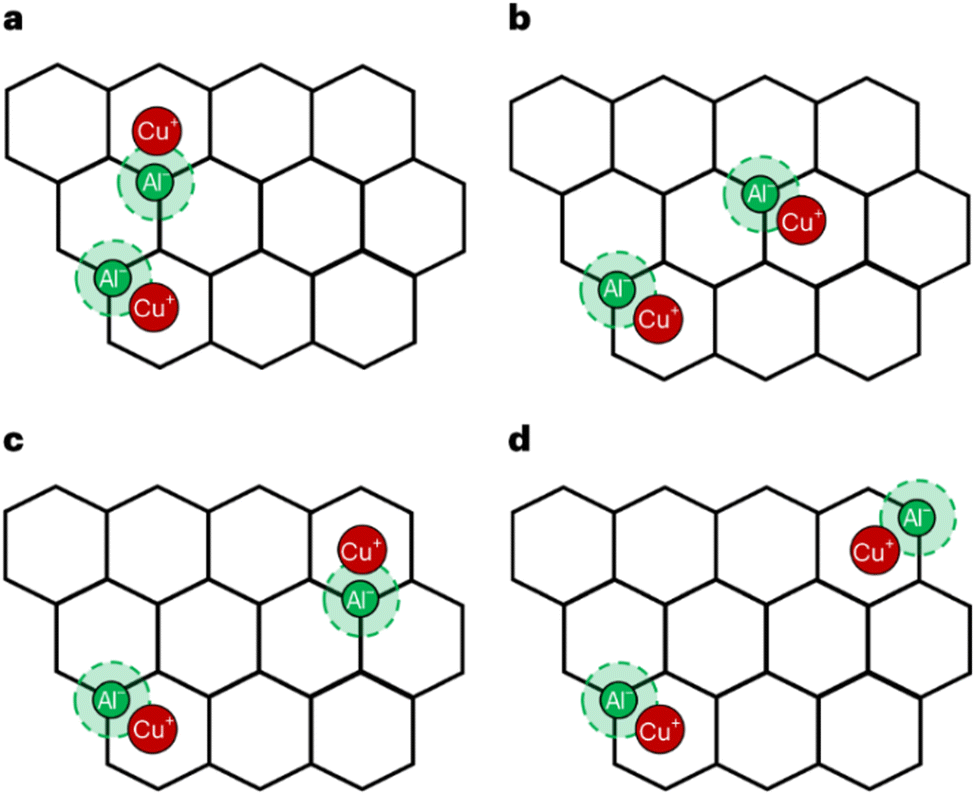

Fig. 13 The illustrations display the arrangement of Cu⁺ cations, which are linked electrostatically to framework Al and labelled from (a) to (d). Additionally, the illustrations depict SSZ-13 lattices with varying degrees of separation between Cu⁺ pairs. This separation is indicated by the number of required CHA cage migrations: n  =  0 (a), 1 (b), 2 (c), or 3 (d). CHA lattice is shown in two dimensions as a hexagonal lattice, where faces correspond to a CHA 8-MR. Furthermore, each SSZ-13 cage is linked to three other SSZ-13 cages via an 8-MR. Reproduced from ref. 82 with permission from Springer Nature, copyright 2023.

The zeolite's compositional and structural properties, particularly the arrangement of framework AlO₄ anionic charges, play a crucial role in influencing Cu cation proximity and mobility, affecting SCR rates. The theoretical predictions, including DFT calculations, emphasise the relevance of Cu⁺(NH₃)₂ migration over O₂ activation in controlling SCR rates. Spatial isolation of Cu⁺ sites is noted to impede reactivity with O₂, highlighting the complexity and sensitivity of SCR processes to zeolite properties.

Nucleophiles including H₂O, NH₃, and NO₂ bind strongly to the cation and can enhance the mobility of the ions at the active sites e.g. Cu(NH₃)₂. This active site has an effective area of diffusion which significantly restricts its interaction with other active sites within the overlapping area. Kwak et al.¹⁹⁸ compared Cu-Beta, Cu-SSZ-13, and Cu-SSZ-5 and concluded that although very few changes can be observed in the Cu species located in the SSZ-13, the Cu-SSZ-5 and Cu-Beta have CuO or Cu aluminate on the surface. The mobility of TMI ions as well as Al can act as an indicator for the activity of the NH₃-SCR reaction as shown by in situ impedance- ‘modulus’ spectroscopy) and theoretical studies, the discussion of which is, however, beyond the scope of this review.²⁶⁰

It is argued by Merberger et al.²⁶¹ that at (high temperatures 400 °C), the ammoniated–Cu complex including (Cu⁺(NH₃)₂ and Cu²⁺(NH₃)₄) decomposes, and the Cu ion loses an NH₃ ligand as well as its mobility. Subsequently, Cu ions become attached to the wall of zeolite and hence lose their ability to form dimers dynamically and activate oxygen. It is, therefore, conceivable that the oxygen-activated NO step described by Janssens et al.¹⁷ becomes an appropriate step in NH₃-SCR at high temperatures.

Millan et al. conducted extensive studies to investigate the mobility of Cu ions in Cu-SSZ-13 and its implications for the NH₃-SCR.^262,263 They aimed to elucidate the mobility-dependent SCR reaction and developed a machine-learning interatomic potential capable of correctly reproducing ab initio results, enabling simulations of large supercells and various chemical compositions. Employing a combination of biased and unbiased simulations, the researchers explored the mobility of [Cu(NH₃)₂]⁺ in Cu-CHA catalysts. Their findings indicated that Al pairing in 8-MR facilitated local hopping with the increased concentration of NH₃, and so enhanced long-range diffusion. Furthermore, AIMD simulations were used to investigate the migration of [Cu(NH₃)₂]⁺ under NH₃-SCR-NO_x reaction conditions. Results indicated that the diffusion of these complexes was hindered by additional NO or NH₃ in the initial cavity, while the presence of O₂ also impacted the NO and Cu⁺ interaction. Expanding their analysis to a larger 1 × 2 × 1 unit cell to simulate the catalyst, they examined diffusion towards a third cavity, C (Fig. 14). An activation-free energy barrier of 76 kJ mol⁻¹ was computed for diffusion through the 8-MR window connecting cavities B and C. The significant destabilization observed during the migration of the [Cu(NH₃)₂]⁺ to cavities B and C was attributed to the interactions between [Cu(NH₃)₂]⁺ and the negatively charged framework surrounding the Al ion residing in the 8-MR connecting cavities A and B, as depicted in Fig. 14.

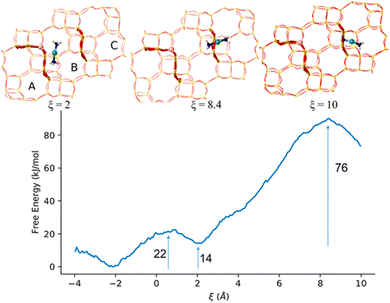

Fig. 14 The figure illustrates the diffusion pathway of [Cu(NH₃)₂]⁺ through different 8-MR of CHA, along with the corresponding free energy profile at 423 K. The O and Si ions are depicted as red and yellow sticks, while Al, Cu, N, and H atoms are represented as thatch, green, blue, and white balls, respectively. Reproduced from ref. 262 with permission from American Chemical Society, copyright 2021.

Still, more experiments (especially high temperature-driven reactions) are required to understand the detailed chemistry behind the NH₃-SCR mechanism over TMI zeolite especially Cu-zeolite. Further modelling studies are also clearly needed.

Reaction mechanism and kinetics of NH₃-SCR

In the exploration of NH₃-SCR mechanisms, a synergistic relationship between experimental and theoretical techniques has emerged, each offering unique perspectives on the complex processes at play. While experimental techniques provide insights into reactant adsorption and kinetics on catalyst surfaces, theoretical methods, particularly DFT, offer predictive capabilities for reaction pathways and intermediate states. The synergy between these approaches enables a comprehensive understanding of catalytic processes. Theoretical investigations often afford deeper mechanistic insights, in part to their ability to control variables and predict highly transient species that may evade detection by experimental techniques, which can be limited by time resolution and sensitivity. However, since the detection of intermediates via experimental methods is limited to a handful of species, as a result, we focus primarily on the theoretical studies that have yielded very detailed insights into the reaction pathways and intrinsic activity of metal species.

Although the role of TMI has been widely explored, the reaction mechanism is still under debate and its investigation is ongoing.^{170,173,188,264} Generally, the reaction is thought to follow a Langmuir–Hinshelwood (L–H) mechanism: the reactant species (NH₃, NO_x) simultaneously adsorb on the catalysts and then react to generate H₂O and N₂. However, ammonia can react with NO via the Eley–Rideal (E–R) route. These reactions lead to the formation of NH_x–NO_x intermediates, which afterwards decompose into H₂O and N₂. Experimental techniques, including surface analysis and reaction kinetics measurements, offer insights into reactant adsorption and subsequent reactions on catalyst surfaces. Theoretical methods, especially DFT enable the prediction of reaction pathways and intermediate states. By integrating experimental data with theoretical models, a comprehensive understanding of catalytic processes can be achieved.

Both acidic and redox sites have important roles in the NH₃-SCR reaction. The catalyst's redox chemistry controls its activity at low temperatures, while the acidic properties of the catalyst's surface govern its activity at high temperatures (HT).^265,266

A catalyst possessing appropriate redox capability can produce active NO₂ and NH₂, thereby enhancing reaction efficiency via the E–R pathway and so can follow “Fast SCR”. Increased acidity is beneficial for establishing adsorbed NH₃/NH₄⁺ species, which are important in generating NH₂ or reacting with active nitrites and nitrates. Both redox and acidic sites are necessary for achieving a wide temperature range of activity. A common reaction pathway exists for the SCR process over both zeolite and metal oxide.¹³ In the E–R pathway, ammonia attaches to acidic sites, resulting in the production of NH₃/NH₄⁺, which are subsequently oxidized by high-oxidation redox sites to produce NH₂ species. Next, NH₃ or NH₂ then can directly react with NO, producing NH₂NO/NH₃NO, which further decomposes into H₂O and N₂. Following the L–H mechanism, ammonia binds to acidic sites to create NH₄⁺ species, while NO undergoes oxidation to produce active nitrate/bridged bidentate nitrate/monodentate nitrite. These active intermediates then react with NH₄⁺ to produce NH₄NO₂/NH₄NO₃, which subsequently decompose into H₂O and N₂. Concurrently, the high-oxidation redox sites experience reduction to a low-valent and, therefore, re-oxidized by oxygen to complete the redox cycle.

Cu-based zeolitic systems

The possible mechanisms and reaction pathways for NH₃-SCR reaction observed in Cu-based zeolitic systems are studied here, shedding light on their catalytic activity and the formation of intermediate species essential for NH₃-SCR. Understanding these processes is crucial for optimizing catalytic performance and reducing harmful NO_x emissions. As proposed by Janssens et al.¹⁷ in the NH₃-SCR over Cu-CHA reaction, the formation of Cu-nitrate species plays an important role in completing the Cu redox cycle. They mainly used theoretical investigations employing DFT, supported by experiments to determine this behaviour. They observed that it is possible to split the redox cycle and separate the oxidation step from the reduction step by switching between the NH₃ + NO and NO + O₂ atmospheres to study the individual half-cycles. The Cu²⁺–nitrate species formed as a result of the NO + O₂ oxidation process is converted to the solvated Cu⁺–NH₃ under NH₃ + NO reductive conditions. Cu²⁺–nitrate species are reformed when switching back to NO + O₂ oxidation conditions, closing the catalytic cycle. They proposed a simple mechanism for an NH₃-SCR cycle on isolated Cu-ions, in which the NO reacts with the nitrate intermediate to generate gaseous NO₂ and Cu-nitrate species. This observation agrees with the experimental data (i.e. detection of nitrate bands using IR) as the transient formation of gaseous NO₂ was successfully detected during the SCR reaction.

In lower temperature (below 300 °C) processes, a significant puzzle relates to the kinetics of the Cu⁺ → Cu²⁺ half-cycle as the Cu concentration decreases which corresponds to a transition from second-order to the first-order dependency of SCR rate on Cu density.²⁶⁴ The reduction in the apparent reaction order is observed for O₂ from 0.3 to 0.8 with a decrease in Cu density.^85,264 Recently, researchers have investigated these observations using steady-state and transient kinetic measurements, first-principles calculations, and XAS techniques. From the findings of Paolluci et al., the NH₃-solvated Cu⁺ ions can form transient ion pairs while migrating through zeolite windows and activating oxygen.⁸⁵

Understanding the mechanistic details of the SCR of NO_x with NH₃ over Cu-exchanged zeolites is crucial for optimising catalyst design and enhancing performance. Operando techniques, especially XAS, (both XANES and EXAFS) and UV-Vis have been significant in providing detailed, real-time insights into redox transformations under reaction conditions.

Pappas et al.²⁶⁷ investigated the nature of Cu ions in H-MOR samples with Si/Al ratios of 11 and 7, and varying Cu loadings, using a range of techniques including XAS, high-energy resolution fluorescence detected (HERFD) XANES coupled with multivariate curve resolution (MCR). MCR is a chemometric technique that deconvolves complex spectroscopic data into pure component spectra. Their study revealed the coexistence of both active and inactive framework-coordinated Cu²⁺ species after O₂ activation, identifying a specific framework-coordinated Cu²⁺ moiety as the active site for methane activation.

Paolucci et al.⁸⁵ utilized XAS to monitor the oxidation state changes of Cu in Cu-SSZ-13 catalysts under working conditions, establishing a direct correlation between the catalytic activity and the Cu redox cycle. To investigate the mechanistic origins of changes in kinetic behaviour during standard SCR, they employed XANES spectroscopy to quantify the Cu oxidation state as shown in Fig. 15a which presents the steady-state Cu⁺ fraction obtained from XANES fitting as a function of Cu density for various Cu-CHA zeolites. As observed, site-isolated Cu²⁺ ions evolve into a mixture of Cu⁺ and Cu²⁺ during SCR at 473 K catalysis, indicating redox cycling between these oxidation states.¹¹⁹ The data reveal an inverse relationship between Cu⁺ fraction and Cu ion density, contrary to expectations for a single-site catalyst where the oxidation state should depend solely on reaction conditions. At high Cu densities, Cu⁺ is the minority oxidation state, but it becomes predominant at lower Cu densities.

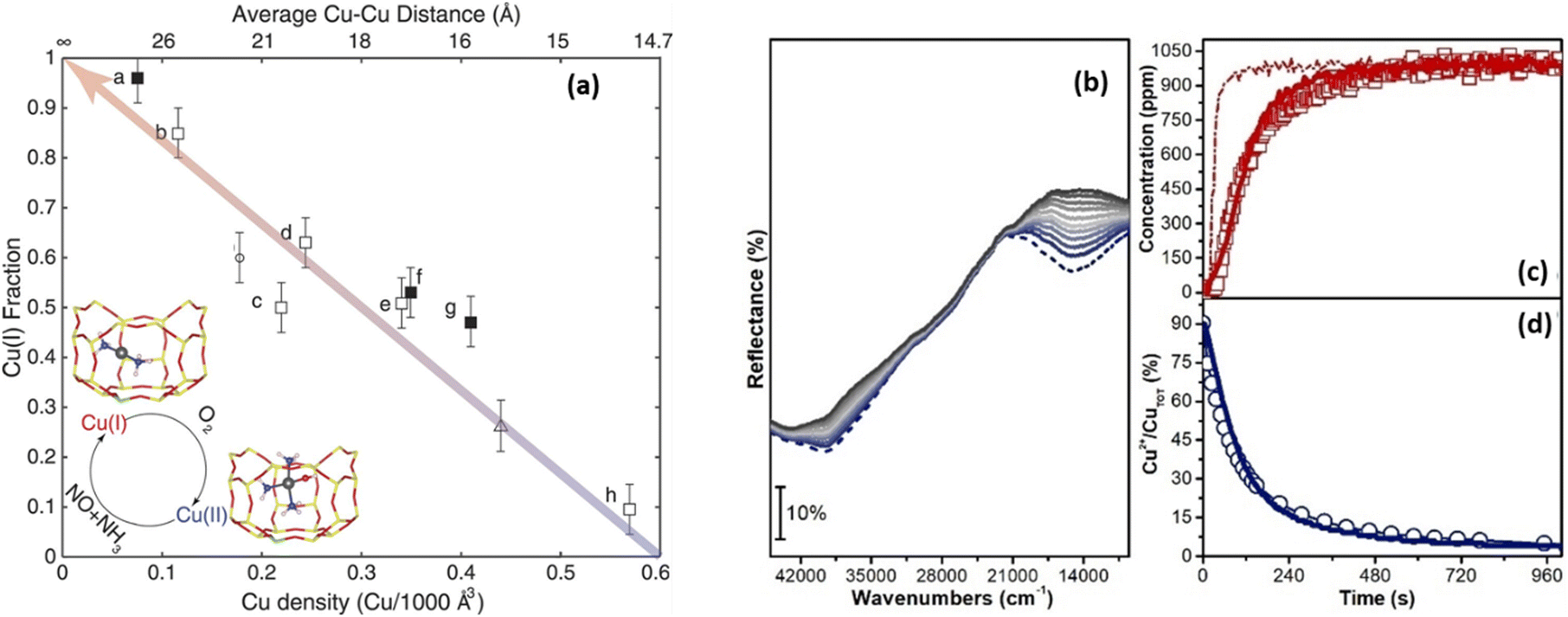

Fig. 15 (a) Dependence of the Cu⁺ fraction on Cu ion volumetric density during steady-state standard SCR at 473 K, measured by XANES (details in SM Section S3). The inset shows NH₃-solvated Cu⁺ and Cu²⁺ species observed and computed at 473 K.¹¹⁹ The coloured arrow is a visual guide; error bars reflect a 5% uncertainty from XANES fitting. Reproduced from ref. 85 with permission from The American Association for the Advancement of Science, copyright 2017, and (b) Operando UV/Vis. DR spectra during an RHC transient at 175 °C (dark blue to dark grey curves) after NH₃ saturation (dashed blue line); (c) NO inlet (dashed red line), NO outlet (red symbols), and redox model predictions (red solid line); (d) Cu²⁺ reduction dynamics from MCR analysis (blue symbols) and model predictions (blue solid line). Reproduced from ref. 268 with permission from John Willey and Sons, copyright 2024.

Negri et al.²⁶⁸ utilised UV/Vis Diffuse Reflectance (DR) spectroscopy in conjunction with a packed bed flow reactor to monitor the kinetics of Cu²⁺/Cu⁺ redox dynamics during the NH₃-SCR process over Cu-CHA catalysts, as illustrated in Fig. 15b–d. In their detailed analysis, they describe how the spectra in Panel (b) reveal the progressive reduction of Cu²⁺ to Cu⁺. Initially, the UV/Vis DR spectra exhibit a broad band centered around 15 100 cm⁻¹, characteristic of Cu²⁺ d–d transitions. As the reaction proceeds, the intensity of this band diminishes, indicating the reduction of Cu²⁺ to Cu⁺, which lacks d–d transitions due to its closed-shell d¹⁰ configuration. Concurrently, changes in the charge transfer region, particularly around 39 700 cm⁻¹, signify the gradual replacement of oxygen ligands by nitrogen from NH₃ in the coordination sphere of copper as the reduction occurs. In Panel (c), they present the NO concentration transients at the reactor inlet and outlet, alongside model predictions. The observed decrease in NO concentration at the reactor outlet is in line with the reduction of Cu²⁺ sites, as NO is consumed in this process. The close match between the experimental NO outlet data (red symbols) and the model predictions (solid red line) underscores the validity of the kinetic model. Panel (d) shows the time-dependent fraction of Cu²⁺ (Cu²⁺/Cu_TOT) derived from Multivariate Curve Resolution (MCR) analysis of the operando UV/Vis data. They highlight that the Cu²⁺ fraction starts at about 90% and decreases steadily as Cu²⁺ is reduced to Cu⁺. The model's fit to these data (solid blue line) supports the proposed second-order dependency of the reduction half-cycle rate on the oxidized Cu fraction, providing strong validation for their kinetic parameters. They emphasize that the consistency between the spectroscopic data and gas-phase measurements not only supports the kinetic model but also demonstrates the effectiveness of their operando spectroscopic approach in capturing the dynamics of the catalyst under reaction conditions.

Pankin et al.²⁶⁹ studied the speciation of Cu and Fe in composite zeolite catalysts under NH₃-SCR conditions using operando XAS, providing valuable insights into the catalytic behaviour of these metals in both monometallic and mixed catalysts. For iron, the Fe K-edge XANES and EXAFS spectra show that iron in both the monometallic Fe-MOR and the Cu–Fe-mix catalysts primarily forms small Fe₂O₃ clusters with a structure similar to hematite (α-Fe₂O₃). These clusters, probably located on the exterior of the MOR framework, contribute to NH₃ oxidation and influence Cu-speciation in the mixed catalyst, particularly at high temperatures. The Fe₂O₃ clusters enhance NH₃ oxidation, reducing the formation of Cu⁺ species in the Cu–Fe-mix catalyst at higher temperatures. Additionally, a minor fraction of isolated Fe species, possibly monomeric or dimeric Fe³⁺, may be active at high temperatures during SCR. These findings suggest that the iron sites in both Fe-MOR and Cu–Fe-mix primarily consist of small Fe₂O₃ clusters that efficiently catalyze NH₃ oxidation, with isolated Fe³⁺ species contributing to the high-temperature SCR activity. Fig. 16a and b, which displays the Fe K-edge XANES spectra, effectively captures these characteristics.

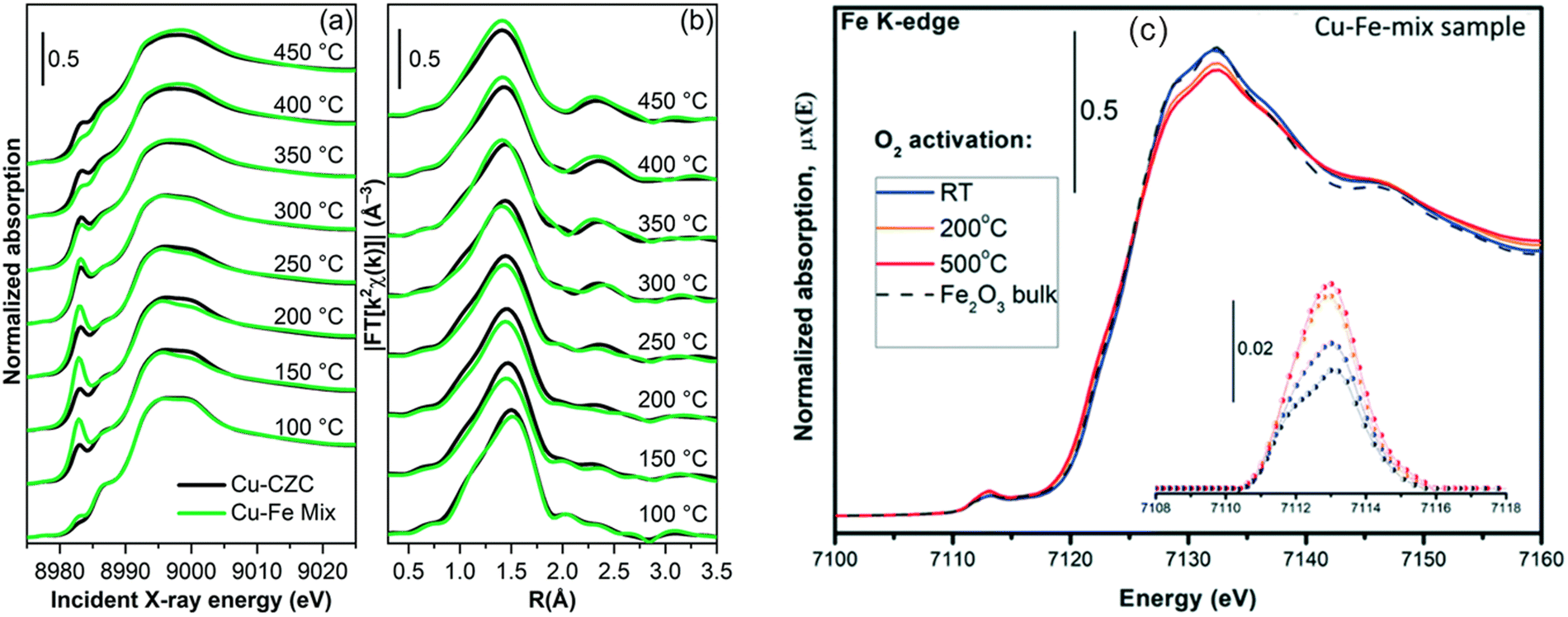

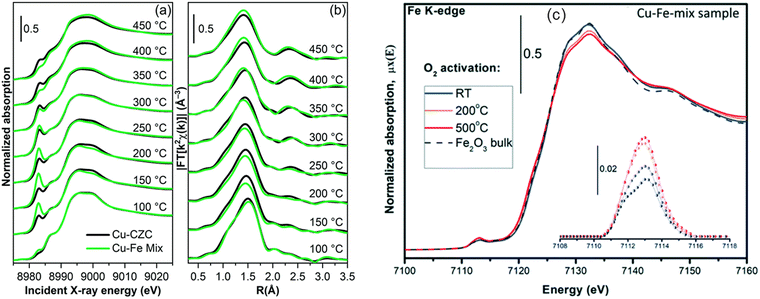

Fig. 16 Cu and Fe speciation in NH₃-SCR catalysts (a) normalized Cu K-edge XANES spectra, (b) k²-weighted phase-uncorrected FT of EXAFS spectra at various temperatures under NH₃-SCR conditions, comparing the monometallic Cu-CZC (black) and bimetallic Cu–Fe-mix (green) catalysts, and (c) Fe K-edge XANES spectra for the Cu–Fe-mix catalyst at RT, 200 °C, and 500 °C after oxygen activation, compared to bulk α-Fe₂O₃ (dashed line). The inset shows a magnified view of the background-subtracted pre-edge peak. Reproduced from ref. 269 with permission from The Royal Society of Chemistry, copyright 2024.

The Cu K-edge XANES and EXAFS analyses shown in Fig. 16c reveal significant differences in the behaviour of Cu species in the pure Cu-CZC and the mixed Cu–Fe-mix catalysts under NH₃-SCR conditions. In the monometallic Cu-CZC, mobile linear Cu⁺ di-amino complexes dominate at lower temperatures (below 300 °C), while Cu²⁺ species become more prominent as the temperature increases, which indicates a dynamic redox process for Cu during the SCR reaction. In contrast, the Cu–Fe-mix catalyst shows a higher abundance of reduced Cu⁺ species, particularly at lower temperatures (150–300 °C), suggesting that Fe enhances the reduction of Cu sites. This interaction, which is probably facilitated by the migration of NH₃-solvated Cu species between different zeolite frameworks, results in improved NO_x reduction performance at lower temperatures, making the mixed catalyst more effective across a broader temperature range.

Yu et al.²⁷⁰ demonstrated the NH₃-SCR mechanism on Cu-SAPO-34 using in situ EPR and DRIFTs experiments, where, NH₃ binds to both hydroxyls and Cu²⁺ while the NO is oxidized into nitrates or nitrites on Cu²⁺ sites. The generated nitrates and nitrites then react with NH₃ forming ammonium nitrates and N₂O intermediates respectively. The subsequent decomposition of these intermediates ultimately produces H₂O and N₂. Similarly, Wang et al.¹⁸⁷ suggested a mechanism for Cu-SAPO-34 in NH₃-SCR employing in situ DRIFTS and explored the mechanism on the Lewis acid sites, which involves first the generation of NH₄NO₃ species and then its reaction with NO to generate H₂O and N₂. The adsorbed NH₃ on Brønsted acid sites migrates to Lewis acid sites, providing more NH₃ for the reaction. Owing to the high reactivity of NH₄NO₃, DRIFTS spectra were unable to detect its presence; however, its involvement in the reaction could not be ruled out. In contrast, Su et al.²⁷¹ confirmed the consequent formation and decomposition of NH₄NO₂ species using temperature-programmed surface reaction and in situ DRIFTS which are generated as a result of the sequential reaction between NH₃ and the generated NO₂. To explore the role of NH₃ in the SCR reaction, Giordanino et al.¹²² investigated three potentially stable adsorption sites for the NH₃ molecule via NH₃-TPD and IR spectroscopy: the NH₃ coordinated to Cu site and as solvated ammonium ions are more stable for T < 400 °C, whereas, at higher temperatures, the Brønsted acid sites with a bound NH₃ is found to be more stable.

Chen et al.¹⁷² present a comprehensive reaction mechanism elucidating NH₃-assisted SCR of NO_x over Cu-CHA under low temperatures. The reaction proceeds in a multisite manner, implicating solvated Cu cations by ammonia (Cu⁺(NH₃)₂), and Brønsted acid sites. Cu sites play an essential role in oxygen activation and the generation of important intermediates, including HONO and H₂NNO, while Brønsted acid sites facilitate the subsequent breakdown of these intermediates into N₂ and H₂O. Oxygen activation necessitates pairs of Cu(NH₃)₂ complexes, with the coupling of HONO and H₃NNO potentially occurring on single complexes. They presented the free-energy landscape of the reaction at 150 °C, as illustrated in Fig. 17. According to the diagram, O₂ undergoes endergonic adsorption over the Cu complex pair, resulting in a loss of 0.44 eV due to changes in rotational and translational entropy. The subsequent adsorption and activation of O₂ to structure III has an energy barrier of 0.53 eV. The binding of NO leads to an energy change of −0.24 eV, generating nitrosonium (NO⁺) species. The measured binding energy of NO is computed as −0.90 eV. Furthermore, the coordination of NH₃ molecules from the gas phase to NO⁺ yields structure IV (intermediate C) forming an N–N bond length of 1.9 Å. This step results in an overall free-energy change of +0.52 eV, with an adsorption energy of −0.11 eV. The transition from III to structure IV incurs a total energy change of +0.28 eV. Upon coordination with NO⁺, the NH₃ molecule activates and extends the N–H bond by 0.03 Å towards oxygen. The transfer of this proton to oxygen, generating an OH⁻ group and a nitrosamide (H₂NNO) species (structure V), occurs with a free-energy barrier of 0.07 eV.

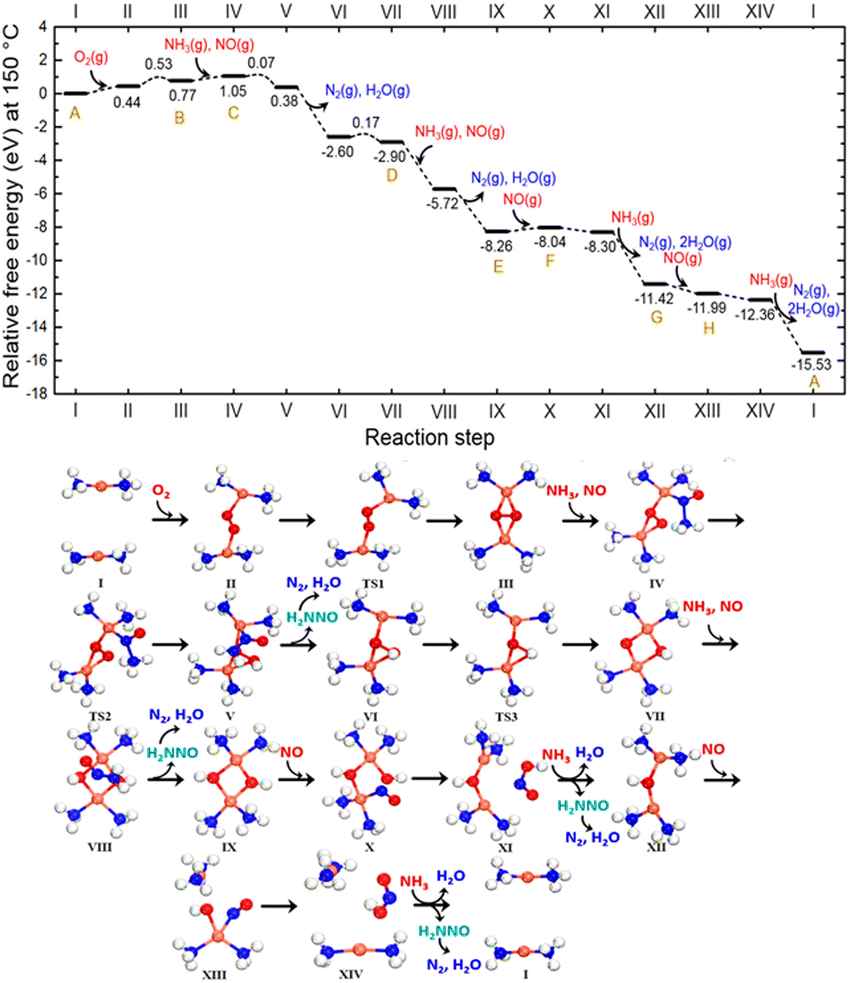

Fig. 17 The free-energy landscape of the complete reaction cycle at 150 °C. In the lower panel, the structures of each intermediate are displayed. Reactants, intermediates, and product species are shown in red, green, and blue, respectively. To enhance clarity, the zeolite framework is not illustrated. A to H letters in the energy diagram correspond to the respective species shown in the cycle. Atom colour codes are as follows: Cu (pink), N (blue), O (red), and H (white). Reproduced from ref. 172 with permission from American Chemical Society, copyright 2020.

The breakdown of the H₂NNO intermediate on a Brønsted acid site, when released from the Cu⁺ active site, yields N₂ and H₂O as products. The desorption of H₂NNO from the Cu site results in a minimal free-energy barrier of 0.2 eV (determined through constrained molecular dynamics), leaving behind an O–OH group on the Cu sites (structure VI). The O–OH bond readily splits with an activation energy of 0.17 eV, generating VII. In structure VII, the oxygen atom carries a formal charge of −2, resulting in a multiplicity of doublet (species D). The highly reactive oxygen atom (see structure VII) readily combines with another H₂NNO molecule, resulting in structure IX. To this end, both Cu ions now exhibit a +2 oxidation state (E). The Cu₂(OH)₂²⁺ species commonly observed in enzymatic reactions^272,273 have been experimentally determined in crystal structures.^274,275 NO binds exothermically to the Cu sites in E leading to the Cu–OH bond, and so generating structure X (species F). The binding of NO⁺ is accompanied by the reduction of Cu²⁺ to Cu⁺.

A HONO intermediate forms and is released from the Cu sites (structure XI) without any energy barrier. Subsequently, HONO then can react with gas-phase ammonia, generating an NH₃–HONO complex (ammonium nitrite). This complex decomposes into one N₂ molecule and two H₂O molecules. Adsorption of an additional NO molecule onto one of the Cu sites in Structure XII (belonging to species G) leads to the second Cu²⁺ to Cu⁺ reduction. This adsorption process triggers the breaking of a Cu–OH bond, leading to the generation of two distinct Cu complexes (referred to as Structure XIII and species H and). Subsequently, HONO intermediate emerges on the Cu site hosting OH⁻ and NO⁺ groups. Furthermore, the HONO species undergoes a reaction with gas-phase NH₃, resulting in NH₃–HONO formation, which consequently decomposes into one N₂ molecule and two H₂O molecules, thereby concluding a standard NH₃-SCR cycle. According to the free-energy landscape, the activation of O₂ represents the highest barrier, with a relative energy of 0.97 eV compared to the gas phase.

Shan et al.²⁰⁶ proposed that the Fast-SCR reaction mechanism over Cu-SSZ-13 involves a stepwise process. In their study, they found that ZCu(II)OH initiates the reaction by adsorbing an NH₃ molecule, reaching a coordinatively saturated state as shown in Fig. 18. This adsorbed NH₃ then interacts with NO₂, forming HNO₃ without encountering any discernible energy barrier. The species denoted as B was identified as NH₄NO₃ adsorbed on Cu sites. Subsequently, gas phase NO then reacts with the adsorbed HNO₃, with an associated energy barrier of 0.87 eV. This reaction leads to the generation of adsorbed HNO₂ and the simultaneous release of a NO₂ molecule (C → D). Furthermore, the adsorbed HNO₂ engages in a reaction with the NH₃ ligand, producing NH₂NO and H₂O. Desorption of N₂ and H₂O molecules occurs, allowing NH₃ and NO₂ to adsorb at the Cu site, leading to subsequent reactions and the generation of NH₂NO and –OH groups. NH₂NO decompose into N₂ and H₂O, and the ZCuOH site undergoes regeneration. The rate-limiting step in their Fast SCR cycle corresponds to the reaction between adsorbed HNO₂ and an NH₃ ligand over the ZCuOH site, resulting in the production of NH₂NO and H₂O (1.58 eV activation energy).

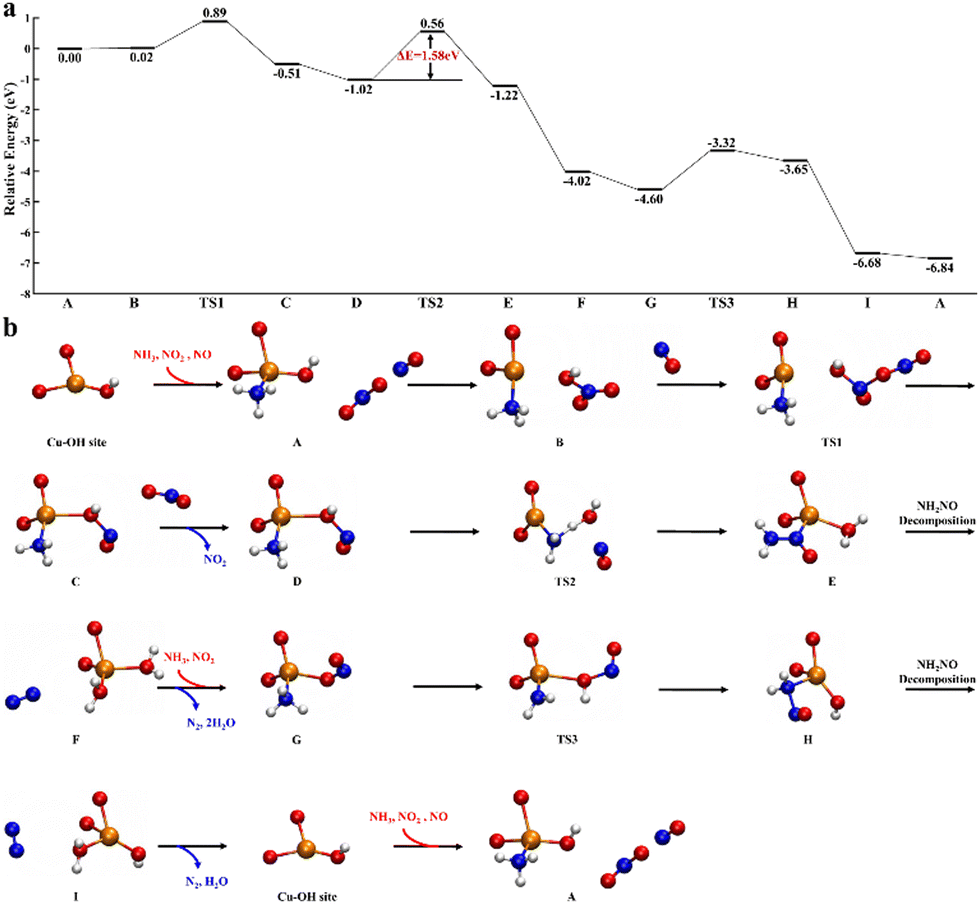

Fig. 18 Fast SCR cycle at ZCu²⁺OH site (a) the free energy profile is illustrated, showcasing the energetics of the reaction, and (b) the optimized geometries of the reactants, products for each elementary step, and the transition states (TSs) are provided in the lower panel. For clarity, atoms of the zeolite framework, excluding the two O atoms linked to the Cu–OH group, are omitted. Reproduced from ref. 206 with permission from Springer Nature, copyright 2022.

Water and NH₃ vapours are significant constituents of NO_x-containing exhaust gases, and when present they are inevitable and could result in the adsorption on TMI sites, consequently impacting the energetics of intermediate species.^276,277 Liu et al.²⁰⁴ explored the impact of water on the NH₃-SCR activity employing DFT calculations and using Cu-LTA as a model catalyst and discovered that water exerts a beneficial influence on low-temperature SCR activity, potentially through the formation of solvated [H₂O–Cu–NH₃]⁺ species. Similarly, Yu et al.²⁷⁸ conducted catalytic performance testing of Cu-SAPO-34, showing a positive effect of water. They observed that water presence improves the reducibility of Cu²⁺ species at high temperatures while inhibiting NH₃ oxidation. Additionally, Lee et al.²⁷⁹ stated that NH₃ does not hinder the generation of nitrate species when water is present in the feed. Furthermore, several studies indicate that Cu-ion mobility is facilitated by physisorbed water and ammonia molecule ligation, resulting in improved low-temperature NH₃-SCR activity.^85,204,280

Work by Nasir et al.¹⁹⁵ and Greenaway et al.²⁸¹ reported the study of the NH₃-SCR reaction mechanism using DFT techniques employing a quantum mechanical/molecular mechanical (QM/MM) technique together with concentration modulation excitation DRIFTS, with a specific focus on understanding solvent effects on Cu-CHA reactivity and the corresponding reaction mechanism respectively.

Examining the NH₃-SCR reaction, the potential energy landscape was first studied, without physisorbed solvent molecules as can be seen in Fig. 19 with black lines, showcasing exothermic O₂ adsorption, followed by NO adsorption generating Cu–NO₃ species (species B). Gaseous NO₂ reacts with the Cu⁺-site, forming bidentate Cu–NO₃ intermediates. The reaction of NH₃ with nitrite produces an intermediate (species D), and NH₃ also reacts with the Cu–HONO, generating an NH₃–Cu–HONO species, which subsequently decomposes, leading to the generation of the crucial Cu-nitrosamine species, considered important in the NH₃-SCR reaction. Next, the influence of water solvation has been examined (Fig. 19 red lines), as water is a primary product of the NH₃-SCR reaction, necessitating consideration of hydrated active sites. Water represents a significant product of the NH₃-SCR reaction, demonstrating the importance of considering the hydrated state of the active sites.²⁰⁷ The presence of water enhances the migration of Cu species, indicating that unanchored Cu ions migrate to create active sites, thereby promoting the SCR reaction.²⁸¹ The computed binding energies of H₂O on both Cu⁺ and Cu²⁺ sites indicate variations in the NH₃-SCR reaction mechanism on solvated Cu-CHA sites. Analysing the impact of water on intermediate species formation, notable differences in the absence and presence of physisorbed water are found. Water promotes the re-oxidation half-cycle, favouring nitrate species formation, while on a water-solvated Cu-CHA site, the generation of Cu-nitrosamine (NH₂NO) is less favourable, potentially slowing down the reduction half-cycle of the NH₃-SCR. The overall influence of H₂O on NH₂NO is more important than on nitrate, suggesting a net negative influence on activity. Additionally, previous reports indicate that hydrocarbons or residual H₂O can alter or block active sites. Regarding the effect of NH₃ solvation (Fig. 19; green lines), previous experimental evidence supports the improvement of NO_x reduction with preadsorbed NH₃ at temperatures 300 °C or 250 °C.²⁷⁸ However, it was observed that the activity for NO reduction remains low when temperatures fall below 150 °C.²⁷⁸ The adsorption energies of NH₃ for Cu⁺-CHA and Cu²⁺-CHA sites have also been calculated suggesting that reactive sites occupied by NH₃ molecules can affect the mechanism. Investigating the effect of NH₃ on intermediate species formation, revealed that Cu bidentate nitrate (species B) formation is more favourable on physisorbed NH₃ sites compared to bare sites. Moreover, the formation of Cu-nitrosamine (species G) is relatively less favourable on physisorbed NH₃ active sites than on bare sites, indicating a potential deactivation of active sites for the reduction part of the NH₃ + NO activation half cycle.

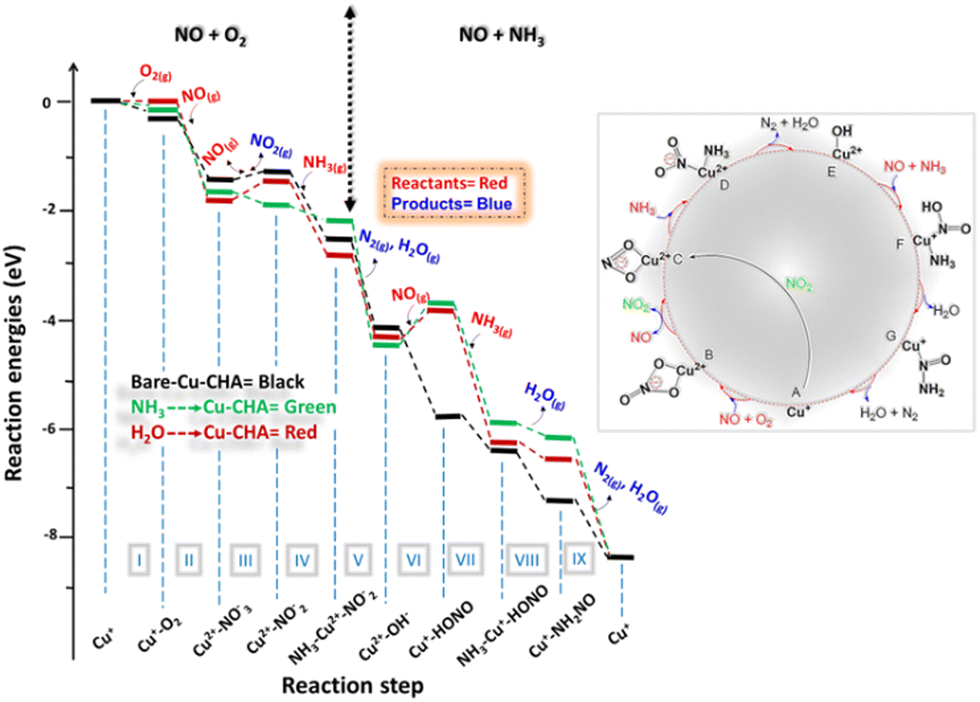

Fig. 19 The NH₃-SCR reaction on the Cu-CHA site shows energy landscapes: black represents the bare site, green with physisorbed ammonia, and red indicates water-solvated sites. The inset on the right illustrates the NH₃-SCR cycle. Reproduced from ref. 195 with permission from American Chemical Society, copyright 2023.

Cheng et al.²⁸² suggested the Cu–Mn/zeolite as a potential candidate for the NH₃-assisted SCR reaction using in situ DRIFTS. They found that the formation of both NH₃ and NO_x on the Cu-zeolite and Cu–Mn/zeolite are similar and suggested that the introduction of Mn only enhanced the concentration of the intermediate. The bidentate nitrate coordinates with the metal ion followed by the desorption of water after the adsorption of NO from the catalyst.

Marberger et al.²⁶¹ correlated the rate-limiting step to the redox mediation of [Cu(NH₃)₂]⁺ to [Cu(NH₃)₂]⁺² using transient and quick-scanning EXAFS methods. They found that the re-oxidation process is inhibited by the interaction of NH₃ with the Cu⁺ complex. The analysis of Marberger et al.²⁶¹ mainly relies on data from low Cu-loading samples. Although in these studies, the formation and chemistry of the redox mediation of [Cu(NH₃)₂]⁺ and [Cu(NH₃)₂]⁺² complexes are well documented, the nature and role of these species in relation to other reaction intermediates are less clear.

Fe-based zeolitic systems

Previous studies^{134,283–286} have found several differences between Cu and Fe/zeolite SCR catalysts. Fe/zeolites exhibit low standard SCR activities below 250 °C due to strong NH₃ inhibition effects. Contrary to this, Cu/zeolites can maintain high activity even around ∼175 °C. Cu/zeolites also demonstrate less sensitivity to NO₂/NO_x ratios in the reactant feed. The variance in NO_x conversion between standard (NO₂/NO_x = 0) and fast (NO₂/NO_x = 0.5) SCR conditions is typically minimal for Cu/zeolite catalysts. While for Fe/zeolites, a NO₂/NO_x = 0.5 ratio is preferred for low-temperature reactivity. Furthermore, Fe/zeolites tend to be less selective in N₂O formation, particularly at NO₂/NO_x ≤ 0.5.

The NH₃-SCR pathway on Fe-based zeolitic systems including ZSM-5 and MOR has been widely investigated. Through experiments and calculations, several steps have been studied including important steps such as NO oxidation and NH₂NO generation, aiming to understand catalytic pathways. Li et al. reported a mechanism investigated through DFT calculations for the whole NH₃-SCR process for extra framework Fe and Brønsted acid sites of the ZSM-5 zeolite.^221,287 They proposed the catalytic decomposition of NO over the H-form of the zeolite (using a cluster model with 5-T sites), and found the NO oxidation step as the rate-limiting step (with an energy barrier of 15.6 kcal mol⁻¹) at 373 K. Subsequently, the NH₂NO species decomposes to H₂O and N₂via a hydrogen transfer mechanism. This process can be catalytically driven by the Z-[FeO]⁺ species over Fe-exchanged zeolite. Here, NO reacts with NH₃ on the FeO⁺ to generate NH₂NO and [FeOH]⁺. The activation barrier is reduced by 3.0 kcal mol⁻¹ due to the FeO⁺ species.

Yasumara and colleagues⁷ explored the reduction half cycle in MOR by investigating the elementary steps involved in Fe³⁺ reduction using a mixture of NO + NH₃. They utilized operando IR measurements to track intermediates and gas-phase products, considering the instability of surface intermediates during catalysis. Upon exposure to NO, they identified NO⁺ species with vibrational signatures at 2190 cm⁻¹ (ref. 288 and 289) and Fe²⁺–NO with 1880 cm⁻¹,²⁹⁰ accompanied by the detection of adsorbed NO₂ and H₂O (1620 cm⁻¹) in the gas phase. They also observed the depletion of Fe³⁺–OH species which appeared at 3682 cm⁻¹ (ref. 291) and Brønsted acid sites at 3638 cm⁻¹.²⁹² Their investigation extended to examining the Fe cationic species reactivity in zeolites towards HONO generation through transition state calculations employing a T5 (where T indicates tetrahedral site) cluster model as demonstrated in Fig. 20a. The T4 site in the MOR framework²⁹³ is recognized as a replacement site for Al among the T sites. The stability of mononuclear iron species in SSZ-13 zeolite containing isolated Al has also been investigated by Schneider group.²⁹⁴ According to their calculations, the phase diagram for Fe species in the presence of H₂O revealed that [Fe³⁺(OH⁻)₂]⁺ species are the most stable at temperatures below 600 °C. Hence, in their study, [Fe³⁺(OH⁻)₂]⁺ was used as the initial structure for the active iron species. Through theoretical calculations, they considered singlet, triplet, and quintet spin multiplicities, with quintet states exhibiting the lowest energy.^295,296 The energy diagram of the quintet state illustrated in Fig. 20b shows the formation of HONO species, facilitated by NO molecules attaching to an OH group of [Fe³⁺(OH⁻)₂]⁺ with an energy barrier of 29.2 kJ mol⁻¹. Subsequently, the generated HONO molecule desorbed with 76.3 kJ mol⁻¹ of desorption energy. These findings implied the facile formation of HONO species, with the high desorption energy of NH₃ from Brønsted acid sites (145–153 kJ mol⁻¹)²⁹³ indicating the migration of generated HONO intermediates into Brønsted acid sites for N₂ generation.

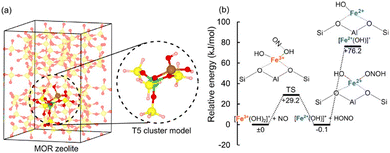

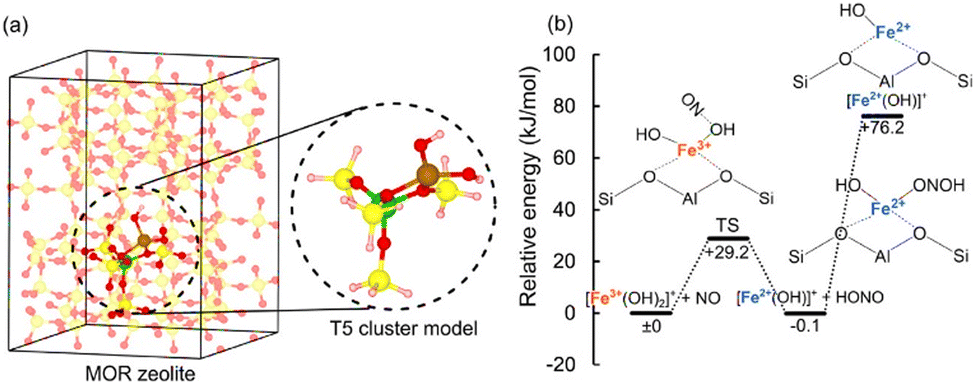

Fig. 20 (a) Illustrates the MOR zeolite framework and the T5 cluster model used in the study, and (b) the energy diagram depicts the formation of HONO from [Fe³⁺(OH⁻)₂]⁺ and adsorbed NO within MOR zeolites. Brown represents Fe, yellow for Si, green for Al, red for O, and white for H, providing a visual reference for molecular structures and energy transitions. Reproduced from ref. 7 with permission from American Chemical Society, copyright 2022.

Bruggemann et al. also performed a series of tests to probe the NH₃-SCR mechanism on ZSM-5 containing 5T atoms using DFT.²⁹⁷ First, they compared the NO oxidation step and the conversion of trans–cis N₂O₃ as an intermediate to NH₂NO on Brønsted acid sites of ZSM-5. They subsequently calculated the energy barrier for the formation of nitrosamine (NH₂NO) in the gas phase and over the ZSM-5 zeolite using DFT. Their results showed that the energy barrier in the case of the zeolite of 20 kcal mol⁻¹ is more compared to the gas phase (0.16 kcal mol⁻¹). Further, they extended the system and investigated Fe-zeolites using the cluster model approach.^149,298 The catalytical cycle in this case only produces two species: nitramide (NH₂NO₂) and NH₂NO, and consider Fe as a mononuclear species Z-[FeO]⁺, as mentioned earlier. In addition, several species were found on Fe sites, including FeO₂N, FeONO, and FeO₂NO which are considered the most prominent species in the NO oxidation cycle based on the calculated Gibbs free and activation energies which are calculated by gradient corrected DFT.

Recently, Rudolph and Jacob compared the mechanism of the SCR of NO_x over Fe and Cu-doped zeolites.²⁹⁹ The pathway starts with the neutral models [Z-Fe³⁺(OH)₂] and [Z-Cu²⁺(OH)] and proceeds via two pathways. In the first NH₃ is adsorbed to generate the [Z-M(OH)₂(NH₃)] intermediate. This step is quite exothermic and requires a subsequent shifting of the proton from NH₃ to the OH⁻ resulting in the formation of [Z-Fe³⁺(OH)(H₂O)(NH₃)] and then release water molecules leading to [Z-Fe³⁺(OH)(NH₂)] with overall endothermic energy of 82 kJ mol⁻¹ in the case of Fe while the same steps for Cu need only 56 kJ mol⁻¹. Some previous reports proposed this proton transfer (in the case of Cu) to the zeolite framework rather than to the OH⁻ ligands^85,300,301 which requires 114 kJ mol⁻¹ energy. The intermediate [Z-Fe³⁺(OH)(NH₂)] interacts with NO in two different ways: first, NO coordinates with this intermediate to generate [Z-Fe²⁺(OH)(NH₂)(NO)] and reduce the Fe³⁺ to Fe²⁺ followed by rearrangement that leads to the formation of [Z-Fe²⁺(OH)(NONH₂)].

Other TMI-based zeolitic systems

Employing operando IR experiments, Yasumura et al.³⁰² compared the transient reactions of pre-adsorbed NH₃ with NO and NO + O₂. Prior to the experiment, the IR disk of pre-oxidised Cr2.3β5 – beta zeolite (Si/Al = 5) with 2.3 wt% chromium. Cr2.3β5 was subjected to 0.1% NH₃ for 1200 seconds at 200 °C, resulting in the observation of B–NH₃ (1450 cm⁻¹) and L–NH₃ (1628 cm⁻¹) species. Upon exposure to NO, more than half of the B–NH₃ species were consumed within 2000 seconds. Concurrently, the generation of N₂ was detected by mass spectrometry (MS). During TPR of pre-oxidised Cr2.3β5 with NO, in situ IR and gas-phase analysis showed the presence of NO⁺ and NO₃⁻ species below 200 °C.^303–305 NO⁺ decreased while NO₃⁻ initially increased (up to 70 °C) before declining. NO₂ evolved in the low-temperature range (35–300 °C), peaking around 130 °C. NO reduction Cr⁶⁺/Cr⁵⁺ led to Cr³⁺ species formation on Cr2.3β5, with NO₂ possibly originating from surface intermediates: NO → NO⁺ → NO₃⁻ → NO₂.

When the same sample was treated with NO + O₂ gas flow, the complete consumption of B–NH₃ occurred within 2000 seconds, accompanied by a higher total production of N₂ compared to the NO case. The consumption of B–NH₃ under NO + O₂ atmosphere was attributed to the persistent reduction/oxidation cycles (pseudo-steady-state SCR). The enhanced reactivity of B–NH₃ in the presence of NO + O₂ compared to NO has also been reported for V₂O₅-based catalysts and Cu-zeolites.³⁰⁶ The reaction mechanism that follows steady-state NH₃-SCR as shown in Fig. 21, does not follow the NH₃ adsorption species. However, the reactions between NO_x and preadsorbed NH₃ play a crucial role during transient diesel deNO_x conditions. IR investigations on the NH₃-SCR mechanism have focused on the reaction between adsorbed NO + O₂ and NH₃. However, some reports³⁰⁶ considered this approach unsuitable for analysing the NH₃-SCR process over Cu-CHA under realistic conditions. Particularly, for the species, such as Cr³⁺, which are formed through the reduction of Cr species by NH₃ and adsorbed NO. These reduced species can be re-oxidised by O₂, thereby ensuring a continuous formation of N₂ through the ongoing redox cycles of the reaction between the reduced high-valent Cr species and OCH (pseudo-steady-state SCR).

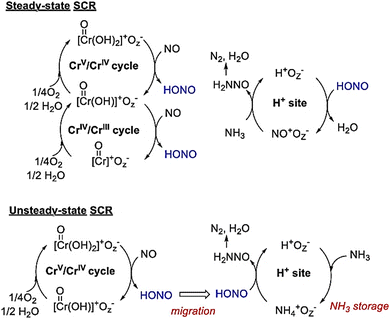

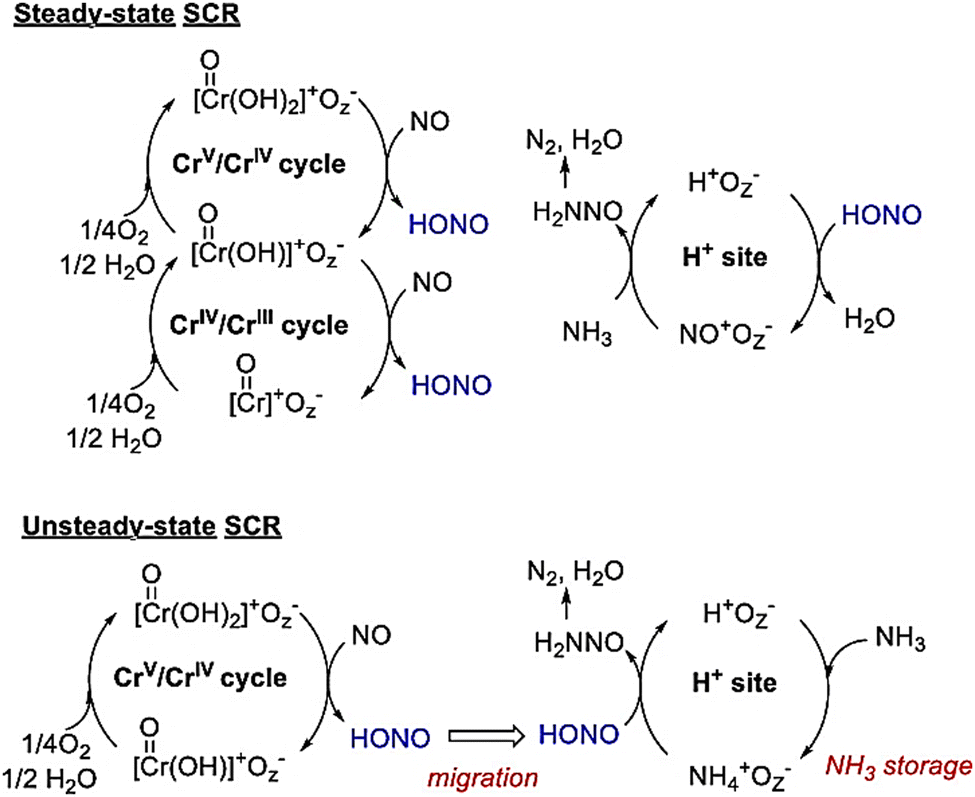

Fig. 21 Mechanism of NH₃-SCR Catalyzed with Cr-zeolite catalysts in the steady-state (top) and unsteady-state (bottom) in which the mobile HONO intermediate migrates and reacts with the adsorbed NH₃. Reproduced from ref. 17 with permission from American Chemical Society, copyright 2015.

Deactivation mechanisms

TMI stability

SCR catalysts for mobile applications must meet demanding criteria, including stable operation across a wide range of temperatures (from low engine start temperatures ∼150 °C to high hydrocarbon contaminant burn-off temperatures > 500 °C), long lifespans, and resistance to poisoning.³⁰⁷ Cu-ZSM-5 was initially introduced for NH₃-SCR in 1986⁸⁷ but falls short of meeting lifespan conditions owing to deactivation in tailpipe conditions.^90,308,309 Research indicates that zeolite catalysts with larger pores are more susceptible to the influence of hydrocarbon (HC) species, as demonstrated by several studies.^310–312 For instance, medium-pore zeolites like Cu-ZSM-5 and large-pore zeolites such as Cu-Beta tend to deactivate more readily compared to small-pore zeolites like Cu-SSZ-13.³¹³ This difference arises because the small-pore structure of Cu-SSZ-13 restricts the diffusion of HC species into the zeolites effectively. The unique small-pore configuration of Cu-SSZ-13, with channels approximately 3.8 Å in diameter, minimizes the impact of long-chain hydrocarbons on its performance, as it restricts the entry of these molecules into the zeolite pores.³¹³

Generally, small-pore zeolites containing metal ions (Fe, Cu, Co, Mn) are hydrothermally more stable than medium or large-pore zeolites.^314,315 The hydrothermal stability of Cu-CHA has been extensively studied recently and is considered a highly important criterion for effective NO_x-SCR^316–319 catalysts. Despite its activity, the evolution of Cu from an active to inactive form during NO_x-SCR is seriously problematic.^320–322 Lee et al.³²³ studied the NH₃-SCR performance and hydrothermal stability of Cu-SSZ-13, Cu-SSZ-5, Cu-Beta, and Cu-UZM-35 after treating at 750 °C, and in the order as follows; Cu-SSZ-13> Cu-UZM-35> Cu-SSZ-5> Cu-Beta. A similar investigation was described by Kwak et al.³²⁴

Ryu et al.³²⁵ studied the Cu-exchanged LTA zeolite (high silica polymorph) and demonstrated that LTA is a new contender to substitute for Cu-SSZ-13. They tested the Cu-LTA zeolite after hydrothermal ageing at a high temperature (900 °C) under which commercial SSZ-13 deactivates. Also, they found that the local environment of Cu²⁺ in LTA is different from that in SSZ-13. Cu²⁺ is present at the centre of the 6-MR and not only acts as a catalytically active site but also as a suppressor of dealumination.

To examine the role of Brønsted acid site (BAS) strength after undergoing hydrothermal ageing, Wu et al.³²⁶ performed operando electron EPR analysis on different Cu-exchanged zeolites. To ensure the catalyst's structural integrity while inducing dealumination, an ageing temperature of 850 °C was chosen. This temperature effectively removes Al from the supports without causing complete structural damage. Upon comparing the levels of isolated Cu²⁺ ions in the hydrothermally aged catalysts, referred to as “HTA850,” with the fresh catalysts, it becomes apparent that ageing leads to a partial reduction in isolated Cu²⁺ ions due to the generation of EPR-silent Cu species like Cu-aluminates and Cu_xO_y clusters. The most significant reduction in isolated Cu²⁺ ions was observed in Cu/LTA, followed by Cu/CHA-b (Si/Al ratio = 10), Cu/CHA-a (Si/Al ratio = 17), and Cu/AEI.

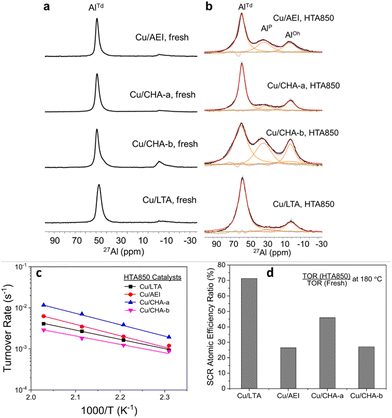

Fig. 22a and b depict a comparison of the ²⁷Al magic angle spinning (MAS)-NMR spectra between the HTA850 and fresh catalysts. In the fresh catalysts, there is a noticeable ²⁷Al signal at approximately 50 ppm, indicating the presence of framework tetrahedral Al (AlTd) ions with a signal that appeared around 0 ppm which can be attributed to extra-framework octahedral Al (Al_Oh) species. Conversely, for HTA850 catalysts, all spectra exhibit an additional broad ²⁷Al signal at around 30 ppm, indicating the presence of penta-coordinated Al (AlP) species. The order Cu/LTA > Cu/CHA-a > Cu/AEI > Cu/CHA-b in terms of hydrothermal stability suggests that hydrothermal stability relies on both the composition of the zeolite supports and the framework topology.

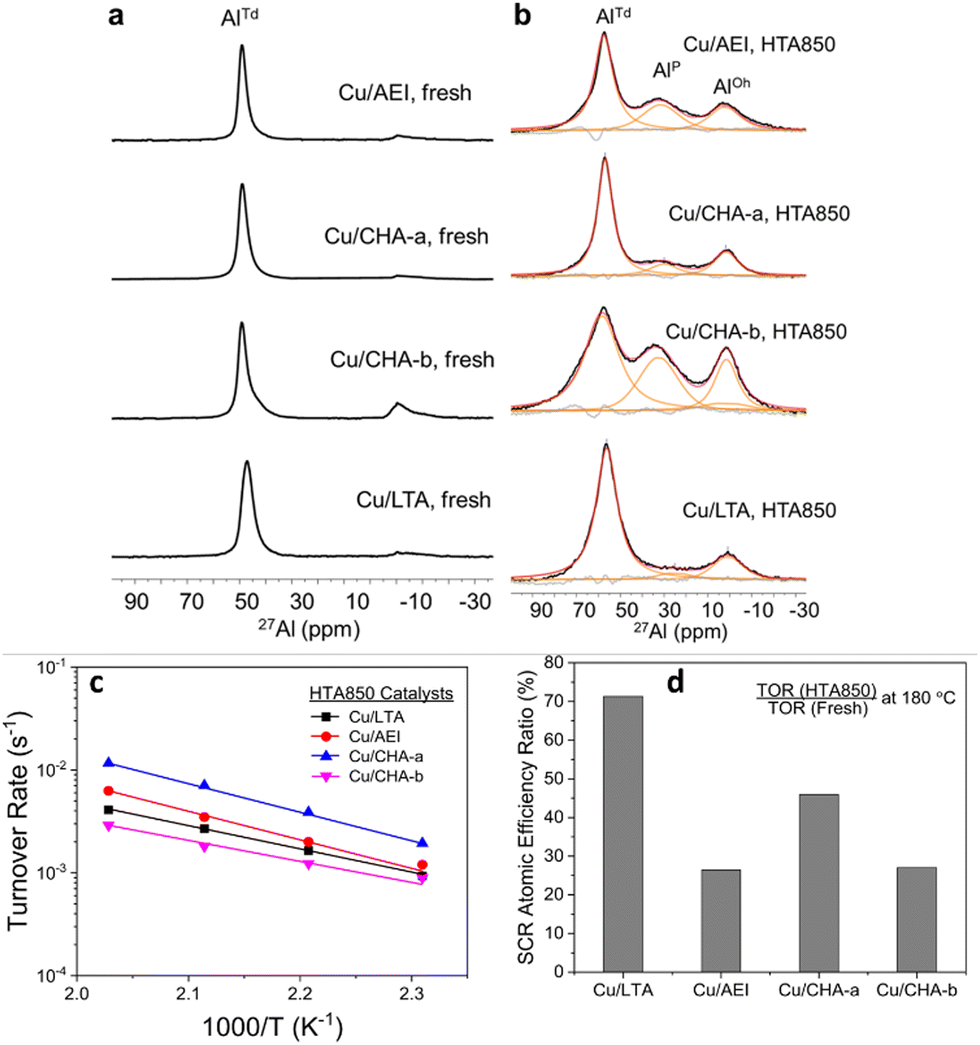

Fig. 22 (a) Spectra of fresh (a) and hydrothermally aged (b) Cu-zeolites. Arrange the turnover rates (TORs) as Arrhenius plots (c), and illustrate turnover rate (TOR) ratios at 180 °C between freshly prepared catalysts and (d) those subjected to hydrothermal ageing. Reproduced from ref. 326 with permission from Springer Nature, copyright 2023.

Additionally, Fig. 22c illustrates turnover rates derived from the first-order kinetic analysis of light-off SCR data. When comparing the effectiveness of Cu sites in aged Cu/LTA with those in aged Cu/AEI and Cu/CHA, a notable alignment is observed, indicating the significant role of zeolite Brønsted acid sites in regulating rates. By removing these sites through dealumination, their kinetic effect diminishes. The examination of turnover rates (TOR) values for the fresh and HTA850 catalysts at 180 °C are shown in Fig. 20d, which shows that the aged catalysts maintain an atomic efficiency order: Cu/LTA  >  Cu/CHA-a > Cu/AEI  >  Cu/CHA-b, further supporting the importance of Brønsted acid sites in kinetics. Noteworthy is the migration of Cu⁺ ions initially located within the sterically distant sod cages of Cu/LTA to the 6-MRs at 750–900 °C. This migration, coupled with oxidation to Cu²⁺ ions, contributes to the increase in low-temperature NH₃-SCR activity and Cu atomic efficiency observed in aged Cu/LTA as reported by Nak et al.³²⁷ Thus, the zeolite cage topology emerges as a critical factor suggesting the sustained high Cu atomic efficiency in aged Cu/LTA.

Furthermore, Wu et al.³²⁶ conducted an operando EPR study on fresh catalysts across a temperature range of 50 to 350 °C, specifically examining temperatures of 50, 150, 225, and 350 °C. At 50 °C, which is below the SCR light-off temperature, Cu ions are found exclusively in the +2 oxidation state and are solvated by NH₃. This occurs due to ligand displacement from H₂O to NH₃, which binds more strongly to Cu²⁺ ions. The study reveals that not all Cu²⁺ cations exhibit the same level of mobility. Cu²⁺ ions with restricted mobility show anisotropic properties (g_|| = 2.25, A_|| = 170 G, high-field signals around 3300 G), whereas those with unrestricted mobility are isotropic (gave = 2.18, high-field signals around 3260 G). The Cu²⁺ ions with restricted mobility likely have both NH₃ and zeolite lattice oxygen ligands, while the freely mobile ions are associated with Cu²⁺(NH₃)₄ and Cu²⁺(OH)(NH₃)₃ complexes. NH₃-solvated Cu²⁺ ions in Cu/LTA show greater mobility compared to those in Cu/AEI and Cu/CHA, resembling the mobility of H₂O-solvated Cu²⁺ ions. At 50 °C, the formation of a mobile [Cu²⁺(NH₃)₃(NO₃)]⁺ complex, as demonstrated by Negri et al.,³²⁸ is unlikely under steady-state conditions since Cu²⁺–(NO_x) y-type species only form when the catalyst is not fully covered by NH₃, as noted by Marberger et al.²⁶¹ Even if small amounts of [Cu²⁺(NH₃)₃(NO₃)]⁺ complex form, its signal would be overwhelmed by the stronger signals of [Cu²⁺(NH₃)₄] and [Cu²⁺(OH)(NH₃)₃].

The hydrothermal ageing of the Cu–CHA catalyst resulted in a notable decline in NH₃ oxidation at high temperatures.³²⁹ The TPD profiles were primarily resolved into three peaks, centred at 317 °C, 456 °C, and 526 °C, respectively. Specifically, the intensity of the peak at 317 °C increased with hydrothermal ageing, while the intensities of the peaks at 456 °C and 526 °C witnessed a decrease and, therefore, a reduction in the availability of active sites for NH₃ oxidation. While the study did not explicitly address the effects of ageing on standard SCR activities, the decrease in NH₃ oxidation suggests a potential indirect influence on the overall SCR activity of the Cu–CHA catalyst.

As noted, Cu-based zeolites have generally been considered to be the most efficient contender in the SCR of NO_x. However, zeolites e.g. ERI, AEI, CHA, and AFX have also been explored with Fe ions as an active site.³³⁰ Some comparison regarding reaction kinetics for both Fe and Cu was made by Gao and co-workers.³³¹ Fresh Fe-zeolites are comparatively less active than Cu-zeolites under wet conditions in SSZ-13 as shown in Fig. 23.³³² However, on comparing the fresh and aged versions of both catalysts, the Fe-version retained more activity than the Cu-version after ageing at high temperatures (above 500 °C).

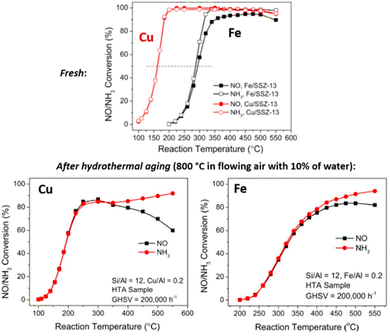

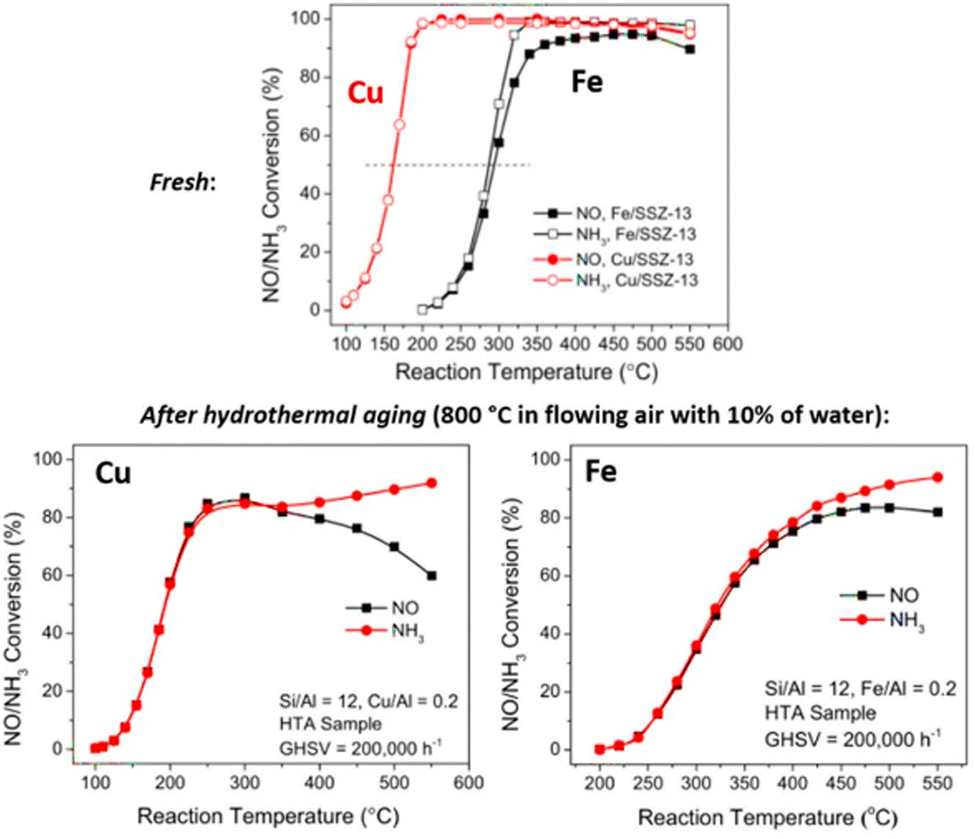

Fig. 23 A comparison between Cu-SSZ-13 and Fe-SSZ-13 was conducted under standard wet SCR conditions, both before (fresh) and after hydrothermal ageing. Details of the conditions are provided in the inset. Reproduced from ref. 332 with permission from American Chemical Society, copyright 2018.

In another report, they also studied the effect of Fe on high silica LTA at a hydrothermal ageing temperature of 900 °C,³³³ and investigated the stability and hydrothermal activity of LTA and compared with that of commercial SSZ-13. The hydrothermal stability of both catalysts was found to decrease at 900 °C; however, the extent of decrease in the case of Fe-LTA was smaller as compared to Fe-SSZ-13. Furthermore, the activity profile of Fe-LTA was much better than that of Fe-SSZ-13. The iron species, including Fe³⁺ and small oligomeric species such as Fe_xO_y, present in Fe-LTA, exhibit greater stability compared to those in Fe-SSZ-13 owing to variations in the environment surrounding the Fe sites within the framework.

Ruggeri et al. examined the temperature dependence of hydrothermal ageing treatment and its influence on the duration of the Fe-zeolite catalyst.³³⁴ They carefully examined the NH₃ adsorption, oxidation, and its reaction with NO_x. The deactivation was very fast and the primary effect of hydrothermal ageing on the SCR reaction was the oxidation of NH₃.

The inclusion of Fe into small-pore zeolites leads to a hydrothermally stable NH₃-SCR catalyst.³³⁰ However, conventional iron exchanged methodologies appear to be difficult as the size of the Fe³⁺ aqueous (hexahydrate) ions (9 Å) is bigger than the typical pore size of the zeolite (~ 3.8 Å)³³⁵ which is also the case for the Cu hexahydrate. Martin et al.³³⁶ investigated the nature of Fe-doped zeolites (prepared by the one-pot method) using different characterization techniques. They discovered that the material (Fe-zeolite) synthesised through a one-pot procedure exhibited better NO conversion and hydrothermal stability (due to the improved dispersion of Fe ions) as compared to the post-synthetic ion-exchange method. In addition, the same group prepared Fe-Beta zeolites using two different reaction media: (i) alkaline conditions and (ii) a fluoride medium for synthesizing iron-containing zeolites. A comprehensive investigation of the direct preparation of the Fe-containing material was conducted to gain insights into how the physicochemical conditions of the synthesized catalyst affect the SCR-NO_x conversion and the hydrothermal stability under rigorous conditions.³³⁷ The Fe–Beta zeolite, synthesized without alkali cations at a Si/Al ratio of approximately 13, exhibited high NO conversion (>90%) but suffered severe deactivation at high temperatures in steam. Conversely, Fe–CHA zeolites, prepared under alkaline conditions with the same Si/Al ratio using N,N,N-trimethyladamantylammonium as a template, demonstrated superior catalytic activity and high hydrothermal stability, particularly after selective removal of sodium cations.

Manganese-based ZSM-5 catalysts have been the subject of detailed investigation. Lou et al.³³⁸ explored the impact of calcination on the performance of Mn-ZSM-5 catalyst activity for NH₃-SCR. They observed that at lower temperatures (<500 °C), Mn₃O₄ and amorphous MnO₂ were predominant, while at higher temperatures (600 °C), Mn₂O₃ formed, which negatively affected the activity. The catalyst treated at 300 °C exhibited excellent performance which can be attributed to the presence of an abundance of amorphous MnO₂, and Mn₃O₄. Additionally, Zr-doped Mn-ZSM-5 catalysts achieved over 90% NO_x conversion at elevated temperatures, owing to enhanced Mn dispersion, increased Mn species on ZSM-5 surfaces, and the interaction between Mn and Zr.¹³

Sue et al.¹⁹⁹ conducted a comparative analysis of SSZ-13 (Si/Al = 10) and SAPO-34 (Si/P/Al = 0.19 : 0.63 : 1) during hydrothermal ageing at 800 °C, noting that SAPO-34 exhibits greater stability compared to SSZ-13. The findings indicated dealumination within the SSZ-13 zeolite, resulting in loss of crystallinity and a significant reduction in Brønsted acid site concentration. However, during hydrothermal ageing, both samples experience desilication (in SAPO-34) and dealumination (in SSZ-13).

Catalyst poisons

Catalyst deactivation due to poisoning is a significant concern in industrial catalytic processes including NH₃-SCR of NO_x reduction, as it can lead to reduced efficiency and increased operational costs. Sulfur (S) poisoning is widely recognized and thoroughly investigated, with substantial literature detailing its mechanisms and effects.^339–343 However, other potential poisons, such as phosphorus and zinc, also merit consideration.^8,344,345 These elements, often introduced through contaminants in feedstocks or additives in lubricants, may influence catalyst performance and longevity. Although their impact is sometimes debated, understanding the breadth of catalyst poisons is crucial for developing more resilient catalytic systems. Sulfur oxides present in the exhaust gas can deactivate both metal oxide and metal cation-exchanged zeolite catalysts utilized in NH₃–SCR. Enhancing chemical poisoning tolerance, especially against SO₂, P, and alkali metals, is crucial for catalyst development. Despite thermal treatment's promise in recovering S-poisoned zeolites, steady-state SO₂ poisoning remains problematic due to ammonium sulphate and copper bisulphite formation. Incorporating sacrificial metals shows potential for enhancing SO₂ resistance.

The deposition of (NH₄)₂SO₄/NH₄HSO₄ and metal sulfate can also block and impair active sites.³⁴⁶ While (NH₄)₂SO₄/NH₄HSO₄ deposition may undergo decomposition under specific conditions, the primary concern remains the irreversible chemical poisoning of active sites.

The Cu-CHA catalyst is susceptible to SO₂ poisoning, leading to the formation of compounds like (NH₄)₂SO₄ and CuSO₄, as well as the chemisorption of SO₂ on isolated Cu²⁺ ion sites.³⁴⁷ The main cause of Cu²⁺ deactivation is proposed to be the blockage caused by (NH₄)₂SO₄ on the Cu²⁺ sites.³⁴⁸ Cu-CHA is known to contain significant quantities of ZCuOH, making it prone to SO₂ adsorption, resulting in severe poisoning through the reaction between ZCuOH species and SO₂.³⁴⁹ Moreover, the external environment has also an obvious effect. For example, in dry conditions, weakly bound SO₂ and copper sulfate are observed, while in humid environments, there is a higher content of copper sulfate.³⁵⁰

(NH₄)₂SO₄ formation is not considered the ‘death knell’ of the SCR catalyst however as it decomposes completely, restoring catalyst activity after treatment at 500 °C. However, the activity of Cu-CHA cannot fully return to its original level due to the high stability of the resultant copper sulfate. In the absence of oxygen, catalyst regeneration to overcome sulfur poisoning proves effective as it avoids the formation of stable sulfates and occurs at lower temperatures. However, in the presence of oxygen, ammonium sulfate converts into stable metal sulfates, posing an obstacle.³⁵¹

In the case of deactivated Cu-ZSM-5 retaining crystallinity, there is a loss of framework Al due to their migration through the 10-MRs, coupled with copper mobility and sintering. However, Cu-SSZ-13 remains unaffected under the same conditions.^186,308,309 Nevertheless, there are substantial gaps in recognizing the precise deactivation process. The reason might be due to the small size of deactivating species that renders them difficult to determine by experimental techniques, such as X-ray diffraction, while the presence of paramagnetic copper can disrupt locally sensitive methods like NMR. Hence, reconstructing the distribution of single ions in three dimensions is essential for a comprehensive understanding of deactivation processes.

Phosphorus poisoning in SCR catalysts, caused by engine oils like zinc dialkyldithiophosphate (ZDDP), is commonly considered irreversible and affects catalytic activity through physical and chemical mechanisms.^352,353 Studies on Cu-exchanged CHA catalysts^345,354,355 reveal phosphorus’ dual role as a promoter and inhibitor, impacting both high- and low-temperature selectivity/conversion and hydrothermal stability. Phosphorus affects Cu ions differently, with P₂O₅ and PO₃⁻/PO₄³⁻ responsible for poisoning Z2Cu and ZCuOH, respectively.³⁵⁴ Recent research³⁵⁶ suggests that controlled phosphate addition can preserve zeolite frameworks and enhance SCR activity. Low phosphorus content may improve SCR performance.³⁵² While phosphorus has minimal impact on Cu/FER catalysts, its co-addition with sodium significantly deactivates them.³⁵³

Addressing the challenge of maintaining catalyst activity in alkaline dust-containing conditions prevalent in industrial exhaust is essential. Such conditions, loaded with compounds including calcium, potassium, and sodium, can poison SCR catalysts, particularly V-based ones.^357–359 Mitigation strategies include increasing active phase content, periodic washing of poisoned catalysts, and designing optimized catalysts.³⁶⁰

Understanding NH₃-SCR mechanisms from experiments and theory

To construct a more unified understanding of the NH₃-SCR mechanisms, it is essential to integrate insights from both experimental and theoretical studies, highlighting areas of agreement and pinpointing discrepancies that necessitate further investigation. The reviewed literature presents a complex picture of the SCR process, with multiple mechanisms proposed, particularly concerning the roles of Cu and Fe ions in zeolite frameworks. A key point of contention lies in the comparison between the L–H and E–R mechanisms. The NH₃-SCR reaction is often described as following the L–H mechanism, where both NH₃ and NO_x adsorb onto the catalyst surface before reacting. However, an alternative E–R mechanism suggests that pre-adsorbed NH₃ can react directly with gas-phase NO.

The coexistence of these mechanisms and their relative contributions under different conditions (e.g., temperature, gas composition) remain areas of active research. Theoretical studies support the occurrence of both mechanisms, but the experimental evidence is sometimes conflicting, particularly regarding the dominance of one pathway over the other under specific reaction conditions. In Cu-based zeolites, the redox cycling between Cu⁺ and Cu²⁺ is critical for SCR activity. Experimental evidence, including XANES and operando UV-Vis spectroscopy, confirms the dynamic nature of Cu species under reaction conditions, with the Cu⁺ to Cu²⁺ transition being rate-limiting at lower temperatures. However, discrepancies arise regarding the exact nature of intermediate species, such as the role of Cu–nitrate complexes and whether these intermediates are essential or merely spectators in the reaction. Some studies emphasize the importance of these complexes in the SCR cycle, while others argue that their role may be overstated, pointing to a need for more targeted experiments to clarify these points

The behavior of Fe-based systems in NH₃-SCR also presents unique challenges. The reaction mechanisms in Fe-zeolites differ significantly from those in Cu-zeolites, with Fe species showing a preference for higher temperature operations and different sensitivities to NO₂/NO_x ratios. Theoretical models suggest that the presence of Fe³⁺ and FeO⁺ species is crucial, yet the exact mechanistic details, such as the formation and decomposition of intermediates like NH₂NO, remain under debate. The complexity of Fe species' behaviour, particularly in mixed Fe–Cu systems, adds another layer of uncertainty, with experimental data sometimes contradicting theoretical predictions.

Water and sulfur poisoning are additional factors that complicate the NH₃-SCR reaction. Water generally enhances low-temperature SCR activity by facilitating Cu ion mobility, while sulfur tends to poison active sites, leading to catalyst deactivation. The literature presents a unified understanding of the detrimental effects of sulfur, yet there are gaps as to how different poisoning mechanisms affect various zeolite frameworks and active sites. For example, the regeneration of sulfur-poisoned catalysts under different conditions remains an area where experimental results are inconsistent, indicating a need for more systematic studies.

Machine learning in catalysis

The integration of machine learning (ML) techniques into the field of catalysis, particularly for the NH₃-SCR, is assisting in the optimisation of catalytic processes. Martini et al.³⁶¹ utilise in situ XAS combined with wavelet transform (WT) analysis and ML-assisted fitting to investigate the effects of zeolite composition on the structure and reactivity of Cu-CHA catalysts. This approach enables a detailed assessment of the local coordination environment of copper ions during the catalytic cycle. The Si/Al ratio significantly influences the formation and stability of dicopper(II) complexes during the oxidation phase. Al-rich zeolites (low Si/Al ratio) promote a planar coordination motif with longer Cu–Cu distances, enhancing NO_x conversion efficiency at low temperatures (200 °C). During the NH₃-SCR process, Cu ions dynamically switch between framework-coordinated and mobile configurations.

The Cu density and its distribution within the zeolite framework are critical for effective O₂ activation, which is essential for the oxidation of Cu⁺ to Cu²⁺. Fig. 24 illustrates the in situ Cu K-edge XANES for various Cu-CHA catalysts collected at 200 °C after pretreatment in O₂, at the end of the reduction step, during and after the oxidation step. The Pi charts included show the Cu⁺/Cu²⁺ percentages evaluated by XANES linear combination fitting (LCF) at the end of the oxidation step for each catalyst. This figure depicts the influence of zeolite composition on the structure of the Cu species during the NH₃-SCR process, underscoring the role of the Si/Al ratio in dictating the catalytic efficiency.

Fig. 24 In situ Cu K-edge XANES spectra for Cu-CHA catalysts: (a) 0.1_5, (b) 0.5_15, and (c) 0.6_29. These spectra were collected at 200 °C following pretreatment in O₂, after the reduction step, and after the oxidation step. The accompanying pie charts represent the relative percentages of Cu⁺ and Cu²⁺ species, as determined by XANES linear combination fitting (LCF) at the end of the oxidation step for each catalyst. Under the experimental conditions used, Cu⁺ and Cu²⁺ correspond to the complexes [Cu(NH₃)₂]⁺ and [Cu₂(NH₃)₄O₂]²⁺, respectively. Panels (d)–(f) depict schematic representations of the predominant Cu species at each stage, highlighting the impact of catalyst composition and raising questions about the factors that influence the coordination environment in [Cu₂(NH₃)₄O₂]²⁺ complexes, particularly in part (f). Reproduced from ref. 361 with permission from American Chemical Society, copyright 2022.

Conclusions and outlook

This review has highlighted the complexity of the chemistry of transition metal exchanged zeolites used in the burgeoning field of NH₃-assisted SCR of NO_x reactions. Developing a comprehensive picture of the structure and mechanism in TMI exchanged zeolites is an essential step in understanding these catalytic reactions if it is to become possible to design the next generation of catalysts with improved performance metrics. To this end the identification of the most active TMI species, differentiating between the various monomer, dimer, and oligomers and their properties is clearly necessary although will be difficult to control synthetically.

Simulations reveal the dynamic nature of metal-ion active species at the molecular level, with the diffusion of the Cu ions being determined by the electrostatic binding to the zeolite framework, which shows how the zeolite framework controls the movement of cationic species. Modelling studies, including the use of QM/MM techniques, can also give detailed information on mechanisms. QM/MM modelling of TMI zeolites for SCR is promising, offering detailed insights into catalytic mechanisms. In addition, quantum computing holds the potential to screen more pathways and consider realistic scenarios including temperature and solvent effects, advancing catalyst optimization for SCR. Conventional spectroscopic techniques including in situ and operando DRIFTS, XANES, EPR, and DR-UV-vis, can provide direct evidence regarding, for example, NH₃ solvation on isolated metal sites by detecting the change in the metal coordination environment, but currently lack the resolution or sensitivity to unravel detailed mechanistic steps. However, modern interrogation and analysis methods utilising modulated excitation (ME) or MCR have become increasingly popular and available ‘seeing’ more of the transient metal ion species present at various stages of reaction.

MCR is useful in catalytic studies where multiple transient species coexist. However, ME improves transient species detection by modulating external parameters and analysing system responses with phase-sensitive detection. For example, the ME technique can detect changes in metal ion coordination during NH₃ solvation, offering detailed information on solvation effects in catalysis. The combination of experiment and theory appears to be critical for detailed mechanistic insight.

The main obstacle for zeolite-based SCR reactions is their durability under hydrothermal conditions, although metal ions containing small-pore zeolites are consistently more hydrothermally stable than medium or large-pore materials. Alas, there are few small pore zeolites and none whose performance matches that of CHA, AEI and LTA for NH₃-SCR. The salient structural characteristics of these active topologies comprise 6-MR and 8-MR leading to large cages and hence future zeolite topology synthesis strategies could consider using synthesis conditions (i.e. templates and Si/Al > 15) known to favour the formation of small pore topologies. However, the design of reaction-specific zeolites is still a long way from being a reality and even if new topologies could be obtained there is little assurance that they will fulfil all the diverse operation requirements i.e. exhibiting high activity at low temperatures with stability at high (hydrothermal) temperatures. It is interesting to consider the need for further evolution and understanding of zeolite-based NH₃-SCR catalysts considering the transition away from liquid fuels particularly in Europe by 2035. Here we note that less developed countries will find it harder to decarbonise and the use of liquid fuels is expected to continue as the population grows and the quality of life improves hence there remains a need to continue researching this field. Furthermore, static NO_x emissions from e.g. nitric acid plants will also continue to grow in order to support population growth again requiring mitigation using SCR technologies. Heavy-duty vehicles requiring more torque than what electrical powertrains typically provide are also being investigated to run off hydrogen internal combustion engines (H2-ICE) which will also require NO_x emission mitigation.

A detailed understanding of the structures and dynamics of transition metal cationic species through the combination of experimental and computational modelling will be essential in understanding TMI as catalytic sites in zeolites and in gaining further mechanistic insight into the NH₃-SCR reaction.

Author contributions

The manuscript was drafted by JAN and was reviewed, edited and modified by CRAC and AB.

Data availability

No primary research results, software or code have been included and no new data were generated or analysed as part of this review.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors wish to acknowledge the UK Catalysis Hub funded by EPSRC grants EP/R026939/1, and EP/R026815/1. We would like to acknowledge the financial support for Jamal Abdul Nasir from the Project Management Unit (PMU) Higher Education Department of KPK, Pakistan. We are grateful to Dr Alexey A. Sokol for several useful discussions on zeolite science.

Notes and references

1. Y. Li and J. Yu, Nat. Rev. Mater., 2021, 6, 1156–1174.
2. A. Nicula, D. Stamires and J. Turkevich, J. Chem. Phys., 1965, 42, 3684–3692.
3. J. Turkevich, Y. Ono and J. Soria, J. Catal., 1972, 25, 44–54.
4. R. Hamada, Y. Shibata, S. Nishiyama and S. Tsuruya, Phys. Chem. Chem. Phys., 2003, 5, 956–965.
5. M. H. Groothaert, P. J. Smeets, B. F. Sels, P. A. Jacobs and R. A. Schoonheydt, J. Am. Chem. Soc., 2005, 127, 1394–1395.
6. P. Granger and V. I. Parvulescu, Chem. Rev., 2011, 111, 3155–3207.
7. S. Yasumura, Y. Qian, T. Kato, S. Mine, T. Toyao, Z. Maeno and K.-I. Shimizu, ACS Catal., 2022, 12, 9983–9993.
8. A. Guo, K. Xie, H. Lei, V. Rizzotto, L. Chen, M. Fu, P. Chen, Y. Peng, D. Ye and U. Simon, Environ. Sci. Technol., 2021, 55, 12619–12629.
9. Y. Tan, S. Yoon, C. R. Ruehl, J. Herner, P. Henderick, T. Montes, J. Latt, A. Lee, E. Florea and S. Lemieux, Environ. Sci. Technol., 2021, 55, 13657–13665.
10. L. Huang, Y. Zeng, Z. Chang, Y. Zong, H. Wang, S. Zhang and Y. Yu, Mol. Catal., 2021, 506, 111565.
11. A. M. Beale, I. Lezcano-Gonzalez, T. Maunula and R. G. Palgrave, Catal., Struct. React., 2015, 1, 25–34.
12. Y. Xin, Q. Li and Z. Zhang, ChemCatChem, 2018, 10, 29–41.
13. L. Han, S. Cai, M. Gao, J.-Y. Hasegawa, P. Wang, J. Zhang, L. Shi and D. Zhang, Chem. Rev., 2019, 119, 10916–10976.
14. W.-B. Zhang, J.-L. Chen, G. Li, W. Zheng, G.-H. Wang, S.-K. Zheng and X.-Q. Wu, J. Fuel Chem. Technol., 2021, 49, 1294–1315.
15. J. Chen, W. Huang, S. Bao, W. Zhang, T. Liang, S. Zheng, L. Yi, L. Guo and X. Wu, RSC Adv., 2022, 12, 27746–27765.
16. E. Borfecchia, P. Beato, S. Svelle, U. Olsbye, C. Lamberti and S. Bordiga, Chem. Soc. Rev., 2018, 47, 8097–8133.
17. T. V. Janssens, H. Falsig, L. F. Lundegaard, P. N. Vennestrøm, S. B. Rasmussen, P. G. Moses, F. Giordanino, E. Borfecchia, K. A. Lomachenko and C. Lamberti, ACS Catal., 2015, 5, 2832–2845.
18. M. Iwamoto, H. Furukawa and S. Kagawa, Studies in Surface Science and Catalysis, Elsevier, 1986, vol. 28, pp. 943–949.
19. S. Mohan, P. Dinesha and S. Kumar, Chem. Eng. J., 2020, 384, 123253.
20. J. Cheng, S. Han, Q. Ye, S. Cheng, T. Kang and H. Dai, Res. Chem. Intermed., 2019, 45, 2023–2044.
21. J. Wang, D. Fan, T. Yu, J. Wang, T. Hao, X. Hu, M. Shen and W. Li, J. Catal., 2015, 322, 84–90.
22. M. Kang, E. D. Park, J. M. Kim and J. E. Yie, Appl. Catal., A, 2007, 327, 261–269.
23. B. Ye, B. Jeong, M.-J. Lee, T. H. Kim, S.-S. Park, J. Jung, S. Lee and H.-D. Kim, Nano Convergence, 2022, 9, 51.
24. J. L. Sorrels, D. D. Randall, K. S. Schaffner and C. R. Fry, EPA air pollution control cost manual, 2019, p. 7.
25. M. V. Twigg, Appl. Catal., B, 2007, 70, 2–15.
26. M. K. A. Wardana and O. Lim, Catalysts, 2022, 13, 67.
27. F. Klingstedt, K. Arve, K. Eränen and D. Y. Murzin, Acc. Chem. Res., 2006, 39, 273–282.
28. U. Deka, I. Lezcano-Gonzalez, B. M. Weckhuysen and A. M. Beale, ACS Catal., 2013, 3, 413–427.
29. N. Sandhu, X. Yu and M. Zheng, Int. J. Automot. Technol., 2024, 4.
30. P. C. Ogugua, E. Wang, Z. Jinyang, Q. Wang and H. Su, Environ. Sci. Pollut. Res., 2023, 30, 84972–84998.
31. Y. Sun, Y. Shan, W. Ding, J. Du, Z. Liu, X. Shi, M. Ren, Y. Wang, X. Wang and Y. Yu, Catal. Today, 2024, 433, 114690.
32. D. Peitz, A. Bernhard and O. Kröcher, Urea-SCR Technology for deNOx After Treatment of Diesel Exhausts, Springer, 2014, pp. 485–506.
33. V. Van Speybroeck, K. Hemelsoet, L. Joos, M. Waroquier, R. G. Bell and C. R. A. Catlow, Chem. Soc. Rev., 2015, 44, 7044–7111.
34. Q. Sun, N. Wang and J. Yu, Adv. Mater., 2021, 33, 2104442.
35. C. Baerlocher and L. McCusker, Google Scholar, there is no corresponding record for this reference, 2021.
36. B. E. Snyder, M. L. Bols, R. A. Schoonheydt, B. F. Sels and E. I. Solomon, Chem. Rev., 2017, 118, 2718–2768.
37. M. Deem, J. Newsam and J. Creighton, J. Am. Chem. Soc., 1992, 114, 7198–7207.
38. P. J. Smeets, J. S. Woertink, B. F. Sels, E. I. Solomon and R. A. Schoonheydt, Inorg. Chem., 2010, 49, 3573–3583.
39. J. Li, A. Corma and J. Yu, Chem. Soc. Rev., 2015, 44, 7112–7127.
40. G. Yang, Y. Wei, S. Xu, J. Chen, J. Li, Z. Liu, J. Yu and R. Xu, J. Phys. Chem. C, 2013, 117, 8214–8222.
41. Q. Sun, Z. Xie and J. Yu, Natl. Sci. Rev., 2018, 5, 542–558.
42. Q. Wang and D. Astruc, Chem. Rev., 2019, 120, 1438–1511.
43. X. C. Huang, Y. Y. Lin, J. P. Zhang and X. M. Chen, Angew. Chem., Int. Ed., 2006, 45, 1557–1559.
44. N. L. Rosi, J. Kim, M. Eddaoudi, B. Chen, M. O'Keeffe and O. M. Yaghi, J. Am. Chem. Soc., 2005, 127, 1504–1518.
45. S. S.-Y. Chui, S. M.-F. Lo, J. P. Charmant, A. G. Orpen and I. D. Williams, Science, 1999, 283, 1148–1150.
46. C. Catlow, A. George and C. Freeman, Chem. Commun., 1996, 1311–1312.
47. C.-S. Yang, J. M. Mora-Fonz and C. R. A. Catlow, J. Phys. Chem. C, 2011, 115, 24102–24114.
48. T. Takaishi, M. Kato and K. Itabashi, J. Phys. Chem., 1994, 98, 5742–5743.
49. M. Sato, K. Maeda and K. Hirasawa, Studies in Surface Science and Catalysis, Elsevier, 1994, vol. 84, pp. 589–596.
50. J. Dědeček, Z. Sobalík and B. Wichterlová, Catal. Rev., 2012, 54, 135–223.
51. B. E. Snyder, M. L. Bols, R. A. Schoonheydt, B. F. Sels and E. I. Solomon, Chem. Rev., 2017, 118, 2718–2768.
52. T. Takaishi, M. Kato and K. Itabashi, Zeolites, 1995, 15, 21–32.
53. O. H. Han, C. S. Kim and S. B. Hong, Angew. Chem., Int. Ed., 2002, 41, 469–472.
54. V. Gábová, J. Dědeček and J. Čejka, Chem. Commun., 2003, 1196–1197.
55. D. E. Perea, I. Arslan, J. Liu, Z. Ristanović, L. Kovarik, B. W. Arey, J. A. Lercher, S. R. Bare and B. M. Weckhuysen, Nat. Commun., 2015, 6, 7589.
56. T. Li, F. Krumeich, M. Chen, Z. Ma and J. A. van Bokhoven, Phys. Chem. Chem. Phys., 2020, 22, 734–739.
57. N. Omori, A. Candeo, S. Mosca, I. Lezcano-Gonzalez, I. K. Robinson, L. Li, A. G. Greenaway, P. Collier and A. M. Beale, Angew. Chem., Int. Ed., 2021, 60, 5125–5131.
58. J. Armor, Microporous Mesoporous Mater., 1998, 22, 451–456.
59. W. Li, Y. Chai, G. Wu and L. Li, J. Phys. Chem. Lett., 2022, 13, 11419–11429.
60. C. Hammond, R. L. Jenkins, N. Dimitratos, J. A. Lopez-Sanchez, M. H. Ab Rahim, M. M. Forde, A. Thetford, D. M. Murphy, H. Hagen and E. E. Stangland, Chem. – Eur. J., 2012, 18, 15735–15745.
61. Y. Chai, W. Dai, G. Wu, N. Guan and L. Li, Acc. Chem. Res., 2021, 54, 2894–2904.
62. J. F. Haw, Phys. Chem. Chem. Phys., 2002, 4, 5431–5441.
63. C. Chizallet, C. Bouchy, K. Larmier and G. Pirngruber, Chem. Rev., 2023, 123, 6107–6196.
64. M. Yabushita, R. Osuga and A. Muramatsu, CrystEngComm, 2021, 23, 6226–6233.
65. Z. Gao, J. Pihl, T. LaClair and B. Fricke, Chem. Eng. J., 2021, 406, 127120.
66. J. Gong, K. Narayanaswamy and C. J. Rutland, Ind. Eng. Chem. Res., 2016, 55, 5874–5884.
67. W. Haag, R. Lago and P. Weisz, Nature, 1984, 309, 589–591.
68. J. Brus, L. Kobera, W. Schoefberger, M. Urbanová, P. Klein, P. Sazama, E. Tabor, S. Sklenak, A. V. Fishchuk and J. Dědeček, Angew. Chem., Int. Ed., 2015, 54, 541–545.
69. M. Ravi, V. L. Sushkevich and J. A. van Bokhoven, J. Phys. Chem. C, 2019, 123, 15139–15144.
70. M. Ravi, V. L. Sushkevich and J. A. van Bokhoven, Nat. Mater., 2020, 19, 1047–1056.
71. Z. Yu, A. Zheng, Q. Wang, L. Chen, J. Xu, J. P. Amoureux and F. Deng, Angew. Chem., 2010, 122, 8839–8843.
72. J. Klinowski, C. A. Fyfe and G. C. Gobbi, J. Chem. Soc., Faraday Trans. 1, 1985, 81, 3003–3019.
73. I. Lezcano-Gonzalez, U. Deka, B. Arstad, A. Van Yperen-De Deyne, K. Hemelsoet, M. Waroquier, V. Van Speybroeck, B. M. Weckhuysen and A. M. Beale, Phys. Chem. Chem. Phys., 2014, 16, 1639–1650.
74. G. Woolery, G. Kuehl, H. Timken, A. Chester and J. Vartuli, Zeolites, 1997, 19, 288–296.
75. B. Gil, S. I. Zones, S.-J. Hwang, M. Bejblová and J. Čejka, J. Phys. Chem. C, 2008, 112, 2997–3007.
76. P. A. Jacobs and H. K. Beyer, J. Phys. Chem., 1979, 83, 1174–1177.
77. E. Derouane, J. C. Vedrine, R. R. Pinto, P. Borges, L. Costa, M. Lemos, F. Lemos and F. R. Ribeiro, Catal. Rev., 2013, 55, 454–515.
78. T. K. Phung and G. Busca, Appl. Catal., A, 2015, 504, 151–157.
79. A. Vjunov, J. L. Fulton, T. Huthwelker, S. Pin, D. Mei, G. K. Schenter, N. Govind, D. M. Camaioni, J. Z. Hu and J. A. Lercher, J. Am. Chem. Soc., 2014, 136, 8296–8306.
80. P. Sazama, E. Tabor, P. Klein, B. Wichterlova, S. Sklenak, L. Mokrzycki, V. Pashkkova, M. Ogura and J. Dedecek, J. Catal., 2016, 333, 102–114.
81. J. Dědeček, L. Čapek, P. Sazama, Z. Sobalik and B. Wichterlova, Appl. Catal., A, 2011, 391, 244–253.
82. S. H. Krishna, A. Goswami, Y. Wang, C. B. Jones, D. P. Dean, J. T. Miller, W. F. Schneider and R. Gounder, Nat. Catal., 2023, 6, 276–285.
83. M. S. Kumar, M. Alphin, P. S. Kumar and S. Raja, Fuel, 2023, 334, 126828.
84. Y. Shan, J. Du, Y. Zhang, W. Shan, X. Shi, Y. Yu, R. Zhang, X. Meng, F.-S. Xiao and H. He, Natl. Sci. Rev., 2021, 8, nwab010.
85. C. Paolucci, I. Khurana, A. A. Parekh, S. Li, A. J. Shih, H. Li, J. R. Di Iorio, J. D. Albarracin-Caballero, A. Yezerets and J. T. Miller, Science, 2017, 357, 898–903.
86. M. Koebel, M. Elsener and M. Kleemann, Catal. Today, 2000, 59, 335–345.
87. M. Iwamoto, H. Furukawa, Y. Mine, F. Uemura, S.-I. Mikuriya and S. Kagawa, J. Chem. Soc., Chem. Commun., 1986, 1272–1273.
88. D. Peitz, A. Bernhard and O. Kröcher, Urea-SCR Technology for deNOx After Treatment of Diesel Exhausts, 2014, 485–506.
89. G. Centi and S. Perathoner, Appl. Catal., A, 1995, 132, 179–259.
90. S. Brandenberger, O. Kröcher, A. Tissler and R. Althoff, Catal. Rev., 2008, 50, 492–531.
91. K. Rahkamaa-Tolonen, T. Maunula, M. Lomma, M. Huuhtanen and R. L. Keiski, Catal. Today, 2005, 100, 217–222.
92. R. Long, R. Yang and K. Zammit, J. Air Waste Manage. Assoc., 2000, 50, 436–442.
93. G. Ramis, L. Yi, G. Busca, M. Turco, E. Kotur and R. J. Willey, J. Catal., 1995, 157, 523–535.
94. A. Salker and W. Weisweiler, Indian J. Chem., Sect. A, 2004, 43, 1167–1171.
95. A. Salker and W. Weisweiler, Appl. Catal., A, 2000, 203, 221–229.
96. A. Salker, B. Maurer and W. Weisweiler, Chem. Ing. Tech., 1998, 70, 566–570.
97. A. Garrido Pedrosa, M. Souza, A. Silva, D. Melo and A. Araujo, J. Therm. Anal. Calorim., 2006, 84, 503–509.
98. W. Van Kooten, J. Kaptein, C. Van den Bleek and H. Calis, Catal. Lett., 1999, 63, 227–231.
99. X. Shi, F. Liu, L. Xie, W. Shan and H. He, Environ. Sci. Technol., 2013, 47, 3293–3298.
100. T. Zhang, J. Li, J. Liu, D. Wang, Z. Zhao, K. Cheng and J. Li, AIChE J., 2015, 61, 3825–3837.
101. M. Xu, J. Wang, T. Yu, J. Wang and M. Shen, Appl. Catal., B, 2018, 220, 161–170.
102. J. H. Kwak, J. Szanyi and C. H. Peden, Catal. Today, 2004, 89, 135–141.
103. N. Wilken, K. Wijayanti, K. Kamasamudram, N. W. Currier, R. Vedaiyan, A. Yezerets and L. Olsson, Appl. Catal., B, 2012, 111, 58–66.
104. M. Al-Sabawi and H. de Lasa, AIChE J., 2009, 55, 1538–1558.
105. X. Zhang, Q. Shen, C. He, C. Ma, J. Cheng, L. Li and Z. Hao, ACS Catal., 2012, 2, 512–520.
106. M. Bian, K. Liu, D. Zheng, X. Han, X. Yang, Y. Fang, C. Liu, J. Zhao, Y. Zhang and X. Yang, Chem. Eng. J., 2024, 481, 148563.
107. F. Gao, N. M. Washton, Y. Wang, M. Kollár, J. Szanyi and C. H. Peden, J. Catal., 2015, 331, 25–38.
108. J.-K. Lai and I. E. Wachs, ACS Catal., 2018, 8, 6537–6551.
109. P. L. Gabrielsson, Top. Catal., 2004, 28, 177–184.
110. J. H. Kwak, R. G. Tonkyn, D. H. Kim, J. Szanyi and C. H. Peden, J. Catal., 2010, 275, 187–190.
111. F. Gao, D. Mei, Y. Wang, J. Szanyi and C. H. Peden, J. Am. Chem. Soc., 2017, 139, 4935–4942.
112. J. Szanyi, F. Gao, J. H. Kwak, M. Kollár, Y. Wang and C. H. Peden, Phys. Chem. Chem. Phys., 2016, 18, 10473–10485.
113. H. Zhan, S. Li, G. Yin, E. Hu and Z. Huang, Combust. Flame, 2024, 263, 113129.
114. M. Jabłońska, M. E. Potter and A. M. Beale, ChemCatChem, 2024, 16, e202301214.
115. F. Göltl, R. E. Bulo, J. R. Hafner and P. Sautet, J. Phys. Chem. Lett., 2013, 4, 2244–2249.
116. M. Lee, S. Hong, D. Kim, E. Kim, K. Lim, J. C. Jung, H. Richter, J.-H. Moon, N. Choi and J. Nam, ACS Appl. Mater. Interfaces, 2019, 11, 3946–3960.
117. P. Granger and V. I. Parvulescu, Chem. Rev., 2011, 111, 3155–3207.
118. J. Wang, H. Zhao, G. Haller and Y. Li, Appl. Catal., B, 2017, 202, 346–354.
119. C. Paolucci, A. A. Parekh, I. Khurana, J. R. Di Iorio, H. Li, J. D. Albarracin Caballero, A. J. Shih, T. Anggara, W. N. Delgass and J. T. Miller, J. Am. Chem. Soc., 2016, 138, 6028–6048.
120. Q. Liu, C. Bian, S. Ming, L. Guo, S. Zhang, L. Pang, P. Liu, Z. Chen and T. Li, Appl. Catal., A, 2020, 607, 117865.
121. L. N. Wilcox, S. H. Krishna, C. B. Jones and R. Gounder, Catal. Sci. Technol., 2021, 11, 7932–7942.
122. F. Giordanino, E. Borfecchia, K. A. Lomachenko, A. Lazzarini, G. Agostini, E. Gallo, A. V. Soldatov, P. Beato, S. Bordiga and C. Lamberti, J. Phys. Chem. Lett., 2014, 5, 1552–1559.
123. S. J. Schmieg, S. H. Oh, C. H. Kim, D. B. Brown, J. H. Lee, C. H. Peden and D. H. Kim, Catal. Today, 2012, 184, 252–261.
124. L. Kovarik, N. M. Washton, R. Kukkadapu, A. Devaraj, A. Wang, Y. Wang, J. Szanyi, C. H. Peden and F. Gao, ACS Catal., 2017, 7, 2458–2470.
125. L. Ma, Y. Cheng, G. Cavataio, R. W. McCabe, L. Fu and J. Li, Chem. Eng. J., 2013, 225, 323–330.
126. X. Dong, J. Wang, H. Zhao and Y. Li, Catal. Today, 2015, 258, 28–34.
127. Q. Liu, Z. Fu, L. Ma, H. Niu, C. Liu, J. Li and Z. Zhang, Appl. Catal., A, 2017, 547, 146–154.
128. M. Devadas, O. Kröcher, M. Elsener, A. Wokaun, N. Söger, M. Pfeifer, Y. Demel and L. Mussmann, Appl. Catal., B, 2006, 67, 187–196.
129. M. Schwidder, S. Heikens, A. De Toni, S. Geisler, M. Berndt, A. Brückner and W. Grünert, J. Catal., 2008, 259, 96–103.
130. J.-Y. Luo, X. Hou, P. Wijayakoon, S. J. Schmieg, W. Li and W. S. Epling, Appl. Catal., B, 2011, 102, 110–119.
131. M. Devadas, O. Kröcher, M. Elsener, A. Wokaun, G. Mitrikas, N. Söger, M. Pfeifer, Y. Demel and L. Mussmann, Catal. Today, 2007, 119, 137–144.
132. I. Nova, M. Colombo, E. Tronconi, V. Schmeisser and M. Weibel, SAE Int. J. Engines, 2011, 4, 1822–1838.
133. A. Grossale, I. Nova, E. Tronconi, D. Chatterjee and M. Weibel, Top. Catal., 2009, 52, 1837.
134. M. Colombo, I. Nova and E. Tronconi, Catal. Today, 2010, 151, 223–230.
135. H.-Y. Chen, X. Wang and W. M. Sachtler, Appl. Catal., A, 2000, 194, 159–168.
136. B. Wichtelová, Z. Sobalík and J. Dědeček, Appl. Catal., B, 2003, 41, 97–114.
137. H.-Y. Chen and W. M. Sachtler, Catal. Today, 1998, 42, 73–83.
138. T. V. Voskoboinikov, H.-Y. Chen and W. M. Sachtler, Appl. Catal., B, 1998, 19, 279–287.
139. A. V. Kucherov, D. E. Doronkin, A. Y. Stakheev, A. L. Kustov and M. Grill, J. Mol. Catal. A: Chem., 2010, 325, 73–78.
140. X. Lu, Y. Zheng, Y. Zhang, H. Qiu and H. Zou, Micro Nano Lett., 2015, 10, 666–669.
141. F. Gao, X. Tang, H. Yi, S. Zhao, C. Li, J. Li, Y. Shi and X. Meng, Catalysts, 2017, 7, 199.
142. J. Chen, Y. Zheng, W. Cai, H. Zou, W. Zheng, Y. Zhang, X. Chen and B. Fu, Micro Nano Lett., 2017, 12, 6–10.
143. Y. J. Kim, H. J. Kwon, I. Heo, I.-S. Nam, B. K. Cho, J. W. Choung, M.-S. Cha and G. K. Yeo, Appl. Catal., B, 2012, 126, 9–21.
144. J. W. Choung, I.-S. Nam, H. J. Kwon, Y.-J. Kim, D.-H. Kang and M.-S. Cha, US Pat., 8048393, 2011.
145. Y. Shen, T. Li, J. Yang, A. Wang, L. Wang, W. Zhan, Y. Guo and Y. Guo, Chem. Eng. J., 2023, 473, 145275.
146. B. Guan, H. Jiang, X. Peng, Y. Wei, Z. Liu, T. Chen, H. Lin and Z. Huang, Appl. Catal., A, 2021, 617, 118110.
147. E.-Y. Choi, I.-S. Nam and Y. G. Kim, J. Catal., 1996, 161, 597–604.
148. F. Lin, T. Andana, Y. Wu, J. Szanyi, Y. Wang and F. Gao, J. Catal., 2021, 401, 70–80.
149. T. Bruggemann and F. Keil, J. Phys. Chem. C, 2011, 115, 23854–23870.
150. H. Guesmi, D. Berthomieu, B. Bromley, B. Coq and L. Kiwi-Minsker, Phys. Chem. Chem. Phys., 2010, 12, 2873–2878.
151. M.-L. Tsai, R. G. Hadt, P. Vanelderen, B. F. Sels, R. A. Schoonheydt and E. I. Solomon, J. Am. Chem. Soc., 2014, 136, 3522–3529.
152. A. Heyden, N. Hansen, A. T. Bell and F. J. Keil, J. Phys. Chem. B, 2006, 110, 17096–17114.
153. F. Kapteijn, J. Rodriguez-Mirasol and J. A. Moulijn, Appl. Catal., B, 1996, 9, 25–64.
154. J. M. Jeong, J. H. Park, J. H. Baek, R. H. Hwang, S. G. Jeon and K. B. Yi, Korean J. Chem. Eng., 2017, 34, 81–86.
155. L. Alves, L. I. Holz, C. Fernandes, P. Ribeirinha, D. Mendes, D. P. Fagg and A. Mendes, Renewable Sustainable Energy Rev., 2022, 155, 111916.
156. C. W. Andersen, E. Borfecchia, M. Bremholm, M. R. V. Jørgensen, P. N. R. Vennestrøm, C. Lamberti, L. F. Lundegaard and B. B. Iversen, Angew. Chem., Int. Ed., 2017, 56, 10367–10372.
157. F. Llabrés, I. Xamena, P. Fisicaro, G. Berlier, A. Zecchina, G. T. Palomino, C. Prestipino, S. Bordiga, E. Giamello and C. Lamberti, J. Phys. Chem. B, 2003, 107, 7036–7044.
158. W. J. Mortier, Compilation of extra framework sites in zeolites, Butterworth Scientific Limited on behalf of the Structure Commission of the International Zeolite Association, 1982.
159. C. W. Andersen, M. Bremholm, P. N. R. Vennestrøm, A. B. Blichfeld, L. F. Lundegaard and B. B. Iversen, IUCrJ, 2014, 1, 382–386.
160. A. M. Beale, I. Lezcano-Gonzalez, W. Slawinksi and D. Wragg, Chem. Commun., 2016, 52, 6170–6173.
161. R. Zhang, J.-S. McEwen, M. R. Kollár, F. Gao, Y. Wang, J. Szanyi and C. H. Peden, ACS Catal., 2014, 4, 4093–4105.
162. D. W. Fickel and R. F. Lobo, J. Phys. Chem. C, 2010, 114, 1633–1640.
163. S. T. Korhonen, D. W. Fickel, R. F. Lobo, B. M. Weckhuysen and A. M. Beale, Chem. Commun., 2011, 47, 800–802.
164. U. Deka, A. Juhin, E. A. Eilertsen, H. Emerich, M. A. Green, S. T. Korhonen, B. M. Weckhuysen and A. M. Beale, J. Phys. Chem. C, 2012, 116, 4809–4818.
165. U. Deka, I. Lezcano-Gonzalez, S. J. Warrender, A. L. Picone, P. A. Wright, B. M. Weckhuysen and A. M. Beale, Microporous Mesoporous Mater., 2013, 166, 144–152.
166. J. M. Fedeyko, B. Chen and H.-Y. Chen, Catal. Today, 2010, 151, 231–236.
167. J.-S. McEwen, T. Anggara, W. Schneider, V. Kispersky, J. Miller, W. Delgass and F. Ribeiro, Catal. Today, 2012, 184, 129–144.
168. T. V. Janssens, H. Falsig, L. F. Lundegaard, P. N. Vennestrøm, S. B. Rasmussen, P. G. Moses, F. Giordanino, E. Borfecchia, K. A. Lomachenko and C. Lamberti, ACS Catal., 2015, 5, 2832–2845.
169. F. Göltl, R. E. Bulo, J. R. Hafner and P. Sautet, J. Phys. Chem. Lett., 2013, 4, 2244–2249.
170. J. H. Kwak, D. Tran, J. Szanyi, C. H. Peden and J. H. Lee, Catal. Lett., 2012, 142, 295–301.
171. C. Negri, T. Selleri, E. Borfecchia, A. Martini, K. A. Lomachenko, T. V. Janssens, M. Cutini, S. Bordiga and G. Berlier, J. Am. Chem. Soc., 2020, 142, 15884–15896.
172. L. Chen, T. V. Janssens, P. N. Vennestrøm, J. Jansson, M. Skoglundh and H. Gronbeck, ACS Catal., 2020, 10, 5646–5656.
173. K. A. Lomachenko, E. Borfecchia, C. Negri, G. Berlier, C. Lamberti, P. Beato, H. Falsig and S. Bordiga, J. Am. Chem. Soc., 2016, 138, 12025–12028.
174. R. Izquierdo, L. J. Rodríguez, R. Añez and A. Sierraalta, J. Mol. Catal. A: Chem., 2011, 348, 55–62.
175. S. Morpurgo, G. Moretti and M. Bossa, J. Mol. Catal. A: Chem., 2012, 358, 134–144.
176. Y. Mao, H. F. Wang and P. Hu, Int. J. Quantum Chem., 2015, 115, 618–630.
177. A. Wijerathne, A. Sawyer, R. Daya and C. Paolucci, JACS Au, 2024, 4, 197–215.
178. K. Pierloot, A. Delabie, M. H. Groothaert and R. A. Schoonheydt, Phys. Chem. Chem. Phys., 2001, 3, 2174–2183.
179. S. M. Seo, W. T. Lim and K. Seff, J. Phys. Chem. C, 2012, 116, 963–974.
180. A. M. Beale, F. Gao, I. Lezcano-Gonzalez, C. H. Peden and J. Szanyi, Chem. Soc. Rev., 2015, 44, 7371–7405.
181. R. Martínez-Franco, M. Moliner, P. Concepcion, J. R. Thogersen and A. Corma, J. Catal., 2014, 314, 73–82.
182. Z. Nour, H. Petitjean and D. Berthomieu, J. Phys. Chem. C, 2010, 114, 17802–17811.
183. J. Guan, Y. Lu, K. Sen, J. Abdul Nasir, A. W. Desmoutier, Q. Hou, X. Zhang, A. J. Logsdail, G. Dutta and A. M. Beale, Philos. Trans. R. Soc., A, 2023, 381, 20220234.
184. J. H. Kwak, H. Zhu, J. H. Lee, C. H. Peden and J. Szanyi, Chem. Commun., 2012, 48, 4758–4760.
185. D. Wang, L. Zhang, J. Li, K. Kamasamudram and W. S. Epling, Catal. Today, 2014, 231, 64–74.
186. D. Wang, Y. Jangjou, Y. Liu, M. K. Sharma, J. Luo, J. Li, K. Kamasamudram and W. S. Epling, Appl. Catal., B, 2015, 165, 438–445.
187. D. Wang, L. Zhang, K. Kamasamudram and W. S. Epling, ACS Catal., 2013, 3, 871–881.
188. F. Gao, E. D. Walter, E. M. Karp, J. Luo, R. G. Tonkyn, J. H. Kwak, J. Szanyi and C. H. Peden, J. Catal., 2013, 300, 20–29.
189. F. Gao, E. D. Walter, N. M. Washton, J. Szanyi and C. H. Peden, Appl. Catal., B, 2015, 162, 501–514.
190. A. Godiksen, F. N. Stappen, P. N. Vennestrøm, F. Giordanino, S. B. Rasmussen, L. F. Lundegaard and S. Mossin, J. Phys. Chem. C, 2014, 118, 23126–23138.
191. F. Gao, E. D. Walter, N. M. Washton, J. Szanyi and C. H. Peden, ACS Catal., 2013, 3, 2083–2093.
192. W. Gruenert, N. W. Hayes, R. W. Joyner, E. S. Shpiro, M. R. H. Siddiqui and G. N. Baeva, J. Phys. Chem., 1994, 98, 10832–10846.
193. T. Yu, J. Wang, Y. Huang, M. Shen, W. Li and J. Wang, ChemCatChem, 2014, 6, 2074–2083.
194. I. Lezcano-Gonzalez, U. Deka, H. Van Der Bij, P. Paalanen, B. Arstad, B. Weckhuysen and A. M. Beale, Appl. Catal., B, 2014, 154, 339–349.
195. J. Abdul Nasir, J. Guan, T. W. Keal, A. W. Desmoutier, Y. Lu, A. M. Beale, C. R. A. Catlow and A. A. Sokol, J. Am. Chem. Soc., 2022, 145, 247–259.
196. A. Penkova and K. Hadjiivanov, Catal. Commun., 2003, 4, 485–491.
197. A. Goswami, S. H. Krishna, R. Gounder and W. F. Schneider, ACS Catal., 2024, 14, 8376–8388.
198. J. H. Kwak, D. Tran, S. D. Burton, J. Szanyi, J. H. Lee and C. H. Peden, J. Catal., 2012, 287, 203–209.
199. W. Su, Z. Li, Y. Peng and J. Li, Phys. Chem. Chem. Phys., 2015, 17, 29142–29149.
200. S. Bordiga, C. Lamberti, F. Bonino, A. Travert and F. Thibault-Starzyk, Chem. Soc. Rev., 2015, 44, 7262–7341.
201. R. P. Vélez, U. Bentrup, W. Grünert and A. Brückner, Top. Catal., 2017, 60, 1641–1652.
202. A. Grossale, I. Nova, E. Tronconi, D. Chatterjee and M. Weibel, J. Catal., 2008, 256, 312–322.
203. A. Grossale, I. Nova and E. Tronconi, J. Catal., 2009, 265, 141–147.
204. Y. Liu, W. Xue, S. Seo, X. Tan, D. Mei, C.-J. Liu, I.-S. Nam and S. B. Hong, Appl. Catal., B, 2021, 294, 120244.
205. L. Xie, F. Liu, K. Liu, X. Shi and H. He, Catal. Sci. Technol., 2014, 4, 1104–1110.
206. Y. Shan, G. He, J. Du, Y. Sun, Z. Liu, Y. Fu, F. Liu, X. Shi, Y. Yu and H. He, Nat. Commun., 2022, 13, 4606.
207. E. Borfecchia, K. Lomachenko, F. Giordanino, H. Falsig, P. Beato, A. Soldatov, S. Bordiga and C. Lamberti, Chem. Sci., 2015, 6, 548–563.
208. E. Borfecchia, P. Beato, S. Svelle, U. Olsbye, C. Lamberti and S. Bordiga, Chem. Soc. Rev., 2018, 47, 8097–8133.
209. M. P. Attfield, S. J. Weigel and A. K. Cheetham, J. Catal., 1997, 170, 227–235.
210. M. C. Dalconi, G. Cruciani, A. Alberti, P. Ciambelli and M. Rapacciuolo, Microporous Mesoporous Mater., 2000, 39, 423–430.
211. B. F. Mentzen and G. Bergeret, J. Phys. Chem. C, 2007, 111, 12512–12516.
212. B. Wichterlova, J. Dědeček, Z. Sobalık, A. Vondrova and K. Klier, J. Catal., 1997, 169, 194–202.
213. R. J. Accardi and R. F. Lobo, Microporous Mesoporous Mater., 2000, 40, 25–34.
214. F. Gao, J. Szanyi, Y. Wang, B. Schwenzer, M. Kollár and C. H. Peden, Top. Catal., 2016, 59, 882–886.
215. M. L. Bols, H. M. Rhoda, B. E. Snyder, E. I. Solomon, K. Pierloot, R. A. Schoonheydt and B. F. Sels, Dalton Trans., 2020, 49, 14749–14757.
216. F. Gao, Y. Zheng, R. K. Kukkadapu, Y. Wang, E. D. Walter, B. Schwenzer, J. Szanyi and C. H. Peden, ACS Catal., 2016, 6, 2939–2954.
217. J. A. Nasir, J. Guan, T. W. Keal, Y. Lu, A. A. Sokol and C. R. A. Catlow, J. Catal., 2024, 115696.
218. D. Wierzbicki, A. H. Clark, O. Kröcher, D. Ferri and M. Nachtegaal, J. Phys. Chem. C, 2022, 126, 17510–17519.
219. G. Li, E. A. Pidko, R. A. Van Santen, C. Li and E. J. Hensen, J. Phys. Chem. C, 2013, 117, 413–426.
220. M. Høj, M. J. Beier, J.-D. Grunwaldt and S. Dahl, Appl. Catal., B, 2009, 93, 166–176.
221. J. Li and S. Li, J. Phys. Chem. C, 2008, 112, 16938–16944.
222. S. Shwan, J. Jansson, L. Olsson and M. Skoglundh, Appl. Catal., B, 2014, 147, 111–123.
223. J. Kim, A. Jentys, S. M. Maier and J. A. Lercher, J. Phys. Chem. C, 2013, 117, 986–993.
224. S. Shwan, J. Jansson, J. Korsgren, L. Olsson and M. Skoglundh, Catal. Today, 2012, 197, 24–37.
225. N. Hansen, A. Heyden, A. T. Bell and F. J. Keil, J. Phys. Chem. C, 2007, 111, 2092–2101.
226. H. Guesmi, D. Berthomieu and L. Kiwi-Minsker, J. Phys. Chem. C, 2008, 112, 20319–20328.
227. S. Brandenberger, O. Kröcher, A. Tissler and R. Althoff, Appl. Catal., A, 2010, 373, 168–175.
228. M. Agote-Arán, I. Lezcano-González, A. G. Greenaway, S. Hayama, S. Díaz-Moreno, A. B. Kroner and A. M. Beale, Appl. Catal., A, 2019, 570, 283–291.
229. D. Chen, Y. Yan, A. Guo, V. Rizzotto, H. Lei, Z. Qiao, H. Liang, M. Jabłońska, X. Jiang and J. Jiang, Appl. Catal., B, 2023, 322, 122118.
230. P. J. Smeets, J. S. Woertink, B. F. Sels, E. I. Solomon and R. A. Schoonheydt, Inorg. Chem., 2010, 49, 3573–3583.
231. A. Zecchina, M. Rivallan, G. Berlier, C. Lamberti and G. Ricchiardi, Phys. Chem. Chem. Phys., 2007, 9, 3483–3499.
232. S. Lai, Y. She, W. Zhan, Y. Guo, Y. Guo, L. Wang and G. Lu, J. Mol. Catal. A: Chem., 2016, 424, 232–240.
233. L. J. Lobree, I.-C. Hwang, J. A. Reimer and A. T. Bell, J. Catal., 1999, 186, 242–253.
234. B. Wichterlová, Top. Catal., 2004, 28, 131–140.
235. C. F. Baes, Jr. and R. E. Mesmer, The Hydrolysis of Cations, (John Wiley and Sons, New York, 1976; second printing, Robert E. Krieger, Malabar, FL, 1986).
236. P. Ratnasamy and R. Kumar, Catal. Today, 1991, 9, 329–416.
237. M. Mihaylov, A. Penkova, K. Hadjiivanov and M. Daturi, J. Mol. Catal. A: Chem., 2006, 249, 40–46.
238. S. Sklenak, P. C. Andrikopoulos, S. R. Whittleton, H. Jirglova, P. Sazama, L. Benco, T. Bucko, J. Hafner and Z. Sobalik, J. Phys. Chem. C, 2013, 117, 3958–3968.
239. M. J. Rice, A. K. Chakraborty and A. T. Bell, J. Phys. Chem. B, 2000, 104, 9987–9992.
240. M. J. Rice, A. K. Chakraborty and A. T. Bell, J. Catal., 2000, 194, 278–285.
241. A. Bellmann, C. Rautenberg, U. Bentrup and A. Brückner, Catalysts, 2020, 10, 123.
242. J. Dědeček and B. Wichterlová, J. Phys. Chem. B, 1999, 103, 1462–1476.
243. J. Dědeček, D. Kaucký and B. Wichterlová, Microporous Mesoporous Mater., 2000, 35, 483–494.
244. J. Dědeček, L. Čapek, D. Kaucký, Z. Sobalık and B. Wichterlova, J. Catal., 2002, 211, 198–207.
245. J. Dědeček, D. Kaucký and B. Wichterlová, Microporous Mesoporous Mater., 2000, 35, 483–494.
246. E. Dooryhee, C. Catlow, J. Couves, P. Maddox, J. Thomas, G. Greaves, A. Steel and R. Townsend, J. Phys. Chem., 1991, 95, 4514–4521.
247. M. H. Groothaert, K. Pierloot, A. Delabie and R. A. Schoonheydt, Phys. Chem. Chem. Phys., 2003, 5, 2135–2144.
248. A. Delabie, K. Pierloot, M. H. Groothaert, R. A. Schoonheydt and L. G. Vanquickenborne, Eur. J. Inorg. Chem., 2002, 515–530.
249. K. Pierloot, A. Delabie, A. Verberckmoes and R. Schoonheydt, The Interplay between DFT and Conventional Quantum Chemistry: Transition Metals in Zeolites, in Density Functional Theory: A Bridge Between Chemistry and Physics, ed. P. Geerlings, F. De Proft and W. Langenaeker, VUB University Press, Brussels, 1999, pp. 169–188.
250. P. J. Smeets, J. S. Woertink, B. F. Sels, E. I. Solomon and R. A. Schoonheydt, Inorg. Chem., 2010, 49, 3573–3583.
251. P. Vanelderen, J. Vancauwenbergh, B. F. Sels and R. A. Schoonheydt, Coord. Chem. Rev., 2013, 257, 483–494.
252. G. Delahay, S. Kieger, N. Tanchoux, P. Trens and B. Coq, Appl. Catal., B, 2004, 52, 251–257.
253. H. Lei, V. Rizzotto, A. Guo, D. Ye, U. Simon and P. Chen, Catalysts, 2021, 11, 52.
254. M. K. Neylon, C. L. Marshall and A. J. Kropf, J. Am. Chem. Soc., 2002, 124, 5457–5465.
255. S. C. Larsen, A. Aylor, A. T. Bell and J. A. Reimer, J. Phys. Chem., 1994, 98, 11533–11540.
256. S. M. Seo, W. T. Lim and K. Seff, J. Phys. Chem. C, 2011, 116, 963–974.
257. S. Bordiga, D. Scarano, G. Spoto, A. Zecchina, C. Lamberti and C. O. Areán, Vib. Spectrosc., 1993, 5, 69–74.
258. S. Bordiga, E. Garrone, C. Lamberti, A. Zecchina, C. O. Arean, V. B. Kazansky and L. M. Kustov, J. Chem. Soc., Faraday Trans., 1994, 90, 3367–3372.
259. S. Kieger, G. Delahay, B. Coq and B. Neveu, J. Catal., 1999, 183, 267–280.
260. P. Chen, V. Rizzotto, A. Khetan, K. Xie, R. Moos, H. Pitsch, D. Ye and U. Simon, ACS Appl. Mater. Interfaces, 2019, 11, 8097–8105.
261. A. Marberger, A. W. Petrov, P. Steiger, M. Elsener, O. Kröcher, M. Nachtegaal and D. Ferri, Nat. Catal., 2018, 1, 221.
262. R. Millan, P. Cnudde, V. Van Speybroeck and M. Boronat, JACS Au, 2021, 1, 1778–1787.
263. R. Millan, E. Bello-Jurado, M. Moliner, M. Boronat and R. Gomez-Bombarelli, ACS Cent. Sci., 2023, 9, 2044–2056.
264. F. Gao, E. D. Walter, M. Kollar, Y. Wang, J. Szanyi and C. H. Peden, J. Catal., 2014, 319, 1–14.
265. C. Tang, H. Zhang and L. Dong, Catal. Sci. Technol., 2016, 6, 1248–1264.
266. L. Lietti, J. Alemany, P. Forzatti, G. Busca, G. Ramis, E. Giamello and F. Bregani, Catal. Today, 1996, 29, 143–148.
267. D. K. Pappas, K. Kvande, M. Kalyva, M. Dyballa, K. A. Lomachenko, B. Arstad, E. Borfecchia, S. Bordiga, U. Olsbye and P. Beato, Catal. Today, 2021, 369, 105–111.
268. C. Negri, N. Usberti, G. Contaldo, M. Bracconi, I. Nova, M. Maestri and E. Tronconi, Angew. Chem., Int. Ed., 2024, e202408328.
269. I. A. Pankin, H. I. Hamoud, K. A. Lomachenko, S. B. Rasmussen, A. Martini, P. Bazin, V. Valtchev, M. Daturi, C. Lamberti and S. Bordiga, Catal. Sci. Technol., 2021, 11, 846–860.
270. T. Yu, T. Hao, D. Fan, J. Wang, M. Shen and W. Li, J. Phys. Chem. C, 2014, 118, 6565–6575.
271. W. Su, H. Chang, Y. Peng, C. Zhang and J. Li, Environ. Sci. Technol., 2015, 49, 467–473.
272. E. I. Solomon, D. E. Heppner, E. M. Johnston, J. W. Ginsbach, J. Cirera, M. Qayyum, M. T. Kieber-Emmons, C. H. Kjaergaard, R. G. Hadt and L. Tian, Chem. Rev., 2014, 114, 3659–3853.
273. L. M. Mirica, X. Ottenwaelder and T. D. P. Stack, Chem. Rev., 2004, 104, 1013–1046.
274. H. V. Obias, Y. Lin, N. Murthy, E. Pidcock, E. I. Solomon, M. Ralle, N. J. Blackburn, Y.-M. Neuhold, A. D. Zuberbühler and K. D. Karlin, J. Am. Chem. Soc., 1998, 120, 12960–12961.
275. N. Kitajima, K. Fujisawa, C. Fujimoto, Y. Morooka, S. Hashimoto, T. Kitagawa, K. Toriumi, K. Tatsumi and A. Nakamura, J. Am. Chem. Soc., 1992, 114, 1277–1291.
276. N. Akter, X. Chen, J. Parise, J. A. Boscoboinik and T. Kim, Korean J. Chem. Eng., 2018, 35, 89–98.
277. M. Wallin, C.-J. Karlsson, M. Skoglundh and A. Palmqvist, J. Catal., 2003, 218, 354–364.
278. T. Yu, J. Wang, M. Shen, J. Wang and W. Li, Chem. Eng. J., 2015, 264, 845–855.
279. H. Lee, I. Song, S. W. Jeon and D. H. Kim, J. Phys. Chem. Lett., 2021, 12, 3210–3216.
280. Y. Wan, G. Yang, J. Xiang, X. Shen, D. Yang, Y. Chen, V. Rac, V. Rakic and X. Du, Dalton Trans., 2020, 49, 764–773.
281. A. G. Greenaway, A. Marberger, A. Thetford, I. Lezcano-González, M. Agote-Arán, M. Nachtegaal, D. Ferri, O. Kröcher, C. R. A. Catlow and A. M. Beale, Chem. Sci., 2020, 11, 447–455.
282. M. Cheng, B. Jiang, S. Yao, J. Han, S. Zhao, X. Tang, J. Zhang and T. Wang, J. Phys. Chem. C, 2017, 122, 455–464.
283. O. Krocher and M. Elsener, Ind. Eng. Chem. Res., 2008, 47, 8588–8593.
284. A. Grossale, I. Nova, E. Tronconi, D. Chatterjee and M. Weibel, Top. Catal., 2009, 52, 1837–1841.
285. P. S. Metkar, M. P. Harold and V. Balakotaiah, Appl. Catal., B, 2012, 111, 67–80.
286. P. S. Metkar, M. P. Harold and V. Balakotaiah, Chem. Eng. Sci., 2013, 87, 51–66.
287. J. Li and S. Li, Phys. Chem. Chem. Phys., 2007, 9, 3304–3311.
288. S. Li, Y. Zheng, F. Gao, J. Szanyi and W. F. Schneider, ACS Catal., 2017, 7, 5087–5096.
289. H. Kubota, C. Liu, T. Toyao, Z. Maeno, M. Ogura, N. Nakazawa, S. Inagaki, Y. Kubota and K.-I. Shimizu, ACS Catal., 2020, 10, 2334–2344.
290. K. I. Hadjiivanov, Catal. Rev., 2000, 42, 71–144.
291. M. Ahrens, O. Marie, P. Bazin and M. Daturi, J. Catal., 2010, 271, 1–11.
292. J. N. Kondo, R. Nishitani, E. Yoda, T. Yokoi, T. Tatsumi and K. Domen, Phys. Chem. Chem. Phys., 2010, 12, 11576–11586.
293. M. Niwa, K. Suzuki, N. Katada, T. Kanougi and T. Atoguchi, J. Phys. Chem. B, 2005, 109, 18749–18757.
294. S. Li, Y. Wang, T. Wu and W. F. Schneider, ACS Catal., 2018, 8, 10119–10130.
295. G. Li, E. A. Pidko, R. A. Van Santen, Z. Feng, C. Li and E. J. Hensen, J. Catal., 2011, 284, 194–206.
296. Á. Szécsényi, E. Khramenkova, I. Y. Chernyshov, G. Li, J. Gascon and E. A. Pidko, ACS Catal., 2019, 9, 9276–9284.
297. T. C. Brüggemann and F. J. Keil, J. Phys. Chem. C, 2008, 112, 17378–17387.
298. T. C. Brüggemann and F. J. Keil, J. Phys. Chem. C, 2011, 115, 2114–2133.
299. T. Usui, Z. Liu, H. Igarashi, Y. Sasaki, Y. Shiramata, H. Yamada, K. Ohara, T. Kusamoto and T. Wakihara, ACS Omega, 2019, 4, 3653–3659.
300. F. Maugé, P. Gallezot, J.-C. Courcelle, P. Engelhard and J. Grosmangin, Zeolites, 1986, 6, 261–266.
301. D. W. Fickel and R. F. Lobo, J. Phys. Chem. C, 2009, 114, 1633–1640.
302. S. Yasumura, Y. Qian, T. Toyao, Z. Maeno and K.-I. Shimizu, J. Phys. Chem. C, 2022, 126, 11082–11090.
303. J. Szanyi, J. H. Kwak and C. H. Peden, J. Phys. Chem. B, 2004, 108, 3746–3753.
304. S. Yasumura, C. Liu, T. Toyao, Z. Maeno and K.-I. Shimizu, J. Phys. Chem. C, 2021, 125, 1913–1922.
305. K. Hadjiivanov, J. Saussey, J. Freysz and J. Lavalley, Catal. Lett., 1998, 52, 103–108.
306. H. Kubota, T. Toyao, Z. Maeno, Y. Inomata, T. Murayama, N. Nakazawa, S. Inagaki, Y. Kubota and K.-I. Shimizu, ACS Catal., 2021, 11, 11180–11192.
307. J. E. Schmidt, R. Oord, W. Guo, J. D. Poplawsky and B. M. Weckhuysen, Nat. Commun., 2017, 8, 1666.
308. K. Kharas, H. Robota and D. Liu, Appl. Catal., B, 1993, 2, 225–237.
309. J. Yan, G.-D. Lei, W. Sachtler and H. Kung, J. Catal., 1996, 161, 43–54.
310. L. Ma, W. Su, Z. Li, J. Li, L. Fu and J. Hao, Catal. Today, 2015, 245, 16–21.
311. A. Wang, Y. Wang, E. D. Walter, N. M. Washton, Y. Guo, G. Lu, C. H. Peden and F. Gao, Catal. Today, 2019, 320, 91–99.
312. L. Ma, J. Li, Y. Cheng, C. K. Lambert and L. Fu, Environ. Sci. Technol., 2012, 46, 1747–1754.
313. W. Ding, Y. Sun, J. Liu, S. Xue, X. Han, Z. Yan, Y. Yu, Y. Shan and H. He, Chem. Eng. J., 2024, 149272.
314. M. Moliner, C. Martinez and A. Corma, Chem. Mater., 2013, 26, 246–258.
315. M. Moliner, C. Franch, E. Palomares, M. Grill and A. Corma, Chem. Commun., 2012, 48, 8264–8266.
316. S. Han, Q. Ye, S. Cheng, T. Kang and H. Dai, Catal. Sci. Technol., 2017, 7, 703–717.
317. T. Usui, Z. Liu, S. Ibe, J. Zhu, C. Anand, H. Igarashi, N. Onaya, Y. Sasaki, Y. Shiramata and T. Kusamoto, ACS Catal., 2018, 8, 9165–9173.
318. Y. Wang, X. Shi, Y. Shan, J. Du, K. Liu and H. He, Ind. Eng. Chem. Res., 2020, 59, 6416–6423.
319. Y. Shan, J. Du, Y. Yu, W. Shan, X. Shi and H. He, Appl. Catal., B, 2020, 266, 118655.
320. Y. J. Kim, J. K. Lee, K. M. Min, S. B. Hong, I.-S. Nam and B. K. Cho, J. Catal., 2014, 311, 447–457.
321. J. Song, Y. Wang, E. D. Walter, N. M. Washton, D. Mei, L. Kovarik, M. H. Engelhard, S. Prodinger, Y. Wang and C. H. Peden, ACS Catal., 2017, 7, 8214–8227.
322. J. Luo, F. Gao, K. Kamasamudram, N. Currier, C. H. Peden and A. Yezerets, J. Catal., 2017, 348, 291–299.
323. J. H. Lee, Y. J. Kim, T. Ryu, P. S. Kim, C. H. Kim and S. B. Hong, Appl. Catal., B, 2017, 200, 428–438.
324. J. H. Kwak, D. Tran, S. D. Burton, J. Szanyi, J. H. Lee and C. H. Peden, J. Catal., 2012, 289, 272.
325. T. Ryu, N. H. Ahn, S. Seo, J. Cho, H. Kim, D. Jo, G. T. Park, P. S. Kim, C. H. Kim and E. L. Bruce, Angew. Chem., 2017, 129, 3304–3308.
326. Y. Wu, W. Zhao, S. H. Ahn, Y. Wang, E. D. Walter, Y. Chen, M. A. Derewinski, N. M. Washton, K. G. Rappé and Y. Wang, Nat. Commun., 2023, 14, 2633.
327. N. H. Ahn, T. Ryu, Y. Kang, H. Kim, J. Shin, I.-S. Nam and S. B. Hong, ACS Catal., 2017, 7, 6781–6785.
328. C. Negri, E. Borfecchia, M. Cutini, K. A. Lomachenko, T. V. Janssens, G. Berlier and S. Bordiga, ChemCatChem, 2019, 11, 3828–3838.
329. S. E. Bozbag, D. Şanlı, B. Özener, G. Hisar and C. Erkey, Catalysts, 2020, 10, 411.
330. F. Gao, M. Kollár, R. K. Kukkadapu, N. M. Washton, Y. Wang, J. Szanyi and C. H. Peden, Appl. Catal., B, 2015, 164, 407–419.
331. F. Gao, Y. Wang, M. Kollár, N. M. Washton, J. Szanyi and C. H. Peden, Catal. Today, 2015, 258, 347–358.
332. M. Dusselier and M. E. Davis, Chem. Rev., 2018, 118, 5265–5329.
333. T. Ryu, Y. Kang, I.-S. Nam and S. B. Hong, React. Chem. Eng., 2019, 4, 1050–1058.
334. M. P. Ruggeri, I. Nova, E. Tronconi, V. Schmeißer and M. Weibel, Chem. Ing. Tech., 2018, 90, 803–815.
335. J. Kielland, J. Am. Chem. Soc., 1937, 59, 1675–1678.
336. N. Martín, P. N. Vennestrøm, J. R. Thøgersen, M. Moliner and A. Corma, ChemCatChem, 2017, 9, 1754–1757.
337. N. Martín, P. N. Vennestrøm, J. R. Thøgersen, M. Moliner and A. Corma, Chem. – Eur. J., 2017, 23, 13404–13414.
338. X. Lou, P. Liu, J. Li, Z. Li and K. He, Appl. Surf. Sci., 2014, 307, 382–387.
339. L. Olsson, K. Wijayanti, K. Leistner, A. Kumar, S. Y. Joshi, K. Kamasamudram, N. W. Currier and A. Yezerets, Appl. Catal., B, 2016, 183, 394–406.
340. Y. Jangjou, D. Wang, A. Kumar, J. Li and W. S. Epling, ACS Catal., 2016, 6, 6612–6622.
341. P. S. Hammershøi, A. D. Jensen and T. V. Janssens, Appl. Catal., B, 2018, 238, 104–110.
342. X. Jiang, J. Yang, Y. Liang, H. Zhang, Y. Zhou, R. Shan, Q. Liu, W. Liu and L. Yao, J. Environ. Chem. Eng., 2023, 11, 109822.
343. A. Wang and L. Olsson, Chem. Eng. J., 2020, 395, 125048.
344. S. Shwan, Metal-Exchanged Zeolites for NH 3-SCR Applications–Activity and Deactivation Studies, Chalmers Tekniska Hogskola, Sweden, 2014.
345. K. Xie, A. Wang, J. Woo, A. Kumar, K. Kamasamudram and L. Olsson, Appl. Catal., B, 2019, 256, 117815.
346. L. Xu, C. Wang, H. Chang, Q. Wu, T. Zhang and J. Li, Environ. Sci. Technol., 2018, 52, 7064–7071.
347. J. Liang, Y. Mi, G. Song, H. Peng, Y. Li, R. Yan, W. Liu, Z. Wang, P. Wu and F. Liu, J. Hazard. Mater., 2020, 398, 122986.
348. X. Yong, H. Chen, H. Zhao, M. Wei, Y. Zhao and Y. Li, Chin. J. Chem. Eng., 2022, 46, 184–193.
349. X. Auvray, M. Arvanitidou, Å. Högström, J. Jansson, S. Fouladvand and L. Olsson, Emiss. Control Sci. Technol., 2021, 7, 232–246.
350. K. Wijayanti, K. Xie, A. Kumar, K. Kamasamudram and L. Olsson, Appl. Catal., B, 2017, 219, 142–154.
351. V. Mesilov, S. Dahlin, S. L. Bergman, S. Xi, J. Han, L. Olsson, L. J. Pettersson and S. L. Bernasek, Appl. Catal., B, 2021, 299, 120626.
352. Z. Chen, C. Fan, L. Pang, S. Ming, P. Liu and T. Li, Appl. Catal., B, 2018, 237, 116–127.
353. M.-L. Tarot, E. E. Iojoiu, V. Lauga, D. Duprez, X. Courtois and F. Can, Appl. Catal., B, 2019, 250, 355–368.
354. A. Wang, K. Xie, D. Bernin, A. Kumar, K. Kamasamudram and L. Olsson, Appl. Catal., B, 2020, 269, 118781.
355. K. Xie, J. Woo, D. Bernin, A. Kumar, K. Kamasamudram and L. Olsson, Appl. Catal., B, 2019, 241, 205–216.
356. H. Zhao, Y. Zhao, M. Liu, X. Li, Y. Ma, X. Yong, H. Chen and Y. Li, Appl. Catal., B, 2019, 252, 230–239.
357. P. Kern, M. Klimczak, T. Heinzelmann, M. Lucas and P. Claus, Appl. Catal., B, 2010, 95, 48–56.
358. J. Li, Y. Peng, H. Chang, X. Li, J. C. Crittenden and J. Hao, Front. Environ. Sci. Eng., 2016, 10, 413–427.
359. J. Due-Hansen, A. L. Kustov, S. B. Rasmussen, R. Fehrmann and C. H. Christensen, Appl. Catal., B, 2006, 66, 161–167.
360. J. Zhang, Z. Huang, Y. Du, X. Wu, H. Shen and G. Jing, Environ. Sci. Technol., 2019, 54, 595–603.
361. A. Martini, C. Negri, L. Bugarin, G. Deplano, R. K. Abasabadi, K. A. Lomachenko, T. V. Janssens, S. Bordiga, G. Berlier and E. Borfecchia, J. Phys. Chem. Lett., 2022, 13, 6164–6170.

---
