Laura
Van Dorn
and
Andrei
Sanov
*
Department of Chemistry and Biochemistry, The University of Arizona, Tucson, Arizona 85721, USA. E-mail: sanov@arizona.edu
First published on 14th October 2024
The coupled-monomers model views any molecular system as a coherent network of interacting monomers. Developed as a self-consistent density-matrix adaptation of the Hückel MO theory, it has been applied to various Xn± cluster ions, where X is an inert (closed-shell) neutral monomer. Rather than keeping the bond integrals constant, the model considers their variation with the bond orders χ using a bonding function β(χ). In this work, high-level ab initio data are used to obtain the bonding function for Hen+. As the simplest inert species, helium is used to illustrate the general Xn± bonding trends, using the most elementary example. Two alternative approaches to the bonding function are described. One is based on the He2+ potential, the other on the “multicluster” training points obtained by analysing several special Hen+ structures. Each approach is tested in two regimes: by considering only the local bonds, and by including both local and remote pairwise interactions. The remote forces in Hen+, n ≥ 3 are destabilising and account for approximately −5% of total covalent energy. Each model variation yields similar structural results, indicating a general trend for trimer-ion formation. In the absence of geometric constraints, this appears to be a universal feature of the Xn± covalent networks, resulting from the enthalpy-driven competition between charge sharing and localisation. Therefore, many currently unknown trimer-ions are likely to be found in cold environments, such as exoplanetary atmospheres and outer space.
The addition of such glue transforms helium clusters into a fundamental laboratory of chemical bonding. Hen+ is the simplest case of Xn± covalent networks, where X is a closed-shell monomer.5 The inter-monomer (IM) couplings in such systems illuminate the competition between coherent charge sharing and localisation,6–19 which is central to chemistry. When sterically possible,7 many Xn±, n ≥ 3 clusters (including Hen+) form trimer-ion cores,1–4,6,18–26 with the rest of the monomers remaining in the neutral state, bound to the cluster by noncovalent forces.27,28 The tendency of a charge to localise on not one, not two, but specifically three monomers is both common and intriguing.
Indeed, trimer ions have been observed or predicted in many Xn± systems, with X ranging from rare-gas atoms (cations),1–4,20–22 to organic molecules (anions).5,6,29 The diversity of these systems implies that the trimerization trend is due the universal features of covalent bonding, not the intrinsic properties of the monomers. The trimer ions emerge as the optimal outcome of two competing drives: on the one hand, extended charge sharing allows more covalent bonds to form; on the other, thinly spreading one bonding agent diminishes the strength of each bond.
To describe the universal features of charge-induced interactions, we put forth a simplified version of the molecular-orbital (MO) theory, the coupled-monomers model.5 The model is not intended to compete with high-level ab initio methods. Instead, it aims to provide simple descriptions of chemical bonding in supramolecular systems, focusing on fundamental insight rather than quantitative precision. The model views any molecular system as a network of coupled monomers, regardless of their intrinsic structures. The model approximations are appropriate for the Xn± networks, where the sharing of one bonding agent results in fairly weak IM bonds with large equilibrium lengths.
These bonds are treated using a self-consistent density-matrix adaptation5 of the Hückel MO theory.30–35 The original Hückel theory describes covalent bonding between all adjacent atoms in terms of constant bond integrals (β). This assumption is valid when all the bonds considered are equivalent, as is approximately the case for π electrons in conjugated hydrocarbons—the Hückel theory's original domain. However, it is unphysical for many other systems.5,7 The coupled-monomers model,5 therefore, employs variable bond integrals. It considers that the equilibrium bond lengths and, therefore, the bond integrals, do vary with local Hückel (Coulson)35,36 bond orders χ. The latter are described by a bonding function β(χ). Examples of such functions for Hen+ are shown in Fig. 1. A variety of β(χ) curves within the dashed boundaries were considered,5 but to be applicable, the bonding function must satisfy the universal boundaries plus the training point shown by the circle in the figure.
![]() | ||

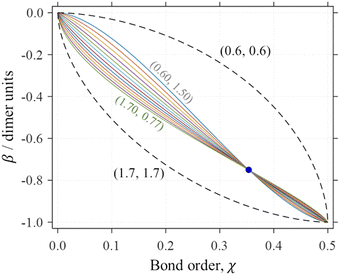

Fig. 1 Examples of Hen+ bonding functions (solid curves in various colours). All curves are defined by eqn (6) with the training-point constraint ![]() |
Under realistic assumptions, the coupled-monomers model has confirmed the trimerization trend in sterically permitting Xn± clusters. This outcome was demonstrated for several cationic and anionic systems with diverse monomer types, from rare gases to organics.5 In each case, the trimer prediction proved to be quite robust with respect to the exact choice of β(χ). For example, every solid curve in Fig. 1 yields a trimer-ion core in Hen+.
The goal of the present work is to demonstrate that the empirical form of the bonding function proposed previously5 is consistent with ab initio theory. We use a variety of high-level calculations to devise the bonding function for Hen+, but the specific case of X = He is used here to illustrate the general Xn± bonding trends on the most elementary example. The results show that under reasonable assumptions β(χ) for Hen+ indeed falls within the empirical boundaries of the bonding space in Fig. 1.
The next section gives an overview of the coupled-monomers model, followed by the presentation of ab initio results for several special Hen+ structures in Section 3. These results power two alternative methods of deriving the bonding function in Sections 4 and 5. The first is based on the He2+ potential and the second on several multicluster training points. The final section summarizes the findings and outlines future directions.
The {ψi} MMO set serves as a minimal basis for treating the interactions in Hen caused by the addition of one hole. The hole is described by an effective Hamiltonian Ĥ.5 Like in the Hückel theory,35 we rely only on its matrix representation in the {ψi} basis. The diagonal elements Hi,i = 〈ψi|Ĥ|ψi〉 are the Coulomb integrals, which here we continue treating as constants. The off-diagonal elements Hi,j = 〈ψi|Ĥ|ψj〉, i ≠ j are the bond integrals.
For electrons (e), the couplings between all basis MMOs in Fig. 2(a) are attractive, described by negative bond integrals Hei,j < 0, for all i ≠ j. Indeed, to a chemist's eye, the MMO chain in Fig. 2(a) forms a bonding-throughout IMO. However, this holds only if the IMO is occupied by an electron. That is, the above interactions are e-bonding, rather than simply bonding. Using the same MMOs to describe a hole (h) results in an opposite, h-antibonding effect, with Hhi,j > 0, i ≠ j.
Following Hückel,30–35 we treat the MMO basis as orthonormal. The IMOs and their energies Ek, k = 1, …, n are then obtained by diagonalising the Hamiltonian matrix. The solution yields n eigenvalues Ek, k = 1, …, n and eigenvectors |ϕk〉, which contain the c(k)i coefficients. Focusing on the lowest-energy IMO, ϕ = ϕ1, we drop index k = 1 for brevity.
In the general MO theory, total bond orders and stabilisation energies are defined by the combined contributions of all occupied orbitals. Here, we consider only systems bonded by a single bonding agent: one electron (in Xn−) or one hole (in Xn+). In Hen+, in particular, there are (2n − 1) electrons distributed among n molecular orbitals (IMOs). Such a system can be viewed as a combination of two contributions: a closed-shell 2n-electron configuration and a single hole populating the IMO in Fig. 2(b).
The first of the above contributions amounts to zero in terms of covalent bond orders and energy, as in the Hen van der Waals cluster. Therefore, instead of considering the (2n − 1) electrons in the n IMOs of Hen+, we can view it, equivalently, as a single-hole system with only one populated IMO. Both the stabilisation energy and all bond orders are then defined by this IMO only. With the additional assumption of constant Coulomb integrals (set arbitrarily to zero), ΔEM is then given by the negative of the one IMO energy, i.e., the lowest energy eigenvalue of the Hamiltonian matrix. Alternatively, it can be expressed as:5
![]() | (1) |
Under the basis set definition in Fig. 2(a), all h-bond integrals are positive, either at equilibrium (hi,j > 0) or at an arbitrary geometry (Hi,j > 0). The resulting lowest-energy h-IMO is sketched in Fig. 2(b) (amplitudes not shown, only signs). Since the signs of ci alternate along the chain, this IMO is e-antibonding but h-bonding throughout.
The h-bonding interactions resulting from the opposite-sign adjacent IMO coefficients correspond to negative local (nearest-neighbour) bond orders, ρi,i±1 < 0. All other (remote) pairwise interactions alternate, as illustrated in Fig. 2(b), between h-antibonding (ρi,i±s > 0) and h-bonding (ρi,i±s < 0) for even and odd, respectively, degrees of separation s:
s = |i − j| | (2) |
Eqn (1) offers an intuitive perspective on the relationship between covalent bond energy and bond integrals. While ΔEM is a sum over all IM bonds, each bond's energy is given by the magnitude of its bond integral, weighted by twice the bond order. In the valence bond theory, a single bond consists of two electrons or holes. The above weight then corresponds to the number of contributing bonding agents and each 2ρi,jhi,j term can be understood as the bond integral scaled by the fractional number of electrons (holes) residing on the particular bond.
Instead, the local equilibrium bond lengths ri,i±1 can be assumed to depend explicitly on the corresponding bond orders:5
ri,i±1 = r(χi,i±1) | (3) |
χi,j = −ρi,j | (4) |
Implicit in eqn (3) is the assumption that the equilibrium geometry is defined by local interactions only. Since the bond integrals depend explicitly on the distance between the monomers, it also follows that the local equilibrium bond integrals hi,i±1 must vary with the corresponding bond orders. We postulate that |hi,i±1| = |β(χi,i±1)|, where β(χ) is no longer a Hückel constant but a negatively-valued (for χ > 0) function. We call it the bonding function.5 Given that all bond integrals in the this work must be positive under the basis-set definition in Fig. 2(a), we have:
hi,i±1 = −β(χi,i±1) | (5) |
The universal (independent of the monomer identity) features of r(χ) and β(χ) were discussed previously.5 Both functions are expected to be well-behaved and monotonic on the χ ∈ [0, 0.5] interval. The left boundary corresponds to the nonbonding (noncovalent) limit and the right represents the largest bond order attributable to one electron or hole.
Since the stronger the bond, the shorter it is, r(χ) must be a decreasing function of χ. As shorter bonds correspond to stronger IM couplings, β(χ) is expected to increase in magnitude with increasing χ. Since the bonding function is defined to be negatively-valued or zero, it varies from β(0) = 0 (the nonbonding limit) to β(0.5) = −1 d.u. (the dimer limit).5 However, the above nonbonding (noncovalent) limit assumes an infinite IM separation, and this assumption will be modified in Section 3.2.
These requirements are satisfied by the empirical function
β(χ) = −[1 − (1 − 2χ)b2]1/b1 | (6) |
Indeed, the 12 solid curves shown in Fig. 1 in various colours are all defined by eqn (6) with b1 ranging from 0.6 to 1.7 and the corresponding b2 values determined so that each β(χ) function passes through the blue training point .5 This constraint “trains” the model to reproduce the He3+ energy.
This issue is resolved via an iterative search for a self-consistent solution.5 Given the bonding function β(χ), the search is initiated with an arbitrary set of the initial {ci} coefficients. Each iteration then includes the following steps:
(1) From {ci}, compute and χi,j = −ρi,j.
(2) Set all Coulomb integrals to the same constant (e.g., zero) and evaluate the local bond integrals from the bonding function and local bond orders using eqn (5). The remote integrals hi,j, |i − j| > 1, are either set to zero (local bonding approximation) or evaluated using the method in Section 4.
(3) Find the eigenvalues and eigenvectors of matrix h from the previous step.
(4) Check for convergence and proceed to the next iteration (step 1) or exit the loop.
The convergence check is based on two criteria. The energy change must be <10−6 dimer units (2.5 μeV), compared to the previous iteration, and the norm of the eigenvector change must be <10−7. Most reported calculations involved <200 iterations.

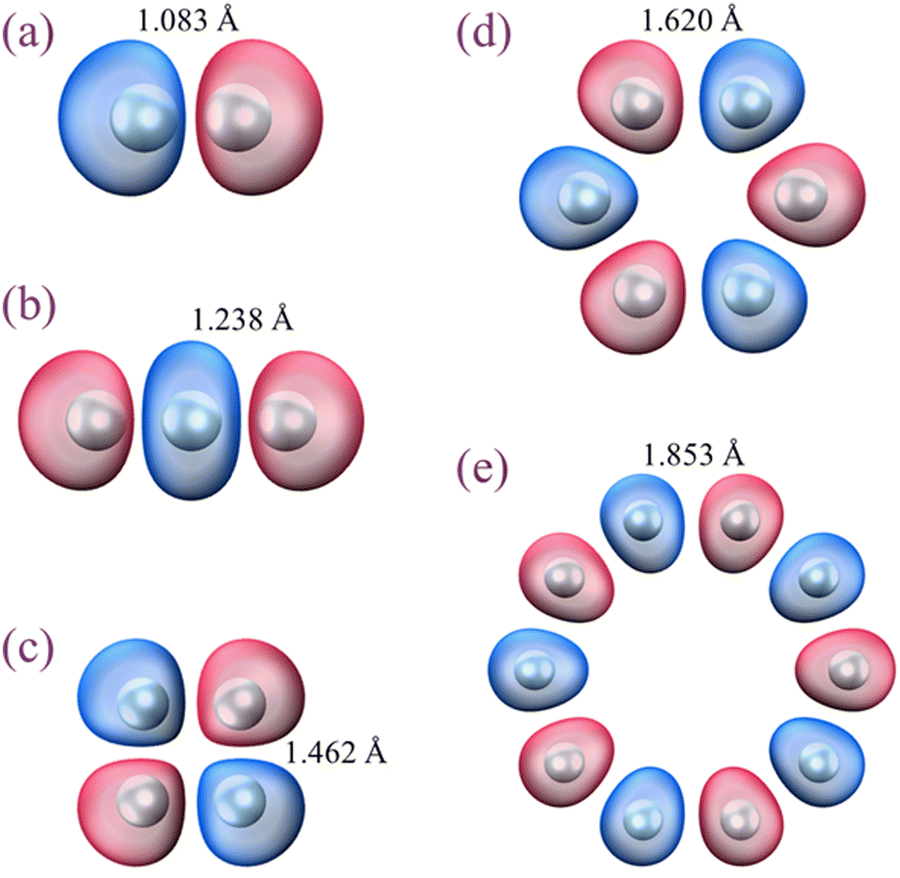

All IMOs in Fig. 3 are completely antibonding if occupied by an electron (e-antibonding) but become bonding if populated by a hole (h-bonding). In terms of the coupled-monomers model, the He2+ structure in (a) has an absolute bond order of χ = 0.5. Each of the trimer bonds in (b) is described by , as obtained from the
IMO coefficients dictated by the model and by the original Hückel theory, regardless of the assumed bonding function or bond length. Similarly, all bonds in square He4+ (c) correspond to χ = 1/4, in hexagonal He6+ (d) to 1/6, and in hendecagonal He10+ (e) to 1/10.

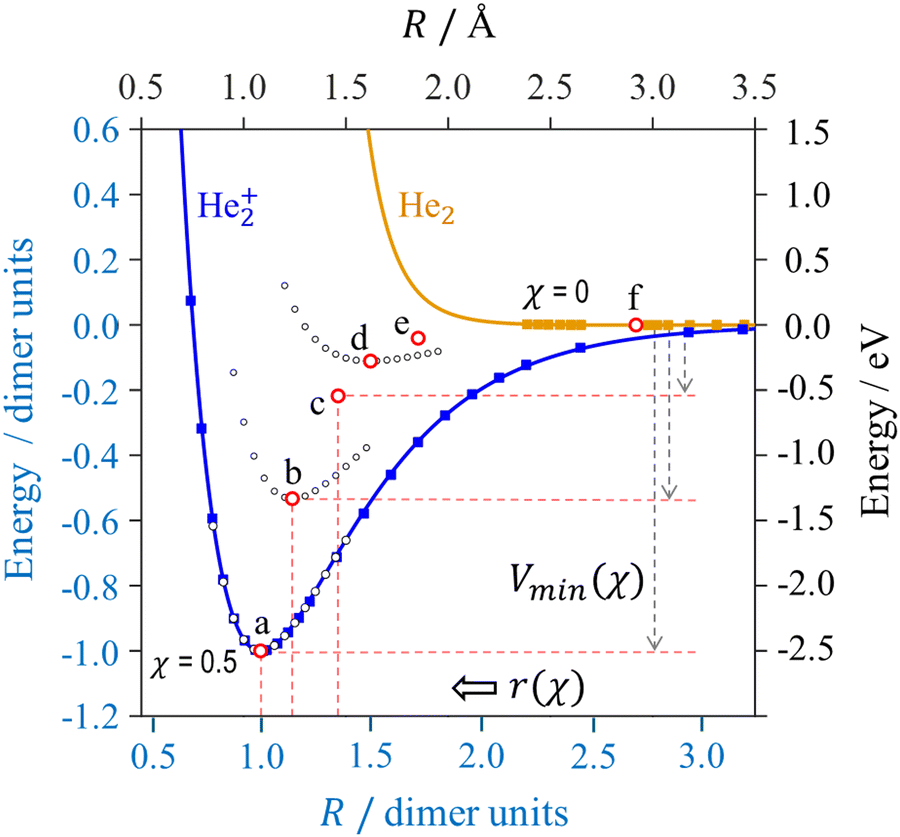

Beginning with the dimer ion, its potential is represented by the blue curve in Fig. 4. The specific curve shown is a Morse-potential fit to the full-CI results for He2+ by Gadea and Paidarová1 (filled blue squares). The black open circles overlaying this curve are from our CCSD/aug-cc-pVTZ calculations using Q-Chem 5.1.37 They are nearly indistinguishable from full-CI: the full-CI potential has a minimum of −2.448 eV at 1.085 Å, while our calculations yield Vmin = −2.446 eV at r = 1.083 Å. Given the agreement, we will rely on our CCSD results, to be consistent with the other calculations in this work. The (r, Vmin) = (1.083 Å, −2.446 eV) minimum for He2+ is equivalent to (r, Vmin) = (1, −1) in dimer units.5 It is represented by red circle ‘a’ in Fig. 4 describing a χ = 0.5 bond.
Turning to smaller bond orders, Fig. 4 displays additional per-bond potential minima b–e for the larger Hen+ structures in the respective parts of Fig. 3. In detail, black-circles ‘b’ in Fig. 4 represent the per-bond energy of He3+ from a CCSD/aug-cc-pVTZ potential energy scan under the D2h symmetry constraint. The values plotted were obtained by dividing the trimer energy relative to the He+ + 2He limit by the number of local bonds (2), to yield the energy attributable to each bond.
The (r, Vmin) = (1.238 Å, −1.304 eV) minimum for He3+ corresponds to (1.143, −0.533) in dimer units. It is indicated by red circle ‘b’ in Fig. 4. These results are in agreement with the earlier works on He3+.1,2,4,21,38 The above r = 1.238 Å compares to 1.238 Å determined by Gadea and Paidarová1 and 1.241 Å predicted by Knowles and Murrell.4 The Vmin value of −1.304 eV corresponds to a 2.608 eV monomerization energy, which compares to 2.598 eV calculated by Rosi and Bauschlicher2 and 2.659 eV predicted by Knowles and Murrell.4
Datasets (c)–(e) in Fig. 4 represent the results of similar per-bond calculations for the respective structures in Fig. 3, all carried out under the appropriate symmetry constraints. To avoid clutter, Fig. 4 omits the detailed He4+ (c) and He10+ (e) scans but the (r, Vmin) minima are indicated by red circles in each case.
The r and Vmin values, along with the monomerization energies of these structures are summarised in Table 1. The decreasing ΔEM for n > 3 reflect the diminishing stabilities of the constrained cyclic geometries with artificially delocalised charges. In the unconstrained ground states of Hen+, the charge localises on no more than three monomers, and all unconstrained n > 3 structures have ΔEM(n) ≈ ΔEM(3).5
Casea | Clusterb | χ | r | ΔEM(n) | Energy per bond, −Vmin | β(local)d | β(all)e |
---|---|---|---|---|---|---|---|
a As labelled in Fig. 2–4.
b Structures shown in Fig. 4.
c As defined in the coupled monomers model. The exact χ values in cases a–e are 1/2, ![]() |
|||||||
a | He2+ | 0.500 | 1 | 1 | 1 | −1 | −1 |
b | He3+ | 0.354 | 1.143 | 1.066 | 0.533 | −0.754 | −0.791 |
c | He4+ | 0.250 | 1.350 | 0.871 | 0.218 | −0.436 | −0.554 |
d | He6+ | 0.167 | 1.496 | 0.666 | 0.111 | −0.333 | −0.375 |
e | He10+ | 0.100 | 1.712 | 0.408 | 0.0408 | −0.204 | −0.229 |
In all χ > 0 cases (Section 3.1), we ignored noncovalent forces. If we continue to do so as χ → 0, the relaxed covalent bond length will approach infinity. This trend will cause the bond integral, i.e., the coupling between the basis functions, to vanish as well: β(χ) → 0 as χ → 0 and r → ∞.5
However, noncovalent interactions cannot be ignored in the χ → 0 limit: no matter how weak, they become the only remaining IM force. The very existence of van der Waals clusters implies that r remains finite even as χ vanishes. Minimum (f) in Fig. 4 sets a maximum of r, max(r) = 2.9 Å (2.7 d.u.), achieved in the χ → 0 limit. An immediate consequence of this boundary is that the bond integral for charge-induced covalent interactions cannot vanish even for χ → 0. It remains limited by the He2+ potential value at the above max(r).
![]() | ||
Fig. 5 Red circles: optimised bond lengths of the Hen+ structures (a)–(e) in Fig. 3 and the neutral van der Waals dimer (f), plotted versus the corresponding bond orders. Solid blue curve: a bi-exponential fit to the data, excluding (c). |
The blue curve in Fig. 5 represents a bi-exponential fit to the ab initio data. It arms us with a continuous r(χ) function to use in further modelling. The fit shown was obtained excluding point ‘c’ (χ = 1/4), which deviates slightly from the general r(χ) trend.
The deviation is due to the remote interactions in square He4+, which are stronger than in any other structures in Fig. 3. With the distance between the opposing monomers only times the shortest bond length, the remote integrals amount to almost half of their local counterparts. While the energetic effect of the remote forces can be estimated easily (see ESI†), the geometric effect was not pursued. Qualitatively, the strong diagonal couplings in Fig. 3(c) are h-antibonding in character and lengthen the local bonds. This results in the perceptible displacement of point ‘c’ from the general r(χ) trend in Fig. 5.
In a way, we aim to predict the charge-induced couplings between monomers in larger settings by observing their one-on-one interaction in the dimer ion. Despite significant quantitative errors, this approximation will allow us to reach—simply and with considerable insight—correct qualitative conclusions.
Now apply the above to the specific case of He2+. In the coupled-monomers framework, its potential energy V at any R is equal to the negative bond integral magnitude at that R (true only because the Hückel-like effective Hamiltonian and hence the bond integrals incorporate nuclear repulsion). In our basis, all bond integrals are positive, and therefore V(R) = −H1,2(R) or, equivalently, V(R) = −f(R), where f is the function from the previous paragraph. Combined with hi,j = f(ri,j), this yields:
hi,j = −V(ri,j), i ≠ j. | (7) |
Even though eqn (7) uses the He2+ potential, it applies to all monomer pairs in any Hen+. This is unlike eqn (5), which is defined for local bonds only. Specifically for nearest neighbours (j = i ± 1), ri,j in eqn (7) can be expressed in terms of the bond-length function from Fig. 5, as ri,i±1 = r(χi,i±1). This results in
hi,i±1 = −V[r(χi,i±1)] | (8) |
β(χ) = V[r(χ)] | (9) |
Eqn (9) allows an explicit calculation of the local bond integrals. The corresponding bonding function is plotted by the blue curve in Fig. 6. To obtain it, r for every χ was determined using the r(χ) function in Fig. 5. The β(χ) value was then found from the corresponding V(r) value using the He2+ curve in Fig. 4.
![]() | ||
Fig. 6 Solid blue curve: the dimer-based Hen+ bonding function obtained using the (χ, r) → (χ, β) transform of the r(χ) curve in Fig. 5 (blue) using eqn (9) and the He2+ potential V(r) in Fig. 4. Red circles (a)–(f): the respective datapoints from Fig. 5 following the same transformation. Shaded green area: the bonding space defined by the dashed boundaries in Fig. 1. Solid grey curves: the original bonding functions shown in Fig. 1 in various colours. |
![]() | ||
Fig. 8 Sample solutions for He10+ obtained using the dimer-based bonding approximation. See Fig. 7 caption for details. Top: The converged geometry of the monomer chain. The bond length values are indicated but the structure is not drawn to scale. Monomers shaded in red correspond to the cluster core (qi > 0.01). Solid red lines represent covalent bonds with χ ≥ 0.1, dotted red lines bonds with 0.01 ≤ χ < 0.1. |
The black circles in each figure represent the converged IMO amplitudes |ci|, plotted vs. the monomer number i. The values plotted next to the symbols in same-colour font are the partial charges, determined as qi = |ci|2. The monomerization energy ΔEM in dimer units (1 d.u. = 2.446 eV) is indicated in the matching-colour (black) font in the top-right corner of each plot.
Green asterisks in each figure represent the magnitudes of the initial {ci} guess in each calculation. Note that the guess for each calculation was chosen to contain no symmetry. This is to avoid constraining the solutions to either odd- or even-numbered cluster cores.5 As in the previous work,5 we emphasize the model divergence from the Hückel theory. To highlight the difference, a continuous form of the Hückel (constant β) solution is shown for comparison in each figure as a dashed curve that looks like the ground-state wavefunction of the particle in a box.
The original trimer-core prediction5 is clearly borne out in the present results. In the case of He3+ (Fig. 7), with only the local interactions considered, the model charge distribution qi = 0.250|0.500|0.250 follows the Hückel model exactly. In contrast, the He10+ solution (Fig. 8) obtained under the same assumptions deviates significantly from the Hückel model. Even though the starting state in this example distributes the charge over the entire 10-membered chain, the converged solution is localised, placing 99.7% of the charge on three core monomers (i = 4–6 in Fig. 8). It corresponds to a He3+·He7 cluster structure.
The charge distribution within the trimer core of He10+ (qi = 0.250|0.497|0.250) is nearly identical to that in an isolated He3+ (Fig. 7). As discussed previously, a minor charge spillage from the trimer to adjacent monomers (i = 3 and 7) is due to the bonding function trend in the χ → 0 limit.5 In this case, it is specifically due to the finite value of β(0).
The He3+ monomerization energy (ΔEM = 1.305 d.u.), based on the solution in Fig. 7, is >20% larger than the correct value of 1.066 d.u. (Table 1 and ref. 2 and 4). This discrepancy will be discussed shortly. The He10+ monomerization energy is only 0.002 d.u. (5 meV) higher than that of He3+. The model accounts for covalent energy only and the addition of noncovalently bonded neutral monomers does not affect ΔEM. Its minor increase from n = 3 (Fig. 7) to n = 10 (Fig. 8) is due to the weak couplings between monomers 3–4 and 7–8 in Fig. 8, activated by the charge spillage from the trimer core to the adjacent monomers.

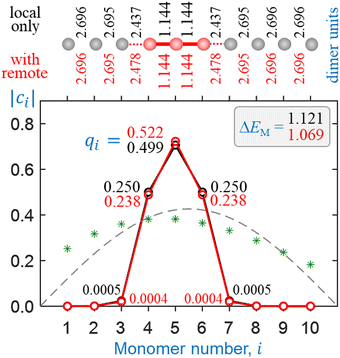

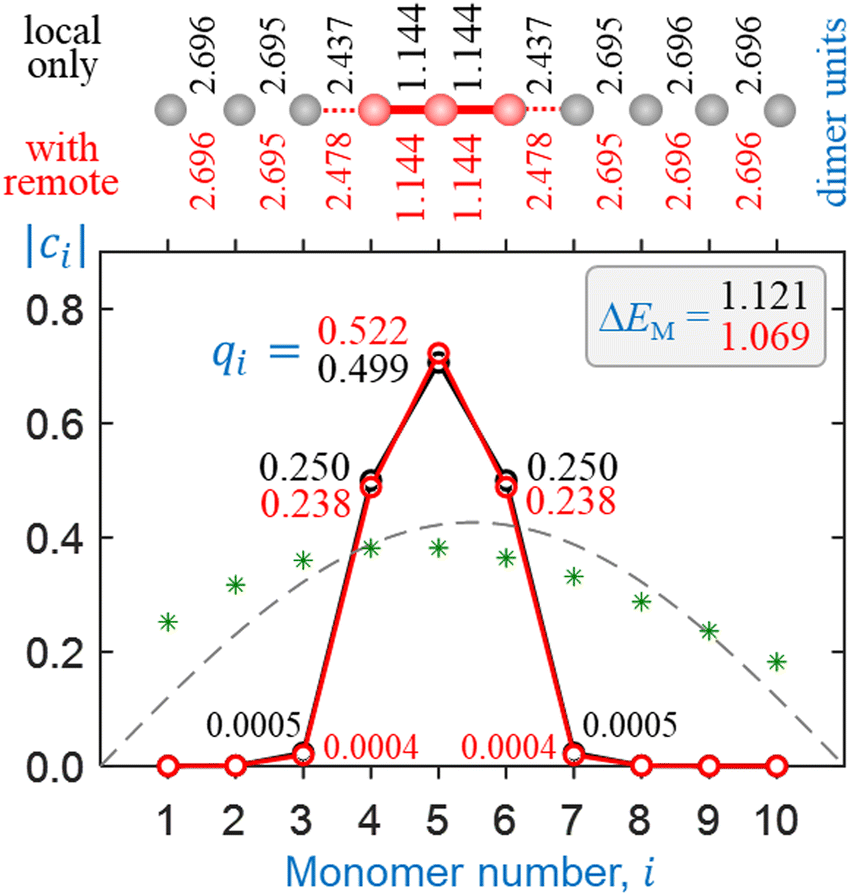

The top parts of Fig. 7 and 8 show the converged geometries of the He3+ and He10+ chains, respectively. The IM distances (not to scale in the figure) are indicated in dimer units (1 d.u. = 1.083 Å), with the black font corresponding to the local-bonds-only solutions discussed here. The bond lengths within the trimer core of He10+ (Fig. 8) are essentially the same as in the isolated trimer ion (Fig. 7). The 2.696 d.u. distances between nonbonded neutral monomers correspond to the vdW separation (Section 3.2).
Sample results of this approach for He3+ and He10+, are shown in Fig. 7 and 8, respectively, in red. Since the remote interactions in the ground states of Hen+ are overall destabilising [Fig. 2(b)], their inclusion lowers the He3+ and He10+ monomerization energies, by 0.052 d.u. (0.127 eV) or about 4% in each case. The change is in the right direction, but ΔEM(3) = 1.253 d.u. is still 17.5% larger than the true value, 1.066 d.u.
The inclusion of remote interactions has a minor effect on the cluster geometry and charge distribution. The antibonding nature of these interactions in the trimer core results in a slight but perceptible narrowing of the charge distribution, from qi = 0.25|0.50|0.25 to 0.24|0.52|0.24. This redistribution helps minimize the antibonding coupling between the terminal monomers in the trimer, with little or no effect on the local bond orders.
The bonding function calculated using this approach (Fig. 6) does fall within the initially defined bonding space,5 although it comes close to its lower boundary for χ = 0.35–0.5. It is primarily due to this significant deviation from the original trimer training point (blue in Fig. 1, greyed out in Fig. 6) that this bonding function overestimates the cluster stability by 17.5%.
This discrepancy is due to the assumption that pairwise couplings are unaffected by other monomers. The performance of the model overall depends sensitively on the bonding in the trimer ion,5 but this approach does not use the trimer energetics as an input. Instead, it assumes that the pairwise integrals in He3+ are the same as they would be at the same distance in He2+. This is not strictly correct, as the effective Hamiltonians of the two systems are different. This results in the bonding function in Fig. 6 missing the original trimer training point by a lot, causing the model to miscalculate the core-ion energy.
To rectify this, next we modify how the bonding function is calculated. The model performance is improved by including not only the dimer, but also the trimer, and larger-cluster energetics.
![]() | ||
Fig. 9 Black squares (a)–(f): β(χ) values determined from the respective per-bond potential minima in Fig. 4, assuming that only local bonds contribute to the overall cluster energy. Red circles (a)–(f): the same, but with the remote couplings considered. Solid blue curve: the continuous multicluster Hen+ bonding function obtained by fitting eqn (11) to red circles (a)–(f). Shaded green area: the bonding space defined by the dashed boundaries in Fig. 1. Solid grey curves: the original bonding functions shown in Fig. 1 in various colours. |
For He3+ (χ = 0.354), the per-bond minimum (b) in Fig. 4 corresponds to Vmin = −1.304 eV = −0.533 d.u. (Table 1). If only local interactions are included, then per eqn (1) and (4), it is related to the bond integral via β = Vmin/(2χ) = −0.754 d.u. This value of β for χ = 0.354 is represented by black square ‘b’ in Fig. 9. It is nearly indistinguishable from the trimer training point β = −0.750 d.u. introduced previously5 for Hen+ clusters (the blue circle in Fig. 1, greyed out in Fig. 9). The miniscule difference is due to the ΔEM(3) = 2.608 eV (1.066 d.u.) monomerization energy from the CCSD/aug-cc-pVTZ calculations used here, instead of the published1,2,4,24 ΔEM(3) = 2.598 eV (1.061 d.u.) result that was used to determine the original training point.5
Black squares c–e in Fig. 9 show the results of similar per-bond calculations for the square He4+ (c), hexagonal He6+ (d), and hendecagonal He10+ (e) structures in Fig. 3. The per-bond Vmin values for each structure (Table 1) were used to calculate the corresponding β(χ) values as β = Vmin/(2χ).
A crucial distinction between the s = 1 and s > 1 interactions is that for s > 1, the corresponding specific bond orders ρi,j or χi,j have only a minor effect on the ri,j distance, and therefore, hi,j. For example, the r1,3 distance in He3+ [Fig. 3(b)] is twice the local bond length, r1,3 = 2. That is, r1,3 is determined mainly by χ1,2, while χ1,3 has only a small effect. For this reason, the remote couplings cannot be defined in a manner similar to eqn (5), which is used for their local counterparts. Hence, we will continue describing the remote bond integrals using the dimer-based approach expressed in eqn (7), treating these (weak) couplings as a perturbative correction for the local bonds. The latter will be described by eqn (5) with a multicluster bonding function.
We illustrate this approach on the simplest case of He3+ [Fig. 3(a)]. The ab initio (CCSD) value of its monomerization energy is of ΔEM = 1.066 d.u. (Table 1). On the other hand, per eqn (1),
ΔEM = −2 × 2ρ1,2h1,2 − 2ρ1,3h1,3, | (10) |
The local integrals in eqn (10) are presumed to be defined by eqn (5). Namely, h1,2 = h2,3 = −β(χ1,2), with , while the weaker remote interactions are described using the dimer-based eqn (7). Using r from Table 1 for the local bond length r1,2 yields r1,3 = 2r1,2 = 2.286 d.u. Eqn (7) and the V(R) curve for He2+ in Fig. 3 (blue) then give h1,3 = −V(r1,3) = 0.104 d.u. Substituting all these quantities into eqn (10), results in β(0.354) = −0.791 d.u.
This empirical β value for the trimer ion was obtained assuming that its CCSD monomerization energy is determined by a combination of the local and remote pairwise interactions. As expected, it is slightly larger in magnitude than the initial −0.754 d.u. result (Table 1), which was obtained by ignoring the slightly destabilizing remote forces. The corrected value of β = −0.791 d.u. for χ = 0.354 is included in Table 1 and indicated by red circle ‘b’ in Fig. 9.
The above estimate shows that the 1–3 remote interaction in He3+ amounts to about −10% of each of the 1–2 and 2–3 bonds (ρ1,3h1,3/ρ1,2h1,2 = −0.1). That is, it is 10 times weaker and opposite in character (antibonding) compared to the local bonds. Since there are two such bonds and only one remote pair, the overall destabilising effect of the remote forces in He3+ is ∼5% of ΔEM. The relative small magnitude affirms the validity of our perturbative approach to these interactions.
Similar calculations for square He4+, hexagonal He6+, and hendecagonal He10+ are detailed in ESI.† The corrected values of the bond integrals, represented by the β values for = 1/4, 1/6, and 1/10, are included in Table 1 and Fig. 9 (red circles c–e). Implicit in this analysis is the assumption underlying eqn (3): that remote interactions do not affect cluster geometry, necessitating no changes to the r(χ) datapoints in Fig. 5. The noncovalent limit of the bonding function (point ‘f’ in Fig. 9) is assumed to be the same as in Section 4: β(0) = −0.042 d.u.
β(χ) = β0 − (1 + β0)[1 − (1 − 2χ)b2]1/b1 | (11) |
The blue curve in Fig. 9 is defined by this β0 value, with the optimal fit parameters b1 = 0.744 and b2 = 1.461. The resulting explicit β(χ) function was used in the following calculations.
Sample self-consistent coupled-monomers solutions are presented in Fig. 10 and 11 for He3+ and He10+, respectively. The content of these figures is colour-coded and formatted similarly to Fig. 7 and 8. In each figure, the solutions shown in black result from the local interactions only, while those in red include all pairwise couplings. The local interactions in all cases shown in Fig. 10 and 11 are treated using the multicluster bonding function given by eqn (11) and plotted in Fig. 9 (blue curve). The remote couplings for the red datasets are obtained using the dimer-based approach defined by eqn (9).
![]() | ||
Fig. 10 Sample solutions for He3+ obtained using the multicluster bonding function. Black symbols and annotations: only local couplings included. Red: all pairwise interactions included as described in the text. See Fig. 7 caption for further details. |
![]() | ||
Fig. 11 Sample solutions for He10+ obtained using the multicluster bonding function. Black symbols and annotations: only local couplings included. Red: all pairwise interactions included as described in the text. See Fig. 7 and 8 captions for further details. |
All solutions shown in Fig. 10 and 11 are structurally very similar to those in Fig. 7 and 8, despite the different bonding functions used. As predicted previously,5 the charge in all Hen±, n ≥ 3 clusters localises on a core trimer ion in most chemically relevant situations. Indeed, the covalently bonded He3+ structures in Fig. 10 are nearly indistinguishable from those in Fig. 7, including the very similar charge distributions. The He10+ solution in Fig. 11, similar to Fig. 8, corresponds to a He3+·He7 cluster structure, with 99.9% of the charge localised on the trimer core.
The one significant difference between the model outcomes in Sections 4 and 5 is in the respective cluster stabilities. While the dimer-based solution for He3+ including all interactions (Fig. 7) is described by a monomerizations energy that exceeds the ab initio value (1.066 d.u.) by 17.5%, the multicluster solution in Fig. 10 matches it almost exactly, provided the remote interactions are taken into account. In Fig. 11, the addition of several more He monomers to form He10+ (with a He3+·He7 structure) results in a miniscule increase in ΔEM. The observed increase is smaller in this case, compared to the dimer-based case Fig. 8, mirroring the smaller charge spillage off the trimer core.
In this work, we relied on high-level ab initio calculations to devise the bonding function for Hen+ cluster ions. Helium is the simplest closed-shell monomer, allowing us to illustrate general bonding behaviours in the most elementary case. Two alternative approaches to determining the bonding function were described. The first is based on the dimer-ion potential, the other on several multicluster training points obtained by analysing a series of special, not necessarily stable equilibria with all-equivalent bonds. The bonding functions determined by either method fall within the bonding space defined in the previous work,5 giving extra credence to the initial predictions. Each approach was tested in two regimes: by considering only the local bonds, and by including all—local and remote—pairwise interactions.
All four model variations yielded similar structural results, consistent with the known properties of Hen+.1,2,4,21,38 Under most realistic assumptions, the charge in any Hen+, n ≥ 3 system tends to localise on three monomers, resulting in the formation of trimer-ion cores within larger clusters. This prediction is robust with respect to an exact choice of the bonding function.
Both the dimer-based and multicluster approaches indicate that remote interactions in Hen+ are overall destabilising and account for approximately −5% of total covalent energy. There is, however, an important distinction between the two when it comes to cluster energetics. The dimer-based method overestimates the Hen+, n ≥ 3 cluster stabilities by 17.5%, even when all pairwise interactions are considered. The multicluster method, on the other hand, predicts the cluster monomerization energies almost exactly. This is because the dimer-based method is based on the He2+ energetics only, while one of the multicluster training points corresponds to He3+. In our previous work, we showed that the trimer training point is key to predicting any correct Xn± energetics using the coupled-monomers model.5
There remains one property that our model in its present form does not reproduce, which is the exact charge distribution within the He3+ trimer. High-level ab initio calculations by us and other authors19,25 show that the charge distribution in He3+ is broader than the qi = 0.25|0.50|0.25 Hückel limit. The CCSD results for the trimer ion in Fig. 3(b) correspond to Mulliken charges of qi = 0.267|0.466|0.267. In contrast, the coupled-monomers model in its present form, using the multicluster bonding function with all pairwise interactions accounted for, predicts a narrower distribution of qi = 0.238|0.523|0.238 (Fig. 10).
Thus, our model predicts that the destabilising remote forces in Hen+ work to narrow rather than broaden the charge distribution, which is contrary to the above CCSD prediction. In the future, we will show that the answer lies with the Coulomb integrals. So far they were presumed constant, but should also vary with respect to the density elements, just like their off-diagonal counterparts (the bond integrals) do.
Finally, we reiterate the overall conclusion that in the absence of geometric constraints the charge in various Xn± systems tends to be shared by three monomers. In this work we focused on monoatomic monomers (X = He), but the coupled-monomers approach can be and has been similarly used to treat Xn± clusters of polyatomic species, with similar conclusions.5 We stress that the universal trimerization trend in such weakly-bonded covalent networks has been revealed in a purely coherent regime. It results from the enthalpy-driven competition between charge sharing and localisation and is a feature of IM covalent couplings per se, largely independent of the intrinsic properties of the monomers. Therefore, many other trimer-ion species are likely to be found, particularly in cold environments such as exoplanetary atmospheres and outer space.
