A case study using spectroscopy and computational modelling for Co speciation in a deep eutectic solvent

Abstract

Cobalt has a vital role in the manufacturing of reliable and sustainable clean energy technologies. However, the forecasted supply deficit for cobalt is likely to reach values of 150 kT by 2030. Therefore, it is paramount to consider end-of-life devices as secondary resources for cobalt. Electrorecovery of cobalt from leached solutions has attracted attention due to the sustainability of the recovery process over solvent extraction followed by chemical precipitation. Recently, we reported Co electrorecovery from two different cobalt sources (CoCl₂·6H₂O and CoSO₄·7H₂O) using ethylene glycol : choline chloride (EG : ChCl) in a 4.5 : 1 molar ratio, leading to higher purity and easier electrodeposition when sulfate was present as an additive. Here, Co²⁺ speciation is reported for the two EG : ChCl systems depending on the cobalt source using several spectroscopic techniques (e.g. NMR, EPR, FTIR) in combination with molecular dynamics simulations. Monodentate coordination of SO₄²⁻ to Co²⁺, forming the tetrahedral [CoCl₃(SO₄)]³⁻ was observed as the dominant structure in the system containing CoSO₄·7H₂O, whereas the system comprising CoCl₂·6H₂O shows a homoleptic tetrahedral [CoCl₄]²⁻ as the dominant structure. This resulted in knowledge being gained regarding Co²⁺ speciation and the correlation with electrochemistry will contribute to the science required for designing safe electrolytes for efficient electrorecovery.

---

Introduction

Cobalt is listed as a critical metal due to its scarcity and important role in developing clean energy, as it is one of the key metals in Li-ion battery (LIB) cathodes. The demand for LIBs is expanding due to the ever-increasing demand for consumer electronics and electric vehicles, thereby leading to a large volume of spent LIBs as waste. Recent research publications have projected that by 2030, more than 11 million tonnes of spent LIBs will reach their end of life.^1,2 This is a significant problem as spent LIBs contain toxic and flammable chemicals as well as metals, including cobalt that can create a serious impact on human health and the ecosystems.³ The current recovery process of cobalt from spent LIB cathodes is mainly based on hydrometallurgical methods involving leaching (using traditional concentrated acids or alkali), separation steps (e.g., solvent extraction, ion exchange resins), and product recovery steps (e.g., precipitation, electrodeposition).^4,5

The use of deep eutectic solvents (DESs) for metal recovery has received a great deal of attention since they can be safer and more environmentally friendly compared to conventional solvents such as H₂SO₄, HNO₃, and HCl, which are currently used in metal recovery.^6–9 DESs can be easily tuned by mixing different hydrogen bond donors (HBD) and hydrogen bond acceptors (HBA) to form a liquid at room temperature.¹⁰ Moreover, the suitability of DESs for the electrochemical deposition of cobalt has been illustrated using several DESs in the recovery process.^10–16

Recently, we have investigated the electrochemical recovery of Co using two model Co sources (CoCl₂·6H₂O and CoSO₄·7H₂O) in three solvent systems containing different EG amounts (67 molar%, 82 molar%, and 100 molar%) in a mixture with choline chloride to study the role of EG. 82 molar% EG with ChCl (EG : ChCl in 4.5 : 1 molar ratio) led to an easier reduction of Co²⁺ compared to the 2 : 1 (67 molar% EG) system.¹⁷ These Co sources were chosen based on the possible anions in the solution after leaching the spent LIBs with the most common acids (HCl and H₂SO₄) in hydrometallurgy. This previous study showed clear differences in the electrochemical behaviour of the two systems, indicating the likely existence of different speciation for Co²⁺. The sulfate system (0.1 mol L⁻¹ CoSO₄·7H₂O in EG : ChCl (4.5 : 1)) showed more positive Co²⁺ reduction potential, stable electrodeposition for 45 minutes (constant current density with time), and higher metallic Co content in the electrodeposit in comparison to the chloride system (0.1 mol L⁻¹ CoCl₂·6H₂O in EG : ChCl (4.5 : 1)).¹⁷ Both systems showed similar physicochemical properties such as viscosity and ionic conductivity even though the water contents differed, with a higher content for the sulfate system (chloride system: <4000 ppm and sulfate system: <7500 ppm), which interestingly did not translate into a higher content of side products (Co(OH)₂) in the electrodeposits. Therefore, we hypothesised that the above-mentioned differences in the electrochemistry of the two systems could be due to the differences in Co²⁺ speciation in the bulk. Hence, in-depth speciation studies for Co²⁺ are required to understand the differences in the bulk of the two systems and, thus, their impact on the electrochemistry. The correlation between the electrochemistry and speciation of metal ions such as Nd, Na, Cu, and Co in ILs,^18–23 and Zn, Te, I₂, Ni, and U in DESs,^24–31 have been previously reported.

Speciation can be investigated using analysis techniques to identify or quantify a chemical species in a sample. Ultraviolet-visible (UV-vis) and Fourier transform infrared (FTIR) spectroscopies are the most reported analytical techniques used to gain knowledge on Co²⁺ speciation in the literature.^11,32,33 UV-vis analysis of Co²⁺ in ChCl:EG (1 : 2), ChCl:citric acid (2 : 1) and ChCl:organic acid (e.g. lactic, malonic, succinic, glutaric, glycolic acids) in a 1 : 1 and 1 : 2 molar ratio have shown three signature bands of the tetrachlorocobaltate(II) anion (tetrahedral) between 600–700 nm, irrespective of the chemical nature of the HBD.³² However, Co²⁺ in ChCl:urea (1 : 2) and aqueous dilutions of p-tolunesulfonic acid:ChCl (1 : 1) has shown only one broad band (at λ_max 638 nm and ∼515 nm respectively) which corresponds to an octahedral Co²⁺.^34,35 On the other hand, FTIR spectroscopic analysis of Co²⁺ in ChCl:lactic acid (1 : 1) and ChCl:urea (1 : 2) has been used to understand the coordination of Co²⁺ in DESs. A new band at 2208 cm⁻¹ has been identified upon adding Co²⁺ in ChCl:urea (1 : 2) compared to the neat DES. This new absorption band has been attributed to the Co–O bond,³⁵ confirming the coordination of urea with Co²⁺.

Speciation can be affected by factors such as the presence of additives, e.g., water. A study was carried out by Amphlett et al. on the effect of increasing water content on the speciation of Co²⁺ in three DESs (EG : ChCl in 2 : 1, urea:ChCl in 2 : 1, and malonic acid:ChCl in 1 : 1).³⁶ They have shown that with less than 20 weight% of water, Co²⁺ in all three DESs presents tetrahedral geometry. Once the water content was increased up to 50 wt%, the speciation of Co²⁺ changed from tetrahedral to octahedral geometry.

Molecular dynamics (MD) simulations can provide complementary atomic-scale insights into the coordination of Co²⁺ in these complex liquid environments. Computational studies on neat EG : ChCl (2 : 1) have been reported previously.^37–39 Bezerra et al. reported outcomes of force-field MD (FFMD) simulations of CoCl₂·6H₂O in EG : ChCl (2 : 1) and found that the Co²⁺ interacted strongly with Cl⁻ independent of temperature,⁴⁰ as expected due to the chlorophilic nature of Co²⁺.^41,42 It has also been reported that the Co–Cl coordination number increased with higher temperatures (333 and 353 K).⁴⁰ However, to date, no simulations of the EG : ChCl (4.5 : 1) composition have been reported, nor have any simulations of this DES containing both Co²⁺, chloride and the additives present in our system (e.g. sulfate ions, ethylene glycol, water).

Therefore, this work investigates the speciation of Co²⁺ in two systems (0.1 mol L⁻¹ CoCl₂·6H₂O in EG : ChCl (4.5 : 1) and 0.1 mol L⁻¹ CoSO₄·7H₂O in EG : ChCl (4.5 : 1)) using UV-vis spectroscopy, FTIR spectroscopy, electron paramagnetic resonance (EPR) spectroscopy, nuclear magnetic resonance (NMR) spectroscopy and MD simulations. Our results reveal that even when SO₄²⁻ (Co²⁺ : SO₄²⁻, 1 : 1) is present in a significantly lower concentration compared with Cl⁻ (Co²⁺ : Cl⁻, 1 : 26), it could still be coordinated to Co²⁺ together with 3 Cl⁻, forming a mixed ligand coordinated tetrahedral complex that eases the Co electrodeposition. This mono-coordination of SO₄²⁻ to Co²⁺ in the sulfate system has been corroborated using FTIR spectroscopy and MD simulations, whereas ¹H NMR spectroscopy has clearly shown a significant difference in the chemical environment between sulfate and chloride systems. Hence, this study demonstrates new insights into the tunability of the electrochemical behaviour of Co²⁺ based on the chemical composition of the electrolyte.

Experimental

Materials and solution mixtures

Cobalt chloride hexahydrate, CoCl₂·6H₂O with 98% purity, cobalt sulfate heptahydrate, CoSO₄·7H₂O with ≥98% purity, anhydrous ethylene glycol with 99.8% purity, and choline chloride, with ≥98% purity were purchased from Sigma-Aldrich. All chemicals were used as received.

The solvent system was prepared by mixing ethylene glycol (EG) and choline chloride (ChCl) in a 4.5 : 1 molar ratio and stirring at 500 rpm for 2–3 h at room temperature in a fume hood until a clear and homogeneous solution was obtained. Two solution mixtures were prepared by adding CoCl₂·6H₂O and CoSO₄·7H₂O salts to obtain 0.1 mol L⁻¹ in EG : ChCl (4.5 : 1). (0.0242 g of CoCl₂·6H₂O and 0.0281 g of CoSO₄·7H₂O were dissolved in 1.0 mL of solvent system). Solutions were stirred for 1 h at 50 °C in an Ar-filled glovebox (Kiyon, H₂O, and O₂ <0.1 ppm) until homogeneous solutions were obtained.

Ultraviolet-visible (UV-vis) spectroscopy

A UV-vis spectrophotometer (UV-2600, SHIMADZU) was used to identify the coordination geometry of Co²⁺ in each solution mixture. UV spectra were obtained before and after diluting the solution mixtures (0.001 mol L⁻¹, 100 times to lower concentrations) with the solvent system consisting of EG : ChCl (4.5 : 1) to avoid saturation of the absorbance and performing a wavelength scan.

Fourier transform infrared (FTIR) spectroscopy

The FTIR spectra of the samples were recorded using a PerkinElmer Frontier spectrometer, with the background being measured under identical conditions (4000–500 cm⁻¹, 4 cm⁻¹ resolution, and 32 scans) at room temperature. The spectrometer was equipped with a Golden Gate Diamond ATR stage with a heating option. The detachable top plate of the stage's specially designed anvil attachment prevented the sample from being exposed to atmospheric moisture after loading the samples inside a glovebox. The spectra were ATR-corrected, and baseline corrected.

Electron paramagnetic resonance (EPR) spectroscopy

The EPR measurements were performed at room temperature using an ADANI CMS 8400 X-band bench-top EPR spectrometer. Samples were placed into quartz glass capillary tubes with a 4 mm diameter. Typical instrument settings were center field: 334 mT, sweep width: 250 mT, modulation amplitude: 200 μT, power attenuation: 12 dB, and sweep time: 50 s. The average signal after 50 scans was plotted for each sample. The background was corrected using Origin.

Nuclear magnetic resonance (NMR) spectroscopy

¹H NMR spectra of the samples were measured using a Bruker Avance III 500 MHz spectrometer at room temperature. Samples were filled into 3 mm capillary tubes and inserted into 5 mm NMR tubes filled with D₂O after heat sealing.

Force-field molecular dynamics (FFMD) simulations

Force-field molecular dynamics (FFMD) simulations of Co²⁺ in the DES were conducted using GROMACS software.⁴³ The optimized potentials for liquid simulations – all atom (OPLS–AA) force field with Doherty et al.'s scaled parameters for the EG : ChCl (2 : 1) were used.^44,45 Sulfate ion parameters were taken from Cannon et al. and were also scaled.⁴⁶ Three liquid compositions were modelled in total, all with a 4.5 : 1 molar ratio: two compositions were modelled with CoSO₄ salt (at two different concentrations: one at a higher concentration (Co²⁺ : EG, 1 : 45) and one at the lower (Co²⁺ : EG, 1 : 120) similar to the experimental concentration) and one with CoCl₂ salt (at a higher concentration only), summarised in the ESI,† Table S1. These systems were subjected to equilibration under an isothermal-isobaric ensemble (NPT) at 1 bar for 10–20 ns until a stable density was achieved. Following this step, the liquid was thoroughly mixed using simulated annealing (SA). The complexity of the mixture led to several adjustments of this computational mixing protocol (details are given in the ESI†). Convergence of the relevant radial distribution functions was used to determine the appropriate number of SA cycles required to ensure thorough mixing. Production runs were performed in triplicate, with different initial atomic coordinates in each case, and comprised 100 ns at 300 K in the NVT ensemble at the equilibrium density. Frames were saved every 10 ps. Analysis of coordination numbers and hydrogen bonding used in-house python codes were then used in MD analysis.^47,48 Full details, including liquid compositions, are provided in the ESI.†

Ab initio molecular dynamics (AIMD) simulations

Ab initio molecular dynamics (AIMD) simulations were also used to investigate these liquids. Due to their basis in density functional theory (DFT), AIMD is more computationally intensive than FFMD and therefore is constrained by relatively smaller system sizes to ensure appropriate simulation timescales can be achieved. To generate the initial configurations for AIMD, a small system comprising 1 Co²⁺ atom, and the respective number of molecules (703 atoms, compared with ∼22 000 atoms for the FFMD simulations) was prepared using FFMD simulations to ensure these smaller samples matched the liquid density obtained from the larger-sized FFMD simulations (details in the ESI,† Table S2). Spin-polarized AIMD simulations were performed using the Vienna Ab Initio Simulation Package (VASP),⁴⁹ with the PBE functional,⁵⁰ along with projector augmented wave potentials.^49,51–53 The temperature was controlled using the Nosé–Hoover^54,55 thermostat at 300 K. The two systems were run for 21 ps of dynamics with a timestep of 1 fs.

Results and discussion

UV-vis analysis was conducted to investigate the coordination geometry of Co²⁺. The blue colour of both systems indicates a tetrahedral coordination geometry, which was also corroborated by UV-vis spectra showing three signature bands between 600–700 nm^32,33,56 (Fig. 1). Tran et al. reported [CoCl₄]²⁻ is indicated by the three signature bands at 630, 667, and 696 nm in the EG : ChCl (2 : 1) solvent after leaching LiCoO₂.³³ In our study, the two systems had to be diluted 100 times with EG : ChCl (4.5 : 1) before the analysis to avoid the saturation of the absorbance,¹⁷ and no colour change was observed upon dilution, indicating that the tetrahedral geometry of Co²⁺ was maintained. However, the UV-vis spectra of 0.1 mol L⁻¹ Co²⁺, prior to dilution, shows a small proportion of octahedral Co²⁺ (λ_max = 531 nm) in both systems together with the dominant tetrahedral Co²⁺ as shown in Fig. S1 (ESI†). Recently an octahedral structure [Co(EG)₆]²⁺ was reported at λ_max = 534 nm, which is slightly different from the value that we observe.⁵⁷ This difference may be related to a different octahedral speciation in our system, which may combine EG and other ligands available in the DES mixture.

Fig. 1 UV-vis spectra of 0.001 mol L⁻¹ (a) CoCl₂·6H₂O in EG : ChCl (4.5 : 1) and (b) CoSO₄·7H₂O in EG : ChCl (4.5 : 1), the wavelength of each band, colour in the original solution mixture (0.1 mol L⁻¹) and hypothesised Co²⁺ tetrahedral coordination in the sulfate system.

Moreover, the blue colour was maintained in both systems when heated at 50 °C, in which the electrochemical experiments were performed, indicating that Co²⁺ tetrahedral coordination remained at 50 °C.

[CoCl₄]²⁻ is the most commonly reported tetrahedral structure for Co²⁺ in chloride-containing media; however, it has been reported to be electrochemically inactive.^20,23 As we have reported the successful reduction of Co²⁺ to cobalt metal in a chloride rich environment that contained other additives (e.g. EG, water, and sulfate anion),¹⁷ it is plausible that those additives or other molecules such as sulfate and/or EG could be part of the solvation sphere in addition to chloride while maintaining the tetrahedral coordination geometry in the undiluted systems.¹⁷ To investigate this, several spectroscopic techniques were used, as described below, to investigate the chemical nature of the coordinated ligands and the speciation of Co²⁺ in the two systems.

EPR spectroscopy

EPR spectroscopy is a valuable analytical technique to detect different chemical environments in paramagnetic transition metal complexes (i.e., cobalt), including its coordination geometry.⁵⁸ Unfortunately, there is a lack of EPR spectroscopy studies of Co²⁺ chemical environments in DESs. The EPR spectra, as shown in Fig. S2(a) (ESI†), arise from the interaction between the external magnetic field and magnetic moments of unpaired electrons in the systems, according to the Zeeman interaction.⁵⁸

Paramagnetic metal ions can exhibit different g values depending on the orientation of the metal complex in the applied magnetic field.⁵⁸ Therefore, the g factor was calculated for the chloride and sulfate systems using eqn (S2), and plotted as shown in Fig. S2(b) (ESI†).

Both systems showed similar g values (2.4) which lie in the region expected for tetrahedral Co²⁺ complexes (g = 2.2–2.4) in agreement with the UV-vis spectra.^59,60 However, there is no significant difference between the spectra of the two systems that can provide information regarding the chemical nature of the ligands that are coordinated to Co²⁺. This may be due to the very fast spin lattice relaxation of Co²⁺ leading to line broadening,⁶⁰ and the lower sensitivity of this technique when using a high dielectric solvent (dielectric constant of EG = 37) at room temperature. However, we also need to consider that the changes in speciation between the two systems may be too small to be detected accurately by EPR spectroscopy.

FTIR spectroscopy

FTIR spectroscopy is a useful technique to investigate the solvation environment of metals in the solvent system under study. First, the solvent system, EG : ChCl (4.5 : 1) and its individual constituents (EG as the hydrogen bond donor (HBD) and ChCl as the hydrogen bond acceptor (HBA)) were analysed using FTIR as shown in Fig. S3 (ESI†). Details of the spectral bands are provided in the ESI.†

Subsequently, the cobalt-containing systems were analysed using FTIR spectroscopy, as shown in Fig. 2, and compared with the neat DES. The spectra showed no significant changes in the band's position compared to the neat solvent systems.

Fig. 2 FTIR spectra of EG : ChCl (4.5 : 1) (bottom), 0.1 mol L⁻¹ CoCl₂·6H₂O in EG : ChCl (4.5 : 1) (middle) and 0.1 mol L⁻¹ CoSO₄·7H₂O in EG : ChCl (4.5 : 1) (top) analysed at room temperature.

In our previous study, we observed that the mixtures containing a small concentration of sulfate anions, in conjunction with chloride anions, favoured the reduction of Co²⁺.¹⁷ Therefore, here we focused our attention on the S–O vibration region to understand the role of sulfate in cobalt electrochemistry. According to the literature, the free sulfate anion has tetrahedral symmetry with four internal fundamental vibrational modes: symmetric S–O stretching, asymmetric S–O stretching, symmetric O–S–O bending, and asymmetric O–S–O bending. However, only the bands corresponding to asymmetric S–O stretching (1102 cm⁻¹) and asymmetric O–S–O bending (611 cm⁻¹) are active and within the range of the FTIR spectrometer.^61–64

On the other hand, a coordinated sulfate anion shows a splitting of the asymmetric S–O stretching band to two or three bands depending on the coordination denticity, allowing the weak symmetric S–O stretching band to become IR active. Therefore, three bands in total exemplify the monodentate coordination, whereas four bands are present for bidentate coordination with an additional peak at ∼1200 cm⁻¹.^65,66 Several authors reported the three bands for monodentate coordinated sulfate in different complexes; [Co(NH₃)₅SO₄]·Br, [Cr(OH₂)₅SO₄Cl]·0.5H₂O and FeSO₄⁺ in the range 970–980 cm⁻¹, 1040–1059 cm⁻¹ and 1122–1130 cm⁻¹ for symmetric S–O stretching, and two asymmetric S–O stretching bands respectively.^61,65 However, here, the FTIR spectrum of the sulfate system was not clear as an overlapping with the bands of the neat solvent system occurred. Therefore, a higher concentration of CoSO₄·7H₂O was added to EG : ChCl (4.5 : 1), and Fig. 3 depicts the sulfate region of interest.

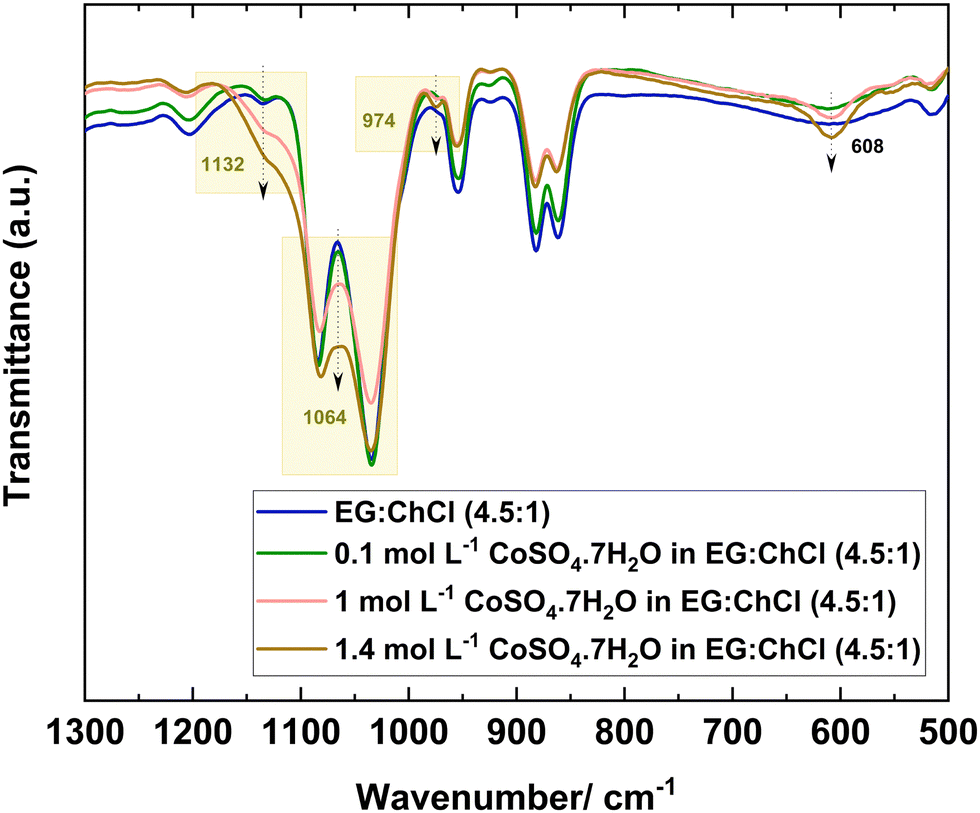

Fig. 3 FTIR spectra of EG : ChCl (4.5 : 1), 0.1 mol L⁻¹, 1 mol L⁻¹, and 1.4 mol L⁻¹ of CoSO₄·7H₂O in EG : ChCl (4.5 : 1) analysed at room temperature.

The concentration of CoSO₄·7H₂O was increased by more than 10 times while maintaining the Co : sulfate ratio at 1 : 1. An increase in the relative intensity of the band at 1132 cm⁻¹, a small new band at 974 cm⁻¹ and a change at 1064 cm⁻¹, were observed upon increasing the sulfate salt in the DES mixture (Fig. 3). Interestingly, there was no increase in the relative intensity of the band at 1200 cm⁻¹, which originates from the solvent system, EG : ChCl (4.5 : 1). All these observations suggest a possible monodentate coordination of the sulfate anion with Co²⁺. Moreover, the relative intensity of the asymmetric O–S–O bending vibration band at 608 cm⁻¹ also increased with the increase in CoSO₄·7H₂O concentration, suggesting the presence of free sulfate in the sulfate system.^67,68 This can be related to the large excess concentration of CoSO₄·7H₂O in the DES mixture. FTIR spectroscopy was also performed for the 1.4 mol L⁻¹ of CoSO₄·7H₂O in EG : ChCl (4.5 : 1) at 50 °C, at the same temperature as the electrochemical experiments were performed (Fig. S4, ESI†). No changes were observed between the spectra at room temperature and at 50 °C, indicating similar Co²⁺ speciation at those temperatures.

¹H NMR spectroscopy

¹H NMR spectroscopic analysis was conducted to further investigate the possible interaction of Co²⁺ with the EG : ChCl (4.5 : 1) under study. Similar to the FTIR spectroscopic analysis, the individual constituents of the solvent system, EG and ChCl, and the solvent system, EG : ChCl (4.5 : 1), were analysed using ¹H NMR spectroscopy at room temperature, as shown in Fig. S5 (ESI†). For these measurements, the chemicals were introduced in a flame sealed 3 mm capillary inside a 5 mm conventional NMR tube which contained D₂O for field lock and accurate referencing of chemical shifts of the samples. This setup was also used to avoid the interaction of Co²⁺ with the D₂O, which would have affected the field locking or referencing, thereby maintaining the accuracy of the experimental analysis. In the case of ChCl, due to its solid state, the sample was dissolved in D₂O.

A detailed analysis of the ¹H NMR spectra was performed to identify the protons in the solvents and possible interactions in the DES and are provided in the ESI.†

¹H NMR spectroscopy was then performed for EG : ChCl (4.5 : 1) in the presence of the two Co salts under study to investigate the effect of the salt chemistry on the Co coordination (shown in Fig. 4 and Fig. S7, ESI†) using the same experimental setup as described above.

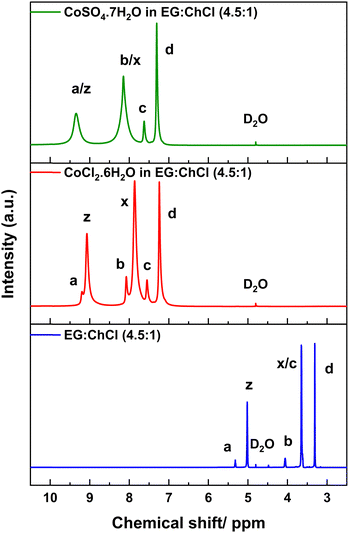

Fig. 4 ¹H NMR spectra of EG : ChCl (4.5 : 1) (bottom), 0.1 mol L⁻¹ CoCl₂·6H₂O in EG : ChCl (4.5 : 1) (middle) and 0.1 mol L⁻¹ CoSO₄·7H₂O in EG : ChCl (4.5 : 1) (top) analysed at room temperature.

In general, a broadening and shift to high ppm values of all the peaks were observed, consistent with the presence of a paramagnetic complex in the two Co containing systems compared to the neat EG : ChCl (4.5 : 1).^69–71 All the chemical shift values of protons in the neat solvent system and the two Co containing systems are given in Table 1.

Table 1 Chemical shift values of protons in EG : ChCl (4.5 : 1), 0.1 mol L⁻¹ CoCl₂·6H₂O and 0.1 mol L⁻¹ CoSO₄·7H₂O in EG : ChCl (4.5 : 1) and the extent of chemical shift from the EG : ChCl (4.5 : 1) for the chloride and sulfate system

	Chemical shift of the protons “d” (ppm)	Chemical shift of the protons “c” (ppm)	Chemical shift of the protons “b” (ppm)	Chemical shift of the protons “a” (ppm)	Chemical shift of the protons “x” (ppm)	Chemical shift of the protons “z” (ppm)
EG : ChCl (4.5 : 1)	3.30	3.64	4.05	5.31	3.65	5.01
CoCl2·6H2O in EG : ChCl (4.5 : 1)	7.24	7.55	8.07	9.19	7.86	9.07
CoSO4·7H2O in EG : ChCl (4.5 : 1)	7.30	7.62	8.14 (merged with x)	9.34 (merged with z)	8.14 (merged with b)	9.34 (merged with a)
Extent of the shift from EG : ChCl (4.5 : 1) for chloride system	3.94	3.91	4.02	3.88	4.21	4.06
Extent of the shift from EG : ChCl (4.5 : 1) for sulfate system	4.00	3.98	4.09	4.03	4.49	4.33

---

The aliphatic protons (x) of EG in both systems showed a significant increase in the shift to high ppm values from the neat solvent system (by 4.21 ppm and 4.49 ppm for chloride and sulfate systems, respectively), compared to the protons of ChCl, suggesting a probable coordination of EG with Co²⁺. However, the extent of the peak shift to high ppm values for all the peaks, and the broader peaks from EG in the sulfate system compared to the chloride system, indicate a shorter average distance to the paramagnetic center (Co²⁺) in the sulfate system.⁷⁰ For instance, in the sulfate system, the aliphatic protons (x) and hydroxyl protons (z) of EG show broader peaks overlapping the protons (b) and (a) of ChCl compared to the chloride system. Therefore, proton shifts in the sulfate system have been affected more by the paramagnetic properties of Co²⁺ than in the chloride system, indicating a difference in the chemical environment between the two systems based on the type of Co salt. This suggests a higher probability of EG coordination to Co²⁺ in the sulfate system compared to the chloride system. However, this EG coordination to Co²⁺ in the sulfate system was not observed from FTIR analysis, likely reflecting differences in the sensitivity of the two techniques.

Molecular dynamics simulations

Both force field molecular dynamics (FFMD) and ab initio molecular dynamics (AIMD) simulations were conducted to gain more insight into the speciation of Co²⁺ in the two systems under study. Two scenarios were studied for the EG : ChCl (4.5 : 1): one with CoSO₄ salt and one with CoCl₂ salt, with the number of different molecule types summarized in the ESI† (Table S1). The FFMD simulations are more approximate and more computationally economical, whereas the AIMD simulations are potentially more accurate and relatively computationally expensive. The FFMD simulations allow consideration of larger system sizes over longer timescales, whereas AIMD is confined to smaller system sizes and short timescales. The AIMD simulations have been used here to explore the stability of structures identified using the longer, larger, but more approximate FFMD simulations. Both sets of simulations were designed to predict the equilibrium structures of the Co/liquid complex.

Force field molecular dynamics simulations

Theoretically, there are 120 EG molecules for every Co²⁺ in the EG : ChCl (4.5 : 1) system corresponding to a concentration of 0.1 mol L⁻¹ of Co²⁺. However, to allow for reasonable sampling of possible structures, the systems were initially studied using FFMD simulations at a higher concentration of 1 Co²⁺ to 45 EG.

First, the liquid density was compared with experiment to validate the force fields used in the FFMD simulations.^45,46,72 The experimental density (1.1157 g cm⁻³) tallied favourably with the simulated bulk density (1.115 g cm⁻³) at 300 K. Following this, the average coordination environment of the Co²⁺ was quantified as shown in Fig. 5.

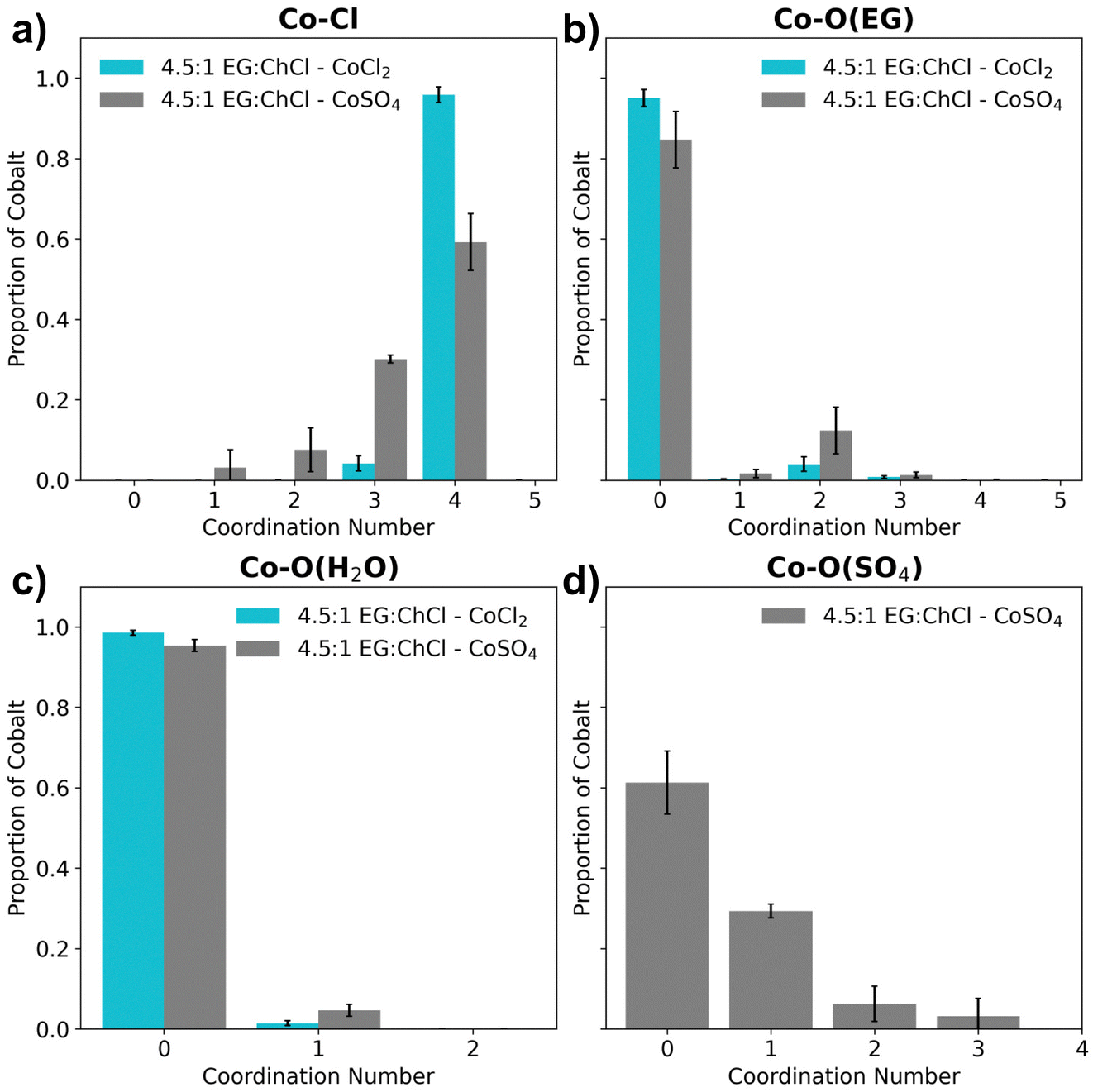

Fig. 5 Coordination number distributions of the first shell of the Co²⁺ for the 4.5 : 1 EG : ChCl system for (a) Co–Cl, (b) Co–O(EG), (c) Co–O(H₂O) and (d) Co–O(SO₄).

For this analysis, coordination of the Co²⁺ site to each relevant component of the solvent was defined by a cut-off distance in each case, established using radial distribution data (Fig. S8, ESI†). Coordination analysis of the Co²⁺–Cl first shell (Fig. 5a) revealed an almost exclusive preference for a 4-coordinated arrangement in the chloride system that was confirmed to be tetrahedral and is consistent with the experimental UV-vis and EPR data. In contrast, the sulfate system supports a relatively marked increase in the 3-coordinated chloride population counterbalanced with a decrease in the proportion of 4-coordinated complexes, suggesting another species has replaced a chloride ion in the first shell. Since the coordination of EG and water is not dominant (Fig. 5b and c), the replacement of a chloride in the sulfate system is due to coordination by a single sulfate (Fig. 5d).

This [CoCl₃SO₄]³⁻ complex is predicted to comprise ∼30% of the sample in the sulfate system, supporting the hypothesis of mixed ligand complexes playing a role and consistent with the FTIR data. The coordination data also indicates a minor role for EG coordination to Co²⁺ in the sulfate-containing system with a ∼10% population of bidentate coordinated EG (coordination number is 2 as shown in Fig. 5b), which is in agreement with the observations from ¹H NMR spectroscopic analysis. In contrast, the chloride system showed a relatively reduced amount of EG bidentate coordination to Co²⁺ (Fig. 5b).

The sulfate-containing system was subsequently studied using a ratio of 1 Co²⁺ to 120 EG, corresponding to the experimental concentration (0.1 mol L⁻¹). All three replicates of the production run yielded Co–sulfate coordination. The RDF for this system further confirmed a higher likelihood of a monodentate sulfate–Co coordination and furthermore, suggested a mixed ligand environment in the first coordination shell (Fig. S9, ESI†).

Some of the mixed ligand complexes noted above, including H₂O and EG in the first coordination shell, were observed in an octahedral geometry (Fig. S10, ESI†). Nonetheless, this proportion is a minority with only ∼14% of the Co²⁺ featuring this geometry. However, this is still a significant increase compared with its chloride salt counterpart where ∼3% of the cobalt were in the octahedral geometry. In this 14% octahedral population, EG was almost always coordinated to the Co²⁺ (Fig. S11a, ESI†). Further probing this octahedral coordination in the sulfate system, it was noted that water coordination was almost always accompanied by the EG and sulfate being coordinated to the Co²⁺ (Fig. S11b, ESI†). Water coordination was also observed in FFMD studies reported by Bezerra-Neto et al. and Bezerra et al. of Cu²⁺ and Co²⁺ respectively in the 2 : 1 EG : ChCl composition where both studies contained approximately similar amounts of water molecules as our study.^40,73

The sulfate oxygen (O(SO₄)–O(H₂O)) RDFs (obtained for any sulfate in the liquid, coordinated or not), shown in Fig. 6a, confirm the dominance of sulfate–water interactions compared to the other species in the liquid. H-bonding analysis of the water interacting with the sulfate that is coordinated to Co²⁺ showed that over the 10 000 frames, there were 145 511 H-bonds between a water and a SO₄²⁻ anion coordinated to a Co²⁺, indicating an average number of H-bonds at any point in time in the sample of ∼15. The probabilities of water being in the second sphere supporting sulfate coordination to the Co²⁺ are also higher than 50% as shown in Fig. 6b.

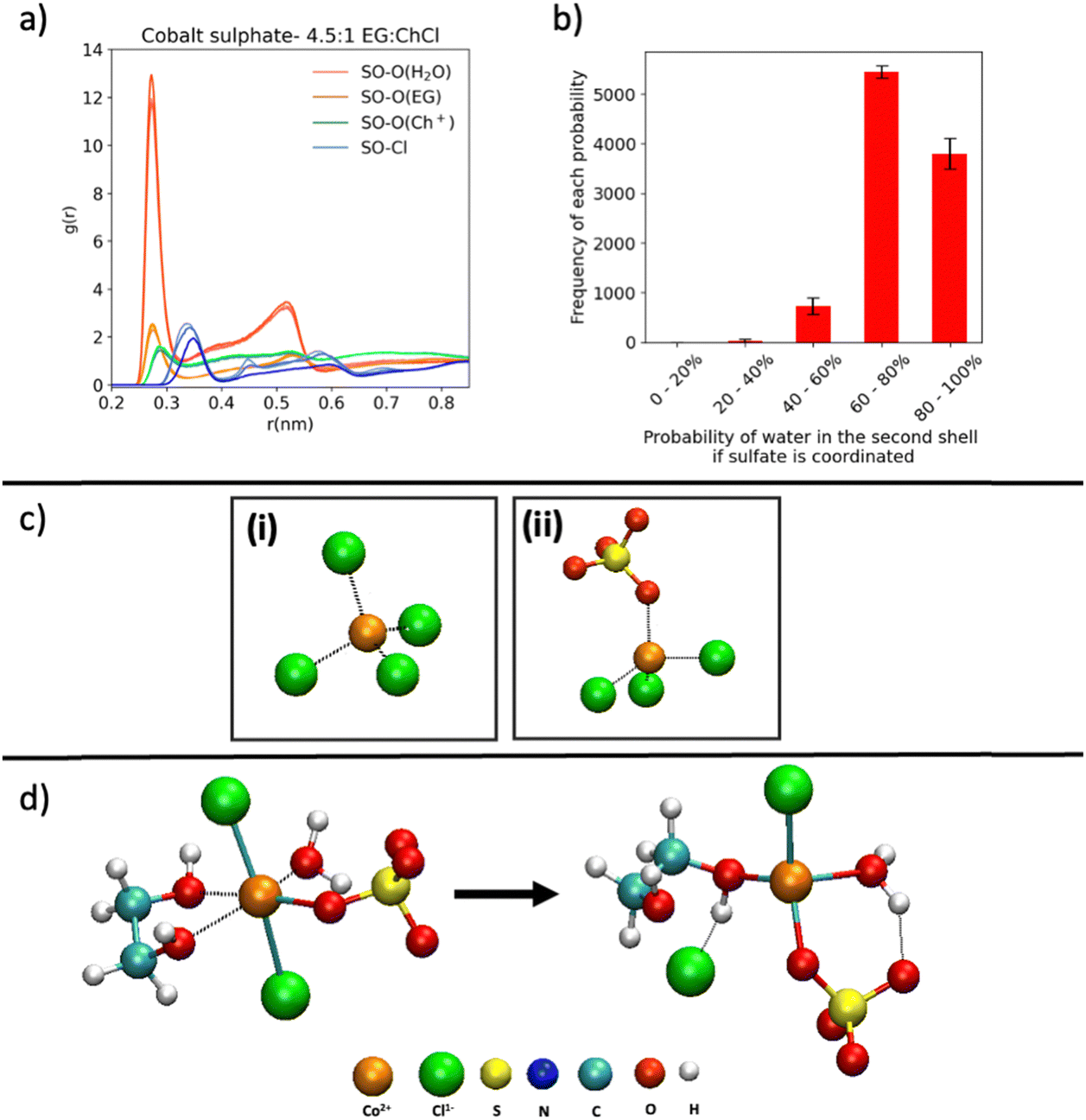

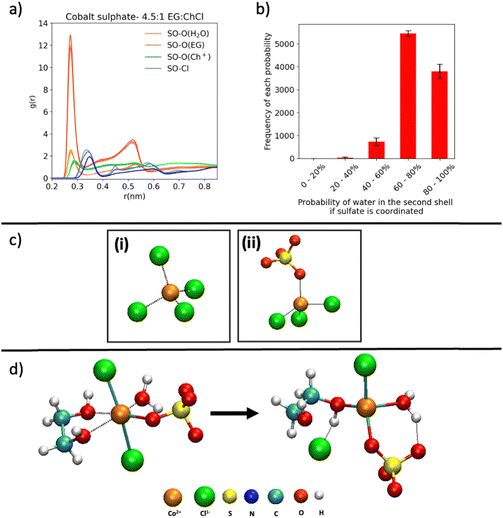

Fig. 6 (a) RDFs of SO-X (where X is the other species of interest) in the sulfate system obtained from FFMD simulations. (b) Probabilities of finding water in the second shell of the Co²⁺ when sulfate is already coordinated to the cobalt obtained from FFMD simulations. (c) (i) [CoCl₄]²⁻ complex used in AIMD trajectories for the chloride system, and (ii) [CoCl₃(SO₄)]³⁻ complex used in the AIMD trajectory for the sulfate system. (d) Initial (octahedral) and final (tetrahedral) state of the complex [CoCl₂(EG)(SO₄)(H₂O)]²⁻ studied for the sulfate system using AIMD.

Ab initio molecular dynamics (AIMD) simulations

To further investigate the stability of the structures predicted using the FFMD simulations, AIMD simulations based on 1 Co²⁺ were explored. Therefore, AIMD was carried out based on initial geometries in 2 different tetrahedral complexes; [CoCl₄]²⁻ (Fig. 6c(i)), [CoCl₃(SO₄)]³⁻ (Fig. 6c(ii)) and one octahedral complex composed of possible mixed ligands from the electrolyte, [CoCl₂(EG)(SO₄)(H₂O)]²⁻ (Fig. 6d).

The tetrahedral complexes [CoCl₄]²⁻ and [CoCl₃(SO₄)]³⁻ showed no significant structural variation over the duration of the AIMD simulations (∼20 ps) indicating that these complexes are stable. The calculated bond lengths of Co–Cl were found to be 2.25 Å in both systems, and the bond length of Co–OSO₃ in the sulfate system was 1.95 Å.

The octahedral complex [CoCl₂(EG)(SO₄)(H₂O)]²⁻ (initial structure in Fig. 6d) begins to convert into a tetrahedral structure after 6 ps; the initial and final structures for this trajectory are shown in Fig. 6d. The main changes were the removal of a Cl⁻ from the first coordination shell of the cobalt. Additionally, the EG, which was previously bidentate, changed to a monodentate coordination. One of the oxygens of the EG continued to undergo coordination and decoordination to the Co²⁺ at a high rate. However, the coordination of the H₂O and SO₄²⁻ to the Co²⁺ remained stable throughout the trajectory of length 10 ps. This suggests that a tetrahedral mixed ligand Co complex with EG, H₂O, SO₄²⁻ and Cl⁻ coordination can exist. The sulfate coordination in the resultant tetrahedral complex described above can be stabilised through the hydrogen bonding conferred by the presence of water (Fig. 6d).

Additionally, this mixed ligand complex is anticipated to be electrochemically active as opposed to the homoleptic [CoCl₄]²⁻ complex which has been reported as electrochemically inactive in the literature.^20,23 Even though the chloride system forms [CoCl₄]²⁻ as the dominant complex, the presence of high amounts of EG in excess compared to Cl⁻ (Co²⁺:EG = 1 : 120 vs. Co²⁺ : Cl⁻ = 1 : 28) in the electrolyte could have an impact on Co electrochemistry. For instance, ¹H NMR spectroscopic study shows the probability of EG coordination to the Co²⁺ in the chloride system.

As a control study, AIMD simulations of a cobalt complex consisting of two EGs, a monodentate sulfate, a Cl⁻ and no H₂O in the first coordination shell were conducted (Fig. S12, ESI†). Over 10 ps of AIMD trajectory, this geometry featured the removal of a sulfate from the first coordination shell, and the replacement of an EG with another EG molecule. Therefore, in this scenario the sulfate coordination is unlikely and provides further evidence that the presence of water may stabilise sulfate coordination.

In summary, Co²⁺ in both systems supported tetrahedral coordination, in agreement with the results obtained by UV-vis and EPR spectroscopy. The sulfate anion exclusively supported monodentate coordination to Co²⁺ in the sulfate system, which also agreed with the obtained FTIR spectra. However, using FFMD and AIMD simulations, the possibility of other coordination structures was indicated, which may be present in small quantities. These include structures supporting a bidentate EG, monodentate sulfate, a Cl⁻ and a H₂O. AIMD simulations further suggest that these structures can exist as tetrahedral structures.

Conclusions

The correlation of electrochemistry with Co²⁺ speciation has been studied for an all chloride electrolyte (CoCl₂·6H₂O) and a sulfate system (CoSO₄·7H₂O) both in EG : ChCl (4.5 : 1). Our previous study showed that, among both systems, the sulfate system is more favourable for Co²⁺ reduction and also leads to an electrodeposit containing higher Co metal content, probably due to the presence of sulfate anion as an additive in the electrolyte. The results of this study obtained from UV-vis spectroscopy, EPR spectroscopy, FFMD simulations and AIMD simulations showed that Co²⁺ forms a tetrahedral complex as the dominant structure in both sulfate and chloride systems. A difference in the chemical shift values of the protons was observed in ¹H NMR spectra between the two systems, demonstrating a different chemical environment of Co²⁺ in the two systems. For instance, a higher probability of EG coordination to Co²⁺ in the sulfate system was indicated compared to the chloride system.

FTIR spectroscopy and MD simulations suggest the monodentate coordination of SO₄²⁻ to Co²⁺ in the sulfate system, indicating the existence of [CoCl₃(SO₄)]³⁻ as the dominant structure (80%), whereas in the chloride system, CoCl₄²⁻ was the dominant structure (95%), corroborating the difference in the coordinated ligands to Co²⁺ in the two systems. Interestingly, high H₂O content in the sulfate system could promote the Co²⁺ coordination with the SO₄²⁻ and EG revealing the importance of the presence of H₂O in an electrolyte for forming a mixed ligand coordinated Co²⁺ and easing the electrochemical reduction to Co metal. Additionally, simulations suggest the presence of sulfate can support mixed ligand cobalt complexes involving monodentate sulfate, EG, water and chloride.

Data availability

The data supporting this article are available on request from the corresponding author.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This research was supported by the Australian Research Council Training Centre for Future Energy Storage Technologies (IC180100049) and funded by the Australian Government. The theoretical work for this project was undertaken with the assistance of resources and services from the National Computational Infrastructure (NCI), which is supported by the Australian Government. The authors also acknowledge Prof. Gosia Swadzba- Kwasny from Queen's University Belfast for technical discussions on cobalt speciation.
