In [A. S. Pal, L. Pocivavsek and T. A. Witten, arXiv, DOI: 10.48550/arXiv.2206.03552], the authors discuss how an unsupported flat annulus contracted at its inner boundary by fraction Δ, buckles into a radial wrinkling pattern that is asymptotically isometric and tension-free. What selects the wavelength in such a pure-bending configuration, in the absence of any competing sources of work? In this paper, with the support of numerical simulations, we argue that competition between stretching and bending energies at local, mesoscopic scales leads to the selection of a wavelength scale λ* sensitive to both the width w and thickness t of the sheet: λ* ∼ w2/3t1/3Δ−1/6. This scale λ* corresponds to a kinetic arrest criterion for wrinkle coarsening starting from any finer wavelength λ ≲ λ*. However, the sheet can support coarser wavelengths: λ ≳ λ*, since there is no penalty to their existence. Since this wavelength selection mechanism depends on the initial value of λ, it is path-dependent or hysteretic.
A priori, an unconstrained sheet under compression should spontaneously choose the maximum wavelength possible – at the scale of the system size – in order to minimise bending energy. Thus, the minimum ingredient for generating an intermediate wavelength is the presence of some external constraint. Besides a substrate, another possible source of constraints is clamping at the boundary. Ref. 7–10 study such systems where relatively coarse wrinkling in the bulk of the sheet gradually becomes refined in the proximity of a clamped or pinned boundary, in order to minimise the wrinkling amplitude. Of particular interest to us are ref. 10 and 11, in particular Vandeparre et al.,10 which consider wrinkling in an unsupported rectangular sheet contracted at one boundary. Here, the wrinkle wavelength in the bulk is determined by the wavelength fixed (i.e. clamped) at the boundary, coarsening outward through a ‘wrinkle hierarchy’ (see Fig. 2b and 4a). But what if the sheet is unsupported and also unclamped?
In this paper, we address the question of wavelength determination in precisely such a case, for the annular geometry reported in Pal et al.12 The system considered there is a modification of the classic Lamé radial wrinkling deformation (see Fig. 1a and b), where we quasi-statically contract the inner boundary of a circular annulus through a radial displacement Δ, keeping the outer boundary free. We call this the “inner Lamé” system. Such gradual boundary-induced contraction of the flat annulus deforms it smoothly into a pattern of uniform radial wrinkling (Fig. 1b), as it follows the local energy minimum.
![]() | ||

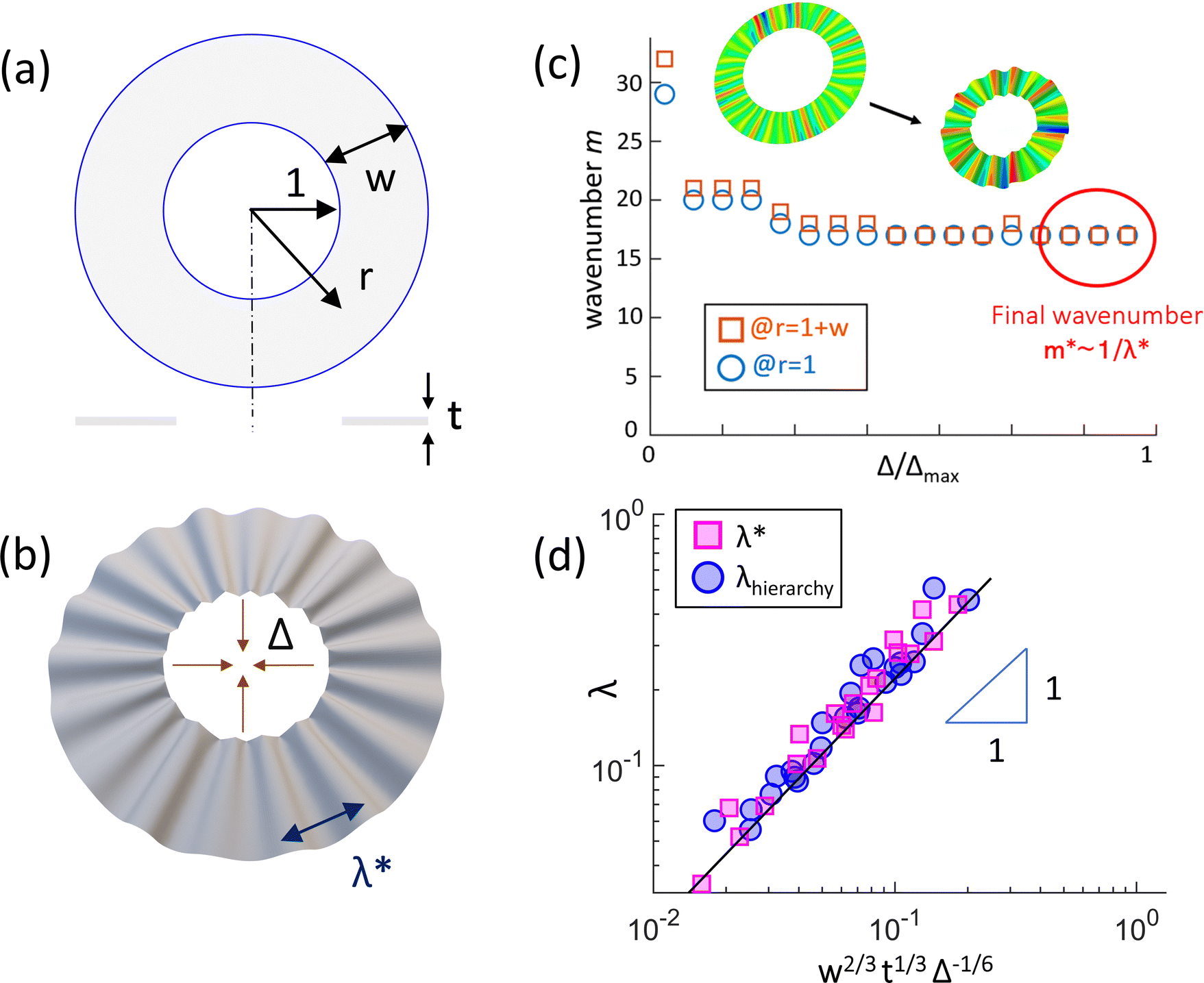

Fig. 1 Geometry of the Inner Lamé radially wrinkled system, and selected wavelengths in its numerical implementation. (a) A schematic diagram of the flat annulus, showing its geometric parameters: radial distance r, width w and (in cross-section) thickness t. We take the inner radius as unity. (b) An example of a deformed configuration, showing the displacement Δ and the wrinkle wavelength λ*, measured at the outer boundary, which we wish to predict. (c) Shows representative data for the evolution of the wavenumber (i.e. the number of wrinkles) against normalised contraction Δ/Δmax, measured at both inner (r = 1) and outer (r = 1 + w) boundaries. m decreases until it saturates to a value m* ≡ 2π(1 + w)/λ*. (d) shows data collapse on a log–log scale of measured λ*, along with λhierarchy for the pinned version (see Section 2.3), onto the predicted scaling law given in eqn (6). The data are for multiple numerical annuli with varying w, t and Δ. The black line represents the best-fit equation: y = 2.2x (log–log scale). Henceforth, we term this the “wrinklon line”. |
In ref. 12, we show that this wrinkling deformation is well-modelled, even up to large amplitudes, as a (piecewise) developable surface of triangles and cones. Thus, this deformation becomes isometric (i.e., unstretched) as the thickness becomes much smaller than the wavelength, with its radial tension field becoming negligible as compared to that of a similarly deformed classical Lamé annulus.4 However, even in this isometric limit, where there should be no dependence on thickness, the wrinkling deformation selects a wavelength λ that is observed to depend on both the sheet thickness t and width w (see Fig. 1d). Since the sheet is “tension-free”, this λ cannot be explained by the tensile mechanism of classical Lamé wrinkling.4 Also, since the contracted inner boundary is both unclamped and unpinned (i.e., free to both displace and rotate out-of-plane), it cannot act to determine λ as in ref. 7–10.
In this paper, we show that the observed inner Lamé wavelength is consistent with a similar coarsening mechanism as in Vandeparre et al.,10 but without any spatial hierarchy involved. Instead, the coarsening takes place progressively over the course of the deformation (see Fig. 1c), and is arrested due to the non-zero stretching energy associated with ‘wrinklons’ – Y-shaped spatial features where two wrinkles merge into one – which constitute the basic unit of the coarsening process. Thus, kinetically arrested coarsening determines the final wavenumber (i.e., the number of wrinkles) m* in the sheet. However, if the sheet manages to attain a coarser wavenumber m < m* by any means (e.g., manual setting by the experimenter), then it stays there. Thus, the wavelength selection depends on initial conditions, and can be considered hysteretic or path-dependent. These are the central results of this paper.
Below, we derive the discussed arrest criterion for the wavelength selection and demonstrate its viability numerically. The paper is organised as follows. Section 1 defines the inner Lamé deformation that we simulate, and the numerical methods we use to this end. In Section 2, we state the main results of this paper, deriving a scaling law for the critical arrest wavelength, λ* ∼ 1/m* (the black line in Fig. 1d), and argue that it causes hysteretic wavelength selection. Finally, Section 3 discusses the significance of these results.
Usheet ≈ Bm2Δ. | (1) |
To simulate the inner Lamé system, we used its defining boundary conditions: radial displacement er(r = 1) = −Δ at the inner boundary, and the outer boundary at r = 1 + w free. We chose to apply a maximum contraction of Δmax = 0.267 at the inner boundary. All observed coarsening and selection in our simulations occurs for Δ much smaller than this maximum (see Fig. 1c); increasing Δ further within this range only changes the amplitude without affecting the wavenumber. We did not extend the range enough to observe the anticipated weak dependence of λ* on Δ.
To account for the possibility of high strains at such large contractions, the sheet was modelled as a Neo–Hookean hyperelastic material with coefficients equivalent to the linear moduli: Young's modulus, E = 0.907125 MPa, and Poisson ratio, ν = 0.475, corresponding to a rubber-like material. To verify that results are independent of the material model, we also re-performed several simulations with a linear material model with these same moduli.
To test the validity of our results over a range of parameters, we kept the inner radius fixed and varied the other two parameters – width w and thickness t – over the range of a decade. For the width, we used values w = 0.20, 0.33, 0.67, 1.0, 1.67 (a factor of almost 10, ranging from very narrow to moderately wide), and for thickness, we used values t = 2.67 × 10−3, 1.33 × 10−3, 6.67 × 10−4, 2.67 × 10−4, 1.33 × 10−4 (a factor of 20, ranging from moderately thick to very thin). We performed consistency checks to ensure that the final morphology was independent of the choice of any simulation parameters.
![]() | ||
Fig. 2 Wavelength coarsening and wrinklons (see Section 2.1). (a) An origami paper model of a Y-shaped wrinklon joining, wavelength λ → 2λ (measured in-plane; half-wavelengths shown), revealing the nature of its stretching (image modified from ref. 10; scale bar is 5 cm). The gap in the shape shows that a continuous sheet requires longitudinal stretching to accommodate the wrinklon (see Section 2B). (inset) A schematic diagram of the mid-line of the sheet (in blue), showing its vertical amplitude ζ and length L, used in eqn (2). (b) An illustrative example of wavelength coarsening in the inner Lamé system (for w = 0.33, t = 6.67 × 10−4). The three snapshots are for the bottom-right quadrant of the annulus (coloured by height) taken at Δ ≈ 0.07,0.15,0.23 resp. (c) To visualise the wrinkling pattern with greater clarity, we ‘flatten’ the polar coordinates, so that the height profile can be plotted in a rectangular matrix form (same colours, but different colour map). Here, the top edge is the inner boundary. (d) A close-up of a wrinklon in (c) joining wavelengths λ → 2λ, of longitudinal size L. |
In what follows, instead of simply counting the number of wrinkles m in the annulus, we measure the continuous (in-plane) wavelength λ at the outer boundary, averaged over multiple wrinkles of the sample.† The standard deviation in λ then also gives a measure of the non-uniformity of wrinkling, something which the integer m cannot capture. Thus, in what follows, we aim to predict the continuous variable λ*, related to the counted m* by the approximate relationship: λ* ≈ 2π(1 + w)/m*.
The coarsening process is controlled by the Y-shaped spatial features named ‘wrinklons’,10 which form every time two wrinkles merge into one. In what follows, we discuss the energetics of wrinklons, approximating the wrinkles as being rectilinear (as in Fig. 2a), and ignoring any radial splay. We discuss the accuracy of this assumption in Section 3. The energetics of a wrinklon is closely associated to its shape. Fig. 2a shows the geometry of a wrinklon using an origami model (adapted from ref. 10). Here, the paper sheet is creased to have wavelength λ on the right and 2λ on the left. The transition zone is the wrinklon. As can be seen from the cut in the sheet, this involves non-zero extension of the material: to allow a trough in the λ wave on the right to rise up to the peak of the 2λ wave on the left, a horizontal length L (see inset of Fig. 2d) must be stretched into the hypotenuse , where ζ is the amplitude of the λ-wave. For small slope ζ/L, this generates a strain of order (ζ/L)2. In the absence of a substrate or boundary tension, this contributes a stretching energy density ∼Y(ζ/L)4, where Y is the stretching modulus.
Since the inner Lamé wrinkling is isometric or strain-free12, we can use the constraint of inextensibility (i.e., length conservation) to relate the average slope/of the wrinkled circles to the applied contraction Δ. Taking this latter to be constant over the length of the wrinklon, for small slopes, we have: (ζ/λ)2∼Δ. This is popularly known in literature as the ‘slaving condition’,1 since it shows that the amplitude ζ and wavelength λ are co-dependent variables for inextensible wrinkling. Thus, removing ζ in favour of λ and Δ, the elastic energy of a wrinklon of area ∼Lλ is given by:
Uwrinklon ∼ Yλ5L−3Δ2. | (2) |
δU(λ) = Uwrinklon(λ) − δUbend(λ), | (3) |
L*(λ) ∼ t−2/3Δ1/3w−1/3λ2, | (4) |
However, with each round of coarsening, as λ increases, eqn (4) shows us that L*(λ) also increases (rapidly). Thus, when L*(λ) > w, there can be no wrinklon that reduces the energy, so that no further coarsening can occur. This defines a critical wavelength scale λ* such that
L*(λ)|λ* = w. | (5) |
λ* ∼ w2/3t1/3Δ−1/6. | (6) |
Eqn (6) is the central prediction of this paper. It emerges directly from eqn (5), which represents an arrest criterion for wrinklon-mediated coarsening in the annulus. This shows that transient wrinklons in the inner Lamé system can select a wavelength by a mechanism of kinetic arrest. This wavelength λ* is an emergent phenomenon depending on all three geometric factors t, w and Δ, but independent of material constants E and ν. The pre-factor is a universal number (estimated to be ≈2.2), independent of initial wavelength. This is much as in ref. 10, where the outer wavelength determined through spatial coarsening is independent of the value at the clamped inner boundary.
Eqn (6) predicts wider and thicker sheets to display coarser wrinkling, and vice versa for narrower, thinner sheets. On the other hand, the arrest argument above also suggests that wavelengths coarser than λ* should remain stable since they are not subject to further coarsening via wrinklons. Our next step is thus to confirm the possibility of the sheet supporting wavelengths λ ≳ λ*.
One way to test this hypothesis is to manually set a coarser wavelength in our simulations. We do this by biasing the initial flat state (see Section 1.3) with a sinusoidal perturbation of known outer wavelength λinit. In Fig. 3a, we show the results of this method. The blue and magenta dots are the same data points from Fig. 1c, showing the final wavelength λ for annuli contracted from a flat or nearly flat state (i.e., having λinit ≪ λ*) or a state biased with sinusoidal modes having λinit ≲ λ*. They all lie on the black ‘wrinklon line’: λ = λ*. On the other hand, the new green dots are obtained by starting from biased states having λinit ≳ λ*. We find that, on average, these samples do not coarsen at all. In other words, they are not susceptible to the wrinklon coarsening mechanism. Indeed, we used this method in ref. 12 to generate uniformly wrinkled patterns to provide clean geometric data. Thus, Fig. 3a is fully consistent with the hysteretic picture posited at the end of Section 2.1.
![]() | ||
Fig. 3 Effect of varying the initial wavelength λinit. (a) The data points (in blue and magenta) and best-fit ‘wrinklon line’ from Fig. 1c, having λinit ≤ λ*, are overlaid with new sample points (in green) that start from a biased flat state with a perturbation of wavelength λinit ≥ λ*. These biased samples show little to no coarsening. (b) We see the difference in coarsening behaviour clearly by plotting both λinit (empty symbols) and the final wavelength λfinal (solid symbols) for some selected samples. Here, we fix λinit and width w, and vary the thickness t, thereby creating a horizontal row of empty symbols for given λinit. We plot λinit and λfinal with the same w, t and Δ, so that any coarsening is noticeable by a vertically upward shift of the solid symbol (some arrows drawn for indication). We see a clear transition from non-coarsening to coarsening behaviour as we cross the black wrinklon line. The error bars denote standard error from averaging over all the wrinkles. |
In Fig. 3b, we present specific examples of this λ -dependent coarsening. Here, we compare the initial (λinit) and final (λfinal) wavelengths of samples, as we vary their parameters. Specifically, for fixed initial wavelength λinit (i.e., the ordinate), we change the abscissa by varying the thickness t for samples of fixed width w and contraction Δ, and record the simulation λfinal. Fig. 3b shows some representative data points, showing both λinit (empty symbols) and λfinal (full symbols) for these samples. We see that the leftmost (i.e. thinnest) samples, which start above the wrinklon line, do not coarsen. However, as soon as we cross the wrinklon line horizontally (following the dotted grey line), the samples start to coarsen, i.e., they move straight up. As expected, the coarsening happens up to or above the wrinklon line, consistent with the discussion in Section 2.1.
The reason this parallel, pinned system is instructive is because it allows us to make a direct connection to a class of known systems. As shown in Fig. 4b, applying contraction Δ with pinned boundary conditions (BCs) leads to the creation of a spatial wrinkle-hierarchy morphology – like the ones studied in ref. 7–10 for rectangular geometries – where fine-scale wrinkling at the pinned boundary coarsens progressively in space via multiple generations of wrinklons. Despite the qualitatively different morphologies between the pinned and unpinned cases (see Fig. 4), we argue that one should still expect the wavelengths at the outer boundary for the two cases to be the same. To see this, consider the following.
![]() | ||

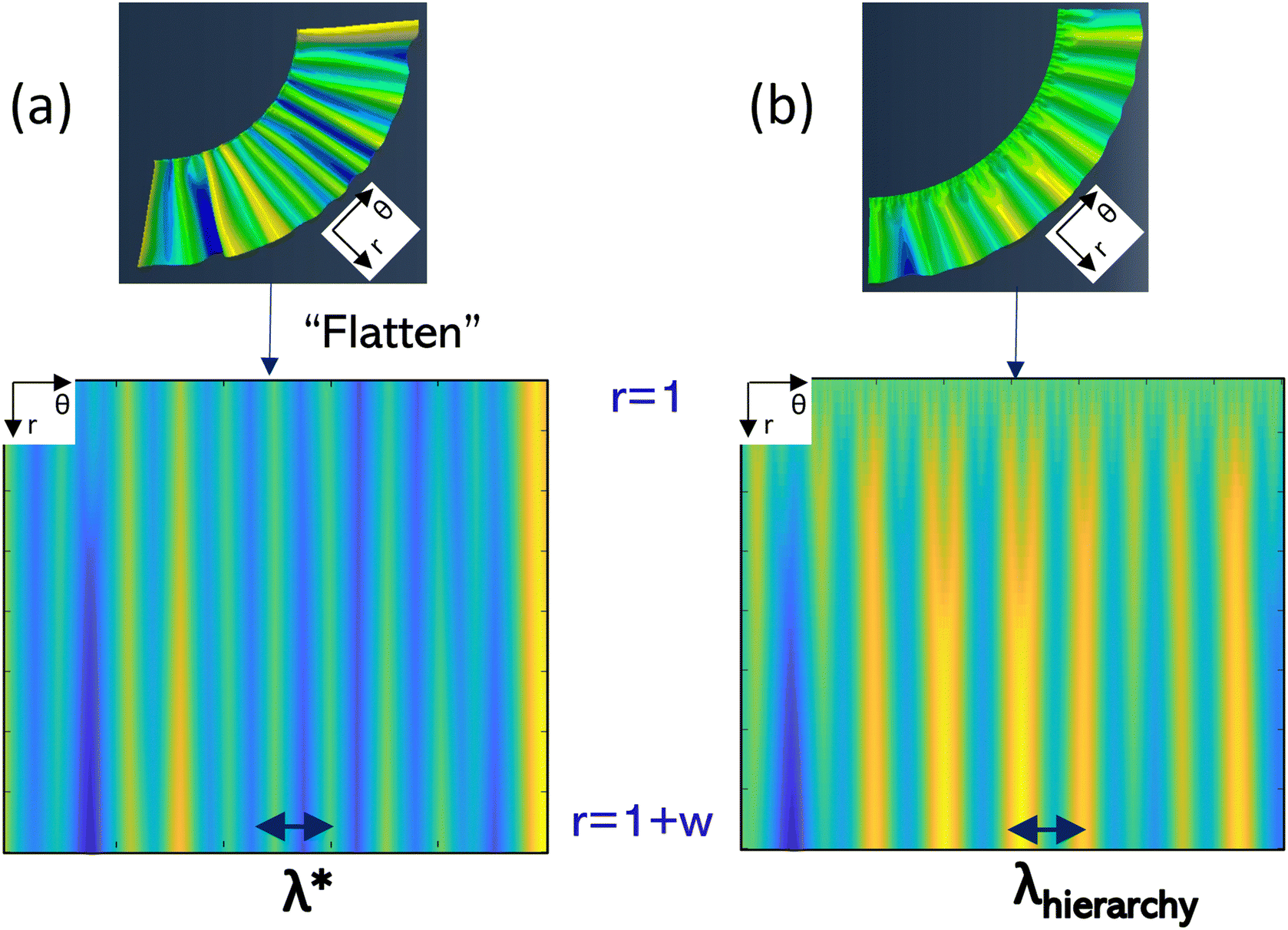

Fig. 4 Contrasting wrinkled morphologies but similar outer wavelengths, for two different boundary conditions at the inner boundary (r = 1) (see Section 2.3). Data are for the same representative sample used in Fig. 2b (w = 0.33, t = 6.67 × 10−4). The top row shows the bottom-right quadrant of the deformed annulus in both cases (coloured by height). The bottom row shows the same height profile, but flattened into a rectangular matrix form, as in Fig. 2 above. (a) The “inner Lamé” boundary condition, the subject of this paper, which allows free vertical displacement at r = 1. This leads to near-uniform radial wrinkling, with wavelength λ* at the outer boundary (r = 1 + w). (b) A pinned boundary condition that prohibits vertical displacement at r = 1. This leads to a spatial wrinkle hierarchy, that terminates with the coarsest wavelength λhierarchy at r = 1 + w. |
We can think of the emergence of the unpinned morphology in Fig. 4a starting from the pinned, wrinkle-hierarchy case in Fig. 4b. Eqn (2) tells us that wrinklons cost non-zero elastic energy. Moreover, they separate a region of fine, higher-energy wrinkling (nearer r = 1), from a region of coarser, lower-energy wrinkling (nearer r = 1 + w). Thus, allowing the wrinklons to move right up to the inner boundary would eliminate not only the wrinklons themselves but also the entire fine wrinkling region, leading to a net lowering of the sheet's energy.
Imagine gradually undoing the pinning at r = 1 in Fig. 4b, allowing the boundary nodes to displace vertically within a maximum height ε. As ε increases, the boundary will be able to support coarser wavelengths. Thus, as it reaches the approximate height of the innermost generation of wrinklons, in order to minimise elastic energy, these wrinklons should all migrate to the boundary and disappear, thereby increasing the wavelength at r = 1 by a generation. Similarly, when ε reaches the height of the second (now innermost) wrinklon generation, this generation should also vanish in a similar manner, decreasing the energy and coarsening the wavelength by a further generation. As ε increases further, this coarsening process may continue as long as there are wrinklons that can move into the inner boundary. That is, as long as there are more inner wrinkles than outer ones. The end point of this process is thus a state where the original outer wrinkles extend to the inner boundary. Thus, we would reach the unpinned boundary conditions of the original inner Lamé system, and anticipate the same morphology (i.e.Fig. 4a). This argument tells us that we should expect:
λ* = λhierarchy(x = w), | (7) |
λhierarchy(x) ∼ x2/3t1/3Δ−1/6 | (8) |
In contrast, in the inner Lamé system, the lack of a macroscopic force to compete with the sheet's bending energy means that the ground state is an m → 0 fold-like solution.15,16 Instead, the inner Lamé contraction selects a wrinkled configuration of non-zero wavenumber, which we claim is due to kinetic considerations. This wavenumber is selected through local competition at scale L* between bending and stretching, this latter being the only source of competition possible in an unsupported sheet. The observed one-sided hysteresis is a direct consequence of this. Bending energy wants to coarsen wavelengths as much as possible, but the size of the sheet w acts as a fundamental barrier to this coarsening, through the “coarsening condition”: L*(λ) ≤ w. Conversely, the lack of a (real or effective) substrate means that there are no penalties to wavelengths coarser than λ*. Thus, on the λ − wavelength plane, there is an entire range of wavelengths available to the sheet: λ ≳ λ*.
Thus, in a fundamental but non-trivial way, the wavelength λ in the inner Lamé system is selected by the sheet's size w. This is similar and yet dissimilar to known cases of geometric wavelength selection in isometrically buckled systems, where both macroscopic stretching and bending are absent. A good example is the faceted twisted ribbon in ref. 17, which buckles into a periodic pattern of triangular facets. Here, the wavelength is directly set by the ribbon's width w: λ = w.17 Our hysteretic wavelength selection also involves the sheet width, but through an inequality. In this sense, it is a weaker and less restrictive geometric selection principle.
We also note that the scaling law eqn (6) for λ* accounts for all the parameters in our inner Lamé system. Thus the ratio of λ* to is a pure number (≈2.2) that should be the same even for more general cases of unsupported, inner boundary-contracted annuli (with free outer boundary). In Section 2, we have shown eqn (6) to hold for both unpinned and pinned inner boundaries, with purely radial displacement. In Section 1.2, we mention the case where the contracted boundary is also allowed to displace azimuthally on the constraining cylinder, and shows wrinkling as a transient state prior to folding.12 Here, the wrinkles persist on a time scale required for boundary points to migrate azimuthally over a finite fraction of the circumference. We would expect eqn (6) to be valid in this transient regime. Finally, we might expect eqn (6) to hold even for cases where the inner boundary is contracted in a different manner, e.g., when it is forced to live on a constraining cone instead of a cylinder. However, the numerical pre-factor need not be the same in this case.
Finally, we recall that12 shows the inner Lamé wrinkle configuration to be isometric (see eqn (1)). On the other hand, in this paper, we use stretching energy to explain the wavelength selection. This might seem paradoxical, but is so only at first glance. The stretching energy of the wrinklon defines an energy barrier that would need to be crossed in order to increase the wavelength beyond λ*. It does not influence the energy of the state for a given λ (equivalently, a given m), which is the subject of ref. 12.
