Open Access Article
Amtul Nashim,
Ritik Mohanty
,
Priyadarshi K. Ray and
K. M. Parida
*
Centre for Nano Science and Nano Technology, Institute of Technical Education and Research, Siksha ‘O’ Anusandhan (Deemed to be University), Bhubaneswar, 751019, India. E-mail: kulamaniparida@soa.ac.in
First published on 15th August 2023
To meet the energy requirement of the modern era, supercapacitors are promising candidates for energy storage devices, which possess the potential to compete with the future battery technology. To accomplish this pivotal task, it is vital to choose electrode materials that have high power and energy density as well as superb electrochemical stability. For the past few years, the use of gallium-based materials for energy storage applications has attracted attention because of their excellent activity towards electrochemical energy storage applications despite the single oxidation state (i.e., +3 which is redox inactive and does not contribute towards pseudo capacitance). Recently, research on gallium-based materials has started and will be continued further owing to the fact that gallium-based materials possess numerous excellent properties such as fast charge and discharge rate, high power density, long cycle life, stability over a wide range of temperatures, excellent electron velocity, superior chemical and physical stabilities and high voltage application capability, which make them a potential class of electrode materials for supercapacitors. The enhancement in the electrochemical performance upon the introduction of gallium into the system can make it a futuristic candidate for electrochemical energy storage devices. Herein, we systematically outline the synthesis and characterization of gallium-based materials and their composites as explored by esteemed researchers focusing only on their supercapacitive performance via electrochemical techniques. For a better understanding, the underlying charge storage mechanism and identified characteristics are presented to give a crystal-clear idea about the field. In addition, the key challenges and impending perspectives of gallium-based electrodes for supercapacitor applications are debated.

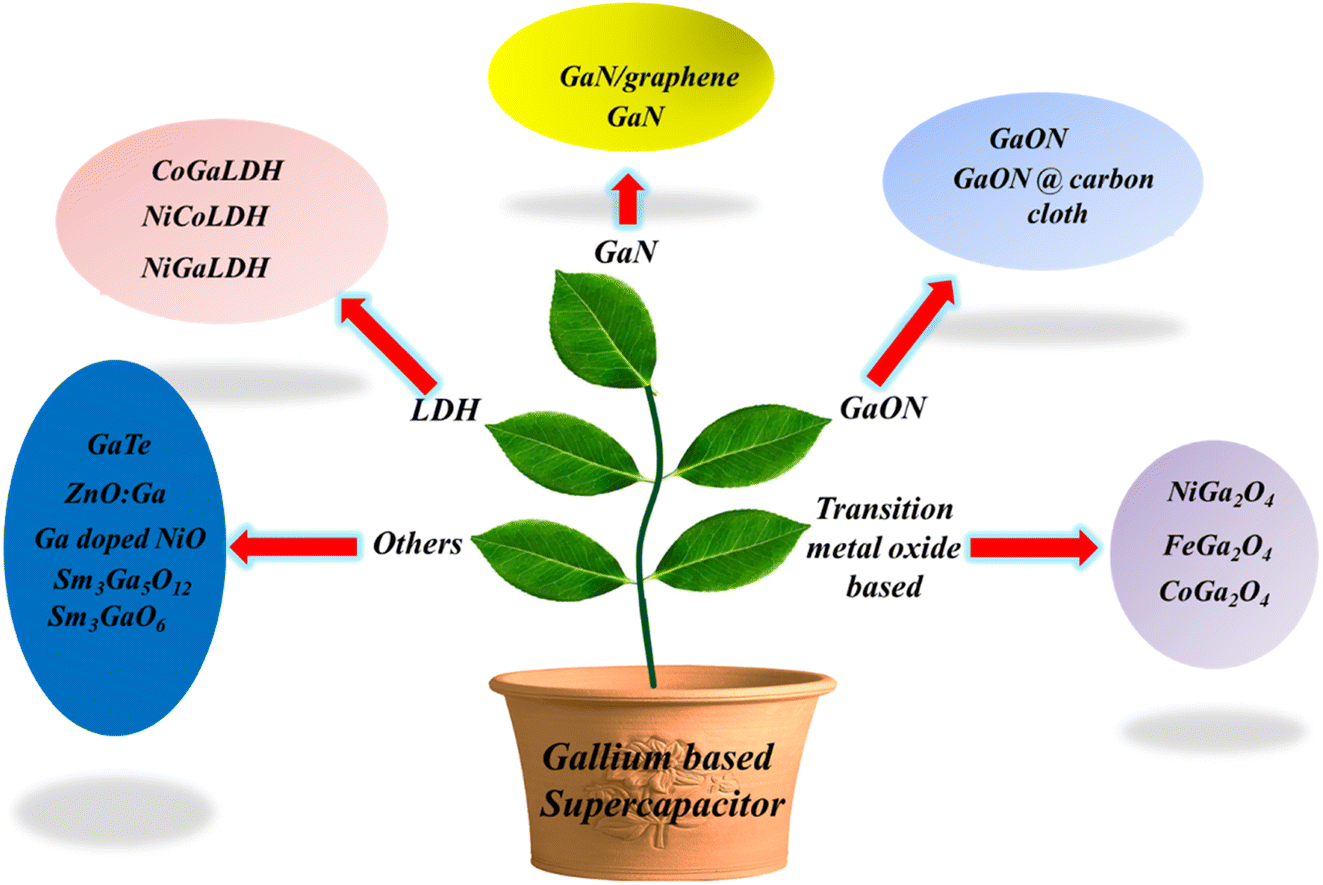

Post transition metal nanochalcogenides such as GaSe would be a great choice for photo/electrochemical and energy storage applications due to their suitable bandgap and low exciton binding energy.17 The oxidation state of Ga is 3+, and therefore, it does not take part in redox reactions, neither does it contribute anything towards pseudocapacitance. However, gallium-based materials show excellent activity towards electrochemical energy storage. Furthermore, Ga forms alloys with Li+ and gives maximum charge–discharge capacities compared to graphite or lithium titanate oxide.18 Therefore, Ga can be considered a good alternative to Si and Sn, as it possesses high current rate and the volume expansion is <60% of its original volume.19 FeGa2O4 is an example of battery-supercapacitor hybrid device, and this bimetallic oxide exhibits remarkable electrochemical storage performance due to the short ion diffusion path and good wettability of the electrolyte.20 In this review, the gallium-based electrode materials for supercapacitors are discussed owing to their unique properties. Gallium is a soft and silvery metal with a lower melting point, and it exhibits excellent electrochemical properties. Gallium-based materials possess high specific capacitance, i.e. they store a large amount of energy resulting in a higher energy density. Gallium-based materials show good conductivity and electrochemical stability, which means that they can withstand against the repeated charge discharge cycle ensuring the long cycle life of the supercapacitor. Moreover, gallium-based materials can be easily synthesized and modified to a desirable morphology. This tunability allows researchers to tailor the morphology, composition and structure of the electrode to optimize the performance of the semiconductor. With respect to the environmental aspects of the gallium-based electrode, gallium is present in abundance in the Earth's crust and considered an environmentally friendly alternative to many toxic and rare elements. By leveraging these advantages of gallium-based materials, this review summarizes various gallium-based materials for supercapacitor technology till date. In this review, gallium-based materials are categorized into 5 types, namely, GaN based, GaON based, LDH based, transition metal oxide based and others. Scheme 1 presents the various categories of gallium-based systems for supercapacitors.
![]() | ||
| Fig. 2 Types of supercapacitors (this figure has been reproduced from ref. 21 with permission from Elsevier, copyright 2018). | ||
Therefore, in this section, we briefly debate about the charge storage mechanism of the SCs, which mainly includes three types of capacitive behaviours, namely, EDLC, which uses the concept of pure electric charge accumulation at the interface of the electrode, PC, which arises from reversible and quick surface faradaic redox reactions, and hybrid nature, which takes advantage of both EDLC and PC mechanisms.
EDLC is the former and most studied SC fabricated using carbonaceous electrode materials such as activated carbons, graphenes, carbon nanofibers, carbon nanotubes and carbide-derived carbons. Here the capacitance arises (Fig. 3a) owing to the adsorption at the electrode/electrolyte interface due to the presence of both cations and anions in the electrolyte, enhanced specific surface area and improved conductivity. The aroused non-faradic capacitance sturdily depends on the surface-dominated properties of the carbon-based materials, which are directly accessible to the anions and cations. In the process of charging, the electrons travel towards the positive electrode from the negative electrode via the external connected loop, with anions traveling to the positive electrodes. Unlikely, the cations travel towards the negative electrode. In the discharging process, the traveling direction of electrons and ions is inverted. The signature CV and GCD curves of EDLC-based materials are displayed in Fig. 3b and c. Rectangular-box-type CV curves as well as symmetric triangular pattern GCD curves are assigned to the EDLC-type profile. The ultralow energy density values of the carbonaceous SC are the major hindrance for their effective commercialization. Thus, research focus is on the novel synthetic protocols to amplify the electrochemical performance of this class of materials.1–3,22–24
![]() | ||
| Fig. 3 Schematic diagram of the diverse energy storage mechanisms with their equivalent signature CV and GCD curves for (a–c) EDLC, (d–f) surface redox, (g–i) intercalation type, and (j–l) faradic battery-type (this figure has been reproduced from ref. 22 with permission from Wiley, copyright 2002). | ||
The term pseudocapacitance was first coined by Conway to define the electrode materials which display the CV and GCD similar to those of EDLC, but include different charge storing mechanisms. Unlike EDLC, the pseudocapacitive reactions occur at the electrode surface in faradic origin and store energy via quick and reversible redox reaction processes. Additionally, pseudocapacitive materials also display typical battery-type redox activities that occur at ultra-high rates like a capacitor, and reflect their electrochemical signature like quasi-rectangular CV curves along with quasi-triangular GCD curves. Overall, the charge storage mechanism includes two processes in PC materials, either surface redox reactions happening at the near surface of the material or intercalation-type reactions.22–24
In PC surface-redox reactions, the storage of electrical charge mainly relies on the redox reactions or charge transfers occurring at the active electrode surface. From the CV and the GCD curves depicted in Fig. 3d–f, we can conclude that generally surface-redox pseudo capacitors closely resemble (in Fig. 3a–c) those of carbonaceous materials, clearly demonstrating the linear dependency along with the whole potential window while storing the electrical charge. Therefore, from this we cannot conclude that pseudocapacitors store charges via the EDLC mechanism, but they can also store the charges via surface faradic and double-layer mechanism, which are called the intrinsic pseudocapacitive materials. Instead of surface redox reactions, few layered structured materials experience faradaic charge transfer owing to the ion intercalation into the layers without any crystallographic phase change. Especially, these particular kinds of materials show quick and reversible charge storage rates approaching or even superior to the traditional surface redox pseudocapacitive materials, thus they are not generally termed redox pseudocapacitors, instead they are called “intercalation pseudocapacitors”. This distinct term was coined by Dunn and Simon, which is a relative common trait in non-aqueous electrolyte systems.22 In this case, the electrochemical features are that current is directly proportional to the scan rate, but capacity does not change with charging time, and also the peak potentials do not considerably shift with change in sweep rate. Conversely to the EDLCs, here the process of charge storage is not restricted to the surface reaction and, thus, using bulk of the electroactive materials for the reversible faradic electrochemical reactions. The corresponding electrochemical profiles for distinguishability are displayed in Fig. 3g–i. Besides, the generally used battery-type materials are different from the capacitive-type materials in terms of the redox reaction mechanism, where the change of phase in active materials is responsible for the charge storage. Furthermore, via the process of charging and discharging, the voltage remains constant for the battery-type electrode, as shown in Fig. 3j–l. Thus, the active materials having solid-state diffusion-controlled faradic reactions generally called battery-type reactions show a pair of distinct redox peaks in CV curves along with a flat plateau like GCD curve similar to a battery displayed in Fig. 3k and l.22
To overcome the individual demerit offered by the EDLC and PC, hybrid supercapacitors are generally used, which use the polarizable electrodes made of carbon-based materials as well as non-polarizable electrode materials such as metals or conducting polymers. It involves both faradaic and non-faradaic reaction mechanisms to accomplish greater energy storage. Owing to the battery-type as well as capacitor-type electrodes, improved specific capacitance, excellent cycling stability, minimization cost and high efficiency are achieved.
The major categories of this material include asymmetric, composite and battery-type hybrid supercapacitors. Asymmetric hybrid supercapacitors are fabricated to fulfill high power and energy requirements simultaneously, as one electrode acts as capacitive and the other acts as faradic. In most of the cases, a carbon-based material generally works as a negative electrode, whereas a metal or metal oxide electrode operates as a positive electrode. The metal-based electrodes possess high volumetric capacity, which delivers increased energy densities, and the capacitive electrode provides decent cycling stability when equated with symmetric type SCs. However, in composite hybrid supercapacitors, the synergistic effects of high specific capacity, prolonged cycling stability, and high ion and electron conductivity are achieved. Here in the composite, the carbon offers a facile channel for charge transportation, whereas the metal oxide retains charge via a surface redox reaction. Lastly, in battery-type hybrids, one battery-type electrode and one capacitive electrode are used to provide effective charge storage performance.1–3,22–24
| Catalyst | Synthesis method | Surface area (m2 g−1) and pore volume (m3 g−1) | Reaction conditions | Sp. capacitance (F g−1) | Cyclic stability (cycling number, cycling current density/scan rate) | Specific energy and specific power | Ref. |
|---|---|---|---|---|---|---|---|
| GaN | |||||||
| GaN | Electrochemical etching process | 22.2 m2 g−1 | 3 electrode system | 23.67 mF cm−2 (at 0.01 V s−1) | 99% (50 000, 10 mA cm−2) |
45 mW cm−2 | 25 |
| C.E: Pt sheet | |||||||
| 0.11 m3 g−1 | R.E.: Hg/Hg2SO4 | ||||||
| W.E.: stainless steel cloth | |||||||
| GaN/GP | Chemical vapor deposition (CVD) method | 24 m2 g−1 | C.E: Pt sheet | 237 mF cm−2 (at 0.1 mA cm−2) | 98% (10 000, 5 mA cm−2) |
0.30 mW h cm−3 (at 1000 mW cm−3) | 26 |
| R.E.: Hg/Hg2SO4 | |||||||
| W.E.: graphite paper | |||||||
| Electrolyte: 1 M H2SO4 | |||||||
| Porous GaN | Calcination | — | C.E: Pt sheet | 21.22 mF cm−2 (at 0.1 mA cm−2) | 99% (10 000, 5 mA cm−2) |
0.58 μW h cm−2 (at 45 mW cm−2) | 27 |
| R.E.: Hg/Hg2SO4 | |||||||
| W.E.: stainless steel cloth | |||||||
| Electrolyte: 1 M H2SO4 | |||||||
| rGO-GaN nanocomposites | Chemical reduction | — | RE: Ag/AgCl | 454 F g−1 (at 10 mV s−1) | 75% (950, 5 A g−1) | — | 29 |
| C.E.: platinum | |||||||
| Electrolyte: 1 M H2SO4 | |||||||
| GaN crystals | One-step ball milling process | — | W.E.: stainless steel cloth | 52.58 mF cm−2 (at 0.8 mA cm−2) | 86.2% (10 000, 8 mA cm−2) |
13.3 mW h cm−2 (at 67.5 mW cm−2) | 28 |
| Electrolyte: EMImNTf2 | |||||||
| Single-crystal GaN | Photoelectrochemical etching method | — | C.E: Pt foil | 3.12 mF cm−2 (at 0.1 mA cm−2) | — | — | 30 |
| R.E.: Hg/Hg2SO4 | |||||||
| W.E.: stainless steel cloth | |||||||
| Electrolyte: 1 M H2SO4 | |||||||
![]() |
|||||||
| LDH based | |||||||
| CoGa-LDH | Hydrothermal method | — | R.E.: HgO/Hg electrode | 431.5 C g−1 (at 1 A g−1) | 86.2% (8000, 15 A g−1) | 68.07 W h kg−1 (at 825 W kg−1) | 33 |
| C.E.: Pt plate | |||||||
| W.E.: Ni foam | |||||||
| 3D porous CoGa-LDH | Hydrothermal method | — | R.E.: SCE | 0.62 C cm−2 (at 100 mV s−1) | 97.5% (500, 31.5 mA cm−2) | 33.38 W h kg−1 (at 10 088 W kg−1) |
34 |
| C.E.: Pt sheet | |||||||
| W.E.: Ni foam | |||||||
| NiCoGa-LDHs | Hydrothermal method | 53.17 m2 g−1 | C.E: Pt plate | 2012.5 F g−1 (at 1 A g−1) | 57.7% at 5.0 A g−1 | 84.22 W h kg−1 (at 800.1 W kg−1) | 35 |
| R.E.: Hg/HgO | |||||||
| W.E.: carbon cloth | |||||||
| Electrolyte: 3 M KOH | |||||||
| NiGa-LDH/N-GQD/NF | Hydrothermal method | 229.26 m2 g−1 | C.E: Pt plate | 2160 F g−1 (at 1 A g−1) | 87.5% (5000, 1 A g−1) | 78.8 W h kg−1 (at 1432.7 W kg−1) | 36 |
| R.E.: Hg/HgO | |||||||
| Electrolyte: 3 M KOH | |||||||
![]() |
|||||||
| GaON | |||||||
| GaON nanoparticles | Ammonolysis | 45.3 m2 g−1 | C.E: Pt foil | 792 F g−1 (at 0.5 A g−1) | 99% (10 000, 0.5 mA cm−2) |
32 | |
| 0.012 m3 g−1 | R.E.: Hg/Hg2SO4 | ||||||
| Electrolyte: 1 M H2SO4 | |||||||
| GaON@carbon cloth | Moisture-assisted ammonolysis method | 28.0 m2 g−1 | C.E: Pt sheet | 133 F g−1 (at 0.17 A g−1) | 100% (10 000, 10 mA cm−2) |
21.1 μW h cm−2 (at 0.5 mW cm−2) | 31 |
| 0.137 cm3 g−1 | R.E.: Hg/Hg2SO4 | ||||||
| Electrolyte: 1 M H2SO4 | |||||||
![]() |
|||||||
| Transition metal oxide based | |||||||
| CoGa2O4/ZnFe2O4 | Electrodeposition method followed by thermal annealing | — | C.E: Pt wire | 232.2 F g−1 (at 50 A g−1) (device) | 64% (6000, 50 A g−1) | 82.56 W h kg−1 | 37 |
| R.E.: Ag/AgCl | |||||||
| Electrolyte: 2 M KOH | |||||||
| CoGa2O4/graphene wrapped CuFeS2 | Microwave-irradiation method, solvothermal, Hummer's route | 104.3 m2 g−1 | C.E: Pt | 376.40 F g−1 (153.1 mA h g−1) (device) | 93.7% (5000, 6 A g−1) | 114.8 W h kg (at 750.4 W kg−1) | 38 |
| R.E.: Ag/AgCl | |||||||
| W.E: nickel foam | |||||||
| Electrolyte: 6 M KOH | |||||||
| CoGa2O4 2D hexagonal nanoplates | Hydrothermal | 65 m2 g−1 | Electrolyte: 6 M KOH | 1525 F g−1 (915 C g−1) (at 5 A g−1) | 95 (10 000, 5 A g−1) |
84 W h kg (at 1200 W kg−1) | 39 |
![]() |
|||||||
| Other gallium based systems | |||||||
| GaTe | Vacuum induction melting method | 18.012 m2 g−1 | C.E: Pt wire | 14 F g−1 (at 1 A g−1) | 96% (10 000, 1 A g−1) |
— | 41 |
| R.E.: Ag/AgCl | |||||||
| W.E: graphite sheet | |||||||
| Electrolyte: 2 M KOH | |||||||
| Ga incorporated NiO | Hydrothermal | 2.64 m2 g−1 | C.E: Pt foil | 2.94 F cm−2 | 91% (10 00, 1 mA cm−2) | — | 40 |
| R.E.: SCE | |||||||
| W.E: Ni foam | |||||||
| Electrolyte: KOH | |||||||
| ZnO:Al | Hydrothermal treatment assisted by microwave | — | H3PO4/PVA electrolyte incorporated cellulose membrane sandwiched between electrodes. Copper paper as collector | 284.6 F g−1 | 95.3% | 56.9 W h kg−1 | 42 |
| ZnO:Ga | 118 F g−1 | 90.3% | 23.9 W h kg−1 | ||||
| ZnO:In | 281.9 F g−1 | 91.6% | 56.3 W h kg−1 | ||||
| After 500 cycles | |||||||
| Sm3GaO6 | Gel matrix method | — | C.E: Pt wire | 103 mA h g−1 (1 A g−1) | 82.65% (5000, 5 A g−1) | 11.73 W h kg−1 (at 312.5 W kg−1) | 43 |
| R.E.: Ag/AgCl | |||||||
| Sm3Ga5O12 | W.E: Ni foam | 91.95 mA h g−1 (1 A g−1) | — | — | |||
| Electrolyte: 3 M KOH | |||||||
Wang et al. synthesized a single-crystal GaN mesoporous membrane (GaNMM) by adopting an electrochemical etching method to study its application towards supercapacitors for the first time. The mesoporous structure of the GaNMM was confirmed by SAXRD from the appearance of a sharp peak at a 2θ value of 0.42° with a d(100) spacing value of 21 nm. The result is coincident with the BET analysis and pore size obtained from SEM images. The mesoporous nature enhanced the electrochemical properties by rapid electrolyte transport to its pore, and the defect site provided more active sites for chemical reactions. This results in good specific capacitance with cycling performance.25 In another work, with the intention of enhancing the capacitance of GaN, they (2017) fabricated GaN nanowires (GaNNWs)/graphite paper (GP) as a high-performance flexible supercapacitor electrode. The enhancement in the electrochemical properties of the composite is due to their outstanding electrical conductivity (6.36 × 102 S m−1 and GP: 7.5 × 104 S m−1), which was verified by the Hall effect analysis. Fig. 4a illustrates the preparation process of GaN/GP and its assembly into a flexible symmetric supercapacitor. Fig. 4b and c present the TEM images of GaN/GP-2 (GaN/GP-x composite x = 1, 2, and 3 w.r.t. their growth time of 20, 30, and 40 min, respectively), which consists of a cylindrical structure with a uniform diameter. The vapour–liquid–solid mechanism is followed for the growth of GaN NW, which is indicated by the presence of Pt nanoparticles at the end of the GaN NWs. In Fig. 4b, the single-crystalline nature of the GaN NW without any other subordinate phase is observed. Fig. 4d and e present the CV (at 10 mV s−1) and GCD (1 mA cm−2) curves of both GP and GaN/GP respectively, which clearly indicated pseudocapacitance along with double-layer influence. Fig. 4f and g show the electrochemical performance of symmetric all-solid-state SCs fabricated by coupling hybrid GaN/GP-2 electrodes in an H2SO4/PVA gel. The areal capacitance was calculated from CV to be 55.8 m2 cm−3 at a sweep rate of 55.8 mF cm−3 at a scan rate of 1 m cm−1 with 68.6% of capacitance retention at a scan rate of 200 mV s−1. The areal and volumetric capacitances were found to be 53.2 mF cm−2 and 21 F cm−3 at a current density of 6.5 mA cm−2. They found that the device is flexible, as there is no noticeable variation in the cyclic performance under different bending conditions.26 In another work, Zhang group adopted a novel high-temperature annealing process (annealing at 1150 °C for different times 30, 45, 60, 75, 90 and 105 minutes) to produce wafer-scale (2 inch) porous GaN. The crystal quality of GaN was enhanced via the high-temperature annealing process, as indicated by Raman, PL and HRXRD characterization. Based on Cebrera's thermodynamic theory, a model has been proposed, which explained the formation mechanism of porous GaN by a high-temperature annealing process, as shown in Fig. 5a. According to the mechanism, decomposition first occurs at the dislocation site of the Ga face to form V-shaped pits; with annealing time, V shaped pit decomposed along the vertical direction, as shown in Fig. 5b–d. With the further increase in time, porous GaN was detached steadily and slowly resulted in the exposure of non-polar face. Therefore, rectangular pits were formed owing to the stability of the Ga face and non-polar face. The electrochemical analysis of the porous GaN electrode is shown in Fig. 5e and f. Based on this, it can be said that the porous GaN-based electrode shows good capacitive behavior (3.12 mF cm−2 at 0.1 mA cm−2) with good electrochemical reversibility, and hence, it can be considered a potential candidate for supercapacitors.27 In connection to the above-mentioned work, Zhang group fabricated a single-crystalline porous GaN membrane (GaNPM) by adopting a one-step high-temperature annealing method (1200 °C for 30–80 minutes).28 They proposed a model to show the separation process of GaNPM based on the thermodynamic theories, as shown in Fig. 5g. Fig. 5h–j show the SEM, HRTEM, and CL spectra, which are in support of the proposed model. The crystallinity of the self-separated GaNPM was confirmed by HRTEM. Fig. 5i displays the cross-sectional TEM images of the V-shaped pit formed towards dislocation, the same as the predicted model. The secondary electron and CL image of GaNPM is shown in Fig. 5j. The GaNPM-based asymmetric supercapacitor shows comparable areal power density to that of EDLCs such as graphenes, Ti-CNTs, and GaN membranes, as well as pseudocapacitors such as ZnO/MoO2, polyaniline, GN@MnO2, and N-doped SiC.28 Nongthombam et al. prepared rGO-GaN nanocomposites by a facile chemical reduction process, in which they varied the concentration of GaN (from 1 wt% to 20 wt%) w.r.t. rGO.29 The formation of composites was confirmed by XRD analysis and SEM images. From XPS analysis, the calculated atomic % ratio of Ga and N for GaN 1%@ rGO-GaN and GaN 7%@rGO-GaN was found to be in the range of 2.32–3.98% and 4.91–7.33% respectively. The incorporation of GaN increases the surface pores, leading to an enhancement in the specific capacitance of the nanocomposites. The maximum specific capacitance of the rGO-GaN nanocomposite was found to be 454 F g−1 at 10 mV s−1 scan rate for 5%@rGO-GaN using cyclic voltammetry results; and a similar trend was also observed in a galvanostatic charge–discharge method, as shown in Fig. 5k and l.29 Lv et al. prepared a vacancy-modified few-layered GaN crystal via a one-step ball milling process, and it was first applied in a high-temperature energy storage field. The constructed IL (ionic liquid)-based supercapacitor device exhibited excellent electrochemical performance even at an ultra-high temperature of 150 °C, and ILs successfully suppressed the probability of side reactions and volume expansion of the devices; therefore, it can be useful under extreme working conditions. From the TEM images shown in Fig. 5m, it can be found that the GaN crystal consists of transparent similar layers that restrict the self-aggregation of materials through the course of energy storage. Moreover, this ultrathin structure offers a large surface area with more active sites (N-vacancies), resulting in capacitance enhancement. Further, they claimed that this work has opened up a new avenue for the application of GaN crystal materials.30
![]() | ||
| Fig. 4 (a) Synthesis process of GaN/GP and its assembly into symmetric supercapacitors. (b and c) TEM image of GaN NW. (d) CV graph at a sweep rate of 10 mV s−1. (e) GCD plot at a current density of 1 mA cm−2 in the three-electrode set up. (f) CV curves and (g) GCD profiles of symmetric all-solid-state SCs fabricated by coupling hybrid GaN/GP-2 electrodes (this figure has been reproduced from ref. 26 with permission from Wiley, copyright 2002). | ||
![]() | ||
| Fig. 5 (a–d) Illustration of the formation method of the GaN porous template. Electrochemical performance of the porous GaN electrode. (e) CV and (f) GCD plots (these (a–f) have been reproduced from ref. 27 with permission from RSC, copyright 2016). (g) Separation model to fabricate GaNPM. (h) SEM images of the GaNPM formation. (i) TEM image of the V-shaped pit. (j) CL image of porous GaN (1200 °C for 30 min) ((g–i) have been reproduced from ref. 28 with permission from Nature, copyright 2017). RGO-GaN nanocomposites (GaN1%@RGO-GaN, GaN5%@RGO-GaN and GaN7%@RGO-GaN): (k) plot between the scan rate vs. specific capacitance and (l) charge–discharge curves ((k and l) have been reproduced from ref. 29 with permission from Elsevier, copyright 2020). (m) TEM and HRTEM images of GaN-2.5 h (this figure has been reproduced from ref. 30 with permission from RSC, copyright 2022). | ||
000 cycles, as shown in Fig. 6d. This work demonstrated with theoretical and experimental evidence that by controlling the N/O ratio, the electrochemical performances of the electrode material can be manipulated.31 In another work, Wang group prepared GaON nanoparticles by an ammonolysis technique and used them as electrode materials for supercapacitors. While working on GaON nanoparticles, they found that pristine GaON exhibits a relatively low electrochemical performance towards energy storage. In order to enhance the electrochemical activity, they created gallium vacancies (VGa) and anion defects into GaON nanoparticles via a controllable electrochemical etching process. However, the textural property, defect concentration and band structures can be manipulated by controlling the etching time. Based on experimental as well as computational outcomes, they described the effect of both cation and anion defects on the electrochemical performances. The enhanced performance of the etched GaON nanoparticle is due to the (i) removal of surface oxide layer, (ii) improvement in specific surface area (SBET) and pore volume (Vpore) and (iii) engineered cation and anion vacancies. Furthermore, they found out that the etching process did not compromise with the material's cycling stability and rate capability.32
![]() | ||
| Fig. 6 (a) Synthesis procedure of GaON@CC-T. (b) Room-temperature PL spectra and (c) XRD spectra of GaON@CC-T (T = 750 °C, 800 °C, and 850 °C). (d) Capacitance retention of the symmetric supercapacitor fabricated with GaON@CC-800 (these figures have been reproduced from ref. 31 with permission from Elsevier, copyright 2020) (the caption “GON” mentioned in the figure is the same as “GaON”). | ||
:
7, 1
:
1 and 7
:
3) of the CoGaLDH were used to optimize the performance. Fig. 7d and e represent the CV and GCD curves of the CoGaLDH with different feeding ratios at a scan rate of 30 mv s−1. The integral area of CV for the Co1Ga1LDH was found to be more than that of the LDH with other feeding ratios, which indicates better supercapacitive activity. Furthermore, they found the distinctive redox peaks which demonstrate the reversible and battery capacity properties of the LDH. From the GCD curves, the specific capacity of Co1Ga1LDH was calculated by the author and found to be 1431.4 C g−1 at a current density of 20 A g−1. From Fig. 7f, the linear relationship among peak current (Ip) and the square root of scan rates (ν1/2) was found, which indicates that the electrochemical reaction occurs via diffusion-controlled processes. In order to inspect the practicability of the device, a hybrid supercapacitor was assembled by taking Co1Ga1LDH as the positive electrode and rGO as the negative electrode respectively. The device showed a large operation potential window of 1.65 V with a high energy density of 68.07 W h kg−1 at a power density of 825 W kg−1. By considering the facile synthesis method and superior electrochemical performance, it is concluded that the CoGa-LDH may be the promising electrode material in the field of energy storage.33 Zhang et al. prepared an oxygen-defect-rich 3D porous CoGaLDH (Co0.5Ga0.5-LDH) for high-performance supercapacitor applications by a simple one-step method.34 They quickly poured an aqueous solution containing Co2+ and Ga3+ into an aqueous solution of hexamethylenetetramine followed by a mild and fast hydrothermal reaction. Further, the group claimed that by adopting a mild and rapid approach, a large number of pores were introduced into the ultrathin LDH nanosheets, which result in the creation of a large number of oxygen vacancies in the CoGaLDH. The oxygen vacancies can be arbitrarily controlled, which was confirmed from XPS and ESR measurements. The group concluded that the synergistic effect of introducing Ga ions into the LDH and oxygen vacancies improves the adsorption of the LDH nanosheets on OH-, which results in the outstanding performance of the Co0.5Ga0.5-LDH towards supercapacitor applications. In order to test the practical application of Co0.5Ga0.5-LDH, aqueous ASC (asymmetric supercapacitor) using Co0.5Ga0.5-LDH as the positive electrode and activated carbon as the negative electrode has been fabricated. The device delivered an ultrahigh energy density of 33.38 W h kg−1 and a power density of 10
088 W kg−1. Finally, it was claimed that this work would provide deep insights into the outcome of oxygen vacancies that lower the Eads OH. of LDHs and encourage the wide application of 3D porous ultrathin LDH nanosheets towards energy storage.34 Li et al. fabricated a Ga(II)-doped NiCo LDH (i.e. NiCoGa-LDH@CC) on carbon cloth by a simple one-step hydrothermal method for the first time.35 Similarly, NiCo-LDH@CC and NiGa-LDH@CC have been prepared in order to compare the activity with NiCoGa-LDH@CC. Fig. 7g presents the synthesis strategy of NiCo-LDH@CC, NiGa-LDH@CC and NiCoGa-LDH@CC. The group systematically investigated the effect of Ga3+ doping on the structure, morphology and electrochemical performance of the ternary LDH, i.e. NiCoGa-LDH@CC. Further, it has been found that with the increase in the doping concentration of Ga3+, the dynamic of ion diffusion accelerates due to the opening in the interlaminar space. With the increase in Ga3+ concentration, more redox active sites are formed, which leads to the degradation of crystalline nature and morphology, ultimately inducing negative impacts on the electrochemical performance. With Ga3+ = 1; the synthesized LDH, i.e. Ni1Co3Ga1-LDH@CC, shows the highest specific capacitance of 2012.5 F g−1 at 1 A g−1 with 57.7% capacitance retention observed at 5 A g−1. Further, when the ASC (asymmetric supercapacitor) device was assembled using Ni1Co3Ga1-LDH as the anode and MPC (mesoporous carbon) as the cathode, the system exhibited 84.22 W h kg−1 of energy density at 800.1 W kg−1 of power density. To further test the practical application, two devices were connected in series to light five LEDs in parallel, as shown in Fig. 7h. This work offers a new way to enhance the electrochemical stability and performance of ternary LDHs.35 In another work, Li group prepared nitrogen-doped graphene quantum dots for high-performance asymmetric supercapacitors. It is well known that due to the multiple oxidation states, the LDH is a promising material for supercapacitors. However, it is susceptible to breakdown during redox reactions and exhibits low conductivity, which hampers its electrochemical performance. Li group prepared interlaced nanosheet hybrid structures by assembling N-GQDs (nitrogen-doped graphene quantum dots) with the NiGa-LDH derived from a 2D Ni-MOF on a Ni foam denoted as NiGa-LDH/N-GQD/NF. The specific capacitance of NiGa-LDH/N-GQD/NF was found to be 2160 F g−1 at 1 A g−1 with 87.5% of capacitance retention after 5000 cycles. In addition, ASC devices with NiGa-LDH/N-GQD/NF as the cathode and carbon nanosheets as the anode was fabricated. The preparation method of NiGa-LDH/N-GQD/NF and carbon nanosheets is shown in Fig. 7i. The device shows an energy density of 8.8 W h kg−1 at a power density of 1432.7 W kg−1. In order to demonstrate the practical application, several LED lights were lit. The group claimed that this work would pave a new pathway for the fabrication of LDHs based on MOF-encapsulated N-doped quantum dot hybrid electrodes for electrochemical energy storage applications.36
![]() | ||
Fig. 7 (a–c) SEM images of the CoGa-LDH with different feeding ratios of Ga/Co (i.e. 7 : 3, 1 : 1 and 3 : 7), respectively. (d) CV curves and (e) GCD curves of different feeding ratios of CoGa-LDH. (f) Plot between Ip and ν1/2 ((a–f) have been reproduced from ref. 33 with permission from Elsevier, copyright 2022). (g) Fabrication process of NiCo-LDH@CC, NiGa-LDH@CC and NiCoGaLDH@CC. (h) Two devices connected in series light five LEDs in parallel ((g and h) have been reproduced from ref. 35 with permission from Elsevier, copyright 2021). (i) Preparation method of NiGa-LDH/N-GQD/NF and carbon nano sheets (this figure has been reproduced from ref. 36 with permission from Elsevier, copyright 2022). | ||
![]() | ||
| Fig. 8 (a) CV plots of the CoGa2O4/Ni foam and ZnFe2O4/Ni foam electrode at 100 mV s−1 in a 2 M KOH solution. (b) CV curves of the device. (c) CD curves of the device. (d) CD curves of the devices coupled in series and in parallel ((a–d) have been reproduced from ref. 37 with permission from RSC, copyright 2019). (e) CV plots of the positive and negative electrodes at 50 mV s−1 (f) CV plots of HTS-CGOHS//GW@CFSHS at different scan rates. (g) CD plots of HTSCGOHS//GW@CFSHS at various current densities ((e–g) have been reproduced from ref. 38 with permission from ACS, copyright 2019). (h) CV curve of the device in the potential range of 0–1.6 V at various scan rates. (i) GCD curves at various current densities ((h and i) have been reproduced from ref. 39 with permission from Elsevier, copyright 2020). | ||
000 cycles at 1 A g−1), which may be due to the opening of pores at the surface of the electrode during intercalation and deintercalation processes, as schematically represented in Fig. 9f. With this work, Siddique group supported the possible use of GaTe in optoelectronic and energy storage applications.41 Badilo et al. enhanced the electrochemical performance of graphene supercapacitors by coating the electrode with one of the slurry-paste of ZnO:Al, ZnO:Ga and ZnO:In.42 The group claimed that the use of doped Zn in supercapacitors has not been reported previously.42 They found that after doping ZnO, the oxygen vacancy created in its crystalline lattice becomes beneficial for its electrochemical performance. The SEM images of ZnO:Al, ZnO:In and ZnO:Ga are shown in Fig. 9g, from which the plate-like morphology with irregular edges was found with hexagonal wurtzite phase. The enhancement in the capacitance and energy density up to 193% w.r.t. the reference device without ZnO was found. The maximum value of capacitance and energy density was found for the device made with ZnO:Al, i.e., 284.6 F g−1 and 56.9 W h kg−1. By analyzing the Raman and photoluminescence, the presence of Zn interstitial oxygen vacancies and defects that act as the redox center for charge storage in the device has been demonstrated. This work opened up a new avenue for the researchers by adding doped ZnO into the supercapacitor device to enhance the device performance.42 Sm3GaxOy (samarium gallium oxide) is a complex material system; depending upon the composition and synthesis conditions, this can have multiple phases.43 A cutting-edge development has been attempted by Shanmugam et al. for the synthesis of two stable phases of samarium gallium oxide for photosynthesis and energy storage electrodes. A gel matrix method has been adopted for the synthesis of two stable phases, as represented in Fig. 10a. Fig. 10b presents the XRD peaks of Sm3GaO6 and Sm3Ga5O12 with the corresponding cubic and orthorhombic phases with no other impurities. Fig. 10a presents the FESEM images of both the phases having self-assembled nano-structures. The specific capacitance of Sm3GaO6 (103.89 mA h g−1 at 1 A g−1) was found to be higher than that of Sm3Ga5O12 (91.95 mA h g−1 at 1 A g−1) with significant cycling stability and a capacitive retention of 82.65% over 5000 cycles at 5 A g−1, as shown in Fig. 10c. The photocatalytic studies for methylene blue degradation were also performed for two phases and the degradation efficiency was found to be 92% and 97% for Sm3Ga5O12 and Sm3GaO6 respectively, within 2 h of light irradiation. Finally, it was concluded that the both phases of samarium gallium oxide have the potential for energy storage and environmental remediation applications.43
![]() | ||

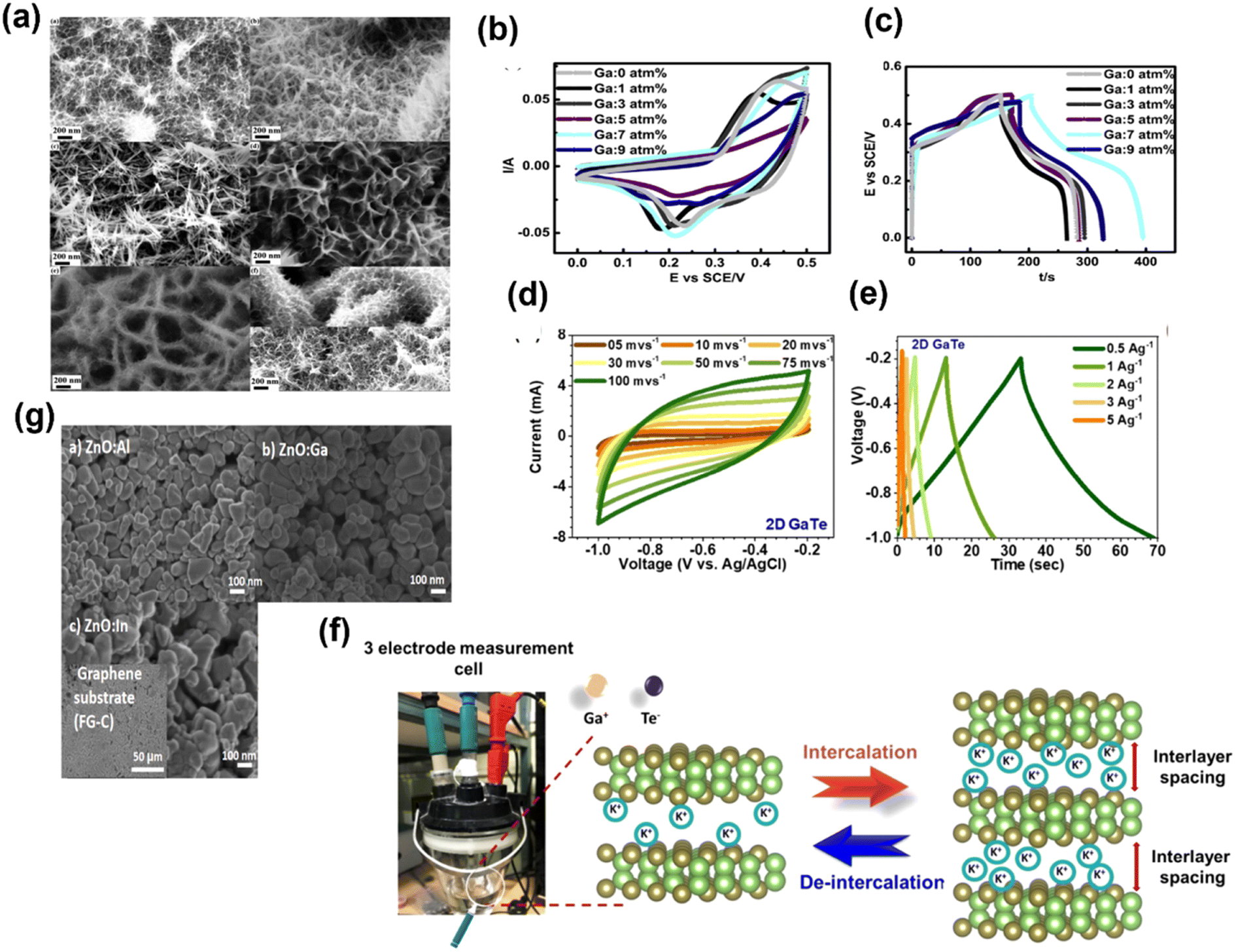

| Fig. 9 (a) SEM images for change in the nano wired structure of NiO after the incorporation of Ga: (A) 0 atm%, (B) 1 atm%, (C) 3 atm%, (D) 5 atm%, (E) 7 atm%, and (F) 9 atm%. (b) CV and (c) GCD curves of Ga-incorporated nickel oxide ((a andb) have been reproduced from ref. 40 with permission from Elsevier, copyright 2016). (d) CV and (e) GCD curves of 2D GaTe at various scan rates and current densities. (f) Intercalation and deintercalation processes of 2D GaTe ((d–f) have been reproduced from ref. 41 with permission from ACS, copyright 2021). (g) SEM images of (a) ZnO:Al, (b) ZnO:Ga and (c) ZnO:In (this figure has been reproduced from ref. 42 with permission from Elsevier, copyright 2022). | ||
![]() | ||

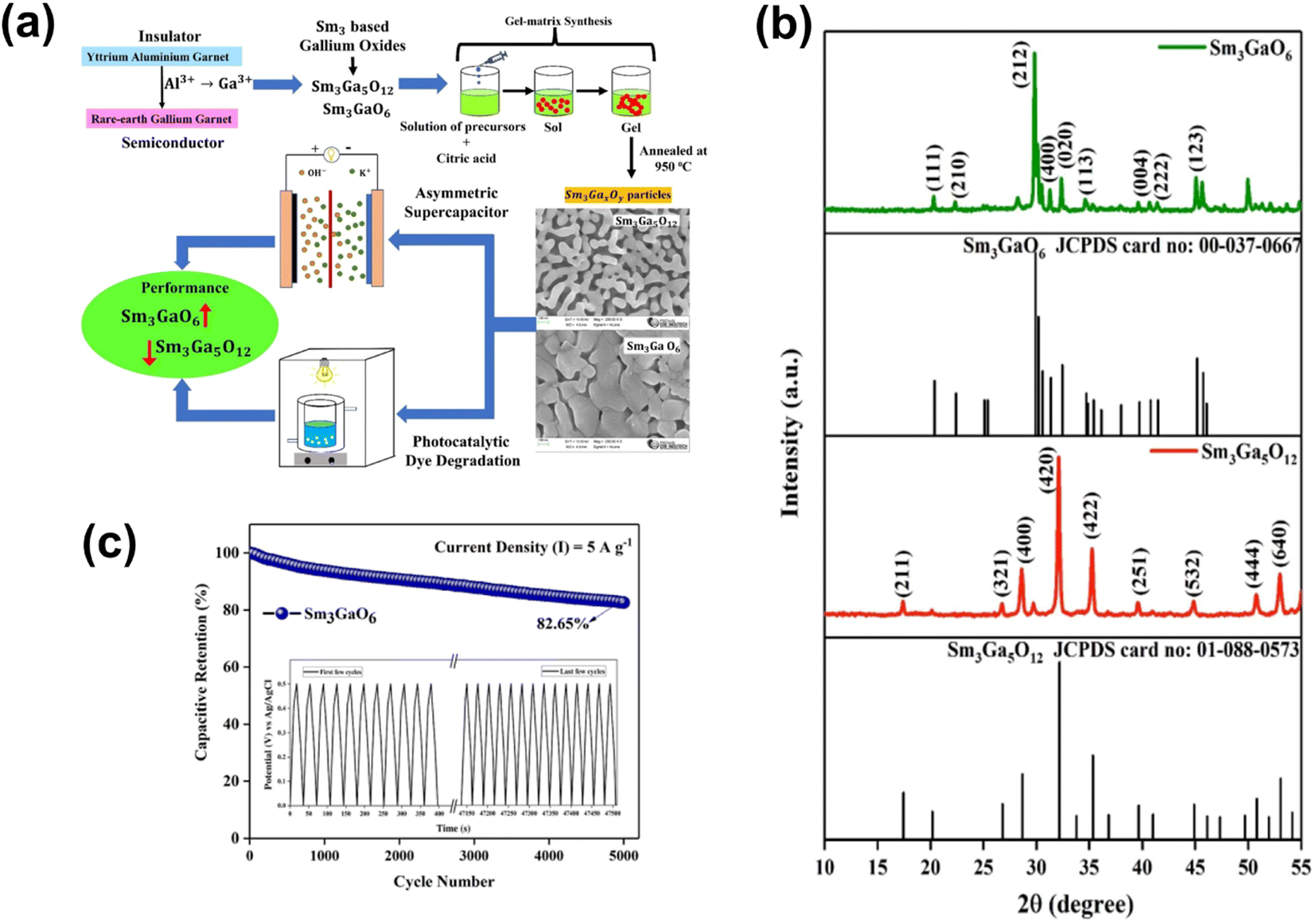

| Fig. 10 (a) Synthesis process of Sm3GaxOy. (b) XRD spectra of Sm3GaO6 and Sm3Ga5O12. (c) Cycling stability curve of Sm3GaO6 ((a–c) have been reproduced from ref. 43 with permission from RSC, copyright 2023). | ||
(i) Cost-effectiveness and scalability: scalability and cost-effectiveness are some of the major challenges faced by gallium-based materials, which hinder their practical applications. Large-scale production by adopting environmentally friendly methods should be subjected to further research for the development of gallium-based materials.
(ii) Integration with advanced storage systems: to cope with the high energy storage requirements, gallium-based supercapacitors can be integrated with other advanced storage systems such as Li-ion batteries, hybrid systems or fuel cells to increase the overall storage performance. This integration may increase the energy density and power density of the energy system. The optimization of the design of integrated energy storage systems and the exploration of their synergistic effects should be the topic of future research.
(iii) Sustainability and environmental aspects: as the field of energy storage is advancing, it is necessary to monitor the sustainability and environmental aspects of the electrode materials. The synthesis method, electrode materials, electrolytes, packaging of the device and recycling process should be sustainable and environmentally friendly. The focus of the future research should be on the development of green synthesis methods for gallium-based electrodes with suitable green electrolytes with excellent recycling strategies.
(iv) Enhanced energy density: researchers are progressively exploring new gallium-based electrodes to enhance the energy storage performance, i.e., energy density for supercapacitor activity. The energy storage capacity of gallium-based supercapacitors can be significantly enhanced by nanostructuring the electrodes and optimizing the electrolyte composition.
(v) Efficiency: the efficiency of gallium-based electrodes can be improved by advances in materials science, reducing the internal energy, electrode engineering and device architecture.
(vi) Market adaptation and commercialization: the commercialization and market adaptation of any system mainly depends upon several factors including performance and efficiency, cost scalability, safety, regulatory environment and market demand. The gallium-based supercapacitors are still in their initial stage of research and they have the potential for market adaptation and commercialization in the future.

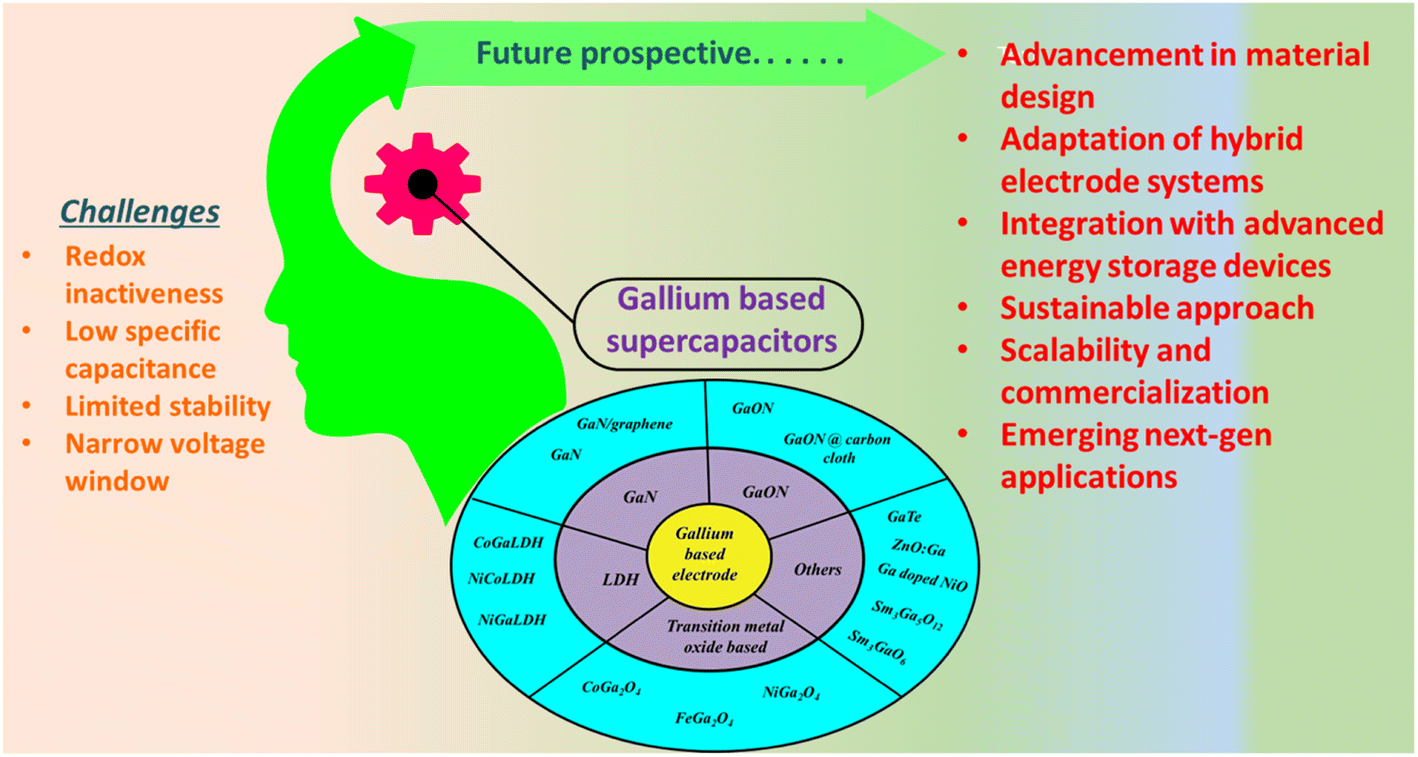

Overall, gallium-based supercapacitors possess a substantial potential for advancing supercapacitor technologies and to address the limitations of traditional electrode materials. Further, extensive research in this field could lead to the development of high-performance supercapacitors addressing the above-mentioned challenges (Scheme 2).
| ESSs | Electrochemical energy storage systems |
| EDLC | Electric double-layer capacitance |
| TMO | Transition metal oxide |
| TMS | Transition metal sulfide |
| SCs | Supercapacitors |
| PC | Pseudocapacitance |
| CV | Cyclic voltammetry |
| GCD | Galvanostatic charge discharge |
| SAXRD | small-angle X-ray diffraction |
| SEM | Scanning electron microscopy |
| FESEM | Field emission scanning electron microscopy |
| TEM | Transmission electron microscopy |
| HRTEM | High-resolution transmission electron microscopy |
| XRD | X-ray diffraction |
| HRXRD | High-resolution X-ray diffraction |
| CL | Cathodoluminescence |
| IL | Ionic liquid |
| PL | Photoluminescence |
| LDH | Layered double hydroxide |
| XPS | X-ray photoelectron spectroscopy |
| ESR | Electron spin resolution |
| ASC | Asymmetric supercapacitor |
| AFM | Atomic force microscopy |
