Experimental study and simulation of the reaction mechanism of Al–PTFE mechanically activated energetic composites

Abstract

In order to explore the mechanism of reaction involving Al-polytetrafluoroethylene (PTFE) mechanically activated energetic composites, a molecular dynamics simulation was carried out to predict the pyrolysis of PTFE. Then, density functional theory (DFT) was applied to calculate the mechanism of reaction between the products of PTFE pyrolysis and Al. Furthermore, the pressure and temperature obtained during the reaction of Al–PTFE were tested to study the chemical structure before and after heating. Finally, the laser-induced breakdown spectroscopy experiment was performed. According to the experimental results, the main pyrolysis products of PTFE include F, CF, CF₂, CF₃ and C. The path of the CF₃ + Al → CF₂ + AlF reaction is the easiest to achieve. AlF₃, Al and Al₂O₃ are the main components of the pyrolysis products of PTFE with Al. Compared with Al–PTFE, the ignition temperature required by the Al–PTFE mechanically activated energetic composite is lower and its combustion reaction is faster.

---

1 Introduction

Compared with the traditional single substance energetic materials, composite energetic materials usually have higher energy density, lower reaction rate and lower energy release rate.^1–3 Amongst the variety of composite energetic materials with good safety performance and high energy density, aluminum (Al) based energetic materials have been widely used in propellants, explosives and other settings.⁴ Micron or nano particles provide a common means for Al combustion and utilization. However, due to the tendency of oxidation, it is inevitable for a dense Al₂O₃ film to develop on the surface of Al particles, which adversely affects the long-term storage of Al based energetic materials. At the same time, a higher ignition temperature is required to melt the Al₂O₃ shell when Al is burned.⁵ Up to now, it remains unclear whether the fracture of the Al₂O₃ shell is caused by Al core melting or polycrystalline phase transformation.⁴

Fluoropolymer is a commonly used coating agent, while polytetrafluoroethylene (PTFE) is often used as the composite with other materials to effectively improve the combustion performance.⁶ The composite of PTFE and Al is applicable to prevent the further oxidation of Al–Al₂O₃ spheres and ensure the active Al content of the material,⁷ which improves the storage performance of Al-based energetic materials. In the process of ignition, the hydroxyl groups on the surface of PTFE and Al₂O₃ shell undergoes pre-ignition reaction (PIR), which makes Al₂O₃ shell prone to cracking, thus reducing the ignition energy of Al–PTFE and enhancing the activity of the reaction system.⁸ In addition, PTFE can react with Al, and the bond energy of Al–F is higher than that of Al–O. Therefore, Al–PTFE is characterized by high calorific value and high reaction heat. Specifically, the specific energy per unit mass/volume of Al–PTFE exceeds twice that of TNT, despite its poor performance in strength, density and insensitivity.

The content, particle size and morphology of Al tend to have a significant impact on Al-based composite energetic materials in terms of energy release. In the experiment conducted by Li et al.,⁹ Al–PTFE owning about 60% Al in mass fraction release a large amount of heat during reaction process. In general, it is considered that a smaller particle size of Al leads to a faster pace of combustion reaction.¹⁰ However, there are also some studies indicating that the reaction activity of nano Al can be reduced by the relatively low content of active Al or particle agglomeration.¹¹ By changing spherical Al particles into flake Al particles, the decomposition temperature of Al based mixture can be effectively reduced and the decomposition rate can be improved.¹² In regard to the characteristics of macroscopic detonation, the particle size of Al makes a huge difference to the velocity and pressure of detonation as well as other parameters of Al based explosives,¹³ thus affecting the threshold of material impact reaction.¹⁴ It is expected that the combustion performance of Al matrix composite energetic materials can be further improved by mixing and optimizing coarse and fine Al particles.¹⁵ Therefore, the research on the reaction process of Al based energetic materials plays a significant role in promoting the synthesis of energetic materials.

In recent years, Russia and the United States have began to rely on mechanical activation (usually the equivalent of the reaction inhibition ball milling method^16–19) to increase the interface contact between Al and PTFE reactants, reduce the distance of diffusion, as well as improve the rate of energy release and conversion. With regard to the reactivity of metal–PTFE mechanically activated energetic composites, Koch EC monitored the reaction of metal/fluoropolymer composites through¹⁷ infrared spectroscopy, and then analyzed the reaction of Mg–PTFE composites. D. D. Dlott et al.^20–23 explored the reaction threshold and energy release mechanism of nano-Al–PTFE and B/PTFE composites initiated by laser flash heating through transient spectroscopy, and detected the transient intermediate products obtained through the reaction. Tao J. et al. researched the characteristics of concentrated ignition and reaction process of Al–PTFE composites.²⁴ In spite of this, there remains a lack of systematic research on the reaction mechanism of Al–PTFE mechanically activated energetic composites, especially the dynamic decomposition process of PTFE and its reaction mechanism with Al under anaerobic/aerobic conditions.

In the present study, the reaction mechanism of Al–PTFE mechanically activated energetic composites is systematically investigated from different perspectives such as the cracking of PTFE, the reactivity of Al–PTFE composites, the reaction activation energy of Al–PTFE composites, the gas generation in the reaction of Al–PTFE composites, and the laser-induced breakdown spectroscopy of Al–PTFE composites. The correlation between the decomposition products of PTFE and their distribution with time was obtained, and the reaction mechanism between PTFE decomposition products and Al under aerobic/anaerobic condition was analyzed. This work can effectively guide the formulation design of explosives containing Al–PTFE composites, and gain a deeper understanding of the reaction path and energy release mechanism of Al–PTFE composites.

2 Experiment and computation

2.1 Computational method

2.1.1 Reaction molecular dynamics calculation of thermal decomposition of PTFE. Based on the Reaxff 6.0 force field,^25–28 an amorphous cell containing a PTFE with polymerization degree of 100 was constructed. The target density was set to 2.2 g cm⁻³, and the temperatures were set to 2000 K and 3000 K, respectively. Then, the mechanism of high-temperature initial pyrolysis was explored. In addition, an amorphous cell containing four PTFE was established to study the effect of polymerization degree on the cleavage. The target density was set to 2.2 g cm⁻³, and the temperature was set to 3000 K. Fig. 1 shows the initial configuration of PTFE. With the equilibrium structure built in NVT-MD simulation as the initial configuration (system energy changes over time is shown in Fig. 2), the simulation of isothermal isobaric molecular dynamics (NPT-MD) was carried out at different temperatures. The temperature and pressure were adjusted by using nose–Hoover hot bath and Rahman–Parrinello pressure bath respectively to ensure that the temperature and pressure fluctuate around the preset value. The simulation time was 200 ps (PTFE pyrolysised completely in this circumstance), the step size was 0.1 fs, and the output data was collected every 0.1 ps. All simulation calculations were performed with MS software.²⁹

Fig. 1 Initial configuration of PTFE. (a) PTFE with DP of 100, (b) PTFE with DP of 25.

Fig. 2 System energy changes over time of PTFE (DP = 25) at 2000 K.

2.1.2 Density functional theory calculation of the reaction between PTFE decomposition products and Al. The calculation of the reaction between PTFE cracking products and Al was carried out by using the Gaussian09 software. At the level of 6-311+G (d,p) base set, the density functional B3LYP method was used to optimize the geometric configuration at each stationary point on the reaction potential energy surface of Al and PTFE cracking products. Also, the analysis of vibration frequency was carried out to optimize the structure of the reactants, transition states and products of the reaction between PTFE cracking products and Al. To determine that there is a unique virtual frequency in the transition state, the vibration analysis of the reactants, transition states and products was carried out at the same level, which also ensures the correct vibration mode for all compounds.

2.2 Experiment

2.2.1 Sample preparation. Aluminum powder was purchased from a commercial organization, with a grade of FLQT-2, a purity of over 99% and a D₅₀ of 26 μm with a spherical shape. The particle size of PTFE powder is approximately 1 μm with a powdery shape. The Spex 8000M high-energy ball mill sourced from the SPEX company was applied to prepare Al–PTFE mechanical activated energetic composites. SU8010 field emission scanning electron microscope was employed to characterize the morphology of the samples.

Commercially available aluminum powder and PTFE powder were taken as the raw materials. Al and PTFE were mixed and then added into the high-energy mill at a ratio of 60 : 40. Then 20 mL of n-hexane was added. The ball and tank body are both made of stainless steel. There are two 8 mm stainless steel balls and two 4 mm stainless steel balls in the ball tank. The ball mill is milled for 2 minutes and interrupted for 1 minute for cooling to prevent excessive temperature. The time of high-energy ball milling was set to 1 h, as the Al–PTFE particles are relatively complete, tightly contacted, and the surface is smooth after 1 hour ball milling. After filtration, the milled samples were dried in 313 K oven for later use. The morphology of Al–PTFE composites before and after balling are shown in Fig. 3. Al–PTFE composites before ball milling (S–Al–PTFE) is a physical mixture of spherical Al powder and PTFE powder. Al–PTFE mechanically activated energetic composites (F–Al–PTFE) is a sheet-like composite. The properties of two composites are shown in Table 1, and the impact and friction sensitivity were tested according to GJB772A (1997) method.

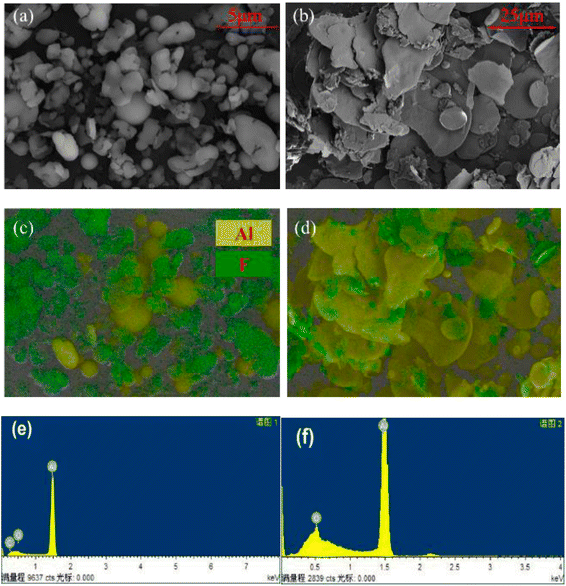

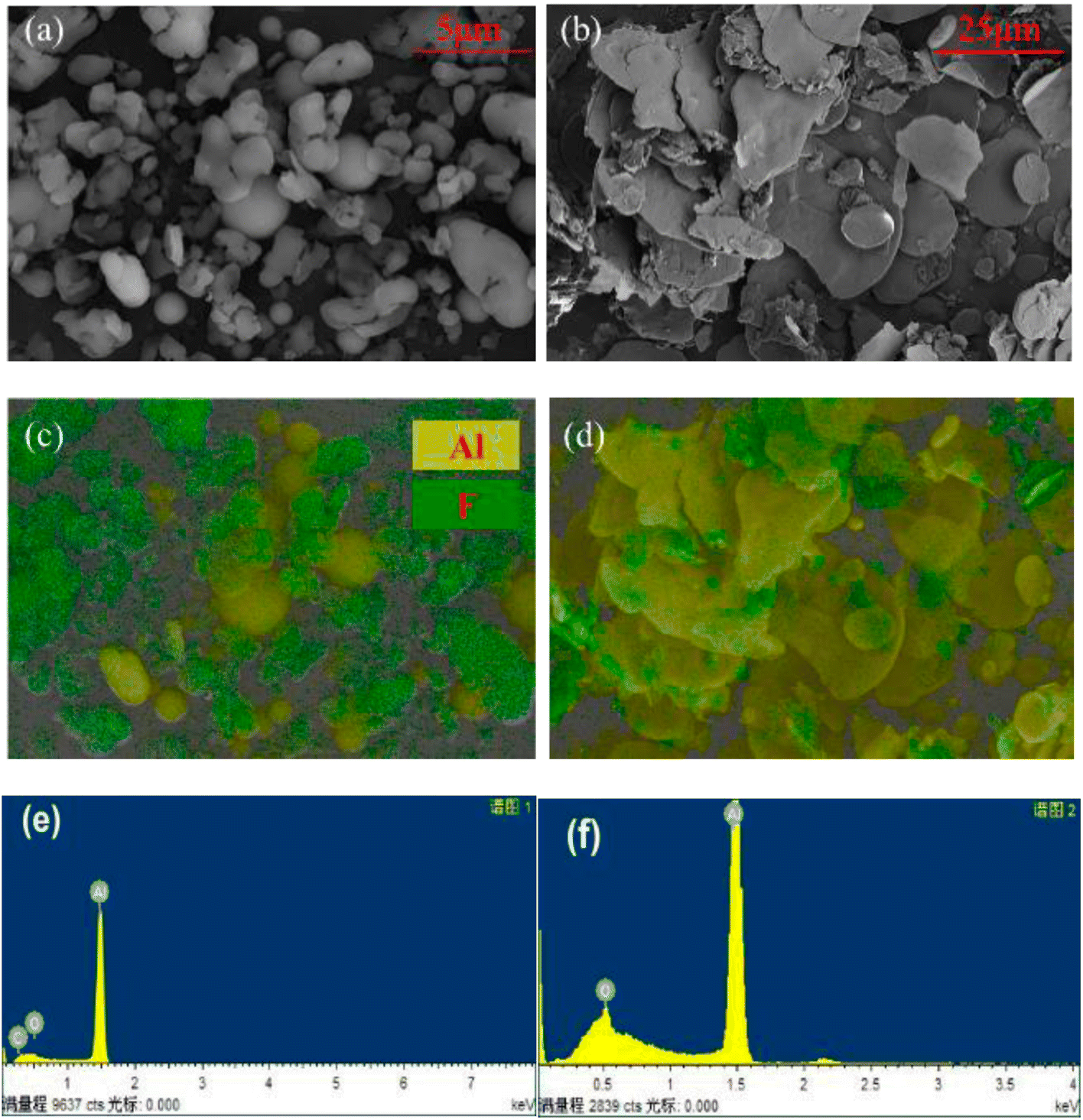

Fig. 3 SEM (a) and (b), EDS (c) and (d), and elemental distribution (e) and (f) images of Al–PTFE. (a), (c) and (e) Al–PTFE composites before ball milling (S–Al–PTFE); (b), (d) and (f) Al–PTFE mechanically activated energetic composites (F–Al–PTFE).

Table 1 The properties of Al–PTFE before and after ball milling

Sample	Ball milling (min)	Theory density (g cm^−3)	Heat of combustion (J g^−1)	Impact sensitivity (%)	Friction sensitivity (%)
S–Al–PTFE	0	2.47	23 424.8	12	20
F–Al–PTFE	60	2.47	23 424.8	8	12

---

2.2.2 Reactivity test. Thermogravimetric differential scanning calorimetry (TG-DSC) analysis was performed on the 449C TG-DSC synchronous thermal analyzer of Netzsch, Germany. Aluminum crucible, with a sample size of approximately 1.0 mg, a carrier gas of N₂, a flow rate of 75 mL min⁻¹, and a heating rate of 10 °C min⁻¹.

According to the reaction analysis of Al–PTFE composite materials, a 10 g level mechanical activated metal material reaction performance test system was established. The test device consists of a small sealed projectile and its matching heating sleeve. The structure of the test device is shown in Fig. 4. The melting point of aluminum is 660 °C, and the combustion of ordinary aluminum powder occurs when the temperature approaches its melting point. Therefore, the system developed in this study can be used for the temperature to reach a maximum of 700 °C in a controlled manner. In order to prevent the instability of high temperature control and line overloading caused by continuous high power, the final heating mode is supposed to be 2 °C min⁻¹ below 400 °C and 1 °C min⁻¹ above 400 °C.

Fig. 4 Test device.

2.2.3 Laser-induced breakdown spectroscopy experiment. The schematic diagram of the experimental system is shown in Fig. 5. The Nd:YAG lamp (Grace NASOR 800) was used to ablate the samples. The wavelength of laser is 532 nm and the corresponding width of pulse is 9 ns. The single pulse laser energy was adjusted to 60 mJ through the energy attenuator on the external optical path. Then, a focusing lens with a focal length of 15 mm focuses the laser on the surface of the sample which was compacted in a stainless steel hole with a diameter of about 2 mm. The system used for spectrum measurement is comprised of a spectrometer (Shamrock 750) and an intensified charge coupled device (ICCD, ISTAR CCD 334). The measurement wavelength ranges from 180 to 850 nm and the accuracy of wavelength is 0.03 nm. Before ablation, the sample of each ablation was adjusted to the specified position through the laser indicator. By repeating the ablation experiment and adjusting the measurement delay of ICCD, a time-resolved spectral diagnosis of the laser ablation process was implemented.

Fig. 5 Experimental apparatus.

In the course of laser propagation, energy loss results mainly from the quartz glass and the reflector in the attenuator. The average power density of the laser focus was determined through the following formulas:

P = 4E_abs/(πd²_f) (1)

d_f = 4fλ_LM²/(πd_b) (2)

M₂ = 0.25d_iθπ/λ_L (3)

E_abs = ET_λL(1 − R_λL) (4)

where P represents the average power density of the laser focus, E_abs denotes the actual incident energy, d_f indicates the theoretical diameter of the focus, f is referred to as the focal length of the focusing lens, M² represents the quality factor of the laser beam, d_b indicates the laser diameter after beam expansion, d_i stands for the diameter of the laser spot, θ denotes the divergence angle, λ_L means the laser wavelength, E indicates the laser set energy, and T_λL and R_λL represent the transmittance of quartz glass and the reflectance of the reflector, respectively. The value of P was finalized as 9.187 × 10¹⁰ W cm⁻² since the sample could be ablated by the laser at this power density.

3 Results and discussion

3.1 Analysis of PTFE pyrolysis products

The pyrolysis products of PTFE with a polymerization degree of 100 at different temperatures were calculated, as shown in Fig. 6. It can be found out from the figure that the foremost pyrolysis products of PTFE with a polymerization degree of 100 at 2000 K include F, CF₂, C, CF₃, CF₄ and F₂, with the number of products in the order as follows: F > CF₂ > C > CF₃ > CF₄ > F₂. It is also found out that the main pyrolysis products of PTFE with a degree of polymerization of 100 at 3000 K include F, CF, CF₂, C, F₂ and CF₃. The number of these products is in the order as follows: F > CF > CF₂ > C > F₂ > CF₃. By comparing the effect of temperature on pyrolysis products, it can be discovered that temperature rise can significantly increase the content of F free radicals in cracking products, and that the amount of F free radicals rises from about 90 to 130, which leads to an increase in the proportion of CF free radicals in pyrolysis products.

Fig. 6 Main pyrolysis products of PTFE at different temperatures. (a) PTFE with DP of 100 at 2000 K; (b) PTFE with DP of 100 at 3000 K; (c) PTFE with DP of 25 at 2000 K.

At 2000 K, the foremost pyrolysis products of PTFE with a 25 degree of polymerization include F, CF, C, F₂, CF₃ and CF₄. Compared with the PTFE with a 100 degree of polymerization, the reduction in degree of polymerization can increase the content of F free radicals in the pyrolysis products to a significant extent, with the amount of F free radicals rising from about 90 to 120, which also causes an increase in the proportion of CF free radicals in the pyrolysis products.

In general, the foremost PTFE pyrolysis products include CF, CF₂, CF₃ and F, etc. Both the increase of temperature and the reduction of polymerization degree are conducive to enhancing the decomposition of PTFE cracking products, which leads to a sharp rise in the content of F and CF free radicals in the products.

3.2 Reaction mechanism of PTFE pyrolysis products with Al

In order to better understand the mechanism of reaction between PTFE decomposition products and Al, the main reaction pathways of PTFE decomposition products and Al under oxygen-free conditions were calculated, as shown in Fig. 7. Fig. 7a shows the reaction path of CF₃ + Al → CF₂ + AlF, Fig. 7b shows the reaction path of CF₂ + Al → CF + AlF, and Fig. 6c shows the reaction path of CF + Al → C + AlF. The difficulty of chemical reaction are determined by the energy barrier of the reaction. By comparing Fig. 7a–c, it can be found out that the reaction energy barrier of CF₃ + Al → CF₂ + AlF is the smallest (only 2.39 kJ mol⁻¹), followed by CF₂ + Al → CF + AlF (9.29 kJ mol⁻¹) and CF + Al → C + AlF (9.29 kJ mol⁻¹). Therefore, the reaction path of CF₃ + Al → CF₂ + AlF is the easiest to achieve, followed by the sum reaction path of CF₂ + Al → CF + AlF and CF + Al → C + AlF.

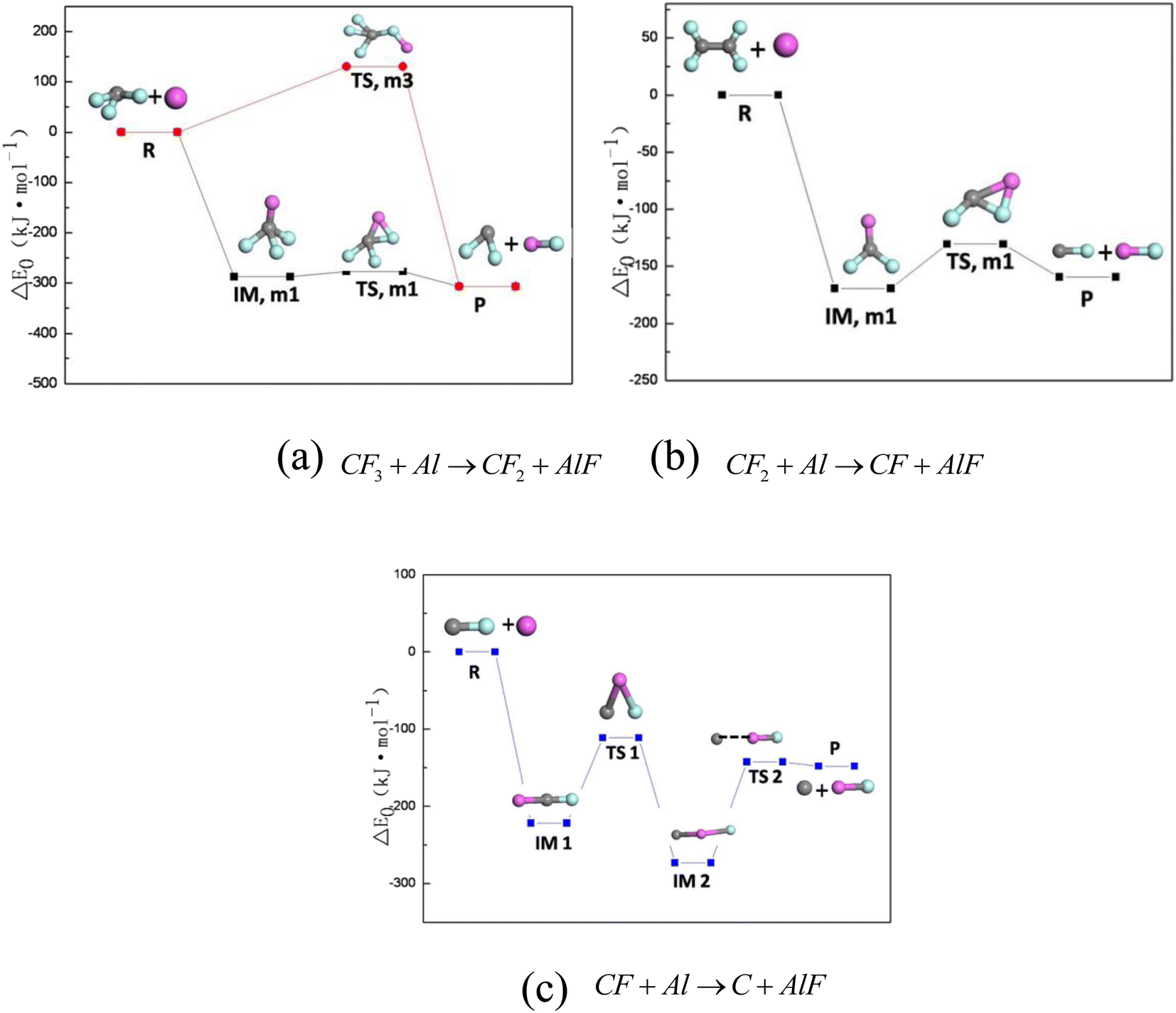

Fig. 7 Main reaction pathways of PTFE decomposition products and Al under oxygen-free conditions. (a) CF₃ + Al → CF₂ + AlF; (b) CF₂ + Al → CF + AlF; (c) CF + Al → C + AlF.

3.3 Experimental study on heating reaction process of Al–PTFE mechanically activated energetic composites

In order to investigate the effect of milligrams on the reactivity of Al–PTFE mechanically activated energetic materials, the thermal properties of Al–PTFE mechanically activated energetic materials with different ball milling times were tested using DSC. The heat flow curve is shown in Fig. 7. From the graph, it can be seen that there are three endothermic peaks on the heat flow curves of the four samples with different ball milling times: the first peak represents the endothermic melting of PTFE; the second peak represents the endothermic decomposition peak of PTFE; the third peak represents the second decomposition of PTFE. As shown in Fig. 8, high energy ball milling can significantly reduce the critical reaction temperature of Al–PTFE mechanically activated energetic materials and improve their reactivity.

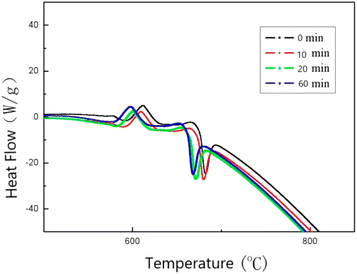

Fig. 8 DSC of Al–PTFE with different ball milling time.

A test was conducted on the reaction process of 10 g level Al–PTFE mechanically activated energetic composites, as shown in Fig. 9. After the pressure of Al–PTFE mechanically activated composites begins to rise at about 420 °C, it basically levels off. At about 600 °C, the system pressure declines abruptly at basically the same time as ignition. It is thus inferred that Teflon begins decomposition to produce gaseous products at about 420 °C, which leads to a rise in system pressure. When the temperature reaches about 600 °C, the decomposition products of Teflon and aluminum powder undergo a violent exothermic reaction to produce the final product without gas. In this circumstance, the system pressure ends up showing a downward trend. The ignition of the Al–PTFE composite occurs at 598.5 °C, which is followed by a relatively violent exothermic reaction. Because of the dense oxide layer on the surface of the ordinary aluminum powder, the oxidation reaction occurs only when it is heated to the melting point of the aluminum, which is nearly 660 °C. According to the pressure time history curve, the system pressure of Al–Teflon mechanically activated material starts to rise at a certain point in time before ignition, and it basically levels off after the pressure rises. Finally, the system pressure decreases. According to the comprehensive temperature and pressure time history curve, the system pressure starts to rise at about 420 °C, followed by some fluctuations. At about 600 °C, the system pressure suddenly declines at basically the same time as ignition. Given the properties of aluminum powder and Teflon, as well as the potential reactions between the two substances, it can be inferred that Teflon begins decomposition at about 420 °C to produce gaseous products, thus causing the system pressure to increase. When the temperature reaches about 600 °C, the decomposition products of Teflon undergo a violent exothermic reaction with aluminum powder to produce a final product without gas, with the final system pressure showing a downward trend. Therefore, unlike the common solid–solid MIC systems (such as Al–Ni, Al–CuO, Al–Fe₂O₃), the reaction of Al–PTFE leads to the generation of gas products. As analyzed previously, these gas products may be the condensation products of those free radicals containing 1 carbon atom, tetrafluoroethylene and a small amount of tetrafluoroethylene. Due to the presence of gas products, there is a significant increase in the contact area, thus improving reactivity. This is the difference between it and other metal–metal oxides.

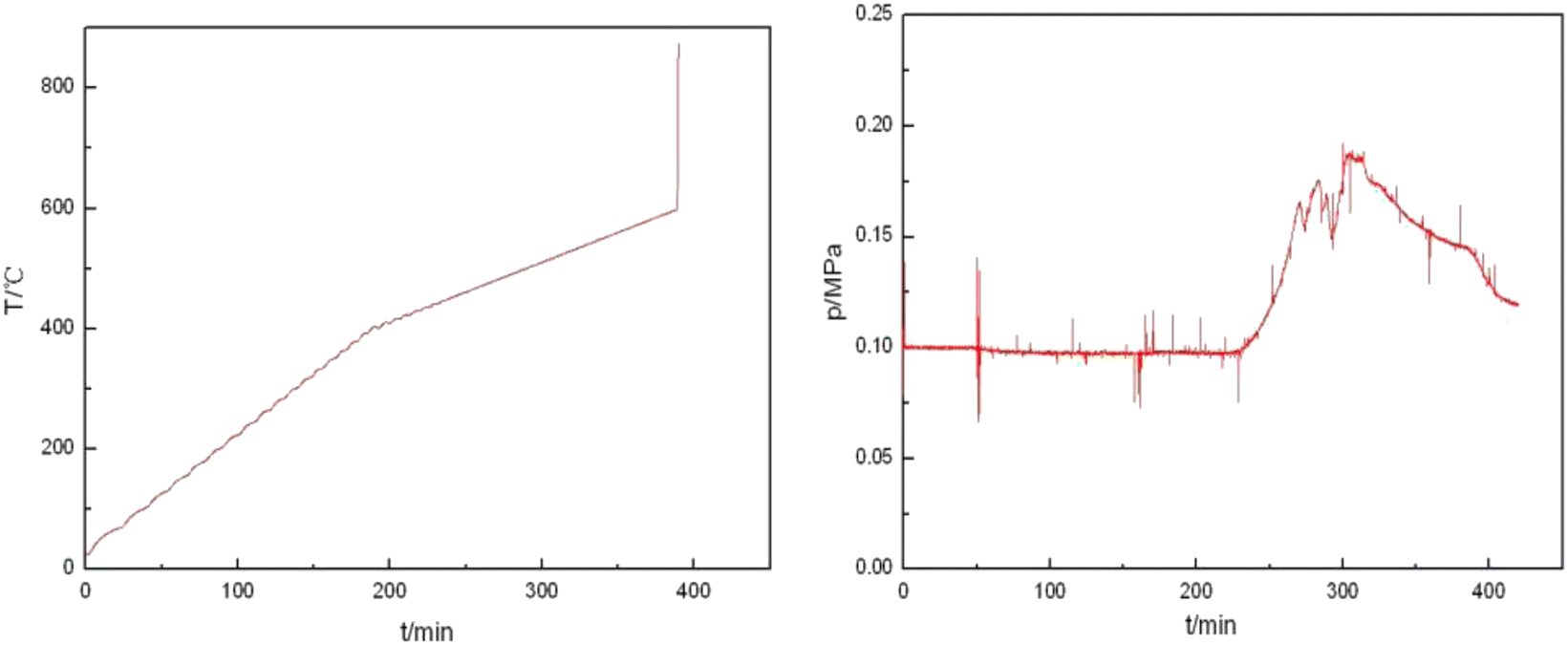

Fig. 9 Gas generation during Al–PTFE heating process.

In order to study the chemical composition of the products before and after the reaction of Al with PTFE, the content of surface elements in Al–PTFE composites was determined before and after the reaction, as shown in Fig. 10. The weight percentage of surface elements of Al–PTFE composites before the reaction is C (21.11%), F (65.31%) and Al (13.58%), respectively. The weight percentage of surface elements in the reaction Al–PTFE composites is C (11.32%), O (9.44%), F (22.43%) and Al (56.80%), respectively. According to the analysis, the content of C and F in surface elements shows a sharp decline after reaction, while Al content increases significantly. Also, the chemical structure of the Al–PTFE composite before and after the reaction was examined. From the figure, it can be seen that the chemical structure of the system in the infrared curve is dominated by PTFE before the reaction, and the peak of the system is not easily observable after the reaction. The system is predominantly inorganic. Judging from the previous theoretical calculation, its main components are supposed to be AlF₃, Al and Al₂O₃.

Fig. 10 Chemical structure of Al–PTFE composite before and after reaction.

3.4 Laser-induced breakdown spectroscopy of mechanically activated energetic composites

Fig. 11 shows the characteristic spectra of Al powder, S–Al–PTFE and F–Al–PTFE under the laser ablation corrected by background intensity. During measurement, the emission spectra of Al I and Al II were found strong, with the width of ICCD set to 100 ns. The AlO signal is relatively weak, with the gate width of ICCD set to 1000 ns to prevent noise interference. Fig. 11 shows the changes in plasma temperature over time based on the Boltzmann equation and Al I (309 nm and 394 nm) measurement data obtained for three samples. The relevant data can be found in NIST spectral database or the published literature.

Fig. 11 Typical emission spectra of three samples under laser ablation. (a)–(c) Time delay: 1 μs, gate width: 100 ns; (d) time delay: 10 μs, gate width: 1000 ns.

As can be seen from Fig. 11, the emission peak of Al line approaches 309.4 nm, 394.5 nm and 396.2 nm, with some vibration bands of AlO in the range of about 460–494 nm. This vibration band shows several peaks, among which those at 484.4 nm and 486.7 nm are easily observable. The emission spectrum of Al is ascribed to the vaporized active metal Al produced by the oxidation shell rupture on the surface of Al particles generated by laser ablation or a large amount of active Al formed by the fracture of Al–O bond created by the laser direct ablation of Al₂O₃ shell. As for Al, it can be found out that Al (394 nm, 396 nm) has a relatively high emission intensity, while Al (309 nm) has a low emission intensity. Through a comparison between these three samples, it can be discovered that under the context of different time delays, the emission intensity of Al (309 nm, 394 nm, 396 nm) is in the order as follows: Al powder > F–Al–PTFE > S–Al–PTFE. This is largely attributed to the difference in laser energy absorbed by Al particles. Specifically, the Al particles in Al powder absorb almost all the laser energy irradiated on the sample surface, while the Al particles in F–Al–PTFE absorb only part of the laser energy due to the existence of PTFE. Also, the Al particles in F–Al–PTFE absorb more than those in S–Al–PTFE.

In general, the emission intensity declines with the reduction in plasma energy density. Because the experiment is conducted in an open environment, Al–PTFE composites can come into contact with O₂ in the air. However, the emission intensity of AlO rises during the period of 5–20 μs. A similar phenomenon was also observed for the plasma temperature with a small increment, which indicates the occurrence of two exothermic reactions: Al + O → AlO and Al + O₂ → AlO + O. Up to now, there are two explanations proposed. On the one hand, the oxide film on the surface of Al particles must undergo a lengthy melting process. Therefore, the generated active Al continues to participate in the reaction of AlO formation in the later stage of ablation when the oxide film breaks apart. On the other hand, it can be seen from Fig. 12 that, the plasma temperature of the three samples continues a decreasing trend during the period of 1–5 μs. When the decay reaches a significant extent, the pace of the forward AlO generation reaction rises sharply, and the overall AlO generation of the three samples shows an increasing trend. Thus, the signal of AlO at 5 μs is enhanced significantly. According to the first explanation, there is stronger AlO emission by F–Al–PTFE at 2 μs than S–Al–PTFE and a relatively stronger AlO emission by S–Al–PTFE at 5–40 μs. Thus, F–Al–PTFE has a lower ignition temperature and faster rate of combustion reaction. This is a contributor to F–Al–PTFE showing an advanced peak of temperature curve compared with S–Al–PTFE. Specifically, F–Al–PTFE shows a peak of temperature rise at 2 μs, while S–Al–PTFE shows a peak of temperature rise at 5 μs.

Fig. 12 Plasma temperature varies with time.

4 Conclusions

The reaction mechanism of Al–PTFE before and mechanically activation is systematically investigated. The activation energy, the gas generation during reaction, and the laser-induced breakdown spectroscopy of Al–PTFE composites are obtained. Then the following conclusions can be drawn specifically:

(1) The increase of temperature and the decrease of polymerization degree play a role in enhancing the decomposition of PTFE cracking products.

(2) The difficulty of chemical reaction are determined by the energy barrier of the reaction. Compared the reaction of the pyrolysis products of PTFE with Al without O₂, the reaction path of CF₃ + Al → CF₂ + AlF is the easiest to achieve.

(3) Different from metal–metal oxides, gaseous products can be produced during the decomposition process of Al–PTFE composites. High energy ball milling can significantly reduce the critical reaction temperature of Al–PTFE composites.

(4) Al–PTFE mechanically activated energetic composites has a lower ignition temperature and faster rate of combustion reaction in air.
