Why is phenyl azide so unreactive in [3 + 2] cycloaddition reactions? Demystifying Sustmann's paradigmatic parabola

Abstract

The [3 + 2] cycloaddition (32CA) reactions of phenyl azide with a series of 25 ethylenes of different electronic activation have been studied within Molecular Electron Density Theory (MEDT) at the ωB97X-D/6-311G(d,p) computational level to understand the low reactivity of azides participating in 32CA reactions. Analysis of the reactivity indices allows characterizing phenyl azide as a moderate electrophile and a moderate nucleophile. The relative reaction rate constants k_r of twelve selected 32CA reactions, together with the electrophilicity ω and nucleophilicity N indices of the corresponding ethylenes, allow us to classify these 32CA reactions into four groups: (i) group A, involving supernucleophilic ethylenes and displaying a k_r > 10⁴; (ii) group B, involving strained cyclic ethylenes and displaying a k_r < 10²; (iii) group C, involving strongly electrophilic ethylenes and displaying a k_r ≤ 10², and (iv) group D, involving moderately electrophilic and nucleophilic ethylenes and displaying a k_r < 2. These four groups are characterized in Sustmann's “parabolic correlation”, which results from an inaccurate interpretation of the reactivity of phenyl azide, which is not an “ambiphilic species” but rather a moderate electrophile that reacts efficiently only with supernucleophilic ethylenes in reverse electron density flux (REDF) zw-type 32CA reactions.

---

1. Introduction

[3 + 2] cycloaddition (32CA) reactions are some of the most efficient synthetic methods for constructing five-membered heterocyclic compounds due to their ability to build organic cyclic motifs regio- and/or stereoselectively.^1–4

The knowledge of 32CA reactions is challenging for organic chemists due to the variable electronic structures of the three-atom-components (TACs) participating in these reactions.⁵ In the 1960s, Huisgen⁶ and Firestone⁷ independently proposed two different mechanisms: one involving 1,2-dipolar species and another one involving diradical intermediates, respectively.

Recent Molecular Electron Density Theory⁸ (MEDT) studies of 32CA reactions of the simplest TACs towards ethylene 5 have established a relationship between their electronic structure and reactivity.⁵ Accordingly, depending on the electronic structure of TACs, i.e., pseudodiradical, pseudo(mono)radical, carbenoid, or zwitterionic, 32CA reactions have been classified into the corresponding reaction types (see Scheme 1);⁵ thus, while the pdr-type 32CA reaction of azomethine ylide 1 with ethylene 5 takes place very quickly,⁹ the zw-type 32CA reaction of nitrone 3 needs suitable nucleophilic/electrophilic activations to take place.¹⁰

Scheme 1 Electronic structures of the simplest TACs and proposed reactivity types in 32CA reactions. MPWB1K/6-311G(d) gas phase activation energies of the non-polar 32CA reactions between the four simplest TACs 1–4 and ethylene 5 are given in kcal mol⁻¹.

Frontier molecular orbital (FMO) theory¹¹ has been widely used to understand reactivity and regioselectivity based on HOMO and LUMO analysis of isolated reactants. However, molecular orbitals (MOs), created in the 30s of the last century,¹² are only mathematical artifacts without any physical reality used only for the construction of the molecular wave function, which provides the distribution of the electron density, which is the only observable.¹³

In 1972, Sustmann and Trill analyzed the HOMO and LUMO energy gaps between phenyl azide 6, Ph-N₃, and a series of substituted ethylenes to understand the reactivity of this TAC in 32CA reactions.¹⁴ They proposed that in these 32CA reactions of phenyl azide 6, the reactivity is increased by both electron-releasing (ER) and electron-withdrawing (EW) substituents in the ethylene, in a reaction classified as “inverse electron demand”.¹⁴ Since the LUMO energies were unknown, and the HOMO and LUMO energies should be shifted in the same direction by any substituent, Sustmann and Trill used the HOMO energies of the ethylenes as a measure of the decrease in LUMO energies. When the logarithms of the second order rate constant k were represented versus the ionization potentials (IPs) of the substituted ethylenes, as a measure of the HOMO energies, a parabola graph was obtained for the first time (see Fig. 1).¹⁴ However, as this parabola shows, only three vinyl amines and two strained cyclic ethylenes are activated in these 32CA reactions.

Fig. 1 Sustmann's parabolic correlation of the logarithms of the second order rate constants k vs. the IPs, in eV, of substituted ethylenes.

At the same time, Sustmann and Schubert studied the substituent effects on the diene in Diels–Alder (DA) reactions. For this purpose, the second order rate constants of DA reactions of tetracyanoethylene 7, one of the most electrophilic ethylenes, with a series of substituted dienes were analyzed.¹⁵ When the logarithms of the rate constants k of these DA reactions were represented versus the E_HOMO − E_LUMO gaps, a good hyperbola, instead of a parabola as in Fig. 1, was obtained.¹⁵ Note that in this case, Sustmann studied the polar DA reactions of strongly electrophilic tetracyanoethylene 7 with a series of dienes of increased nucleophilicity, while in the former study, he used both nucleophilic and electrophilic ethylene and acetylene derivatives with phenyl azide 6.

Very recently, Liu et al. reported a computational exploration of azides's “ambiphilic reactivity” based on Sustmann's paradigmatic parabola.¹⁶ They suggested that both distortion/interaction energy¹⁷ and activation strain models¹⁸ justify Sustmann's IPs of ethylenes as a powerful predictor of reactivity. These authors added to Sustmann's ethylene series two strained cycloethylenes and cyclooctyne 8 used in bioorthogonal chemistry, showing how these fit into the MO energy criteria often used to understand cycloaddition reactivity.

Recently, the strain-promoted 32CA (SP-32CA) reactions of phenyl azide 6 with a series of cycloalkynes, including cyclooctyne 8, were studied within MEDT.¹⁹ That study revealed an excellent linear correlation between the reduction in activation enthalpy and the decrease in the ring size of these cycloalkynes, as a result of the reduction in ring strain. That study established that the loss of the ring strain along the reaction path and the easy depopulation of the C–C≡C–C bonding region of the strained cycloalkynes along the reaction are responsible for the kinetics and thermodynamics of these SP-32CA reactions, rather than the previously suggested concept of “less distortion of the 1,3-dipole in the transition state geometry”.²⁰ These SP-32CA reactions showed a low global electron density transfer²¹ (GEDT) at the corresponding transition state structures (TS), indicating the low polar character of these reactions, which were classified as null electron density flux (NEDF).^22,23

The classical azide–alkyne 32CA reactions described by Huisgen²⁴ require elevated temperatures to achieve reasonable reaction rates. Indeed, the simplest azide 9, HN₃, is a zwitterionic TAC presenting a high activation energy towards ethylene 5, 19.5 kcal mol⁻¹.¹⁷ Thus, it is expected that, just as in other zw-type 32CA reactions, the electrophilic/nucleophilic activation of both azide 9 and ethylene 5 decreases this unfavorable activation energy.

However, a recent experimental and MEDT study of the thermal 32CA reactions of aryl azides 10 with acetylenes 11 showed that substituting both the azide and the acetylene only slightly modifies the unfavorable reaction conditions demanded in these zw-type 32CA reactions, with no significant improvement.²⁵ In addition, a mixture of the two regioisomeric 1,2,3-triazoles 12 and 13 was obtained in all cases (see Scheme 2).²⁵

Scheme 2 32CA reactions of substituted aryl azides 10 with aryl substituted acetylenes 11.

Nitrones are nucleophilic zwitterionic TACs participating in zw-type 32CA reactions. However, their reactivity is more susceptible to substitution than that of azides. In 2018, the zw-type 32CA reactions of C,N-dimethyl nitrone 14 with a series of ethylenes of increased electrophilic character were studied within MEDT as a model of 32CA reactions of experimental cyclic nitrones (see Scheme 3).¹⁰ The activation energies of these zw-type 32CA reactions decreased up to 14.1 kcal mol⁻¹ when using strongly electrophilic ethylenes such as nitroethylene 15.¹⁰ In addition, these polar reactions were found to be completely meta regioselective, yielding the meta isoxazolidines 17 exclusively, unlike the reactions of azides with electrophiles, which show poor regioselectivity (see Scheme 3).²⁵

Scheme 3 Zw-type 32CA reactions of C,N-dimethyl nitrone 14 with ethylene 5 and nitroethylene 15. Relative energies of the TSs, with respect to the separated reagents, are given in parenthesis in kcal mol⁻¹.

Herein, an MEDT study of the zw-type 32CA reactions of phenyl azide 6 with a series of 25 ethylenes of different electrophilic/nucleophilic activation is reported to understand the low reactivity of azides compared with other zwitterionic TACs such as nitrones (see Chart 1). Additionally, a chemical rationalization of Sustmann's parabolic correlation is provided. The reason for the low reactivity of substituted aryl azides is discussed in section 4 in the ESI† (see Scheme 2).

Chart 1 Structures of 25 ethylenes selected in this MEDT study.

2. Results and discussion

2.1. Analysis of the electronic structure and chemical properties at the GS of the reagents

2.1.1. Analysis of the electronic structure of the reagents. Before studying the 32CA reactions of phenyl azide 6 with the selected ethylenes, the electronic structures of the simplest azide 9, phenyl azide 6, and two substituted phenyl azides, 42 and 43, were investigated through a topological analysis of the Electron Localization Function²⁶ (ELF). The ELF permits quantitative characterization of the electron density distribution in a molecule,²⁷ allowing the classification of TACs into one of the four types found within MEDT, and thus establishing a correlation between their electronic structure and their reactivity in 32CA reactions (see Scheme 1). The complete ELF analysis of the four azides and three selected ethylenes is given in section 1 in the ESI.† Herein, only the ELF analysis of phenyl azide 6 is discussed (Fig. 2).

Fig. 2 ELF basin attractor positions, together with the most relevant valence basin populations and ELF-based Lewis-like structure together with natural atomic charges of phenyl azide 6, computed at the ωB97X-D/6-311G(d,p) level in the gas phase. Valence basin populations and natural atomic charges are given as the average number of electrons, e. Negative charges are colored in red, positive in blue, and negligible in green.

ELF topological analysis of phenyl azide 6 reveals the presence of two V(N1,N2) and V′(N1,N2) disynaptic basins, integrating a total of 4.13 e, one V(N2,N3) disynaptic basin integrating 2.49 e, and two V(N1) and V(N3) monosynaptic basins, integrating 3.78 and 3.38 e, respectively. While the population of the two V(N1,N2) and V′(N1,N2) disynaptic basins allows relating the N1–N2 bonding region to a double bond, that of the V(N2,N3) disynaptic basin allows associating the N2–N3 bonding region with a populated single bond within Lewis's bonding model. The V(N1) and V(N3) monosynaptic basins are associated with non-bonding electron density regions at the N1 and N3 nitrogens. Thus, the absence of any pseudoradical center or a carbenoid carbon at this species allows classifying phenyl azide 6 as a zwitterionic TAC participating in zw-type 32CA reactions. The ELF topology of the four azides given in the ESI† indicates that substituting the hydrogen of the simplest azide 9 with aryl substituents does not significantly modify the GS electronic structure of these zwitterionic TACs.

The complete ELF topological analysis of the nucleophilic vinyl amine 22, strained cyclopentene 30, and electrophilic acrylonitrile 40 is given in section 1 of the ESI.† The ELF analysis shows that substitution on the C–C double bond does not significantly modify the electronic structure of these alkenes. All ethylenes are characterized by the presence of two V(C4,C5) and V(C4,C5) disynaptic basins integrating a total population ranging from 3.56 e (vinyl amine 22) to 3.35 e (acrylonitrile 40).

The natural atomic charges^28,29 of phenyl azide 6 indicate that while the two N1 and N3 nitrogens of phenyl azide 6 are negatively charged by −0.05 and −0.35 e, respectively, the central N2 nitrogen is positively charged by +0.27 (see Fig. 2). This charge distribution, which differs from the one typically associated with the traditional 1,2-dipolar structure of azides, is a consequence of the total electron density distribution in the N–N−N core of this TAC, which is only determined by the presence of the three nitrogen nuclei and not by any resonance analysis.⁵ Note that the N–N−N core of this TAC is negatively charged by −0.13 e.

2.1.2 Analysis of the chemical properties of the reagents. Next, the chemical reactivity of azides and the 25 ethylenes was studied by analyzing the reactivity indices^30,31 at the GS of the reagents. The analysis of quantum chemical reactivity indices has proven to be a powerful tool for understanding reactivity in polar cycloaddition reactions.^31,32 The reactivity indices were calculated at the B3LYP/6-31G(d) computational level since it was used to establish the electrophilicity and nucleophilicity scales.³¹ The analysis of global reactivity indices, namely, the electronic chemical potential μ, chemical hardness η, electrophilicity ω, and nucleophilicity N, for the azides and the substituted ethylenes is given in section 2 of the ESI.† Herein, those of phenyl azide 6 and the ethylenes are briefly commented on.

Phenyl azide 6 presents an electrophilicity ω index³³ of 1.27 eV and a nucleophilicity N index³⁴ of 2.92 eV, being classified as a moderate electrophile and a moderate nucleophile (see Table S1 in section 2 of the ESI†). Consequently, the analysis of the reactivity indices of phenyl azide 6 does not characterize it as an ambiphilic species,^35,36 as was suggested,¹⁶ as it is neither a strongly electrophilic nor a strongly nucleophilic species participating in polar reactions. Note that polar reactions demand the participation of strongly electrophilic and nucleophilic reagents. A thorough discussion of the concept of ambiphilic species is presented in section 3 of the ESI.†

Table S2 in section 2 of the ESI† shows the reactivity indices of the 25 ethylenes selected for this MEDT study (see Chart 1) in descending order of their nucleophilicity N index. Ethylenes 18–28 have nucleophilicity N indices higher than 3.0 eV, thus being classified as strong nucleophiles participating in polar reactions. Of noteworthy significance, vinyl amines 18 to 23 display exceptionally elevated nucleophilicity N indices, surpassing 4.0 eV, which categorizes them as supernucleophiles able to react even with moderate electrophiles in a polar reaction.³² Compounds 29–33 have nucleophilicity N indices between 2.00 and 2.84 eV, being classified as moderate nucleophiles. Some of them are strained cyclic ethylenes. Finally, ethylenes 15, 36–41 have electrophilicity ω indices higher than 1.50 eV, being classified as strongly electrophilic species.

The electronic chemical potentials³⁷μ of the supernucleophilic vinyl amines 18–23, between −1.42 and −1.87 eV, are higher than that of phenyl azide 6, μ = −3.62 eV. Consequently, along the corresponding polar 32CA reactions, the flux of the electron density will take place from ethylenes 18–23 towards phenyl azide 6, and these 32CA reactions are classified as reverse electron density flux (REDF).^23,38 On the other hand, strongly electrophilic ethylenes 15, 36–41 have electronic chemical potentials μ lower than −4.11 eV; consequently, it is expected that along a polar reaction, the flux of the electron density will take place from phenyl azide 6 towards these electrophilically activated ethylenes. In this scenario, these 32CA reactions are classified as forward electron density flux (FEDF).^23,38 Note that Sustmann classified all these 32CA reactions indistinctly as “type II, in which the HOMO and LUMO energies of the reagents should be considered”.¹⁴

2.2. Study of the zw-type 32CA reactions of phenyl azide 6 with 18 ethylenes of different electronic activation

In order to gain insights into the participation of azide 6 in zw-type 32CA reactions, the reactions with 18 ethylenes presenting different electronic activation were studied. They include strongly nucleophilically activated vinyl amines and vinyl ethers such as 18–24 and 26, strained cycloalkenes such as 28 and 30, electrophilic ethylenes such as 15, 34, 37, and 39–41, and the low reactive ethylene 5. Most are monosubstituted ethylenes; consequently, two regioisomeric reaction paths, ortho and meta, are feasible along the corresponding zw-type 32CA reactions (see Scheme 4). Analysis of the stationary points involved in these 32CA reactions reveals that they take place via a one-step mechanism. The relative electronic energies of all stationary points are given in Table 1, while the total electronic energies are gathered in Table S10 in the ESI.†

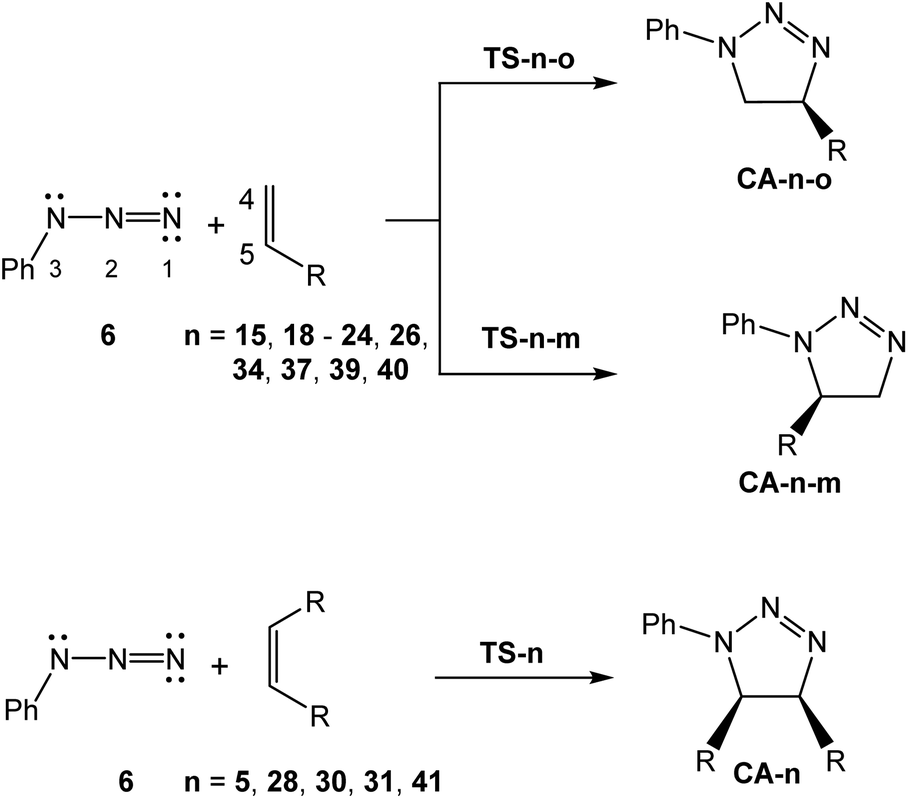

Scheme 4 Reaction paths associated with the 32CA reactions of phenyl azide 6 with the selected 18 ethylenes.

Table 1 ωB97X-D/6-311G(d,p) gas phase relative electronic energies, ΔE in kcal mol⁻¹, of the stationary points involved in the 32CA reactions of phenyl azide 6 with the selected 18 ethylenes

	ΔE	ΔΔE(m–o)		ΔE
TS-18-o	17.5		CA-18-o	−32.9
TS-18-m	6.4	−11.1	CA-18-m	−30.4
TS-19-o	20.5		CA-19-o	−29.8
TS-19-m	8.6	−11.9	CA-19-m	−27.4
TS-20-o	27.2		CA-20-o	−26.5
TS-20-m	9.7	−17.6	CA-20-m	−25.0
TS-21-o	15.9		CA-21-o	−37.8
TS-21-m	6.3	−9.5	CA-21-m	−32.6
TS-22-o	20.3		CA-22-o	−27.3
TS-22-m	10.0	−10.3	CA-22-m	−28.2
TS-23-o	17.1		CA-23-o	−33.8
TS-23-m	6.9	−10.3	CA-23-m	−30.9
TS-24-o	21.0		CA-24-o	−28.3
TS-24-m	11.5	−9.5	CA-24-m	−29.0
TS-26-o	20.1		CA-26-o	−31.3
TS-26-m	14.9	−5.2	CA-26-m	−31.6
TS-28	12.9		CA-28	−42.6
TS-30	15.1		CA-30	−35.8
TS-31	18.6		CA-31	−30.5
TS-34-o	16.9		CA-34-o	−28.3
TS-34-m	14.7	−2.2	CA-34-m	−27.0
TS-37-o	15.8		CA-37-o	−27.7
TS-37-m	13.6	−2.2	CA-37-m	−28.8
TS-39-o	17.4		CA-39-o	−77.5
TS-39-m	16.1	1.3	CA-39-m	−74.5
TS-40-o	17.2		CA-40-o	−24.9
TS-40-m	18.2	1.0	CA-40-m	−24.9
TS-41	15.5		CA-41	−75.0
TS-15-o	14.5		CA-15-o	−29.1
TS-15-m	15.4	1.0	CA-15-m	−31.8
TS-5	17.9		CA-0	−31.7

---

For a comparative analysis, the activation energy of the 32CA reaction of phenyl azide 6 with ethylene 5, 17.9 kcal mol⁻¹, is taken as the reference of the unfavorable non-polar zw-type 32CA reactions of this azide (see Table S11 in the ESI†). Some appealing conclusions can be obtained from the analysis of the relative energies given in Table 1: (i) the activation energies of the 32CA reactions shown in Scheme 4 range from 18.6 (TS-31) to 6.3 (TS-21-m) kcal mol⁻¹. While the 32CA reaction with acrylonitrile 40, a strong electrophile (ω = 1.74 eV), presents an activation energy, 17.2 kcal mol⁻¹, similar to that with ethylene 5, the activation energy of the 32CA reaction involving vinyl amine 21, a supernucleophile (N = 4.40 eV), experiences a considerable lowering of 11.5 kcal mol⁻¹; (ii) while the activation energy of the 32CA reaction involving the most electrophilic nitroethylene 15 (ω = 2.61 eV), not included in the Sustmann's series, decreases by only 3.4 kcal mol⁻¹, the activation energies of those involving the supernucleophilic ethylenes 18–23 (N > 4.00 eV) are lowered by 9.9 kcal mol⁻¹ on average. These behaviors indicate a clear preferential reactivity of phenyl azide 6 towards supernucleophilic ethylenes; (iii) the activation energies of 32CA reactions involving strained cycloalkenes 28 and 30 are lowered by 4.9 and 2.8 kcal mol⁻¹ with respect to that involving ethylene 5; (iv) the regioselectivity in these 32CA reactions ranges from 1.0 (TS-15-o) to 17.6 (TS-20-m) kcal mol⁻¹; (v) the 32CA reactions of phenyl azide 6 with electrophilic ethylenes are poorly ortho regioselective, while those involving strongly nucleophilic ethylenes are completely meta regioselective; (vi) all 32CA reactions are exothermic by at least 24.9 kcal mol⁻¹ (CA-40-o and CA-40-m). Consequently, these 32CA reactions are irreversible and, therefore, kinetically controlled; finally, (vii) considering the activation energies and the regioselectivities given in Table 1, only the zw-type 32CA reactions of phenyl azide 6 with supernucleophilic vinyl amines 18–23 can be regarded as kinetically activated (see later).

A graphical representation of the activation energies of the eighteen 32CA reactions versus the nucleophilicity N indices of the substituted ethylenes given in Table S2 in section 2 of the ESI† shows an acceptable polynomic correlation; R² = 0.80 (see Fig. 3a). The activation energies of 32CA reactions depend on several contributing factors, such as the electronic structure of the TAC, the nucleophilic/electrophilic interactions at the TSs, the use of strained reagents, and so forth. Among them, the polar nature of the reaction, quantified using the GEDT at the TSs,²¹ plays a particularly relevant role in the activation barriers of zw-type 32CA reactions as it is the most significant factor decreasing the unfavorable activation energies associated with these zw-type 32CA reactions.⁵Fig. 3b shows that when only nucleophilic ethylenes are considered, i.e., ethylenes with N ≥ 3.0 eV, a linear correlation is obtained with an R² = 0.83. Analysis of the polynomial curve shown in Fig. 3a, similar to that reported by Sustmann,¹⁴ shows that rather than a parabolic relationship, the activation energy mainly depends on the nucleophilic character of the ethylene. It is noteworthy that reactions involving strong electrophiles such as 15 and 41 present activation energies higher than 14.4 kcal mol⁻¹ (see Table 1).

Fig. 3 Plot of the activation energy, ΔE in kcal mol⁻¹, versus the nucleophilicity N index, in eV, for (a) the 18 selected ethylenes and (b) only nucleophilic ethylenes. Supernucleophilic ethylenes are given in dark blue, strongly nucleophilic ethylenes are given in light blue, marginally electrophilic and nucleophilic ethylenes are given in pink and strongly electrophilic ethylenes are given in red. Strained cyclic ethylenes are given in green. The data for the 32CA reaction involving strained cyclooctyne 8 are included.

Liu et al. included a series of three strained unsaturated cyclic compounds to the Sustmann's ethylene series given in Fig. 1.¹⁶ Cyclooctyne 8 experienced the largest acceleration, ΔE = 9.9 kcal mol⁻¹, despite the low nucleophilic character of this cycloalkyne, N = 2.38 eV,¹⁹ which characterizes 8 as a moderate nucleophile. When cyclooctyne 8 is included in Fig. 3a, a substantial deviation is observed. A similar behavior was found by Liu et al.¹⁶ This behavior is easily explained by the fact that the significant acceleration of the corresponding SP-32CA reaction is not attributable to the polar nature of the reaction, GEDT = −0.03 e, but rather to the loss of the ring strain along the reaction pathway.¹⁹ This behavior was reinforced by the strong exothermic character of the corresponding SP-32CA reaction, ΔE = −81.9 kcal mol⁻¹. Note that the non-polar 32CA reaction of methyl propiolate 39, a linear alkyne, has an activation energy of 16.1 kcal mol⁻¹, being exothermic by −74.5 kcal mol⁻¹.¹⁹

The C–N distances of the two pairs of interacting nitrogen and carbon centers at the ortho and meta TSs associated with the eighteen 32CA reactions are given in Table 2, together with the geometric asynchronicity, Δl, while the structures of the ortho and meta TSs of two representative 32CA reactions are shown in Fig. 4. Some appealing conclusions can be obtained from the geometric parameters given in Table 2: (i) all N–C distances, which are longer than 1.80 Å, indicate that the N–C single bond formation has not started yet in any TS;⁵ (ii) all TSs correspond to asynchronous N–C single bond formation processes; (iii) the asynchronicity ranges from Δl = 0.06 Å at TS-28, involving symmetric strained cyclic ethylene 28, to Δl = 0.81 Å at TS-20-m, involving vinyl amine 20; (iv) the more favorable meta TSs involving supernucleophilic vinyl amines 18–23 are more asynchronous than the ortho ones, while ortho TSs involving electrophilic ethylenes 15 and 40 are more asynchronous than the meta ones. This behavior is a consequence of the fact that the N1 nitrogen is the most electrophilic center of phenyl azide 6, while the N3 nitrogen is the most nucleophilic one (see the electrophilic and nucleophilic Parr functions of azides 9 and 44 in Fig. S3 in section 2 of the ESI†).

Fig. 4 ωB97X-D/6-311G (d,p) gas phase optimized geometries of the ortho and meta regioisomeric TSs involved in the 32CA reactions of phenyl azide 6 with supernucleophilic vinyl amine 18 and strongly electrophilic nitroethylene 15. Distances are given in angstroms, Å.

Table 2 C–N distances Å of the two pairs of interacting centers at the ortho and meta TSs associated with the eighteen 32CA reactions. The GEDT values computed at the TSs are given as the average number of electrons, e

	ortho		Δl	GEDT	meta		Δl	GEDT
	l(N1–C5)	l(N3–C4)			l(N1–C4)	l(N3–C5)
18	2.227	2.142	0.09	−0.19	2.023	2.656	0.63	−0.36
19	2.191	2.134	0.06	−0.24	1.992	2.603	0.61	−0.42
20	2.281	2.065	0.22	−0.24	1.969	2.783	0.81	−0.42
21	2.240	2.147	0.09	−0.17	2.005	2.607	0.60	−0.34
22	2.216	2.076	0.14	−0.19	1.992	2.536	0.54	−0.34
23	2.234	2.133	0.10	−0.19	2.026	2.637	0.61	−0.35
24	2.216	2.082	0.13	−0.17	1.974	2.507	0.53	−0.33
26	2.155	2.113	0.04	−0.12	1.976	2.341	0.37	−0.25
34	2.215	2.049	0.17	0.00	1.998	2.225	0.23	−0.03
37	2.214	2.030	0.18	0.02	1.995	2.195	0.20	−0.01
39	2.232	2.056	0.17	0.05	2.063	2.180	0.12	0.02
40	2.232	2.002	0.23	0.04	1.999	2.181	0.18	0.01
15	2.242	1.985	0.26	0.09	2.000	2.166	0.17	0.04
28	2.163	2.220	0.06	−0.07
30	2.109	2.208	0.10	−0.10
31	2.070	2.195	0.13	−0.12
41	2.147	2.714	0.57	0.07
5	2.123	2.132	0.01	−0.07

---

Analysis of the GEDT at the TSs involved in these zw-type 32CA reactions allows for the quantification of the polar character of these cycloaddition reactions.²¹Table 2 shows the GEDT values computed at all TSs. GEDT values lower than 0.05 e correspond to non-polar processes, while values higher than 0.20 e correspond to highly polar processes. On the other hand, the sign of the GEDT computed at the TACs unambiguously allows the classification of the polar 32CA reactions as FEDF, with GEDT > +0.05 e, and REDF, with GEDT < −0.05 e.^23,38 The sign of the GEDT values indicates that phenyl azide 6 is positively or negatively charged at the corresponding TSs. Non-polar 32CA reactions characterized by a negligible GEDT ≤ |0.05| e are classified as NEDF.^22,23 Note that the sign of the GEDT in NEDF reactions has no chemical meaning. A comparative analysis of the GEDT values obtained by using the ωB97X-D and M06-2X functionals shows that both accurately describe the same polar character (see section S5 in the ESI†).

The GEDT values at the more favorable regioisomeric TSs computed at the phenyl azide framework range from −0.42 e at TS-19-m to 0.09 e at TS-15-o. In particular, the meta TSs associated with the more favorable zw-type 32CA reactions involving supernucleophilic vinyl amines 18–23 exhibit a notably high polar character, GEDT > −0.34 e, and the reactions are classified as REDF. Conversely, the ortho TSs involving strongly electrophilic ethylenes such as nitroethylene 15 present a very low polar character, GEDT < 0.09 e, and the reactions are classified as FEDF. Many 32CA reactions of phenyl azide 6 present GEDT ≤ |0.05|e, indicating the non-polar character of these 32CA reactions, classified as NEDF. This fact accounts for the high activation energy of these zw-type 32CA reactions.⁵ Note that these results can be anticipated by the analysis of the electronic chemical potential of the reagents (see section 2.1).

A graphical representation of the GEDT values computed at the more favorable regioisomeric TSs of the eighteen 32CA reactions versus the nucleophilicity N index of the substituted ethylenes shows a very good linear correlation; R² = 0.94 (see Fig. 5). As the feasibility of a zw-type 32CA reaction mainly depends on the polar character of the reaction, this figure indicates that the ethylene should have an N > 3.5 eV to favor a GEDT higher than 0.30 e. Many reactions involving substituted ethylenes with N < 3.0 eV present GEDT values lower than 0.10 e, and the reaction is low-polar or non-polar as the GEDT is ≤|0.05|. Consequently, these zw-type 32CA reactions are very unfavorable.

Fig. 5 Plot of the GEDT values computed at the more favorable TSs, in e, versus the nucleophilicity N index, in eV. Supernucleophilic ethylenes are given in dark blue, strongly nucleophilic ethylenes in light blue, marginally electrophilic and nucleophilic ethylenes in pink, strongly electrophilic ethylenes in red, and strained cyclic ethylenes in green.

Liu et al. obtained similar GEDT values for the 32CA reactions of phenyl azide 6, although they did not discuss either the polar reactivity or the electron density flux along these 32CA reactions.¹⁶ Interestingly, many of these 32CA reactions with electrophilic ethylenes presented a GEDT ≤ |0.03| e,¹⁶ showing the non-polar character of these cycloaddition reactions and, consequently, the non-ambiphilic character of phenyl azide 6. This behavior is a consequence of the moderate nucleophilic character of this zwitterionic TAC.

In 2002, the first theoretical electrophilicity scale based on Parr's electrophilicity ω index³³ for a series of dienes and ethylenes participating in Diels–Alder reactions was established.³⁹ In the absence of a nucleophilicity index, a relationship between the inverse of Parr's electrophilicity ω index and the nucleophilicity of the studied species, and vice versa, was established within this series of dienes and ethylenes.³⁹ Thus, ethylenes with N < 1.7 eV, which are considered marginal nucleophiles, correspond to strong electrophiles (see Table S2 in section 2 of the ESI†). As depicted in Fig. 5, a reversal in the electron density flux is observed for ethylenes possessing N values < 1.7 eV, signifying their classification as strong electrophiles. Unfortunately, this inversion is not sufficient to activate these zw-type 32CA reactions. Note that although it causes an inversion in Sustmann's parabola, it has no chemical significance regarding the activation of these highly unfavorable zw-type reactions of azides.

Depending on the nucleophilic/electrophilic behaviors of the ethylenes, these zw-type 32CA reactions can be classified as (i) FEDF, involving electrophilic ethylenes with ω > 1.70 eV; (ii) NEDF, for non-polar 32CA reactions involving moderately nucleophilic/electrophilic ethylenes; and (iii) REDF, involving strained cyclic ethylenes and strongly nucleophilic ethylenes with N > 3.00 eV (see Fig. 5). As the zw-type 32CA reactions are notably accelerated by an increase of the polar character of the reaction, this graph accounts for the fact that only supernucleophilic species, with an N > 4.00 eV, accelerate these 32CA reactions effectively. Consequently, analysis of the nucleophilicity N index of ethylenes can predict the feasibility of these 32CA reactions of azides.

Using the Eyring–Polanyi equation,⁴⁰ the relative reaction rate constants k_r of the 32CA reaction of phenyl azide 6 with a series of 12 selected ethylenes, with respect to that of ethylene 5, were computed (see Table 3). The corresponding thermodynamic parameters are given in Table S11 in the ESI.†

Table 3 Activation Gibbs free energies, ΔG in kcal mol⁻¹, computed in toluene at 110 °C, and relative reaction rate constants, k_r, for 12 selected 32CA reactions involving phenyl azide 6

Group		ΔG	k r
	5	33.58	1.00
A	18	24.17	2.32 × 10^5
A	19	25.61	3.50 × 10^4
A	21	24.08	2.62 × 10^5
A	23	24.72	1.13 × 10^5
B	28	30.40	6.49 × 10^1
B	30	33.16	1.73
D	31	35.45	8.58 × 10^−2
D	37	33.02	2.09
D	39	33.09	1.90
D	40	33.96	6.08 × 10^−1
C	15	31.96	8.43
C	41	30.07	1.00 × 10^2

---

The relative reaction rate constants k_r range from 8.58 × 10⁻² (31) to 2.62 × 10⁵ (21). Analysis of the relative reaction rate constants k_r given in Table 3 permit us to classify the 32CA reactions of phenyl azide 6 studied by Sustmann into four groups of different chemical reactivity (see Fig. 6): (i) group A, involving supernucleophilic ethylenes, presenting a k_r between 2.62 × 10⁵ and 3.50 × 10⁴; (ii) group B, involving strained cyclic ethylenes, presenting a k_r between 65 and 1.7. Note that the three strained ethylenes of group B exhibit clear activation compared to cyclohexene 31; (iii) group C, involving strongly electrophilic ethylenes with a k_r ≤ 1.00 × 10²; and finally, (iv) group D, involving poorly activated electrophilic/nucleophilic ethylenes with a k_r < 2.00. These groups are identified in four non-overlapping zones on the hypothetical Sustmann's parabolic graph (see Fig. 6).

Fig. 6 Classification of Sustmann's ethylenes into (A) supernucleophilic ethylenes, in blue; (B) strained cyclic ethylenes, in green; (C) strongly electrophilic ethylenes, in red; and (D) weakly electrophilic/nucleophilic ethylenes, in pink.

The 32CA reaction of cyclohexene 31, a non-strained cyclic ethylene, is 0.1 times slower than that with ethylene 5. As can be observed, only the 32CA reactions involving ethylenes of group A can be considered strongly activated electronically. Interestingly, although the strain in cyclic ethylenes can accelerate the 32CA reaction by 10² times, adequate nucleophilic activation of the ethylene can accelerate it by more than 10⁴ times.

When the logarithms of the relative reaction rate constants k_r of the 32CA reactions of phenyl azide 6 with nucleophilic ethylenes with N > 2.70 eV are plotted versus the nucleophilicity N index, a linear correlation is obtained with an R² = 0.90 (see Fig. 7). This figure leads to two relevant conclusions: (i) the logarithm of the relative reaction rate constants k_r responds linearly only for strongly nucleophilic ethylenes, and (ii) only supernucleophilic ethylenes with N > 4.0 eV effectively accelerate the zw-type 32CA reactions of phenyl azide 6.

Fig. 7 Plot of the logarithm of the relative reaction rate constants k_r of the 32CA reactions of phenyl azide 6 with supernucleophilic and strongly nucleophilic ethylenes versus the nucleophilicity N index, in eV. Supernucleophilic ethylenes are highlighted in dark blue, while strained cyclic ethylenes are in green.

2.3. Characterization of the zw-type reactivity of phenyl azide 6. Analysis of the formation of the two N–C single bonds along the 32CA reaction

To characterize the zw-type reactivity of aryl azides, a Bonding Evolution Theory⁴¹ (BET) analysis of the bonding changes along the more favorable meta regioisomeric reaction path associated with the 32CA reaction between phenyl azide 6 and vinyl amine 22 was performed. BET enables a detailed description of molecular mechanisms in terms of bonding changes characterized through variations of ELF electron populations along the reaction path. The complete BET analysis is reported in section 6 of the ESI.† ELF basin attractor positions, together with the most significant valence basin populations, of the structures of the intrinsic reaction coordinate (IRC) path involved in the formation of the two new N–C single bonds are shown in Fig. 8.

Fig. 8 ELF basin attractor positions, with the most significant valence basin populations given as the average number of electrons, e, of the S6–S9 structures of the IRC involved in the formation of the two new N–C single bonds obtained by BET analysis at the ωB97X-D/6-311G (d,p) level in the gas phase.

From the BET analysis the following conclusions are obtained: (i) this polar 32CA reaction is topologically characterized by nine differentiated phases associated with the rupture and formation of double and single bonds, as well as the creation of non-bonding regions. This indicates that the 32CA reaction is not a concerted process;⁵ (ii) the most energetic structure along the reaction path is S5, which corresponds to TS-22-m. The energy cost demanded to reach S5 from S1 is 15.4 kcal mol⁻¹, mainly associated with the depopulation of the N1–N2 bonding region required to create the non-bonding regions at the N1 and N2 nitrogens. These changes in electron density categorize this 32CA reaction as a zw-type;^5,10 (iii) formation of the first N1–C4 single bond takes place at structure S7, at an N1–C4 distance of 1.69 Å, with an initial population of 1.17 e (see S7 in Fig. 8), which is reached by sharing the C4 non-bonding electron density present at S6 and some of the N1 nitrogen; (iv) the highest GEDT value along the IRC, 0.60 e, is achieved at S8 when the first N1–C4 single bond is practically formed; (v) formation of the second N3–C5 single bond takes place at structure S9, at an N3–C5 distance of 1.87 Å, and with an initial population of 1.24 e (see S9 in Fig. 8), by donation of part of the non-bonding electron density of the N3 center present at S8 to the C5 carbon; and finally, (vi) the formation of the second N3–C5 single bond begins when the first N1–C4 single bond has reached a population of 1.69 e. This behavior characterizes the reaction mechanism of this zw-type 32CA reaction as a non-concerted two-stage one-step mechanism.⁴²

2.4. REG-IQA analysis of the activation energies in the 32CA reactions of phenyl azide 6 with supernucleophilic vinyl amines

Liu et al. used energy decomposition analyses^43,44 (EDAs), such as the distortion/interaction energy¹⁷ and activation strain models,¹⁸ to analyze the chemical reactivity of phenyl azide 6.¹⁶ It was proposed that lower distortion energies of the ethylene derivatives, resulting from more favourable FMO interactions, are responsible for the reactivity trend in the 32CA reactions of phenyl azide 6.¹⁶ However, it is worth noting that these methods and, consequently, the interpretations that arise from it have shown to be prone to flaws due to the process-dependency of their energy components,^45,46 which include MO interactions.

To determine the origin of the large activation energy decrease in the zw-type 32CA reactions of phenyl azide 6 with supernucleophilic vinyl amines, the Relative Energy Gradient⁴⁷ (REG) method was used together with the Interacting Quantum Atoms⁴⁸ (IQA) energy partitioning scheme.⁴⁹ These analyses were conducted along the most and least favourable 32CA reactions of phenyl azide 6 with supernucleophilic vinyl amine 22 and strongly electrophilic acrylonitrile 40, respectively (see sections 7 and 8 in the ESI† for theoretical details on REG-IQA).

First, the differences between the total IQA energies of the reactant frameworks at the TSs and the first structures of the reaction paths, given in Table 4, were analysed. These values show that the phenyl azide framework is remarkably stabilized by −26.8 kcal mol⁻¹ in the polar 32CA reaction involving supernucleophilic vinyl amine 22, while it is destabilized by 8.5 kcal mol⁻¹ in the non-polar reaction involving electrophilic acrylonitrile 40. Therefore, it can be concluded that the strong stabilization of the azide framework, as a consequence of the GEDT taking place in a REDF 32CA reaction, is the main factor responsible for the decrease in activation energy.⁵⁰ In particular, a comparison of the total IQA energies at the atoms of the phenyl azide moiety in both reactions (see Table S7 in the ESI†) reveals that the N1 nitrogen and the phenyl C3′ carbon are the ones most stabilized in the polar process compared to the non-polar one, by 11.1 and 5.7 kcal mol⁻¹, respectively.

Table 4 Differences between the total IQA energies, in kcal mol⁻¹, of each of the two interacting frameworks at the TSs and the first structure of the reaction paths, S1, for the 32CA reactions of phenyl azide 6 with supernucleophilic vinyl amine 22 and strongly electrophilic acrylonitrile 40

	Vinyl amine 22	Azide 6
S1-22	−289.8530	−395.8172
TS-22-m	−289.9238	−395.7745
ΔE	44.4	−26.8
	Acrylonitrile 40	Azide 6
S1-40	−170.7818	−395.7603
TS-40-o	−170.8036	−395.7738
ΔE	13.7	8.5

---

In order to obtain a more detailed description of the effect of this stabilization on the reaction rates, the contributions of the fully-decomposed IQA terms to the activation energies were analysed (see Table S8†). The REG-IQA analysis indicates that the rupture of the azide N1–N2 multiple bond is the factor most contributing to the barrier in the polar reaction with vinyl amine 22 (see the REG values in Table S8†), in complete agreement with the BET study given above. Instead, the rupture of the ethylene C4–C5 double bond has the greatest weight in the non-polar reaction with acrylonitrile 40, which is in agreement with the recent REG-IQA study of the non-polar zw-type 32CA reaction of the simplest nitrone 3 with ethylene 5.⁴⁹ Finally, the factor most working against the barrier in both reactions is the interaction in the region of the first N–C single bond to be formed.

The relative IQA energies of the most relevant factors do not account for the lower activation energy with vinyl amine 22. A more profound inspection reveals that the N3 atom and the substituents play a significant role. The E_intra(N3) term is 20.1 kcal mol⁻¹ less destabilizing in the polar reaction. This is because in the polar reaction, the N3 nitrogen places the phenyl substituent completely orthogonal in order to permit the conjugation with the electrophilic azide system and an effective delocalization of the electron density received via the GEDT from nucleophilic ethylenes. Indeed, conjugation in the N3–C3′ region is 13.1 kcal mol⁻¹ stronger in the polar reaction (see the costs of V_xc(N3,C3′) in Table S8†). In contrast, given the unlikelihood of the phenyl aromatic ring giving electron density in either FEDF or NEDF 32CA reactions due to the loss of aromaticity, the N3 nitrogen is rather bent in the non-polar reaction involving acrylonitrile 40 in order to prevent any conjugation between the azide and the aromatic ring (see the geometries of TS-18-m and TS-15-o in Fig. 4). This behavior causes an unfavorable geometric environment at the N3, which costs 34.7 kcal mol⁻¹, according to E_intra(N3).

The present REG-IQA analysis allows concluding that the large decrease in activation energies in the zw-type 32CA reactions of phenyl azide 6 with supernucleophilic vinyl amines is a consequence of the greater stabilization of phenyl azide 6 achieved by the high GEDT in REDF 32CA reactions when this TAC acts as an electrophile, which is aided by conjugation and electrostatic effects of substitution. Thus, the low reactivity of phenyl azide 6 in both FEDF and NEDF 32CA reactions is due to the unfavorable tendency of 6 to exchange electron density probably owing to the loss of the aromatic character of the phenyl substituent. Accordingly, the only property of vinyl amines that has a decisive role in the reaction rate is their supernucleophilic character, which considerably forces the GEDT towards phenyl azide 6, and not any distortion as previously suggested,¹⁶ which is only a geometric consequence of the density changes.

3. Conclusions

The zw-type 32CA reactions of phenyl azide 6 with a series of 25 ethylenes of different electrophilic and nucleophilic activation have been studied within MEDT at the ωB97X-D/6-311G(d,p) computational level in order to understand the low reactivity of this azide compared to other zwitterionic TACs. A chemical rationalization of Sustmann's “parabolic correlation” has also been established.

ELF topological analysis at the GS electronic structure of phenyl azide 6 characterizes this TAC as a zwitterionic species participating in zw-type 32CA reactions. Notably, the charge distribution of this TAC does not correspond to the charge distribution in the proposed 1,2-dipolar structure of azides.

Analysis of the reactivity indices of phenyl azide 6 allows characterizing this TAC as a moderate electrophile and a moderate nucleophile. Consequently, it is expected that phenyl azide 6 will have a low tendency to participate in polar 32CA reactions, a requirement demanded by zw-type 32CA reactions to take place easily.⁵

The study of the zw-type 32CA reactions of phenyl azide 6 with 18 selected ethylenes permits us to obtain some important conclusions: (i) while the 32CA reactions with electrophilic ethylenes present high activation energies close to that with ethylene 5, the 32CA reactions involving the supernucleophilic vinyl amines experience a strong decrease of the activation energies, showing the preferential reactivity of phenyl azide 6 only with supernucleophilic vinyl amines; (ii) the activation energies of the low polar 32CA reactions involving strained cycloalkenes and cycloalkynes are lowered by less than 5 kcal mol⁻¹, with respect to that with ethylene 5, as a result of the loss of the ring strain that occurs along the reaction path; and (iii) while the 32CA reactions of phenyl azide 6 with electrophilic ethylenes exhibit low ortho regioselectivity, those involving strongly nucleophilic ethylenes are completely meta regioselective.

Analysis of the relative reaction rate constants k_r of 12 selected 32CA reactions, compared to those with ethylene 5, and the analysis of the reactivity indices of the corresponding ethylenes enable us to classify the zw-type reactions of phenyl azide 6 into four differentiated groups: (i) group A, involving supernucleophilic ethylenes, with N ≥ 4.00 eV, and exhibiting k_r > 10⁴; (ii) group B, comprising strained cycloalkanes and cycloalkynes, with 3.10 < N < 2.70 eV, and displaying k_r < 10²; (iii) group C, consisting of strongly electrophilic ethylenes, ω > 1.70 eV, and showing k_r ≤ 10²; and finally, (iv) group D, encompassing moderately electrophilic ethylenes, ω > 1.50 eV, and moderately nucleophilic ethylenes N < 3.00 eV, and displaying very low reactivity with k_r < 2. Although the ring strain present in cycloalkenes and cycloalkynes can accelerate the corresponding SP-32CA reaction by 10² times, it is only the adequate electronic nucleophilic activation of the ethylene that can accelerate the polar zw-type 32CA reaction by more than 10⁴ times. These four groups are characterized by Sustmann's “parabolic correlation” given in Fig. 6.

The present MEDT study establishes the low reactivity of phenyl azide 6 participating in zw-type 32CA reactions. Phenyl azide 6 does not have “ambiphilic behavior”, as recently proposed by Liu et al.,¹⁶ but rather a moderate electrophilic character, which demands the participation of supernucleophilic ethylenes, such as vinyl amines, to facilitate the corresponding polar zw-type 32CA reactions experimentally.

A representation of the GEDT at the TSs vs. the ethylenes’ nucleophilic character allows demystifying the “hypothetical Sustmann's parabola graph”. These 32CA reactions are not of “type II” as Sustmann proposed,¹⁴ but instead, they fall into categories of REDF for strongly nucleophilic ethylenes and FEDF for strongly electrophilic ethylenes. The present MEDT study explains the asymmetry of the “Sustmann's parabola” in Fig. 1, revealing that only the upper-left branch of the graph exhibits significant acceleration and complete meta regioselectivity, which is synthetically valuable.

Finally, REG-IQA analysis of the activation energy of the 32CA reaction of phenyl azide 6 with vinyl amine 22 indicates that the greater stabilization of the azide framework facilitated by the GEDT when it acts as an electrophile toward supernucleophilic vinyl amines is the main factor driving the large acceleration, in which conjugation with the phenyl substituent plays a relevant role.

Author contributions

L.R.D. data curation, formal analysis, funding acquisition, investigation, supervision, writing – original draft and writing – review & editing. M.R.G. data curation, investigation, writing – original draft and writing – review & editing. P.P. data curation, investigation, supervision, writing – original draft and writing – review & editing.

Conflicts of interest

The authors declare no conflict of interest.

Acknowledgements

This work has been supported by the Ministry of Science and Innovation (MICINN) of the Spanish Government, project PID2019-110776GB-I00 (AEI/FEDER, UE), and by FONDECYT – Chile through Project No. 1221383. L. R. D. also acknowledges Cooperación Internacional (Fondecyt No. 1221383) for continuous support.
