Shovon
Chatterjee
,
Arghya
Sen
and
Pratik
Sen
*
Department of Chemistry, Indian Institute of Technology Kanpur, Kanpur – 208 016, UP, India. E-mail: psen@iitk.ac.in; Fax: +91 512 259 6806; Tel: +91 512 259 6312
First published on 19th January 2023
Organic solvent hazards are the most overlooked part of perovskite research. In this report, we employed menthol based deep eutectic solvents (DESs) as a green medium for the synthesis of cesium lead halide (CsPbX3; X = Cl, Br, I, or either both) nanocrystals (NCs) and nanoplates (NPLs) with high PLQY (maximum of 78%) aiming to reduce the synthesis related toxicity. The reaction temperature and added precursor ratio in the DES medium were found to be the key factor in controlling the dimensionality of the NCs. The synthesized NCs and NPLs in the DES medium suffer from common halide vacancy-related defects, which were passivated by oleylammonium halide treatment to achieve near unity PLQY. With green DES as a synthesis medium, the present synthetic protocol lowered the crystallization temperature, allowing ambient condition synthesis, and yields high quality NCs/NPLs with an almost uniform size distribution. This study presents a novel approach to the environmentally friendly synthesis of NCs and NPLs, which holds great potential for the practical large-scale synthesis of perovskites in industrial settings.
Perovskite research has advanced at breakneck speed in the last decade.6,7 Due to their defect-tolerant nature, high photoluminescence quantum yield (PLQY), and narrow PL bandwidth, the nanocrystalline form of lead halide perovskites have proved their immense potential in the field of optoelectronics.6,7 However, because of their low environmental and water stability, their practical application is still a long way off.8,9 Lead toxicity is still a key issue in perovskites, which is driving the development of lead-free perovskites.10,11 However, overcoming solvent-related toxicity during synthesis (typically due to toxic DMF, NMP, skin penetrating DMSO, skin irritant octadecene, etc.) is yet another crucial but overlooked aspect of this research field.12 Another major worry is that these precursor solvents have a high propensity to coordinate with the perovskite surface, allowing the perovskite structure to degrade.13 Using ionic liquids (ILs) as a precursor media, a few breakthroughs have been achieved in this direction.12 Moore et al. reported the synthesis of methylammonium lead iodide thin films from a methylamine/short chain carboxylic acid IL medium in 2015.14 Following this, a number of studies have been published that indicate how IL additives can regulate crystal formation, stability, and surface modification in perovskite thin films.12,15 However, all of these reports revolve around the thin film/solar cell applications of perovskites. For the first time Hoang et al. reported the green synthesis of methylammonium lead bromide NCs in 2020.16 By combining methylamine with short-chain aliphatic carboxylic acids, they were able to synthesize an IL medium, which was used to synthesize MAPbBr3 NCs with ∼50% PLQY. Recently, we employed highly hydrophobic lauric acid to prepare a methylammonium laurate IL medium, which finally leads to the formation of water stable MAPbBr3@laed laurate core–shell nanostructure with near-unity PLQY.17
One of the major drawback of this IL-based alternate solvent media is the poor solubility of the precursor salts. The use of solid lead halide salts for synthesizing perovskites in IL media restricts the possibility of the doping and synthesis of mixed perovskite materials.16,17 The only solution is to increase a universality of the alternate solvent, where both the hydrophobic and hydrophilic precursors are soluble. To tackle this issue we have used menthol based DESs (Fig. 1a–d), ca. 1
:
2 lauric acid/menthol (LAMe), 1
:
1 caprylic acid/menthol (CAMe), and 1
:
1 butyric acid/menthol (BAMe).18,19 The solubility of lead halide salts in these DES media are excellent in the presence of oleylamine (OAm). Using this key solubility factor, we have synthesized highly luminescent CsPbX3 NCs and 2D RP NPLs in this green DES medium.
:
2 ratio. CA-Menthol (CAMe) and BA-Menthol DESs, on the other hand, were created in a 1
:
1 ratio using the same process. The DESs are transparent liquids at room temperature. These DESs were characterized using FTIR, and thermogravimetric studies (TGA).
| H-bond donor (HBD) | H-bond acceptor (HBA) | Molar ratio | Appearance |
|---|---|---|---|
| Lauric acid (LA) | Menthol | 1 : 2 |
Transparent liquid |
| Caprylic acid (CA) | Menthol | 1 : 1 |
Transparent liquid |
| Butyric acid (BA) | Menthol | 1 : 1 |
Transparent liquid |
000 rpm for 1 hour. The supernatant DES was discarded and the NCs were washed thoroughly with methyl acetate and were then dissolved in hexane and centrifuged again at 10
000 rpm for 10 mins. The residue, containing the large particles, was discarded. The supernatant contained NCs of uniform size and was used for further studies.
CsPbBr3 NPLs with different width were synthesized using the same procedure, except for changing the temperature (100 °C, 75 °C, and 50 °C) and the cesium precursor amount (25 μL, 50 μL, 75 μL and 100 μL) in LAMe.
It is important to mention that, we were not able to synthesize stable CsPbI3 NCs by using the OAm ligand. The synthesized CsPbI3 using the OAm ligand quickly transferred to the non-emissive yellow phase immediately after preparation. For this, we have alternatively used an OAmI salt as a ligand to synthesize relatively stable CsPbI3 NCs.
000 rpm for 1 hour. The supernatant DES was discarded and the NCs were dissolved in hexane and centrifuged again at 10
000 rpm for 10 mins. The supernatant contained NCs of uniform size and were used for further studies. For CsPb(Cl/Br)3, a mixture of 2.7 mg of PbCl2 and 3.6 mg of PbBr2 were taken in DES whereas for CsPb(Br/I)3 NCs 3.6 mg of PbBr2 and PbI2 were taken and the respective NCs were prepared by a similar procedure. For CsPbI3 NCs, 9 mg of PbI2 was dissolved in 2 ml LAMe in the presence of 200 μL OAmI and was then prepared by similar procedure.
In the present study DESs are used as the solvent media for the synthesis of perovskites. We believe the formation of cesium carboxylate through the reaction between Cs2CO3 and RCOOH (a DES component) is the primary step for the reaction that then combines with PbX2 to form CsPbX3 (where X is Cl, Br, I), as shown below.
| Cs2CO3 + RCOOH = 2CsCOOR + H2O + CO2 |
| 2CsCOOR + 3PbX2 = 2CsPbX3 + Pb(COOR)2 |
:
1 methyl acetate followed by dispersing in hexane for further measurements.
![]() | (1) |
Among the pure inorganic perovskite NCs, green-emitting CsPbBr3 is the most celebrated considering its structural stability and massive PLQY. The major synthetic protocol for the synthesis of this NC is the hot injection method, where the temperature is raised to ∼170 °C in inert atmospheric conditions to initiate the crystallization. Also in the hot injection procedure, there is still no replacement of the hazardous and toxic octadecene solvent. By keeping these drawbacks in our mind, we planned to introduce a green solvent where a comparatively lower injection temperature is used for the crystallization of NCs without any inert atmospheric conditions. CsPbBr3 NC was synthesized by a simple two-precursor approach at 100 °C in open atmospheric conditions by utilizing the above mentioned DES media (see Fig. 1e and the Experimental section). The CsPbBr3 NCs synthesized in LAMe, CAMe and BAMe are named as CPB-LAMe, CPB-CAMe, and CPB-BAMe, respectively. The powder XRD patterns confirm that the formed NCs are in a pure cubic crystalline phase (Fig. S3 of the ESI†). The FTIR spectra are utilized to probe the capping ligand environments of purified dry CPB-LAMe, CPB-CAMe, and CPB-BAMe NCs which are shown in Fig. S4 of the ESI.† All of the NCs have a weak and broad absorption band near 3400 cm−1, which originates from N–H stretching and absorptions at ∼2900 cm−1 and 1460 cm−1 are a characteristic signature of the C–H stretching and bending mode respectively due to the OAm capping ligand. The presence of the corresponding aliphatic acids from the DESs as a capping ligand on the NC surface is indicated by another distinctive absorption band at 1700 cm−1 in all cases. Therefore, we can clearly conclude that all of the synthesized CPB NCs have X-type OAm and alkyl carboxylic acid (a constituent of DES) capping ligands on the NC surface.6,21 An energy dispersive X-ray (EDS) analysis of the NCs was carried out to have an idea about the elemental ratios of the NCs. CPB-LAMe shows a bromine to lead ratio of 2.76
:
1, while for CPB-CAMe and CPB-BAMe it is 2.54
:
1 and 2.44
:
1, respectively, suggesting a bromine deficient surface in all three NCs (Fig. S5 of the ESI†). This may originate from the bromine-deficient reaction conditions as PbBr2 salt was utilized as a dual source of bromine and lead in our synthesis. This problem is quite common in hot injection synthetic processes.22,23 The X-ray photoelectron spectroscopy of CPB-LAMe was carried out to have a better understanding of the surface composition of the NCs. The XPS analysis reveals that the surface of CPB-LAMe has a bromine to lead ratio of 2.81 (Fig. S6 of the ESI†). The high resolution XPS spectra further reveal the formation of Pb0 along with the CPB NCs (Fig. S6 of the ESI†). The appearance of Pb0 may be because of the mild reducing power of OAm.24
Fig. 1f–h show the transmission electron microscopic (TEM) images of CPB-LAMe, CPB-CAMe, and CPB-BAMe, respectively. In all cases, we can see the formation of almost square-shaped NCs with uniform size distribution. The average size of CPB-LAMe is found to be 12 ± 3.6 nm whereas the average size of CPB-CAMe and CPB-BAMe are found to be 12 ± 4 nm and 11.2 ± 3.4 nm respectively (Fig. S7 of the ESI†). The ring pattern in the SAED confirm the cubic polycrystalline nature of the synthesized NCs (Fig. S8 of the ESI†) for all cases. Fig. S9a of the ESI† shows the HRTEM image of the CPB-LAMe. Fourier filtration of the selected area from Fig. S9d (ESI†) clearly shows two crystal planes (110) and (200) corresponding to interplanar distances of 0.41 nm and 0.29 nm respectively. Fig. S9b and S9c (ESI†) shows the HRTEM images of CPB-CAMe and CPB-BAMe respectively. Two crystal planes (110) and (200) corresponding to interplanar distances of 0.40 nm and 0.30 nm, respectively, can be seen from the Fourier filtration from the selected area (Fig. S9 of the ESI†). For CPB-BAMe similarly, two crystal planes (100) and (110) can be visualized from the Fourier filtered image as well (see Fig. S9f of the ESI†). Therefore, we conclude that our green solvent mediated lower temperature synthesis in open atmospheric conditions is capable of producing high quality CPB NCs with a uniform size distribution.

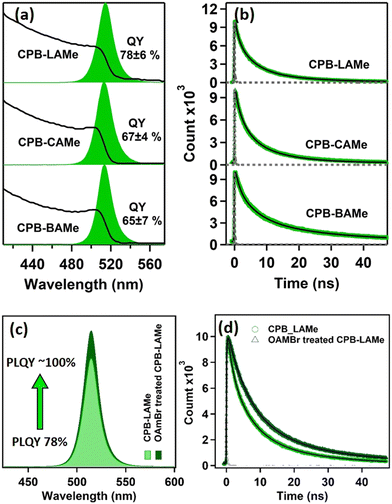

The CPB NCs prepared in three different DES media at identical conditions (100 °C) show almost identical optical properties. The NCs show a broad absorption with an absorption edge at 510 nm and a sharp PL band centered at 513 nm in all cases (Fig. 2). However, CPB-LAMe exhibited a high PLQY of 78%, whereas the NCs prepared in CAMe and BAMe show relatively lower PLQY of 67% and 65%, respectively. The reason for a high PLQY of CsPbBr3 NCs prepared in LAMe may be because of the effective passivation of the CPB NC surface by both OAm and LA. To gain insight into the charge carrier dynamics, the time-resolved PL studies of all three purified CPB NCs have been done. All the time-resolved PL data have been fitted with a sum of three exponential fitting functions, suggesting three different recombination sites present in the NCs. All the fitting parameters are tabulated in Table S1 of the ESI.† The long lifetime component of ∼20 ns is assigned to the recombination of the charge carriers through the surface trap states.24,25 The ∼6 ns lifetime component is ascribed to the excitonic recombination process. 24–26 Although in some literature, an opposite assignment has been proposed for the shorter and longer lifetime components.27,28 In a recent article, Becker et al. proposed that the long lifetime component originates from the trap induced delayed fluorescence.29 Thus, the assignments of these two lifetime components are still under debate and need further detailed investigation. The origin of the shortest component ∼1.4 ns is also a little bit ambiguous. The literature says that this component indicates the presence of additional defect sites in the NCs that facilitate the non-radiative processes.22 This means that the CPB NCs can have trapping sites other than the trap states that originate from the unsaturated surface dangling nonbonding orbitals. One possibility of such a trap state is the bromine vacancy in the NCs. To verify this, we treated the NC suspension with a hexane solution of OAmBr that acts as a source of bromide ions. This post-synthetic treatment amplifies the PLQY of the system to near unity from 78% and increases the average lifetime from 13.1 ns to 14.9 ns, suggesting a suppression of nonradiative decay channels in the system. Interestingly, the short lifetime component of 1.4 ns disappeared after OAmBr treatment (see Table S2 of the ESI†). This further suggests the origin of the short lifetime component is the recombination of the charged carrier through bromine-related trap states. The PL stability of these colloidal NCs was monitored for two months in ambient conditions. CPB-LAMe was found to retain ∼84% of its original PL intensity after two months. Whereas CPB-CAMe and CPB-BAMe retained ∼60% of their PL intensity (see Fig. S10 of the ESI†). This may be due to the better capping environment of CPB-LAMe, which restricts its PL intensity loss in ambient conditions.
To have a better insight on the charge carrier dynamics of the synthesized CPB-LAMe, femtosecond transient absorption spectroscopic measurements were performed, and the results are compared with the pristine CsPbBr3 NCs prepared through the frequently followed hot injection procedure (pristine CPB) (see Fig. S11 and S12 of the ESI† for TEM and optical characterizations, respectively). The samples were excited above the band gap at 400 nm with a femtosecond pulsed laser by maintaining the same excitation power, and the time-resolved difference absorption was measured. The results are shown in Fig. 3. CPB-LAMe and pristine CPB shows strong photobleach signals (PB) at 512 nm and at 507 nm, respectively, which correspond to their ground state bleaching (GSB). At early times a strong excited state absorption (ESA) band around 530 nm is observed for both the NCs corresponding to the hot carrier (HC) absorption.30 For both CPB-LAMe and pristine CPB NCs, the kinetics were fitted with a sum of three exponential functions. The transient at the PB maxima (512 nm) shows a rise time component of 270 fs (Fig. 3d) that corresponds to the cooling of the HCs to the band edge position.30,31 For pristine CPB, the HC cooling process shows a lifetime of 510 fs (Fig. 3f), which is in line with previous studies.30 The relaxation of hot carriers to the band edge depends on the carrier-phonon coupling.32,33 The HC relaxation becomes faster when the carrier-phonon interaction is higher.32,33 This carrier-phonon interaction in a particular NC is highly dependent on the size of the NCs and also on the ligand environment under the same excitation fluence.27,34 An earlier study shows that the HC cooling rate becomes dramatically slower if the NC size is reduced.34 The pristine CPB NCs have an average edge length of 8 nm, which is smaller than the CPB-LAMe NCs (average edge length of 12 nm). As, the ligand environment is similar for both CPB-LAMe and pristine CPB NCs, the smaller size of pristine CPB than CPB-LAMe may be the reason for the slower HC cooling rate. Both CPB-LAMe and pristine CPB NCs show comparable two-component decay kinetics. The faster time constant of ∼70 ps is assigned as a biexciton lifetime and the longer component (>1 ns) is assigned as an excitonic recombination process according to the literature.25 The relative contribution of the biexcitonic species in CPB-LAMe and in pristine CPB remains almost similar in the same experimental conditions.
The reaction temperature in perovskite NC synthesis typically plays a pivotal role to determine the size, morphology, and properties of the synthesized NCs.35,36 In the common hot injection process, tuning the reaction temperature is still a key in tuning the size of the synthesized NCs. Apart from the temperature, the ratio of the reactant salts is also a paramount factor that can influence the NC properties to a certain extent.37 To see the effect of these two important factors in the perovskite NC synthesis in the DES media, we have studied the effect of reaction temperature and Cs:Pb precursor ratio on the properties of the prepared CPB NCs. Fig. 4a–c shows the absorption and PL properties of the NCs prepared in LAMe DES at three different temperatures (100 °C, 75 °C, and 50 °C) and four different precursor ratios. The ratio of precursors has no effect on the optical properties of the NCs if the reaction temperature is 100 °C. In all cases, the NCs show a strong PL at 513 nm with a broad absorption, which resembles 3D NCs (n = ∞) (Fig. 4a). At 75 °C reaction temperature, the PL properties of the NCs changes drastically depending on the precursor ratio. For all cases the multipeak PL bands were observed (Fig. 4b). The absorption bands also show similar sharp excitonic features in accordance with the PL. This observation suggests the formation of lower-order perovskite NPLs (Fig. 4b). The PL shows sharp maxima at ∼460 nm, ∼470 nm, ∼480 nm, and 513 nm, which are assigned to NPLs with n = 3,4,5 and ∞ respectively. Here, n denotes the number of PbBr64− octahedral layers in the NPLs.38,39 The intensity ratios of the PL peaks vary with the cesium to lead ratio suggesting a change in the value of n. The TEM images of the sample prepared at 75 °C with unit cesium to lead ratio indicates the formation of different NPLs with 3D NCs (Fig. S13 of the ESI†). By lowering the reaction temperature to 50 °C and by using a cesium to lead ratio of 0.25 we were able to synthesize a pure NPL (n = 3) having a sharp excitonic absorption peak at 455 nm and a PL band centered at 460 nm (Fig. 4c and Fig. 5a). The overall effect of temperature and Cs:Pb precursor ratio are schematically shown in Fig. 4d. For a better understanding of the structure and properties, we proceed with this pure NPL (n = 3) for further characterization.
![]() | ||

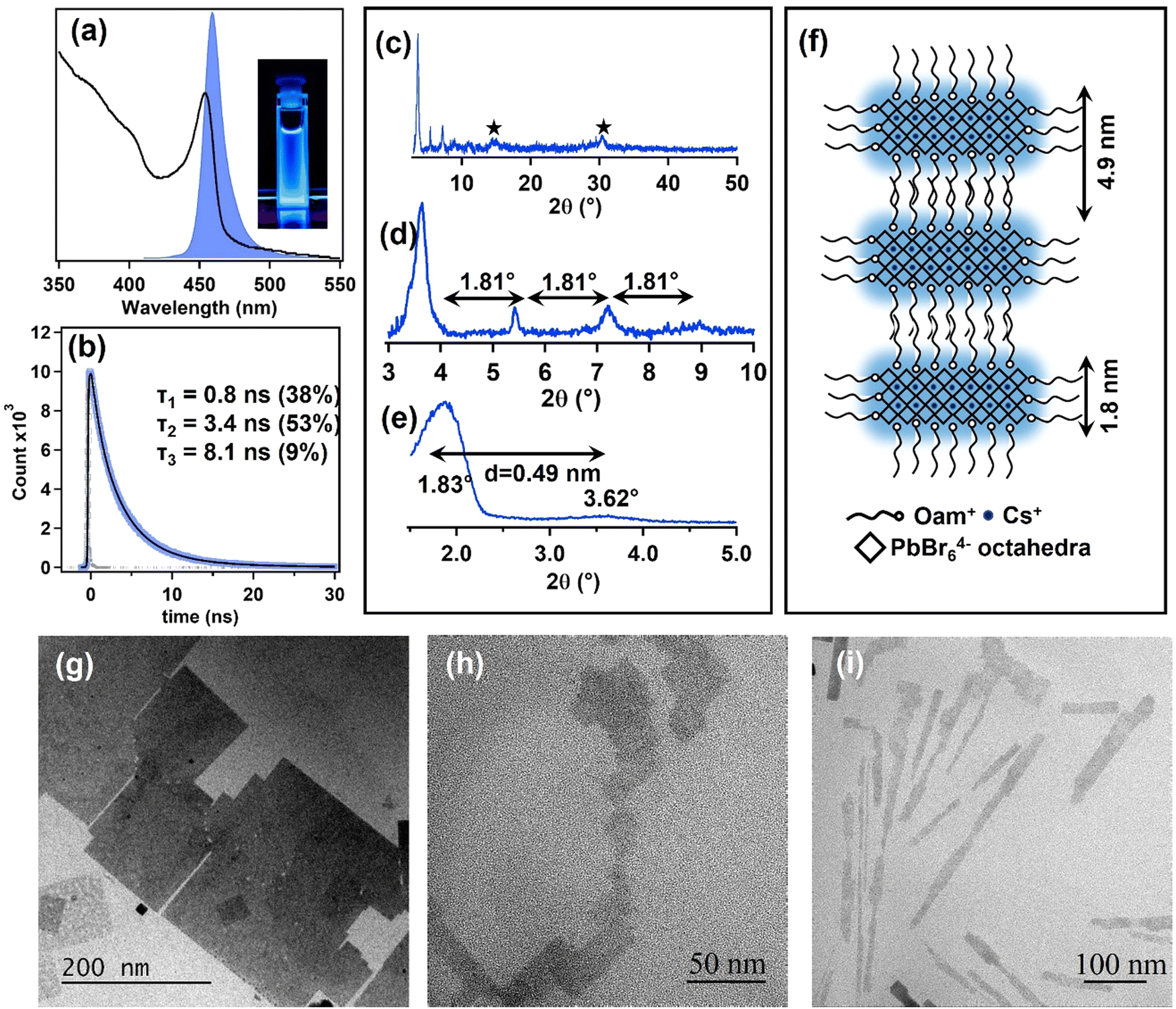

| Fig. 5 (a) Absorption and PL of CPB-2D (n = 3). A photograph of CPB-2D under UV light illumination is provided in the inset. (b) Time-resolved PL of a hexane suspension of CPB-2D (n = 3). The excitation wavelength is 405 nm and the instrument response function of the setup is 120 ps. (c) PXRD pattern of CPB-2D (n = 3). (d) Zoomed in version of Fig. 5c at a lower diffraction angle. (e) SAXS pattern of CPB-2D (n = 3). (f) Pictorial representation of RP (OAm)2Cs2Pb3Br10 (n = 3) structure. (g–i) TEM images of CPB-2D (n = 3). | ||
The PLQY of this NPL (n = 3) is measured to be 46%. The time-resolved PL decay profile of the colloidal CPB-2D (n = 3) can be best fitted using a sum of three exponential functions (Fig. 5b). The shortest lifetime component of 0.8 ns having a relative contribution of 38% is proposed to originate from the surface-related bromine vacancy as discussed earlier (Table S3 of the ESI†).24,25 The 3.4 ns and 8.1 ns components signify the excitonic recombination process and the surface trap-assisted recombination processes, respectively.24,25 The post-synthetic treatment with OAmBr further amplifies the PLQY to 94% (Fig. S14 of the ESI†). The PL transient of the treated NPLs shows 22% of the fast component. The reduction of the relative percentage of the fast component in treated NPLs is due to the suppression of the bromide vacancy (Table S3 of the ESI†). The PXRD pattern of CPB-2D NPL shows the most prominent lower angle diffraction peak at 3.62° with 5.41°, 7.23°, and 9.01° peaks originating from the (00l) reflection having a periodicity around 1.81° (Fig. 5c–e). This lower angle diffraction is the characteristic signature of the regular stacking pattern in a RP NPL structure.38–41 To have an idea about the distance of these stacked NPLs, small angle X-ray scattering (SAXS) has been performed (Fig. 5e) where the first diffraction peak is found to originate at 1.83°. From this the inter planner distance of the stacked NPLs were calculated to be 4.9 nm. Considering the chain length of the oleylammonium ion is 1.9 nm and the thickness of the three lead bromide octahedral (PbBr64−) units is 1.8 nm, the interplanar spacing could be between 3.8 nm (fully stacked condition of spacer cations) and 5.6 nm (head-to-head orientation of spacer cations).38,39 Therefore, we believe that the interdigitation and locking of the spacer cations between two inorganic layers is less effective in nature, which lengthens the interlayer distance. The schematic representation of the CPB-2D (n = 3) is depicted in Fig. 5f. Also, the PXRD pattern shows characteristic peaks at 15.1° and 30.3°, which correspond to the (100) and (200) planes (marked with a star in Fig. 5c), which are expected in the quasi-2D RP NPL structure, where small 3D CsPbBr3 parts are separated by spacer oleylammonium cations.38,39Fig. 5g–i shows the TEM image of the synthesized CPB-2D NPLs. The formation of large 2D NPLs can be observed with a lateral dimension in the order of 200 nm. The single crystalline pattern of the NPLs can be seen from the SAED pattern (Fig. S15 of the ESI†). A careful analysis of the TEM results reveals that along with these large nanosheets small ultrathin nanosheets of different shapes are also present. The different contrast in TEM images may be due to formation of a RP type of structure, where different numbers of 2D nanosheets are stacked together. The composition of the NPLs were investigated through the XPS study (Fig. S16 of the ESI†). The RP quasi 2D NPLs have a general formula of (A′)2An–1PbnX3n+1 where A′ is the long chain ammonium cation (here Oam+), A is the A-site cation (here Cs+) and X is the halide ion (here Br−). For NPLs with n = 3, the structural formula of the system in the present case would be (OAm)2Cs2Pb3Br10. The XPS elemental study confirms that the lead to cesium ratio is 1.5, which further suggests the formation of CPB-2D where n = 3. The ambient stability of the NPLs was found to be ∼2 days through steady-state PL measurements, after which it gradually transforms to a bulk 3D perovskite structure (Fig. S17 of the ESI†).
The results of how temperature affects the product as a whole is a little surprising. Normal hot injection synthesis favors the formation of larger NCs at high reaction temperatures and is often used for the size-dependent synthesis of CsPbX3 NCs.30 But in the studied DES medium, unlike the hot injection synthesis process, by lowering the temperature, we ended up with lower-order NPLs of the RP phase. This may be because of the lower solubility of the PbBr2 than OAm in DES medium at lower temperatures, which leads to the formation of the RP structure. To learn more, the reaction pathway needs to be studied in depth in the future.
To check the universality of the DES media for perovskite NC synthesis, we have prepared the chlorine and iodine analogues as well. The PXRD peaks move gradually to the lower diffraction angle from the CsPbCl3 to the CsPbI3 system due to the larger lattice parameter (Fig. S18 of the ESI†), which is consistent with previous studies.20,42 The band edge absorption shifted to longer wavelengths from CsPbCl3 to CsPbI3 and the PL is also shifted from the violet (pure NCs, PL maxima 413 nm) to the red region (pure NCs, PL maxima 686 nm) (see Fig. 6a–c). The PL transients of all the NCs show the presence of three distinct kinetics (Fig. 6d and Table S4 of the ESI†). The average lifetime gradually increases from 3.9 ns to 21.8 ns from CsPbCl3 NCs to CsPb(Br/I)3 NCs, which is in line with previous reports.20 However, the average lifetime of CsPbI3 NCs drops drastically and may be due to the presence of large nonradiative decay channels through the trapping sites. A closer look at the PL decay kinetics reveals that in CsPbCl3 NCs the recombination of the charge carriers through the chloride vacancy sites is maximum and also shows very fast decay kinetics (0.3 ns, 80%). The presence of the chloride vacancy is also very common, which restricts its high PLQY in CsPbCl3 NCs.43 In the present study we estimated the PLQY of CsPbCl3 NCs to be 23%. Going from CsPbCl3 NCs to CsPb(Br/I)3 NCs, the percentage of carrier recombination through the halide vacancy sites decreases, and consequently the PLQY increases (PLQY estimated as 45% and 76% for CsPb(Cl/Br)3 and CsPb(Br/I)3 NCs, respectively). This study further suggests that the involvement of halide vacancies is one of the most important parameters to control the PLQY of the system.
The morphologies of the synthesized NCs were further investigated through TEM. The TEM image of CsPbCl3 suggests the formation of square-shaped NCs along with the formation of some long NPLs types of structure (Fig. 6e). The square-shaped NCs show an average size of 14 ± 8 nm (Fig. S19a of the ESI†). Both CsPb(Cl/Br)3 and CsPb(Br/I)3 show square shaped NC morphology (Fig. 6f and g, respectively) with an average size of 15 ± 7 nm (Fig. S19b of the ESI†) and 9 ± 4 nm (Fig. S19c of the ESI†), respectively. The CsPbI3 shows a unique hexagonal morphology (Fig. 6h) of an average corner distance around 50 ± 20 nm (Fig. S19d of the ESI†) along with a few rod-like shapes. Understanding the mechanism of formation for this hexagonal morphology of CsPbI3 in DES media needs further study.
