Balancing ring and stopper group size to control the stability of doubly threaded [3]rotaxanes

Abstract

Synthesizing doubly threaded [3]rotaxanes requires the use of larger rings than more traditional singly threaded [2]rotaxanes. A key challenge in accessing stable doubly threaded [3]rotaxanes with large rings is finding the right combination of ring to stopper size. In this study, a series of doubly threaded [3]rotaxanes derived from five different sized macrocycles in the size range of 40–48 atoms and two different stopper groups, which contain 1 or 2 tris(p-t-butylbiphenyl)methyl moieties, were prepared and their kinetic stability examined. These interlocked compounds were synthesized using a metal-templated approach and fully characterized utilizing a combination of mass spectrometry, NMR spectroscopy, and size-exclusion chromatography techniques. The effect of ring size on the stability of the doubly threaded [3]rotaxane was investigated via kinetic stability tests monitored using ¹H-NMR spectroscopy. By tightening the macrocycle systematically every 2 atoms from 48 to 40 atoms, a wide range of doubly threaded interlocked molecules could be accessed in which the rate of room temperature slippage of the macrocycle from the dumbbells could be tuned. Using the larger stopper group with a 48-atom ring results in no observable rotaxane, 46–44 atom macrocycles result in metastable rotaxane species with a slippage half-life of ∼5 weeks and ∼9 weeks, respectively, while macrocycles of 42 atoms or smaller yield a stable rotaxane. The smaller sized stopper is not able to fully stabilize any of the [3]rotaxane structures but metastable [3]rotaxanes are obtained with slippage half-lives of 25 ± 2 hours and 13 ± 1 days using macrocycles with 42 or 40 atoms, respectively. These results highlight the dramatic effect that relatively small ring size changes can have on the structure of doubly threaded [3]rotaxanes and lay the synthetic groundwork for a range of higher order doubly threaded interlocked architectures.

---

Introduction

Mechanically interlocked molecules (MIMs) are compounds comprised of multiple components that are connected as a result of their topology as opposed to a standard covalent bond.¹ This unusual connectivity has been exploited by scientists over the past few decades resulting in the exploration of MIMs in a wide range of applications including catalysis,^2,3 drug and gene delivery,^4,5 switchable surfaces,^6,7 mechanophores,^8–10 molecular machines^11,12 and more.^13,14 Specifically, their use as molecular machines received international acclaim with the awarding of the 2016 Nobel Prize in Chemistry to Sauvage,¹⁵ Feringa,¹⁶ and Stoddart.¹⁷ A key aspect of MIMs for many such applications is how the individual components interact and are able to move relative to one another.¹⁸

Rotaxanes are a class of MIMs comprised of ring and dumbbell components.¹⁹ The most elementary version is a singly threaded [2]rotaxane comprised of one macrocycle component kinetically trapped between the stopper groups of a second dumbbell component.²⁰ Matching the correctly sized ring to stopper group is critical for achieving a stable interlocked molecule,^21,22 and prior studies have shown that depending on the relative size of stopper and macrocycle, the ring may undergo a slippage process where it dethreads from the dumbbell yielding the noninterlocked components.^23–26 Accessing different slippage rates in these metastable rotaxanes is possible and such interlocked compounds have been shown to be useful as a means of chemical protection,^27,28 constructing molecular pumps,^29–31 and the assembly of more complex architectures such as molecular containers³² and supramolecular networks.³³

An important design parameter that has emerged in rotaxane synthesis and application is macrocycle size.^34–43 Specifically, control over the size of the ring(s) employed in rotaxane structures has allowed researchers to influence their ring mobility,³⁵ impact their electrochemical properties,³⁸ access molecular shuttles,³⁹ develop means of programmable chemical protection⁴⁰ and more. In these studies, relatively small changes (1–2 atoms) in macrocycle size result in dramatic effects in the resulting rotaxane function. However, the above-mentioned studies into metastable [2]rotaxanes, highlight that careful design and chemical consideration must be given to both rotaxane components if the goal is to access a stable rotaxane that can perform a useful function.

The rotaxanes discussed above are all based on a simple singly threaded [2]rotaxane motif. As researchers continue to access more complex interlocked structures, there is a growing interest in looking towards higher order rotaxanes⁴⁴ such as multiply threaded⁴⁵ architectures in order to achieve more complicated function. Bundling multiple threads within the same macrocyclic cavity opens the door to the possibility of tuning their inter-thread interactions through means such as non-covalent interactions or proximity-induced covalent chemistries. However, to date, the synthesis of doubly threaded [3]rotaxanes remains a challenging task,⁴⁵ and the effect of macrocycle size variation on the rotaxane structure has been far less explored in doubly threaded systems.^46–48 Recently, the synthesis and characterization of a series of metastable doubly threaded [3]rotaxanes that vary in stopper group size with one of the largest macrocycles to date (46 atoms) was reported.⁴⁹ Using a metal-templated strategy,⁵⁰ a ditopic 2,6-bis(N-alkyl-benzimidazolyl)pyridine (Bip)⁵¹ containing macrocycle was complexed to two linear Bip-containing thread components before being stoppered using Cu-catalyzed click chemistry. Changing the stopper group size through varying the number of tris(p-t-butylbiphenyl)methyl (tBBM) moieties (from 1 to 4 tBBM units) made it possible to tune the interlocked stability of the metastable [3]rotaxanes with a resultant half-life in deuterated chloroform from <1 min to ca. 6 months at room temperature. However, in these initial studies, a stable [3]rotaxane structure was not fully realized, highlighting the difficulty of fully stoppering such large rings.

The goal of this work was to examine the effect that both ring and stopper size has on the stability of these Bip-derived doubly threaded [3]rotaxanes. Specifically, four additional macrocycles in the size range of 40–48 atoms (Fig. 1a) were synthesized and, after metal-templated assembly with the linear Bip-containing thread (Fig. 1b), were tested for their ability to form doubly threaded [3]rotaxanes with two different sized stopper groups consisting of either one or two tBBM moieties (Fig. 1c).

Fig. 1 Chemical structure of the (a) macrocycle components 1_40–48, (b) alkyne terminated thread component 2, and (c) two differently sized azide functionalized stopper groups that have either one (3) or two (4) tris(p-t-butylbiphenyl)methyl (tBBM) moieties.

Results and discussion

The ditopic Bip-containing macrocycles 1_N (where N = 40, 42, 44, 46, or 48 atoms, Fig. 1a) were synthesized and fully characterized from their corresponding bis-phenolic Bip derivatives via Williamson ether synthesis (see ESI, Fig. S1–S4† for full synthetic details). The five rings all contain a different rigid aromatic linker resulting in the ability to systematically vary the ring size (defined here as the total number of atoms that comprise the inner circumference of the macrocycle^52,53) by 2 atoms from 48 to 40. The bis-alkyne linear thread component 2 and azide-functionalized stopper groups 3 (with one tBMM moiety) and 4 (with two tBMM moieties) were synthesized according to previously published methods (Fig. 1b and c).⁴⁹

With these components in hand, the first step towards attempting [3]rotaxane synthesis with these four new rings was to form a series of doubly threaded pseudo[3]rotaxanes with the thread component 2. In order to do this, a metal-templated assembly process was used (Fig. 2a).⁴⁹ First 1 : 2 solutions of the appropriate ring components (1_40–48) with the thread component 2 were prepared and checked via¹H-NMR spectroscopy to obtain the correct 1 : 2 stoichiometry. Then, 2 equivalents of Fe(NTf₂)₂ was titrated into each mixture of components followed by heating for 1 day at 45 °C to reach full equilibration and form the doubly threaded pseudo[3]rotaxanes 1_40–48:2₂:Fe(II)₂. Each self-assembly reaction was monitored using ¹H-NMR spectroscopy. This revealed the appearance of new signals that are shifted from the unbound components, and based on previously published metal-templated Bip complexes^49,54,55 the diagnostic pyridyl peaks can be easily assigned (see ESI, Fig. S5–S12†). The obtained doubly-threaded pseudo[3]rotaxanes 1_40–48:2₂:Fe(II)₂ in each case is a result of the principle of maximal site occupancy,⁵⁶ the rigidity present in the ring components, and the exact stoichiometry used.

Fig. 2 (a) Scheme showing assembly of doubly threaded pseudo[3]rotaxanes 1_40–48:2₂:Fe(II)₂. (b) Stoppering with component 3 followed by demetallation to access the series of doubly threaded [3]rotaxanes 5_40–48 (top) and stoppering with component 4 followed by demetallation to access the series of doubly threaded [3]rotaxanes 6_40–48 (bottom). Reaction conditions: (i) 6 eq. 3, 10 eq. NaAsc, 1eq. Cu(SO₄)·5H₂O, DCM/H₂O, 25 °C, 24 h (ii) 6 eq. 4, 10 eq. NaAsc, 1 eq. Cu(SO₄)·5H₂O, DCM/H₂O, 25 °C, 24 h (iii) excess TBAOH, DCM/MeCN/MeOH, 15 min.

With the range of pseudo[3]rotaxanes in hand, efforts then turned to stoppering them with either of the two stoppers 3 and 4 (Fig. 2b). Stoppering 1_40–48:2₂:Fe(II)₂ with 3 would allow access to the doubly threaded compounds 5_40–48 while the larger stopper group 4 was used to access the doubly threaded series 6_40–48 (Fig. 3). Copper-catalysed azide–alkyne cycloaddition^57,58 was employed as the stoppering chemistry in order to ensure efficient addition of the stopper group (see ESI, Fig. S13–S21† for full synthetic details including the synthesis of the free dumbbell components 7 (stoppered with 3) and 8 (stoppered with 4)). After the stoppering reaction was completed, demetallation of the iron templating agent from the Bip ligands was achieved using base. As 5₄₆ and 6₄₆ are both known to be metastable species,⁴⁹ (specifically t_1/25₄₆ ≪ 1 min and 6₄₆ = 5 weeks at ambient conditions in CDCl₃) analyzing each [3]rotaxane as quickly as possible upon demetallation was critical. As such, each crude demetallated product was analysed immediately via¹H-NMR spectroscopy and MALDI-TOF mass spectrometry.

Fig. 3 Chemical structure of the doubly threaded [3]rotaxane series 5_40–48 and 6_40–48.

In the attempt to synthesize 6₄₈, only the free components 8 and 1₄₈ were obtained in the resulting crude reaction mixture, as confirmed by ¹H-NMR spectroscopy (Fig. 4a–b and see ESI Fig. S22†) which showed no upfield shifted signals that are diagnostic in prior interlocked Bip-based compounds.^49,59 In addition, only the free dumbbell and ring were detected using MALDI-TOF mass spectrometry (see ESI, Fig. S23†). Similarly, only the free components 7 and 1₄₄ were observed in the attempt to make 5₄₄ as no upfield shifted product was observed via¹H-NMR spectroscopy and no peak corresponding to the [3]rotaxane was detected using MALDI-TOF mass spectrometry (Fig. 4a and c and see ESI Fig. S24–S25†). Taken together, these results imply the ring size of 1₄₈ (48 atoms) is too large for the stopper group 4 and the 44 atom ring is too big for the smaller stopper group 3 to successfully stabilize either [3]rotaxane on any appreciable timescale (Fig. 5a and b). These results set the upper ceiling of ring sizes for these two stoppering groups in this Bip-based doubly threaded [3]rotaxane system.

Fig. 4 (a) Selected ¹H NMR assignments for spectra. Partial crude ¹H-NMR overlay (500 MHz, CDCl₃, 25 °C) showing the region corresponding to the H_B peaks of (b) crude 6₄₀, 6₄₂, 6₄₄, the attempt to make 6₄₈, and the free dumbbell 8 for comparison, and (c) crude 5₄₀, 5₄₂, the attempt to make 5₄₄, and the free dumbbell 7 for comparison.

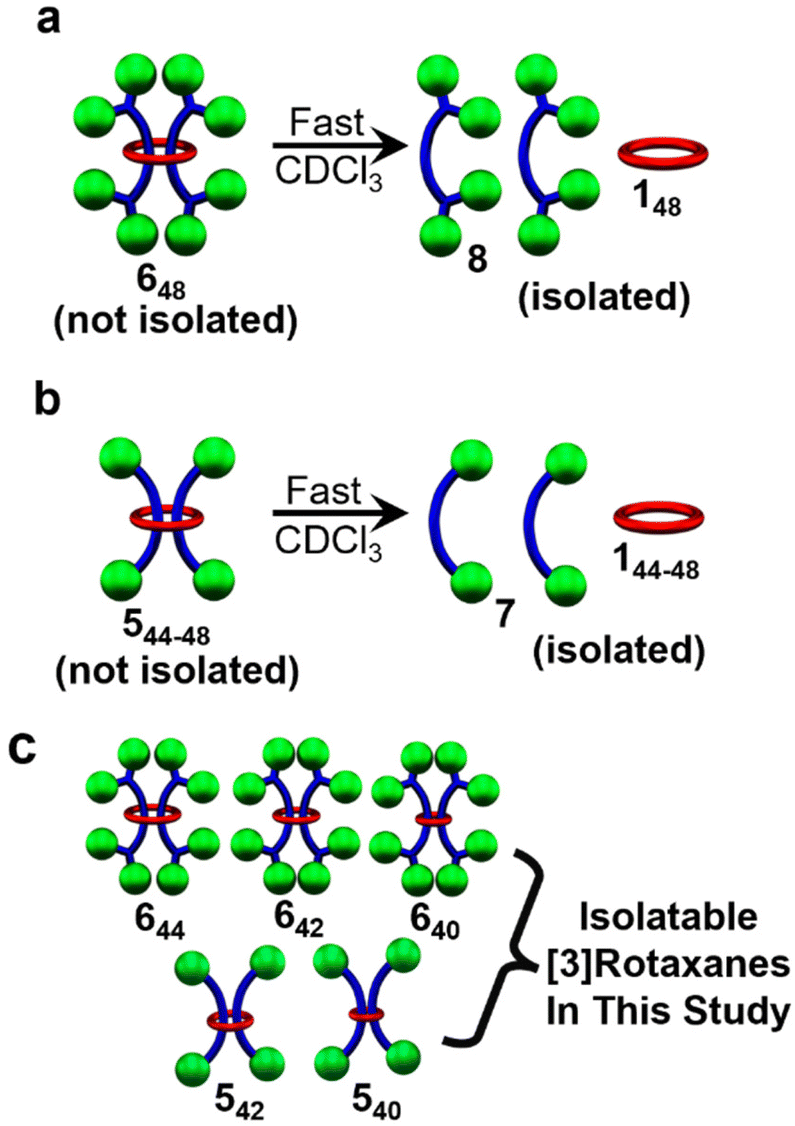

Fig. 5 Scheme depicting the observed rapid dethreading of (a) 6₄₈ and (b) 5_44–48 and (c) schematic representation of the isolatable [3]rotaxanes considered in this study.

The analysis of the crude reaction mixtures of [3]rotaxanes 5₄₀, 5₄₂, 6₄₀, 6₄₂, and 6₄₄ provided a significantly different result. In all five cases, dominant upfield shifted signals relative to the corresponding noninterlocked components were observed via¹H-NMR spectroscopy (Fig. 4 and see ESI Fig. S26–S30†). In all five cases the crude yield (based on ¹H-NMR) of the interlocked product averaged 83 ± 2%. The presence of these upfield shifted signals is consistent with the shielding effect seen from interlocking molecules derived from the Bip ligand.^49,59 Preparative thin layer chromatography was then used to isolate the lower R_f interlocked products in varying amounts (11.1 mg – 33.5 mg) and yields (70% for 6₄₀, 73% for 6₄₂, 75% for 6₄₄, 42% for 5₄₀, and 34% for 5₄₂). MALDI-TOF mass spectrometry confirmed the expected isotopic distribution of the high molecular weight [3]rotaxane peak for each 5₄₀, 5₄₂, 6₄₀, 6₄₂, and 6₄₄ (see ESI, Fig. S31–S35†), as well as the observed fragmentation pattern of the interlocked structure. In addition, GPC analysis revealed a lower retention time peak for 5₄₀, 5₄₂, 6₄₀, 6₄₂, and 6₄₄ relative their corresponding noninterlocked components, consistent with the formation of the larger sized interlocked molecules (Fig. 6 and see ESI Fig. S36–S40†).

Fig. 6 GPC (eluent 3 : 1 THF : DMF) comparison of [3]rotaxanes 5₄₀, 5₄₂, 6₄₀, 6₄₂, and 6₄₄, dumbbell components 7 and 8, and macrocycle components 1_40–44.

¹H-NMR analysis of the purified [3]rotaxanes 5₄₀, 5₄₂, 6₄₀, 6₄₂, and 6₄₄ combined with ¹H–¹H COSY, comparison to each [3]rotaxane's noninterlocked components, and previously published NMR spectra⁴⁹ on 6₄₆ allows the full ¹H-NMR spectra of 5₄₀, 5₄₂, 6₄₀, 6₄₂, and 6₄₄ to be assigned (see ESI, Fig. S41–S50†). As noted, in all cases similar upfield shifting (relative to their noninterlocked components) of the component peaks is observed via¹H-NMR spectroscopy upon formation of the [3]rotaxanes. However, there are some slight differences in the amount of upfield shifting. For instance, when comparing the ¹H-NMR spectra of 5₄₀ and 6₄₀ and their components, the larger stopper group in 6₄₀ results in a slightly larger shift (0.18 ppm vs. 0.13 ppm) of the diagnostic aromatic peaks in 1₄₀ (Fig. 7a and see ESI Fig. S51†), and a similar result is observed in the 42-atom system (5₄₂vs. 6₄₂, see ESI Fig. S51†). When comparing different ring sizes among compounds with the same stopper, the aromatic pyridinyl Bip resonances become particularly diagnostic with ring size in the 6_40–46 series (labelled A and B in Fig. 7b). As the ring is tightened from 46 atoms in 6₄₆ to 40 atoms in 6₄₀ the pyridinyl resonances shift downfield incrementally, implying the pyridine ring in the dumbbell components spends less time close to the ring (Fig. 7b). To probe this 6_40–46 [3]rotaxane series further, a full ¹H–¹H NOESY NMR analysis of each rotaxane and its corresponding noninterlocked control (2 : 1 solution of free dumbbell : macrocycle at same concentration) was conducted at the slightly reduced temperature of 278 K to enhance the NOE interactions. This analysis revealed a significant increase in the number of observable intercomponent NOEs (9 in 6₄₆ increasing to 38 in 6₄₀) in the [3]rotaxanes upon ring tightening consistent with a closer proximity of the dumbbell components within the ring (see ESI, Fig. S52–S57†). Further examination of the specific NOE interactions that appear with ring size reduction reveal that the majority interact with the dumbbell component near the middle pyridine ring of the dumbbell and the end diethylene glycol linker near the stopper group (see ESI, Fig. S58†) which is consistent with previously published all-atom molecular dynamics simulations of 6₄₆ that suggest an asymmetric orientation of the two dumbbells where the ring assumes a position near a stopper group of one dumbbell and in the middle of the other.⁴⁹

Fig. 7 Partial ¹H-NMR overlay (500 MHz, CDCl₃, 25 °C) of (a) [3]rotaxanes 5₄₀ and 6₄₀ and their free components 1₄₀, 7, and 8 and (b) [3]rotaxanes 6_40–46 and dumbbell component 8 (labels correspond to Fig. 1).

As a result of the known metastability⁴⁹ of 6₄₆ and the observed instability of 6₄₈ and 5₄₄, investigating the kinetic stability of 5₄₀, 5₄₂, 6₄₀, 6₄₂, and 6₄₄ was of particular interest. As the most widely accepted definition of a rotaxane is that the interlocked structure must remain stable at ambient conditions,^60,61 a 3-week kinetic experiment at room temperature in deuterated chloroform was conducted. Freshly prepared solutions (1 mM 5 or 6, CDCl₃) of 5₄₀, 5₄₂, 6₄₀, 6₄₂, and 6₄₄ were monitored twice a week at 25 °C via¹H-NMR spectroscopy which allowed determination of stability for these interlocked molecules (Fig. 8).

Fig. 8 Partial ¹H-NMR overlay (500 MHz, CDCl₃, 25 °C) of the 3-week slippage experiments of (a) 5₄₂, (b) 5₄₀, (c) 6₄₄, (d) 6₄₂, and (e) 6₄₀.

For 5₄₂, 5₄₀, and 6₄₄, the upfield shifted peaks assigned to interlocked product decreased during the experiment while the signals corresponding to the free noninterlocked components increased indicating that these [3]rotaxanes are metastable (Fig. 8a–c and see ESI, Fig. S59–S62†). No [2]rotaxane intermediates were observed in any of the slippage experiments suggesting the corresponding [2]rotaxanes (5₄₂, 5₄₀, and 6₄₄) are not stable on any appreciable timescale. Kinetic analysis revealed that the observed slippage processes followed first-order kinetics dependent on the metastable [3]rotaxane concentration. Varying half-lives were obtained for the different interlocked compounds ranging from ∼1 day to ∼9 weeks highlighting the ability of component design to control the stability of the interlocked structure (Fig. 9 and see ESI Fig. S62† for full kinetic analysis).

Fig. 9 (a) Kinetic first-order plot showing room temperature slippage of metastable [3]rotaxanes 5₄₂, 5₄₀, and 6₄₄ that were analysed in this study and (b) table summarizing kinetic half-lives of Bip-based doubly threaded [3]rotaxanes 5 and 6.

5₄₂ displayed the fastest observable slippage process as this [3]rotaxane rapidly fell apart to its noninterlocked components with a half-life of 25 ± 2 hours. In fact, 5₄₂ had to be kinetically analysed faster than the other [3]rotaxanes (once a day vs. biweekly) in order to obtain enough usable kinetic data for analysis (see ESI, Fig. S61†). 5₄₀ exhibited a significantly slower rate of slippage of 13 ± 1 days on account of the tighter fitting 40-atom ring. Even slower, the larger stoppered 6₄₄ slipped at a rate of 9 ± 1 weeks on a more similar timescale as the previously published 6₄₆ (t_1/2 = 5 weeks).⁴⁹ For 6₄₂ and 6₄₀, on the other hand, the upfield shifted peaks remained unchanged indicating that no slippage was observed (Fig. 8d–e and see ESI Fig. S63 and S64†) confirming these compounds are indeed stable doubly threaded [3]rotaxanes. The reduction from 44 atoms to 42 atoms in the ring component appears to be a critical point in this Bip-based [3]rotaxane series from a stability standpoint as this transition makes the [3]rotaxane 6 stable and 5 become isolatable. Given the fact that it is possible to access stable [3]rotaxanes (6₄₂ and 6₄₀), metastable [3]rotaxanes (5₄₀, 5₄₂, and 6₄₄), and species that are not observable on any reasonable timescale (6₄₈ and 5_44–48), it can be seen that the entire kinetic window of stability can be accessed with this system. The stable [3]rotaxanes 6₄₂ and 6₄₀ described here are particularly exciting as they lay the synthetic groundwork for a range of doubly threaded polyrotaxane materials which have proven particularly challenging to access.^62–66

Conclusions

In this study a series of doubly threaded [3]rotaxanes with two different sized stopper groups and five different rings in the size range of 40–48 atoms was considered. Kinetic stability tests revealed that the size of the ring had a profound effect on the [3]rotaxane stability. In particular, the entire kinetic stability window of these [3]rotaxanes, from not stable on any appreciable timescale to metastable to fully stable, could be observed by tightening the ring from 48 to 40 atoms using the larger stoppered system. The smaller stoppered system could not fully be stabilized at room temperature highlighting the difficulty of achieving a stable rotaxane with large rings. It is worthwhile pointing out that while the number of atoms is used here as a proxy for ring size other factors such as ring flexibility and conformation may also play a role in determining the stability of a rotaxane. Overall, the fully stable [3]rotaxanes described in this work open the door to an array of doubly threaded interlocked materials. The wide range of macrocycle size variation available in this system provides a versatile platform to investigate the effect of ring tightness on the sliding transition and unique interthread interactions available. This is currently being extended to the corresponding doubly-threaded polyrotaxane and slide-ring materials in our lab. For example, combining the optimized rotaxane component sizes determined in this work with synthetic procedures from slide-ring polycatenane networks⁶⁶ may provide one route to the little studied doubly threaded slide-ring networks.

Data availability

The authors declare that all data supporting the findings of this study are available within the article and ESI,† and raw data files are available from the corresponding author upon reasonable request.

Author contributions

JEH and SJR proposed the study. JEH conducted the synthesis and purification of all starting components and [3]rotaxanes with assistance from GL, BWR, LFH, JO and VJM. JEH conducted the ¹H-NMR, MALDI-TOF, and Size Exclusion Chromatography analysis of all materials described with assistance from GL and BWR. JEH, BWR, and NDD came up with the experimental design. SJR supervised the work. JEH, BWR, NDD, and SJR wrote the manuscript and made the figures. All authors discussed and commented on the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was funded by National Science Foundation (NSF) grant numbers CHE-1903603 and CHE-2304633. This work made use of the shared facilities at the University of Chicago Materials Research Science and Engineering Center (MRSEC), supported by National Science Foundation (NSF) under award number DMR-2011854. We would like to thank the University of Chicago Chemistry NMR Facility and the facility manager Dr Josh Kurutz for helpful discussion on NMR analysis. Parts of this work were carried out at the Soft Matter Characterization Facility (SMCF) of the University of Chicago. We would also like to thank the director of the SMCF, Dr Philip Griffin, for his assistance with GPC characterization.
