A single-step protocol was developed for the hydrolytic hydrogenation of microcrystalline cellulose into sorbitol over commercial carbon-supported Ru, in the presence of gaseous CO2 as an acid source and molecular hydrogen as a reductant. Under these conditions, cellulose was first hydrolysed to glucose by reversibly formed carbonic acid in water and then instantaneously hydrogenated on Ru/C. By tuning the reaction parameters, such as temperature, time and the relative pressure of CO2 and hydrogen gas, cellulose was fully converted at 220 °C in 18 h under 30 and 40 bar of H2 and CO2, respectively, with a sorbitol yield of 81%. Blank experiments revealed that without a catalyst and hydrogen, the reaction exhibited <5% conversion and glucose was the only detected product when the reaction was performed under CO2 pressure. XRD measurements on CO2-treated cellulose surprisingly revealed no noticeable changes in the crystallinity index (<10% with respect to microcrystalline cellulose), suggesting that hydrolytic hydrogenation took place on crystalline, not amorphous, cellulose. Furthermore, not only several cellulosic feedstocks, including filter paper, cotton wool, and cotton fiber, but also typical cellulose-based wastes such as a cardboard pizza box were also tested and under the optimized conditions sorbitol was obtained with yields ranging from 56% up to 72% in all cases. No less significant was the Ru/C catalyst stability, which could be recycled at least six times without any noticeable activity loss.
The synthesis of sorbitol from cellulose is generally performed via a two-step reaction that includes the acid-catalysed hydrolysis of cellulose to glucose followed by the hydrogenation of glucose to sorbitol over metal catalysts (Scheme 1).15
Even though the robust crystalline structure of cellulose makes its hydrolytic breakdown to glucose still a challenge, many reaction protocols have been developed over the years.8 Homogeneous catalysts such as H2SO4 and HCl have been extensively employed for this purpose. The use of strong liquid acids, however, is not sustainable from an environmental standpoint and suffers from serious drawbacks such as low selectivity, difficult product separation, corrosion and the need for acid recovery.16–18
As an alternative, several heterogeneous (acid) catalysts have been proposed for the direct conversion of cellulose into polyols.19–22 Due to the vast body of literature in this area, only a selection of representative works are commented on here. In a first seminal study, Fukuoka and Dhepe described the hydrolytic hydrogenation of cellulose using different metal-based catalysts of which Pt/γ-Al2O3 showed the best performance with a production of sorbitol and mannitol in 25% and 6% yields, respectively.23 Subsequent studies highlighted that Ru-based catalysts, even commercial ones, were probably the best option for biomass and biomass-derived compounds processing through reductive protocols,24–26 including the conversion of cellulose into sorbitol, not only because they displayed good activity and selectivity, but also due to their competitive costs since Ru was available at a far lower price (ca. ∼4%) compared to other metals such as Au and Pt of comparable activity.27 Luo et al. reported that at 245 °C and pH2 = 60 bar, in the presence of carbon-supported ruthenium (Ru/C), a high conversion of cellulose was achieved (86%) with a 30% sorbitol yield,28 though the high temperature caused both a partial degradation of glucose29 and the hydrogenolysis of sorbitol.30 Several Ru catalysts supported on acidic carriers such as sulfonated carbon,6 phosphate,9 and molecular sieves31 allowed significant improvements by making the reaction possible at lower temperatures and pressures (<200 °C, 30–50 bar H2) and with a higher sorbitol yield of up to 71%.6 Notwithstanding this, the process was slow due to the moderate acidity of the support that brought about a low hydrolysis rate. More performant catalysts were obtained using acid–Ru binary systems where the ratio of acidity to reduction activity could be adjusted: for example, heteropolyacids coupled with Ru/C could effectively improve cellulose conversion, giving a mixture of sorbitol and mannitol in a 68% yield in only 1 h, at 180 °C under 50 bar H2.29 The poor water solubility of heteropolyacids, however, made difficult the catalyst handling/recovery, thereby hampering any large-scale applications of the procedure. To improve the reusability of the solid acid, zirconium phosphate (ZrP) instead of heteropolyacids was considered, in combination with Ru/C. This system was apparently highly active, affording an 85% yield of C6 alcohol in 2.5 h, at 190 °C and 50 bar H2.32 However, it required an acidic pre-treatment of cellulose to reduce its crystallinity; otherwise, the rate-determining hydrolysis step was problematic.8,33,34 Deng et al. reported that the crystallinity of cellulose could be decreased by treating it with phosphoric acid. After this preliminary step, a 69% sorbitol yield was reached via hydrolytic hydrogenation catalysed by Ru/CNT (carbon nanotubes) at 185 °C and pH2 = 50 bar.35 Mechanochemical treatments were also evaluated to reduce the crystallinity index of cellulose, especially by ball-milling. A comparative analysis demonstrated that a catalytic mixture of Ru/C and H4SiW12O40 allowed an 85% and a 36% yield of sugar alcohols starting from ball-milled cellulose and pristine microcrystalline cellulose, respectively.29 In another work by Pereira et al., a conversion close to 90% with 80% selectivity to sorbitol was reported by ball-milling Ru/C and cellulose together, at 205 °C under 50 bar H2 in 1 h.36
Whichever the approach, the use of acids, both as solids and even more so as liquids, always implies concerns related to safety, corrosion (especially at high temperatures and pressures), and disposal. Therefore, the design of more sustainable and low-environmental-impact protocols for the direct conversion of cellulose into sorbitol remains a highly desirable target of a modern biorefinery.
The use of CO2 may represent a further attractive choice to generate weakly acidic aqueous solutions. This has been proposed and used in several strategies for biomass conversion including pre-treatments of cellulose,37 rice straw,38 corn stover,39 and agroindustrial residues.40 In particular, it has been demonstrated that the yield of sugars can be significantly improved by introducing CO2 during lignocellulose hydrolysis in hot water,17 thereby confirming the potential of CO2-assisted hydrolysis as a green technology for biomass upgrading.

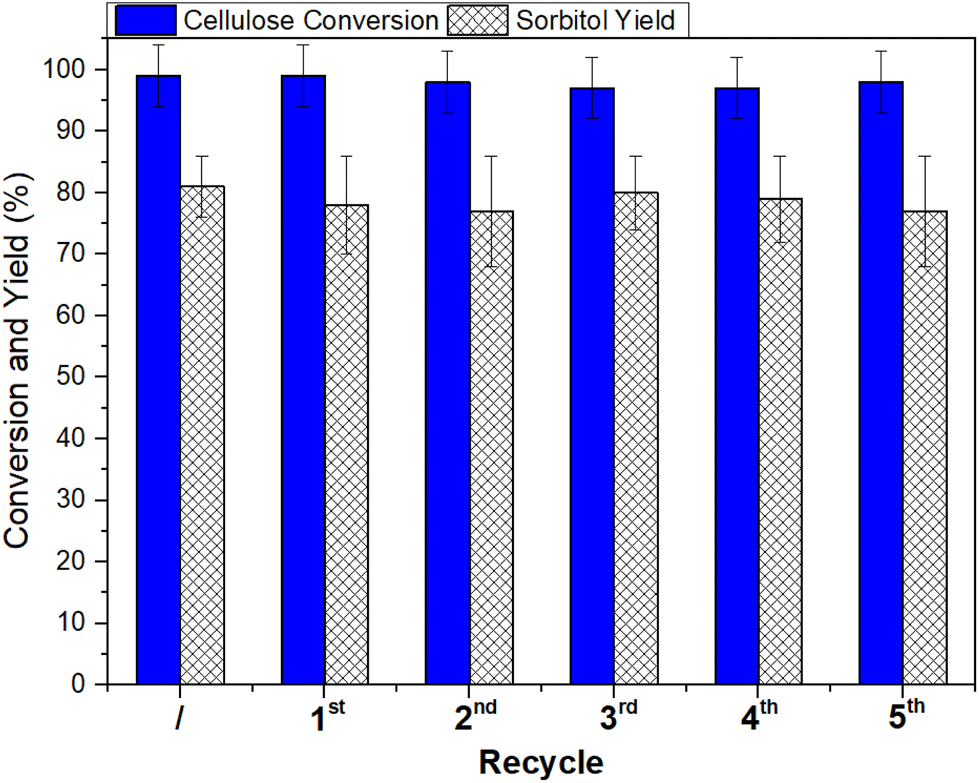

In this work, the combination of wet CO2 as an acid source and molecular hydrogen as a reductant was investigated for the hydrolytic/hydrogenation of microcrystalline cellulose into sorbitol, in the presence of commercial 5% Ru/C. By tuning the reaction parameters, such as temperature, time and pressure, cellulose was fully converted at 220 °C in 18 h under 30 and 40 bar of H2 and CO2, respectively, allowing sorbitol formation in 81% yield. To extend the scope, available and cheap cellulose feedstocks, such as filter paper, cotton wool, cotton fiber and a cardboard pizza box were also evaluated as starting materials and a sorbitol yield ranging from 56% to 72% was achieved. Remarkably, the catalytic activity of Ru/C was not altered by the reaction environment during the recycling tests for at least six consecutive runs.
Experiments were carried out in a stainless-steel autoclave in which an aqueous solution of maltose (maltose: 100 mg; H2O: 5 mL) was allowed to react in the presence of CO2. The effects of temperature (T), time (h) and CO2 pressure (p) were investigated through three series of tests by varying the following parameters: (i) T in the range 25–150 °C at constant CO2 pressure (40 bar) and time t = 2 h; (ii) time in the range 2–15 h at constant pressure (40 bar) and temperature (150 °C); and (iii) p in the range 5–40 bar, at constant temperature (150 °C) and time (12 h). Maltose conversion and glucose selectivity were determined by HPAEC-MS. All the reported reactions were run in duplicate to ensure reproducibility: unless otherwise specified, conversions and selectivity differed by less than 5% from one test to another. The results are shown in Fig. 1.
No maltose conversion was observed at pCO2 = 40 bar in 2 h in the temperature range 25–100 °C; however, increasing T from 120 to 150 °C prompted a gradual increase in the conversion of maltose from 7% to 35%, respectively (Fig. 1a). No products other than glucose, which was obtained in >99% selectivity, were observed under these conditions. Having set 150 °C as the operative temperature to continue this investigation, the effect of time was explored (Fig. 1b). An increase in the reaction time caused an increase in maltose conversion, which became quantitative after 12 h. A small, but not negligible, amount of fructose (1–2%) due to the isomerization of glucose was also detected.48 No further increase in conversion and selectivity was observed by extending the reaction time to 15 h. This allowed us to set T = 150 °C and t = 12 h as the conditions to study the effect of CO2 pressure (Fig. 1c). Notably, high maltose conversion (ca. 68–70%) was achieved even at the lowest investigated CO2 pressure (5 bar), but the reaction became quantitative with excellent glucose selectivity (98–99%) only at 40 bar. A blank experiment was performed at 150 °C for 12 h in the absence of CO2. The reaction reached only 27% maltose conversion into glucose, thereby confirming the crucial role of the acidity provided by carbonic acid. The limited extent of the hydrolysis process observed without CO2 was due to the thermal instability of the β-O-4 glycosidic bond.49,50
In summary, parametric analysis showed that the CO2-assisted hydrolysis of maltose was strictly dependent on the reaction conditions: however, 98–99% glucose selectivity was obtained with quantitative maltose conversion, at 150 °C, under 40 bar CO2 for 12 h.
At 150 °C, the prolongation of the reaction from 12, to 15, 18 and 24 h induced a gradual increase in sorbitol selectivity, up to 87%, at the expense of maltitol (Fig. 2a). The desired process was further favoured by slightly increasing the reaction temperature, from 150 to 170 °C: at quantitative conversion, sorbitol was obtained with an excellent 96% selectivity (Fig. 2b). Last but not least, the formation of C4–C5 polyols (derived from hydrogenolysis reactions) during maltose hydrolysis/hydrogenation was never detected by HPAEC-MS.
In principle, different reaction pathways could be hypothesized for the conversion of maltose into sorbitol (Scheme 3). Maltose could be first hydrolysed to glucose, which could be further hydrogenated into sorbitol (pathway A, top); alternatively, the direct hydrogenation of maltose could provide maltitol (pathway B, bottom), followed by its hydrolysis to yield sorbitol and glucose in equimolar amounts. Finally, hydrolysis/hydrogenation of maltose could take place simultaneously to provide sorbitol (pathway C, centre). The results of Fig. 2 clearly highlighted that the catalytic hydrogenation of maltose to maltitol was faster than the hydrolysis reaction, confirming that the conversion of maltose into sorbitol proceeded via pathway B.
Moreover, while complete maltose hydrolysis to glucose took place under the standard conditions of 150 °C, 40 bar CO2, 12 h (Fig. 1), complete maltitol hydrolysis was slower and required harsher conditions (170 °C) and a longer time (24 h) with 40 bar CO2 and 30 bar H2. To better understand the reasons for the different behaviour, we first assumed that the presence of 30 bar H2 played a role in the hydrolysis kinetics of maltitol. In fact, when maltitol was set to react without H2 under the standard conditions observed for maltose hydrolysis (150 °C, 40 bar CO2, 12 h), glucose and sorbitol were achieved much faster with almost equal selectivity (48% and 52%, respectively) at 97% maltitol conversion, seemingly indicating that the presence of H2 from the preceding reduction step slowed the reaction. An experiment with He in place of H2 under the standard maltitol hydrolysis conditions (150 °C, 40 bar CO2, 12 h and 30 bar He) also showed a lower maltitol conversion (83%) with the glucose/sorbitol ratio remaining unaltered. Both experiments seemed to indicate that the CO2-assisted hydrolysis was slower in the presence of additional pressure (H2 or He). However, since the addition of H2 or He does not affect the partial pressure of CO2, and the pH of the solution presumably remains constant as it depends on CO2 concentration and thus its partial pressure, the reason for a slower hydrolysis rate does not seem ascribable to a change in pH. The explanation for this behaviour is still unclear and is currently under investigation in our lab.
Entry | Temperature (°C) | Cellulose conversion (%) | Yield (%) | ||
---|---|---|---|---|---|
Sorbitol | Mannitol | C4–C5 polyols | |||
Reaction conditions: cellulose (100 mg), Ru/C (50 mg), H2O (5 mL), 40 bar CO2, 30 bar H2, and 24 h. Yield (mass%) was determined by HPAEC-MS. | |||||
1 | 150 | 32 | 7 | 2 | <1 |
2 | 180 | 50 | 41 | 2 | 2 |
3 | 200 | >99 | 67 | 4 | 5 |
4 | 220 | >99 | 81 | 4 | 7 |
5 | 250 | >99 | 54 | 3 | 26 |
At the lower temperature of 150 °C, the conversion of cellulose reached 32%, but the observed products, which included sorbitol, mannitol (as an isomerization product) and a mixture of C4–C5 polyols (hydrogenolysis products such as erythritol, xylitol and arabitol), were obtained in poor, if not negligible, yields of 7%, 2% and <1%, respectively (entry 1). This result was ascribed to the formation of water-soluble oligomers which could not be detected by HPAEC-MS. An increase in the reaction temperature from 150 to 180 and 200 °C improved the conversion to >99%, and considerably favoured the formation of sorbitol which was achieved in up to 67% yield (entries 2 and 3). The concurrent formation of small amounts of mannitol (4%) and C4–C5 polyols (5%) was also observed.
Finally, the yield of sorbitol was further increased to 81% at 220 °C (entry 4), one of the best results reported so far for this reaction. Raising the T to 250 °C, however, brought about an increase in hydrolysis products (C4–C5 sugar alcohols) which were obtained in a 26% yield at the expense of sorbitol (54%, entry 5).
In summary, the hydrolytic hydrogenation protocol proved highly efficient in the conversion of cellulose into sorbitol, using CO2 as an acid precursor and molecular hydrogen as a reductant. Sorbitol was obtained with the highest yield of 81% at 220 °C, under 40 bar CO2 and 30 bar H2 for 24 h. The formation of hydrogenolysis products such as erythritol, xylitol and arabitol (not exceeding 7% yield) was also observed.
As mentioned in the Introduction section, acidic pre-treatments are often employed to reduce the crystallinity of cellulose and increase its reactivity.35 To shed light on this aspect under the conditions explored in this work, the effect of the CO2 acidity on the crystalline structure of cellulose was investigated. Experiments were carried out in 5 mL H2O, at 220 °C and for 18 h, in the absence of Ru/C, under a variety of conditions by treating microcrystalline cellulose: (i) as such, without CO2; (ii) under 40 bar CO2; (iii) under 30 bar H2 and (iv) under 40 bar CO2 and 30 bar H2 (conditions of the CO2-assisted hydrolytic hydrogenation of cellulose). The crystallinity index of the solid recovered at the end of each test was then measured by XRD. The results are reported in Fig. 3.

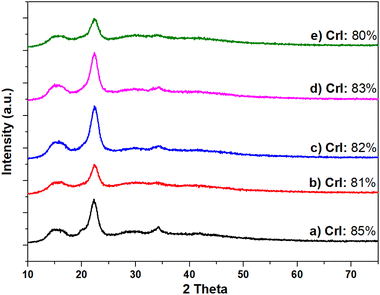

Quite unexpectedly, XRD profiles differed by less than 10% from one sample to another and compared to pristine microcrystalline cellulose (crystallinity index of ca. 85%). Indeed, in all profiles of Fig. 4(a–e), the strongest peak at 2θ = 22.6°, which originated from the cellulose crystalline plane (002), indicated that the degree of crystallinity of microcrystalline cellulose was substantially preserved regardless of the presence of CO2. Additionally, no cellulose conversion (<5%) was observed when reactions were carried out in the absence of CO2 (profiles b and c), while in contrast, in the presence of CO2, with or without additional hydrogen (d and e), measurements revealed ca. 67–70% cellulose conversion and glucose was the only detected product from HPAEC-MS. In other words, CO2 favoured the hydrolytic breakdown of the biopolymer, but in the unreacted cellulose, CO2 was apparently unable to modify the domains where the polymer chains were aligned with each other, against the hypothesis that CO2 acidity worked by reducing the crystallinity.
Entry | Cellulose feedstock | Conversion (%) | Yield (%) | ||
---|---|---|---|---|---|
Sorbitol | Mannitol | C4–C5 polyols | |||
Reaction conditions: cellulose feedstock (100 mg), Ru/C (50 mg), H2O (5 mL), 40 bar CO2, 30 bar H2, and 24 h. Yield (mass%) was determined by HPAEC-MS. | |||||
1 | Filter paper | >99 | 62 | 3 | 21 |
2 | Cotton wool | >99 | 71 | 5 | 7 |
3 | Cotton fiber | >99 | 72 | 4 | 6 |
4 | Pizza carton | >99 | 56 | 6 | 13 |
First, the commonly employed laboratory filter paper was tested. Such a starting material was fully converted, allowing sorbitol formation in 62% yield with the concurrent formation of mannitol (3%) and, if compared with microcrystalline cellulose, a higher amount of C4–C5 polyols (21%). A remarkable improvement in sorbitol yield was observed when cotton wool and cotton fibers were tested. In these cases, sorbitol was obtained in 71% and 72% yields, respectively, with an almost equal amount of mannitol (5% and 4% respectively) and C4–C5 polyols (7% and 6%, respectively), while the conversion remained stable and quantitative in both cases. The pizza carton made of cardboard was also completely converted, with a sorbitol yield of 56%, while mannitol and C4–C5 polyols were observed in 6% and 13% yields, respectively. Overall, these results not only confirmed that the investigated reductive protocol was effective for the direct conversion of cellulose into sorbitol, but they also proved that the process was successfully applied to a wide range of cellulose feedstocks.
Entry | Catalyst | Acid | Experimental conditions (T, p H2, t) | Cellulose conversion (%) | Sorbitol yield (%) | Ref. |
---|---|---|---|---|---|---|
a ZrP: zirconium phosphate. b Yield referred to C6-alditols. c 40 bar CO2. | ||||||
1 | Ru/C | — | 245, 60, 0.5 | 86 | 35 | 28 |
2 | Ru/C | H4SiW12O40 | 180, 50, 1 | 99 | 68 | 29 |
3 | Ru/C | ZrPa | 190, 50, 3 | 99 | 64b | 32 |
4 | Ru/C | CO2c | 220, 30, 24 | >99 | 81 | This work |
An efficient cellulose conversion into polyols by combination of hydrolysis using H+ ions, reversibly formed in situ in hot water, with instantaneous hydrogenation over Ru/C was reported by Liu28 (entry 1). Upon considering the absence of any additional acid source and the reduced reaction time (0.5 h) as sustainable and environmentally friendly aspects, the higher temperature of 245 °C promoted the formation of a mixture of C1–C5 products and the final sorbitol yield was low (ca. 34–35%). However, the addition of heteropolyacids (entry 2) not only allowed us to reduce the reaction temperature to 180 °C but also helped us to increase the sorbitol yield to 68% after 1 h.29 However, as mentioned in Introduction, the low solubility of heteropolyacids in aqueous solutions made their handling/recovery difficult. To solve this problem, zirconium phosphate (ZrP) instead of heteropolyacids was employed as a solid acid source32 (entry 3). With this system, by tuning the reaction parameters, 64% yield of a mixture of C6-alditols was achieved after 3 h at 190 °C under 50 bar H2. On the other hand, employing CO2 as an acid precursor, sorbitol was obtained in 81% yield with quantitative cellulose conversion. To the best of our knowledge, this is the best result reported for this transformation. Among the green advantages of the reported procedure, it is worth noting that (i) carbonic acid is sufficiently acidic for the complete glycolysis of cellulose, and even more importantly, its formation is reversible by simply venting the reactor, ensuring a lack of product contamination, limiting corrosion and improving safety compared to using conventional liquid or solid acids; (ii) the catalyst (Ru/C) can be recycled at least six times without significant activity loss; and (iii) the protocol proved effective not only for microcrystalline cellulose but also for other cellulosic feedstocks, including filter paper, cotton wool, and cotton fiber as well as typical cellulose wastes such as a pizza carton. Based on this evidence, the proposed protocol paves the way for the design of innovative and simple methods for the recovery and valorisation of any cellulose-based feedstocks, including waste, to produce sorbitol in what is a typical circular economy approach.
(1) |
Product analysis and quantification were performed according to a validated method by Barbaro et al.53 A detailed protocol is reported in the ESI section.†
