Nikolaos F.
Nikitas
,
Elpida
Skolia
,
Petros L.
Gkizis
,
Ierasia
Triandafillidi
and
Christoforos G.
Kokotos
*
Laboratory of Organic Chemistry, Department of Chemistry, National and Kapodistrian University of Athens, Panepistimiopolis 15771, Athens, Greece. E-mail: ckokotos@chem.uoa.gr
First published on 26th May 2023

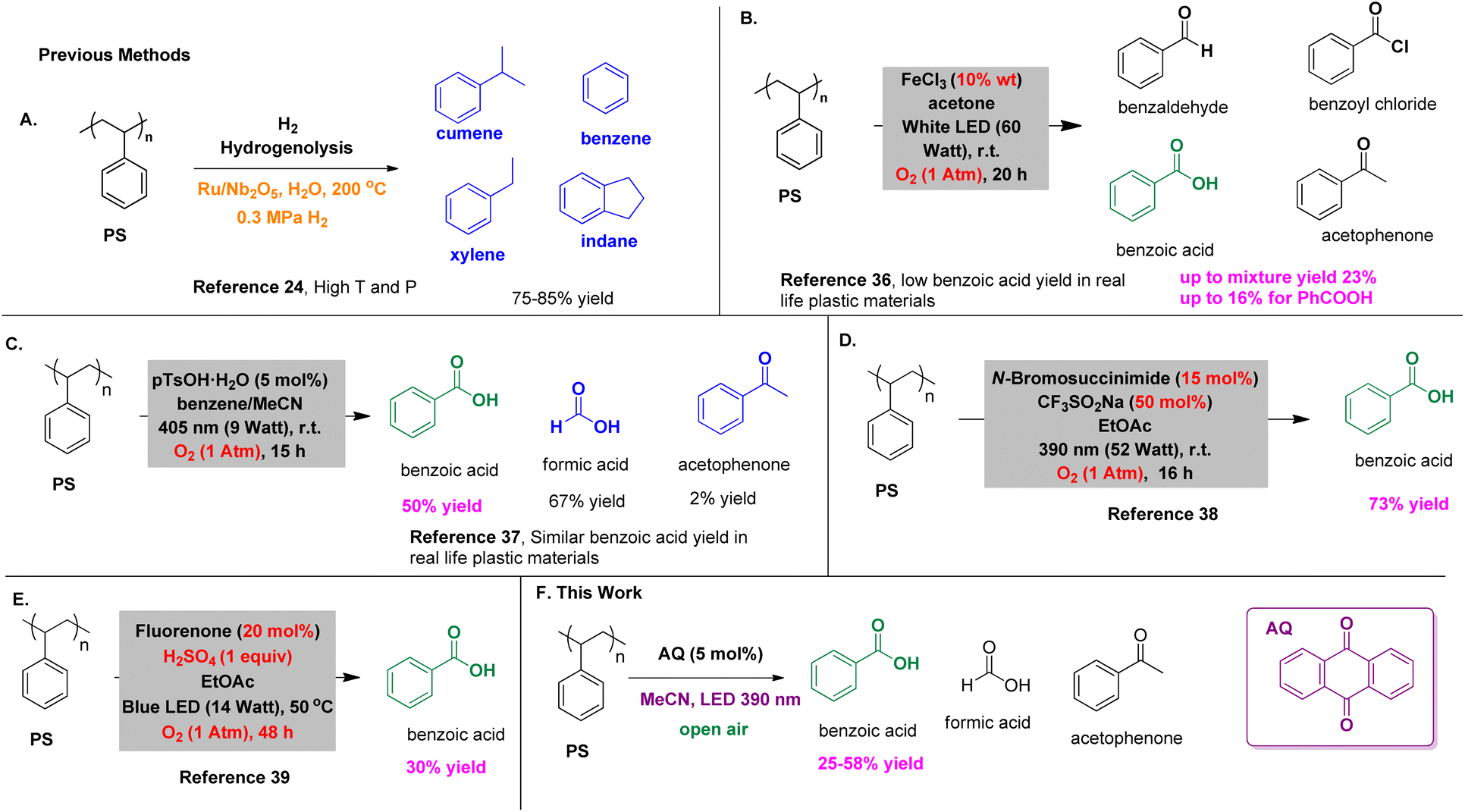

Since the United Nations set goals dealing with climate change, the chemical industry has focused on recycling the already-used polymers, targeting the reinsertion of plastic waste to market via new products through reforming. Upcycling of polystyrene plastic waste is becoming one of the hottest fields of research in plastic upconversion. Herein, we introduce a novel, green, organocatalytic and photochemical aerobic upcycling process of polystyrene to benzoic acid, utilizing anthraquinone as the photocatalyst, LED 390 nm as the irradiation source and air as the sole oxidant. The developed protocol was applied successfully to the upcycling of daily-life used polystyrene products, leading to yields varying from 25% to 58%. Moreover, the obtained upcycled product from the polystyrene materials was employed to the successful synthesis of bioactive molecules, such as acetylsalicylic acid.
Among different plastics, polystyrene (PS) is one of the most frequently-used polymers in every-day life products and along with polyethylene (PE) and polypropylene (PP) are accounting for more than 50% (around 60%) of the world plastic production.11 Polystyrene polymers are widely used in cutlery, food containers and drinking cups, having a short life cycle and their demand increases significantly year by year. Thus, there is an elevated need for more efficient and sustainable recycling methods, while humanity urgently requires to focus on routes of re-entering these types of waste, back to the chemical industry as sources of raw materials. In order to face these challenges, the chemical community has created opportunities for polystyrene recycling, via pyrolysis, which constitutes the most frequent approach used to date.21–24 In these processes, polystyrene can be transformed to arene derivatives via catalysed processes. Along these lines, in 2021, Wang, Yan and coworkers reported a catalytic protocol for the reductive upcycling of aromatic polymers, such polystyrene (PS), polyethylene terephthalate (PET) and polycarbonate (PC) over a Ru/Nb2O5 catalyst (Scheme 1A).24 The process was effective for the formation of reduced aromatic species, which were obtained as a mixture, with indane being the major product. Despite the efficiency of the method, the need of high temperature (200 °C) and the high hydrogen pressure is a concern for the adaptability of the process in the chemical industry. Alternatively, microwave chemistry was employed to promote the recycling of polystyrene and other plastic materials,25 while in an alternative approach for upcycling of polystyrenes, Leibfarth and coworkers reported the modification of plastics via a C–H fluoroalkylation process.26 Photochemistry, the use of light to promote organic transformations, is not a new concept, since Ciamician proved that sunlight can promote organic reactions.27 Since then, a century passed, in order the field to receive massive attention and a literature explosion on photochemical-promoted reactions occurred.28,29 In particular, the area of photochemistry dealing with radical species to perform Hydrogen Atom Transfer (HAT) processes, creates the opportunity to cleave strong C–H bonds.30 The use of light in polystyrene upcycling has been known since 1984, when Mita, Horie and coworkers reported the use of a benzophenone-catalysed process using a high-pressure mercury lamp at 60 °C, studying mainly the mechanism of action of the process regarding benzophenone and reporting that products of lower molecular weight were obtained.31,32 In 2021, two different research groups, on their way to study the Fe-catalysed photochemical aerobic oxidation of alkyl aromatics, they reported that the catalytic system FeCl3-TBACl (tetrabutyl ammonium chloride)33 or FeCl234 can promote the degradation of polystyrene into benzoic acid. In both cases, an oxygen atmosphere was necessary to promote the photochemical degradation, while an irradiation reaction time of 3–5 days was necessary. Benzoic acid is an important commodity chemical.35 In 2021, the global market of benzoic acid surpassed 1 billion USD, while there is a projection that will reach 2 billion USD by 2028. It is a valuable feedstock that can be used as a food additive in almost all kind of food products.35 Benzoic acid is the starting raw material for the synthesis of various bioactive compounds, since the benzene ring is abundant in nature. In 2022, Oh and Stache built on earlier contributions and utilised FeCl3 as the photocatalyst for the upcycling of polystyrenes (Scheme 1B).36 This elegant contribution ensured the formation of chlorine radicals, which are known to be capable of performing HAT of strong C–H bonds (ca. 103 kcal mol−1),30 and via this indirect HAT process, the authors were able to upcycle polystyrene into benzoic acid.36 The process enabled the use of 10 wt% FeCl3 as the photocatalyst under white LED irradiation for 20 h, using an oxygen atmosphere. Xiao and coworkers proposed the use of p-toluenesulfonic acid as the photochemical promoter to perform the oxidative upcycling of polystyrene, under 405 nm light irradiation and an oxygen atmosphere (Scheme 1C).37 The authors supported that a [PS⋯H+] adduct is the species that gets excited and further decomposes to furnish the final arene derivatives. Similar yields (36–51%) of benzoic acid were observed, when every-day polystyrene plastics were employed, while a large-scale synthesis (18.7 g) was demonstrated.37 Also in 2022, Das and coworkers reported another photocatalytic system that employs an indirect-HAT protocol to afford the products of the aerobic upcycling of PS (Scheme 1D).38 The authors proposed the use of N-bromosuccinimide (NBS) (15 mol%), along with sodium triflinate (CF3SO2Na) (50 mol%) (Scheme 1D). The catalytic system, upon irradiation at 390 nm, can form various radicals, which are able to perform a HAT with PS, upon an oxygen atmosphere. The need though for the presence of both radical precursors is crucial for the fate of the reaction. A recent example by Reisner and coworkers introduced the use of fluorenone (20 mol%) as the photocatalyst, in order to achieve the upcycling of polystyrene to benzoic acid (Scheme 1E).39 The protocol employs an oxygen atmosphere as the source of the oxidant and one equivalent of sulfuric acid is essential as the acidic additive and irradiation at blue LEDs region (450 nm), leading to the oxidation of polystyrene in good yields.
Our group has a long experience in photochemical processes and during the last years, we have demonstrated the power of small organic molecules as promoters of photochemical processes.40 Following our interest in merging photochemistry with aerobic processes,40c,f we questioned whether a commercially available small organic molecule can be employed as a potential promoter for the photochemical aerobic upcycling of polystyrenes (Scheme 1F). Herein, we present a mild protocol that is free of metal additives, strong acidic additives or toxic intermediates such as bromine, for the photochemical aerobic upconversion of polystyrene to benzoic acid in good yield. Utilizing as low as 5 mol% of anthraquinone as the catalyst, LED 390 nm as the irradiation source and air as the oxidant, a variety of every-day plastic products were converted into benzoic acid. Furthermore, we studied the potential of post-upcycling modification of benzoic acid to every-day commodities, like salicylic acid and acetylsalicylic acid.

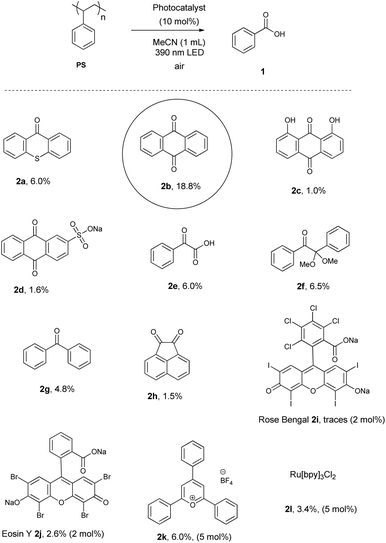

After identifying the optimum photocatalyst, we studied the importance of the irradiation source (Table 1). First, household lamps were used, but proved ineffective (Table 1, entry 1). Similarly, no other LED irradiation led to similar high yield of benzoic acid as the 390 nm (Table 1, entry 3 vs. entries 2 and 4–7). Following the discovery of the optimum irradiation source, we probed the optimum solvent for the photochemical aerobic upcycling of polystyrene (Table 2). We observed that when we doubled the amount of the solvent, the yield of benzoic acid increased (Table 2, entry 2 vs. entry 1). Among the tested solvents, acetonitrile (Table 2, entry 2) and benzene (Table 2, entry 7) led to the best results. We decided to use acetonitrile instead of benzene in our studies, since acetonitrile is a less toxic solvent compared to benzene. The optimum reaction conditions were found after a series of experiments and employ 5 mol% of 2b, LED 390 nm irradiation for 48 h under open air, leading to 28.2% yield of benzoic acid (1) (Table 2, entry 10). Since the addition of CH2Cl2 as the co-solvent facilitates the solubility of the aggregates that are formed during the addition of extra amount of PS, a similar yield was obtained (Table 2, entry 11), which proved to be the best conditions for real-life polystyrene plastics (the use of MeCN alone proved sluggish).
Entry | Solvent | Yieldb (%) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
a In an open Schlenk flask, PS (100 mg, 0.96 mmol), 2b (20 mg, 0.096 mmol) and solvent (2 mL) were added and irradiated under 390 nm LED for 20 h. b Yield of isolated benzoic acid. c Reaction performed with 1 mL of MeCN. d The reaction was performed with 2b (10 mg, 0.048 mmol, 5 mol%) for 48 h. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1c | MeCN | 18.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2 | MeCN | 21.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3 | CH2Cl2 | 6.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4 | CHCl3 | Traces | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
5 | AcOEt | Traces | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 | Acetone | 4.4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
7 | Benzene | 21.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
8 | DMF | n.d. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
9 | DMSO | n.d. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | MeCN | 28.2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
11 |
MeCN/CH
2
Cl
2
(1![]() ![]() |
28.1 |
After finding the optimum reaction conditions for the photochemical aerobic upcycling of polystyrenes, we decided to probe its substrate scope. We initially tested the use of other commercially available resins that are based on polystyrene (Scheme 3). Aminomethylpolystyrene resin, as well as the commonly employed Wang resin, were used successfully, leading to a similar yield of benzoic acid as our model substrate. However, the use of commercially available chlorotrityl chloride resin did not perform equally well and led to a diminished yield of 13.1%.
![]() | ||
Scheme 3 Photochemical aerobic upcycling of commercially available resins, used in organic synthesis and are based on polystyrene. |

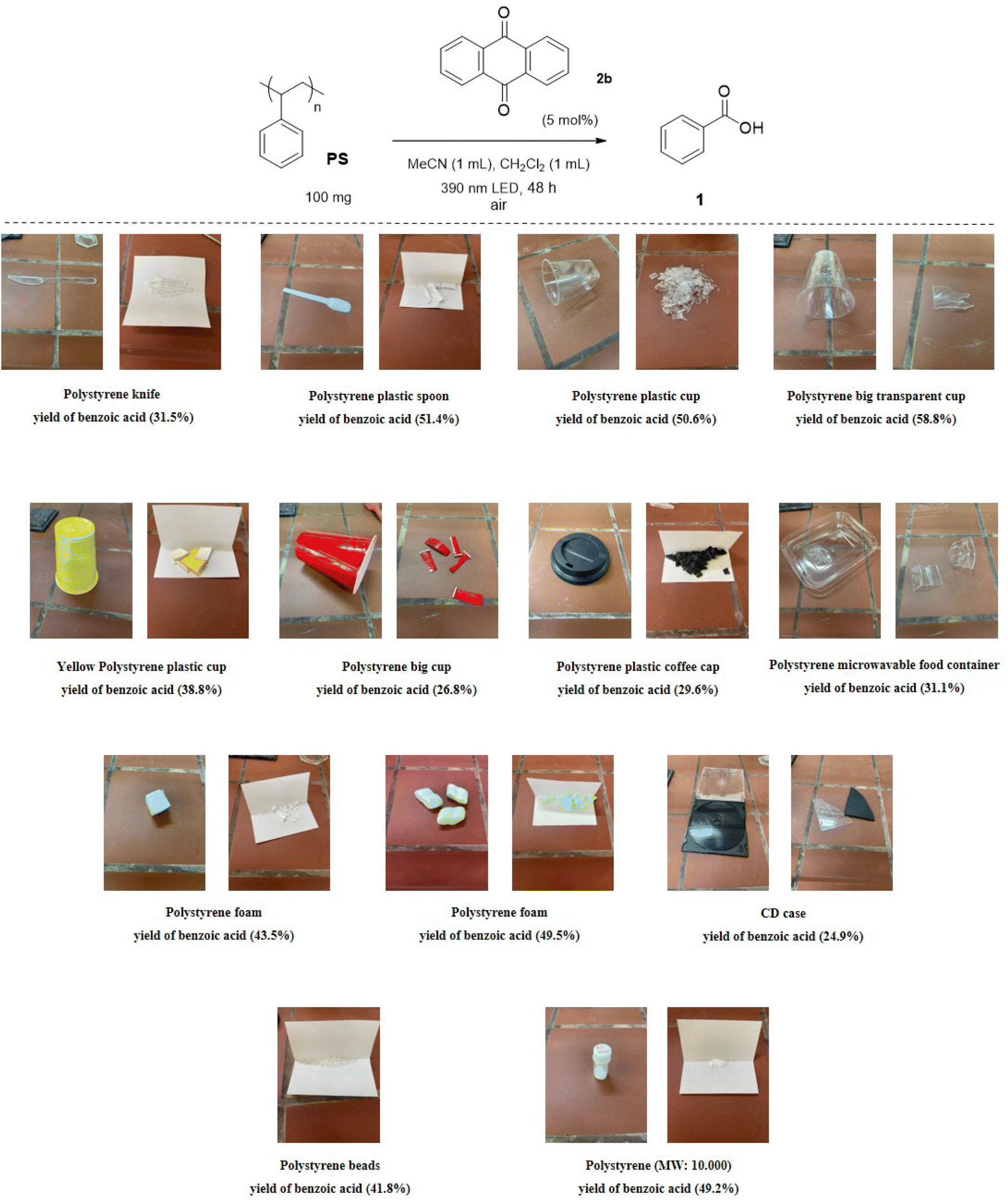

Since the use of commercially available resins based on polystyrene was amenable in our photochemical aerobic upcycling process, we then decided to employ every-day products that are polystyrene-based (Scheme 4). Interestingly, the commercially available plastic commodities proved to work better than our model polymer substrate and could be perfectly incorporated to our protocol, furnishing the desired oxidation product, benzoic acid, after an aerobic cleavage promoted by light (Scheme 4). The yields refer to isolated benzoic acid after the reaction took place, using acid–base wash and extractions, without taking into consideration the formation of other volatile oxidation products. The extraction of benzoic acid was performed with CH2Cl2 as the solvent, while ethyl acetate was also tested as the extraction solvent, but the final yield was low (3% yield). Polystyrene-based plastic knife worked well, leading to 31.5% yield of benzoic acid, while the corresponding plastic spoon led to an excellent 51.4% yield. In the market, a variety of different polystyrene-based plastic cups exist. We started by employing a small transparent plastic cup and a high yield of 50.6% was obtained. Similarly, using a big transparent plastic cup led to a further increase in the yield and benzoic acid was isolated in 58.8%. However, the use of colored plastic cups (yellow or red) led to similar or higher yields than our model polymer substrate (38.8% and 26.8%, respectively), but lower than the transparent plastic cups. The various colors of the commercial plastic materials were not present in the final isolated benzoic acid, probably due to their existence in low amount, but its presence or their potential photodecomposition under the irradiation could account for the lower yields that were obtained. The use of polystyrene-based plastic coffee cup led to 29.6% yield, while the use of a microwavable food container afforded benzoic acid in 31.1% yield. Two different kinds of polystyrene foams that are employed in packaging industries led to 43.5% and 49.5% yields, respectively. The use of a polystyrene CD case led to a decreased yield of 24.9%. Finally, the use of polystyrene beads or commercially available polystyrene polymer (MW 10.000) led to 41.8% and 49.2%, yield respectively. Benzoic acid is not the sole product of oxidation and in some cases, there are also lower molecular weight oxidized polystyrene products.
In order to probe the industrial application of the process, a large-scale experiment was performed (Scheme 5). We utilized a 2 g scale and the reaction time had to be prolonged to 96 h, along with the use of 2 × 35 W LED 390 nm irradiation source. A similar yield was obtained as in the smaller scale for benzoic acid. Interestingly, herein, we were also able to monitor the reaction by 1H-NMR and probe the presence of formic acid (3) and benzaldehyde (4). In the former case, a significant amount of 3 was observed, in line with literature observations.37 Furthermore, from the initial organic layer, after quenching, we were able to isolate via column chromatography a small amount of acetophenone (5).
In an effort to further expand the applicability of this protocol, we envisaged the application of the delivered upcycled product into pharmaceuticals, like salicylic acid 6 and acetylsalicylic acid 7 (Scheme 6). Salicylic acid 6 constitutes a plant hormone46 and it has a long story as a bioactive compound, which dates back in ancient Greece.47 Even though it demonstrates a potent activity against cardiovascular diseases, its modern application is not recommended due to side-effects47 although, it is employed against acne.48 The side effects of 6 were surpassed by a simple acetylation, forming the corresponding acetylsalicylic acid, a compound which later became extremely popular under the name aspirin. Since then, it is being used to treat, apart from cardiovascular issues, pain, fever, inflammation and others and constitutes one of the most consumable drugs around the globe as its consumption rises to 40 hundred tons per year.49 Using a modified literature procedure for the C–H hydroxylation of benzoic acids,50 we were able to convert benzoic acid to salicylic acid in a single step and in 60% yield (Scheme 6). Then, a simple acetylation with acetic anhydride led to 7 (Scheme 6).
We then turned our attention in elucidating the reaction mechanism of the photochemical aerobic upcycling of polystyrene plastics. As in earlier studies,36–38 when the reaction was performed either under argon, or under dark or without catalyst, the reaction did not proceed. Furthermore, the radical nature of the process was probed with the presence of BHT or TEMPO. Anthraquinone (2b) is a well-known photocatalyst, used in literature for the production of peroxide, a process known as the anthraquinone process.51 We performed a control experiment, where polystyrene was treated with hydrogen peroxide, but no photodegradation occurred, stating that hydrogen peroxide, generated in the process, is not responsible for the upcycling process. Also, anthraquinone is known to participate in HAT processes,30 while it can also generate singlet oxygen.40f Fluorescent quenching studies were then performed (Fig. 1). After irradiation of anthraquinone (2b) (1 mM in MeCN) at 358 nm, its fluorescence was measured at 404 nm. Increasing the added amount of polystyrene, a decrease in the fluorescence was observed. The corresponding Stern–Volmer plot is also presented in Fig. 1. Thus, there is a clear interaction between excited anthraquinone and polystyrene, which indicates that the direct HAT from the excited catalyst to the polystyrene is occurring. The low slope in the Stern–Volmer plot can be explained by the small quantum yield of the reaction (Φ = 0.08).45 This is in agreement with the mechanisms that are proposed in the literature.37,39
![]() | ||

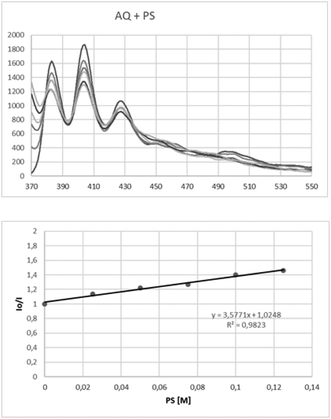

Fig. 1 Fluorescence quenching studies of anthraquinone (2b) by polystyrene and the corresponding Stern–Volmer plot. |
In order to understand better the mechanism of the reaction, studies of the oxidation of the model substrate 1,3-diphenylbutane (8) were performed (Scheme 7). The model substrate behaves as a styrene dimer. In literature, it is supported through DFT calculations that the most substituted benzylic position of model compound 8 is more reactive in HAT processes.37 Apart from the formation of benzoic acid (1) and acetophenone (5), in our case though, the formation of oxidation product 9 was also detected (Scheme 7A). This product is not reported in any previous literature examples. It is formed, probably through a direct HAT from the excited form of anthraquinone (AQ), followed by oxygen incorporation and oxidation.45 The amount of this oxidation product is lower than that of benzoic acid (1) or acetophenone (5), probably due to further oxidation processes that can take place and transform 9 to 1 and 5.45 Furthermore, Direct Infusion High Resolution Mass Spectrometry (DI-HRMS) studies52 were performed with model substrate 8 to probe the intermediates generated in this protocol (Scheme 7B).45 Initially, we monitored the photochemical aerobic upcycling reaction using DI-HRMS. Compound 9, as well as intermediates that bear the hydroxy (10) or peroxy (11) moiety were detected (Scheme 7B).45 In addition, peaks that could be attributed to acetophenone (5), benzaldehyde (4), benzoic acid (1), cumene, ethyl benzene, as well as hydroxylated cymene were observed. These compounds verify that oxygen can be inserted in multiple positions and β-scission and oxidation is occurring. Furthermore, we studied by DI-HRMS, the photochemical aerobic upcycling process in the presence of TEMPO.45 We observed peaks that could be attributed to hydroxy and peroxy radicals (trapped with TEMPO), as well as peaks that correspond to alkyl radicals (trapped with TEMPO).45
In addition, when the reaction was performed in the presence of singlet oxygen quenchers, such as sodium azide or DABCO, the reaction was completely inhibited, stating that singlet oxygen is involved, which is in accordance with literature.37 Bringing all these data together, a plausible reaction mechanism is proposed in Scheme 8. The various radical intermediates are known in literature and supported by EPR trapping experiments and DFT calculation.37 After irradiation, triplet state anthraquinone I is capable of performing a hydrogen atom abstraction, forming anthraquinone ketyl radical II and alkyl benzyl radical III (Scheme 8A). II can perform another HAT via reaction with O2 that leads to anthraquinone regeneration and H2O2 formation or perform additional HAT events with either PS or IV38,39 or IX.39III reacts with ground state oxygen, forming peroxy radical intermediate IV. Upon further irradiation, the unstable intermediate decomposes to intermediate V and then through a β-scission into two polymeric chains VI and VII. This is in accordance with the literature.36–38 Polymer chain VI reacts with a second excited molecule of anthraquinone, entering in a new cycle of oxidation, leading finally to benzoic acid (1). Intermediate VII upon oxygen incorporation and rearrangement furnishes benzaldehyde (4), which can be further oxidized to benzoic acid (1). Since our control experiments showed that singlet oxygen could also play a role in the process, a second pathway is also proposed (Scheme 8B). The triplet state anthraquinone is capable of generating singlet oxygen,40f leading to the mechanism proposed in Scheme 8B. Singlet oxygen is capable of performing a direct insertion at the activated benzylic position or react similarly via a HAT to the benzylic C–H bond of PS,37 leading to IX. The decomposition of these high energy peroxy intermediates can lead to reactive oxygen species (ROS), including V, hydroxyl radical and superoxide radical anion, which are highly oxidative and potent hydrogen atom abstractors. Then, a similar β-scission can occur leading to VI and VII, following then the same pathway as in Scheme 8A.
