Heteroelements in polyoxometalates: a study on the influence of different group 15 elements on polyoxometalate formation

Abstract

In the field of polyoxometalate (POM) chemistry, different heteroelements are integrated into the cage-like structures, to obtain different structural types of so-called heteropolyanions (HPAs). While it is generally accepted, that some elements favor certain types of structure, a systematic study is still missing. In this article, we present a systematic investigation of the influence of the group 15 elements nitrogen, phosphorous, arsenic, and antimony on the formation of different POM structure types. Our study is comprised of DFT calculations and corresponding experimental structural analysis. In this context, the DFT study establishes the thermodynamics of formation of different coordination geometries with various heteroelements on two POM structure types, the Keggin and the Anderson–Evans structures. Our POM synthesis experiments were performed at two different pH values (1 and 5) and resulted in a variety of heteropolytungstates, which were identified and characterized by elemental analysis as well as single crystal X-ray diffraction and vibrational spectroscopy. With these methods, we were able to establish a clear trend, showing that heavier elements lead to formation of different structure types than lighter elements. These results signify a large step towards a better understanding of POM formation specifically with respect to the choice of heteroelement.

---

1. Introduction

Polyoxometalates (POMs) are a class of inorganic polyanionic clusters, consisting of different transition metals (often Mo or W in their highest oxidation states), which are connected via oxo ligands.¹ A subclass of POMs are the so-called heteropolyanions (HPAs), which contain an additional heteroelement in the center of their structure.^2–6 Most of the HPA structures are formed with group 15 elements, but structures with group 14 and 16 elements are also known.^7–10 However, some of those HPAs tend to be less stable than others, making a detailed study of those POMs difficult.¹¹ The most common structures are formed with a tetrahedrally coordinated phosphorus(V) atom such as the Keggin type [PM₁₂O₄₀]ⁿ⁻ or the Wells–Dawson type [P₂M₁₈O₆₂]ⁿ⁻ anions.^3,6,12–18

In a typical Keggin-type structure the heteroelement X is tetrahedrally coordinated by four oxygen atoms. Each of these oxygen atoms is part of a M₃O₁₃ unit. All twelve octahedrally coordinated metal atoms are bridged via oxo ligands resulting in M–O–M motifs. On each metal atom is one terminally coordinated oxo ligand with partial double bond character as indicated by a shortened bond length.^5,12,19–21 The stabilizing effect caused by P(V) in the Keggin-type POMs goes so far that a substitution of the addenda framework metal with other elements such as vanadium(V), niobium(V), iron(III), manganese(II), cobalt(II) etc. is possible without compromising the structural integrity of the cluster.^{12–15,21,22}

On the other hand, in the Anderson–Evans HPA structures, the heteroelement is in an octahedral coordination geometry of six oxo ligands. It is surrounded by six octahedrally coordinated framework metal atoms with two terminally coordinated oxo ligands on each metal atom. The oxo ligands of the central XO₆ octahedron are connected to all six metal atoms.²³ The resulting Anderson–Evans structure is planar (α isomer), with a disk-like appearance.²³ A schematic representation of the both structure types is given in Fig. 1.

Fig. 1 Schematic representation of a Keggin (left) and a planar Anderson–Evans-type structure (right).

The difference in the preferred coordination number of the heteroelements correlates with their atomic radii.^24–30 There are two main coordination motifs found in POM chemistry: the tetrahedral (CN 4) and the octahedral geometry (CN 6), whereby heavier elements (larger radii) prefer the octahedral configuration and lighter elements (smaller radii) prefer the tetrahedral configuration.¹ This can be exemplarily seen when comparing the oxides of phosphorus (P₄O₁₀) and antimony (Sb₂O₅). The pnictogen is coordinated tetrahedrally in the former but octahedrally in the latter.^31,32 In our here presented study, we systematically investigated the influence of the group 15 elements nitrogen, phosphorus, arsenic, and antimony on the formation of POM structures. To this end, we combined suitable precursors of the group 15 elements with sodium tungstate under conditions that lead to the formation of POMs via polycondensation of the tungstate. Afterwards, we structurally characterized the resulting products using single crystal X-ray diffraction and vibrational spectroscopy. The results of these heteroatom substitutions are complemented by Density Functional Theory (DFT) calculations of the structural changes and relative free energies of the Keggin and the Anderson–Evans structures containing different elements of group 15.

2. Results and discussion

2.1. Thermodynamics of formation and structural parameters upon inclusion of heteroatoms

DFT calculations were performed to probe the structural and thermodynamic differences by exchanging the central group 15 atom of Keggin and Anderson–Evans type complexes (see Fig. 2 and 3). The structural changes in POM (Keggin and Anderson–Evans) structure upon exchanging the central heteroatoms were characterized based on: (i) non-metal heteroatom–oxygen distance (X–O_a), (ii) distance of oxygen coordinated to the central non-metal atom and the neighboring tungsten atoms (O_a–W) and the molecular volume of the complexes with optimized Keggin and Anderson–Evans type complexes containing different non-metal heteroelements.

Fig. 2 Effect of different heteroatoms on thermodynamics and structures of Keggin complex formation. Characteristic structural parameters and molecular volume are given. The thermodynamic stability (Gibbs energy of formation) are reported relative to the Keggin complex with phosphorous as central heteroatom.

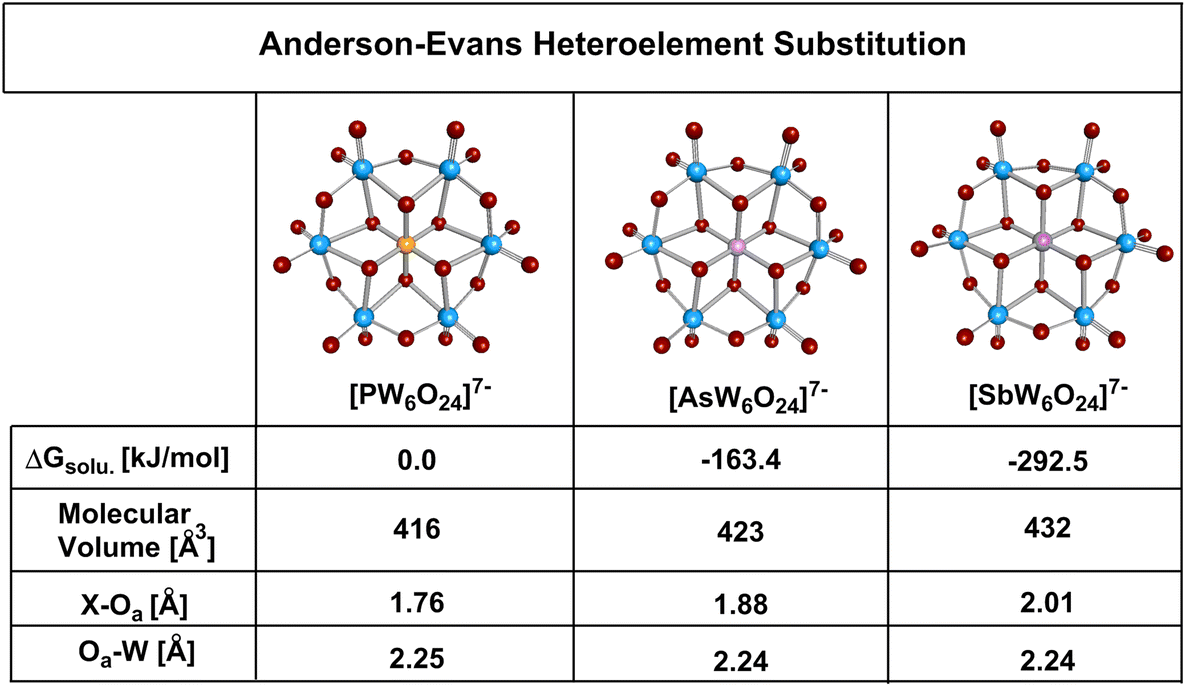

Fig. 3 Effect of different heteroatom substitutions on thermodynamics and structures of Anderson–Evans complex structures. Gibbs energies of formation are given relative to the Anderson–Evans complex with phosphorous as heteroatom.

In the DFT optimized Keggin complex with nitrogen as heteroatom, the X–O_a bond distance is reduced by 0.14 Å when compared to the Keggin complex with phosphorous as central non-metal heteroatom due to the smaller atomic radius of nitrogen compared to phosphorous. This reduction in the atomic radii also weakens the tungsten–oxygen coordination as the O_a–W distance increases by 0.17 Å in [NW₁₂O₄₀]³⁻ compared to an O_a–W distance in [PW₁₂O₄₀]³⁻ Keggin complex. The molecular volume expansion by 22 ų for the Keggin complex, when phosphorous is substituted by nitrogen, shows that non-metallic heteroatom exchange with an atom having small atomic radius such as nitrogen, significantly affects the shape of the Keggin complex (see Fig. 2). The expansion of molecular volume by introducing smaller atoms seems to be counterintuitive. The Gibbs energies of formation were calculated from isodesmic reactions of the Keggin and Anderson–Evans complexes with their respective acids (hybrid DFT functional, thermodynamic corrections plus solvation are included; see ESI†). From DFT calculations, however, it can be shown that the relative thermodynamics, here the Gibbs energy for the formation, of a Keggin-type complex with nitrogen as heteroatom is significantly higher (ΔG = 332 kJ mol⁻¹) compared to the Keggin complex with phosphorous as central non-metal atom. This shows that the formation of a Keggin complex with nitrogen as central heteroatom is structurally and thermodynamically inaccessible.

However, when phosphorous is exchanged with the heavier elements within group 15 such as arsenic (As) and antimony (Sb), there is a very small change of a mere 2 and 4 ų in molecular volume compared to the [PW₁₂O₄₀]³⁻ complex. For both As and Sb exchange, the elongation in X–O_a bond distances due to larger atomic radii is partially compensated by the reduction in the O_a–W distances, thus conserving the molecular volume of the resulting [AsW₁₂O₄₀]³⁻ and [SbW₁₂O₄₀]³⁻ complexes. Since the Gibbs energy of formation for the Keggin complexes containing arsenic and antimony as non-metal central heteroatoms is higher compared to the [PW₁₂O₄₀]³⁻, the formation of Keggin complexes with As and Sb as heteroatoms is thermodynamically less favorable (see Fig. 2).

Despite several efforts, the optimization of an Anderson–Evans type complex with nitrogen as the central non-metal heteroatom, was not successful due to the small atomic radius of the nitrogen atom. However, for atoms of group 15 with larger atomic radii such as phosphorous, arsenic and antimony, DFT calculations show that the formation of Anderson–Evans complex with antimony as heteroatom is energetically favored compared to the complexes with arsenic and phosphorous as heteroatoms. With the increase in the atomic radius going down the group, the molecular volume increases by only 7 and 9 ų for the substitution of phosphorus with arsenic and antimony, respectively. Similarly, the X–O_a distance increases however, the O_a–W remains almost the same (see Fig. 3).

Our DFT calculations show that the formation of a Keggin-type POM structure appears to be only favorable for elements with small atomic radii and unfavorable for elements with larger radii. In contrast, heteroatom substitutions for Anderson–Evans type structures are favored for elements with larger atomic radii and less so for those with small radii. This observation is in full agreement with inorganic structure concepts and thus explained by the different coordination geometries of the heteroelement in both structural motifs.^33,34 In the Keggin structure, the coordination geometry for the heteroelement is a tetrahedron (CN 4) and for the Anderson–Evans structure an octahedron (CN 6).^19,23 The coordination geometry correlates with the atomic radius of the element of interest. Ligands coordinating a central element tend to maximize the distance between them due to the repulsion of their electron shells. Therefore, for CN 4 the tetrahedral and for CN 6 the octahedral coordination geometry is the most thermodynamically favorable arrangement. The higher the atomic radius of the element, the more ligands can be coordinated by an element and the more the octahedral geometry is preferred. Elements with a small atomic radius can coordinate fewer ligands, resulting in a preference for the tetrahedral geometry.^33,34 Likewise, the Anderson–Evans structure with large elements as heteroelements could be stabilized by adopting planarity. The planarity results in an opening for the introduction of a heteroelement perpendicular to the plane upwards and downwards, giving the heteroelement more space.

These trends are also confirmed by our experimental observations: using different group 15 elements together with sodium tungstate, we performed typical POM synthesis procedures at pH values 1 and 5, which are typical for the synthesis of Keggin- and Anderson-type POMs repectively.^35,36 Nitric acid was used as precursor for N(V), phosphoric acid for P(V), arsenic(III) oxide for As(V) and potassium hexahydroxoantimonate for Sb(V). Arsenic(III) oxide was oxidized in situ with hydrogen peroxide to the required As(V) species. The obtained products were desalinated using our previously reported nanofiltration technique^21,37 and the powder samples were then recrystallized to identify the resulting structure by single-crystal X-ray diffraction (scXRD). Detailed experimental procedures are provided in our ESI.†

2.2. Experimental synthesis and characterization of heteroelement incoproration

2.2.1. Incorporation of nitrogen as a heteroelement. The product resulting from the combination of nitric acid and sodium tungstate at pH 5 was identified as paradodecatungstate B [W₁₂O₄₀]⁸⁻ anion (Fig. 4).^38–41

Fig. 4 Solid-state structure of the anion [W₁₂O₄₀]⁸⁻ determined by scXRD. Polyhedra representation above and atom model bottom. The compound was crystallized in the triclinic space group P1̄ (2). R₁: 4.74%, wR₂: 9.47%, R_int: 4.76%, GooF: 1.078. Color code: blue: metal atoms (W), red: oxygen atoms. The .cif file is available in the CCDC database. Deposition number: 2293850.†

It is composed of four corner-linked WO₆ triads, with the linking of the triads resulting in a large cavity inside the structure. Important bond lengths of our investigated structural motifs are summarized in Table 1. In order to confirm the structure of the bulk product, the material was characterized by vibrational spectroscopy (Fig. 5 and 6). Typical vibrational bands of POM structures include the terminal oxygen–metal vibrational bands W=O in the range of 800–1000 cm⁻¹, and different types of W–O–W vibrational modes below 900 cm⁻¹.^42–45 From comparison of the experimental and calculated spectra for the above described structure, the following vibrational assignments can be made: in the IR spectrum of Na₈[W₁₂O₄₀] the peaks appearing at 944 and 930 cm⁻¹ agree well with the small peaks at 912 and 903 cm⁻¹ in the DFT calculated IR spectrum that corresponds to the asymmetric W=O_t stretches. The peak at 955, 882 and 878 cm⁻¹ in the experimental spectrum differs by only 13, 9 and 7 cm⁻¹ (968, 891 and 871 cm⁻¹) from the calculated spectrum and belongs to symmetric W=O_t bond stretches. Similarly, the broad peak at 847 cm⁻¹ in the experimental spectrum can be assigned to the peaks appearing at 853 and 829 cm⁻¹ in the calculated spectrum of Na₈[W₁₂O₄₀], where both peaks corresponds to a symmetric W–O–W distortion along the vertex. A peak 740 cm⁻¹ in the experimental spectrum appears at 732 cm⁻¹ in the calculated spectrum and corresponds to the asymmetric W–O–W bond stretch. Finally, peaks at 638 cm⁻¹ in the experimental spectrum and 652 cm⁻¹ (calculated) refer to asymmetric W–O–W stretches. Overall, the comparison of the calculated and experimental vibrational spectra leads to the conclusion that the isolated paradodecatungstate is the main product of this reaction. Critical spectral peak positions from IR and Raman are summarized in Table 1.

Fig. 5 IR spectra of the [W₁₂O₄₀]⁸⁻ anion determined in the solid-state (bottom) and DFT calculated (middle). Spectrum of WO₃ (top).

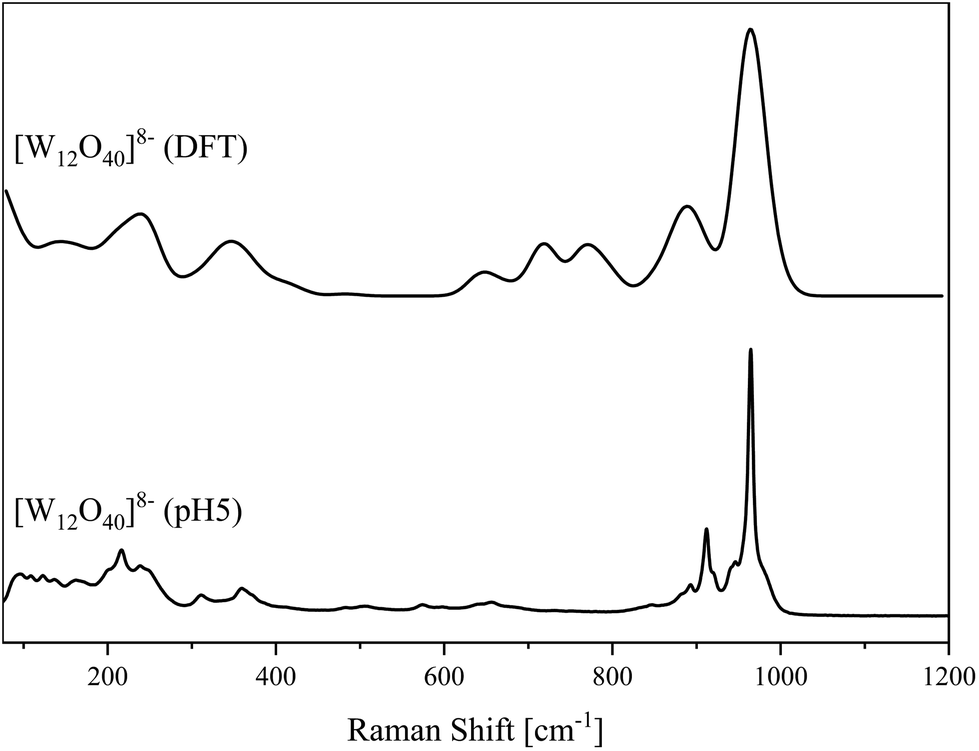

Fig. 6 Raman spectra of the [W₁₂O₄₀]⁸⁻ anion determined in the solid-state (bottom) and DFT calculated (top).

Table 1 Assignment of peak positions in IR and Raman spectra of [W₁₂O₄₀]⁸⁻

Peak position/cm^−1	Assignment^c
a FTIR. b Raman. c Based on computations.
96^b	Ot–W–O (out-of-plane)
109^b	W=O wagging (out-of-plane)
133^b	O–W–O twist (out of plane)
161^b	Ot–W–O (in-plane)
217^b	W–O–W bend along vertex (out-of-plane)
238^b	W–O–W bend along vertex (in-plane)
311^b	W=O scissoring (in-plane)
360^b	W=O bend (out-of-plane)
638^a	W–O–W stretch (asymmetric)
656^b
740^a	W–O–W stretch along vertex (symmetric)
847^a
878^a	W=Ot stretch (symmetric)
892^a^,^b
912^b	W=Ot stretch (asymmetric)
930^a
944^a
955^a	W=O stretch (symmetric)
965^b

---

Performing the same reaction at a pH of 1, which should usually lead to the formation of a Keggin-type structure, resulted in the formation of tungsten oxide, which was identified by powder X-ray diffraction (Fig. 7). The oxides formed were identified as a mixture of different phases of the tungsten oxides WO₃ and W₁₈O₄₉ using comparative data from measurements of commercial WO₃ and from the ICSD database, with only two WO₃ and one W₁₈O₄₉ phase being used for visualization.

Fig. 7 Powder XRD of the different tungsten oxide samples obtained from the reaction mixtures in comparison with different solid-state phases of WO₃, W₁₈O₄₉, Sb₂O₅ and commercially available WO₃.

The fact that the N(V) atom is not part of the POM structure shows that nitrogen is not a suitable heteroelement for the formation of heteropolyanions. This result is consistent with the particularly high relative energy of the hypothetical [NW₁₂O₄₀]³⁻ anion in our DFT calculations and the absence of a convergence in DFT calculations for the hypothetical [NW₆O₂₄]⁷⁻. NO₃⁻ is known for its trigonal-planar geometry³⁴ and a NO₄³⁻ analogous to the phosphate anion PO₄³⁻ does not exist. To the best of our knowledge there is no structural motif known in which N(V) is coordinated octahedrally.³³ Therefore, the formation of a Keggin- or Anderson–Evans-structure is excluded for geometrical reasons. From our previous work on Keggin structures, we know that the diameter of the PO₄³⁻ tetrahedron in the center of the Keggin structure is approximately 3.074 Å.¹² To estimate the size of a hypothesized NO₄³⁻ anion, we measured the dimensions of a tetramethylammonium cation (CCDC database deposition number: 1916596), since the carbon atom is similar in size to the oxygen atom. This would give an approximate size of 2.984 Å for a hypothetical NO₄³⁻ tetrahedron, which is smaller than the PO₄³⁻ tetrahedron and presumably too small to act as the center of a Keggin-type structure.

2.2.2. Incorporation of phosphorus as a heteroelement. Analogous experiments were performed using H₃PO₄. As expected, at pH 1, H₃PO₄ and Na₂WO₄ form the well-known Keggin-type phosphotungstate Na₃[PW₁₂O₄₀], which was identified by FT-IR (Fig. 8) and ³¹P-NMR spectroscopy as shown in Fig. S2 (ESI†).^22,46–48

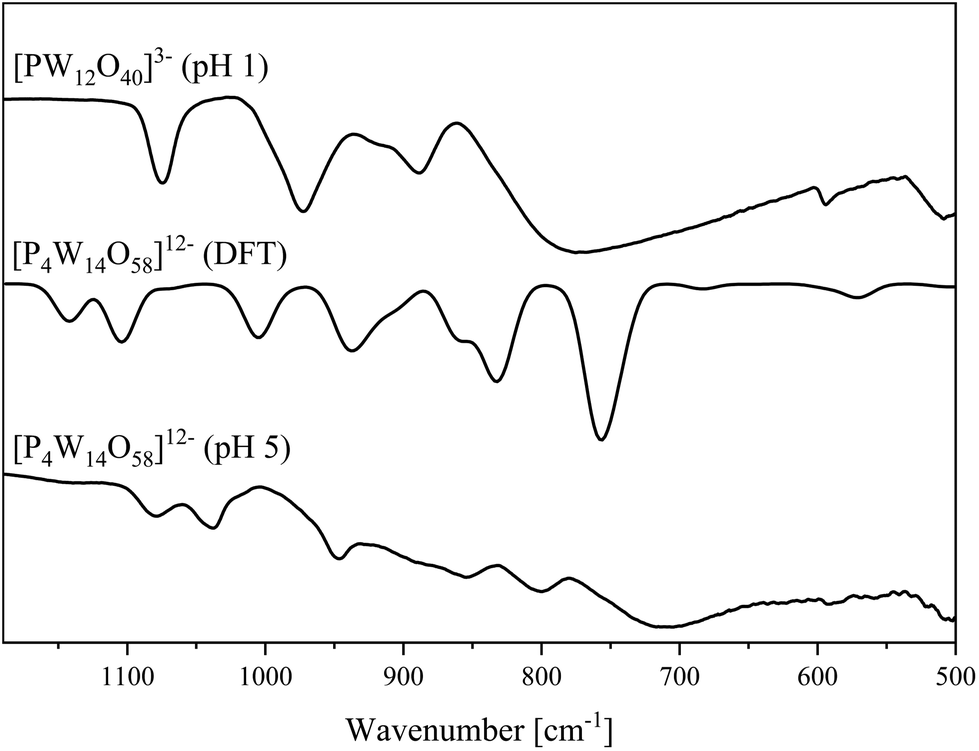

Fig. 8 IR spectra of the [P₄W₁₄O₅₈]¹²⁻ anion determined in the solid-state (bottom) and DFT calculated (middle). Spectrum of [PW₁₂O₄₀]³⁻ (top).

In agreement with our previous published study, the ³¹P NMR peak for Na₃[PW₁₂O₄₀] was found at −15.3 ppm.²² The big peak at ∼0 ppm is a result of the excess H₃PO₄ used during the experimental procedure.

At a pH value of 5, we unexpectedly obtained a polyoxoanion with the composition [P₄W₁₄O₅₈]¹²⁻ (Fig. 9).⁴⁹ For this structure type, we were not able to find a .cif file in the CCDC/ICSD database.

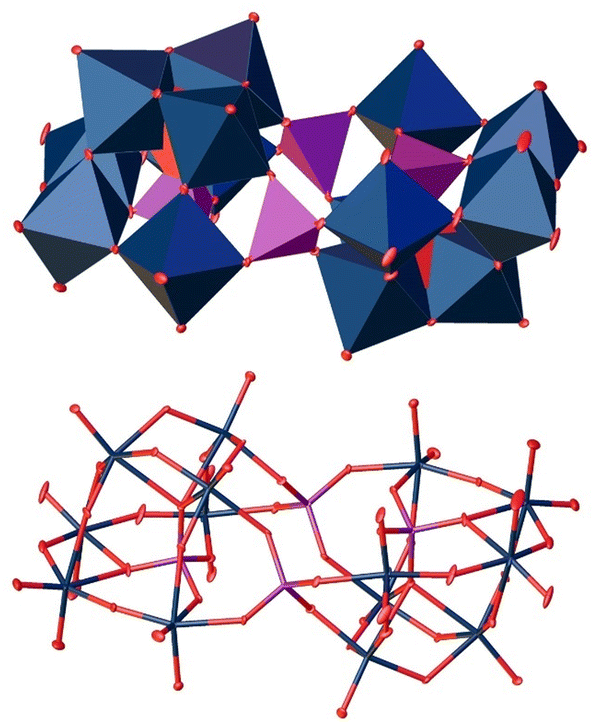

Fig. 9 Solid-state structure of the anion [P₄W₁₄O₅₈]¹²⁻ determined by scXRD. Polyhedra representation above and atom model bottom. The compound was crystallized in the triclinic space group P1̄ (2). R₁: 2.83%, wR₂: 7.19%, R_int: 7.53%, GooF: 1.076. Color code: blue: metal atoms (W), red: oxygen atoms, purple: phosphorous. The .cif file is available in the CCDC database. Deposition number: 2293849.†

The structure is composed of two oppositely oriented hemispheres connected by two central tetrahedrally coordinated P(V) atoms. Both are composed of seven WO₆ octahedra, which are held together by a central PO₄³⁻ tetrahedron. In total, this structure motif consists of 14 WO₆ octahedra and four PO₄³⁻ tetrahedra, resulting in the final 4 : 14 P : W ratio.⁵⁰

The IR and Raman spectra of the bulk material (Fig. 8 and 10) show the typical vibrational bands of the [P₄W₁₄O₅₈]¹²⁻ anion. In addition to the different types of W=O and W–O–W vibrational bands, the P–O band is found as a split band in the IR spectrum at 1080 and 1037 cm⁻¹. This can be explained by considering the solid-state structure in Fig. 9 which has two different types of P–O tetrahedra: two PO₄ tetrahedra in the center of each hemisphere and two PO₄ tetrahedra connecting the hemispheres. The agreement between calculated and experimental IR spectra is excellent and allows a spectral assignment of peaks which correspond to symmetric and antisymmetric P–O bond stretches for all four phosphates groups, respectively (1005 and 1071 cm⁻¹). The peaks at 1104 and 1142 cm⁻¹ belong to the P–O bond stretches in the phosphates connecting two hemispheres and the central PO₄³⁻ tetrahedra, respectively. The peak corresponding to vibration of the terminal W=O_t bonds appears at 941 and 862 cm⁻¹ in the calculated spectrum and can be found at 950 and 856 cm⁻¹ respectively, in the experimental spectrum. The peak at 800 cm⁻¹ in the experimental spectrum match well with calculated peaks at 851, 835 and 827 cm⁻¹ and refer to the W–O–W bond stretches along the vertex. The broad peak at 713 in the calculated spectrum appears at 760 cm⁻¹ in the calculated IR spectrum and corresponds the W–O–W bond vibrations along the edge.

Fig. 10 Raman spectra of the [W₁₂O₄₀]⁸⁻ anion determined in the solid-state (bottom) and DFT calculated (middle). Spectrum of [PW₁₂O₄₀]³⁻ (top).

In summary, the calculated and experimental spectra match the structure of the isolated single crystal, confirming the structure of the bulk material. Important IR and Raman peak positions are summarized in Table 2.

Table 2 Assignment of peak positions in IR and Raman spectra of [P₄W₁₄O₅₈]¹²⁻

Peak position/cm^−1	Assignment^c
a FTIR. b Raman. c From calculations.
100^b	Ot=W=Ot rock (symmetric)
145^b	Ot=W=Ot rock (asymmetric)
216^b	P=O=W twist (out-of-plane)
373^b	O=W=O scissoring (in-plane)
507^b	W=O=W bend (in-plane)
713^a	W–O–W (edge)
800^a	W–O–W (vertex)
856^a	W=Ot stretch (symmetric)
950^a
964^b	P–O stretch (symmetric)
983^b
1037^a
1080^a

---

2.2.3. Incorporation of arsenic as a heteroelement. In order to perform the same experiments with As, we oxidized arsenic(III) oxide to arsenic(V) acid (H₃AsO₄) in situ, using hydrogen peroxide. At both pH values (1 and 5) the resulting product was identified as the tri-lacunary Keggin anion [AsW₉O₃₄]⁹⁻, in which As(V) is in a tetrahedral coordination as shown in Fig. 11.^21,51–53 The single crystal was obtained from the experiment at pH 5, but the bulk products were shown to be identical by vibrational spectroscopy (Fig. 12). Additionally, the composition was confirmed by elemental analysis (ICP-OES, Table S3, ESI†).

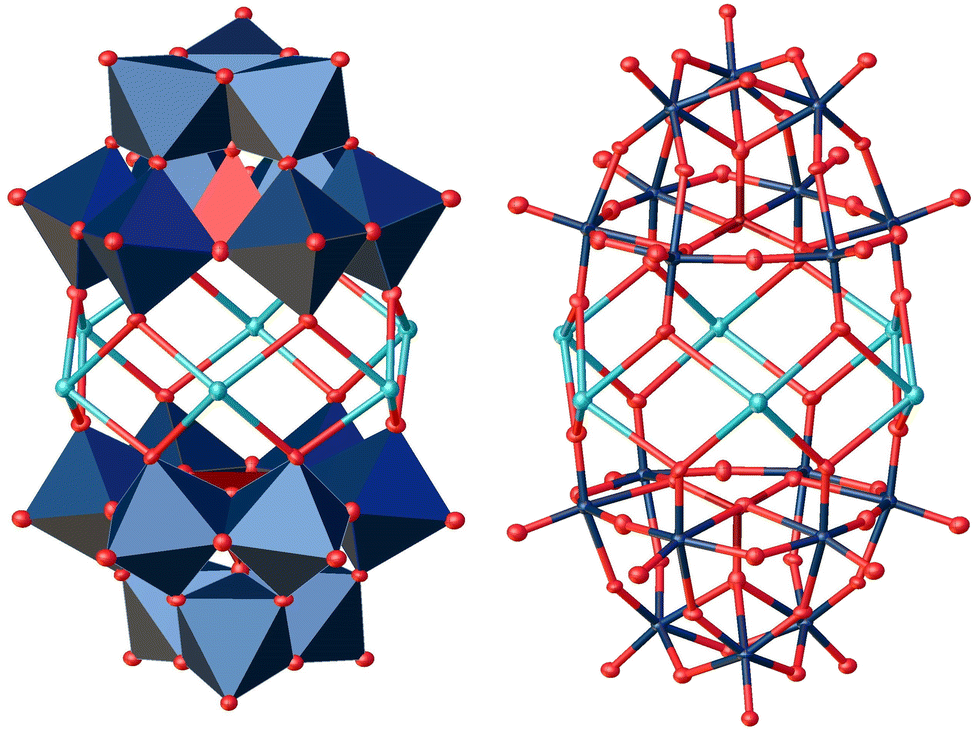

Fig. 11 Solid-state structure of the anion [AsW₉O₃₄]⁹⁻ determined by scXRD resulting from the experiment with As(V). Two [AsW₉O₃₄]⁹⁻ anions are bridged by coordinating via six sodium cations. Polyhedral representation left and atom model right. The compound was crystallized in the triclinic space group P1̄ (2). R₁: 4.23%, wR₂: 10.71%, R_int: 6.65%, GooF: 1.115. Color code: brown: arsenic (As), blue: metal atoms (W), red: oxygen atoms and turquoise: sodium cations. The .cif file is available in the CCDC database. Deposition number: 2293851.†

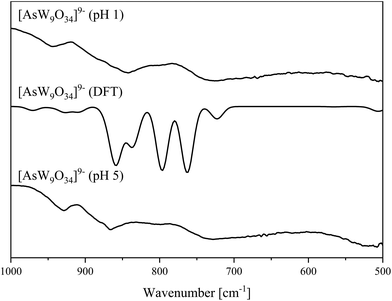

Fig. 12 IR spectra of the [AsW₉O₃₄]⁹⁻ anion (pH 5 and 1) determined in the solid-state (bottom/top) and DFT calculated (middle).

In the solid-state structure, two [AsW₉O₃₄]⁹⁻ units are joined by six sodium cations. Here, the terminal oxo ligands of the vacancy positions are coordinating to the sodium cations.

The crystallographic dataset shows that the diameter of a tetrahedrally coordinated AsO₄³⁻ is 3.377 Å (literature: 3.295 Å ⁵⁴), which is significantly larger than the PO₄³⁻ tetrahedron (3.085 Å, CCDC deposition number 2177881).¹² These observations are in agreement with our DFT calculations in which the Keggin-type structure [AsW₁₂O₄₀]³⁻ also has a significantly higher relative energy of formation than the classical Keggin-type structure [PW₁₂O₄₀]³⁻. A Keggin anion [AsW₁₂O₄₀]³⁻ has been reported previously but has been characterized as unstable.^55–57 Presumably, the larger AsO₄³⁻ tetrahedron is too bulky to comfortably fit in the Keggin structure, leading to the formation of the tri-lacunary Keggin units which provide more space. This can specifically be observed when comparing the O–O distances of the O atoms coordinating to Na⁺ in the [AsW₉O₃₄]⁹⁻ dimer (4.121 Å) with the corresponding distances of bridging O atoms in the [PW₁₂O₄₀]³⁻ Keggin ion (2.753 Å).⁴⁸ The Na⁺ ions saturate the open coordination sites on the lacunary O atoms, leading to the observed coordination dimer. The bond length between the lacunar O and Na⁺ ions is 2.830 Å which exceeds the sum of the respective covalent radii (Na: 1.55 Å and O: 0.63 Å = 2.18 Å). This suggests a weak bonding interaction. The distance is comparable to the O–Na distance between a Keggin-type anion and its Na⁺ counterions (2.986 Å), which we observed in a recently published crystal structure of Na₆[PV₃Mo₉O₄₀] (deposition number 2205007).²¹

Vibrational spectroscopy of the products obtained at pH 1 and pH 5 confirm that they are identical. Additionally, the vibrational spectra were simulated based on the above-described structure (Fig. 12 and 13). The spectra exhibit peaks at 928 cm⁻¹ (929 cm⁻¹ in the calculated spectrum) that correspond to symmetric W=O_t bond stretch. The experimental IR peaks at 855 and 866 cm⁻¹ appears at 859 and 869 cm⁻¹ in the calculated spectrum belonging to the asymmetric W=O_t bond stretch and asymmetric As=O bond vibration, respectively. The peak at 803 cm⁻¹ (797 cm⁻¹ in the calculated spectrum) can be assigned to the As–O–W and (W–O–W)_vertex bond vibrations, and the peak at 729 cm⁻¹ (calculated 723 cm⁻¹) corresponding to W–O–W bond vibrations along the edge of the octahedra. The peak at 763 cm⁻¹ in the calculated spectrum corresponds to the (W–O–W)_bridging bond vibrations. Additionally, a small shoulder peak appears at 837 cm⁻¹ in the calculated spectrum, which belongs to an asymmetric W–O–As bond stretching vibration. Critical IR and Raman spectral peak positions and their assignments are summarized in Table 3.

Fig. 13 Raman spectra of the [AsW₉O₃₄]⁹⁻ anion (pH 5 and 1) determined in the solid-state (bottom and top) and DFT calculated (middle).

Table 3 Assignment of IR and Raman spectral peak positions of [AsW₉O₃₄]⁹⁻

Peak position/cm^−1	Assignment^c
a FTIR. b Raman. c From calculations.
262^b	O=W=Ot rock (in-plane)
352^b	Ot=W=Ot scissoring (in-plane)
566^b	W–O–W along edge (symmetric)
729^a
803^a	As–O–W stretch
	W–O–W (vertex)
865^a	W=Ot stretch (symmetric)
866^a	As=O stretch (asymmetric)
888^b
929^a	W=Ot stretch (symmetric)
954^b

---

2.2.4. Incorporation of antimony as a heteroelement. Finally, we performed the same experiments using potassium hexahydroxoantimonate(V) as an antimony precursor, which has been reported previously as a precursor for incorporating Sb(V) into a POM structure.⁴⁵

At the pH value of 5, we observed the formation of the Anderson–Evans-type anion [SbW₆O₂₄]⁷⁻, which was first identified by singly crystal XRD (Fig. 14).

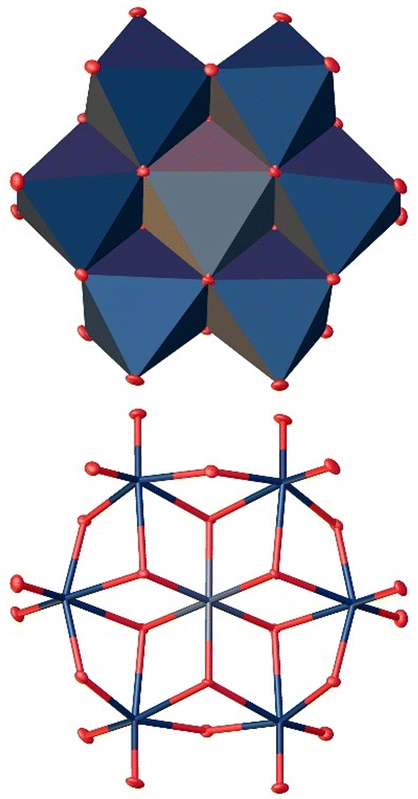

Fig. 14 Solid-state structure of the anion [SbW₆O₂₄]⁷⁻ determined by scXRD. Polyhedra representation above and atom model bottom. The compound was crystallized in the triclinic space group P1̄ (2). R₁: 2.54%, wR₂: 6.89%, R_int: 5.45%, GooF: 1.136. Color code: blue: metal atoms (W), red: oxygen atoms. The .cif file is available in the CCDC database. Deposition number: 2293848.†

This structure type consists of six WO₆ octahedra surrounding one central SbO₆ octahedron. The bond length between Sb and O (Sb–O_a), was measured as 1.984 Å, slightly longer than the distance between the W and the bridging O atoms (W–O_b) of 1.941 Å. This is the longest heteroatom–oxygen distance reported in this work, which is consistent with the increasing radii of the heteroatoms⁵⁸ that consequently leads to a larger coordination number. These observations are also in agreement with our above presented quantum chemical calculations, indicating that the formation of the Anderson–Evans structure is energetically favored for Sb(V).

Again, the bulk material was characterized by vibrational spectroscopy (Fig. 15 and 16). Few peaks can be assigned to the Anderson–Evans structure based on previous literature.⁴⁵ To fully assign the vibrational bands, the IR and Raman spectra of [SbW₆O₂₄]⁷⁻ were calculated on the basis of the above described structure using computational methods.

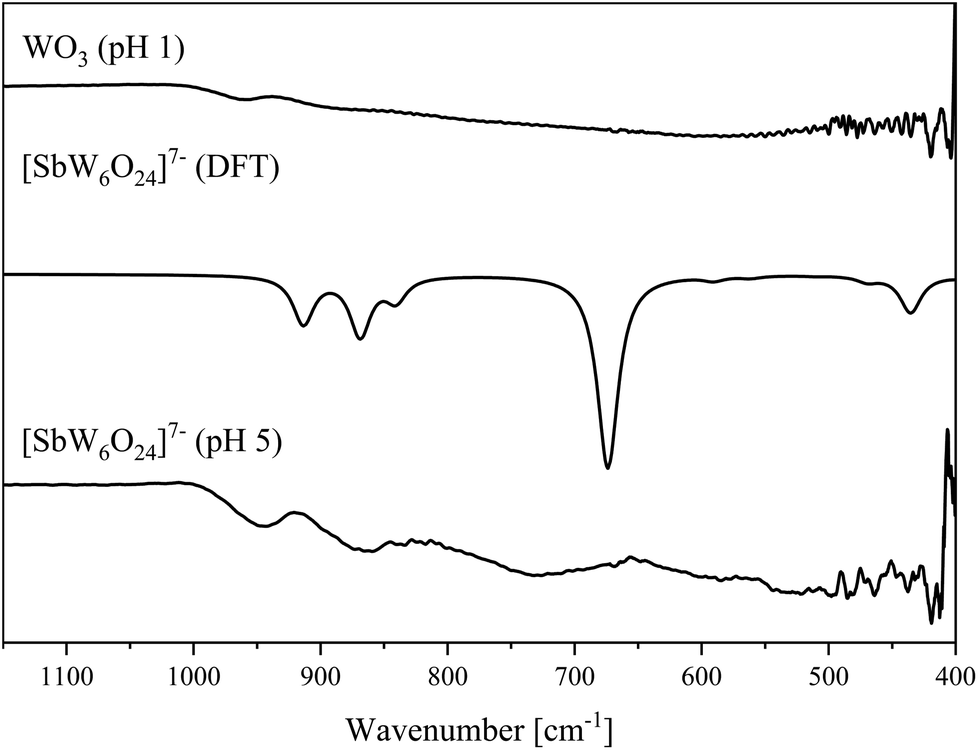

Fig. 15 IR spectra of the [SbW₆O₂₄]⁷⁻ anion determined in the solid-state (bottom) and DFT calculated (middle). Spectrum of WO₃ (top).

Fig. 16 Raman spectra of the [SbW₆O₂₄]⁷⁻ anion determined in the solid-state (bottom) and DFT calculated (top).

Going from lower to higher wavenumbers, the peaks appearing at 435 and 470 cm⁻¹ in the calculated spectrum (experimental 419 cm⁻¹) correspond to anti-symmetric degenerate bending and anti-symmetric degenerate stretching Sb–O bonds. The peak at 523 cm⁻¹ in the experimental spectrum shifts by 13 cm⁻¹ and thus appears at 510 cm⁻¹ in the calculated spectrum and shows symmetric degenerate stretching of Sb–O bonds. The small peak at 590 cm⁻¹ in the calculated spectrum correlates with the experimental peak at 585 cm⁻¹ and refers to asymmetric of Sb–O bonds stretch. The large peak at 674 cm⁻¹ in the calculated spectrum (experimental 727 cm⁻¹) shows the O–W–O bond stretch along the vertex. The peaks at 865 and 945 cm⁻¹ in the experimental spectrum appear at 869 and 914 cm⁻¹ in the calculated spectrum and belong to the anti-symmetric and symmetric W=O_t bond stretches, respectively. In summary, the vibrational spectra confirm the Anderson–Evans structure for the bulk material. The assignment of IR and Raman spectral peaks is summarized in Table 4.

Table 4 Assignment of IR and Raman spectral peak positions of [SbW₆O₂₄]⁷⁻

Peak position/cm^−1	Assignment^c
a FTIR. b Raman. c From calculations.
352^b	Ot=Sb=Ot scissoring
419^a	Sb–O (bending)
	Sb–O (stretching)
523^a	Sb–O scissoring (in-plane)
553^b	W=O=W bending
585^a	Sb–O stretch (asymmetric)
727^a	O–W–O (vertex)
865^a	W=Ot (anti-symmetric)
945^a	W=Ot (symmetric)

---

The same experiment was also performed at a pH value of 1, which however yielded a mixture of tungsten oxide (WO₃) and antimony(V) oxide Sb₂O₅, which were identified by powder X-ray diffraction (Fig. 7).

2.2.5. Comparative summary. In summary, we observed several different structure types being formed by the combination of group 15 precursors with sodium tungstate (Fig. 17). Selected structural features are summarized in Table 5.

Fig. 17 Formation of different POM structure types in dependence of the heteroelement and pH value.

Table 5 Selected bond lengths in single-crystal structures (comparison to the calculated values)

	Bond length [Å]
	[W12O40]^8−	[P4W14O58]^12−	[AsW9O34]^9−	[SbW6O24]^7−	Sum of covalent radii^58
n.a.: not applicable.
P–Oa	n.a.	1.537 (1.524)	n.a.	n.a.	1.74
As–Oa	n.a.	n.a.	1.683 (1.678)	n.a.	1.84
Sb–Oa	n.a.	n.a.	n.a.	1.984 (2.01)	2.03
Oa–W	n.a.	2.262 (2.33)	2.370 (2.373)	2.224 (2.243)	2.00
W–Ob	1.935 (1.971)	1.879 (1.869)	1.943 (1.939)	1.941 (1.951)	2.00
W–Oc	2.236 (2.172)	2.131 (2.195)			2.00
W=Ot	1.742 (1.743)	1.738 (1.737)	1.742 (1.754)	1.748 (1.765)	2.00
Ot–Na	2.410	2.370	2.878 (2.491)	n.a.	2.18
Na–OW	2.419	2.395	2.583	2.406	2.18

---

The experimental results are summarized in Fig. 17. From these results in combination with our computational studies, we conclude that the formation of the different structure types depends not only on the pH value, but is also highly dependent of the atomic radius of the heteroelement involved.

In agreement with our computational and experimental results, N(V) is too small (0.16 Å)³³ for both coordination motifs, furthermore it forms the planar NO₃⁻ ion instead of a tetrahedral NO₄³⁻ ion. Therefore, the thermodynamically preferred structure type of tungstate at pH 5 is formed without a heteroatom. In the strongly acidic medium (pH 1), decomposition of the paradodecatungstate B anion to the tungsten oxide was observed, which can be explained by an instability caused by the absence of a heteroatom. P(V) (0.38 Å)³³ forms a tetrahedral PO₄³⁻ structural motif, which in agreement with the DFT calculations leads to the formation of a Keggin anion in highly acidic media (pH 1). At higher pH values (5) the Keggin structure of [PW₁₂O₄₀]³⁻ becomes unstable and the [P₄W₁₄O₅₈]¹²⁻ anion is formed instead, which still contains tetrahedrally coordinated P atoms. Mechanistically, the latter structure is probably formed via the former structure via a Keggin-lacunary intermediate, which is known to form in more basic media, as the lower proton concentration leads to dissociation of individual metal–oxygen polyhedra from the POM cluster.⁵⁹ As(V) (atomic radius of 0.46 Å)³³ is known to prefer the tetrahedral coordination geometry (e.g. in H₃AsO₄),³⁴ but the Keggin formation seems to be more difficult due to the, compared to P(V), high atomic radius and subsequent larger heteroatom polyhedron. Thus, the formation of the open lacunary Keggin structure seems to be thermodynamically preferred. This structure is further stabilized by the formation of a coordination dimer, in which two [AsW₉O₃₄]⁹⁻ units are held together by six alkali ions. The stability of this structure is sufficiently high, that its formation is unaffected by the different pH values. In contrast, Sb(V) (0.60 Å) preferentially forms octahedral motifs (coordination number 6).³³ As predicted by DFT calculations, the addition of Sb(V) leads to the formation of an Anderson–Evans type POM at pH 5 in which all metal atoms, including the central heteroatom, are coordinated octahedrally. Outside of the pH range in which Anderson–Evans structures are stable, the respective oxides (WO₃, Sb₂O₅) are formed.

3. Experimental procedures

Detailed synthetic procedures can be found in the ESI.†

The arsenic(V) solution was prepared by dissolving arsenic(III) oxide in a mixture of a 30% solution of hydrogen peroxide (30 mL) and water (30 mL) under reflux for two hours.

The antimony(V) solution was prepared by refluxing potassium hexahydroxoantimonate(V) in water (100 mL) for one hour.

In a general procedure sodium tungstate dihydrate was dissolved in water or added to the respective As(V)/Sb(V) solution. The start volume of the reaction mixture was always 100 mL of an aqueous solution. For the experiments with the heteroelements N(V) and P(V) a 4 M solution of nitric acid or 25 wt% phosphoric acid solution in water was added to the aqueous sodium tungstate solution. The pH value was adjusted to 5 or 1 using a 37% solution of hydrochloric acid in water and the solution was concentrated under reduced pressure (85 °C, 200 to 0 mbar). All compounds were purified according to our previous published dialysis approach.^21,37

Further characterization of all POMs by compositional analysis (ICP-OES) and thermogravimetric analysis, (TGA) is shown in the ESI, Table S3.†³¹P-NMR spectroscopy was done for Na₁₂[P₄W₁₄O₅₈] and Na₃[PW₁₂O₄₀] and is presented in Fig. S1 and S2.† UV-Vis measurements were performed for all POMs and the data were analyzed according to the Lambert–Beer's law as shown in Tables S5, S6 and Fig. S3–S8 (ESI†). Precise analytical characterization of the anion [PW₁₂O₄₀]³⁻ was done in our previously published study,²² therefore we do not present further characterization of this compound here.

Computational details can be found in the ESI.†

4. Conclusion

In this work, we present a combined computational and experimental study on the influence of different group 15 elements on the formation of various POM structures. Our DFT calculations suggest that the formation of a Keggin-type structure is preferred for elements with small atomic radii (such as P) and unlikely for elements with large radii (such as Sb). The trend is reversed for the formation of the Anderson–Evans structure. Our crystallographic and spectroscopic data are in agreement with the computational results. For P(V), the Keggin anion [PW₁₂O₄₀]³⁻ was formed in strongly acidic (pH 1) media vs. the formation of [P₄W₁₄O₅₈]¹²⁻ at pH 5. Here, P(V) was found to be tetrahedrally coordinated in both structural motifs. As(V) also prefers tetrahedral coordination motifs, but the larger As(V) atom radius causes stress on the confined Keggin structure, resulting in the formation of lacunary structures such as the [AsW₉O₃₄]⁹⁻ anion. In agreement with the calculations, the formation of the Anderson–Evans anion [SbW₆O₂₄]⁷⁻ was observed at pH 5 using Sb(V). In contrast, decomposition of the anion to oxidic materials was observed at pH 1. In agreement with the computational data, the small N(V) atom is an outlier due to its small atomic radius, and the anomaly of forming a tri-coordinate oxoanion (NO₃⁻). As a result, it is not involved in the formation of POM structures. This can be seen in the relative thermodynamics of formation, which gave the highest relative energy (compared to [PW₁₂O₄₀]³⁻) for the hypothetical [NW₁₂O₄₀]³⁻ anion, while structural optimization for the [NW₆O₂₄]⁷⁻ anion was not successful.

All compounds were characterized by additional spectroscopic methods in the solid-state and in aqueous solution. An assignment of the different vibrational bands to the vibrational modes was possible using DFT calculated peak positions. The data obtained are of particular interest for the less common structure types such as the lacunar-based motifs [AsW₉O₃₄]⁹⁻, [P₄W₁₄O₅₈]¹²⁻, and even the Anderson–Evans structure [SbW₆O₂₄]⁷⁻. In contrast to the Keggin structure, where the P–O vibrational band is observed in the range 1000 to 1100 cm⁻¹, the various As–O–W vibrational bands in the lacunar-based structural motifs are found at 837 and 797 cm⁻¹. For the Anderson–Evans structure, the different types of Sb–O vibrational bands were found at 435, 470, 510 and 590 cm⁻¹.

The results presented here contribute to the understanding and control of POM formation, in particular, the formation of different structure types as a function of heteroelement and pH. From the results presented here, a clear trend can be observed for the group 15 elements P(V), As(V) and Sb(V), whereas N(V) is incompatible for POM chemistry.
