The chemistry of N-heterocyclic carbenes with Earth-abundant manganese has largely focused on low-valent systems for reductive catalysis. Here, we have decorated imidazole- and triazole-derived carbenes with phenol substituents to access higher-valent Mn(III) complexes [Mn(O,C,O)(acac)], where acac = acetylacetonato, and O,C,O = bis(phenolate)imidazolylidene (1) or bis(phenolate)triazolylidene (2). Both complexes catalyze the oxidation of alcohols in the presence of tBuOOH as terminal oxidant. Complex 2 is slightly more active than 1 (TOF up to 540 h−1vs. 500 h−1), yet significantly more robust towards deactivation. Secondary and primary alcohols are oxidized, the latter with high selectivity and essentially no overoxidation of the aldehyde product to carboxylic acids unless the reaction time is substantially extended. Mechanistic investigations using Hammett parameters, IR spectroscopy, isotope labelling experiments, and specific substrates and oxidants as probes support the formation of a manganese(V) oxo system as the active species and subsequent turnover-limiting hydrogen atom abstraction.
![]() | ||
Fig. 1 (a) Examples of higher-valent Mn complexes with catalytic activity in oxidation reactions (ref. 9–11); (b) known Mn(III) complexes containing a NHC ligand (ref. 27–29). |
The first manganese(III) complex with an Arduengo-type NHC ligand was reported in 2009 by Bellemin-Laponnaz et al. and features an imidazolinylidene as central carbene ligand stabilized with two chelating phenolate groups (Fig. 1b, III).27 No catalytic applications of this complex were reported. Yagyu et al. reported a related Mn(III) complex containing a O,C,C,O-tetradentate bis(carbene)bis(phenolate) ligand as a mimic of the well-known salen environment that was active in styrene epoxidation by using PhIO as oxidant (Fig. 1b, IV).28 This system was very recently applied also as catalyst for the cycloaddition reaction of epoxides with CO2.29 A few examples of (nitrido) Mn(IV) and Mn(V) complexes with Arduengo-type NHC ligands have been isolated,30–32 which undergo several redox processes without any decomposition, including one-electron reduction to the Mn(III) NHC species. The stability of these complexes may be attributed to the large steric shielding around the high-valent metal center, a configuration that also suggests limited potential for catalytic applications.
Here we have expanded the range of high-valent manganese NHC systems by leveraging on the combination of hard phenolates as support for strongly σ-donating carbenes in first-row transition metal complexes.33–35 Specifically, we have prepared Arduengo-type NHC and sterically related mesoionic 1,2,3-triazolylidene complexes with a manganese(III) center and explored their catalytic activity in alcohol oxidation using tBuOOH as sacrificial oxidant. This methodology therefore provides an approach for employing Earth-abundant metals in combination with an inexpensive oxidant36,37 for this industrially relevant reaction.38 Unlike most other Mn-based catalysts,36,39–41 our system does not require acid additives to activate the peroxide, a limitation especially when considering large-scale applications. The new complexes reach appreciable activity with turnover frequencies up to 540 h−1 and allow for preliminary mechanistic insights.
The 1H NMR spectra of the complexes in CD3CN showed the expected paramagnetic character with broad signals in the δH = +25 to −50 ppm range for 1, and +23 to −16 ppm range for 2, respectively (Fig. S1†). While the broadness of the signals prevented an unambiguous assignment, the lower number of signals for 1 compared to that for 2 is consistent with the lower degree of symmetry of the triazolylidene vs. imidazolylidene ligand. For both complexes, single crystals suitable for X-ray diffraction analysis were grown upon recrystallization from hot concentrated MeCN solutions (Fig. 2). The molecular structures show a slightly distorted square pyramidal geometry with a τ5 parameter44 of 0.18 for complex 1 and significantly more distorted towards a trigonal bipyramidal geometry for complex 2 (τ5 = 0.47; Table 1). Both complexes feature a Jahn–Teller distortion, typical for Mn(III) d4 complexes.27,28 Specifically, the acac O3 nucleus in pseudo-apical position is more distant to the Mn center than the equatorial O4 (Δd = 0.11 and 0.06 Å for complexes 1 and 2, respectively). The Mn–C bond length in the triazolylidene complex 2 is slightly shorter than in the imidazolylidene analogue (1.955(1) vs. 1.979(3) Å), which was attributed to the stronger σ-donor character of the triazolylidene ligand.20,45 This bond is also shorter than the Mn–C bond in related Mn(III)–imidazolylidene complexes27,28 and complex III containing an imidazolinylidene ligand (cf.Fig. 1, Mn–C >1.98 Å).27
![]() | ||
Fig. 2 Thermal ellipsoid plots of complex 1 (a) and complex 2 (b; both at 50% probability level, hydrogen atoms omitted for clarity). |
Complex | 1 | 2 |
---|---|---|
a Trigonal distortion parameter (τ5) calculated according to ref. 44 as τ5 = (β − α)/60° with β > α, where α and β are the largest valence angles in the five-coordinate species, in this case the O1–Mn–O2 and the C1–Mn–O4 angles. | ||
Mn–C1 | 1.979(3) | 1.9550(14) |
Mn–O1 | 1.858(3) | 1.8614(10) |
Mn–O2 | 1.853(2) | 1.8622(10) |
Mn–O3 | 2.083(3) | 2.0522(11) |
Mn–O4 | 1.976(2) | 1.9917(11) |
O2–Mn–C1 | 87.3(1) | 87.78(5) |
O1–Mn–C1 | 87.0(1) | 86.04(5) |
O1–Mn–O2 | 169.49(12) | 173.31(5) |
C1–Mn–O4 | 158.56(13) | 145.04(4) |
τ 5 | 0.18 | 0.47 |
The electrochemical properties of complexes 1 and 2 were investigated by cyclic voltammetry analysis in MeCN solutions (Fig. S2†). For both complexes, multiple oxidation and reduction events were observed in the 0 to +2.0 V potential range (potentials vs. Ag/AgCl), some of which may be quasi-reversible. Notably, coordinating aryloxide moieties of ancillary ligands are known for their redox-noninnocent behavior,46 potentially imparting unique redox features to their corresponding metal complexes. Due to the complexity of the curves and the poor investigation of oxidation of NHC–Mn(III) to Mn(IV) and Mn(V) in literature by cyclic voltammetry, a detailed assignment of the redox events was not possible. Tentatively, the quasi-reversible redox processes occurring at very similar potentials for the two complexes, at E1/2 = +1.24 V (ΔEp = 0.13 V) for 1 and at +1.23 V (ΔEp = 0.14 V) for 2 may be attributed to ligand-centered processes.47,48 Despite the limited characterization, these electrochemical properties indicate a high potential for these complexes to engage in (catalytic) redox processes.
Complex 1 and 2 are stable for extended times in the solid state and when dissolved in MeCN at 25 °C. In solution at 60 °C, complex 1 starts to decompose after 2 days as indicated by the appearance of resonances due to the free imidazolium salt in the 1H NMR spectrum. In contrast, complex 2 did not reveal any visible nor spectral change in MeCN even when kept for one week at 80 °C.
The tBu substituents on the phenolate ligand sites are critical to obtain defined, monometallic complexes. Thus, application of the same metalation procedure to ligand L3, synthesized according to literature procedures,49 gave the octahedral dimetallic complex 3 in a low 19% yield (Fig. 3a). The dark brown powder is insoluble in MeCN, MeOH, toluene, or CH2Cl2, and only sparingly soluble in DMSO. However, crystals obtained from a hot MeCN solution of the crude mixture collected from the reaction with L3 were identified as a dimeric complex, 3, in which two phenolate units from two distinct ligand molecules bridge the two Mn centers (Fig. 3b). Similar dimer formation is presumably prevented in complexes 1 and 2 due to the steric shielding of the metal center by the tBu substituents. Notably, the analogous triazolium salt L450 did not produce any detectable complex when subjected to identical metalation conditions. Instead, the ligand precursor was recovered as the major component of the reaction mixture. Due to its poor solubility, complex 3 was not further investigated.
Entry | Complex | Temperature (°C) | TOFmax (h−1) | Conversion (yield)b % | ||
---|---|---|---|---|---|---|
30 min | 1 h | 8 h | ||||
a Reaction conditions: 0.5 mmol substrate, 0.75 mmol TBHP, 1 mol% Mn complex, 0.06 mmol 1,3,5-trimethoxybenzene, 0.6 mL MeCN, 8 h. b Determined by GC-FID analysis using 1,3,5-trimethoxybenzene as internal standard. | ||||||
1 | 1 | 80 | 500 | 55 (52) | 60 (58) | 69 (67) |
2 | 2 | 80 | 540 | 62 (60) | 70 (67) | 80 (79) |
3 | 1 | 60 | 280 | 53 (51) | 66 (63) | 81 (79) |
4 | 2 | 60 | 290 | 54 (53) | 66 (63) | 94 (93) |
5 | 2 | 50 | 130 | 35 (33) | 54 (53) | 89 (86) |
6 | 2 | 40 | 97 | 21 (20) | 32 (30) | 84 (82) |
7 | 2 | 25 | 39 | 6 (6) | 10 (9) | 24 (22) |
8 | Mn(acac)3 | 60 | 61 | 17 (16) | 23 (21) | 69 (65) |
9 | — | 60 | — | 7 (7) | 10 (8) | 20 (18) |

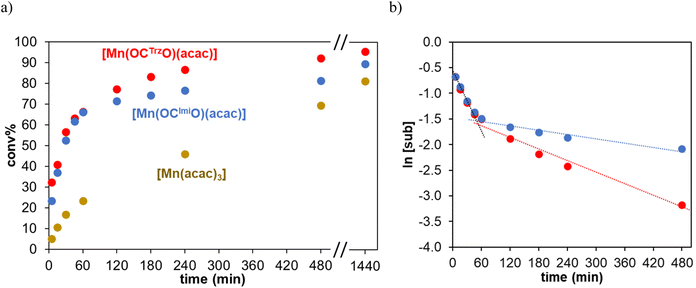

To probe whether deactivation is a consequence of thermal instability of the catalytically active species, oxidation reactions were carried out at 60 °C. At this reduced temperature, the initial TOF values are, as expected, lower, yet the long-term performances improved considerably (Fig. 4a). Complex 1 reached 81% conversion and 79% yield after 8 h (entry 3), while complex 2 accomplished 94% conversion with essentially full selectivity (93% yield, entry 4). Kinetic analyses indicate that catalyst deactivation is still occurring, though at much slower rate, especially for the triazolylidene complex 2 (Fig. 4b). Therefore, the catalytic performance of complex 2 was analyzed at different reaction temperatures (entries 5–7; Fig. S4†). At 50 and 40 °C, the substrate was converted more slowly, though still >80% substrate oxidation was noted after 8 h (entries 5 and 6). Even at 25 °C, catalytic oxidation took place, though conversion only reached 24% within the same reaction time (entry 7). The beneficial effect of the O,C,O-tridentate triazolylidene ligand, and to a lesser extent also of the imidazolylidene analogue, was shown by using [Mn(acac)3] as catalyst precursor. The initial TOF with [Mn(acac)3] was five times lower than that of complex 2 (61 vs. 290 h−1, entry 8 vs. 4) and the oxidation stopped at 69% conversion. In the absence of a Mn source, only 20% of the substrate was converted (entry 9), indicating that both the Mn center and the carbene ligand are required for imparting high catalytic activity. It is worth noting that both complex 1 and especially complex 2 show improved activity compared to mononuclear manganese(I) and dinuclear manganese(0) NHC complexes.17 While the manganese(0) species accomplished full conversion in 2 h even at slightly lower temperature, complexes 1 and 2 feature catalytic rates that are six-fold higher (TOFmax = 500 and 540 vs. 90 h−1, respectively) and set a new benchmark for alcohol oxidation with NHC manganese catalysts. We note that related penta-coordinate Mn(III)–salen and -salphen catalysts show considerably higher activity in alcohol oxidation (quantitative conversion in minutes),9,51–54 even though using (NBu4)HSO5 as a harsher terminal oxidant.
Lower conversion values of 70% and 40% were reached when the loading of complex 2 was reduced to 0.5 and 0.1 mol%, respectively (Fig. S5a†), indicating a maximum TON of around 400. The linear correlation between the observed rate constants and the catalyst loading indicates that the reaction is first order in the complex (Fig. S5b†). The relevance of the oxidant was evaluated by changing the amount of TBHP in runs performed at 60 °C. An increase of TBHP from 1.5 to 2.0 eq. induced a slightly higher 97% conversion with consistently high selectivity (Fig. S6a†). When the loading was dropped to 1.0 eq., the conversion lowered to 73% conversion after 8 h. The evaluation of the initial rates suggests no dependence of the rate on the TBHP concentration (Fig. S6b†), which points to a fast and potentially irreversible oxidation of complex 2. Higher concentrations of TBHP >2.5 eq. were detrimental to catalytic activity, presumably due to ensuing overoxidation. Notably, portioned addition of TBHP changed the initial catalytic activity, though it did not improve the final conversion and therefore does not constitute an improvement of the process (Fig. S7†). These results suggest that overoxidation is not a major issue under the selected conditions, nor that significant catalyst deactivation occurs in the presence of a moderate excess of oxidant at the onset of the catalytic reaction. It is noteworthy that other terminal oxidants such as air, aqueous 30% H2O2, or aqueous 10% NaOCl did not produce any significant quantities of ketone in the presence of catalytic amounts of complex 2, suggesting that TBHP plays a molecular role in the catalytic process.
A selection of organic solvents was screened for the oxidation reaction, though MeCN provided the best results (Table 3 and Fig. S8†). A potential correlation with polarity was probed by using apolar toluene and slightly more polar THF, as well as highly polar DMF (entries 2–4),55 though no trend was detected and the performance of complex 2 in these solvents was consistently poor. Likewise, DMSO had a negative effect, which might be due to its metal coordination ability and ensuing competition with coordination of the oxidant or the substrate (entry 5). No dimethylsulfone was observed that would originate from solvent oxidation. Reactions in 2,2,2-trifluoroethanol (TFE) were tested because this solvent has been employed previously for efficient metal-based oxidation reactions.56–58 However, only 68% conversion was reached after 8 h, considerably less than in MeCN yet respectable when compared to other solvents (entry 6). 1,2-Dichloroethane (DCE), a higher-boiling point analogue of CH2Cl2, gave an appreciable 75% conversion.
Entry | Solvent | % conversionb |
---|---|---|
a Reaction conditions: 0.5 mmol substrate, 0.75 mmol TBHP, 1 mol% complex 2, 0.06 mmol 1,3,5-trimethoxybenzene, 0.6 mL solvent, 60 °C, 8 h. b Determined by GC-FID analysis using 1,3,5-trimethoxybenzene as internal standard. | ||
1 | MeCN | 94 |
2 | THF | 35 |
3 | Toluene | 39 |
4 | DMF | 28 |
5 | DMSO | 24 |
6 | CF3CH2OH (TFE) | 68 |
7 | ClCH2CH2Cl (DCE) | 75 |

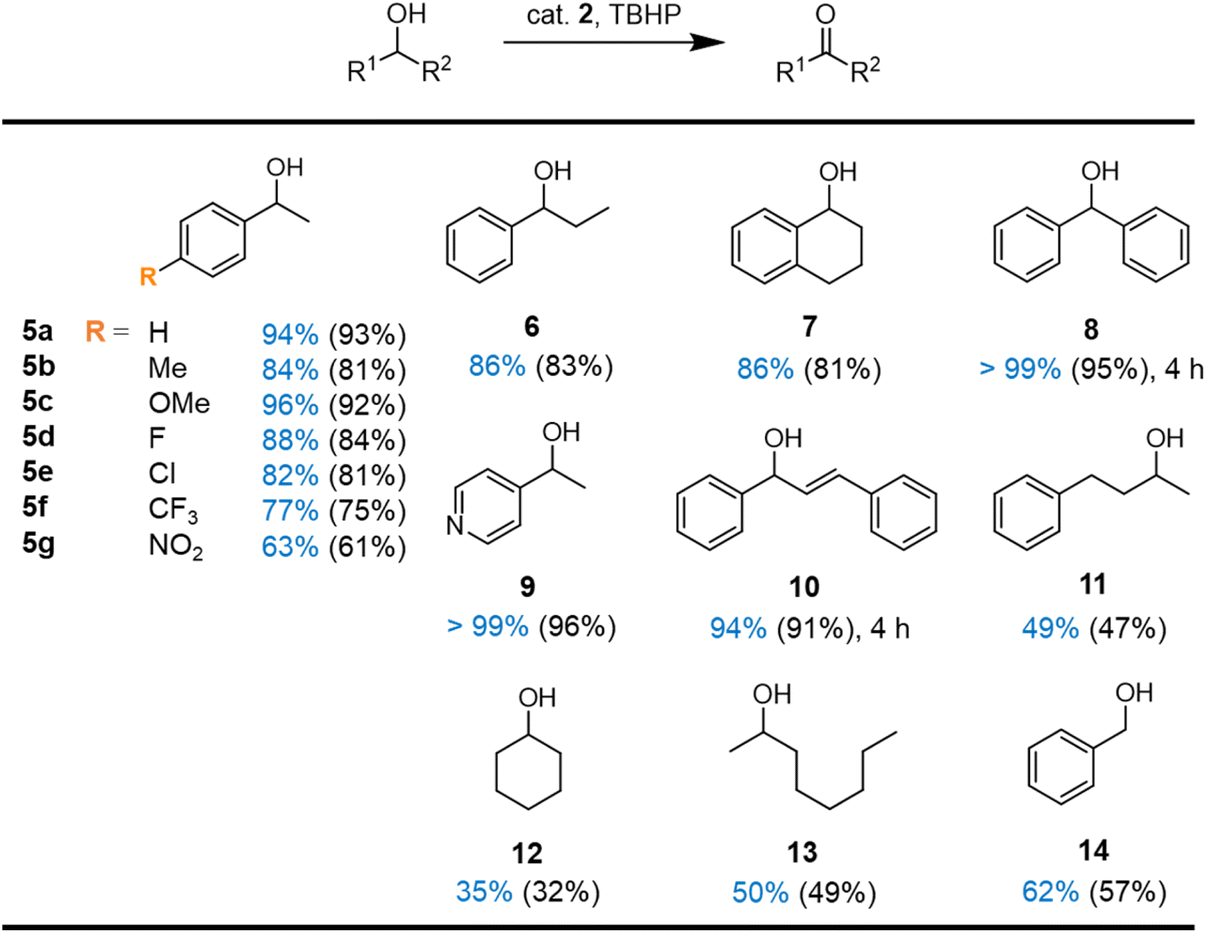

Based on these optimized reaction conditions for complex 2, a small substrate scope was performed. Complex 2 was effective in the catalytic oxidation of a wide variety of secondary alcohols (Fig. 5). Both electron-donating and -withdrawing substituents (substrates 5b–g) on the aromatic ring of 1-phenylethanol were well-tolerated with high selectivity towards ketone formation. However, the reaction is significantly slowed down with electron-deficient systems. For example, para-nitro substitution reduced the initial turnover frequency from 290 h−1 for the unsubstituted system to 100 h−1, and consequentially, the conversion after 8 h reached only 63% as opposed to the 94% with the parent substrate (substrates 5avs.5g, vide infra).
Increased steric bulkiness on the side of the aliphatic chain does not affect the catalytic performances (substrates 6 and 7). Not surprisingly, oxidation of diphenylmethanol 8 reached completion much faster (4 vs. 8 h), since the benzylic position is doubly activated. Similarly, the pyridyl-substituted alcohol 9 is converted fully, pointing towards a good tolerance of heterocycles. Oxidation of the activated allylic alcohol 10 gave 94% conversion after 4 h with high selectivity towards the enone; no epoxidation products were detected. Even aliphatic alcohols such as 11–13 are converted selectively, though yields reached only around 35–50%. Notably, oxidation of the primary benzyl alcohol 14 gave 62% conversion with excellent selectively within 8 h. Traces of benzoic acid due to overoxidation appeared only after 24 h, (Fig. S29†) suggesting attractive opportunities for the selective oxidation of alcohols to aldehydes with this catalytic system.
In addition to alcohol oxidation, also amine oxidation was probed with complex 2 as catalyst precursor. Under the conditions used for alcohol oxidation, 1-phenylethylamine 15 is converted very rapidly (75% conversion in the first 5 min) and much faster than alcohol oxidation (TOFmax = 900 vs. 540 h−1 for substrate 5a, Fig. S30†), to afford a metastable intermediate that is gradually transformed to acetophenone as the final product (Scheme 2a). While it is tempting to propose the formed intermediate as the corresponding imine, the NMR data do not match with published values.59 In contrast, amines without α hydrogens such as anilines are oxidized to nitro functionalities. This oxidation is preferred over alcohol oxidation, as demonstrated with the amino-substituted phenylethylalcohol 16 as a bifunctional substrate. Catalysis with complex 2 afforded a mixture of the nitro-alcohol 17 from amine oxidation, the amino-ketone 18 from alcohol oxidation, and small quantities of the nitro-ketone 19 from oxidation of both functional groups (Scheme 2b). The rate of amine vs. alcohol oxidation remains almost constant at about a 3.5:
1 ratio in favor of amine oxidation, suggesting a competitive pathway with a ca. 3 kJ mol−1 lower transition state for amine oxidation (Fig. S31†). However, the relatively low yields with respect to conversion (e.g. 94% conversion after 30 min, though only a combined yield of 65%) suggests side reactions, which may involve Schiff base reaction of the amine with the ketone and potential oligomerization of the amino-ketone 18. In line with such a reaction trajectory, oxidation of (±)-norephedrine as an aliphatic 1,2-aminoalcohol yielded a complex mixture of products.
The relevance of the C–H cleavage step was demonstrated by carrying out the same reaction using 5a–d as substrate, i.e. 1-phenylethanol that is monodeuterated at the benzylic position and was obtained by reduction of acetophenone with NaBD4 (Fig. S9a†). The observed initial rates for the two substrates, determined by independent catalytic runs, were kobs,H = 3.3 × 10−4 s−1 for the protic substrate 5a, and kobs,D = 4.7 × 10−5 s−1 for the deuterated isotope 5a–d (Fig. S9b†). These rates yield a primary kinetic isotope effect, KIE = 7.0. Such a strong isotope effect indicates that the H-abstracting agent is a metal-oxo or -oxyl species, since free-radical mechanisms usually produce much lower KIEs.62 Likewise, Mn(II)-catalyzed oxidation reactions typically feature lower values (KIE ∼ 2).36,39 A similarly strong effect as noted for complex 2 was observed in catalytic oxidations with Mn(IV)-hydroxo species (KIE up to 10),63,64 and with metal-alkylperoxo (M-OOR) systems.38,62
To better understand the role of the oxidant, a catalytic run was performed with cumene hydroperoxide (CmOOH) instead of TBHP (Scheme 3). Thus, oxidation of diphenylmethanol 8 with complex 2 and CmOOH under otherwise identical conditions gave benzophenone at considerably lower rates compared to TBHP (61% yield after 8 h vs. >95% yield after 4 h, cf.Fig. 5). Moreover, the reaction revealed the build-up of acetophenone and cumyl alcohol already after 5 min, identified by GC analysis and the characteristic 1H NMR signals at 2.61 and 1.57 ppm, respectively. Time-dependent monitoring of the reaction demonstrated a gradual increase of acetophenone to a 22% yield after 8 h (Fig. S10†). Acetophenone originates in this reaction from homolytic O–O bond cleavage of CmOOH, since the formed CmO˙ alkoxyl radical is known to easily undergo β-C–C bond scission to afford acetophenone and a methyl radical (Scheme 3).65,66 Therefore, these experiments support the formation of a Mn-oxo (C) or -oxyl species (B) as catalytically active species, either generated from HO˙ radicals from homolytic ROOH cleavage, or from a transient Mn–OOR species which undergoes rapid O–O bond scission and release of RO˙.66
![]() | ||

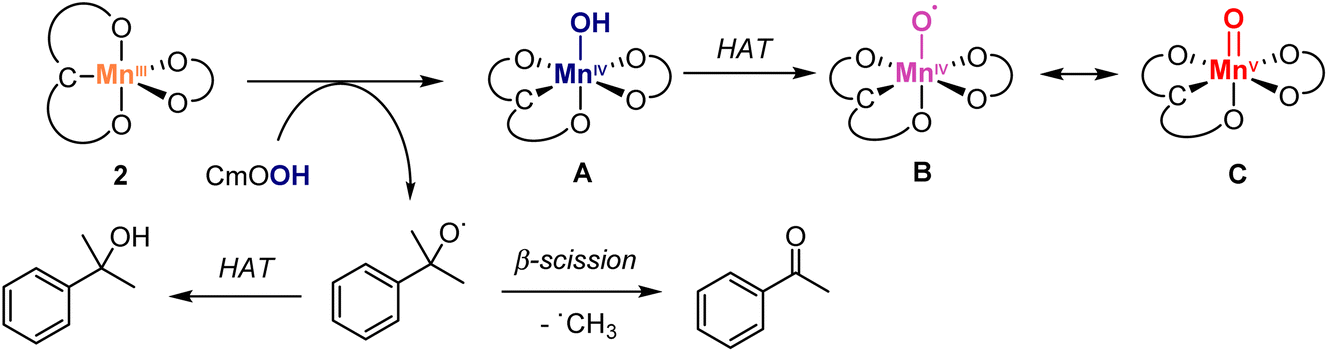

Scheme 3 Plausible activation pathways of pre-catalyst 2 with hydroperoxides, featuring sequential homolytic cleavage of O–O and O–H bonds to produce the catalytically active Mn(IV)–O˙ (B) or Mn(V)![]() |
The Mn–O species involved in the catalytic cycle was spectroscopically characterized from a MeCN solution of complex 2, which was treated with 1 eq. of TBHP at room temperature. The sample changed color from orange to brown within 5 min, together with the observation of a characteristic absorbance at 350 nm (Fig. S11†). In the IR spectrum, a sharp band at 762 cm−1 appeared and was attributed to the Mn(V)O vibrational stretching (Fig. 7), in good agreement with the data of porphyrin manganese-oxo complexes (νMn
O = 755–800 cm−1).67,68 The spectrum was persistent for at least 15 min, indicating some stability of this species C in solution in the absence of substrate. NMR spectroscopic monitoring of the same reaction in CD3CN did not show any diagnostic changes in the first 30 min, indicative of the perseverance of a paramagnetic nature of the complex (Fig. S12†). Only at extended reaction times, diamagnetic signals appear in the aromatic region, which were different from those of the triazolium salt L2 and were tentatively attributed to oxidation-derived decomposition products.
![]() | ||

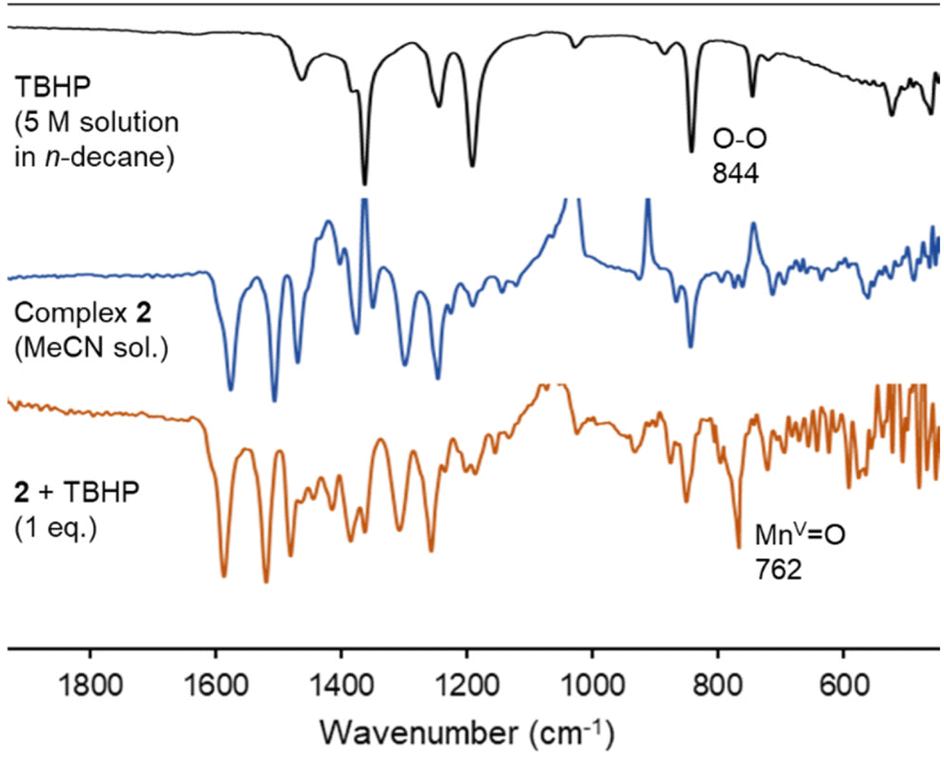

Fig. 7 Monitoring of the reactivity of complex 2 upon addition of 1 eq. of TBHP by FT-IR spectroscopy to form intermediate C. Conditions: 10 mM solution of complex 2 in MeCN, 1 eq. TBHP, rt. |

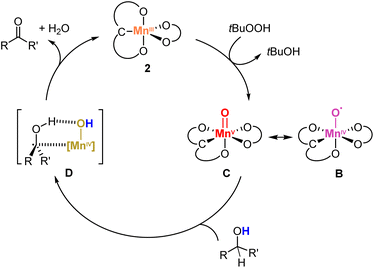

Cyclobutanol oxidation was used as an additional mechanistic probe to distinguish one- and two-electron oxidation processes.69–71 Time-dependent monitoring of the reaction by 1H NMR spectroscopy over 8 h indicated selective formation of cyclobutanone in 66% yield without any formation of 1-butanal adducts from ring opening (Scheme S1 and Fig. S13†). This reaction outcome suggests a two sequential one-electron redox processes. Specifically, it implies that the adduct D resulting from initial hydrogen atom transfer (HAT) from the substrate by the Mn(V)-oxo species C is sufficiently stable to induce a second HAT involving the RO-H unit of the substrate to form the ketone and H2O, also regenerating the Mn(III) species. A low stability of this adduct would result in the release of the organic radical ensuing ring opening to produce 1-butanal derivatives.69–71 Consolidating these mechanistic investigations provides a plausible mechanism for the alcohol oxidation with complex 2 (Scheme 4). Initial oxidation with TBHP yields a Mn(V)O species C, identified by IR spectroscopy. Subsequent formation of the adduct Dvia HAT from the alcohol substrate is proposed to be turnover-limiting. Such a model is in agreement with the significant KIE, the Hammett correlation observed in the substrate series, and also its negative ρ value. A second HAT releases the ketone product and H2O from the metal coordination sphere and regenerates the Mn(III) species 2, thus closing the catalytic cycle.
1H-NMR (300 MHz, CD3CN): δ 25.1, 16.2, 2.2, −8.0, −49.3 ppm. ESI-HRMS (MeCN): calcd for C36H50MnN2O4 [M + H]+, m/z 629.3151, found m/z 629.3146. Elemental analysis calcd (%) for C36H49MnN2O4·H2O (646.318 u): C 66.86, H 7.95, N 4.33; found: C 66.52, H 7.93, N 4.51.
1H-NMR (300 MHz, CD3CN): δ 22.7, 21.3, 17.3, 2.0, −5.4, −10.3, −16.0 ppm. ESI-HRMS (MeCN): calcd for C31H43MnN3O2Na [M − acac + Na]+, m/z 567.2633, found m/z 567.2637. Elemental analysis calcd (%) for C36H50MnN3O4 (643.318 u): C 67.17, H 7.83, N 6.53; found: C 67.16, H 7.90, N 6.75.
