Hikaru
Takayanagi‡
ab,
Jean-Xavier
Bardaud§‡
c,
Keisuke
Hirata
ad,
Valérie
Brenner¶
c,
Eric
Gloaguen§
*c,
Shun-ichi
Ishiuchi
*ad and
Masaaki
Fujii
*abe
aLaboratory for Chemistry and Life Science, Institute of Innovative Research, Tokyo Institute of Technology, 4259 Nagatsuta-cho, Midori-ku, Yokohama, 226-8503, Japan. E-mail: ishiuchi.s.aa@m.titech.ac.jp; mfujii@res.titech.ac.jp
bSchool of Life Science and Technology, Tokyo Institute of Technology, 4259 Nagatsuta-cho, Midori-ku, Yokohama, Kanagawa 226-8503, Japan
cLIDYL, CEA, CNRS, Université Paris Saclay, CEA Saclay, Bât 522, Gif-sur-Yvette 91191, France. E-mail: eric.gloaguen@cnrs.fr
dDepartment of Chemistry, School of Science, Tokyo Institute of Technology, 2-12-1 Ookayama, Meguro-ku, Tokyo 152-8550, Japan
eIRFI/IPWR, Institute of Innovative Research, Tokyo Institute of Technology, 4259 Nagatsuta-cho, Midori-ku, Yokohama, 226-8503, Japan
First published on 18th August 2023
The magnesium channel controls Mg2+ concentration in the cell and plays an indispensable role in biological functions. The crystal structure of the Magnesium Transport E channel suggested that Mg2+ hydrated by 6 water molecules is transported through a selection filter consisting of COO− groups on two Asp residues. This Mg2+ motion implies successive pairing with −OOC-R and dissociation mediated by water molecules. For another divalent ion, however, it is known that RCOO−⋯Ca2+ cannot be separated even with 12 water molecules. From this discrepancy, we probe the structure of Mg2+(CH3COO−)(H2O)4–17 clusters by measuring the infrared spectra and monitoring the vibrational frequencies of COO− with the help of quantum chemistry calculations. The hydration by (H2O)6 is not enough to induce ion separation, and partially-separated or separated pairs are formed from 10 water molecules at least. These results suggest that the ion separation between Mg2+ and carboxylate ions in the selection-filter of the MgtE channel not only results from water molecules in their first hydration shell, but also from additional factors including water molecules and protein groups in the second solvation shell of Mg2+.
The magnesium channel is one of the ion channels that controls Mg2+ concentration in the cell.13–17 The magnesium ion is the most popular divalent ion in biological cells and is essential for life because of its role in biological functions, such as RNA and protein formation, catalysis by enzymes and so on.18 Recently, the crystal structure of Magnesium Transport E (MgtE), a type of Mg2+ channel, has been revealed by Nureki's group19–21 raising questions about Mg2+ transport mechanism and selectivity still under investigation.22 According to this report, the selection filter responsible for selectivity consists of two COO− groups on two Asp residues. This anionic moiety does not bind directly to Mg2+, but binds to the water molecule-clad Mg2+ in an octahedral arrangement, thus exerting ion selectivity. In the crystal structure analysis, 13 water molecules are found in the channel, but only 6 in the vicinity of Mg2+, which is interpreted as the transportation of Mg2+ hydrated by 6 water molecules, Mg2+(H2O)6, i.e. corresponding to a complete first hydration shell for this ion. The transportation of Mg2+ hydrated by its first solvation shell seems to be preferred over the transportation of the isolated divalent ion (see Fig. 1a).21 Indeed, the hydration shell appears necessary to avoid the strong interactions that can occur between the divalent ion and the channel,10 and contributes to smooth transport.
Here, we would like to raise a new viewpoint on Mg2+ transportation in MgtE. With a small number of water molecules, Mg2+ and R–COO− can bind to form a full contact ion pair because of their strong electrostatic interaction (see Fig. 1b), but such a contact has not been observed in the crystal structure.21 Instead, the transportation of Mg2+(H2O)6 through the –COO− selection filter involves two separated ion pairs between Mg2+ and two opposite carboxylate groups where ions are separated by hydration (see Fig. 1a). One may think that the second –COO− may help to keep such a centred position of Mg2+, however the presence of a two charge system never guarantees such an equilibrium at the centre of the two charges like Fig. 1a. In general, such a two-charge centre system may also lead to a double minimum potential, which is the reason why e.g. a lithium cation prefers to bind to one of the oxygen of the carboxylate group instead of making two equal interactions with the oxygen atoms (bidentate binding) in crystals23 as well as in solution.24 Such a double minimum potential would put the Mg2+ cation in one side, like in Fig. 1b.
Such solvent induced ion pair separation has been extensively studied by gas-phase laser spectroscopy and ab initio calculations on solvated clusters, such as Li+I− and Cs+I−,25 Mg2+HO−,26 Na+AcO−,27 Na+Cl−,28,29 Mg2+RCOO−,30 Ca2+RCOO−,30–32 Ba2+AcO−32 and LiCl2−.33 These studies show that 5 or 6 solvent molecules are barely enough to separate pairs made of monovalent ions. For divalent ions, however, no separation has been observed for the cluster size investigated. Recent results on RCOO−⋯Ca2+ ion pairs31 demonstrated that even 12 water molecules are not able to separate these ions. Although the chemical properties of Ca2+ and Mg2+ are not the same,34 both are divalent ions capable of binding strongly to RCOO−. Then, it is legitimate to wonder whether six water molecules are intrinsically enough to separate –COO− and Mg2+ or not. If not, additional factors must help to keep these ions separated in the channel as observed by XRD.21
In order to solve the discrepancy between Mg2+(H2O)6 transport in MgtE and the accumulated knowledge of ion pair separation by solvent molecules, we have applied cold ion trap spectroscopy35–39 to hydrated Mg2+(CH3COO−) clusters, which serve as minimum model systems of the selection filter in MgtE. Infrared spectra can sensitively probe the coordination and H-bonds in hydrated Mg2+(CH3COO−) clusters. With the help of quantum chemistry calculations, we can discuss whether a solvent-separated ion pair state which corresponds to the Mg2+(H2O)6 transport, is formed from Mg2+(CH3COO−) by hydration of six water molecules or not.
We performed two steps of theoretical calculations. The first calculations are simpler one to estimate the vibrational signatures that indicate the solvation condition of Mg2+ from CH3COO−, such as full-contact ion pair state (bidentate ion pair), dissociated state (solvent-shared ion pair) and semi-dissociated state (monodentate ion pair) structures. For this purpose, IR spectra of (CH3COOMg)+·(H2O)6 are calculated by density functional theory (DFT) calculations at CAM-B3LYP-D3/6-311+G(d,p)42–45 level by using Gaussian 16. Optimized structures of three different bonding states are reported for (CH3COOMg)+·(H2O)6 by the DFT calculations without dispersion correction and the theoretical spectra are not shown.46 We build the three initial structures according to the previous work, and the geometries are optimized by the dispersion corrected DFT calculations. The calculations give several conformations for a single ionic condition (such as the dissociated state). The conformational difference is relatively the minor part in relation to the ionic condition, so that we obtained the theoretical IR spectra for three typical ionic conditions. The obtained harmonic vibrational frequencies were scaled by 0.985. The performance and limitation of this well-known approach used to compare experimental and theoretical frequencies can be found e.g. in Section 5 of ref. 47 and ref. therein.
The RI-B97-D3/dhf-TZVPP42,48,49 level of calculation (TURBOMOLE package50) was used for quantitative comparison with experimental results obtained on (CH3COOMg)+·(H2O)n clusters for n = 10 and 14. The potential energy surface of these systems being too complex for an exhaustive structural exploration, only a sample of selected structures was considered for geometry optimization (see ESI† for detail). These initial structures were either built from educated guesses, or randomly chosen among previously optimized structures of analogue [CH3COONa](H2O)n (n > 14) clusters24,51 by replacing Na+ by Mg2+ and removing water molecules in excess. These initial structures were optimized by the DFT calculations and vibrational frequencies were calculated at the same level. Optimized structures were sorted according to the type of ion pair formed, i.e. either bidentate or monodentate contact ion pairs, or solvent-shared ion pairs, thus defining three families of structures for each cluster size. Their Gibbs energy are reported on Fig. S2 (ESI†) and frequencies and intensities are reported on Tables S1–S6 (ESI†). Then, an averaged spectrum for each family and each size was obtained by averaging energy-weighted frequencies and intensities of each individual structures according to a procedure detailed in Section S4 (ESI†). Finally, an arbitrary spectral width of 6 cm−1 was chosen in order to model each vibrational transition by a Gaussian function, and present their sums as full theoretical spectra for comparison with the experimental ones.
![]() | ||
Fig. 2 Calculated stick spectra of [CH3COOMg]+·(H2O)6 for full-contact, partially-separated and separated ion pairs with the IRPD spectrum of [CH3COOMg]+·(H2O)6. |
Fig. 3 shows the infrared spectra of [CH3COOMg]+·(H2O)n (n = 4–17). The spectra of n = 4 and 5 reproduce those of a previous report,30 and the spectral changes from n = 4 to n = 9 are relatively minor. These spectra can be assigned to the full-contact ion pair state according to our calculations. They are indeed consistent with the corresponding theoretical spectrum for n = 6 in Fig. 2, where the observed vibrational bands are assigned to δCH, vcoo−s, vcoo−as and δHOH as indicated in the figure. Among the minor changes in this series, the general blue shift of vcoo−as results from the motion away from the cation in full contact, induced by hydration by an increasing number of water molecules as already observed in the case of Ca2+.31,32 The blue shift of δHOH between n = 6 and n = 9 suggests the formation of the second hydrated shell from the analogy to the infrared spectra of [CD3CD2COOCa]+(H2O)n (n ≤ 12),31 in which the ion pair COO−⋯Ca2+ keeps the full contact structure. From these infrared spectra, we conclude that Mg2+ is in full contact with COO− in [CH3COOMg]+(H2O)6, and thus that the solvent-separated ion pair (see Fig. 1a), which is involved in the transportation of Mg2+(H2O)6 in MgtE in solution, is intrinsically not stable enough to be formed with only six, or even nine water molecules. In contrast, the XRD study21 clearly shows the presence of the Mg2+(H2O)6 of octahedral hydration structure separated from COO−. Then, the formation of the separated Mg2+(H2O)6 must be attributed to additional factors, such as the presence of the second COO− group and/or the second hydration shell. As the XRD study reported the presence of the 13 water molecules in the channel, the effect of the second hydration shell should be considered. Indeed, for Mg2+ in water, a priori 6 water molecules form the first shell and the next 12 molecules the second one.21 According to the Nureki's crystal structure, the second shell in the Mg2+ channel is filled by 7 water molecules and 4 oxygen atoms in the peptide framework, instead of 12 water molecules.
The effect of higher hydration can be explored by the infrared spectra in Fig. 3. The spectrum changes significantly when the 10th water molecule is added to the cluster (see Fig. 3 for the change from n = 9 to 10). In the δCH range at around 1430 cm−1, the intensity of one band (green) is significantly enhanced. In contrast, vcoo−s becomes weaker. Such a clear spectral change reveals a notable modification of the hydration condition of the (Mg2+⋯COO−) ion pair. This spectral feature keeps going up to n = 13, before another clear spectral change takes place at n = 14 where vcoo−s is no more observed, leaving onlyvco-like bands. If we take the simple analogy of the calculated structures for n = 6, the disappearance of vcoo−s from n = 13 to n = 14 strongly suggests the complete transition from full-contact ion pairs to partially-separated or separated ones. Similarly, the spectral change from n = 9 to n = 10 suggests that [CH3COOMg]+·(H2O)10–13 clusters are a mixture of full-contact ion pairs with partially-separated or separated ones.
These interpretations are further examined by more sophisticated simulations for two critical cluster sizes n = 10 and 14. By investigating a set of structures representative of the diversity encountered in these clusters, the simulated spectra enable us to study the influence of the partially-filled second hydration shell. These energy-weighted averaged spectra are presented in Fig. 4 (see ESI† for details). It should be noted that the labels of the vibrational bands in Fig. 2 and 3 are slightly different from Fig. 4 because the description of the vibrational motions in terms of internal coordinates changes with the size of the clusters. The former figures present calculated systems with only 6 water molecules, while the latter show an average of various conformations for n = 10 and 14 clusters. The correspondence between the assignments in Fig. 2 and 4 are explained in ESI.†
![]() | ||

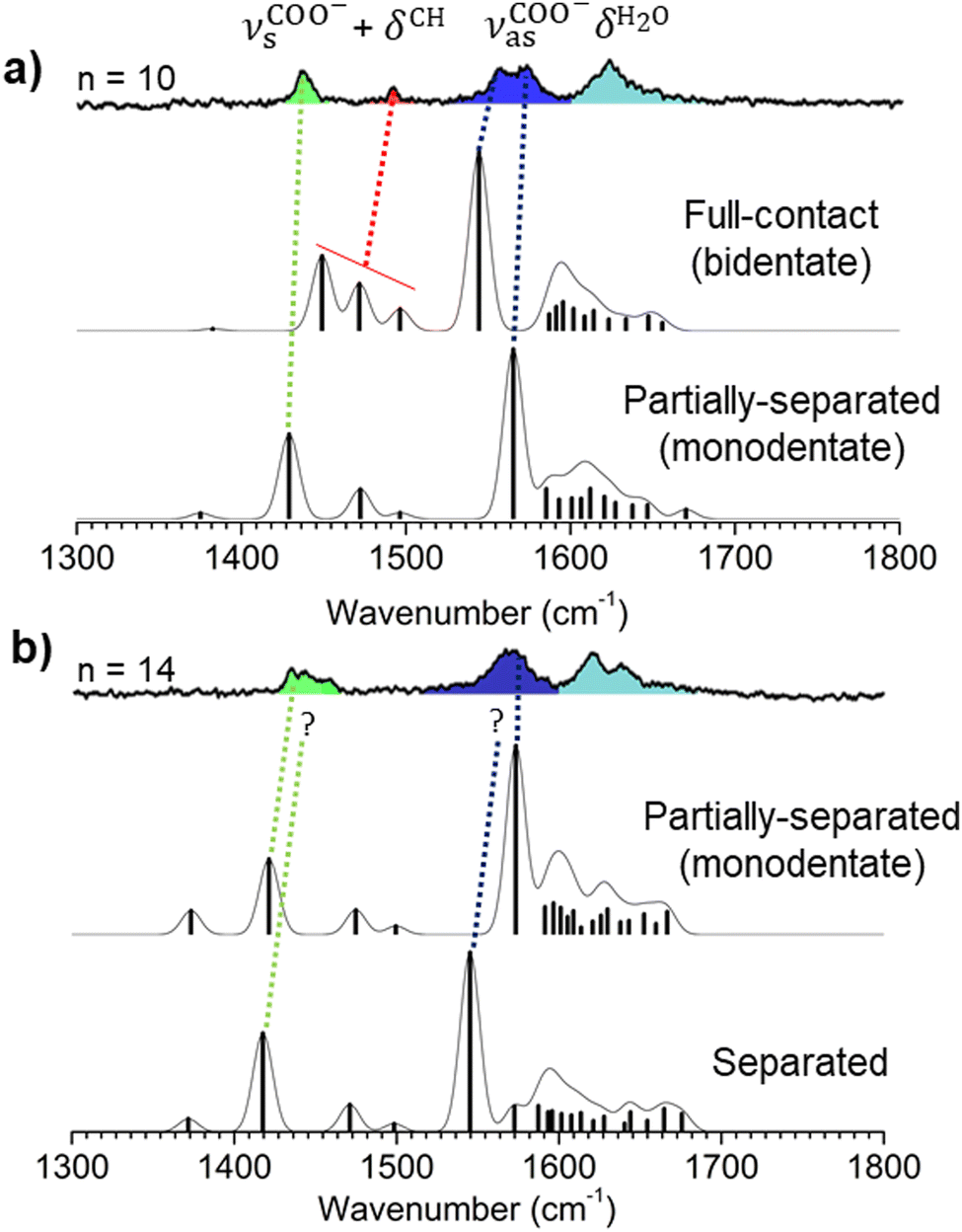

Fig. 4 RI-B97-D3/dhf-TZVPP mode-dependent scaled harmonic vibrational spectra compared to IRPD spectra for n = 10 (a) and n = 14 (b) |
First, according to the theoretical spectra for n = 10 (Fig. 4a), the whole experimental spectrum is consistent with the coexistence of only two types of structures: (i) a full contact ion pair whose vibrational pattern can be continuously tracked from n = 4 (Fig. 3), the poor agreement near 1500 cm−1 only resulting from the insufficient description of the vcoo−s and δCH3 coupling30 by harmonic frequency calculations. (ii) a partially separated ion pair, which is assigned to the new spectral features popping up at n = 10, e.g. the blue-most component of the vcoo−as band (blue band) and the main red-most feature (green band) in the vcoo−s spectral region. In addition, both these ion pairs are isoenergetic (ESI†), supporting their simultaneous observation at this cluster size. In turn, separated ion pairs present the worst vcoo−a frequency and energy agreement (ESI†). For n = 14, the specific signature of the full contact ion pair disappears (red band in Fig. 3 and 4), in agreement with the significant increase in their relative energy compared to n = 10 (ESI†). In parallel, the triplet on the green band is most likely explained by the coexistence of several structures. According to calculated vcoo−as bands (Fig. 4b), partially separated ion pairs best agree with the experiment, suggesting that the IR spectrum results mainly from a mixture of several partially separated ion pairs. Alternatively, the appearance of separated ion pairs should be accompanied by a new red-shifted vcoo−as band, which is not observed. By comparing n = 10 and n = 14 spectra, however, a modest red-shift of vcoo−as (∼3 cm−1) is observed and could be interpreted as the manifestation of the presence of separated ion pairs as minor species.
Footnotes |
† Electronic supplementary information (ESI) available: Experimental Methods; Theoretical methods; Structures. See DOI: https://doi.org/10.1039/d3cp00992k |
‡ Contributed equally. |
§ Present address: Université Paris-Saclay, CNRS, ISMO, 91400 Orsay, France. |
¶ Present address: Direction de la recherche fondamentale, Commissariat à l'énergie atomique et aux énergies alternatives, CEA Saclay – 91191 Gif-sur-Yvette, Bât 530 – p 319B, France. |
