Selective and benign alkylation of sulfido-oxo stannate clusters with propyl, pentyl, or hexyl substituents

Abstract

Chalcogenido metalate compounds that are based on tetrahedral clusters have been extensively studied in recent years due to their rich structural chemistry and uncommon chemical and physical properties. Recently it was shown that partial butylation of the inorganic cluster core by ionothermal reactions allowed access to tetrahedral sulfido-oxo stannate clusters with reasonable solubility in conventional solvents at the retainment of their opto-electronic features. We have expanded this mild alkylation approach, and herein report success in receiving the first sulfido-oxo stannate clusters that are selectively propylated, pentylated, and hexylated. This was achieved in a unique way by preparing symmetrically 1,3-substituted imidazolium bromides in preparative scale and using them as both the reaction medium and alkylatoin reagent. We discuss the effect of the organic groups attached to the cluster and present in the counterions of the products on the compounds’ structural and opto-electronic properties.

---

Sulfido stannate compounds, in general, exhibit a huge structural variety^1,2 as a consequence of the variable oxidation states (II, III, IV) and coordination modes (tetrahedral, trigonal bipyramidal, octahedral) of the tin atoms.³ In addition, compounds comprising discrete sulfido stannate cluster molecules have attracted particular attention owing to their tunable electronic and optical properties that can be varied with the cluster size⁴ and exact composition of the molecules.^5–7

Most of these compounds have traditionally been accessed by molten flux^8–11 approaches or high temperature syntheses, before hydrothermal¹² or aminothermal¹³ approaches were added as synthesis methods.¹² The most recent technique for their preparation, however, utilizes ionic liquids under so-called ionothermal conditions, which again expanded the chemical and structural diversity of crystalline chalcogenides in general, and sulfido stannate cluster compounds in particular. Besides these benefits regarding the product spectrum, ionic liquids are also interesting in terms of ecological and economic aspects, as their reprocessing is relatively benign.^14,15 Therefore, the results that were reported during the past decade have proved that the ionothermal method is a promising strategy for the synthesis of crystalline chalcogenido metalate-based compounds.^16–22

In the area of chalcogenido metalate-based cluster compounds, considerable activity has taken place in the context of inorganic, anionic substructures based on large tetrahedral clusters.^6,23–28 Both a smooth transfer of (super)tetrahedral clusters into functionalized nanomaterials for optoelectronic devices and also their direct application in solution are generating increasing interest in the solubility of these clusters in conventional organic solvents – without a drop of the desired optoelectronic properties, which requires a minimum of organic substituents to be present.²⁹

Several approaches have been reported in the recent past to achieve this goal. One method that led to a notable increase in solubility was the partial replacement of sulfur with selenium atoms.³⁰ The replacement of alkali metal counterions with organic cations also leads to a somewhat higher solubility.³¹ A recent approach for solubilizing large tetrahedral selenido germanate clusters is a controlled and limited aggregation of the anionic molecules into oligomers of finite size, thereby decreasing the negative charge per cluster unit, which allows for the clusters’ solubility in DMF.³¹ This strategy can be enhanced by forming cluster aggregates that include an alkali metal cation for additional charge compensation “from inside”: [Cs@Ge₄(Ge₄Se₁₀)₄]⁷⁻, which at the same time represents the largest selenido germanate cluster reported to date, shows the lowest charge per atom reported for a purely inorganic (super)tetrahedral cluster.³² There have also been recent reports about purely inorganic supertetrahedral clusters that were proven to dissolve in DMSO.³⁰

A significant step forward regarding the solubility of chalcogenido metalate cluster compounds at the retention of optical properties, however, was the selective partial alkylation of the sulfido-oxo stannate cluster [Sn₁₀O₄S₂₀]⁸⁻, previously known as this purely inorganic species,³³ in reactive ionic liquids. This did not only turn out to be much more benign as it takes place without the use of harmful alkylation reagents (MeI or Meerwein salt), but also the only feasible way for post-synthetic alkylation of these weakly nucleophilic species. The first compound comprising an alkylated cluster obtained this way was (cat)₄[Sn₁₀O₄S₁₆(SMe)₄] (cat = imidazolium-based ionic liquid; Me = methyl).^3,33–36 The approach also proved suitable for tellurido mercurate clusters and a ternary Mn/Sn/Se cluster.^34,37 The methyl groups reduced the negative charge of the cluster from 8− in [Sn₁₀O₄S₂₀]⁸⁻ to 4−, but the methyl groups did not increase the solubility in the desired way. As a matter of fact, the commonly used imidazolium-based ionic liquids, in which the two N atoms are functionalized by one methyl group and another alkyl chain of varying length, tend to selectively transfer the methyl group.³⁸ Hence, in order to change the group to be transferred, it was necessary to use ionic liquids with a symmetric substitution pattern of the imidazolium ring. Upon employment of (C₄C₁C₄Im)Br comprising a methyl group (“C₁”) in 2-position, and two butyl groups (“C₄”) on the N atoms in 1- and 3-position of the imidazolium ring, the cluster [Sn₁₀O₄S₁₆(SBu)₄]⁴⁻ (Bu = butyl) was obtained as a salt with good solubility in conventional organic solvents like CH₃CN. This was proven by means of NMR spectroscopy and mass spectrometry in solution, and also indicated that the clusters retain unchanged in solution, with their optical properties were essentially not affected by the organic ligands.³⁹

In order to selectively form further soluble clusters and probe the effect of other alkyl groups on the properties of these compounds, we aimed at an alkylation with other organic groups. For this, we prepared the symmetrically substituted ionic liquids (C_xC₁C_xIm)Br (x = 3, 5, 6),⁴⁰ and used them for the synthesis of corresponding functionalized sulfido-oxo stannate clusters [Sn₁₀O₄S₁₆(SR)₄]⁴⁻ with R = propyl (Pr), pentyl (Pn), hexyl (Hex) in ionothermal reactions (Fig. S1, ESI†) that were obtained in corresponding salts (C₃C₁C₃Im)₄[Sn₁₀O₄S₁₆(SPr)₄] (1), (C₅C₁C₅Im)₄[Sn₁₀O₄S₁₆(SPn)₄] (2) and (C₆C₁C₆Im)₄[Sn₁₀O₄S₁₆(SHex)₄] (3). We present their crystal structures and the evidence of their undecomposed transfer into solution by NMR spectroscopy and mass spectrometry. In addition, we report about the opto-electronical properties.

Compounds 1 – 3 were obtained by ionothermal treatment of Na₄[SnS₄]·14H₂O⁴¹ in (C_xC₁C_xIm)Br (x = 3, 5, 6) at 180 °C (Scheme 1). All compounds crystallize as colorless plates (Fig. S2, ESI†). The Sn:S compositions were determined by means of μ-X-ray fluorescence spectroscopy (Fig. S3–S5; Tables S1–S3, ESI†). The structures of the single-crystalline compounds were determined by means of single-crystal X-ray diffraction (Tables S4 and S5, ESI†). Compound 1 crystallizes in the tetragonal crystal system, space group I4̄2d with four formula units (Z = 4) within the unit cell (1: a, c = 19.9274(11), 26.2914(18) Å; V = 10440.3(14) ų). Compounds 2 and 3 crystallize in the triclinic crystal system, space group P1̄, with two formula units (Z = 2) within the unit cell (2: a, b, c = 19.5954(4), 19.2861(5), 19.7915(5) Å; α, β, γ = 99.744(2), 112.258(2), 110.568(2) °; V = 6073.7(3) ų; 3: a, b, c = 18.7606(17), 20.0088(19), 21.1091(19) Å; α, β, γ = 99.505(7), 115.794(7), 110.290(7) °; V = 6205.5(11) ų). Molecular and crystal structures are depicted in Fig. 1, 2 and in Fig. S6–S9 (ESI†). Fig. 1 illustrates the molecular structure of compound 1 (for those of 2 and 3, see Fig. S7 in the ESI†).

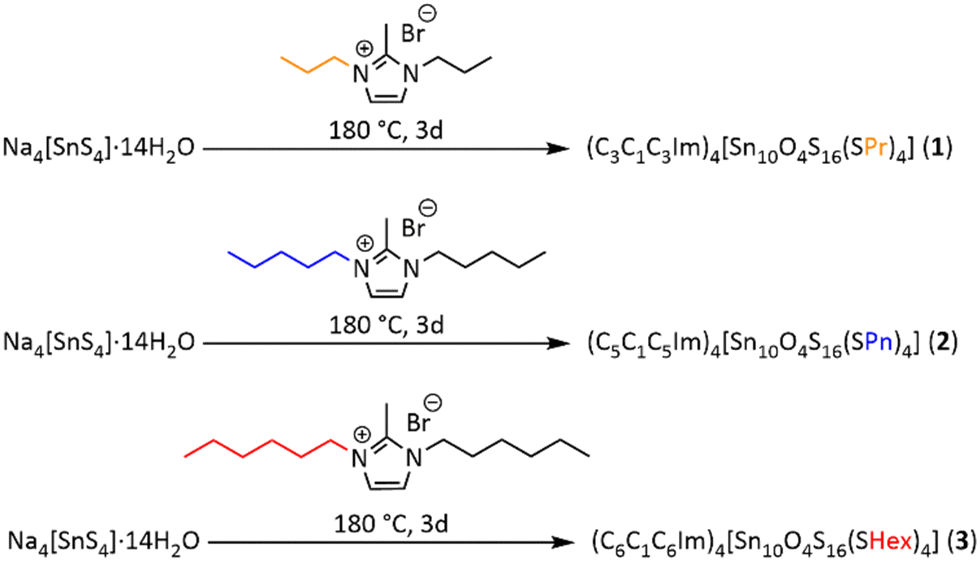

Scheme 1 Survey of the syntheses of compounds 1–3.

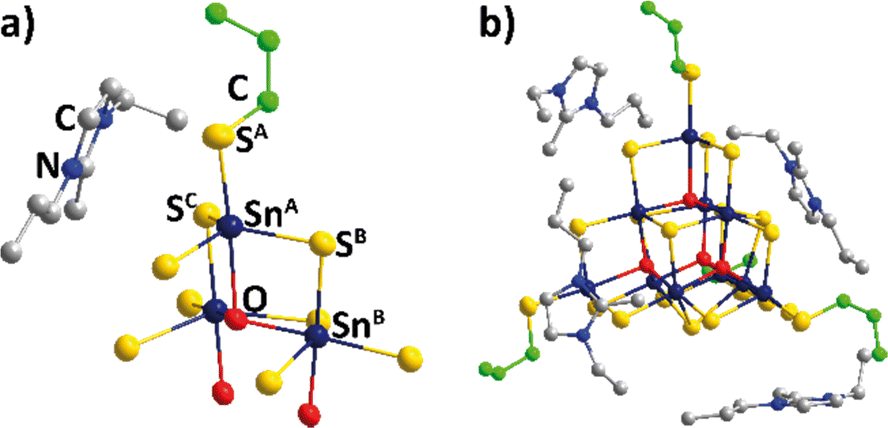

Fig. 1 (a) Asymmetric unit of the crystal structure of compound 1, (b) anion in 1 with the four closest ionic liquid cations. Cluster atoms are represented by thermal ellipsoids (50% probability), imidazolium cations and alkyl groups are shown in balls-and-sticks mode, H atoms are omitted for clarity.

Fig. 2 Simplified illustration of the packing of the anions in the crystal structures of 1 (a) and 2 (b) from different views. The cluster cores are shown only, with {SnS₄} subunits given in polyhedral representation. Cluster atoms are represented by thermal ellipsoids (50% probability), alkyl groups and counterions are omitted for clarity.

The structures are subject to some inherent crystallographic issues: The propyl, pentyl, and (especially) hexyl chains of both the anions and the cations show high conformational flexibility and disorder; thus, the alkyl groups could not be fully localized on the difference Fourier map during the refinement of the structures – despite many attempts to measure different crystals with different methods on different diffractometer types (for more details, see the ESI†). However, as outlined below, other analytical techniques and the analysis of the number of atoms that would fit into the void space served to confirm the composition. In addition, Raman spectra recorded on the single crystals (Fig. S10, ESI†) indicate the presence of S–C stretching vibrations of the S-alkyl groups at ∼735–760 cm⁻¹, yet with decreasing relative intensity as the alkyl chains get longer. Sn–S_terminal distances, which are indicative of an alkylation of the terminal sulfur ligands, are 2.458(31) Å in 1 and range between 2.427(38) Å and 2.448(35) Å in 2 and between 2.442(31) Å and 2.448(19) Å in 3. This clearly indicates the successful alkylation, as Sn–S_terminal bonds are significantly shorter in the purely inorganic clusters (2.355–2.375 Å).³³ The observed values are in good agreement with the Sn–S_terminal distances found for both the butylated (2.427(4)–2.448(4) Å)³⁹ and the methylated (2.419(17)–2.511(11) Å) analogues.^34,38

As shown in Fig. 2 and in Fig. S8 (ESI†), the alkyl chains affect the packing schemes of anions and cations in the crystals. A given cluster in 1 has four tetrahedrally arranged nearest neighbors at a distance of 11.9 Å (cluster center⋯cluster center), while the eight second-closest clusters are further apart by another ∼7 Å.

In 2, four next-neighbor clusters are found within center⋯center distances of 12.0–12.8 Å, four second-closest distances are larger by another ∼7–8 Å. The four nearest neighbors in 3 are located at center⋯center distances of 12.4–12.7 Å, while the distances to the four second-closest clusters are larger by another ∼7.5–9 Å. So, the clusters get more distant with increasing length of the alkyl chains, which correlates nicely with the optical absorption properties discussed below.

As desired, the crystals of 1, 2, and 3 are readily soluble in conventional organic solvents. Besides solubility in acetonitrile, compounds 1–3 also show solubility in DMF, DMSO, and a water:acetonitrile mixture (40 : 60). However, they dissolve most readily and most homogenously in acetonitrile, which is why all solution analytics were carried out in this solvent. This enabled us to measure ¹¹⁹Sn NMR, ¹H, and ¹³C spectra from their solutions (Fig. S11–S19, ESI†). The alkylated clusters show two predominant ¹¹⁹Sn NMR signals at around –116 and –517 ppm (Fig. 3 and Fig. S11, S14, and S17, ESI†). Both ¹¹⁹Sn chemical shifts are in accordance with reported data for Sn^IV atoms.⁴² The ¹H NMR spectra indicate the presence of the ionic liquid as counterions (C_xC₁C_xIm)⁺ (x = 3, 5, 6) besides the dealkylated form of the ionic liquid C_xCIm (x = 3, 5, 6; Fig. S12, S15, and S18, ESI†). The signals of the alkyl chains on the cluster cannot be distinguished from those attached to the counterions.³⁹

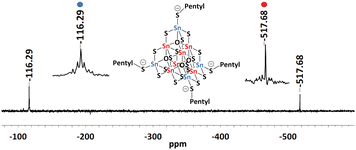

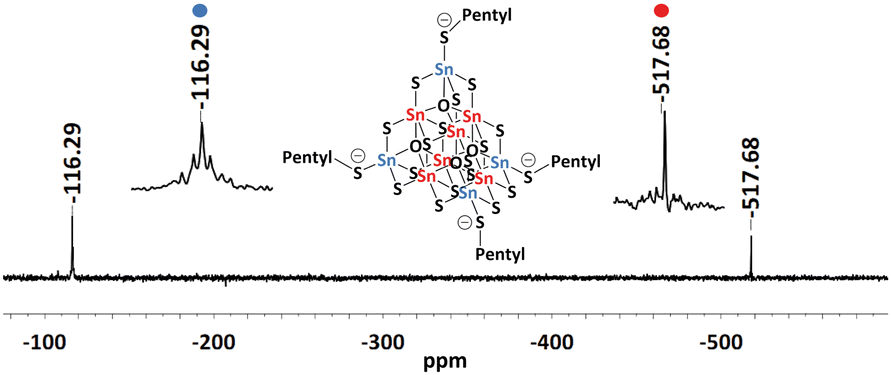

Fig. 3 ¹¹⁹Sn-NMR spectra of a solution of single crystals in CD₃CN of compound 2 with zoom into the signals assigned to the two different Sn atomic sites.

Electrospray-ionization mass spectrometry (ESI-MS; Fig. 4 and Fig. S20–S25, ESI†) in negative ion mode served to detect the alkylated anion of compound 1 as trianionic aggregate along with one (C₃C₁C₃Im)⁺ cation. The anions of compounds 2 and 3 were detected as dianions along with two counterions (C_xC₁C_xIm)⁺ (x = 5, 6) only, which we attribute to the size and mass of the larger alkyl chains. High-resolution spectra of the molecular peaks are shown in Fig. 4. The measured isotope patterns agree very well with the simulated ones, indicating that the clusters are transferred into the gas phase without decomposition. The overview spectra are provided in Fig. S9, S11, and S13 (ESI†). As shown in Fig. S22 and S23 (ESI†), also a monoanionic aggregate was transferred into the gas phase, though with lower relative abundance.

Fig. 4 High-resolution ESI(–) mass spectra of a fresh solution of single crystals of the title compounds in CH₃CN. (a) 1, detected alongside one counterion as the trianionic aggregate {(C₃C₁C₃Im)[Sn₁₀O₄S₁₆(SPr)₄]}³⁻, (b) 2, detected alongside two counterions as the dianionic aggregate {(C₅C₁C₅Im)₂[Sn₁₀O₄S₁₆(SPn)₄]}²⁻, (c) 3, detected alongside two counterions as the dianionic aggregate {(C₆C₁C₆Im)₂[Sn₁₀O₄S₁₆(SHex)₄]}²⁻.

To investigate the influence of the different organic substituents – and the concomitant structural differences – on the opto-electronic properties, we recorded optical absorption spectra of the three solid compounds. As illustrated in Fig. 5, the measured optical bandgaps amount to 2.89 eV (1), 3.19 eV (2), and 3.27 eV (3) – close to the values observed for other related clusters.³⁹ With larger alkyl chain length, the bandgap is slightly blue-shifted, with a maximum shift of 0.38 eV (3versus1) – in perfect agreement with the observations made for the crystal structures. The Tauc plots (Fig. S26–S28, ESI†) indicate that all transitions are of indirect, allowed nature.

Fig. 5 UV-visible spectra of single crystals of (a) 1, (b) 2, and (c) 3.

The photoluminescence (PL) characteristics of the three compounds were investigated in CH₃CN solution (Fig. S29 and S30 for the ionic liquids, ESI†). Upon excitation at λ_ex = 249 nm, all compounds exhibit a maximum emission peak at 317 nm. The quantum yield of all three compounds is 4.3%.

Treatment of Na₄[SnS₄]·14H₂O in imidazolium-based ionic liquids featuring a symmetrical substitution pattern, (C_xC₁C_xIm)Br (with x representing the number of carbon atoms in the alkyl chains on the imidazolium N atoms), allowed for the straight-forward synthesis of salts of partially propylated (x = 3), pentylated (x = 5) or hexylated (x = 6) tetrahedral cluster anions, (C_xC₁C_xIm)₄[Sn₁₀O₄S₁₆(SR)₄]. These compounds serve to complete a series for such cluster compounds running from x = 3 to x = 6. All compounds are readily soluble in common organic solvents, which was proven by means of NMR spectroscopy and mass spectrometry. This is a consequence of lowering the total charge of the underlying inorganic cluster anion from 8− to 4− by the four alkyl groups that are attached selectively to the fourterminal sulfur atoms and the presence of organic groups. The opto-electronic properties are slightly effected by the different packing and inter-cluster distances, but the blue-shift with increasing alkyl chain length is moderate (2.89–3.27 eV). All clusters that were shown to possess an indirect allowed optical bandgap, so this approach allows to form highly soluble wide-bandgap semiconductor clusters. Further studies will be carried out to explore the potential and effect of the attachment of substituents carrying functional groups.

This work was financially supported by the German Research Foundation (Deutsche Forschungsgemeinschaft, DFG). We thank Dr Frank Tambornino for his help with the refinement of crystal structures.

Conflicts of interest

There are no conflicts to declare.
