Ultrahigh magnetic resonance contrast switching with water gated polymer–silica nanoparticles

Abstract

Very high T₁ magnetic resonance imaging (MRI) switches can be obtained with pH-responsive polymer-coated paramagnetic mesoporous silica nanoparticles (MSNs), as the local environment traverses the pK_a of the polymer coat (Δr₁ ∼ 50 mM⁻¹ s⁻¹ at 1.5 T and Δr₁ ∼ 22 mM⁻¹ s⁻¹ at 3 T). We assign these characteristics to a strong peripheral hydration capping at the mesopores, impacting channel-confined water mobility such that outer sphere contributions to contrast are greatly enhanced.

---

Magnetic resonance imaging (MRI) is a powerful non-invasive diagnostic technique with micron spatial resolution and deep tissue penetration that empowers clinicians to resolve and monitor a wide variety of potentially fatal internal pathological conditions.^1,2 Frequent low contrast-to-noise problems can be alleviated through the use of contrast agents (CAs), most notably chelated paramagnetic ions, such as gadolinium(Gd³⁺).³ The contrast generating efficiency for a Gd³⁺-based CA can be defined by its longitudinal relaxivity, denoted r₁ (r₁ = Δ(1/T₁)/[CA]; where T₁ is the longitudinal relaxation time and [CA] is the concentration of the CA), with a high r₁ correlating to a lower required Gd³⁺ dose, which is, of course, clinically desirable. To improve the natively low molecular r₁ values a broad range of paramagnetically doped nanomaterials, with reduced tumbling rates (τ_R), have been reported.⁴ Nanoparticulate CAs additionally present a route to controlled blood circulation times, additional imaging modality incorporation, and tumour accumulation.⁵ In prior work, we, and other researchers, have shown that Gd-chelate modified mesoporous silica nanoparticles (Gd-MSNs) offer a synthetically tuneable, and biocompatible, platform with high associated image contrast.^6–12 It has been prior noted that restricted water mobility (elongated diffusional correlation times, τ_D) within the nanoconfinement of a porous reservoir significantly boosts r₁, in large part by increasing the role played by outer sphere effects.^13,14

Stimuli-responsive “smart” nanoparticulate CAs, where contrast can be switched by an endogenous or exogeneous stimulus, such as light, enzyme activity, redox environment, or local pH,¹⁵ can provide specific information on the local physiological environment, facilitating the ability to distinguish between healthy tissues and lesions, for example.^16,17 In reference to proton relaxation theory,^18,19 tuneable contrast generation can be achieved by the modulation of the diffusive mobility of either inner-sphere (those bound to the metal ions at ∼3.1 Å) or outer-sphere (with water-to-Gd distances ≥ 4.0 Å) water molecules.²⁰ For example, a number of switchable nanoparticulate CAs have been designed where the inner-sphere (IS) water exchange rate (τ_M) can be modulated by the local environment.^21–24 Prior reported smart CAs possess, however, only moderate relaxometric switches (i.e. Δr₁ < 15 mM⁻¹ s⁻¹ and often much less).^25,26 It is also known that relaxivity unhelpfully decreases for typical Gd-based CAs at the higher imaging field strengths that are becoming increasingly common.^20,27 There is, therefore, substantial room to design a high field effective CA that exhibits a significant environmentally triggered switch. To date, no stimuli-responsive CA characteristics have been reported that operate through a modulation of OS contributions.

Herein, we report a versatile surface-initiated reversible addition-fragmentation chain-transfer (SI-RAFT) polymerisation approach to modify Gd-chelate doped MSNs with a stimuli-responsive, externally grafted, polymer shell (Fig. 1a). Poly(methacrylic acid) (pMAA) has been widely reported within pH-responsive drug delivery applications,^28–30 possessing an associated pK_a of 5.2, clinically relevant, for example, to mapping deviations in pH associated with chronic inflammation.^31,32 It is also known that in its charged state pMAA has a particularly strong association with water.³³ It was envisaged that such a capping would impact the mobility of particle internalised water, and hence optimise OS relaxivities (r^OS₁).

Fig. 1 (a) An illustration highlighting the pH-responsive T₁ switch for pMAA-Gd-MSNs. For an uncharged/collapsed conformation (1), the peripheral pMAA shell possesses limited hydration, and moderate r₁ values. As the polymer shell charges and swells, its hydration increases dramatically, and a “water cap” is formed (2). (b) A plot showing the longitudinal relaxivity values (at 1.41 T) for the bare Gd-MSNs and pMAA-Gd-MSNs. The latter exhibits a Δr₁% > 182%, with the r₁ trend fitted using a Boltzmann equation to give an associated estimated pKa = 5.2 (R² = 0.99) as expected.

Initially, paramagnetic Gd-MSNs (with gadolinium (III) 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid, Gd-DOTA, modified pore channels) were synthesised according to prior reports.^34,35 The particles exhibited high colloidal uniformity with an associated size of 49.5 ± 4.2 nm (resolved by transmission electron microscopy, TEM, ESI 1a†) and a corresponding pore diameter of 3.2 ± 0.2 nm (Barrett–Joyner–Halenda pore size analysis, ESI 2†). A time delayed co-condensation method (with 0.15 mol% of an aminated silane added), biases the localisation of amino anchor groups at either the internal or external pore channel, as prior reported.³⁶ Chemical modification with an activated DOTA-NHS ester and subsequent metalation leads to the generation of the desired paramagnetic MSNs. The outer surface of Gd-MSNs was exclusively modified with a 2-(dodecylthiocarbonothioylthio)-2-methylpropionic acid modified silane (DDMAT-silane) chain transfer agent (CTA), (∼2.9 nm in size, too large to enter the mesopores, ESI 3†). Particle modification was confirmed by ultraviolet-visible spectroscopy (UV-Vis, ESI 4†), thermogravimetric analysis (TGA, ESI 5†) and attenuated total reflectance infrared spectroscopy (ATR-IR, ESI 6†), with a calculated CTA grafting density of ca. 4.5 groups nm⁻² (ESI 7†). This density facilitates the formation of a dense, thickness tuneable (based on RAFT conditions, ESI 8†), polymer brush coating from a wide variety of potential polymerizable monomers.^37–39 The generated polymer coated Gd-MSNs show an observed (and expected) increase in particle diameter after the SI-RAFT polymerisation (TEM, ESI 1b, c, and DLS ESI 8†). The living-character of the polymerisation process was confirmed by proton nuclear magnetic resonance spectroscopy (¹H NMR, ESI 9†), where monomer consumption was shown to follow pseudo-first-order kinetics (ESI 9 insets†).^40,41 The generated pMAA-Gd-MSNs possess high colloidal stability, across a broad pH range (in 10 mM Britton-Robinson buffer solution, pH 4.0–9.0), with extremely low polydispersity variation over 30 days (ESI 10,† polydispersity indices < 0.08). An expected pH-responsive switch in hydrodynamic diameter as the pK_a of pMAA⁴² is traversed (ESI 8a†). The particles exhibit no toxic effects during a 48 h exposure to HeLa cells or HEK-293T cells (ESI 11†).

Relaxivities of pMAA-Gd-MSNs were first assessed by NMR (1.4 T), where dramatic enhancements in r₁ were observed as the pK_a of pMAA is traversed (Fig. 1b, Δr₁ = 30.3 ± 3.2 mM⁻¹ s⁻¹ across 1.0 pH-unit, from pH 4.0 to pH 7.0). This “switch-on” response is not observed in the absence of a pMAA polymer coating; native Gd-MSNs exhibit constant relaxivities across the full pH range. In analogous poly(dimethylaminoethyl methacrylate) (pDMAEMA) brush coated particles, where a much weaker H-bond association with bulk water is expected,^43,44 (ESI 12†) the determined relaxivities overlap with those of bare Gd-MSNs and are non-responsive (ESI 13†). For the pMAA particles, associated image contrast enhancements were confirmed through spatially-resolved T₁-mapping experiments on clinical imaging scanners (1.5 T and 3 T; Fig. 2a), with associated T₁ and R₁ values shown in ESI 14.† These switches in r₁ are the highest reported at both magnetic field strengths (Fig. 2b and c, Δr₁ = 50.5 mM⁻¹ s⁻¹ at 1.5 T and at Δr₁ = 21.8 mM⁻¹ s⁻¹ at 3 T).^25,26 It is also notable that the relaxivities, at both fields, exceed the theoretical maxima for solely IS contributions (optimised r₁^IS ∼ 40 mM⁻¹ s⁻¹ at 1.5 T and ∼ 20 mM⁻¹ s⁻¹ at 3 T),^20,27 suggesting the presence of a composite IS/OS contribution. In fact,^6,45 IS contributions are expected to be much lower than that here (ca. 16 mM⁻¹ s⁻¹ at 1.5 T, seen ESI 16†). OS contributions are, then, both substantial and responsible for the observed Δr₁ switch (more analyses detailed below).

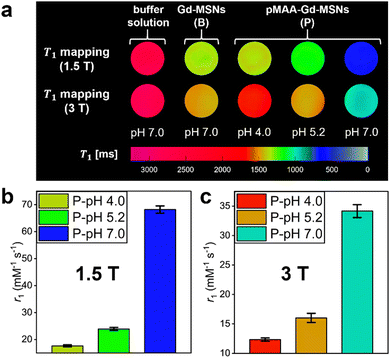

Fig. 2 (a) T₁ maps, recoded at pH 4.0, pH 5.2 and pH 7.0 (1.5 T and 3 T clinical MRI scanners), for the pMAA-Gd-MSNs (denoted as “P-”). The T₁ maps for the bare-Gd-MSNs are reported at pH 7.0 (denoted as “B-”). The MR derived relaxivities for the associated nanoparticles, across a range of pH, are included at both 1.5 T (b) and 3 T (c).

In examining the effect of polymer thickness and Gd-localisation within the particle mesopores, we note that a larger magnitude switch is observed with thicker polymer shells (at 1.4 T, ESI 17a†) but that switching magnitudes are largely insensitive to Gd-depth (at 1.4 T, ESI 17b†). This is further confirmatory of a polymer-mediated origin.

To further examine the origin of this large magnitude relaxivity switch we refer to Solomon–Bloembergen–Morgan (SBM) theory (ESI 15†). Contributions from polymer-swelling induced changes in global particle rotation are negligible (ESI 16a†). An analysis of Eu-analogues confirms metal hydration to be the same (ESI 18†) in polymer modified particles at both pH 4.0 and pH 7.0. Additionally, the modulation of the water exchange rate (τ_M) through changes in the conformational state of the polymer cannot fully account for such a high observed switch in the acquired r₁ value. Specifically, the modelled nuclear magnetic relaxation dispersion (NMRD) profile (ESI 16b†) for the IS contribution to r₁ highlights that the role of τ_M is much less significant than the expected influence of τ_D, accounting only for (at best) ∼20% of the switch in relaxivity. In recent work the presence of an MSN peripheral immobile water layer has been reported to have a substantial effect on the diffusion coefficient (D) of pore-internal water.⁴⁶ It is known that a charged polyacid brush has an unusually strong association with water, dramatically reducing its mobility.^47,48 Within a modified SBM model (ESI 15†), an entirely realistic (30–90 fold) reduction in internal water diffusion, D, can account for the enhancement in relaxivity (Fig. 3). We propose, then, that the triggered polymer charging generates a peripheral particle water “cap” that dramatically increases OS relaxivity by virtue of its impact on particle internalised water.

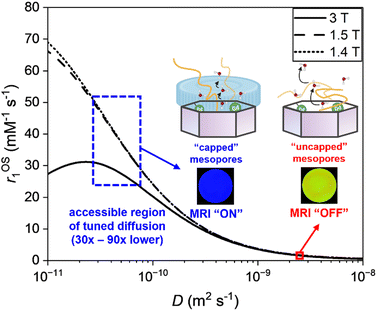

Fig. 3 The effect of the local diffusion coefficient of water on the outer-sphere relaxivity. This analytical treatment employs a modified Freed equation (at 1.4, 1.5 and 3 T), and considers the diffusion of water at r_GdH = 4.0 Å from the paramagnetic centres (ref. 49). The diffusion coefficient of confined H₂O with “uncapped” mesopores is taken from ref. 46. The diffusion coefficient of confined H₂O with capped mesopores is deduced from the experimental relaxivity data, where D is observed to be reduced by 30–90x.

To summarise, we present here paramagnetic inorganic-organic hybrid nanoparticles that exhibit a pH-mediated contrast switch that is sharp (across < 1.0 pH-unit), of an unprecedented magnitude, clinically relevant, and mechanistically new.
