Ambient temperature liquid salt electrolytes

Abstract

Alkali metal salts usually have high melting points due to strong electrostatic interactions and solvents are needed to create ambient temperature liquid electrolytes. Here, we report on six phosphate-anion-based alkali metal salts, Li/Na/K, all of which are liquids at room temperature, with glass transition temperatures ranging from −61 to −29 °C, and are thermally stable up to at least 225 °C. While the focus herein is on various physico-chemical properties, these salts also exhibit high anodic stabilities, up to 6 V vs. M/M⁺ (M = Li/Na/K), and deliver some battery performance – at elevated temperatures as there are severe viscosity limitations at room-temperature. While the battery performance arguably is sub-par, solvent-free electrolytes based on alkali metal salts such as these should pave the way for conceptually different Li/Na/K-batteries, either by refined anion design or by using several salts to create eutectic mixtures.

---

To tackle climate change, we need to develop more efficient energy storage devices such as batteries^1–4 for better use of renewable energy.¹ Several alkali-ion batteries are currently put forth, the lithium-ion battery (LIB) being the dominant technology of today,⁵ the sodium-ion battery (SIB) being an emerging technology,⁶ and the potassium-ion battery (PIB) being conceptually very interesting.⁷ The liquid electrolytes used in these batteries are all based on salts dissolved in organic solvents, which renders a number of drawbacks, in particular in terms of thermal and chemical stability and safety, but also limited electrochemical stability windows (ESWs).^8,9

Alternatives are either drastically different electrolytes, such as solid-state batteries based on solid polymer electrolytes (SPEs)^10,11 or inorganic/ceramic electrolytes,¹² or even (hybrid) metal–organic framework (MOF) electrolytes,¹³ or less so by keeping the electrolytes liquid and altering the nature of the solvent. One such path is to employ ionic liquids (ILs), with wide ESWs and liquid ranges, high ionic conductivities, negligible vapor pressures, and high thermal stabilities.^14–20 However, this adds complexity, as another (organic) cation is introduced, and it also increases the cost of the electrolyte.

A more profound change is to use alkali metal salts that themselves are liquids at ambient temperature. Only a few such examples exist, e.g. the lithium aluminates²¹ and lithium borates²² containing two oligoether groups and two electron-withdrawing fluorinated moieties rendered viscous liquids at ambient temperature with ionic conductivities ranging from 10⁻⁵ to 10⁻⁴ S cm⁻¹. The Li/Na-TOTO salts, where TOTO is 2,5,8,11-tetraoxatridecan-13-oate, exhibit glass transition temperatures at −53 and −57 °C, respectively (whereas K-TOTO is a white solid melting at +60 °C).²³ The triethylene glycol-based 1,2,3-triazolate lithium salt revealed a glass transition temperature of −50 °C and ionic conductivity of 6.5 × 10⁻⁷ S cm⁻¹ at 30 °C.²⁴ None of these have been studied as electrolytes in batteries. The recently reported ambient temperature liquid salts based on fluorinated lithium borates, however, with ionic conductivities from 5.3 × 10⁻⁶ to 1.8 × 10⁻⁴ S cm⁻¹ at 25 °C, show high compatibility with lithium metal electrodes with stable plating/stripping and overall promising battery performance.²⁵

Apart from the uttermost need to be weakly coordinating anions (WCAs),²⁶ the anions employed should be asymmetric and structurally flexible – to lower the melting point and maximize fluidity/ionic conductivity.²⁷ A more common way to create solvent-free electrolytes is eutectic salt mixtures.^28,29

With the goal to create ambient temperature liquid alkali metal salts, inspired by basic IL anion design criteria in general and the oligoether-based anions in particular, we created two different oligoether phosphate anions, bis(2-(2-(2-methoxyethoxy)ethoxy)ethyl) phosphate [TEEP]⁻ and bis(2-(2-ethoxyethoxy)ethyl) phosphate [DEEP]⁻, from their corresponding neutral tris(2-(2-(2-methoxyethoxy)ethoxy)ethyl) phosphate (TMOP) and tris(2-(2-ethoxyethoxy)ethyl) phosphate (TEOP), respectively. The phosphorus content might also bring flame-retardant properties³⁰ and the long ethylene oxide-based side-chains should provide both asymmetry and structural flexibility.³¹

First brief descriptions of the synthesis and the characterization of the intermediate and final products are presented, followed by thermal behaviour, transport properties including ionic conductivity and ion diffusion data. The ion–ion interactions and their effects on the ion transport and dynamics are monitored using NMR and FTIR spectroscopies and, finally, systematic electrochemical assessments of the neat salts are discussed together with minor battery cycling tests.

In the first step, two neutral species, the trialkyl phosphates (TMOP and TEOP) are synthesized with reasonably high yields (>80%) by reacting the commercially available phosphoryl chloride and the corresponding primary alcohol without any solvent at an ambient temperature for 8 hours (Scheme 1). The ¹H NMR spectrum of TMOP (Fig. S1, ESI†) shows a sharp singlet at 3.32 ppm, which is assigned to the aliphatic methoxy protons of the ether chain. The three sets of ¹H resonance lines observed in the ¹H NMR spectrum of TMOP are due to the three different kinds of chemically inequivalent ethoxy protons. Similarly, in the case of TEOP, the methyl protons of ethoxy groups appear as a triplet at 1.11 ppm and five sets of ¹H resonance lines are observed because of the five different chemically inequivalent protons of the ether chain (Fig. S4, ESI†). All the characteristic ¹³C resonance lines corresponding to the trialkyl phosphates are observed in the ¹³C{¹H} NMR spectra for both TMOP and TEOP (Fig. S2 and S5, ESI†). Finally, in the ³¹P NMR spectra, sharp singlet peaks are observed at −1.03 and −1.14 ppm for TMOP and TEOP, respectively (Fig. S3 and S6, ESI†).

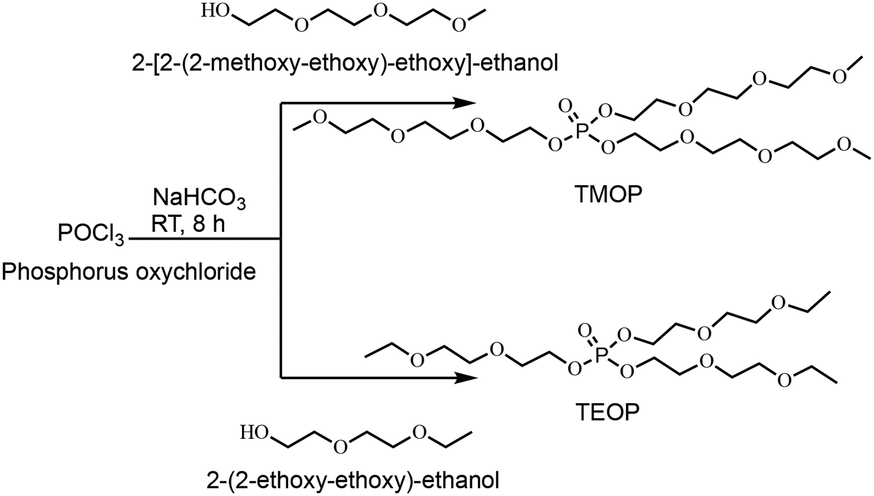

Scheme 1 Synthesis of TMOP and TEOP trialkyl phosphates.

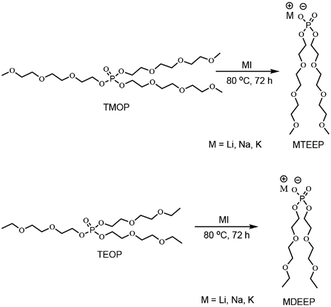

In the second step, TMOP and TEOP trialkyl phosphates were reacted with metal iodide in a 1 : 1 stoichiometric ratio to obtain the six liquid alkali metal salts (Scheme 2).

Scheme 2 Synthesis of phosphate-based alkali metal salts.

The ³¹P{¹H} NMR spectra of these alkali metal salts all revealed single ³¹P resonance lines, confirming the purity of the final products. The ³¹P resonance lines of the salts are deshielded by 1 to 3 ppm as compared with those of the neutral TMOP and TEOP trialkyl phosphates. As expected, the ¹H NMR spectrum of NaTEEP shows a sharp singlet at 3.39 ppm for the methoxy protons of the ether chain (Fig. S13, ESI†), while it is a triplet at 1.22 ppm in the case of NaDEEP because the –CH₃ is directly attached to a –CH₂– group (Fig. S16, ESI†). The methylene groups of NaTEEP give three different sets of ¹H resonance lines (Fig. S13, ESI†), while in the case of NaDEEP five sets of ¹H resonance lines are observed (Fig. S16, ESI†). Similar trends are found in the ¹H NMR spectra of the other five salts. The ¹³C{¹H} NMR spectra of all these salts show all the characteristic resonance lines. ⁷Li and ²³Na NMR show single resonance lines for all salts. All the NMR spectra are shown in the ESI.†

The dynamic TGA data revealed the decomposition temperatures (T_d) to be in the range from 225 to 292 °C (Fig. S31a and Table 1, ESI†). The influence of the alkali metal cation is clear as the Li/K-salts are more stable. The reason being that the Na-salts have a two-step decomposition path, <250 °C and >300 °C, while the Li/K-salts have all their weight loss in a single step. Ultimately this must be due to differences in the ion–ion interactions.

Table 1 Molecular weights, decomposition temperatures, glass transition temperatures, and ionic conductivities of the salts

Salt	M W (g mol^−1)	T d (°C)	T g (°C)	σ 30 °C (mS cm^−1)	σ 60 °C (mS cm^−1)
LiTEEP	396.30	292	−58	0.04	0.23
LiDEEP	336.24	289	−61	0.01	0.08
NaTEEP	412.35	245	−29	0.04	0.14
NaDEEP	352.29	225	−41	0.01	0.04
KTEEP	428.45	277	−39	0.03	0.24
KDEEP	368.40	268	−46	0.02	0.14

---

The DSC traces of all show the presence of glass transition temperatures (T_gs), confirming all salts to be glass forming liquids (Fig. S31b, ESI†) that are significantly affected by the nature of the alkali cation, likely originating from different ion–ion interactions (Table 1). The lower T_gs of the Li-salts indicate slower crystallization rates and stable supercooled states. Overall, these salts present significantly lower T_gs than those of the popular M-TFSI salts with T_gs > 60 °C.³²

The alkali metal salts have ionic conductivities >10⁻⁵ S cm⁻¹ at 30 °C (Fig. 1a and Table 1), which are slightly lower than those of common fluorinated IL-based electrolytes.³³ Specifically, this is higher than for the 1,2,3-triazolate lithium salt²⁴ and comparable with lithium aluminates²¹ and borates,^22,25 which also are liquids at ambient temperature. The TEEP-based salts exhibit the higher ionic conductivities, while decreasing as Na⁺ > Li⁺ > K⁺ in the lower temperature range, and vice-versa in the higher temperature region. This suggests that the K-salts are more easily dissociated as compared to the Li/Na-salts. The VFT parameters show no significant differences in T₀, while both σ₀ and E_σ are higher for the DEEP-based salts, in accordance with the DSC data and show a higher thermal energy to be required for the same ionic mobility.

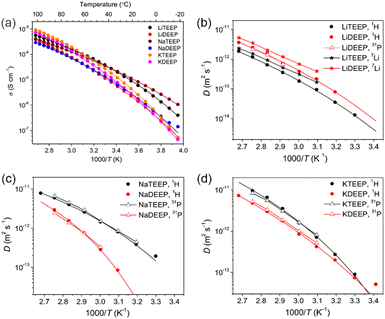

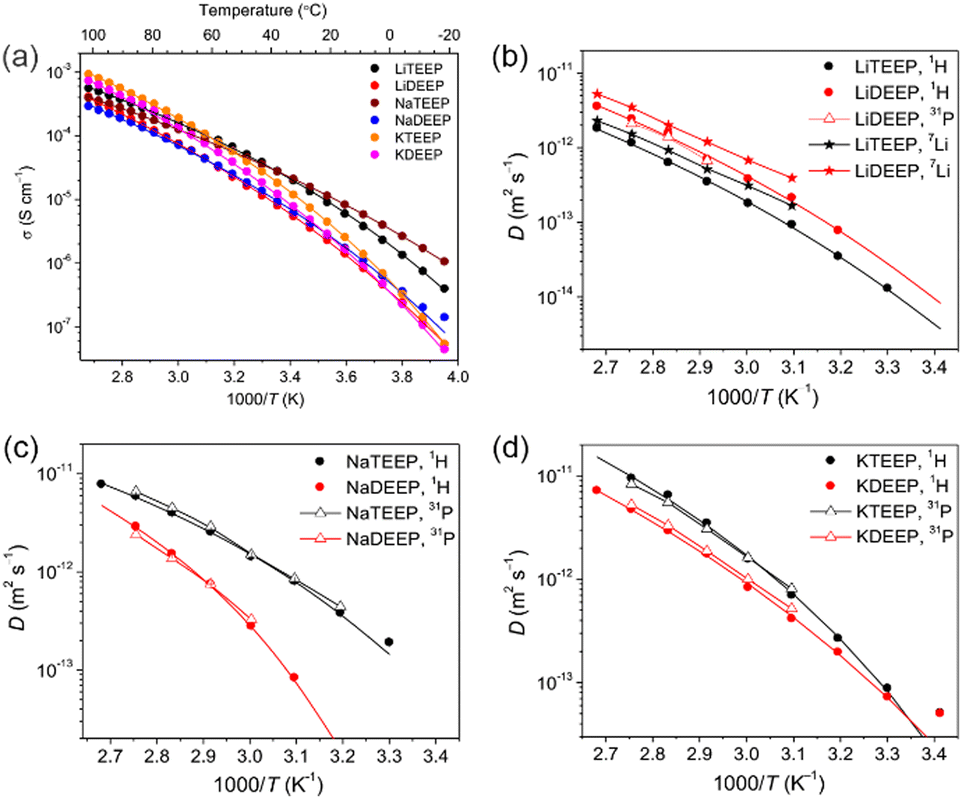

Fig. 1 Temperature-dependent ionic conductivities (a), and diffusion coefficients for (b) Li-, (c) Na- and (d) K-salts as measured by ¹H, ⁷Li and ³¹P NMR spectroscopy. The lines are best VFT fits.

The ¹H and ³¹P NMR spectroscopy diffusion decays (DDs) are close to a single-component form for all our salts and the diffusion coefficients (D_s) obtained match very well throughout the whole temperature range (Fig. 1 and 2). For the Li-salts, the DEEP anion diffuses faster than the TEEP anion (Fig. 1b), although the latter salt exhibits higher ionic conductivity. In addition, the Li⁺ ions diffuse faster in LiDEEP than in LiTEEP, but vice versa for the Na- and K-salts (Fig. 1c and d), which is in accordance with the ionic conductivities. The unusual mobility of the DEEP anion in the LiDEEP salt might be due to its complicated structure, which is evident from the ³¹P and ⁷Li spectra (Fig. S33 and S35, ESI†) and is further outlined below. The nature of alkali metal cations significantly affects the diffusivity of the anions; the TEEP anion diffuses slower in combination with Li⁺, while the TEEP anion has comparable diffusivities when coupled with Na⁺ or K⁺ (Fig. 2a).

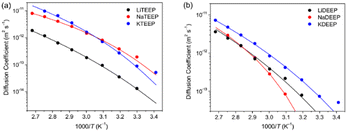

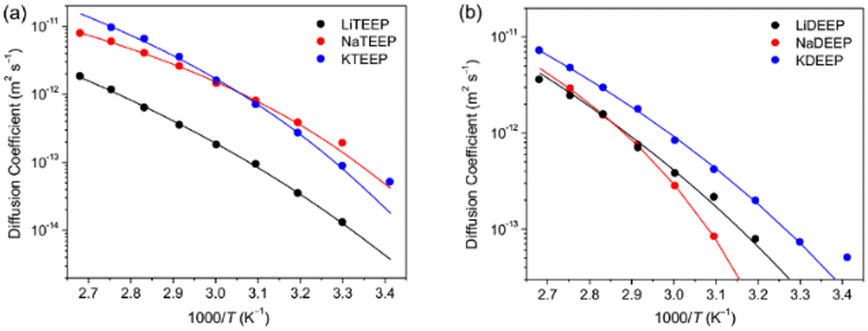

Fig. 2 Effect of alkali metal cations on the diffusion coefficients of the anions (a) TEEP and (b) DEEP, as derived by ¹H NMR spectroscopy.

On the other hand, the DEEP anion combined with K⁺ diffuses faster than when combined with Li⁺ or Na⁺ (Fig. 2b), which is in accordance with simulations of both aqueous and non-aqueous Li⁺, Na⁺ and K⁺ electrolytes.^34,35

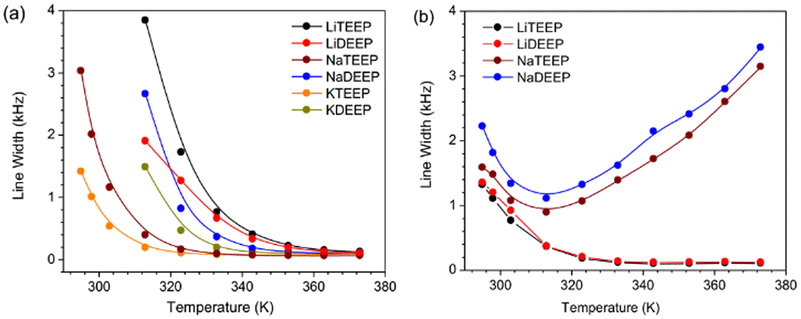

Fig. 3 Line widths (FWHM) of (a) the ³¹P NMR and (b) ⁷Li and ²³Na NMR spectra of our six salts as a function of temperature.

From the multinuclear (³¹P, ⁷Li, and ²³Na) NMR spectra we first find that the full width at half-maximum (FWHM) of the ³¹P NMR spectra are broader for all salts at lower temperatures and narrower with increasing temperature, suggesting acceleration of reorientations (Fig. 3a), while the same behaviour for the ⁷Li NMR spectra (Fig. 3b) suggests faster Li⁺ ions and, possibly, changes in the local environments of both the ³¹P and ⁷Li nuclei.

The ²³Na NMR spectra, however, show a sharp FWHM decrease followed by an increase, which indicates a strong influence of quadrupolar interactions leading to ion dynamics, as ²³Na has a larger quadrupolar moment than ⁷Li. A similar trend for NaTFSI containing IL-based electrolytes was suggested to be due to motional broadening.³³ The sharp up field chemical shift in the ³¹P NMR spectra as a function of temperature (Fig. S32 and S33, ESI†) suggests weakened ion–ion interactions and increased mobility. In contrast, no significant changes are observed in the ⁷Li NMR spectra (Fig. S32b and S35, ESI†), while there are substantial down-shifts in the ²³Na NMR spectra (Fig. S32b and S34, ESI†). All combined, this suggests that the Na-salts are readily dissociated at increased temperatures. LiDEEP shows single resonance lines at lower temperatures, but an additional resonance line in both the ⁷Li and the ³¹P NMR spectra at higher temperatures, indicative of two phases being present (Fig. S33 and S35, ESI†). Subsequently dissolving LiDEEP in CDCl₃ renders only single resonance lines confirming that the additional peaks are neither from any impurity nor any decomposition product.

Turning to the FTIR spectra, these foremost show significant changes in the characteristic stretching frequencies of the P=O, PO₃, O–P–O and P–O–C groups, when comparing the salts with the neutral intermediates and as a function of cation (Fig. S36, ESI†). The symmetric stretching band of the P=O group is shifted to lower wavenumbers upon cation interactions of different strengths (Fig. S36a, ESI†). A similar trend is observed for the DEEP-based salts (Fig. S36d, ESI†). Similarly, the PO₃ stretching band at 1026 cm⁻¹ shifts based on the cation and from a neutral compound to a salt (Fig. S36b and e, ESI†). Finally, the band at 978 cm⁻¹ (O–P–O stretching mode) for TMOP and TEOP down-shifts similarly, as well as the weak bands at 849 and 835 cm⁻¹ ((P–O)–C stretching modes) (Fig. S36b and e, ESI†). Notably, both the O–P–O and (P–O)–C shifts indicate stronger interactions with Na⁺ and K⁺ cations (Fig. S36c and f, ESI†).

For basic assessment of the ESW, cathodic and anodic LSV scans were performed to determine both the reduction of the alkali cations and the oxidation of the phosphate anions. No cathodic peaks are observed for the former, while the latter reveal excellent resistance to oxidation (Fig. 4 and Table S3, ESI†). That the M-DEEP salts outperform the M-TEEP salts might be due to the stronger resonance or mesomeric effect ability of the ethoxy group, as opposed to the methoxy group of TEEP, attached to the oligoether chain, as the higher the mesomeric effect, the higher the electrochemical stability.³⁶ The effect is somewhat less pronounced for NaDEEP when using GC electrodes and overall all the salts exhibit significantly higher oxidative stability using the GC electrodes.

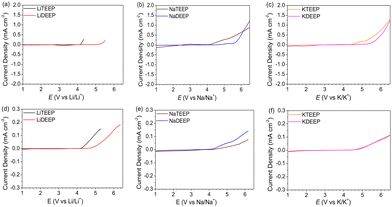

Fig. 4 Anodic LSV scans for our six salts using Pt (a–c) and GC (d–f) WEs, respectively, and a scan rate of 1 mV s⁻¹ at 20 °C.

Moving to the single, proof-of-concept, alkali battery assessment, the Li/LiTEEP/LTO cell shows the characteristic plateau of LTO at 1.5 V vs. Li⁺/Li° (Fig. 5). Clearly, the full capacity of the electrode cannot be reached, likely due to viscosity-limited penetration of the electrode by the electrolyte, and hence only a small portion of the electrode is active. The capacity increases as a function of temperature (60 °C), but while we can run 10 cycles, this results in large capacity fading – either due to side-reactions, such as electrolyte decomposition, or to clogging of the electrode pores, leading to even less accessibility to the active material.

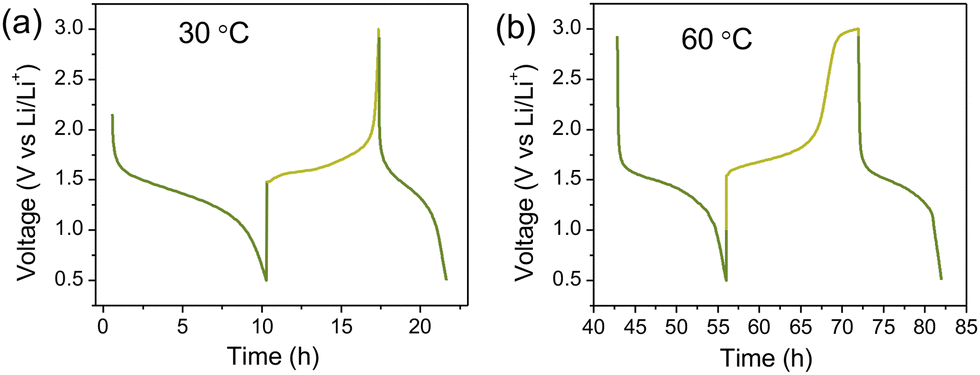

Fig. 5 Galvanostatic cycling of Li/LiTEEP/LTO cells using 0.025 mA at (a) 30 °C and (b) 60 °C.

To conclude, these ambient temperature liquid alkali metal salts present unique possibilities for fluorine-free and solvent-free electrolytes. The salts provide appreciable thermal and electrochemical stabilities, low glass transition temperatures, and moderate ionic conductivities – which do increase with temperature. The Na⁺ cation seems to interact differently with the anions as compared to both Li⁺ and K⁺. There is some fundamental promise for the salts to be applicable to Li/Na/K batteries. A caveat is that they all contain more water than most inorganic salts used for batteries and this, alongside the stability vs. reduction and stripping/plating behaviour, is an area for further development and study.

S. B.: synthesis, characterization, writing original draft. M. A.: characterization, editing. A. F.: NMR diffusometry, editing. L. C. L.: electrochemistry, editing. F. U. S.: supervision, conceptualization, methodology, editing. P. J.: conceptualization, methodology, editing. The Kempe Foundation in Memory of J. C. and Seth M. Kempe are gratefully acknowledged for the stipend for S. B. (grant number: SMK-1945). The Swedish Energy Agency (project number: 48194-1) is acknowledged for supporting this work.

Conflicts of interest

There are no conflicts to declare.
