Oxidative insertion of amines into conjugated macrocycles: transformation of antiaromatic norcorrole into aromatic azacorrole

Abstract

A new group of aromatic porphyrinoids was obtained by an oxidative insertion of primary amines into the antiaromatic ring of 5,14-dimesityl-norcorrolatonickel(II) activated by iodosobenzene. The substituted 10-azacorroles thus formed were characterized by spectroscopic and electrochemical methods, and XRD analysis. Protonated forms of azacorroles were shown to remain aromatic despite disconnection of the original π-electron delocalization path.

---

The aromaticity and antiaromaticity of complex polycyclic systems have attracted the attention of chemists of various fields owing to theoretical interest in these phenomena as well as a potential applicability.^1–17 Porphyrinoids constitute a class of macrocyclic systems that include both aromatic and antiaromatic species.^18–24 The prominent representatives of the planar tetrapyrrolic porphyrinoids, i.e. aromatic corrole (Corr)^25,26 and antiaromatic norcorrole (NCorr)^27–29 both possess twenty π-electron pools but differences in the macrocyclic scaffolds allow 18πe porphyrin-like (Por) delocalization in the former and 16πe delocalization in the latter (Fig. 1). An interplay between the aromaticity and antiaromaticity of porphyrinoids involves oxidation/reduction processes^30–35 or alteration of the π-electron delocalization path achieved by the macrocycle skeleton modifications.^{19–21,28,31,32,36–50}

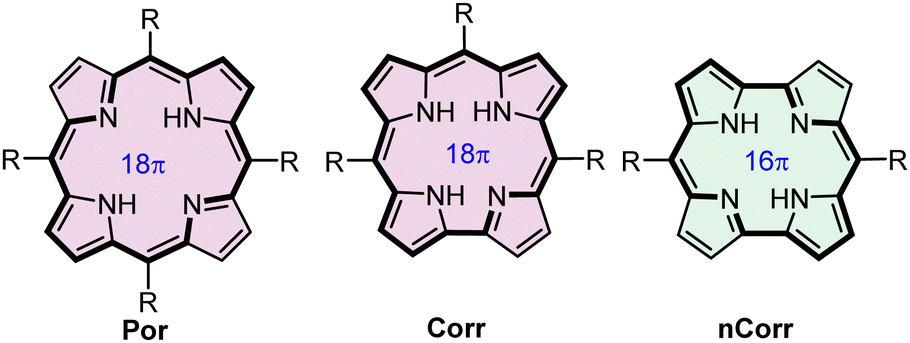

Fig. 1 Schematic representations of the π-electron delocalization paths in selected tetrapyrroles.

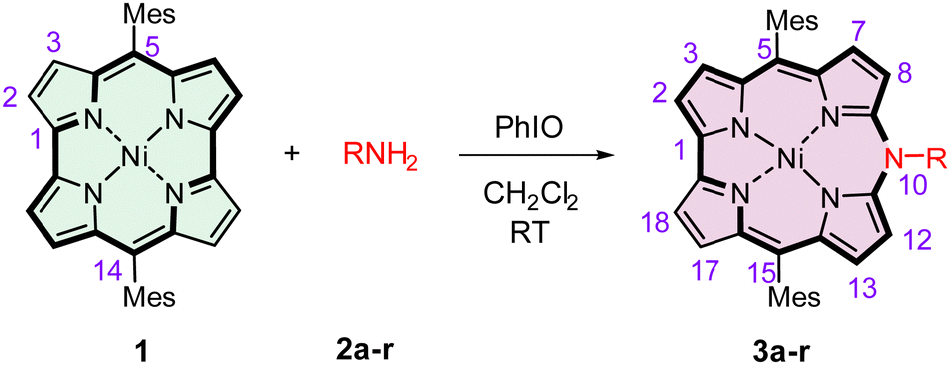

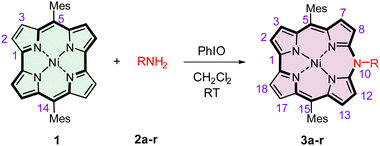

Originally reported 10-azacorroles have been obtained by annulation of the predefined linear dipyrrin precursors,^37,39,40 and likewise the N,N′-substituted diazaporphyrins and their complexes.^31,32,38,51 We found out that a broad family of N-substituted azacorroles can be synthesized in a one-step one-pot reaction of readily obtainable 5,14-dimesitylnorcorrolatonickel(II) 1 with primary amines (Table 1).^52,53 In the present paper, the structural, spectroscopic, redox, and acid–base characteristics of this novel group of porphyrinoids are presented.

Table 1 Synthesis of 10-R-azacorrolatonickel(II)

Entry	Product	R	Time (h)	Yield^a (%)
a Isolated yields, reaction conditions: 1 (0.052 mmol, 1 equiv.), 2 (0.234 mmol, 4.5 equiv.), PhIO (0.18 mmol, 3.5 equiv.), CH2Cl2 (5 mL), room temperature. b The product was obtained with isoamyl nitrite instead of PhIO with 30% yield after 30 min.
1	3a	4-ClPh	2.0	61
2	3b	4-BrPh	2.0	54
3	3c	4-FPh	2.0	65
4	3d	4-NO2Ph	1.0	71
5	3e	4-CNPh	1.5	81
6	3f	4-CHOPh	2.5	84
7	3g	4-CO2MePh	2.5	72
8	3h	3-ClPh	1.0	80
9	3i	3-BrPh	1.0	82
10	3j	3-FPh	2.5	82
11	3k	3-MePh	2.5	78
12	3l	3-OMePh	2.0	74
13	3m	2,6-Cl2Ph	4.0	26
14	3n	2,6-Br2Ph	4.0	24
15	3o	4-MePh	4.0	52
16	3p	Ph	4.0	55
17	3q	Et	20	26
18	3r	Pr	7.0	39
19	3s	4-OMePh	12	N.D.^b

---

In the early stage of our studies, we reacted 1 with aniline, o-, m-, and p-toluidine, or m- and p-anisidine in the presence of an excess of isoamyl nitrite previously used as a nitrating agent.³⁰ The reaction gave rise to insertion products, i.e., 10-N-(aryl)-5,15-dimesityl-10-azacorrolatonickel(II) with about 30% yield after 30 min of reaction time at room temperature in dichloromethane. No reaction, however, was observed for amines with strongly electron-withdrawing substituents on the amine aryl rings. Thus, we tested several catalysts with rational anticipation that they should act as oxidants generating an active form of the norcorrole. Our survey involved FeCl₃, MnO₂, PbO₂, Mn₂(OAc)₃, PIFA (PhI(OCOCF₃)₂), mCPBA, PhI(Oac)₂, PhIO, p-chloranil, and DDQ, which were applied to the reaction of 1 with 4-chloroaniline. Only for iodosylbenzene, the reaction ran effectively yielding 61% of 10-N-(4-chlorophenyl)-5,15-dimesityl-10-azacorrole 3a (Table 1), and for p-chloranil as the oxidant the yield was 8%. A 4.5 times excess of the amine over the norcorrole in the presence of 3.5 equiv. of PhIO allowed the highest yield of the azacorrole to be reached. The reaction carried out under the same conditions for other amines gave rise to azacorrole products with 24–84% yields (Table 1). No azacorrole was formed for p-anisidine, p-aminophenol, 1,4-diaminobenzene, or 3,4,5-trimethoxyaniline, likely due to oxidation of these amines by PhIO. Significantly, the reaction of 1 with another hypervalent iodine oxidant PIFA has been shown⁵⁴ to result in a regioselective macrocyclic ring fission at the bipyrrole α–α′ bond leading in the presence of alcohols to linear tetrapyrroles terminated symmetrically with alkoxy-groups.⁵⁴ On the other hand, reactions of 1 with primary amines have been reported to result in mono- or bis-aminated norcorroles.⁵⁵ Apparently, a mild oxidant (PhIO) is sufficient to produce a cationic radical [1]˙⁺ that reacts with the amine molecule at the initial step of the reaction.

The new compounds were characterized by high-resolution mass spectrometry, ¹H and ¹³C NMR, optical spectroscopy, and for selected systems, also by single crystal X-ray diffraction analyses (Fig. 2 and Tables S6 and S7, ESI†).⁵⁶ HRMS confirmed the compositions of all azacorrole products, while four doublets of the pyrrole β-protons in the region of δ 7.2–8.3 ppm in ¹H NMR spectra clearly indicated the effective twofold symmetry of the molecule and aromatic character of these systems. The obvious differences among the spectra of 3a–s arose from the presence of various substituents at N10. The crystal structures (Fig. 2) revealed the planarity of the macrocyclic rings with a marginal ruffling distortion in 3d, 3e, and 3h and slight saddling distortion in 3s (Fig. S114–S117, ESI†).⁵⁷ The absorption spectra of all the systems were similar with a Soret-like band at 395 nm and three weaker Q-bands at 563–565 nm, 586–592 nm and 630–643 nm. These spectra were also similar to that of unsubstituted or N-acetylated azacorroles³⁷ and strongly differed from that of the parent norcorrolatonickel(II) 1 reflecting a change from antiaromaticity of 1 to aromaticity of the azacorrole ring. The cyclic voltammetry (Fig. S118–S136 and Table S1, ESI†) showed two reversible oxidation processes (ox1, ox2) for all the systems with potentials E_ox1 ranging from 0.13 to 0.22 V and E_ox2 from 0.67 to 0.75 V (all potentials vs. Fc/Fc⁺ internal standard). Apparently, the oxidations occurred at potentials similar to those reported for the parent system 1. The potentials of reversible first reductions E_red1 (from −2.15 to −2.05 V) were similar to those observed previously for other 10-azacorrolatonickel(II) complexes³⁷ but about 1.1 V lower than the first reduction potential of 1.^28,30 The TD DFT calculated HOMO–LUMO energy gap (2.21 eV for 3d) was close to the difference between the first oxidation and first reduction potentials (e(E_ox1 – E_red1) = 2.36 eV for 3d, Table S1, ESI†). Thin-layer spectroelectrochemical measurements in DCM indicated a ligand-centered oxidation (Fig. S144 in ESI†) with a significant decrease of the Soret-like band intensity, hypsochromic shift of this band (from 396 to 360 nm) as well as broadening and bathochromic shift in the Q-band region (to 667 and 702 nm). These changes indicated loss of the aromatic character of the macrocycle in 3p+˙ upon removal of the first electron^58–61 likely due to involvement of the meso-nitrogen electron lone pair in the delocalization path of 3. Chemical oxidation of 3p with tris(4-bromophenyl)ammoniumyl hexachloroantimonate (BAHA, Magic Blue)^62,63 resulted in similar spectral changes (Fig. S145 and S146 in ESI†). A BAHA-generated EPR spectrum of 3p+˙ confirmed the radical character of the mono-oxidized species^64–67 with an isotropic signal at g₀ = 2.0198 (RT, DCM, Fig. S147, ESI†) and frozen-solution spectrum of orthorhombic symmetry and small anisotropy of the Zeeman tensor (g₁ = 2.0295, g₂ = 2.0193, g₃ = 2.0042, see Fig. S149 in ESI†) at 77 K.^{47,60,64–67}

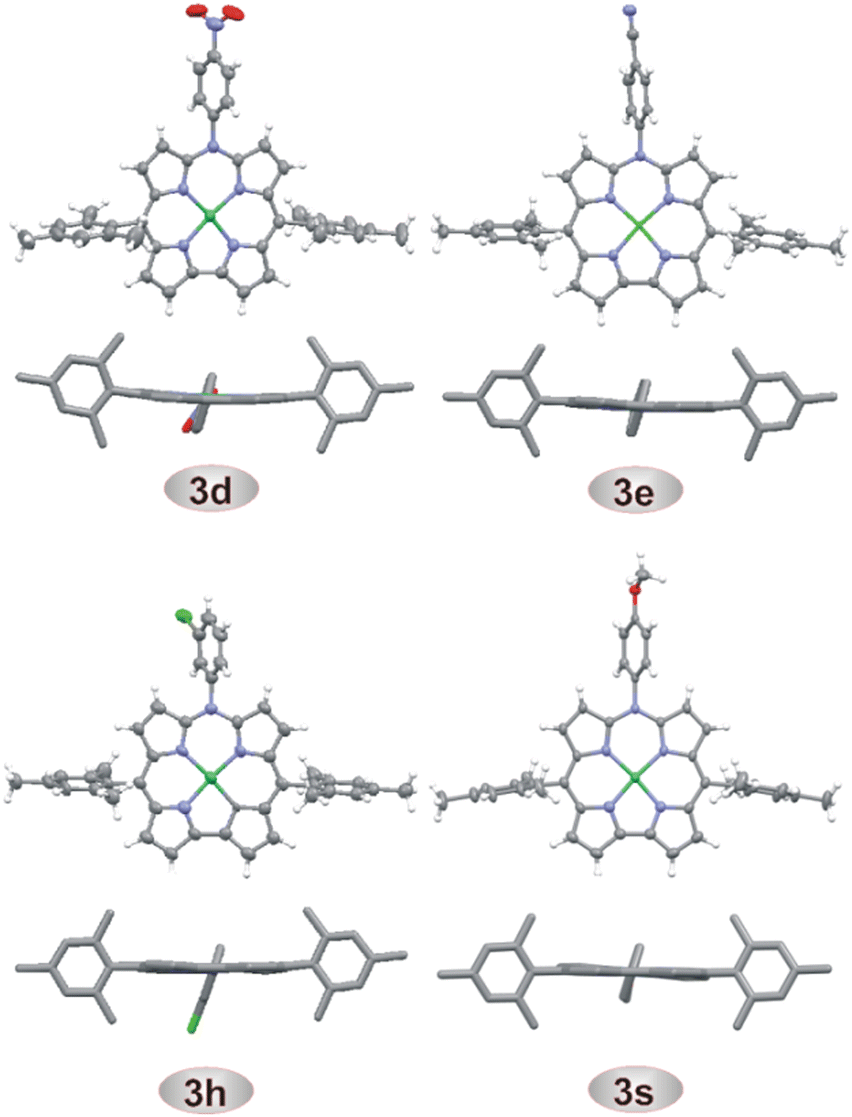

Fig. 2 Thermal ellipsoid (50% probability level, front projections) and stick representations (side views with all hydrogens omitted) of 10-(p-NO₂Ph)-, 10-(p-CNPh)-, 10-(m-ClPh)-, and 10-(p-OMePh)-5,15-dimesityl-10-azacorrole nickel(II) complexes.

Addition of trifluoroacetic acid (TFA) to a solution of 3 in CH₂Cl₂ or CHCl₃ resulted in reversible spectral changes (Fig. 3A and Fig. S140–S142, ESI†). The full conversion into the protonated form required high excesses of the acid, i.e. 2–5% (v/v) of TFA. These changes can be fully reversed by the addition of the equivalent amount of triethylamine. The protonation was also monitored by low-temperature ¹H NMR (CDCl₃, 220 K) to slow down chemical exchange. Addition of 1% of TFA resulted in the appearance of a new set of sharp signals attributed to the protonated species [3iH]⁺ (Fig. 3B). The 2D homo- and heteronuclear NMR experiments indicated pyrrole β-carbon C3 as an exclusive protonation site (Fig. 3B and Fig. S150–S154, ESI†) despite the apparent lack of any steric factors discriminating among the four distinct targets. However, deuteration by means of TFA-d (CDCl₃, 220 K) revealed that all pyrrole β-CH's, except equivalent sites at C7 and C13 were subjected to the isotope exchange (Fig. S155 in ESI†). The DFT-determined relative stability of [3dH]⁺ tautomers unequivocally indicated C3/17 as the most, while C7/C13 as the least favorable protonation sites among pyrrole β-carbons, in line with the experimental results (Fig. 3C and Table S17, ESI†). The sp³ hybridization of C3 revealed by its chemical shift in the ¹³C NMR spectrum (δ_C 48.1 ppm) indicated disconnection of the original π-electron conjugation path at the protonated pyrrole. Despite that, the macrocyclic aromaticity of azacorrole in the protonated state was retained as it could be inferred from chemical shifts of the pyrrole β-protons in an aromatic region of δ 7.2–7.7 ppm (Fig. 3B). The GIAO-calculated proton chemical shifts for [3dH]⁺, negative sign of all NICS(1) values determined over the centroids of each ring, and anisotropy of the induced current density (AICD) were in line with the aromaticity of 3-protonated azacorrolatonickel(II) (Fig. 3D). To account for this, canonical structures with positive charge localized at the pyrrole β-carbon adjacent to the protonation site, thus allowing 18π-electron conjugation, are needed to be involved in the resonance (Fig. 3D).

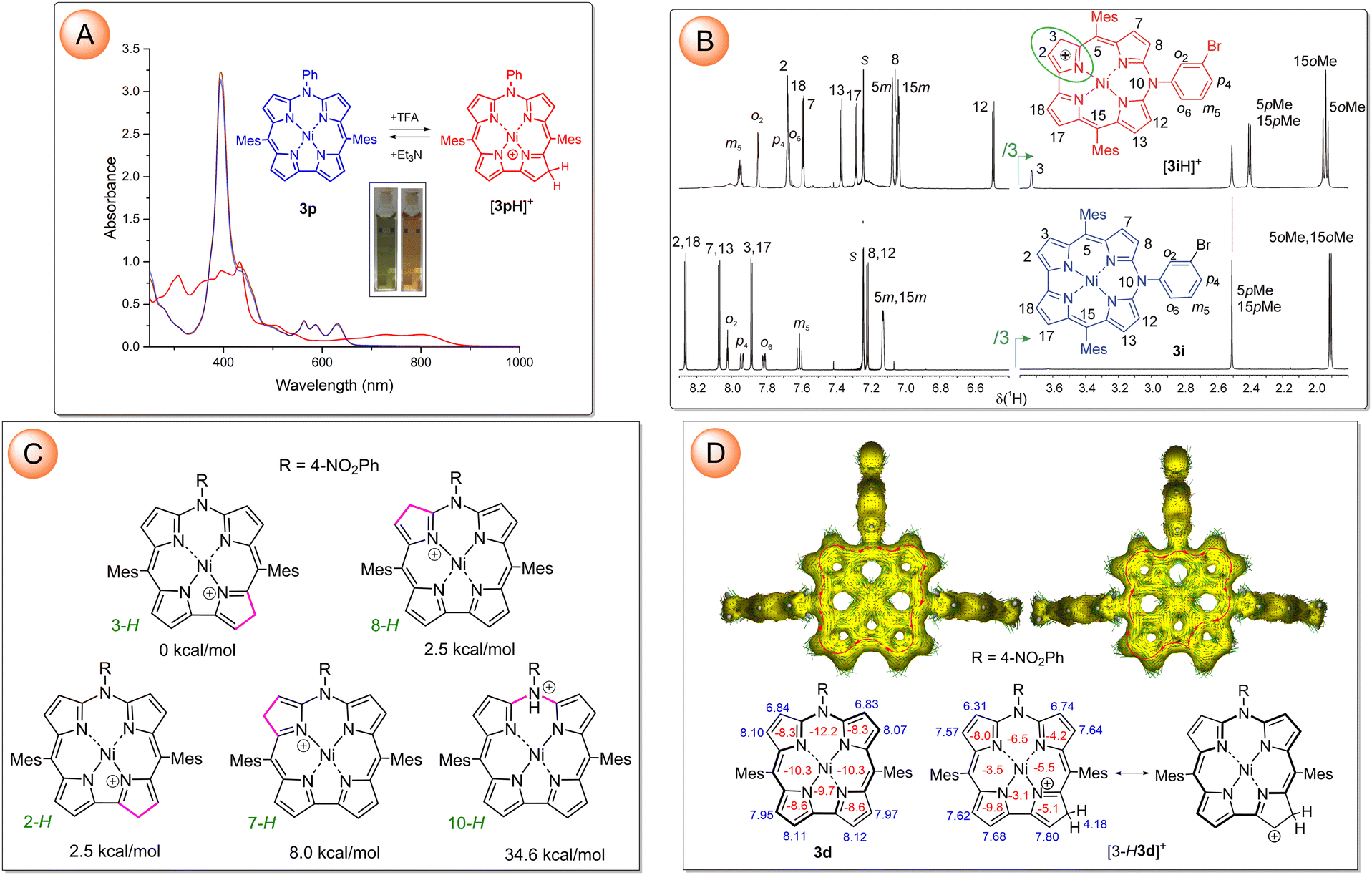

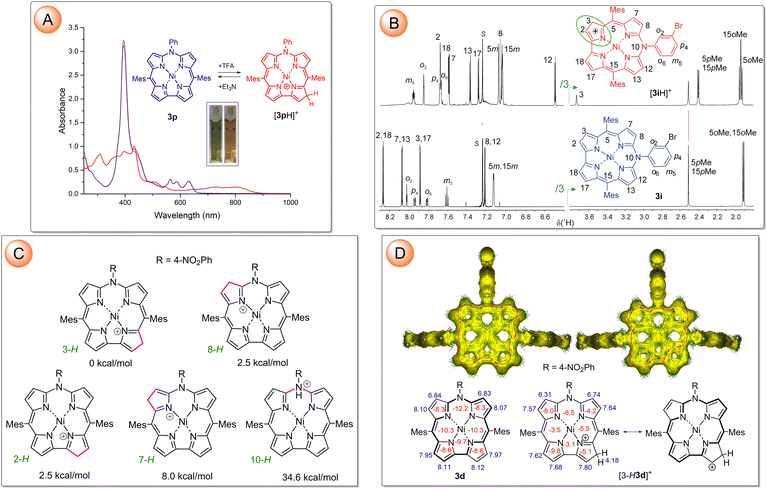

Fig. 3 (A) Superimposed UV-vis-NIR spectra of the 3p solution in DCM (brown trace), that was recorded upon addition of TFA (10 equiv. red trace), and after neutralization with Et₃N (10 equiv., blue trace). (B) Expansions of selected regions of ¹H NMR spectra of 3i (lower trace) and its protonated derivative [3iH]⁺ (upper trace) with the signal assignments (CDCl₃, 220 K). Note that in the high-field region, the intensities of the signals are divided by the factor of 3. (C) Structures of possible tautomers of [3dH]⁺ with relative energies of the DFT-optimized models. (D) GIAO-calculated chemical shifts (blue numbers), NICS(1) indices (red numbers), and AICD plots (0.03 isosurface) calculated for 3d (left column) and [3-H3d]⁺ (right column).

In conclusion, a series of nickel(II) complexes of N-substituted 10-azacorroles were obtained using oxidative insertion of primary amines into oxidant-activated antiaromatic norcorrolatonickel(II). The compounds obtained in this way were diamagnetic, aromatic, and electron-donating. Despite neutral character and the lack of an obvious protonation site, nickel(II) azacorroles appeared to be proton acceptors. Macrocycles protonated at one of the pyrrole β-carbons remained aromatic. The electron donating properties of the azacorrolatonickel(II) are reflected also by relatively low oxidation potentials allowing facile generation of the radical species. Further study on these compounds will involve exploration of their potential in organic electronic devices.
