Controllable photochromic molecules both in solutions and solid states (amorphous, films, and crystals) are valuable nascent optical materials. In this work, we report a facial route to design multi-state photochromic molecules by incorporating oligosilane chains into photoactive triphenylvinylthiophene (TPT) luminogens. The flexibility, bulkiness, and unique σ–π conjugation brought by silane chains enable different intramolecular interactions between two TPT units. A longer silicon chain bridge facilitates efficient electron delocalization and reduced structural constraint, thus resulting in reversible photochromism even in crystals with high-contrast color differences. This work provides a general method for developing novel multi-state photochromic materials for application in data encryption.
Aggregation-induced emission (AIE) luminogens offer fascinating tools to suppress the detrimental quenching effect in the solid state, and thus are suitable for fabricating multifunctional fluorescent materials.4 A general strategy to enhance the solid-state fluorescence of photochromic molecules is to integrate typical AIEgens covalently into them.5 Recently, another promising alternative approach has been proposed based on the rational modification of multiarylethene molecular skeletons. Considering tetraphenylethene (TPE) as an example, the replacement of one or more phenyl groups by a thienyl unit yields photochromic active tetraarylethene which exhibits photoinduced coloration and solid-state luminescence.6 Despite several excellent works, the development of compounds featuring multi-state photochromism with fast response and high contrast is still challenging.5a,7 Solid-state (especially the crystalline state) photochromism has extensive application values in practice.2c,3 Thus, exploiting multi-state photochromic systems based on versatile structure design is highly valuable.
Organosilicon compounds have attracted significant research attention in organic synthesis and materials science due to the unique features of silicon.8 In contrast to monosilanes, oligosilanes containing Si–Si bonds are of interest due to their characteristic σ-delocalization.9 Organic conjugated compounds that covalently combine a Si–Si σ bond with an aromatic ring give rise to σ–π conjugation, which results in enhanced dual state photoluminescence (PL),10 electron-transporting properties,11 and stimuli-responsive behavior.12 In our previous work, we employed oligosilane chains as linkages to design TPE-based AIEgens and found that they exhibit enhanced PL in solid states with multifunctional applications.13 We propose that introducing a bulky, flexible oligosilane chain into photochromic active tetraarylethene would enhance the PL intensity in the solid-state and control the photochromic behaviors conformationally and electronically. Herein, we designed a series of bis-triphenylvinylthiophene derivatives with oligosilane chains (Scheme 1, silicon number from one to four), and investigated their distinct reversible photochromic behaviours in multi-state situations. The color of the four compounds BTPTSin (n = 1–4, Scheme 1) changes from colorless to yellowish-brown in solution after UV irradiation (365 nm). This procedure is reversible upon visible light irradiation. In the powder form, BTPTSi1 shows weak photochromism, while BTPTSi2 is almost photochromic inactive. However, longer silicon chain bridged BTPTSi3 and BTPTSi4 exhibit fast and high-contrast color change upon UV irradiation in the powder form. It is noteworthy that BTPTSi4 exhibits reversible photochromism in the single crystal state. The structural analysis combined with theoretical calculations revealed the critical influence of molecular conformation on the photochromic activity in powder and crystalline forms. The use of these compounds in solid-state photoswitchable patterning was also demonstrated.
These oligosilane-bridged compounds exhibit similar absorption spectral profiles to that of TPT with maximum absorption at 315 nm (Fig. S1, ESI†), indicating their excellent optical transparency. They are not fluorescent in a good solvent such as THF. As shown in Fig. 1, BTPTSi1, BTPTSi2, and BTPTSi3 exhibit blue emissions with maxima at 446 nm, 462 nm, and 451 nm in powder forms, and the quantum yields (QYs) are 28%, 61%, and 7%, respectively. However, BTPTSi4 is almost non-fluorescent with a blue-shifted emission maximum at 424 nm and a QY as low as 1%. In the film state, BTPTSi2, BTPTSi3, and BTPTSi4 exhibit the same emission profile with maxima at 467–473 nm and QYs of 6%, 5%, and 6%, respectively. However, BTPTSi1 exhibited blue-shifted emission with a maximum centered at 433 nm and a QY of 11% (Fig. S1 and Table S1, ESI†). As for BTPTSi4, the loose intermolecular packing facilitates non-radiative decay and the powder sample is almost non-fluorescent. While in the film state, the intermolecular packing is close so that the sample emits stronger due to reduced non-radiative decay. Thus, the Si–Si bridges should significantly impact the intermolecular interaction in the solid state. All four compounds possess aggregation-induced emission in THF/water mixtures (Fig. S2, ESI†). Considering BTPTSi2 as an example, when the water fraction increased above 60%, enhanced emission intensity and bright bluish-green emission color were observed. Interestingly, when the water fraction was 90% and 95%, novel broad emission peaks emerged at around 465 nm, indicating a complicated aggregation process. The high energy emission peaks around 380 nm originated from the solution emission, while the lower energy emission peaks around 460 nm originated from the TPT aggregate emission.15
![]() | ||
Fig. 1 (a) Normalized PL spectra of powder samples (λex = 320 nm). (b) PL spectra of BTPTSi2 in THF (1 × 10−4 M) with increasing water fractions from 0% to 95% (λex = 300 nm). |
The photochromic behaviors were further examined in solid states (powder forms), and different coloration processes were observed. As shown in Fig. 2e–h and Fig. S3 (ESI†), after UV irradiation, the solids of BTPTSi1 and BTPTSi4 changed from the same pale yellow to light orange and deep purple, respectively. BTPTSi3 changed from white to light purple. However, disilane bridged BTPTSi2 showed an extremely weak color change when observed with the naked eye. A series of slightly raised absorption bands around 500 nm were detected on its UV-vis spectra. Novel absorption peaks at 480 nm, 520 nm, and 521 nm appeared on the time-dependent UV-vis spectra of solids BTPTSi1, BTPTSi3, and BTPTSi4, respectively. The absorption maxima of photochromic BTPTSi3 and BTPTSi4 red-shifted 14 nm and 15 nm compared with that of the TPT solid, indicating the efficient σ–π conjugation brought by the Si–Si bond linkage for electron delocalization. Notably, the irradiation time required for a complete color change for BTPTSi4 is 10 s, which is the shortest among those of all the compounds. These different color changes in solids can be attributed to the formation of different molecular aggregates modulated by the silane chains. This will be discussed in detail in the following crystal analysis section.
The photochromism of compounds in solids is accompanied by varying degrees of fluorescence quenching. As shown in Table S1 and Fig. S4 (ESI†), after 2 min of UV irradiation, the QYs of BTPTSi1, BTPTSi2 and BTPTSi3 descended from 28%, 61%, and 7% to 18%, 53%, and 2%, respectively. The QYs of BTPTSi4 before and after UV irradiation is 1%, indicating its weak emission character. These results demonstrated that photochromism and fluorescence are competitive processes, while the introduction of a silane chain would regulate these two processes and achieve better balance.
![]() | ||

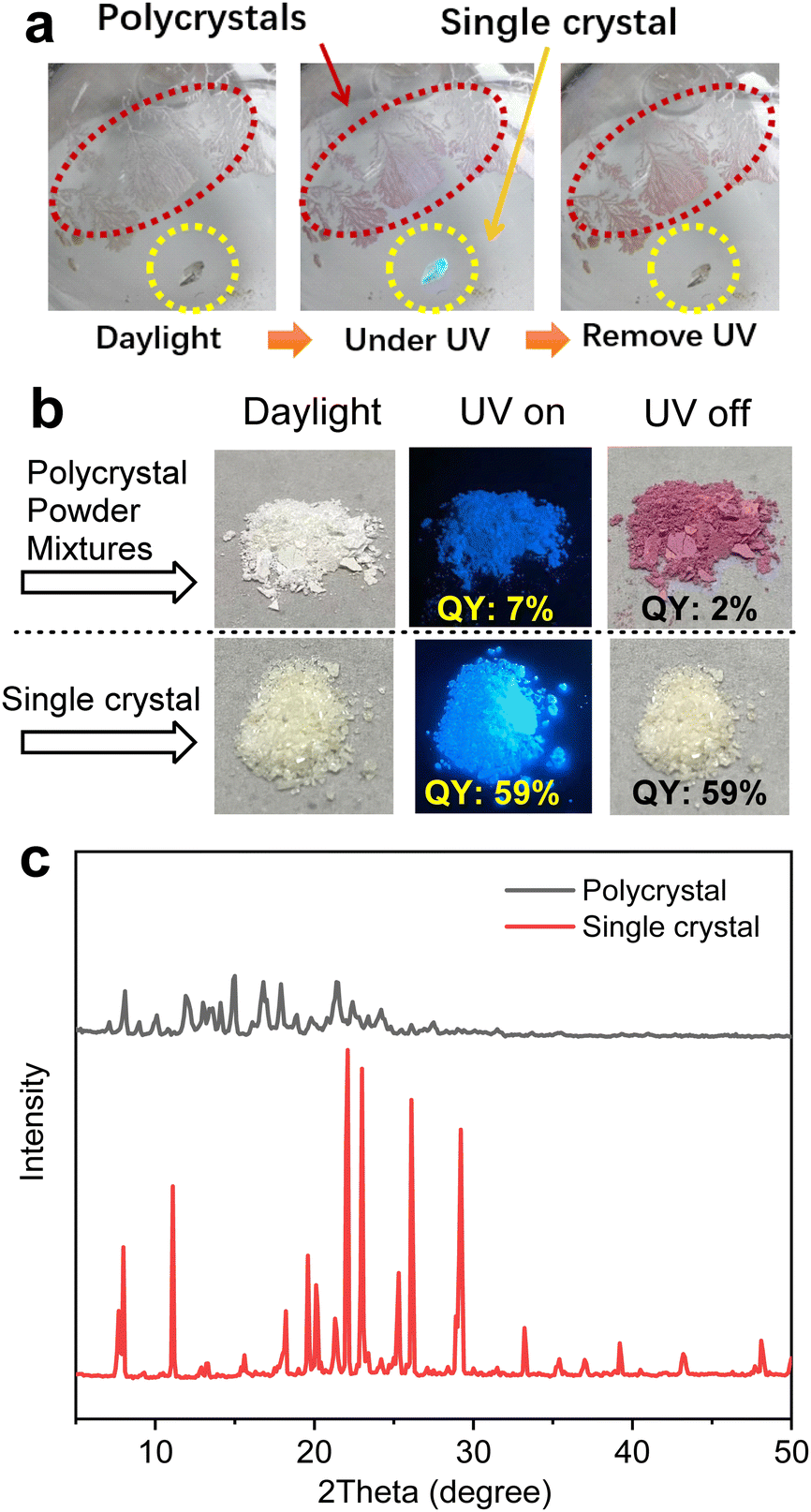

Fig. 3 (a and b) Photographs of BTPTSi3 polycrystals and single crystals upon UV irradiation. (c) XRD patterns of BTPTSi3 in polycrystal and single crystal states. |
Wide-angle X-ray diffraction was employed to examine the structural difference between powder and single crystal samples (Fig. 3c). The single crystals of BTPTSi3 showed multiple sharp scattering peaks with strong intensity, evidencing their high crystallinity. However, the peaks of the powder sample weakened and the full width at half maxima (FWHM) broadened, suggesting the disordered molecular geometry. We can conclude that in the single crystalline state, molecular conformation is highly constrained, while the powder form is usually prone to possess more diverse molecular conformation.
Single crystals of BTPTSi1, BTPTSi2, and BTPTSi4 were obtained by the slow diffusion of n-hexane into their CH2Cl2 solutions. In contrast, those of BTPTSi3 were obtained by the slow evaporation of its CH2Cl2 solutions at room temperature. Their structures are shown in Fig. 4. Detailed crystallographic data are summarized in Tables S2–S5 (ESI†). The single crystal of BTPTSi1 belongs to monoclinic with the space group C2/c, while that of the other three compounds belong to triclinic with the space group P. The silane unit in BTPTSi1 adopts typical tetrahedron conformation. Disilane and tetrasilane bridged BTPTSi2 and BTPTSi4 adopt fully extended, all-trans structures, while trisilane bridged BTPTSi3 adopts a folded conformation. Generally, photochromic reactions rarely occur in crystals because a large geometrical structure change is prohibited.2a To our surprise, BTPTSi4 is the only compound that exhibits reversible photochromism in the single crystalline state (Fig. 4e). This phenomenon indicates that the aryl groups of TPT units in the four compounds adopt different conformations. Phenyl and thienyl groups in the cis position of ethene constitute the photocyclization unit, which have two possible conformers, A and B (Fig. 4e). In single crystals of BTPTSi1, BTPTSi2, and BTPTSi3, phenyl and thienyl groups adopt conformer A, in which photoinactive thiophene β carbon is close to the phenyl group. The distances between unsubstituted thiophene α carbon and photoactive phenyl carbon of TPT units in BTPTSi1 and BTPTSi2 are 4.298 Å and 4.000 Å, while those in BTPTSi3 have different values of 4.115 Å and 4.193 Å. These distances are so large that the photocyclization reaction does not take place in single crystals.2a In contrast, TPT units in BTPTSi4 adopt conformer B, in which the photoactive carbons are close to each other with a distance of 3.262 Å. This distance is favorable for intramolecular cyclization, and the crystals of BTPTSi4 change from pale yellow to dark red under UV irradiation (Fig. 4e).
![]() | ||

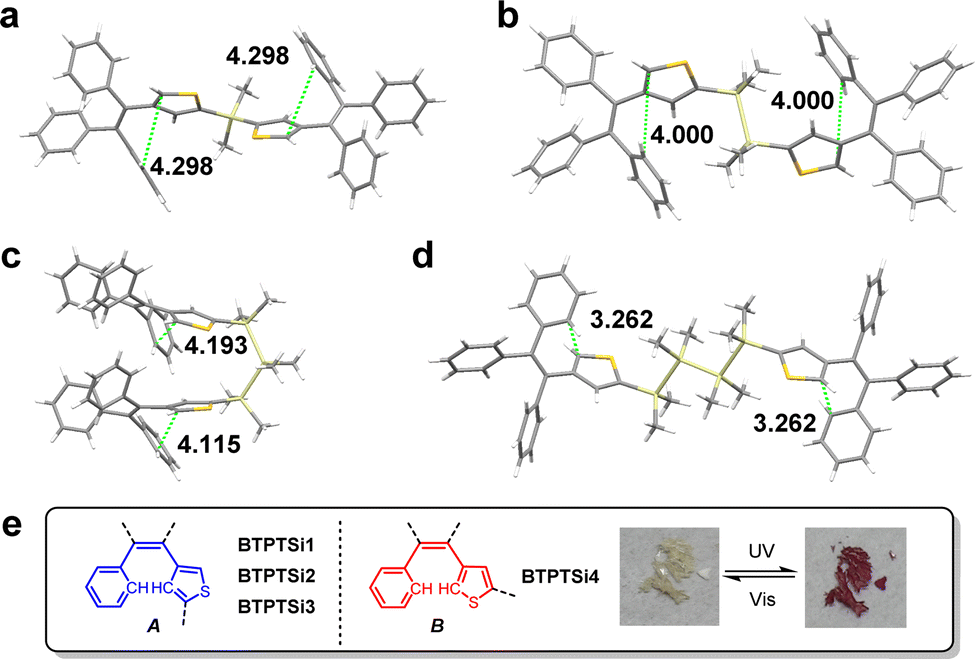

Fig. 4 Single crystal structures of (a) BTPTSi1, (b) BTPTSi2, (c) BTPTSi3, and (d) BTPTSi4. (e) Structures of two different photoinactive conformer A and photoactive conformer B in the four crystals. The inset shows the photographs of the coloration of BTPTSi4 single crystals. CCDC No. for BTPTSi1: 2204233, BTPTSi2: 2204234, BTPTSi3: 2204235, and BTPTSi4: 2204236. |
It has been reported that orthogonal torsion angles between the Si–Si σ-bond axis and the terminal aryl ring plane favor the most effective σ–π conjugation.16 In the crystals of BTPTSi2, BTPTSi3, and BTPTSi4, the torsion angles are 55.25°, 64.48°, and 72.22°, suggesting that the σ–π conjugation in BTPTSi4 is more effective. This result is consistent with the experimental data that BTPTSi4 exhibited the most redshifted absorption in the solid state after photocyclization. Time-dependent density functional theory (TD-DFT) calculations were performed on the TPT and BTPTSin (n = 1–4). All the HOMOs and LUMOs are mainly located at TPT units, while in BTPTSi2 and BTPTSi4, part of HOMOs spread on the Si–Si σ bond, indicating the existence of σ–π conjugation (Fig. S5 and S6, ESI†).

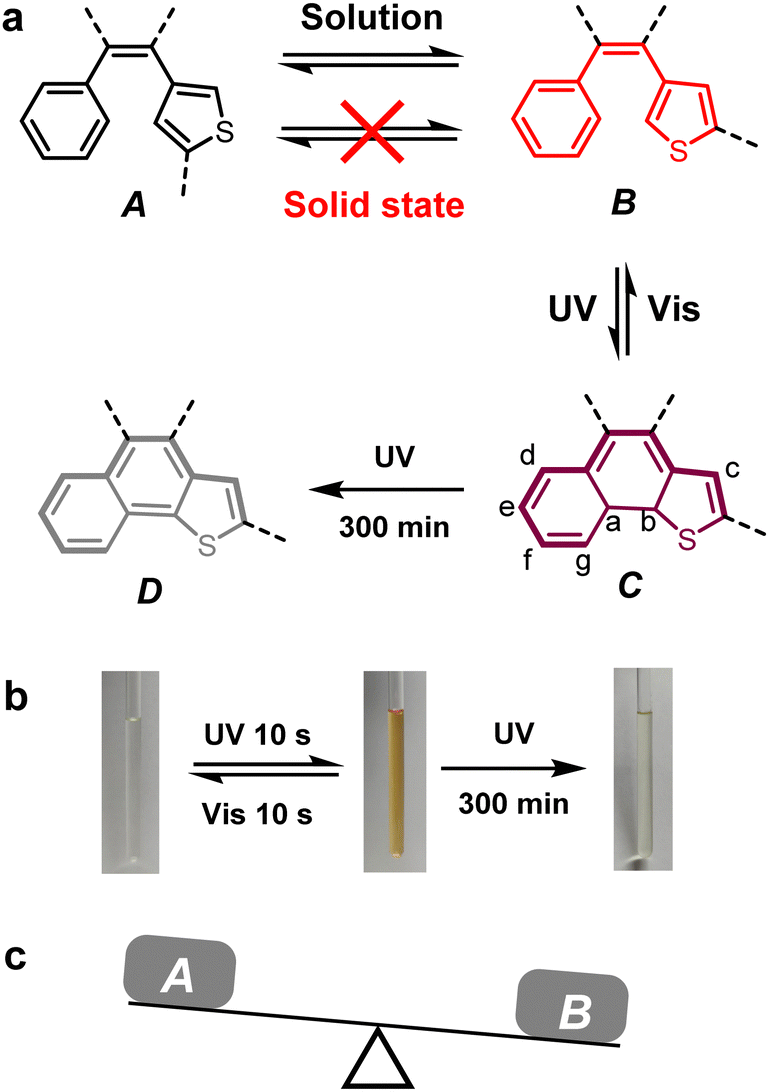

In solution and solid-state samples, photoinactive conformer A and photoactive conformer B may exist simultaneously.18 The ratio of these two isomers determines whether the photocyclization reaction will happen in the bulk sample. In the solution state, the thienyl group can rotate freely along the C–C single bond connected to the central ethene. It is easy to obtain conformation B and make it cyclized by UV irradiation. Thus, all the four compounds exhibit photochromism in THF solution with almost the same color change procedure, which originated from the ring-close reaction of TPT units. In single crystals, it is evident that BTPTSi1, BTPTSi2, and BTPTSi3 molecules uniformly adopt A conformation, while BTPTSi4 adopts B conformation (Fig. 4a and d). As a result, BTPTSi4 is the only compound that exhibits photochromism in the single crystal state. In amorphous and polycrystalline states, the molecular conformations become complicated. From the single crystal structures of BTPTSi1 and BTPTSi3, we can conclude that the intramolecular interactions in these molecules are weak. Both A and B conformations probably coexist in amorphous and polycrystalline states, and these two compounds exhibit photochromism. However, the single crystal structure of BTPTSi2 revealed relatively strong intramolecular C–H⋯π interactions, and thus conformer A will dominate in the solid state. As a result, we observed the weakest solid-state color change for compound BTPTSi2 after UV irradiation.
![]() | ||
Fig. 6 Photo-controlled patterning application of BTPTSi3 on filter paper. Top: Writing “Si” with a mask. Bottom: Control experiment. |
1H NMR (400 MHz, CDCl3) δ 7.13 (dd, J = 12.9, 3.8 Hz, 16H), 7.08 (d, J = 6.9 Hz, 10H), 7.03–6.98 (m, 4H), 6.97 (s, 2H), 6.59 (s, 2H), 0.25 (s, 6H).
13C NMR (101 MHz, CDCl3) δ 145.49 (s), 143.83 (s), 143.28 (s), 143.22 (s), 140.24 (s), 138.32 (s), 135.18 (s), 135.14 (s), 131.90 (d, J = 5.7 Hz), 131.04 (s), 130.76 (s), 130.67 (d, J = 3.7 Hz), 127.75 (s), 127.45 (s), 127.41 (s), 126.57 (s), 126.39 (s), 126.11 (s), −0.88 (s).
HRMS-ESI: m/z: calcd [C50H40S2Si + Na]+ 755.2239, found 755.2215.
Compounds BTPTSi2, BTPTSi3, and BTPTSi4 were obtained as white solids by using a similar procedure to that of BTPTSi1 in yields of 42%, 40%, and 51%, respectively. The silane starting materials used in these reactions are 1,2-dichloro-1,1,2,2-tetramethyldisilane (Cl–Si2–Cl) and silyl triflates.
BTPTSi2: 1H NMR (400 MHz, CDCl3) δ 7.11 (t, J = 9.6 Hz, 26H), 7.01–6.95 (m, 4H), 6.95 (s, 2H), 6.56 (s, 2H), 0.11 (s, 12H).
13C NMR (101 MHz, CDCl3) δ 145.88 (s), 144.25 (s), 143.67 (s), 140.49 (s), 137.66 (s), 136.20 (s), 135.58 (s), 131.78 (s), 131.35 (d, J = 5.7 Hz), 130.99 (s), 128.09 (s), 127.72 (d, J = 3.7 Hz), 126.85 (s), 126.64 (s), 126.39 (s), −2.88 (s).
HRMS-ESI: m/z: calcd [C52H46S2Si2 + Na]+ 813.2477, found 813.2483.
BTPTSi3: 1H NMR (400 MHz, CDCl3) δ 7.16 (d, J = 5.8 Hz, 6H), 7.12–7.04 (m, 20H), 7.01–6.96 (m, 4H), 6.94 (s, 2H), 6.56 (s, 2H), 0.14 (s, 12H), −0.09 (s, 6H).
13C NMR (101 MHz, CDCl3) δ 145.63 (s), 144.11 (s), 143.51 (d, J = 2.6 Hz), 140.28 (s), 137.15 (d, J = 6.9 Hz), 135.44 (s), 131.44 (s), 131.18 (d, J = 5.3 Hz), 130.81 (s), 127.95 (s), 127.55 (d, J = 3.8 Hz), 126.57 (d, J = 19.7 Hz), 126.21 (s), −2.08 (s), −6.81 (s).
HRMS-ESI: m/z: calcd [C54H52S2Si3 + Na]+ 871.2716, found 871.2725.
BTPTSi4: 1H NMR (400 MHz, CDCl3) δ 7.16 (t, J = 5.0 Hz, 6H), 7.12–7.05 (m, 20H), 6.99 (dd, J = 7.2, 2.4 Hz, 4H), 6.95 (s, 2H), 6.57 (s, 2H), 0.21 (s, 12H), −0.04 (s, 12H).
13C NMR (101 MHz, CDCl3) δ 145.61 (s), 144.12 (s), 143.51 (d, J = 3.2 Hz), 140.26 (s), 137.23 (d, J = 11.6 Hz), 135.44 (s), 131.41 (s), 131.18 (d, J = 4.4 Hz), 130.80 (s), 127.95 (s), 127.54 (d, J = 3.5 Hz), 126.56 (d, J = 19.7 Hz), 126.20 (s), −1.87 (s), −5.79 (s).
HRMS-ESI: m/z: calcd [C56H58S2Si4 + Na]+ 929.2955, found 929.2966.
